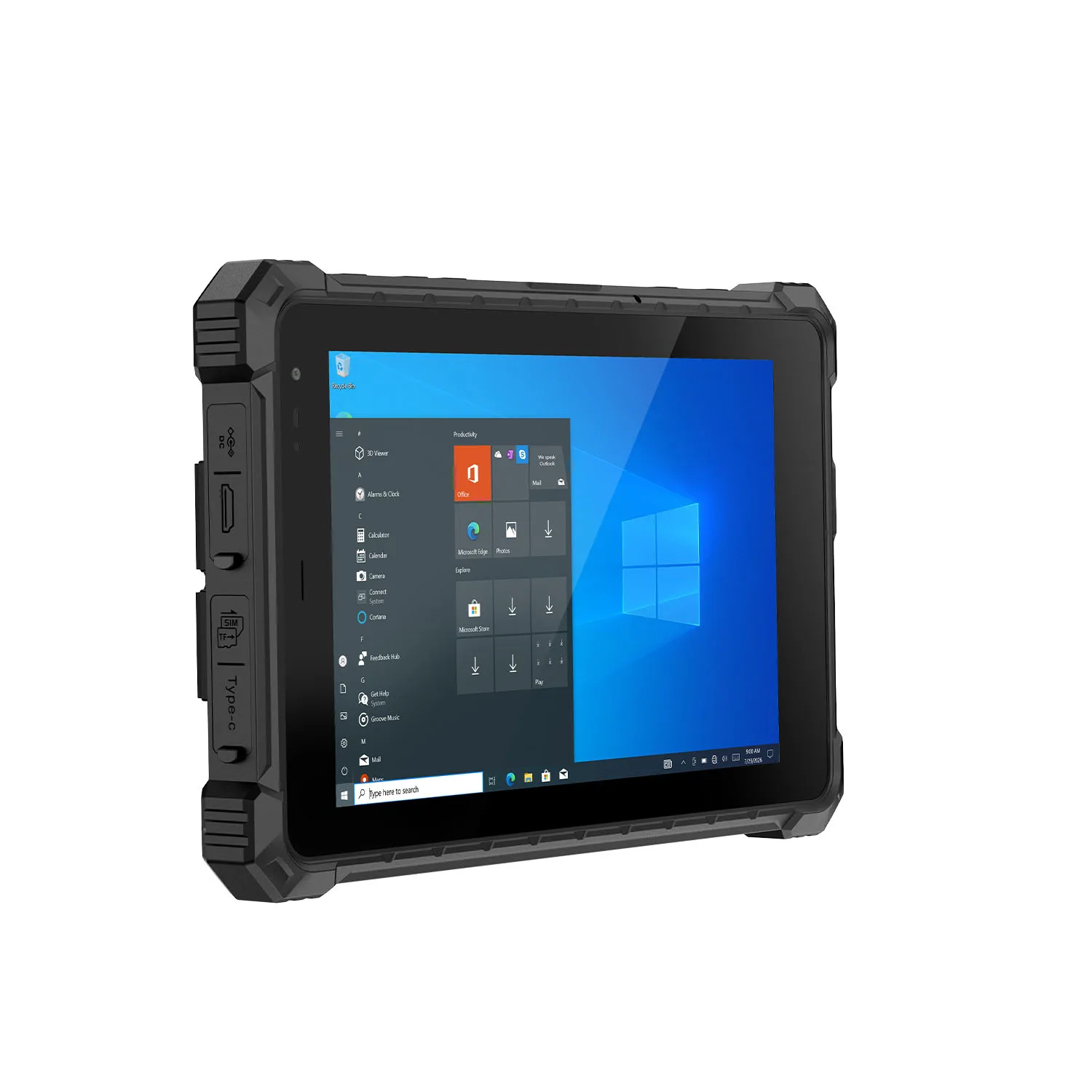

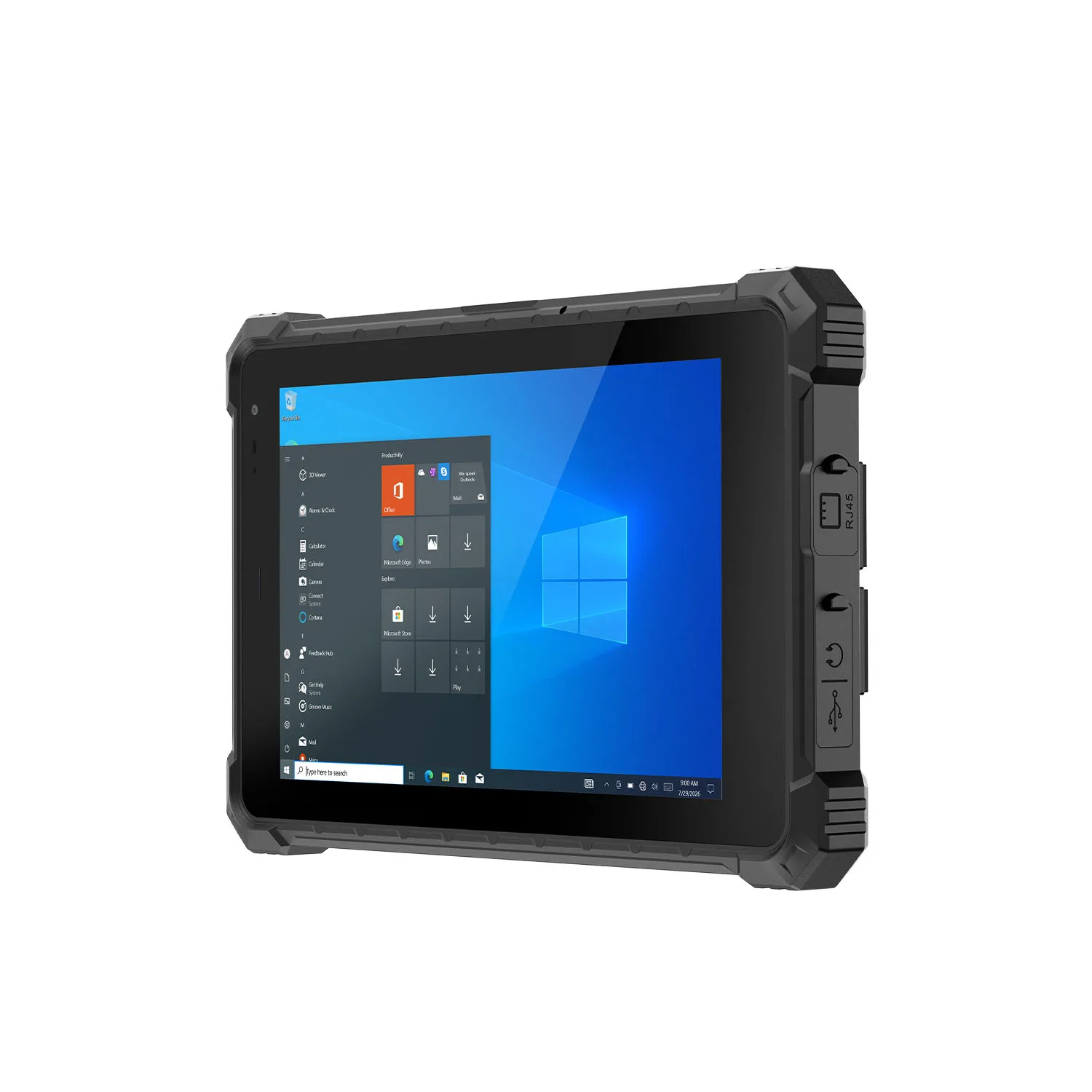

CENAVA W80NX N5100 8 Inch Windows IP67 Rugged Tablet
CENAVA W80NX is an 8-inch IP67 rugged industrial tablet with Intel N5100, Windows OS, 700cd/m² touchscreen, detachable battery, optional 1D/2D scanner, 4G/5G and RJ45, meeting MIL-STD-810H standards for harsh environments. An explosion-proof variant with its own Ex certificate is available on project order.
CPU: Intel Jasper Lake N5100 quad-core 4-thread, 1.1–2.8GHz, fanless passive cooling
OS: Windows 10 (optional Windows 11, Ubuntu 22.04.5)
Display: 8" IPS 1280×800 (optional 1920×1200), 700cd/㎡, 10-point G+G glove touch, hardness ≥7H (wet-hand touch customizable)
RAM/ROM: 8GB+128GB (custom 16GB+256GB)
Battery: 4700mAh 7.6V removable battery, swap in seconds
Integrated I/O: RJ45 (100M), Micro HDMI, Type-C USB3.0 (PD charging), USB-A 3.0, 3.5mm jack, TF up to 256GB, Micro SIM, DC 12V, 12Pin POGO
Network: Dual-band WiFi 6, Bluetooth 5.2; optional 4G LTE / 5G (custom function, mutually exclusive with NFC); GPS/GLONASS, optional single-BeiDou positioning
Protection: IP67, MIL-STD-810H 1.22m drop, -20°C~60°C, TPM security chip
Camera: Front 5MP fixed-focus + rear 8MP autofocus
Optional Modules: 2D scanner (N1/N670), NFC (choose one with 4G/5G); carry handle accessory

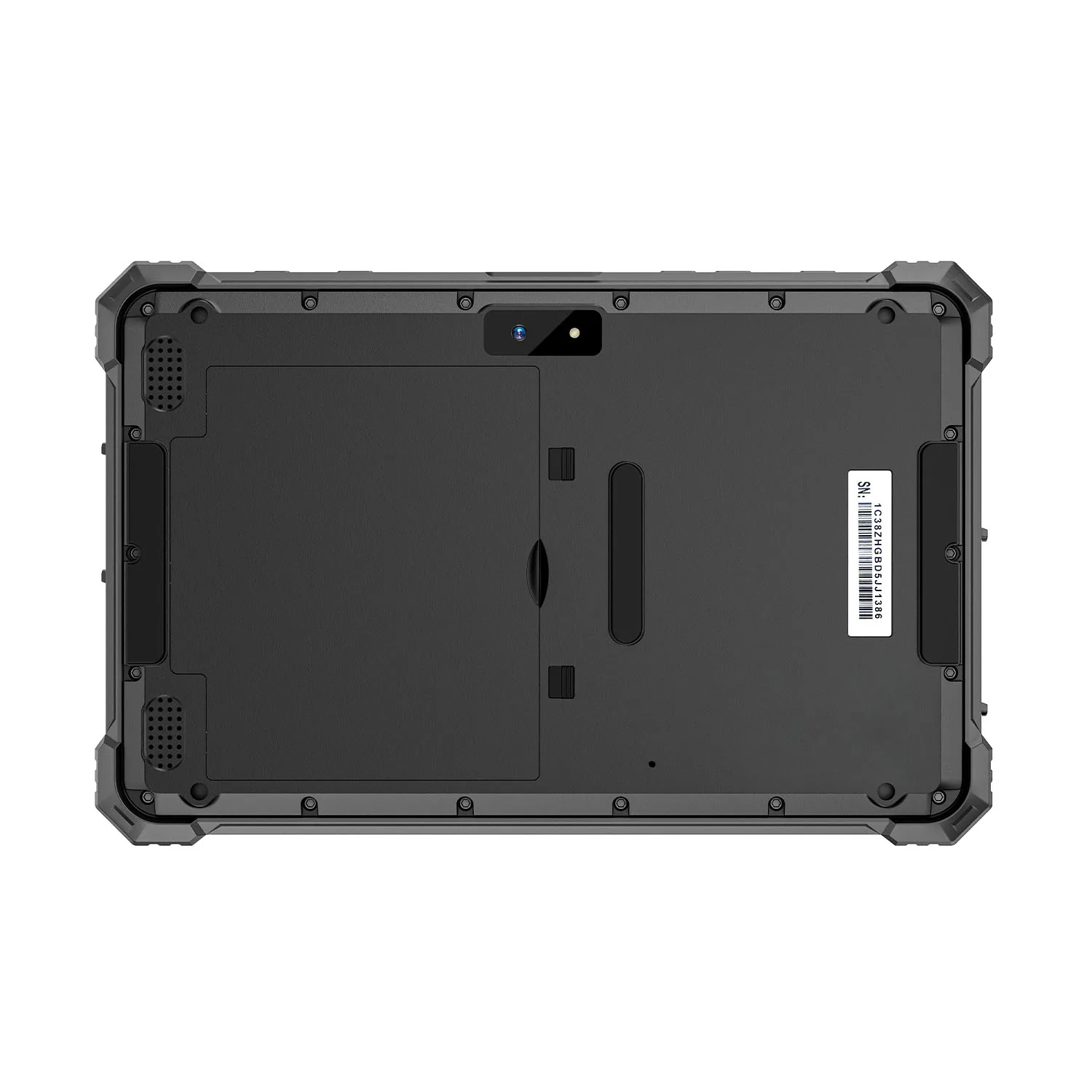

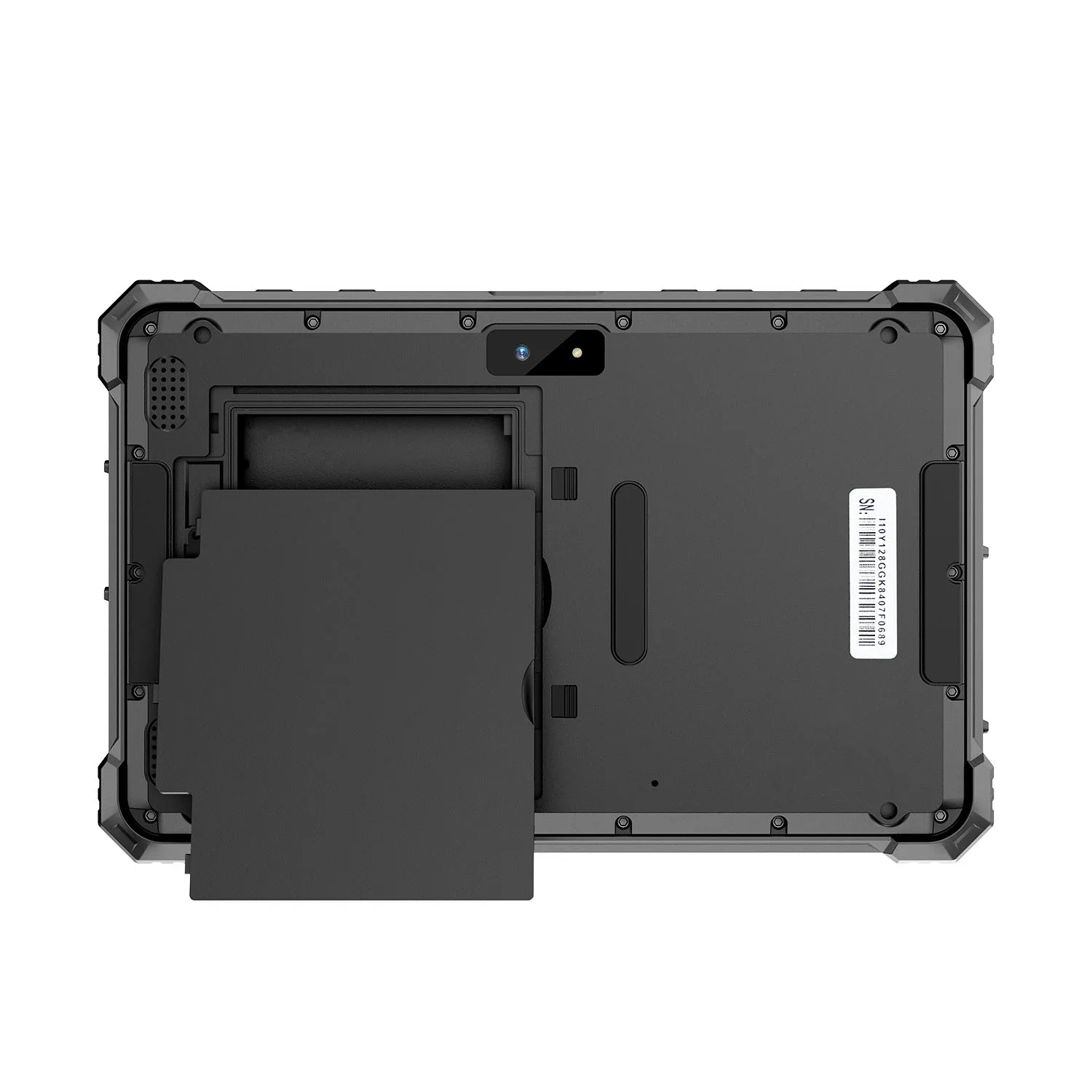

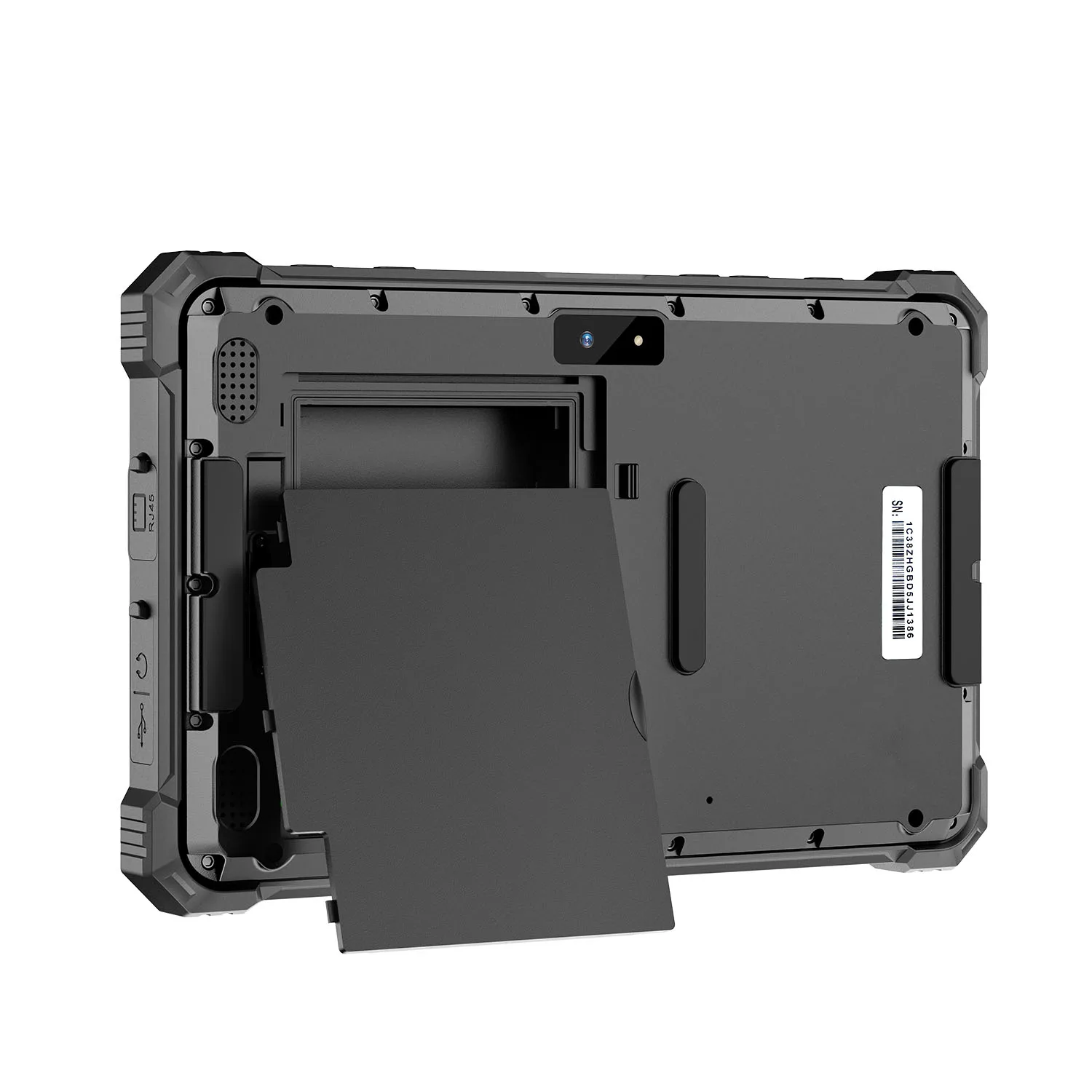

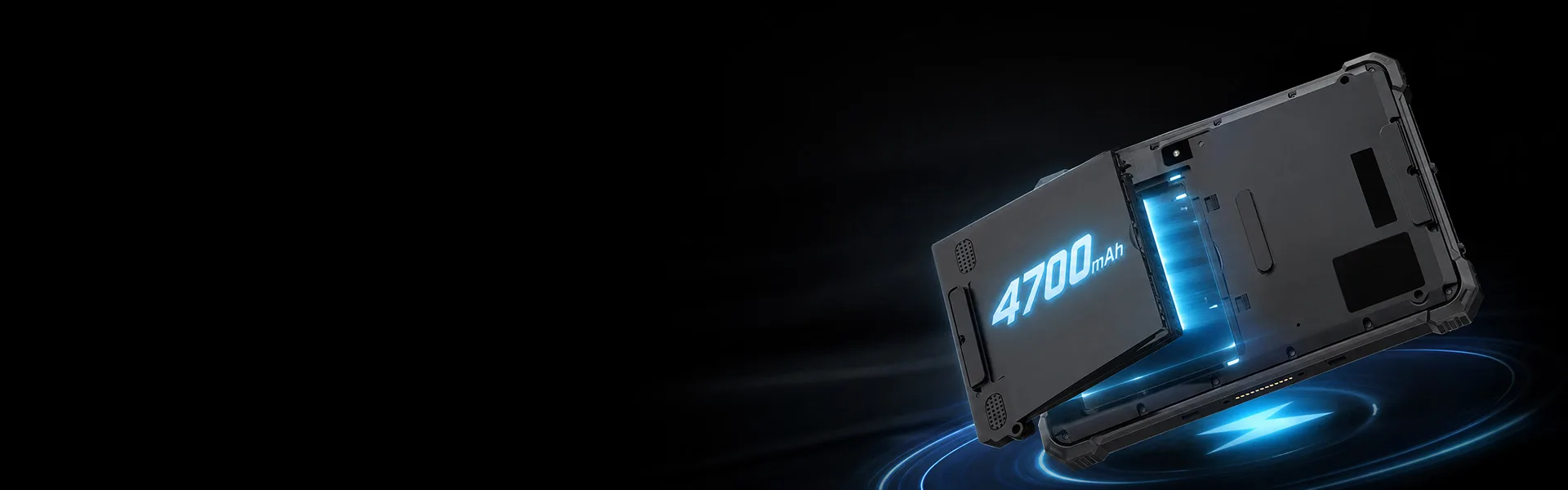

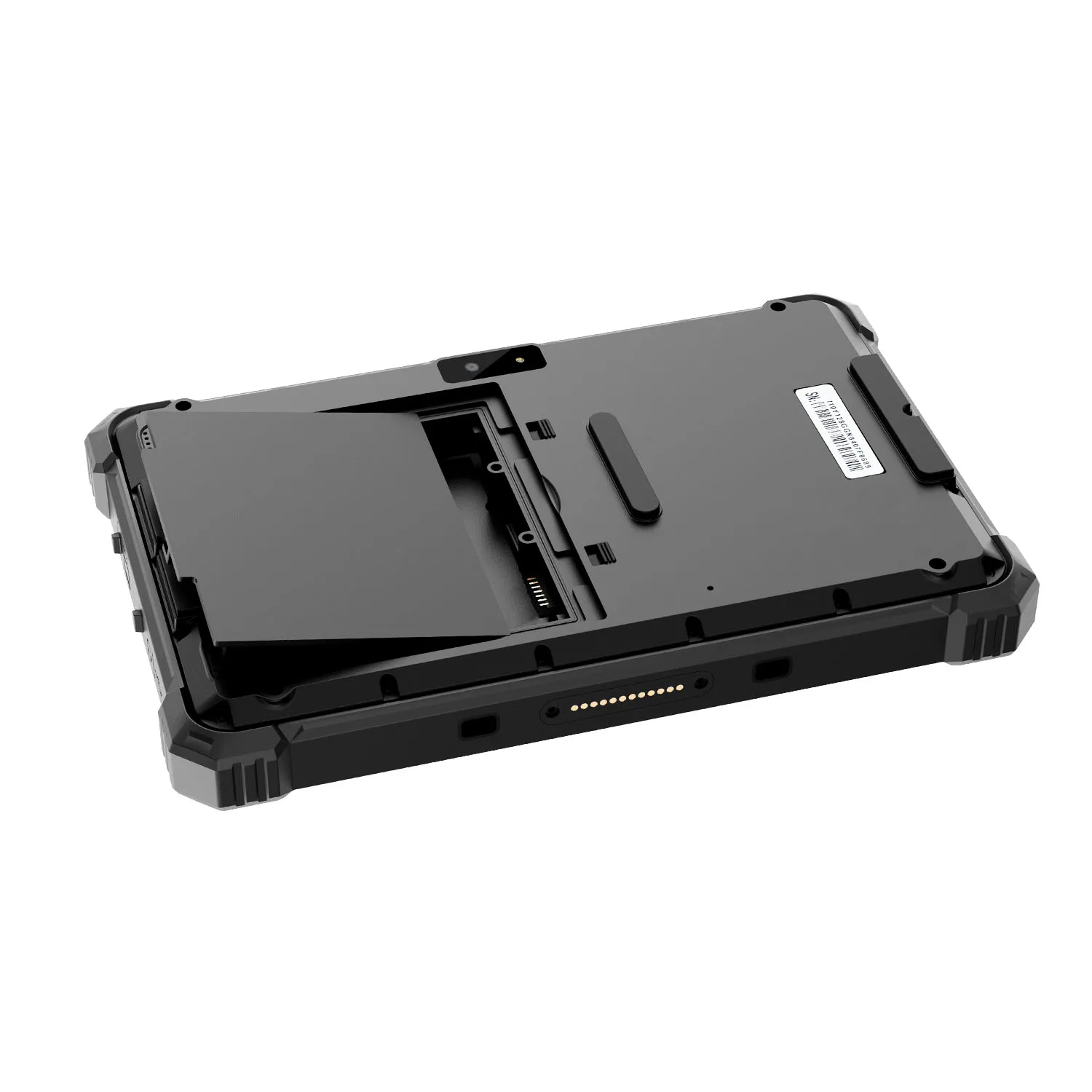

Fully Removable Battery
Swap And Go
4700mAh Removable Battery Spare Rotation Nonstop
Long patrols dread the red battery bar: the W80NX 4700mAh high-voltage pack is fully removable — carry a spare, swap in seconds when power runs low, and keep working without waiting for a charger. The 7.6V platform with the low-power N5100 covers a regular shift per pack. Teams can rotate multiple batteries so work never stops: logistics delivery, outdoor patrols, night duty. DC 12V charging refills spares quickly back at base between rounds. Downtime simply disappears from the schedule.

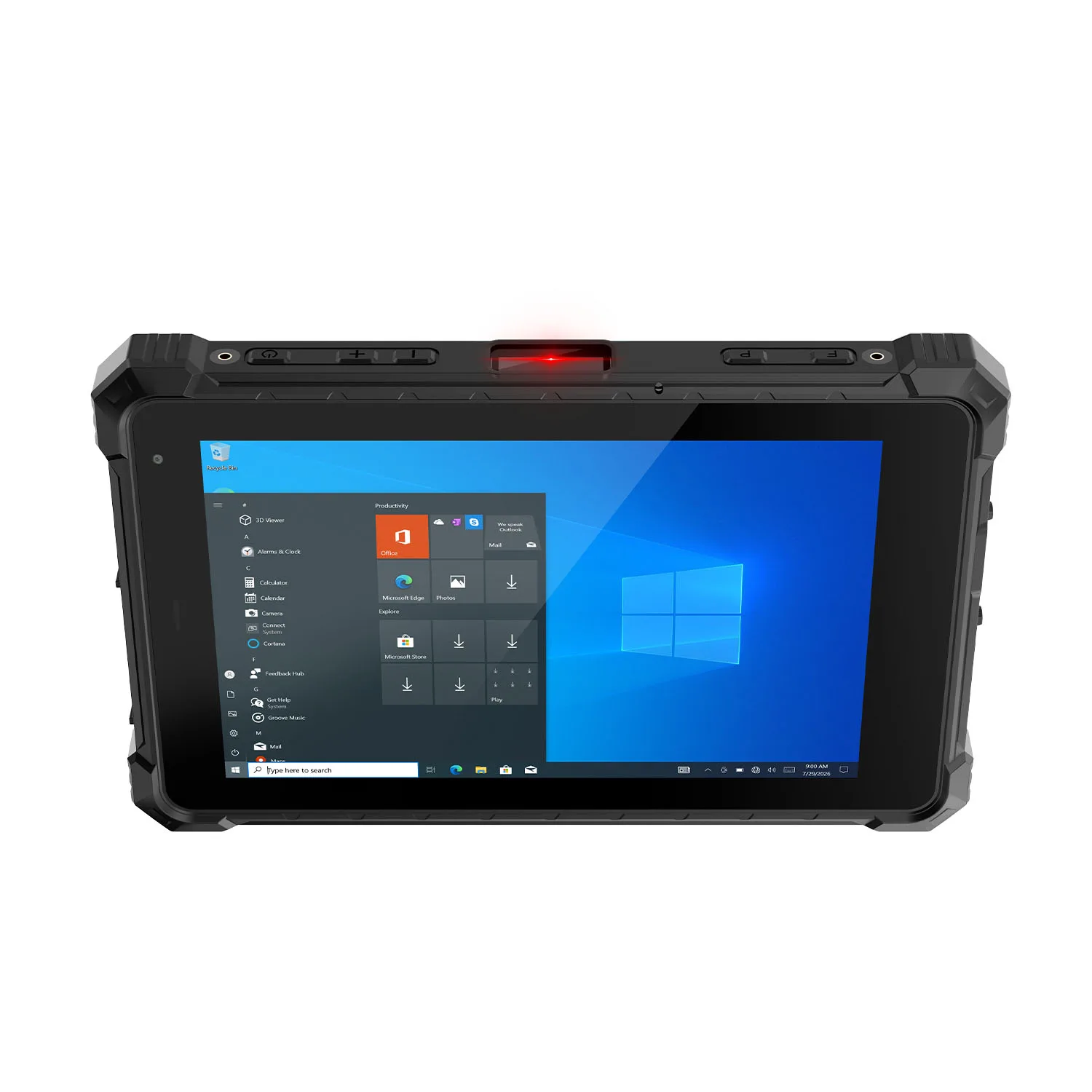

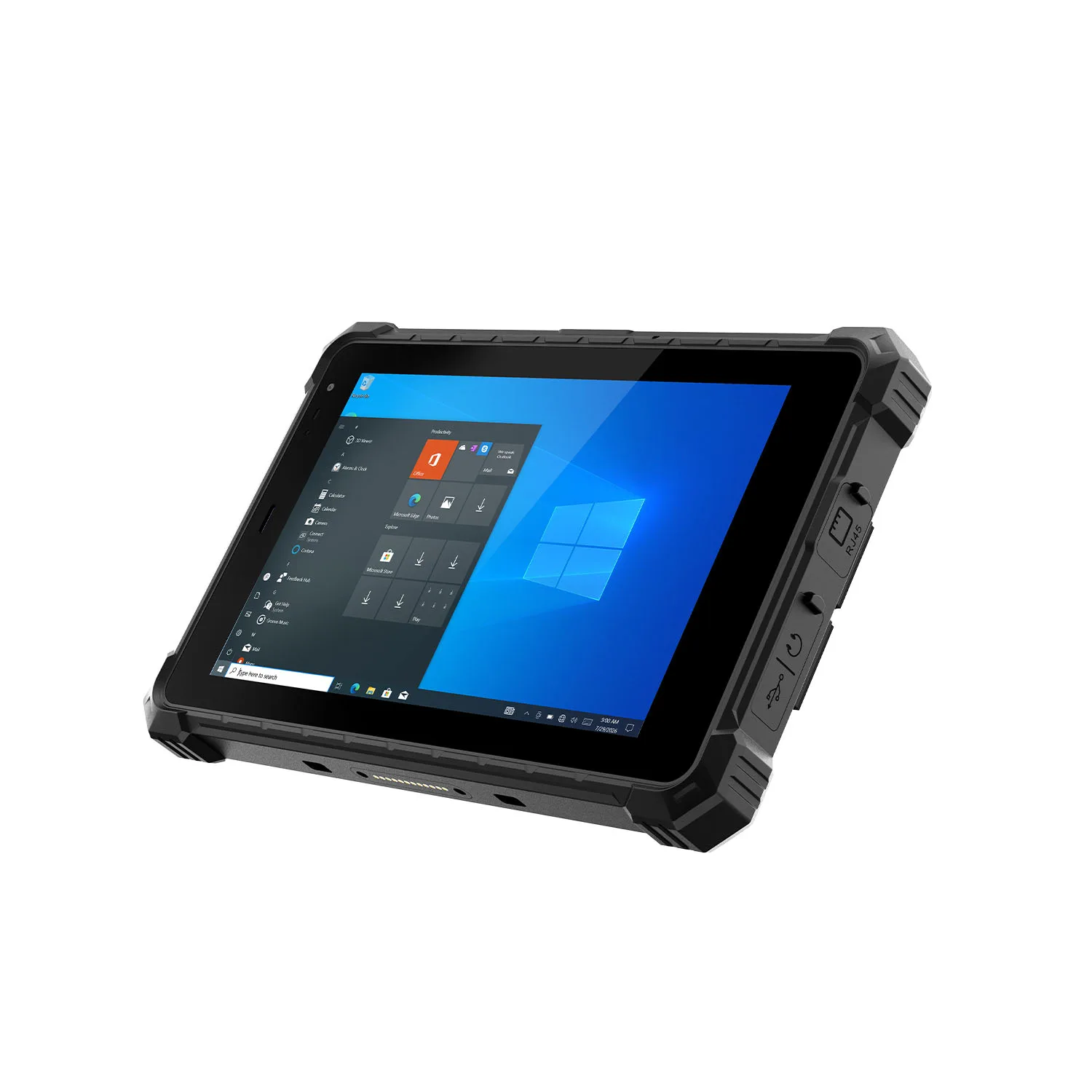

Bright Outdoor Screen
Glove-Direct Touch

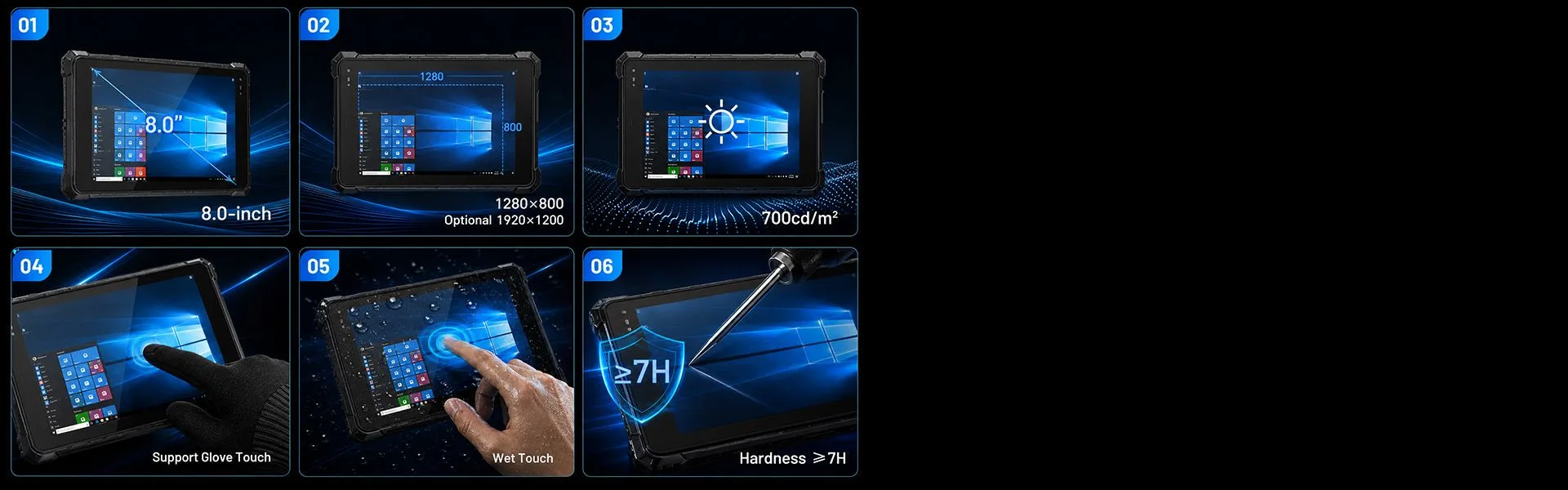

8-inch 700cd/㎡ Optional 1920×1200 10-Point Touch
Outdoor light is tricky, so brightness matters: the 700cd/㎡ panel keeps maps and work orders readable in noon sun; 1280×800 is standard, with a 1920×1200 HD option. 10-point G+G touch works precisely with gloves, ≥7H hardness resists scratches, and wet-hand touch is customizable for rainy patrols. The 8-inch size suits one-handed use on ladders and in pipe corridors. A 5MP front and 8MP autofocus rear camera capture clear on-site evidence. Evidence photos stay sharp for reports.
Practical Port Set
Flexible Expansion
RJ45 + Micro HDMI + USB3.0 + Optional 2D/NFC

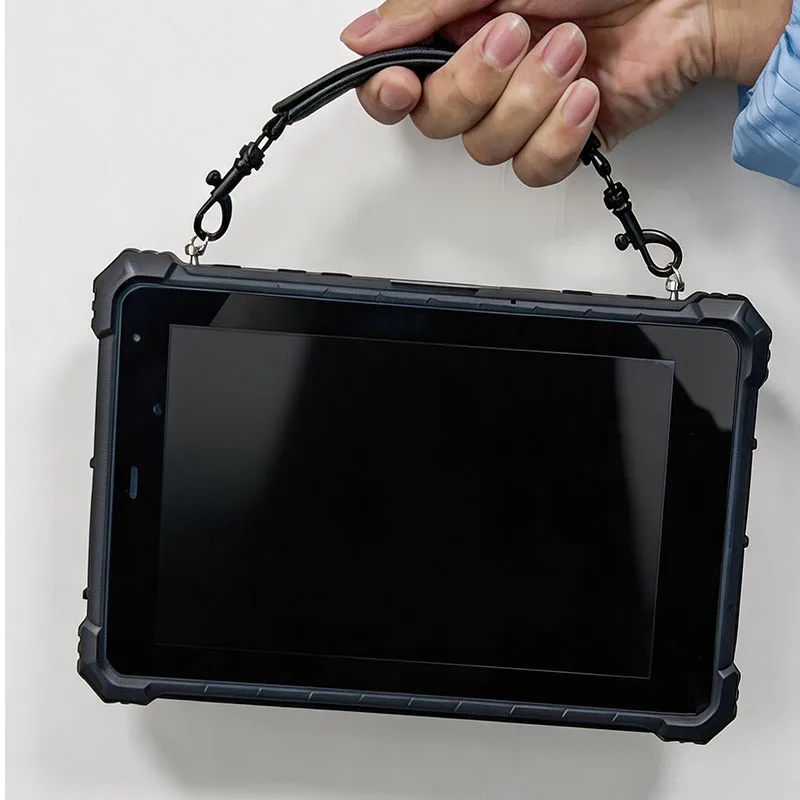

RJ45, Micro HDMI, Type-C USB3.0 with PD charging, USB-A 3.0, a 3.5mm jack, TF slot, Micro SIM and 12-pin POGO — a practical set that connects field equipment and docks smoothly. An optional 2D scanner (N1/N670) reads logistics labels and asset tags instantly; optional NFC (choose one with 4G/5G) handles ID checks and patrol clock-ins; a carry-handle accessory steadies transport. Pick what you need and skip what you don't. Expansion stays flexible for every crew and budget.

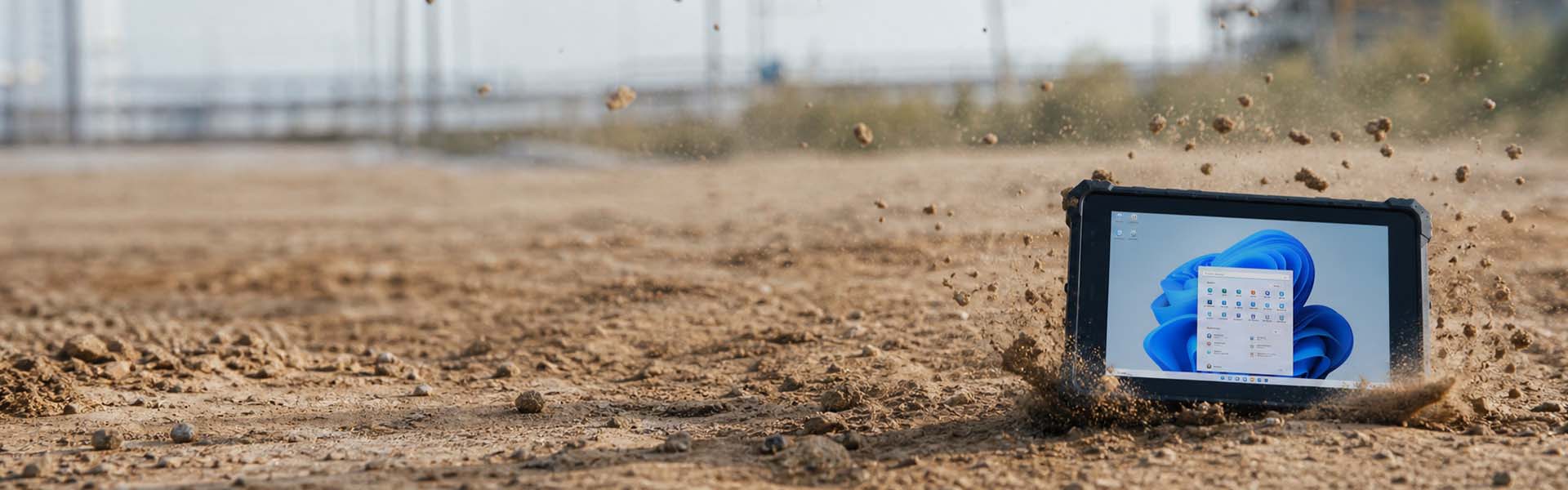

Military Protection

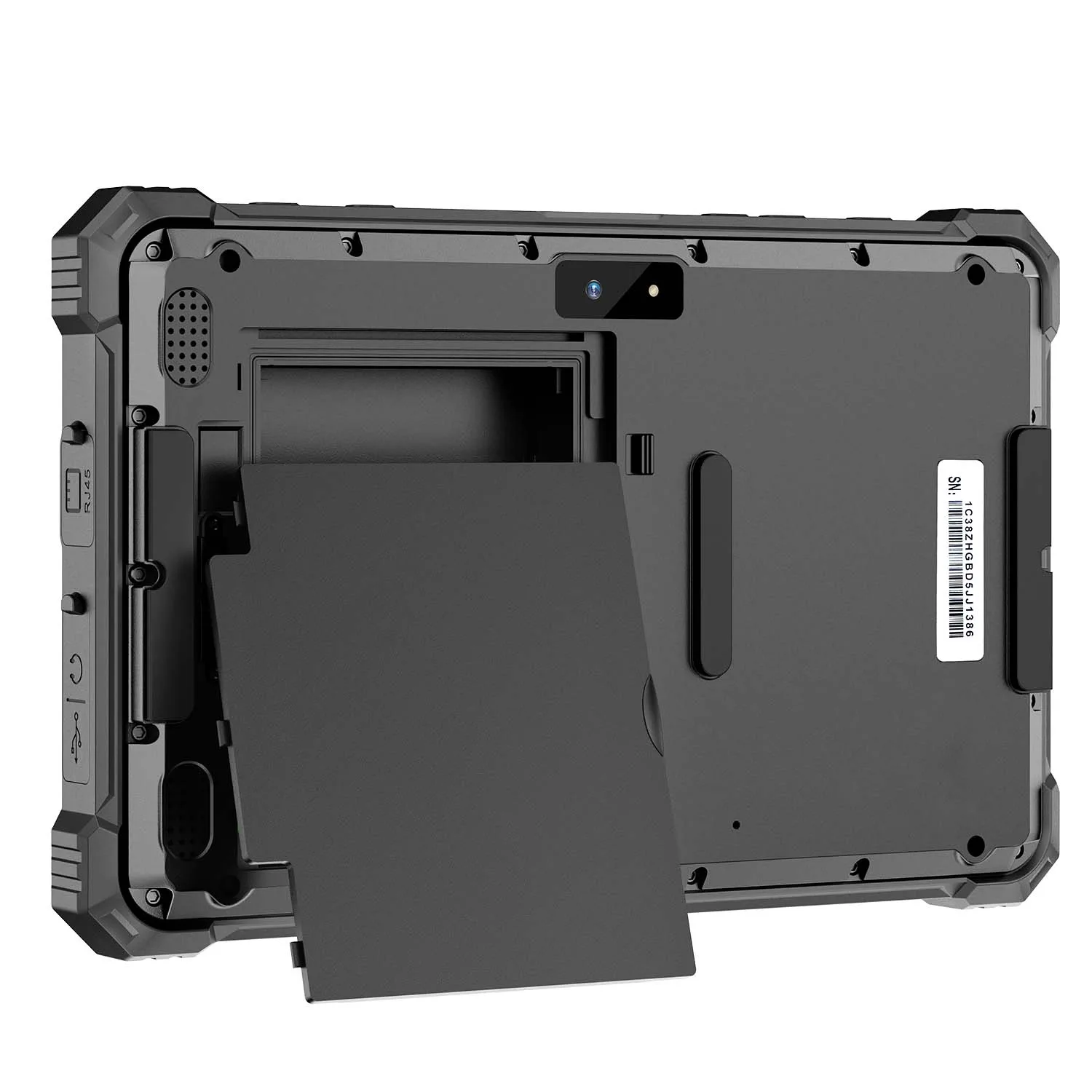

Sealed Despite Swaps
IP67 1.22m Drop -20°C~60°C TPM Onboard
A removable battery does not mean weaker protection: the sealed battery compartment keeps the unit IP67 dust- and waterproof through rain and dust; MIL-STD-810H certification covers 1.22m drops, and the structure stays solid through frequent swaps. It runs from -20°C to 60°C with an onboard TPM chip encrypting patrol data. The fanless N5100 runs Windows 10 (Windows 11 and Ubuntu optional), with dual-band WiFi 6, Bluetooth 5.2 and GPS/GLONASS positioning. It stays tough, durable and easy to maintain.
Technical Specifications
 CPU Intel Jasper Lake N5100 4-core 4-thread 1.1 GHz – 2.8 GHz |  System |  Storage 8GB+128GB (custom 16GB+256GB) |  Display Resolution: IPS 1280×800 / 1920×1200 Brightness: 700 cd/m² Size: 8 inches, 16:10 |
 Navigation positioning GPS、GLONASS Optional: Single BeiDou |  Battery Removable 7.6V/4700mAh |  Interface RJ45 100M, Micro HDMI, Type-C USB3.0 (PD), USB-A 3.0, 3.5mm, TF, Micro SIM, DC 12V, 12Pin POGO |  Weight
|
 Card slot Standard Micro SIM card slot |  Protection level IP67 |  Camera Front 5MP FF; rear 8MP AF |  Sensor Gravity sensor |
W80NX 8 Inch Removable Battery Details:
| Size weight | 232.2*151.3*30.4mm/895g |

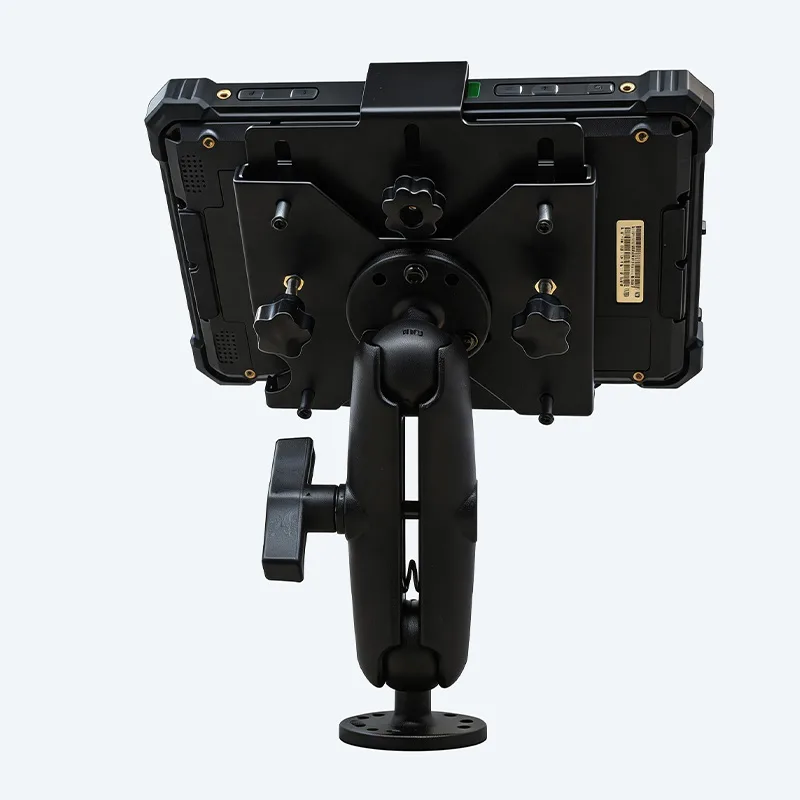

| Wall hole pitch / screw | 176.0x122.0mm/ M3*4.5mm |
| color | Black, color can be customized |
| screen brightness | 700cd/㎡ |
| TP touch screen | Anti-fingerprint (AF) coating,10-point touch G+G, hardness ≥ 7H, support for medical rubber gloves touch screen (can be customised wet hand touch screen) |
| TPM | Built-in TPM Security chip |
| Gravity sensor | Support |
| Operating System | Windows 10 |
| TYPE-C | *1 USB3.0 Support PD charging |
| Type -A | *1 USB3.0 |
| Earphone Jack | *1 3.5mm standard headphone jack |
| SIM Card | *1 Standard Micro SIM card slot |
| HDMI | *1 Micro HDMI |
| DC port | *1 12V-4A (DC plug outer diameter 3.5mm inner diameter 1.35mm) |
| RJ45 | *1 100M |
| POGO PIN | *1 12Pin USB+charger |
| Drop height | Meets the requirements of MIL-STD-810H for the 1.22-meter drop test |
| Certificates | IP67 (IEC 60529), CE, RoHS; drop-tested to MIL-STD-810H (1.22 m); ISO 9001-certified factory; salt-spray tested |

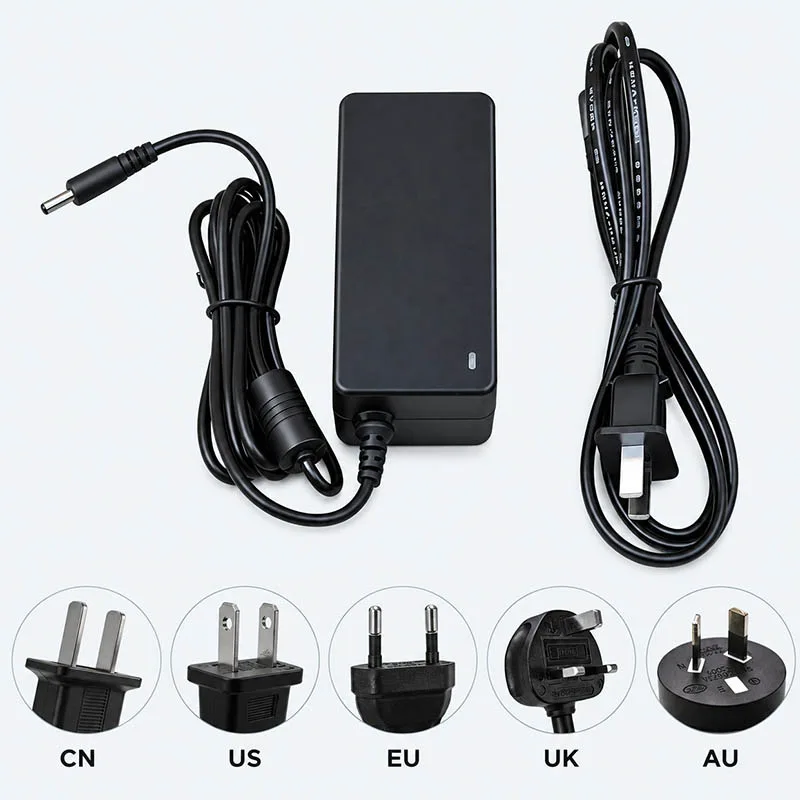

| Adapter | 12V-4A，DC interface adapter |
Frequently Asked Questions About the W80NX Rugged Tablet
1. Which processor and operating system does the W80NX use?
The W80NX is powered by the Intel Celeron N5100 Jasper Lake processor, featuring four cores, four threads, a 1.1GHz base frequency and a maximum burst frequency of 2.8GHz.Windows 10 is the standard OS; Windows 11 and Ubuntu 22.04 are available as validated project options.
2. Is the W80NX suitable for industrial Windows applications?
Yes. The W80NX is suitable for warehouse management, field inspection, vehicle dispatch, equipment maintenance, browser-based systems and mobile data-collection applications. Its Intel N5100 processor is designed for low-power computing rather than heavy CAD, video editing or complex workstation workloads.
3. Is the W80NX waterproof and dust-resistant?
The W80NX is rated IP67, providing enclosure protection against dust and liquid exposure under the applicable IEC 60529 test conditions. It is suitable for industrial and semi-outdoor environments, but it should not be described as submersible unless a separate higher IP rating has been tested and certified.
4. What display configurations are available?
The W80NX has an 8-inch IPS touchscreen with 700-nit brightness. 1280×800 is standard; 1920×1200 is an optional project configuration. Glove touch is supported, while wet-hand operation can be customized.
5. Does the W80NX have a removable battery?
Yes. The W80NX uses a removable 7.6V 4,700mAh high-voltage lithium-ion battery. Spare batteries may help support longer work shifts, but customers should confirm the tested operating time, charging duration, standalone battery charger availability and whether the battery can be replaced while the tablet is running.
6. Does the W80NX support 4G or 5G connectivity?
The W80NX can be customized with mobile-network modules. Customers should confirm whether the selected configuration supports 4G LTE or 5G, together with the module model, SA/NSA capability, frequency bands, SIM specification and local carrier compatibility.
Note: the 4G/5G module and NFC are mutually exclusive — choose one at order time.
7. Which positioning systems does the W80NX support?
The standard positioning configuration is listed with GPS and GLONASS. A BeiDou-enabled positioning option is also referenced for project orders. Customers should confirm the selected GNSS module, supported constellations, antenna design and expected positioning accuracy.
8. Which industrial interfaces are available?
The W80NX can provide USB Type-C 3.0 with PD charging, USB Type-A 3.0, Micro HDMI, RJ45 Ethernet, a 3.5mm audio jack, DC input, Micro SIM, TF card expansion and a 12-pin POGO connector for USB and charging. The Ethernet speed and exact POGO expansion functions should be confirmed for each configuration.
9. Can a barcode scanner be integrated?
Yes. Optional 1D and 2D barcode-scanning modules are available for warehouse, logistics, retail inventory and asset-management applications. Customers should confirm the scanner engine, supported barcode formats, scanning distance, physical scan keys and Windows or Ubuntu SDK support before sample production.
10. Is an explosion-proof version of the W80NX available?
The product introduction references explosion-proof certification, but customers should request the exact Ex marking, certificate number, certification body, applicable hazardous zone, operating-temperature range and permitted hardware modules before ordering. The standard IP67 version should not be assumed to have the same certification as a dedicated explosion-proof version.

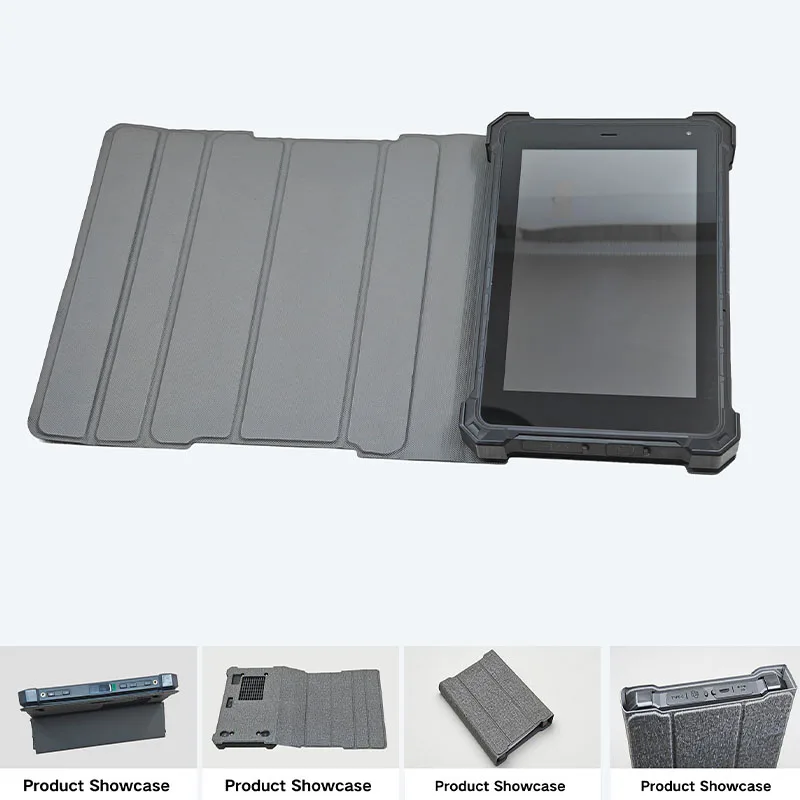

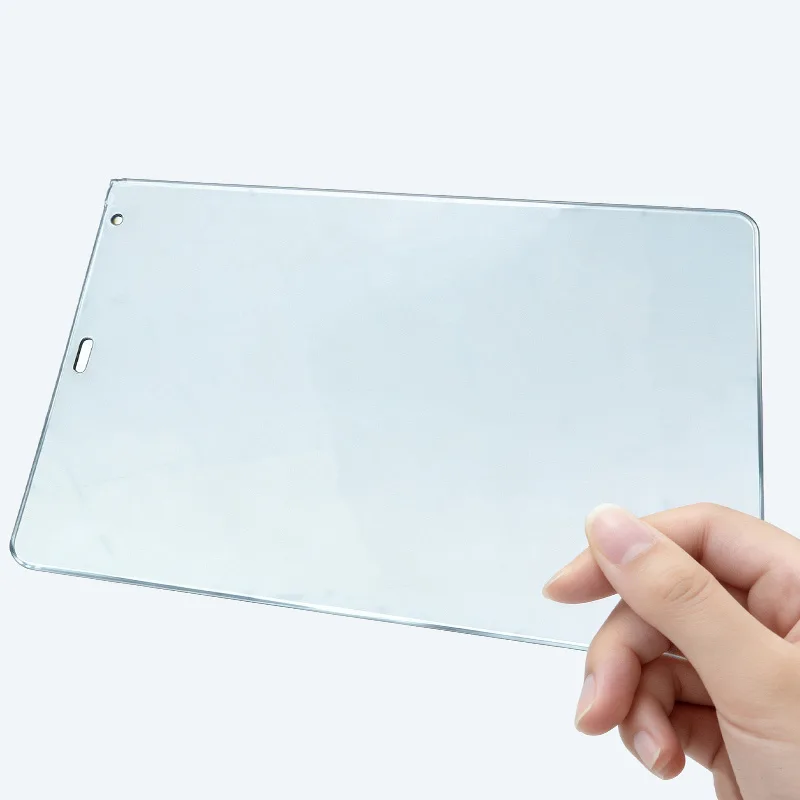

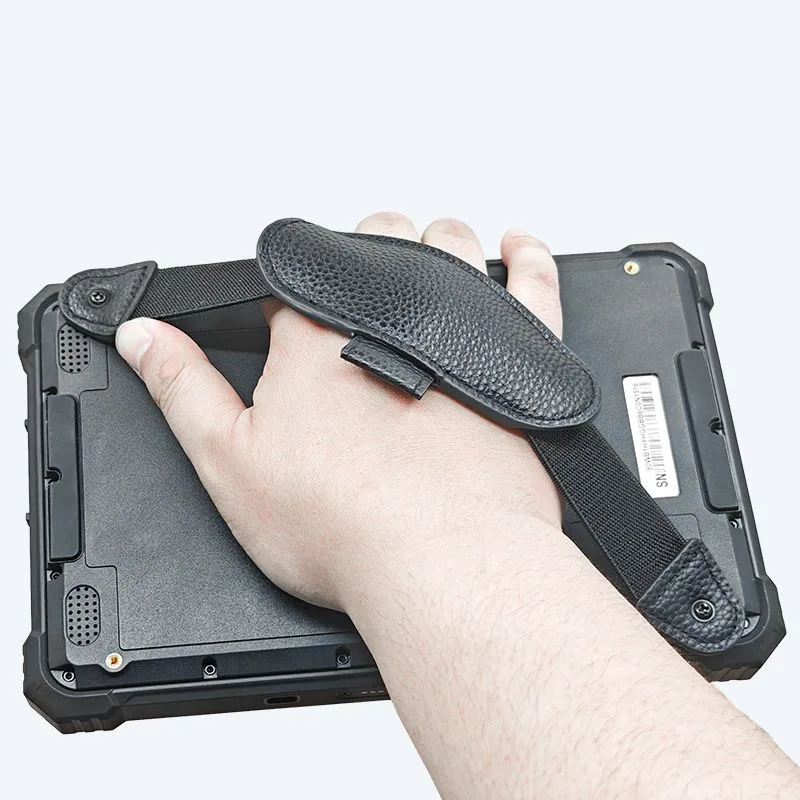

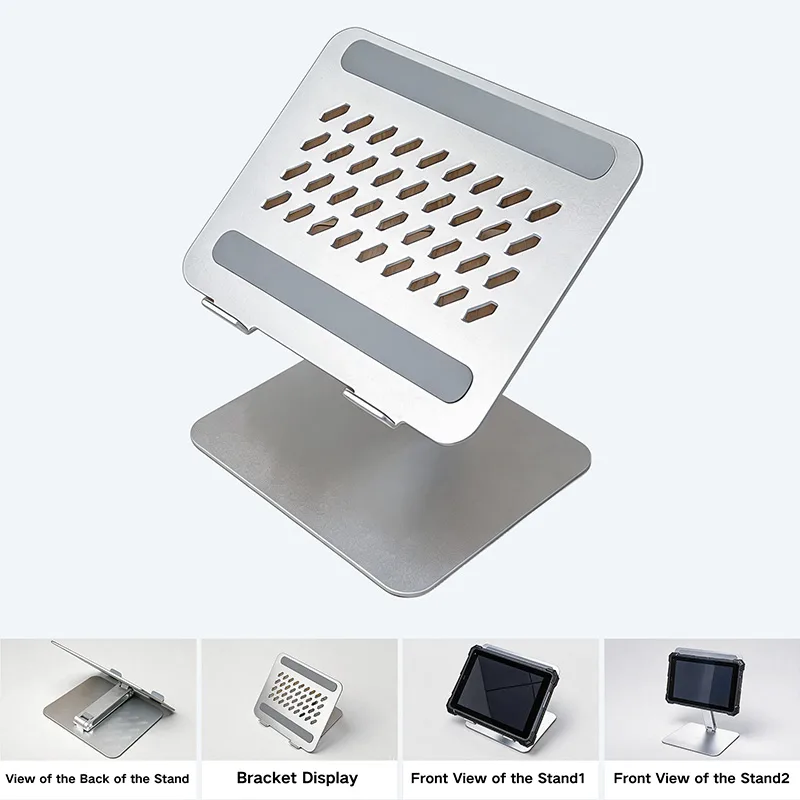

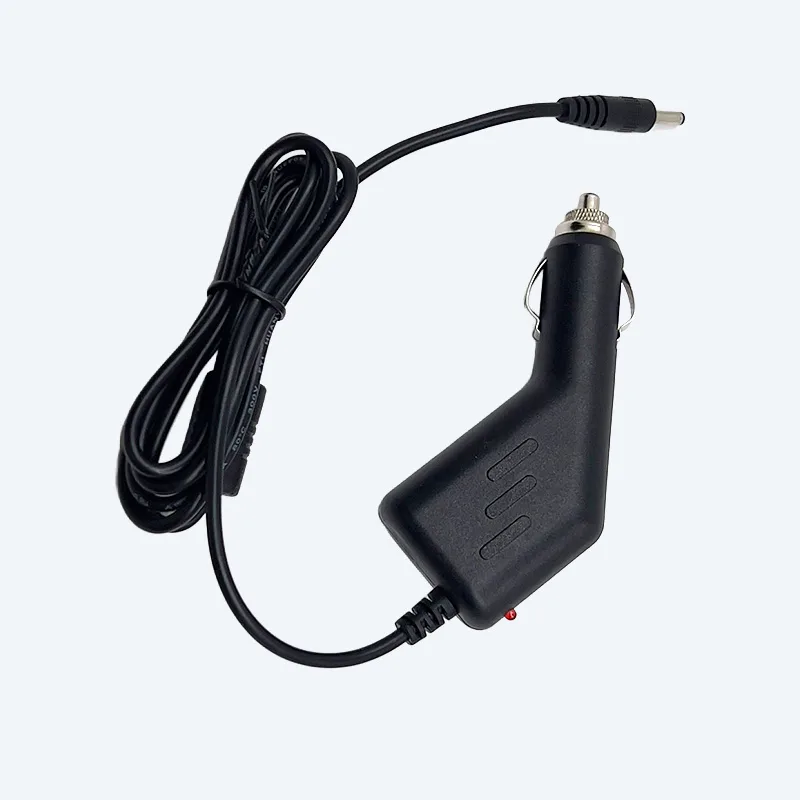

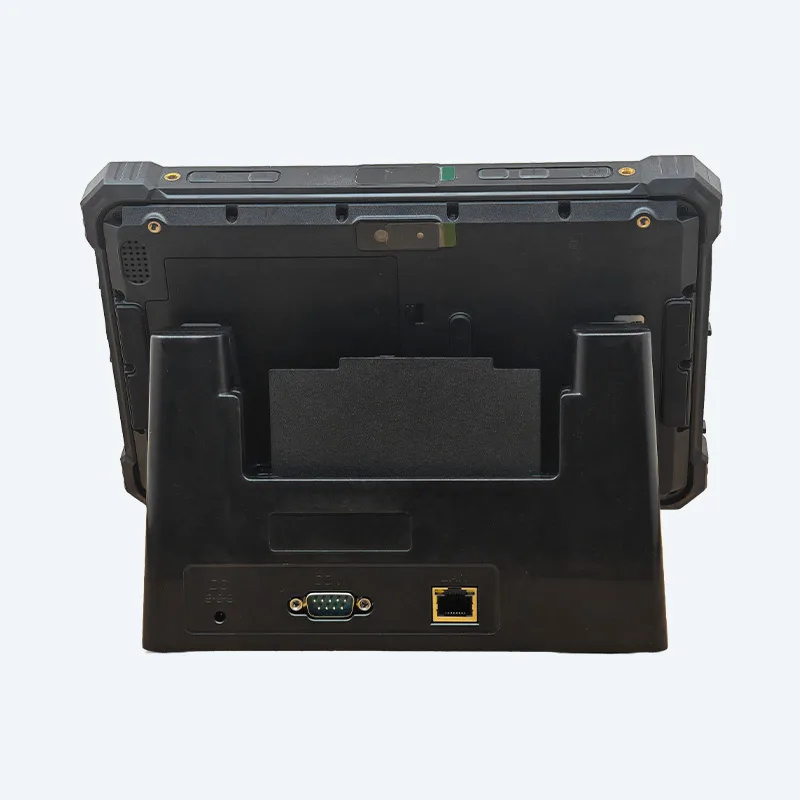

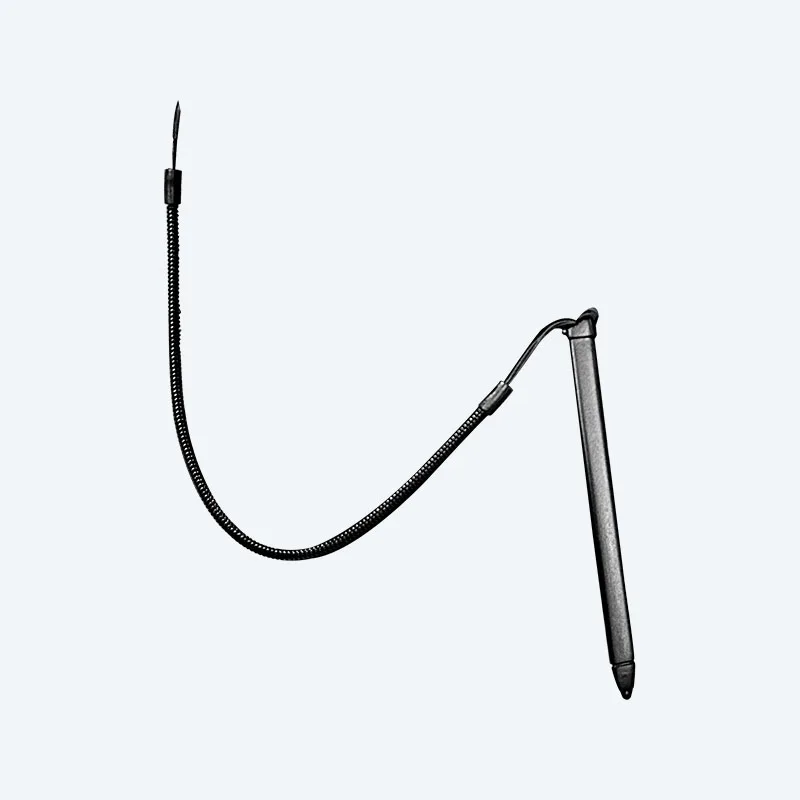

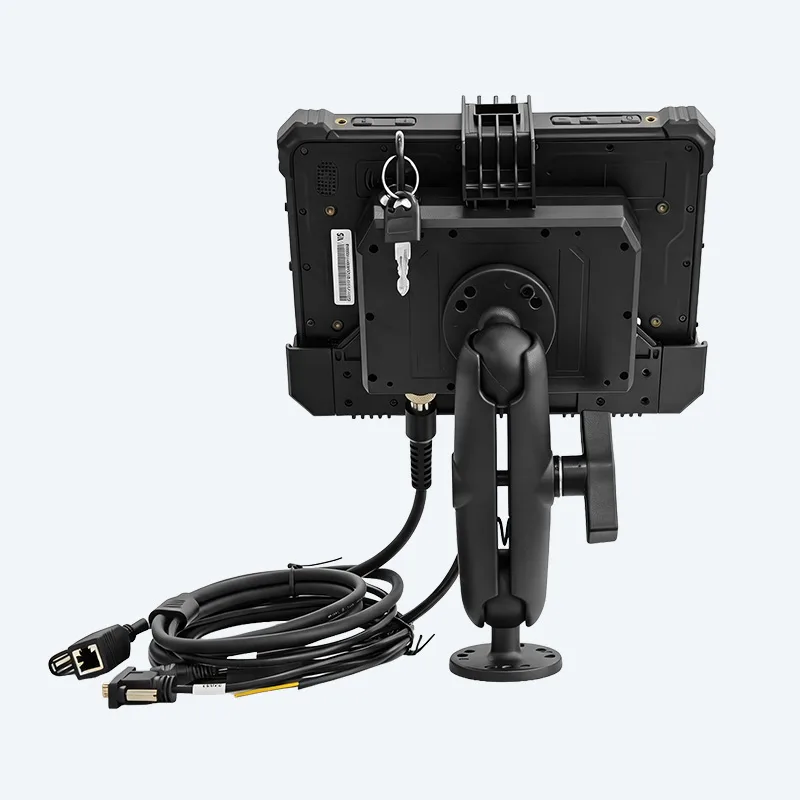

Accessories
