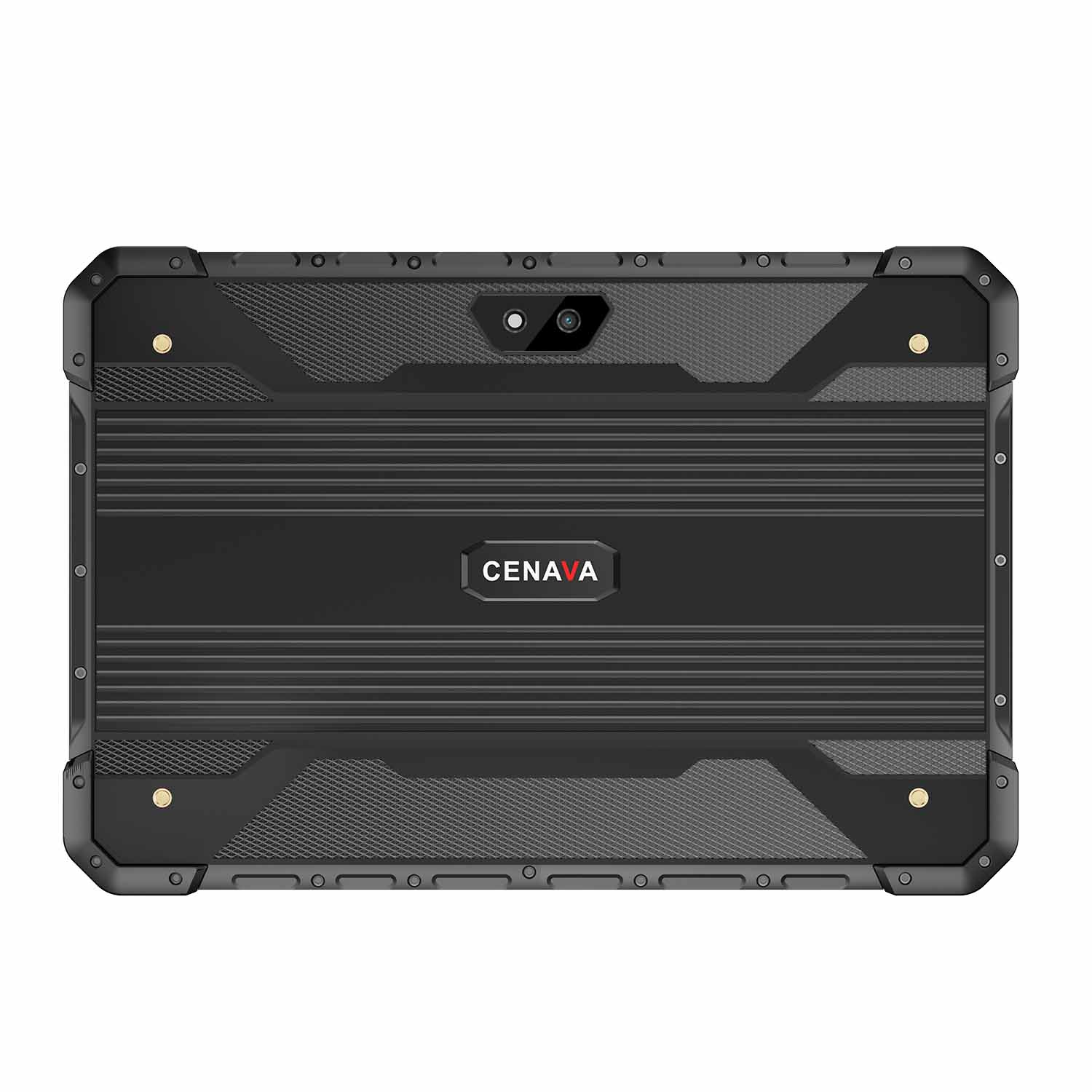

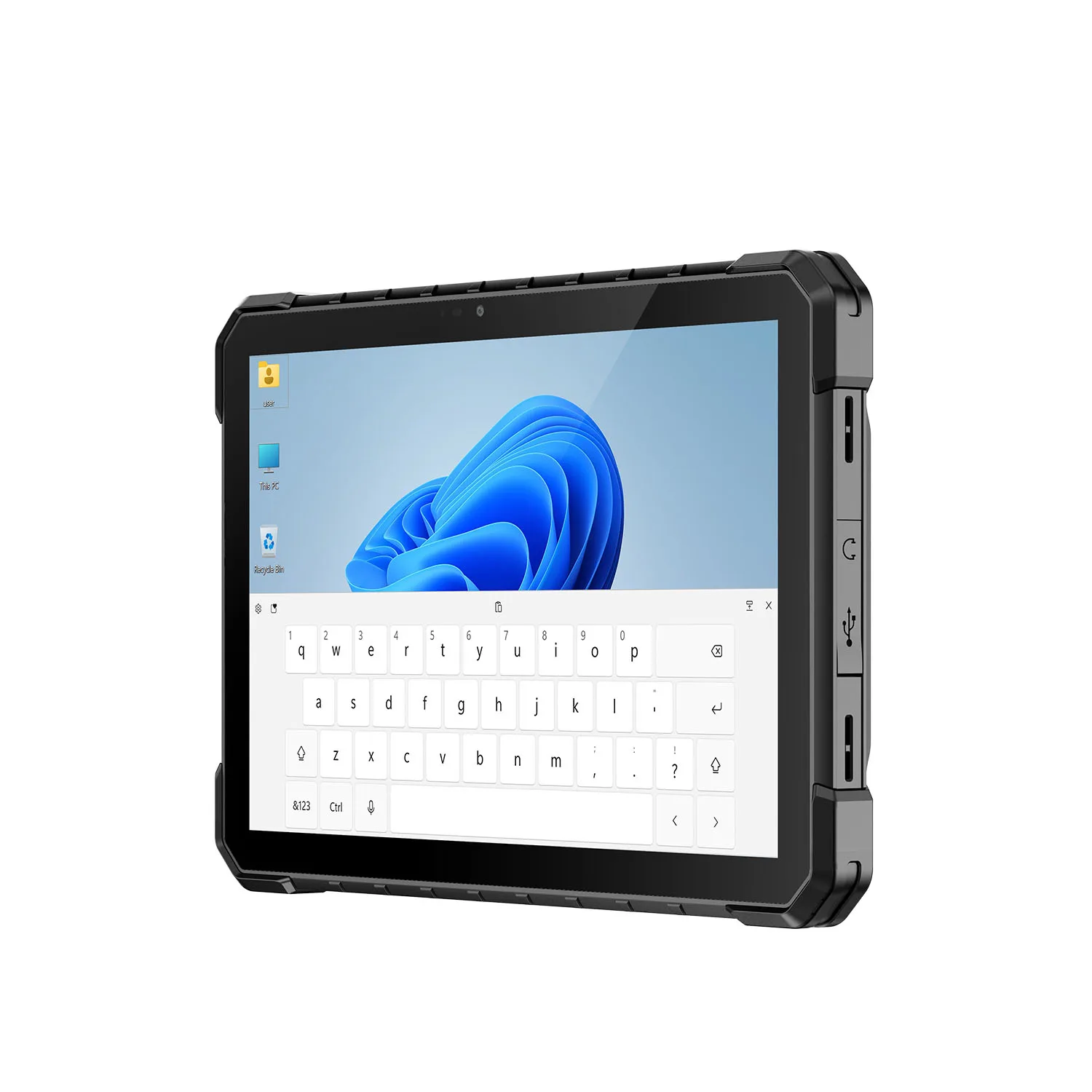

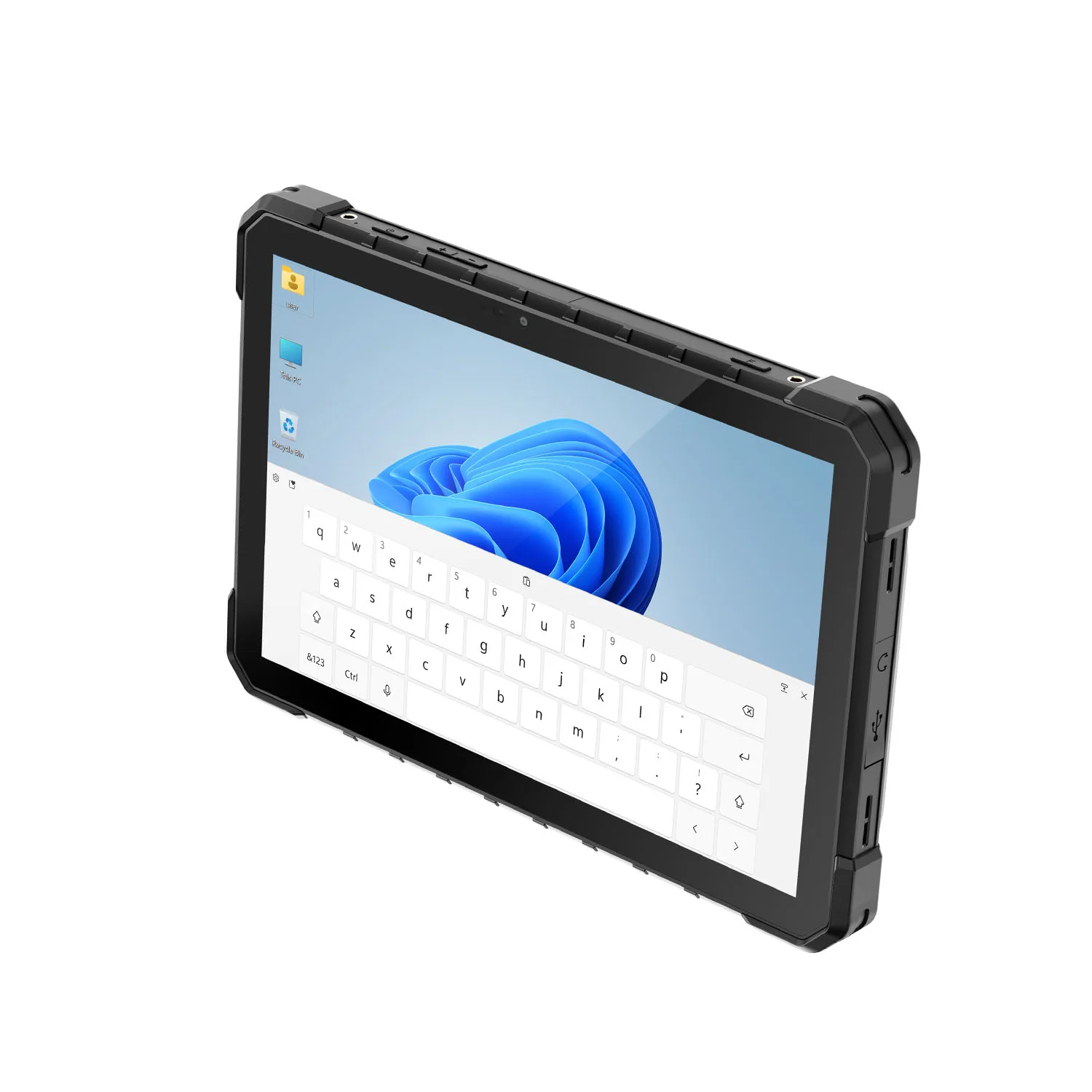

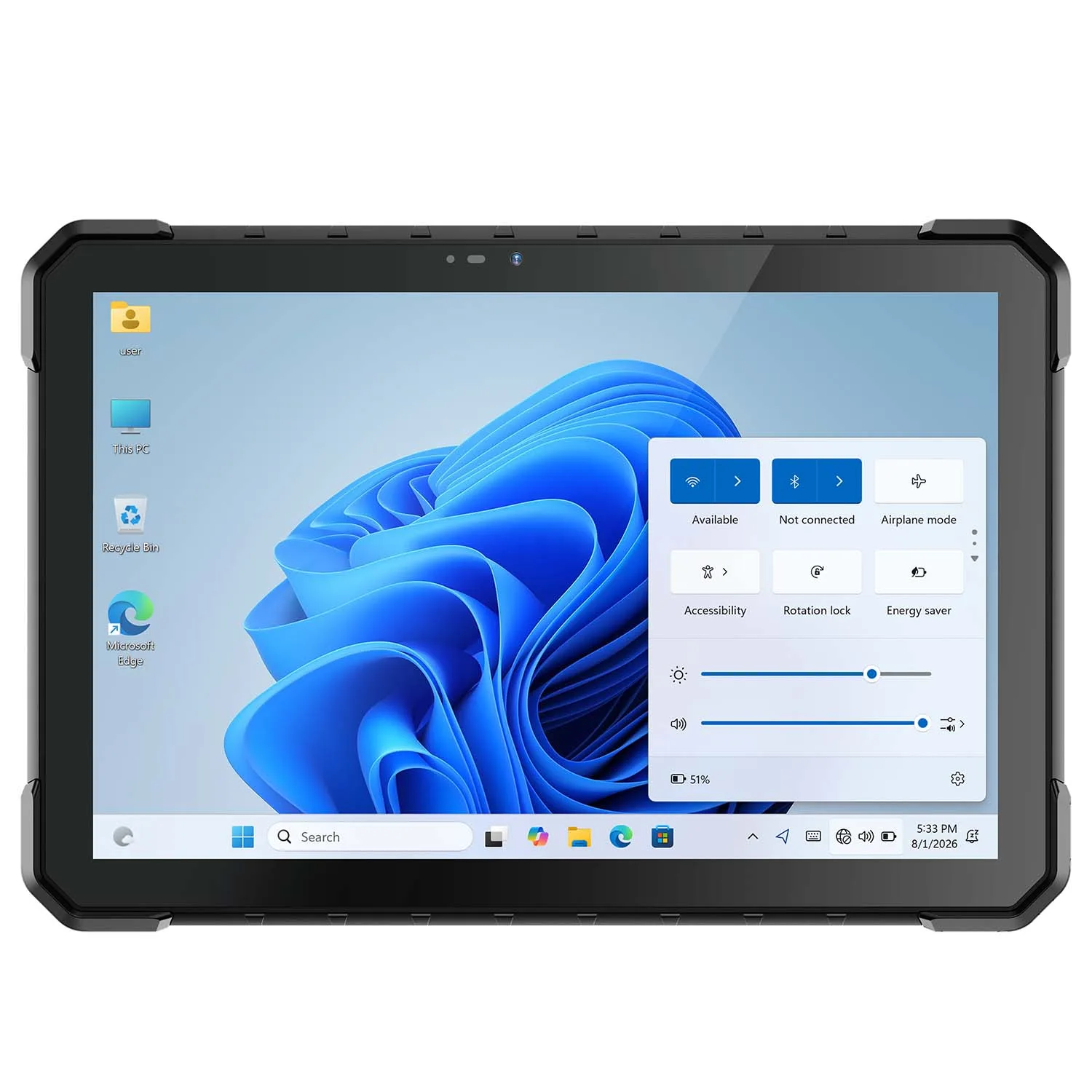

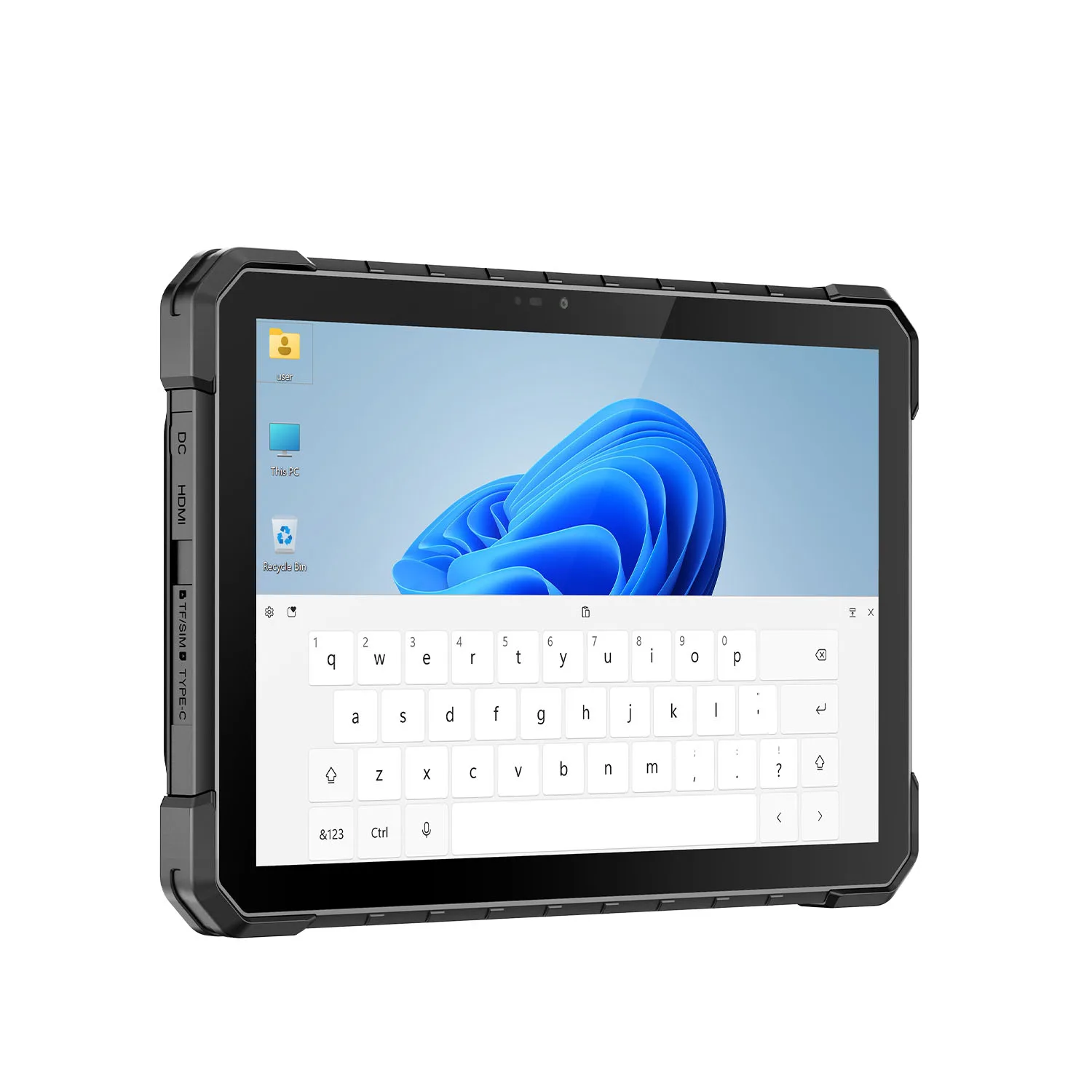

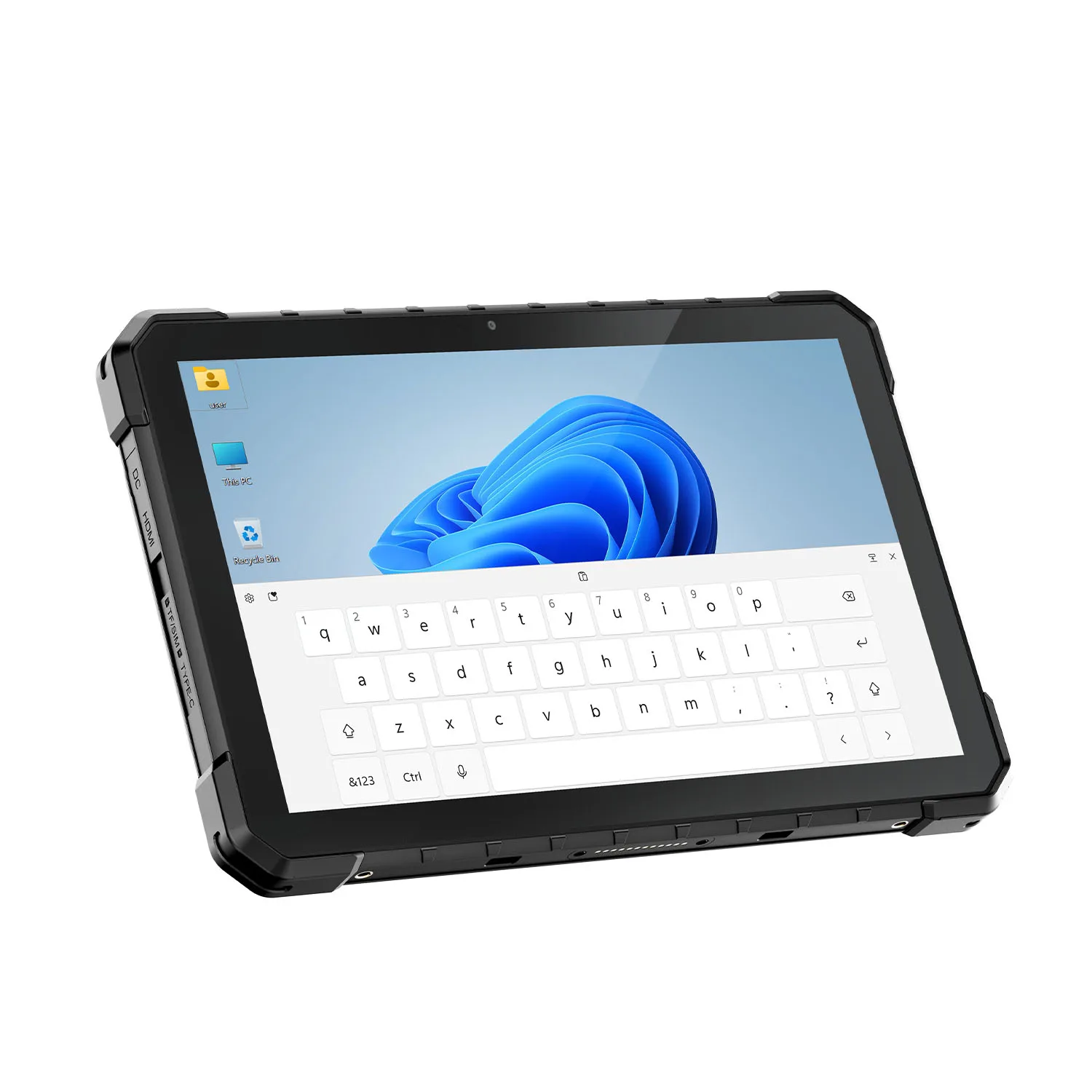

CENAVA W18Y i5-10210Y 10.1 Inch Win11 IP68 Rugged Slim
CENAVA W18Y packs full Windows 11 into a slim 20mm rugged body for inspectors and mobile staff who carry a tablet all day. The fanless Intel Core i5-10210Y handles patrol apps and data entry, while WiFi 6E and optional 4G/5G keep you connected without wired networks. Glove and wet-hand touch come standard. IP68, MIL-STD-810H rated; built-in 5550mAh battery, optional 2D scanner, ID card, UHF, NFC.
CPU: Intel Core i5-10210Y quad-core 8-thread, 1.0–4.0GHz, fanless passive cooling
OS: Windows 11 (optional Windows 10, Ubuntu 20.04.6/22.04.5, Debian 12)
Display: 10.1" 1920×1200, 700cd/㎡, 10-point G+G, hardness ≥7H, glove & wet-hand touch standard
RAM/ROM: 8GB+128GB M.2 SSD
Slim Body: 253.0×172.0×20.0mm, 1053g bare metal
Ports: Type-C USB3.0, USB-A 3.0, Micro HDMI, 3.5mm jack, TF up to 256GB, Micro SIM, DC 12V, 12Pin POGO
Network: WiFi 6E, Bluetooth 5.3; optional 4G LTE / 5G (custom function); GPS/BeiDou/Galileo/GLONASS
Battery: Built-in 5550mAh 7.6V non-removable, ≥5h endurance
Protection: IP68, MIL-STD-810H 1.22m drop, -20°C~60°C (custom -30°C~60°C), TPM security chip
Optional Modules: 2D scanner, ID card reader, UHF RFID, NFC
Slim Yet Hardcore
Carry All Day, No Ache
20.0mm Thin IP68 1.22m Drop
At 20.0mm thin and about 1053g bare, one hand can carry it through a full day of rounds without strain. Slim does not mean fragile: IP68 sealing keeps working through splashes, rain and dusty air, and MIL-STD-810H 1.22m drop testing means slipping off a vehicle seat is no drama. It operates from -20°C to 60°C, with a custom -30°C version for cold storage and winter sites. An onboard TPM chip encrypts work orders and patrol data. Light and durable finally come in one device.
Work Orders Online
Connected Wherever You Roam
WiFi 6E + BT 5.3 Optional 4G/5G
Across the facility, work orders follow you: WiFi 6E joins building hotspots at speed, Bluetooth 5.3 pairs with portable printers for on-the-spot receipts, and an optional 4G/5G module keeps everything synced in basements and on rooftops without WiFi. GPS, BeiDou, Galileo and GLONASS log patrol tracks automatically. Ports are all here: Type-C USB3.0, USB-A 3.0, Micro HDMI for projectors, TF up to 256GB, a 3.5mm jack, and a 12-pin POGO dock that becomes a desktop terminal. Optional 2D, ID card, UHF and NFC modules handle verification and counts.
Balanced i5 Core
No Wasted Overhead
i5-10210Y 8 Threads 8GB+128GB
Mobile work orders, photo evidence and data entry need balance, not excess: the Intel Core i5-10210Y quad-core with 8 threads boosts to 4.0GHz, backed by 8GB RAM and a 128GB M.2 SSD, keeping the ticketing system, browser and messaging apps fluid together. The fanless design is silent in libraries, wards and offices. Windows 11 works out of the box, with Windows 10, Ubuntu and Debian optional. Every spec matches real mobile workloads—no paying for idle performance, no stalling when it matters.
Go-Anywhere Screen
Clear Indoors and Out
10.1" 1920×1200 700cd/㎡
The 10.1-inch 1920×1200 panel renders fine print in order forms and thin lines in equipment drawings with ease; 700cd/㎡ brightness means no hand-shading between the underground garage and the open platform. Glove and wet-hand touch come standard—accurate taps through cotton gloves in winter or wet fingers in the rain. The G+G structure with ≥7H hardness survives sharing a bag with tools, and ten-point touch zooms drawings smoothly for on-site annotations and e-signatures. The display compromises as little as the slim body does.
Technical Specifications
 CPU Intel Core i5-10210Y 4 cores, 8 threads 1.0GHz base frequency Up to 4.0GHz maximum turbo frequency |  System |  Storage 8+128GB |  Display 10-inch IPS touch screen 1920*1200 700cd/㎡ |
 NFC Optional Default back of the body for card reading, customizable to the front |  One/Two dimensional code Optional Able to identify dirty 1/2 dimensional codes |  Battery 7.6V 5550mAh high voltage lithium battery |  High frequency/ultra-high frequency module Optional Ultra thin integrated module |
 Navigation positioning GPS,Galileo GLONASS |  ID card identification Optional |  Interface Type -A、Type -C HDMI、POGO PIN |  Weight 253.0*172.0*20.0mm |
 Card slot SIM / TF （256G） |  Protection level Working temperature: -20 °C to 60°C Storage temperature:-30 °C to 70 °C Protection level: IP68 |  Camera Front camera:5MP Rear camera:12MP（Auto focus, flash） |  Sensor Gravity sensing, compass, gyroscope, light sensing, distance sensing |
The W18Y is the fanless variant of our 10.1-inch Core line: a Core i5-10210Y in a 253 × 172 × 20mm, 1,053g body — about 4mm thinner and 130g lighter than the W10Y, with no fan and no vents to clog with dust. Sealed to IP68 and tested to MIL-STD-810H and GJB 150 (1.22m drop), it suits dusty workshops, washdown areas and any site where a fan intake would become a maintenance item.
W18Y Fanless Rugged Tablet Details:
| Size | 253.0*172.0*20.0mm/1053g |
| Color | Standard color: black; custom colors are available for qualified projects. |
| TP touch screen | Anti-fingerprint (AF) coating,10-point touch G+G, hardness ≥7H, supports glove operation; wet-hand touch optional on project orders |
| TPM | Built-in TPM Security chip |
| Gravity sensor | YES |
| Positioning system | GPS, Galileo, GLONASS |
| TYPE-C | *1 Type-C USB3.0 |
| Type -A | *1 Type-A USB3.0 |
| Earphone Jack | *1 3.5mm audio jack |
| TF Card | supports up to 256GB |
| SIM Card | *1 Standard Micro SIM card slot |
| Micro HDMI | *1 Micro HDMI |
| DC port | *1 12V-4A (DC plug outer diameter 3.5mm inner diameter 1.35mm) |
| POGO PIN | *1 12-pin POGO connector for charging and USB communication |
| Drop height | Meets the requirements of (GJB 150.18A-2009, GJB 150.1A-2009) and (MIL-STD-810H) for the 1.22-meter drop test |
| Certificates | IP68, CCC, CE, RoHS; tested to MIL-STD-810H and GJB 150.1A/150.18A-2009 (1.22m drop); salt-spray tested; ISO 9001 manufacturing |

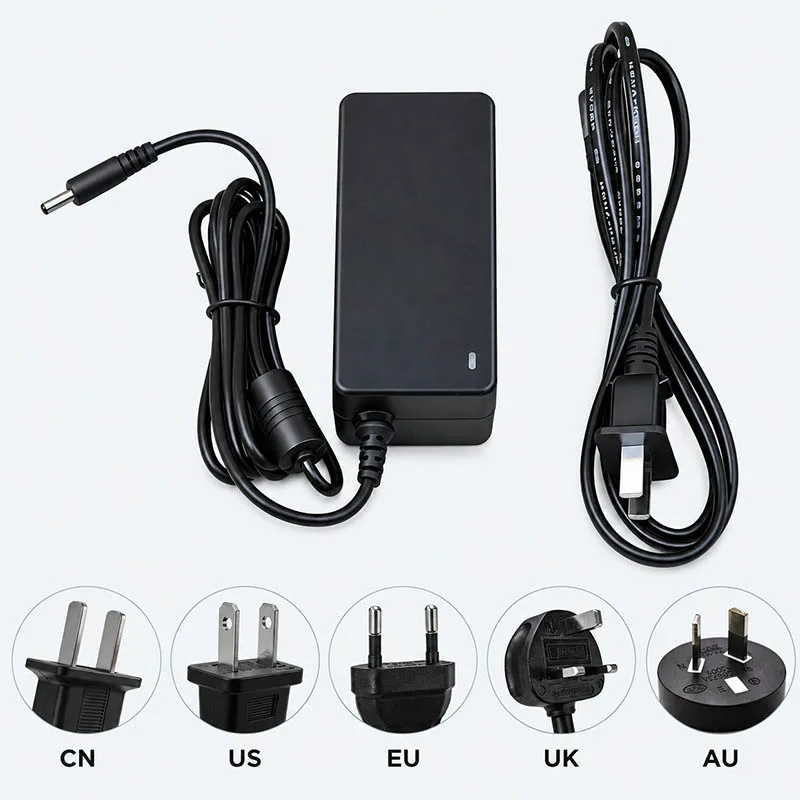

| Adapter | 12V/4A DC power adapter |
Frequently Asked Questions About the W18Y Windows Rugged Tablet
1. Which processor does the W18Y use?
The W18Y uses an Intel Core i5-10210Y — four cores, eight threads, 1.0GHz base, 4.0GHz turbo, on a 7W fanless power budget. It handles inspection apps, warehouse clients, configuration tools and office workloads comfortably. The fanless design trades sustained heavy load for silence and sealing: CAD viewers or large local databases belong on the W30U Pro, not here.
2. Which Windows version is available?
Windows 11 ships as standard. Windows 10 images remain available for legacy software, but note that Windows 10 reached end of support in October 2025 — if an application is holding you on it, tell us which one and we'll confirm driver support before you order.
3. Which battery is installed in the W18Y?
A built-in 7.6V 5,550mAh pack, rated ≥5h at 1080p video playback (50% brightness/volume). It's sealed in — if your workflow needs mid-shift battery swaps, that's the W10NX's job, not this model's.
4. Can barcode, NFC, UHF RFID and ID card modules be installed together?
Several data-capture modules are offered — 1D/2D barcode scanning, NFC (13.56MHz, ISO/IEC 14443A/14443B/15693), UHF RFID (840–960MHz, up to ~5m), ID card reader, fingerprint — but they compete for the same internal bays, antenna positions and power budget. Tell us which modules you need and in what quantity, and we'll confirm the workable combination in writing before sample production.
5. What ruggedness rating does the W18Y meet, and can it handle harsh environments?
It carries an IP68 dust/water resistance rating and MIL-STD-810H certification (also referencing GJB 150.18A/150.1A), passing a 1.22m drop test. Operating temperature range is -20°C to 60°C, storage temperature -30°C to 70°C, and it tolerates up to 95% non-condensing humidity.
6. What connectivity and positioning capabilities does it offer?
It supports Wi-Fi 6: 802.11a/b/g/n/ac/ax, dual-band 2.4GHz and 5GHz and Bluetooth 5.3 (10m range), with optional 4G/5G (multiple LTE-FDD/TDD and WCDMA bands).
7. What ports does the device have, and what accessories are compatible?

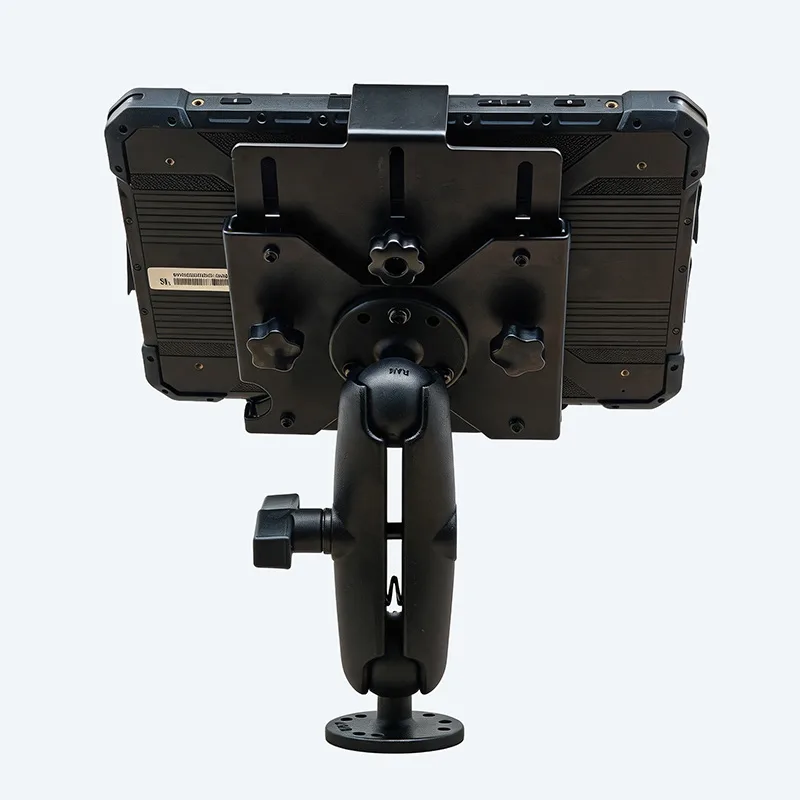

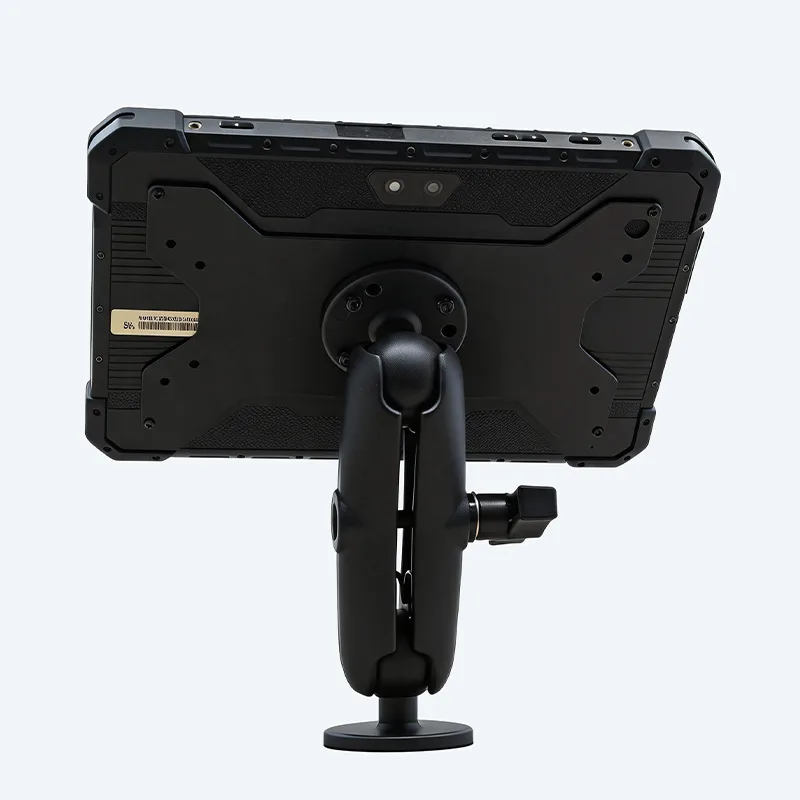

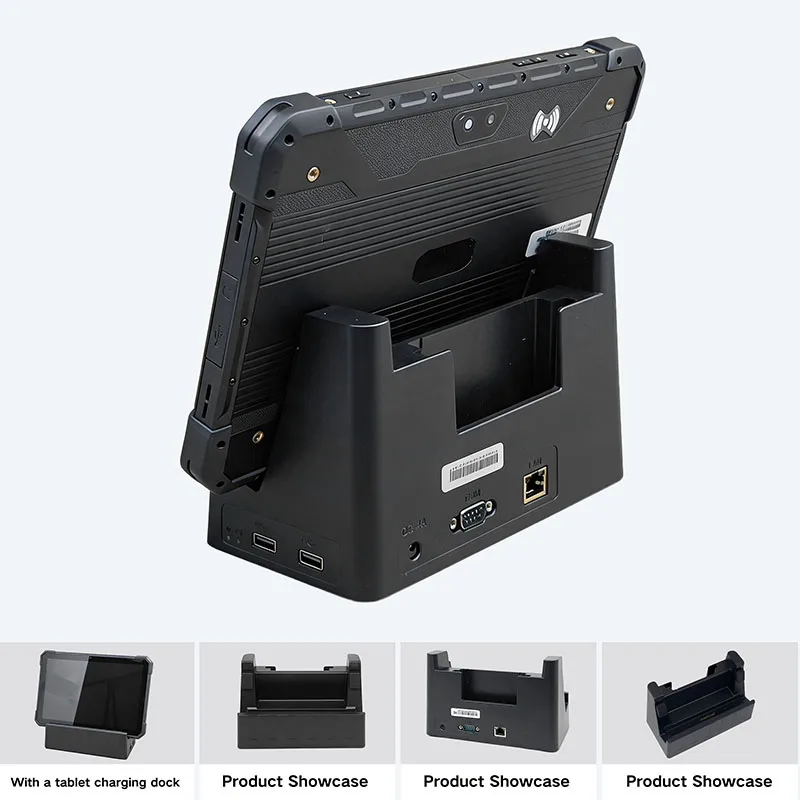

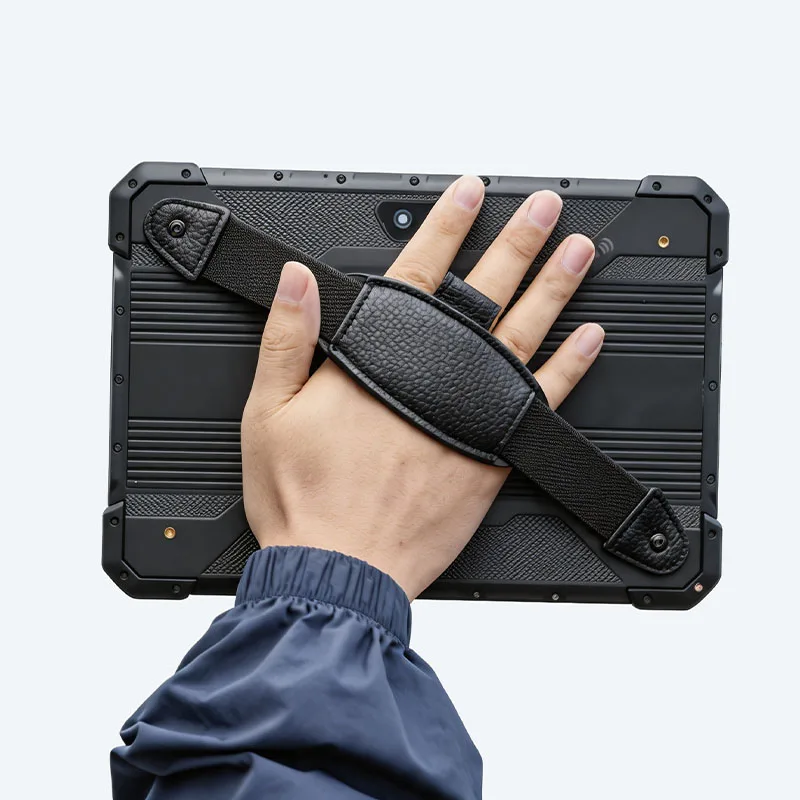

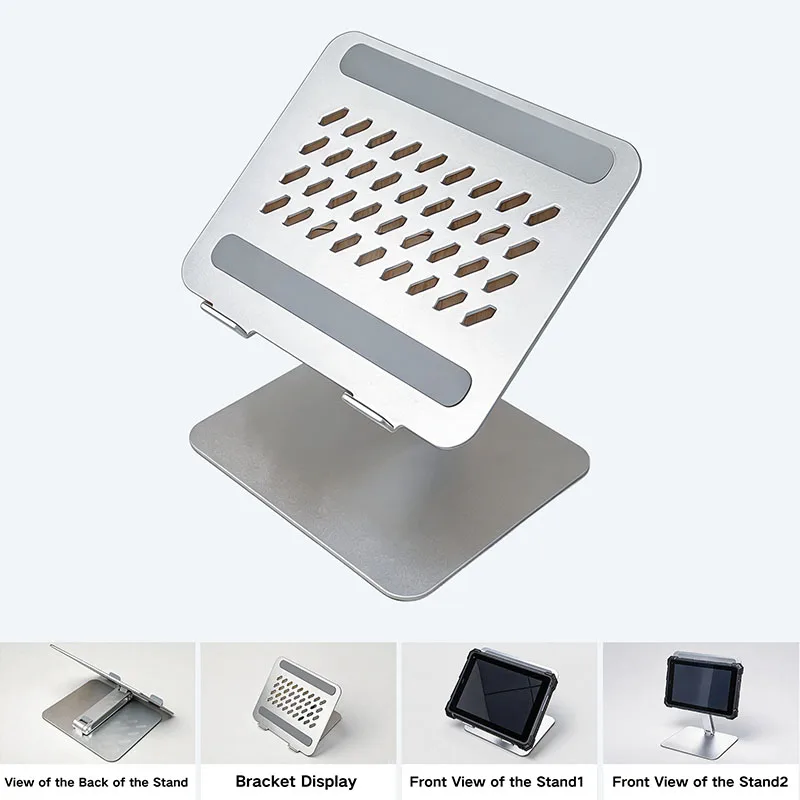

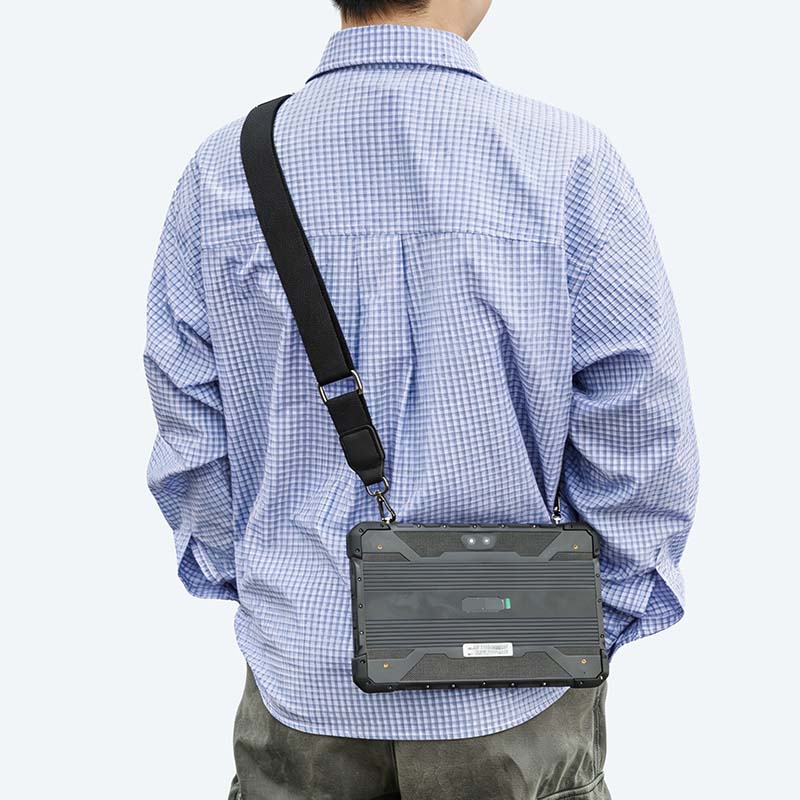

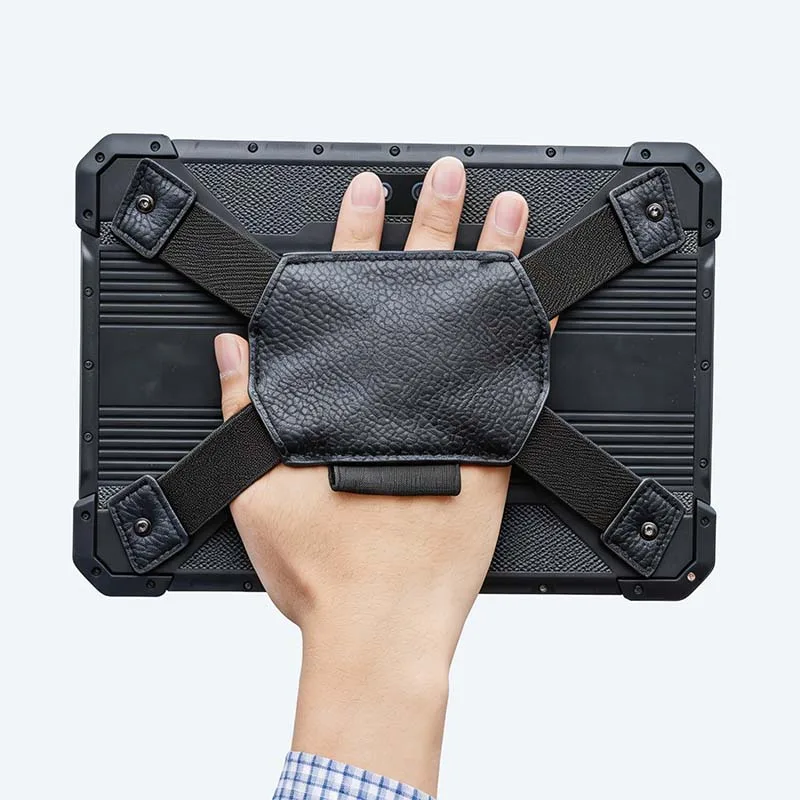

It includes Type-C (USB3.0), Type-A (USB3.0), Micro HDMI, a 3.5mm headphone jack, Micro SIM slot, TF card slot, and a 12-pin POGO PIN connector. Compatible accessories include a charging dock, wall-mount bracket, back clamp bracket, and shoulder/four-point straps.
8. Is an explosion-proof version available?
An explosion-proof variant is available on project orders, certified Ex ib ⅡC T4 Gb (gas, Zone 1) and Ex ib I Mb (mining). It differs from the standard unit in enclosure and cannot be retrofitted — specify it at inquiry stage and request the certificate copy with your quote.

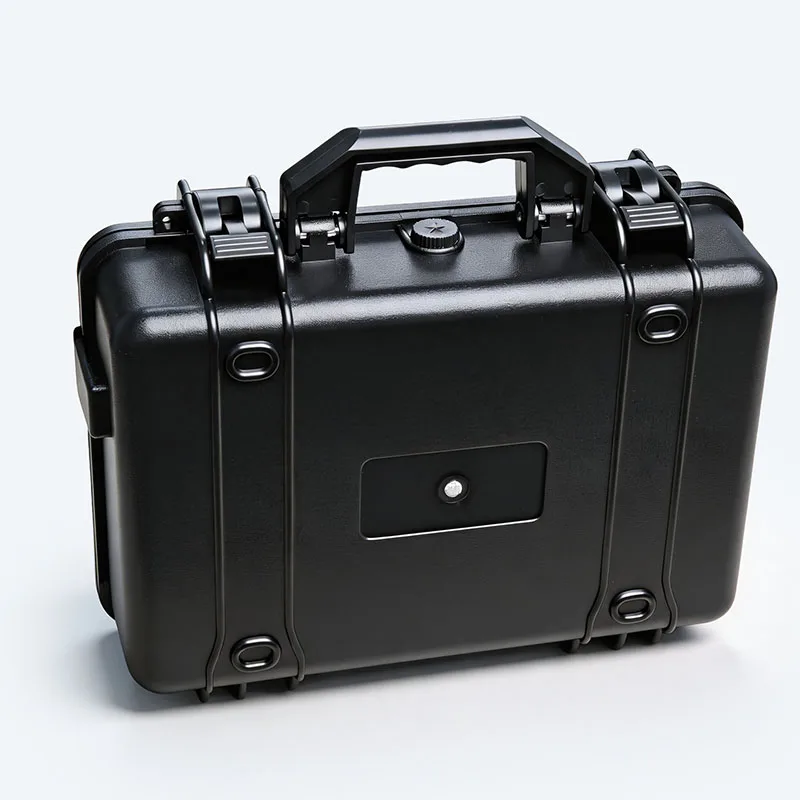

Accessories
