Rugged Computing Products
Rugged tablets, laptops, handhelds, and industrial PCs—built for demanding
environments and backed by 23 years of OEM/ODM expertise.

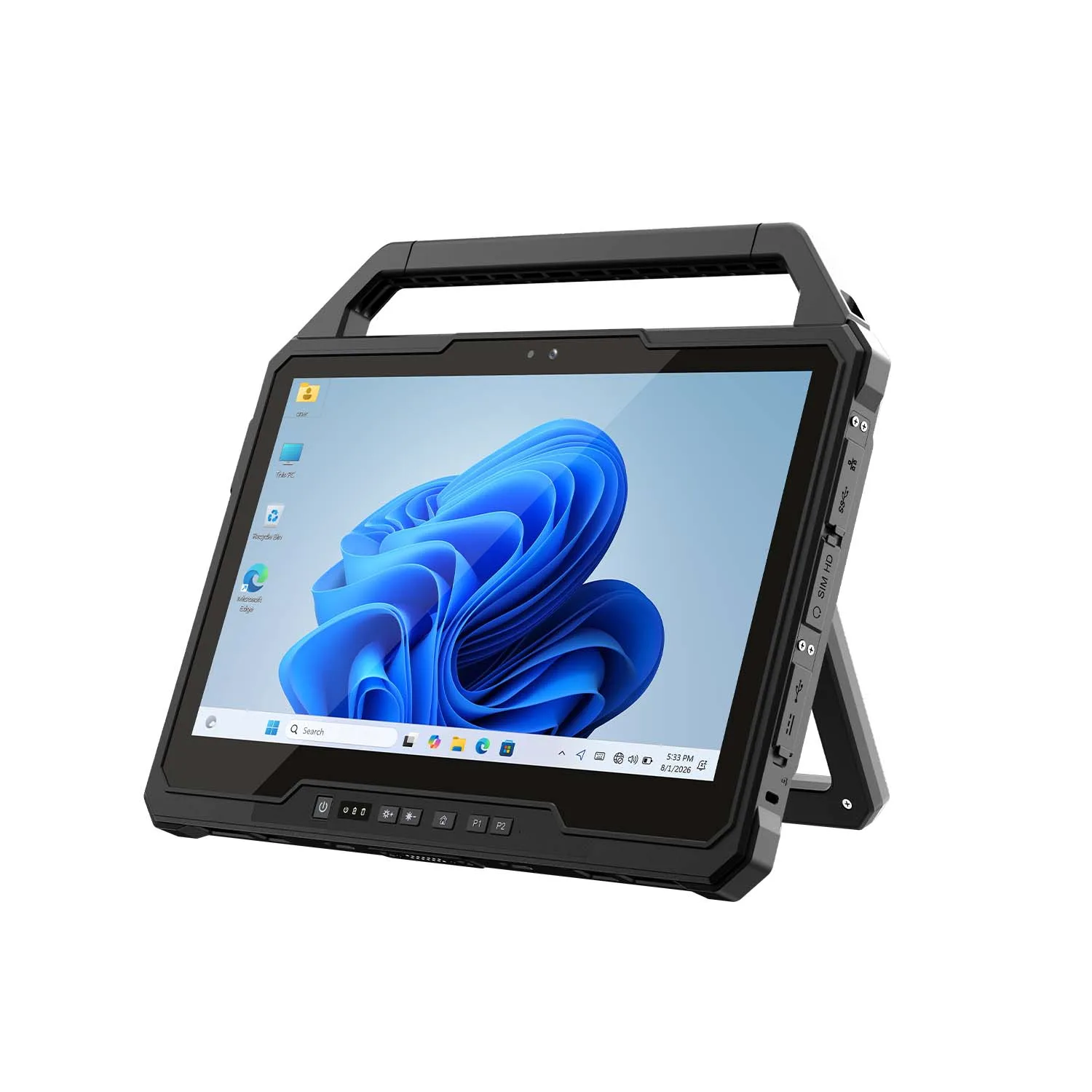

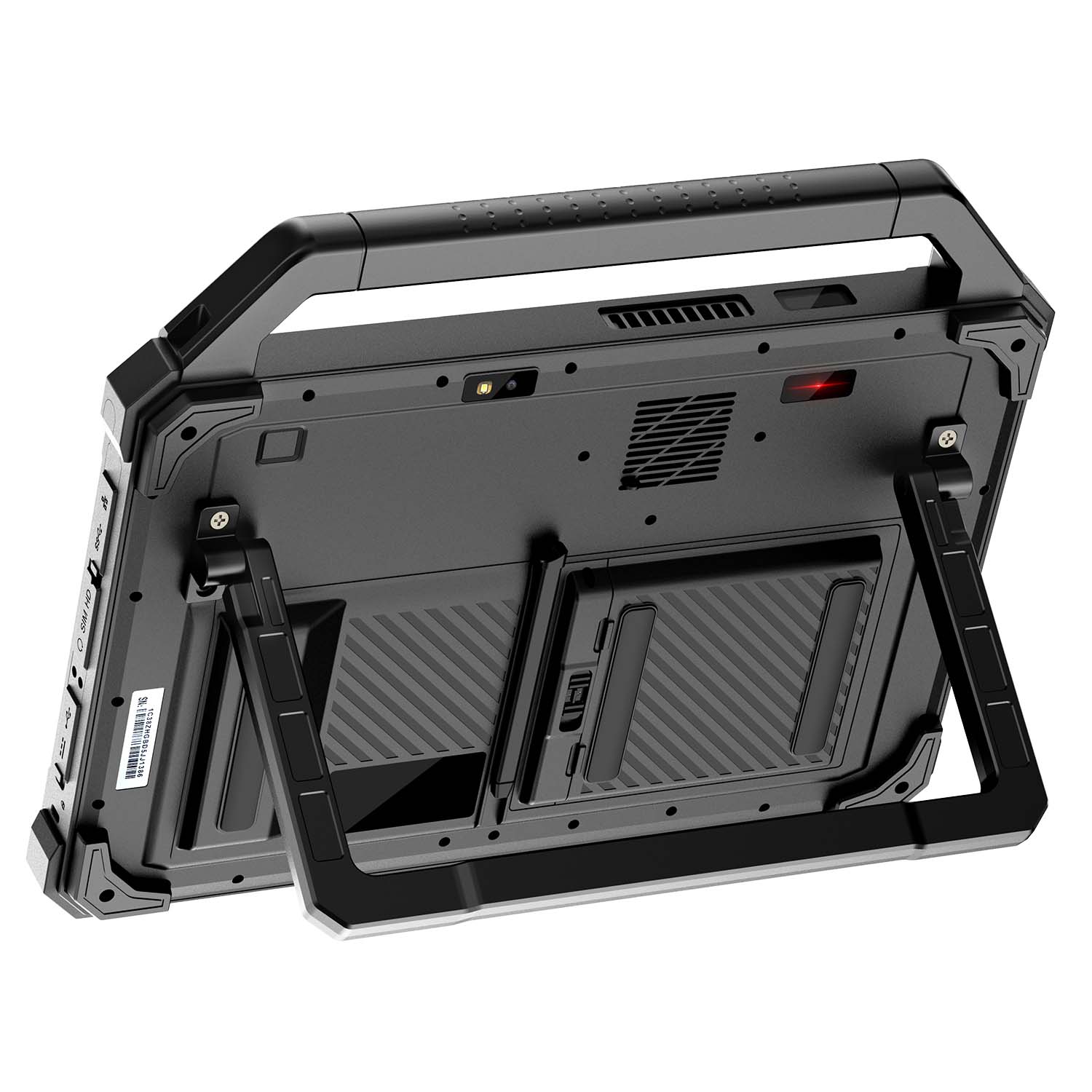

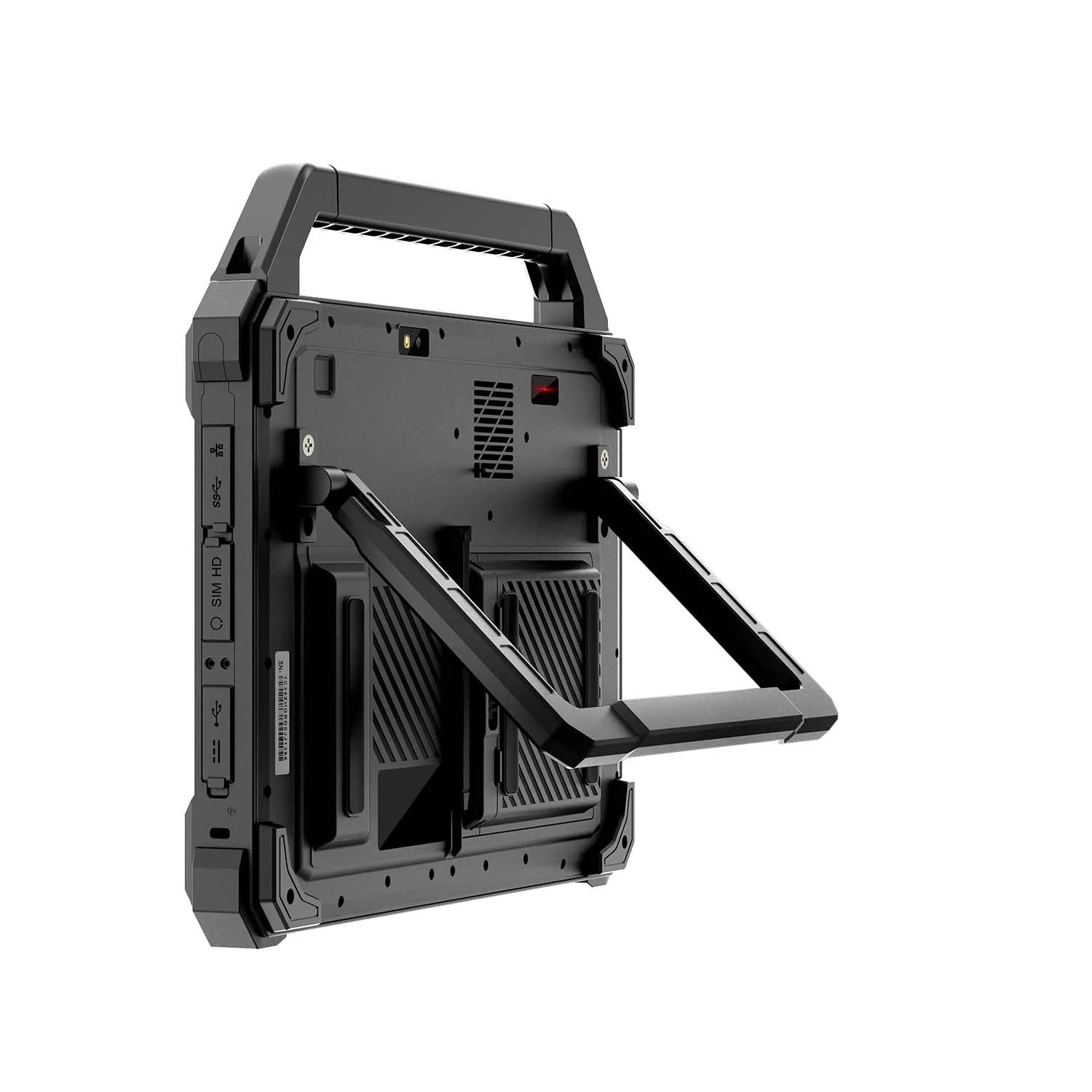

CENAVA W30U Pro Ultra7-155U 13.3 Inch Win11 IP65 Rugged Tablet
CENAVA W30U Pro Ultra 7-155U is the flagship 13.3-inch Windows rugged tablet for AI-heavy field work. The 12-core Ultra 7 155U boosts to 4.8GHz, its NPU accelerating edge AI inspection on Windows 11 Pro. Dual smart batteries with hot-swap enable zero-downtime shifts. Gigabit RJ45, RS232, HDMI and three aviation plugs link PLC directly. IP65, MIL-STD-810H, TPM; optional 4G/5G, 2D, UHF.
CPU: Intel Core Ultra 7 155U, 12 cores 14 threads, 1.7–4.8GHz, integrated NPU
OS: Windows 11 Pro (optional Ubuntu 22.04)
RAM/ROM: 16GB DDR5 + 256GB M.2 SSD (2242) pluggable, up to 48GB / 2TB
Display: 13.3" 1920×1080, 400cd/㎡ , 10-point G+FF wet-hand & glove touch
Battery: Dual smart batteries — removable 8300mAh main (hot-swap) + 300mAh backup, ≥6h
Integrated I/O: Gigabit RJ45, DB9 RS232 (optional 422/485), HDMI, Type-C USB3.0, USB-A 3.0 + USB-A 2.0×2, 3.5mm, TF (1TB), Nano-SIM, 14Pin POGO, 3 reserved aviation plugs
Network: WiFi 6E, Bluetooth 5.3; optional 4G/5G; GPS/BeiDou/Galileo/GLONASS, optional single-BeiDou
Protection: IP65, MIL-STD-810H 1.22m drop, -20°C~60°C (customizable -30°C~60°C), TPM, login fingerprint standard
Camera: Front 8MP fixed-focus, rear 12MP AF with flash (customizable 16MP)
Optional Modules: 2D scanner (SE4107), NFC 13.56MHz, ID card reader, UHF RFID (2m/5m), fingerprint capture (3 options)

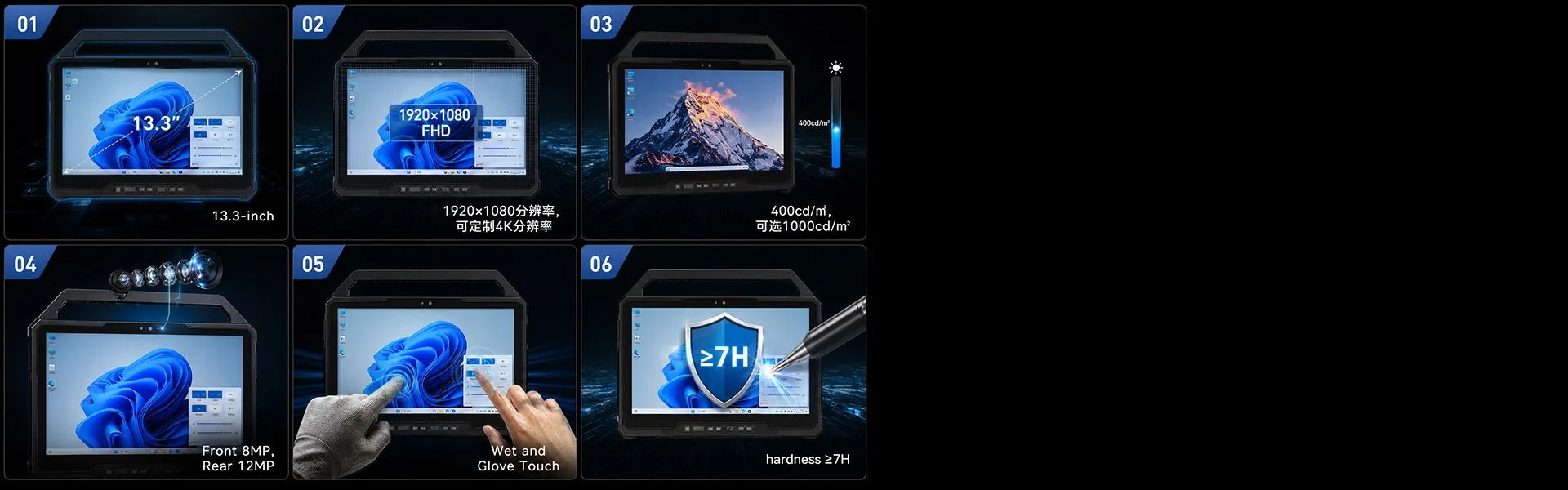

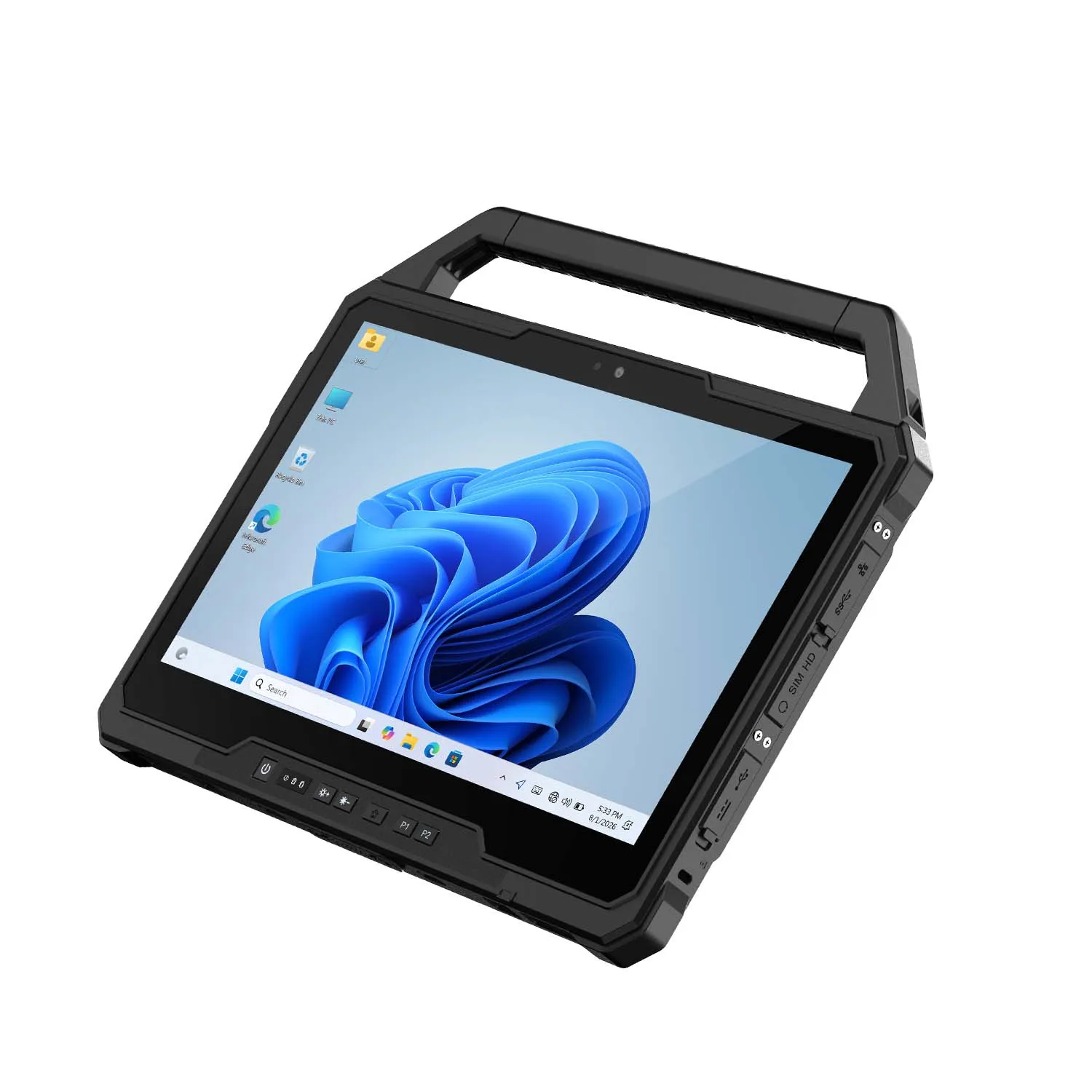

Bright Touch Display
AI Detail in View
1920×1080 400cd/㎡ Optional 1000cd/㎡ Bulk 4K
The 13.3-inch 1920×1080 display shines at 400cd/㎡, with an optional 1000cd/㎡ high-brightness panel for outdoor visibility and bulk-customizable 4K resolution—edge AI inspection footage and defect details render on one screen. 10-point G+FF touch supports wet-hand and glove operation, staying precise on oily lines and rainy sites. An 8MP front camera and 12MP autofocus rear camera with flash, customizable to 16MP, capture clear evidence for AI workflows. The wide canvas suits split-screen monitoring of multiple inspection stations.

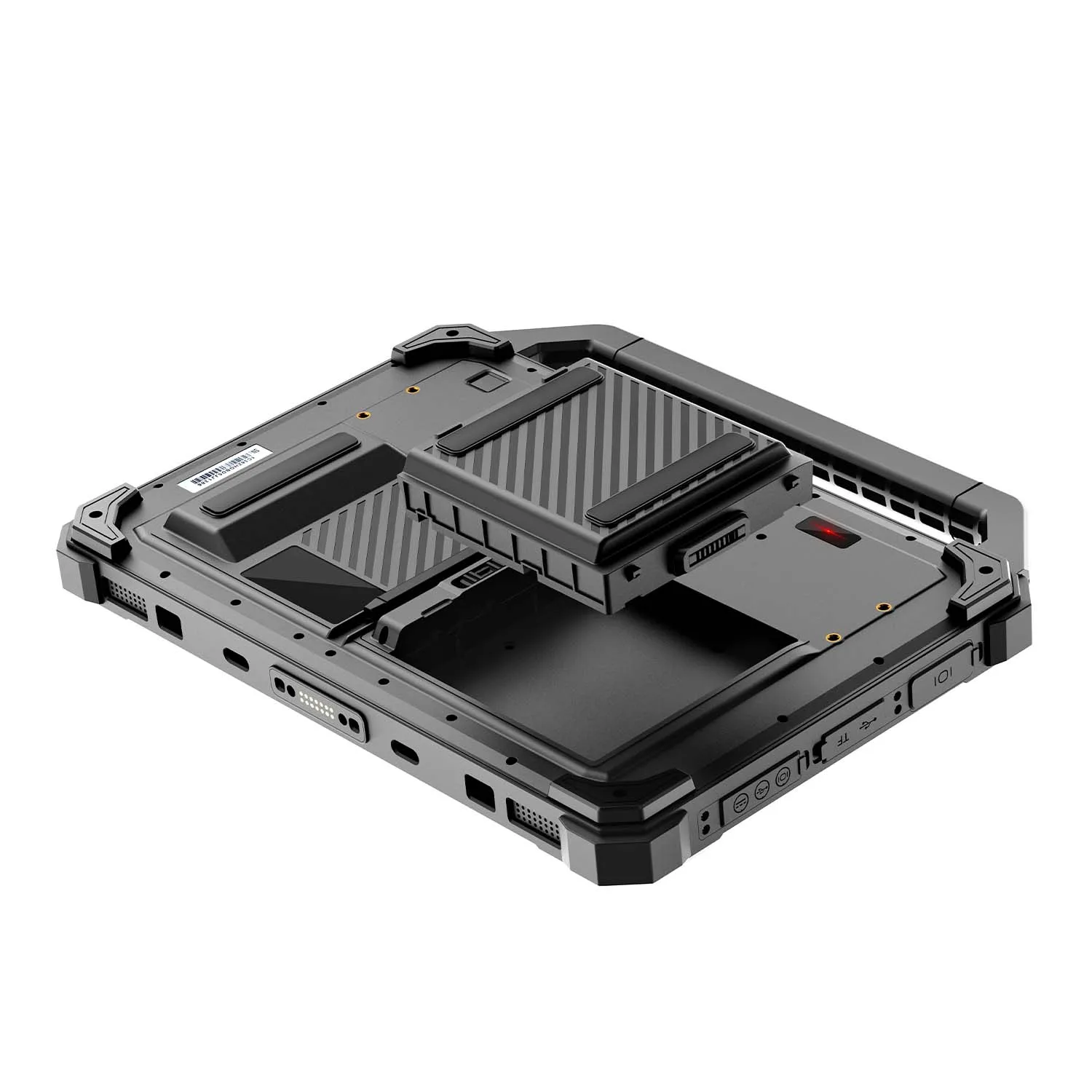

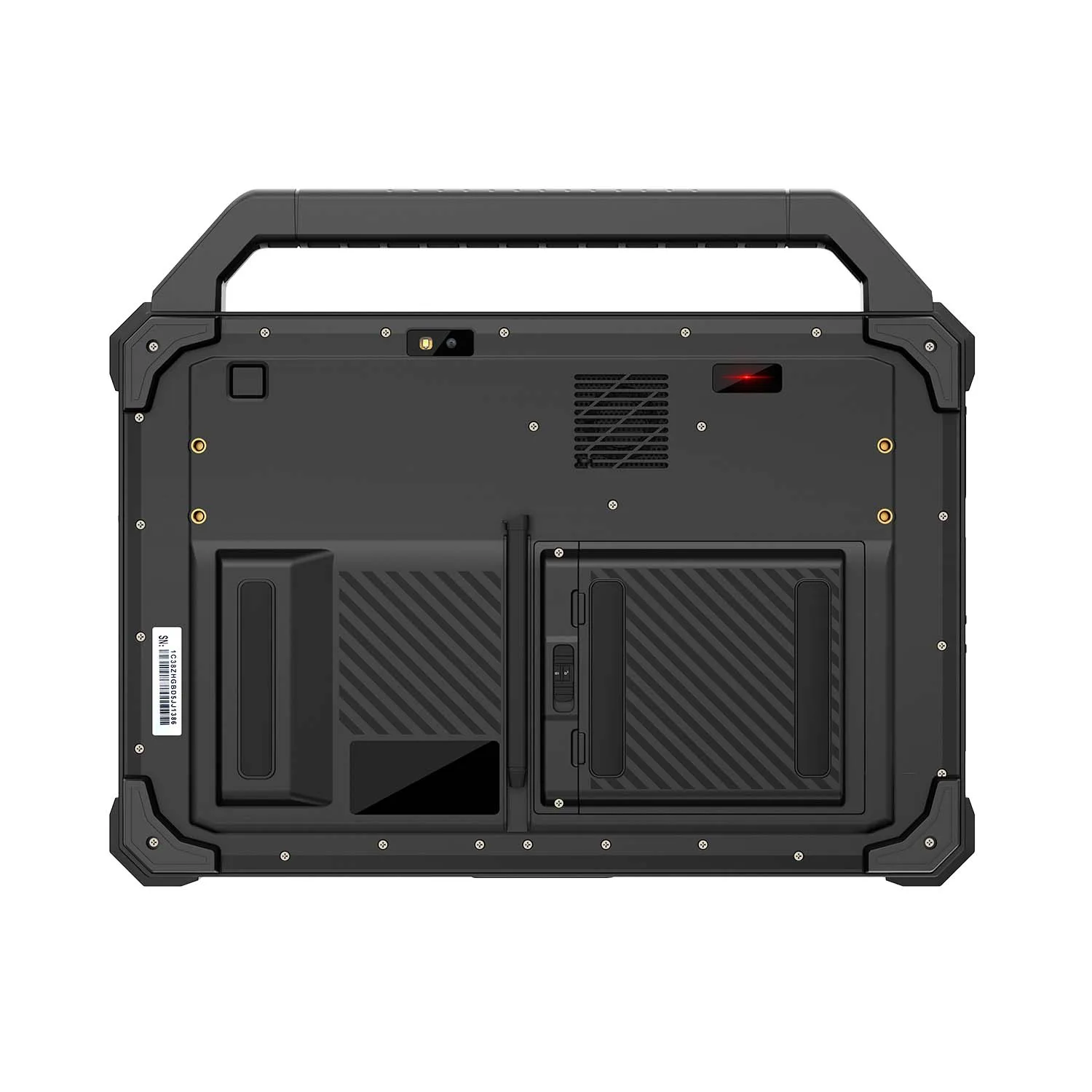

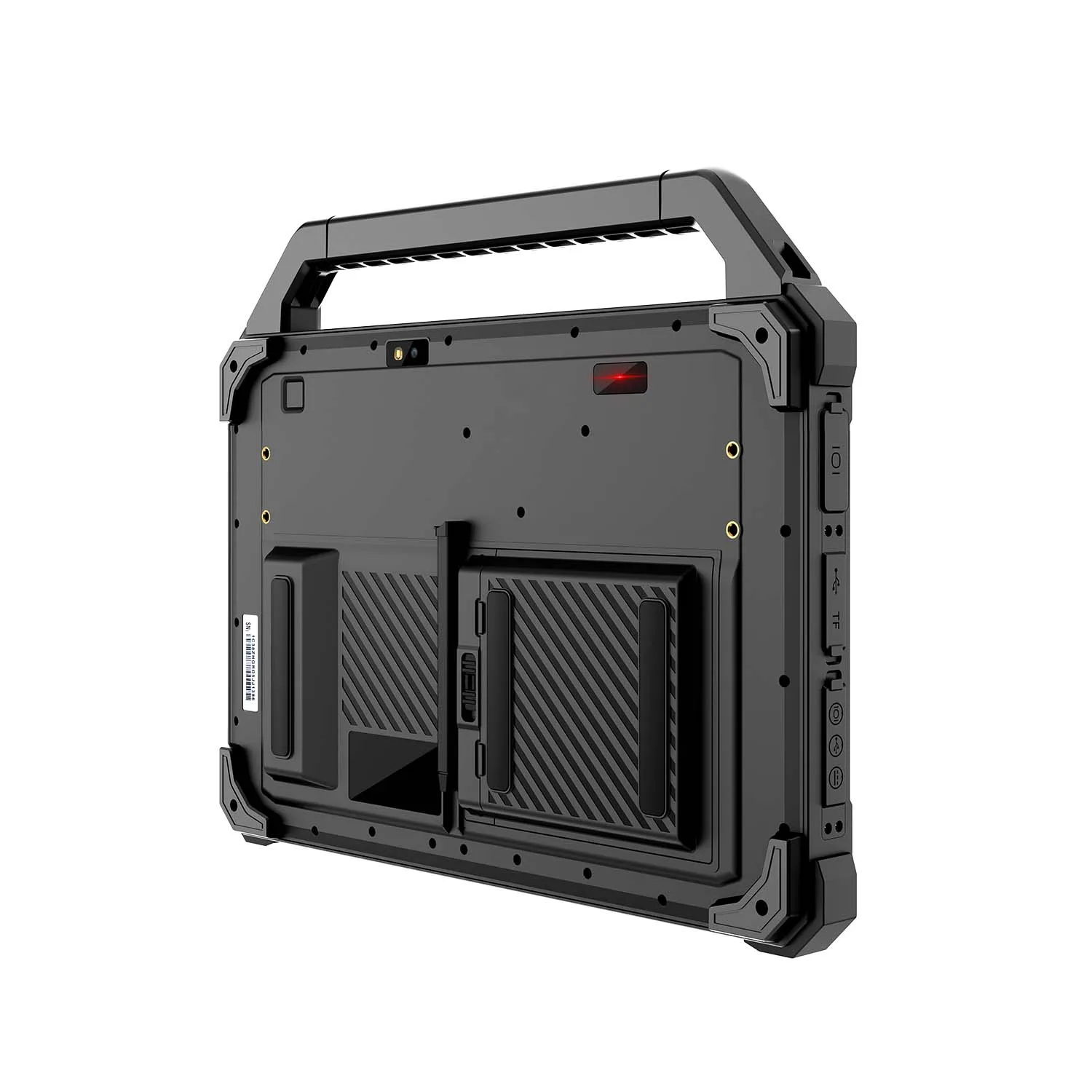

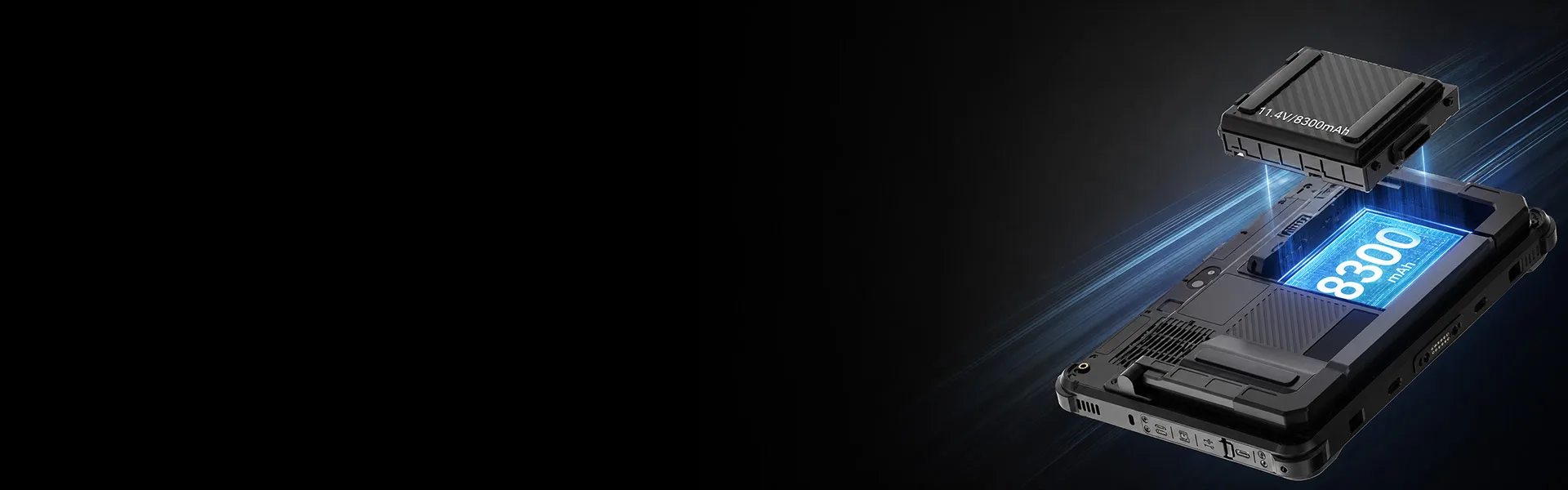

Dual Smart Batteries
Hot-Swap Nonstop
8300mAh Hot-Swap + 300mAh ≥6h Runtime
Dual smart battery design: the 8300mAh main battery is removable and hot-swappable—swap without shutdown so AI inference tasks keep running; the 300mAh backup battery bridges power instantly during swaps, keeping data intact. A full charge delivers ≥6 hours, and spare packs restore full power immediately, covering long shifts of line inspection and outdoor testing. The battery system is validated with the MIL-STD-810H-rated body, discharging steadily across -20°C~60°C. Crews work through double shifts with worry-free power in any weather.
Ultra 7 Flagship Core
NPU-Accelerated Edge AI
Ultra 7 155U 12-Core 4.8GHz Integrated NPU
Powered by Intel Core Ultra 7 155U with 12 cores and 14 threads boosting to 4.8GHz, its integrated NPU accelerates edge AI inference—visual inspection and defect recognition complete on-site. Running Windows 11 Pro (Ubuntu 22.04 optional), multitasking stays smooth. 16GB DDR5 RAM and 256GB M.2 SSD are pluggable, expandable to 48GB and 2TB. WiFi 6E and Bluetooth 5.3 provide high-speed links, with optional 4G/5G full-netcom; built-in TPM and login fingerprint safeguard data inside the IP65-sealed body.
Industrial Full Interface
Direct PLC Networking
RJ45+RS232+HDMI+3 Aviation Plugs TF to 1TB
Gigabit RJ45 connects directly to PLCs and production networks; DB9 RS232 with optional 422/485 protocols links industrial devices; HDMI extends to dashboard screens; Type-C USB3.0 transfers data at speed; USB-A 3.0 plus dual USB2.0 attach peripherals; the 3.5mm jack supports voice intercom; the TF slot expands up to 1TB for inspection images. A 14-pin POGO docks expansion bases, and three reserved aviation plugs stay secure under vibration. Optional 2D scanner, NFC, ID reader and UHF RFID modules build an integrated AI inspection terminal.
Technical Specifications
 CPU Intel Core Ultra 5 125U or Intel Core Ultra 7 155U |  System |  Storage 16GB DDR5 memory with a 256GB M.2 2242 SSD. |  Display 13.3 inches 1920*1080 |

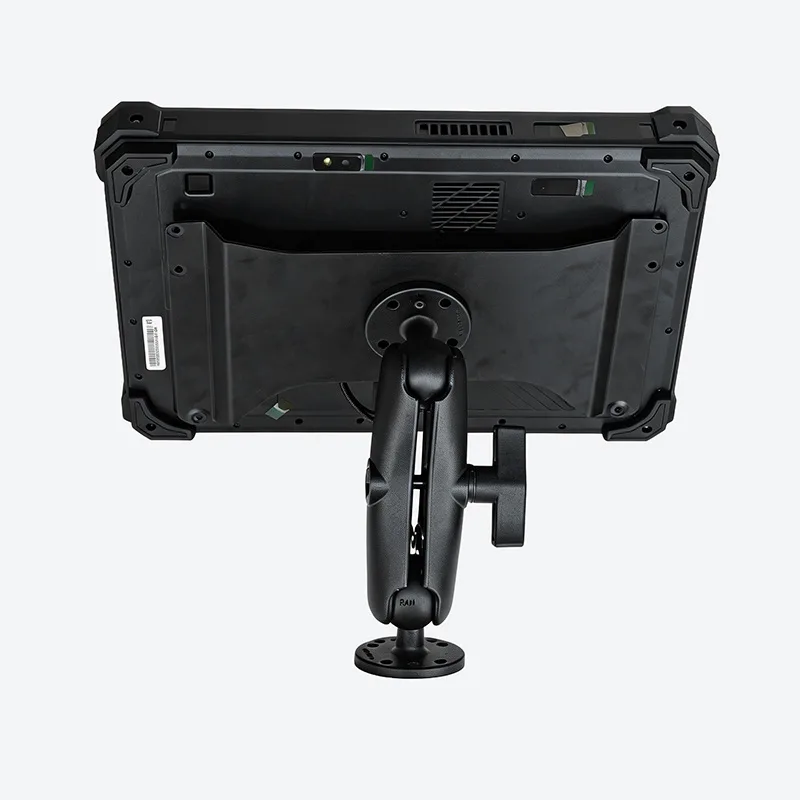

 Optional NFC 13.56MHz, supporting ISO/IEC 14443A, 14443B and 15693 |  Optional 1D/2D Barcode Scanner Support |  Battery Main:Removable 11.4V 8300mAh battery |  Wall hole pitch / screw 154x71.5mm/ M3*4.5mm |
 Navigation positioning GPS,Galileo GLONASS |  2G/3G/4G Support |  Interface RJ45 / RS232 / HDMI / USB-A×3 |  Size/Weight 345*233*35.2mm/2098g |
 Card slot Up to 2TB |  Protection level working temperature: -20 °C to 60°C Storage temperature: -30 °C to 70 °C |  Camera Front camera:8MP Rear camera:12MP autofocus with flash |  Light-sensitive Support |
| Product Form | 13.3-inch rugged tablet |
| Color | Black |
| TPM | Built-in TPM security chip |
| Gravity Sensor | Support |
| WIFI | Built-in WIFI 802.11 b/g/n/ax , Wifi6E |
| Bluetooth | Bluetooth 5.3 Transmission distance: 10m |
| Positioning system | GPS, Galileo, GLONASS |
| Type -C | *1 USB 3.0 |
| Type -A | *1 USB3.0 |
| Type -A | *2 USB2.0 |
| Earphone Earphone Jack | *1 3.5mm standard headphone jack |
| SIM Card | *1 Nano-SIM card slot |
| HDMI | *1 HDMI |
| DC connector | *1 19V-3.42A (DC plug OD 5.5mm ID 2.1mm) |
| RJ45 network port | *1 100/1000M |
| DB9 connector | *1 RS232 serial port (optional 232/422/485 protocol) |
| POGO PIN connector | *1 14Pin USB+Charging |
| Expansion function | Reserve Air-Plug Interface: 1*Power Input Air-Plug Interface, 1*USB2.0 Air-Plug Interface, 1*COM Air-Plug Interface |
| Integratability | Expandable Integration of Customer Modules, Customizable Function Interfaces |
| Drop height | Meets the requirements of MIL-STD-810H for the 1.22-meter drop test |
| Certifications | IP65 (dustproof, waterproof), CE, U.S. military standard MIL-STD-810H certification, ISO quality certification system, ROHS |

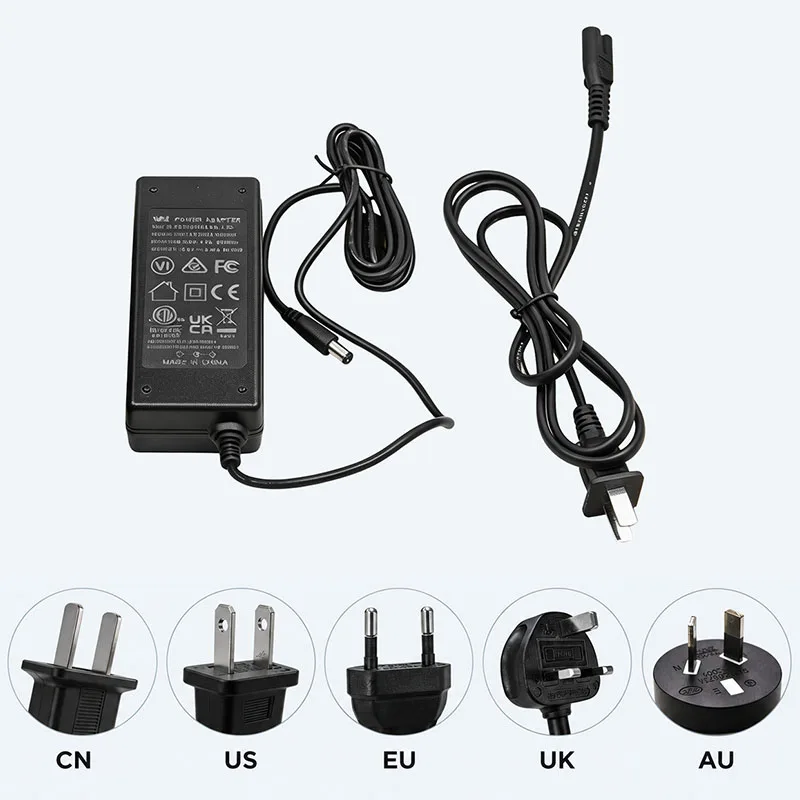

| Power Adapter | 19V-3.42A, DC power adapter |

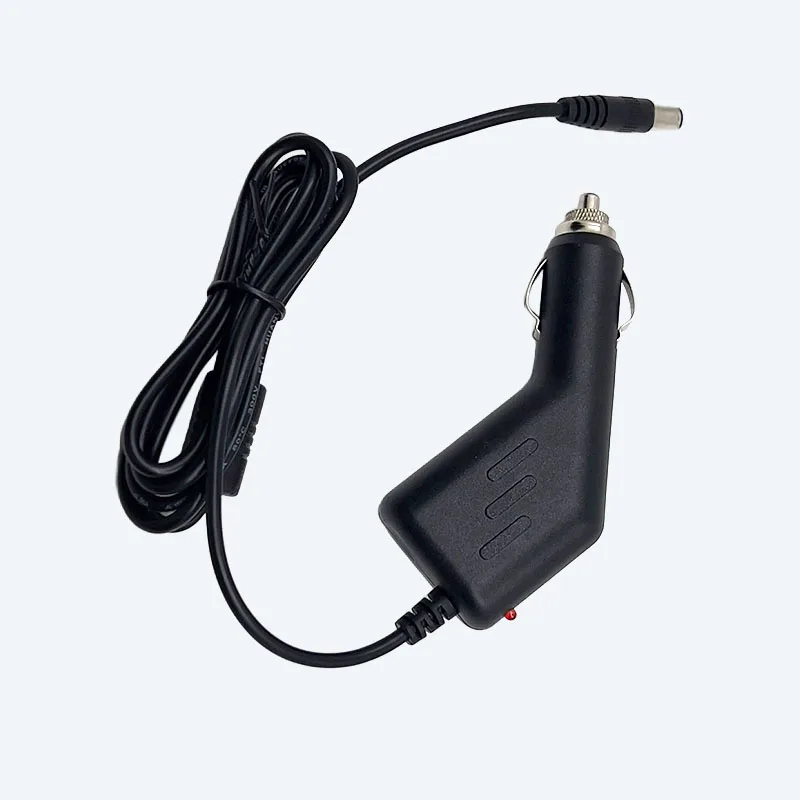

| Car charger(Optional) | 19V Car Charger - Input 9–36V, Output DC 19V 3A, 2.5×5.5mm DC connector |

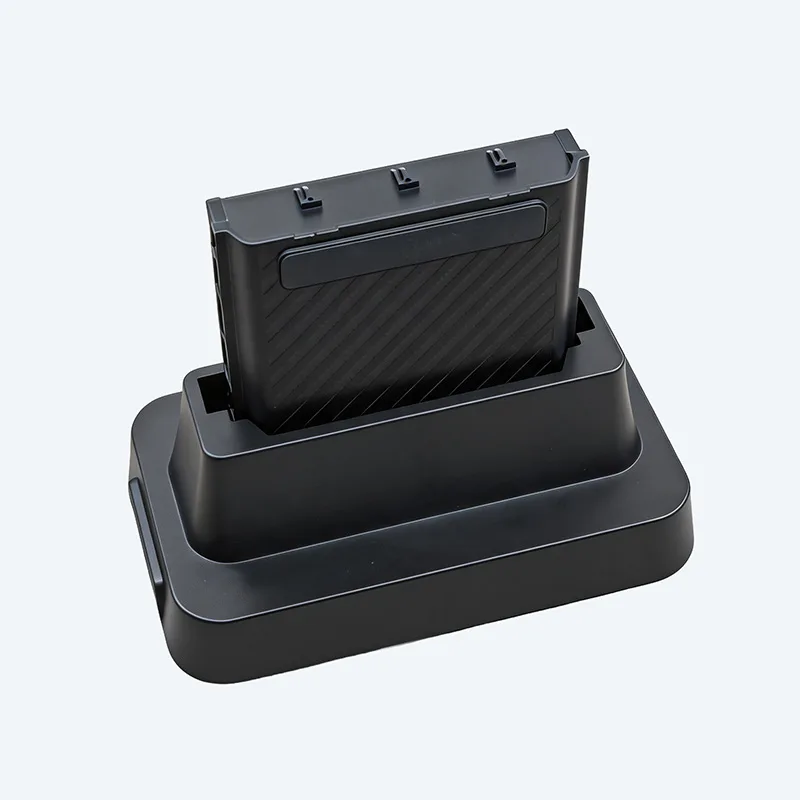

| Battery Charging Dock (optional) | 19V battery charging dock |
The Core Ultra platform is why this model exists. With socketed DDR5 (up to 48GB) and a replaceable M.2 SSD (up to 2TB), the W30U Pro covers the workloads that choke our N-series tablets: diagnostic suites, CAD and GIS viewers, local SQL databases, and three or more heavyweight applications at once. The 16GB/256GB standard configuration already holds QGIS or ArcGIS Field Maps with ~50GB of offline tiles alongside Windows. One practical note: memory and SSD are socketed, but upgrading after delivery means opening an IP65-sealed unit — specify the capacity you need at order time.
Frequently Asked Questions about W30U Pro Rugged Industrial Windows Tablet
1. Is the W30U Pro one product or two separate models?
The W30U Pro is one rugged-tablet platform with two processor options: Intel Core Ultra 5 125U and Core Ultra 7 155U.
2. What is the main difference between the Core Ultra 5 and Core Ultra 7 versions?
Both have 12 cores and 14 threads; the Core Ultra 7 155U has a higher maximum turbo frequency (up to 4.8GHz vs 4.3GHz) and suits software needing extra computing headroom, while the Core Ultra 5 125U is sufficient for many maintenance, inspection, and industrial communication tasks.
3. Is the W30U Pro more powerful than the standard W30U?
The Pro uses the newer Intel Core Ultra 5/7 (Meteor Lake) processors, while the standard W30U specification uses 12th-Gen Core i5 or i7 processors.
4. Can the main battery be changed while Windows is running?
It can. The built-in 300mAh sub-battery bridges about 10 minutes of runtime (1080p, 50% brightness) — enough to swap the 8,300mAh main pack without shutting Windows down. The pack is tool-free; the swap takes under 30 seconds.
5. How much RAM and storage does the W30U Pro have, and can it be upgraded?
Specify the SE4107 if you read postal codes, OCR, or damaged and low-contrast labels — its decoding library is broader. For standard 1D/2D warehouse and logistics codes at arm's length, the N3780 does the job at lower cost. Unsure? Attach photos of five typical labels to your inquiry; we test-scan them on both engines and send back the results.
6. What connectivity options does the W30U Pro offer?
Wi-Fi 6E (802.11 b/g/n/ax), Bluetooth 5.3, GPS/Galileo/GLONASS (with optional single-system BeiDou), optional 4G/5G via Nano-SIM, Gigabit Ethernet, HDMI, USB-C (USB 3.0), two USB-A 2.0 ports, one USB-A 3.0 port, a DB9 RS232 port, and a 14-pin Pogo Pin connector.
7. Does the W30U Pro support alternate operating systems besides Windows 11?
Wireless: Wi-Fi 6E, Bluetooth 5.3, GPS/Galileo/GLONASS (single-system BeiDou optional), plus 4G/5G via Nano-SIM on project orders. Wired: Gigabit Ethernet, HDMI, one USB-C (3.0), one USB-A 3.0, two USB-A 2.0, and a DB9 RS232 configurable as 232/422/485. Docking: a 14-pin Pogo connector for vehicle mounts and charging docks.
8. What optional data-capture modules are available?
1D/2D barcode scanner, NFC (13.56MHz, supporting ISO/IEC 14443A/14443B/15693), UHF RFID, ID-card reader, and a fingerprint module.

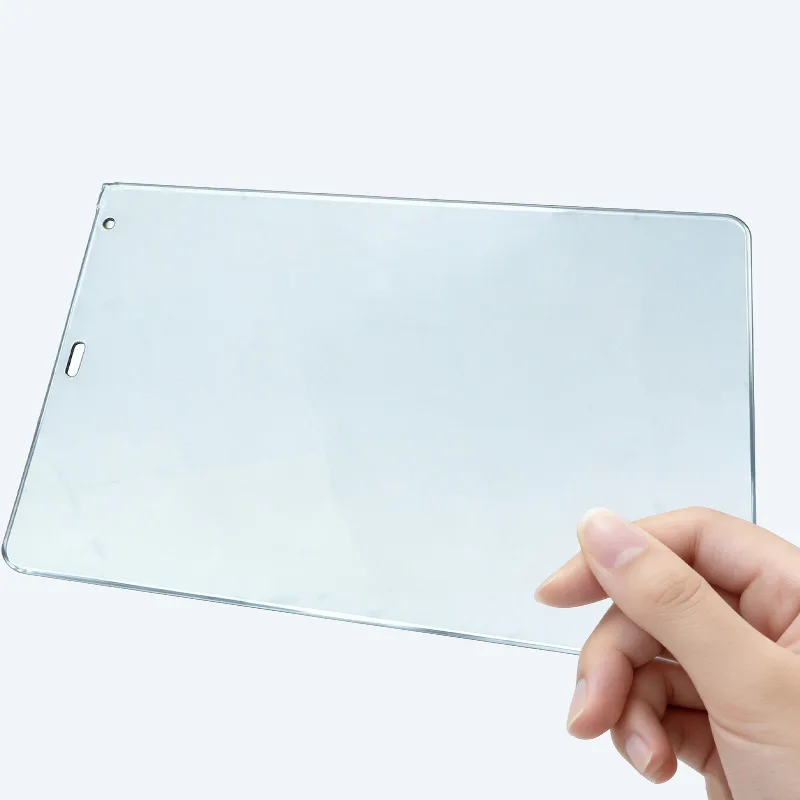

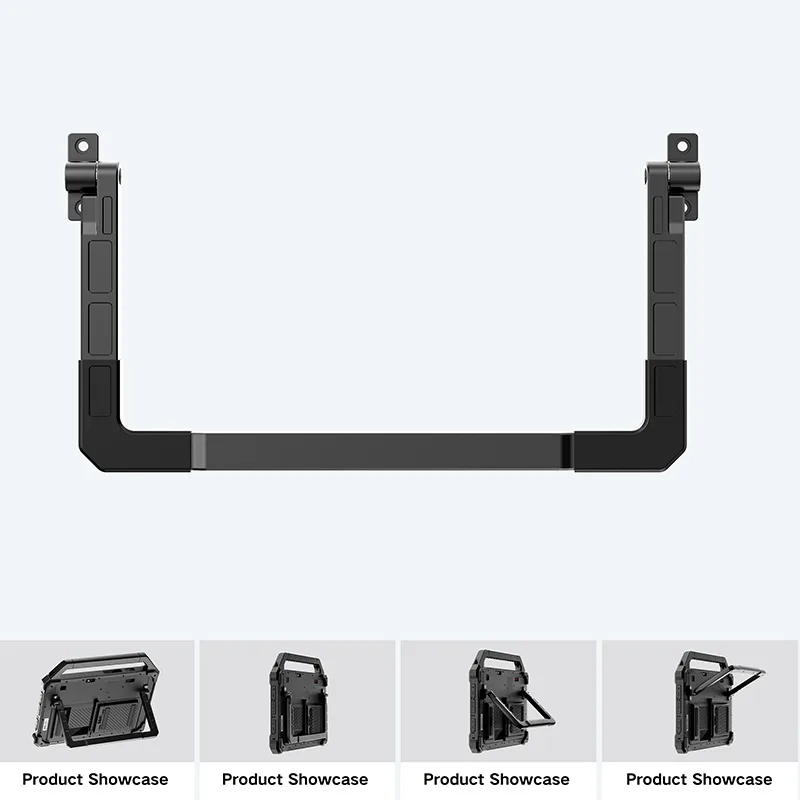

Accessories
