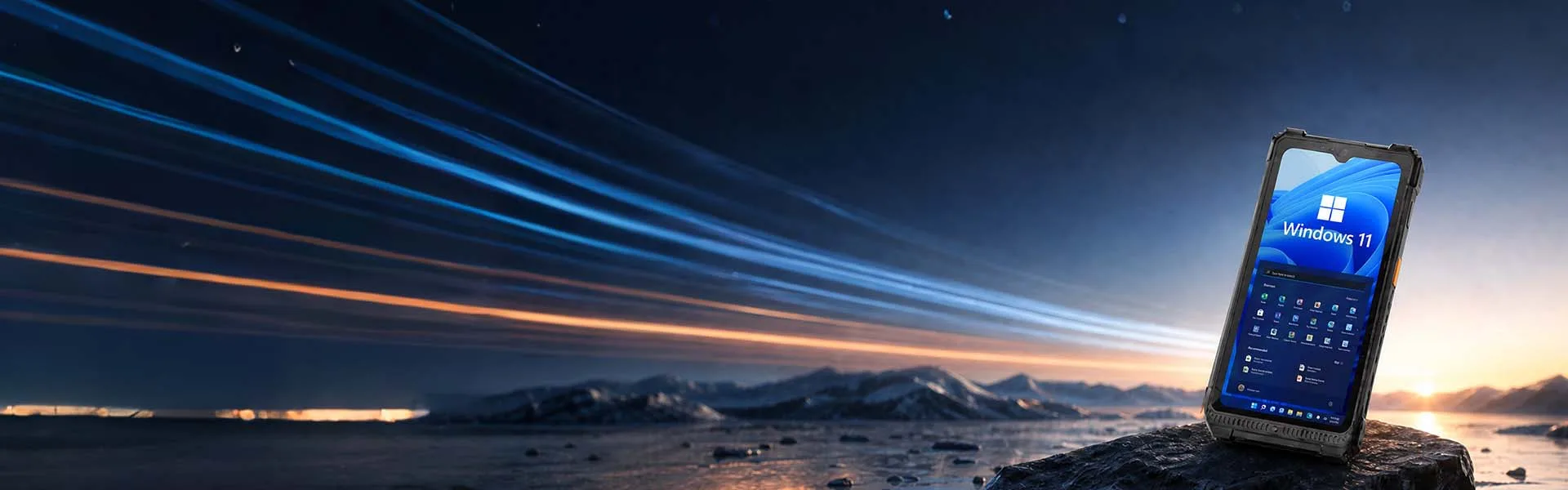

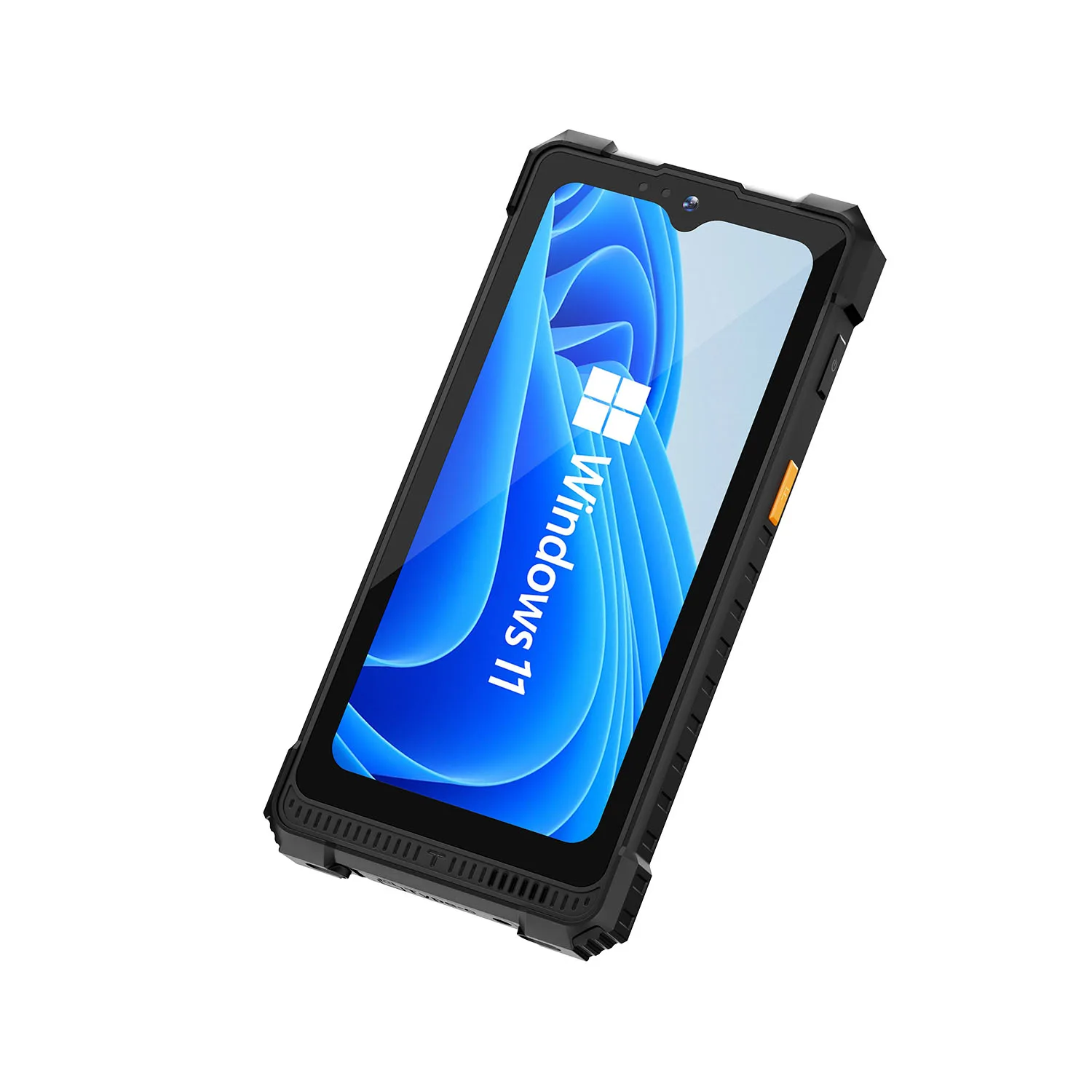

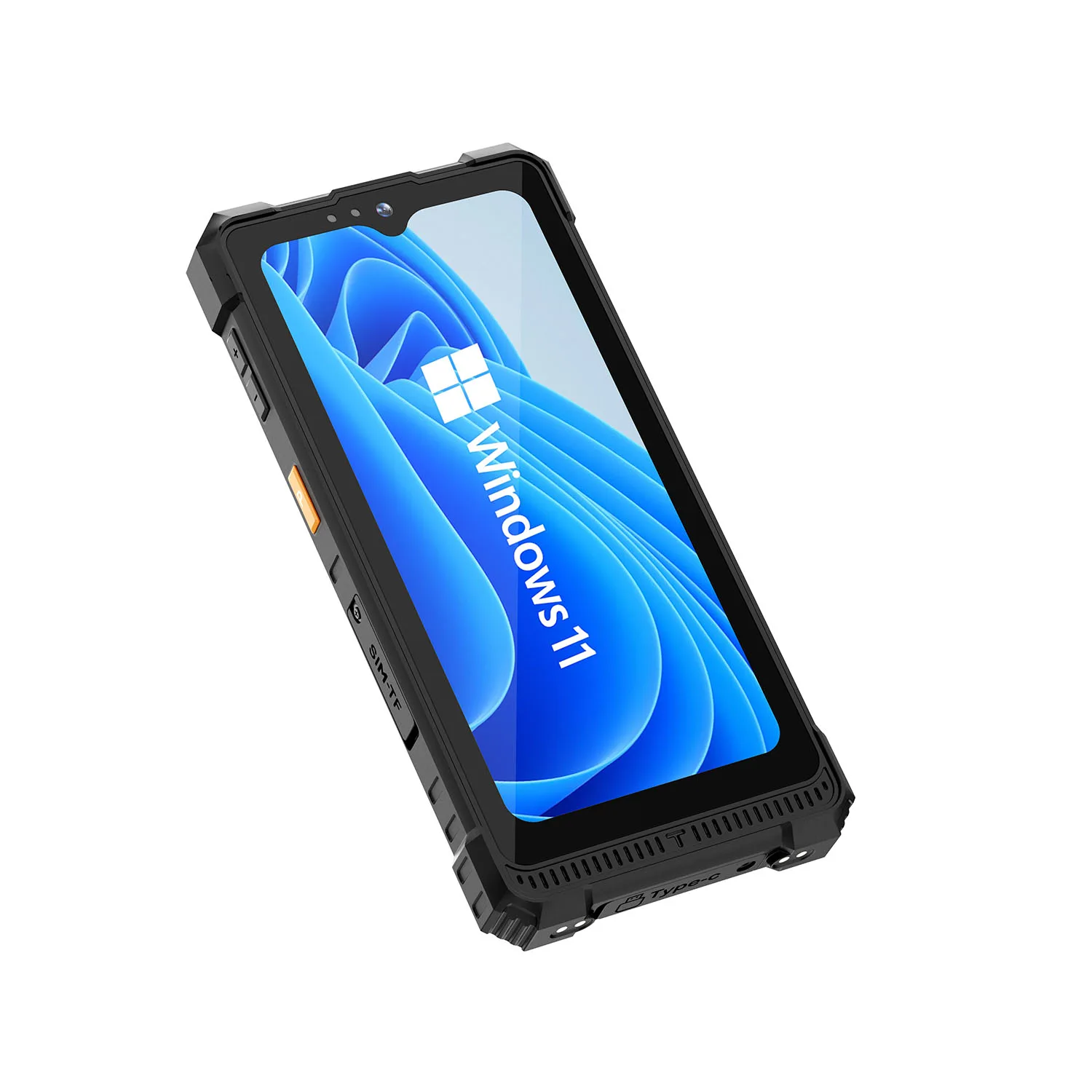

CENAVA W65G N4020 6.5" Win11 IP65 Rugged PDA MIL-STD-810H
CENAVA W65G is a 6.5-inch Windows 11 rugged handheld PDA for warehousing, logistics, retail and field service. The Intel N4020 dual-core runs full Windows desktop software, while dual side scan keys make one-handed barcode capture easy. Removable 4000mAh battery, 500-nit glove-friendly display, IP65 and MIL-STD-810H rated. NFC standard; optional Honeywell 2D scanner, 4G/5G and more.
OS: Windows 11 (optional Windows 10)
CPU: Intel N4020 dual-core, 4MB SmartCache, up to 2.8GHz, 6W TDP; Intel UHD Graphics 600
Display: 6.5" IPS 720×1600 (20:9), 500cd/㎡, 10-point G+FF touch, hardness ≥7H
RAM/ROM: 8GB LPDDR4 + 128GB eMMC

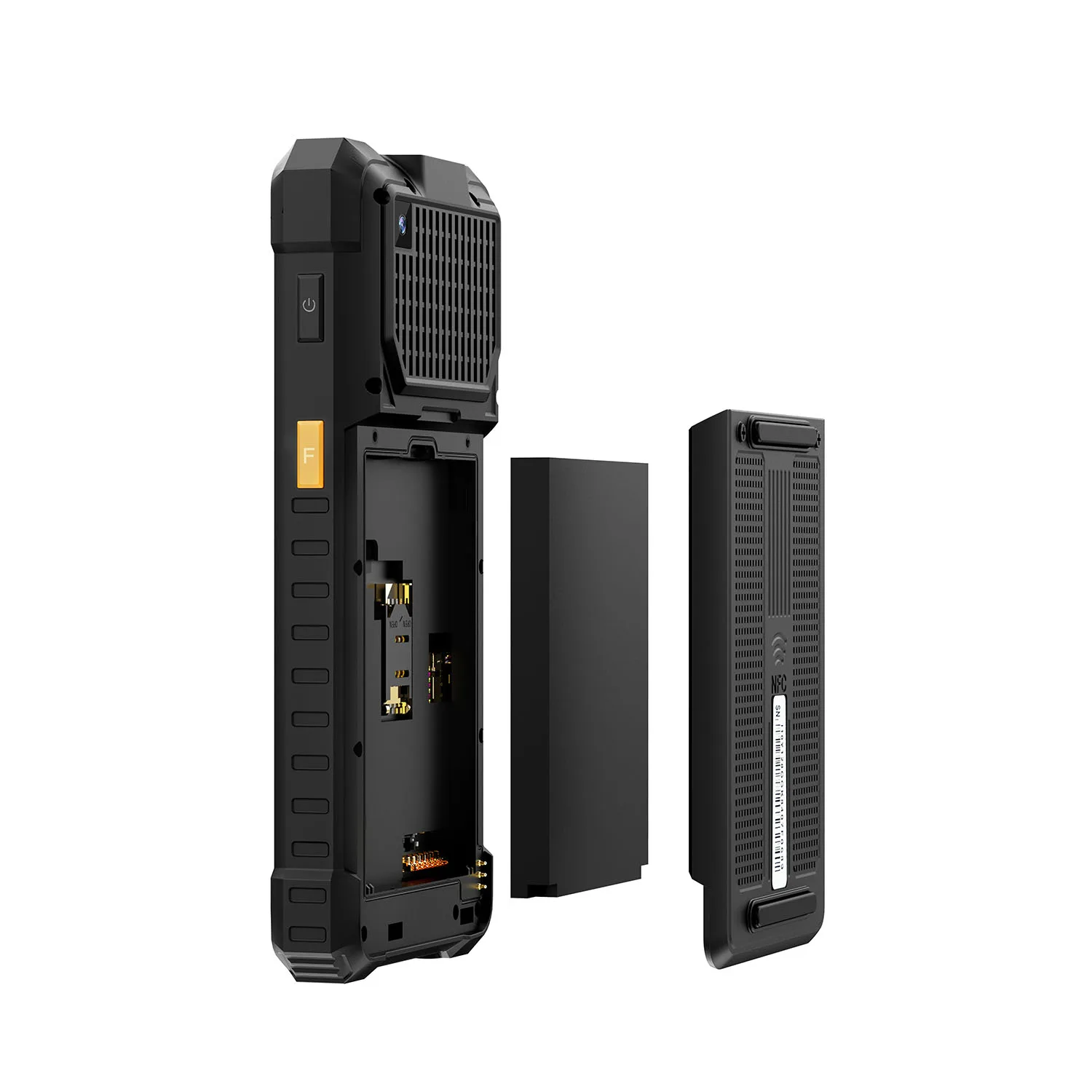

Battery: Removable 7.4V/4000mAh, ~6h endurance
Data Capture: NFC 13.56MHz standard; optional Honeywell N4680 2D scanner (5mil, 30 scans/s); dual side scan keys

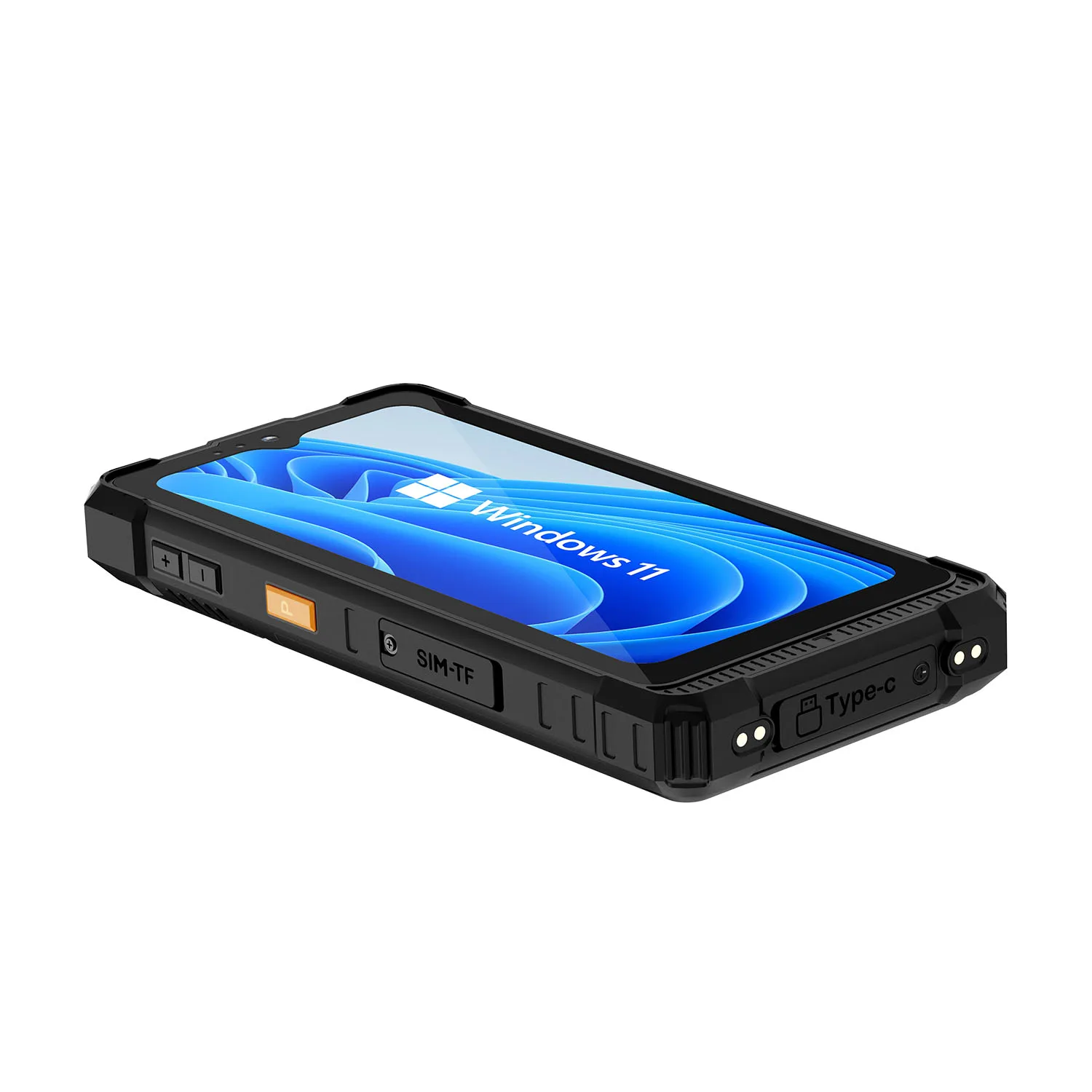

Interfaces: USB 3.0×1, Type-C (USB2.0, charge/OTG/data), TF card (max 512GB), Nano-SIM, 4-pin POGO
Network: Dual-band WiFi 5, Bluetooth 5.0, optional 4G/5G; GPS/BeiDou/Galileo/GLONASS
Camera: Front 5MP, rear 12MP
Protection: IP65, MIL-STD-810H 1.22m drop, -20°C~60°C; 504g
Full Windows 11 Core
Smooth One-Handed Work
N4020 Dual-Core 8GB+128GB Optional 4G/5G
Powered by Intel N4020 dual-core up to 2.8GHz at 6W, this rugged handheld PDA runs full Windows 11 (Windows 10 optional)—WMS and ERP desktop software installs and runs directly without redevelopment. 8GB LPDDR4 RAM and 128GB eMMC keep scanning entry and inventory queries smooth, while the removable 4000mAh battery swaps with spares for uninterrupted shifts. Dual-band WiFi 5 and Bluetooth 5.0 connect wirelessly, with optional 4G/5G and GPS/BeiDou/Galileo/GLONASS positioning keeping warehouse counting online everywhere. It fits frontline workflows out of the box.

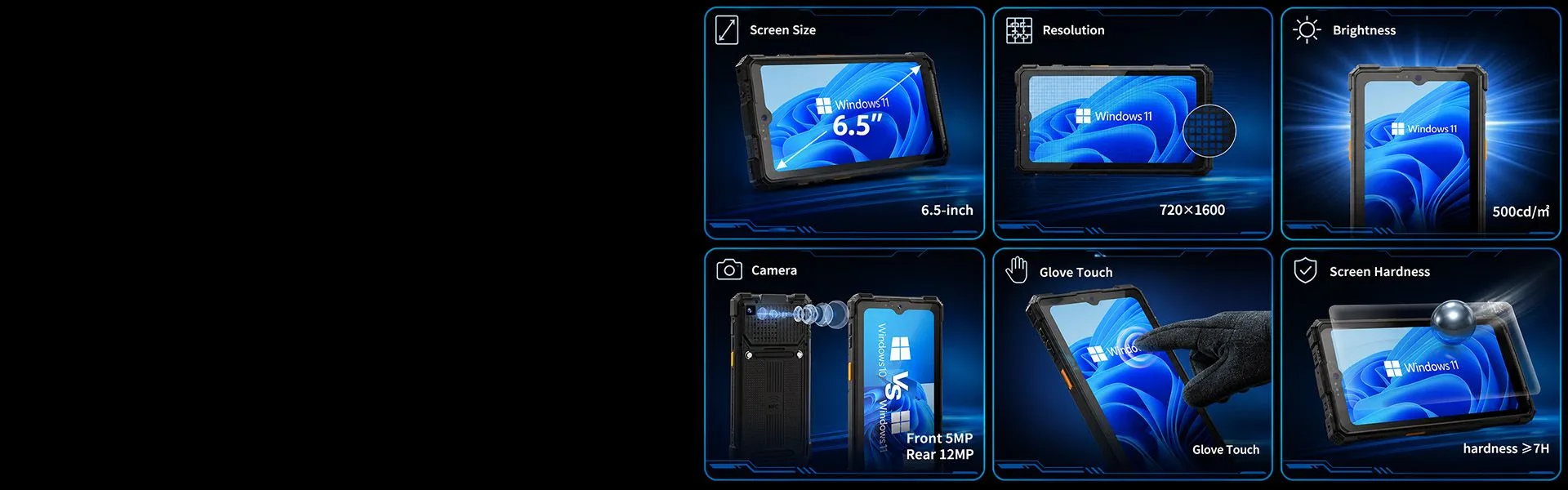

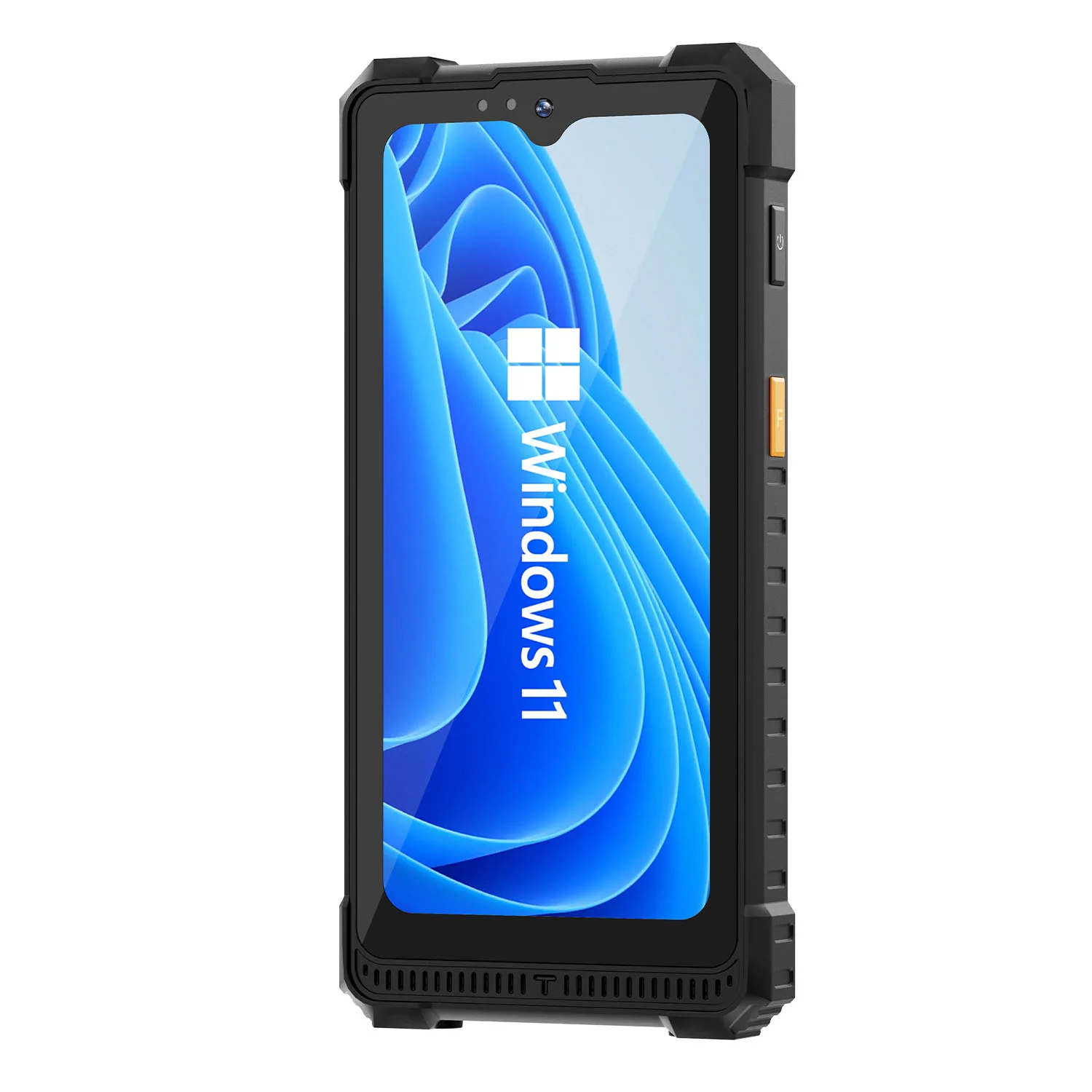

6.5" Bright Display
Glove-Friendly Touch
720×1600 500cd/㎡ Hardness ≥7H
The 6.5-inch IPS display with 720×1600 resolution in a 20:9 ratio fits one-handed grip perfectly, showing shelf labels and order details at a glance. 500cd/㎡ brightness stays readable in dim warehouses and bright outdoors; 10-point G+FF touch supports glove operation so winter work needs no bare hands. Screen hardness ≥7H resists scratches and daily bumps. A 5MP front and 12MP rear camera handle product photos and exception evidence with ease. The tall ratio shows more list rows without scrolling.
Rugged Handheld Body
MIL-STD Drop Proof
IP65 MIL-STD-810H 1.22m Drop -20°C~60°C

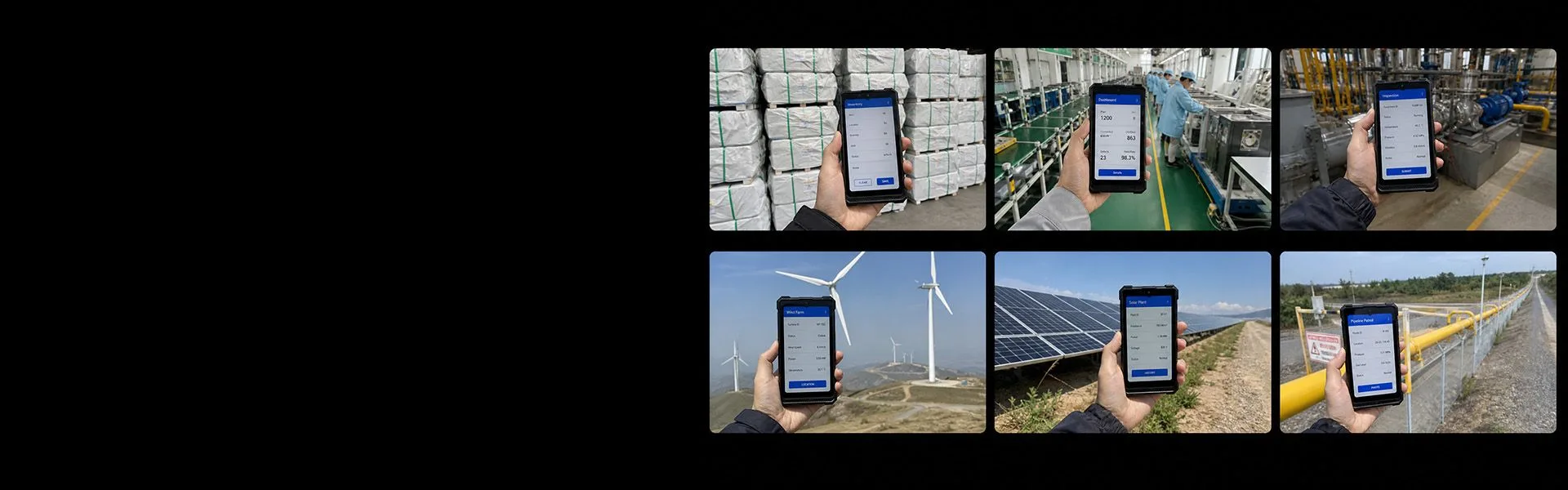

IP65 dust and water protection, MIL-STD-810H certified, surviving 1.22m drops—accidental slips beside forklifts or on sorting lines cause no harm. The -20°C~60°C range keeps it working in cold storage and hot workshops, while the lightweight body enables fatigue-free single-hand grip with dual side scan keys under the thumb. From warehouse counting to retail stores and field inspection, this rugged handheld PDA withstands intensive daily use and keeps working reliably through the busiest peak seasons of the year.

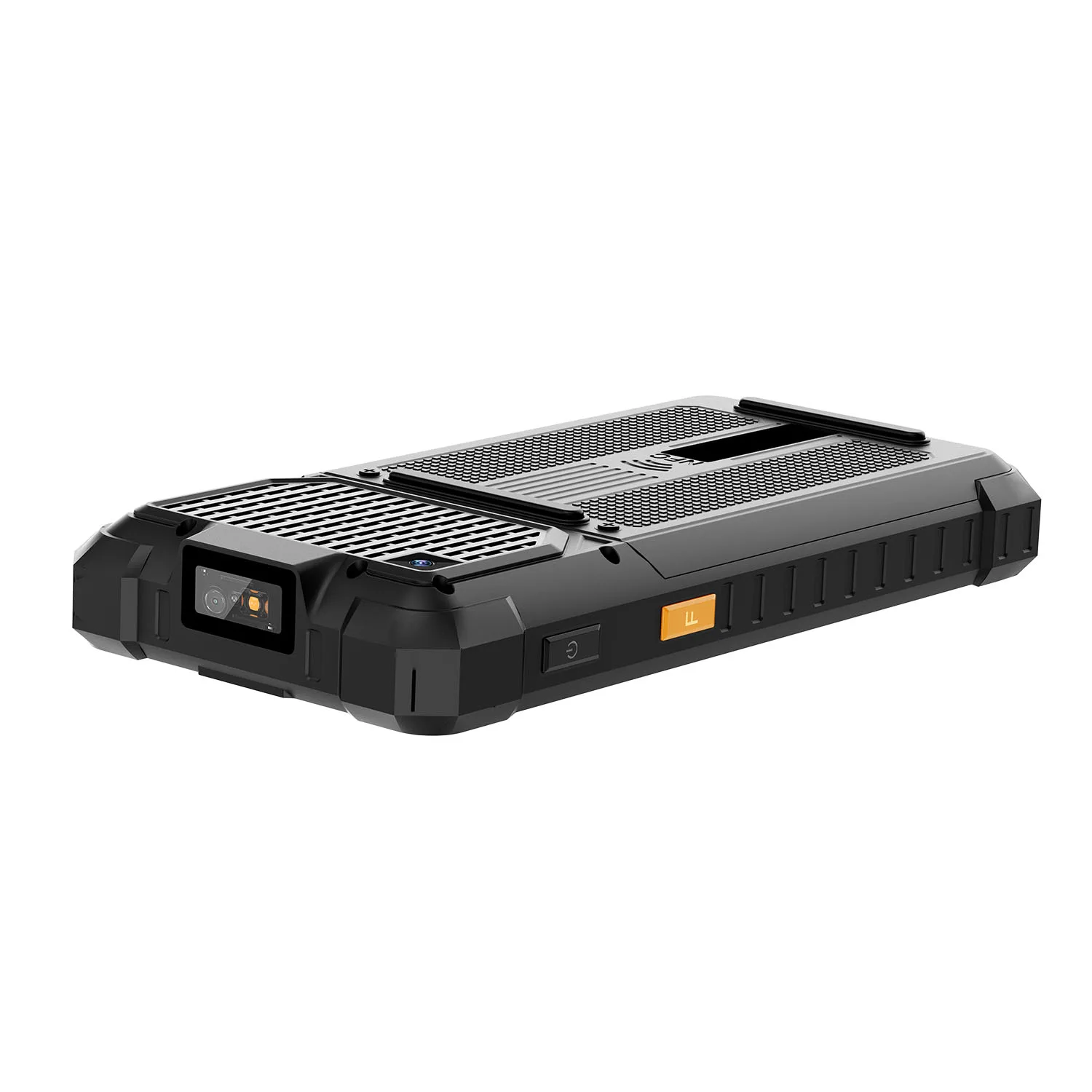

Dual Side Scan Keys
All-in-One Data Capture
NFC Standard Optional Honeywell 2D Type-C+POGO

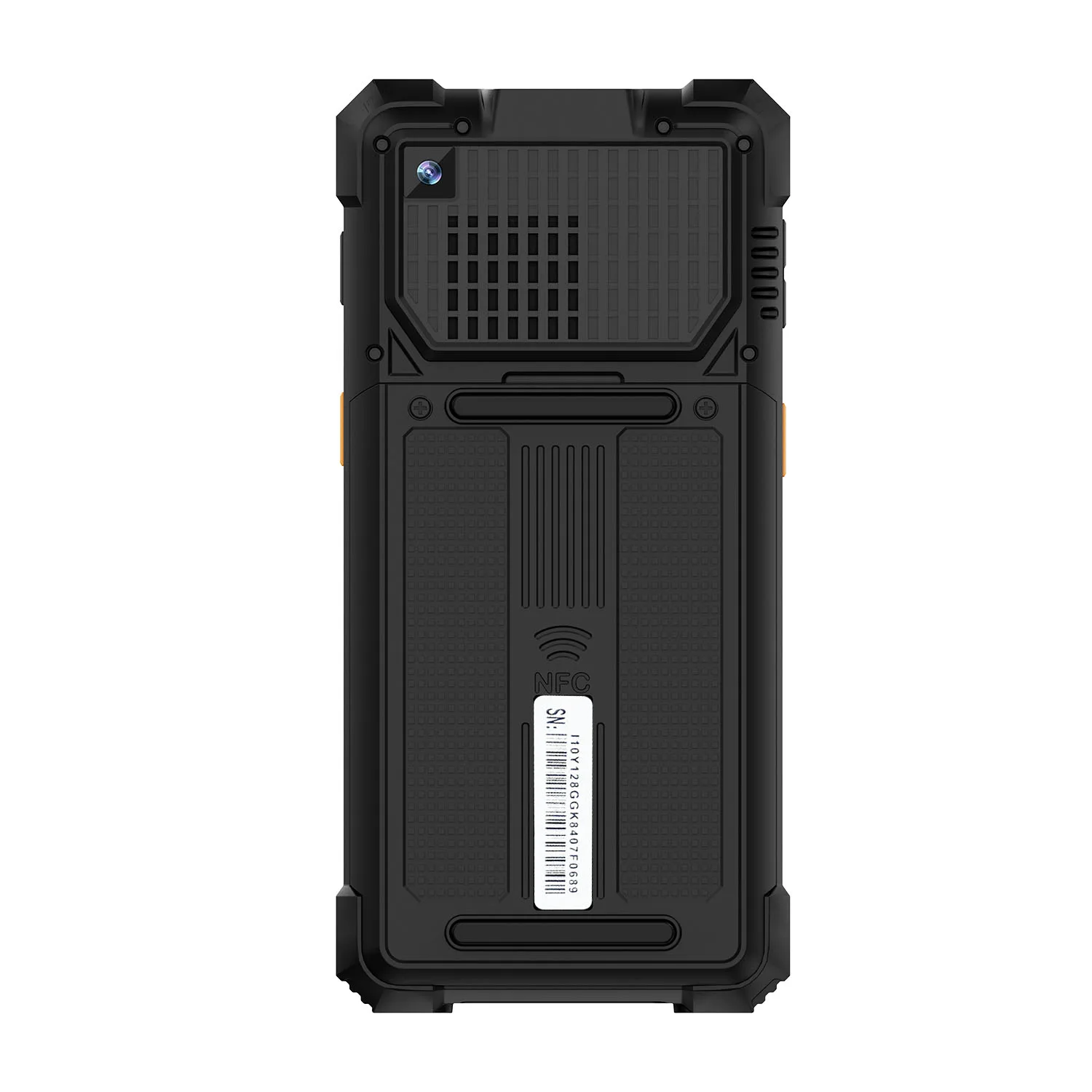

Standard NFC 13.56MHz reads cards and tags with a tap; the optional Honeywell N4680 2D scanner reads 5mil codes at 30 scans per second, doubling one-handed efficiency with left and right scan keys. USB 3.0 exports data, Type-C handles charging/OTG/data, the TF slot expands 512GB, Nano-SIM connects networks, and a 4-pin POGO docks charging bases. Voice intercom, data transfer and barcode capture—all in one device, perfect for warehouse counting and logistics sorting. New staff master it in minutes.
Technical Specifications
 CPU N4020 Processor |  System |  Storage 8GB+128GB |  Display 6.5 inch IPS high-definition full screen 1600*720 IPS Corning Gorilla Glass |
 NFC Support |  2D Barcode Scanner Optional |  Battery 7.4V/4000mAh |  Speaker one speaker |
 Navigation positioning Integrated GPS, GLONASS, and GALILEO |  Protection level IP67 MIL-STD -810H certification |  Interface |  Weight 510g |
 Card slot SIM / TF （512G） |  Work environment working temperature: -20 °C - 60 °C storage temperature: -30 °C - 70 °C |  Key 1 power button 2 Volume Adjustment Key 2 Bar code scanning (left and right) |  G_sensor Support |
W65G Windows Rugged Handheld Details:
| Type | 6.5 inch Windows Rugged Handheld |
| Size | 186.2*90.7*25.6mm |
| Screen size | 6.5 inch,full laminated TFT color full screen Dropnotch 20:9 |
| Screen brightness | 500cd/㎡ |
| TP Touch screen | 10 points Capacitive, G+FF hardness ≥ 7H |
| Camera | Front 5.0MP Rear 12.0MP |
| Speaker | Embedded 1Ω/1W speaker* 1 95dB@0.1m |
| MIC | single microphone |
| Button | Power *1 |
| Volume Adjustment Key (+) *1 | |
| Volume Adjustment Key (-) *1 | |
| Bar code scanning (left and right)*2 | |
| CPU | Gemini Lake N4020 processor, 2 cores and 2 threads, embedded 4 MB SmartCache, TDP 6W The maximum frequency is 2.8GHz |
| G_sensor | Support |
| WIFI | Wi-Fi 802.11(a/b/g/n/ac) Dual frequency 2.4G+5.8G WIFI5 |
| Bluetooth | BT5.0 (BLE) class1 transmission distance: greater than 10m |
| GPS | GPS, Galileo GLONASS |
| NFC | 13.56MHz Support ISO/IEC 14443A/14443B/15693/18092/mifare reading distance: 3-5cm |
| TYPE-C | TYPE-C 2.0*1 (Charge、OTG 、(Data transmission） |
| USB | USB3.0*1 |
| TF | *1（Max: 512GB） |
| SIM | *1（Nano-SIM） |
| POGO PIN | *1（4pin） |
| Certification | IP65,CE,FCC，MIL-STD-810H,UN38.3, MSDS, IEC62133 |
| Drop height | MIL-STD-810H 1.22-meter drop test |
| Power supply | Input 100-240V AC 1.5A 50/60Hz |

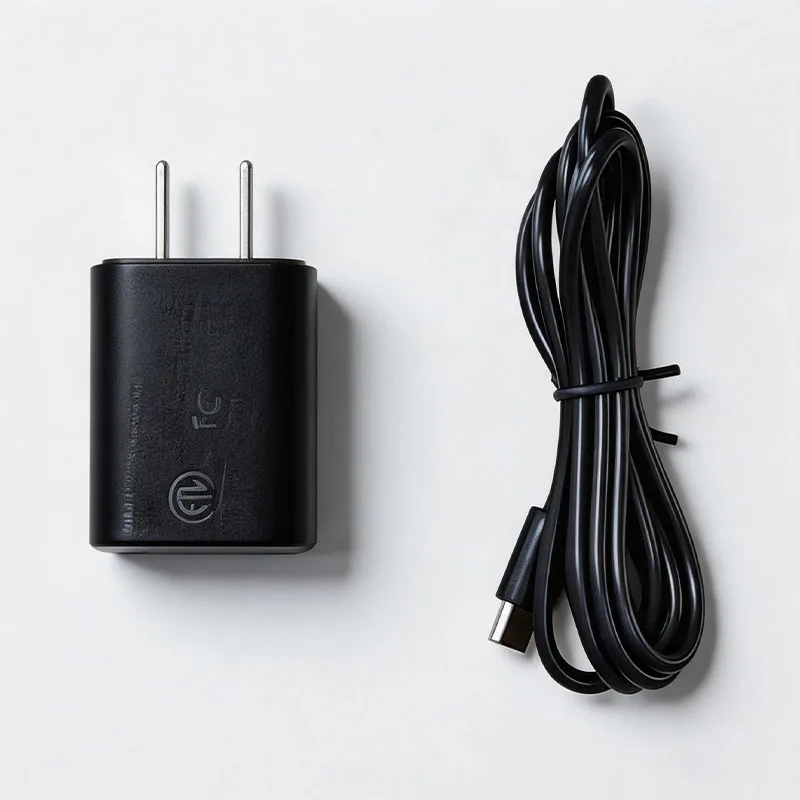

| Accessories | 30W Fast charge adapter、C to C data cable |
Frequently Asked Questions About the W65G Windows Rugged Handheld
1. What types of applications is the W65G suitable for?
The W65G is suitable for warehouse inventory, logistics, mobile inspection, asset management, field data entry and other Windows workflows. Its Intel Celeron N4020 processor is intended for browser-based systems, forms, barcode software and basic enterprise applications.
2. Does the W65G officially support Windows 11?
Yes,The Intel Celeron N4020 belongs to a processor series supported for Windows 11 systems.
3. Is the W65G rated IP65 or IP67?
IP65
4. How long does the removable battery last?
The W65G uses a removable 7.4V/4000mAhExternal polymer lithium ion battery About 6 hours
5. Can the W65G use 4G or 5G mobile networks?
4G and 5G configurations are listed for different regional markets.
6. Which satellite positioning systems are supported?
Support GPS, GLONASS, Galileo
7. What barcodes can the optional scanner read?
The optional Honeywell N4680 scanner supports common 1D and 2D symbologies, including QR Code, Data Matrix, PDF417, Aztec and Han Xin Code.
8. Can the W65G connect to external equipment?
The W65G includes USB Type-C, USB Type-A and a four-pin POGO connector.
9. What should buyers confirm before placing a volume order?
Buyers should confirm the IP rating, drop-test height, Windows edition, TPM and Secure Boot, CPU supply, cellular modem, GNSS module, NFC inclusion, barcode engine, battery runtime, POGO functions and available accessories.

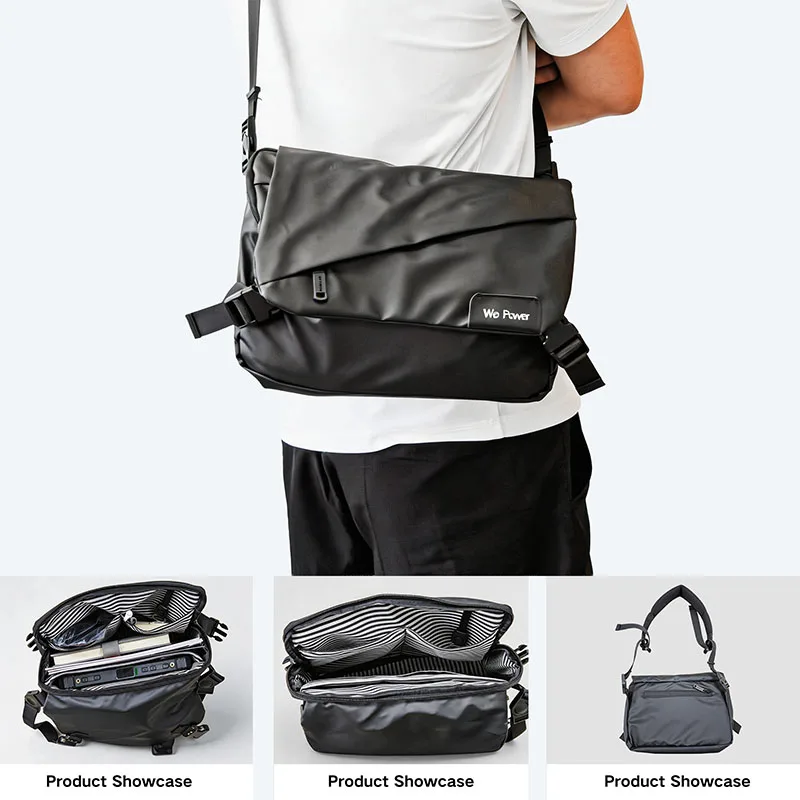

Accessories
