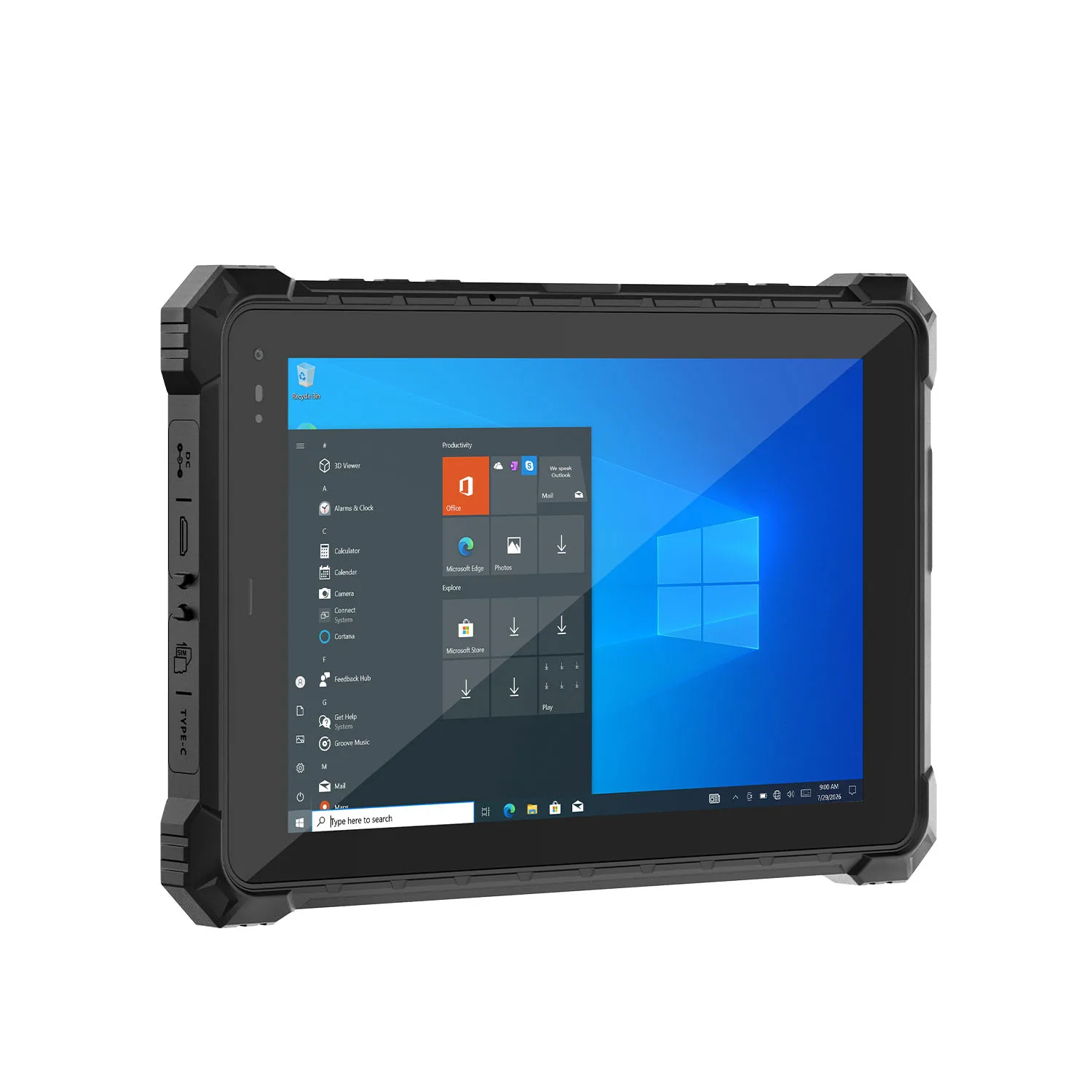

CENAVA W10NX N5100 10.1 Inch Windows IP67 Industrial Tablet
The CENAVA W10NX is a 10.1-inch Windows rugged tablet developed for equipment maintenance, serial-device communication, industrial network access, vehicle installation and mobile field-service applications.It combines an Intel Celeron N5100 quad-core processor with up to 16GB memory, 256GB storage, a 700cd/m² industrial touchscreen and a removable 7700mAh battery.
CPU: Intel Jasper Lake N5100 quad-core 4-thread, 1.1–2.8GHz, fanless passive cooling
OS: Windows 10 (optional Windows 11, Ubuntu 22.04.5)
Display: 10.1" IPS 1280×800 (optional 1920×1200), 700cd/㎡, 10-point G+G glove touch, hardness ≥7H (wet-hand touch customizable)
RAM/ROM: 8GB+128GB (custom 16GB+256GB)
Battery: 7700mAh 7.6V removable battery, swap-and-go (optional battery charging dock)
Integrated I/O: RJ45, DB9 RS232, Micro HDMI, Type-C (PD charging), USB-A 3.0, 3.5mm jack, TF up to 1TB, Micro SIM, DC 12V, 12Pin POGO
Network: Dual-band WiFi 6, Bluetooth 5.2; optional 4G LTE / 5G (custom function); GPS/GLONASS, optional single-BeiDou positioning
Protection: IP67, MIL-STD-810H 1.22m drop, -20°C~60°C, TPM security chip
Camera: Front 5MP fixed-focus + rear 8MP autofocus

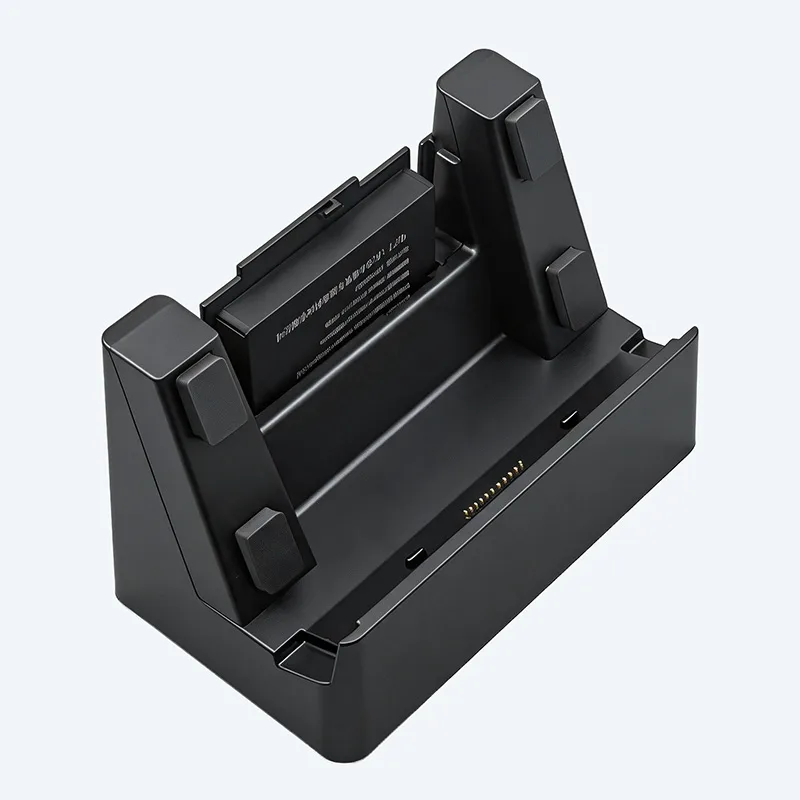

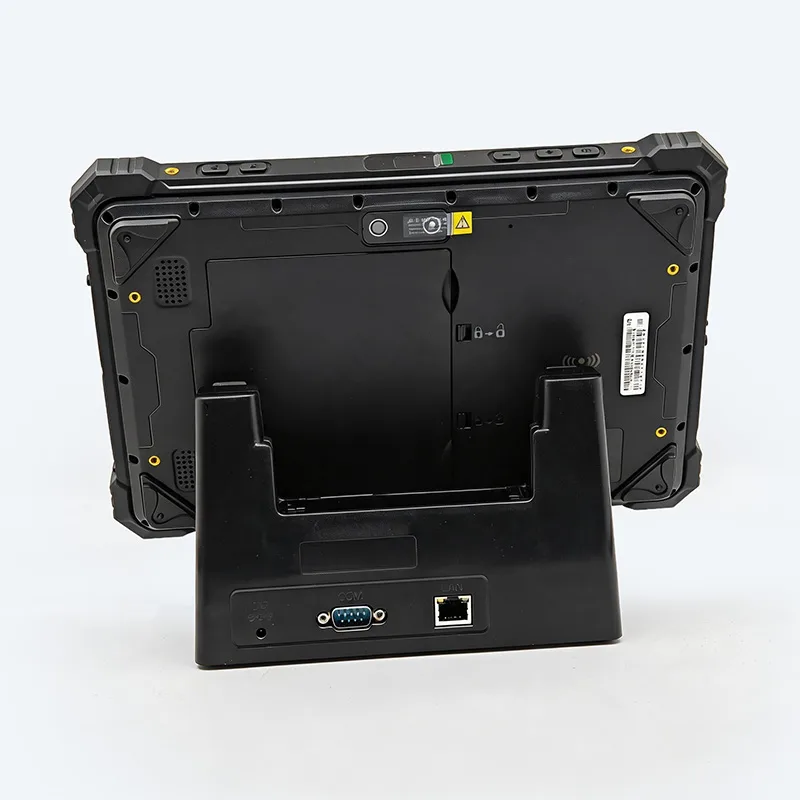

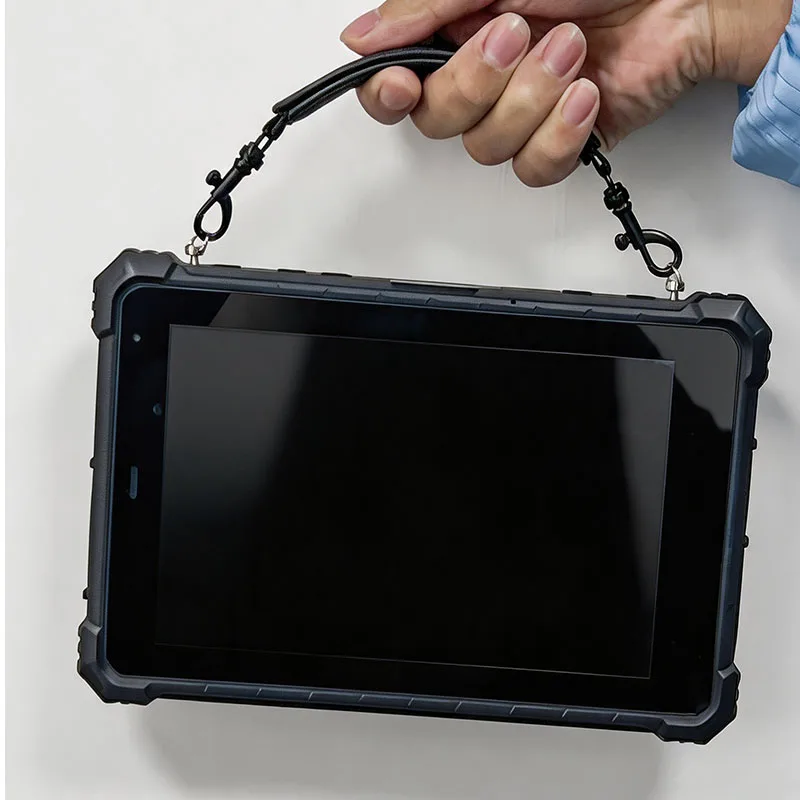

Optional Modules: 2D scanner (N1/N670); carry handle & battery charging dock accessories

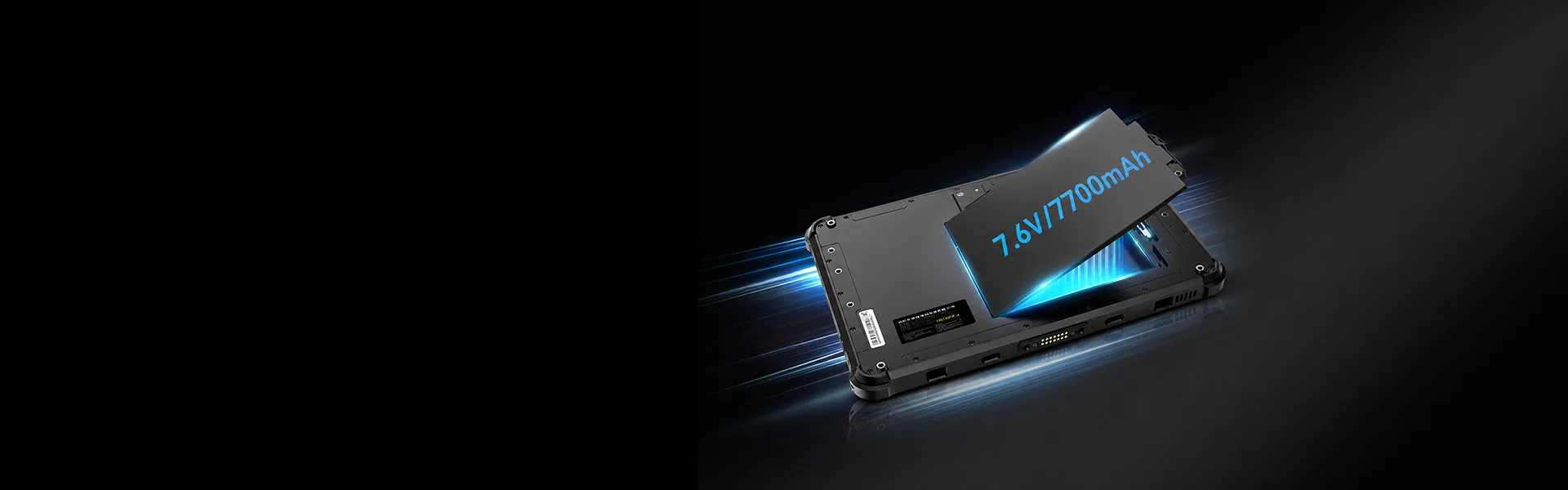

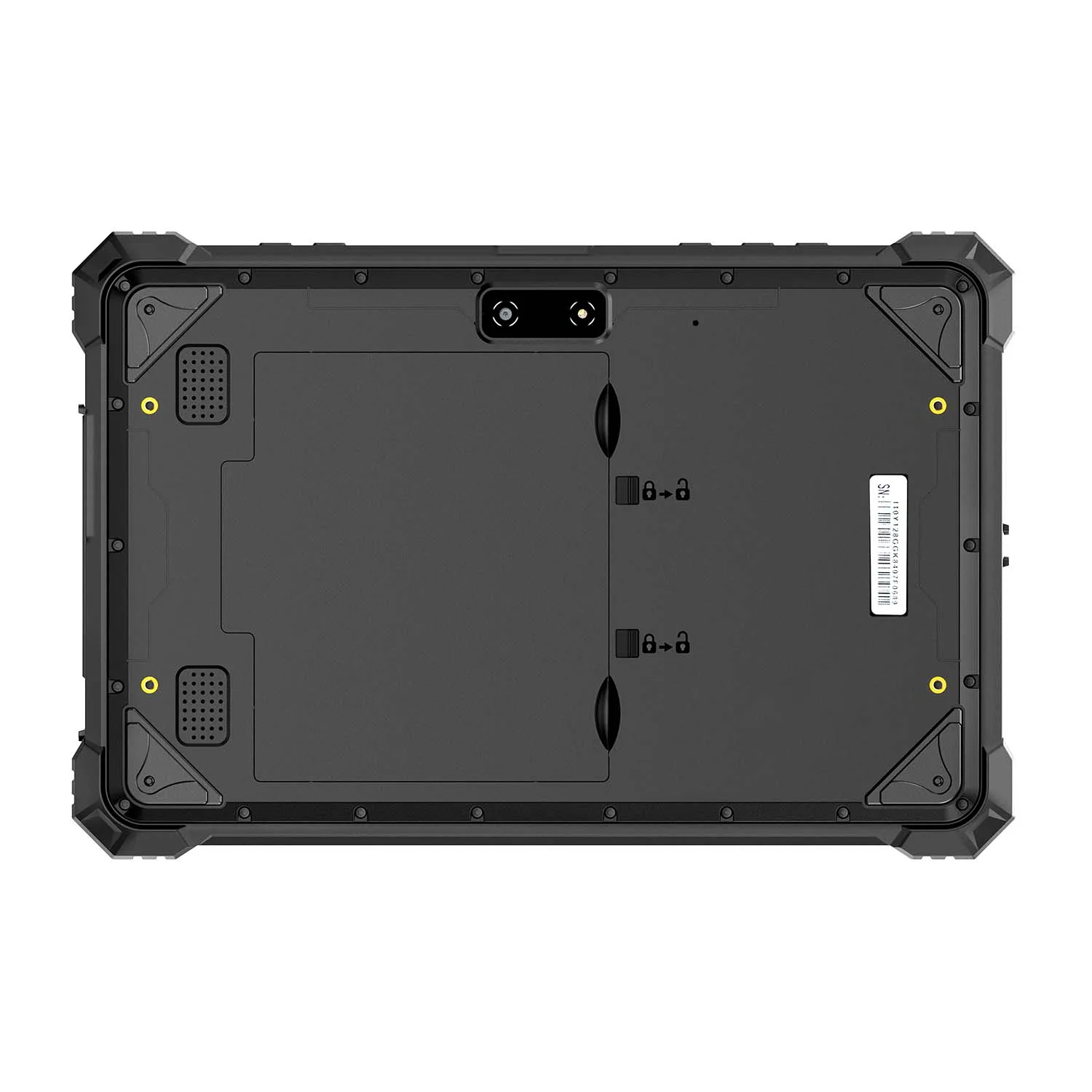

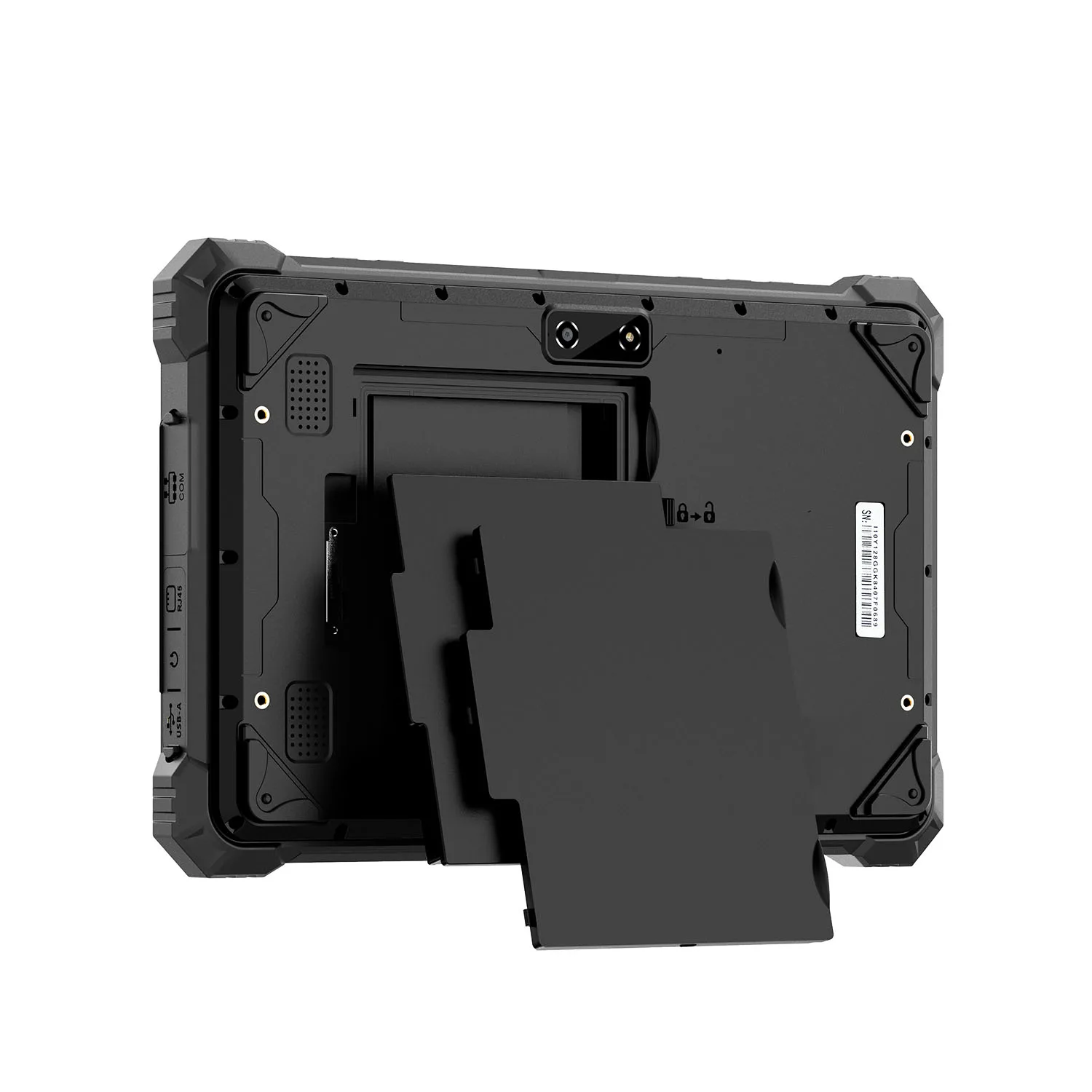

Swappable Large Battery
All-Day Endurance
7.6V/7700mAh Removable Battery

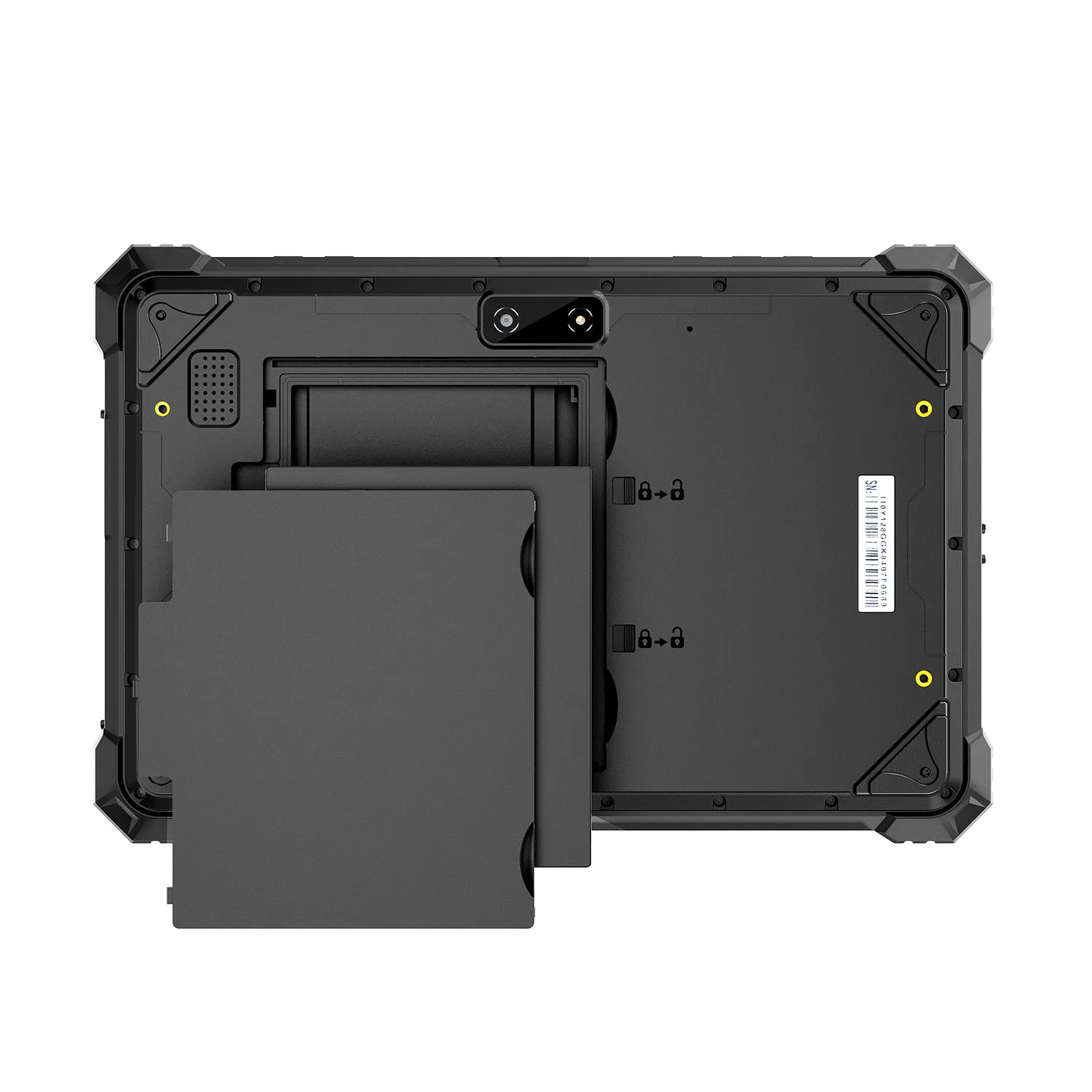

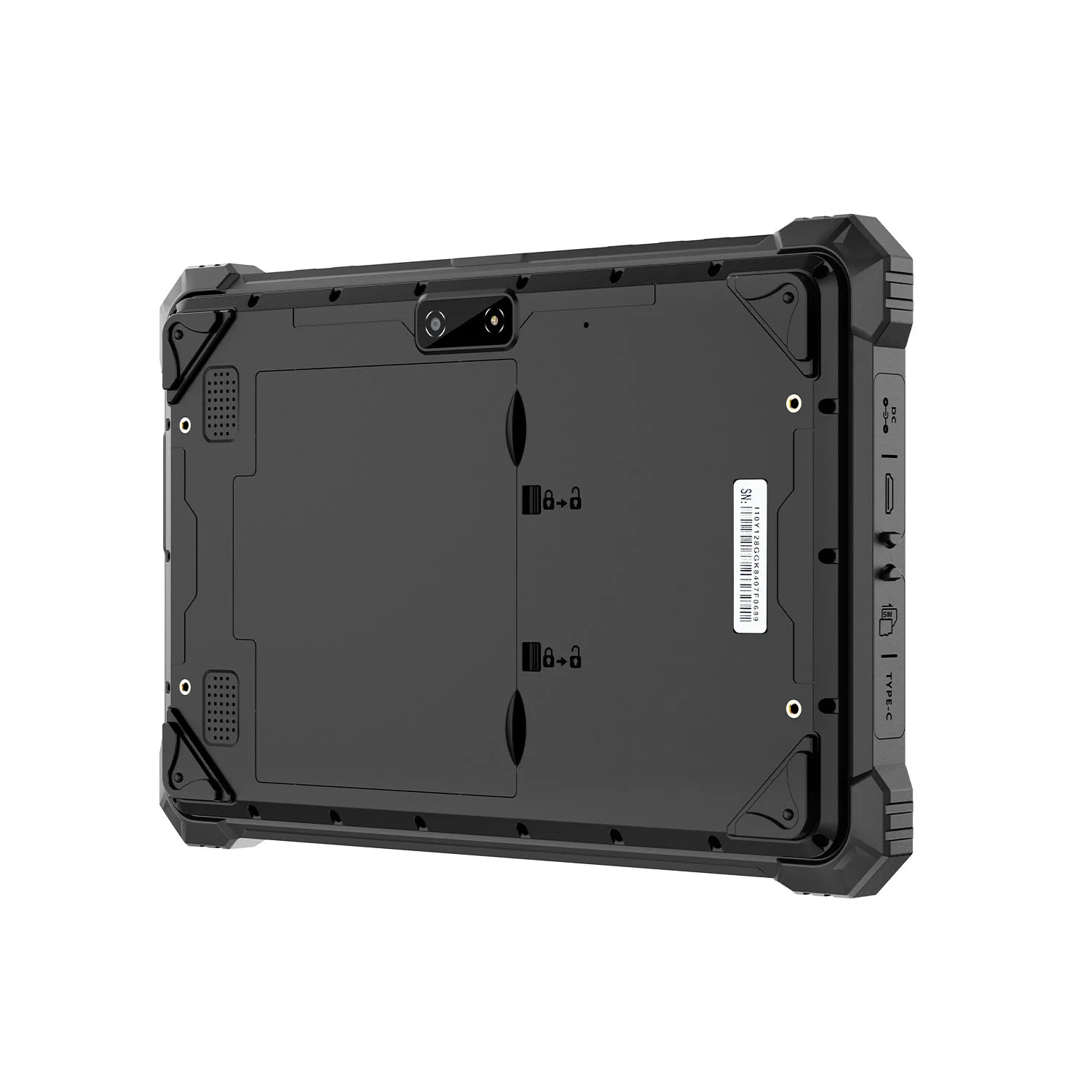

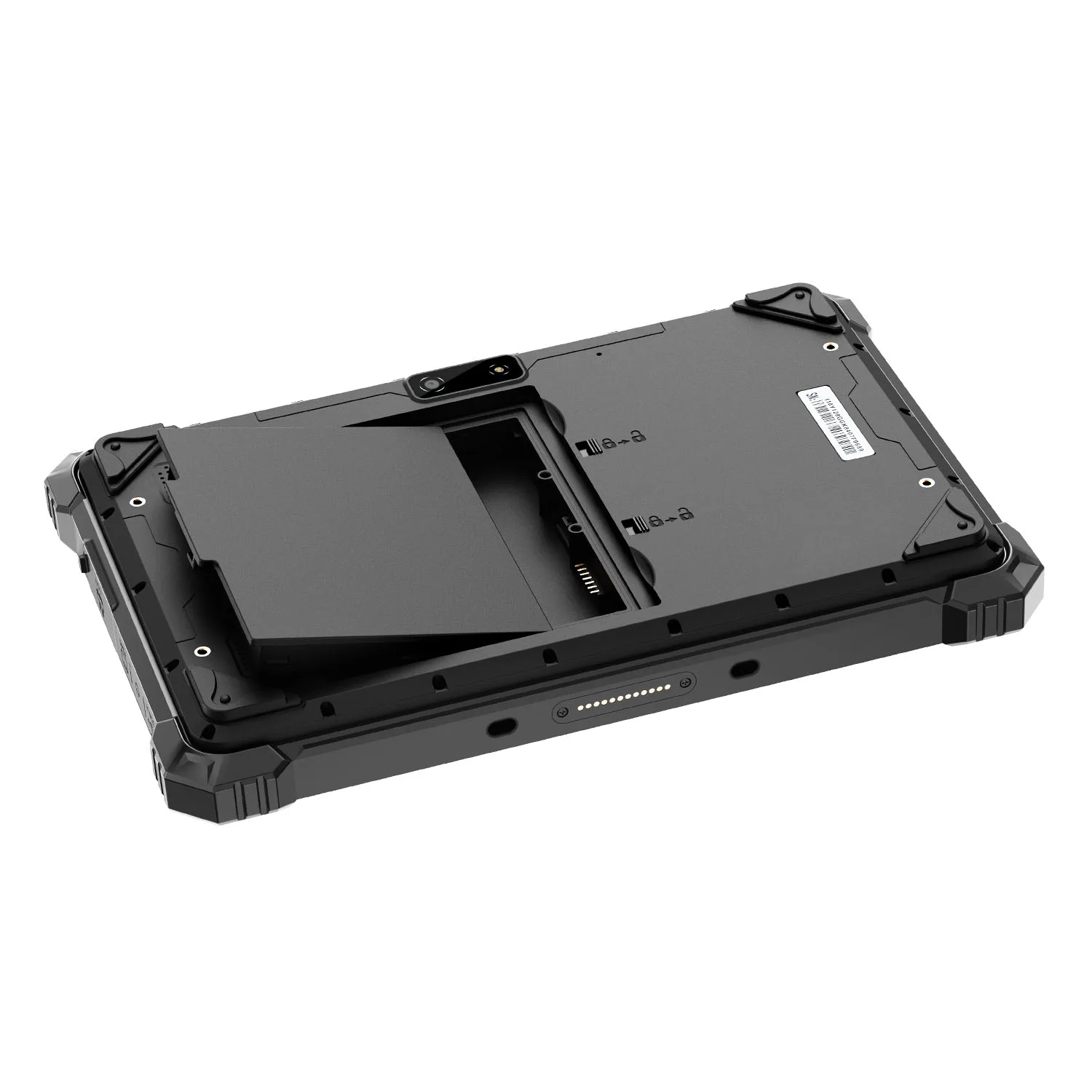

The 7.6V/7700mAh high-voltage lithium battery features a removable design for uninterrupted field work; swap in a spare for instant full power during long outdoor inspections, vehicle dispatching and warehouse inventory. The DC 12V charger quickly restores power. The reinforced, sealed battery compartment withstands repeated insertions without loosening, discharges stably from -20°C to 60°C, and stays dustproof and waterproof. An optional battery charging dock enables centralized charging, so multiple batteries rotate for all-day power.
Triple-Proof
Harsh Conditions No Fear
IP67 1.22m Drop -20°C~60°C
IP67 dust-tight and waterproof, MIL-STD-810H certified for 1.22m drops. The -20°C to 60°C wide temperature range ensures instant startup in extreme cold or heat. The thickened industrial chassis has reinforced corners and sealing rings against mud and sand, salt-spray tested for durability. Certified to 3C, CE and energy-saving standards, the removable-battery structure is rigorously validated for long-term reliability.
Modules On Demand
Single Unit Orders Accepted
2D Scanning Optional 4G/5G Single-Unit Orders
An optional 2D barcode scanning module reads 1D and 2D codes quickly for warehouse inventory and asset traceability; optional 4G/5G modules keep field inspections and vehicle operations online. Single-unit orders accepted with deep hardware-software customization. The 10.1-inch 700cd/m² high-brightness display stays visible outdoors with glove touch, and wet-hand touch is customizable. Standard 8GB+128GB, optional 16GB+256GB, TF expansion up to 1TB. RJ45 Ethernet and RS232 connect industrial networks and legacy instruments, matching your workflow without paying for unused features.
Quad-Core Power
Win10 Smooth
N5100 Quad-Core 8+128GB Optional 4G/5G

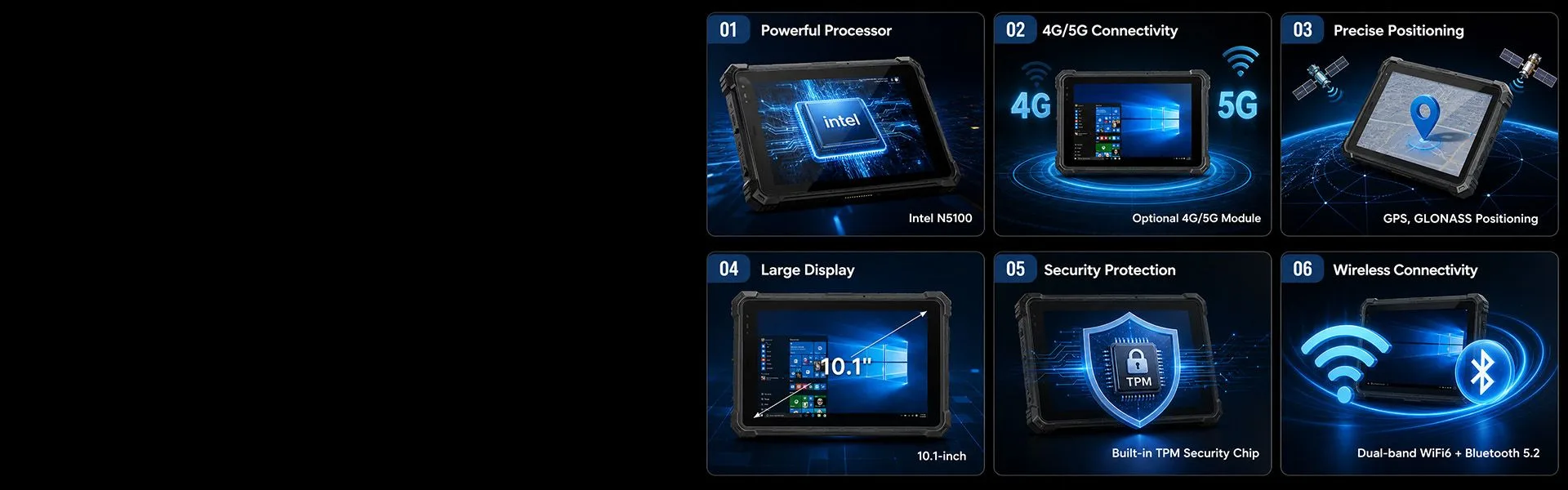

Powered by the Intel N5100 quad-core 4-thread processor (1.1-2.8GHz) with Windows 10, multitasking runs smoothly without lag; Windows 11 and Ubuntu 22.04.5 optional. The 10.1-inch display provides ample space for multi-window dispatching and data visualization. Standard 8GB+128GB, optional 16GB+256GB, handles video backhaul and cloud collaboration. Optional 4G/5G modules keep field inspections and vehicle operations online. Built-in TPM security chip, dual-band WiFi 6 and Bluetooth 5.2, plus GPS and GLONASS positioning with optional single BeiDou for reliable field work.
Technical Specifications
 CPU Intel Celeron N5100 Four cores, four threads 1.10GHz Up to 2.80GHz |  System |  Storage 8GB+128GB |  Display 10-inch IPS touch screen 1920*1200 FHD AF anti-fingerprint coating |
 NFC Optional Default back of the body for card reading, customizable to the front |  One/Two dimensional code Optional Able to identify dirty 1/2 dimensional codes |  Battery Removable 7.6V 7700mAh |  High frequency/ultra-high frequency module Optional Ultra thin integrated module |
 Navigation positioning GPS and GLONASS using U-blox M7 as listed |  ID card identification Optional |  Interface Type-C interface with PD charging, USB 3.0 Type-A, DB9 RS232, RJ45 100Mbps, Micro HDMI |  Weight283.9*189.0*33.9mm/1317g |
 TPM Built-in security chip; |  Protection level Working temperature: -20 °C to 60°C Storage temperature:-30 °C to 70 °C |  Camera Front camera:5MP fixed focus Rear camera:8MP autofocus |  Sensor Gravity sensing, compass, gyroscope, light sensing, distance sensing |
| Product Type | Removable-battery Windows rugged service tablet |
| TP touch screen | Anti-fingerprint (AF) coating,10-point touch G+G, hardness ≥7H, support for medical rubber gloves touch screen (can be customised wet hand touch screen) |
| Gravity sensor | Support |
| NFC High frequency (custom function) | 13.56MHz; supports ISO/IEC 14443A/14443B/15693 protocols. Note: NFC and the 4G/5G module are mutually exclusive — one per unit. |
| TYPE-C | *1 Type-C Support PD charging |
| Type -A | *1 Type-A USB3.0 |
| DB9 | *1 RS232 |
| Earphone Jack | 1 × 3.5mm standard headphone jack |
| Drop height | Meets the requirements of MIL-STD-810H for the 1.22-meter drop test |
| Certification | IP67, CE,tested to MIL-STD-810H (Method 516.8, 1.22m transit drop), energy saving certification, ISO quality certification system, ROHS, salt spray test |

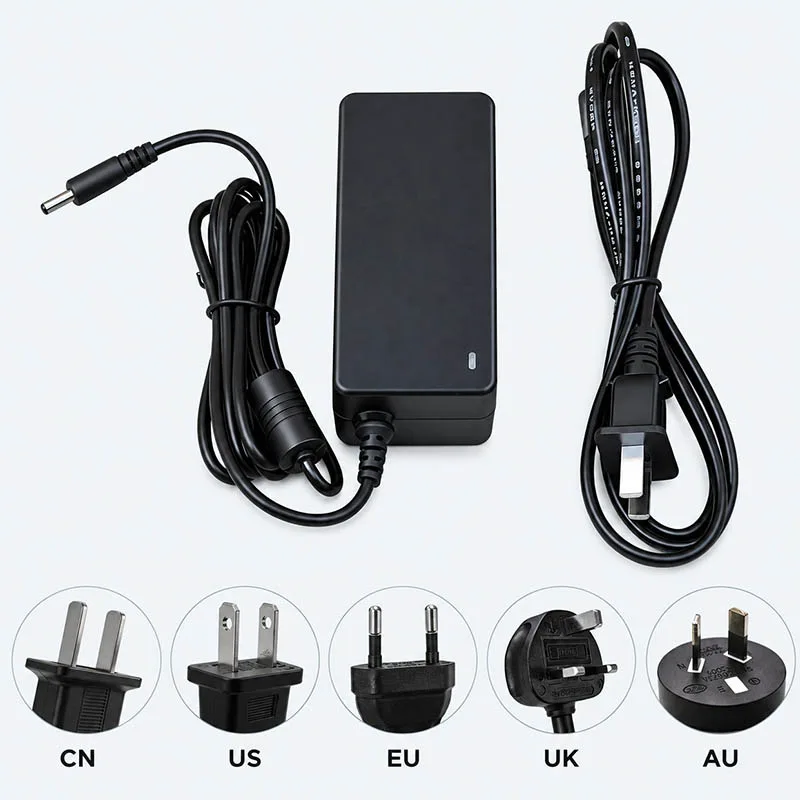

| Adapter | 12V/4A DC adapter |
The W10NX is the removable-battery variant of our 10.1-inch Windows line: an Intel N5100 with native RS232 and RJ45 in an IP67 enclosure, built for service teams that can't afford to stop when the battery dies. The 7700mAh pack swaps in seconds — a two-shift maintenance crew rotates batteries instead of tethering the tablet to a charger. It's the model for equipment maintenance, machine configuration over serial, network commissioning, and vehicle- or wall-mounted installations where a sealed unit would mean downtime. One ordering constraint worth knowing up front: NFC and the 4G/5G module share the same internal bay, so each unit takes one or the other — decide at order time.
Frequently Asked Questions About W10NX 10.1 Inch Industrial Tablet
1. What is the W10NX designed for?
For service workflows where two things are non-negotiable: the battery must swap without tools, and the equipment side speaks RS232 or wired Ethernet. Maintenance departments, machine builders commissioning over serial, and fleets doing wall- or vehicle-mounted installs are the three buyer types who order it most. If you don't need the swappable battery, the W10N gives you the same N5100 with IP68 sealing for less.
2. How is the W10NX different from the W10N?
Both use the same Intel N5100 processor. The W10NX uses a removable 7700mAh battery and IP67 protection in a slightly thicker, mounting-oriented enclosure. The W10N instead uses a built-in battery and carries an IP68 rating. Choose the W10NX if swap-and-go battery operation matters for your workflow; choose the W10N if you need the highest sealing rating and don't need to swap batteries in the field.
3. What processor does the W10NX use, and is it powerful enough for engineering software?
It uses an Intel Celeron N5100 quad-core processor (1.10GHz base, up to 2.80GHz burst). This is well suited to standard Windows business/utility applications, equipment configuration tools, data entry, serial communication, and network diagnostics. For CAD, simulation software, or heavy multitasking, we'd recommend one of our Core i5 / Core Ultra rugged tablet models instead.
4. Can the touchscreen be used with gloves?
Glove touch works out of the box — the 10-point panel handles medical rubber gloves as standard. Wet-hand touch is a factory customization, so mention it at inquiry stage if the tablet will be used in rain or washdown areas.
5. What ports and interfaces does the W10NX include?
RJ45 (100Mbps Ethernet), RS232 (DB9), Micro HDMI, USB-C with PD charging, USB-A 3.0, 3.5mm audio jack, TF card slot (up to 1TB), Micro SIM slot, DC 12V power input, and a 12-pin POGO connector.Note that the USB-C port carries data and PD charging but no DisplayPort video — external displays connect over Micro HDMI.
6. Does the W10NX support Gigabit Ethernet or RS485?
The built-in Ethernet port runs at 100Mbps, not Gigabit. RS485 is not included as standard; if your equipment requires RS485, two routes: a factory-configured 422/485 serial option on project orders, or an external converter. Send us the protocol and baud rate your equipment uses and we'll quote the right one.
7. What wireless connectivity is included?
Dual-band Wi-Fi 6 and Bluetooth 5.2 are standard. Region-specific 4G LTE or 5G modules are available as an option (matched to your target country/carrier), along with GPS/GLONASS positioning, with single-system BeiDou available as an option.
8. Can I add NFC to the W10NX?
NFC is an optional module, back-mounted by default; front-mounting is possible on custom projects. The constraint that decides orders: NFC and the 4G/5G module share one internal bay — a single unit can't have both. If your workflow needs NFC and cellular simultaneously, tell us at inquiry; that's a board-level conversation, not an accessory swap.
9. What ruggedness and certifications does the W10NX carry?
IP67 dust/water protection, MIL-STD-810H (1.22m drop test), an operating temperature range of -20°C to 60°C, plus CE, RoHS, and ISO quality management system certification. A built-in TPM security chip is also included. Full certification documents are available on request.
10. Is the W10NX suitable for explosive or hazardous environments?
The standard W10NX is not ATEX/IECEx certified — and IP67 sealing alone doesn't qualify any device for explosive atmospheres; the two certifications test entirely different things. For oil & gas, chemical plants, grain storage or mining, ask about our Ex-certified line (Ex ib ⅡC T4 Gb / Ex ib I Mb) at inquiry stage.

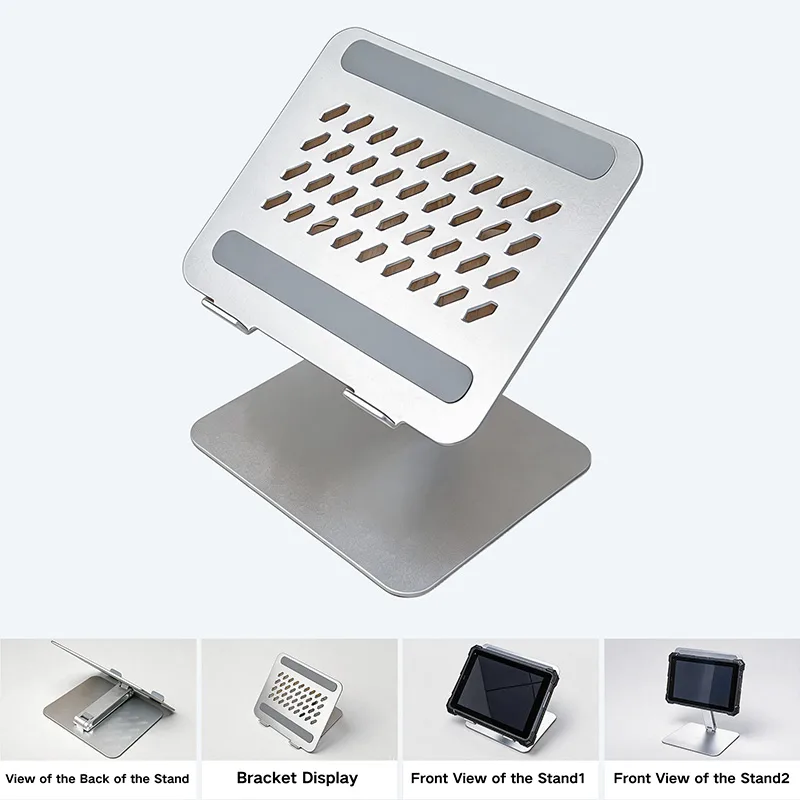

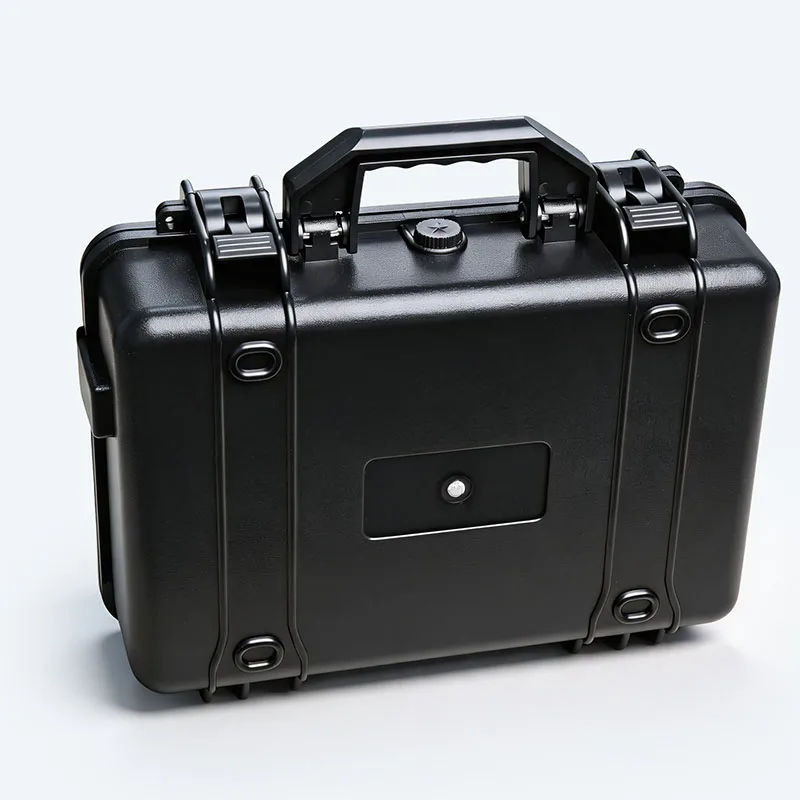

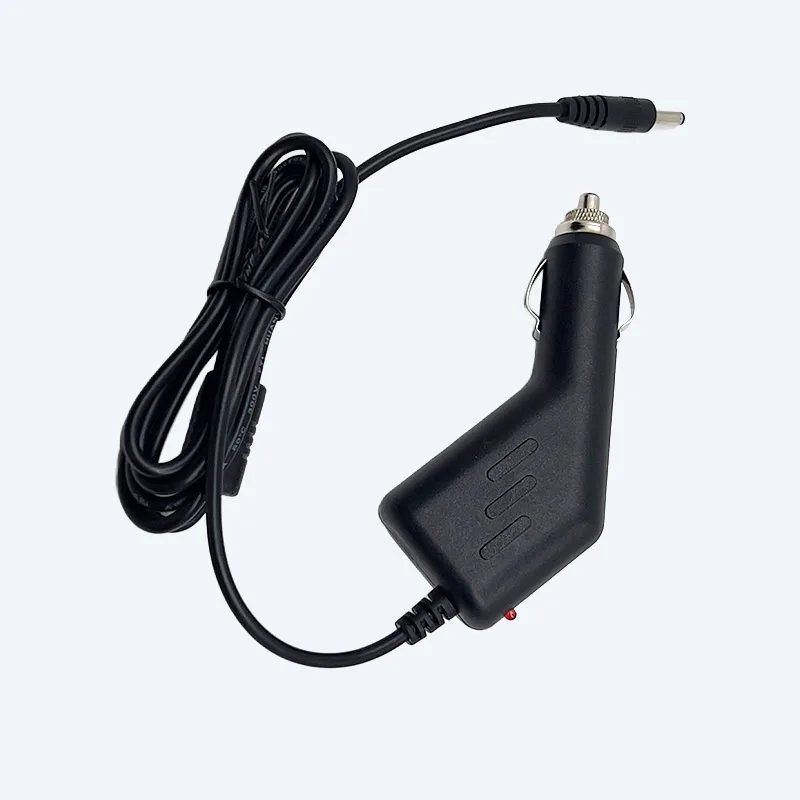

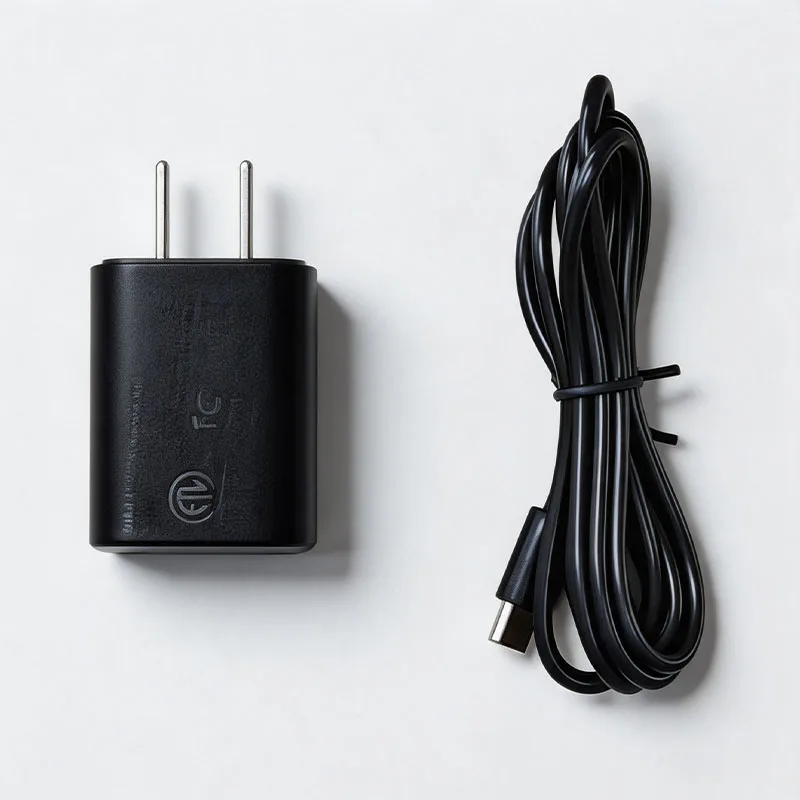

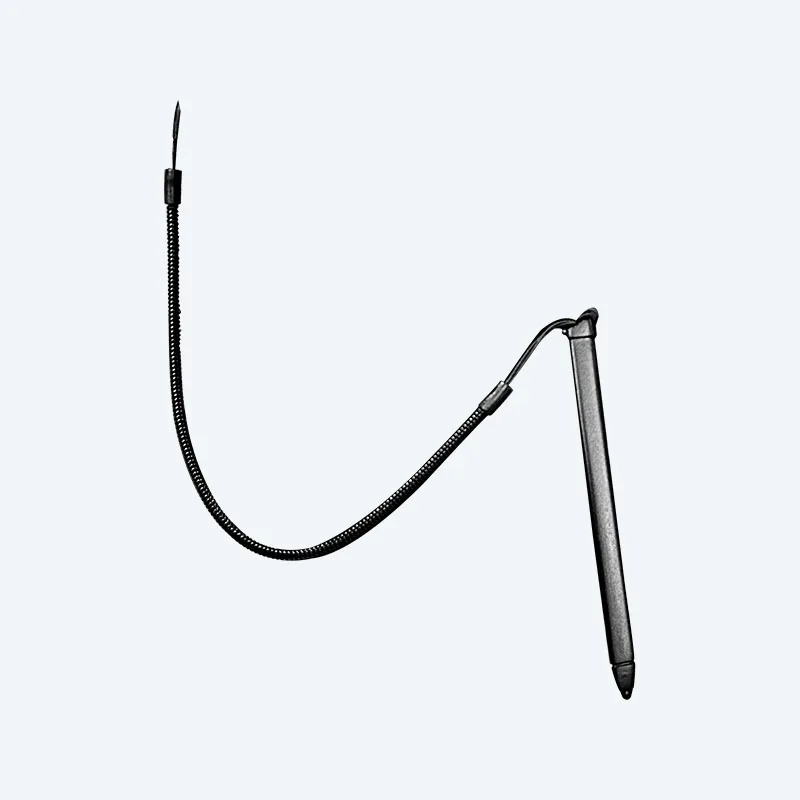

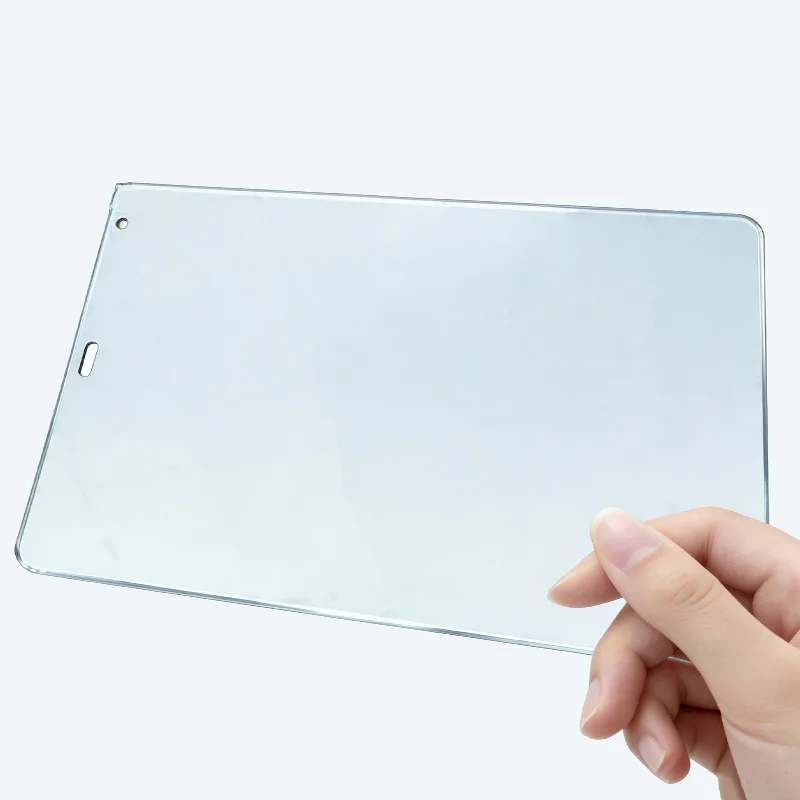

Accessories
