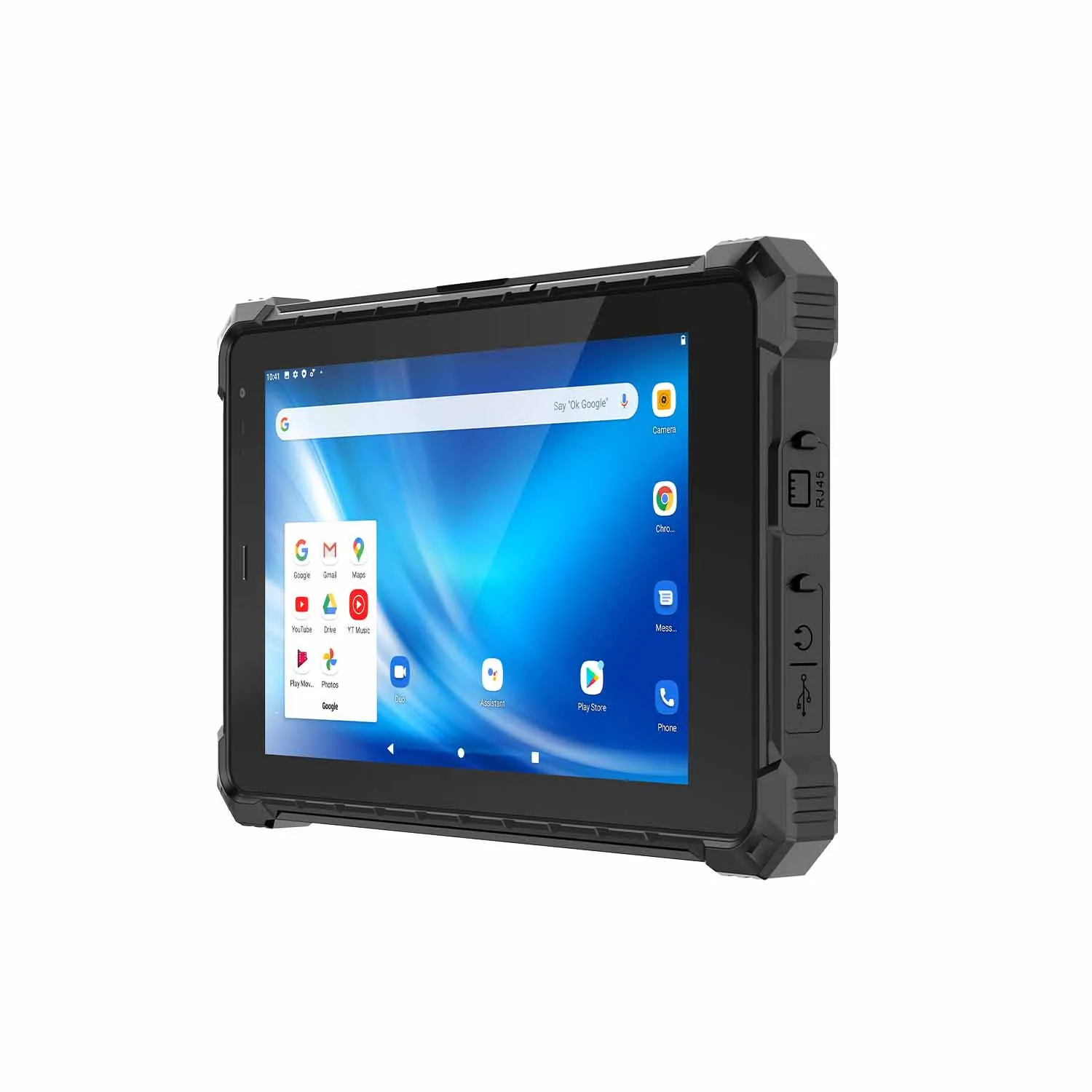

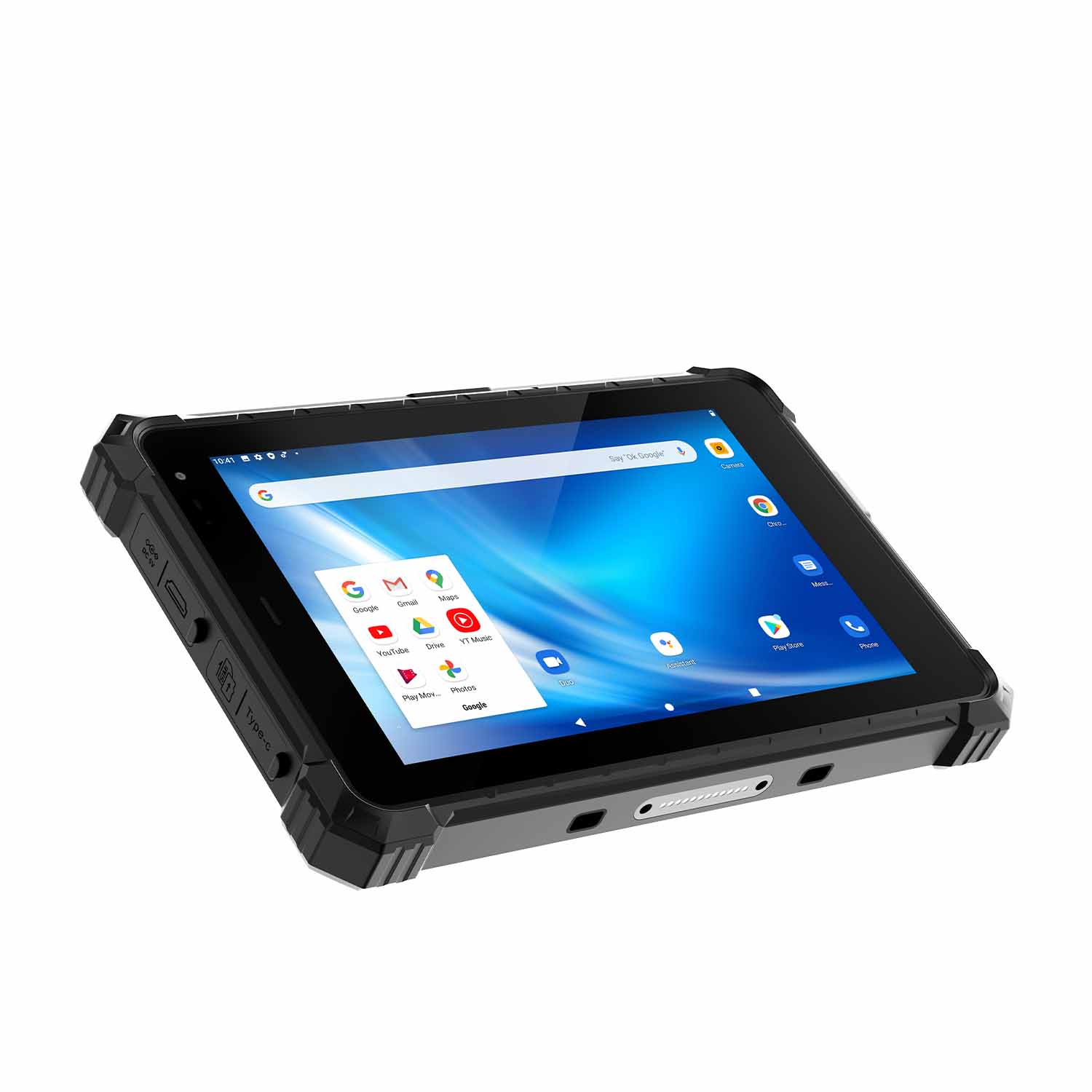

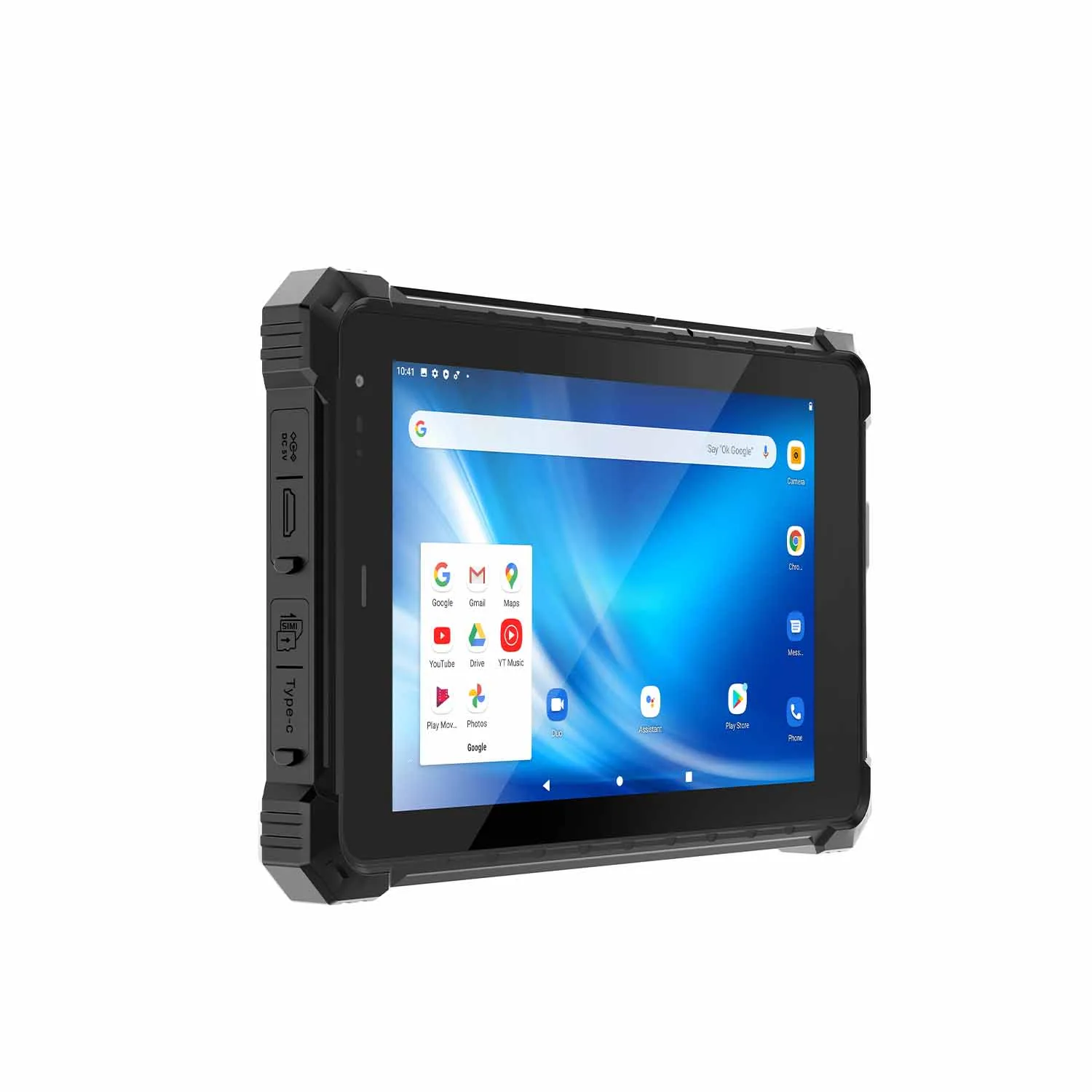

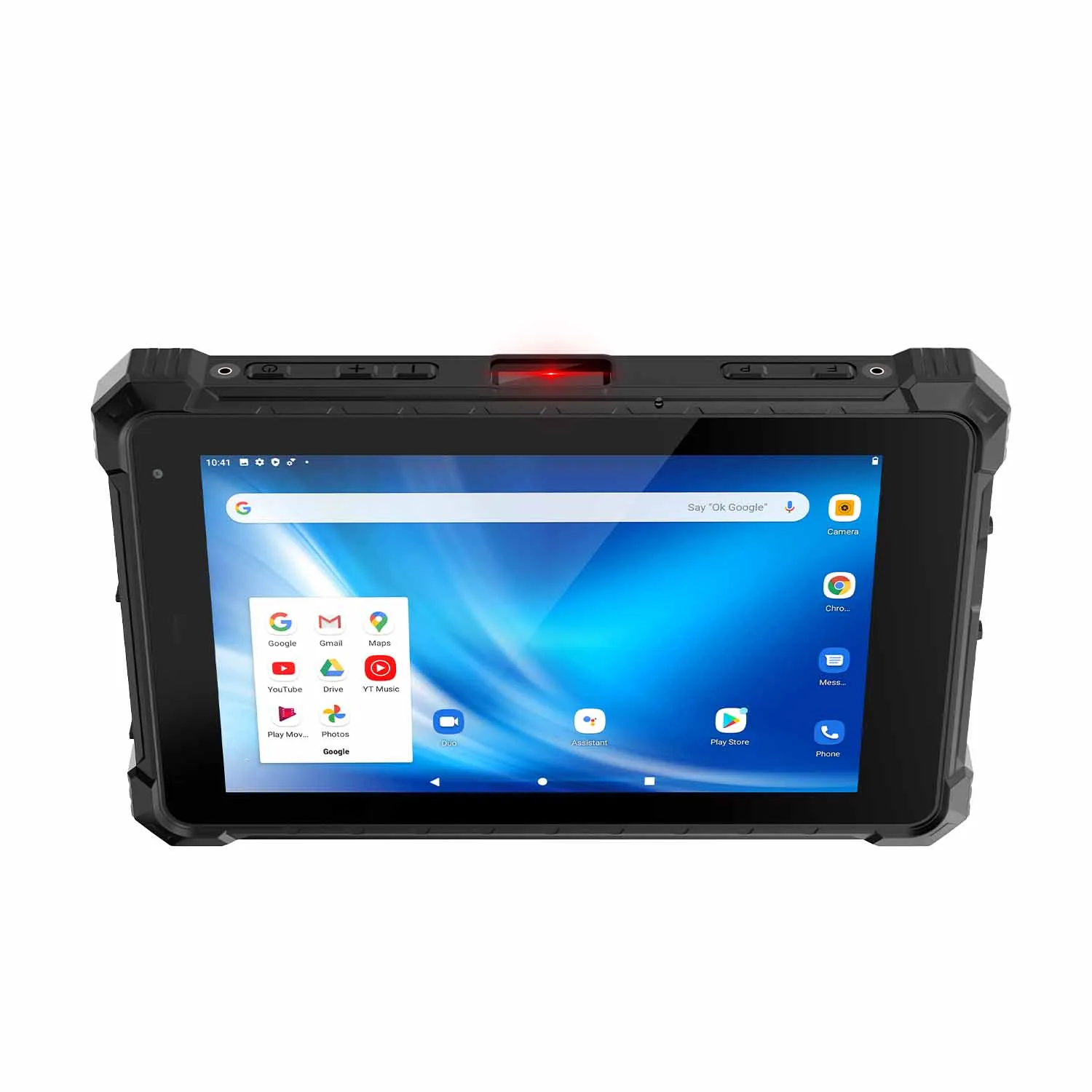

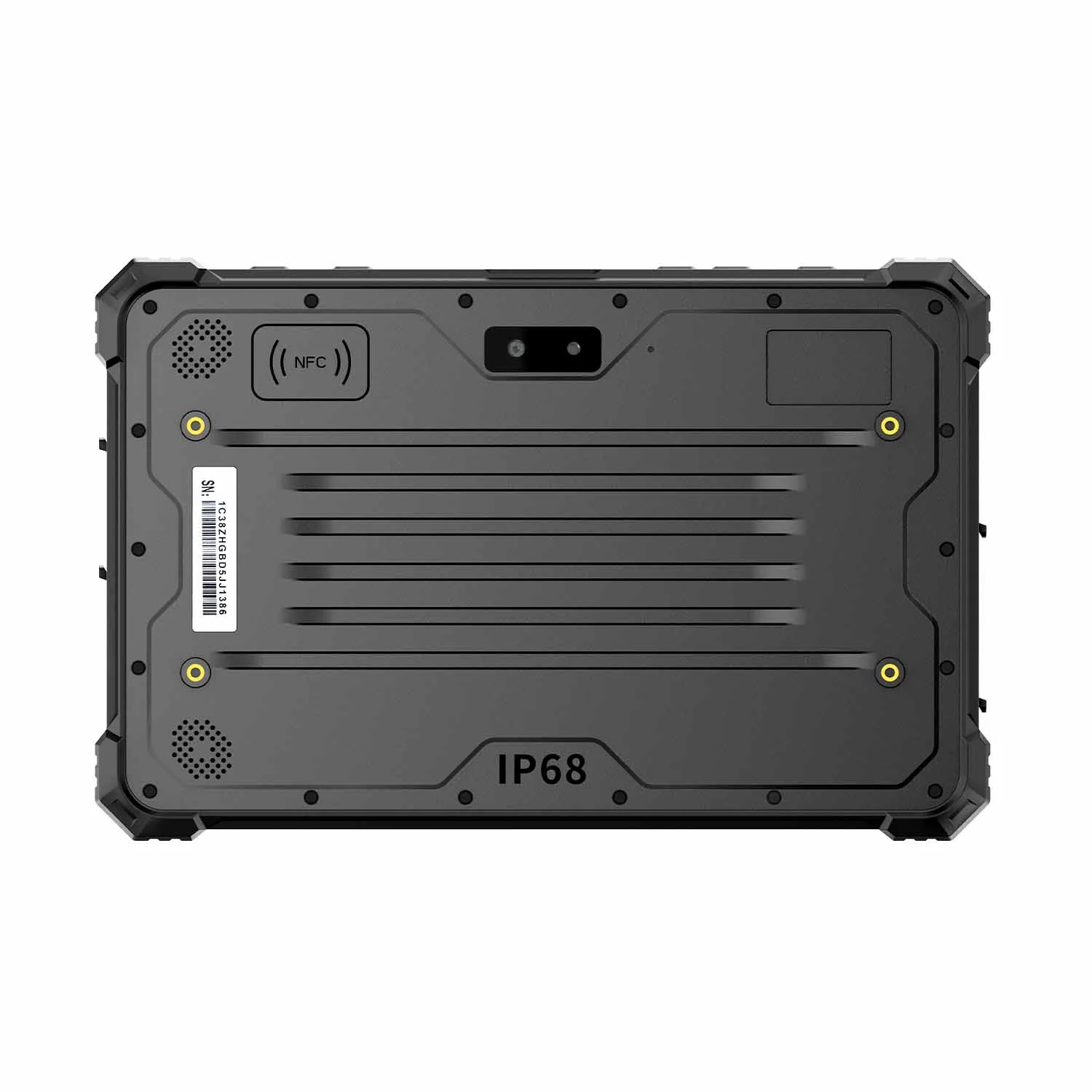

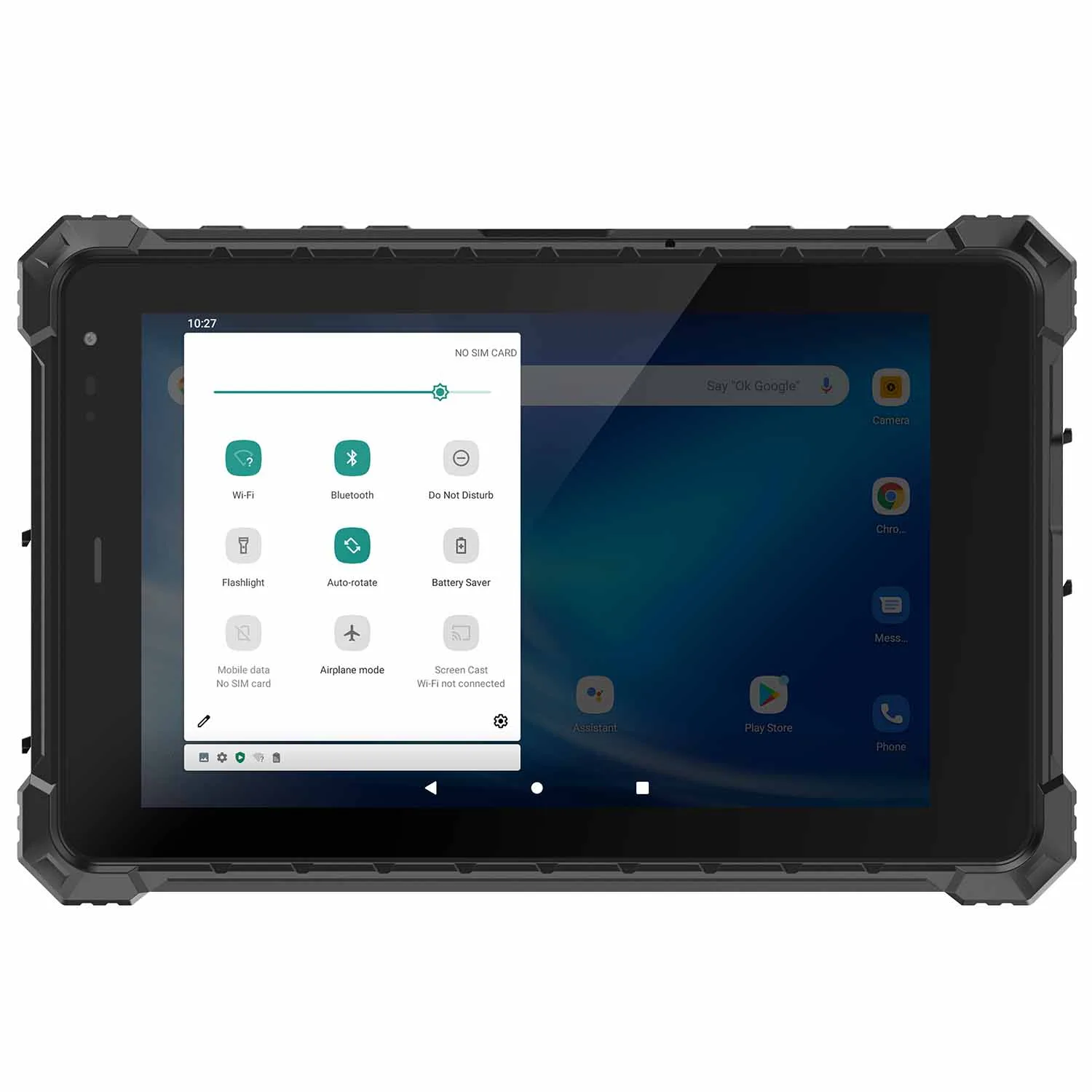

CENAVA A80R RK3568 8 Inch Android 11 IP68 Rugged Tablet
The CENAVA A80R RK3568 Edition is a compact 8-inch Android industrial tablet developed for equipment communication, field inspection, mobile data collection, vehicle installation and space-limited operator applications.It combines an RK3568 quad-core processor, 8GB RAM, 128GB internal storage and an M.2 2280 PCIe SSD interface with a built-in 100Mbps Ethernet port.
CPU: Rockchip RK3568 quad-core, Cortex-A55 @2.0GHz, fanless passive cooling
OS: Android 11 (optional Ubuntu 22.04)
Display: 8" IPS 1920×1200, 700cd/㎡, 10-point G+G glove touch, hardness ≥7H, optional wet-hand touch
RAM/ROM: 8GB+128GB, M.2 2280 SSD expansion (max 1TB)
Integrated I/O: RJ45 (100M), Micro HDMI, Type-C (USB2.0, OTG), USB-A, 3.5mm jack, DC 12V-4A, 12Pin POGO, Micro SIM, TF card (max 2TB)
Network: Dual-band WiFi 5, Bluetooth 5.0, optional 4G/5G (custom)
Camera: Front 5MP fixed focus, rear 8MP auto focus
Battery: Built-in 7.6V/5550mAh, ≥7h endurance (optional custom 10000mAh pack)
Protection: IP68, MIL-STD-810H 1.22m drop, -20°C~60°C (custom -30°C~60°C)
Optional Modules: 2D scanner, fingerprint, ID card reader, UHF RFID, LF 125kHz, RTK cm-level positioning; NFC standard
Quad-Core Power
Android 11 Smooth
RK3568 Quad-Core Optional 4G Multi-OS Optional
The RK3568 (quad-core Cortex-A55 @2.0GHz) runs Android 11 with 8GB RAM and 128GB storage as standard; a board-level M.2 2280 PCIe slot takes up to 1TB for local video or database workloads. The wired RJ45 port is the point of this model — it connects directly to PLCs and switches where a Wi-Fi-only tablet cannot. Ubuntu 22.04 / Debian available on project order.

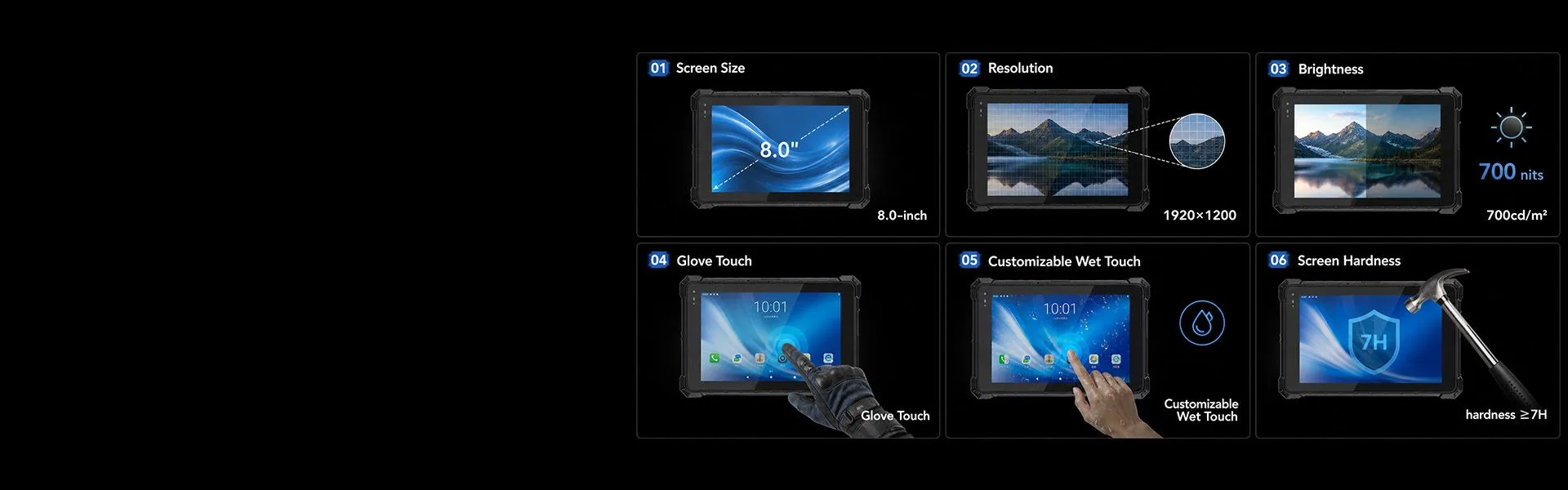

High-Res Bright Display
Outdoor Strong Visibility
8" IPS 700cd/m² 1920×1200
8-inch IPS panel with 1920×1200 resolution, 700cd/m² brightness clearly readable under direct sunlight. Supports medical rubber-glove touch, with wet-hand touch customizable: accurate clicks with gloves or wet fingers. G+G construction with AF anti-fingerprint coating, hardness ≥7H, scratch-resistant for long-term use. The 8-inch display plus 839g weight fits in pockets and one-handed grip. Ten-point touch responds sensitively, making scanning and form filling smooth and efficient outdoors.
IP68 Triple-Proof
Built for Harsh Conditions
IP68 1.22m Drop -20°C~60°C
IP68 dust-tight and waterproof, surviving 1.22m drops, with 3C/CE/MIL-STD-810H certifications. Operating temperature -20°C to +60°C, with -30°C ultra-low-temperature customization for extreme cold. The 839g industrial chassis features reinforced corners and sealed gaskets against sand, with a secure one-handed grip. The board-mounted M.2 SSD slot and wide-temperature design keep data storage more reliable.
100M Ethernet + USB2.0
Multi-OS Expansion
100M RJ45 USB2.0 M.2 SSD Multi-OS Optional
Features 100M RJ45 Ethernet ×1, Type-C USB2.0 ×1, Type-A USB2.0 ×1, Micro HDMI ×1, 12Pin POGO PIN ×1. 100M Ethernet connects directly to PLCs and switches; USB interfaces for debugging devices and storage; Micro HDMI for large-screen presentations. M.2 2280 SSD slot (PCIE protocol) expands up to 1TB. Multi-OS support: Android 11 standard, Ubuntu 22.04/Debian on demand. No aviation connectors, no RS232 serial port—focused on lightweight wireless scenarios and desktop expansion. Paired with optional NFC, fingerprint, 2D scanner, and UHF modules for data collection terminals.
Technical Specifications
 CPU RK3568 quad-core, Cortex-A55 @2.0GHz, fanless |  System |  Storage 8GB RAM + 128GB; M.2 2280 PCIe SSD slot (max 1TB, SSD not included) |  Display 8 inch 1920*1200 IPS |
 Optional NFC 13.56MHz, supporting ISO/IEC 14443A, 14443B and 15693 |  Optional 1D/2D Barcode Scanner Optional N1 / N670 2D scan engine |  Battery Built-in 7.6V/5550mAh, ≥7h (optional custom 10000mAh) |  Wall hole pitch / screw 154x71.5mm/ M3*4.5mm |
 Navigation positioning GPS (RTK cm-level optional) |  2G/3G/4G Optional 4G/5G (custom project) |  Interface Type -C POGO PIN |  Size/Weight 232.2*151.3*24.5mm/839g |
 Card slot Micro SIM ×1 + TF ×1 (max 2TB) |  Protection level working temperature: -20 °C to 60°C Storage temperature: -30 °C to 70 °C |  Camera Front 5MP FF; rear 8MP AF |  Light-sensitive Support |
| Product Type | Android industrial network tablet |
| TP touch Screen | Anti-fingerprint (AF) coating,10-point touch G+G, hardness ≥ 7H, support for medical rubber gloves touch screen (can be customised wet hand touch screen) |
| Gyroscope | YES |
| Gravity sensor | YES |
| WIFI | WIFI 802.11(a/b/g/n/ac) frequency 2.4G+5.8G dual-band WIFI Dual frequency WIFI,WIFI 5 |
| Bluetooth | Bluetooth 5.0 class1 transmit distance:10m |
| LF（custom function） | support 125kHz distance:1-3cm |
| M.2 SSD | *1 reserved for the motherboard, supports M.2 2280 SSD PCIE protocol FAT32 format (maximum 1TB) |
| TYPE-C | *1 Type-C adapt OTG USB2.0 |
| Type -A | *1 Type-A USB2.0 |
| Earphone Jack | *1 3.5mm standard headphone jack |
| TF Card | *1 Maximum support 2TB expansion |
| SIM Card | *1 Standard Micro SIM card slot |
| HDMI | *1 Micro HDMI |
| DC port | *1 12V-4A (DC plug outer diameter 3.5mm inner diameter 1.35mm) |
| POGO PIN | *1 12Pin USB+charger |
| RJ45 | *1 100M |
| Drop height | Meets the requirements of MIL-STD-810H for the 1.22-meter drop test |
| Certificates | IP68 (IEC 60529), CE, RoHS; drop-tested to MIL-STD-810H (1.22 m); ISO 9001-certified factory; salt-spray tested |

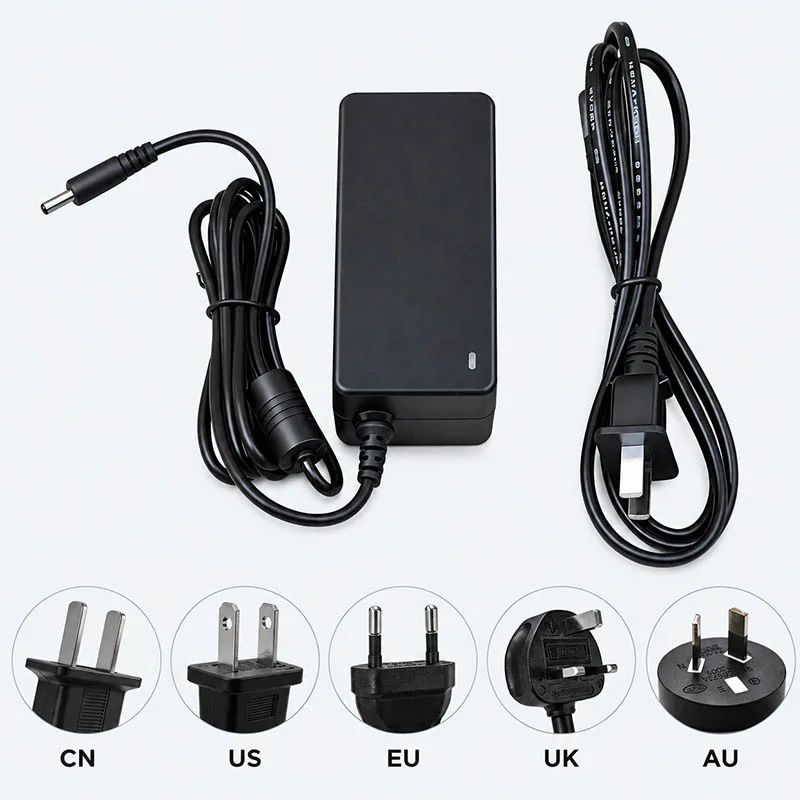

| Adapter | 12V-4ADC interface adapter |
The A80R RK3568 is designed for projects that require more direct equipment connectivity than a normal Android field tablet but do not require the processing capacity or cost of an RK3588 platform.Its 8-inch enclosure is easier to carry and install than a 10-inch industrial tablet, while the physical RJ45 interface supports direct connection to compatible wired networks.

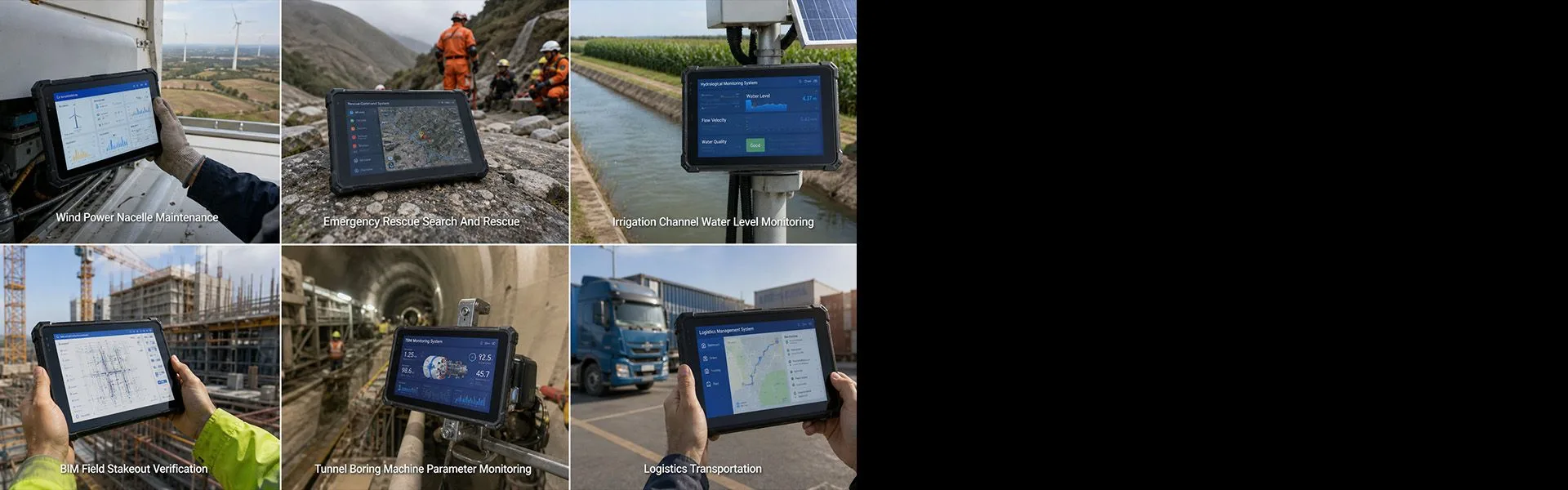

Typical uses include:
* Machine-status monitoring
* Equipment commissioning
* Factory data collection
* Vehicle-mounted terminals
* Local inspection records
* Warehouse workstations
* Asset management
* Network configuration
* Fixed Android control interfaces
* Offline database access
Frequently Asked Questions About A80R Industrial Network Tablet
1. What is the A80R RK3568 designed for?
A cost-controlled 8-inch Android industrial network and data-collection terminal, built around 100Mbps wired Ethernet, M.2 SSD expansion, Android 11 and configurable data-acquisition modules — well suited to machine-status monitoring, vehicle-mounted terminals and fixed control interfaces.
2. How is it different from the A80ST?
The A80R adds built-in Ethernet, M.2 SSD expansion, a 1920×1200 700cd/m² display and optional alternative operating systems, making it better suited to wired network integration. The A80ST is a more conventional Android scanning/RFID field tablet.
3. How is it different from the A88ST?
The A88ST prioritizes a thinner, lighter enclosure. The A80R prioritizes wired networking, larger local storage and equipment integration.
4. Does the standard tablet include an SSD?
The M.2 2280 slot is built in, but no SSD ships as standard — SSD capacity (up to 1TB) is a separate configuration option to select at order time.
5. Does it have Gigabit Ethernet?
No, this RK3568 version uses 100Mbps Ethernet.
6. Does it have an RS232 port?
No external DB9 RS232 connector is included. The motherboard reserves an internal UART interface, which is not the same as a finished RS232 port — please contact us if your application needs a dedicated serial connection.
7. Are the USB ports USB 3.0?
No, both the Type-A and Type-C ports are USB 2.0 (Type-C supports OTG).
8. Is Wi-Fi 6 included?
No, dual-band Wi-Fi 5 is standard.
9. Is the battery removable?
No, the built-in 5,550mAh battery is not user-removable.
10. Is a larger battery available?
Yes, a 10,000mAh custom pack is available — note it increases enclosure thickness and may affect accessory/mount compatibility, so confirm dimensions with us before ordering accessories.
11. Can the tablet run Ubuntu?
Ubuntu is available as a project option; please confirm the supported version and hardware driver coverage (touch, wireless, camera, optional modules) with our team before ordering.
12. Does it support professional barcode scanning?
Yes, via the optional N1 or N670 scanner module.
13. Can it support RTK positioning?
Yes, as an optional project configuration, subject to compatible correction data, antenna and satellite visibility.
14. Is the tablet explosion-proof?
No — the standard A80R RK3568 is not explosion-proof certified. Hazardous-location use requires a separately certified model with its own certificate number; contact our sales team for ATEX/IECEx options.

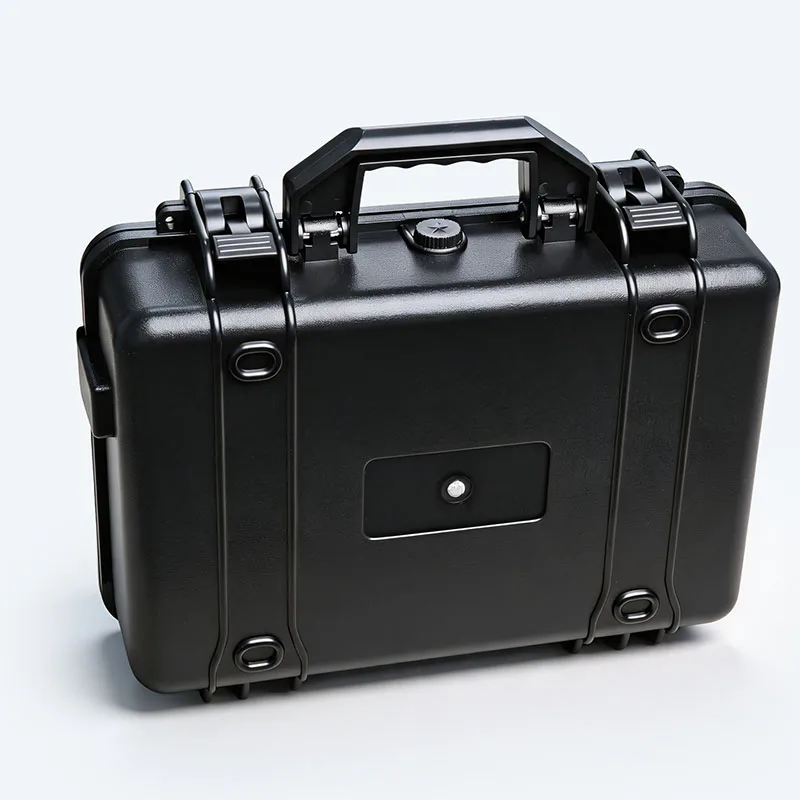

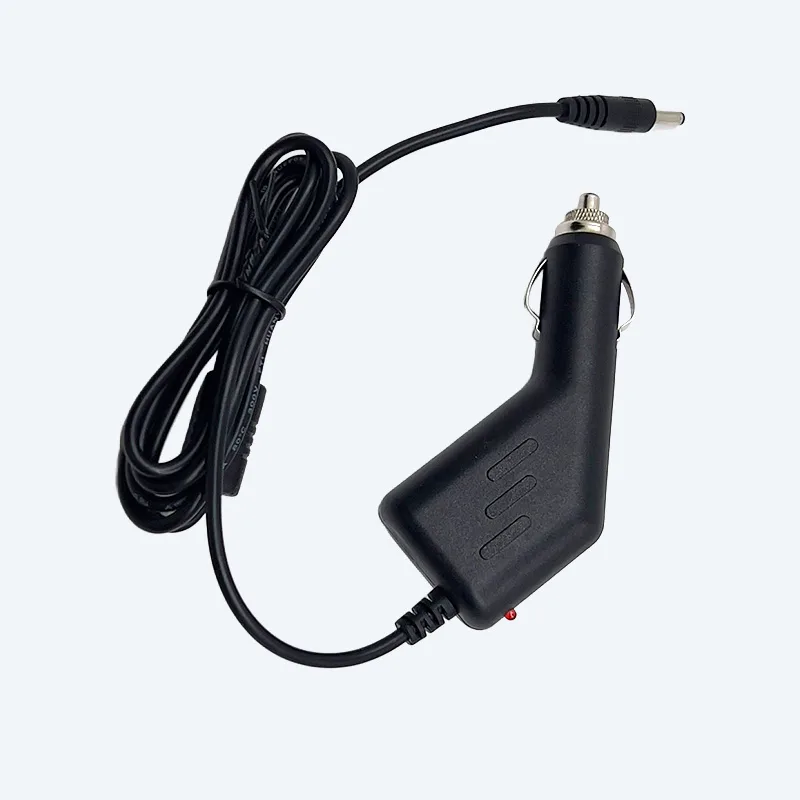

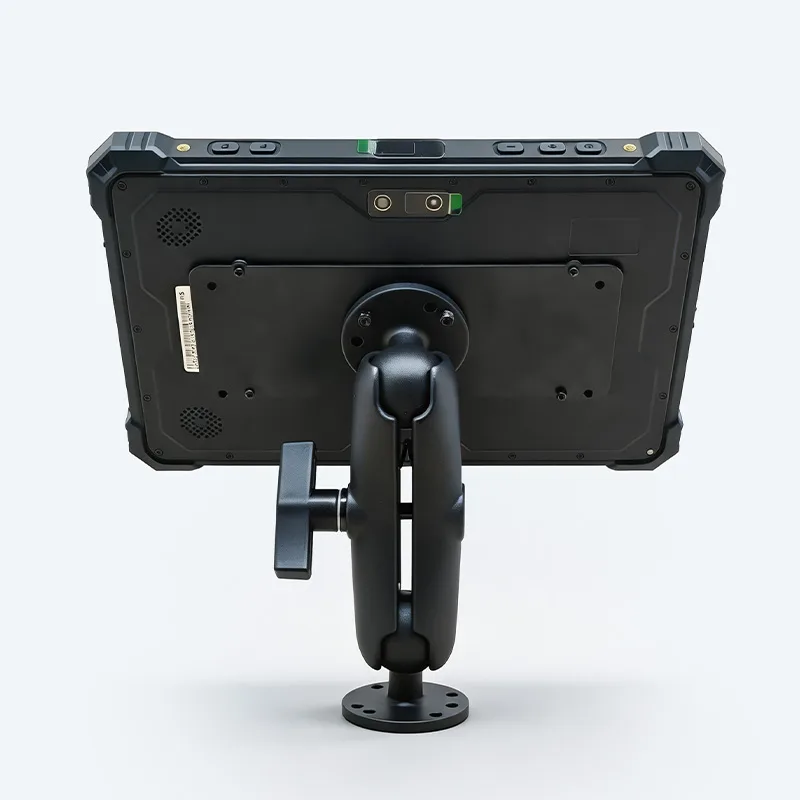

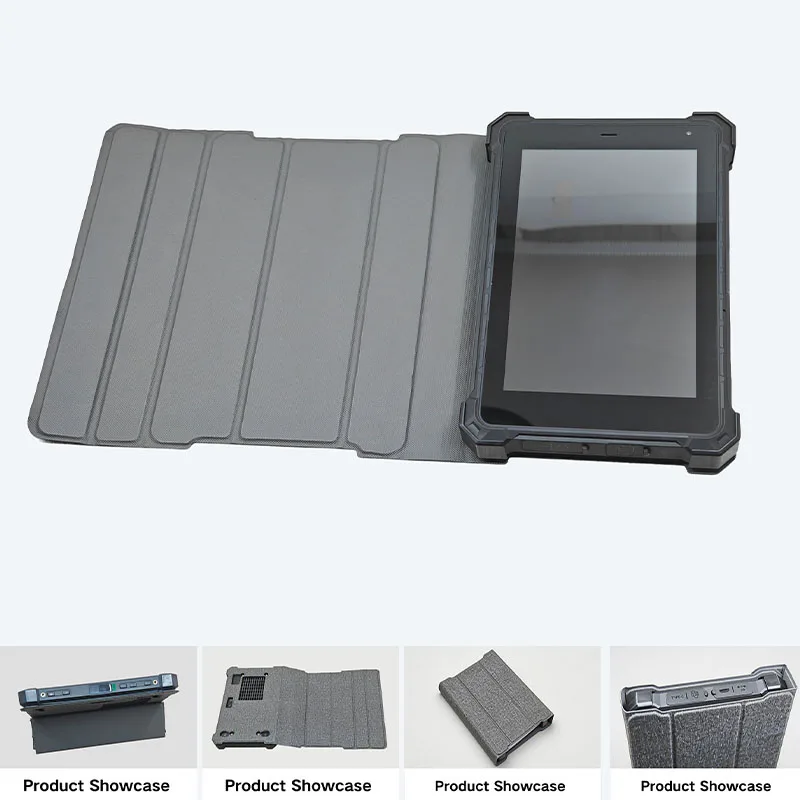

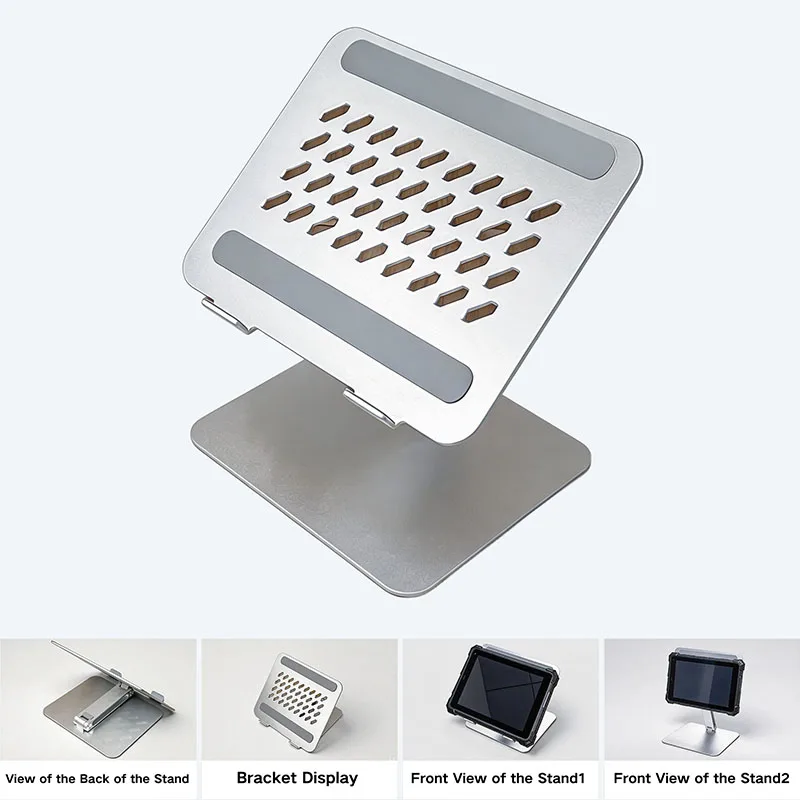

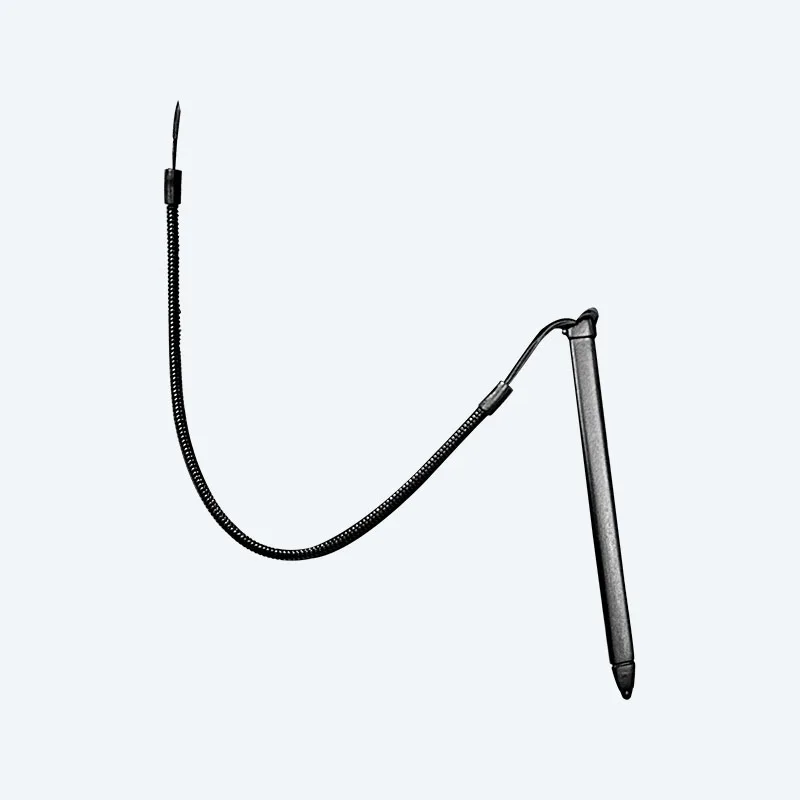

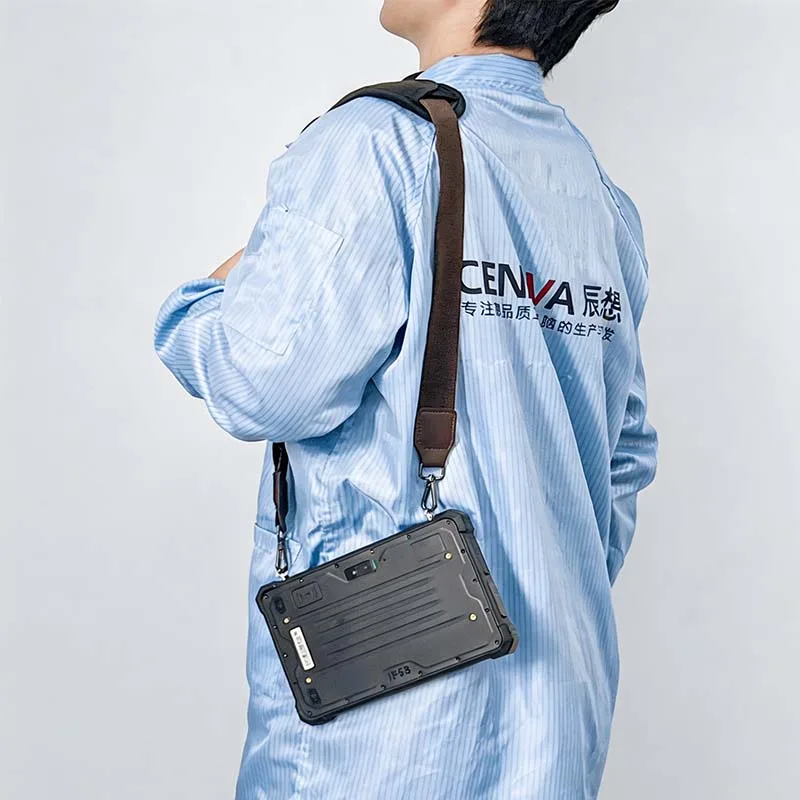

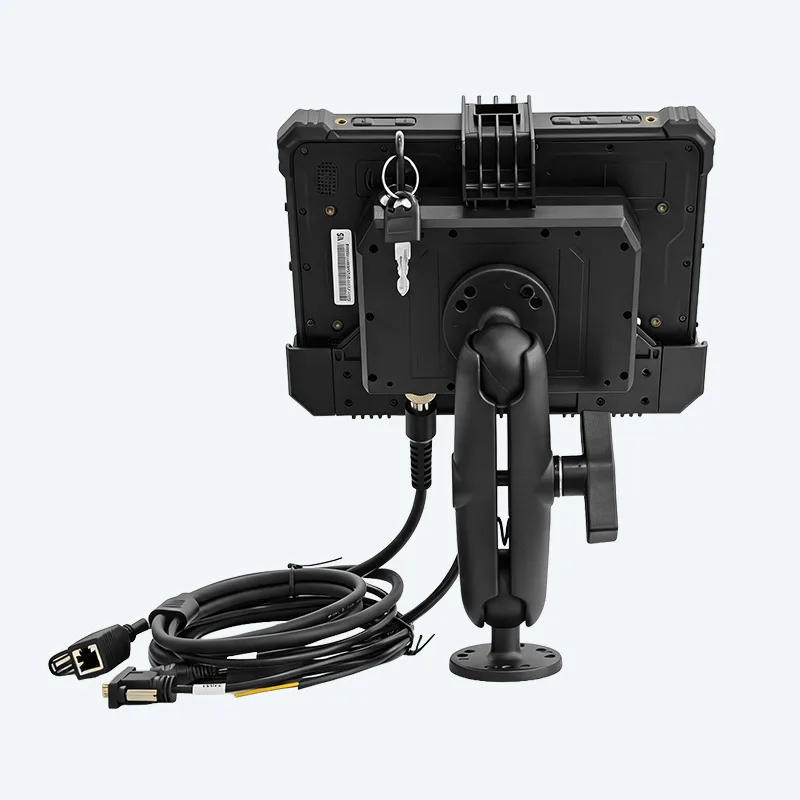

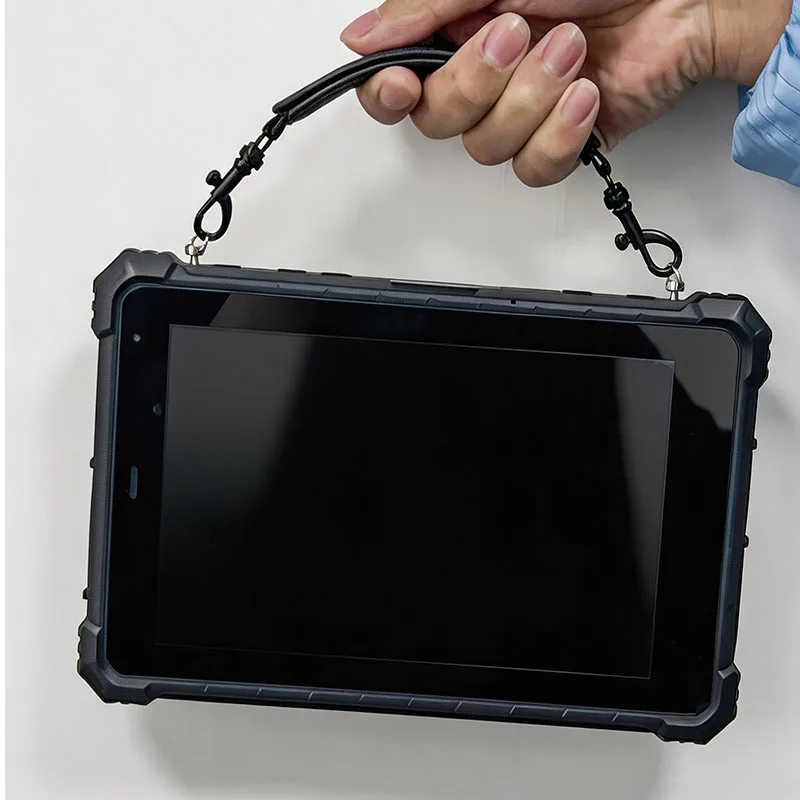

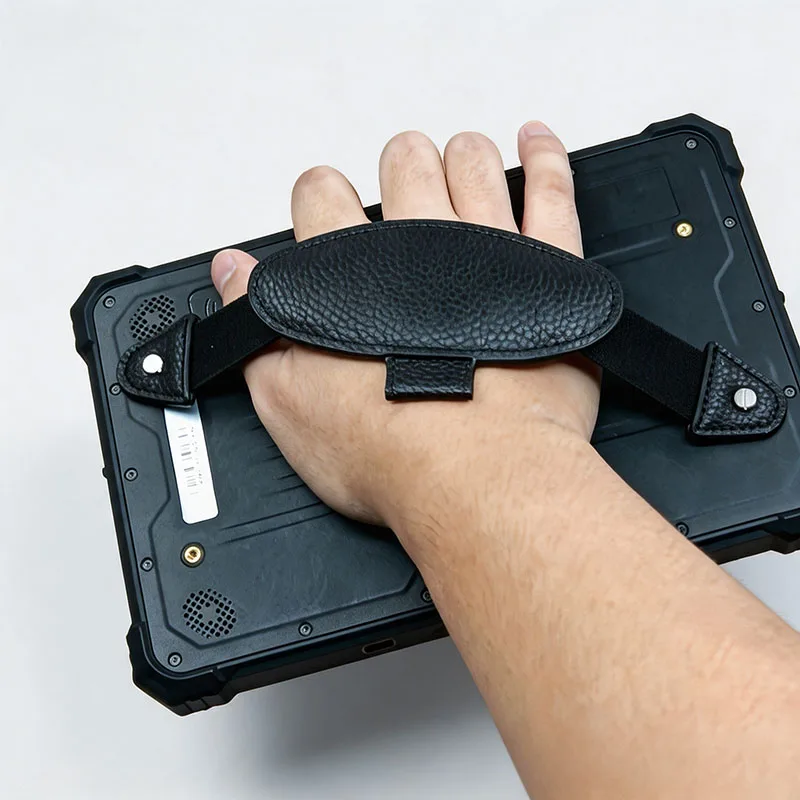

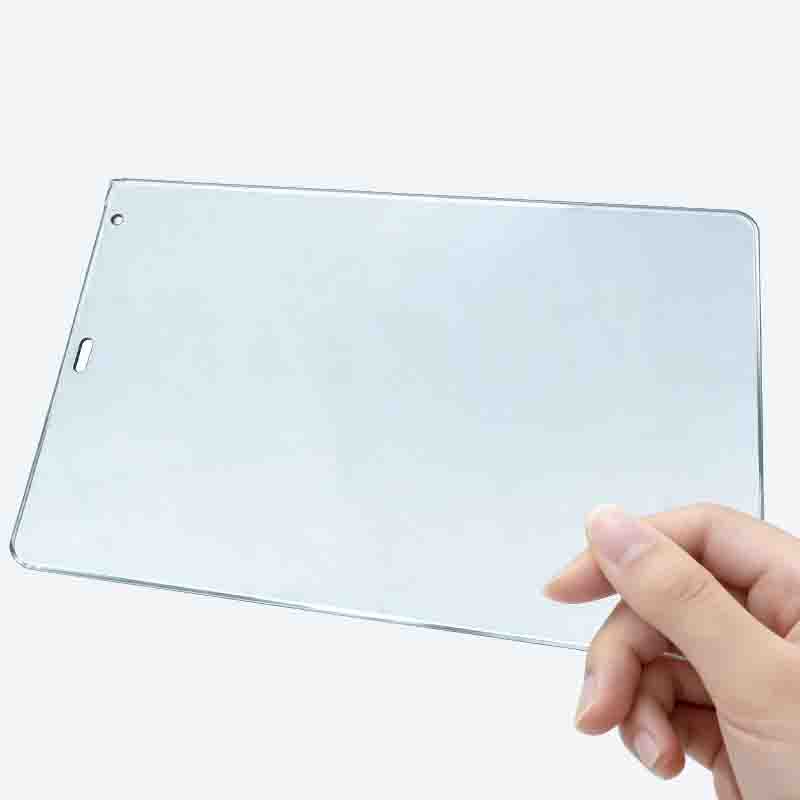

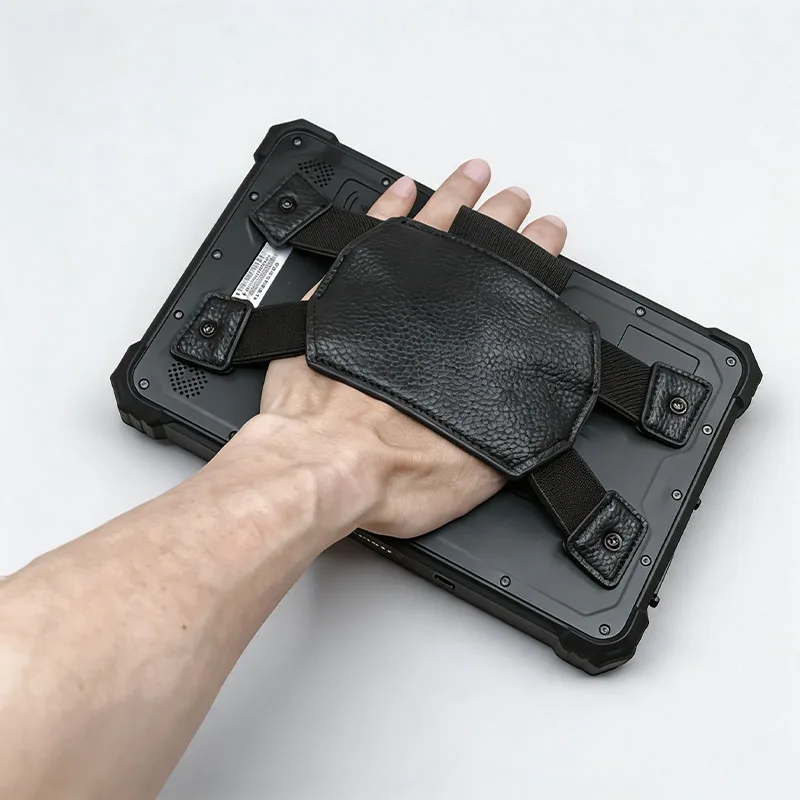

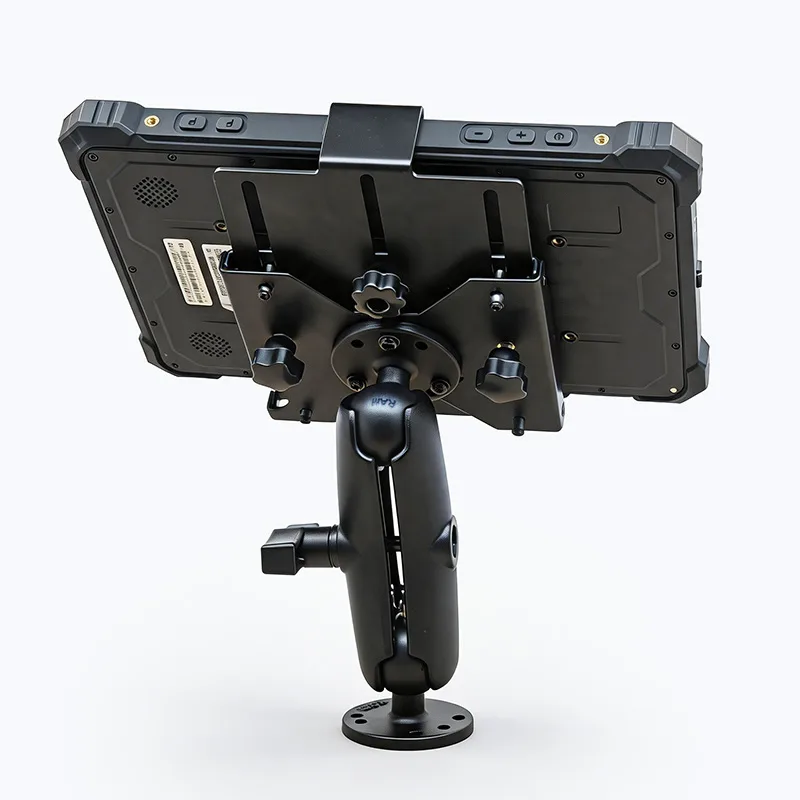

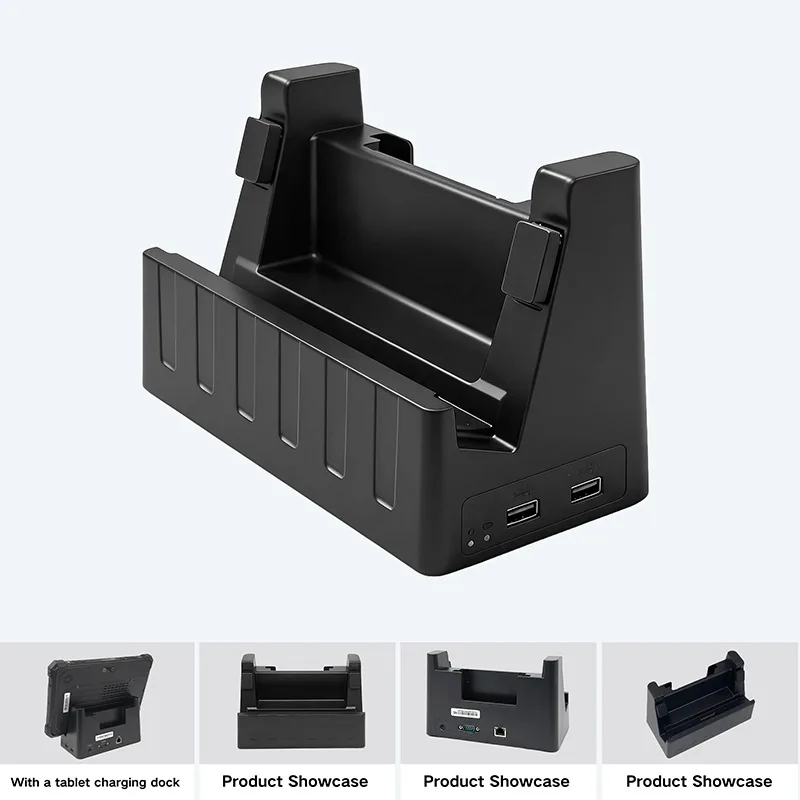

Accessories
