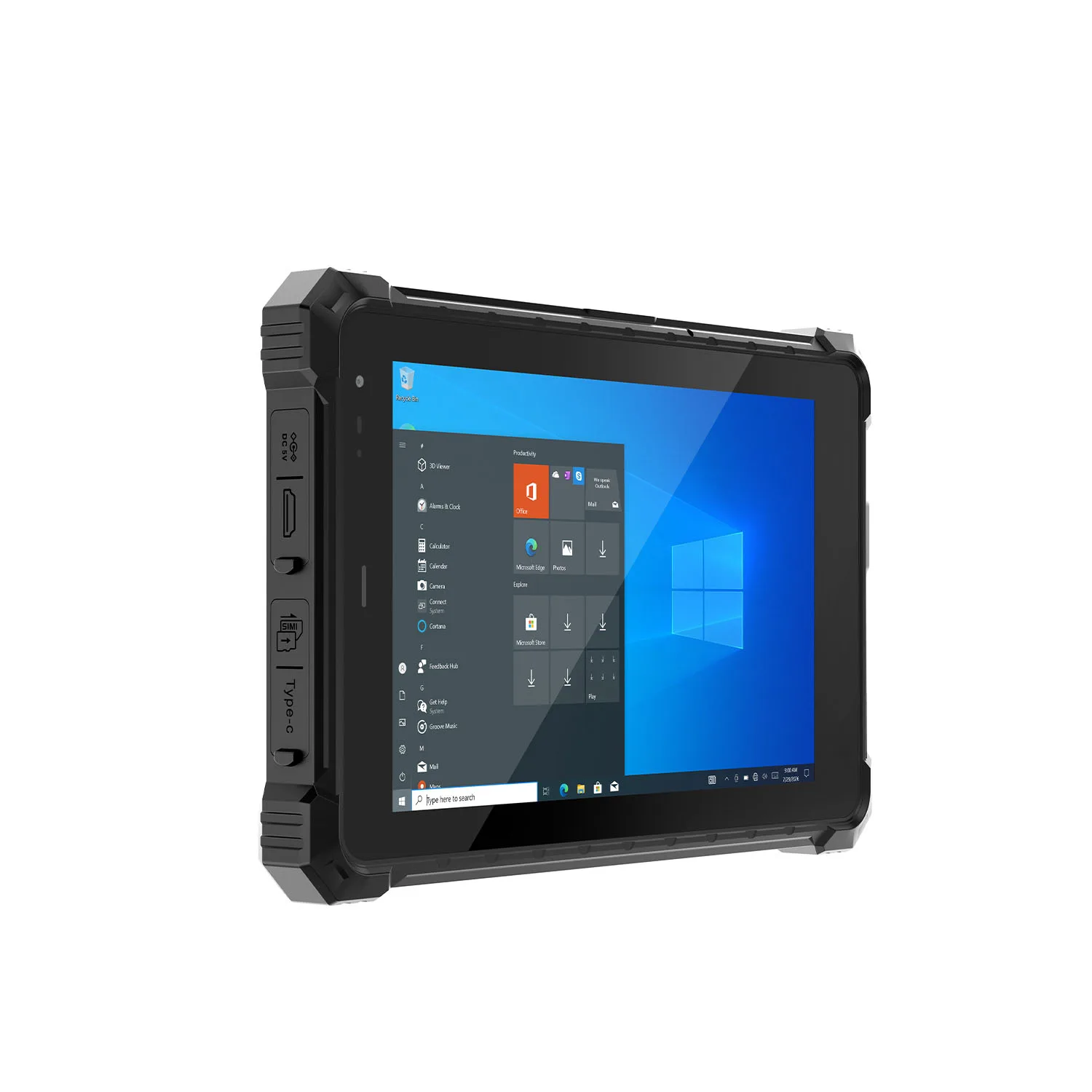

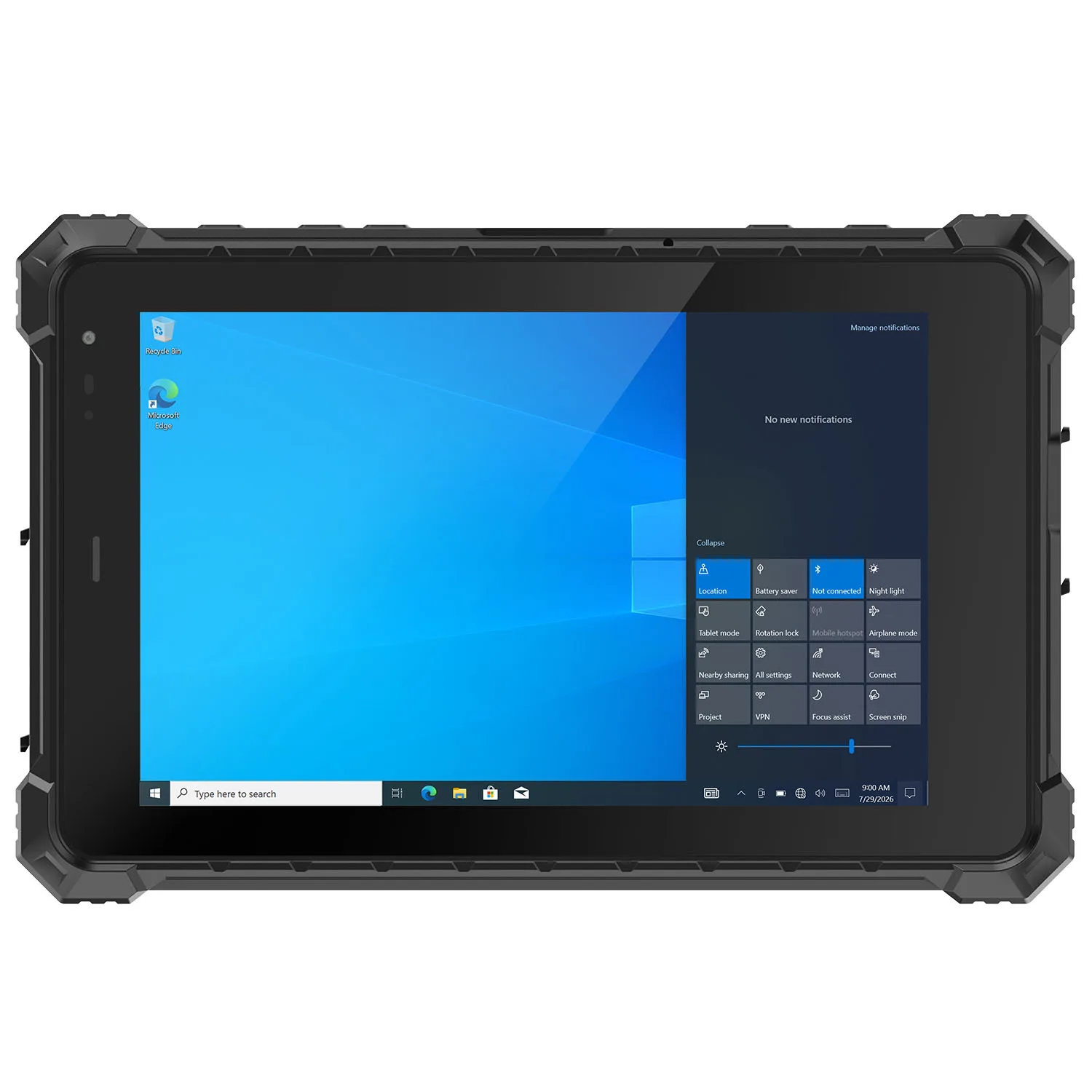

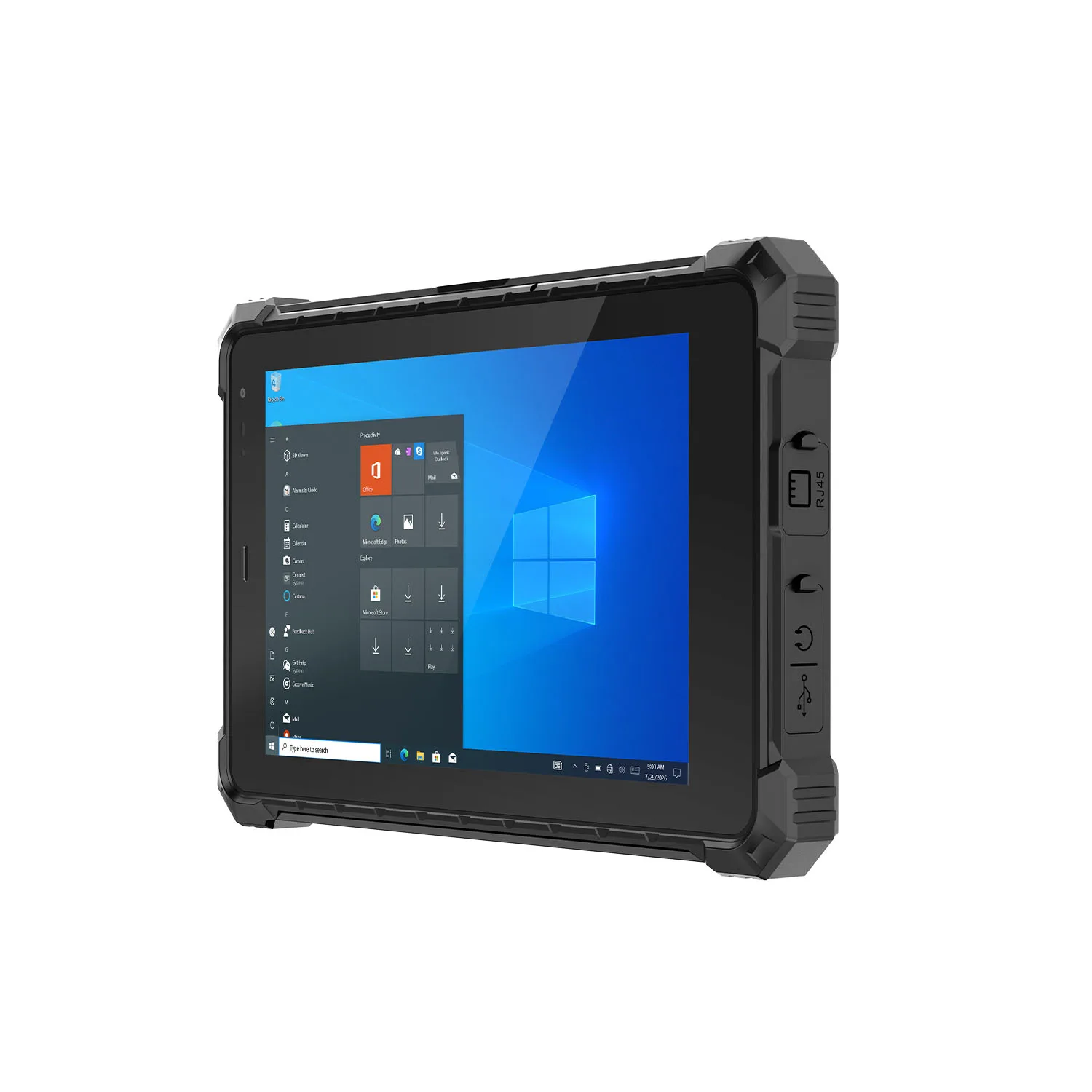

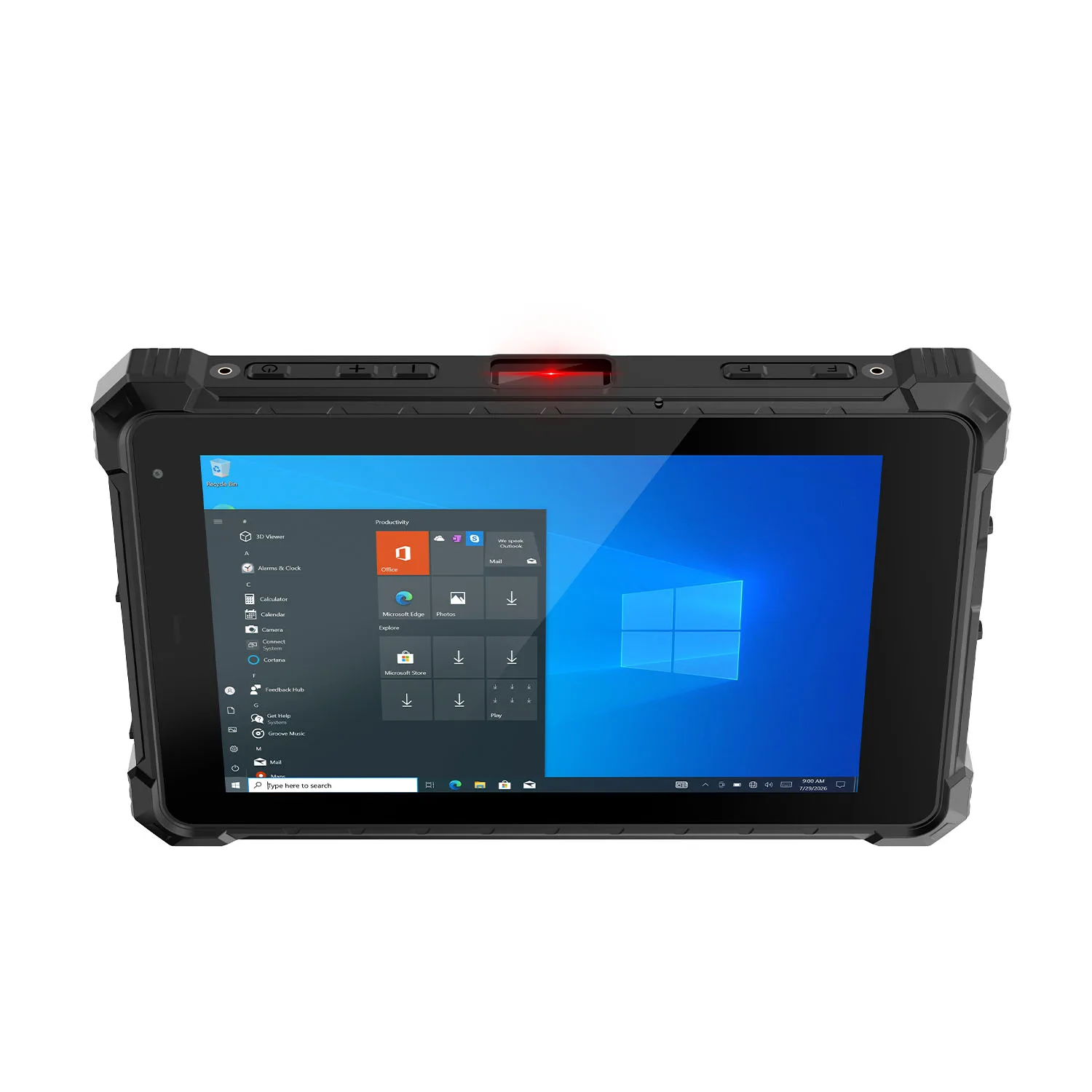

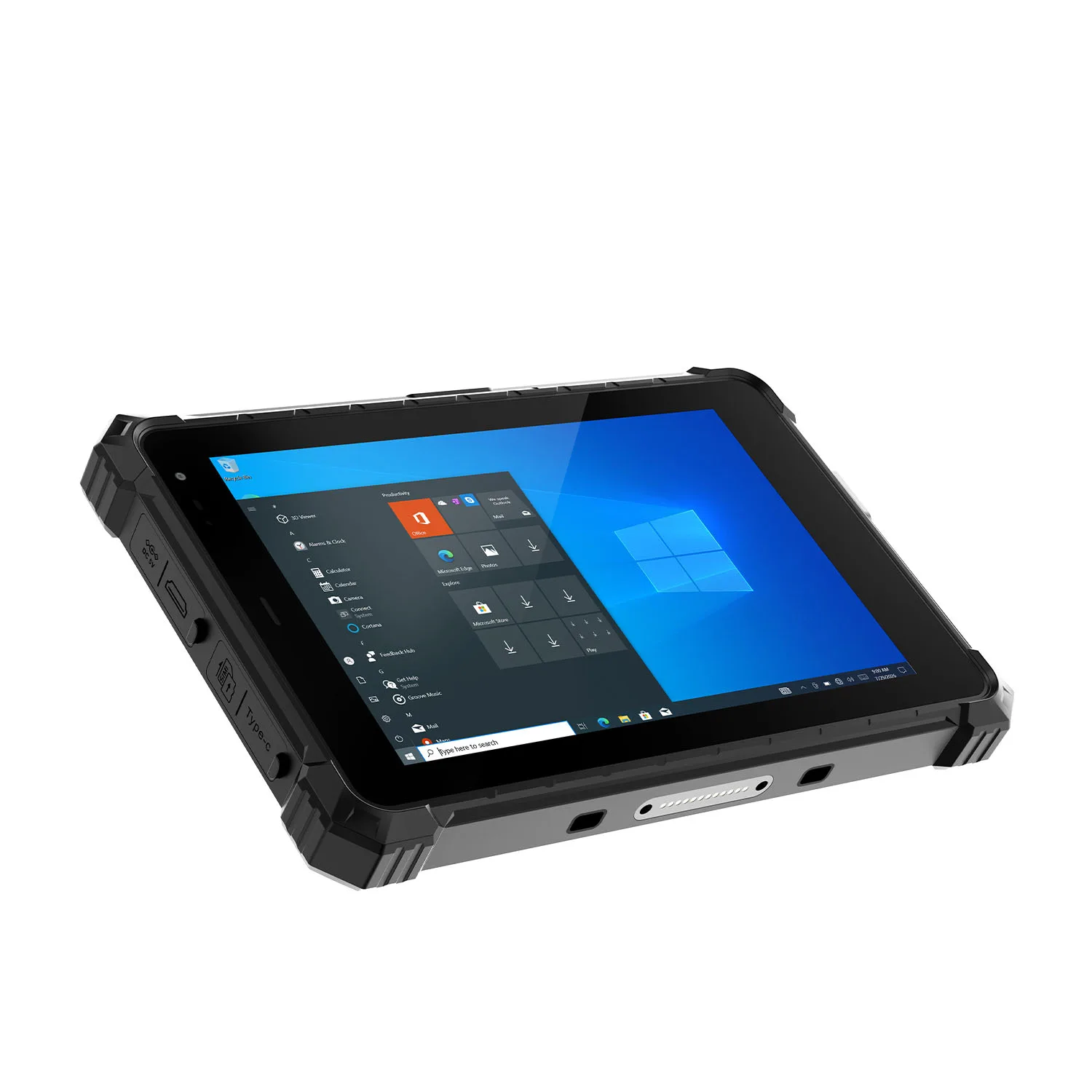

CENAVA W80N N5100 8 Inch Win11 IP68 Windows Rugged Tablet
The CENAVA W80N is a compact 8-inch Windows rugged tablet developed for mobile inspection, industrial network access, equipment maintenance, asset verification and vehicle-mounted applications.It combines the Intel Celeron N5100 quad-core processor with 8GB RAM, 128GB internal storage and a 700cd/m² touchscreen in a body measuring approximately 24.5mm thick and weighing approximately 834g.
CPU: Intel Jasper Lake N5100 quad-core 4-thread, 1.1–2.8GHz, fanless passive cooling
OS: Windows 10 (optional Windows 11, Ubuntu 22.04.5)
Display: 8" IPS 1280×800 (optional 1920×1200), 700cd/㎡, 10-point G+G glove touch, hardness ≥7H (wet-hand touch customizable)
RAM/ROM: 8GB+128GB (custom 16GB+256GB)
Integrated I/O: RJ45, Micro HDMI, Type-C USB3.0 (PD charging), USB-A 3.0, 3.5mm jack, TF up to 256GB, Micro SIM, DC 12V, 12Pin POGO
Network: Dual-band WiFi 5, Bluetooth 5.2; optional 4G LTE / 5G (custom function); GPS/GLONASS, optional single-BeiDou positioning
Battery: Built-in 5550mAh 7.6V non-removable, ≥7h endurance (custom 10000mAh large battery)
Protection: IP68, MIL-STD-810H 1.22m drop, -20°C~60°C (custom -30°C~60°C), TPM security chip
Camera: Front 5MP fixed-focus + rear 8MP autofocus
Optional Modules: 2D scanner (N1/N670), ID card reader, UHF RFID, NFC, LF 125kHz, fingerprint, RTK cm-level positioning

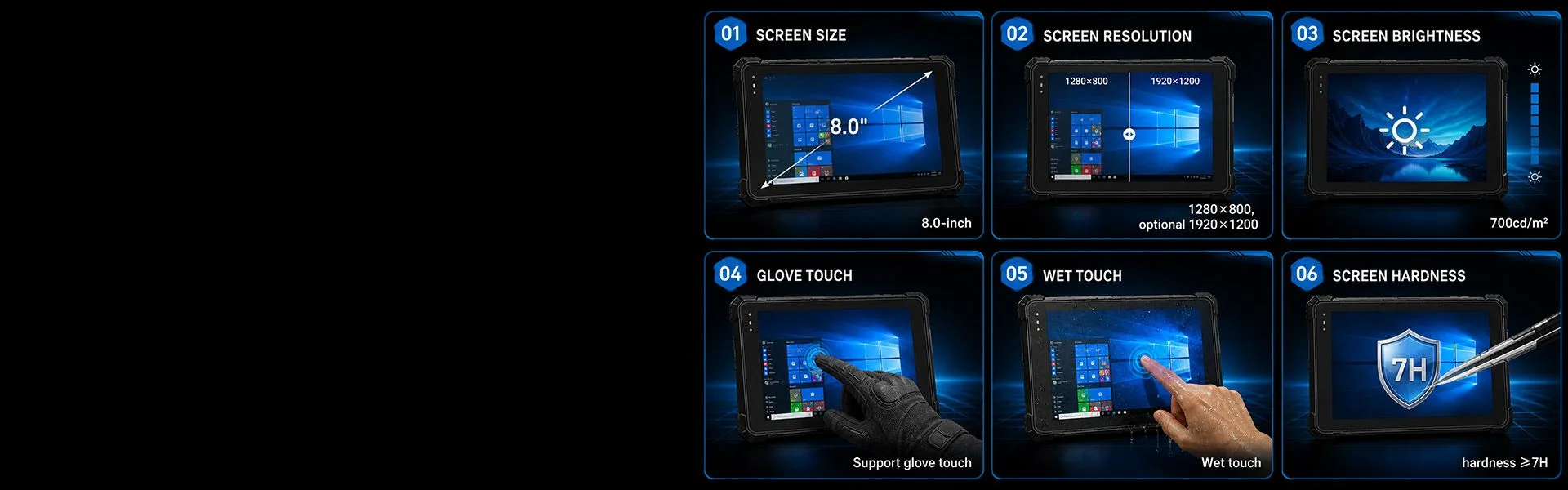

One-Hand Display
Bright Outdoors
8-inch 700cd/㎡ Optional 1920×1200 Glove Touch
Scanning shelves means one hand on the scanner and one on the screen — 8 inches fits the palm exactly. Standard 1280×800 resolution, with an optional 1920×1200 HD version; 700cd/㎡ brightness stays clear under warehouse lighting and daylight. 10-point G+G touch works with gloves, ≥7H hardness survives sharing space with scanners and keys, and wet-hand touch is customizable. The screen wakes fast and responds fast, keeping inventory data flowing as you walk the aisles. Even the longest counts stay comfortable.
Inventory-Ready Ports
PD Fast Charging
RJ45 + Type-C PD + Micro HDMI + POGO

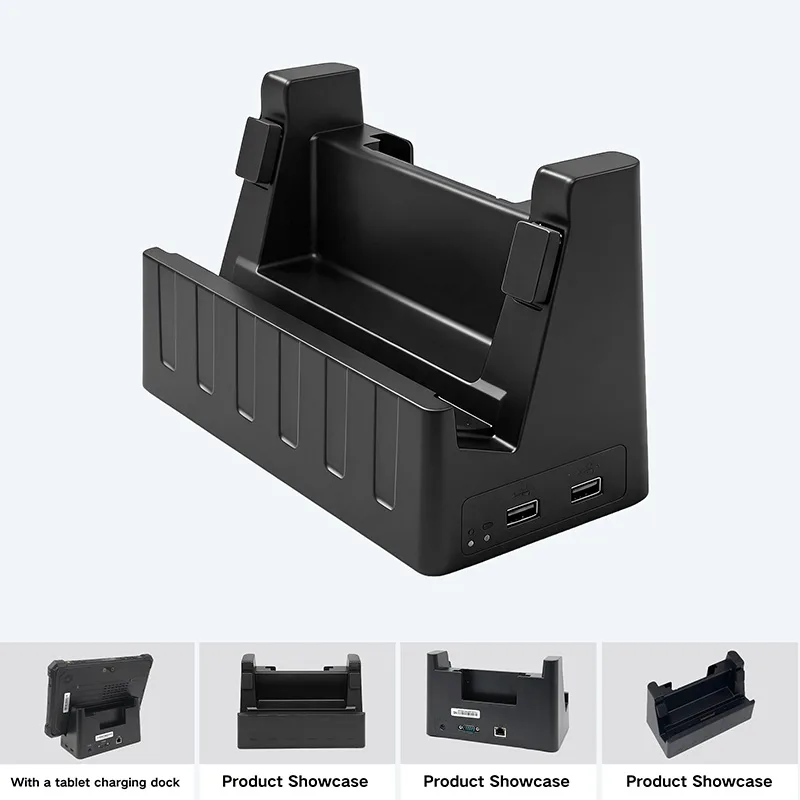

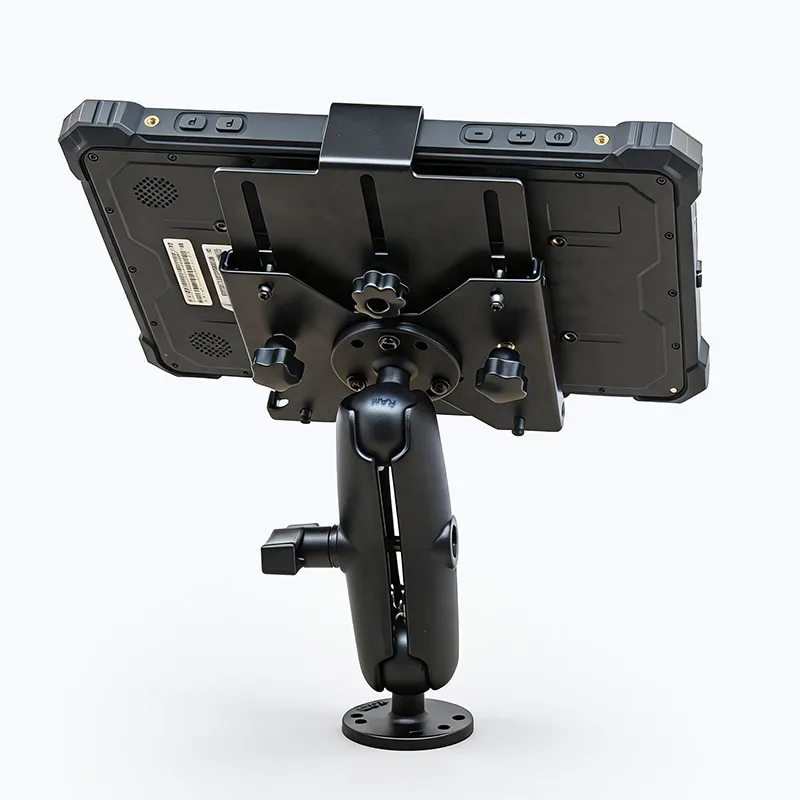

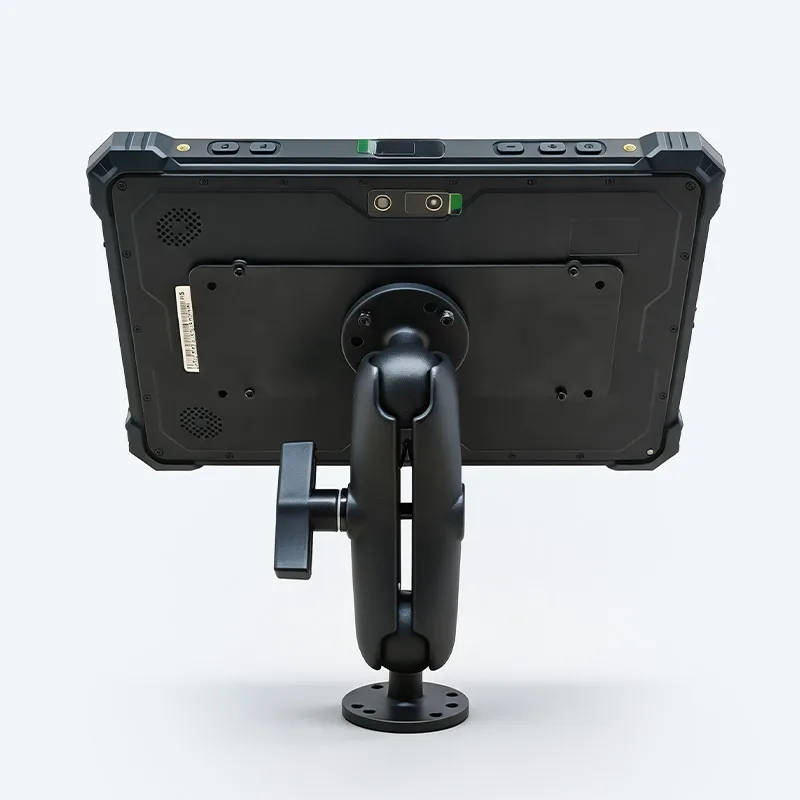

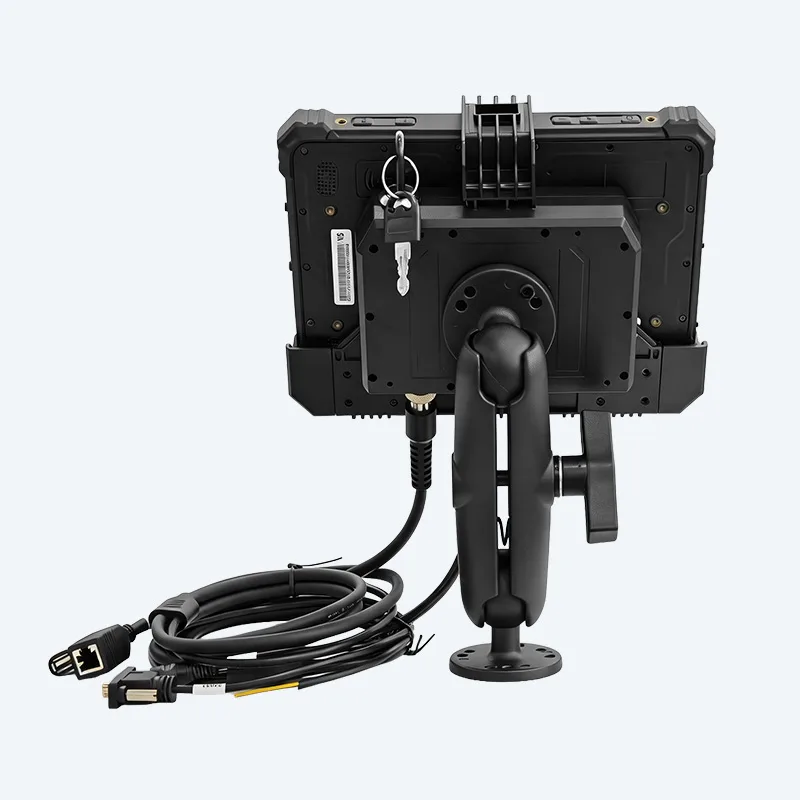

The RJ45 port joins the warehouse LAN for instant stock sync; Type-C USB3.0 supports PD charging, so a lunch break tops you up for the afternoon; USB-A connects scanners and keyboards, Micro HDMI drives big-screen reports, the 3.5mm jack handles voice, TF expansion reaches 256GB, and the 12-pin POGO dock makes a fixed station. Clip it to a vehicle mount and forklift drivers check stock on the move. Optional 4G/5G, 2D scanning and UHF modules complete warehouse logistics.
Military Tough
Shift-Long Confidence
IP68 1.22m Drop -20°C~60°C ≥7h Runtime
Hard floors, forklift vibration, cold-storage chill — the W80N takes it all: IP68 sealing, MIL-STD-810H 1.22m drop certification, -20°C to 60°C operation, and a custom -30°C version for freezers. The built-in 5550mAh battery runs over seven hours, covering a full shift, with a custom 10000mAh option. An onboard TPM chip protects inventory data, and the reinforced body grips securely with gloves through long warehouse days. It simply keeps working where consumer tablets fail, season after season.
Technical Specifications
 CPU Intel Celeron N5100 Four cores, four threads 1.10GHz Up to 2.80GHz |  System |  Storage 8GB memory with a 128GB M.2 SSD |  Display 8 inches 1920*1200 |
 Optional NFC 13.56MHz, supporting ISO/IEC 14443A, 14443B and 15693 |  Optional 1D/2D Barcode Scanner Support |  Battery Built-in 7.6V 5550mAh |  Wall hole pitch / screw 180x64mm/ M3*4.5mm |
 Navigation positioning GPS and GLONASS, U-blox M7 |  Protection IP68 |  Interface Micro HDMI, USB 3.0, RJ45 100bps port |  Size/Weight 232.2*151.3*24.5mm/834g |
 Reserved Expansion 3.3V/1A, 5V/1A, 3.3V UART and USB 2.0 |  Protection level working temperature: -20 °C to 60°C Storage temperature: -30 °C to 70 °C |  Camera Front camera:5MP Rear camera:8MP autofocus with flash |  Light-sensitive Support |
| Product Type | Compact Windows network and data-collection rugged tablet |
| TP touch Screen | Anti-fingerprint (AF) coating,10-point touch G+G, hardness ≥ 7H, support for medical rubber gloves touch screen (can be customised wet hand touch screen) |
| TPM | Built-in TPM Security chip |
| Gravity sensor | YES |
| WIFI | Wi-Fi standard: 802.11(a/b/g/n/ac/ax) Frequency: 2.4 GHz + 5.8 GHz, Dual-band Wi-Fi, Wi-Fi 6 |
| Bluetooth | Bluetooth 5.2 transmit distance:10m |
| TYPE-C | *1 USB3.0 Support PD charging |
| Type -A | *1 USB3.0 |
| Earphone Jack | 1 × 3.5mm standard headphone jack |
| TF Card | supports up to 256GB |
| SIM Card | *1 Standard Micro SIM card slot |
| Micro HDMI | *1 Micro HDMI |
| DC port | *1 12V-4A (DC plug outer diameter 3.5mm inner diameter 1.35mm) |
| POGO PIN | *1 12Pin USB+charger |
| RJ45 | *1 100M |
| Drop height | Meets the requirements of (GJB 150.18A-2009, GJB 150.1A-2009) and (MIL-STD-810H) for the 1.22-meter drop test |
| Certificates | IP68, CE, RoHS; tested to MIL-STD-810H and GJB 150.1A/150.18A-2009 (1.22m drop); salt-spray tested; ISO 9001 manufacturing |

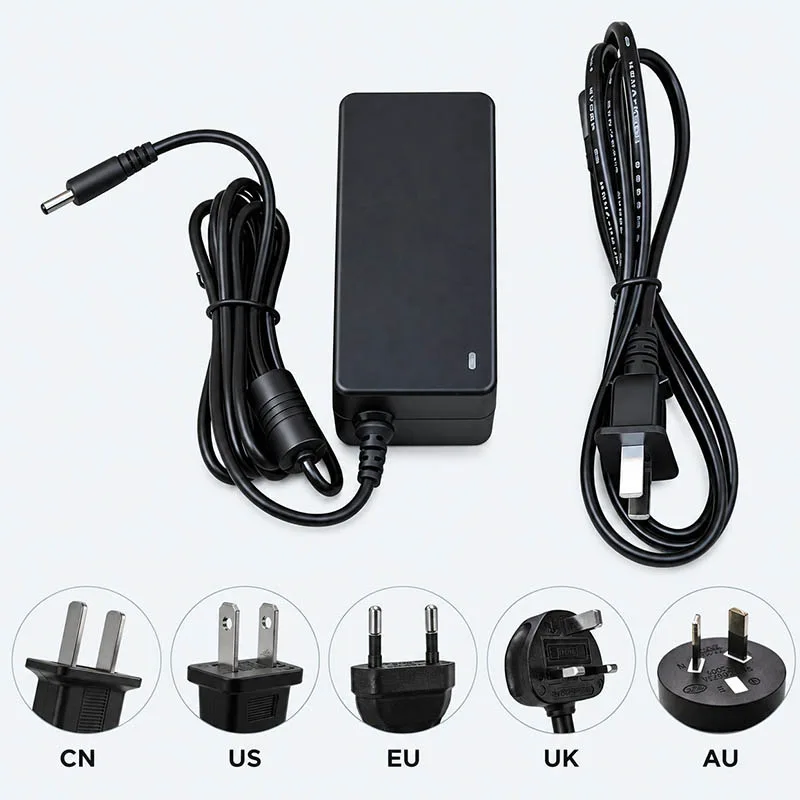

| Adapter | 12V/4A DC adapter |
The W80N is the compact end of our Windows line: an 8-inch, IP68-sealed tablet on Intel's N5100, built for mobile inspection, asset verification and field data collection where a 10-inch unit is too much to carry. Two things to know before shortlisting it: there's no DB9 RS232 port (an internal UART is reserved, but that's a project customization, not a finished interface), and the Ethernet port runs at 100Mbps. If serial control or Gigabit networking is central to your workflow, the W10N Pro is the right size up.
Frequently Asked Questions About W80N Rugged Tablet
1. What is the main positioning of the W80N?
An 8-inch IP68 Windows tablet for mobile inspection, asset verification, RTK data collection and field service — the carry-all-day end of the lineup. It trades I/O for portability: no DB9 serial and 100Mbps Ethernet. Need full serial control? Step up to the W10N Pro.
2. What processor does the W80N use?
The W80N uses the Intel Celeron N5100 with four CPU cores, four processing threads and a maximum burst frequency of 2.80GHz.
3. Can the W80N run Ubuntu?
Ubuntu 22.04.5 is listed as an optional project system.
4. Is TPM included?
A TPM security chip is built in. If your deployment requires TPM 2.0 specifically — BitLocker fleets, Windows 11 enterprise policies — state it in the inquiry and we'll confirm the firmware configuration in writing with your quote.
5. Is the 700-nit screen sunlight-readable?
The 700-nit panel is roughly double a standard laptop screen and holds up in bright indoor and overcast outdoor conditions. For sustained direct-sunlight work, ask us for a sample unit and judge it on your site — we ship samples for exactly this reason.
6. Does the touchscreen support gloves?
Yes.
7. Does it support wet-hand touch?
Wet-hand touch is available as a customization option.
8. Is the 5550mAh battery removable?
No.The standard battery is built in and non-removable.
9. Is a larger battery available?
Yes.A customized 10000mAh battery is listed. It increases the overall thickness to approximately 38.3mm.
10. Does the W80N have Ethernet?
Yes — one built-in RJ45 port, at 100Mbps. It is not Gigabit. For inspection and data-collection workloads 100Mbps is plenty; if you're moving large files over wired LAN daily, tell us and we'll point you at a model with Gigabit Ethernet."
11. Does the W80N have RS232?
Not as a finished port. A UART is reserved on the mainboard, so RS232 via a custom dock or connector is possible on qualified projects — but that route needs an electrical-standard, pinout and IP68-impact review, and it adds lead time. If serial is a day-one requirement, order the W10N Pro instead; it has a native DB9."
12. Does the Type-C port support USB 3.0?
One USB-C (USB 3.0, PD charging — no DisplayPort video), one USB-A 3.0, one Micro HDMI for external displays, a 3.5mm audio jack, Micro SIM and TF (up to 256GB) slots, and a 12-pin Pogo connector for docks. Before using a third-party PD charger, confirm the supported voltage profiles with us.
13. Can the Type-C port charge the tablet?
Yes.PD charging support is listed, but the supported voltage and current profiles must be confirmed.
14. Does Type-C support video output?
DisplayPort output is not listed.External video is provided through Micro HDMI.
15. Does the W80N have a USB Type-A port?
Yes.One USB 3.0 Type-A interface is included.
16. Is Wi-Fi 6 standard?
Yes. IEEE 802.11ax with 2.4GHz and 5GHz dual-band operation.
17. Is Bluetooth 5.2 included?
Yes.Bluetooth 5.2 is listed with an approximate ten-metre range under suitable conditions.
18. Is 4G or 5G standard?
No.Regional 4G and 5G modules are optional.
19. Which positioning systems are standard?
GPS and GLONASS are listed as standard.
All optional: 1D/2D barcode scanner; NFC (13.56MHz, ISO 14443A/B/15693); LF RFID (125kHz, ~1–3cm); UHF RFID (up to ~2m or ~5m depending on configuration). Module combinations share finite internal space — send us your list and we'll confirm what fits together before sample production.
20. Does the W80N support NFC?
Yes, as an optional function.The listed protocols include ISO 14443A, ISO 14443B and ISO 15693.
21. Does it support LF RFID?
Yes.An optional 125kHz LF reader with a listed range of approximately 1–3cm is available.
22. Is the maximum UHF reading distance guaranteed?
No.Actual distance depends on the tag, antenna, reader power, orientation, surrounding materials and regional regulations.
23. Does the W80N include fingerprint recognition?
Fingerprint is optional, in three grades: industrial, public-security certified, and FBI-certified. Only units built with the specific FBI-certified module may carry that claim — if your bid documents require it, name the requirement in the inquiry so the correct module is quoted.
24. Does the W80N have an ID-card reader?
An identity-card reader is available as an optional project module.The supported card standard and applicable region must be confirmed.
25. Which sensors are included?
The current specification confirms a gravity sensor.Gyroscope, compass, light and proximity sensors should not be claimed without additional verification.

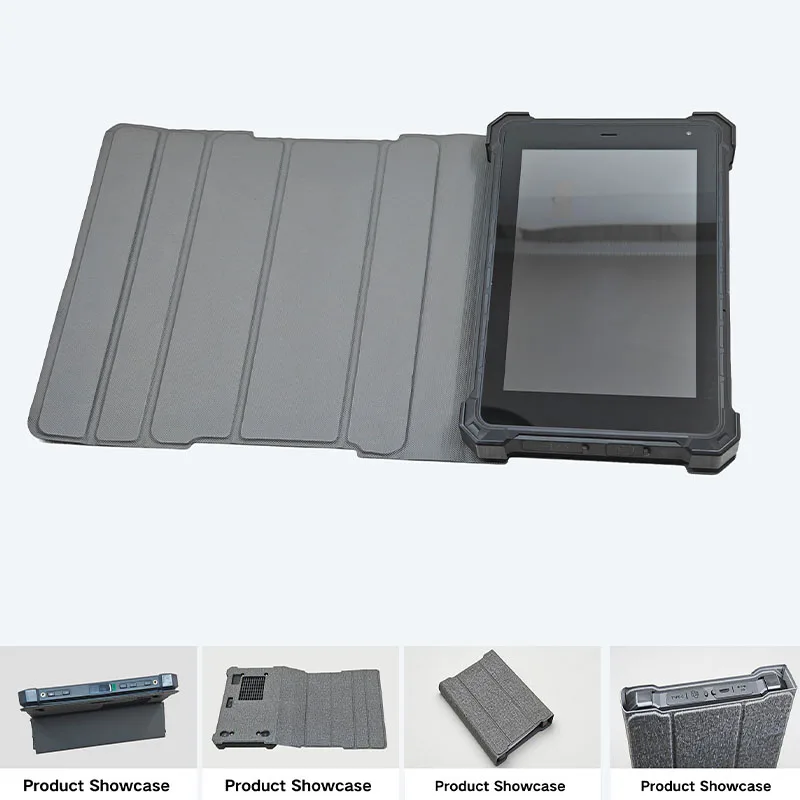

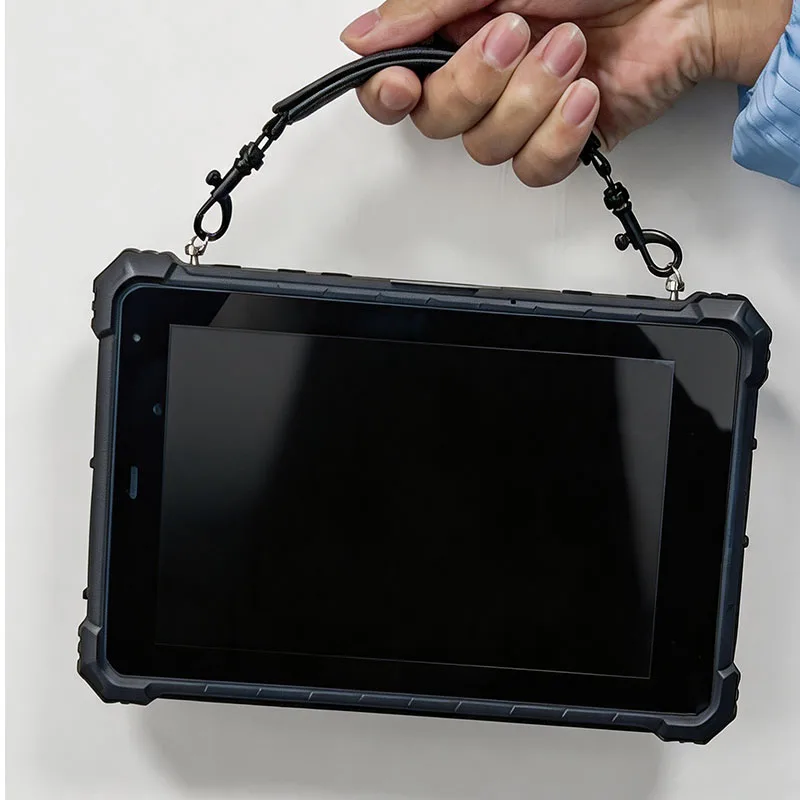

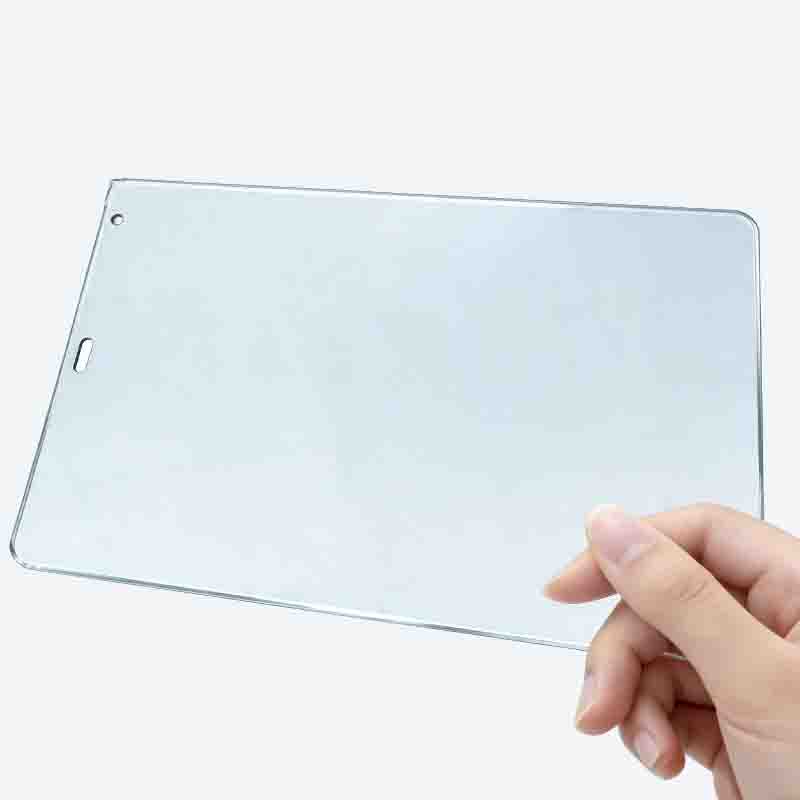

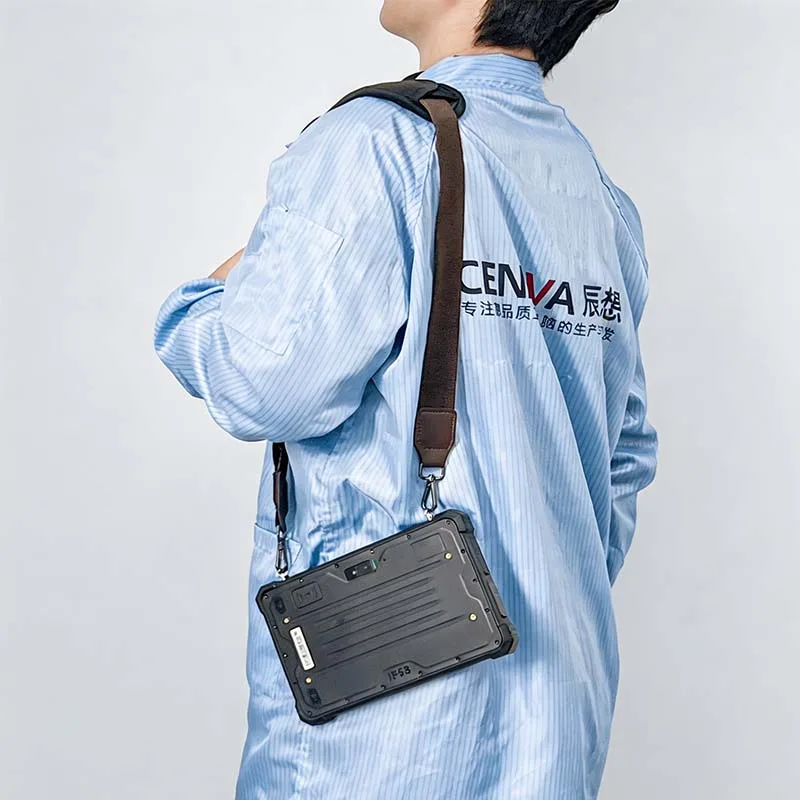

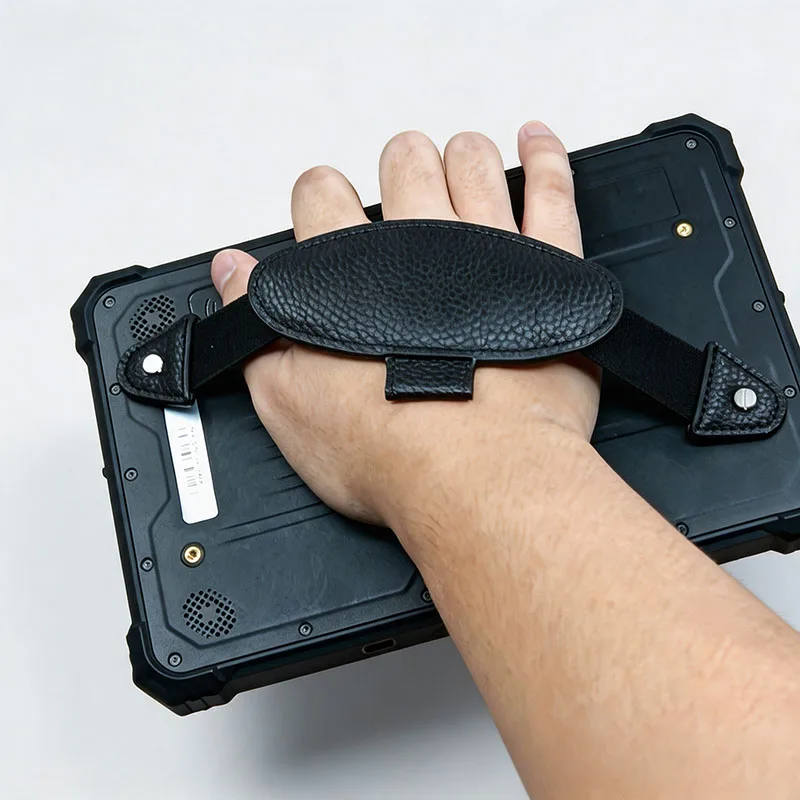

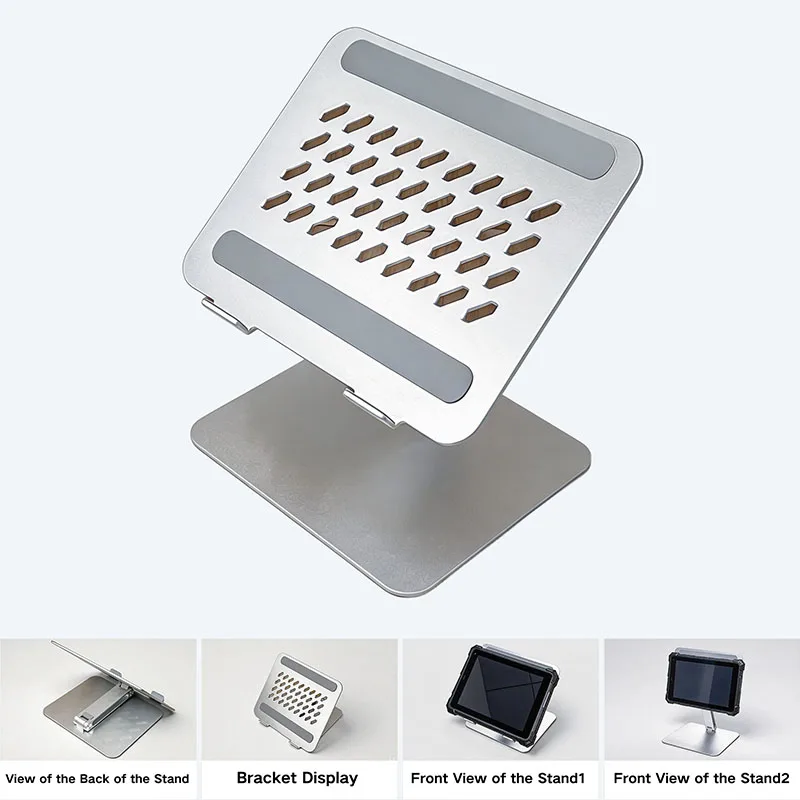

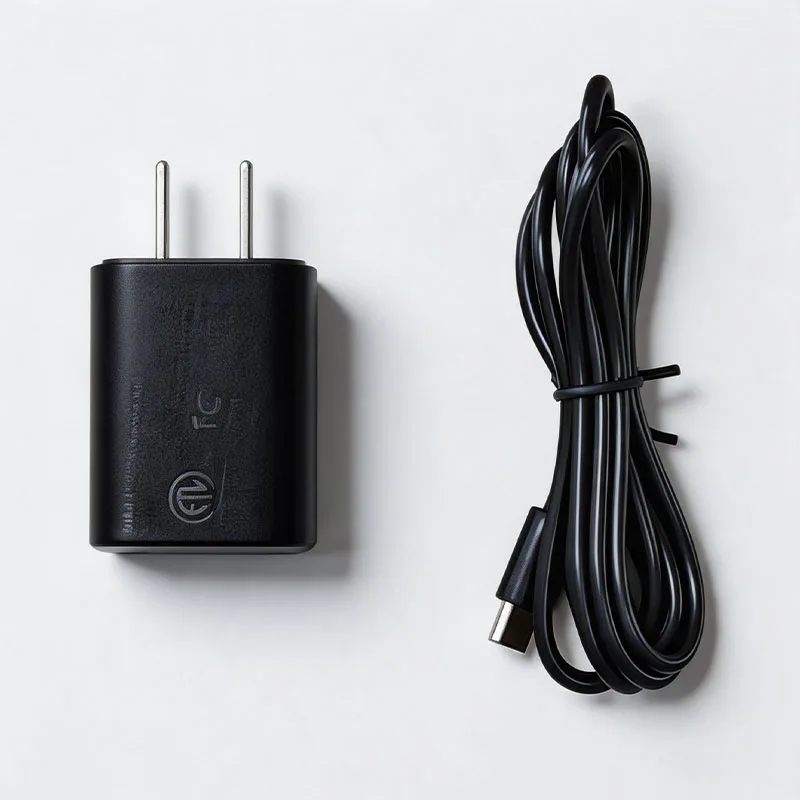

Accessories
