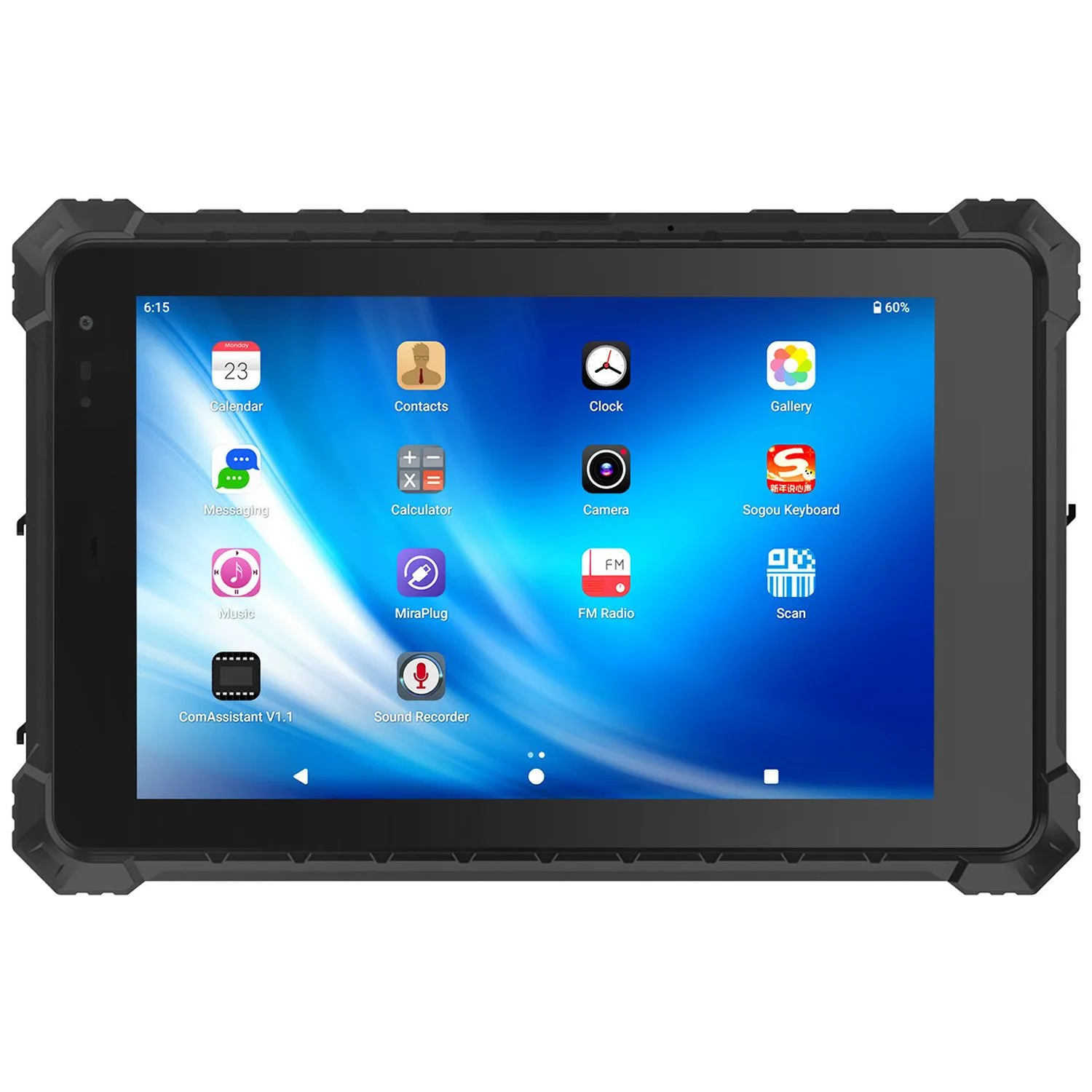

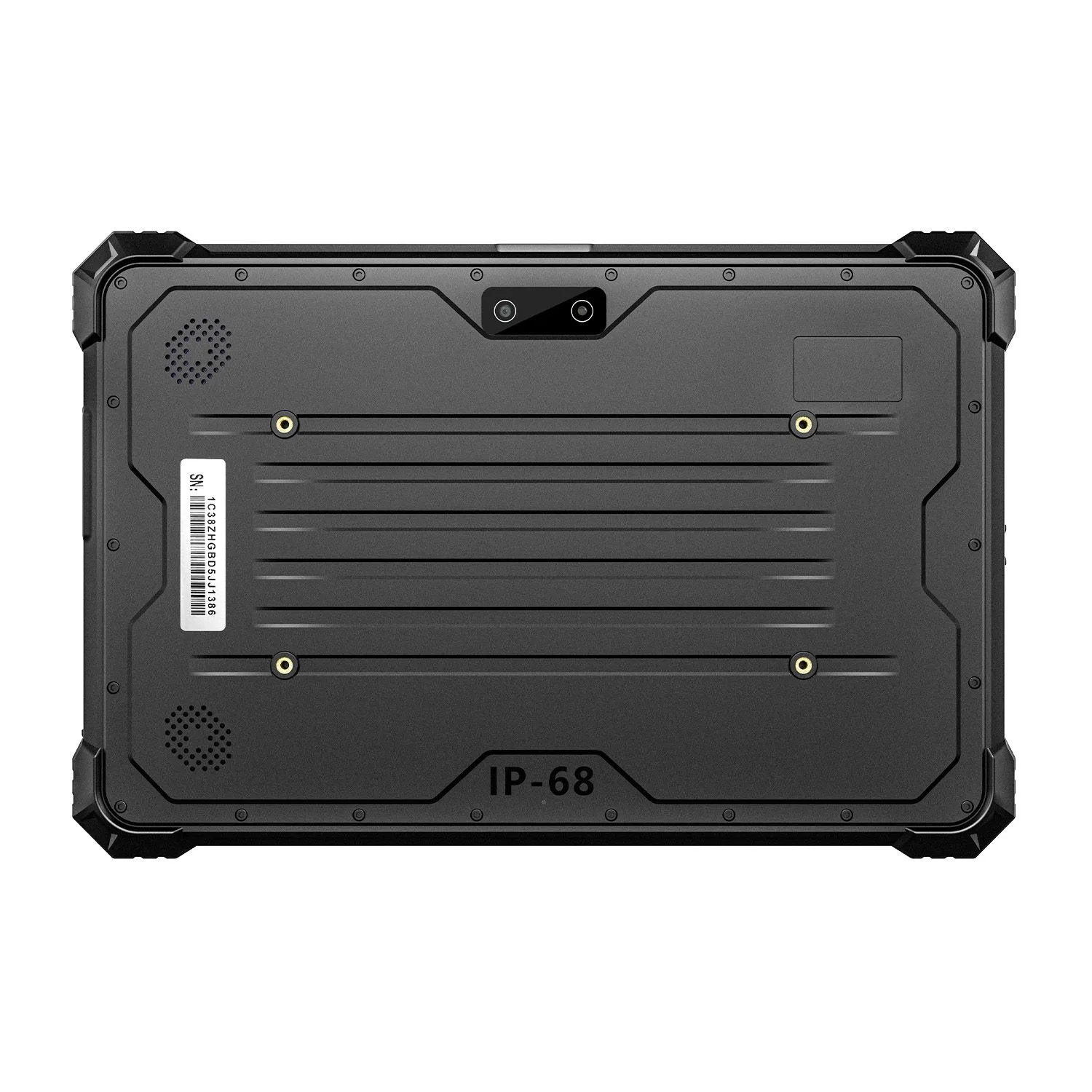

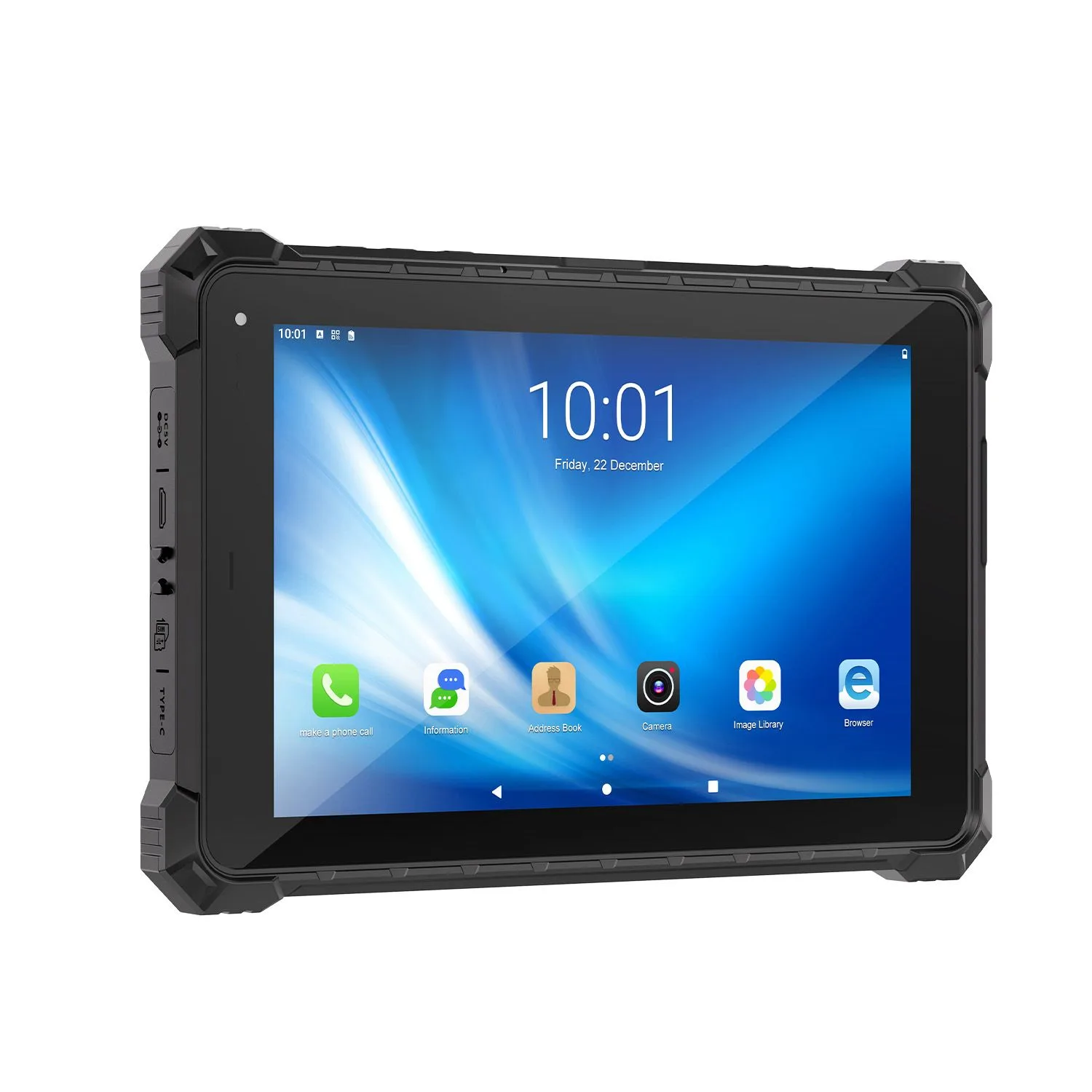

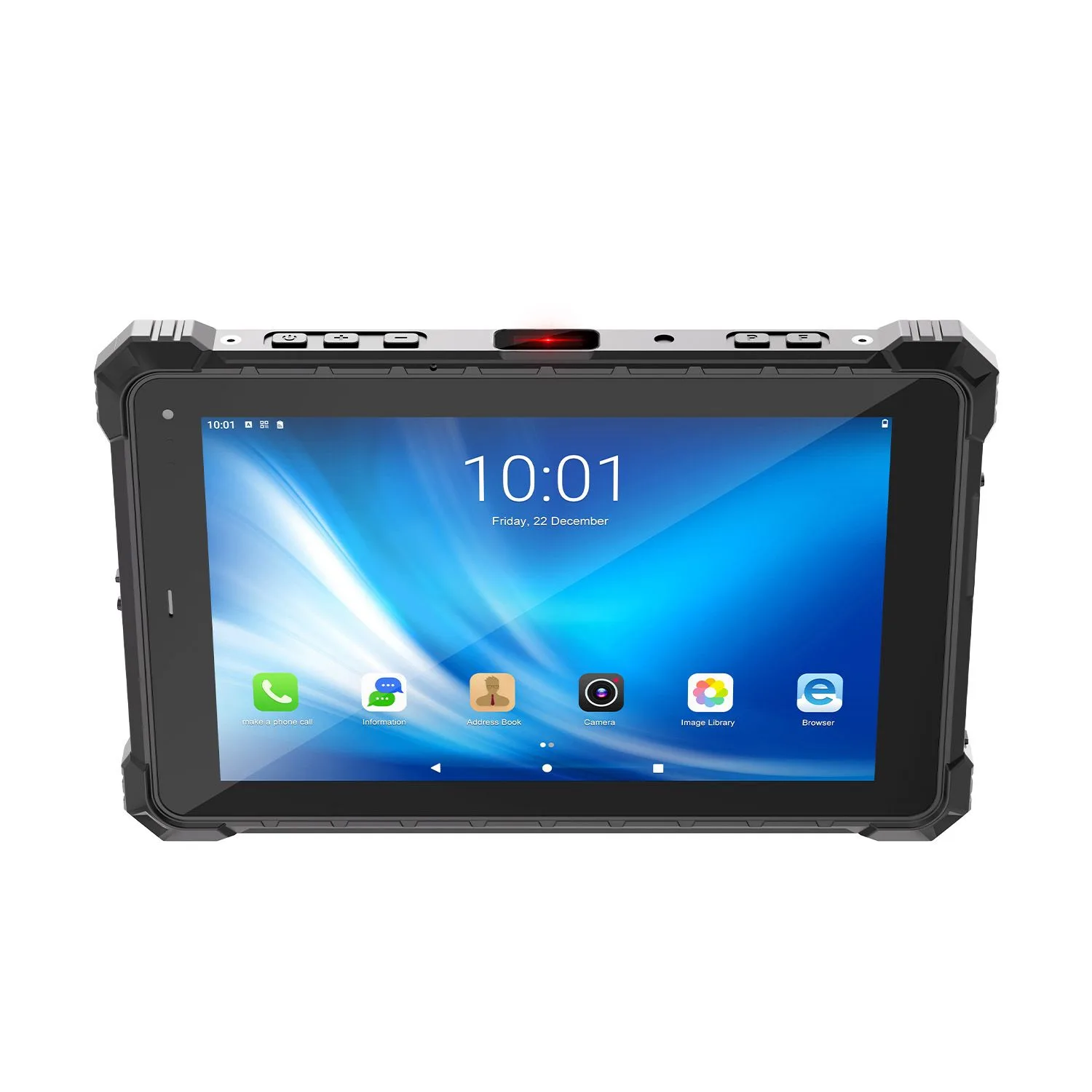

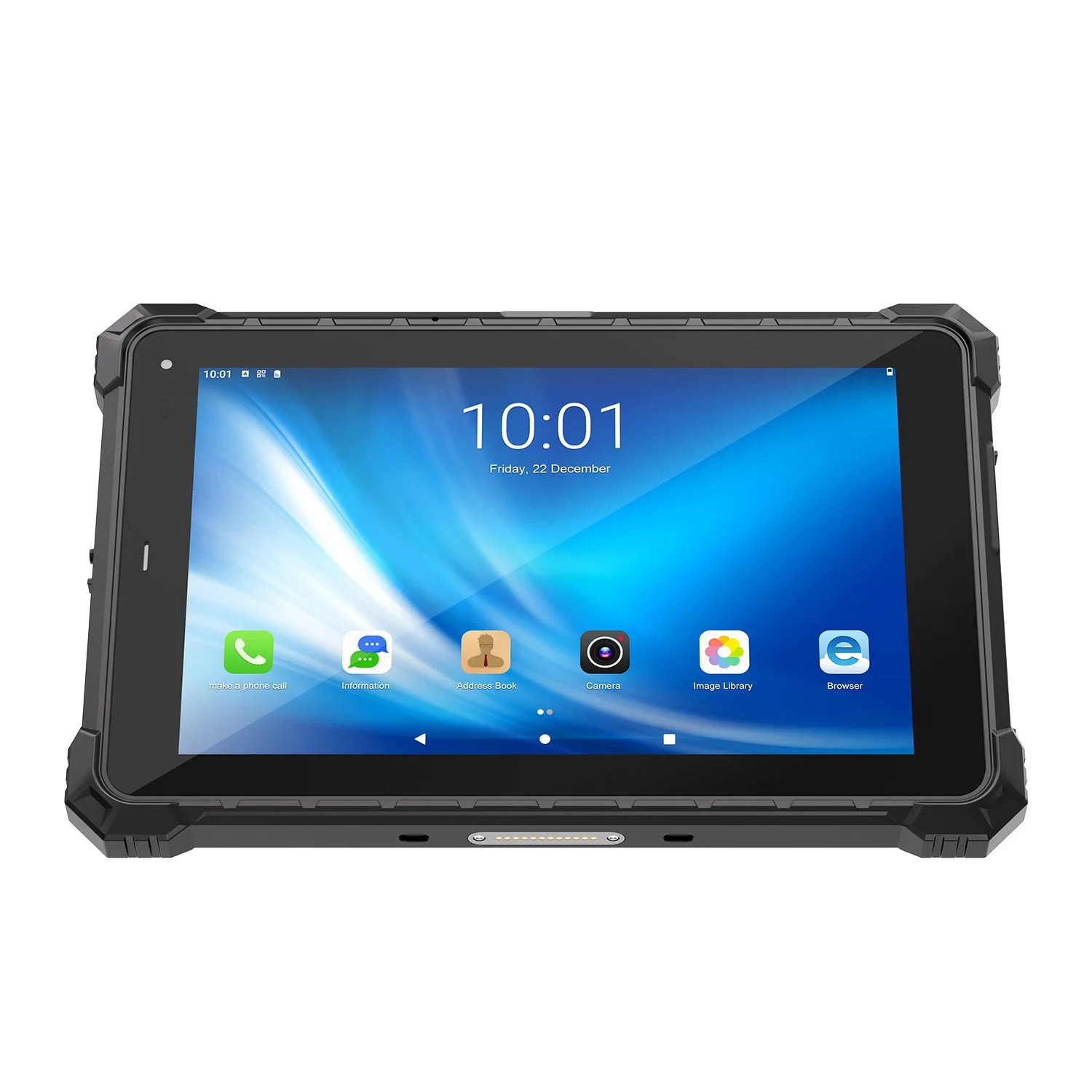

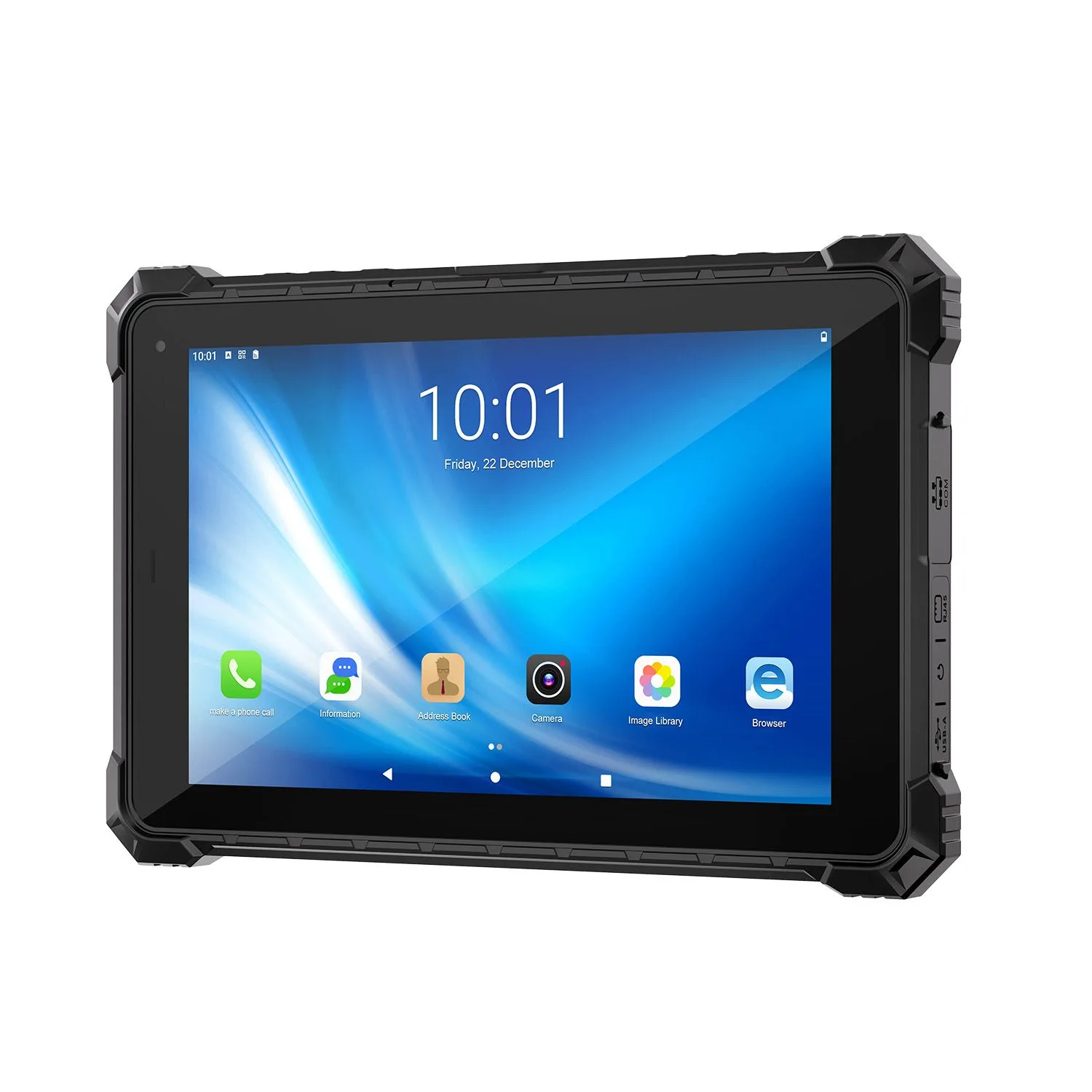

CENAVA A10ST MT6771 10.1 Inch Android 10 IP68 Rugged Tablet
The A10ST-MT6771 keeps a proven platform in production: MT6771 octa-core, Android 10, IP68, and the full port set — RS232 on DB9, 100M Ethernet, Micro HDMI and a 12-pin POGO connector. It's the model we recommend when your existing software is certified on Android 10, or when you're replacing units in an MT6771 fleet and can't afford to re-validate everything. New projects without that constraint should start with the MT8781 or MT6877 versions instead.
Rugged Protection: IP68, MIL-STD-810H 1.22m drop, -20°C~60°C (customizable -30°C~60°C)
CPU: MediaTek MT6771 octa-core, 4×Cortex-A73 @2.0GHz + 4×Cortex-A53 @2.0GHz
OS: Android 10
Display: 10.1" IPS 1280×800 (optional 1920×1200), 700cd/㎡ (customizable 1000cd/㎡), G+G 10-point glove touch, hardness ≥7H, AF coating (customizable wet-hand touch)
RAM/ROM: 4GB+64GB (optional 8GB+128GB)
Battery: 10000mAh 3.8V non-removable, ≥10h endurance (optional 20000mAh custom pack)
Integrated I/O: RJ45, RS232, Micro HDMI, Type-C (OTG), USB-A, 3.5mm jack, 12Pin POGO, Micro SIM, TF up to 256GB
Network: Dual-band WiFi 5, Bluetooth 4.2, 4G LTE full-band; GPS/BeiDou/Galileo/GLONASS, optional single-BeiDou
Cameras: 8MP front + 16MP AF rear with true flash
Optional Modules: Intercom hand mic, RTK cm-level positioning, 2D scanner, fingerprint, ID card reader, UHF RFID (up to 15m), LF 125kHz; NFC & FM radio standard
Octa-Core PowerAndroid 10 Smooth
MTK6771 Octa-Core 4GB/8GB Options 4G Global
Powered by the MTK6771 octa-core processor (4×A73@2.0GHz + 4×A53@2.0GHz) with the Android 10 industrial OS, multitasking runs smoothly without lag. The 10.1-inch display provides ample workspace for multi-window dispatching and data visualization. The 4GB+64GB base version handles routine MES terminals, while the 8GB+128GB version tackles video backhaul and cloud collaboration. 4G global band coverage keeps you connected across field inspections and vehicle-mounted operations. OTA upgrades deliver security patches, and memory configurations adjust per project needs. Stable performance with a lasting smooth experience.
High-Res Bright Display
Outdoor Strong Visibility
10.1-inch IPS 700cd/m² Glove Touch Wet-Hand Customizable
The 10.1-inch IPS panel delivers crisp 1920×1200 resolution, with 700cd/m² brightness remaining clearly readable under direct sunlight. Rubber-glove touch is supported for precise operation, and wet-hand touch can be customized on demand for rainy-day work. G+G construction with AF anti-fingerprint coating, hardness ≥7H, scratch-resistant for long-term use. Brightness customizable to 1000cd/m² ultra-bright for extreme glare, with standard-resolution versions flexibly selectable to fit different environments and budgets.
Triple-Proof + Explosion-Proof
Harsh Conditions No Fear
IP68 Optional Ex Version 1.22m Drop -20°C~60°C
IP68 dust-tight and waterproof, surviving 1.22m drops. Optional Ex Class II petrochemical explosion-proof version for compliant use in petrochemical plants and oil-gas pipelines. Operating range -20°C to 60°C ensures reliable startup in extreme weather, with optional -30°C low-temperature customization for extreme cold. Certification upgrades available: KA Class I mining safety and MA Class I coal safety versions for underground mining access. The rugged industrial chassis with reinforced corners and sealed gaskets keeps out sand and dust, providing a stable, fatigue-free grip.

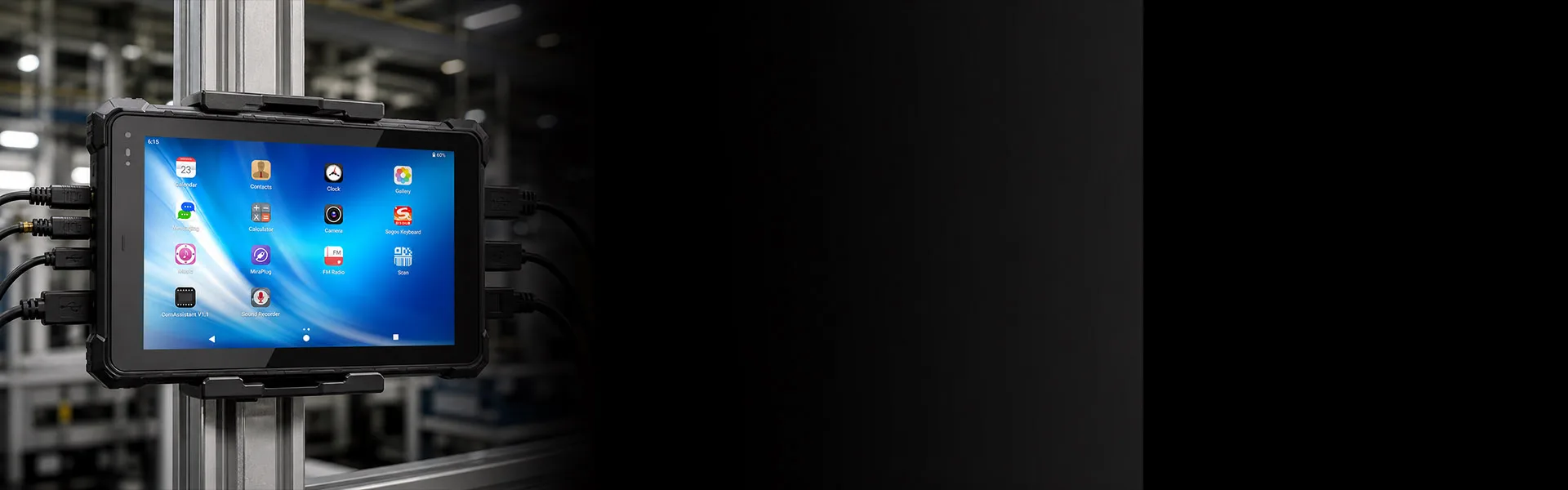

Industrial Full Interface
Plug and Play
Type-C+USB+HDMI+RS232+POGO
Full industrial interface configuration: Type-C supports OTG and data transfer; USB-A connects flash drives and keyboards; Micro HDMI extends to large screens; RS232 serial port interfaces with industrial control equipment; RJ45 100M Ethernet connects directly to PLCs and switches; 12-pin POGO PIN dock enables charging and expansion; 3.5mm headphone jack supports voice intercom. Ergonomic layout keeps ports clear in one-handed use without cable tangling on the desktop. Dust plugs block dust and moisture. Paired with optional 2D scanning, ID card, fingerprint, and UHF modules, it forms an integrated data collection and device control terminal.
Technical Specifications
 CPU MediaTek MT6771 Octa-core 4× Cortex-A73 at up to 2.0GH |  System |  Storage 4GB+64GB with 1280×800 display |  Display 10 inch IPS touch screen 1280*800 700cd/㎡ |
 NFC Optional Default back of the body for card reading, customizable to the front |  One/Two dimensional code Optional Able to identify dirty 1/2 dimensional codes |  Battery Built-in 3.8V 10000mAh |  High frequency/ultra-high frequency module Optional Ultra thin integrated module |
 Navigation positioning GPS, Galileo GLONASS |  ID card identification Optional |  Interface USB 2.0, DB9 RS232, RJ45 100Mbps, Micro HDMI |  Weight 283.9*189.5*24.1mm/1136g |
 Card slot SIM / TF （256G） |  Protection level working temperature: -20 °C to 60°C Storage temperature: -30 °C to 70 °C Protection level: IP68 |  Camera Front camera:8MP fixed focus Rear camera:16MP autofocus |  Sensor Gravity sensing, compass, gyroscope, light sensing, distance sensing |
| Product Type | Full-I/O Android industrial tablet |
| Tp touch screen | Anti-fingerprint (AF) coating, 10-point touch, G+G, hardness ≥7H; supports medical rubber gloves; wet-hand touch available on request |
| Gravity sensor | Supported |
| Compass | Supported |
| Gyroscope | Supported |
| Light sensor | Supported |
| Distance sensor | Supported |
| Fm Radio | Supported |
| TYPE-C | *1 Type-C USB2.0 adapt OTG |
| Type -A | *1 Type-A USB2.0 |
| Earphone Jack | *1 3.5mm Standard Earpiece jack |
| TF Card | *1 Maximum support 256GB expansion |
| SIM Card | *1 Standard Micro SIM card slot |
| HDMI | *1 Micro HDMI |
| DC jack | *1 5V/3A 3.5mm |
| POGO PIN | *1 12Pin USB+Charge |
| DB9（serial port） | *1 RS232 |
| RJ45 jack | *1 100M |
| Adaptor | 5V/3A DC adapter |

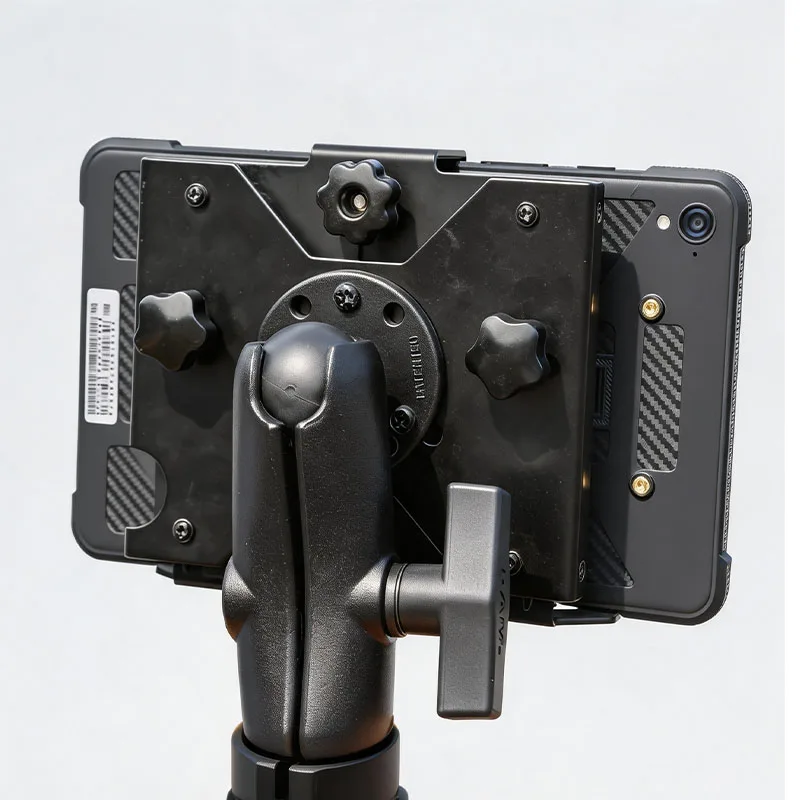

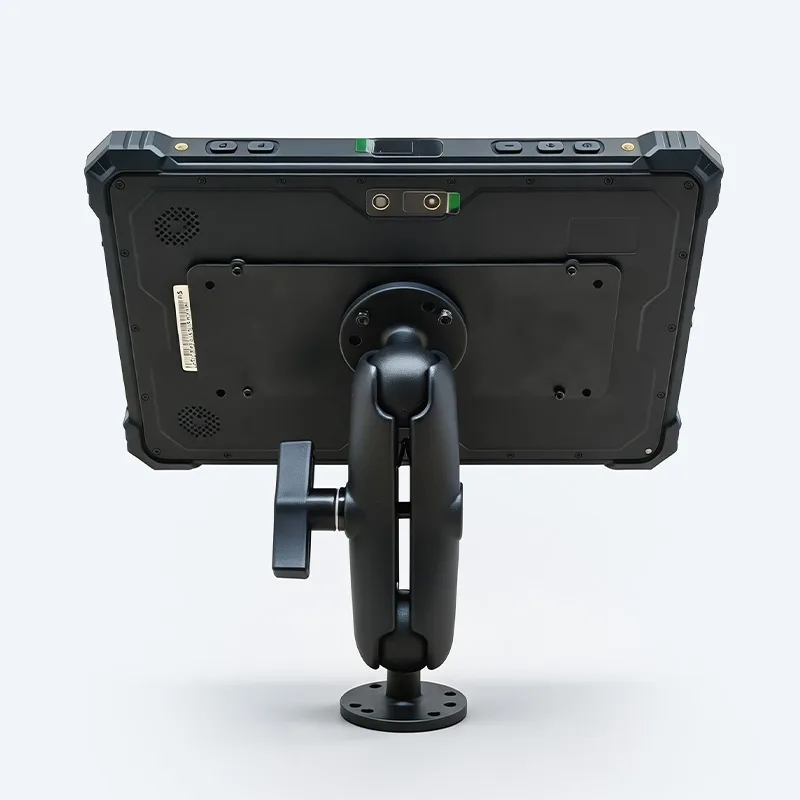

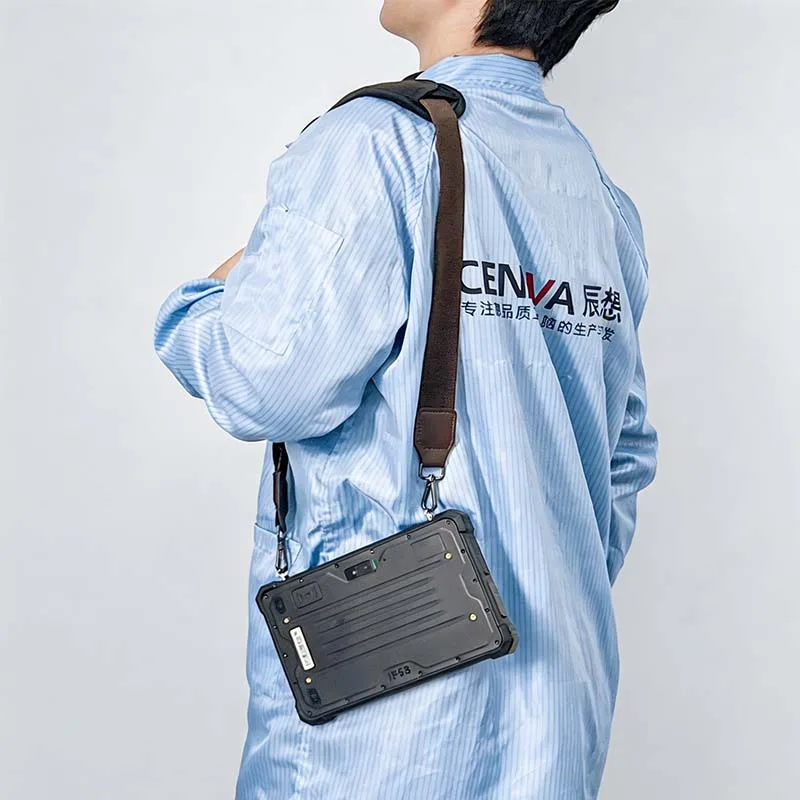

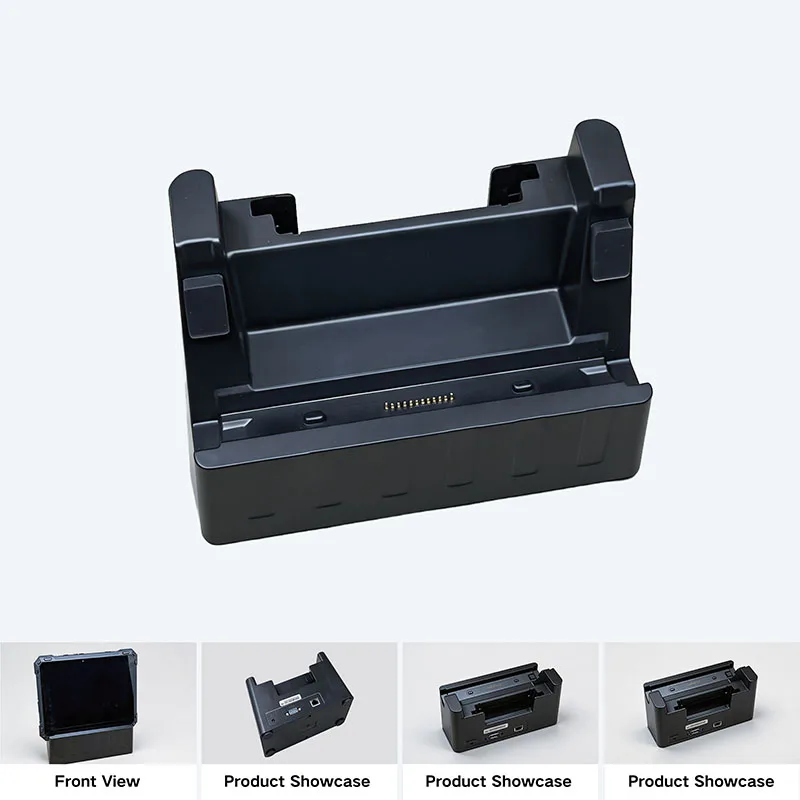

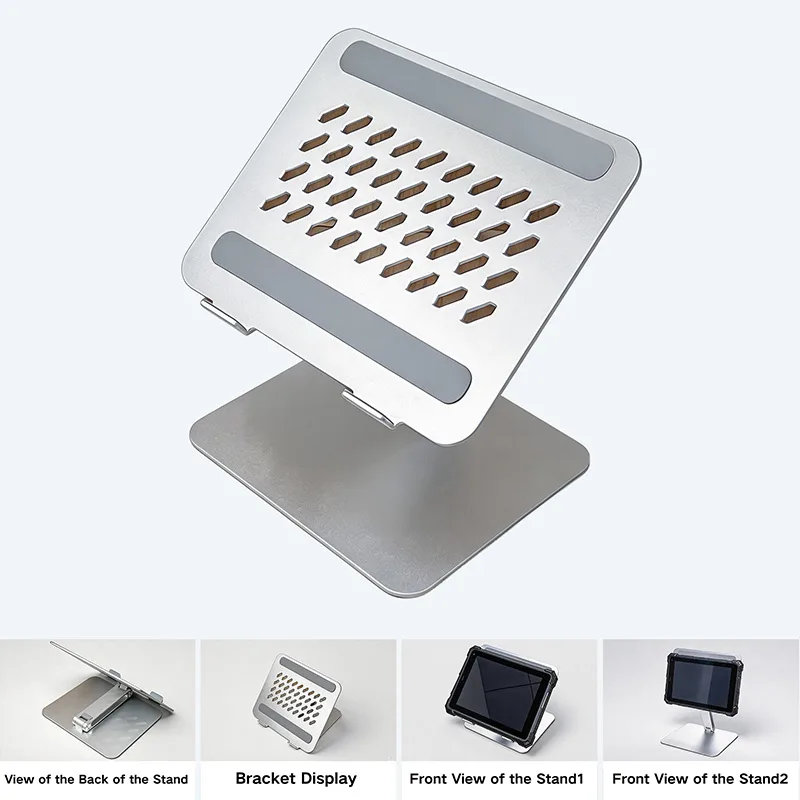

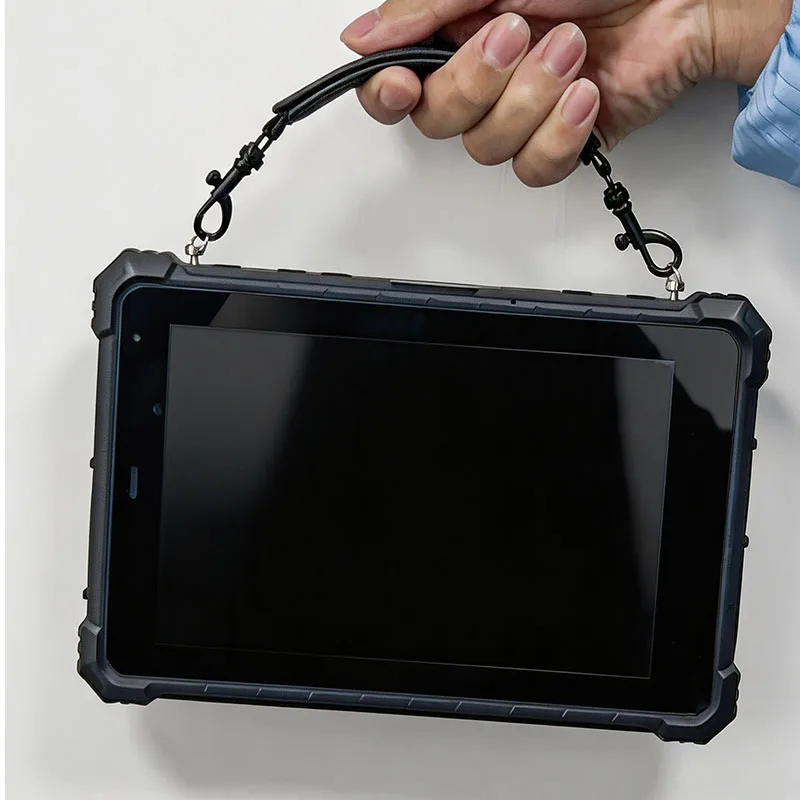

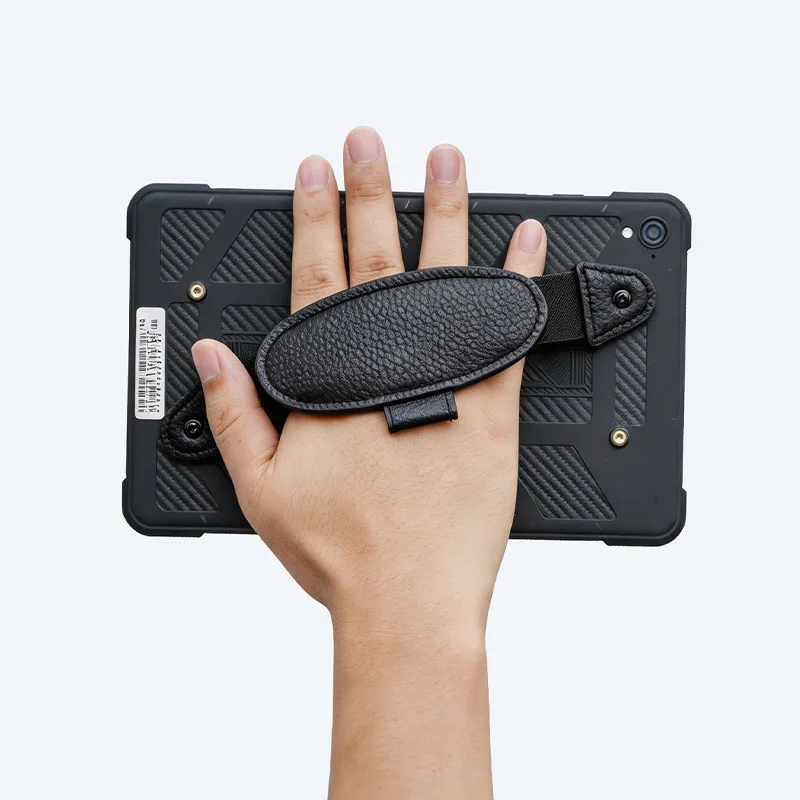

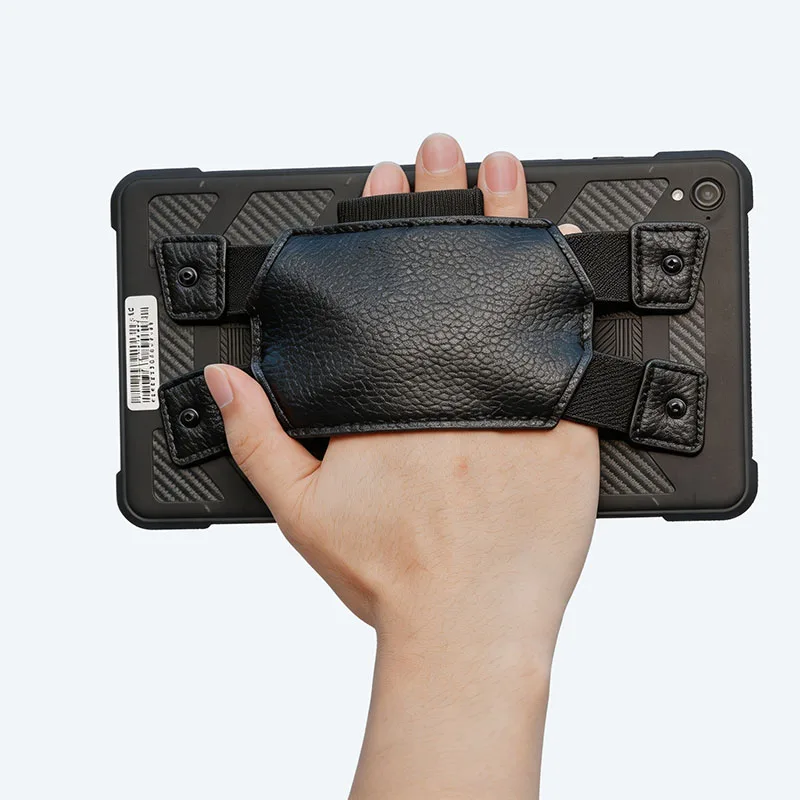

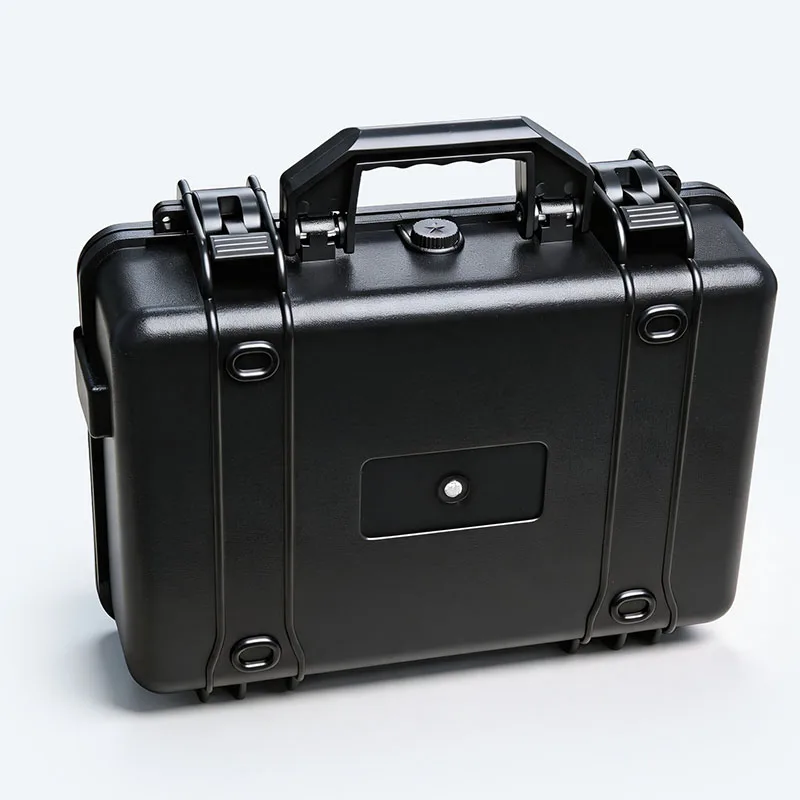

| Option accessories | Four-point strap, brackets, vehicle mount, screen protector, charging base, aluminum stand, waterproof case, protective case |
The MT6771 runs four Cortex-A73 and four Cortex-A53 cores, all at up to 2.0GHz — a 2019-era platform, and that's the point. It's stable, field-proven, and its BSP (board support package) has been through years of industrial debugging. It handles data entry, warehouse apps, serial communication, scan middleware and browser-based business systems without drama. What it won't give you is headroom: no PD fast charging, Bluetooth 4.2 rather than 5.x, and an older Android base. Size your software to the platform, not the other way round.

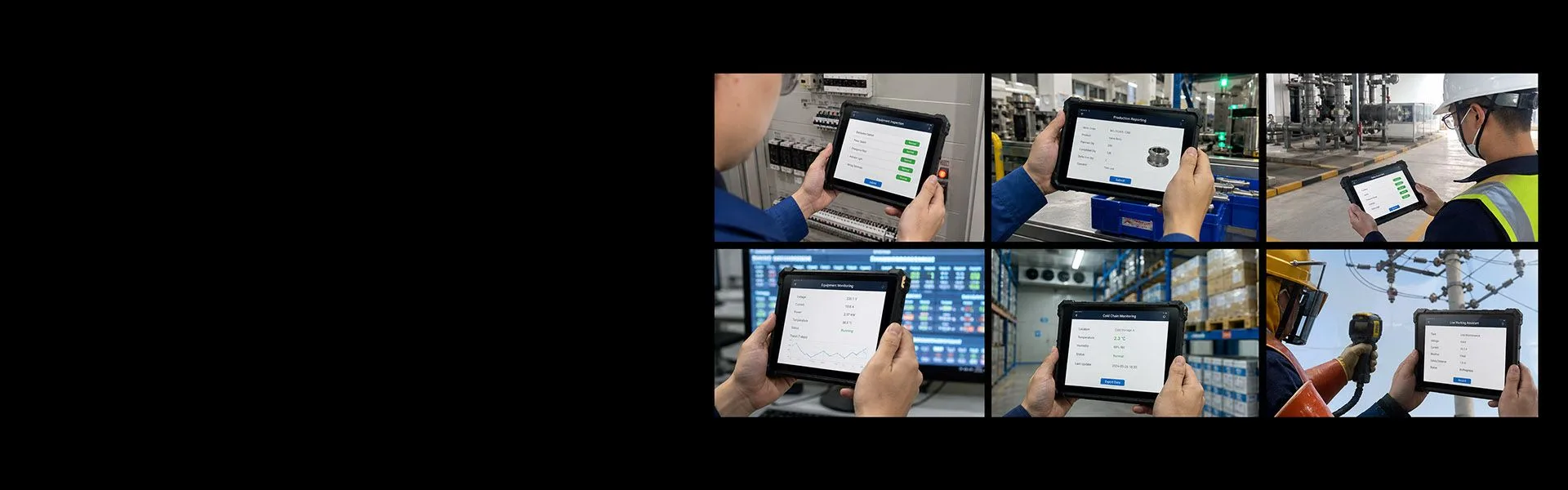

The platform is suitable for established Android workloads such as:
Industrial data entry
Warehouse applications
Equipment-service software
Serial communication
Barcode and RFID middleware
Browser-based business systems
Work-order management
Camera documentation
Navigation applications
Basic local databases
Remote technical support
Frequently Asked Questions About the A10ST MT6771 Android Industrial Tablet
1. Who is the A10ST-MT6771 for?
Existing deployments, mostly. If your industrial software is certified on Android 10, or you're replacing units in an MT6771-based fleet, this model lets you swap hardware without re-validating your software stack. For a new project with no legacy constraint, start with our MT8781 or MT6877 models instead.
2. Which display resolutions are available?
1280×800 and 1920×1200. Tell us which one your software was laid out for — resolution changes can break old app UIs, which is exactly the kind of re-validation this model exists to avoid.
3. Is the battery removable? Can it be hot-swapped?
Neither. The 10,000mAh pack is built in and sealed. A 20,000mAh version exists as a customized battery enclosure. If you need mid-shift battery swaps, the A10STX MT6771 (same platform, 15,400mAh removable, IP67) is the one to look at.
4. What are this platform's limits?
Two worth knowing up front: Bluetooth is 4.2 BLE, not 5.x; and the Type-C port doesn't do PD fast charging. If either matters to your deployment, the MT6769 version adds both.
5. Which ports come standard?
A native RS232 on DB9 (not a USB adapter), 100M RJ45 Ethernet, Micro HDMI, USB 2.0 Type-C with OTG, USB 2.0 Type-A, 3.5mm audio, Micro SIM and a TF slot up to 256GB. The Ethernet port is 100M, not Gigabit.
6. What data-capture modules can be added?
NFC is standard. Options: N1 or N670 1D/2D scan engines, UHF RFID in 3m, 5m or 15m builds, and fingerprint readers in industrial or certified tiers. On the 15m UHF figure: that's the module's ceiling, not a guarantee. Real range depends on the tag, antenna and environment, so we'll want to know your tag type before confirming a build.
7. Is it really IP68?
Yes, with the sealed built-in battery. Custom modules can change the sealing — if your build includes a scanner or RFID, ask for the test report covering that exact configuration.
