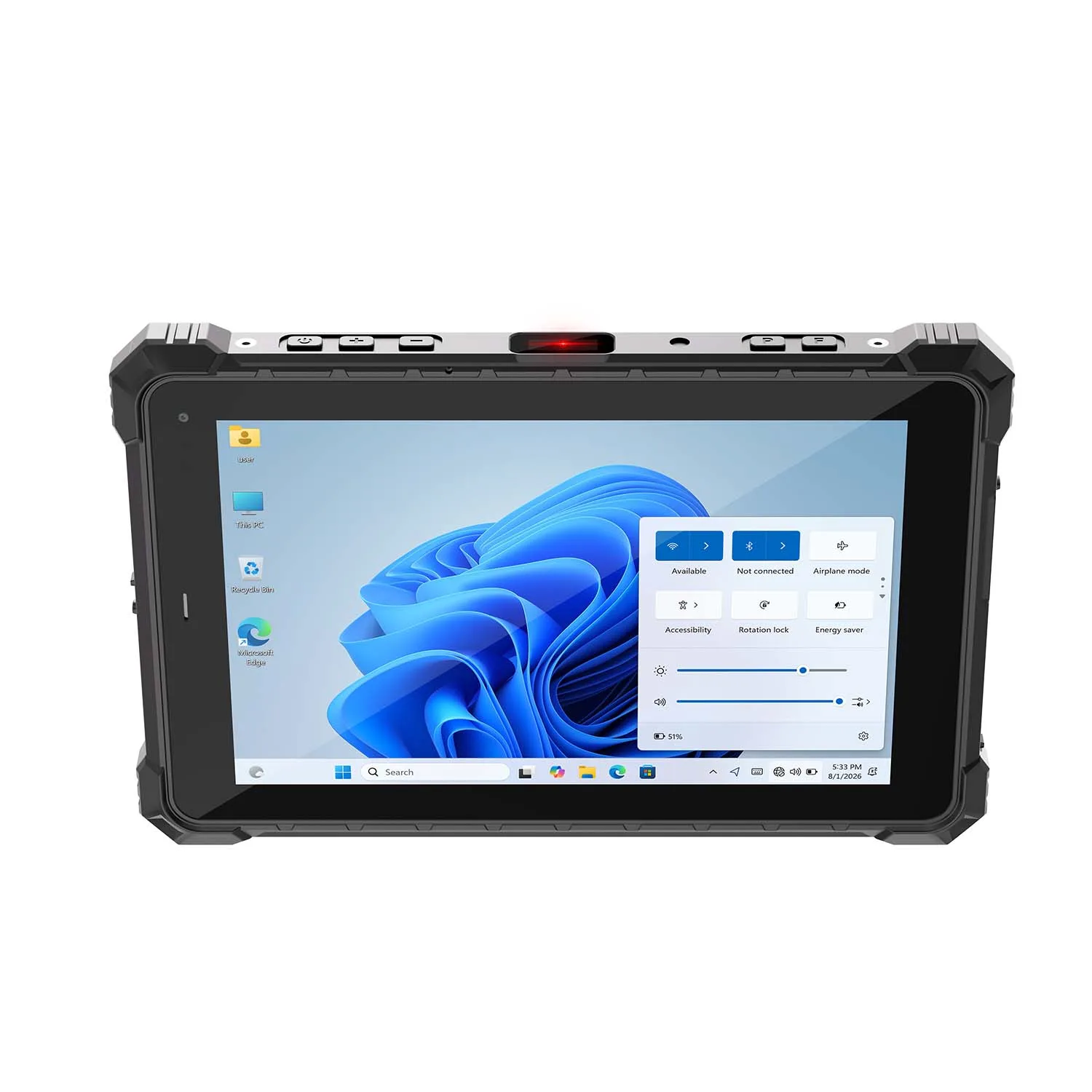

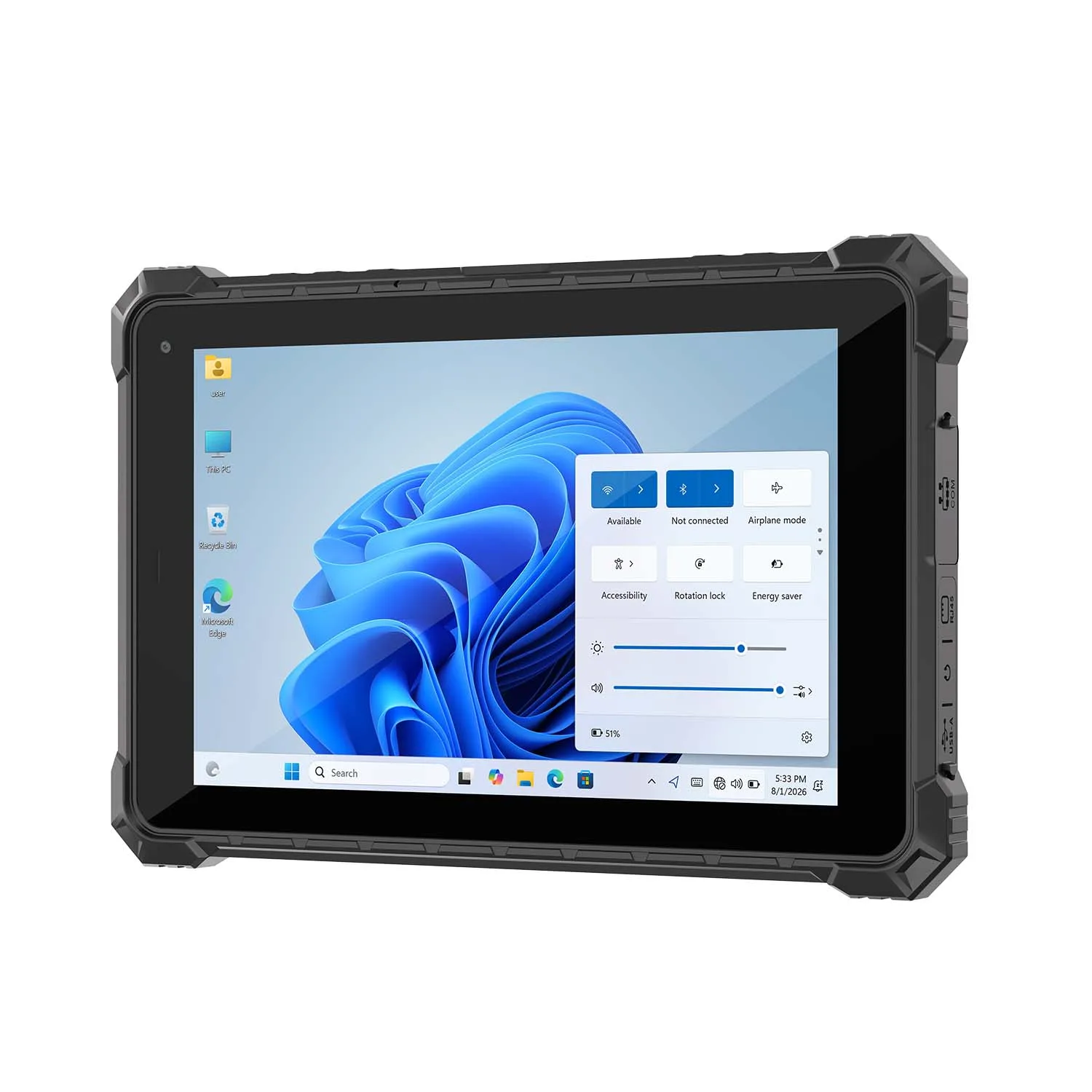

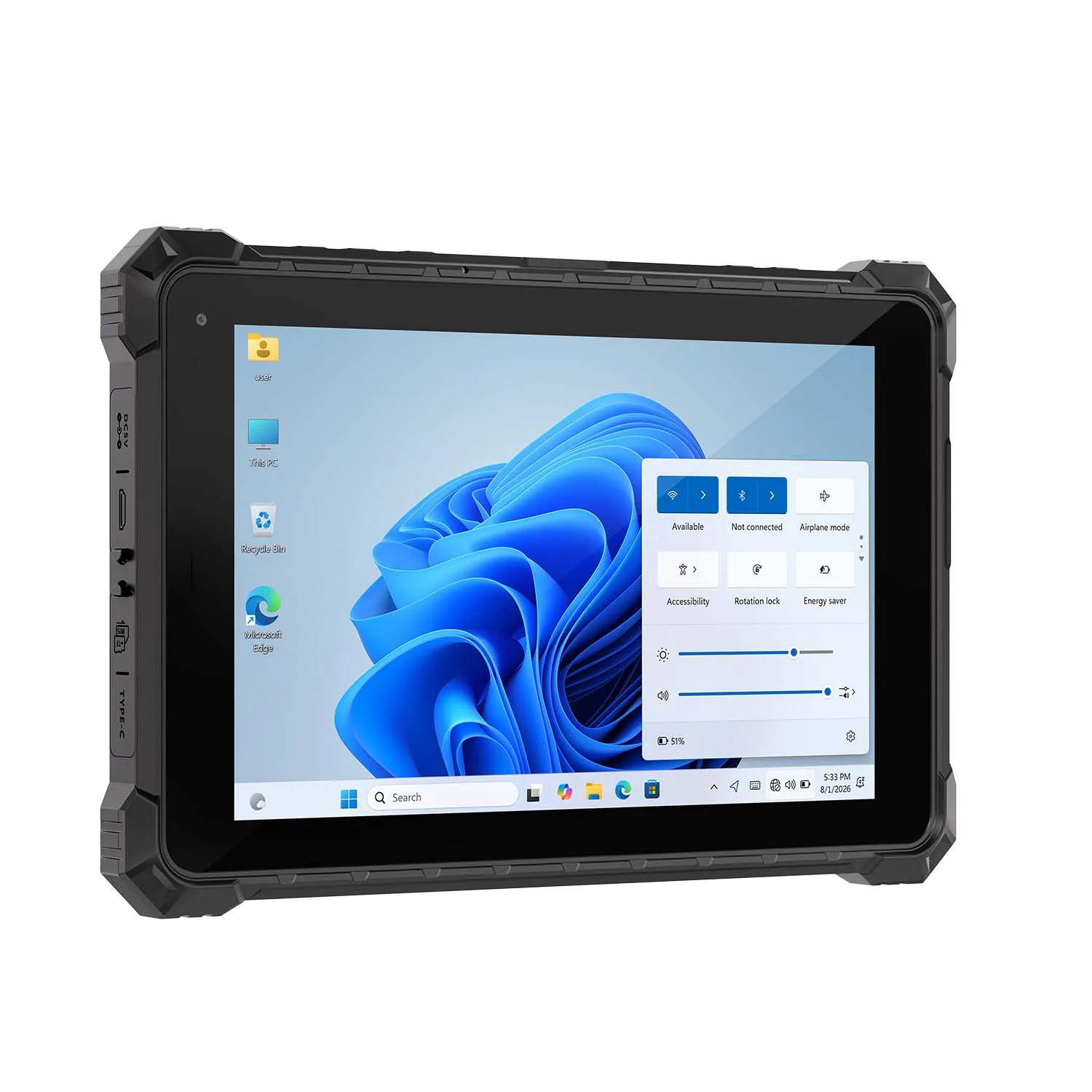

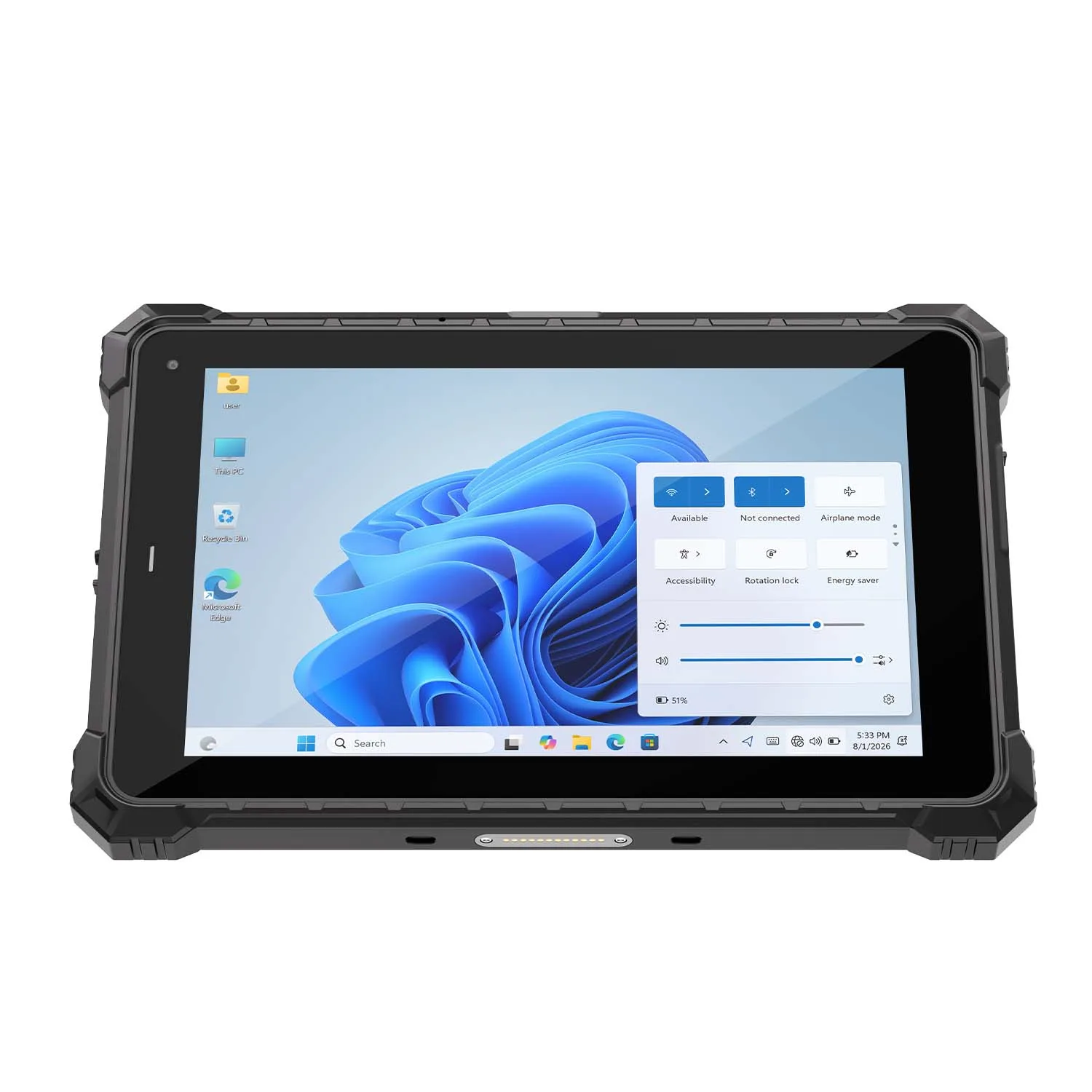

CENAVA W10N N5100 10.1 Inch Win11 IP68 Rugged Tablet Full I/O
CENAVA W10N is a 10.1-inch rugged Windows tablet for manufacturing, warehousing and field inspection. The fanless Intel N5100 quad-core runs Windows 11, while built-in RJ45, RS232 and Micro HDMI connect industrial equipment directly — no adapters needed. IP68 and MIL-STD-810H rated, its 700-nit glove-touch display stays readable outdoors, and the 5550mAh battery lasts over 7 hours. Optional 10000mAh pack, 4G/5G, 2D scanner, UHF, RTK and more.
CPU: Intel Jasper Lake N5100 quad-core 4-thread, 1.1–2.8GHz, fanless passive cooling
OS: Windows 10 (optional Windows 11, Ubuntu 22.04.5)
Display: 10.1" IPS 1280×800 (optional 1920×1200), 700cd/㎡, 10-point G+G glove touch, hardness ≥7H (wet-hand touch customizable)
RAM/ROM: 8GB+128GB (custom 16GB+256GB)
Integrated I/O: RJ45, DB9 RS232, Micro HDMI, Type-C (PD charging), USB-A 3.0, 3.5mm jack, TF up to 1TB, Micro SIM, DC 12V, 12Pin POGO
Network: Dual-band WiFi 6, Bluetooth 5.2; optional 4G LTE / 5G (custom function); GPS/GLONASS, optional single-BeiDou positioning
Battery: Built-in 5550mAh 7.6V non-removable, ≥7h endurance (custom 10000mAh large battery)
Protection: IP68, MIL-STD-810H 1.22m drop, -20°C~60°C (custom -30°C~60°C), TPM security chip
Camera: Front 5MP fixed-focus + rear 8MP autofocus
Optional Modules: 2D scanner (N1/N670), ID card reader, UHF RFID, NFC, LF 125kHz, fingerprint, RTK cm-level positioning
Direct Machine Link
No Adapters Needed
RJ45 + DB9 Serial + Micro HDMI Onboard

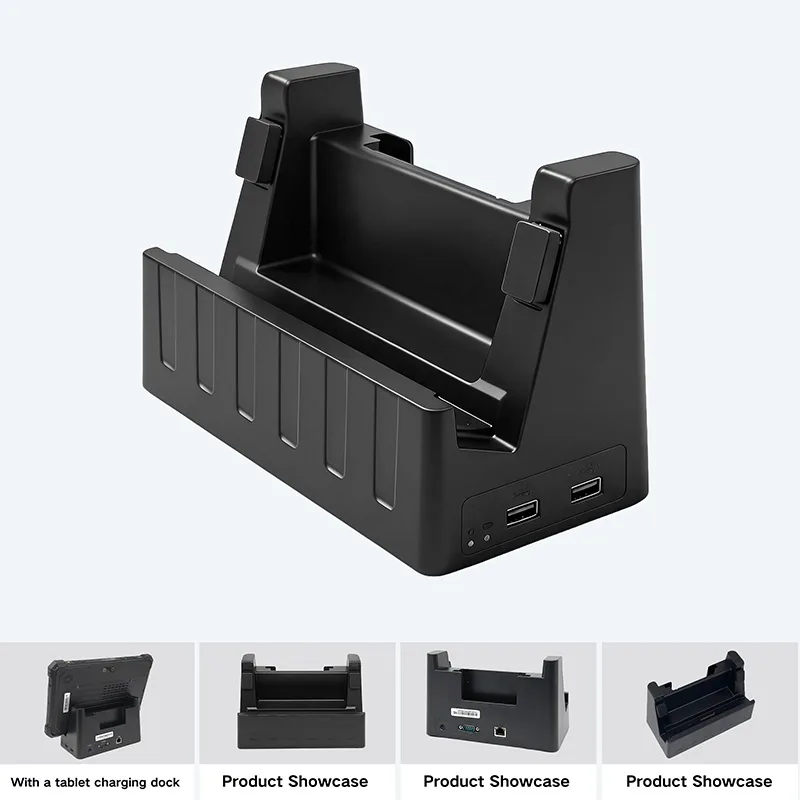

Machine networking on the factory floor hates lost adapters and unstable signals. The W10N builds RJ45 Ethernet, a DB9 RS232 port and Micro HDMI into the body, so PLCs, CNC machines and label printers connect with a single cable—no dock required. Type-C supports PD charging, USB-A 3.0 takes flash drives and keyboards, TF expansion reaches 1TB, and a Micro SIM slot awaits the optional 4G/5G module. A 12-pin POGO dock switches between fixed-station and mobile patrol duty, with a 3.5mm jack for voice. Optional 2D, ID card, UHF, NFC, LF, fingerprint and RTK modules complete line-side data capture.

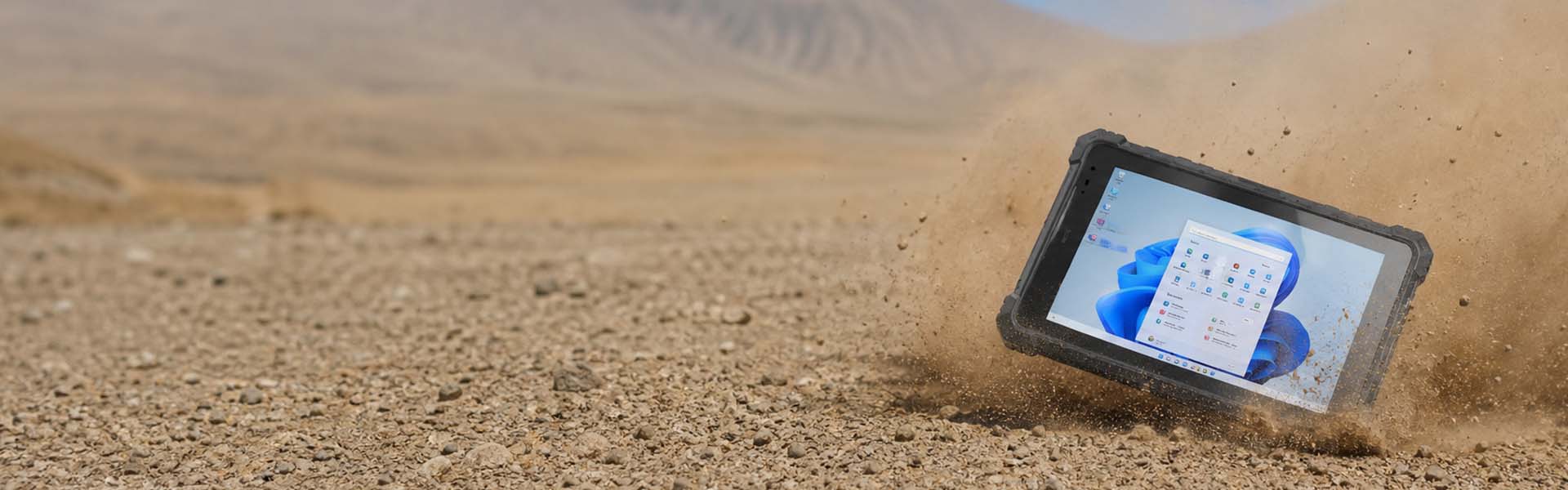

Military-Grade Tough
Built for Long Service
IP68 1.22m Drop -20°C~60°C
Sealed to IP68, it keeps running amid coolant spray and metal dust; MIL-STD-810H 1.22m drop testing means a fall from the workbench is a non-event. The -20°C to 60°C range covers hot summer stations and open-air winter yards, with a -30°C custom version available. Fanless passive cooling never clogs with dust or stalls. An onboard TPM chip encrypts process data, and the whole unit is engineered for three-shift continuous duty—a veteran built for years on the line.

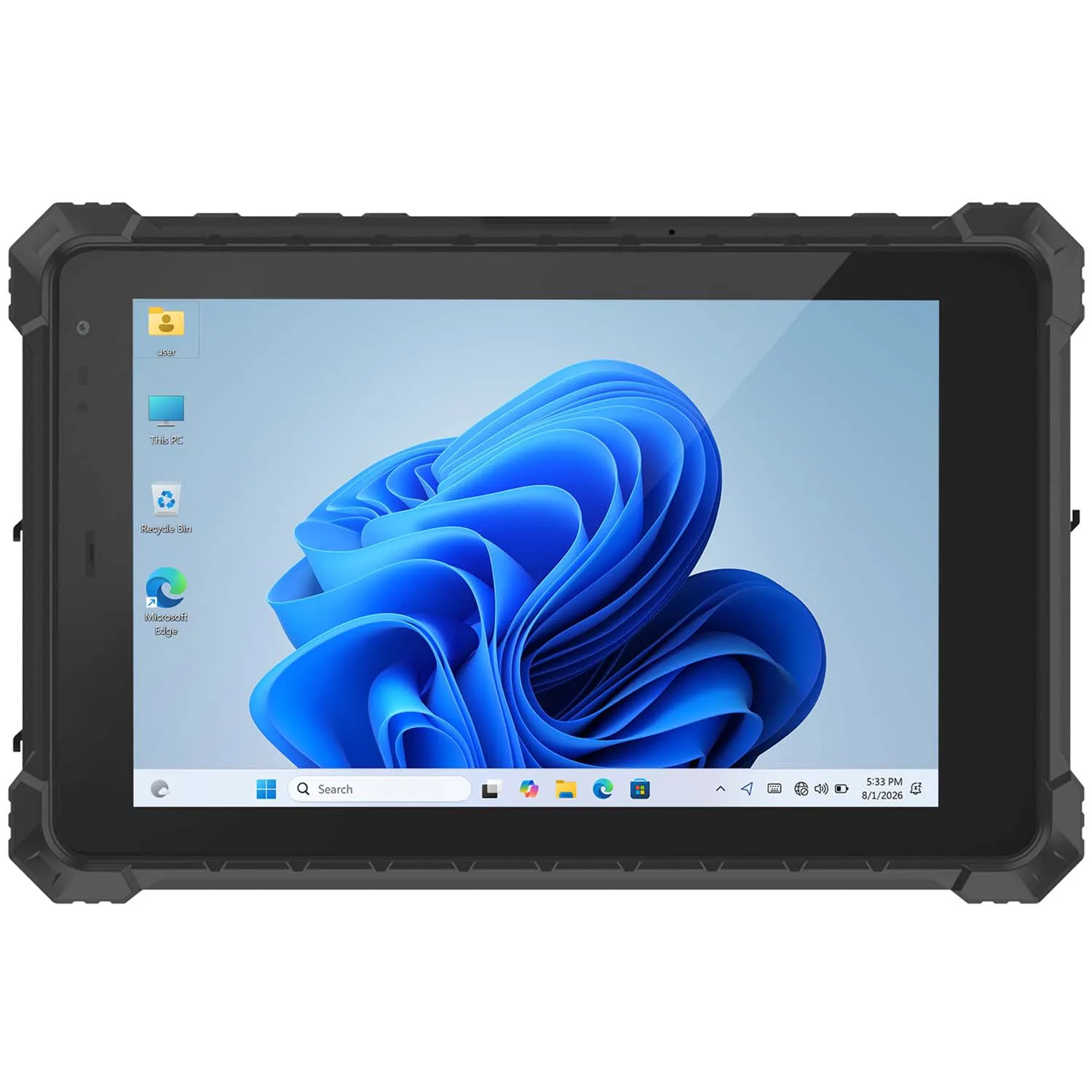

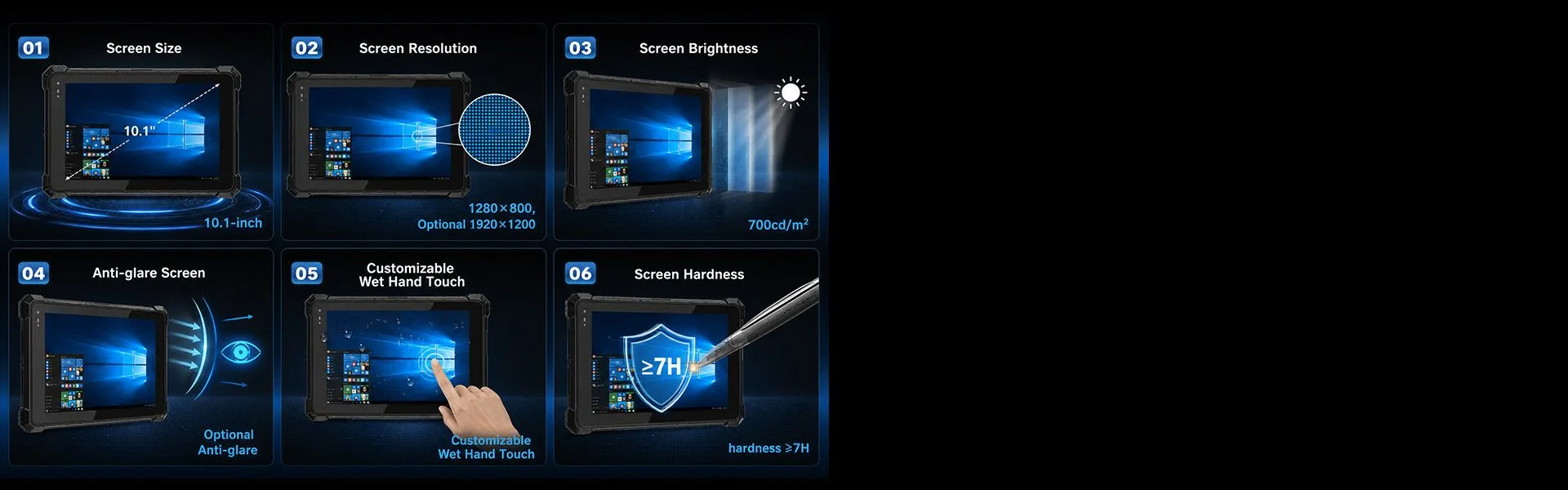

Bright Glove Screen
Steady Readings in Glare
10.1" 700cd/㎡ Optional 1920×1200
The 10.1-inch IPS panel ships at 1280×800 with an optional 1920×1200 upgrade; 700cd/㎡ brightness keeps readings effortless under ceiling lights and window glare. Ten-point G+G touch responds precisely through gloves, ≥7H glass shrugs off sharing the bench with wrenches and gauges, and wet-hand touch is customizable. A 5MP front and 8MP autofocus rear camera archive nameplates and fault points with pictures, enriching maintenance logs. Fast wake and instant touch response keep line-side operation fluid, and every tap lands exactly where intended.
Full-Shift Power
Frugal Platform, Steady Runtime
5550mAh ≥7H Runtime Custom 10000mAh
The built-in 5550mAh battery works over seven hours straight—clock in to clock out without hunting for outlets—and a custom 10000mAh pack covers longer shifts. Endurance comes from a frugal platform: the Intel N5100 quad-core (1.1-2.8GHz) with 8GB+128GB (custom 16GB+256GB) keeps MES clients and electronic work instructions flowing. Windows 10 is proven and stable, with Windows 11 and Ubuntu 22.04.5 optional. Dual-band WiFi 6 and Bluetooth 5.2 blanket the shop floor; GPS/GLONASS positioning offers an optional single-BeiDou variant.
Technical Specifications
 CPU Intel N5100 1.1GHz-2.8GHz |  System |  Storage 8+128GB |  Display 10-inch IPS touch screen 1280*800 |
 NFC Optional Default back of the body for card reading, customizable to the front |  One/Two dimensional code Optional Able to identify dirty 1/2 dimensional codes |  Battery 7.6V 5550mAh high voltage lithium battery, non-removable |  High frequency/ultra-high frequency module Optional Ultra thin integrated module |
 Navigation positioning GPS, Beidou, Galileo GLONASS |  ID card identification Optional |  Interface Type -A,Type -C HDMI,POGO PIN |  Weight283.9*189.0*24.1mm/1178g |
 Card slot SIM / TF 256G |  Protection level Working temperature: -20 °C to 60°C Storage temperature:-30 °C to 70 °C |  Camera Front camera:5MP Rear camera:8MP |  Sensor Gravity sensing, compass, gyroscope, light sensing, distance sensing |
W10N Windows Rugged Tablet Details:
| Size weight | 283.9*189.0*24.1mm/1178g |
| Wall hole pitch / screw | 154x71.5mm/ M3*4.5mm |
| TP touch Screen | Anti-fingerprint (AF) coating,10-point touch G+G, hardness ≥7H, support for medical rubber gloves touch screen (can be customised wet hand touch screen) |
| TPM | Built-in TPM Security chip |
| Gravity sensor | YES |
| TYPE-C | *1 Type-C Support PD charging |
| Type -A | *1 Type-A USB3.0 |
| DB9 | *1 RS232 |
| Earphone Jack | *1 3.5mmStandard headphone jack |
| TF Card | *1 Maximum support 1TB expansion |
| SIM Card | *1 Standard Micro SIM card slot |
| HDMI | *1 Micro HDMI |
| DC port | *1 12V-4A (DC plug outer diameter 3.5mm inner diameter 1.35mm) |
| POGO PIN | *1 12Pin USB+charger |
| RJ45 | *1 |
| Drop height | Meets the requirements of MIL-STD-810H for the 1.22-meter drop test |
| Certificates | IP68, CE, US military standard-810H certification, energy saving certification, ISO quality certification system, ROHS, three-proof salt spray test |

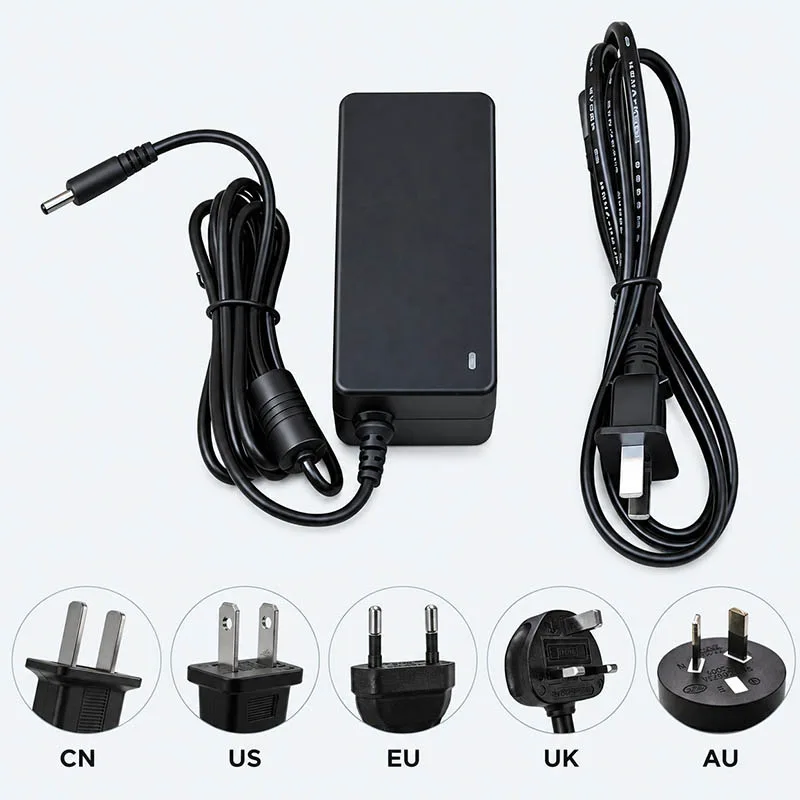

| Adapter | 12V-4A，DC interface adapter |
Frequently Asked Questions About the W10N Windows Rugged Tablet
1. Which processor and operating system does the W10N use?
The W10N is powered by the Intel Celeron N5100 Jasper Lake processor with four cores, four threads, a 1.1GHz base frequency and a maximum burst frequency of 2.8GHz. Windows 11 is the recommended standard operating system, while selected Windows IoT and Linux versions may be available for project orders.
2. Does the W10N support TPM 2.0 and Windows 11 security features?
Yes. The W10N page lists a built-in TPM 2.0 security chip. For Windows 11 projects, customers should also confirm that UEFI and Secure Boot are enabled in the selected firmware configuration. TPM 2.0 can support features such as device encryption, credential protection and BitLocker when used with a compatible Windows edition.
3. Is the W10N waterproof, dustproof and drop-resistant?
The W10N is listed with IP68 protection and is designed to meet the requirements of a 1.22-meter MIL-STD-810H drop test. The stated standard operating-temperature range is -20°C to 60°C. Customers should request the applicable test reports and exact test conditions for their selected configuration.
4. Can the W10N display be used outdoors and with gloves?
Yes. The standard W10N display is listed as a 10.1-inch IPS touchscreen with 1280×800 resolution and 700-nit brightness. A 1920×1200, 1000-nit sunlight-readable display is available as an optional project configuration. The capacitive touchscreen supports medical rubber gloves, and wet-hand touch can be customized.
5. How long does the W10N battery last?
The standard W10N uses a built-in 7.6V 5550mAh battery and provides at least seven hours of runtime under the stated video-playback test conditions. An optional 7.6V 10000mAh battery is available for longer operating shifts. Actual runtime depends on display brightness, Windows power settings, wireless connectivity and connected data-capture modules.
6. Does the W10N support Wi-Fi, Bluetooth, 4G LTE and GNSS?
Yes. The W10N supports dual-band Wi-Fi, Bluetooth 5.2 and satellite positioning. Optional 4G LTE connectivity is available for mobile applications. The exact Wi-Fi standard, GNSS constellations and LTE frequency bands should be confirmed according to the selected wireless module and destination country.
7. Which industrial interfaces are available on the W10N?
The W10N can provide USB Type-C with PD charging, USB Type-A 3.0, DB9 RS232, Micro HDMI, Gigabit RJ45 Ethernet, a 3.5mm audio jack, Micro SIM, MicroSD expansion, a DC charging port and a 12-pin POGO connector. CAN Bus may require a customized expansion interface or docking solution.
8. Can barcode, NFC, RFID and fingerprint modules be integrated?
Yes. Optional data-capture modules include 1D/2D barcode scanning, NFC, LF RFID, UHF RFID, fingerprint recognition and ID card reading. Available module combinations should be confirmed before sample production because some modules may affect the enclosure, antennas, interfaces or IP protection.
9. Is RTK high-precision positioning available?
Yes. RTK positioning is listed as a custom option for projects requiring higher positioning accuracy. Customers should confirm the RTK module, supported satellite bands, antenna requirements, NTRIP compatibility and expected accuracy under the intended operating environment.
10. Can CENAVA customize the W10N for OEM and industrial projects?
Yes. CENAVA can customize the operating system, RAM, storage, screen brightness, battery capacity, cellular module, GNSS, barcode scanner, RFID reader, fingerprint module, industrial interfaces, housing color, logo and mounting accessories. Customers should provide their software, interface, certification and operating-environment requirements before sample production.

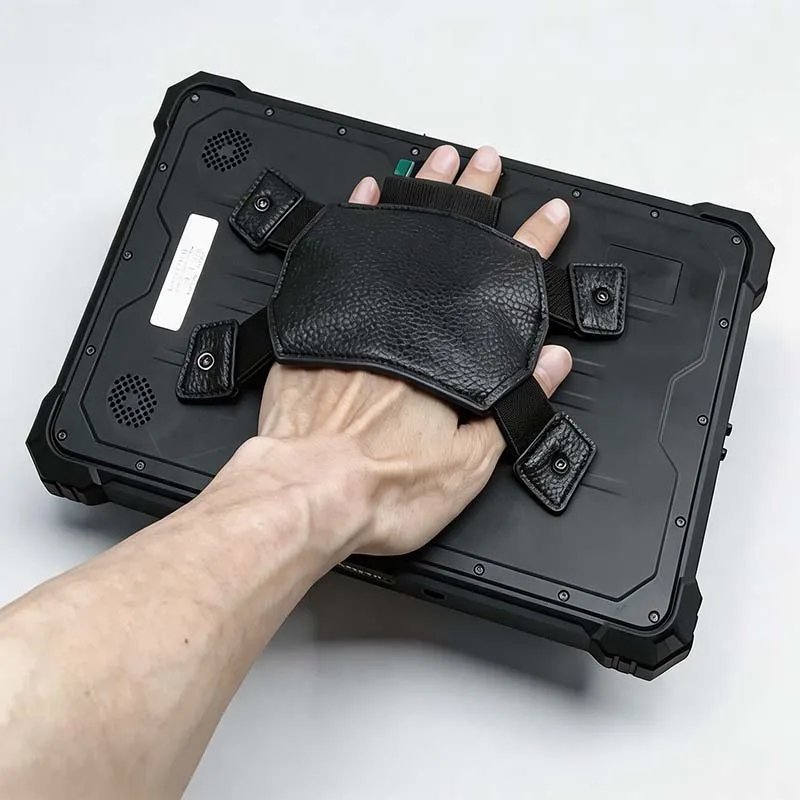

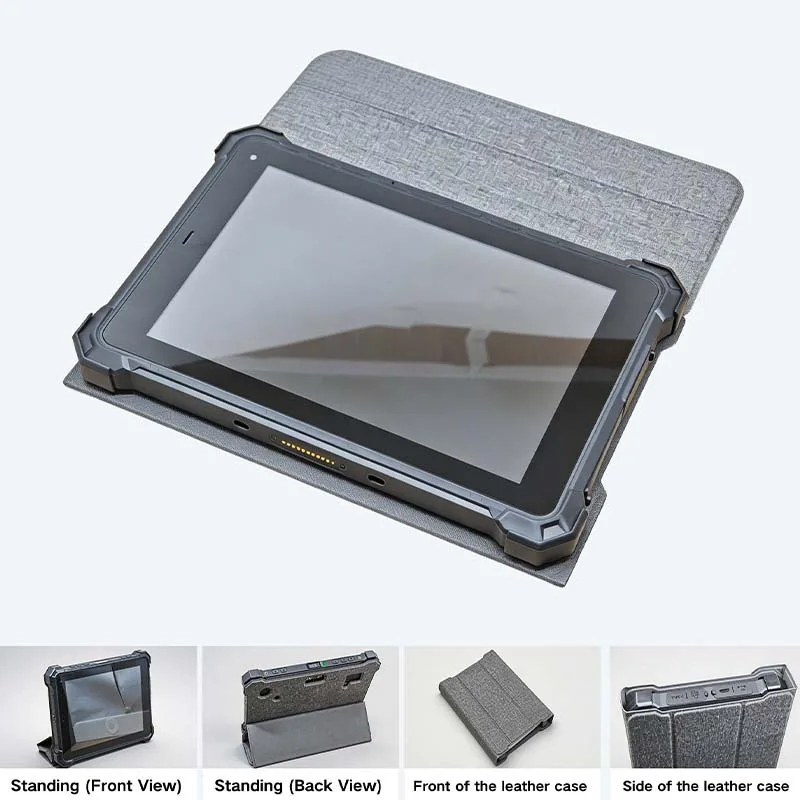

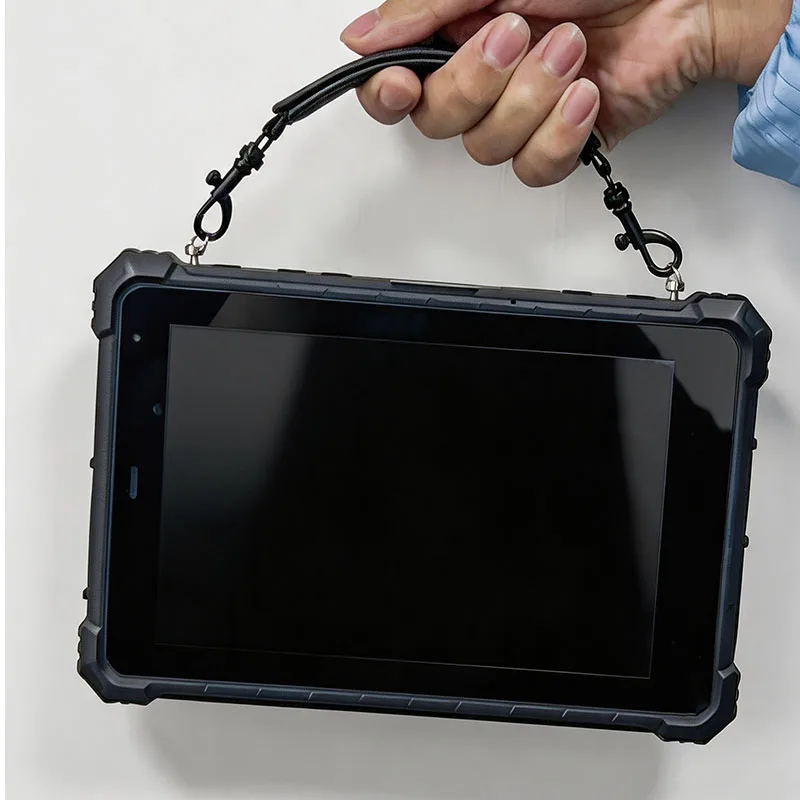

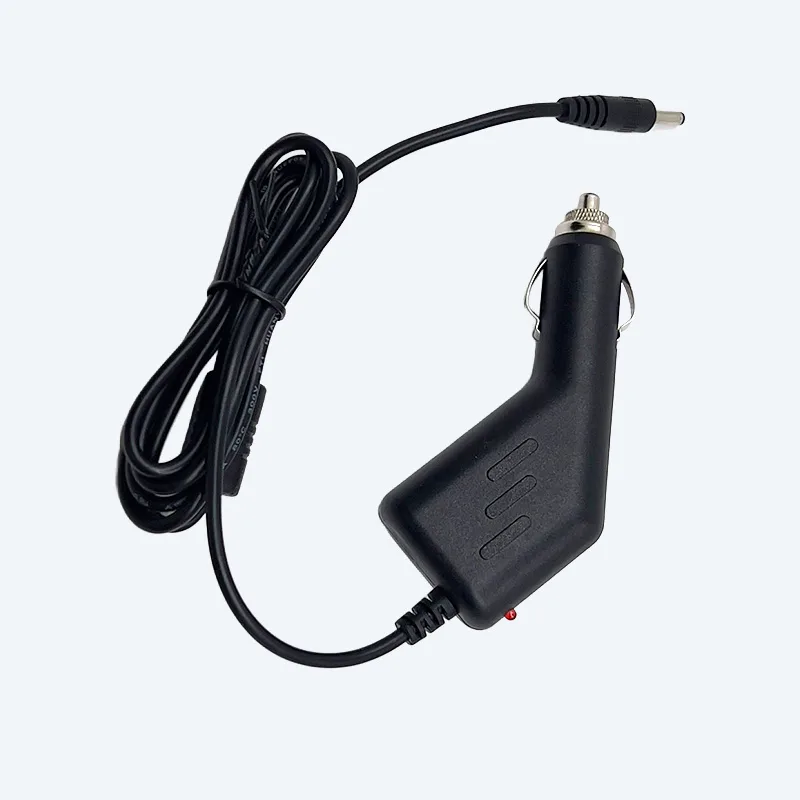

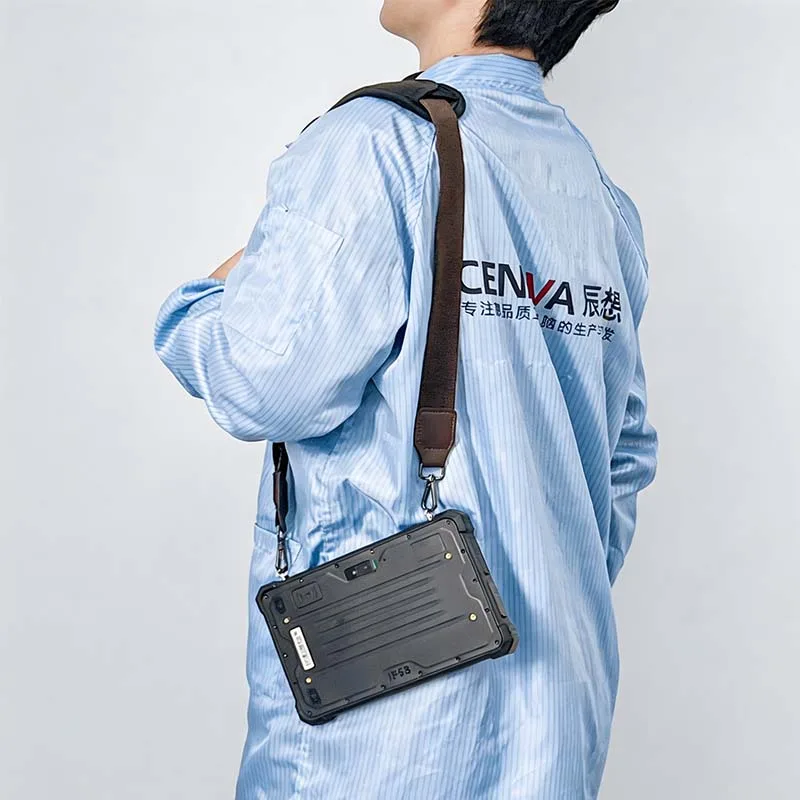

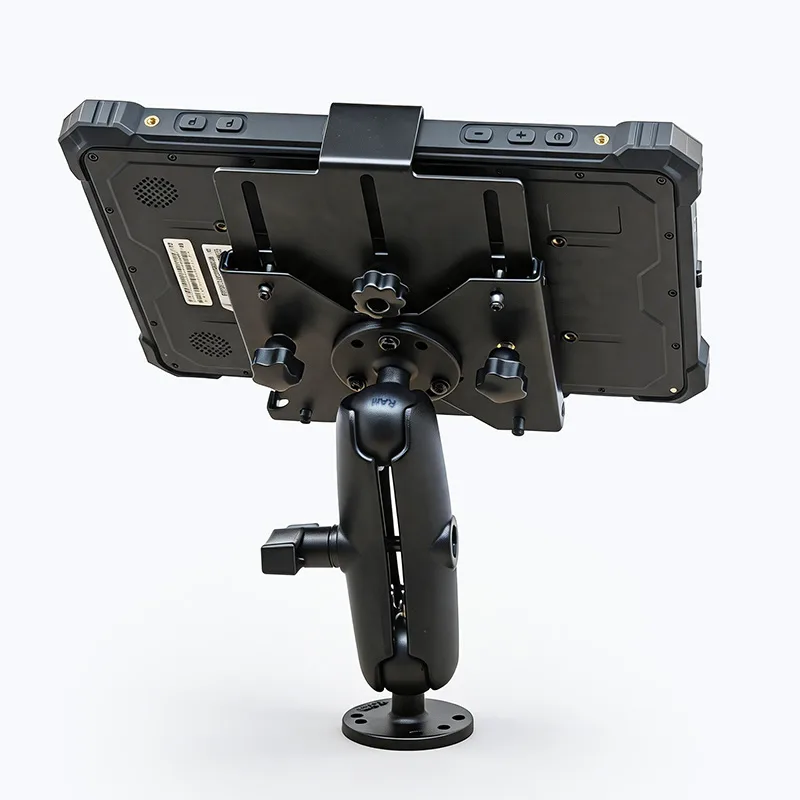

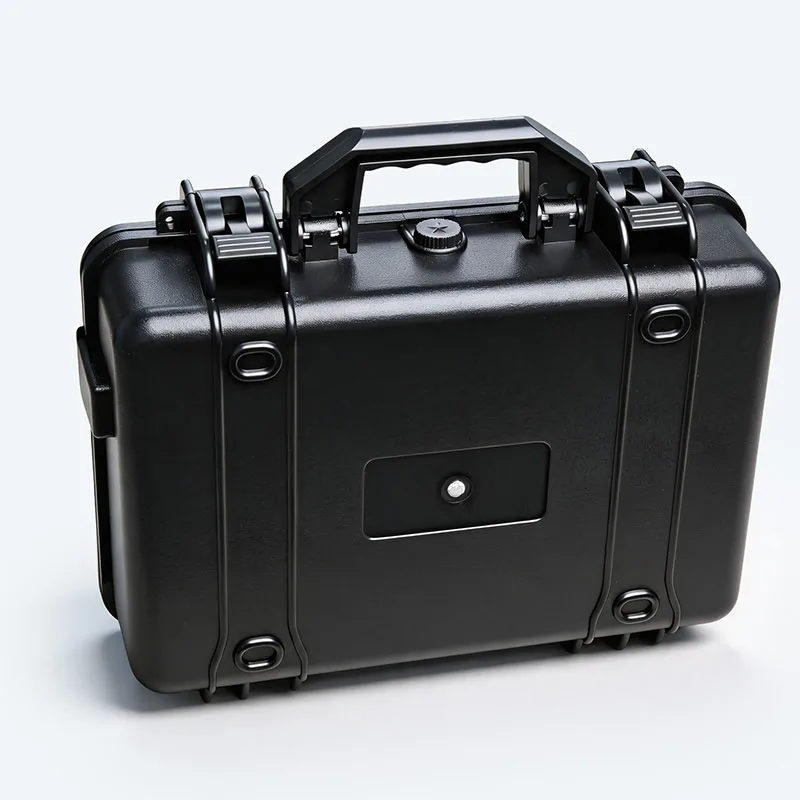

Accessories
