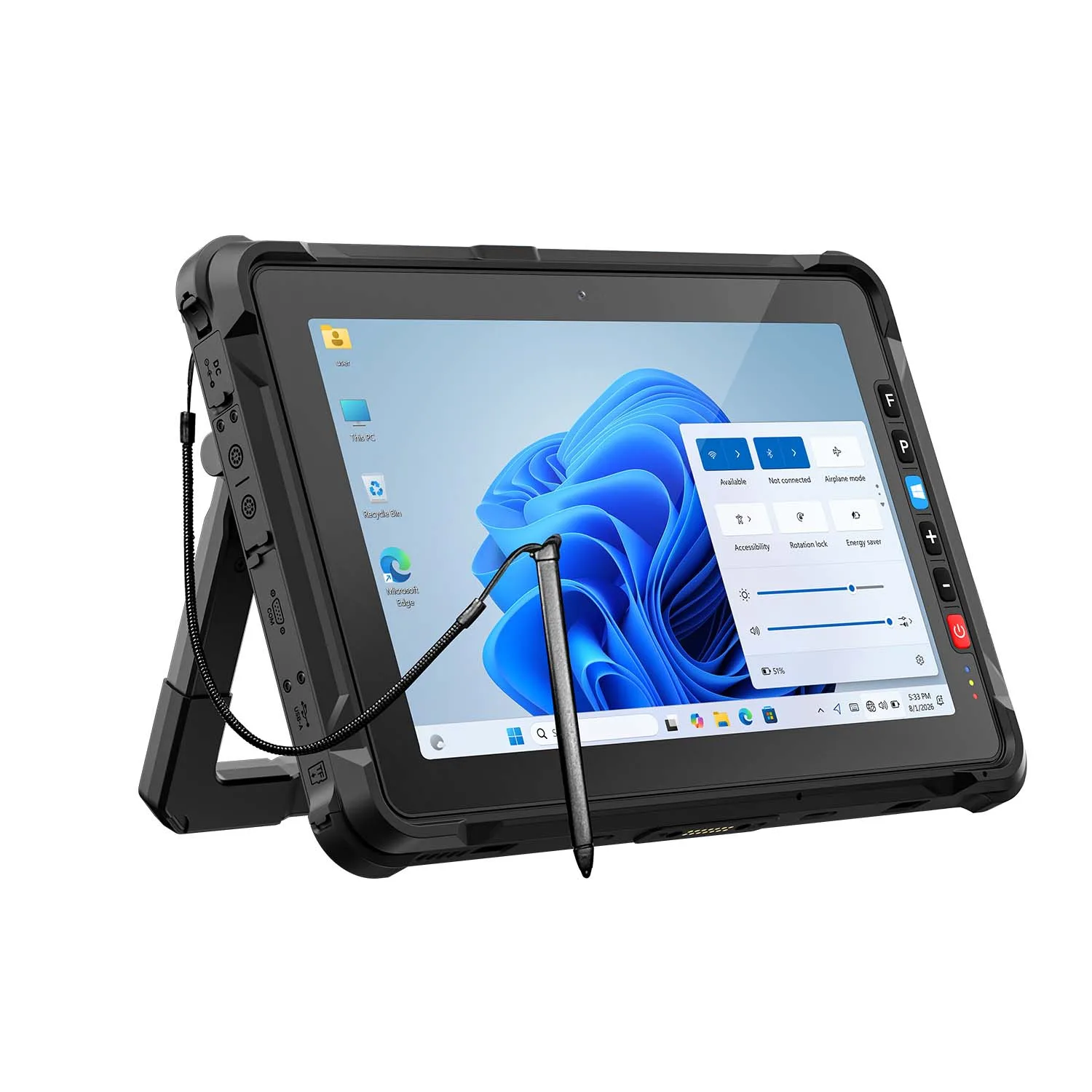

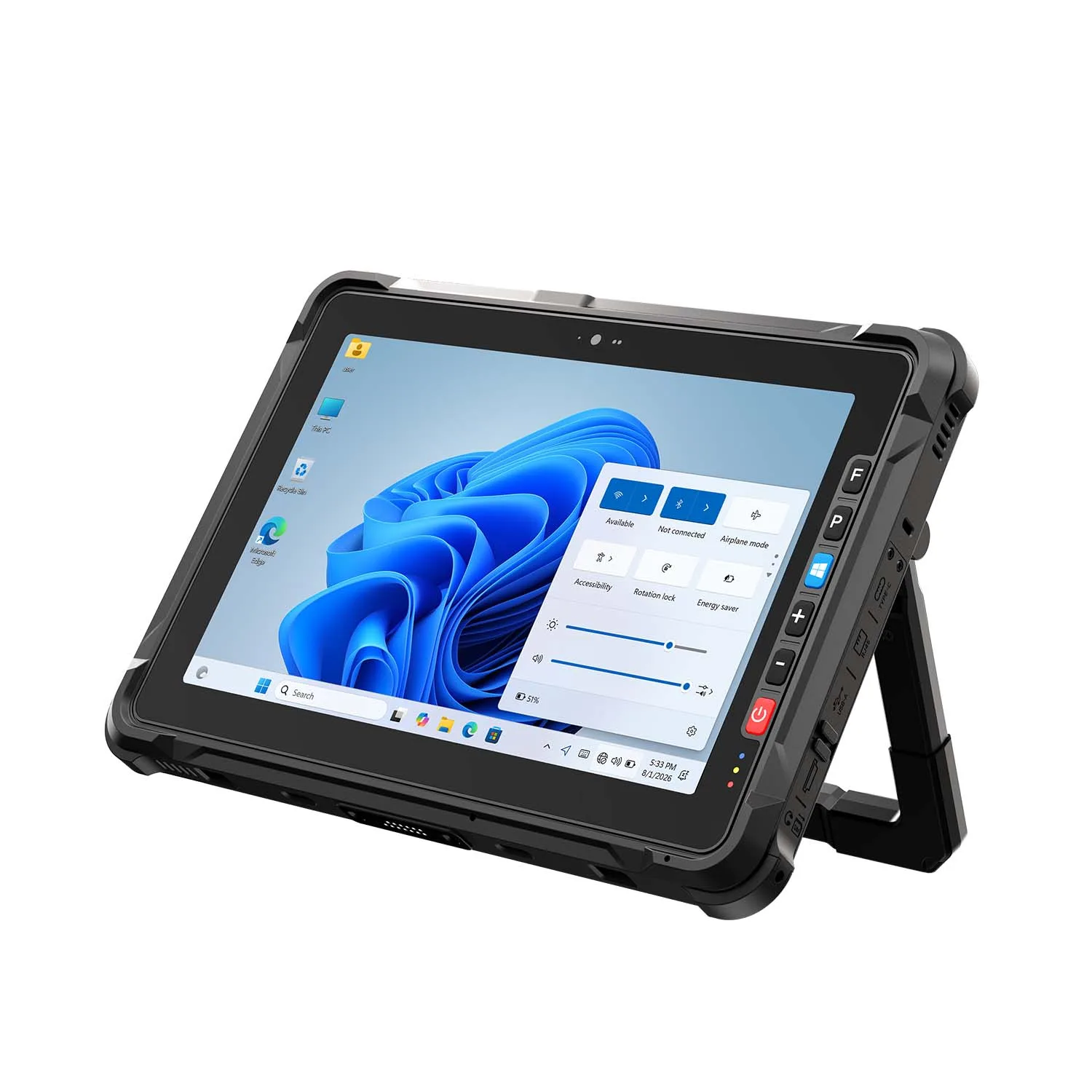

CENAVA W109U i7-1255U 10.95 Inch Win11 IP67 Rugged Tablet
CENAVA W109U i7-1255U is a 10.95-inch Windows rugged tablet for demanding diagnostics and data analysis. The 10-core i7-1255U boosts to 4.7GHz with 32GB DDR5 and 512GB SSD, while a hot-swappable 8300mAh main battery plus 300mAh backup enables zero-downtime shifts. Gigabit RJ45, RS232, HDMI and aviation plugs connect field systems. IP67, MIL-STD-810H, TPM; optional 4G/5G, 2D, UHF.
CPU: Intel Core i7-1255U, 10 cores 12 threads, up to 4.7GHz, Iris Xe Graphics
OS: Windows 11 (optional Windows 10, Ubuntu 22.04)
RAM/ROM: 32GB DDR5 + 512GB M.2 SSD (2242) removable, up to 48GB / 2TB
Display: 10.95" FHD 1920×1200, 550cd/㎡ (optional 1000cd/㎡), 10-point wet-hand & glove touch
Battery: 8300mAh removable main (hot-swap, ≥8h) + 300mAh backup, 11.4V
Integrated I/O: Gigabit RJ45, DB9 RS232, HDMI, Type-C USB3.0, USB-A, 3.5mm, TF, Nano-SIM, 14Pin POGO, reserved aviation plugs
Network: WiFi 6E, Bluetooth 5.3; optional 4G/5G; GPS/Galileo/GLONASS
Protection: IP67, MIL-STD-810H 1.22m drop, -20°C~60°C, TPM, login fingerprint standard
Camera: Front 8MP fixed-focus, rear 12MP autofocus with flash
Optional Modules: 2D scanner, NFC, ID card reader, UHF RFID, fingerprint
Bright Large Touchscreen
Wet & Glove Touch
10.95" 1920×1200 550cd/㎡ Optional 1000cd/㎡
The 10.95-inch 1920×1200 display shines at 550cd/㎡ for outdoor readability, with an optional 1000cd/㎡ high-brightness panel and bulk-customizable 2.5K resolution, rendering diagnostic charts and data reports in fine detail. 10-point G+FF touch supports wet-hand and glove operation, staying precise in rainy fields and oily workshops. An 8MP front and 12MP autofocus rear camera with flash (16MP customizable) capture clear on-site evidence. At 10.95 inches there is room for a full diagnostic dashboard without scrolling — the main reason fleets pick this size over 8-inch units.
Core i7 Ten-Core
4.7GHz Heavy Duty
i7-1255U 32GB+512GB Up to 48GB/2TB
Powered by Intel Core i7-1255U with 10 cores and 12 threads boosting to 4.7GHz and Iris Xe graphics, this rugged tablet runs Windows 11 (Windows 10, Ubuntu 22.04 optional) for lag-free heavy diagnostics and data analysis. Standard 32GB DDR5 RAM and 512GB M.2 SSD, pluggable up to 48GB and 2TB. WiFi 6E and Bluetooth 5.3 deliver high-speed links, with WiFi 7 customizable. TPM security and a standard login fingerprint safeguard data inside the IP67-sealed, MIL-STD-810H-certified chassis.
Industrial Full Interface
Direct Field Connection
GbE RJ45+RS232+HDMI+POGO+Aviation Plugs
Gigabit RJ45 connects directly to PLCs and plant networks; the DB9 RS232 serial port with optional 422/485 protocols links industrial instruments; HDMI extends to large screens; Type-C USB3.0 transfers data at speed; USB-A 3.0 and 2.0 attach peripherals; the 3.5mm jack supports voice intercom; TF card slot supports up to 256GB expansion. A 14-pin POGO docks expansion bases, while reserved power and USB2.0 aviation plugs stay secure under vibration. Optional 2D scanner, NFC, ID reader and UHF RFID modules complete data capture.
Dual-Battery Hot-Swap
Swap Without Shutdown
8300mAh Hot-Swap + 300mAh ≥8h Runtime

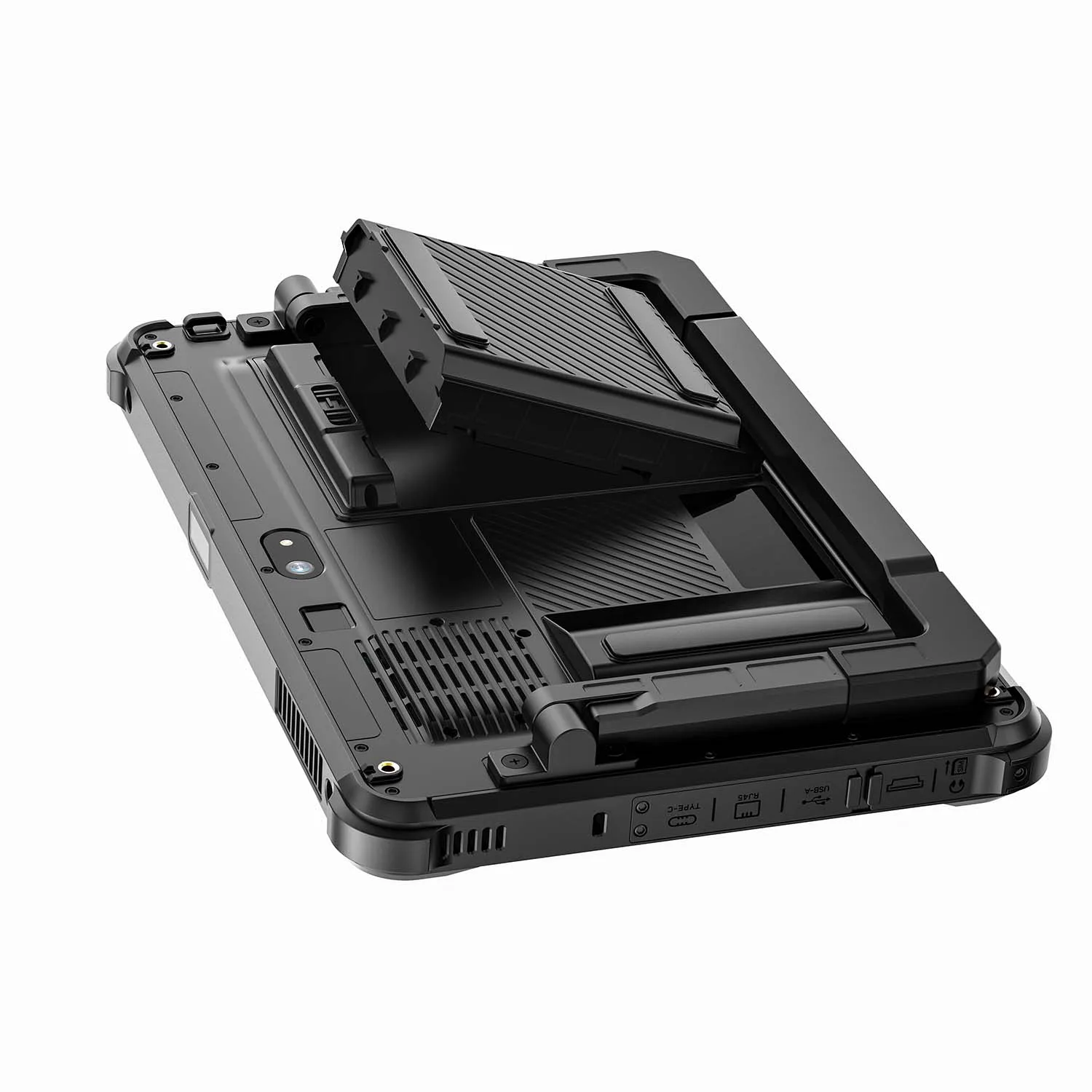

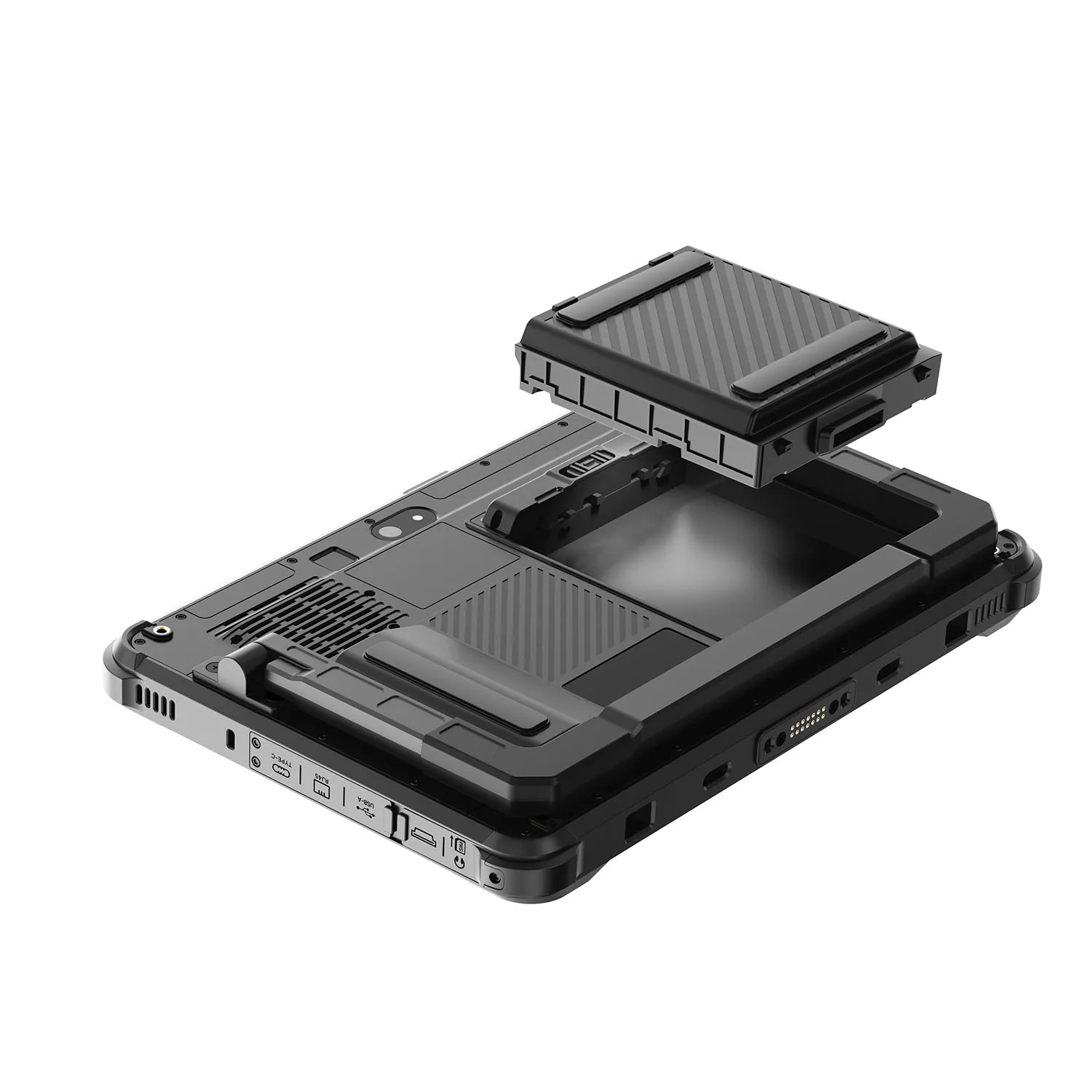

The 8300mAh main battery is removable and hot-swappable—replace it without shutdown for zero-downtime operation; the 300mAh backup battery bridges ≥15 minutes during swaps, keeping data intact. A full main battery runs ≥8 hours, and spare packs swap in for instant full power, covering all-day outdoor inspections and continuous diagnostics. The 11.4V high-voltage platform supplies stable power and discharges normally across -20°C~60°C, while optional 4G/5G keeps mobile work online everywhere.
Technical Specifications
 CPU Intel Core i7-1255U 10 cores |  System |  Storage 16G+256GB(DDR5 / Removable M.2 2242 SSD)Up to 48GB memory 2TBSSD |  Display 10.95 inch IPS touch screen 1920*1200 550cd/m² standard; 1000cd/m² high-brightness panel optional |
 NFC Standard Default back of the body for card reading, customizable to the front |  One/Two dimensional code Optional Reads damaged or poorly printed 1D/2D codes |  Battery 11.4V 8300mAh high-voltage lithium battery, removable, supports hot-swapping,battery life ≥8h (1080P+50% brightness) |  High frequency/ultra-high frequency module Standard Ultra thin integrated module |
 Navigation positioning GPS,Galileo GLONASS |  ID card identification Standard |  Interface Type -A,Type -C HDMI,POGO PIN Network port, serial port |  Weight 307.5*211.1*27.7mm/1611g |
 Card slot SIM / TF （256G） |  Protection level working temperature: -20 °C to 60°C Storage temperature: -30 °C to 70 °C Protection level: IP67 |  Camera Front Camera: 8.0MP Fixed Focus Camera 12.0MP Autofocus Camera with Flash |  Sensor Gravity sensing, compass, gyroscope, light sensing, distance sensing |
| Size weight | 307.5*211.1*27.7mm/1611g |
| TP touch screen | Anti-fingerprint (AF) coating,10-point touch G+FF, hardness ≥7H, Supports touch with wet hands and touch whilst wearing medical rubber gloves |
| Main battery | 11.4V 8300mAh high-voltage lithium battery, removable, supports hot-swapping,battery life ≥8h (1080P+50% brightness) |
| Sub battery | 11.4V 300mAh high-voltage lithium battery, non-removable, battery life ≥15MIN (1080P+50% brightness) |
| Buttons | Power button*1 Volume keys*2, Vol+, Vol- Custom keys*2, P key, F key Windows button*1 |
| Speaker, receiver, microphone | 2 speaker 2W/4Ω 1, MIC (waterproof) |
| TPM | Built-in TPM Security chip |
| Gravity sensor | YES |
| WIFI | Wi-Fi 6 (802.11ax), dual-band 2.4GHz + 5GHz; Wi-Fi 7 available on custom builds |
| Bluetooth | Bluetooth 5.3 (Class 2, ~10 m range) |
| Positioning System | GPS,Galileo, GLONASS |
| Login fingerprint (standard) | SPI interface |
| TYPE-C | *1 Type-C USB3.0 data transfer only |
| Type -A | *1 Type-A USB3.0 |
| Type -A | *1 Type-A USB2.0 |
| DB9 | *1 RS232 serial port (optional 232/422/485 protocol) |
| Earphone Jack | 3.5mm standard headphone jack |
| TF Card | *1 Maximum support 256GB expansion |
| SIM Card | *1 Nano-SIM card slot |
| HDMI | *1 HDMI |
| DC port | *1 19V-3.42A (DC plug OD 5.5mm ID 2.1mm) |
| RJ45 | *1 100/1000M |
| POGO PIN | *1 14Pin USB+charger |
| Locking holes | *1 lock hole |
| Stylus | *1 stylus |
| Extensions | Reserved aviation-connector options: 1× power input, 1× USB 2.0 |
| Integratability | Motherboard signals reserved for customer module integration: SATA, PCIe, 3× USB 2.0 |
| Drop height | Meets the requirements of MIL-STD-810H for the 1.22-meter drop test |
| Certificates | IP67 (IEC 60529), CE, RoHS; drop-tested to MIL-STD-810H procedures (1.22 m); ISO 9001-certified factory; salt-spray tested |

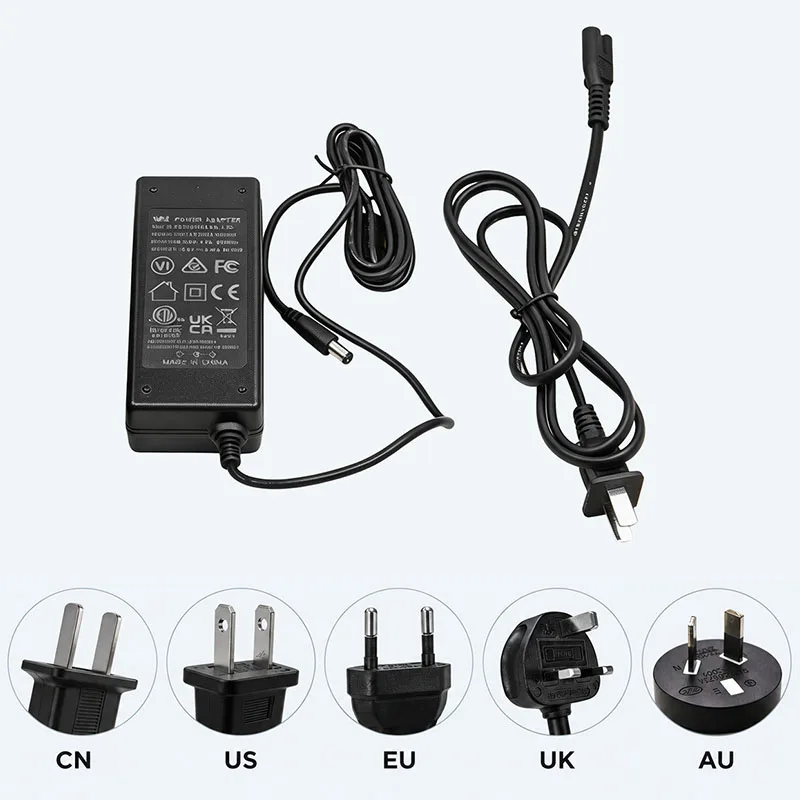

| Adapter | 19V-3.42A, DC interface adapter |

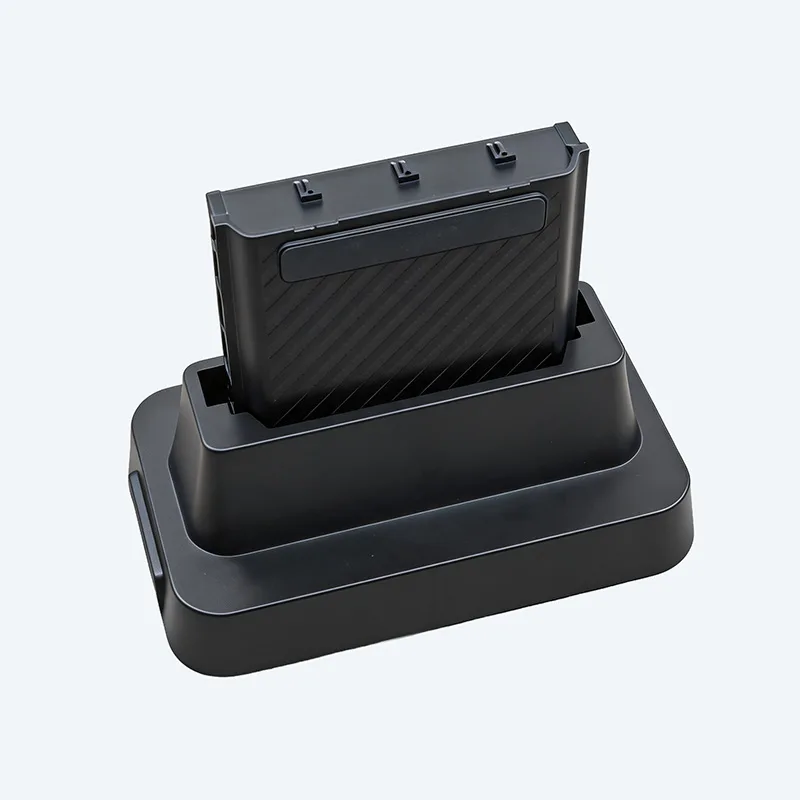

| Battery Charging Dock (optional) | 19V battery charging dock |
Frequently Asked Questions about W109U Rugged Tablet
1. What operating system does the W109U rugged tablet support?
Windows 11 is the standard OS; Windows 10 and Ubuntu 22.04 are available as options.
2. What is the IP rating of the W109U, and where can it be used?
The W109U is rated IP67,fully dust-tight and protected against temporary immersion (up to 1 m of water for 30 minutes under IEC 60529 test conditions). It also operates reliably in temperatures from -20°C to 60°C, making it suitable for outdoor fieldwork, warehouses, manufacturing plants, and other harsh environments.
3. Does the W109U support 4G/5G connectivity and GPS?
Optional 4G/5G cellular modules are available for project orders; GPS, Galileo and GLONASS positioning is standard.
4. Can the W109U scan barcodes or read ID cards?
Yes — an optional 1D/2D barcode scanner and an ID-card reader can be integrated (confirm module combination before sample production).
5. How long does the battery last on a single charge?
The removable 8300 mAh main battery is rated for at least 8 hours (1080p video, 50% brightness). The 300 mAh backup cell bridges about 15 minutes, so the main pack can be hot-swapped without shutting down.
6. Is the touchscreen usable with gloves or wet hands?
Yes, the 10.95-inch IPS touchscreen supports 10-point multi-touch and is designed to work with gloves and wet-hand touch, making it practical for use in cold storage, rain, or industrial settings requiring protective gloves.
7. What ports and interfaces does the W109U have?
It includes USB Type-A, USB Type-C, HDMI, POGO PIN charging/docking, a network (RJ45) port, and a serial port, along with SIM and TF (up to 256GB) card slots.
8. What accessories are available for the W109U?

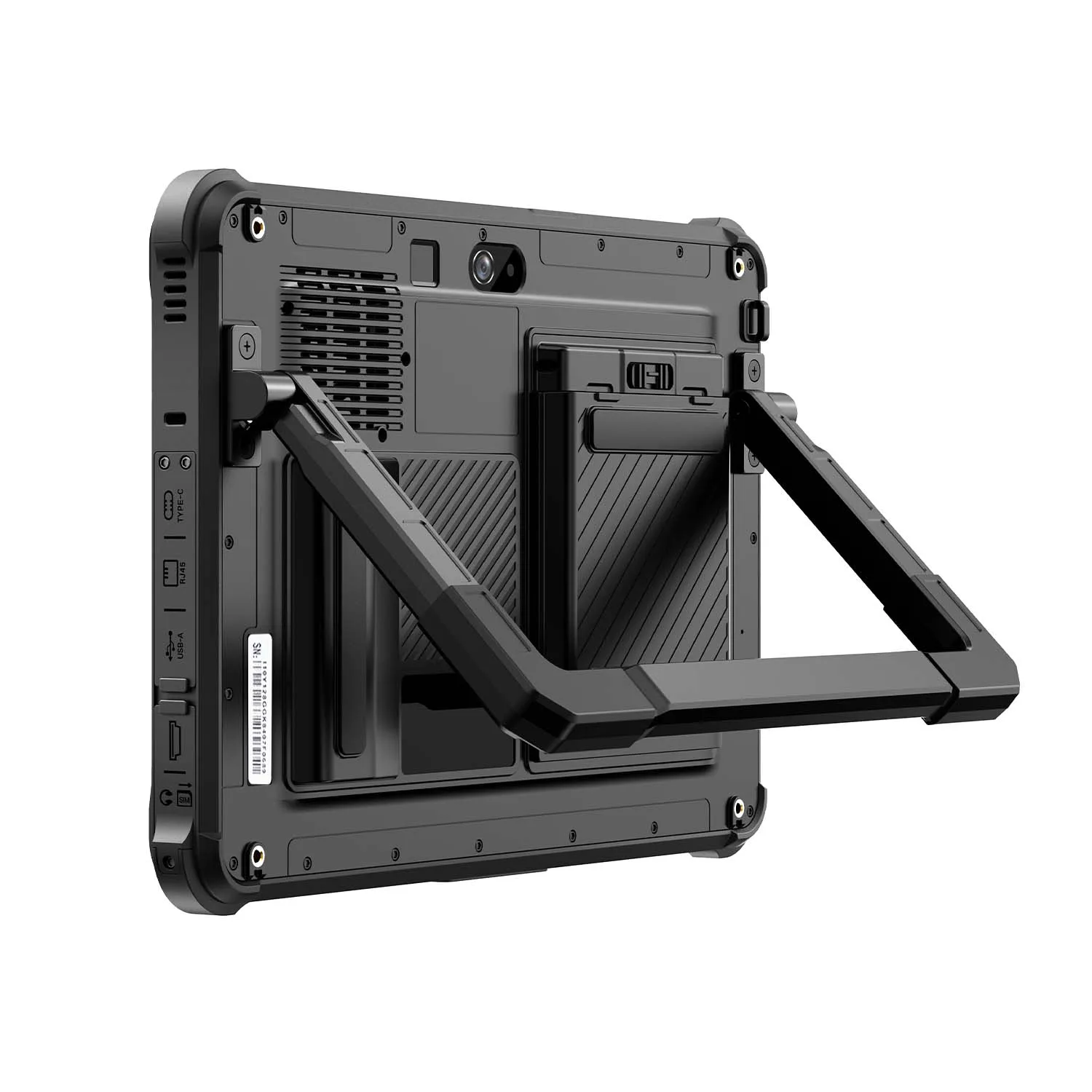

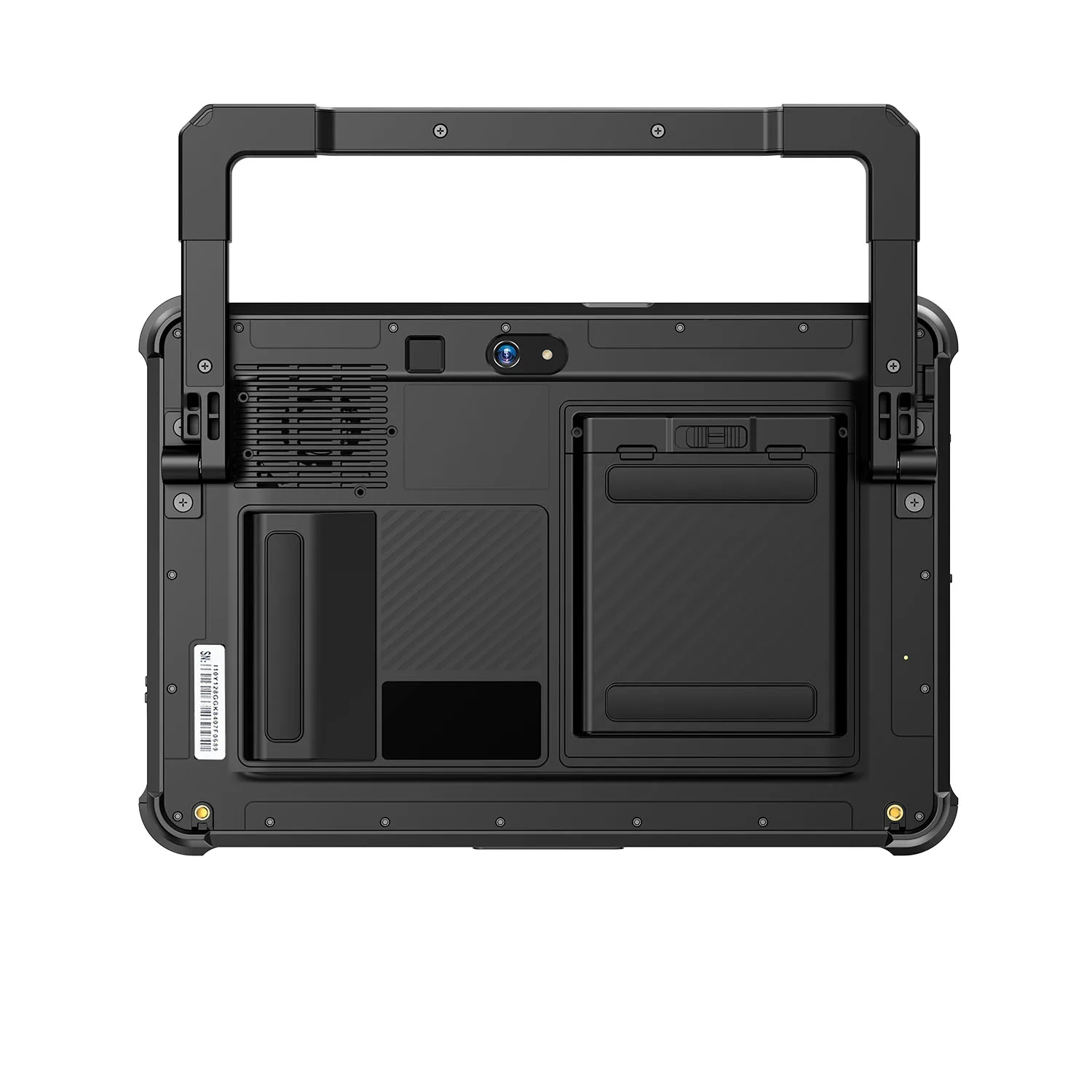

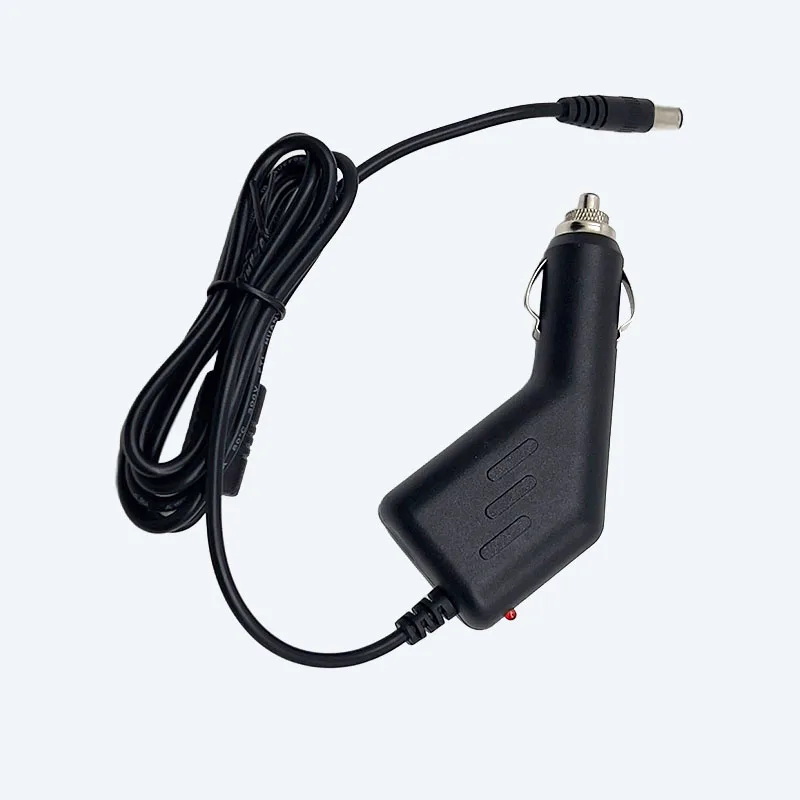

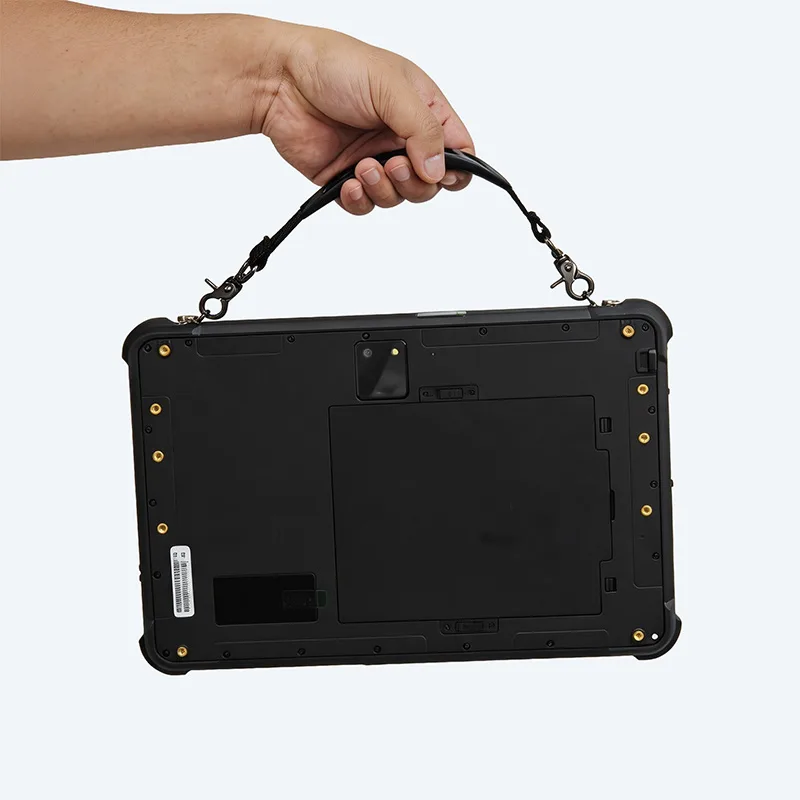

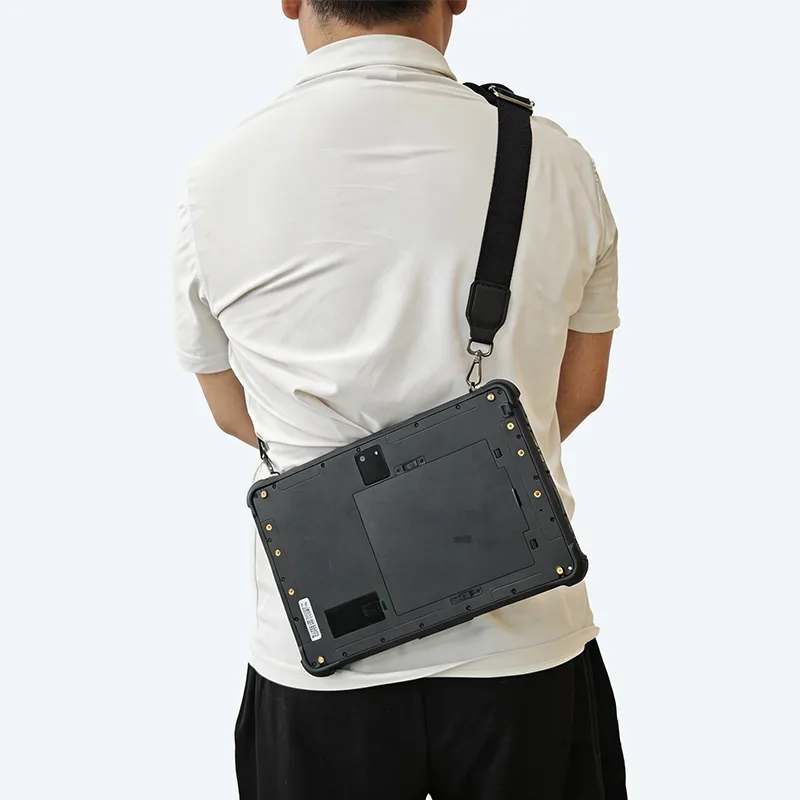

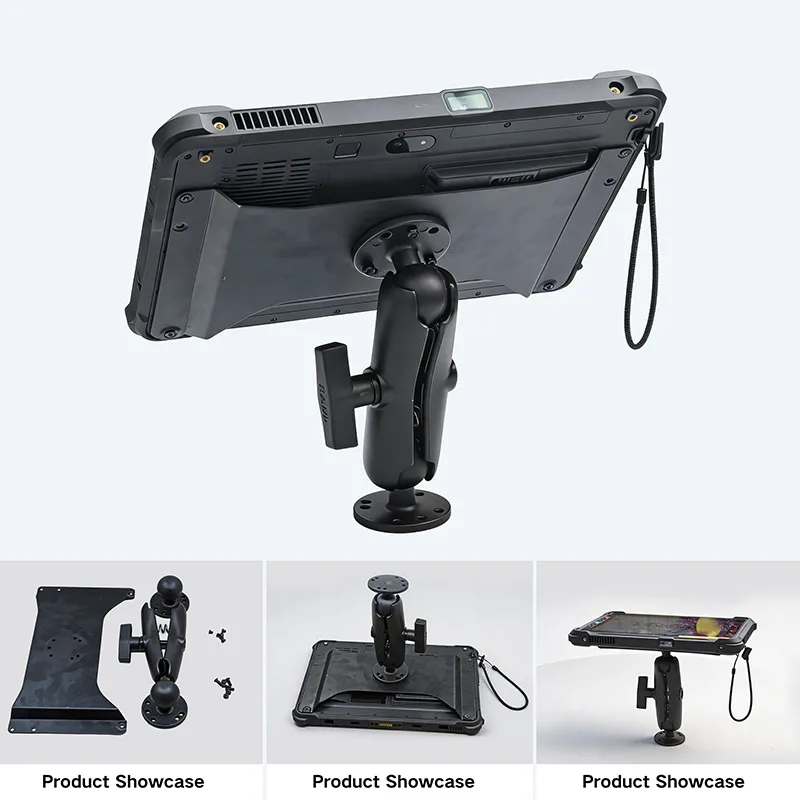

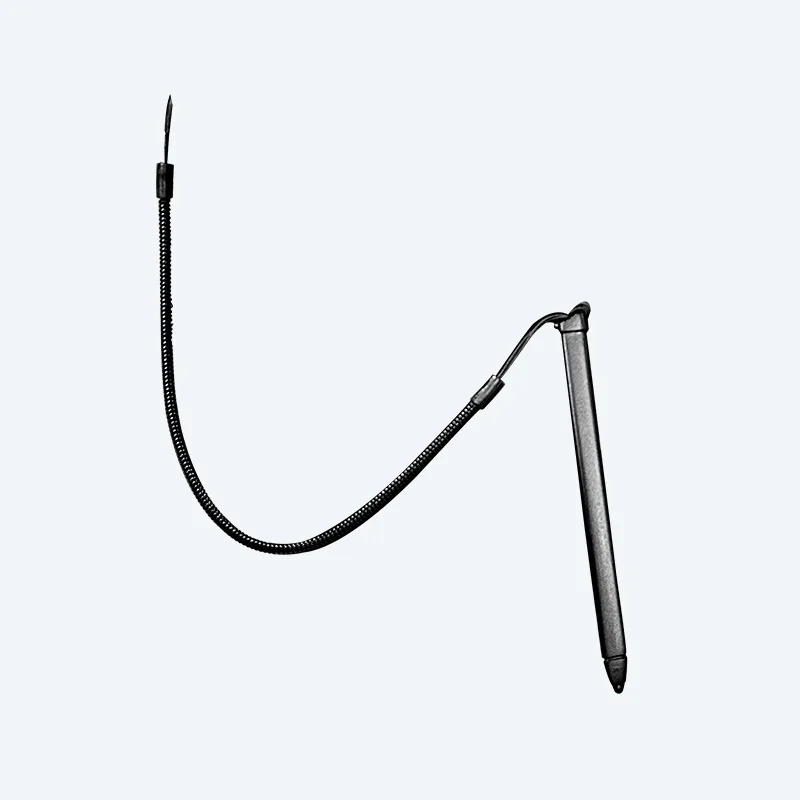

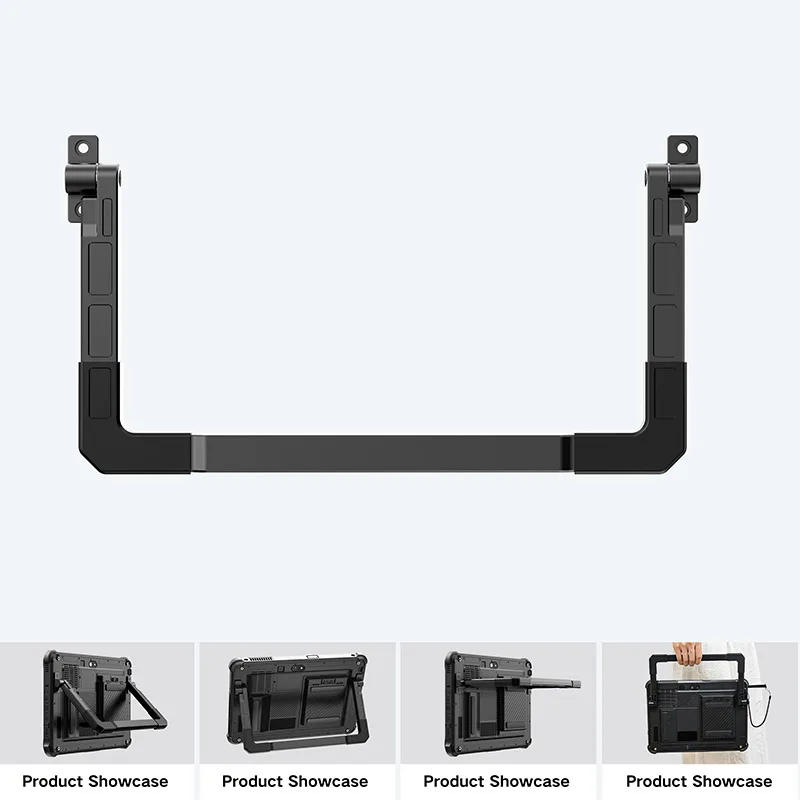

Available accessories include a wall mount bracket, car mount bracket, charging base/dock, four-point straps, shoulder strap, back clamp bracket, capacitive stylus, waterproof carrying case, folding stand, and car charger — supporting mounting in vehicles, on walls, or carried in the field.
9. Can the W109U be customized for OEM/ODM orders?
Yes, as a manufacturer with 18 years of industrial device experience, CENAVA supports OEM/ODM customization for the W109U, including CPU, RAM/storage, optional modules (barcode, RFID, fingerprint, cellular), branding, and packaging for bulk/business orders.

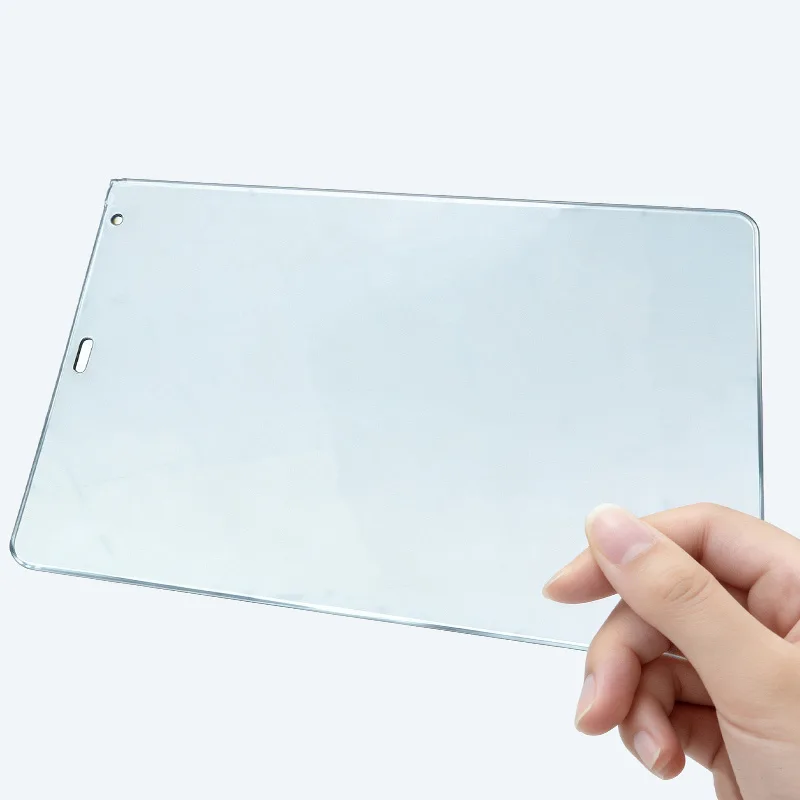

Accessories
