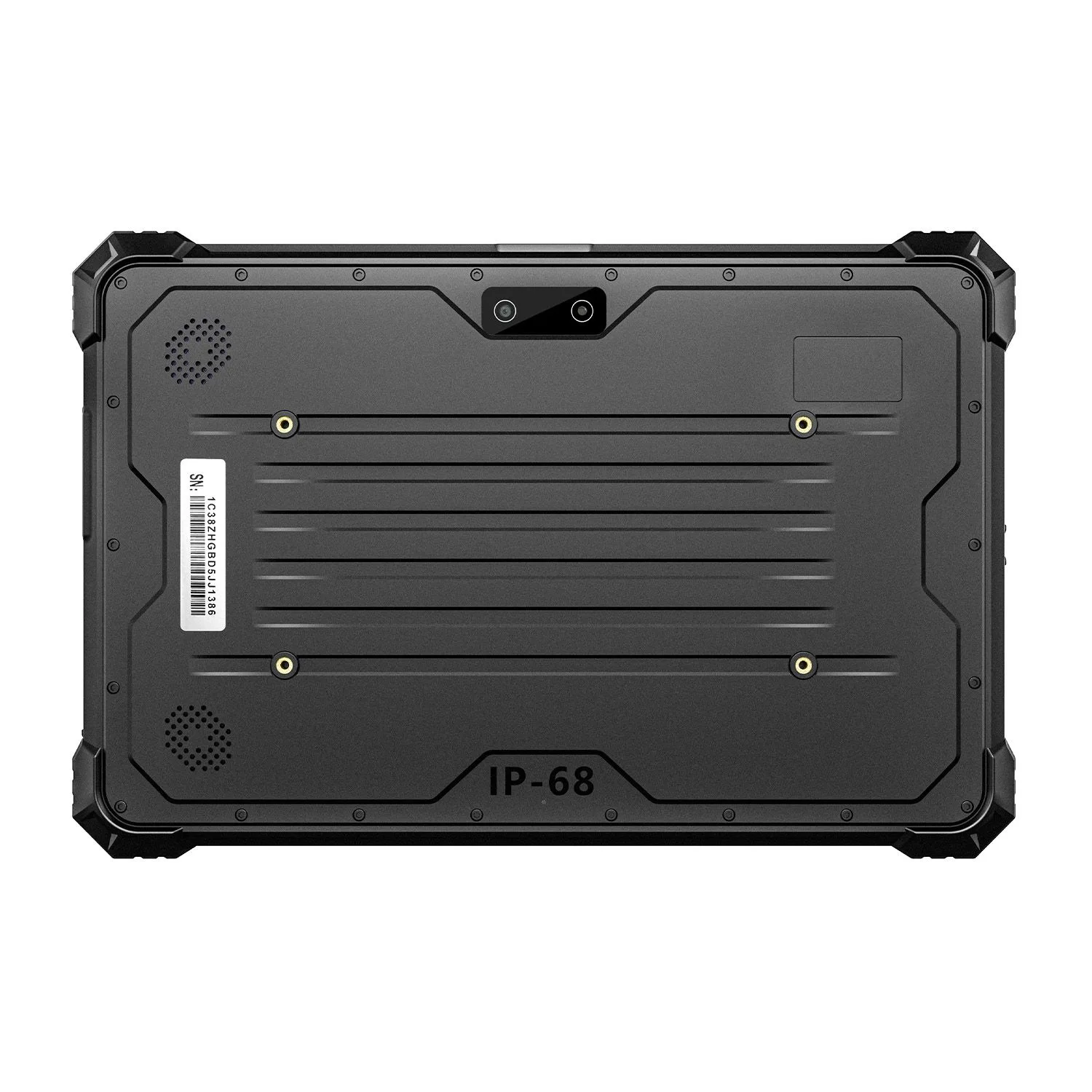

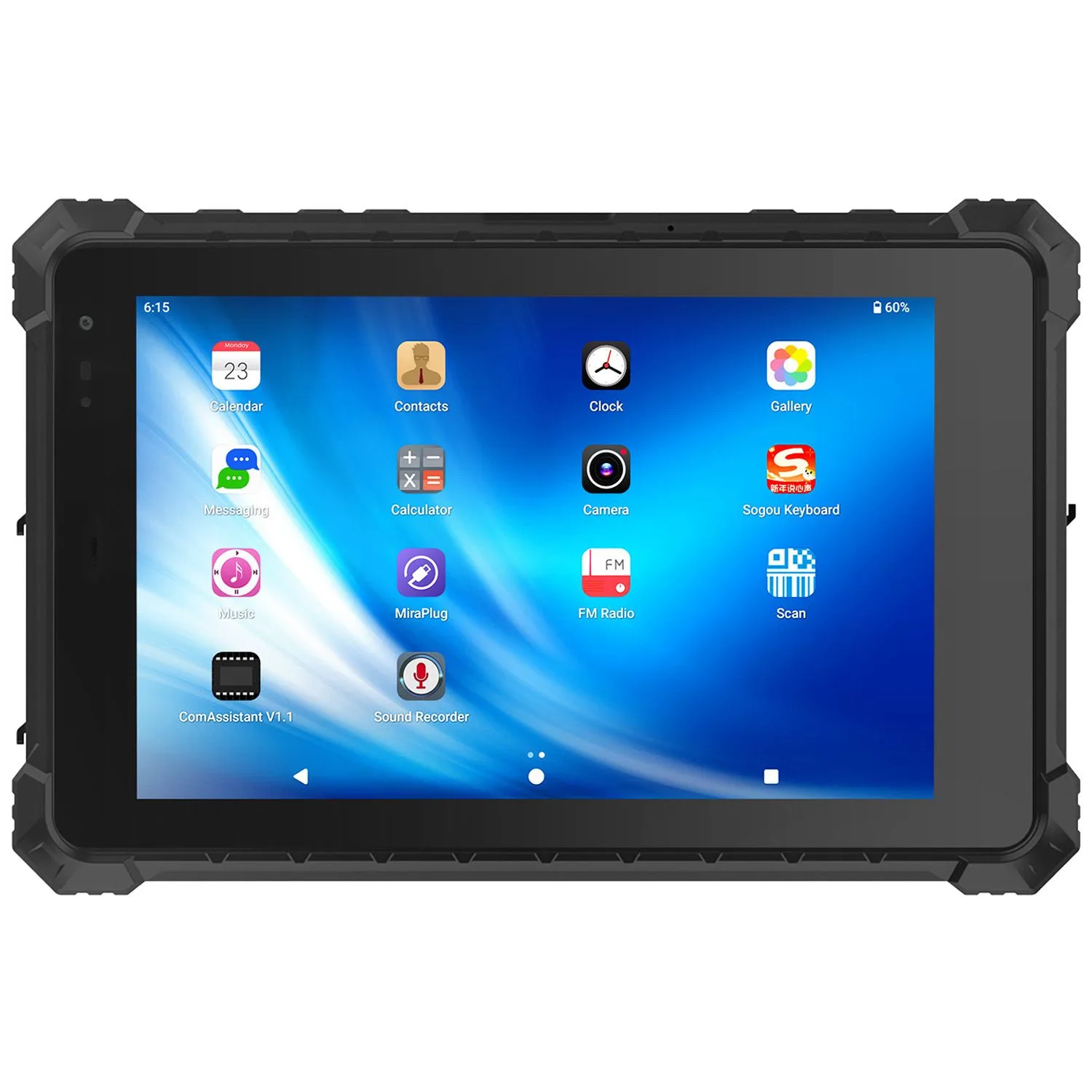

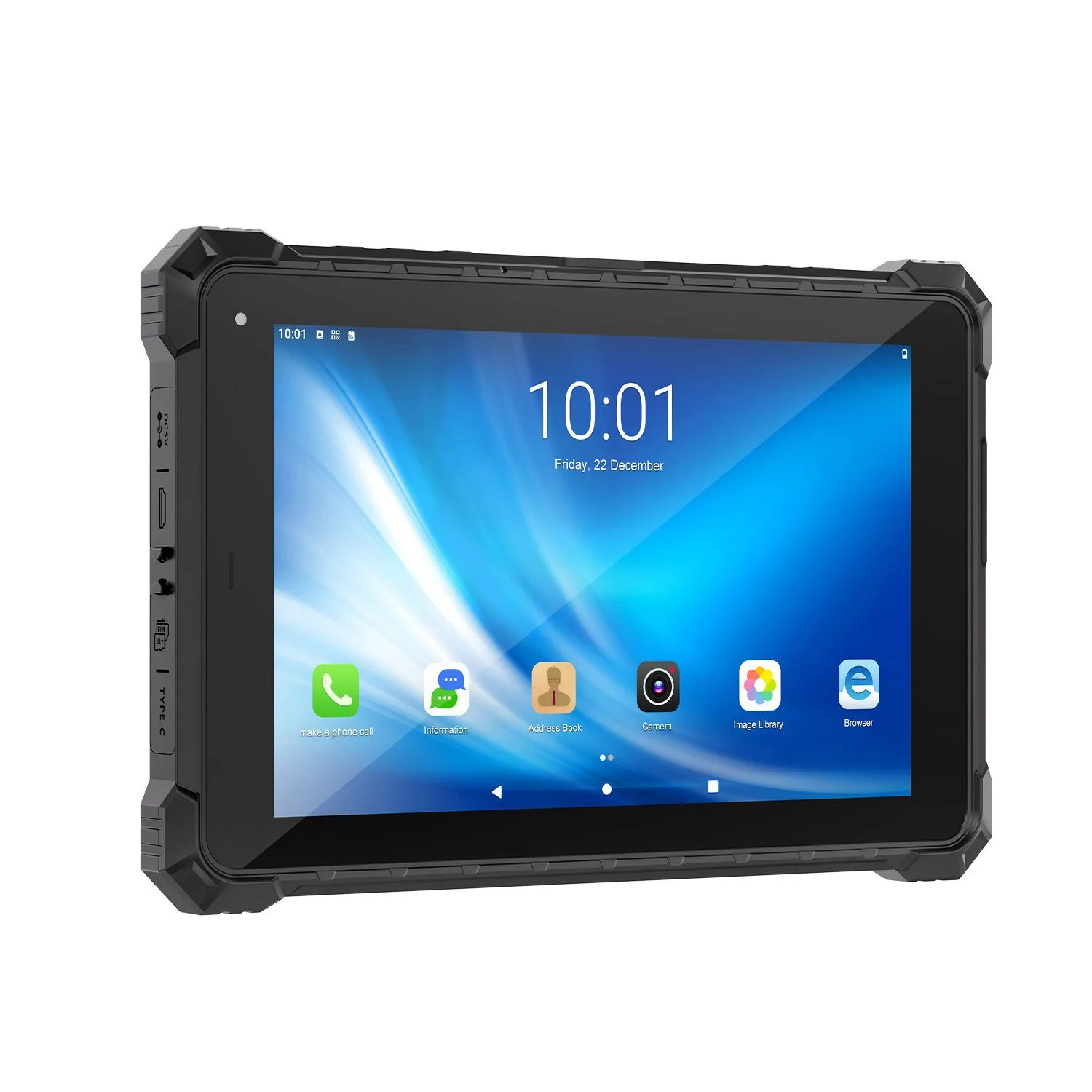

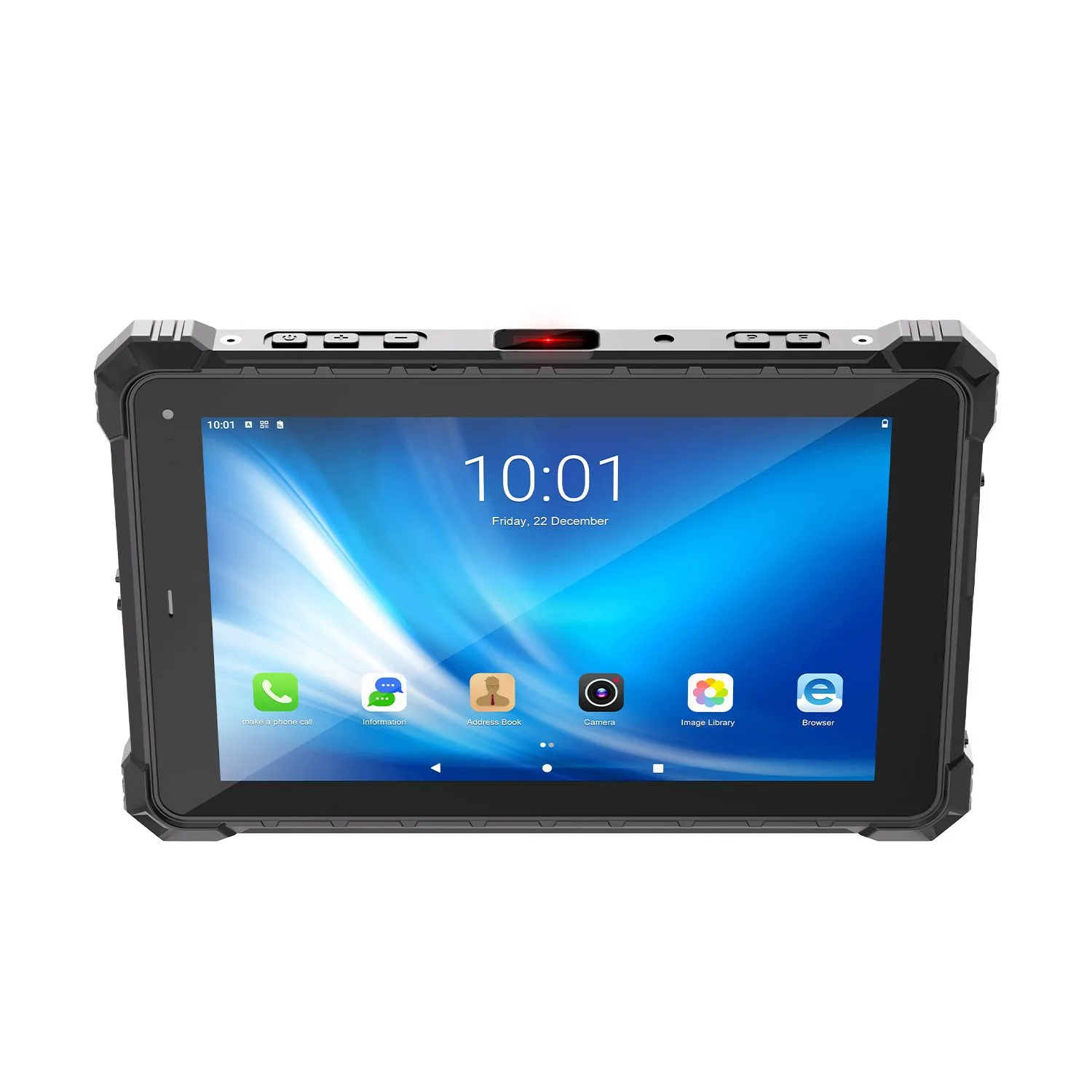

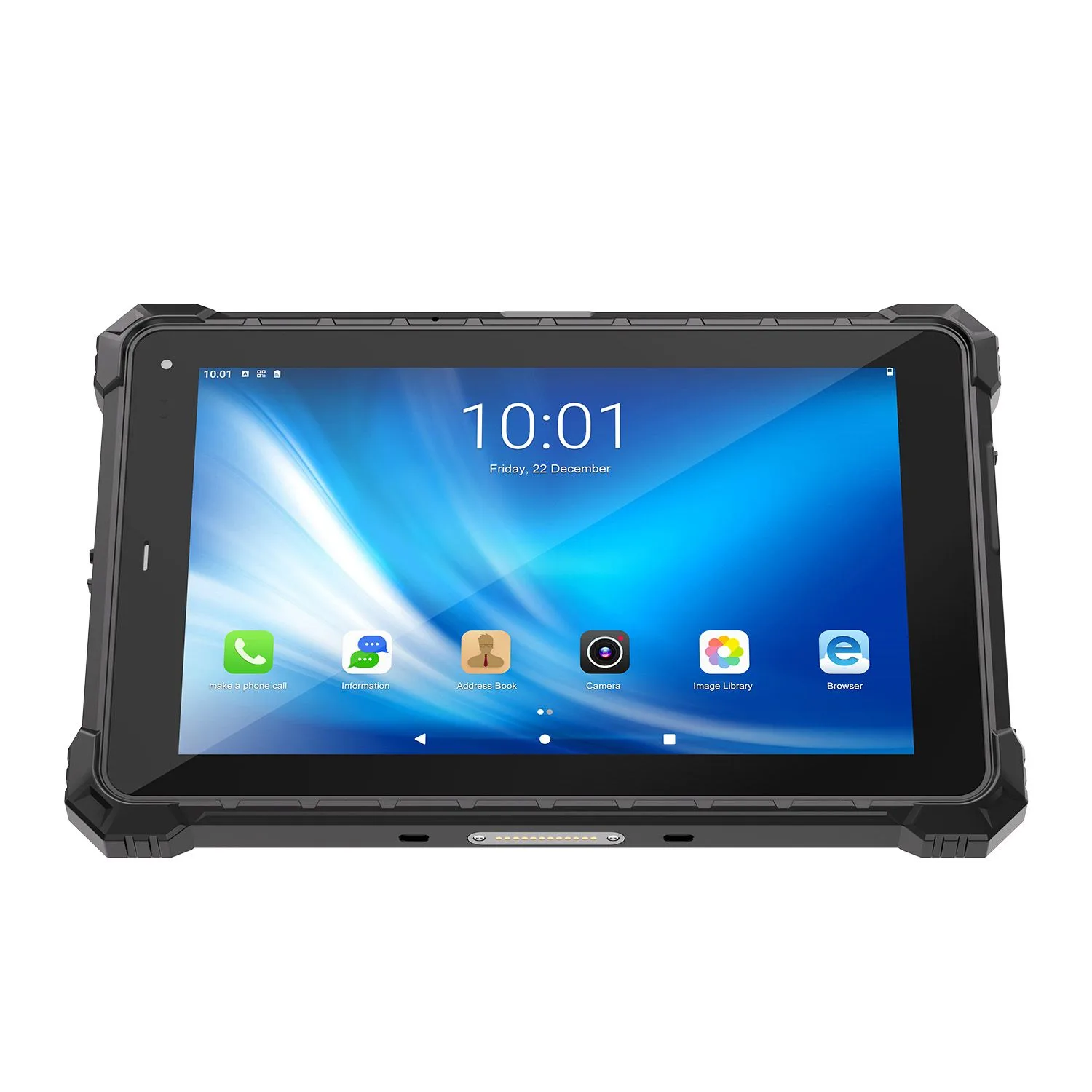

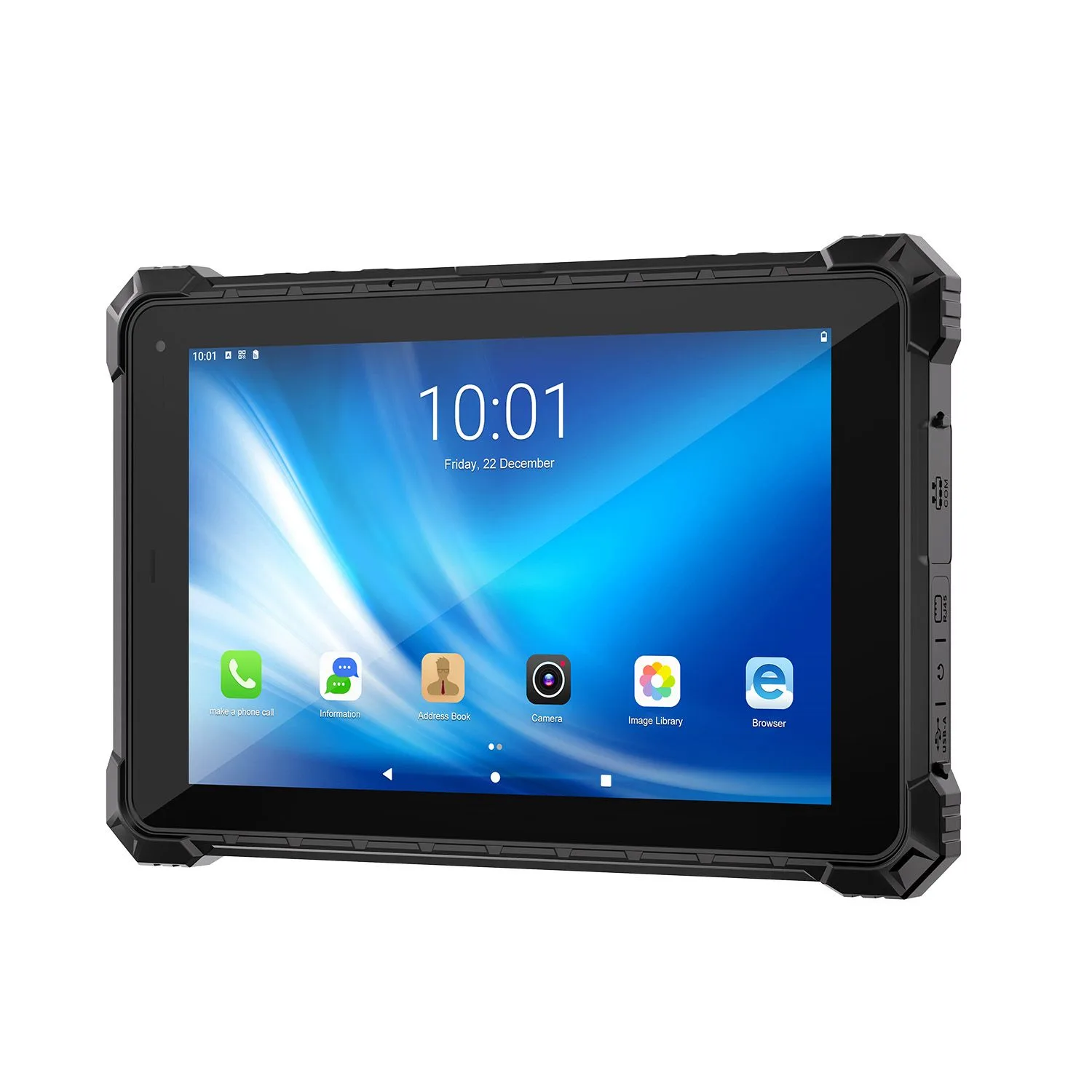

CENAVA A10ST MT6769 10.1 Inch Android 16 IP68 Rugged Tablet

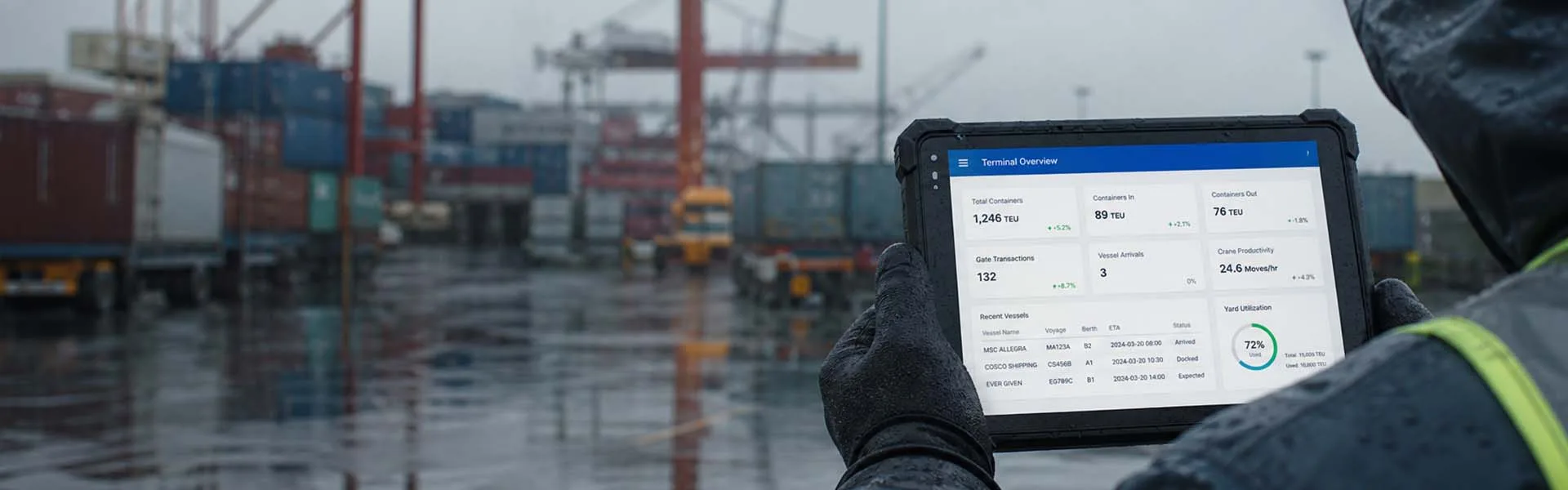

The A10ST-MT6769 is the full-I/O 4G variant of our 10.1-inch IP68 tablet, running Android 16 on MediaTek's MT6769 with up to 8GB RAM and 128GB storage. "Full I/O" means the ports most tablets have dropped are all here at once: RS232 on DB9, 100M Ethernet, a 12-pin POGO connector and Micro HDMI. It's built for warehouse data collection, equipment maintenance and vehicle-mounted work.
Rugged Protection: IP68, MIL-STD-810H 1.22m drop, -20°C~60°C (customizable -30°C~60°C)
CPU: MediaTek MT6769 octa-core, 2×Cortex-A75 @2.0GHz + 6×Cortex-A55 @1.7GHz
OS: Android 16
Display: 10.1" IPS 1280×800 , 700cd/㎡, G+G 10-point glove touch, hardness ≥7H, AF coating
RAM/ROM: 4GB+64GB (optional 8GB+128GB)
Battery: 10000mAh 3.8V non-removable, ≥10h endurance, Type-C PD 33W fast charging (optional 20000mAh custom pack)
Integrated I/O: RJ45, RS232, Micro HDMI, Type-C (PD 33W, OTG), USB-A, 3.5mm jack, 12Pin POGO, Micro SIM, TF up to 256GB
Network: Dual-band WiFi 5 (customizable WiFi 6), Bluetooth 5.0, 4G LTE full-band; GPS/BeiDou/Galileo/GLONASS, optional single-BeiDou
Cameras: 8MP front + 16MP AF rear with true flash
Optional Modules: 2D scanner, fingerprint, ID card reader, UHF RFID (up to 15m), LF 125kHz, RTK cm-level positioning, intercom hand mic; NFC & FM radio standard
Octa-Core Power Android 16 Smooth
MT6769 Octa-Core 4GB/8GB Options 4G Global
Powered by the MT6769 octa-core processor with the Android 16 industrial OS, multitasking runs smoothly without lag. The 10.1-inch display provides ample workspace for multi-window dispatching and data visualization. The 4GB+64GB base version handles routine MES terminals, while the 8GB+128GB version tackles video backhaul and cloud collaboration. 4G global band coverage keeps you connected across field inspections and vehicle-mounted operations. OTA upgrades deliver continuous security patches, and memory configurations adjust per project needs. Stable performance with a lasting smooth experience.
Large Screen Wide View
Dispatch With Ease
10.1" IPS 700cd/m² Multi-Window Operation
The 10.1-inch IPS panel delivers crisp 1280×800 resolution, with 700cd/m² brightness clearly readable under direct sunlight—dispatch dashboards, engineering blueprints, and data reports all on one screen with less scrolling. Rubber-glove touch is supported for precise operation, and wet-hand touch can be customized on demand. G+G construction with AF anti-fingerprint coating, hardness ≥7H, scratch-resistant for long-term use.
Triple-Proof + Explosion-Proof
Harsh Conditions No Fear
IP68 Optional Ex Version 1.22m Drop -20°C~60°C
IP68 dust-tight and waterproof, surviving 1.22m drops. Optional Ex Class II petrochemical explosion-proof version for compliant use in petrochemical plants and oil-gas pipelines. Operating range -20°C to 60°C, with optional -30°C low-temperature customization for extreme cold. Certification upgrades available: KA Class I mining safety and MA Class I coal safety versions for underground mining access. The 10.1-inch rugged chassis weighs 1136g bare, with reinforced corners for a stable grip. RJ45 100M Ethernet and RS232 serial port included for direct industrial interfacing.
Ethernet Serial Full Set
Industrial Expansion
RJ45 100M + RS232 + HDMI + POGO Standard
Full industrial interface configuration: RJ45 100M Ethernet connects directly to PLCs and switches; RS232 serial port interfaces with industrial control equipment; Micro HDMI extends to large screens; Type-C supports PD 33W fast charging and OTG expansion; 12-pin POGO PIN dock enables charging and expansion; 3.5mm headphone jack supports voice intercom. Ergonomic layout keeps ports clear in one-handed use without cable tangling on the desktop. Dust plugs block dust and moisture. Paired with optional 2D barcode, ID card, fingerprint, and UHF modules, it forms an integrated data collection and device control terminal.
Technical Specifications
 CPU MediaTek MT6769 Octa-core 2× Cortex-A75 at up to 2.0GHz |  System |  Storage 4GB RAM + 64GB storage, HD display |  Display 10 inch IPS touch screen 1280*800 700cd/㎡ |
 NFC Optional Default back of the body for card reading, customizable to the front |  One/Two dimensional code Optional Able to identify dirty 1/2 dimensional codes |  Battery Built-in 3.8V 10000mAh |  High frequency/ultra-high frequency module Optional Ultra thin integrated module |
 Navigation positioning GPS, Galileo GLONASS |  ID card identification Optional |  Interface USB 2.0, DB9 RS232, RJ45 100Mbps, Micro HDMI |  Weight 283.9*189.5*24.1mm/1136g |
 Card slot SIM / TF （256G） |  Protection level working temperature: -20 °C to 60°C Storage temperature: -30 °C to 70 °C Protection level: IP68 |  Camera Front camera:8MP fixed focus Rear camera:16MP autofocus |  Sensor Gravity sensing, compass, gyroscope, light sensing, distance sensing |
| Product Type | Full-I/O 4G Android industrial rugged tablet |
| Gravity sensor | Supported |
| Compass | Supported |
| Gyroscope | Supported |
| Light sensor | Supported |
| Proximity sensor | Supported |
| FM radio | Supported |
| Wi-Fi | 802.11 a/b/g/n/ac (Wi-Fi 5), dual-band 2.4GHz + 5.8GHz |
| USB Type-C | 1× Type-C, USB 2.0, supports OTG |
| USB Type-A | 1× Type-A, USB 2.0 |
| Earphone jack | 1× 3.5mm standard jack |
| TF Card | 1× slot, up to 256GB |
| SIM Card | 1× Micro SIM slot |
| HDMI | 1× Micro HDMI |
| DC jack | 1× 5V/3A (3.5mm plug) |
| POGO PIN | 1× 12-pin (USB + charging) |
| DB9（serial port） | 1× DB9, RS232 |
| RJ45 jack | 1× RJ45, 100M |

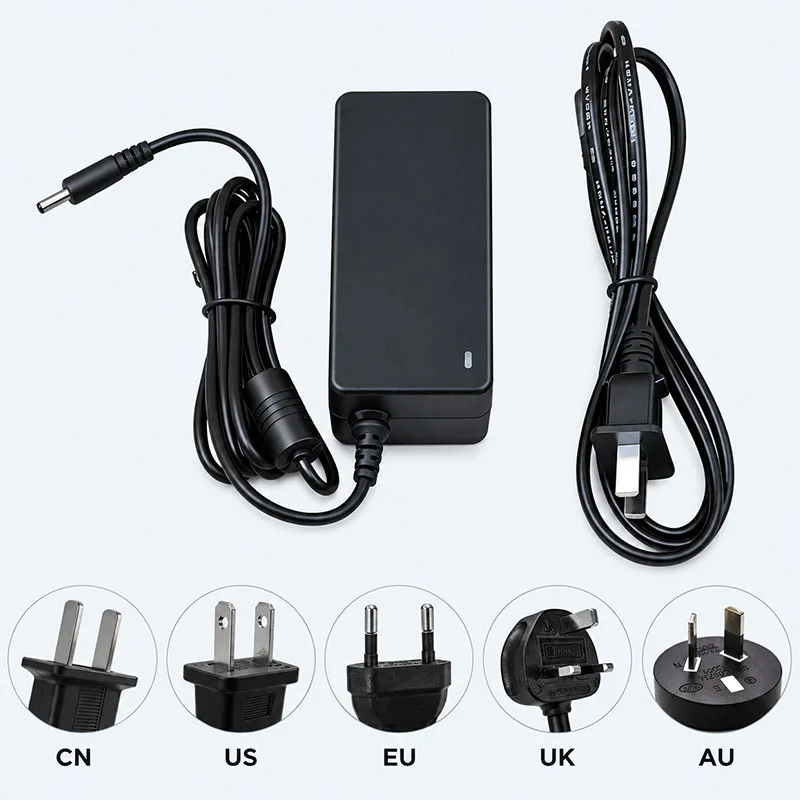

| Adaptor | 5V/3A DC adapter |

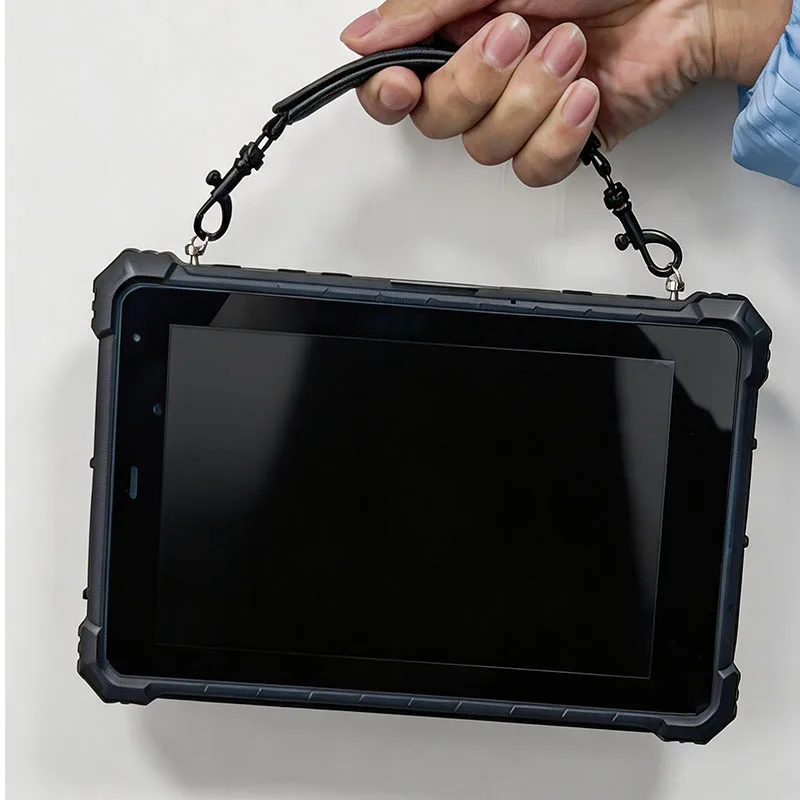

| Option accessories | Carrying strap, charging base, stand |
The MT6769 pairs two Cortex-A75 cores (up to 2.0GHz) with six Cortex-A55 cores: the big cores run the app in front of the operator, the small ones handle background sync and polling. That's the right balance for the workloads this tablet actually sees — warehouse management clients, scan and RFID middleware, work-order platforms, mapping and vehicle software — without the heat or price of a flagship chip. If your application involves CAD, video processing or heavy multitasking, step up to the MT8781 models instead.
The processor is suitable for:
Warehouse-management applications
Equipment service utilities
Mobile inspection software
Barcode and RFID middleware
Enterprise browser applications
Work-order platforms
Vehicle applications
Mapping software
Remote technical support
Local databases
Camera documentation
Background synchronization
Frequently Asked Questions About the A10ST-MT6769 Industrial Rugged Tablet
1. What is the A10ST-MT6769 designed for?
Warehouse data collection, equipment maintenance, field service and vehicle-mounted work — jobs that need a 10.1-inch Android tablet with real ports, not a consumer device in a rubber case. The "full I/O" in the spec sheet means RS232, RJ45, POGO pins and Micro HDMI are all on board at once.
2. What processor does it use?
MediaTek's MT6769: two Cortex-A75 cores at up to 2.0GHz, six Cortex-A55 for background tasks. It runs WMS clients, scan middleware, work-order apps and mapping software comfortably. For CAD, video or heavy multitasking, look at our MT8781 models instead.
3. What memory, storage and display does it have?
The standard build is 4GB RAM + 64GB storage with a 1280×800 panel at 700 nits; a 1,000-nit version is available for outdoor sites. The touchscreen works with medical rubber gloves and wet hands. One honest note: 700 nits improves outdoor readability but doesn't guarantee it — if your crew works in direct sun, ask for a sample and test it on site.
4. How long does the battery last? Can it be swapped?
> The built-in 10,000mAh pack is rated for 10+ hours of typical use and charges over Type-C PD. It's sealed in. A 20,000mAh custom pack exists for projects that need more capacity, but if you need batteries you can swap mid-shift, the A10STX MT6769 (same chip, 15,400mAh removable, IP67) is the better fit.
5. What positioning and data-capture options does it support?
GPS is standard, with Galileo and GLONASS available; RTK is a project option for centimetre-level work. NFC is built in (ISO 14443A/B and ISO 15693). Beyond that: N1 or N670 1D/2D scan engines, UHF RFID in 3m, 5m or 15m read-range builds, a 125kHz LF reader good for 1–3cm, and three fingerprint tiers — industrial, public-security certified, or FBI certified. Not every module combination fits at once, so send your list with the RFQ and we'll confirm.
6. Which ports come standard?
RS232 on DB9, 100M RJ45 Ethernet, USB 2.0 Type-C with OTG and PD charging, USB 2.0 Type-A, 3.5mm audio, Micro HDMI, a Micro SIM slot and a TF slot (up to 256GB). The Type-C port doesn't output video — external displays go through Micro HDMI.
7. Is it really IP68?
Yes, with a sealed enclosure and built-in battery. Custom modules can change the sealing, so if your build includes a scanner or RFID, ask for the test report covering that exact configuration.

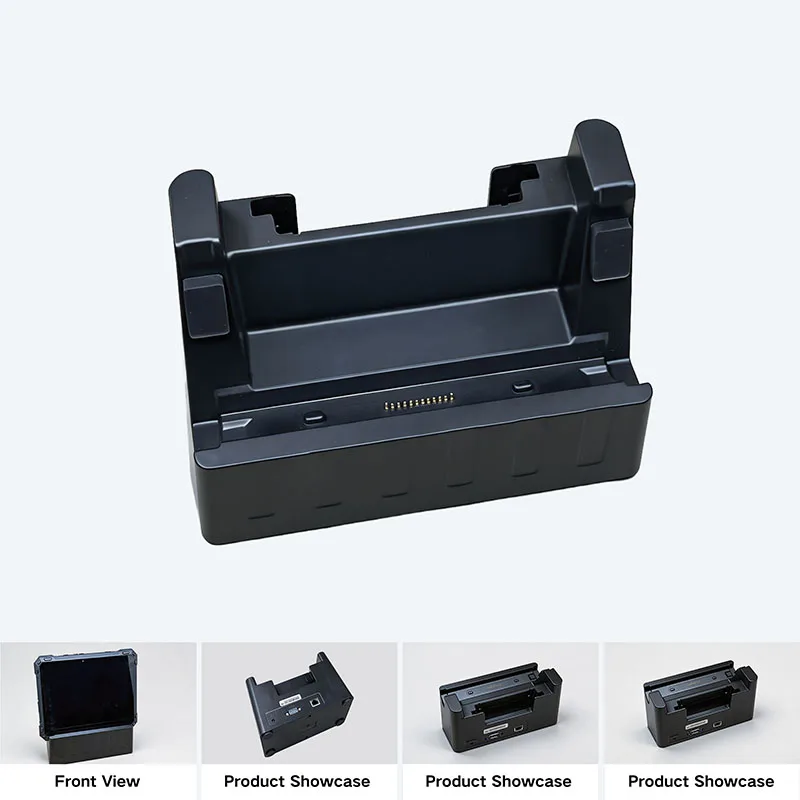

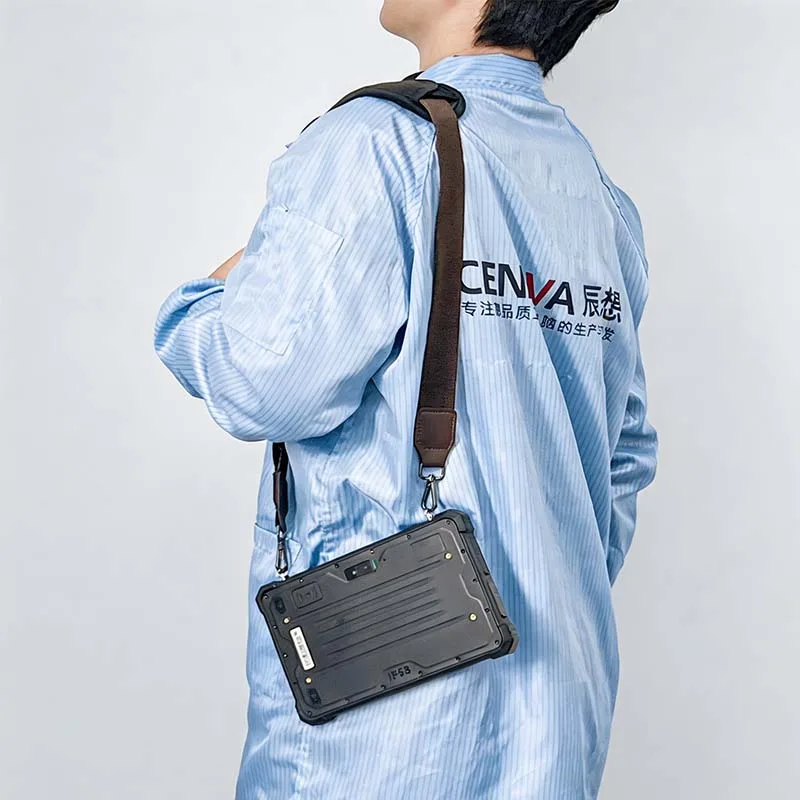

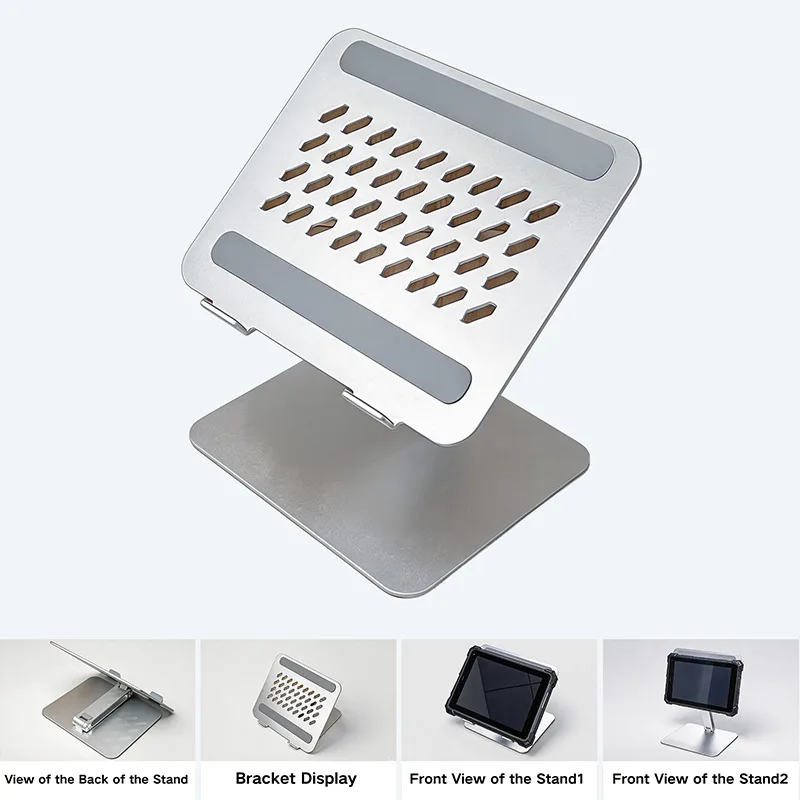

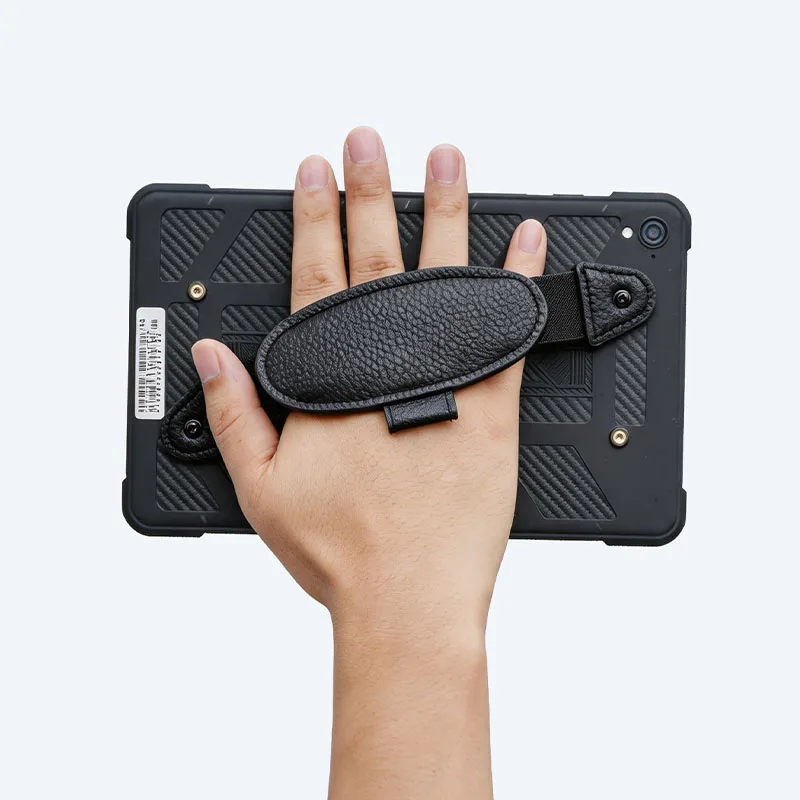

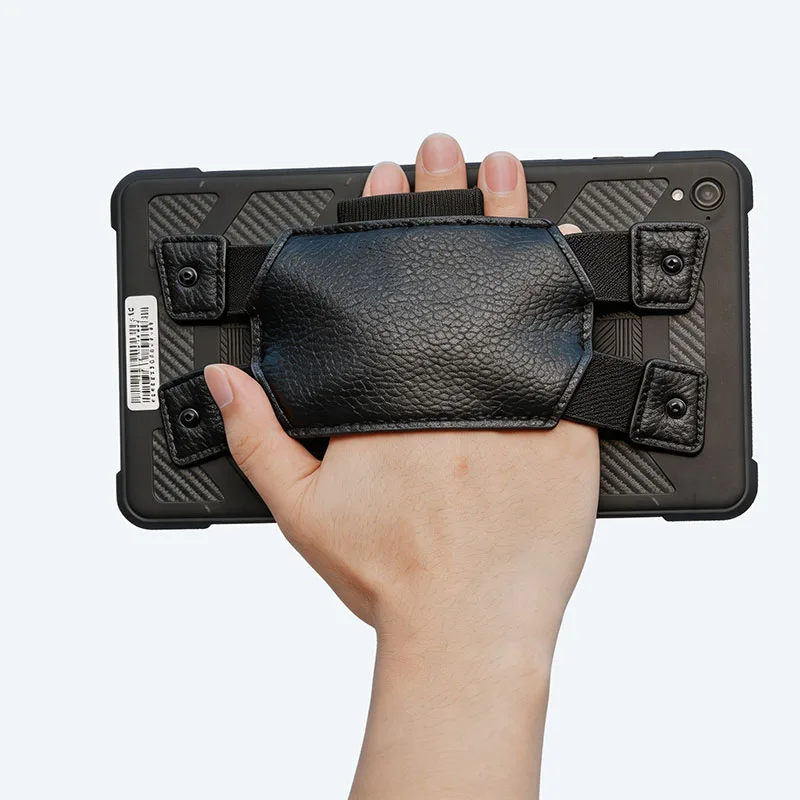

8. What optional accessories are available?

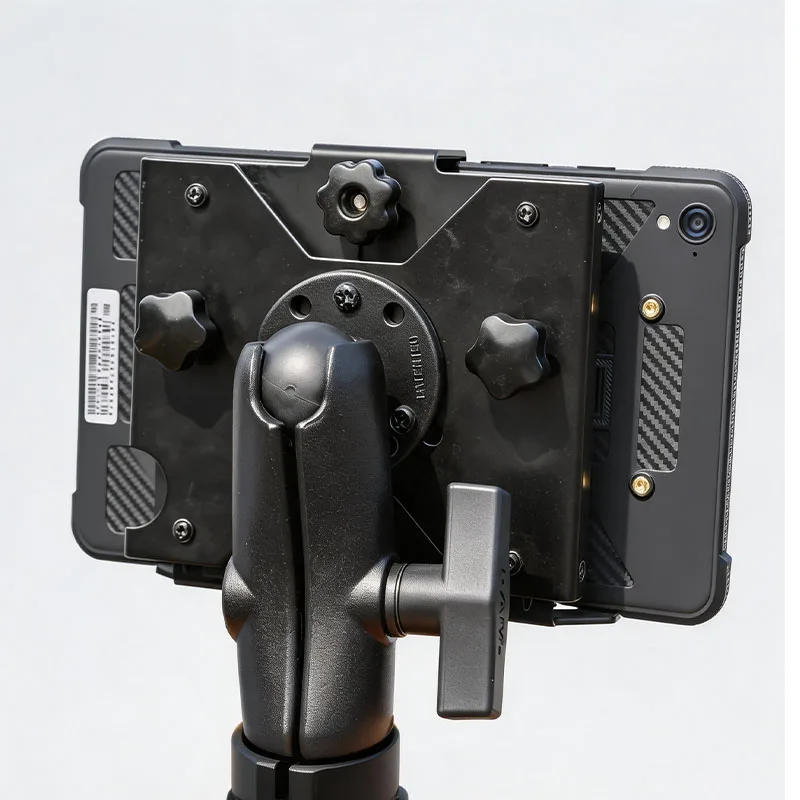

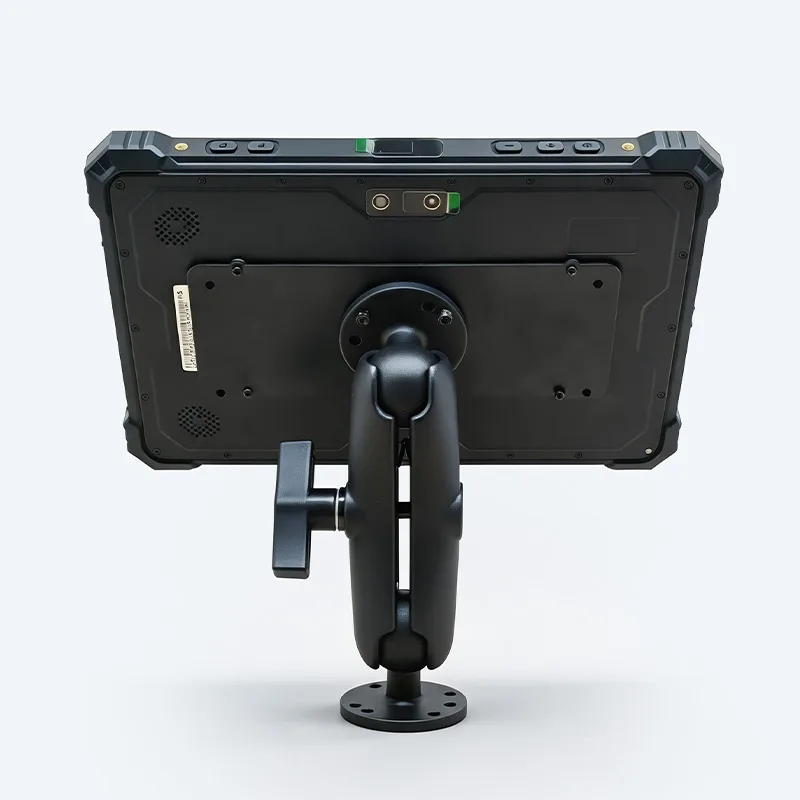

Carrying strap, charging base and desk stand. Vehicle mounts and docks are quoted per project — tell us the vehicle or workstation type and we'll match the bracket.
