Rugged Computing Products
Rugged tablets, laptops, handhelds, and industrial PCs—built for demanding
environments and backed by 23 years of OEM/ODM expertise.

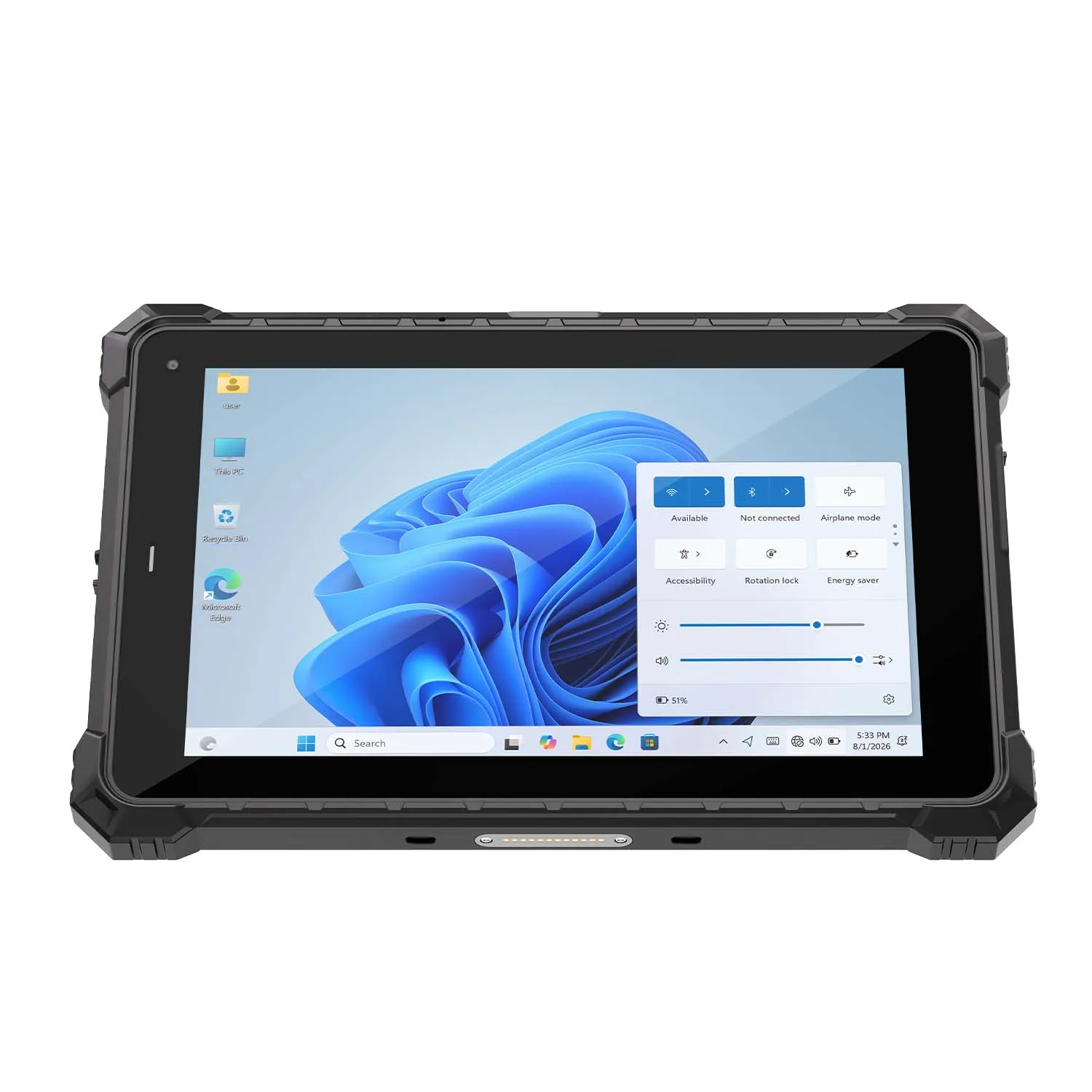

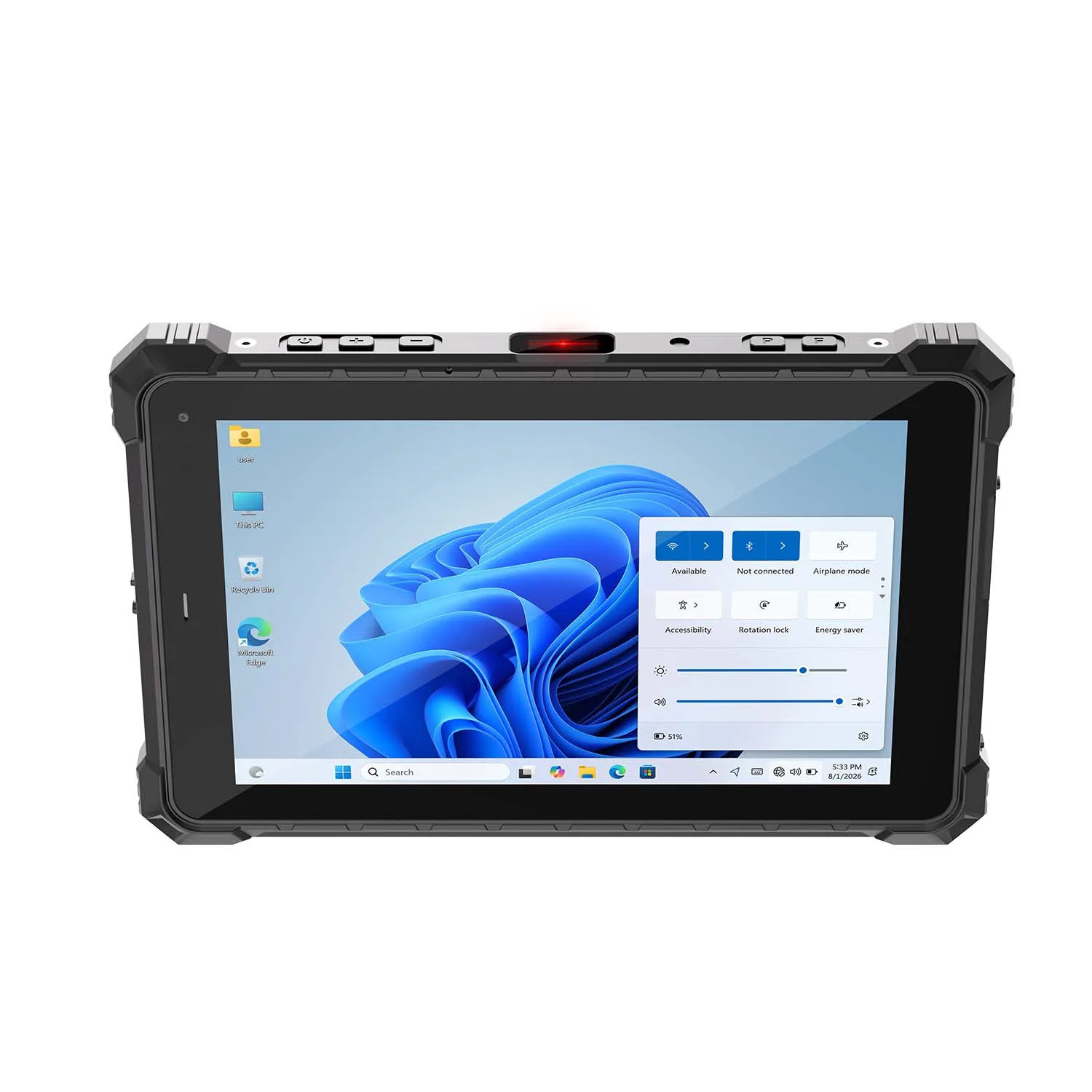

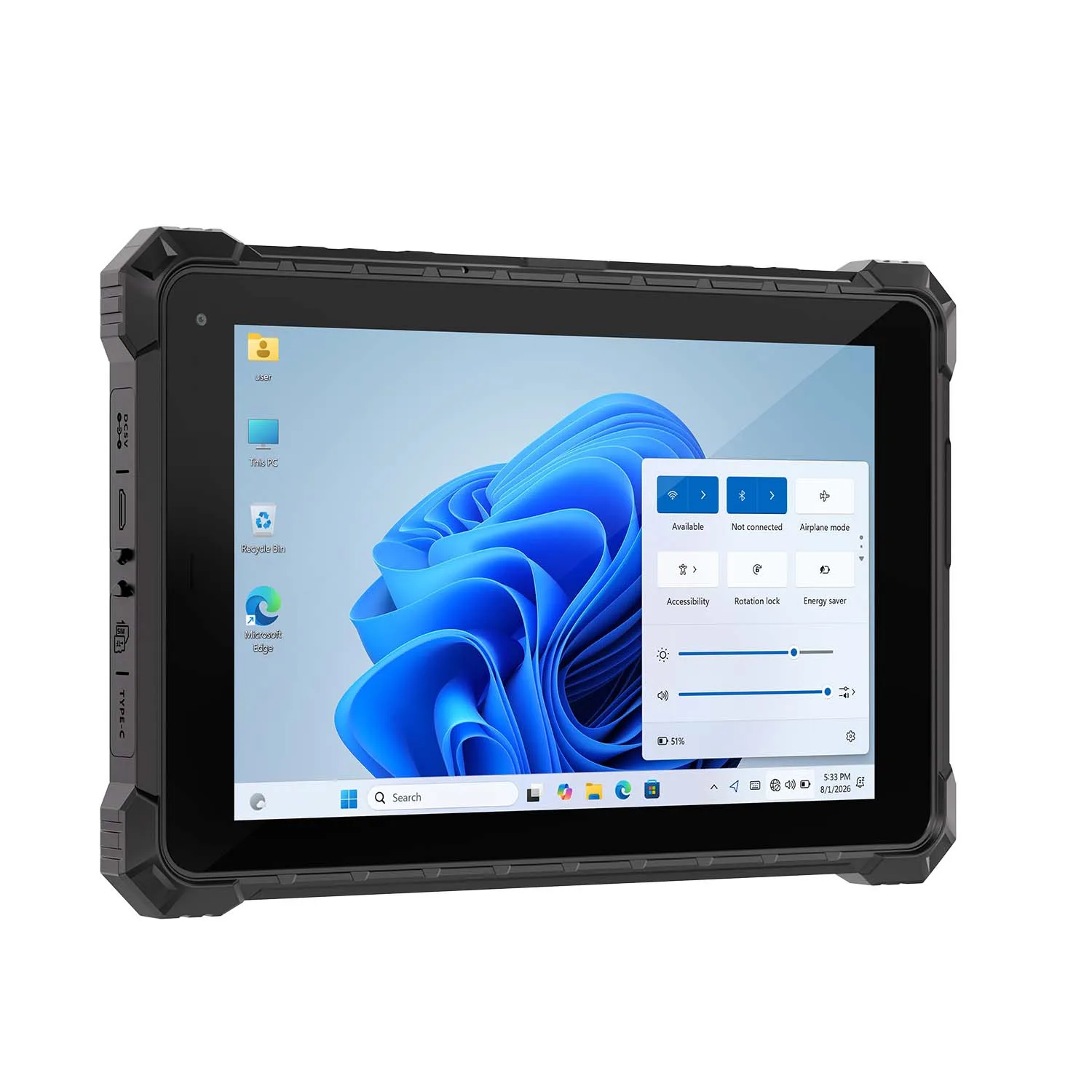

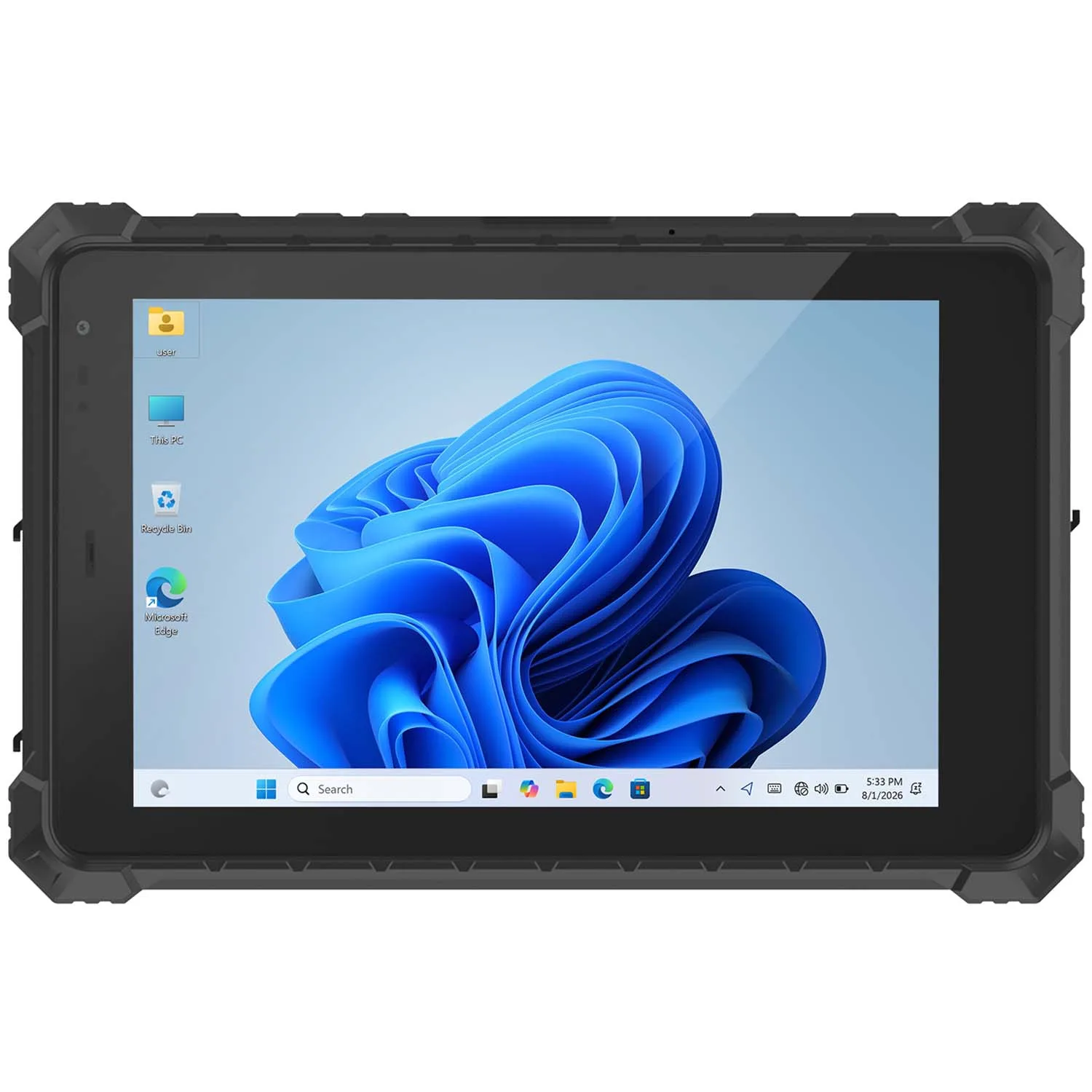

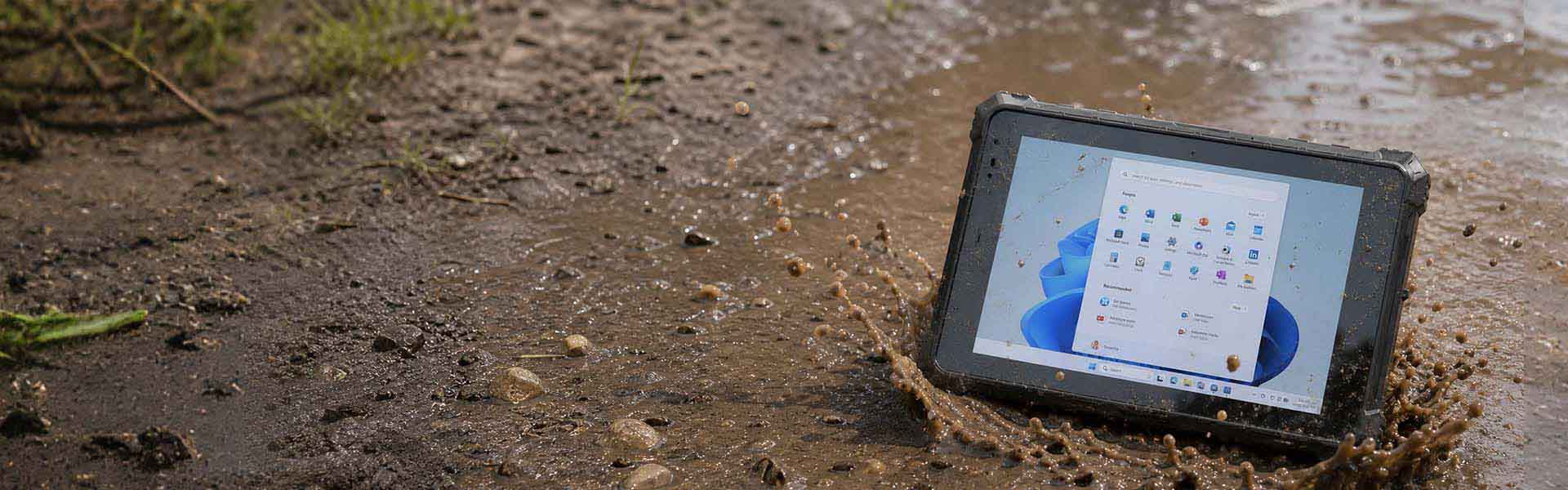

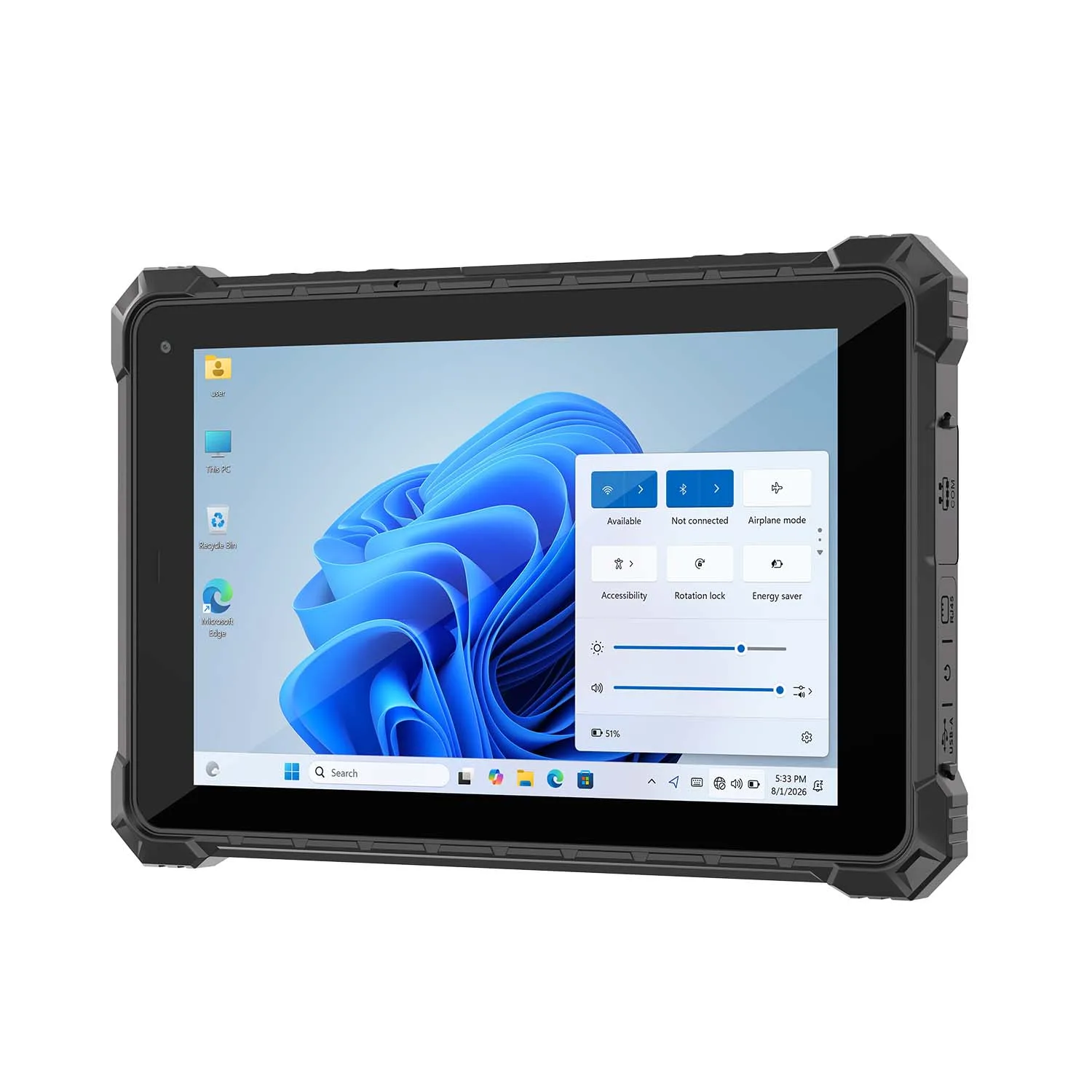

CENAVA W10NPRO N100 10.1 Inch Win11 IP68 Rugged Full I/O
CENAVA W10NPRO is a 10.1-inch rugged Windows 11 tablet built for production-line integration. The Intel N100 quad-core with 8-thread efficiency keeps MES and data-collection apps responsive, while gigabit RJ45, RS232, Micro HDMI and a 12-pin POGO dock connector cover wired expansion without external hubs. IP68 and MIL-STD-810H rated for shop-floor abuse. Built-in 5550mAh battery with optional 10000mAh pack; optional 4G/5G, 2D scanner, ID card, UHF and more.
CPU: Intel Alder Lake-N N100 quad-core 8-thread, 0.8–3.4GHz, fanless passive cooling
OS: Windows 11 (optional Windows 10)
Display: 10.1" 1920×1200, 700cd/㎡, 10-point G+G glove touch, hardness ≥7H (wet-hand touch customizable)
RAM/ROM: 8GB+128GB M.2 SSD (optional 16GB+256GB/512GB)
Integrated I/O: Gigabit RJ45 (100/1000M), DB9 RS232, Micro HDMI, Type-C USB3.0, USB-A 3.0, 3.5mm jack, TF up to 256GB, Micro SIM, DC 12V, 12Pin POGO
Network: Dual-band WiFi 6, Bluetooth 5.2; optional 4G LTE / 5G (custom function); GPS/BeiDou/Galileo/GLONASS, optional single-BeiDou positioning
Battery: Built-in 5550mAh 7.6V non-removable, ≥5h endurance (custom 10000mAh large battery)
Protection: IP68, MIL-STD-810H 1.22m drop, -20°C~60°C (custom -30°C~60°C), TPM security chip
Camera: Front 5MP fixed-focus + rear 13MP autofocus
Optional Modules: 2D scanner (N1/N670), ID card reader, UHF RFID, NFC, LF 125kHz, fingerprint, RTK cm-level positioning
New-Gen N100 Core
Power Meets Efficiency
Alder Lake-N N100 Quad-Core 8-Thread Turbo 3.4GHz
The new Alder Lake-N N100 packs four cores and eight threads with a 3.4GHz turbo — a clear step up from entry chips, yet frugal on power, so performance and battery life no longer trade off. 8GB+128GB M.2 SSD comes standard, with 16GB+256GB/512GB optional, handling MES systems, data collection and office suites with ease. Fanless passive cooling keeps dust out on the shop floor. Windows 11 (Windows 10 optional) boots fast and responds quickly for everyday office and line-side tasks alike.
Fast Dual-Band Network
Always Connected
Dual-Band WiFi 6 + BT 5.2 Optional 4G/5G Multi-GNSS
Dual-band WiFi 6 locks onto workshop access points at high speed; Bluetooth 5.2 pairs scanners and printers with low latency. Off-site, optional 4G/5G modules (custom function) keep mobile office work online — email, cloud docs and video calls uninterrupted. GPS, BeiDou, Galileo and GLONASS positioning, with an optional single-BeiDou version, records field tracks and vehicle locations precisely. Office desk or field road, the network keeps pace with your work all day, every single working day.
Pro-Grade Full I/O
No Dock Needed
Gigabit RJ45 + RS232 + Micro HDMI + POGO PIN

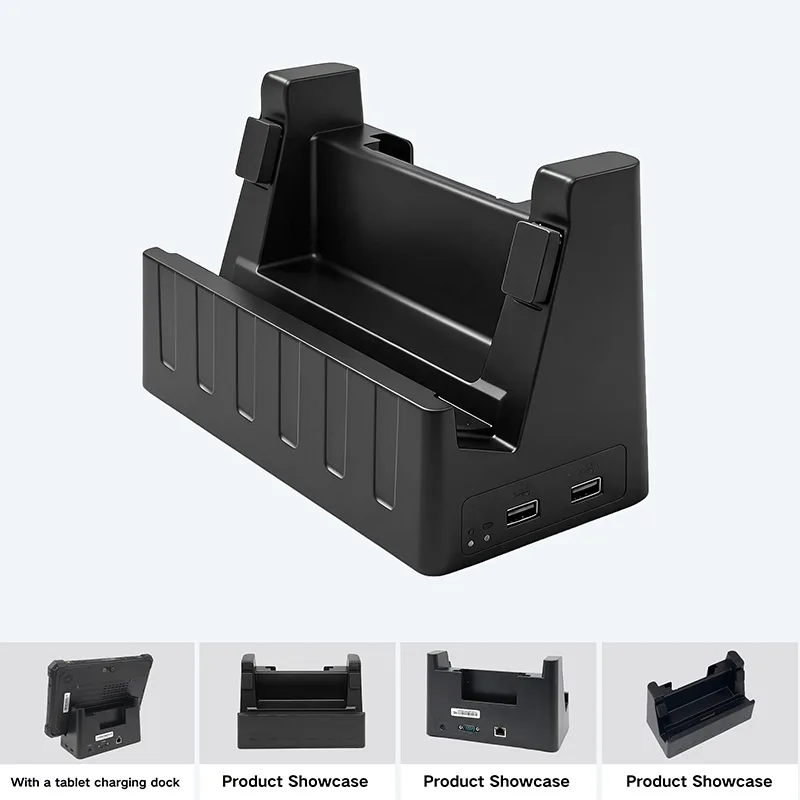

A Pro positioning demands complete ports: gigabit RJ45 joins the enterprise network, DB9 RS232 talks to line instruments and legacy devices, Micro HDMI drives projectors, Type-C and USB-A 3.0 transfer at speed, TF expansion reaches 256GB, the 3.5mm jack handles calls, and the 12-pin POGO dock charges and expands — wired expansion without any external hub. Optional 2D scanning, ID card, UHF, NFC and fingerprint modules cover office, collection and verification tasks across the whole team.

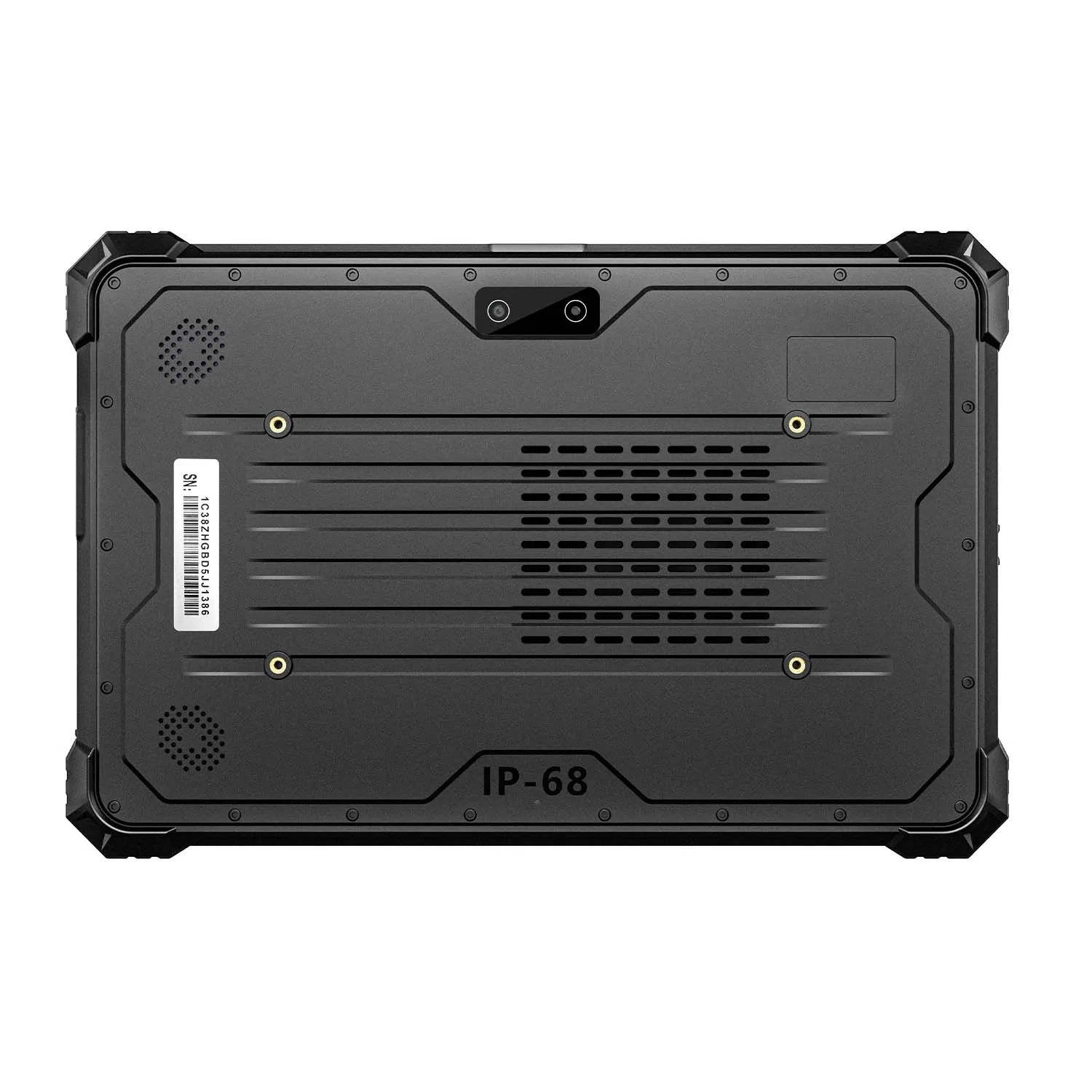

Rugged Quality
Tough Office Machine
IP68 MIL-STD-810H 1.22m Drop TPM Onboard
Beneath the business look lies a hard core: IP68 sealing shrugs off spilled tea and sudden rain; MIL-STD-810H certification covers 1.22m drops in commutes and workshops. It runs from -20°C to 60°C, with a -30°C custom option. An onboard TPM chip encrypts business secrets, and the 10.1-inch 700cd/㎡ display works with gloves. From office tower to production floor, one machine plays both roles with ease. Daily knocks, spills and temperature swings are all in a day's work.
Technical Specifications
 CPU Intel Processor N100, quad-core, up to 3.40GHz |  System |  Storage 8GB RAM+128GB M.2 SSD |  Display 10-inch IPS touch screen 1920*1200 |
 NFC Optional Default back of the body for card reading, customizable to the front |  One/Two dimensional code Optional Able to identify dirty 1/2 dimensional codes |  Battery 7.6V 5550mAh High Voltage Lithium Battery |  High frequency/ultra-high frequency module Optional Ultra thin integrated module |
 Navigation positioning GPS, Galileo GLONASS |  ID card identification Optional |  Interface Type -A,Type -C HDMI,POGO PIN |  Weight283.9*189.0*24.1mm/1185g |
 Card slot SIM / TF （256G） |  Protection level Working temperature: -20 °C to 60°C Storage temperature:-30 °C to 70 °C |  Camera Front camera:5MP Rear camera:13MP |  Sensor Gravity sensing, compass, gyroscope, light sensing, distance sensing |
| TP touch screen | Anti-fingerprint (AF) coating,10-point touch G+G, hardness ≥7H, support for medical rubber gloves touch screen (can be customised wet hand touch screen) |
| Speaker | 1 × MIC, waterproof (IP68-rated) |
| TPM | Built-in TPM Security chip |
| Gravity sensor | YES |
| TYPE-C | *1 Type-C USB3.0 |
| Type -A | *1 Type-A USB3.0 |
| DB9 | *1 RS232 |
| Earphone Jack | 1 × 3.5mm standard headphone jack |
| TF Card | *1 Maximum support 256GB expansion |
| SIM Card | *1 Standard Micro SIM card slot |
| Micro HDMI | *1 Micro HDMI |
| DC port | *1 12V-4A (DC plug outer diameter 3.5mm inner diameter 1.35mm) |
| RJ45 | *1 100/1000M |
| POGO PIN | *1 12Pin USB+charger |
| Drop height | Meets the requirements of MIL-STD-810H for the 1.22-meter drop test |

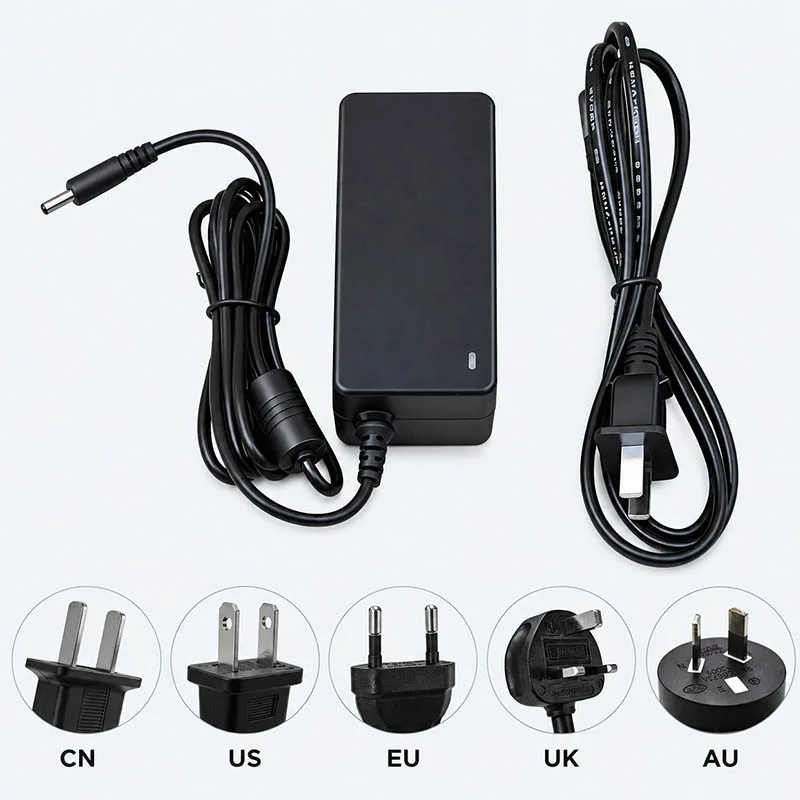

| Adapter | 12V/4A DC adapter |
The W10N Pro puts full Windows 11 on Intel's N100 in a 283.9 × 189 × 24.1mm, 1,185g body — roughly 400g lighter than our 13.3-inch W30U series, and the lightest way to get IP68 in this lineup. It's the model that travels all day: between equipment bays, into truck cabs, out to inspection points. A typical shift means opening diagnostic applications at the machine, completing inspection forms on the 700-nit glove-compatible touchscreen, pulling data from PLCs and scales over the RS232 port, scanning barcodes with the optional engine, and uploading reports over Wi-Fi 6 or the optional 4G/5G module — without going back to a desk.
Frequently Asked Questions About W10N Pro IP68 Rugged Tablet
1. What is the main difference between W10N Pro and the previous W10N?
The W10N Pro uses the Intel Processor N100 platform and adds a 700cd/m² display, IP68 specification, optional RTK positioning and expanded data-collection options.If you're upgrading an existing W10N fleet, send us the serial or configuration of your current units — we'll confirm which accessories and docks carry over before you order.
2. Is the Intel N100 suitable for Windows 11?
The N100 runs Windows 11 comfortably for single-purpose work: inspection apps, data entry, diagnostics, communications. Its four efficiency cores are not built for 3D graphics or large engineering models — if that's your workload, the W30U Pro with Core Ultra is the right tool, and we'll say so on the inquiry.
3. Is the 700cd/m² screen sunlight-readable?
700 cd/m² is roughly double a standard laptop panel and stays readable in bright indoor light and overcast outdoor conditions. For work in direct noon sunlight, order the 1000-nit option from the start — retrofitting a panel into an IP68-sealed unit isn't practical. Unsure? Ask for a screen sample and test it on-site before the volume order.
4. Is 5G included in the standard product?
Not in the base configuration. The standard unit ships Wi-Fi-only; 4G LTE and 5G are order-time options. Tell us your destination country and carrier — band support differs by region, and we configure the module to match.
5. What is the difference between the N1 and N670 scanners?
Pick by sensor and aiming, not by name. The N1 uses a 0.3MP sensor and covers everyday 1D/2D codes; the N670 steps up to a 1MP sensor with cross-laser aiming and OCR-A/OCR-B — worth it for damaged labels, small print, or arm's-length-plus distances. Attach photos of your typical labels to the inquiry and we'll test-scan them on both engines before you commit.
6. Can barcode, UHF, NFC and fingerprint modules all be installed together?
The tablet supports these optional modules, but available installation space, interfaces and antenna positions may limit certain combinations.
7. Can the W10N Pro be mounted in a vehicle?

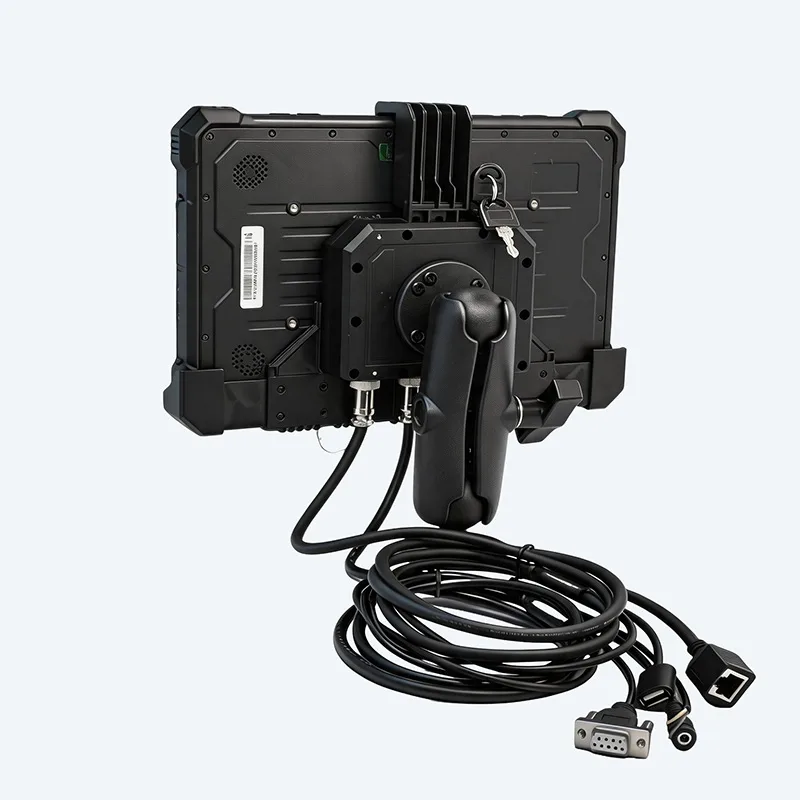

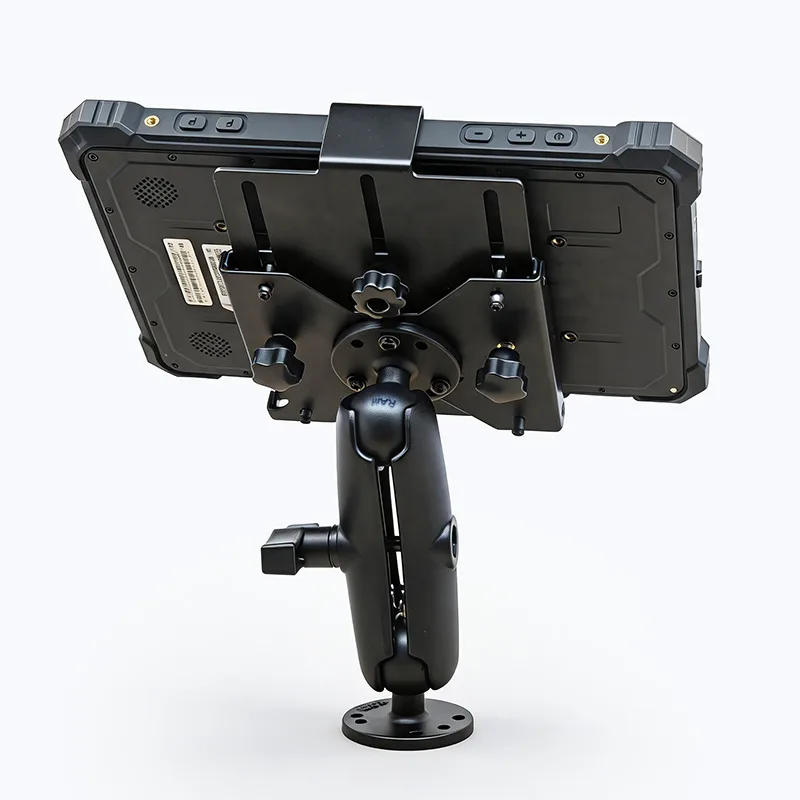

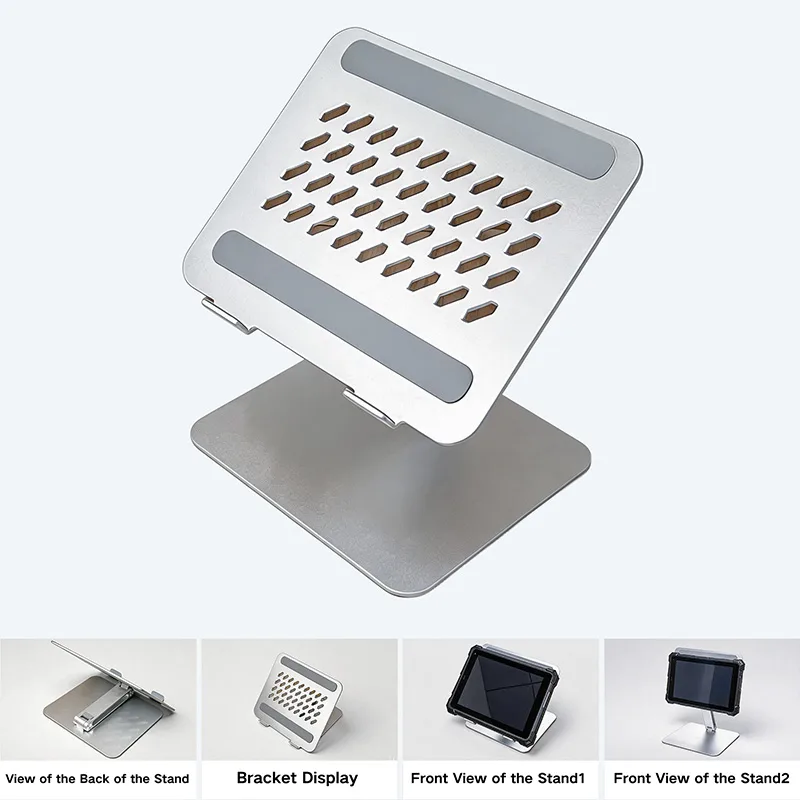

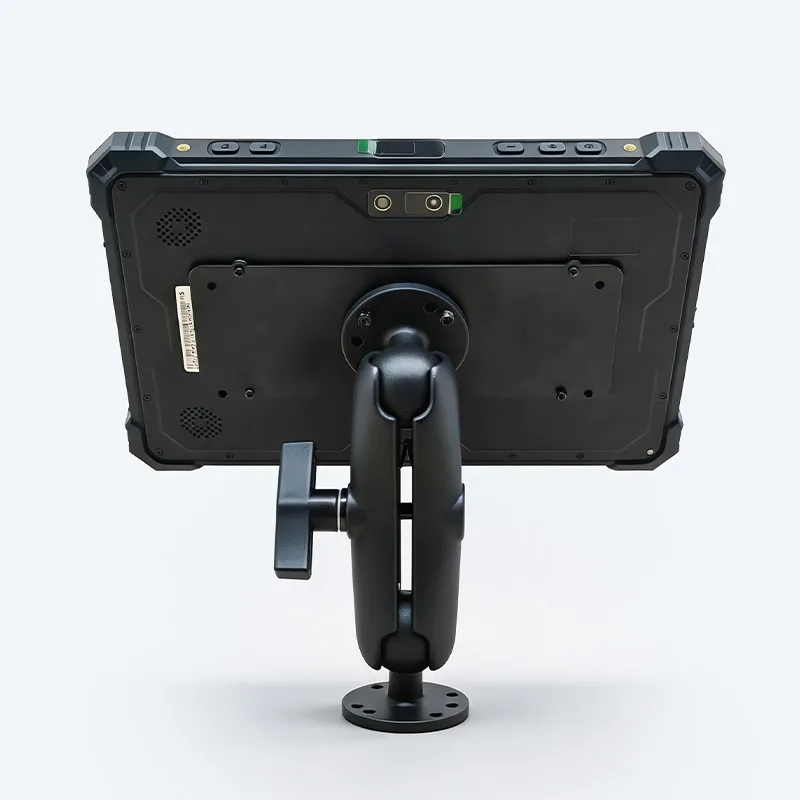

Yes. Vehicle brackets, desktop bases, rear plates and expansion-interface mounts are listed as optional accessories.Vehicle installation should account for vibration, cable security, driver visibility, electrical protection and operating temperature.
8. Is the W10N Pro certified for use in hazardous or explosive environments?
An explosion-proof variant is available on project orders, certified Ex ib ⅡC T4 Gb (gas atmospheres, Zone 1) and Ex ib I Mb (mining). It differs from the standard unit in enclosure and cannot be retrofitted — specify it at inquiry stage and request the certificate copy with your quote. The standard unit carries IP68 and is tested to MIL-STD-810H for the 1.22m drop.
9. How long does the battery last, and can it be upgraded?
The built-in 7.6V/5550mAh battery is rated for ≥7 hours of endurance, with an optional 10000mAh large-capacity battery available for extended field use.
10. What connectivity and interface options does the W10N Pro offer?
Wi-Fi 6 (802.11 a/b/g/n/ac/ax), Bluetooth 5.2, optional 4G/5G, RJ45 Gigabit Ethernet, an RS232 (DB9) serial port, USB Type-C (USB 3.0), USB Type-A (USB 3.0), Micro HDMI, a 12-pin Pogo Pin connector, and SIM/TF (up to 256GB) card slots.

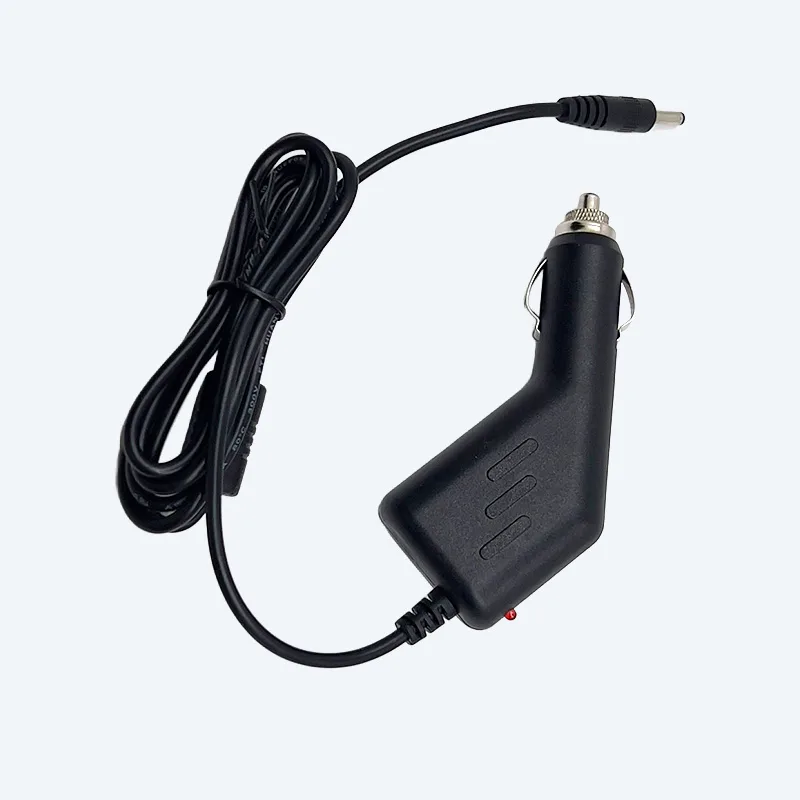

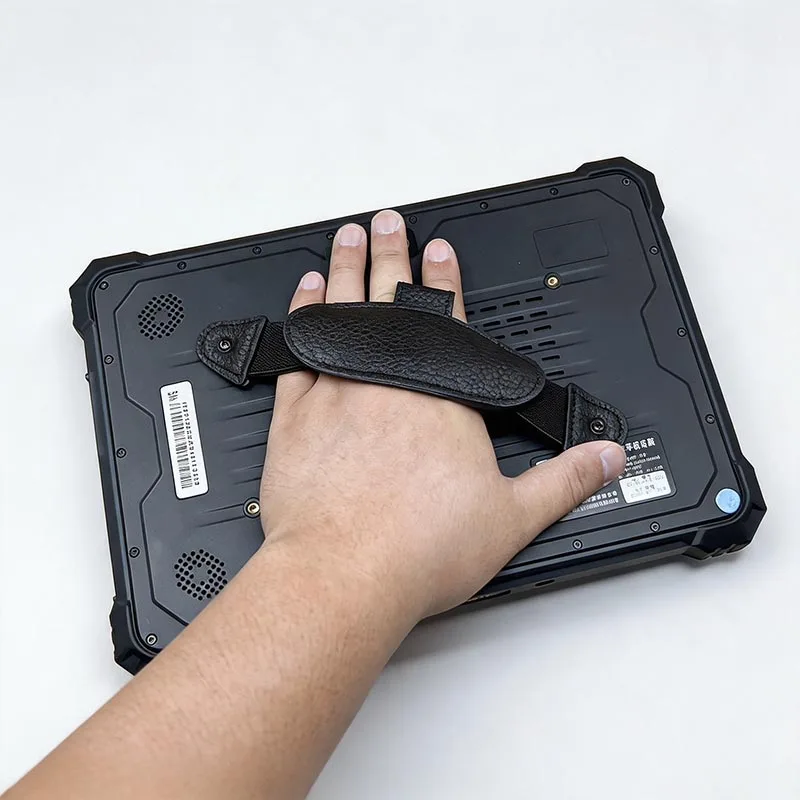

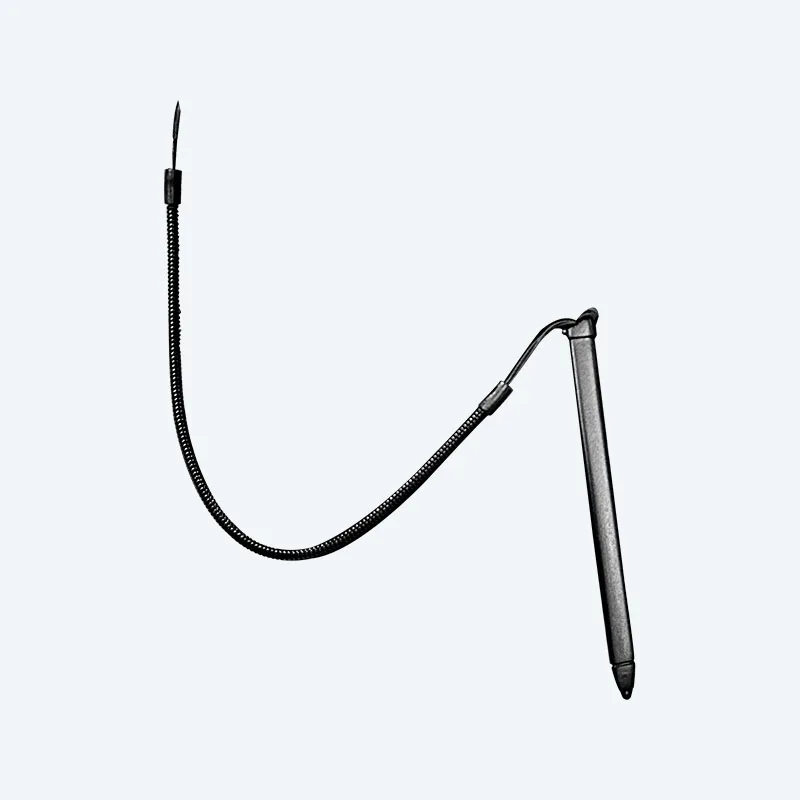

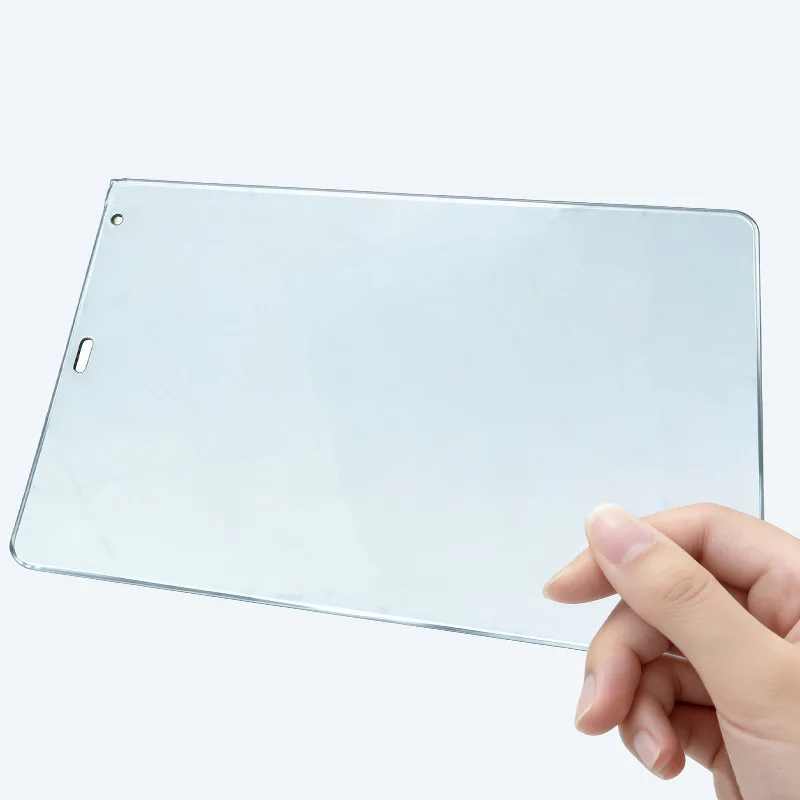

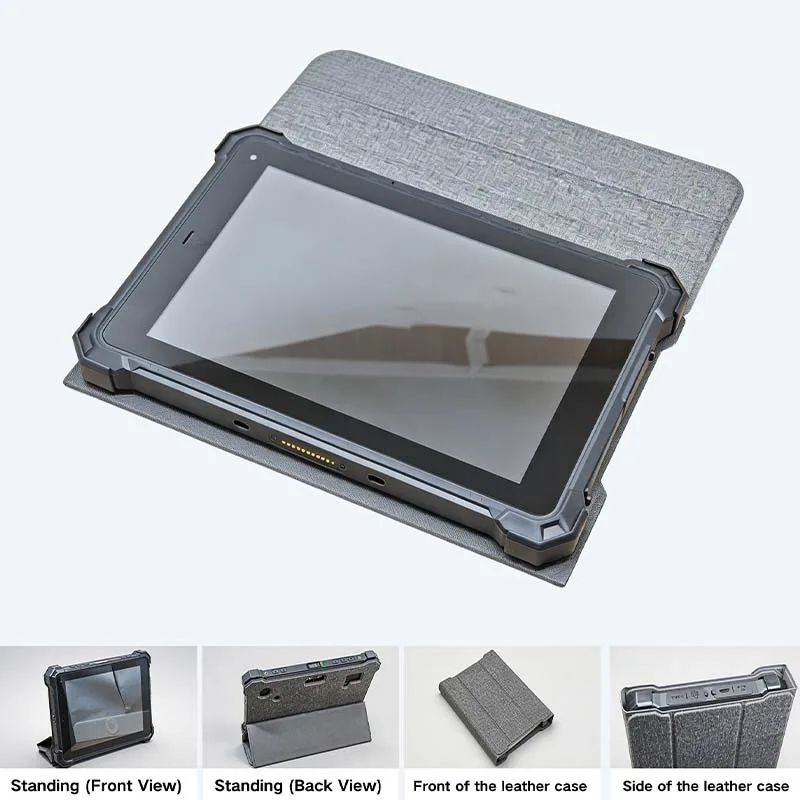

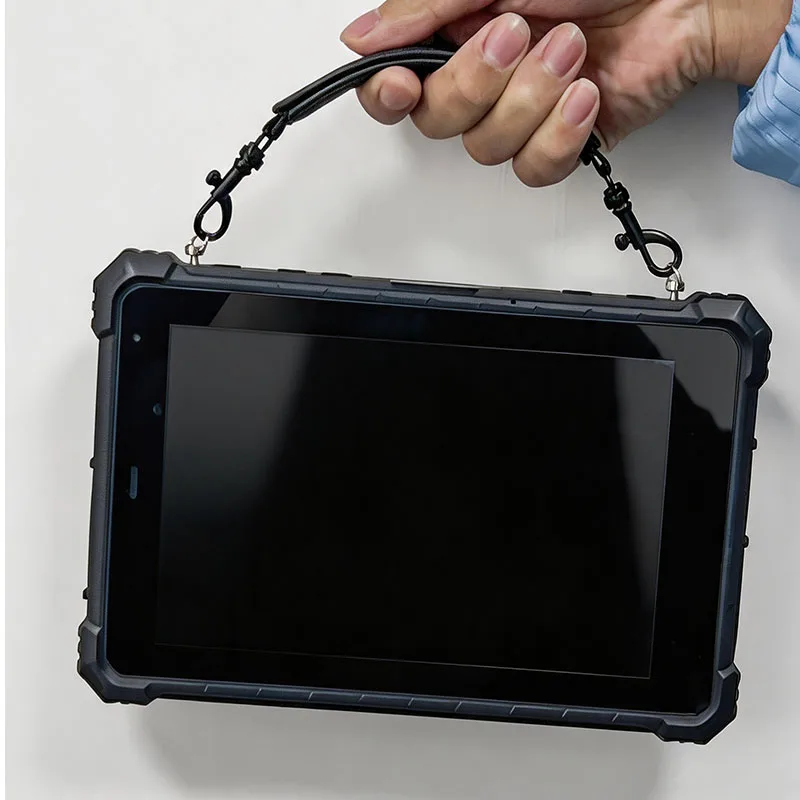

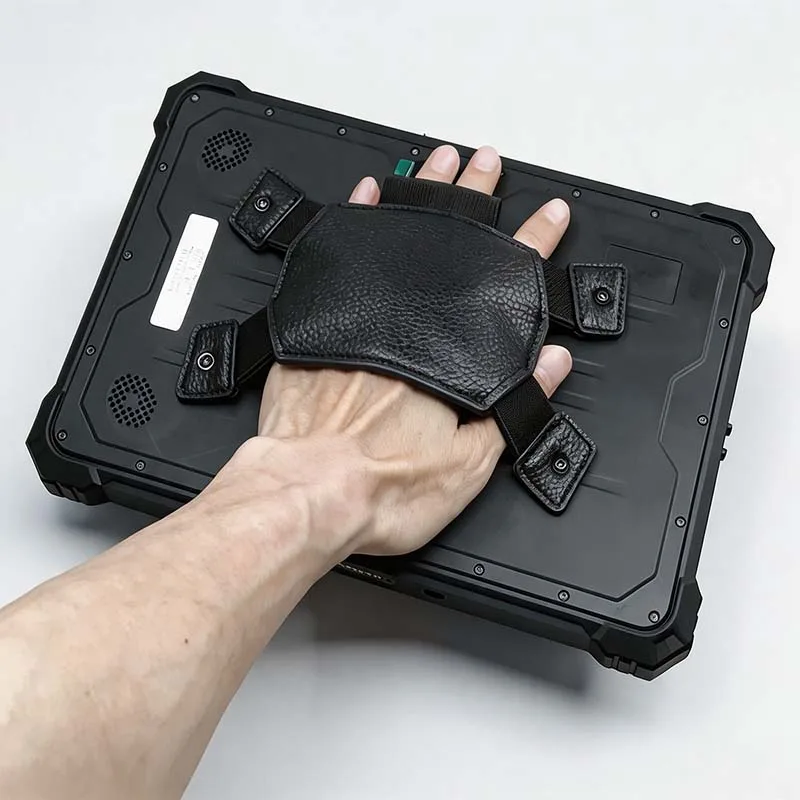

Accessories
