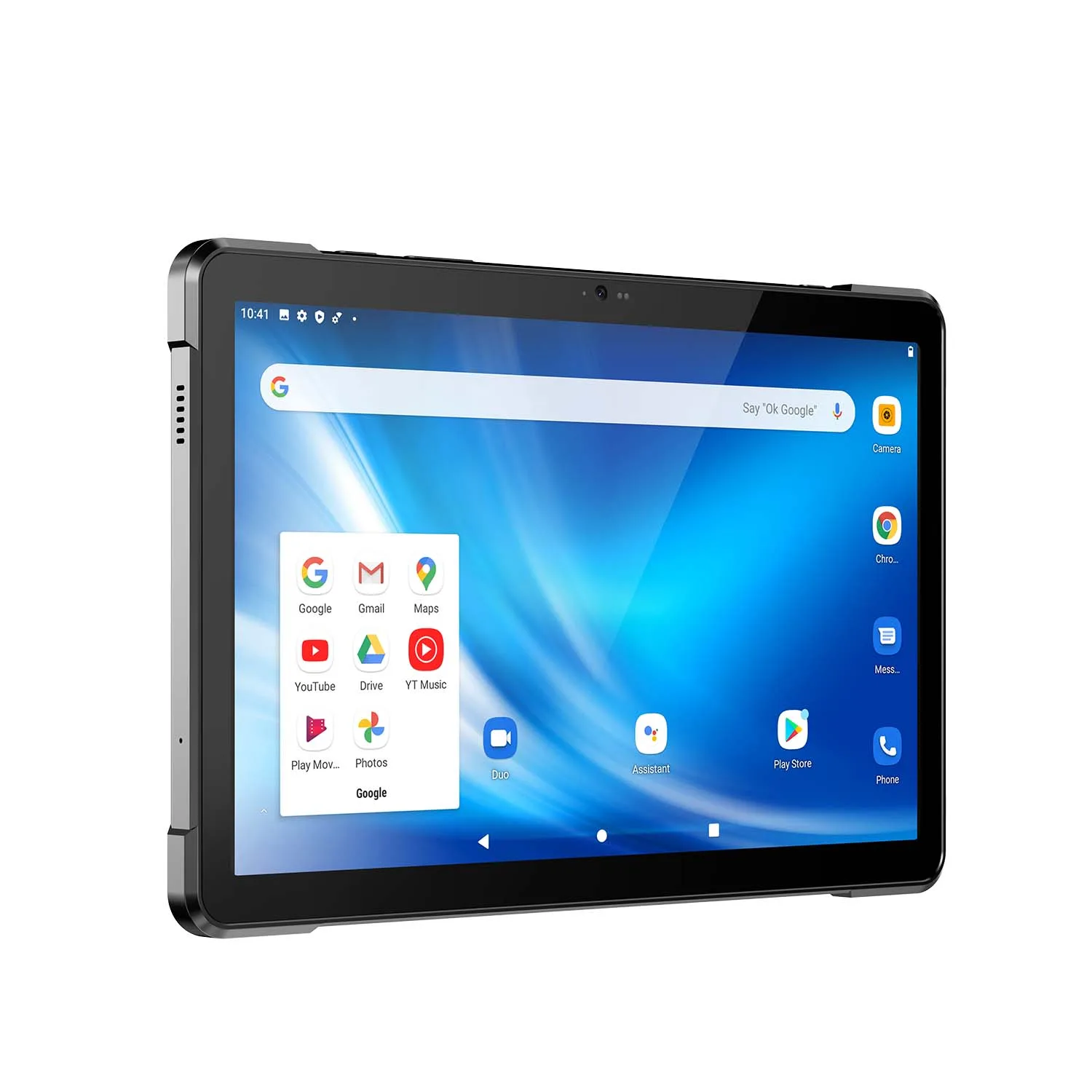

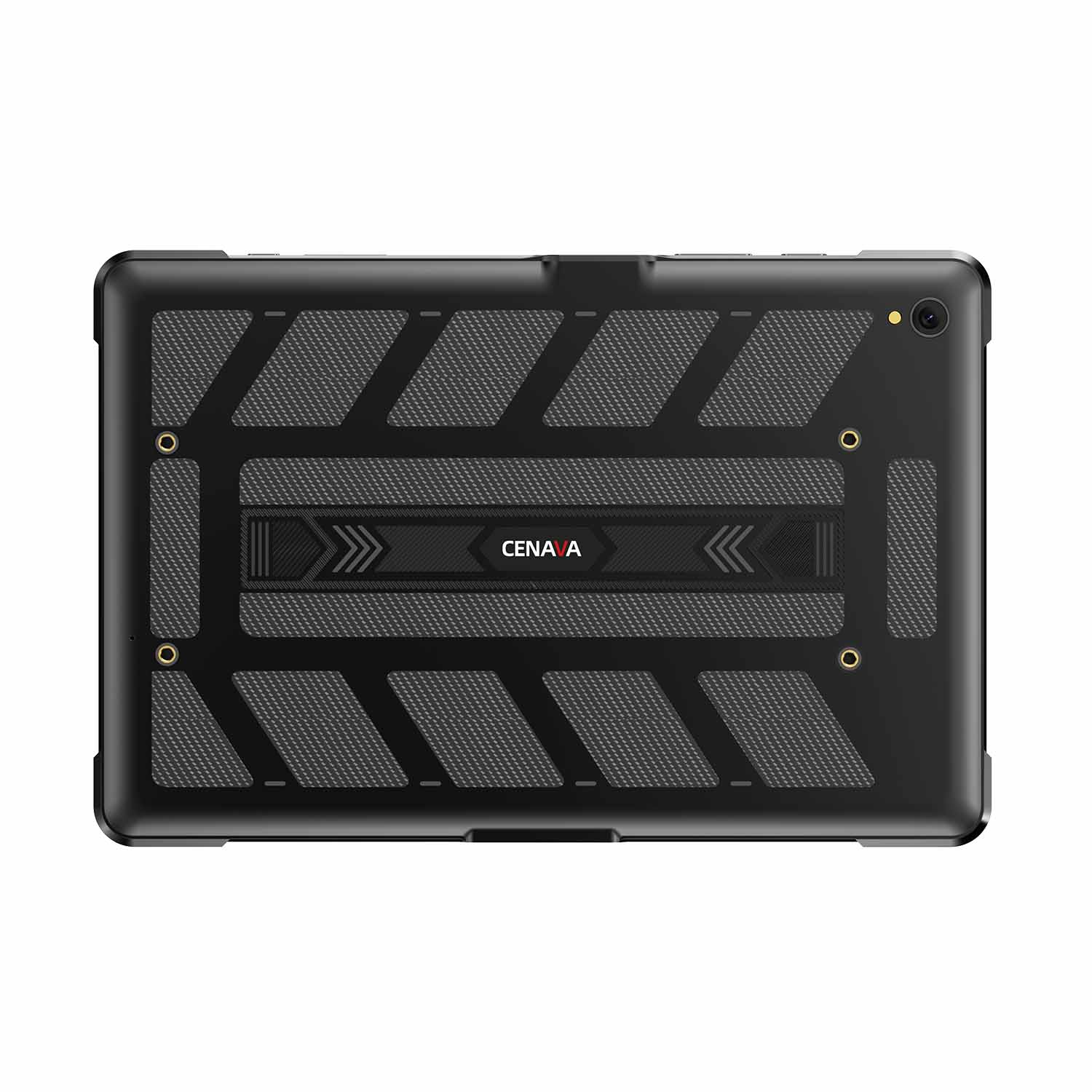

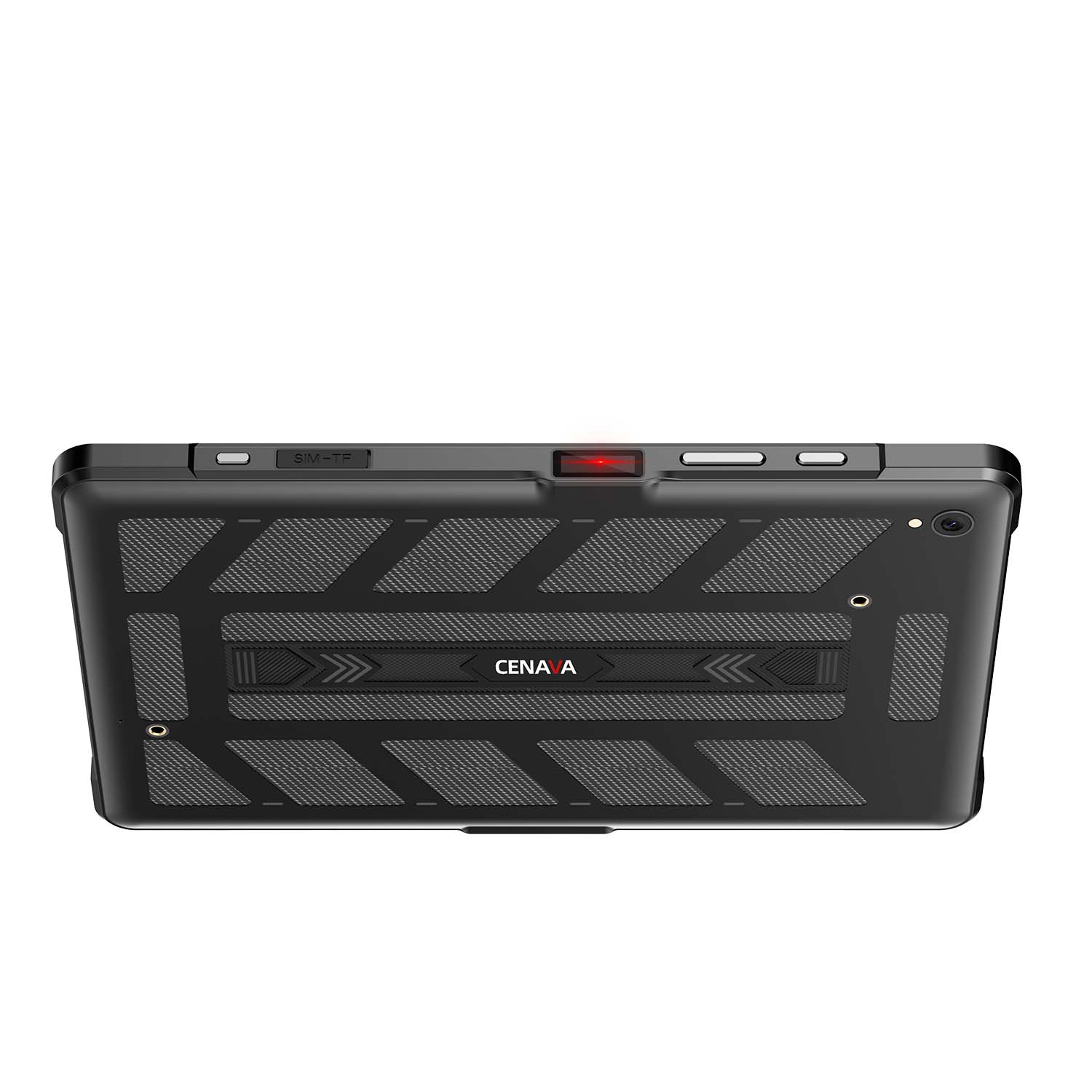

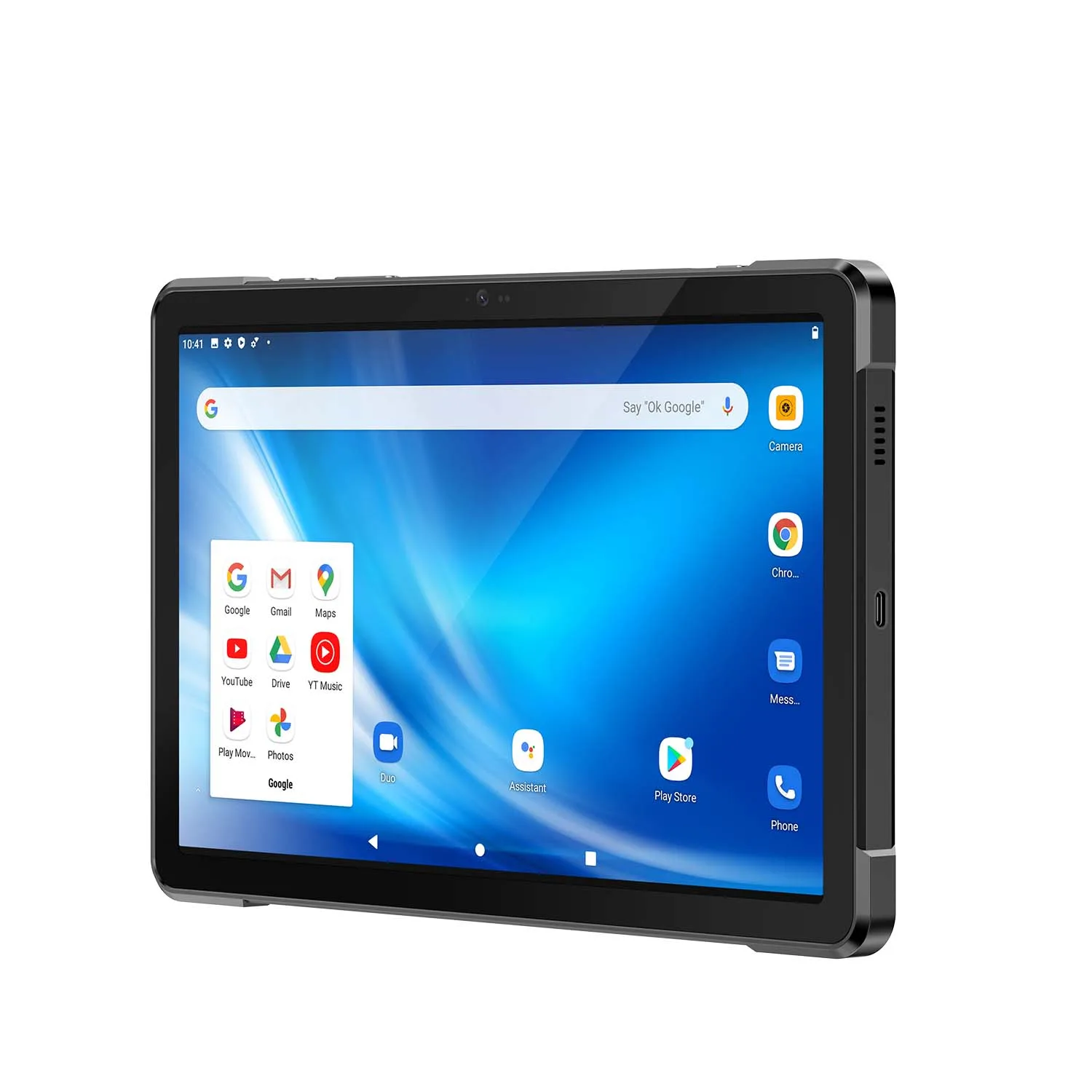

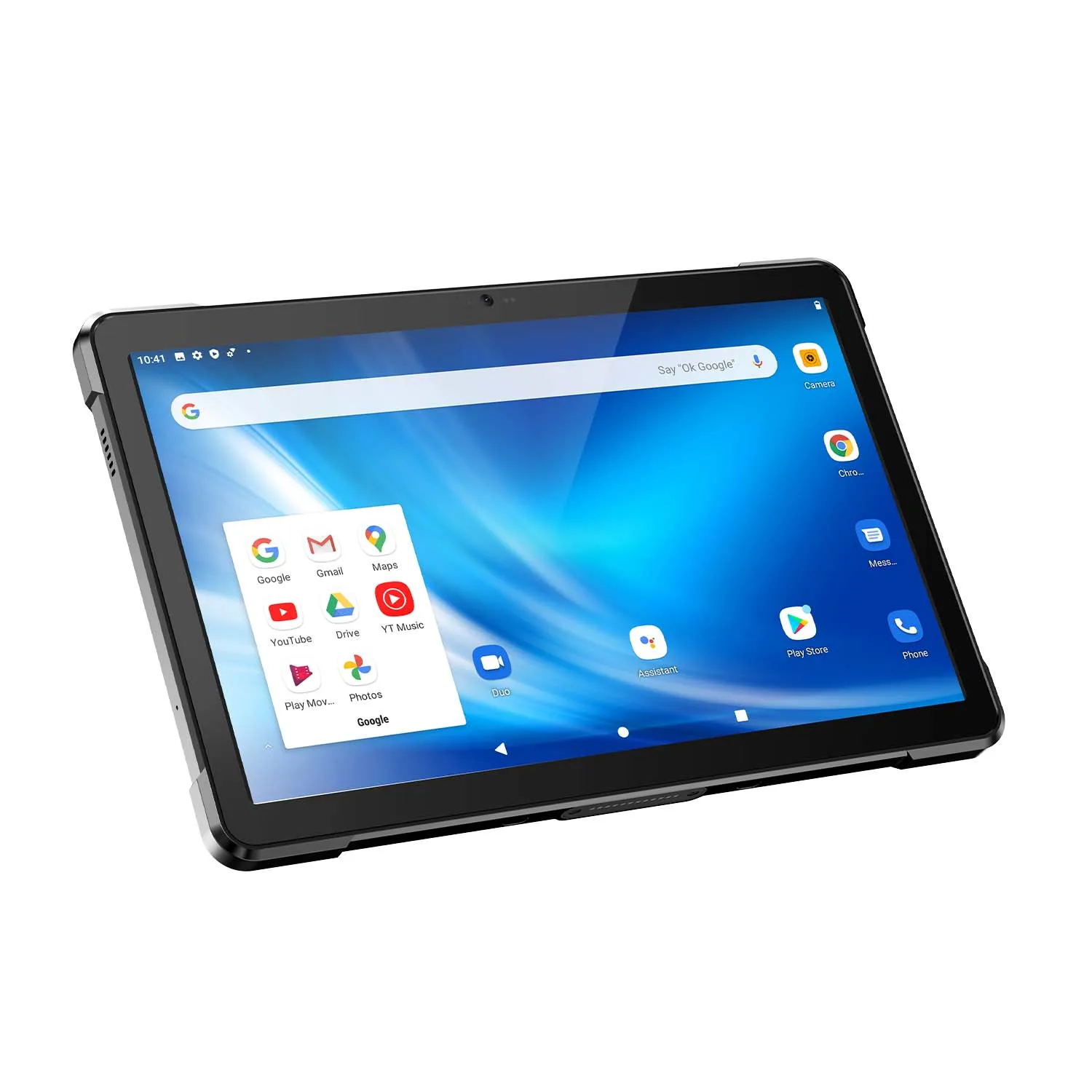

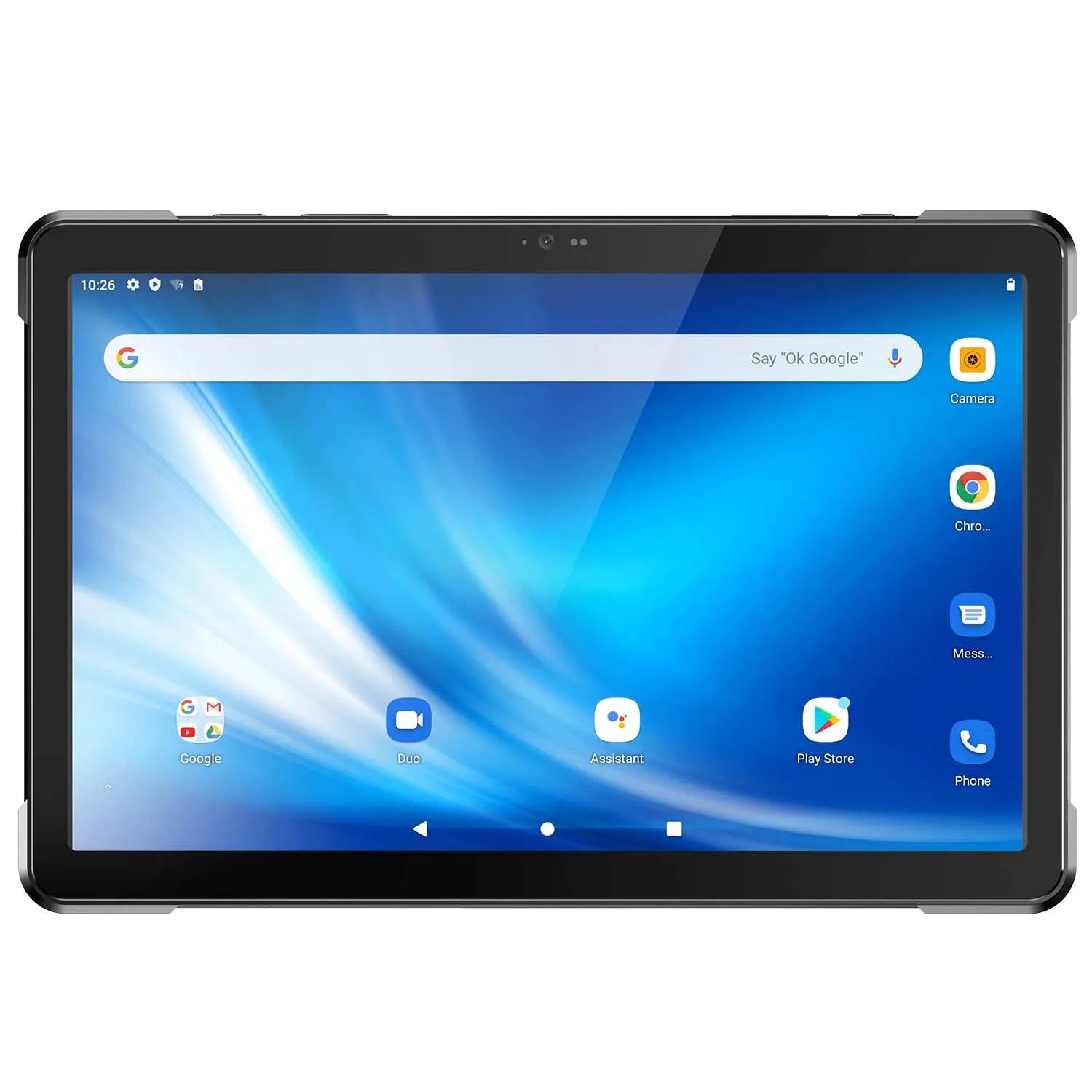

CENAVA A109TB MT6789V 10.95 Inch Android 14 IP68 Rugged Tablet
CENAVA A109TB is a 10.95-inch ultra-slim Android rugged tablet powered by the MT6789V Octa Core processor and Android 14. It measures just 13.9mm thick and weighs 842g, yet still fits a 10.95-inch display — room enough for Android industrial apps, mobile patrol systems, and field data collection.
CPU: MediaTek MT6789V octa-core, 2×Cortex-A76@2.2GHz + 6×Cortex-A55@2.0GHz
OS: Android 14
RAM/ROM: 8GB+128GB
Display: 10.95" 1920×1200 IPS, 700cd/㎡, 10-point G+FF touch with AF coating, glove touch (wet touch customizable)
Battery: 3.8V 20000mAh built-in (non-removable), 16–18h, 30W PD fast charging
Ports: Type-C (OTG), TF card (256GB) / Nano-SIM (choose two of three slots), 12Pin POGO
Network: WiFi 5 dual-band, Bluetooth 5.0 (BLE), 4G global; GPS/BeiDou/Galileo/GLONASS; NFC 13.56MHz
Protection: IP68, MIL-STD-810H 1.22m drop, -10°C~50°C, salt-spray tested
Camera: Front 8MP fixed-focus, rear 32MP autofocus with flash
Optional Modules: 1D/2D scanner (N1/N670)

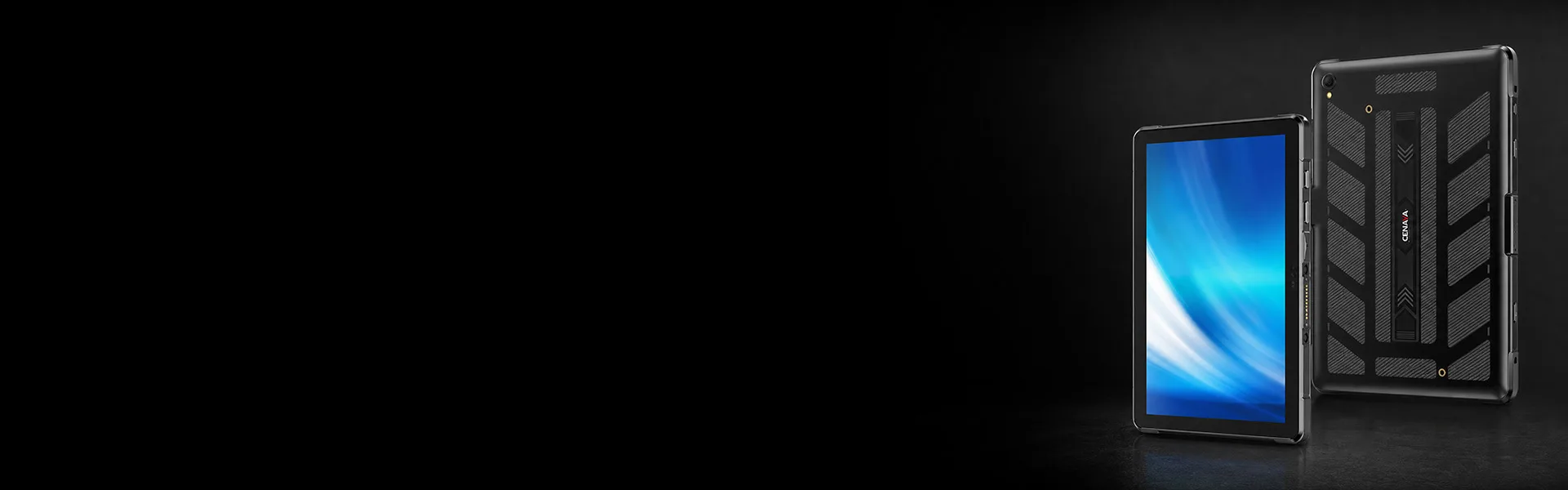

Ultra-Light Rugged
Portability Redefined
13.9mm 851g 10.95" Display
The A109TB shatters the rugged tablet stereotype of bulkiness: just 13.9mm thick and 851g light, comfortable for extended one-handed use. A 10.95-inch 16:10 display fits into this slim chassis thanks to high-density integration and structural optimization. IP68 protection, 1.22m drop survival, and 700cd/m² brightness all packed into a slim body—ideal for outdoor inspections, mobile enforcement, and logistics with zero carry burden. Operating temperature -10°C to 50°C covers most temperate and subtropical environments.Most 10-inch rugged tablets we compete with weigh 1.1 kg or more; at 842g the A109TB is built for users who carry the device all day.

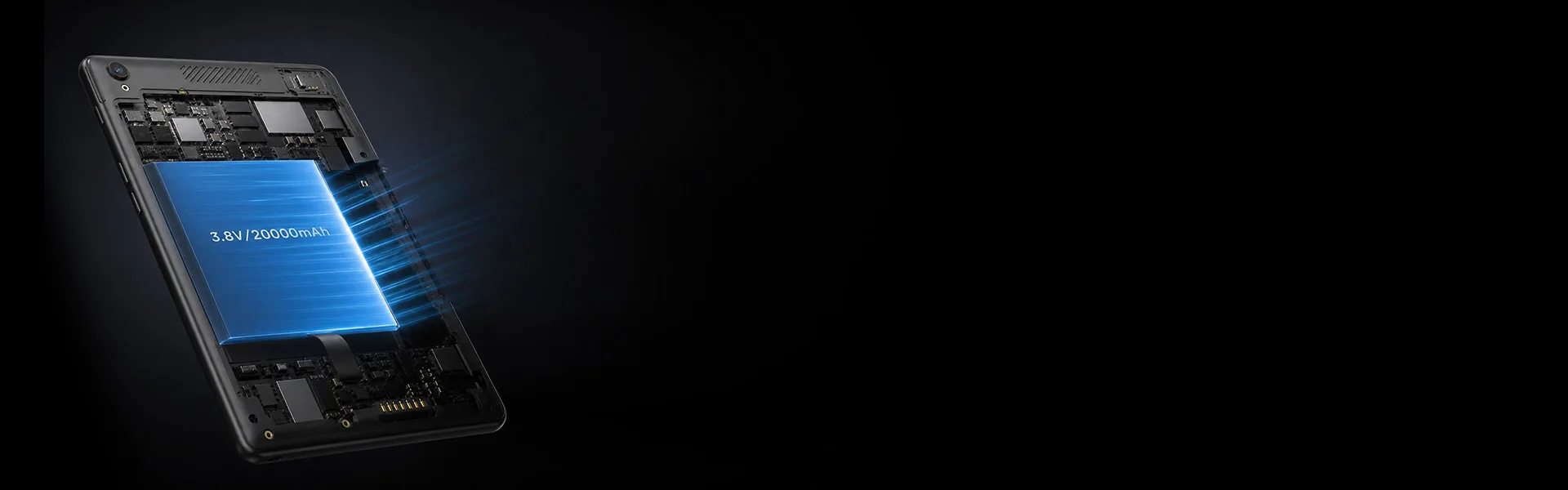

20000mAh Giant Battery
Big Screen Long Endurance
3.8V/20000mAh Non-Removable ≥16H Runtime
The 20000mAh cell, paired with the low-power MT6789V octa-core processor, delivers ≥16-18 hours of runtime (1080P video at 50% brightness). While non-removable, the ultra-large capacity covers two full outdoor workdays without carrying spare batteries. Type-C supports PD3.0 up to 30W fast charging for quick top-ups in spare moments; OTG reverse expansion allows flexible supplementation via USB drives, keyboards, and adapters. The 10.95-inch display plus long battery life suits scenarios requiring extended screen-on time for blueprint viewing, navigation, and data entry.
32MP Ultra-Clear Rear Camera
Capture More Detail
8MP Front 32MP Rear Auto-Focus With Flash
The 32MP auto-focus rear camera steps up from the 12–16MP sensors common on industrial tablets, and the flash helps for macro shooting, on-site evidence capture, and equipment nameplate digitization with rich detail. The 8MP front camera handles daily video calls, facial recognition, and remote inspection. Reviewing photos on the 10.95-inch display reveals crisp details. While lacking dedicated Ethernet and serial ports, the 32MP imaging capability paired with the lightweight body delivers both field documentation and mobile productivity. For workflows centered on image recording, logistics sign-off, and mobile patrol, the A109TB compensates for its streamlined interface with superior imaging.
Streamlined Efficient Interface
OTG Flexible Expansion
Type-C OTG 4G Standard NFC 2D Optional
Interface design follows minimal-efficiency principles: Type-C supports OTG expansion for plug-and-play USB Ethernet, serial, and storage devices; 4G global bands included as standard for continuous connectivity in the field without WiFi; NFC near-field communication supports read/write; 12-pin POGO PIN dock enables charging and expansion. No dedicated RJ45 Ethernet, no HDMI, no USB-A—flexibly supplemented via Type-C OTG cables or docking stations. The combination of 10.95-inch display, streamlined interfaces, and massive battery delivers a clear positioning: targeting lightweight mobile office, data collection, and field documentation scenarios without complex wired connections. Optional 2D scanning module enables one-click warehouse logistics scanning. Single-unit orders accepted, configure on demand.
Technical Specifications
 CPU MT6789V Octa-core 2x ARM Cortex-A76 (@2.2GHz) + 6x ARM Cortex-A55 (@2.0GHz) |  System |  Storage 8+128GB |  Display 700 cd/m² (1000 cd/m² optional) |
 NFC Support |  Optional 1D/2D Barcode Scanner Support |  Battery 20000mAh, 3.8v high voltage lithium battery |  Wall hole pitch / screw 154x71.5mm/ M3*4.5mm |
 Navigation positioning GPS,Beidou,Galileo GLONASS |  2G/3G/4G Support |  Interface Type -C POGO PIN |  Weight 263.9*175.5*13.9mm/851g |
 Card slot SIM / TF （256G） |  Protection level working temperature: -10 °C to 50°C Storage temperature: -15 °C to 55 °C Protection level: IP68 |  Camera Front camera:8MP Rear camera:32MP |  Light-sensitive Support |
A109TB Ultra-Slim Rugged Tablet Details:
| Configure | FHD High Brightness 8+128G |
| TP touch screen | Anti-fingerprint (AF) coating,10-point touch G+FF, hardness ≥ 7H, support for medical rubber gloves touch screen (can be customised wet hand touch screen) |
| Speaker, receiver, microphone | *2, speaker 2W/8Ω aluminum film, waterproof speaker; *1, waterproof handset *1, MIC (waterproof) |
| Vibration motor | Support |
| Gravity sensor | Support |
| Compass | Support |
| Gyro | Support |
| Light-sensitive | Support |
| distance sensing | Support |
| Certificates | IP68 (IEC 60529), CE (notified body), RoHS, CCC; drop-tested to MIL-STD-810H (1.22 m); ISO 9001-certified factory; salt-spray tested |
| CE-NB | YES |
| MIL-STD-810H | YES |
| CCC | YES |

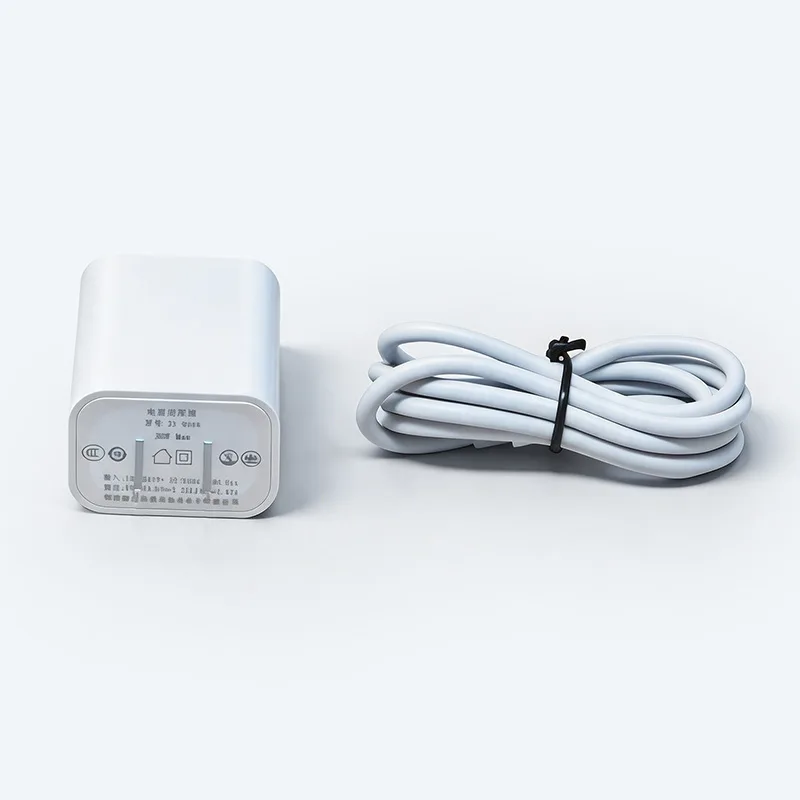

| Adapter | Type-C power adapter, supports PD3.0, up to 30W |

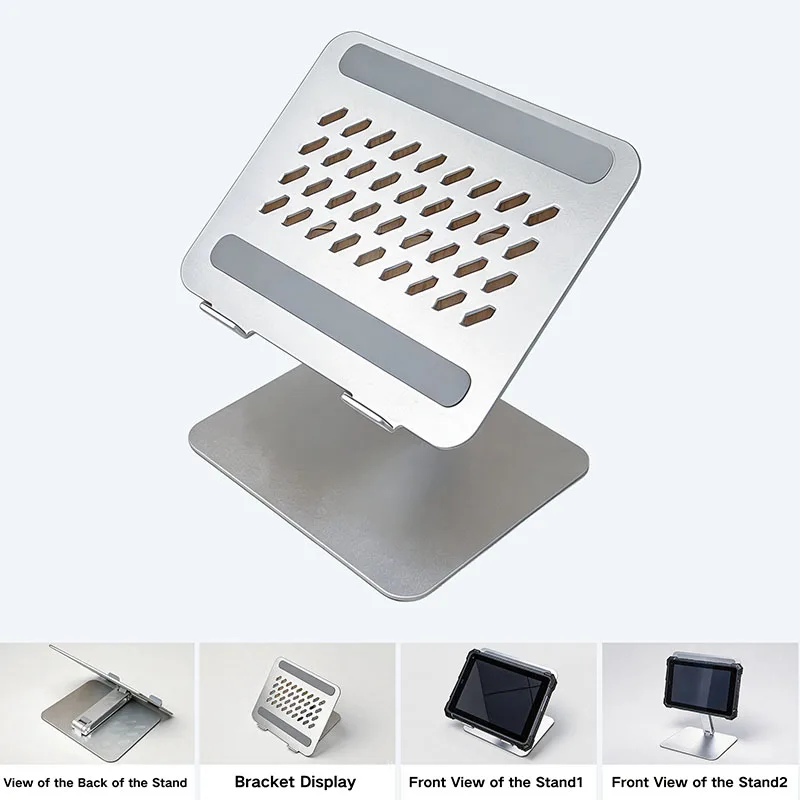

| Option accessories | Strap/stand |
Frequently Asked Questions About the A109TB Rugged Tablet
1. What operating system and processor does the A109TB rugged tablet use?
The A109TB runs Android 14 and is powered by the MT6789V octa-core processor, featuring two ARM Cortex-A76 cores.
2. Is the A109TB waterproof, dustproof and drop-resistant?
Yes. The A109TB is rated IP68 for protection against dust and water exposure. The product is also designed to meet MIL-STD-810H requirements for a 1.22-meter drop test. Exact test conditions and certification documents should be confirmed for each project configuration.
3. Can the A109TB screen be used outdoors?
Yes. The standard 10.95-inch display provides up to 700 nits of brightness, and a 1000-nit sunlight-readable display can be customized for outdoor field operations.
4. Can operators use the touchscreen while wearing gloves?
Yes. The A109TB supports 10-point capacitive touch and operation with medical rubber gloves. Wet-hand touch functionality can also be customized for applications in rain, warehouses, construction sites and other demanding environments.
5. Does the A109TB support 4G LTE, Wi-Fi, Bluetooth and GPS?
Yes. The tablet supports 4G LTE, dual-band 2.4GHz and 5GHz Wi-Fi, Bluetooth 5.0 BLE, GPS, BeiDou, Galileo and GLONASS.
6. Can the A109TB include a barcode scanner, NFC or RFID reader?
Yes. NFC (13.56 MHz) is standard, and a 1D/2D barcode scanner (Newland N1 or Honeywell N670) is the factory-fit option. The A109TB does not offer UHF RFID, fingerprint, or ID-card modules — if the project needs them, the A10ST or A109ST series is the better starting point. Ask us before ordering so the scanner engine matches your barcode symbologies.
7. What industrial interfaces are available?
The tablet includes USB Type-C, a SIM card slot, TF card expansion and a 12-pin POGO connector. RJ45 Ethernet, RS232, CAN Bus and additional industrial interfaces may be provided through an optional docking station or project-specific expansion solution.
8. What industries is the A109TB suitable for?
The A109TB is suitable for logistics, warehouse inventory, mobile patrol, field inspection, retail inventory, asset management, transportation, public safety and industrial data-collection applications. Its large display, high-capacity battery and optional data-capture modules make it suitable for long mobile work shifts.
9. Can CENAVA customize the A109TB for OEM and industrial projects?

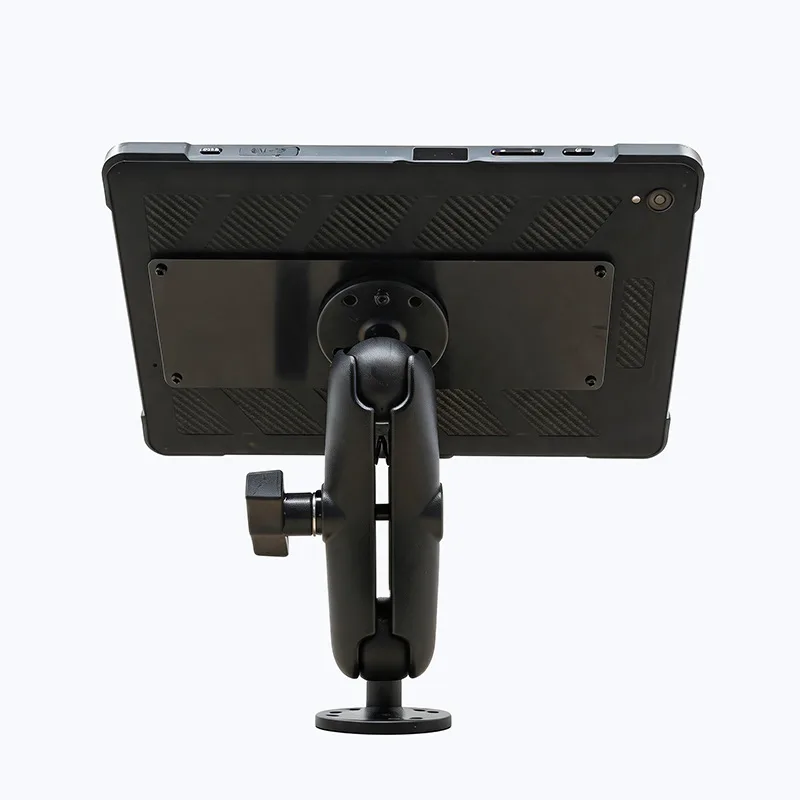

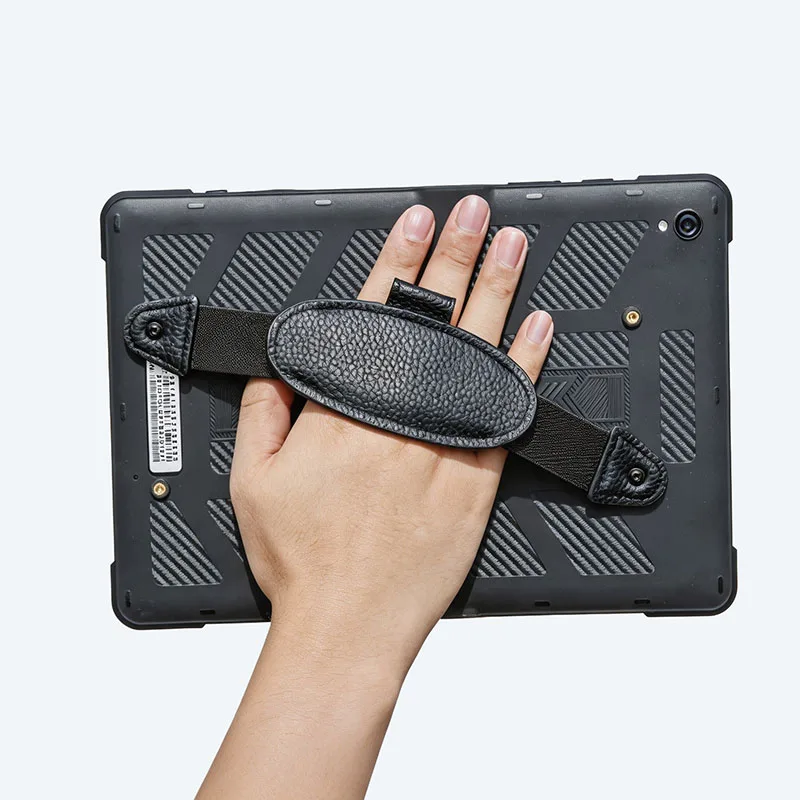

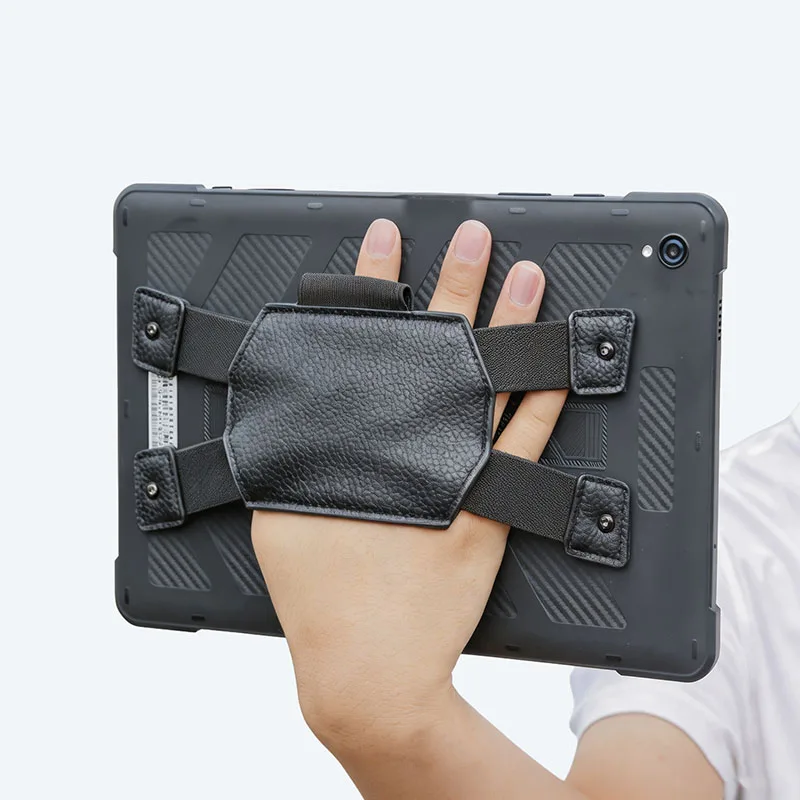

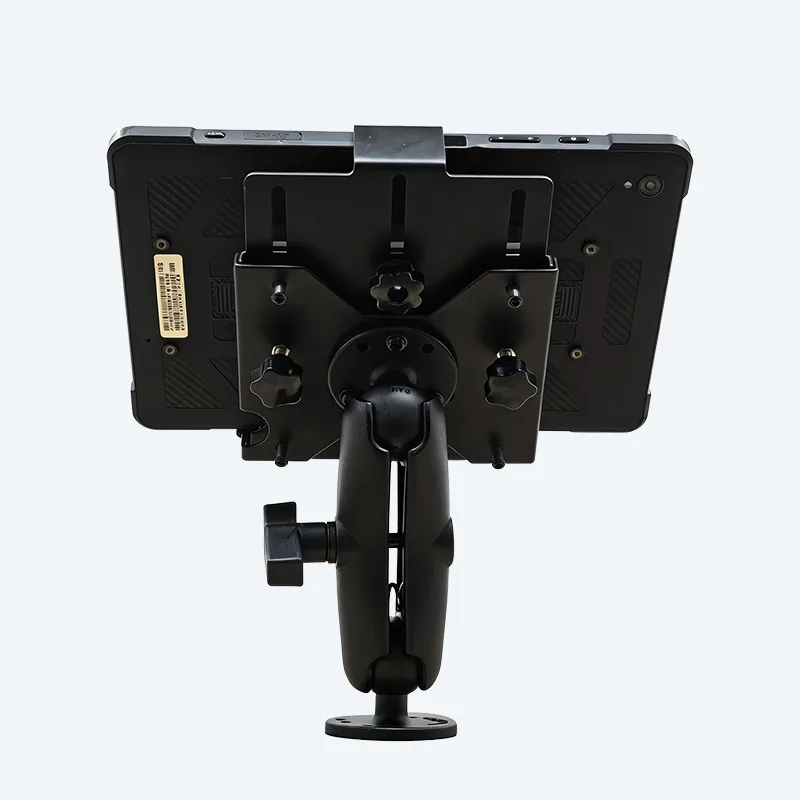

Yes. CENAVA can customize the display brightness, resolution, housing color, barcode scanner, NFC, RFID, fingerprint reader, communication modules and mounting accessories. Available accessories include vehicle mounts, wall mounts, hand straps, shoulder straps, back brackets and waterproof carrying cases.

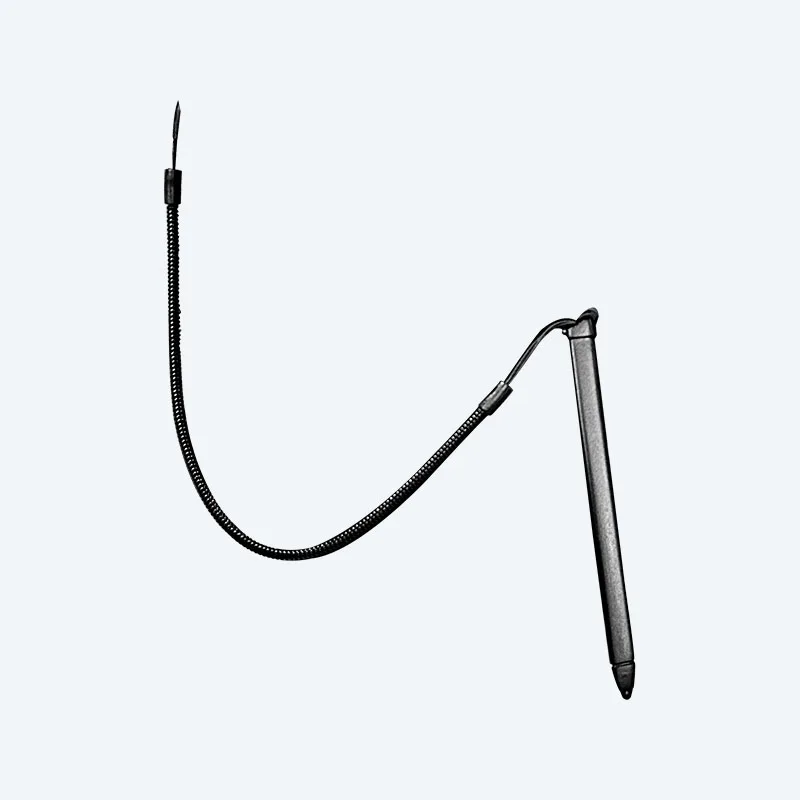

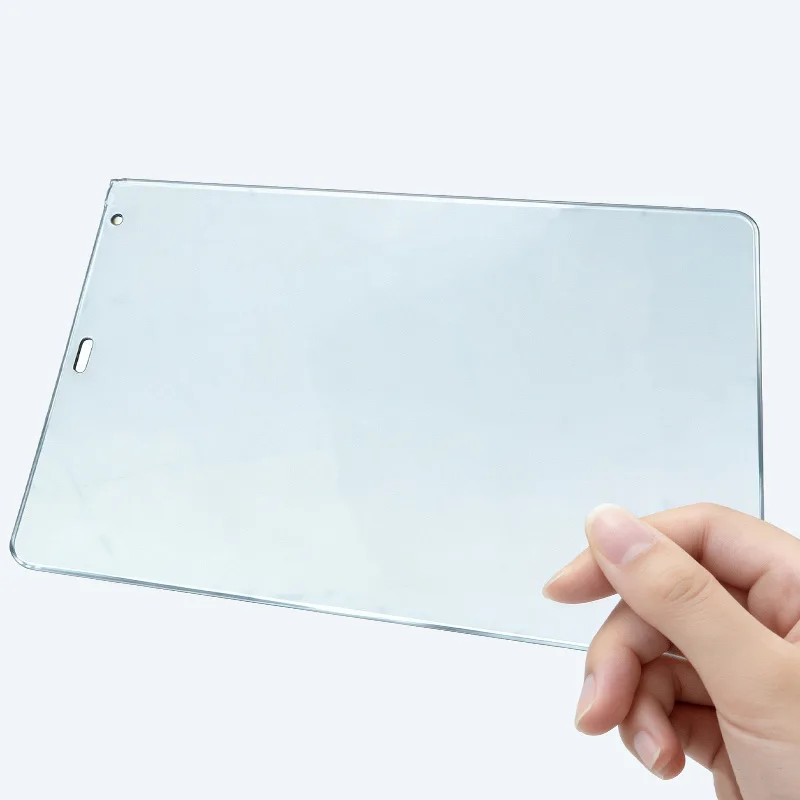

Accessories
