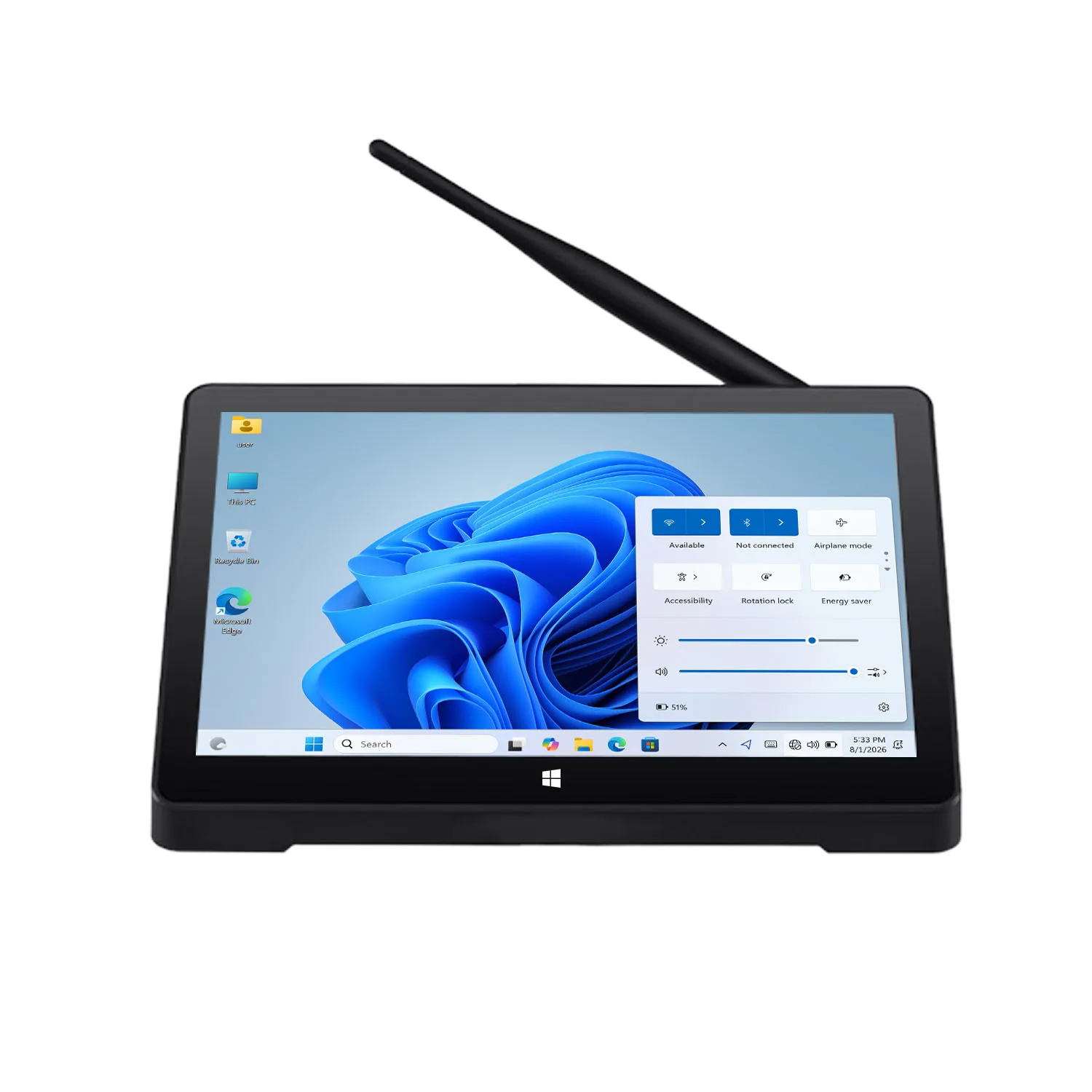

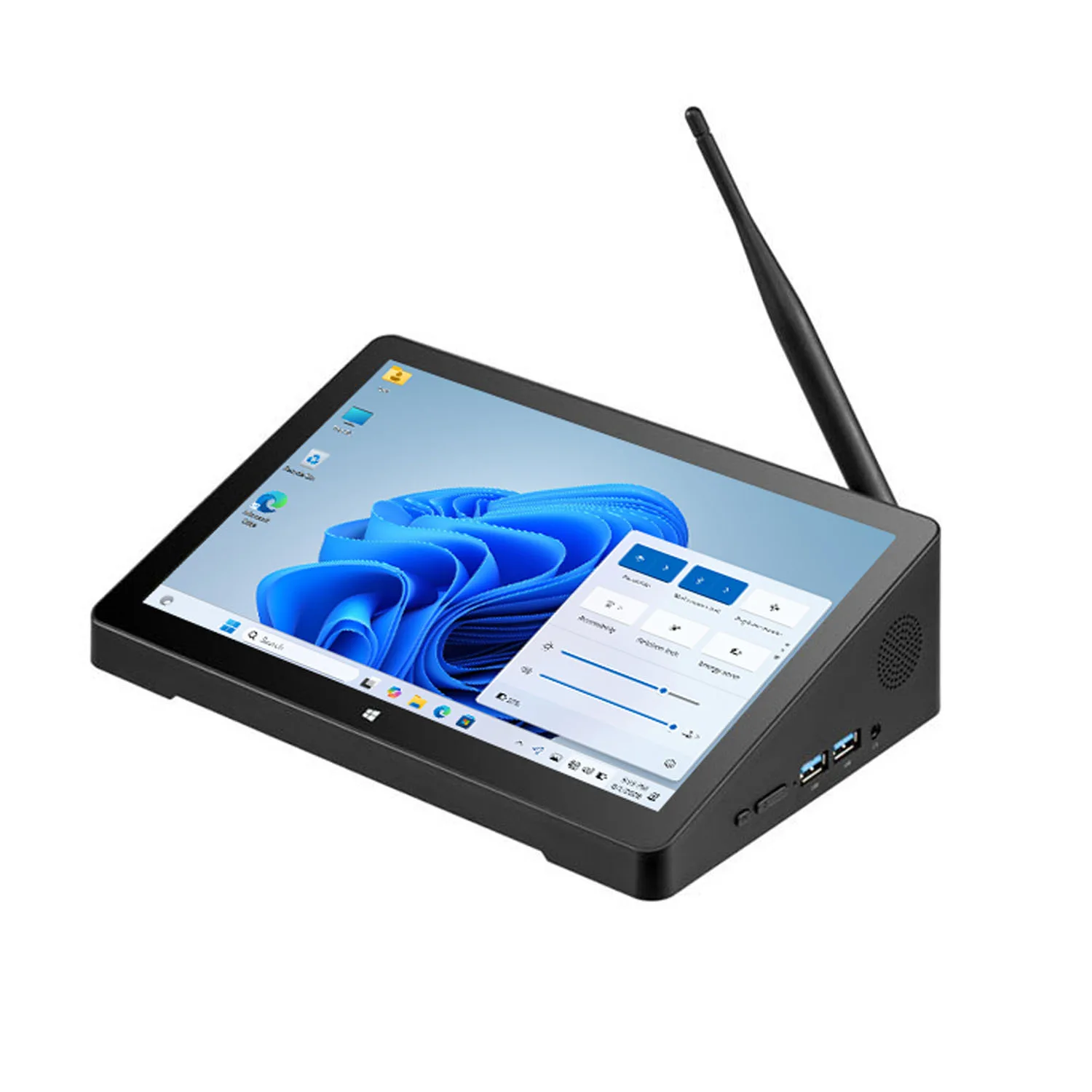

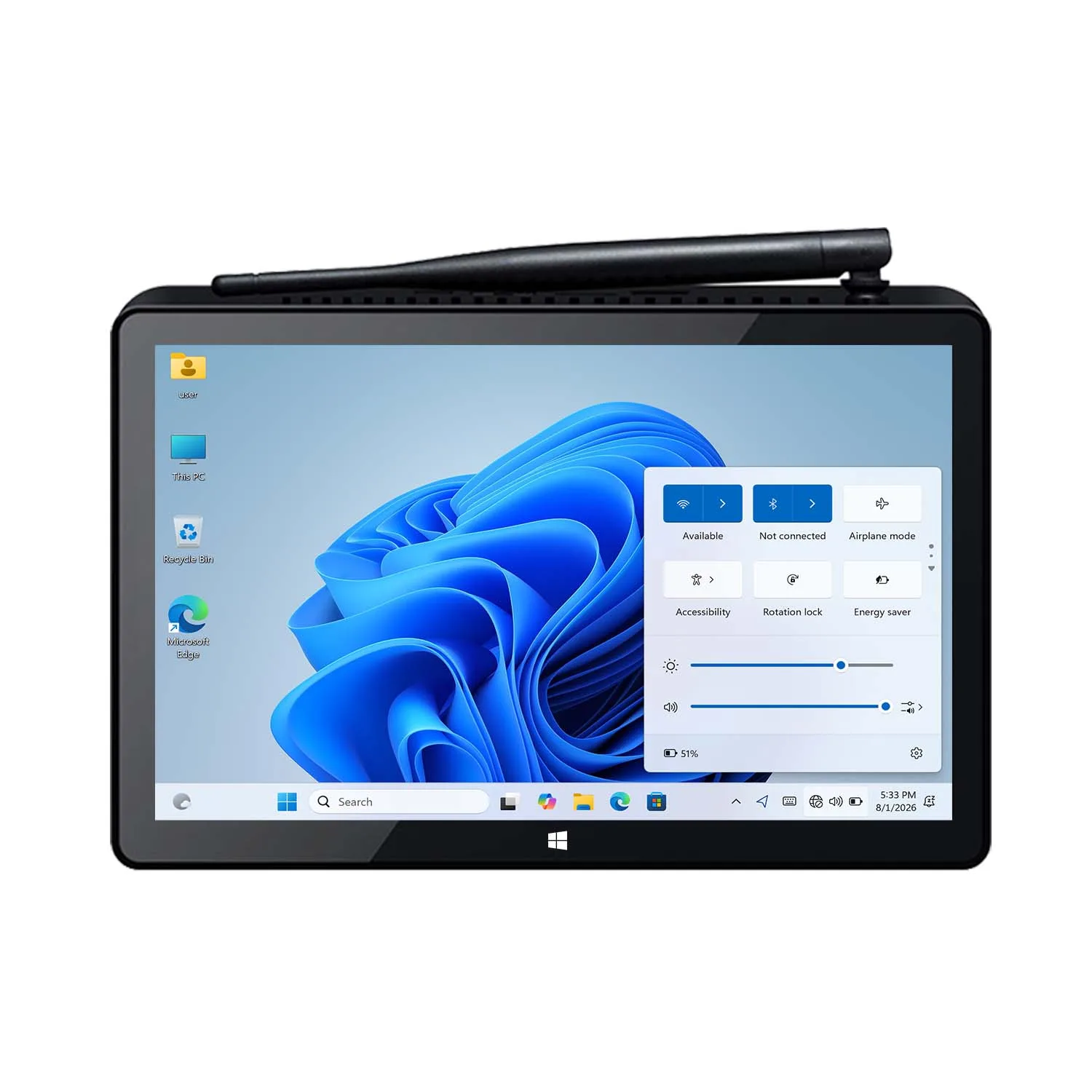

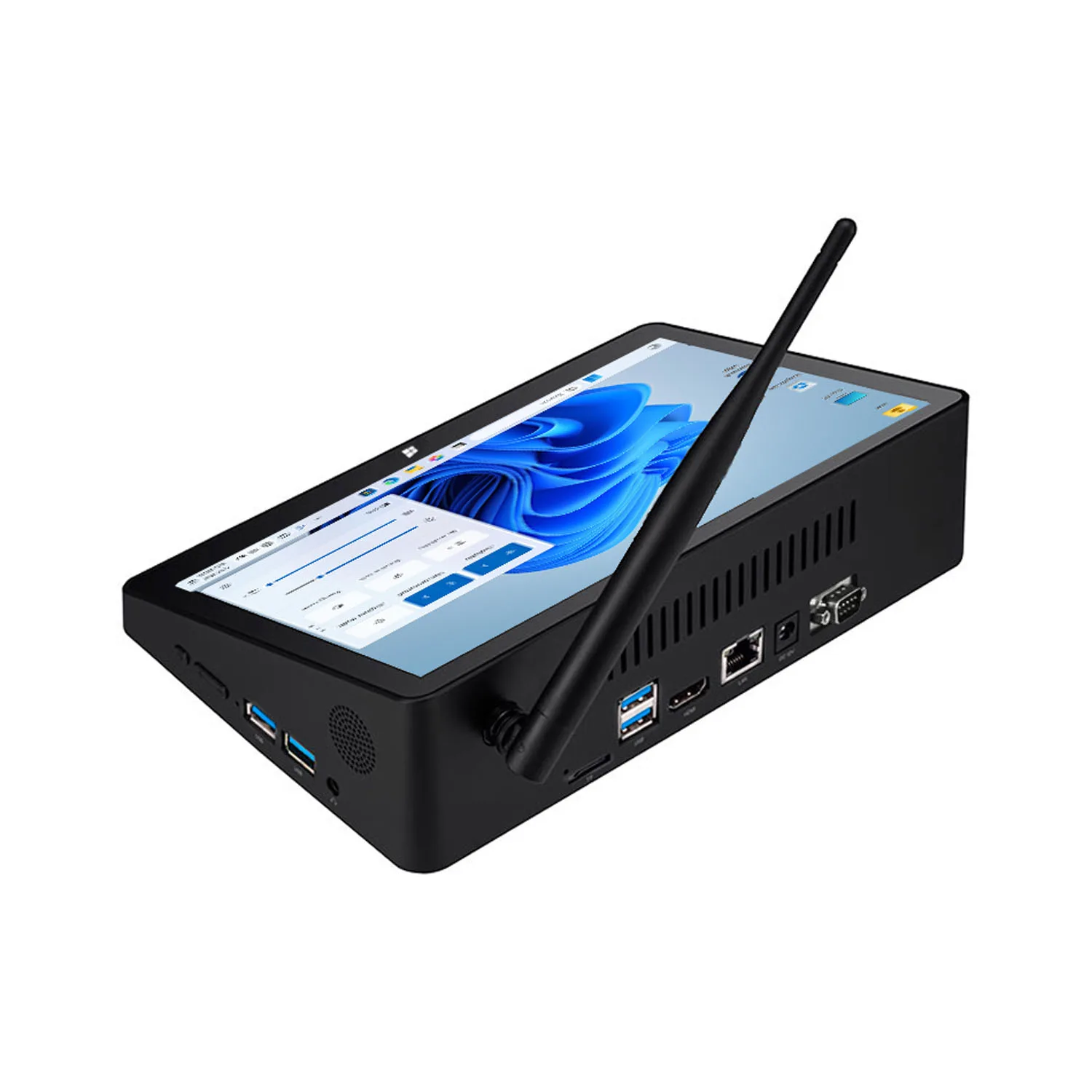

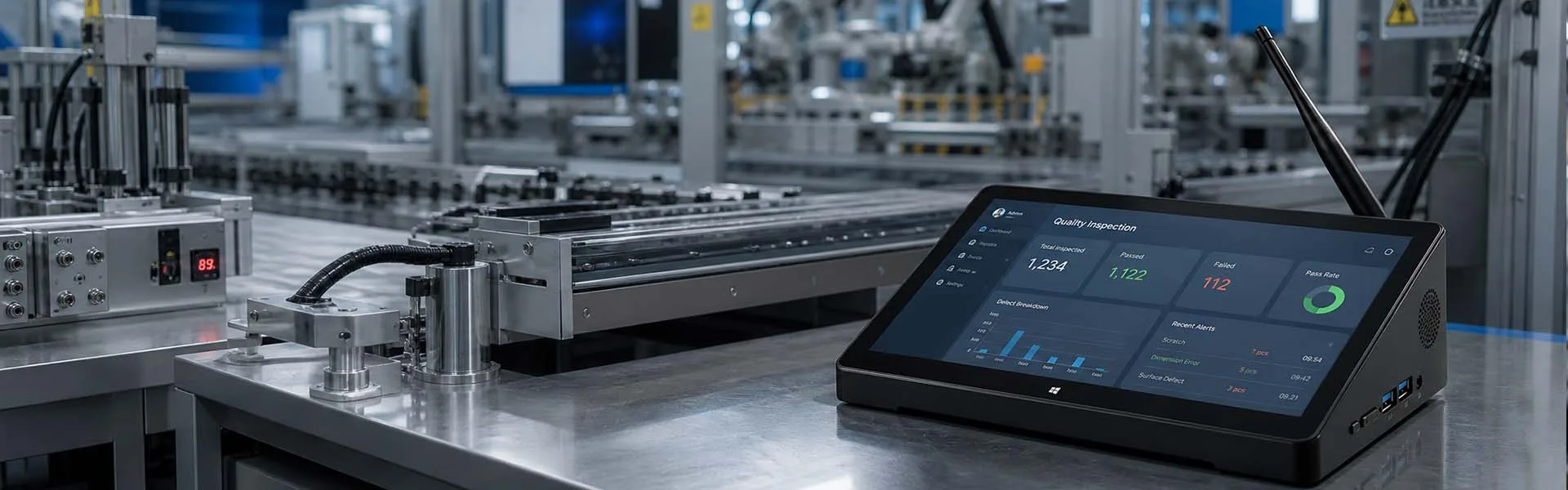

CENAVA H10PRO N100 10.1 Inch Win11 Industrial PC | WiFi6 Touch Panel
10.1-inch industrial panel PC with Intel Alder Lake N100 quad-core. 1920×1200 IPS 10-point touch display. 8GB/16GB DDR4 RAM and 128GB/256GB/512GB/1TB M.2 2280 SSD, all hot-swappable. Built-in fan cooling, reliable 24/7 operation. Gigabit RJ45 with optional POE. 4×USB3.0, HDMI Type-A, DB9 RS232. WiFi6 + BT5.2. Optional 4G module. VESA mount.
CPU: Intel Alder Lake N100 (4C/4T, 0.8GHz~3.4GHz)
OS: Windows 11 (Windows 10 optional)
Display: 10.1" 1920×1200 IPS, 10-point capacitive touch
RAM+Storage: 8GB/16GB DDR4 (replaceable) + 128GB/256GB/512GB/1TB M.2 2280 SSD (replaceable)
Network: Gigabit RJ45 + WiFi6 + BT5.2 + optional 4G LTE

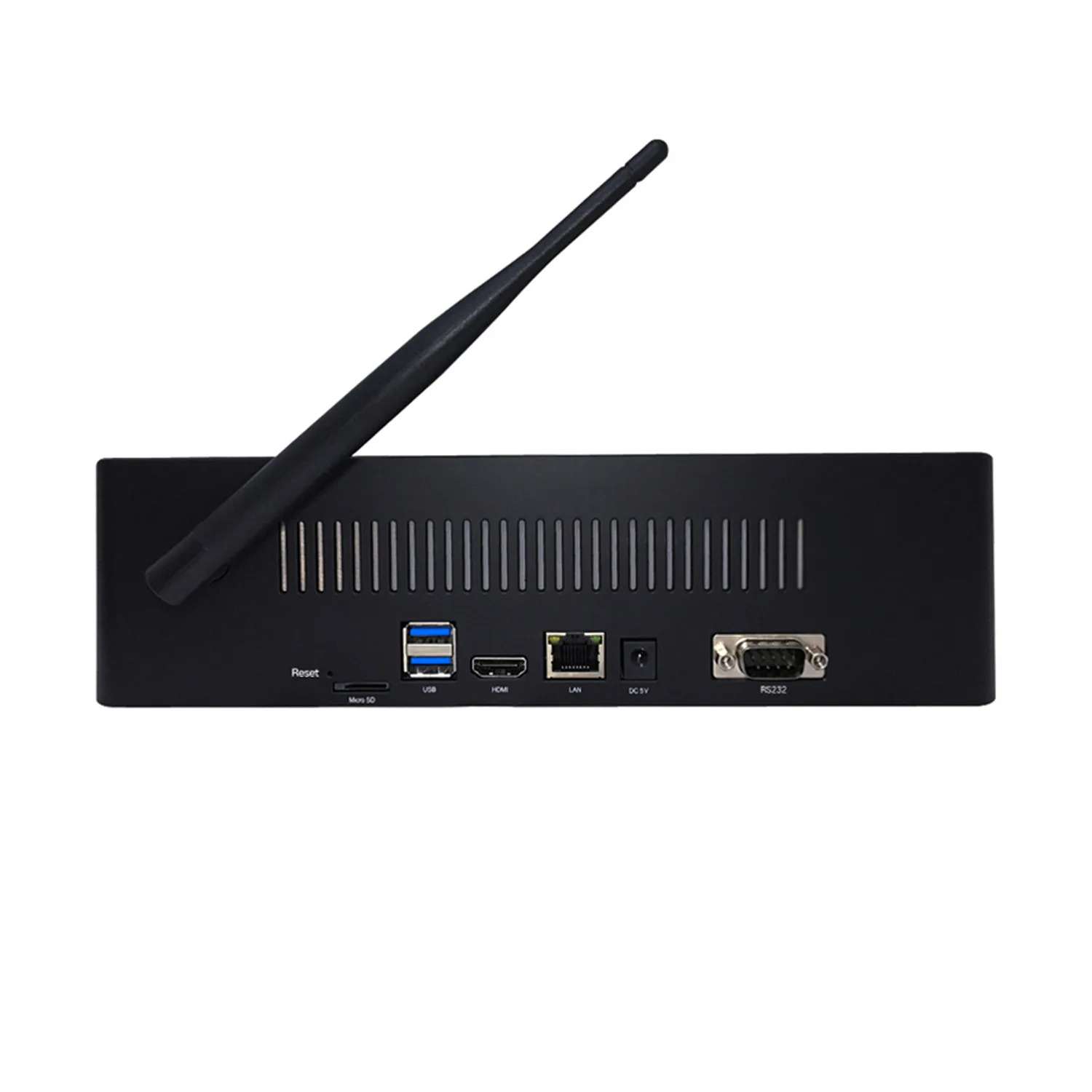

I/O Ports: USB3.0×4, HDMI Type-A×1, DB9 RS232×1, 3.5mm audio
Power: 12V 2.4A DC, optional POE+
Design: Built-in fan active cooling, metal + plastic chassis, thicker durable build
Mounting: VESA wall mount support
10.1-inch industrial panel PC with Intel Alder Lake N100 quad-core. 1920×1200 IPS 10-point touch display. 8GB/16GB DDR4 RAM and 128GB/256GB/512GB/1TB M.2 2280 SSD, all hot-swappable. Built-in fan cooling, reliable 24/7 operation. Gigabit RJ45 with optional POE. 4×USB3.0, HDMI Type-A, DB9 RS232. WiFi6 + BT5.2. Optional 4G module. VESA mount.
Technical Specifications
 CPU Intel Processor N100, 4 Cores / 4 Threads |  System Windows 11 |  Storage 8GB DDR4 RAM + 128GB M.2 SSD |  Display 10.1 inch 10-Point Projected Capacitive Touchscreen 1920*1200 IPS Reinforced Capacitive Touchscreen |
 Speaker Dual speaker Noise reduction microphone |  Media playback Support for music, videos, and images |  Battery 7.4V5000mAh |  Key Power button Volume up/down button |
 Card slot TF 128GB |  Interface Gigabit Ethernet,Headphone jack USB3.0*4,HDMI,DB9 RS232 Serial Port |  Weight 1045g |  Status indicator Charging indicator light |
H10PRO 10.1 Inch Industrial Touch Panel PCs Details:
| Operating System | Windows 11 |
| Audio output interface | Dual speaker 4 Ω 3 w |
| Microphone recording | Built-in mic, sensitivity -38db |
| gravity sensor | Three axis rotation |
| USB | 4 × USB Type-A 3.2 Gen 1 Ports |
| RJ45 | *1 Optional IEEE 802.3af/at PoE input |
| TF&SIM 2in1 card slot | *1 |
| Audio output and microphone input | *1 |
| HDMI output interface | *1 HDMI TYPE-A |
| RS232 | *1 DDB9 RS232 Serial Port, pin definition available upon request. |
| WIFI+BT 2in1 module | Intel Wi-Fi 6 AX101, dual-band 2.4GHz/5GHz, 1×1, up to 600Mbps, with Bluetooth 5.2. |

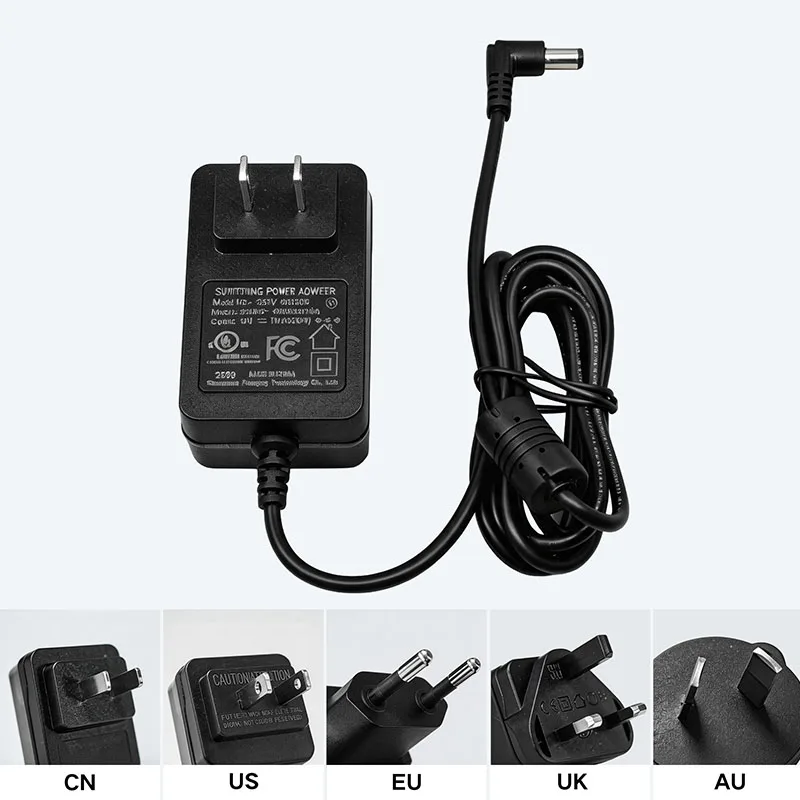

| charger | 12V/2.4A, 28.8W |
| Material | Metal and Reinforced Polymer Enclosure |
| Product Size | 249*162*68mm |
Frequently Asked Questions About the H10PRO Industrial Panel PC
1. Is the H10PRO a Box PC or an industrial panel PC?
The H10PRO is more accurately classified as a 10.1-inch industrial panel PC because it combines a touchscreen, processor, memory, storage, audio, battery and industrial interfaces in one enclosure. A conventional Box PC normally does not include an integrated display.
2. Which processor does H10PRO use?
The current H10PRO uses the Intel Processor N100 with four cores, four threads, a maximum frequency of up to 3.40GHz and Intel UHD Graphics.
3. Does the H10PRO support Windows 11?
Yes. The Intel Processor N100 belongs to a processor series supported for Windows 11.
4. Can the H10PRO be configured with 16GB of RAM?
Yes,16GB memory.
5. What type of storage is installed?
128GB storage M.2 2280 SSD.
6. Which interfaces are included?
The current configuration lists four USB 3.0 ports, one Gigabit Ethernet port, one HDMI Type-A output, one DB9 RS232 port and an audio interface.
