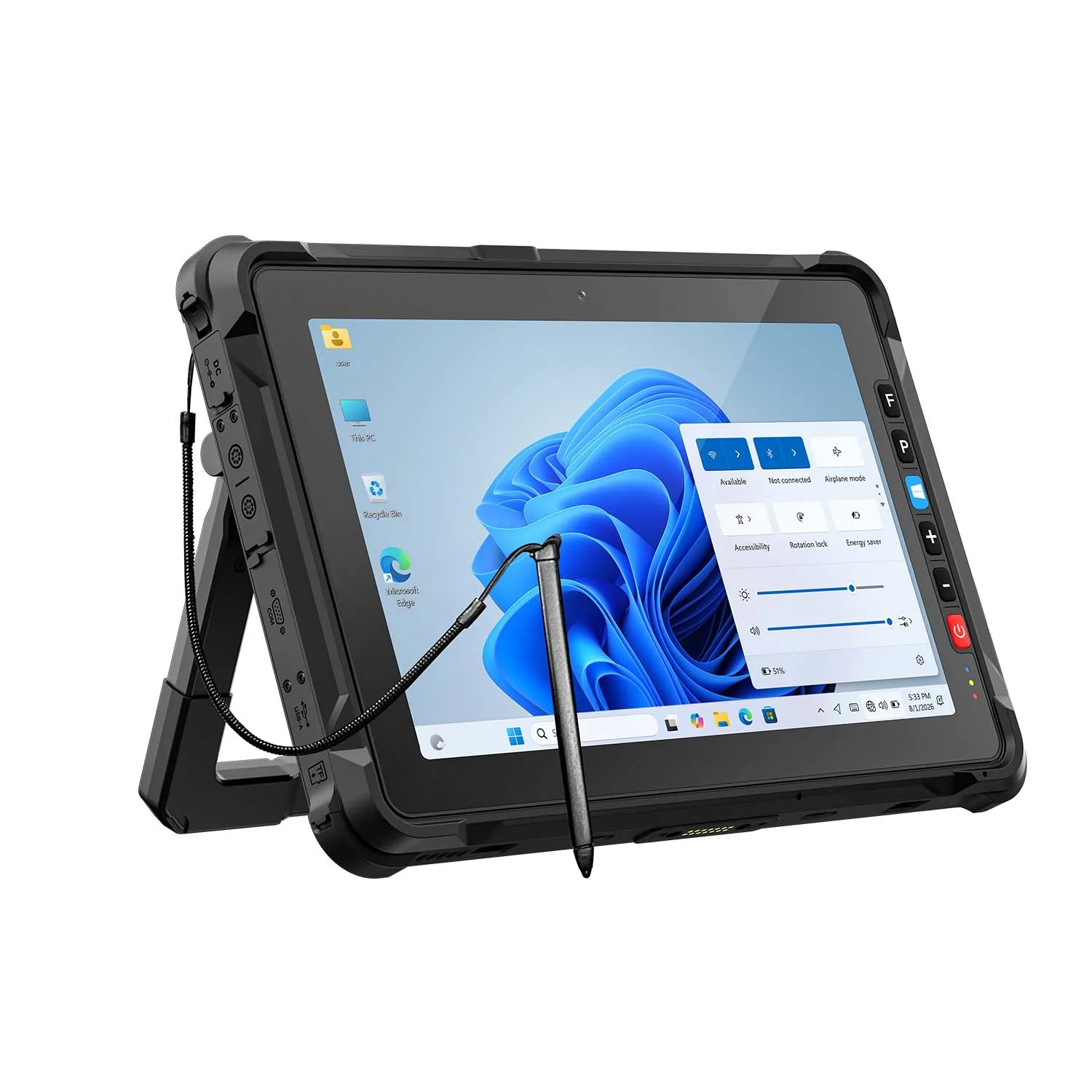

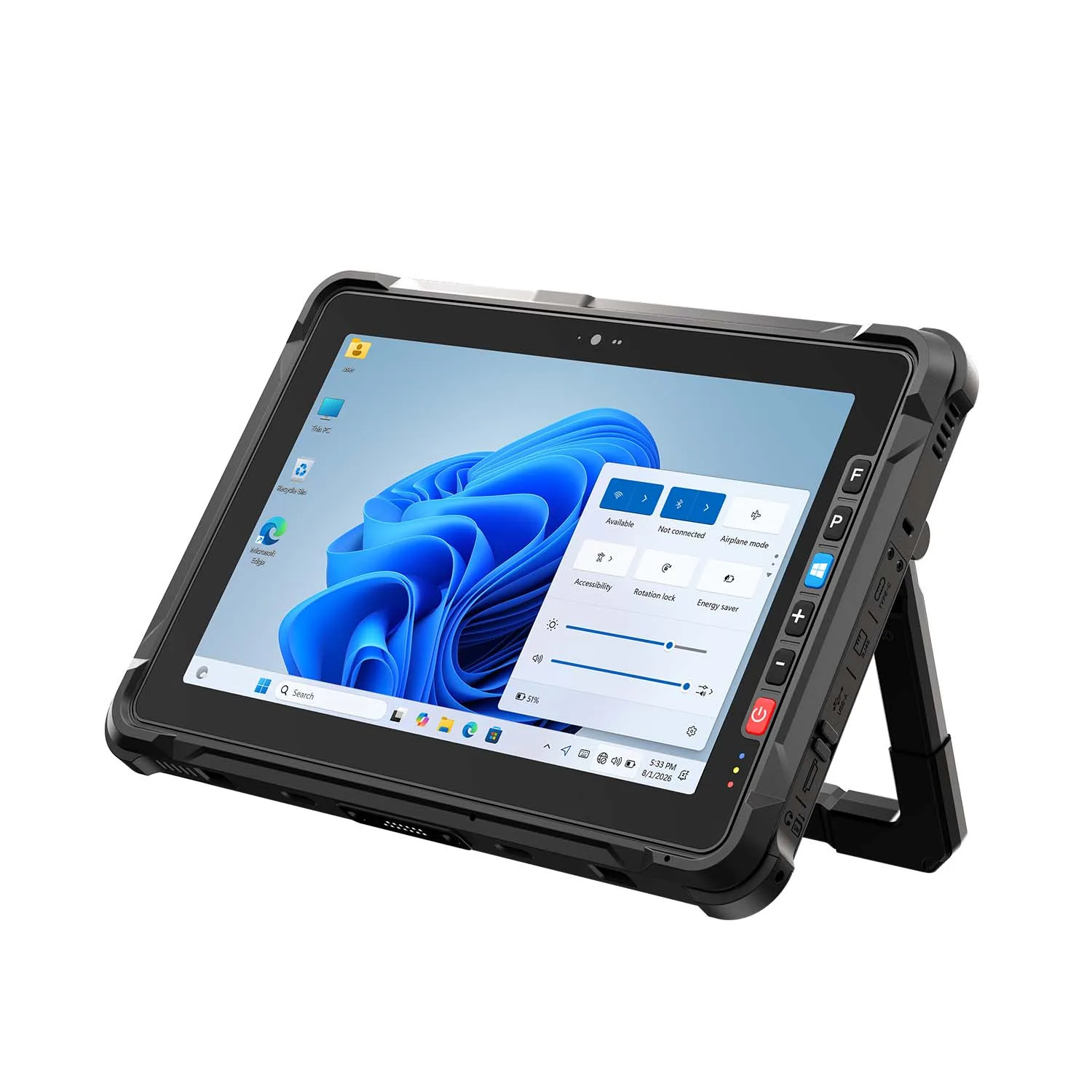

CENAVA W109U i5-1235U 10.95 Inch Win11 IP67 Rugged Tablet
CENAVA W109U i5-1235U is a 10.95-inch Windows rugged tablet balancing performance and mobility. The 10-core i5-1235U runs Windows 11 with DDR5 memory, while dual batteries — a hot-swappable 8300mAh main plus 300mAh backup — enable zero-downtime shifts. Gigabit RJ45, RS232, HDMI and aviation plugs connect field systems. IP67, MIL-STD-810H, TPM; optional 4G/5G, 2D, NFC, UHF.
CPU: Intel Core i5-1235U, 10 cores 12 threads, 1.3–4.4GHz, Iris Xe Graphics
OS: Windows 11 (optional Windows 10, Ubuntu 22.04)
RAM/ROM: 16GB DDR5 + 256GB M.2 SSD (2242) removable, up to 48GB / 2TB
Display: 10.95" FHD Highlight 1920×1200 550cd/㎡, Custom 700cd/m² 10-point G+FF wet-hand & glove touch
Battery: 8300mAh removable main (hot-swap, ≥8h) + 300mAh backup (≥15min), 11.4V
Integrated I/O: Gigabit RJ45, DB9 RS232 (optional 422/485), HDMI, Type-C USB3.0 (data), USB-A 3.0 + USB-A 2.0, 3.5mm, TF (256GB), Nano-SIM, 14Pin POGO, reserved aviation plugs (power + USB2.0)
Network: WiFi 6E (customizable WiFi 7), Bluetooth 5.3; optional 4G/5G; GPS/Galileo/GLONASS
Protection: IP67, MIL-STD-810H 1.22m drop, -20°C~60°C (customizable -30°C~60°C), TPM, login fingerprint standard
Camera: Front 8MP fixed-focus, rear 12MP autofocus with flash (customizable 16MP)
Optional Modules: 2D scanner (N4680/N1), NFC 13.56MHz, ID card reader, UHF RFID (3m/5m/15m), fingerprint capture (3 options)
Core i5 Ten-Core
Windows 11 Power
i5-1235U Ten-Core DDR5 16+256GB
Powered by the Intel Core i5-1235U 10-core 12-thread processor (1.3-4.4GHz turbo) with Windows 11, delivering high-performance x86 computing; Windows 10 and Ubuntu 22.04.5 optional. AutoCAD and industrial configuration software run smoothly on the 10.95-inch display. Standard 16GB+256GB, DDR5 memory with removable M.2 2242 SSD, expandable up to 48GB RAM and 2TB storage. Built-in TPM security chip, WiFi 6E and Bluetooth 5.3 ensure high-speed connectivity, with WiFi 7 customizable. Desktop-grade performance in a rugged portable chassis solves complex tasks on-site.

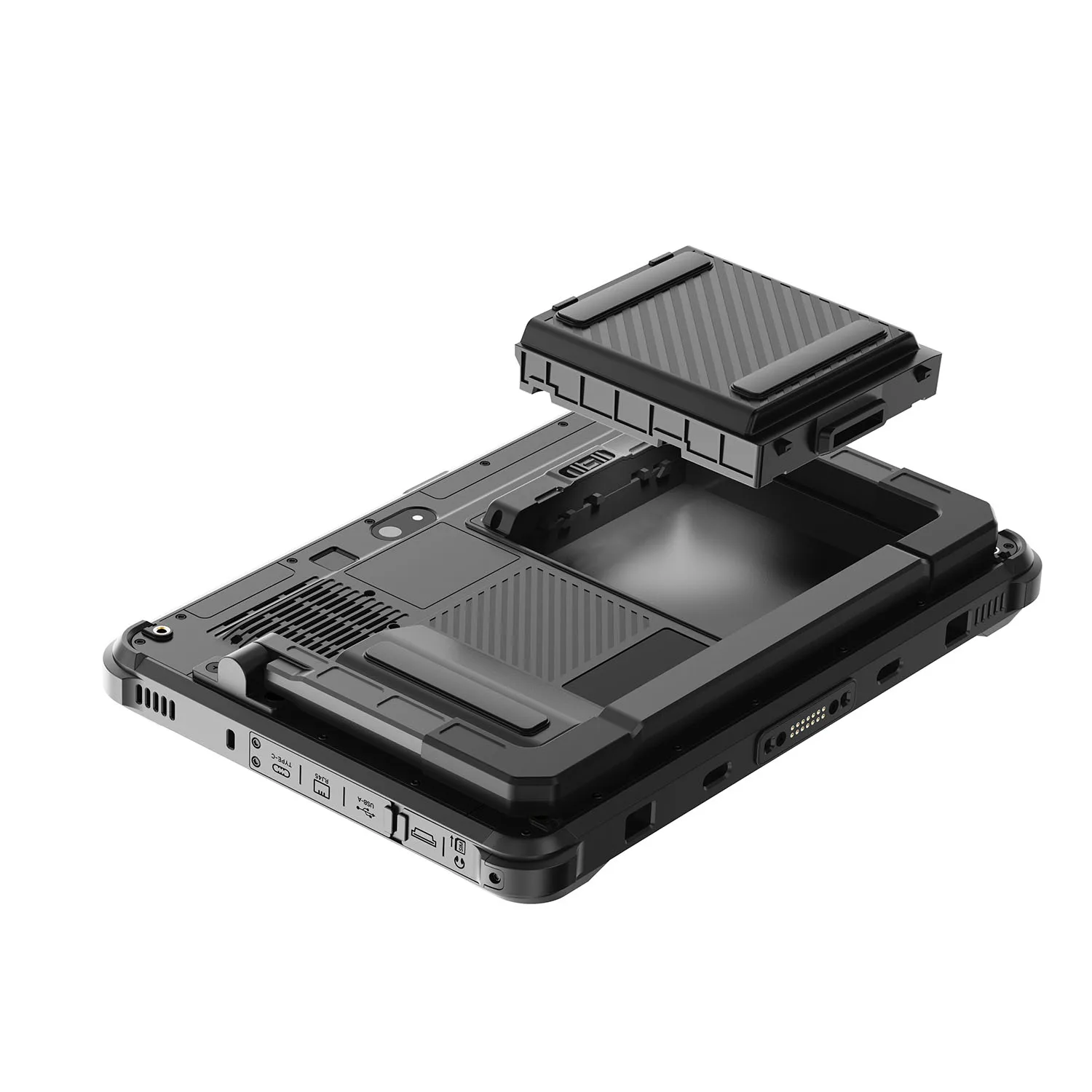

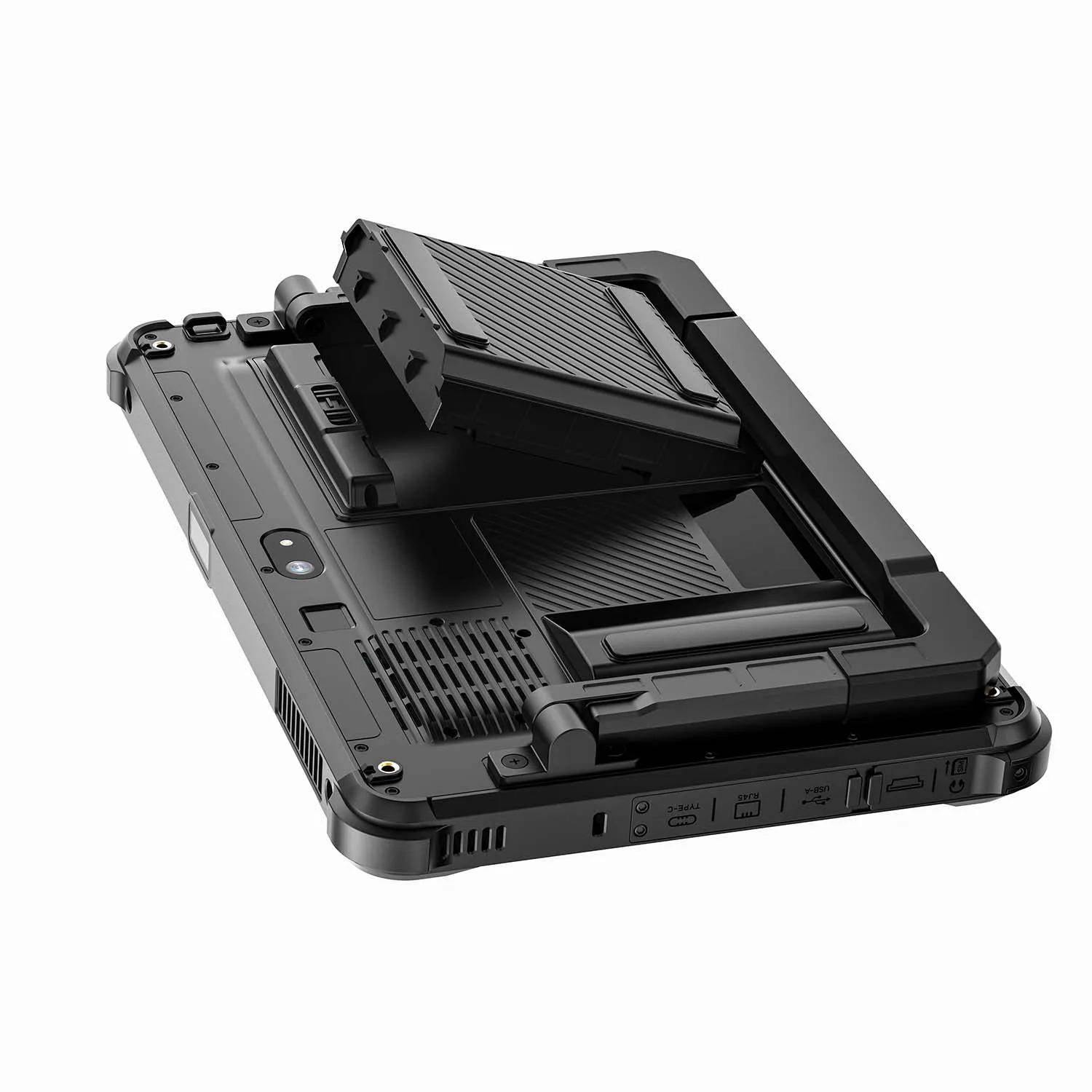

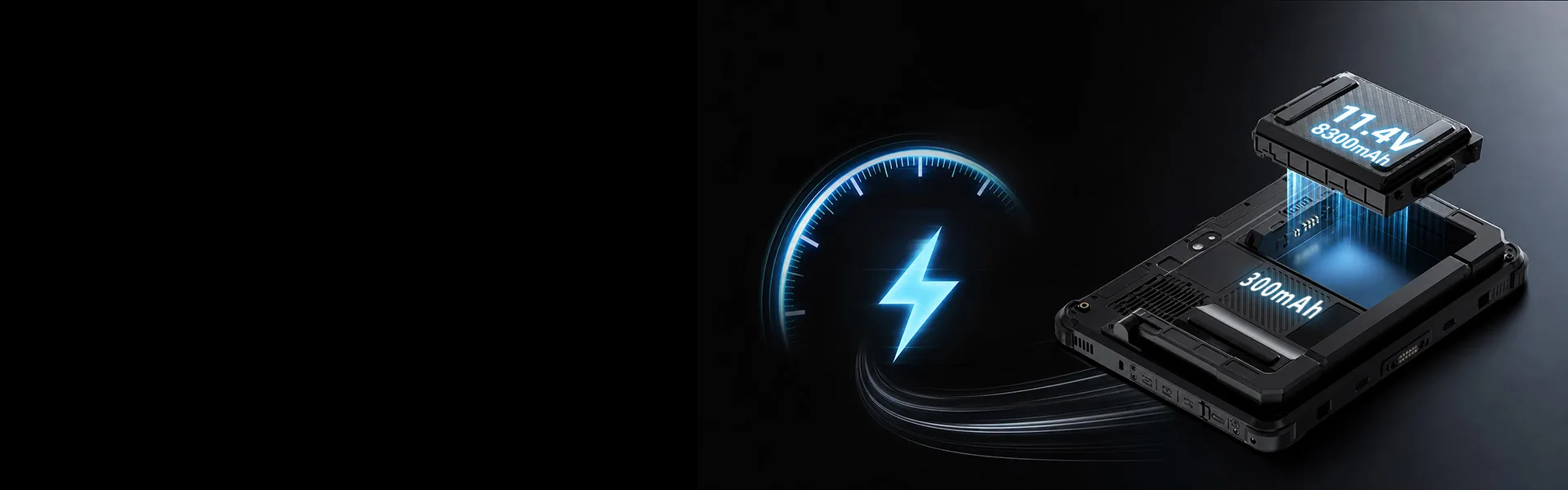

Dual-Battery Hot-Swap
Swap Without Shutdown
8300+300mAh 11.4V Dual Battery ≥8h Endurance
The W109U features a dual-battery hot-swap design: the main 8300mAh and secondary 300mAh 11.4V batteries work together for ≥8 hours of runtime. During swaps, the secondary battery keeps the system powered, so the main battery can be removed without shutdown, restart or task interruption. Field personnel carry spare batteries and complete main battery swaps in seconds while the system keeps running and data stays intact. The dual-battery architecture is validated for industrial conditions including high vibration and -20°C to 60°C temperatures. An optional charging dock enables centralized charging for all-day power.
Gigabit Ethernet Serial
Industrial Full Interface
RJ45+USB3.0+HDMI+RS232 Full Configuration
The W109U features gigabit RJ45 Ethernet, USB3.0, HDMI and RS232, interfacing with 90% of industrial control equipment and network environments without docking stations. Gigabit Ethernet connects directly to PLCs, switches and servers. USB3.0 transfers data with external storage and debugging devices. HDMI outputs large-screen monitoring for instant presentation. RS232 links legacy instruments and sensors, with optional 232/422/485 protocols. The combination of a 10.95-inch display, full interfaces and Windows 11 makes the W109U a mobile industrial control terminal and field debugging workstation, connecting the entire site with one device.
Triple-Proof
Harsh Conditions No Fear
IP67 1.22m Drop -20°C~60°C

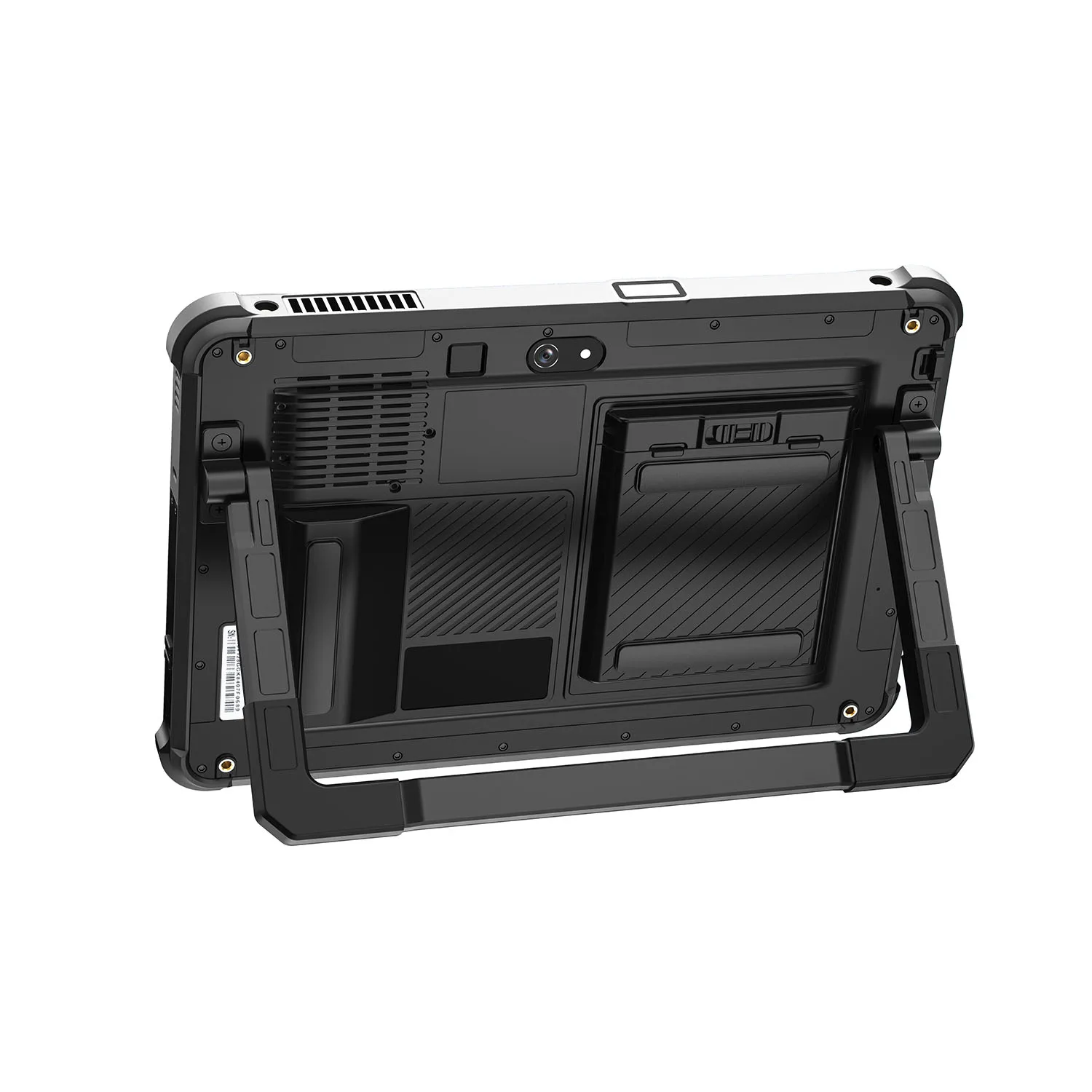

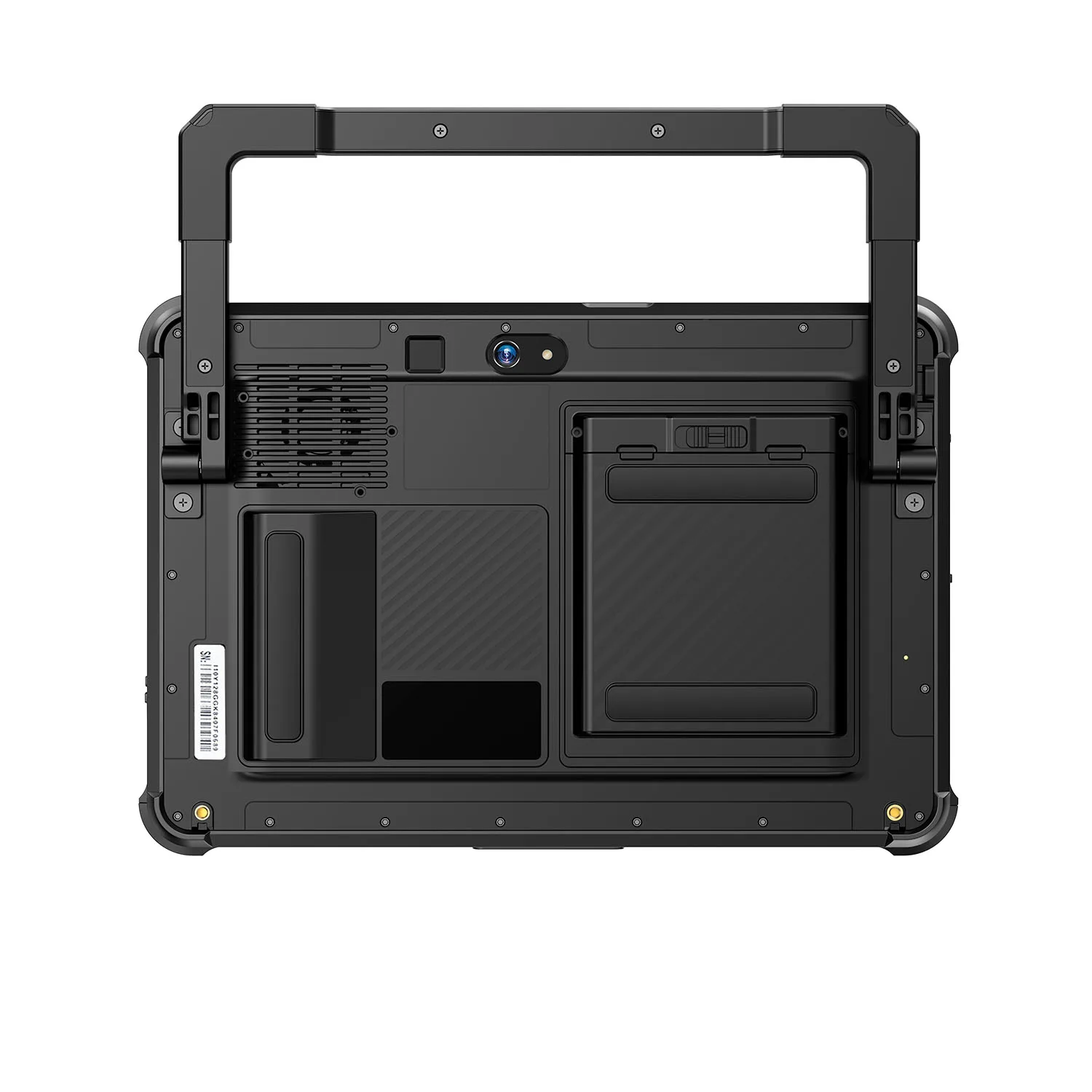

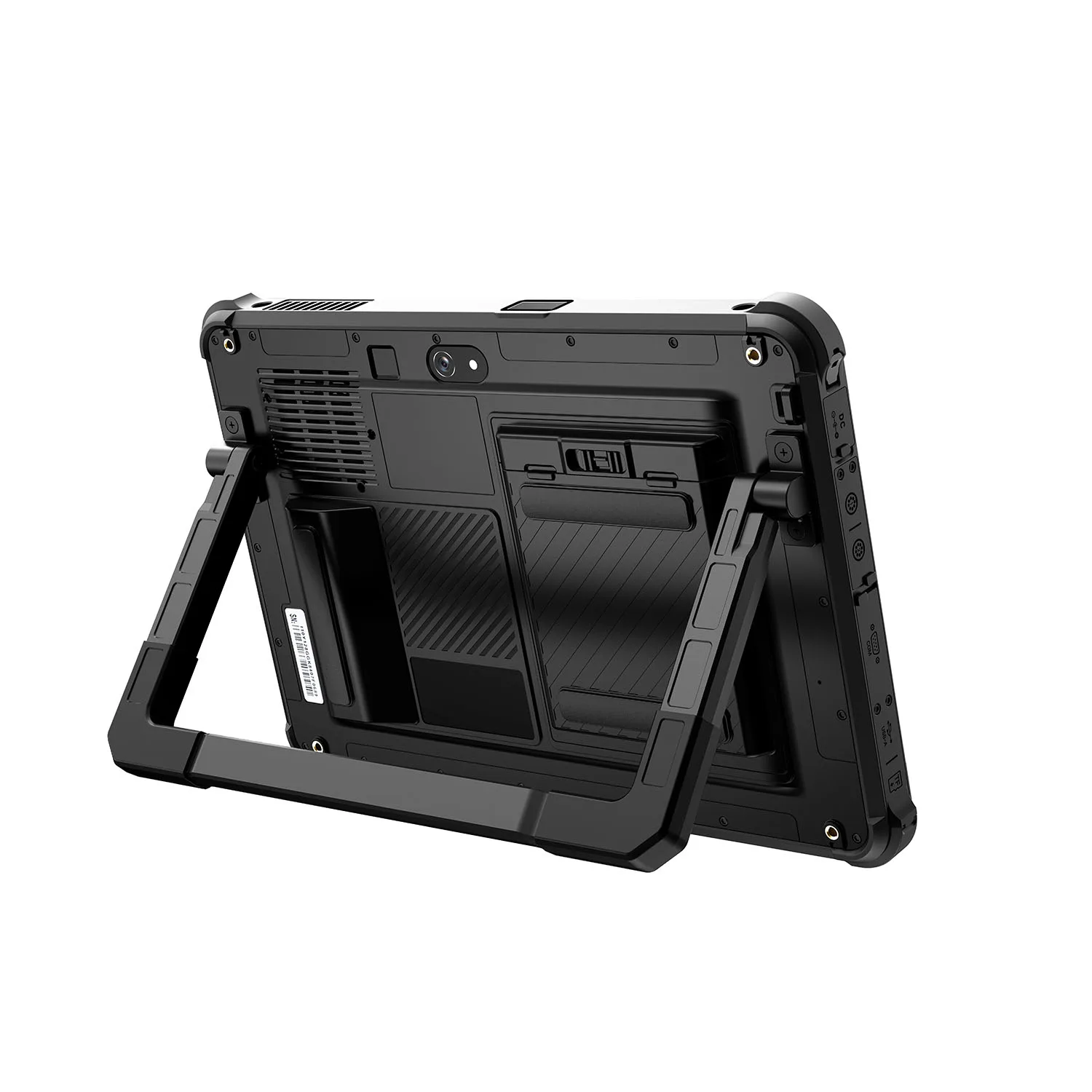

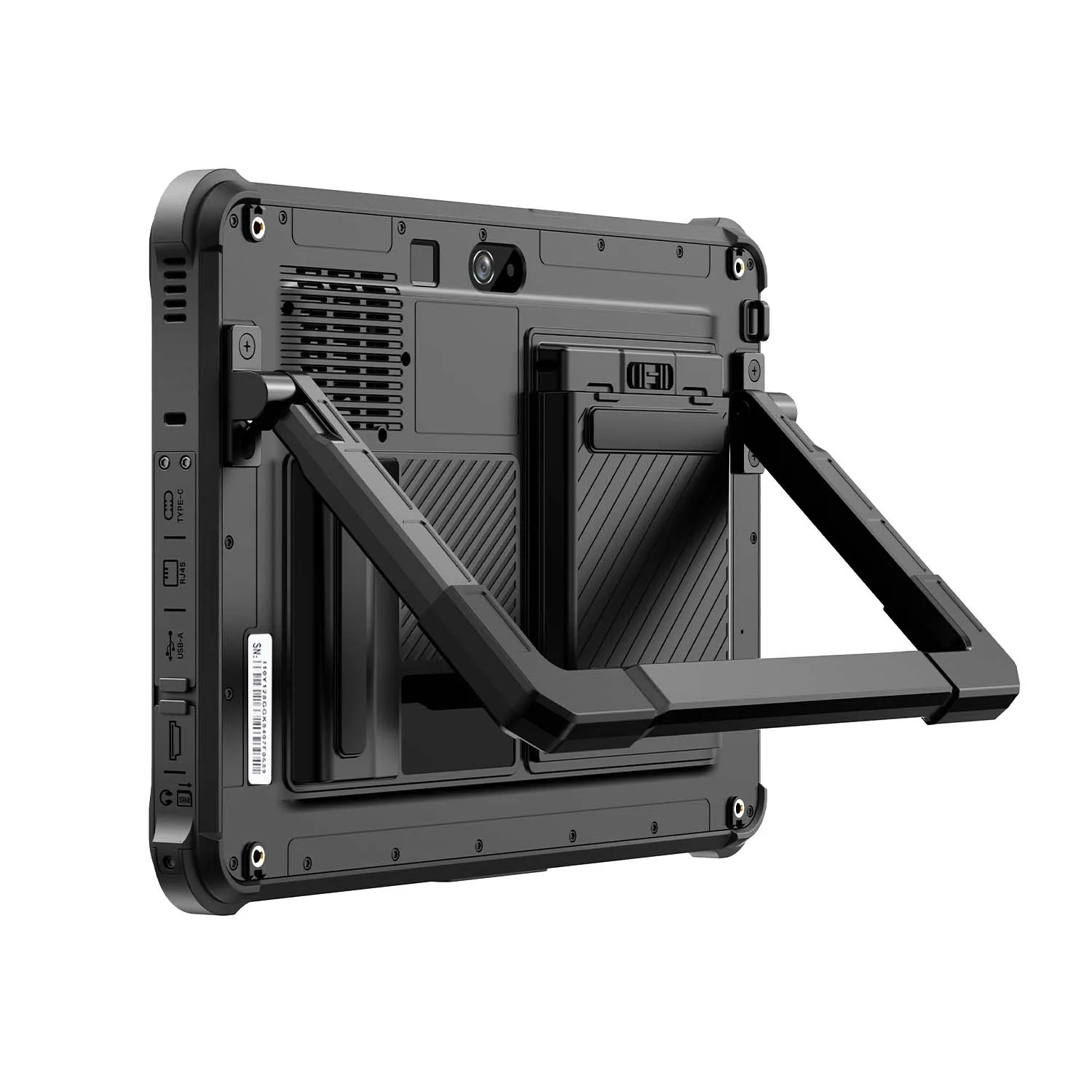

IP67 dust-tight and waterproof, MIL-STD-810H certified for 1.22m drops. The -20°C to +60°C wide temperature range ensures reliable startup in freezing winters and scorching summers, with -30°C low-temperature customization for extreme cold. The 10.95-inch chassis weighs 1611g bare and 1785g with handle, ergonomically designed for fatigue-free handheld sessions. DDR5 memory and removable SSD are industrially reinforced against data loss on impact. Certified to 3C, CE and energy-saving standards, the rugged chassis protects desktop-class computing power.
Technical Specifications
 CPU Intel Core Alder Lake i5-1235U 10 cores, 12 threads, 1.3GHz-4.4GHz |  System |  Storage 16GB DDR5 + 256GB M.2 SSD |  Display 10.95 inch IPS touch screen 1920*1200 550cd/㎡ |
 NFC Optional Default back of the body for card reading, customizable to the front |  One/Two dimensional code Optional Able to identify dirty 1/2 dimensional codes |  Battery 11.4V 8300mAh high-voltage lithium battery, removable |  High frequency/ultra-high frequency module Optional Ultra thin integrated module |
 Navigation positioning GPS Galileo GLONASS |  ID card identification Optional |  Interface Type -A,Type -C HDMI,POGO PIN Network port,serial port |  Weight 307.5*211.1*27.7mm1611g |
 Card slot SIM / TF （256G） |  Protection level working temperature: -20 °C to 60°C Storage temperature: -30 °C to 70 °C Protection level: IP67 |  Camera Front Camera: 8.0MP Fixed Focus Camera 12.0MP Autofocus Camera with Flash, customisable to 16.0MP |  Sensor Gravity sensing, compass, gyroscope, light sensing, distance sensing |
The W109U is the hot-swap model in our 11-inch class: an i5-1235U (10 cores, 12 threads) behind an IP67-sealed 10.95-inch screen, with an 8300mAh main battery you can swap mid-shift without shutting Windows down. It suits buyers who need 12th-Gen Core performance but can't accept the fixed battery of the sealed 10.1-inch models.
W109U Rugged Tablet Details:
| Color | Black; custom colors available on project orders |
| TP touch screen | Anti-fingerprint (AF) coating,10-point touch G+FF, hardness ≥7H, Supports touch with wet hands and touch whilst wearing medical rubber gloves |
| Main battery | 11.4V 8300mAh high-voltage lithium battery, removable, supports hot-swapping,battery life ≥8h (1080P+50% brightness) |
| Sub battery | 11.4V 300mAh high-voltage lithium battery, non-removable, battery life ≥15MIN (1080P+50% brightness) |
| Gravity sensor | YES |
| WIFI | Wi-Fi 6E (802.11 a/b/g/n/ac/ax), 2.4/5.8GHz dual-band; Wi-Fi 7 optional on project orders |
| Bluetooth | Bluetooth 5.3 (range ~10m) |
| TYPE-C | *1 Type-C USB3.0，data transfer only |
| Type -A | *1 Type-A USB3.0 |
| Type -A | *1 Type-A USB2.0 |
| DB9 | *1 RS232 serial port (optional 232/422/485 protocol) |
| Earphone Jack | 1 × 3.5mm standard headphone jack |
| TF Card | supports up to 256GB |
| SIM Card | *1 Nano-SIM card slot |
| HDMI | *1 HDMI |
| DC port | *1 19V-3.42A (DC plug OD 5.5mm ID 2.1mm) |
| RJ45 | *1 100/1000M |
| POGO PIN | *1 14Pin USB+charger |
| Locking holes | 1 × security lock slot |

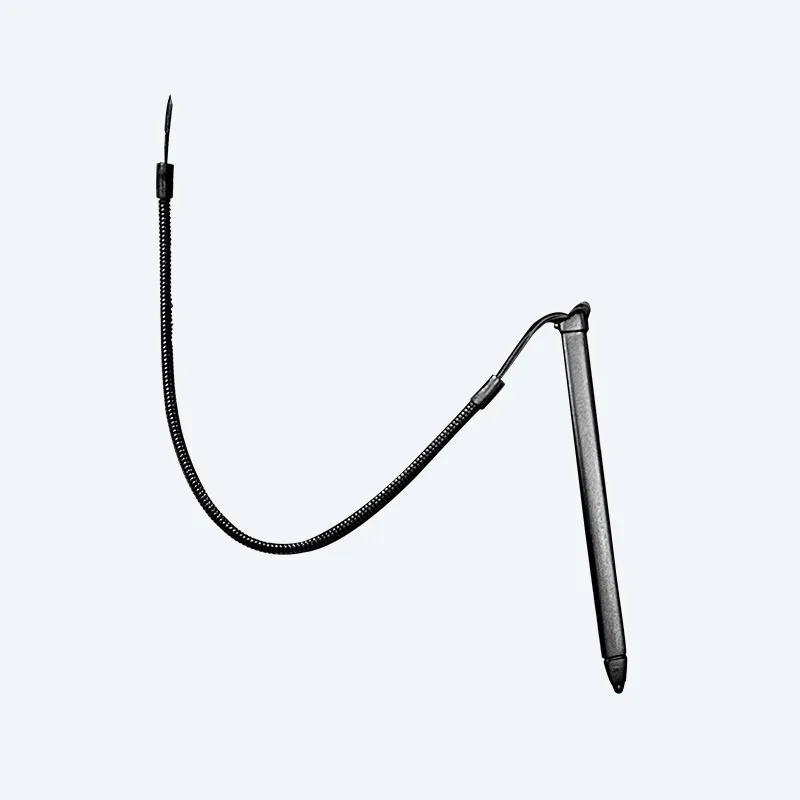

| Stylus | *1 stylus |
| Drop height | tested to MIL-STD-810H (Method 516.8, 1.22m transit drop) |
| Certificates | IP67, CE, US military standard-810H certification, energy saving certification, ISO quality certification system, ROHS, three-proof salt spray test |

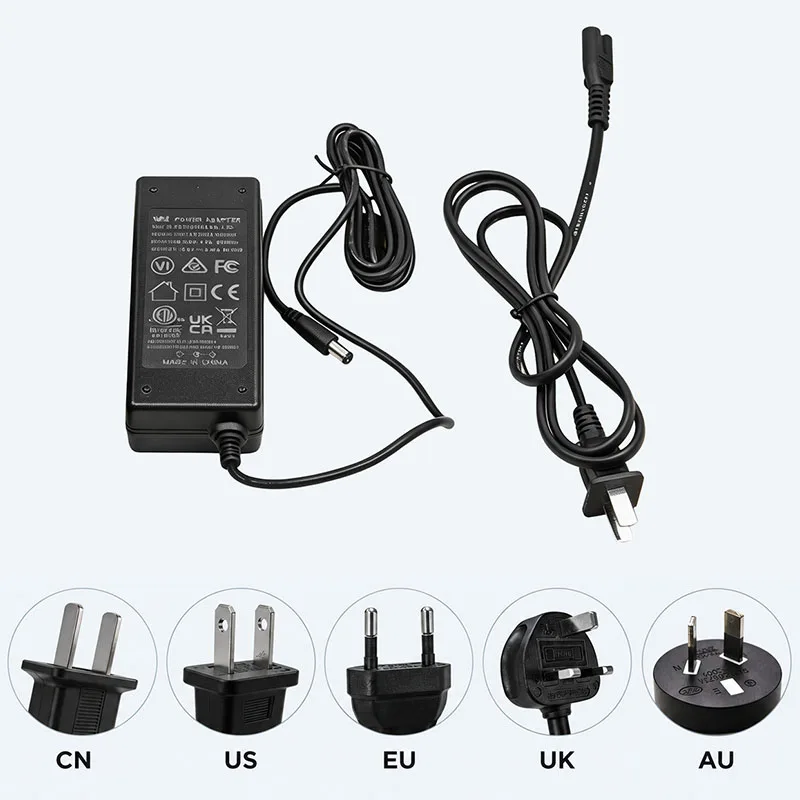

| Adapter | 19V/3.42A DC adapter |

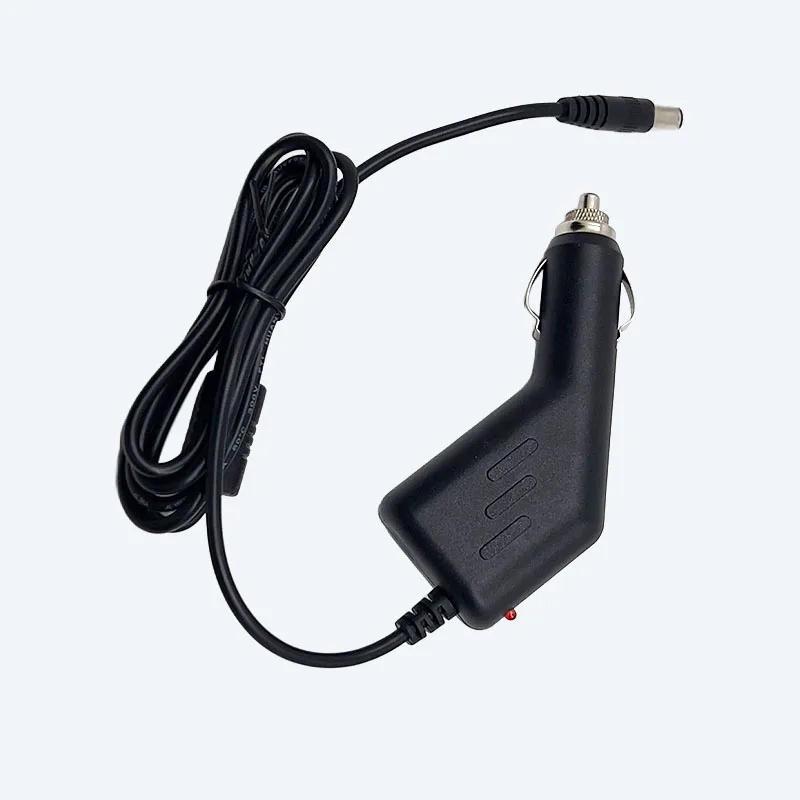

| Car charger(Optional) | 19V Car Charger - Input 9–36V Output DC 19V 3A, 2.5×5.5mm DC connector |

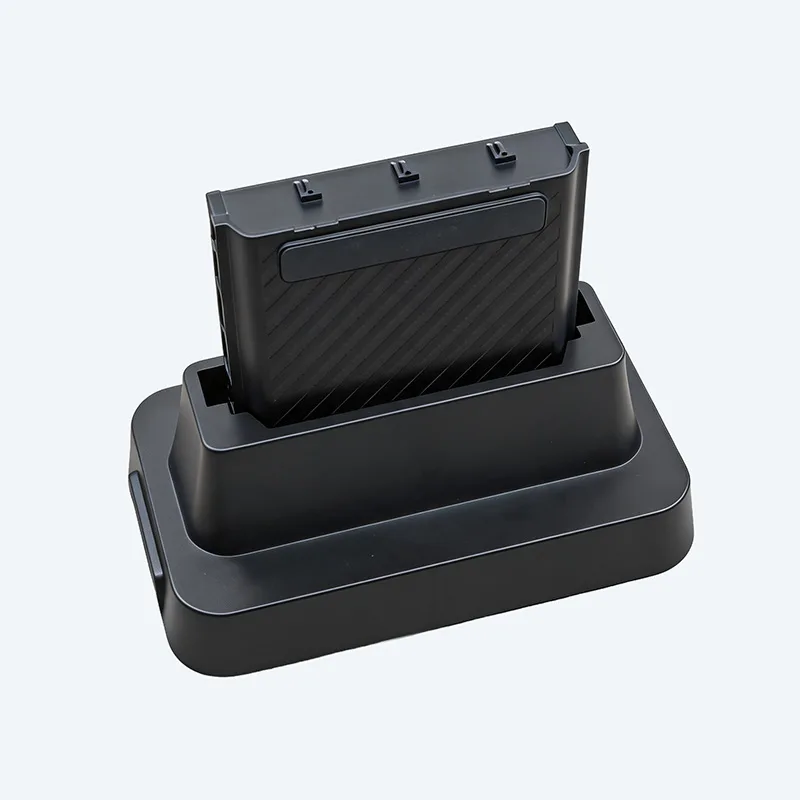

| Battery Charging Dock (optional) | 19V battery charging dock |
Frequently Asked Questions about W109U IP67 Rugged Tablet
1. Can I get a custom logo, packaging, or firmware for bulk orders?
Yes, and with no minimum order for the common requests: logo printing, custom packaging, and pre-installed Windows images start from a single unit. Hardware-level changes — interfaces, enclosure, board layout — are quoted per project with an NRE fee. Tell us the quantity and what you need changed, and we'll tell you which tier it falls into.
2. What certifications does the W109U carry?
The standard unit is IP67-rated and carries CE, 3C and RoHS, and is tested to MIL-STD-810H (1.22m transit drop). One thing to be precise about: the W109U itself is not ATEX/IECEx-rated. If your site has an explosive-atmosphere zone requirement, ask us about the certified explosion-proof models instead — don't assume any IP67 device qualifies.
3. How is the W109U different between the Windows and Android versions?
The W109U runs Windows 11 (Windows 10 and Ubuntu optional), so it takes existing desktop software, drivers and diagnostic tools without modification. If your workflow is app-based — scanning, delivery, MDM-managed fleets — our A109T sits in the same 10.95-inch class on Android at lower unit cost. Send us your software list and we'll tell you which side of the line you're on.
4. Can the battery be replaced without turning off the device?
It can. The 8300mAh main pack is hot-swappable; the built-in 300mAh sub-battery bridges at least 15 minutes (1080p, 50% brightness), so a mid-shift swap costs you under a minute and no reboot.
5. Does the W109U support external monitors or docking?
Video out runs over the full-size HDMI port; the POGO PIN connector docks with charging bases and vehicle mounts. One constraint to know before ordering: the USB-C port is data-only and does not carry DisplayPort, so HDMI is your only video output. If your dock design assumes USB-C video, tell us at inquiry stage.
6. What is the typical lead time and MOQ for bulk orders?
Standard configurations: samples ship in [X] working days; volume orders typically [X–X] weeks after deposit. MOQ is 1 unit for standard models. Custom hardware carries a project MOQ quoted with the NRE scope. For a firm date, send the configuration and quantity — we reply with a production slot, not a range.
7. Does CENAVA provide after-sales support and warranty?
All rugged devices carry a [12/24]-month warranty covering manufacturing defects, with [X]-hour email response on technical issues. Spare batteries, docks and screens are stocked for the model's production lifetime, and firmware/OS images are re-issued on request — which matters when you're re-imaging a fleet three years in.
8. Which industries commonly use the W109U rugged tablet?
Three deployments account for most W109U orders. Warehousing and logistics: ordered with the 2D scanner and vehicle dock, hot-swap battery covering double shifts. Utilities and field service: fingerprint login plus 4G for crews that can't share devices. Manufacturing quality inspection: RS232 to talk to line-side instruments, with the ID-card reader for operator sign-in. If your scenario isn't on this list, the module mix is configurable — that's the ODM part of the business.

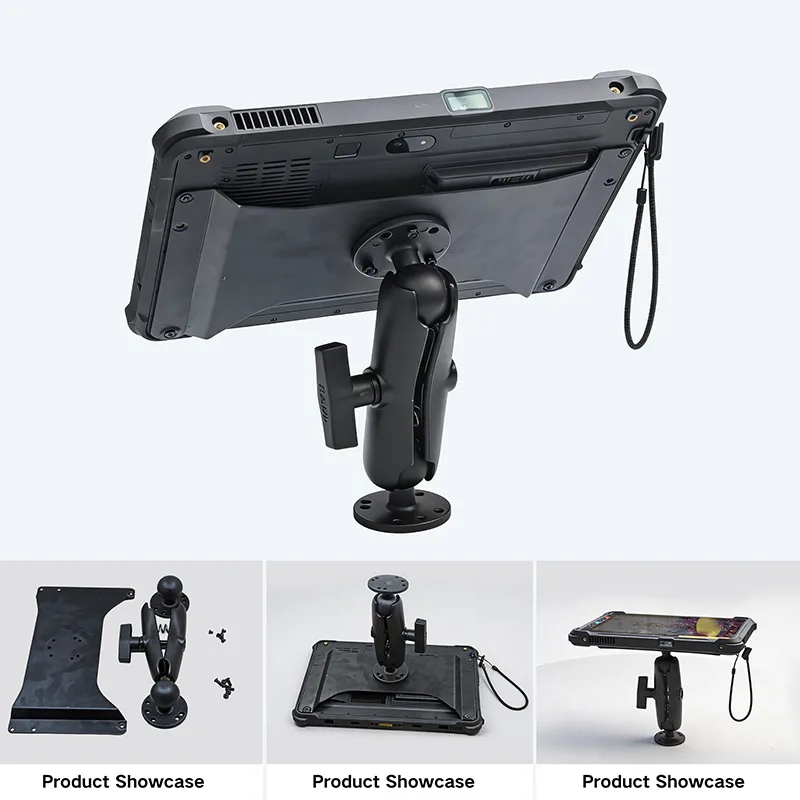

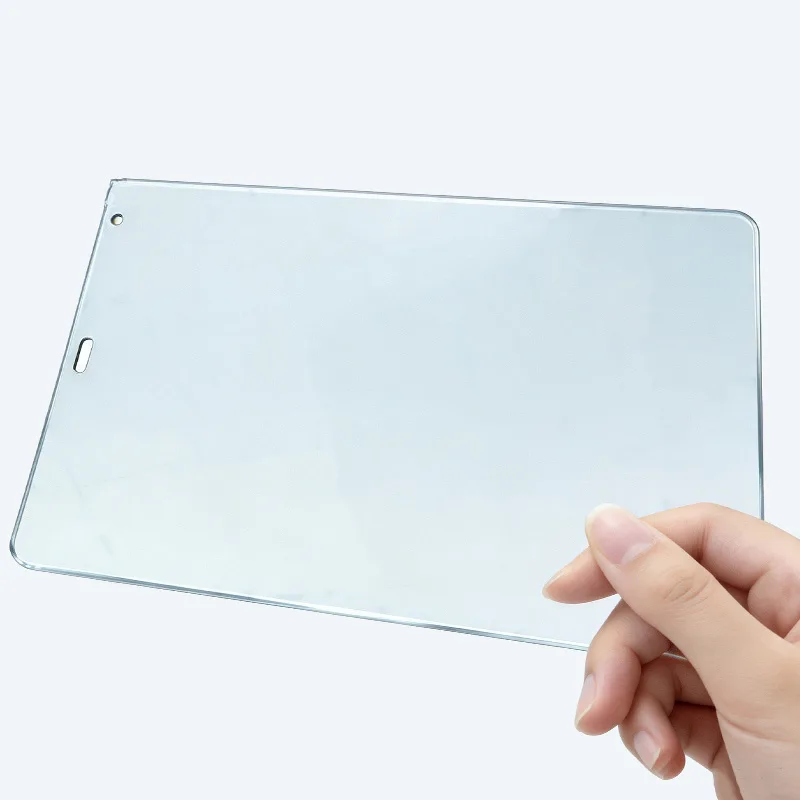

Accessories
