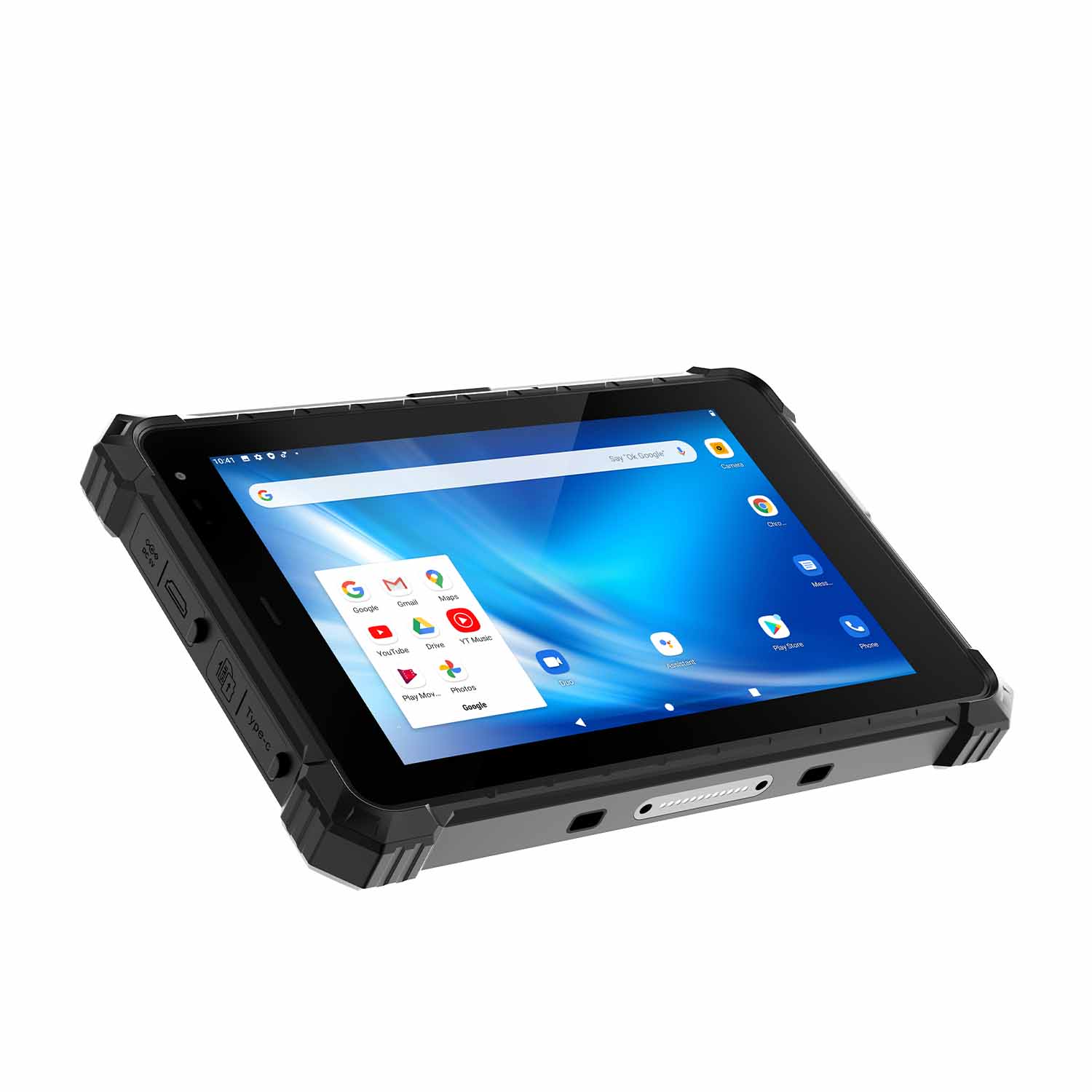

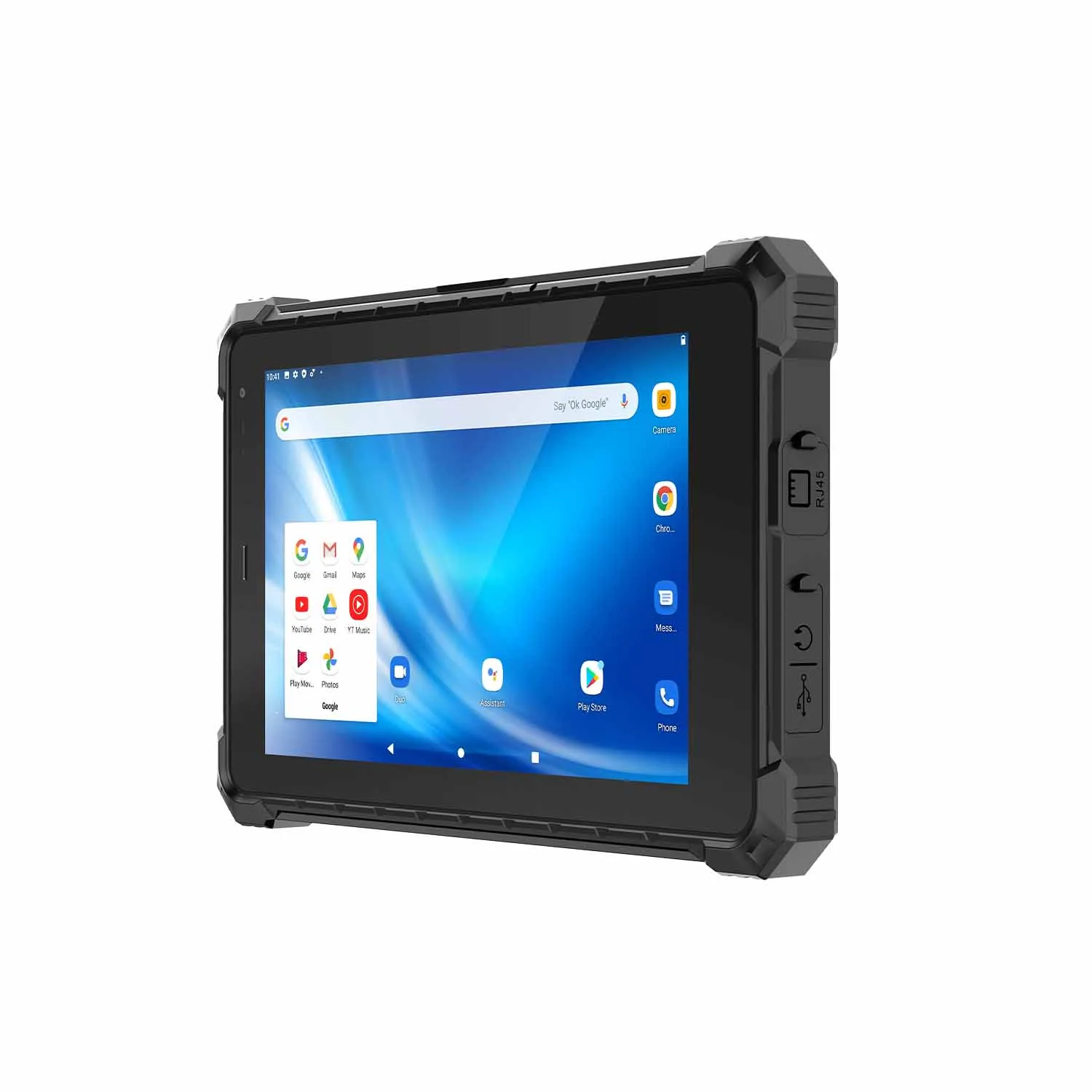

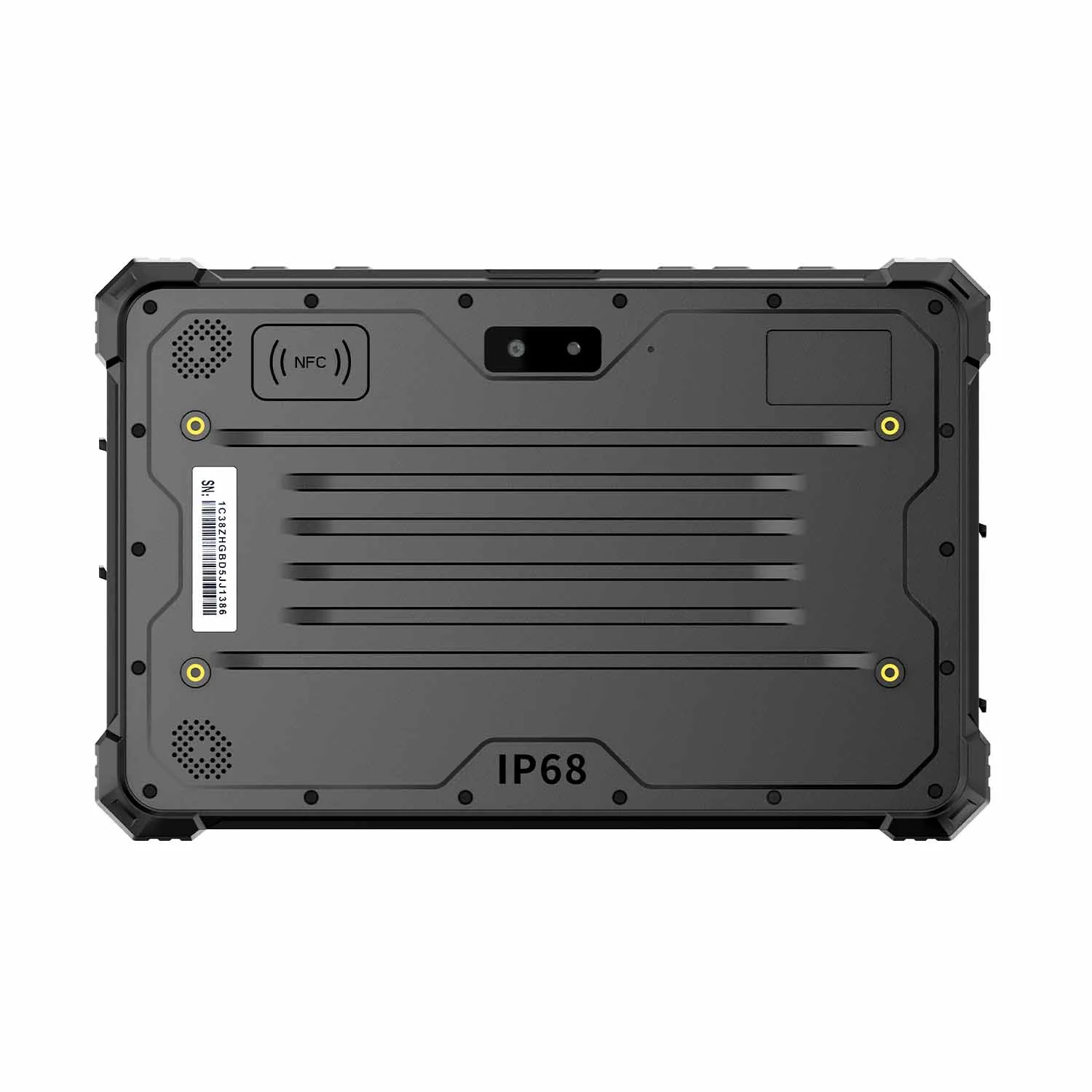

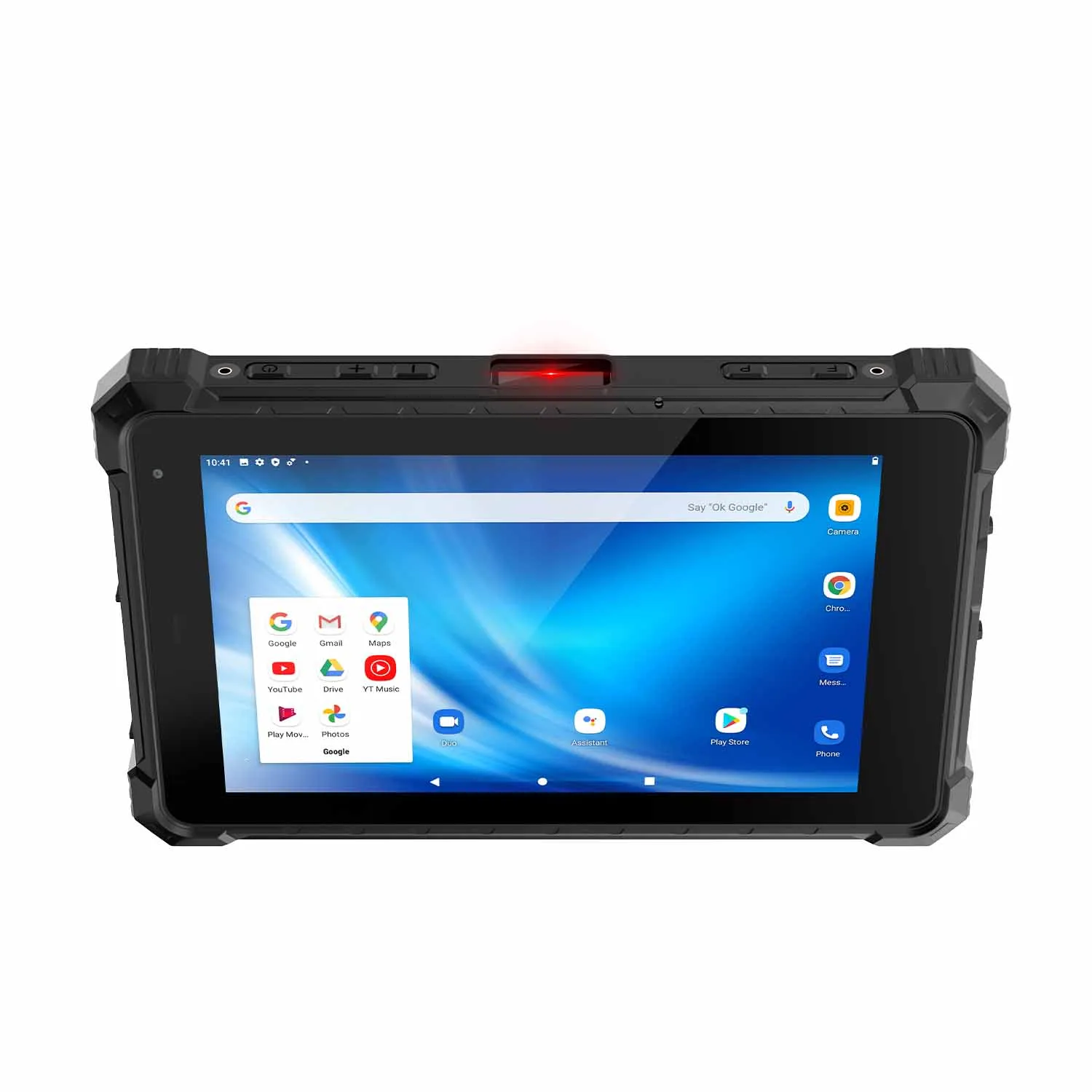

CENAVA A80R RK3588 8 Inch Android 12 IP68 Rugged Tablet
The CENAVA A80R RK3588 Edition is a compact 8-inch rugged edge-computing tablet designed for local industrial processing, equipment visualization, mobile diagnostics, high-volume data storage and multi-system OEM applications.It combines the RK3588 octa-core platform with up to 16GB RAM, 256GB internal storage, an M.2 2280 PCIe SSD interface, Gigabit Ethernet, USB 3.0 and Wi-Fi 6.
CPU: Rockchip RK3588 octa-core, 4×Cortex-A76 @2.4GHz + 4×Cortex-A55 @1.8GHz, fanless passive cooling
OS: Android 12 (optional Ubuntu 24.04)
Display: 8" IPS 1920×1200, 700cd/㎡, 10-point G+G glove touch, hardness ≥7H, optional wet-hand touch
RAM/ROM: 8GB+128GB (optional 16GB+256GB), M.2 2280 SSD expansion (max 1TB)
Integrated I/O: RJ45 (100/1000M), Micro HDMI, Type-C (USB3.0), USB-A (USB3.0), 3.5mm jack, DC 12V-4A, 12Pin POGO, Micro SIM, TF card (max 2TB)
Network: WiFi 6, Bluetooth 5.0, optional 4G/5G (custom)
Camera: Front 13MP fixed focus, rear 13MP auto focus (optional 48MP)
Battery: Built-in 7.6V/5550mAh, ≥7h endurance (optional custom 10000mAh pack)
Protection: IP68, MIL-STD-810H 1.22m drop, -20°C~60°C (custom -30°C~60°C)
Optional Modules: 2D scanner, fingerprint, ID card reader, UHF RFID, LF 125kHz, RTK cm-level positioning; NFC standard
Octa-Core Power
Android 12 Smooth
RK3588 Octa-Core 8G/16G Options Optional 4G/5G
Powered by the RK3588 octa-core processor (4×A76@2.4GHz + 4×A55@1.8GHz) with Android 12 industrial OS, multitasking runs smoothly without lag, apps launching instantly. The 8-inch display provides ample workspace for multi-window dispatching and data visualization. Standard 8GB+128GB+SSD, optional 16GB+256GB+SSD, with an M.2 2280 SSD slot expanding up to 1TB. Optional 4G/5G global coverage keeps you connected across field inspections and vehicle-mounted operations. WiFi 6 high-speed wireless and OTA upgrades supported; memory configurations adjustable per project needs.

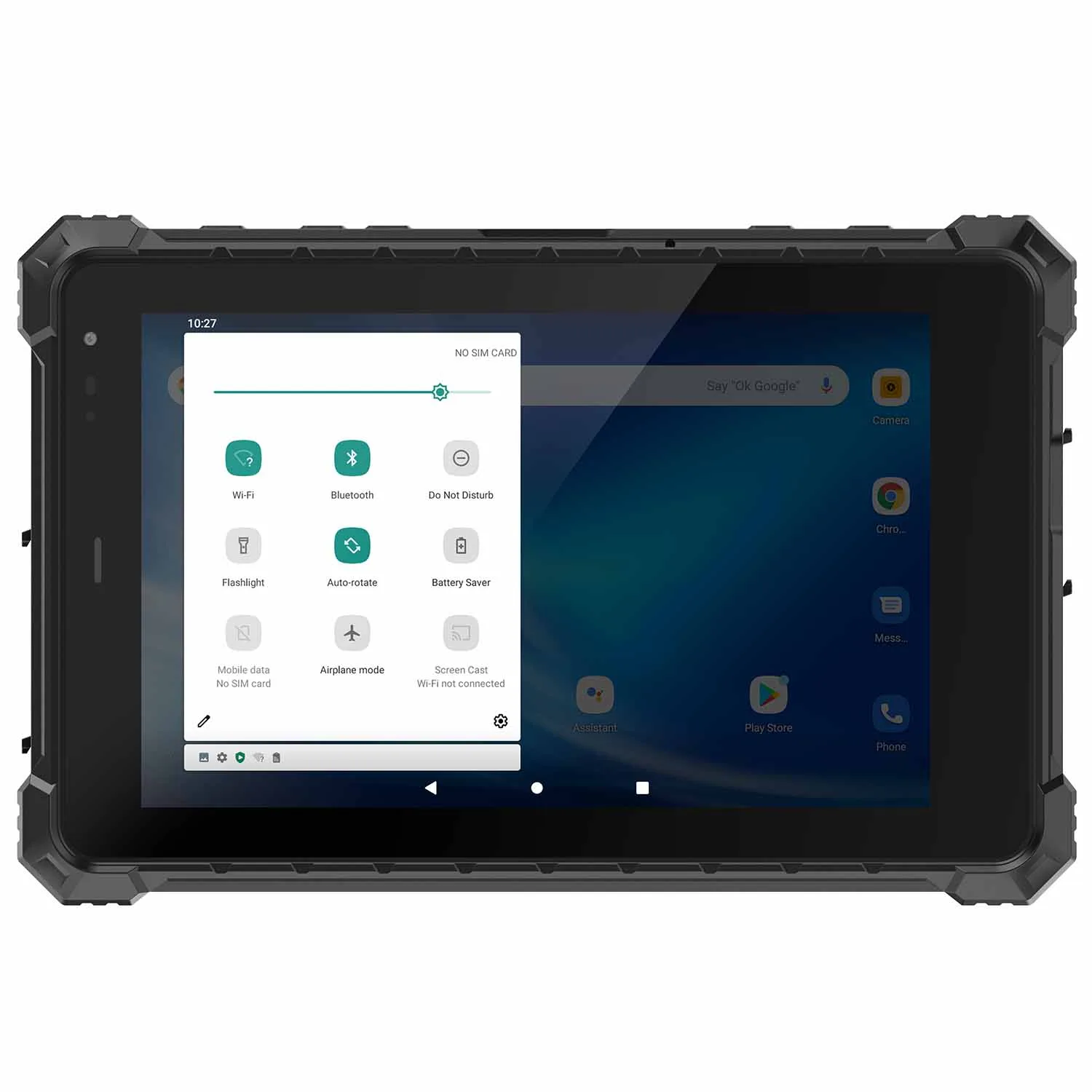

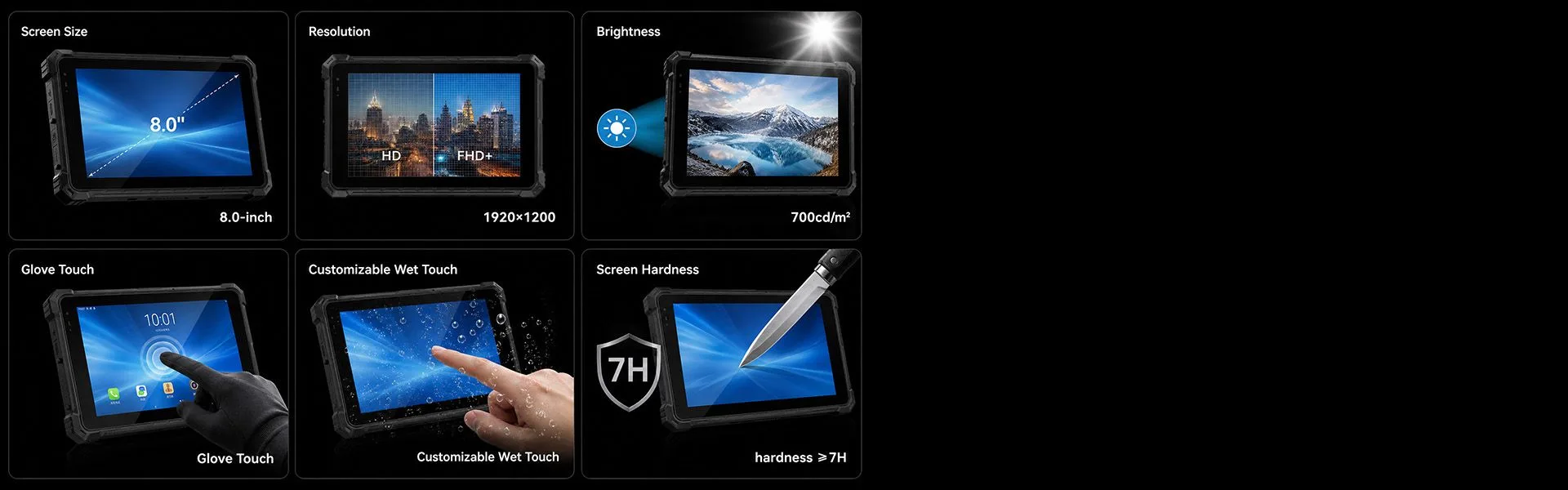

High-Res Bright Display
Outdoor Strong Visibility
8" IPS 700cd/m² 1920×1200
The 8-inch IPS panel delivers crisp 1920×1200 resolution, with 700cd/m² brightness remaining clearly readable under direct sunlight—no more shading the screen outdoors. Supports medical rubber-glove touch, with wet-hand touch customizable: accurate clicks with gloves or wet fingers. G+G construction with AF anti-fingerprint coating, hardness ≥7H, scratch-resistant for long-term use. Ten-point touch is precise and responsive, and with the 839g lightweight body, one-handed operation stays comfortable through long outdoor patrols and warehouse counts.
Triple-Proof
Harsh Conditions No Fear
IP68 Ex 1.22m Drop -20°C~60°C
IP68 dust-tight and waterproof, surviving 1.22m drops, with 3C/CE/MIL-STD-810H certifications. Operating temperature -20°C to +60°C ensures reliable startup in freezing winters and scorching summers, with -30°C ultra-low-temperature customization for extreme cold. Rugged industrial chassis with reinforced corners and sealed gaskets provides stable grip without fatigue, plug and play on site.

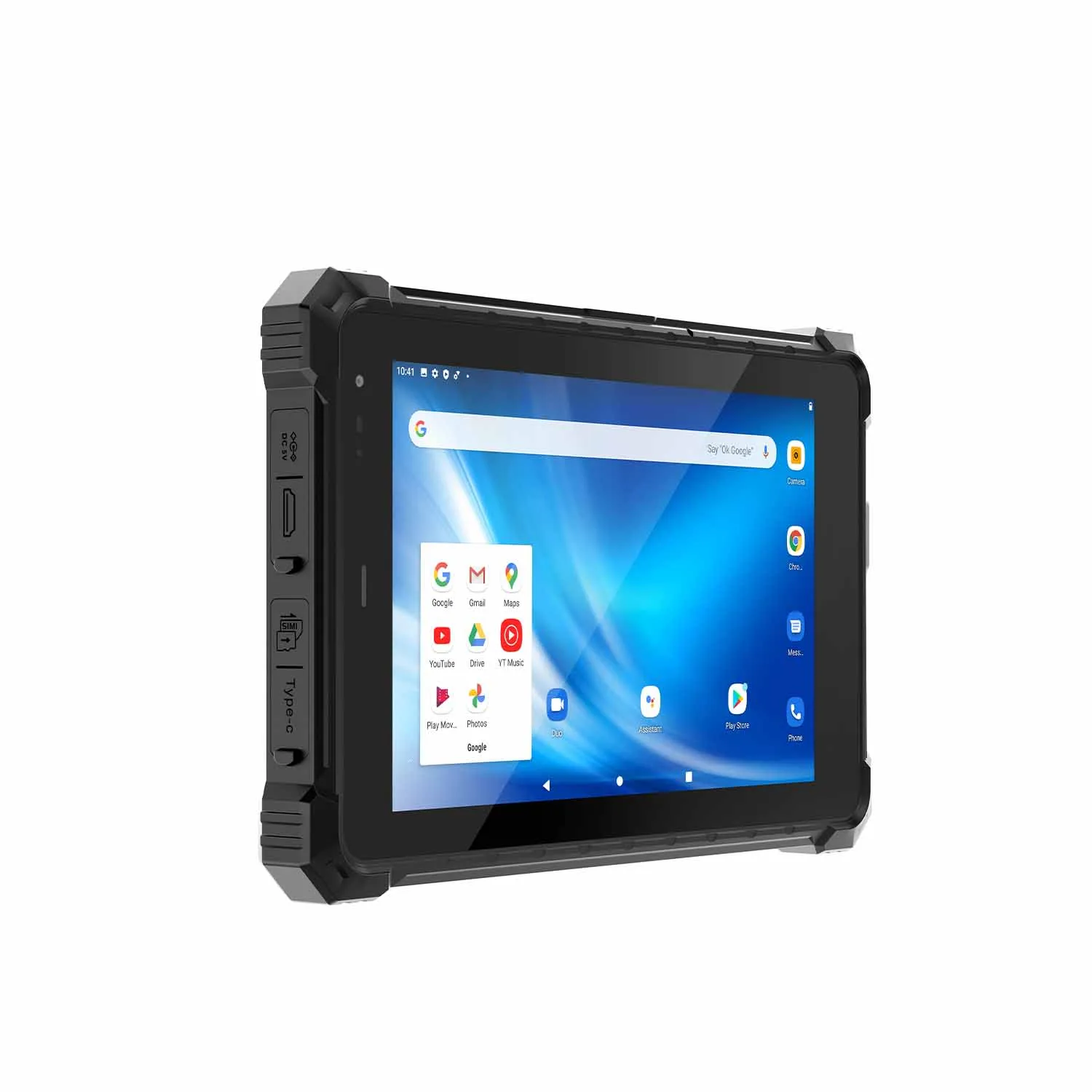

Industrial Full Interface
Plug and Play
Gigabit Ethernet+USB3.0+HDMI+POGO Full Interface
Full industrial interface configuration: gigabit RJ45 Ethernet connects directly to PLCs and switches; Type-C USB 3.0 for data transfer; USB-A 3.0 for flash drives and keyboards; Micro HDMI for large-screen presentations; 12-pin POGO PIN dock for charging and expansion; DC 12V-4A for stable power. 3.5mm headphone jack supports voice intercom. Compact layout stays unobstructed in one-handed grip. Paired with optional 2D scanner, NFC, fingerprint, ID card and UHF modules, it forms an integrated data collection and device control terminal.
Technical Specifications
 CPU RK3588 4 × Cortex-A76 up to 2.4GHz + 4 × Cortex-A55 up to 1.8GHz |  System |  Storage 8GB RAM + 128GB storage |  Display 8 inch 1920*1200 IPS |
 Optional NFC 13.56MHz, supporting ISO/IEC 14443A, 14443B and 15693 |  Optional 1D/2D Barcode Scanner Support |  Battery Built-in 7.6V 5550mAh |  Wall hole pitch / screw 154x71.5mm/ M3*4.5mm |
 Navigation positioning GPS,Galileo GLONASS |  2G/3G/4G Support |  Interface Type -C POGO PIN |  Size/Weight 232.2*151.3*24.5mm/839g |
 Card slot TF card up to 2TB |  Protection level working temperature: -20 °C to 60°C Storage temperature: -30 °C to 70 °C |  Camera Front camera:5MP Rear camera:8MP autofocus with flash |  Light-sensitive Support |
| Product Type | Industrial edge-computing rugged tablet |
| Touch Features | AF coating and medical-glove support |
| NFC | 13.56MHz, ISO 14443A/B and ISO 15693 |
| Gyroscope | YES |
| Gravity sensor | YES |
| Bluetooth | Bluetooth 5.0 |
| GNSS | GPS, Galileo and GLONASS |
| LF（custom function） | support 125kHz distance:1-3cm |
| TYPE-C | *1 Type-C adapt OTG USB2.0 |
| Type -A | *1 Type-A USB2.0 |
| Optional RFID | 125kHz LF; UHF approximately 2m or 5m |
| Reserved Expansion | UART, USB 2.0, 3.3V and 5V |
| SIM Card | *1 Standard Micro SIM card slot |
| HDMI | *1 Micro HDMI |
| DC port | *1 12V-4A (DC plug outer diameter 3.5mm inner diameter 1.35mm) |
| POGO PIN | *1 12Pin USB+charger |
| RJ45 | *1 100M |
| Certificates | IP68, CE, US military standard-810H certification, energy saving certification, ISO quality certification system, ROHS, three-proof salt spray test |

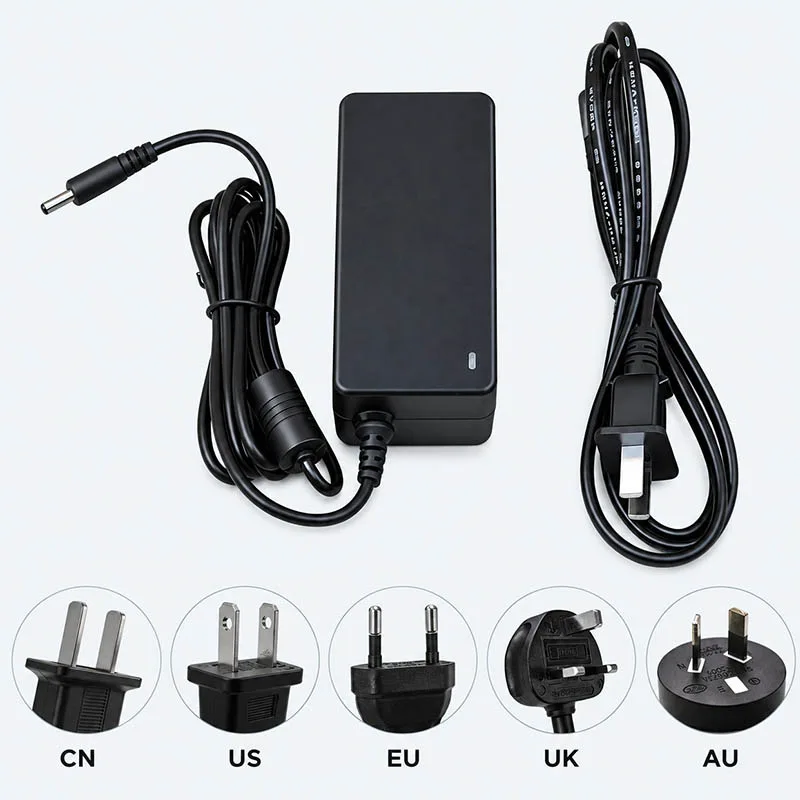

| Adapter | 12V-4ADC interface adapter |
The A80R sits between two product categories: more local computing than a conventional rugged Android tablet, smaller than a 10-inch or 13-inch industrial computer. The RK3588 gives you an M.2 2280 SSD slot (up to 1TB), your choice of Android 12 or Ubuntu, Wi-Fi 6, and Gigabit Ethernet in an 8-inch IP68 body. The motherboard also reserves UART, USB, 3.3V and 5V lines — this is a tablet meant to be integrated into your equipment, not just carried alongside it.

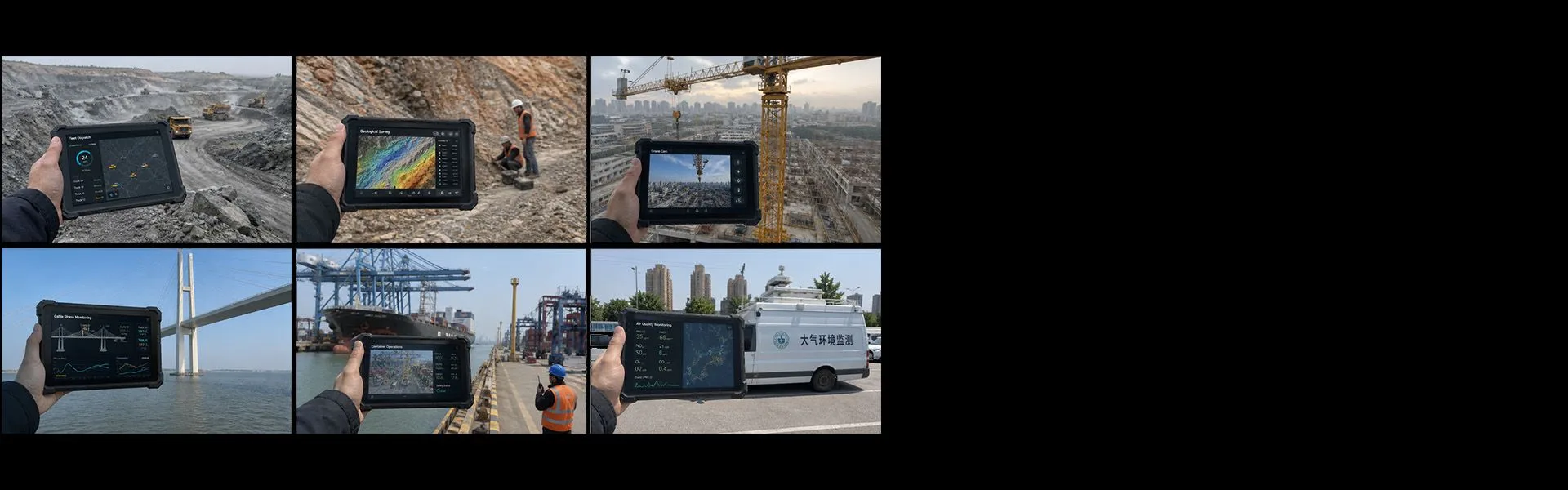

Where it gets used: industrial dashboards and equipment visualization, offline data analysis at the edge, vehicle-mounted computing, and custom OEM terminals.
Frequently Asked Questions About A80R Rugged Tablet
1. What makes the A80R different from your other 8-inch tablets?
Computing headroom and integration depth. The RK3588 adds an M.2 2280 SSD slot (up to 1TB), a choice of Android 12 or Ubuntu, Wi-Fi 6 and Gigabit Ethernet — plus reserved UART, USB and 3.3V/5V lines on the motherboard for OEM integration. If you just need data collection, the A80ST is cheaper. If you're building equipment around the tablet, start here.
2. Is an SSD included?
The M.2 2280 slot is built in, but no SSD ships as standard — capacity up to 1TB is quoted separately as a configuration option.
3. What are the port speeds?
Ethernet is Gigabit (100/1000M), and both USB ports are USB 3.0. One thing not yet confirmed: PD charging and DisplayPort video output on the Type-C port. If either matters to your project, ask before you design around it.
4. Does it have Wi-Fi 6 and 5G?
Wi-Fi 6 is standard. Cellular is optional and configured per region and carrier — tell us your destination market and we'll confirm band support.
5. Can Android and Ubuntu run on the same unit?
They're separate factory configurations, not a validated dual-boot setup. Pick one per unit; if your project genuinely needs both, talk to us about the imaging process.
6. Does it have an RS232 port?
Not as a finished external connector — the motherboard reserves an internal UART, which is not the same thing. If your application needs dedicated serial connectivity, tell us at the quoting stage; building it out is a customization we've done before.
7. Is the battery removable?
No — the 5,550mAh pack is built in. The A80R is designed for docked and vehicle installations where it runs on external power most of the time. If you need handheld all-day use with battery swaps, the A80STX-5G (removable 9,400mAh, IP67) is the better fit.

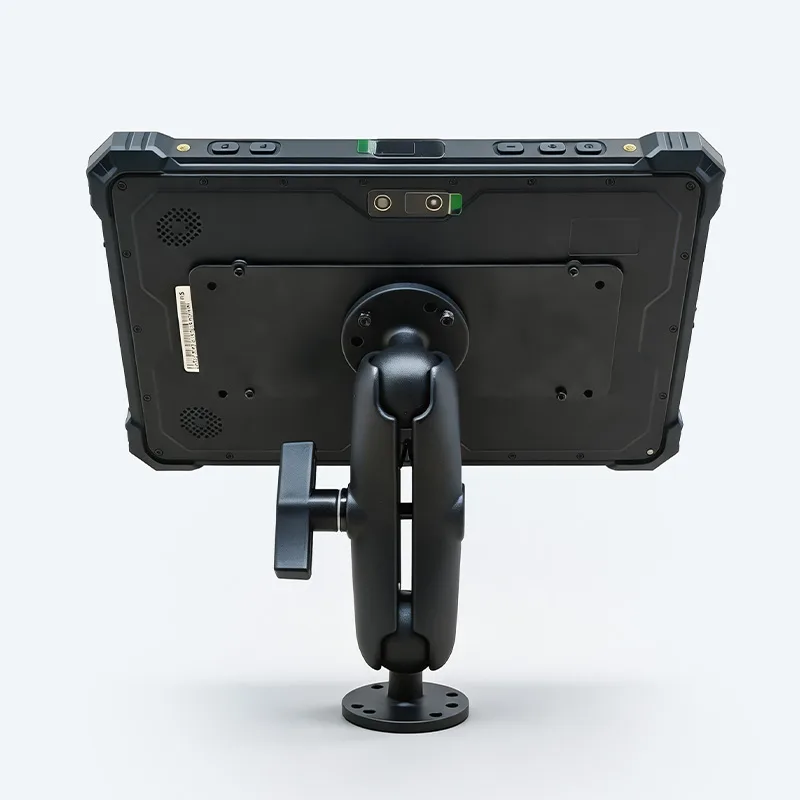

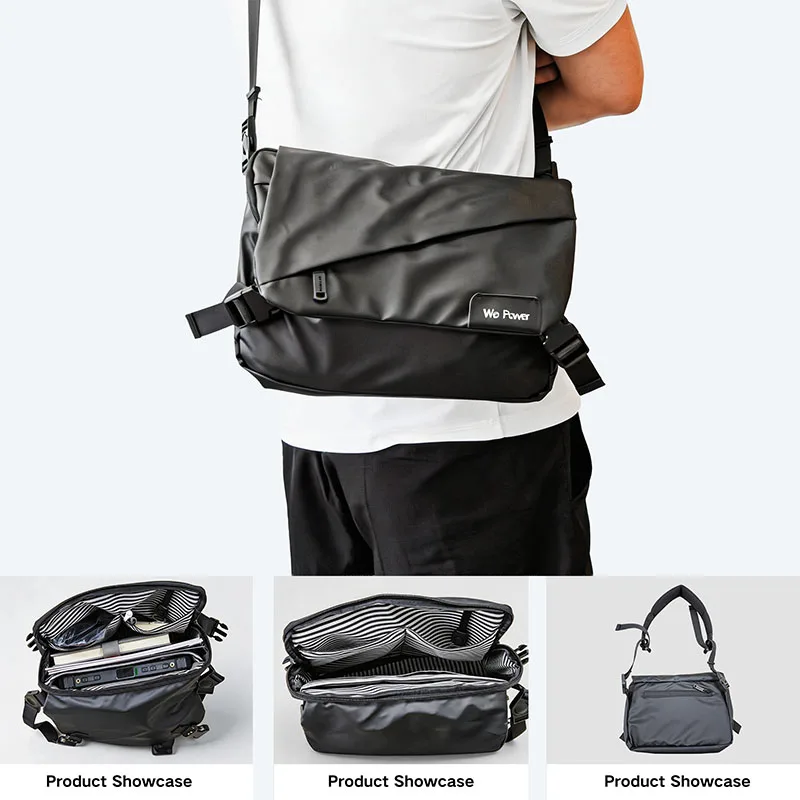

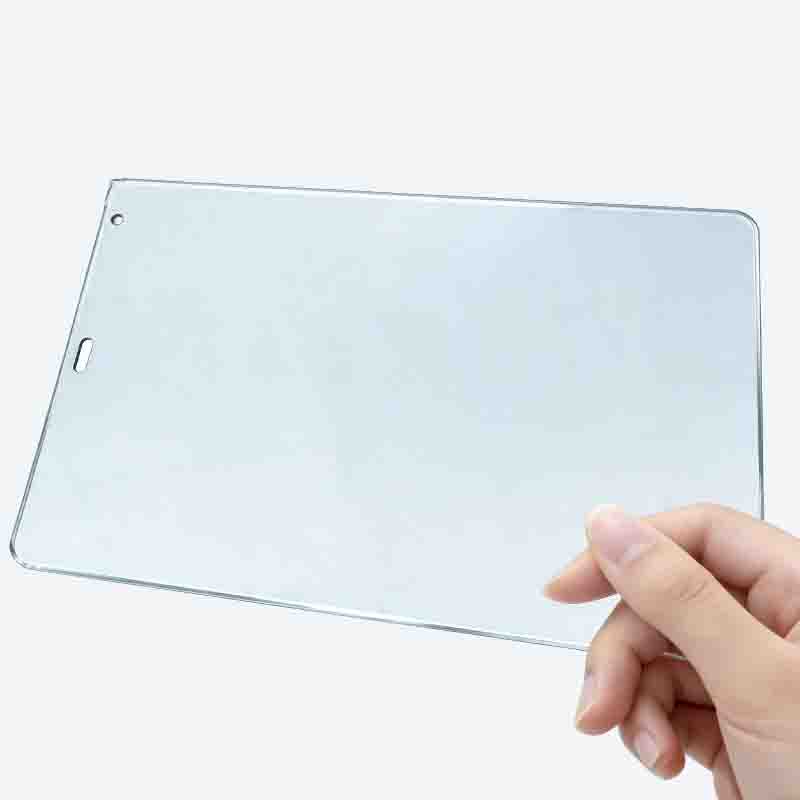

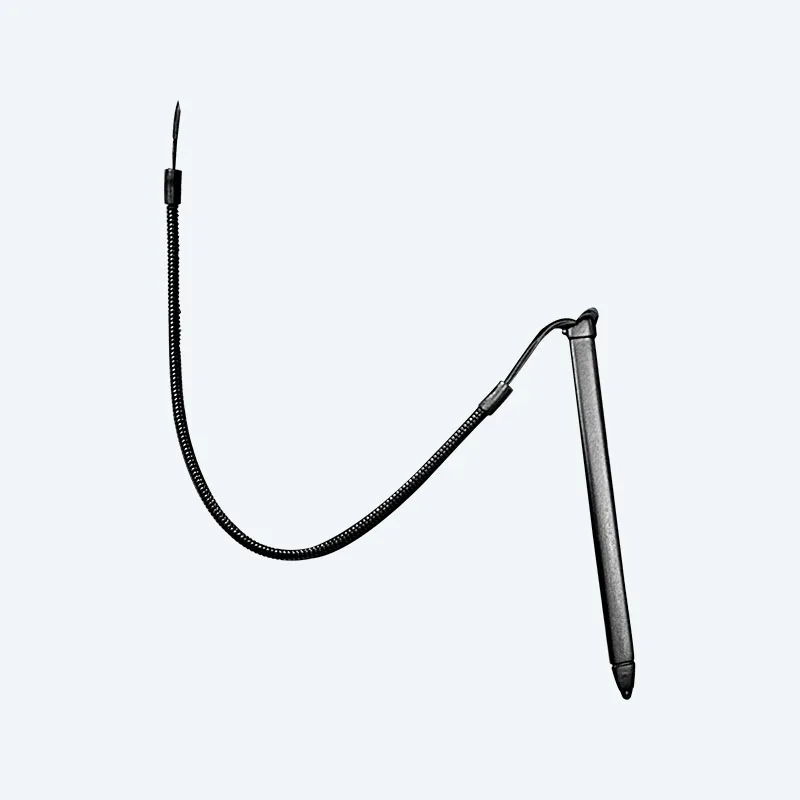

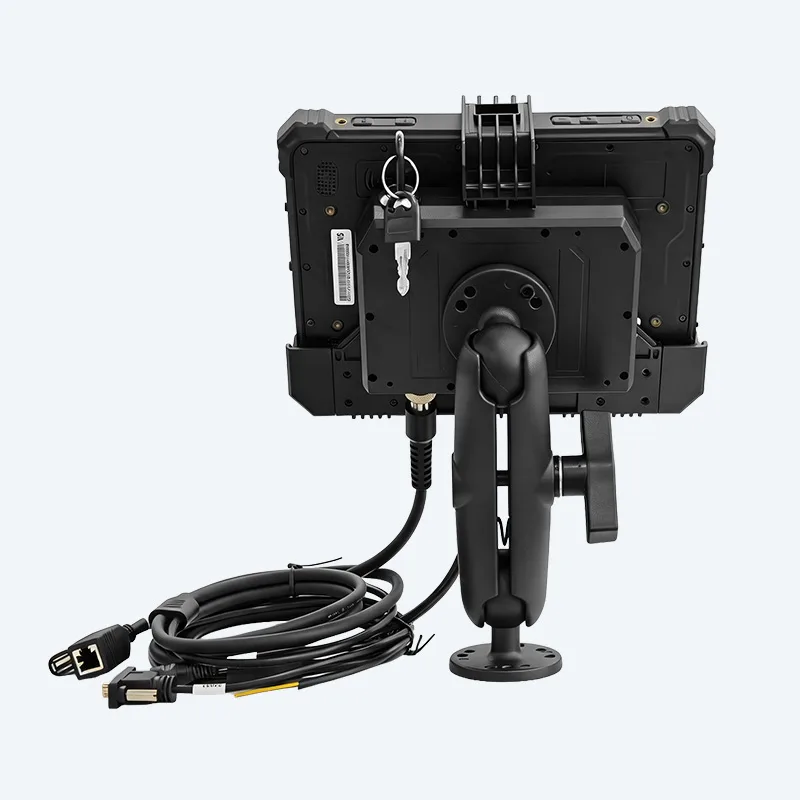

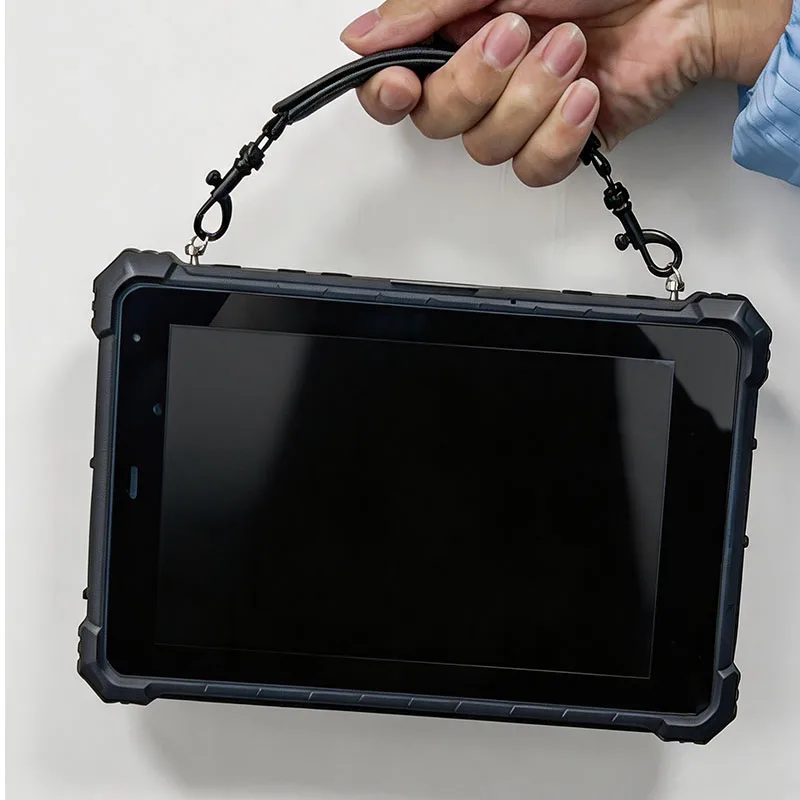

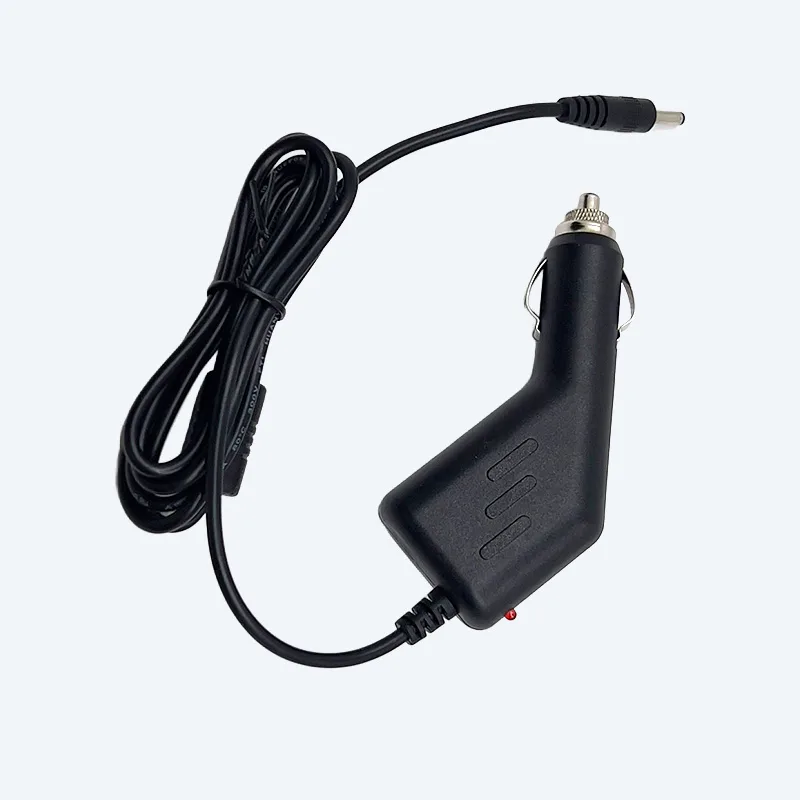

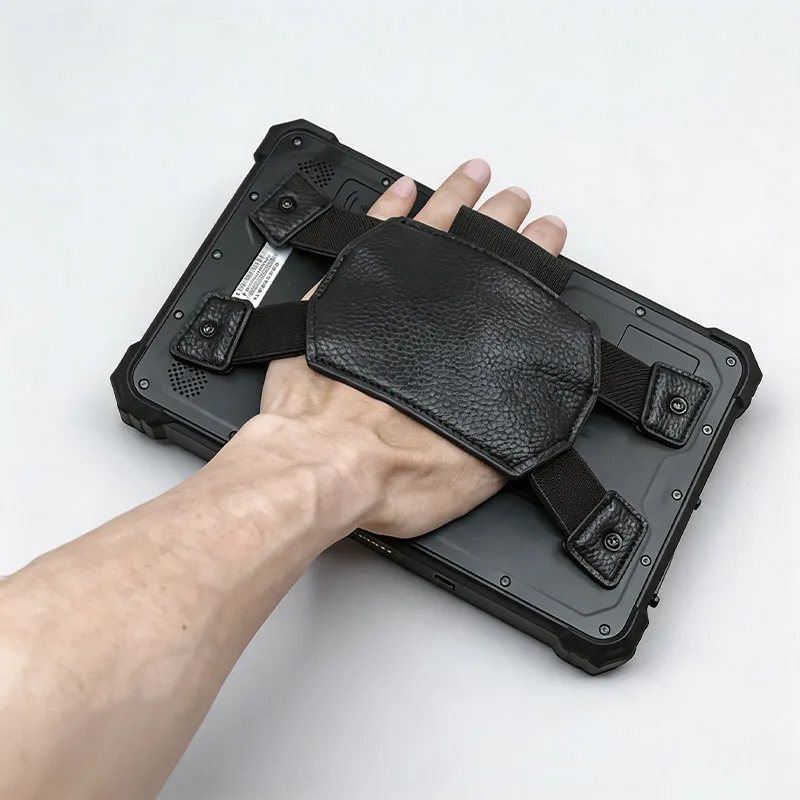

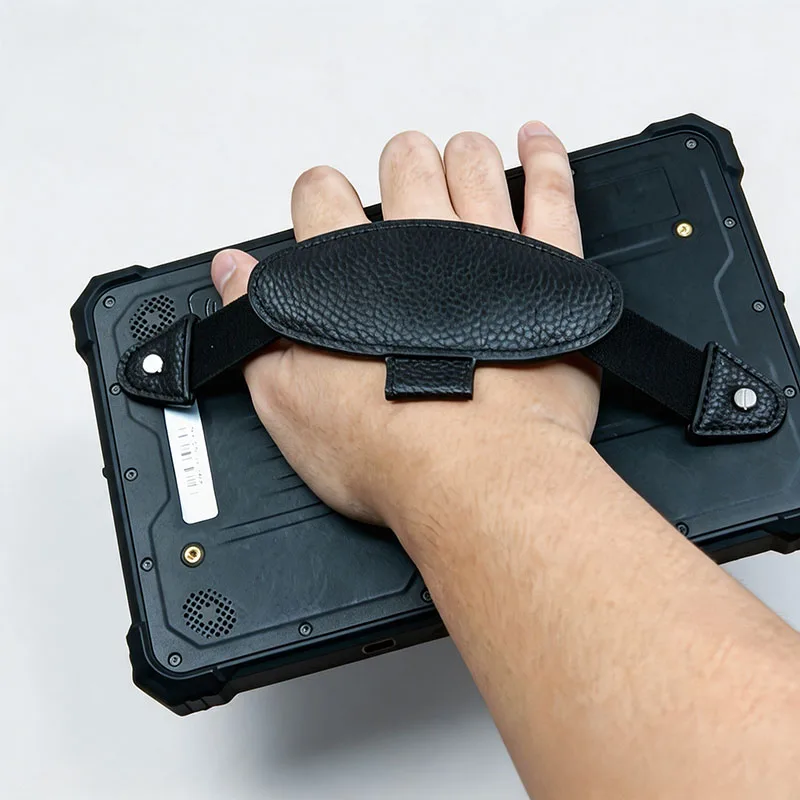

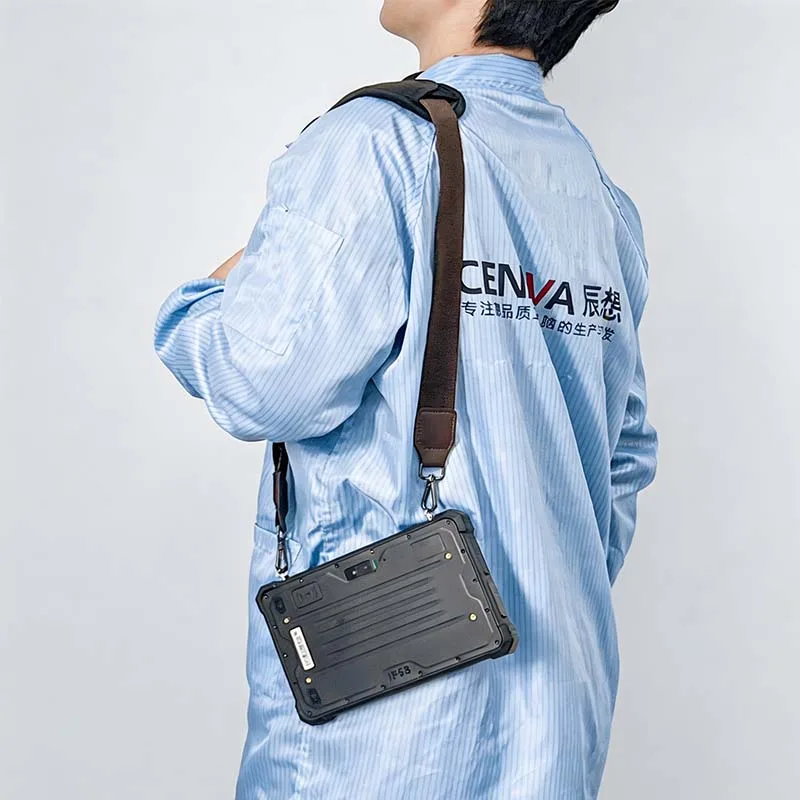

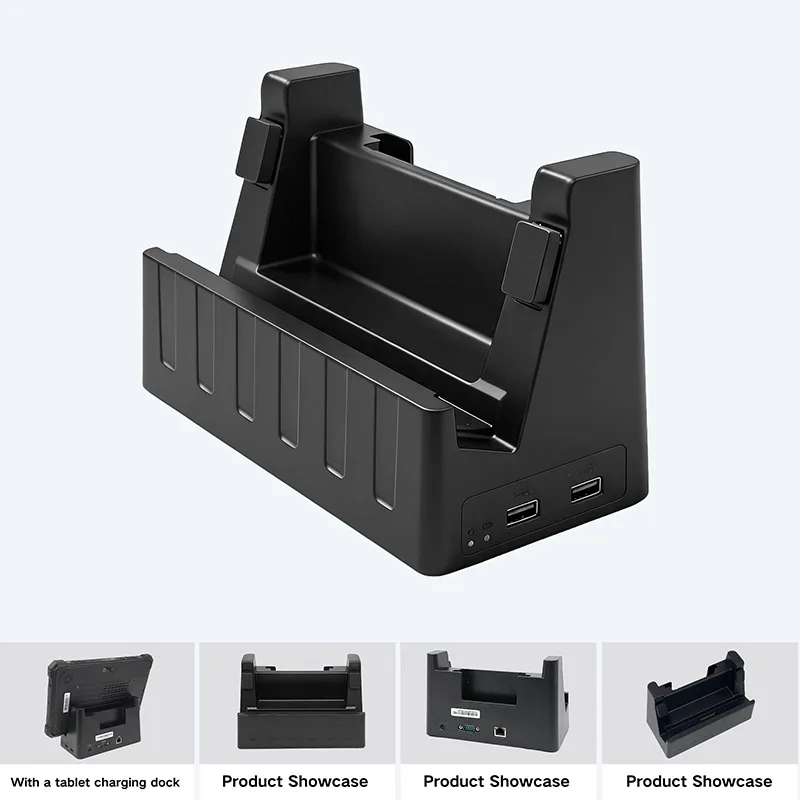

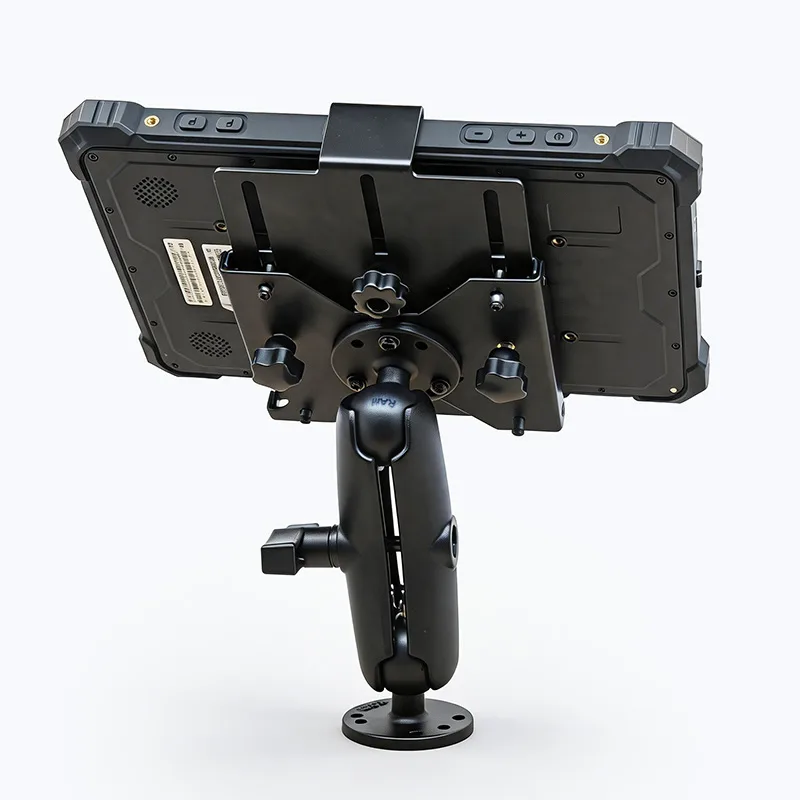

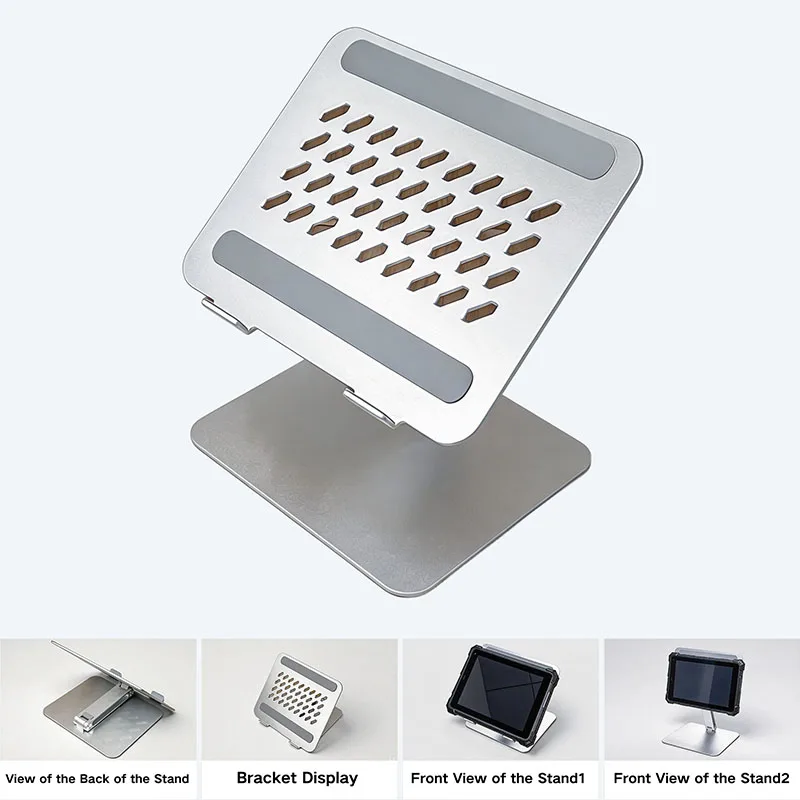

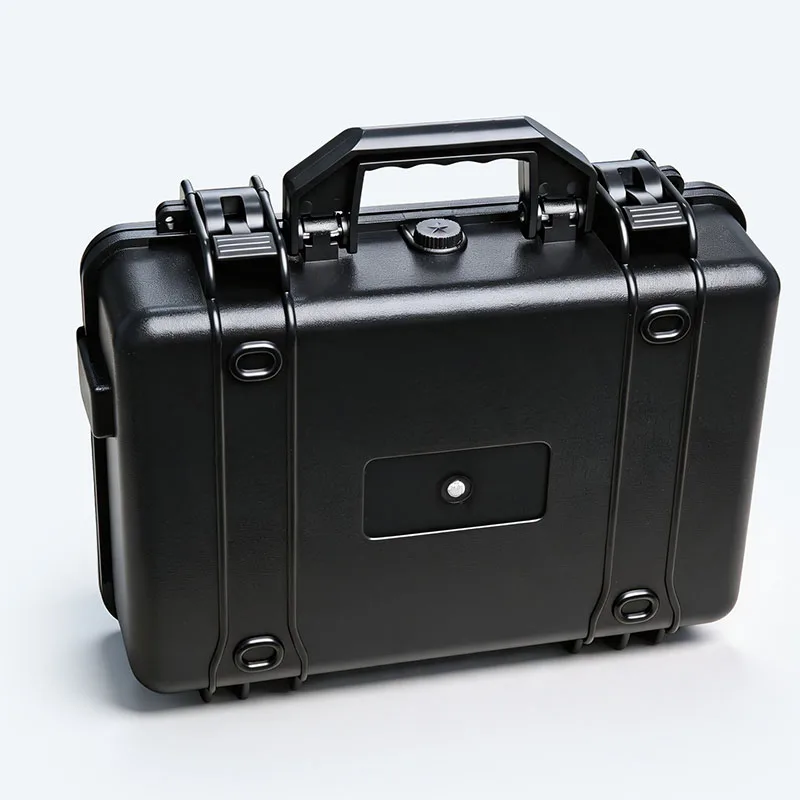

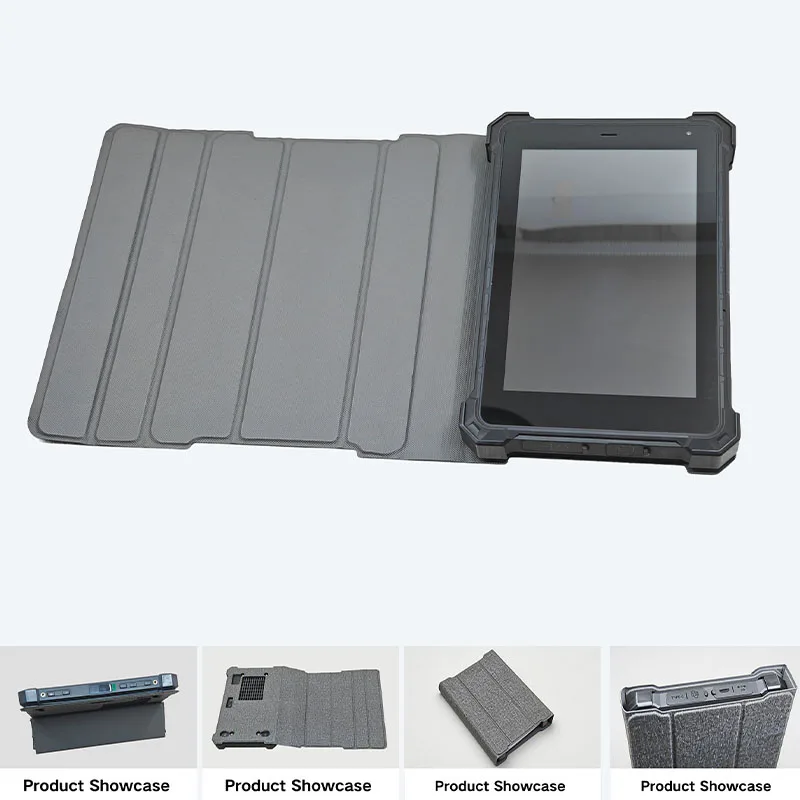

Accessories
