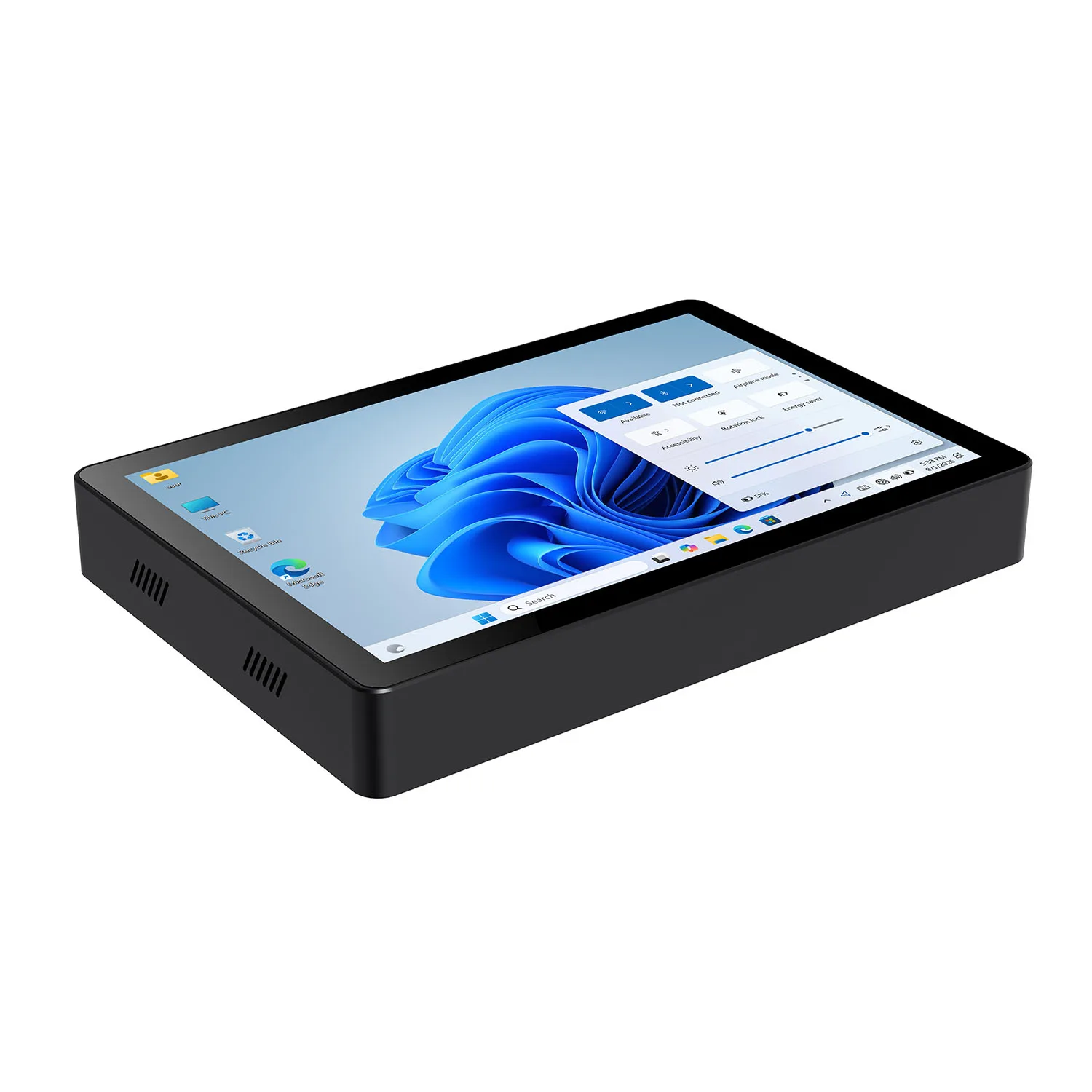

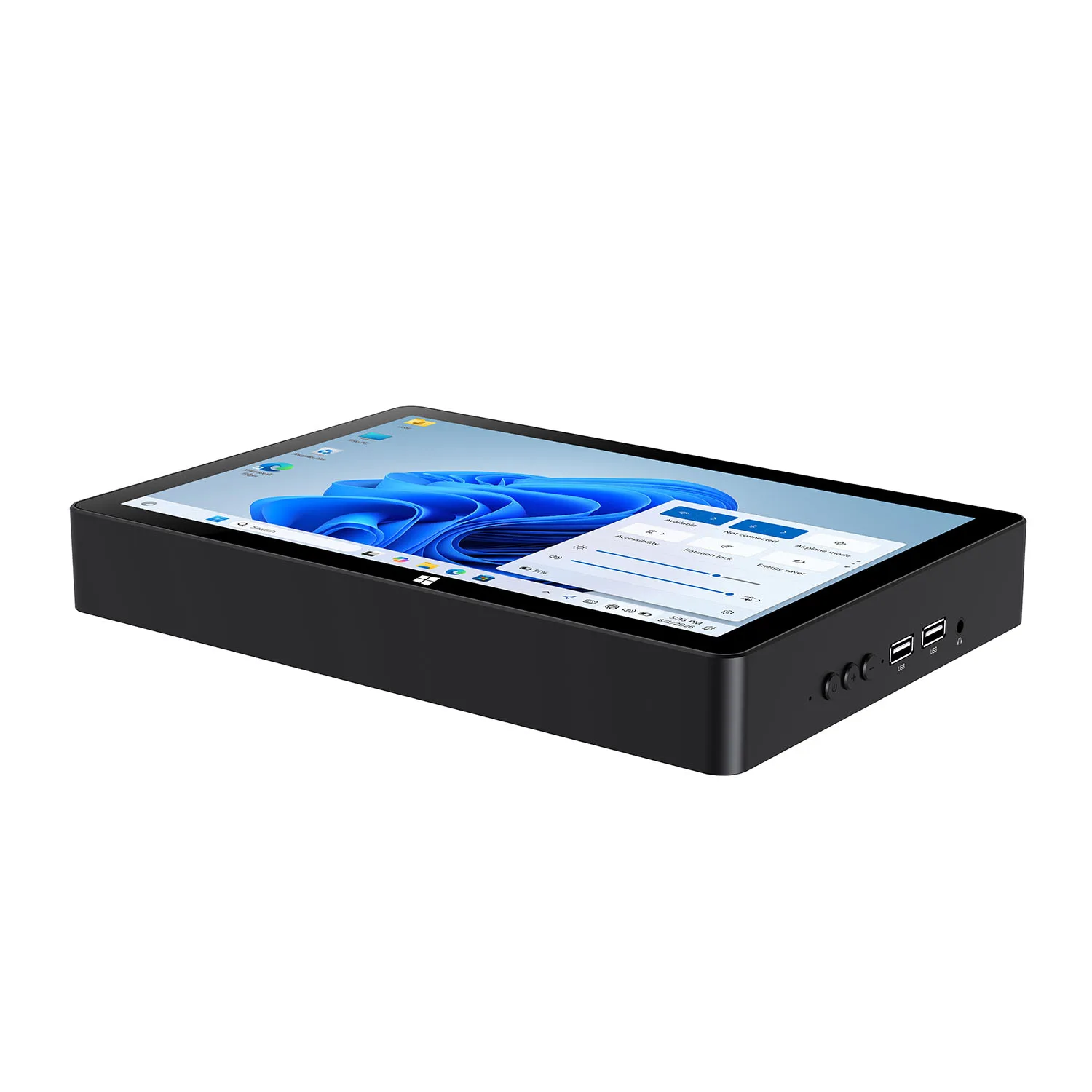

CENAVA H10F N95 10.1" Win11 Industrial Panel PC | WiFi6 Touch Computer

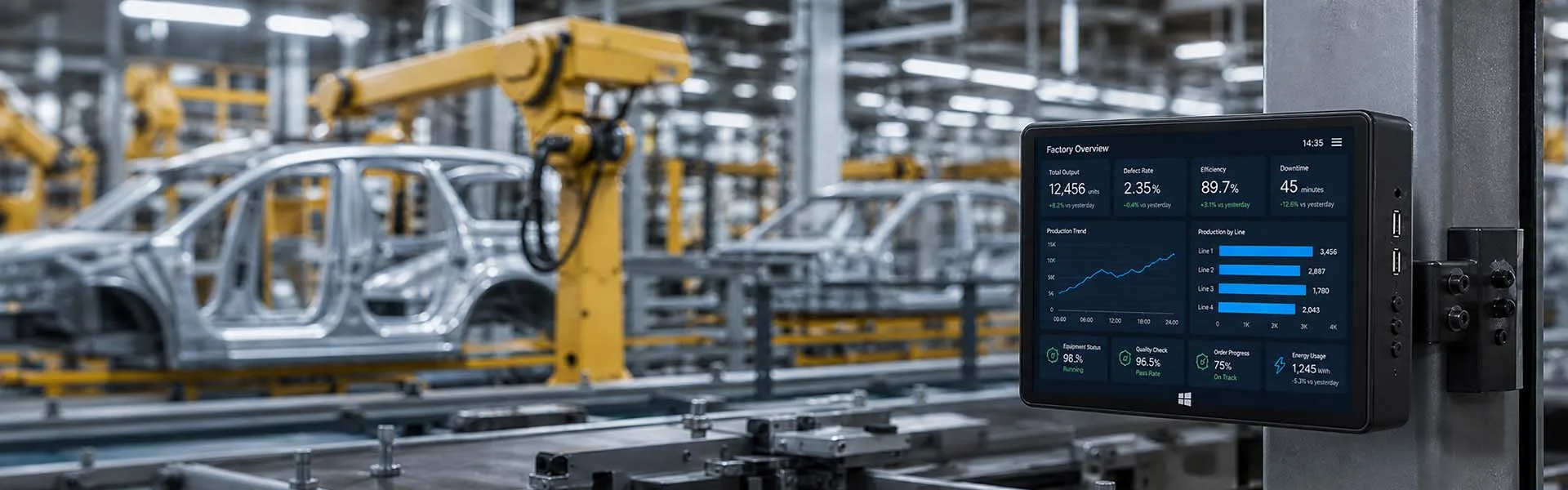

The CENAVA H10F N95 Edition is a 10.1-inch Windows industrial touch computer developed for equipment operation, production data entry, self-service terminals, warehouse workstations and compact control installations.It combines an Intel Processor N95, a 1920×1200 IPS touchscreen, replaceable DDR4 memory and a replaceable M.2 2280 SSD in a compact wall-mountable enclosure.
CPU: Intel Alder Lake N95 (4C/4T, 1.7GHz~3.4GHz, higher base clock than N100)
OS: Windows 11 (Windows 10 optional)

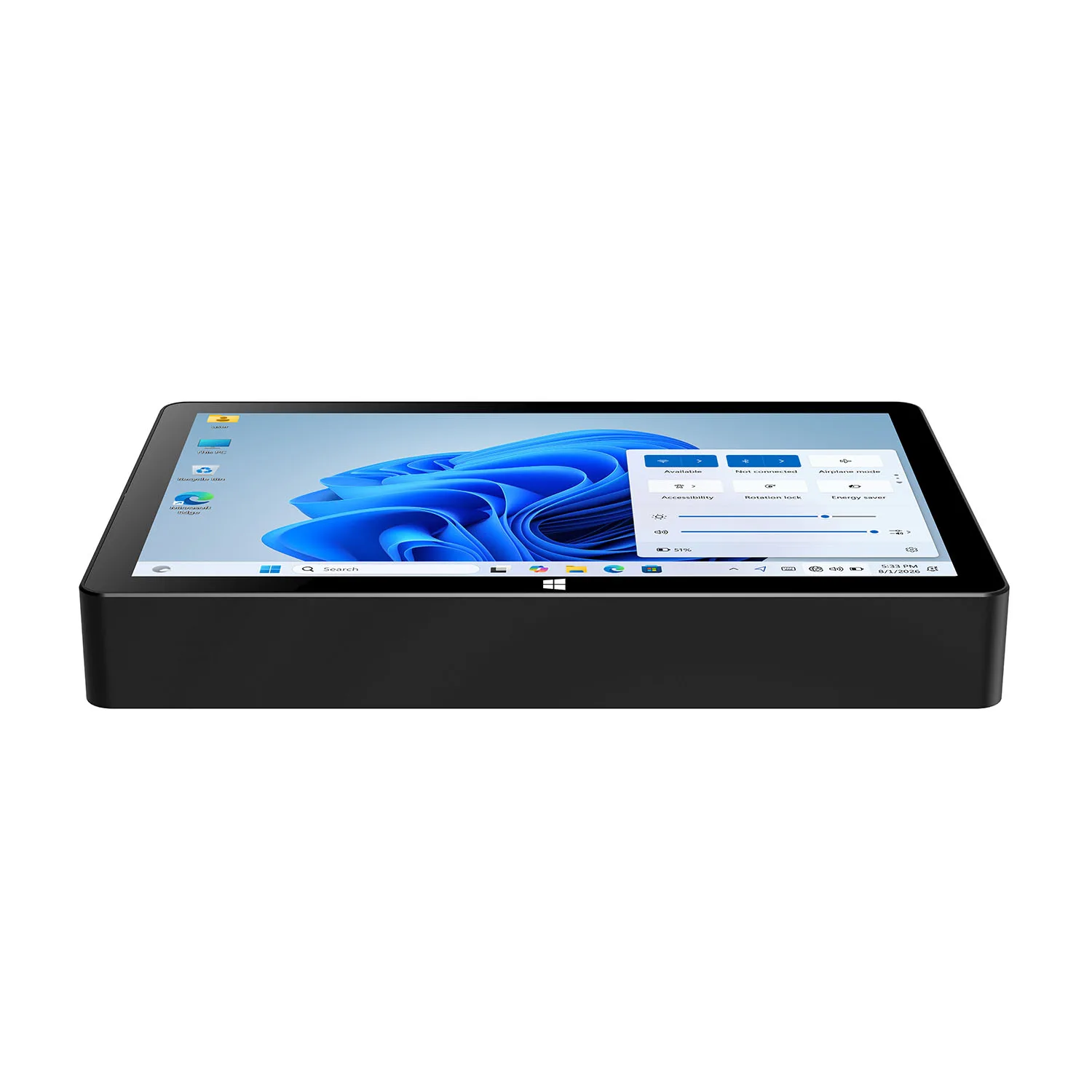

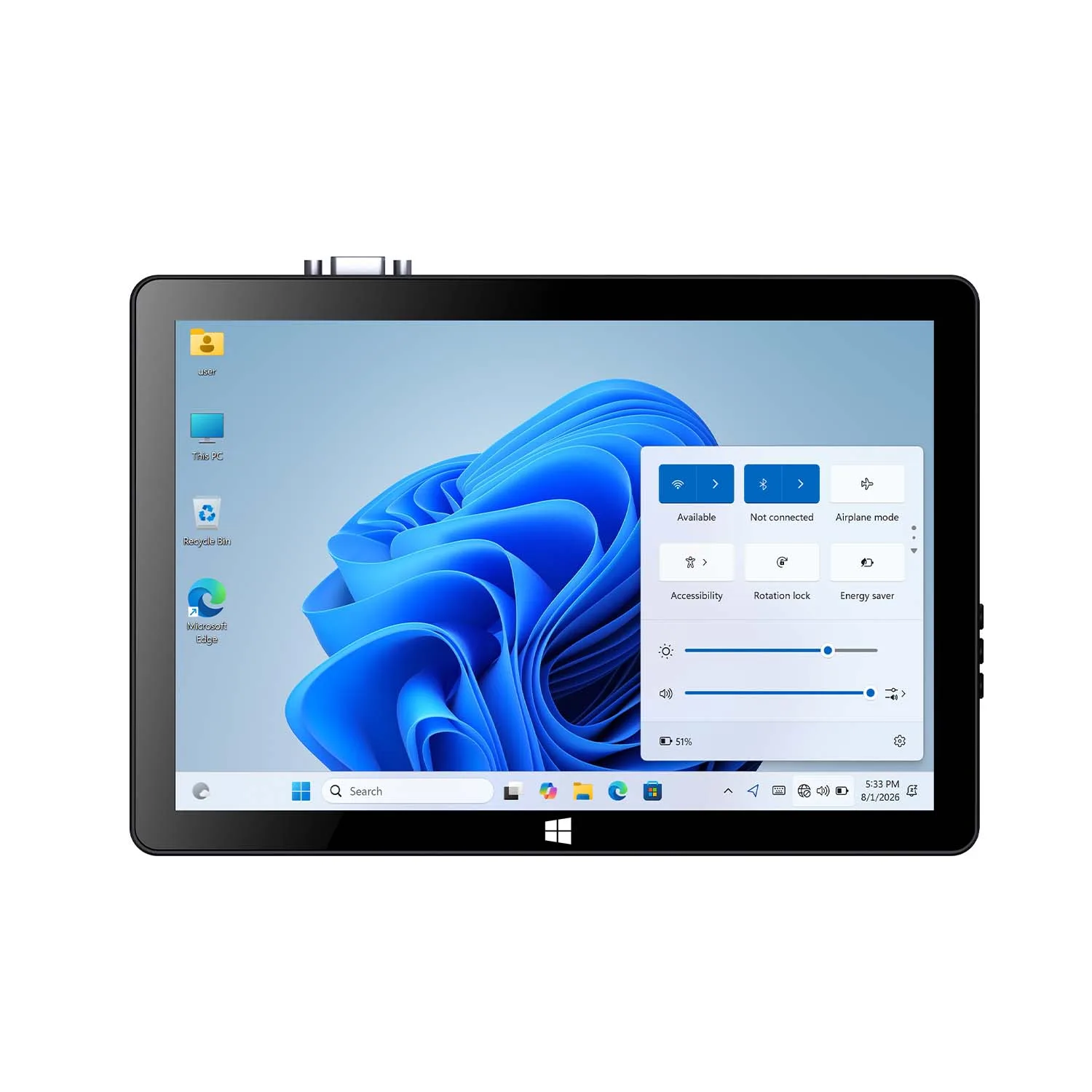

Display: 10.1" 1920×1200 IPS, 10-point capacitive touch
RAM+Storage: 8GB/16GB DDR4 (replaceable) + 128GB/256GB/512GB/1TB M.2 2280 SSD (replaceable)
Network: Gigabit RJ45 + WiFi6 (AX101) + BT5.2 + optional 4G LTE

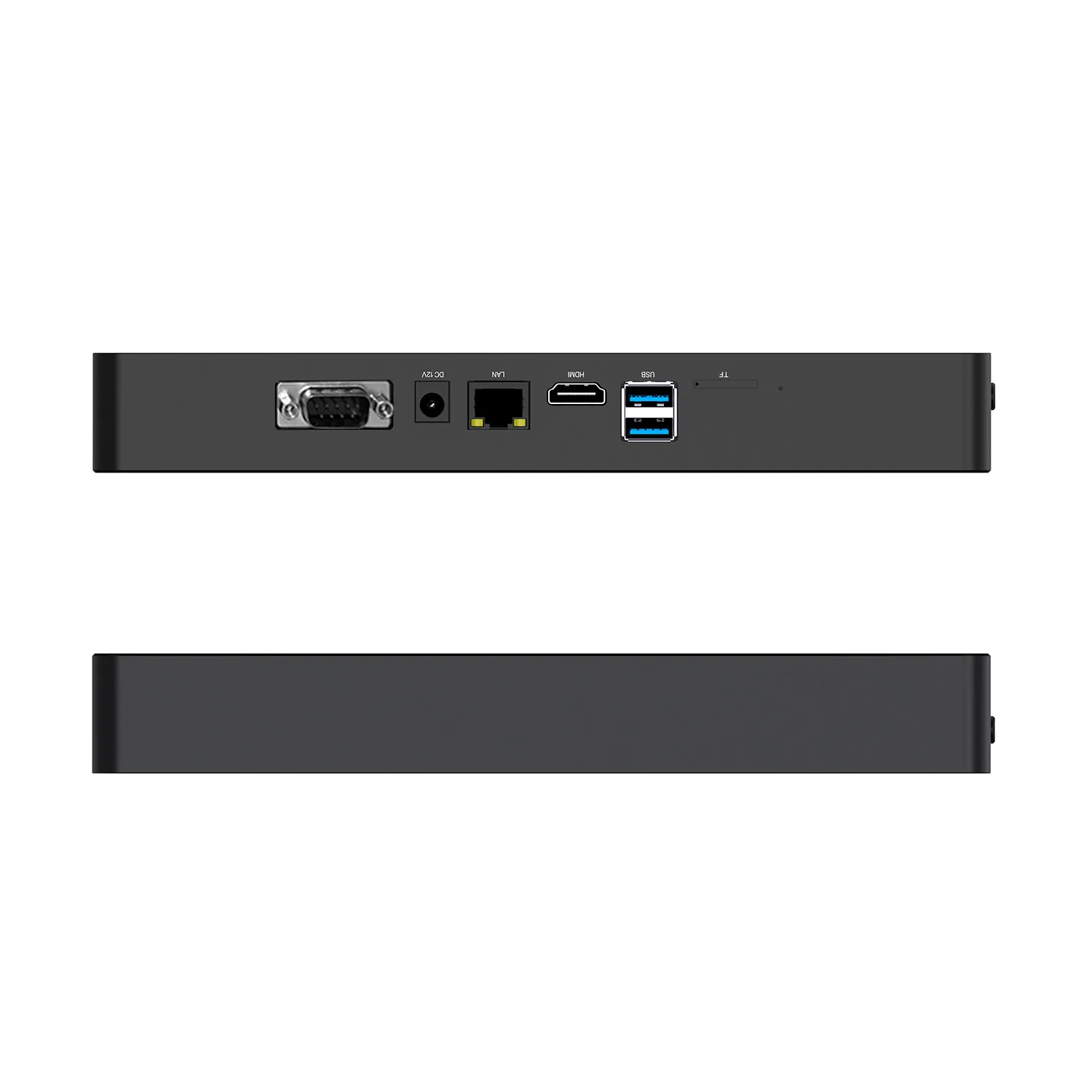

I/O Ports: USB3.0×4, HDMI Type-A×1, DB9 RS232×1, 3.5mm audio, TF&SIM 2in1 slot

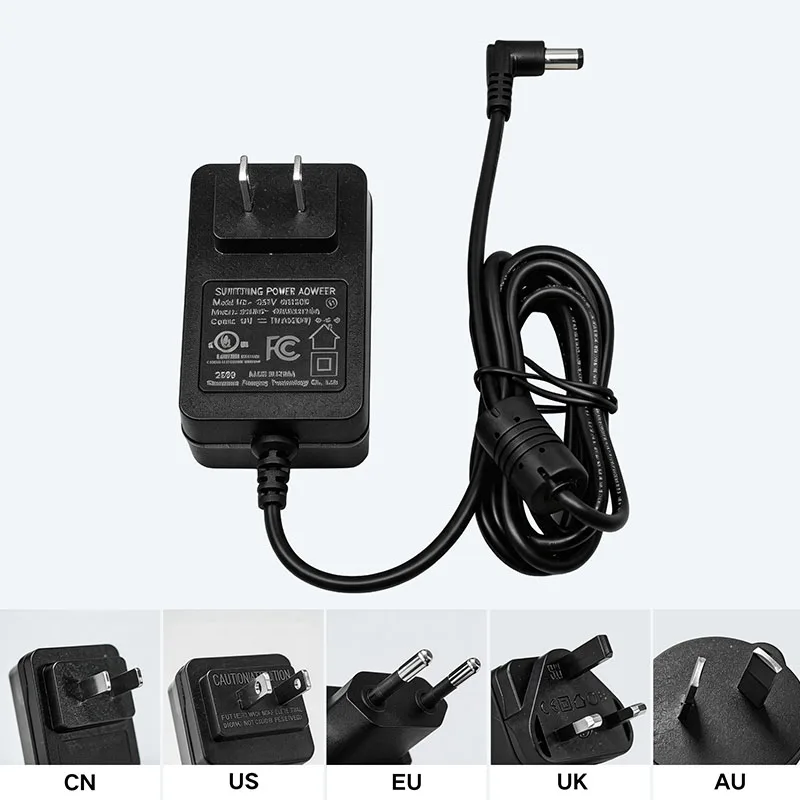

Power: 12V 2.4A DC, optional POE+ (25.5W)
Design: Built-in fan active cooling, reliable operation
Mounting: VESA 100×100mm wall mount
Optional: 4G LTE module, 2D barcode scanner, POE+ power
The CENAVA H10F N95 Edition is a 10.1-inch Windows industrial touch computer developed for equipment operation, production data entry, self-service terminals, warehouse workstations and compact control installations.It combines an Intel Processor N95, a 1920×1200 IPS touchscreen, replaceable DDR4 memory and a replaceable M.2 2280 SSD in a compact wall-mountable enclosure.
Technical Specifications
 CPU Intel Processor N95 Four cores, four threads Up to 3.40GHz |  System Windows 11 |  Storage 8GB DDR4 RAM + 128GB M.2 SSD |  Display 10.1 inch 10-Point Projected Capacitive Touchscreen 1920*1200 IPS Reinforced Capacitive Touchscreen |
 Speaker Dual speaker Noise reduction microphone |  Media playback Support for music, videos, and images |  Battery 7.4V5000mAh |  Key Power button Volume up/down button |
 Card slot TF 128GB |  Interface Gigabit Ethernet,Headphone jack USB3.0*4,HDMI,DB9 RS232 Serial Port |  Weight 990g |  Status indicator Charging indicator light |
| Product Type | Windows industrial touch computer |
| Audio output interface | Dual speaker 4 Ω 2.5W |
| Microphone recording | Built-in mic, sensitivity -38db |
| gravity sensor | Three axis rotation |
| USB | 4 × USB 3.0 Type-A |
| RJ45 | 1 × RJ45 Gigabit Ethernet |
| TF&SIM 2in1 card slot | *1 |
| Audio output and microphone input | *1 |
| HDMI output interface | 1 × full-size HDMI Type-A |
| RS232 | 1 × DB9 RS232 |
| WIFI+BT 2in1 module | 2.4G+5G dual-band WiFi IEEE 802.11a/b/g/n/ax （AX101 Wi-Fi 6）+BT 5.2 |
| Wall hanging installation | Wall hanging hole position 100x100mm，M3*4mm |
New N95 Platform for Dedicated Windows Applications
The H10F N95 Edition replaces the previous J4125 platform with the newer Intel Processor N95.
The processor provides four CPU cores, four processing threads and a maximum frequency of up to 3.40GHz. It is suitable for dedicated Windows applications that require more processing capacity than older entry-level industrial touch computers.
Typical software workloads include:
* Machine configuration utilities
* Production data-entry software
* Browser-based management systems
* Warehouse-management clients
* Serial communication programs
* Self-service applications
* Equipment status dashboards
* Remote desktop software
* Retail or membership systems
* Lightweight database applications
Frequently Asked Questions About the H10F Industrial Touch Computer
1.What does the N95 version improve over the previous platform?
The new H10F uses the Intel N95 processor (4 cores / 4 threads, up to 3.40GHz) and adds Wi-Fi 6 and Bluetooth 5.2 connectivity. Memory and storage are now user-replaceable (DDR4 RAM + M.2 2280 SSD), and an optional PoE+ power configuration is available. Contact our sales team for a full model comparison.
2.How capable is the Intel N95 processor, and what software can it run?
The N95 is a 4-core, 4-thread processor with a maximum turbo frequency of 3.40GHz, offering stronger multitasking performance than entry-level platforms. It comfortably runs machine configuration utilities, production data-entry software, warehouse management clients, self-service applications, remote desktop software and lightweight database applications.
3.Can the RAM and storage be upgraded?
Yes. The unit uses replaceable DDR4 memory (8GB/16GB) and a standard M.2 2280 SSD (128GB/256GB/512GB/1TB), so capacity can be upgraded or the drive replaced later.
4.Does the standard unit include PoE?
No. PoE+ is an optional configuration. It delivers both network data and power (up to 25.5W) over a single compatible Ethernet cable, which is useful in installations where separate power wiring is inconvenient.
5.Does it have an RS232 port, and what can it connect to?
Yes, one DB9 RS232 port is built in, suitable for barcode scanners, POS peripherals, PLCs or other serial industrial devices.
6.Are the 2D barcode scanner and 4G module standard?
No, both are optional. Please specify the 2D barcode scanner or the 3G/4G module with Nano-SIM slot at the time of order if needed.
7.Is the unit fanless?
No. The H10F uses an active cooling fan (5,600rpm) to maintain stable performance during extended operation. For fanless or dust/moisture-resistant needs, please ask about our fanless product line.
8.Can it connect to an external display?
Yes, it has one full-size HDMI Type-A port for connecting an external monitor or projector for dual-screen or extended display.
9.Can all four USB ports be used at the same time?
Yes, all four USB 3.0 ports can be used simultaneously. For high-power peripherals (large external drives, printers, etc.), we recommend a powered USB hub to avoid exceeding the port's power output.
10.Is the rear mounting pattern compatible with standard VESA brackets?

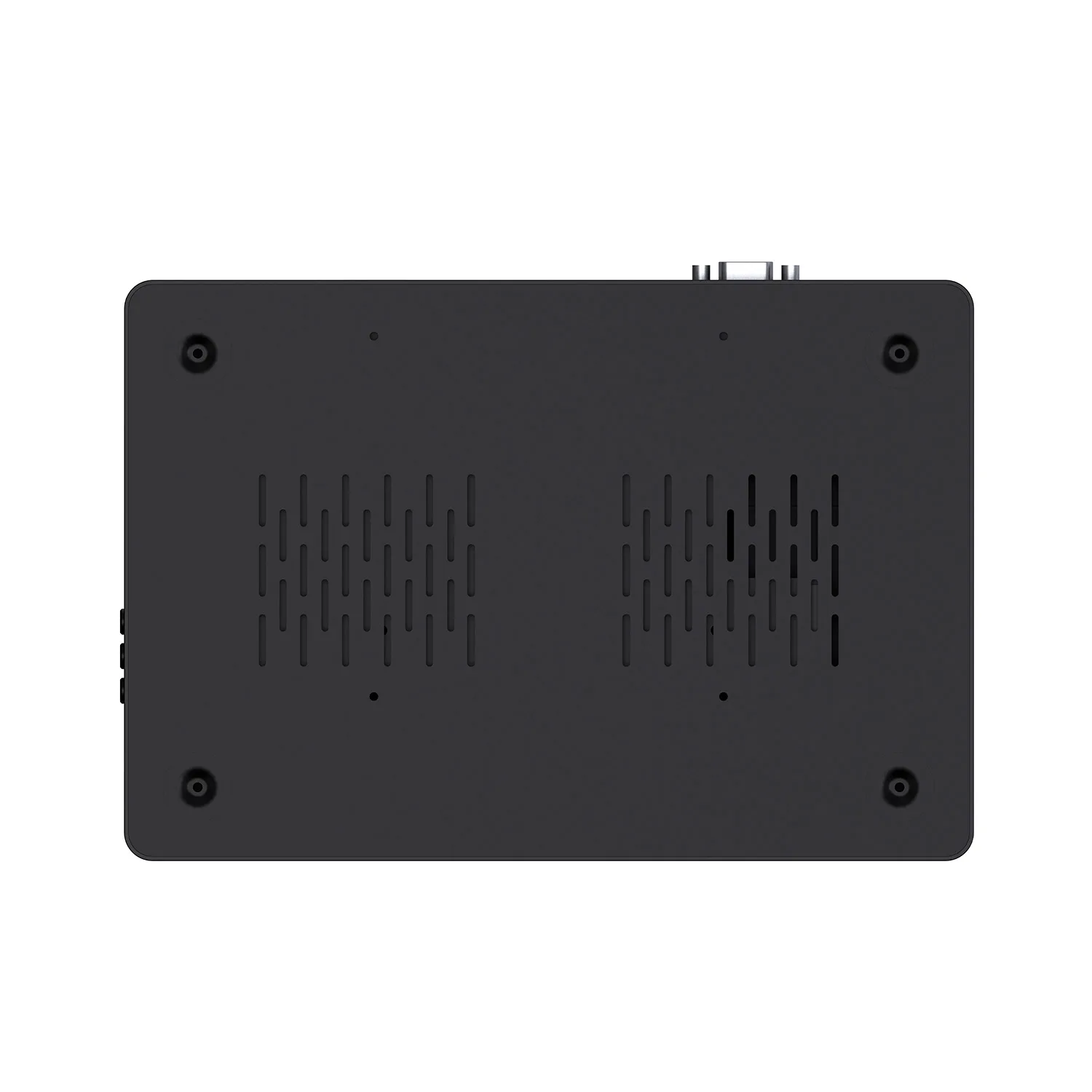

The rear panel has 100×100mm mounting holes (M3×4mm screws), compatible with common 100mm VESA-pattern brackets. Please confirm your bracket's load rating and screw specification before installation.
11.Can it be ordered with Windows 10 instead?
Yes. The unit ships with Windows 11 by default; please specify Windows 10 at the time of order if required.
