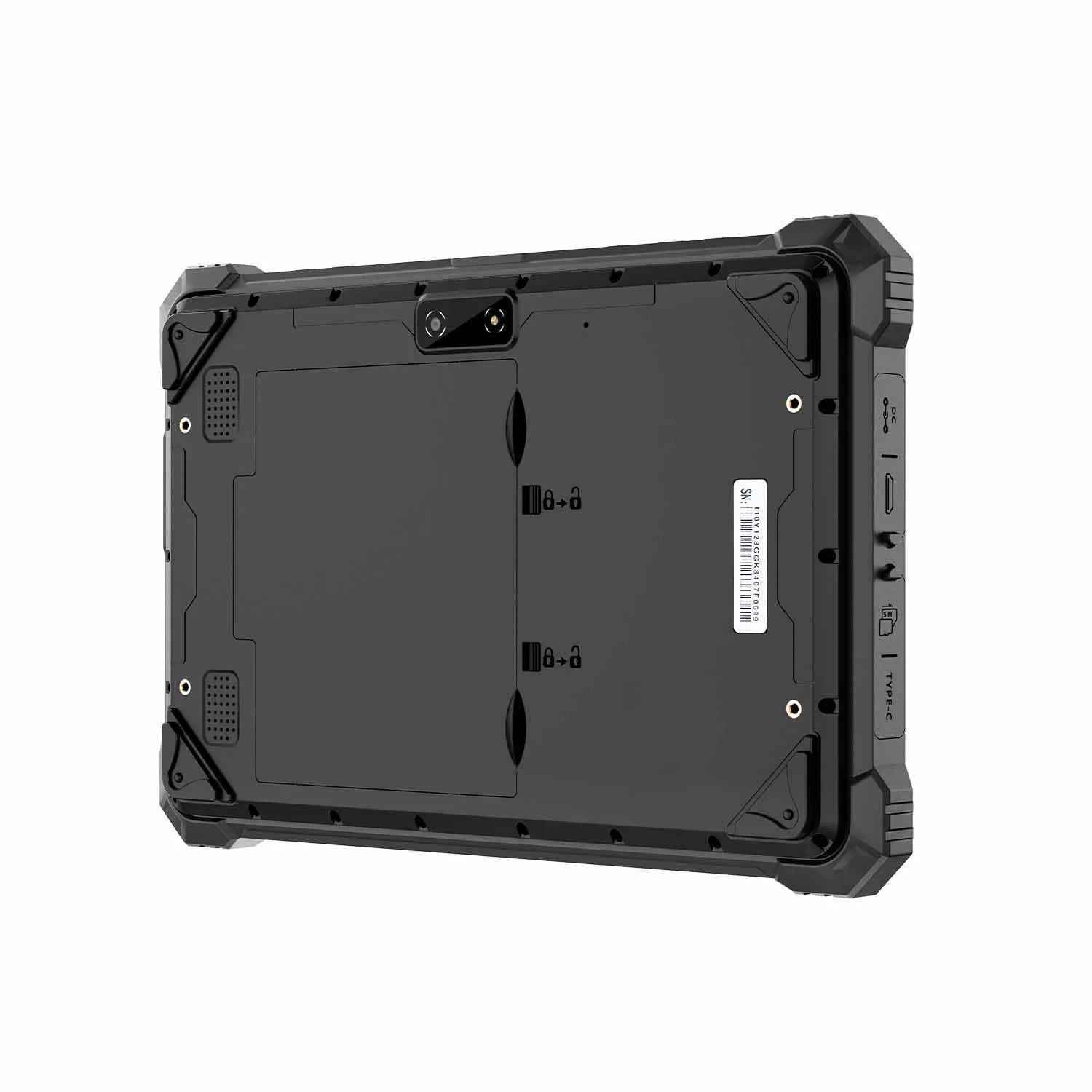

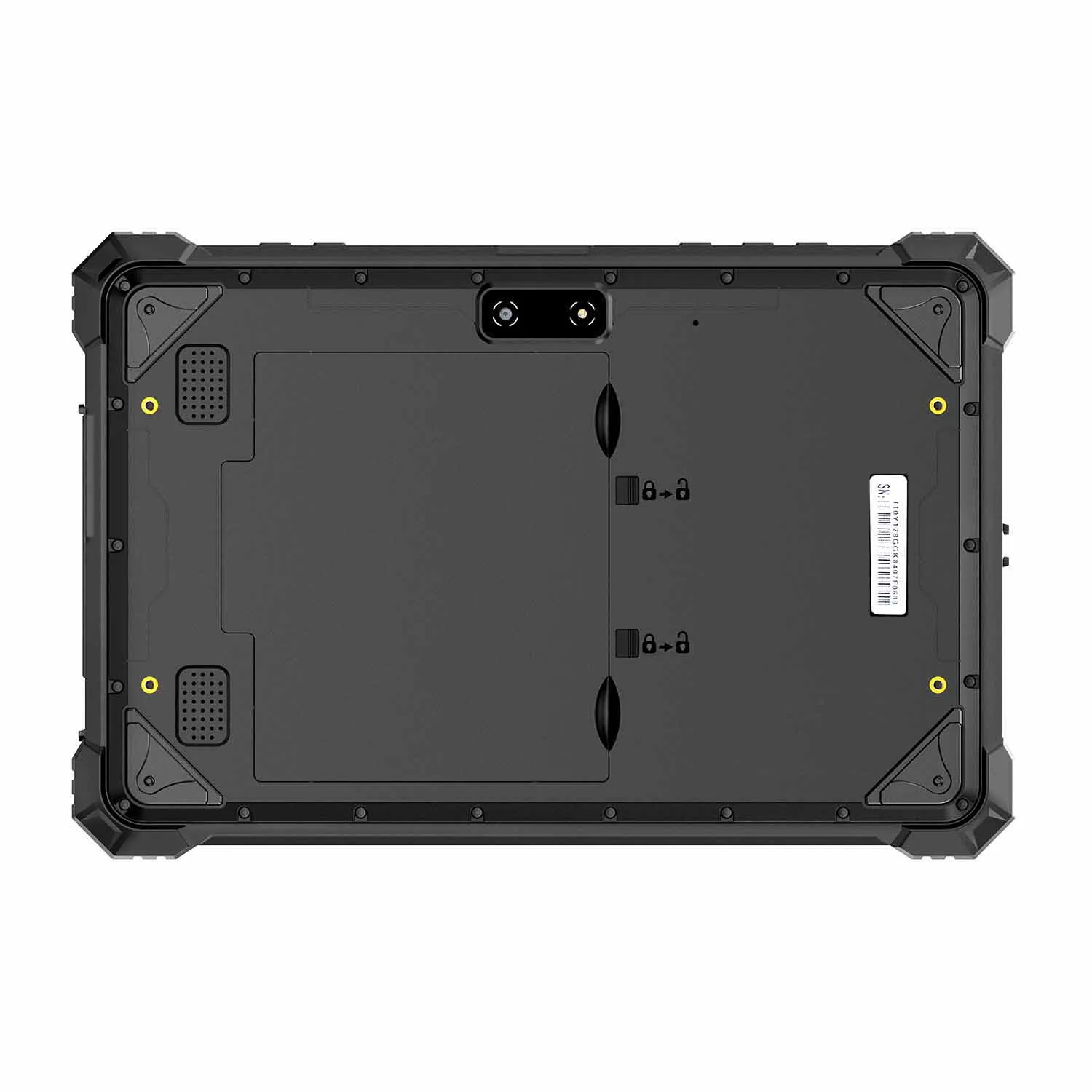

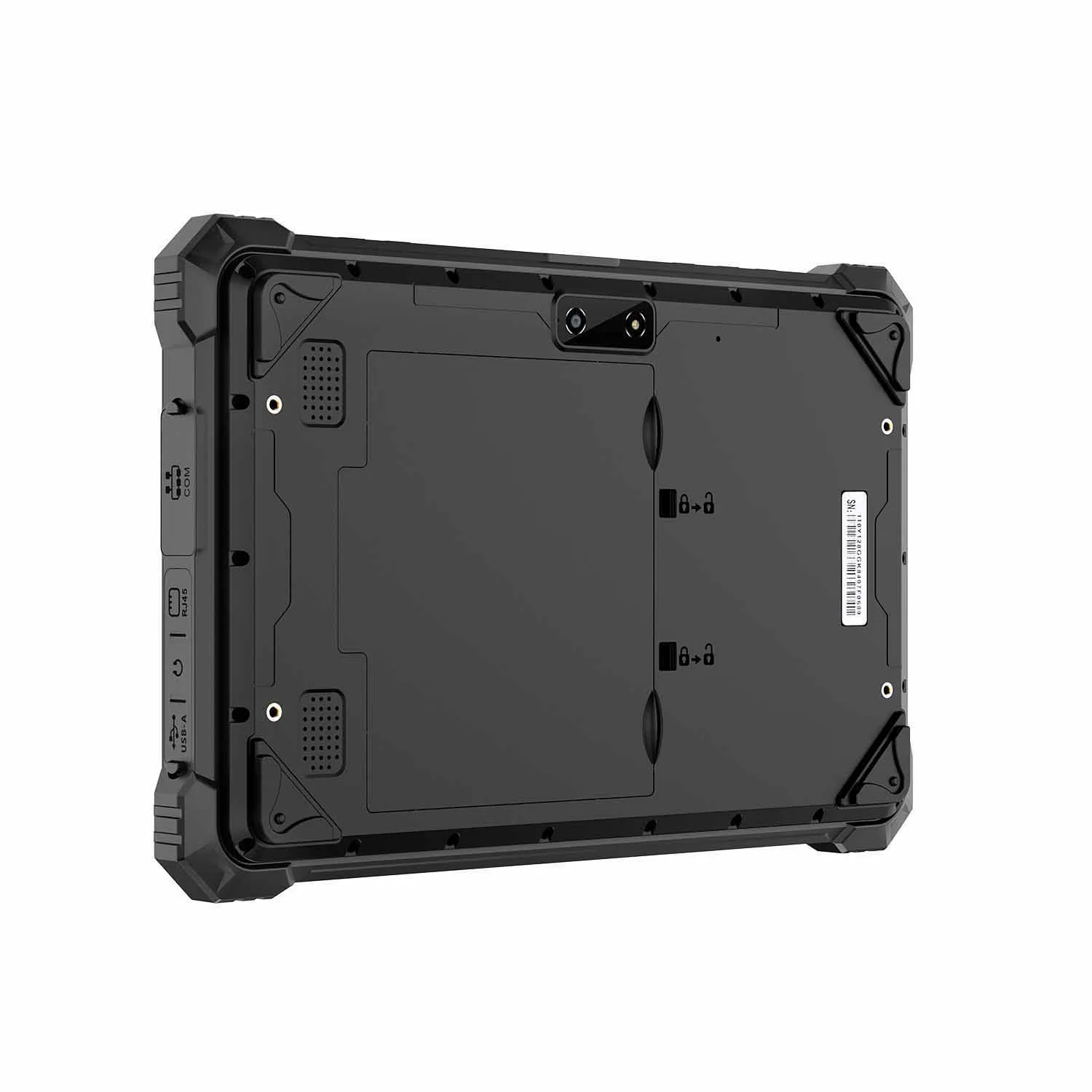

CENAVA A10STX MT6771 10.1 Inch Android 10 IP67 Rugged Tablet
CENAVA A10STX-MT6771 is a 10.1-inch Android rugged tablet designed for industrial projects that continue to rely on Android 10 applications, established MT6771 system images or previously validated peripheral drivers.MediaTek MT6771 octa-core processor with 4GB+64GB or 8GB+128GB configurations.
Rugged Protection: IP67, MIL-STD-810H 1.22m drop, -20°C~60°C (customizable -30°C~60°C)
CPU: MediaTek MT6771 octa-core, 4×Cortex-A73 @2.0GHz + 4×Cortex-A53 @2.0GHz
OS: Android 10
Display: 10.1" IPS 1280×800 (optional 1920×1200), 700cd/㎡ (customizable 1000cd/㎡), G+G 10-point glove touch, hardness ≥7H, AF coating (customizable wet-hand touch)
RAM/ROM: 4GB+64GB (optional 8GB+128GB)
Battery: 15400mAh 3.8V removable — seconds-fast swap; optional battery charging dock
Integrated I/O: RJ45, RS232, Micro HDMI, Type-C (OTG), USB-A, 3.5mm jack, 12Pin POGO, Micro SIM, TF up to 256GB
Network: Dual-band WiFi 5, Bluetooth 4.2, 4G LTE full-band; GPS/BeiDou/Galileo/GLONASS, optional single-BeiDou
Cameras: 8MP front + 16MP AF rear with true flash

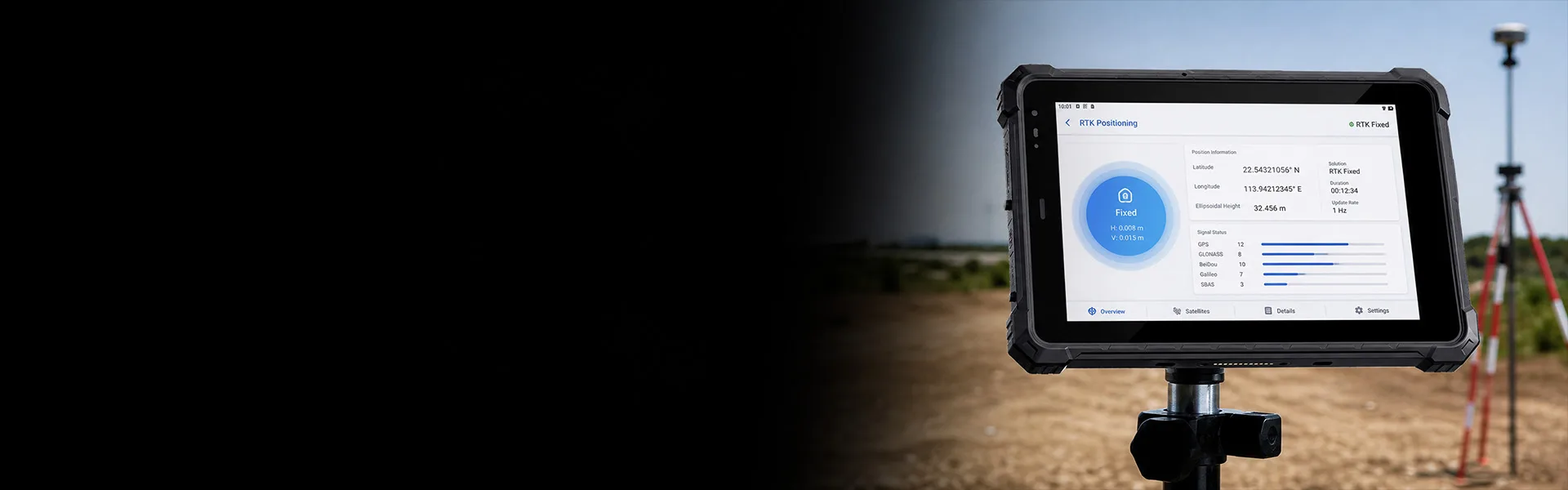

Optional Modules: 2D scanner, ID card reader, UHF RFID, LF 125kHz, RTK cm-level positioning; NFC standard

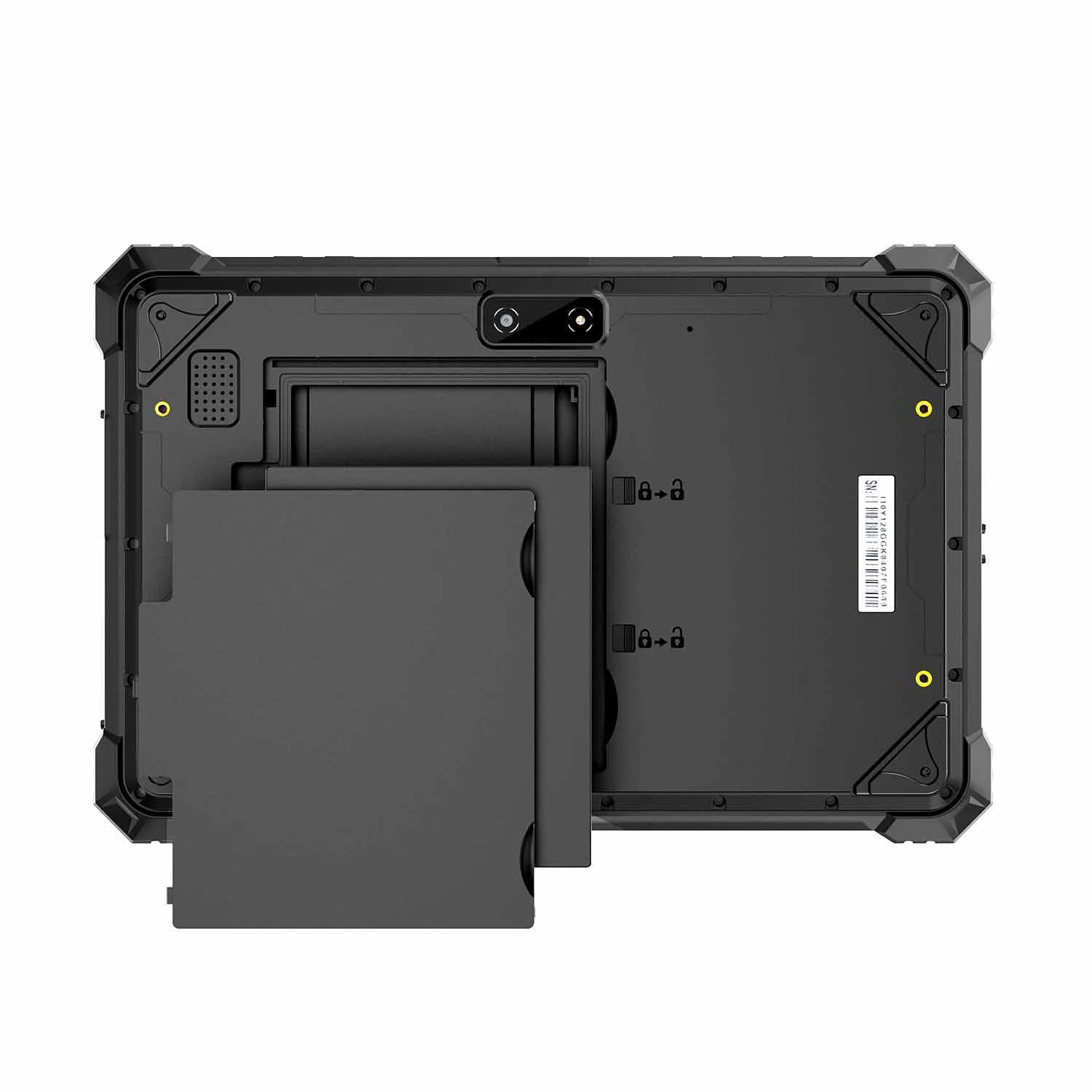

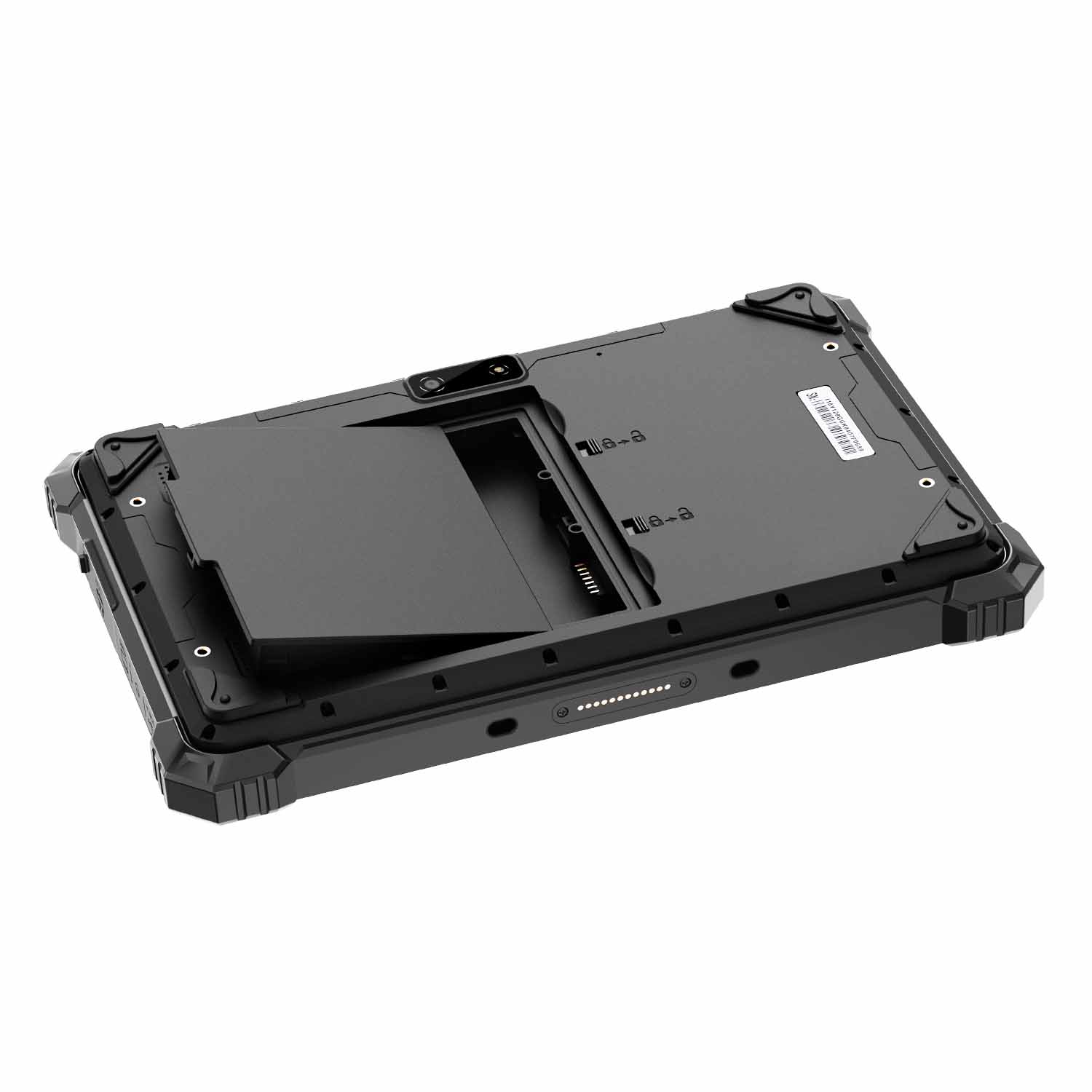

Swap in Seconds
Shifts Never Stop

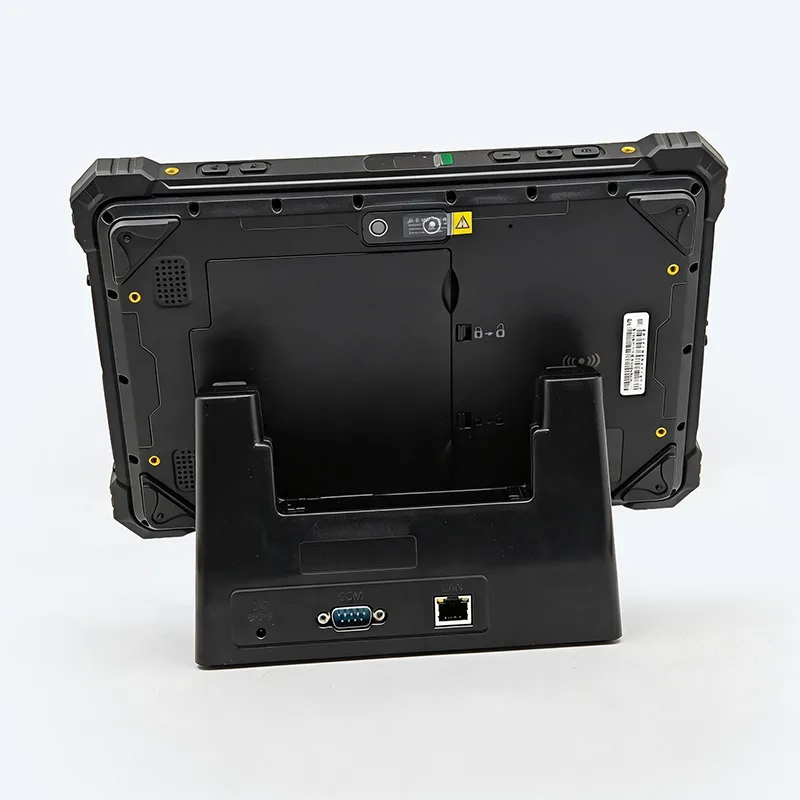

15400mAh Removable Optional Charging Dock
Compared with peers its size, the 15400mAh 3.8V pack carries far more reserve—one battery covers a full day shift, and when it runs low, a swap takes seconds instead of hours at a charger. Rotate spare batteries for three-shift operation without downtime, and manage centralized top-ups with the optional battery charging dock. The sealed battery bay works with the IP67 chassis and -20°C to 60°C operating range (customizable to -30°C) to keep power steady from cold storage exits to summer yards.

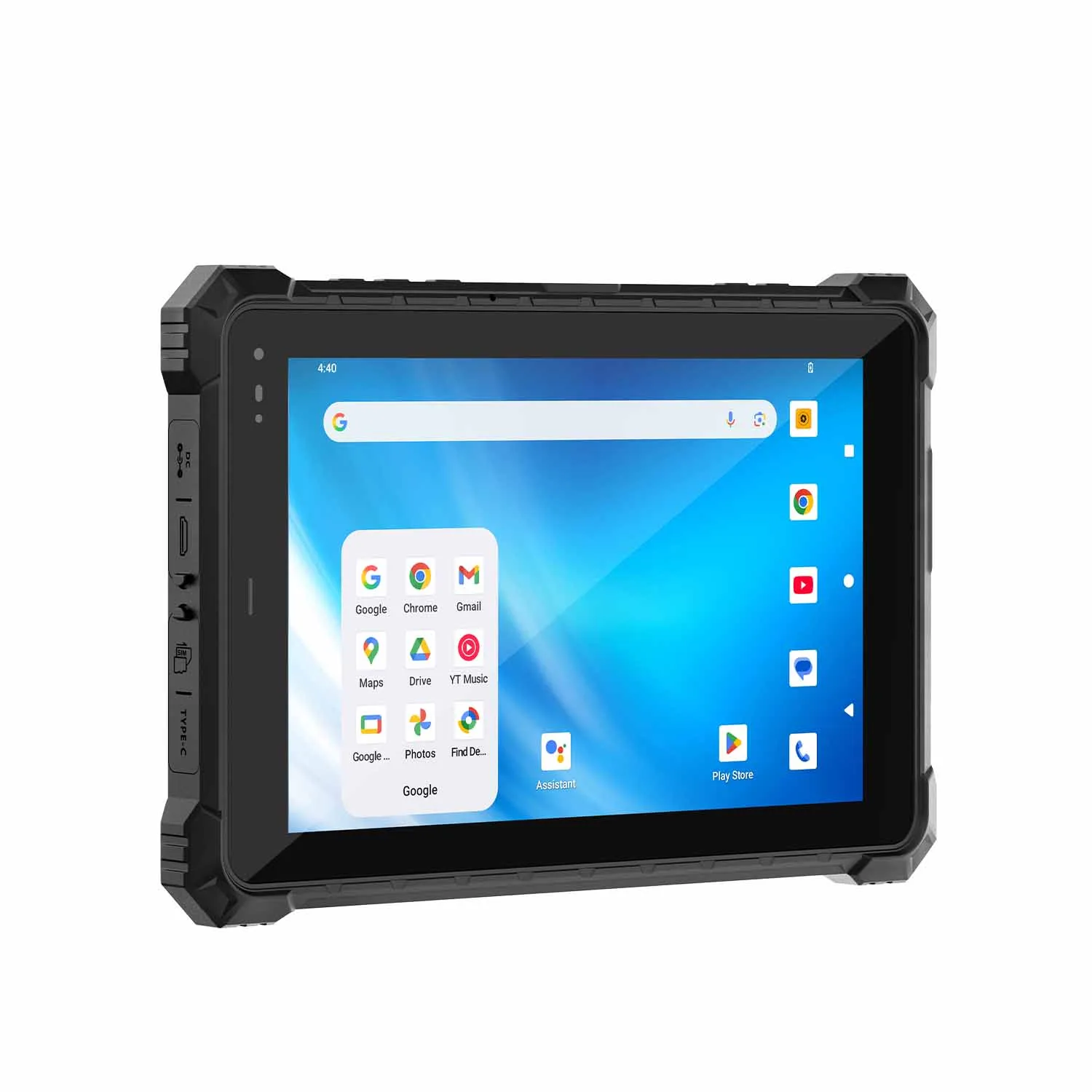

Tap With Gloves On
Readable in Glare
10.1-inch IPS 700cd/m² Glove Touch
The 10.1-inch IPS panel ships at 1280×800 with an optional 1920×1200 upgrade, and 700cd/m² brightness stays readable under dock-door glare, with 1000cd/m² batch customization available. G+G construction supports 10-point glove touch—cotton gloves in winter or rubber gloves on the line both register accurately. A ≥7H hardened surface with AF anti-fingerprint coating resists scratches and smudges through high-frequency use, and wet-hand touch can be customized for rainy receiving days. The large screen shows more document fields at once, cutting page-flipping in warehouse logistics work.
Proven Platform
Stable for Years
MT6771 Octa-Core Android 10 From 4GB+64GB

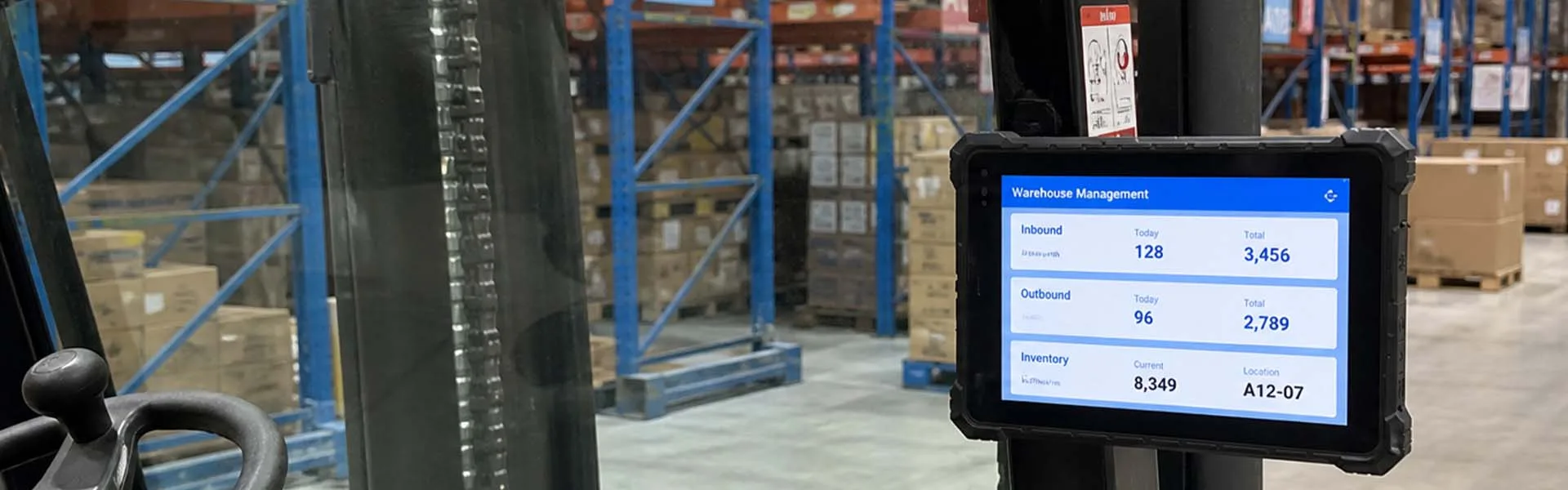

The MT6771 octa-core processor (4×Cortex-A73 @2.0GHz + 4×Cortex-A53 @2.0GHz) has been proven across years of industry projects, and Android 10 offers broad compatibility with warehouse management and data-collection apps—repeat orders need no software re-adaptation. The standard 4GB+64GB configuration covers daily inbound and outbound work, with 8GB+128GB optional. Dual-band WiFi 5, Bluetooth 4.2 and full-band 4G LTE keep every corner of the warehouse online. Stable supply and consistent configurations make fleet deployment and batch repurchasing easy, keeping total cost of ownership under control.
Built-In Industrial Ports
No Adapters Needed
RJ45 + RS232 + Micro HDMI + POGO
Nothing slows a site down like missing adapters. The A10STX builds RJ45 Ethernet and RS232 serial directly into the chassis, linking conveyors, scales and PLCs without dongles. Micro HDMI mirrors picking screens to large dashboards; Type-C OTG expands scanners and flash drives; USB-A, a 3.5mm jack and a 12-pin POGO dock come standard, alongside Micro SIM and TF expansion up to 256GB. Ports sit clear of the grip zone and dust plugs keep debris out, equally handy on carts, wall mounts or in hand.
Technical Specifications
 CPU MediaTek MT6771 Octa-core 4× Cortex-A73 at up to 2.0GHz |  System |  Storage 4GB+64GB with 1280×800 display |  Display 10.1 inch IPS touch screen 1280*800 resolution 700cd/㎡ |
 NFC Optional Default back of the body for card reading, customizable to the front |  One/Two dimensional code Optional Able to identify dirty 1/2 dimensional codes |  Battery Removable 3.8V 15400mAh |  High frequency/ultra-high frequency module Optional Ultra thin integrated module |
 Navigation positioning GPS, Galileo GLONASS |  ID card identification Optional |  Interface USB 2.0 Type-A, DB9, RJ45 100Mbps, Micro HDMI |  Weight 283.9*189.0*33.9mm/1267g |
 Physical Keys Power, volume up/down, P and F custom keys |  Protection level working temperature: -20 °C to 60°C Storage temperature: -30 °C to 70 °C Protection level: IP67 |  Camera Front camera:8MP Rear camera: 16MP autofocus rear |  Sensor Gravity sensing, compass, gyroscope, light sensing, distance sensing |
| Product Type | Removable-battery Android industrial tablet |
| Gravity sensor | Supported |
| Compass | Supported |
| Gyroscope | Supported |
| Light sensor | Supported |
| Distance sensor | Supported |
| Fm Radio | Supported |
| USB Type-C | 1× Type-C, USB 2.0, supports OTG |
| USB Type-A | 1× Type-A, USB 2.0 |
| Earphone Jack | 1× 3.5mm standard jack |
| TF Card | 1× slot, up to 256GB |
| SIM Card | *1 Standard Micro SIM card slot |
| HDMI | *1 Micro HDMI |
| DC jack | *1 5V/3A 3.5mm |
| POGO PIN | 1× 12-pin (USB + charging) |
| DB9（serial port） | *1 RS232 |
| RJ45 jack | *1 100M |

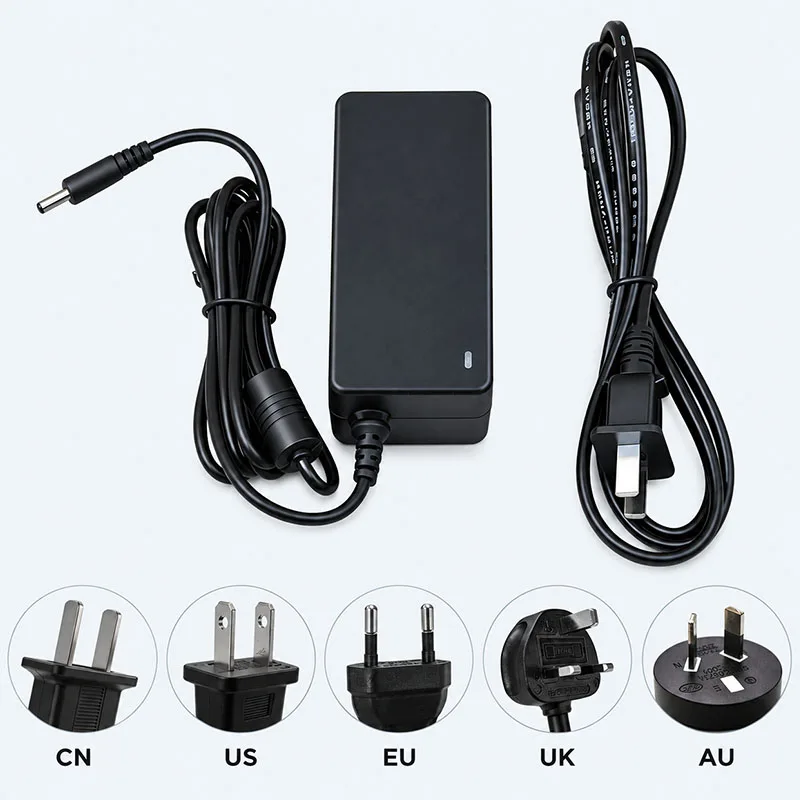

| Adaptor | 5V/3A，DC interface adapter |

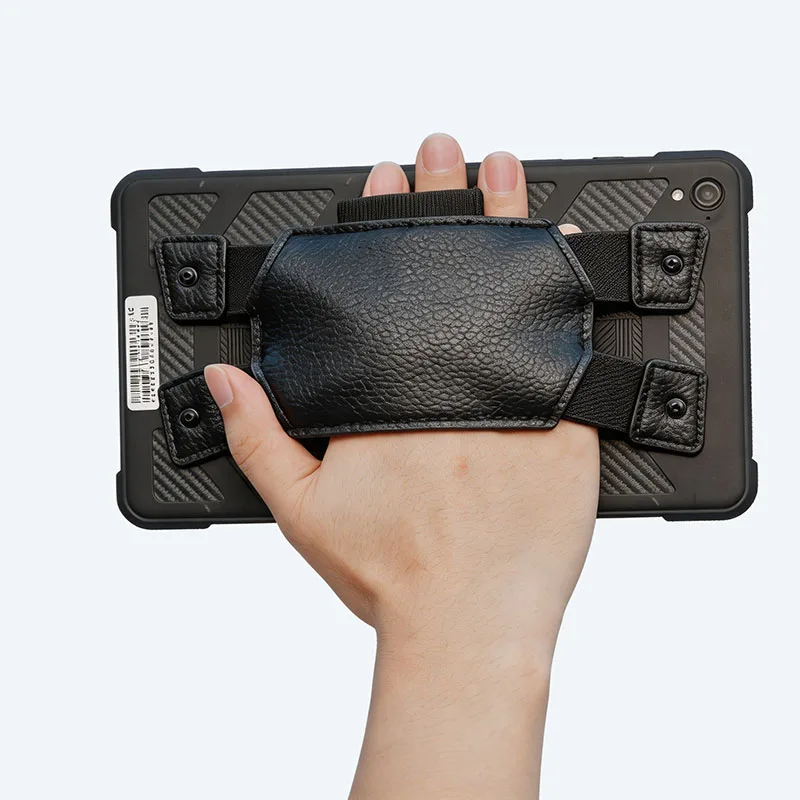

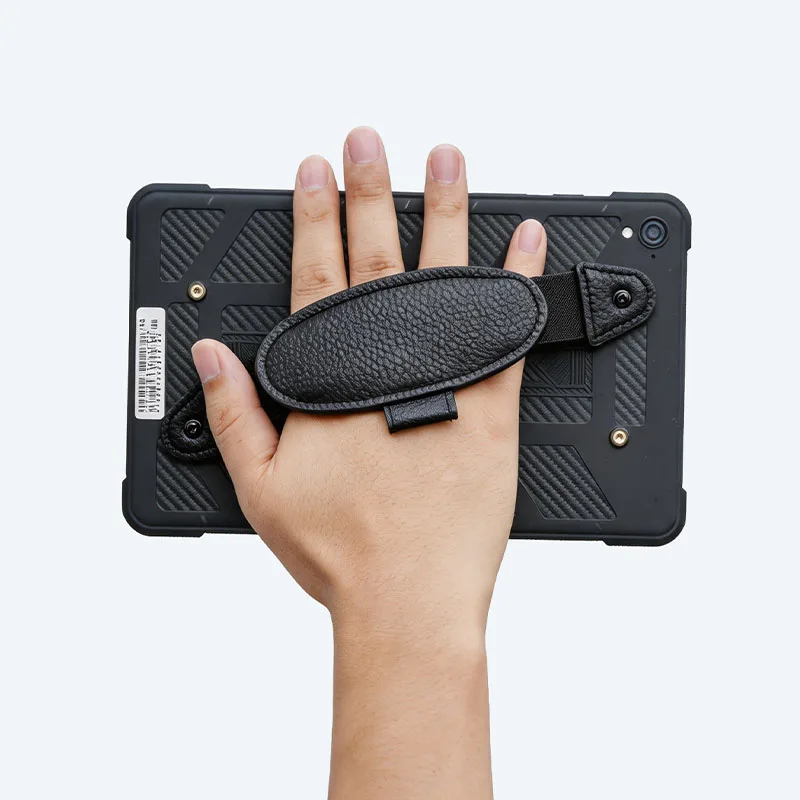

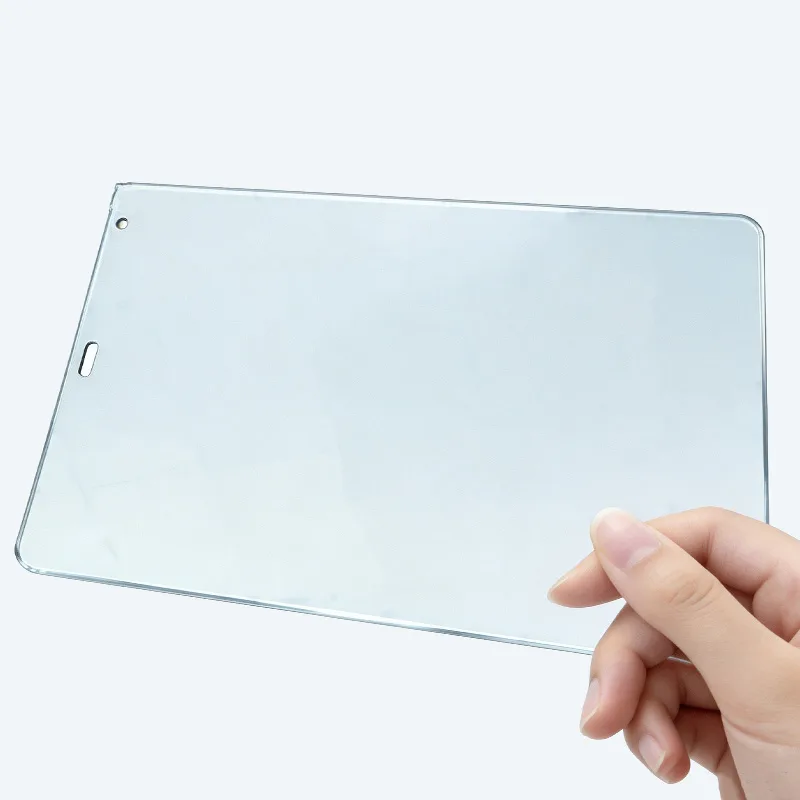

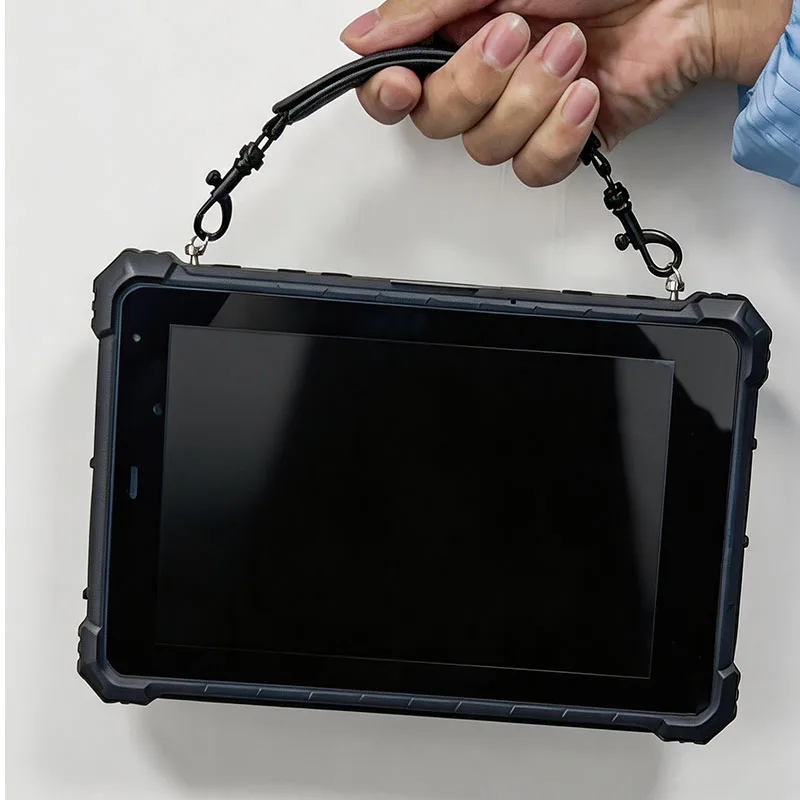

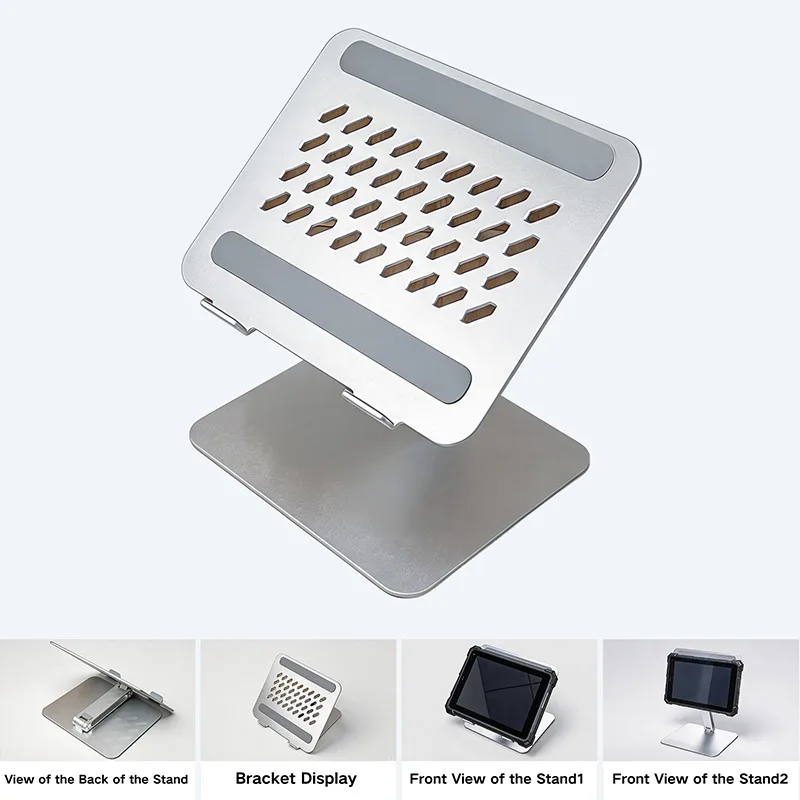

| Option accessories | Two-point strap, four-point strap, tempered-glass screen protector, charging base, stand, portable waterproof case |
The MT6771 runs four Cortex-A73 and four Cortex-A53 cores, all at up to 2.0GHz — a 2019-era platform, and for replacement projects that's the point. It's stable, field-proven, and its board support package has been through years of industrial debugging. It handles data entry, warehouse apps, serial communication and scan middleware without drama. What it won't give you is headroom: Bluetooth 4.2 rather than 5.x, and no PD fast charging. Size your software to the platform, not the other way round.
The platform is suitable for established workloads such as:
Industrial data entry
Equipment-maintenance software
Serial communication
Warehouse applications
Barcode and RFID middleware
Browser-based business systems
Work-order management
Camera documentation
Navigation applications
Basic local databases
Remote technical support
Frequently Asked Questions About A10STX MT6771 Android Industrial Tablet
1. Who is the A10STX-MT6771 for?
Existing Android 10 deployments that also need battery swaps. If your software is certified on this platform and your crews outlast a single charge, this model replaces units without re-validating your software stack or changing how shifts run. New projects without that legacy constraint should start with the MT6877 or MT8781 versions.
2. What display and touch options are available?
A 1,000-nit panel is available as a customization for outdoor sites. Glove touch with medical rubber gloves is standard; wet-hand touch is a factory option, so say so when ordering if your crews work in the rain.

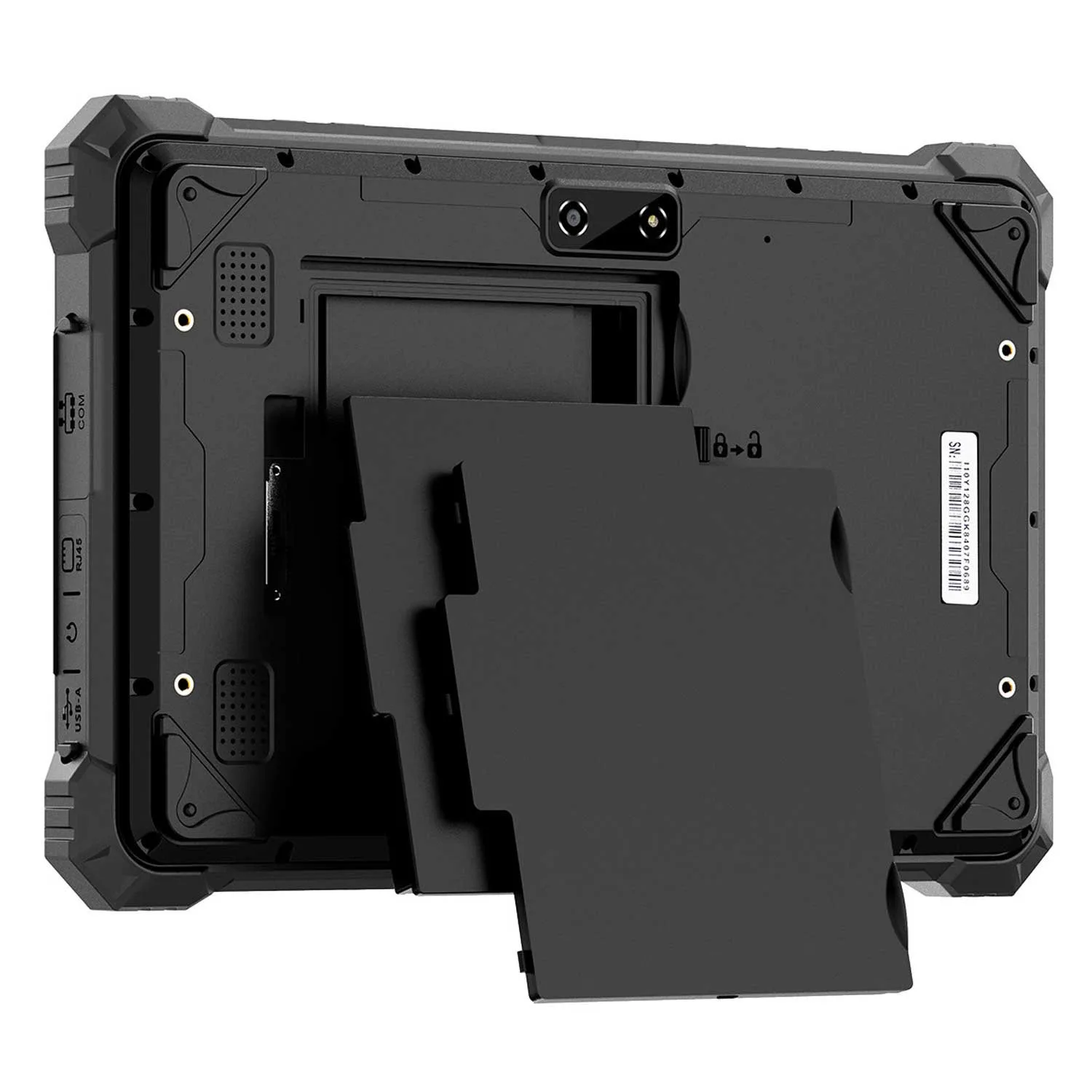

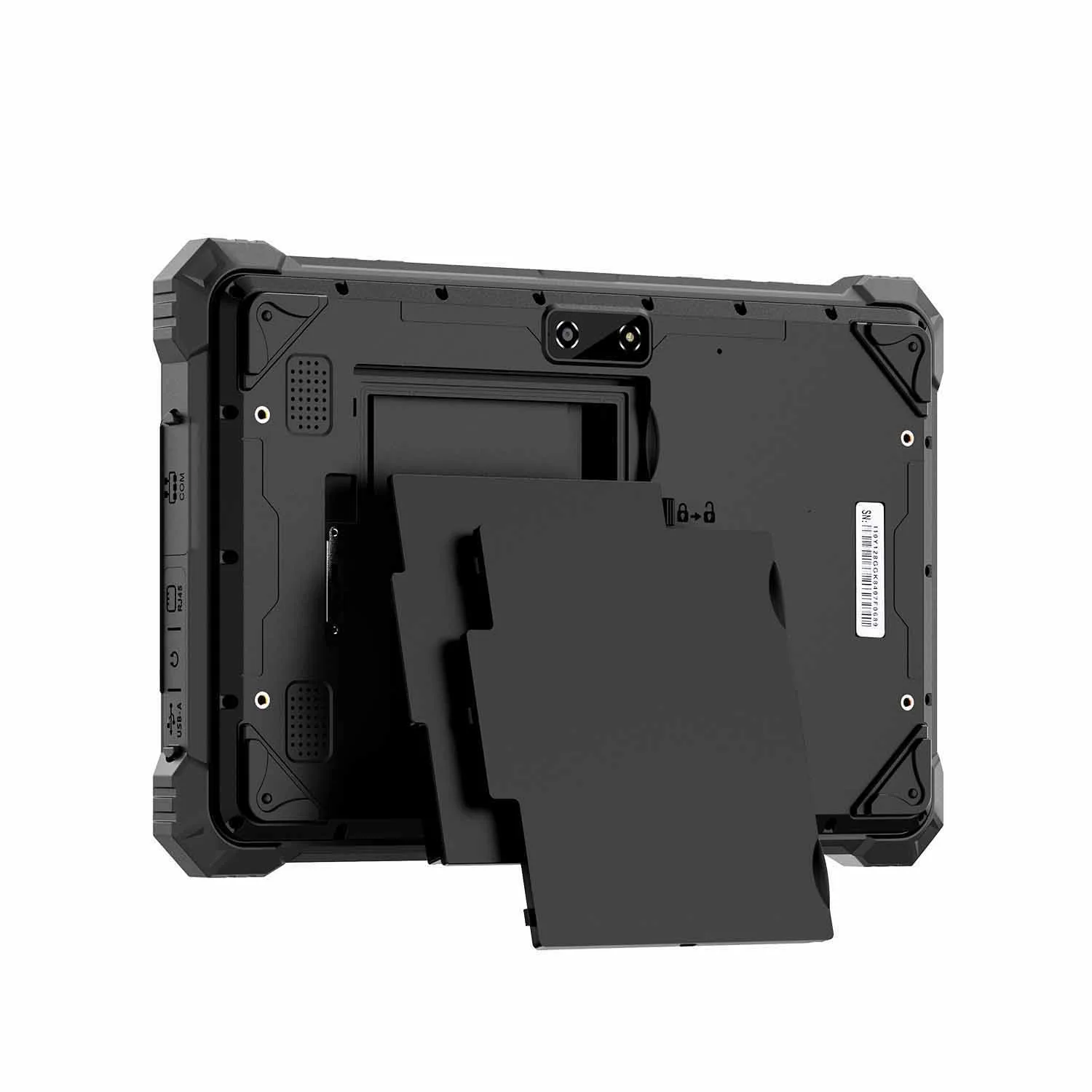

3. How does the battery system work?

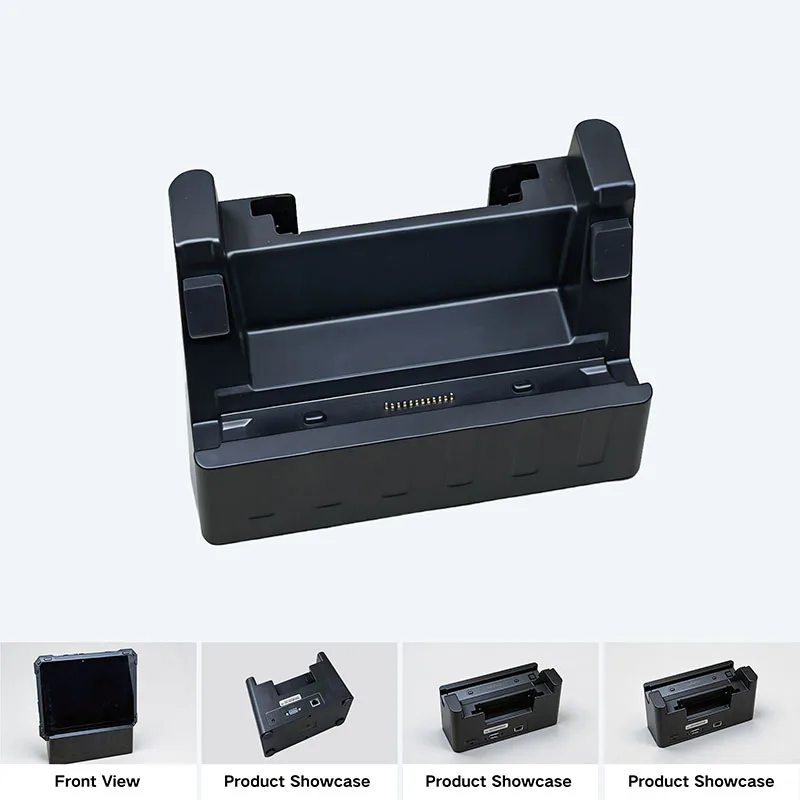

The 15,400mAh main battery is removable, spares are supported, and a charging dock is available so spare packs charge while the tablet keeps working. That's the whole point of the X-series body: the tablet never has to sit in a charger mid-shift.
4. Which ports come standard?
A native RS232 on DB9 (not a USB adapter), 100M RJ45 Ethernet, Micro HDMI, USB 2.0 Type-C with OTG, USB 2.0 Type-A, 3.5mm audio, Micro SIM and TF up to 256GB. Two honest limits: the Ethernet is 100M, not Gigabit, and RS485 is not offered on this model — if your equipment talks RS485, tell us before ordering and we'll look at options.
5. How is it different from the A10ST-MT6771?
Same MT6771 platform, same Android 10, same port set. This model's 15,400mAh battery is removable; the A10ST-MT6771's 10,000mAh is sealed in — which is also why this model is IP67 and that one is IP68. Choose by which matters more on your site: mid-shift swaps or water protection.
6. What are this platform's limits?
Bluetooth is 4.2 BLE rather than 5.x, and the Type-C port has no PD fast charging. Neither matters much in a docked or vehicle installation; both matter if the tablet lives in someone's hands all day.

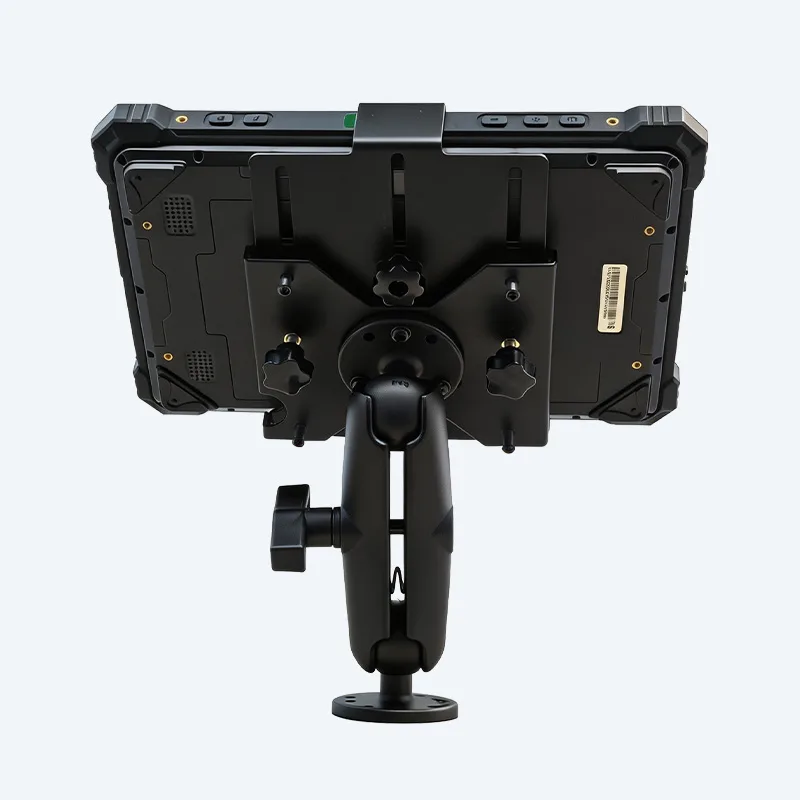

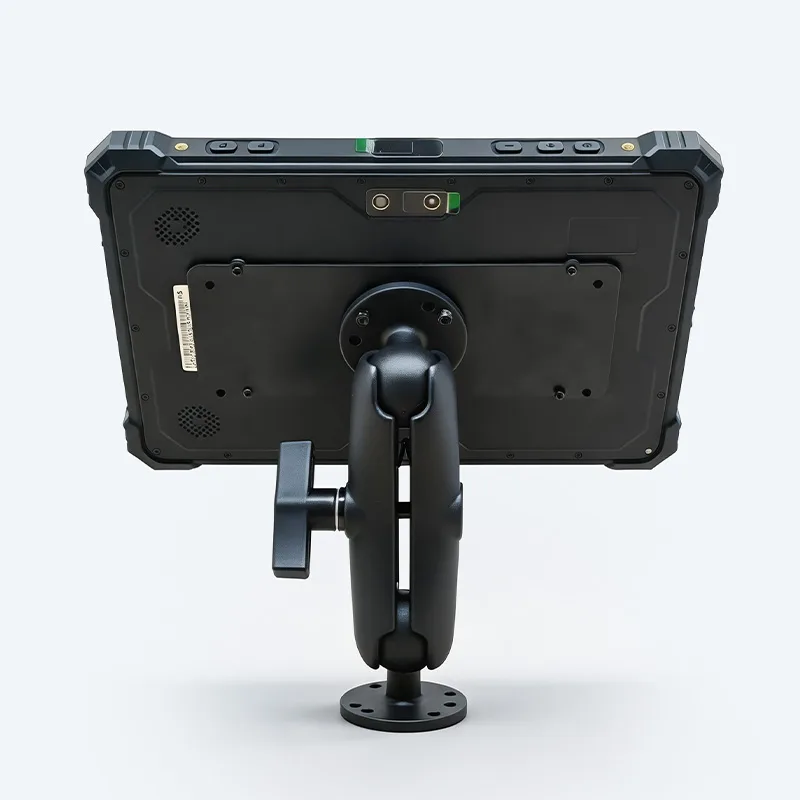

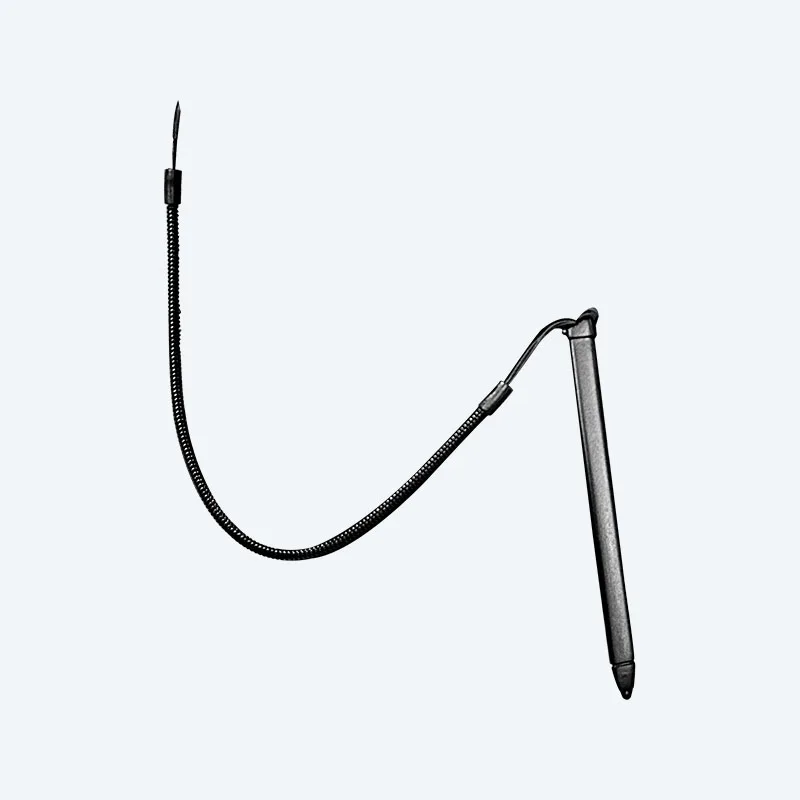

Accessories
