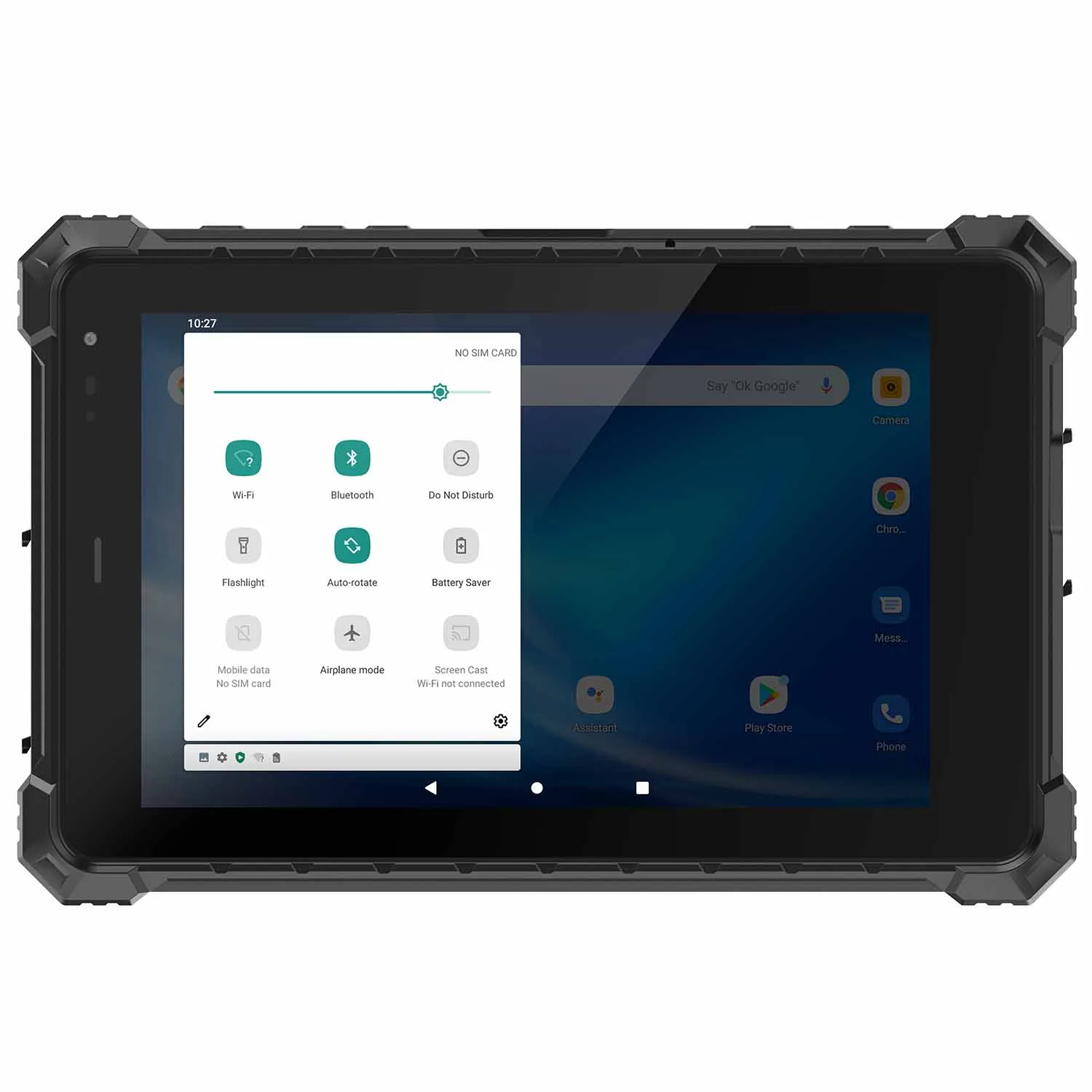

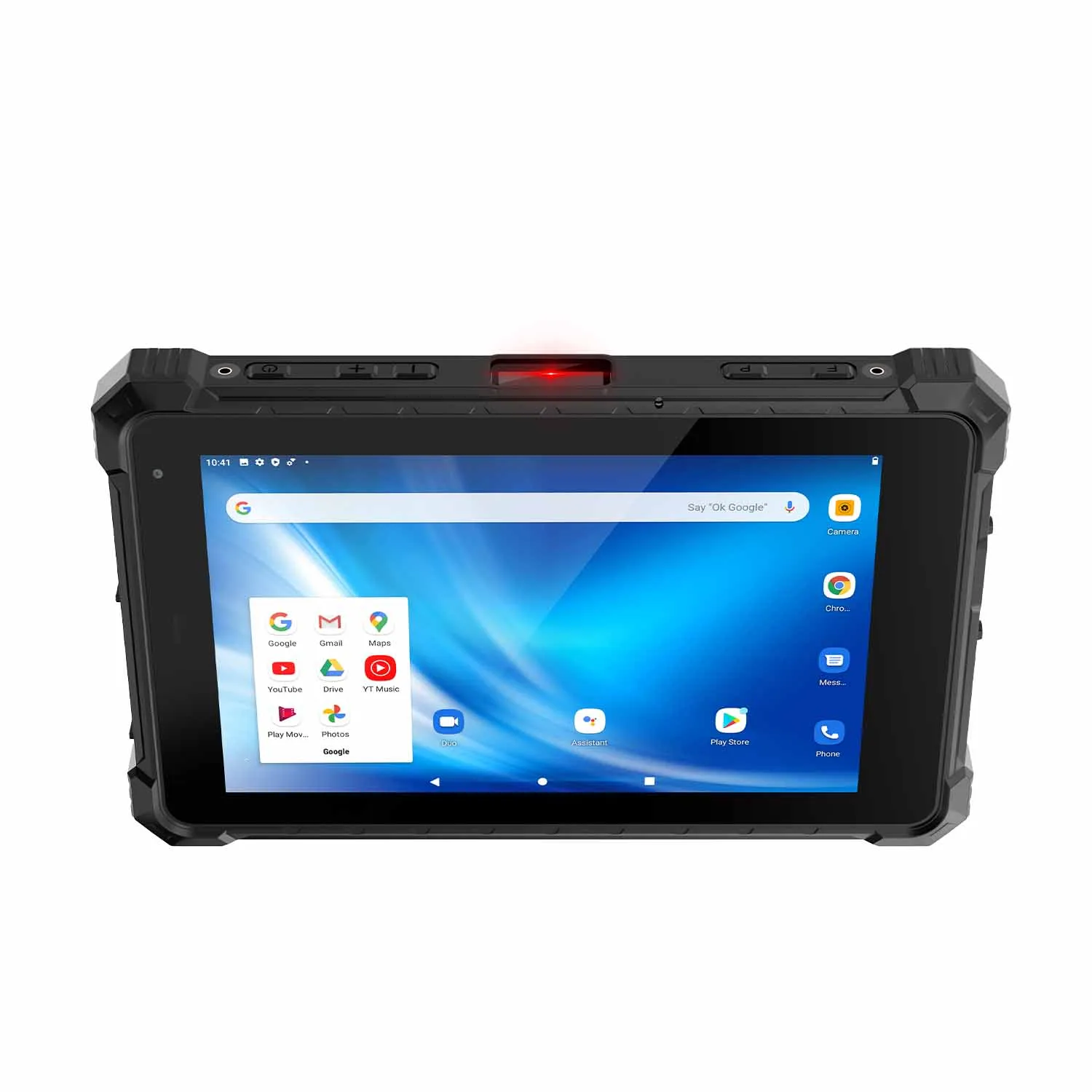

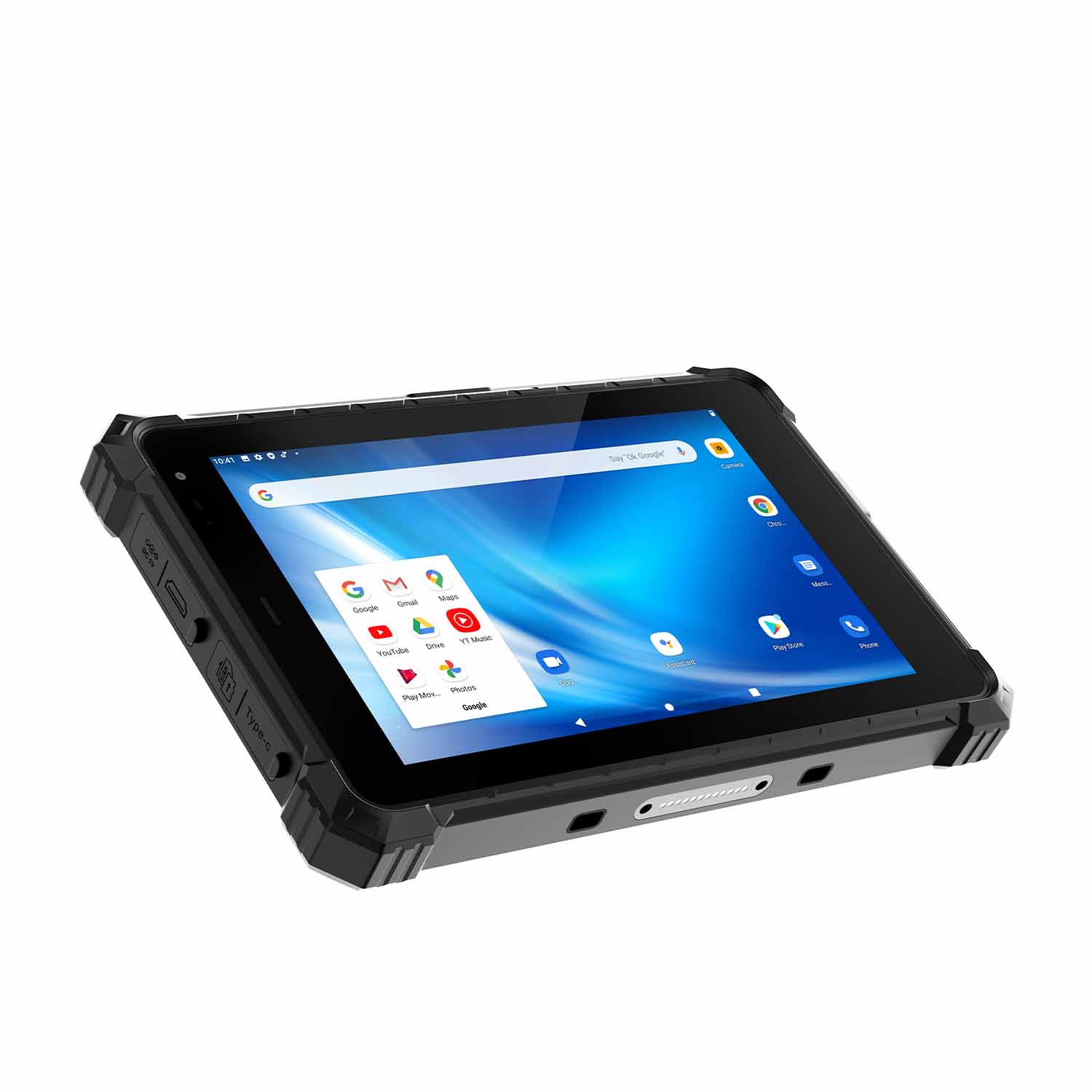

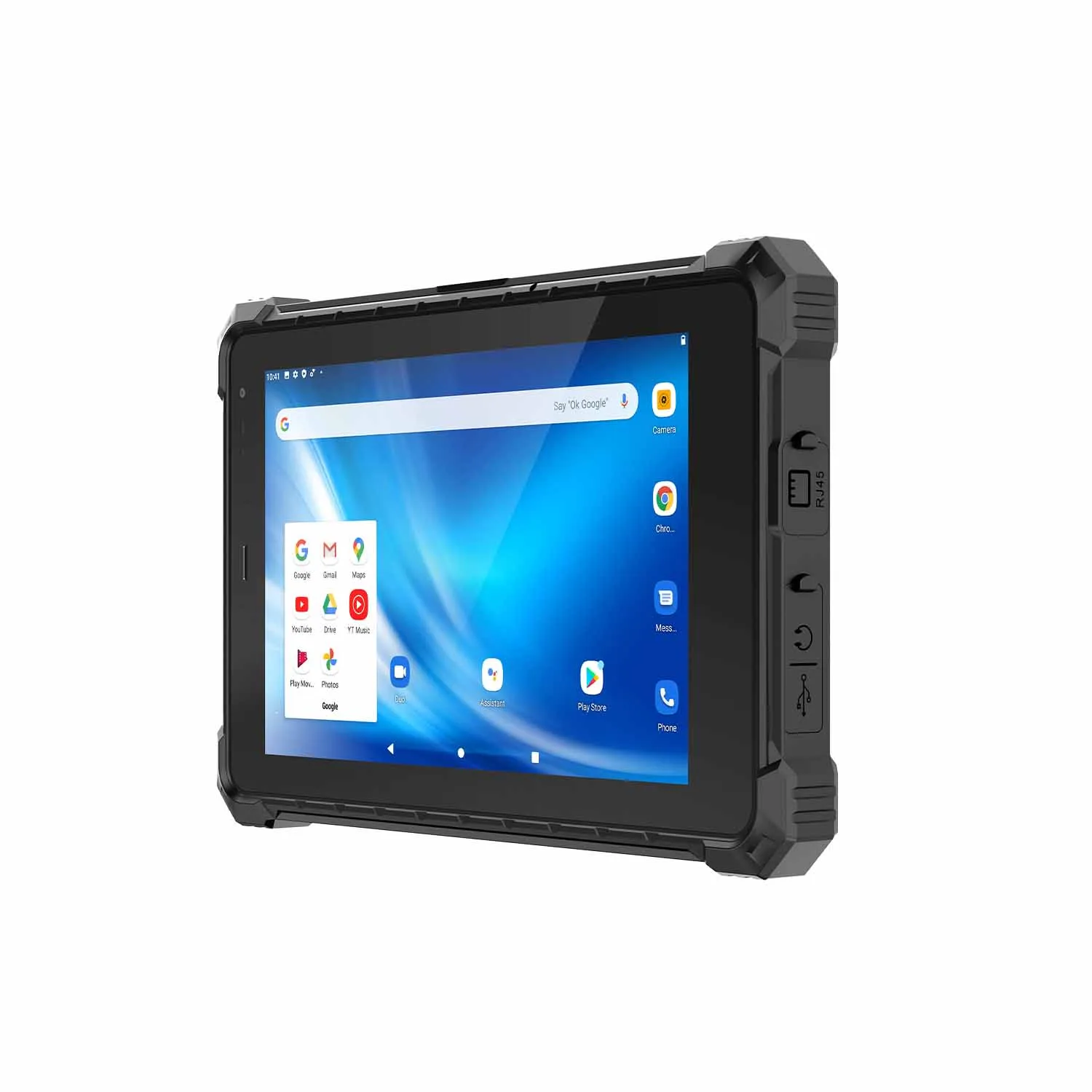

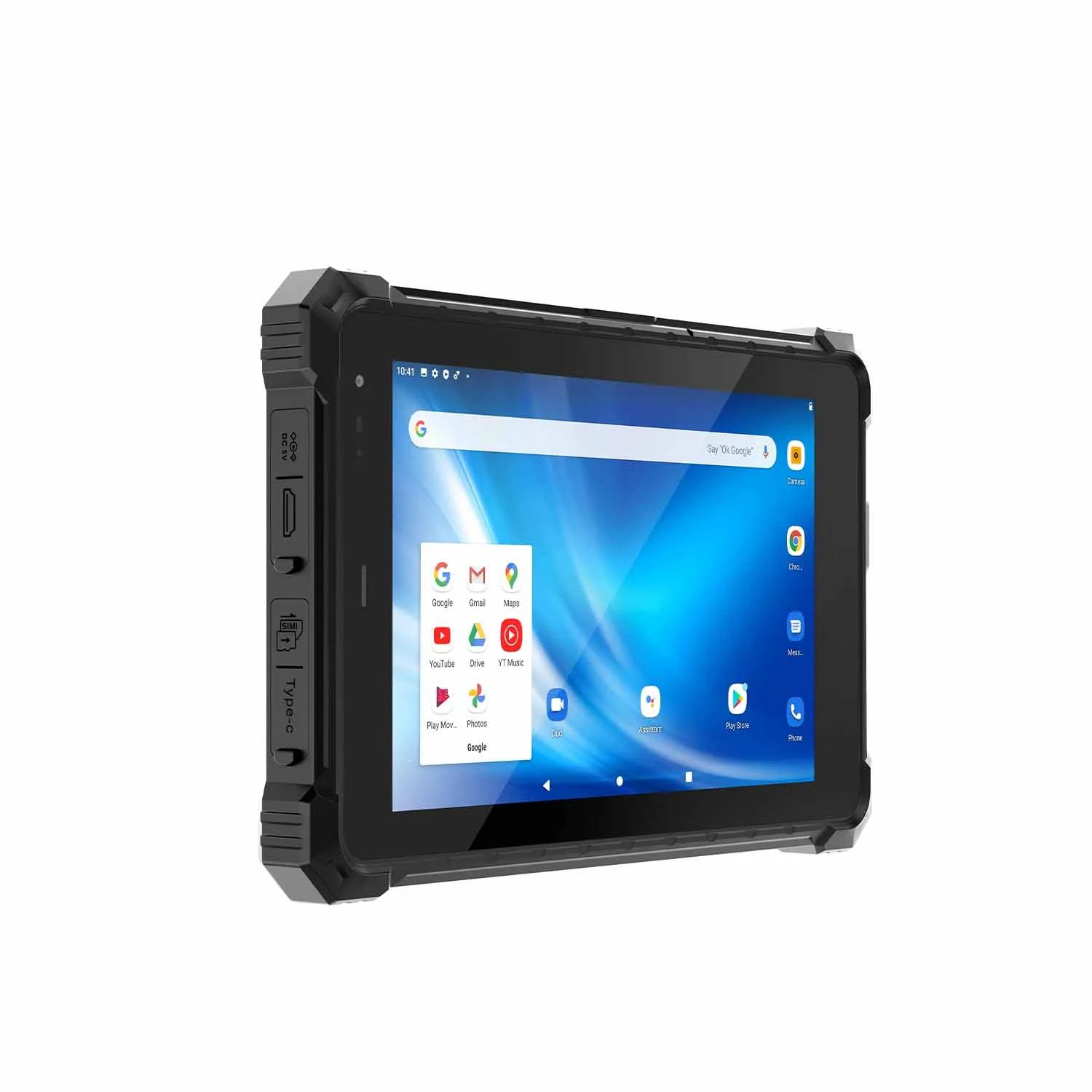

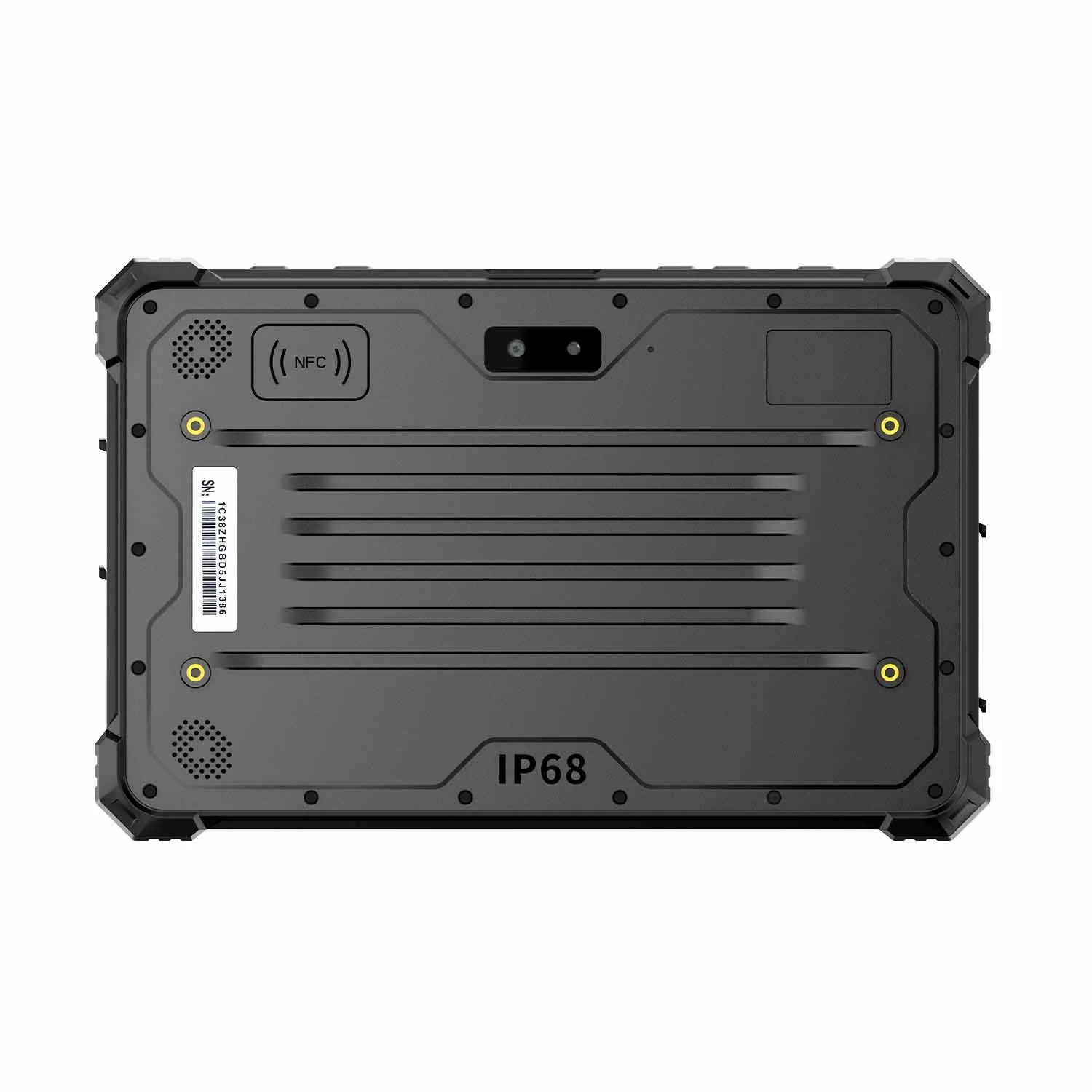

CENAVA A80STX-5G MT6877 8 Inch Android 12 IP67 Rugged Tablet
The CENAVA A80STX-5G is an 8-inch Android rugged tablet designed for mobile inspection, field communication, equipment maintenance, asset identification and industrial data collection.The removable 9400mAh battery allows field teams to replace aging batteries or prepare spare batteries for extended deployments.
CPU: MediaTek MT6877 (Dimensity 900) octa-core, 2×Cortex-A78 @2.4GHz + 6×Cortex-A55 @2.0GHz, fanless passive cooling
OS: Android 12 (optional Android 15)
Display: 8" IPS 1280×800 / 1920×1200, 700cd/㎡ (customizable 1000cd/㎡), 10-point G+G glove touch, hardness ≥7H, optional wet-hand touch
RAM/ROM: 8GB+128GB (optional 8GB+256GB)
Battery: Removable 9400mAh 3.8V, optional charging dock
Integrated I/O: RJ45 (100M), Type-C (USB2.0, OTG), USB-A, 3.5mm jack, DC 5.3V-3A, 12Pin POGO, Micro SIM, TF card; optional Micro HDMI (customised)
Network: 5G, WiFi 6 dual-band, Bluetooth 5.2
Camera: Front 8MP fixed focus (customizable 16MP), rear 16MP auto focus with flash (customizable 48MP)
Protection: IP67, MIL-STD-810H 1.22m drop, -20°C~60°C
Optional Modules: 2D scanner, ID card reader, UHF RFID, LF 125kHz, RTK cm-level positioning; NFC standard (rear)
Swap Without Stopping
Routes Never Broken

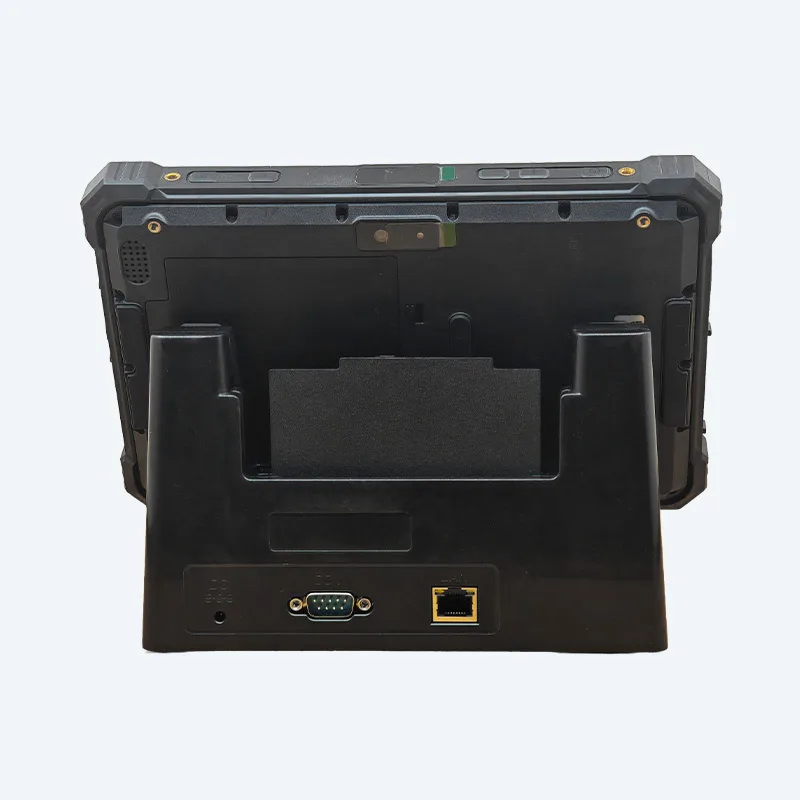

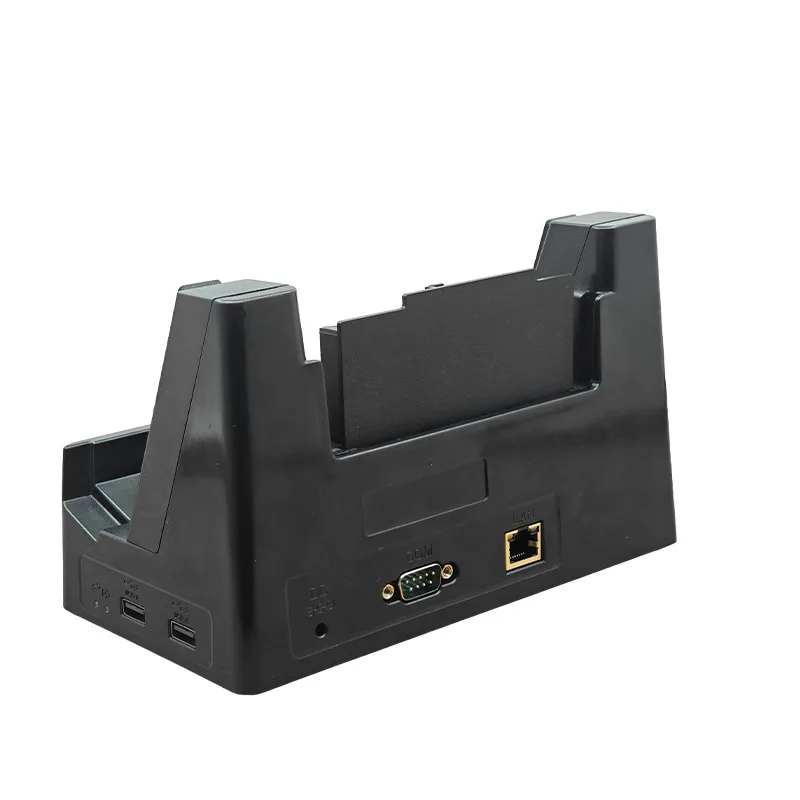

9400mAh Removable Optional Charging Dock
Power-line and pipeline inspections run half a day or more—a dead device wastes the trip. The A80STX-5G's 9400mAh 3.8V removable battery swaps in seconds; a spare in the backpack brings the terminal back to full strength over lunch, with the task never pausing. Back at base, spares recharge together on the optional charging dock, so every pack leaves full next morning. The removable design also means aging cells are replaced years later while the device serves on. Its latched bay survives vibration—climbing towers or riding rough roads—staying sealed and secure.
Efficient Flagship Silicon
Apps Answer Instantly
MT6877 Octa-Core From 8GB+128GB
MediaTek's Dimensity 900 octa-core pairs two Cortex-A78 cores at 2.4GHz with six Cortex-A55 at 2.0GHz under Android 12 (optional Android 15), keeping inspection systems, e-maps and equipment archives responsive side by side. Standard 8GB+128GB, or 8GB+256GB optional, carries an entire route's ledgers and defect history offline. Fanless passive cooling runs silent and stays cool under load. An 8MP fixed-focus front camera (16MP customizable) powers remote video consults, while the 16MP autofocus rear with flash (48MP customizable) captures nameplates and crack details in forensic clarity.
Clear in Sunlight
Precise in Gloves
8-inch IPS 700cd/m² 10-Point Touch
There's no awning in the field—the screen must fight light itself. The 8-inch IPS panel's 700cd/m² brightness faces high noon directly, keeping tower numbers and ledger fields legible, with 1280×800 or 1920×1200 versions and 1000cd/m² batch customization. G+G 10-point glove touch stays accurate under insulating or winter gloves; ≥7H hardness resists scratches; wet-hand touch is optional for rainy special patrols. One hand holds the 8-inch body while the other steadies on the pole. With IP67 sealing and -20°C to 60°C operation, it stands ready outdoors all day.
Defect Footage, Instant Backhaul
Specialists Consult Remotely
5G High-Speed WiFi 6 Bluetooth 5.2
Spot a tower crack or insulator flashover and 5G video backhaul puts HD photos and footage on a remote expert's desk at once—decisions happen on site, not after a second climb. Dual-band WiFi 6 joins substation intranets at speed, and Bluetooth 5.2 links partial-discharge detectors. A built-in RJ45 (100M) port switches to wired transfer for large files indoors. The Dimensity 900's efficiency keeps the body cool through long connected sessions, with links holding steady—every field finding becomes a work order in real time.
Technical Specifications
 CPU MediaTek MT6877 Octa-core 2× Cortex-A78 at up to 2.4GHz |  System |  Storage 8+128GB |  Display 8-inch IPS touch screen 1280*800 700cd/㎡ |
 NFC Optional Default back of the body for card reading, customizable to the front |  One/Two dimensional code Optional Able to identify dirty 1/2 dimensional codes |  Battery Removable 3.8V 9400mAh |  High frequency/ultra-high frequency module Optional Ultra thin integrated module |
 Navigation positioning GPS, Galileo GLONASS |  ID card identification Optional |  Interface USB 2.0 Type-C with OTG, USB 2.0 Type-A, RJ45 100Mbps |  Weight 232.2*151.3*30.4mm/850g |
 Card slot Up to 256GB |  Protection level Working temperature: -20 °C to 60°C Storage temperature:-30 °C to 70 °C |  Camera Front camera:8MP Rear camera:16MP autofocus with flash |  Sensor Gravity sensing, compass, gyroscope, light sensing, distance sensing |
The A80STX-5G runs MediaTek's MT6877 — two Cortex-A78 cores at 2.4GHz and six Cortex-A55 at 2.0GHz — with 8GB RAM and 128GB storage as standard (256GB optional). It's the same platform as our 10.1-inch 5G models, sized down for one-handed field work: inspection, scanning, GIS collection and RTK positioning all run comfortably. This isn't a chipset for CAD or video editing, and at 8 inches you wouldn't want it to be.
| Product Type | Compact 5G Android rugged field tablet |
| Tp touch screen | AF coating, 10-point touch, G+G, hardness ≥7H; supports medical rubber gloves; wet-hand touch available on request |
| Gravity sensor | Support |
| compass | Support |
| Gyro | Support |
| Light sensor | Support |
| Distance sensor | Support |
| TYPE-C | 1× Type-C, USB 2.0, supports OTG |
| Type -A | 1× Type-A, USB 2.0 |
| Earphone Jack | *1 3.5mm Standard Earpiece jack |
| TF Card | *1 Maximum support 256GB expansion |
| SIM Card | *1 Standard Micro SIM card slot |
| DC jack | 1× 5.3V/3A (plug: 3.5mm OD / 1.35mm ID) |
| RJ45 jack | *1 100M |
| POGO PIN | 1× 12-pin (USB + charging) |
| HDMI port (customised) | 1× Micro HDMI, factory option |
| Drop height | Tested to MIL-STD-810H (1.22m drop) |
| Certificates | IP67 · CE · RoHS · tested to MIL-STD-810H · ISO 9001 · salt-spray tested |

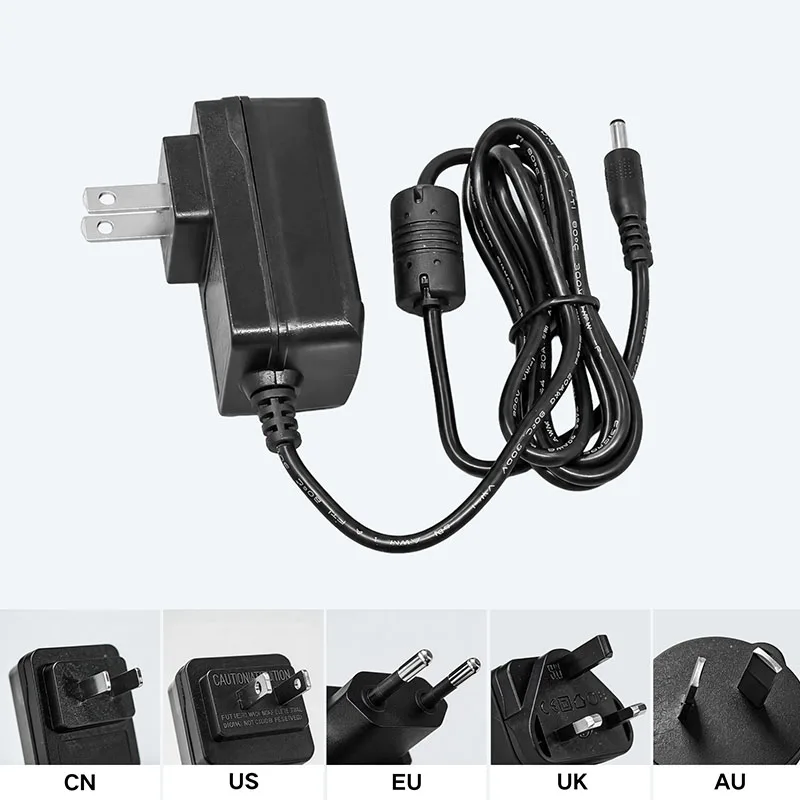

| Adaptor | 5.3V/3A DC adapter |

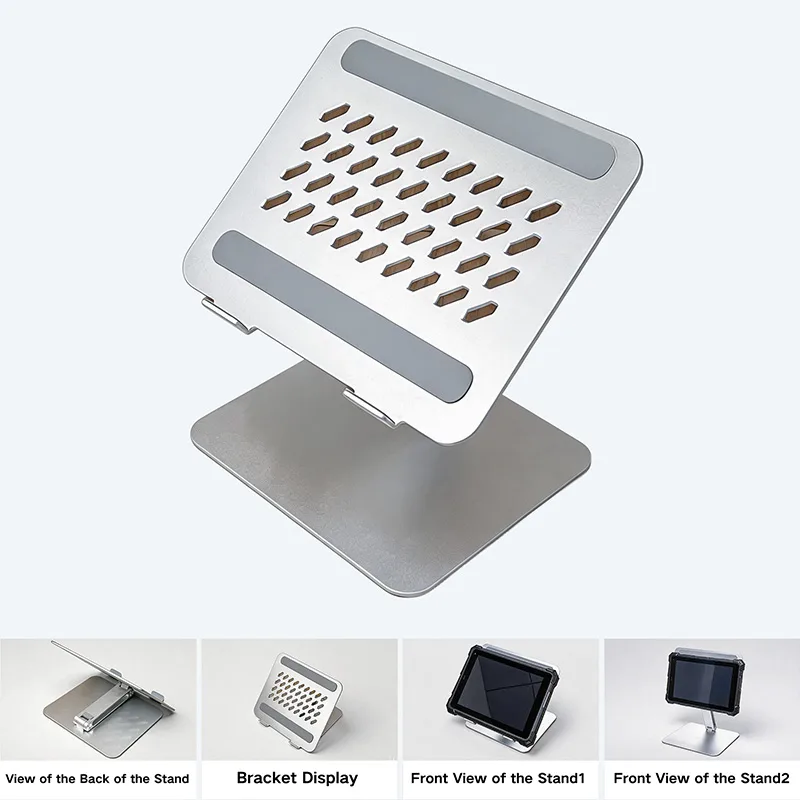

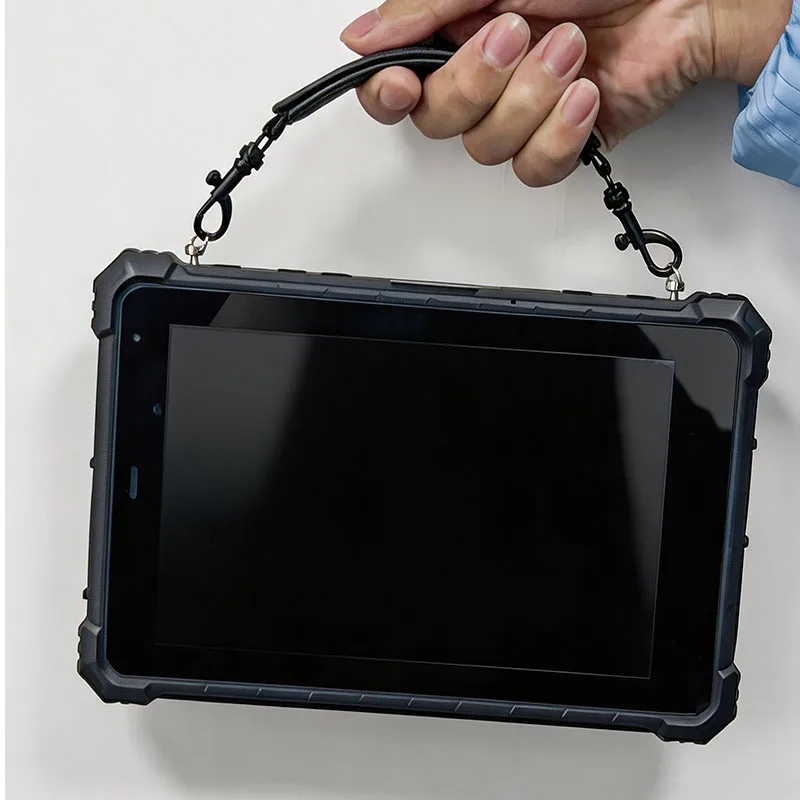

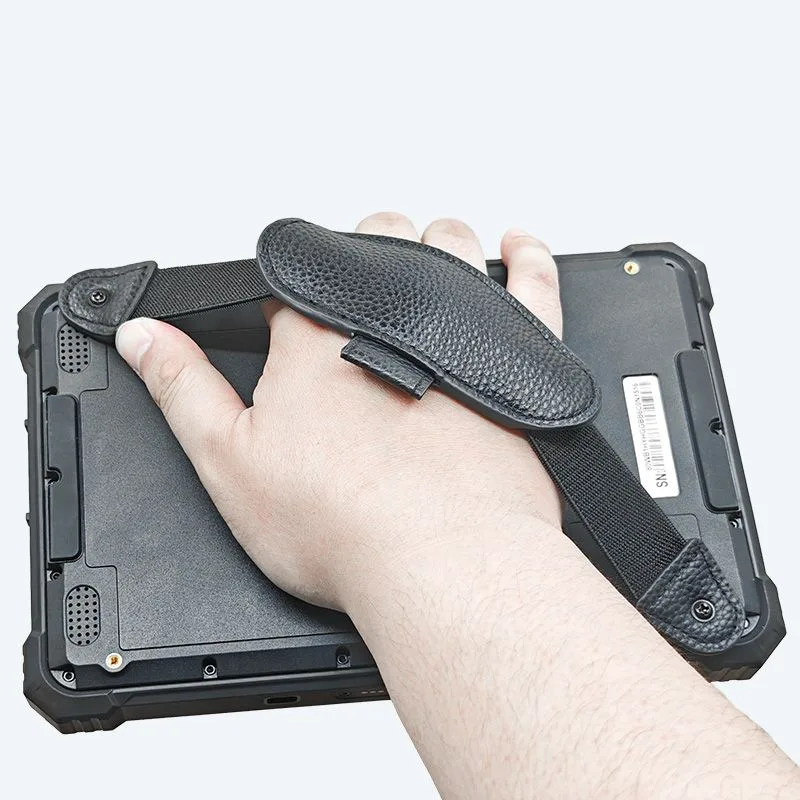

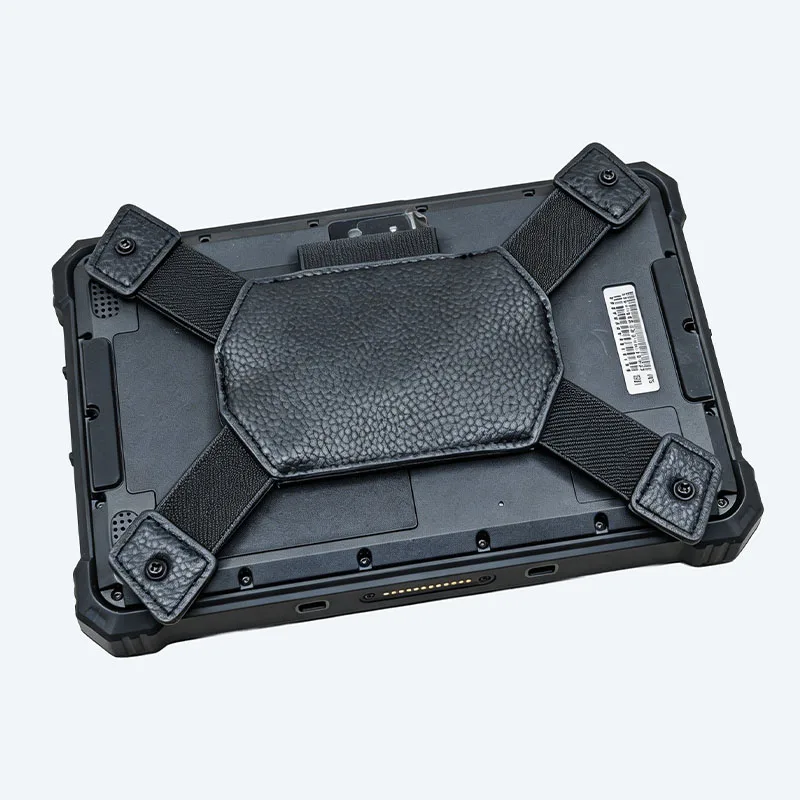

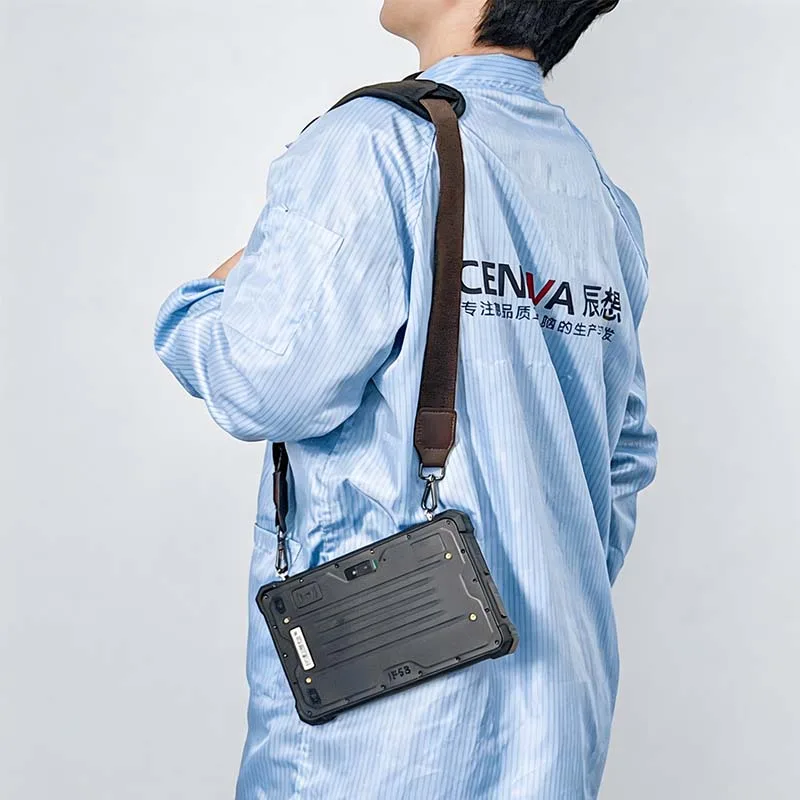

| Option accessories | Two-point strap, charging base, stand |
Frequently Asked Questions About A80STX-5G IP67 Rugged Tablet
1. What is the A80STX-5G for?
The smallest way to get 5G and a swappable battery in one rugged device. It's an 8-inch tablet for field communication, mobile inspection and data collection where crews can't stop to charge — the removable 9,400mAh pack swaps in seconds and spares charge in the dock.
2. What platform does it run on?
MediaTek MT6877 (Dimensity 900): two Cortex-A78 at 2.4GHz, six Cortex-A55 at 2.0GHz, with Wi-Fi 6 and Bluetooth 5.2. 8GB+128GB is standard, 8GB+256GB optional. Android 12 ships by default; Android 15 is a factory option.
3. What display and touch options are available?
1280×800 or 1920×1200, 700 nits standard. Medical rubber-glove touch is included; wet-hand touch is a factory option — say so when ordering if your crews work in the rain.
4. How do charging and batteries work?
The 9,400mAh battery is removable and spares are supported with a charging dock. The tablet itself charges through the dedicated 5.3V/3A DC input or POGO contacts — the Type-C port is USB 2.0 data and OTG, with no PD. Plan your charging around the dock, not the cable.
5. Which barcode engine should I choose — N1 or N670?
Neither is standard; both are options. The N1 covers mainstream 1D/2D codes. The N670 adds a higher-resolution sensor, cross-laser aiming and OCR-A/OCR-B support — worth it for dense, damaged or small codes. Tell us your symbologies and scan distance and we'll recommend one.
6. What can this model NOT do?
A few things buyers sometimes assume: no fingerprint module (for that, see the A80ST-5G); no 15m UHF build — UHF tops out at shorter ranges on this model, ask us for the current options; no DMR radio (software push-to-talk over 5G works, but it's not a dedicated DMR handset — if you need real DMR, the A10ST-5G offers it); no RS232, no USB 3.0, no PD charging, no Type-C video out. We'd rather you know before you order than after.
7. How is it different from the A80ST-5G?
Same MT6877 5G platform, same 8-inch class. This model's 9,400mAh battery is removable and the rating is IP67; the A80ST-5G seals in a 10,000mAh pack and reaches IP68. Battery swaps or water protection — that one question usually decides it.

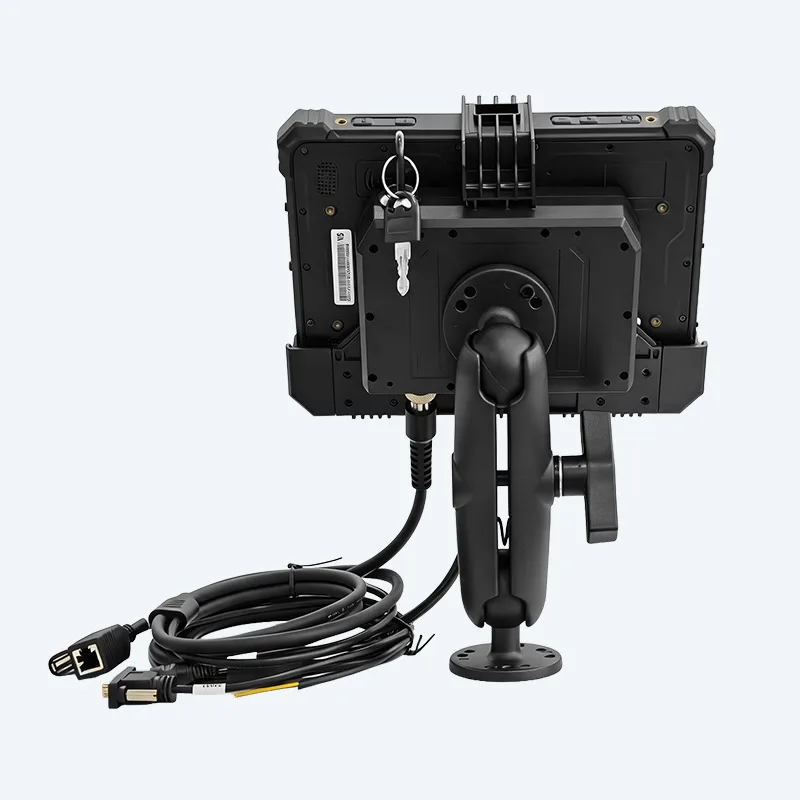

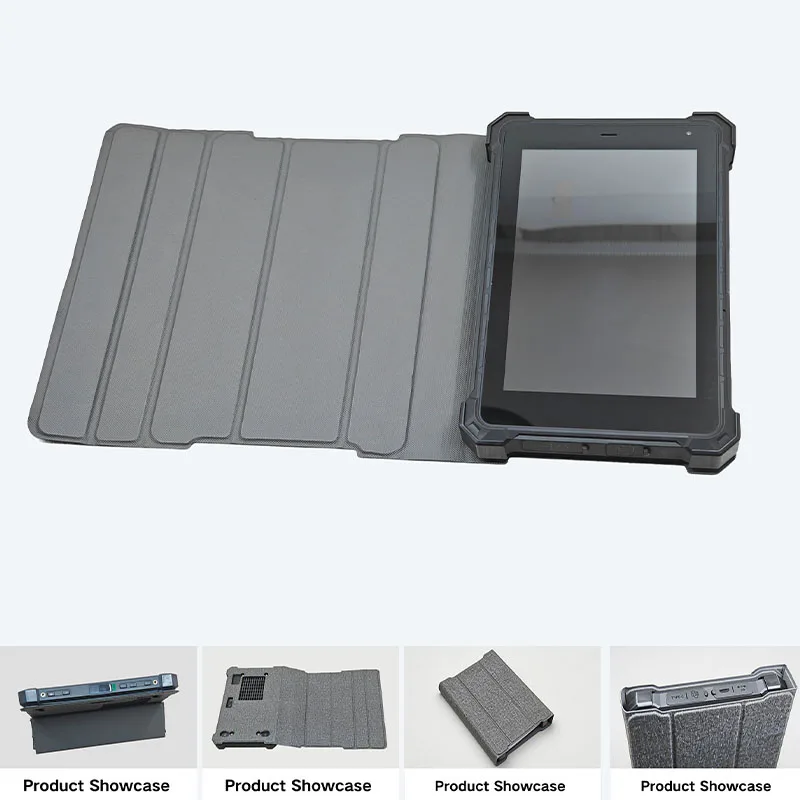

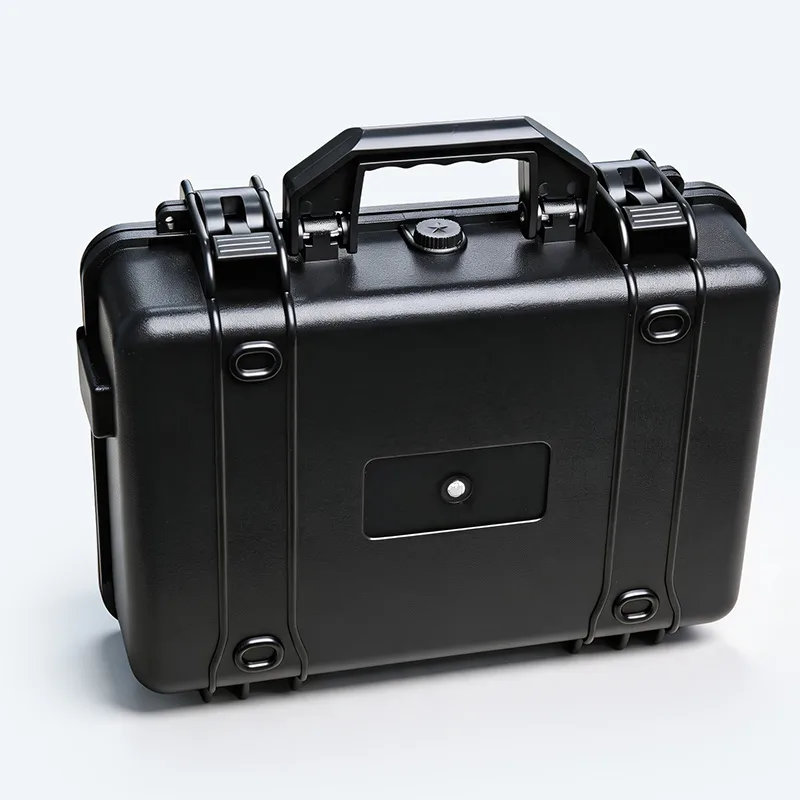

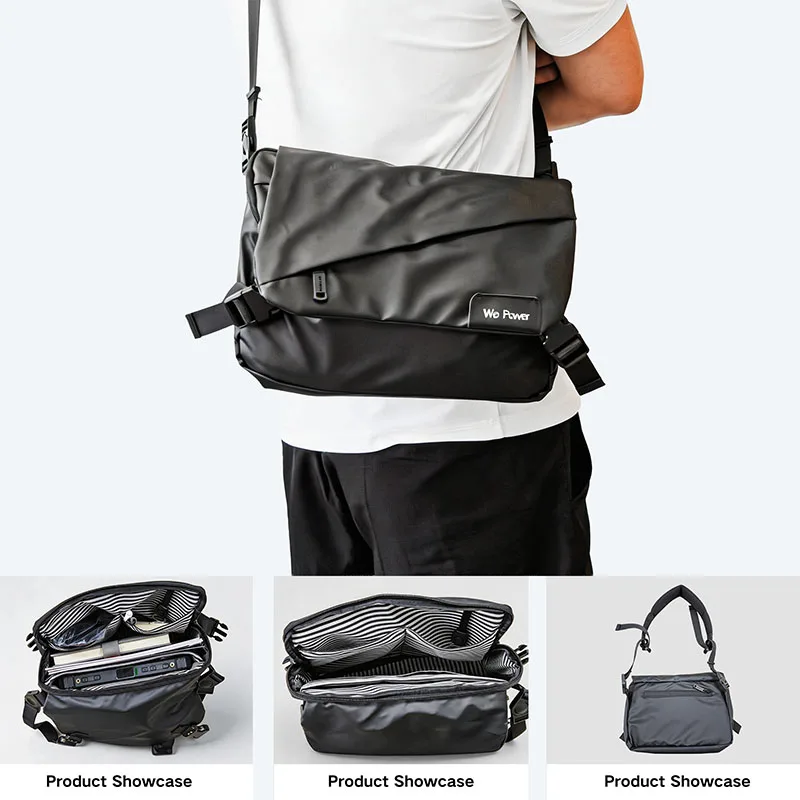

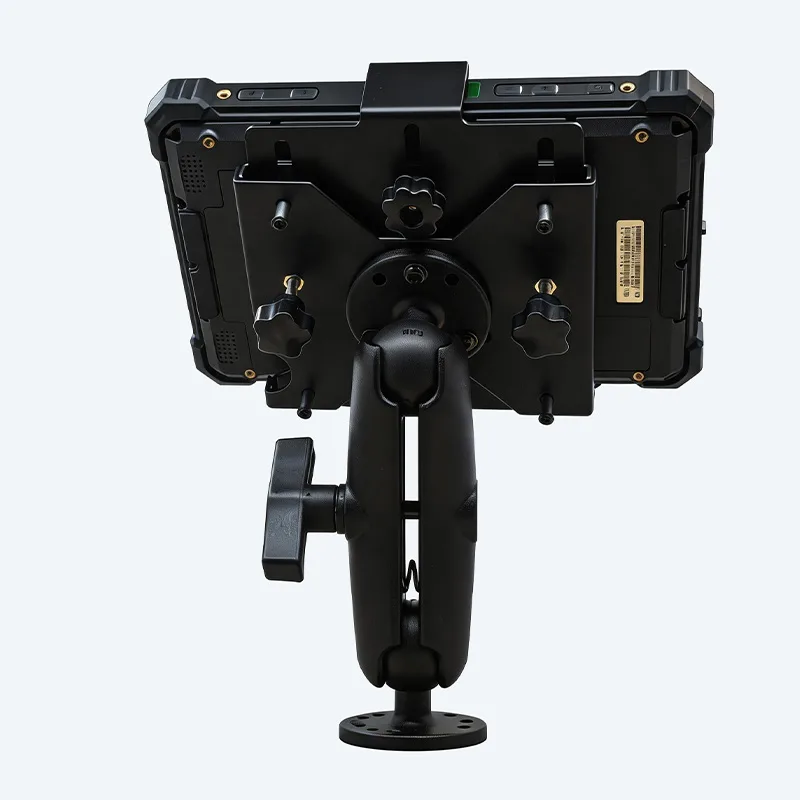

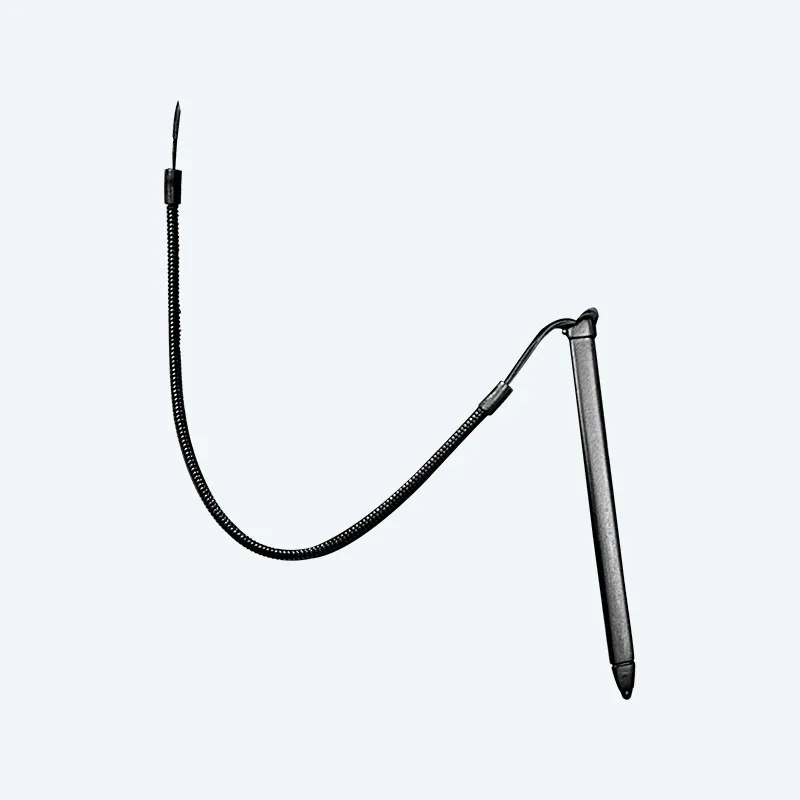

Accessories
