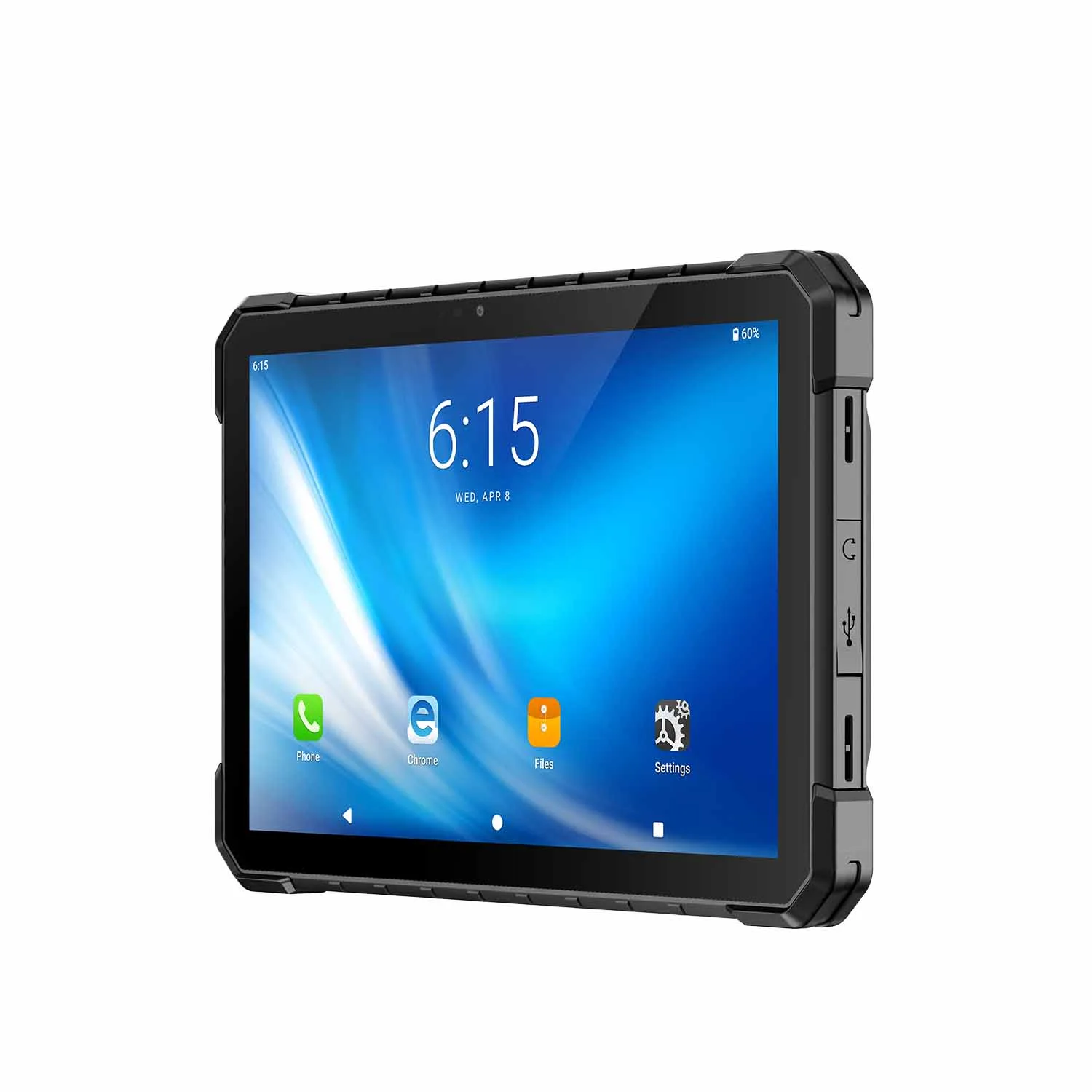

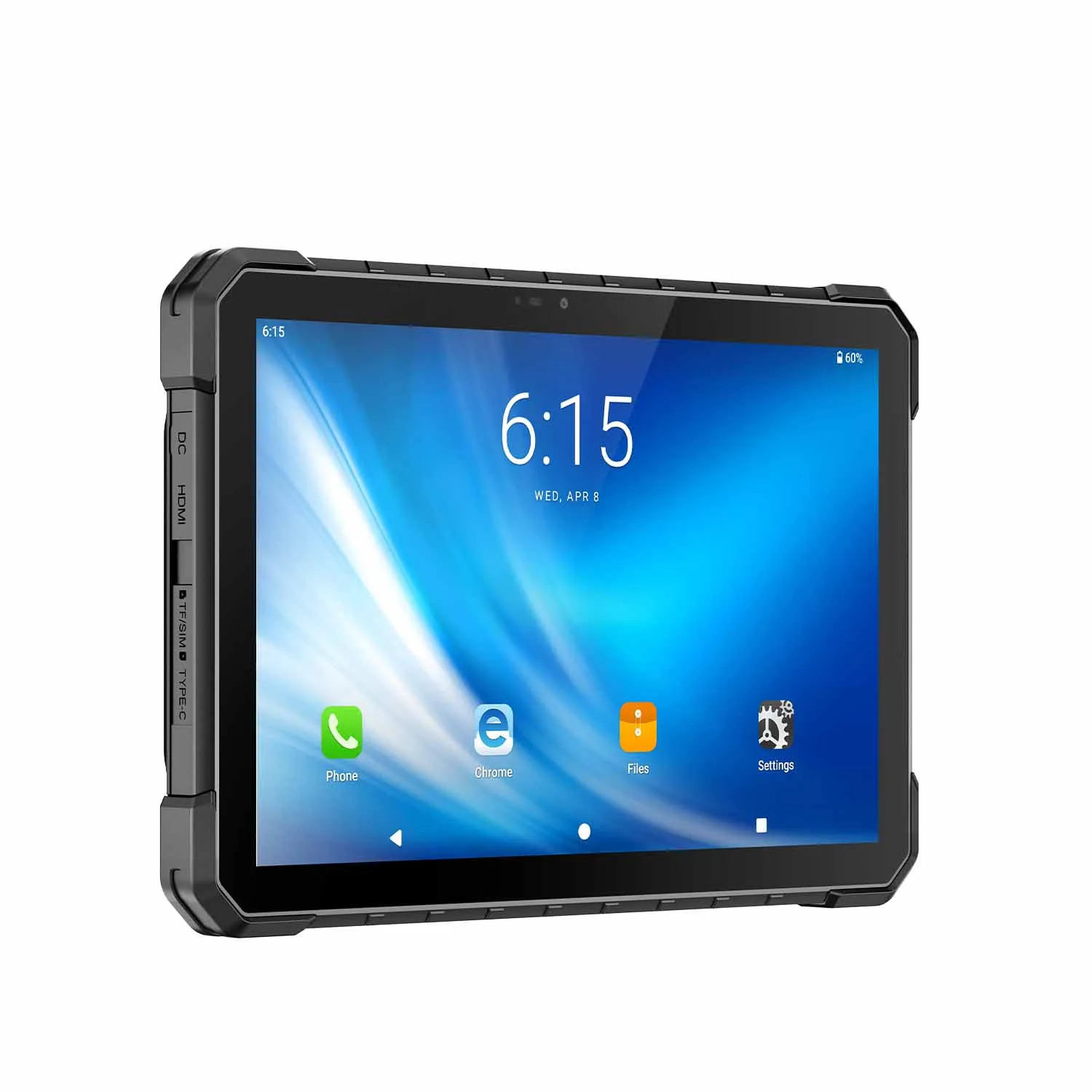

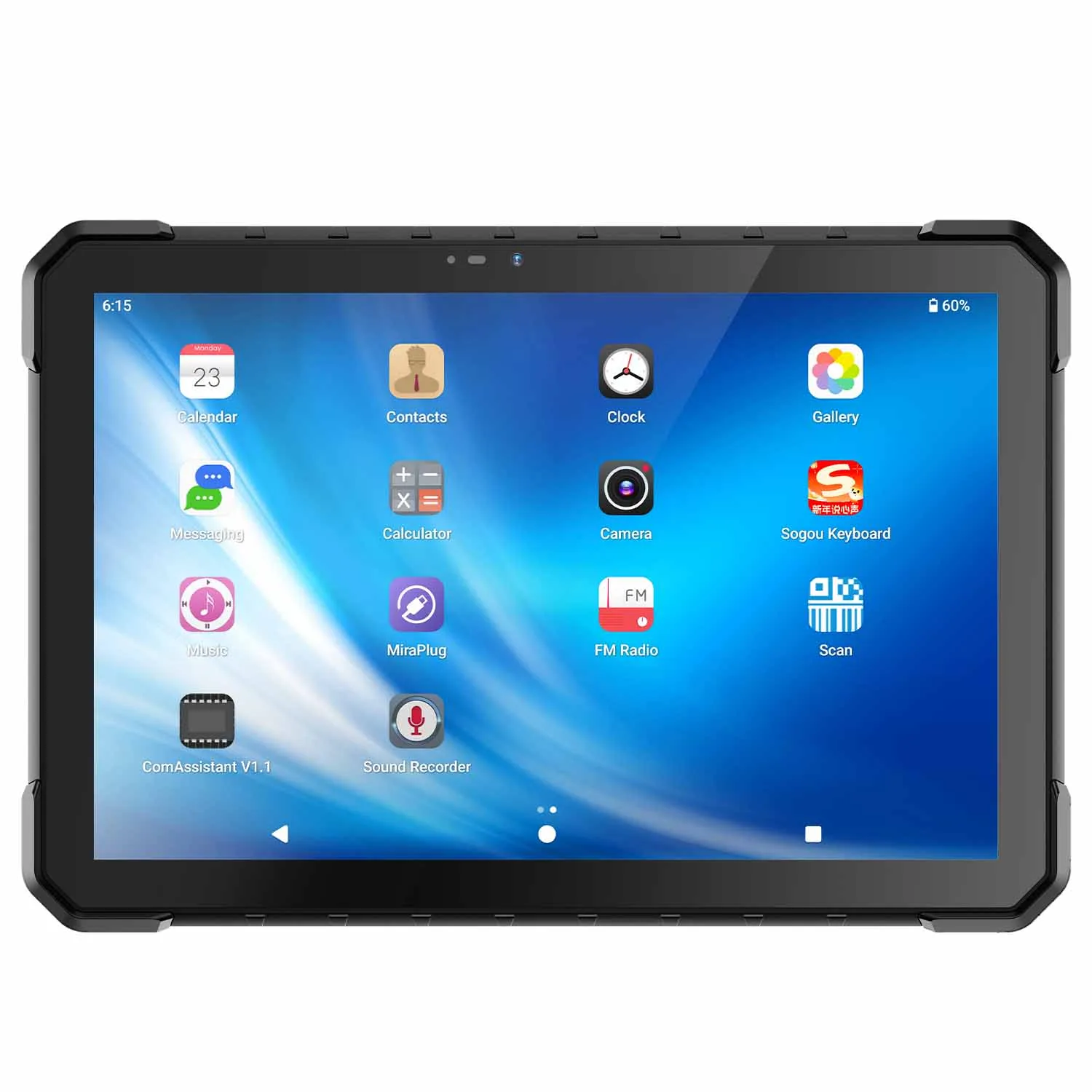

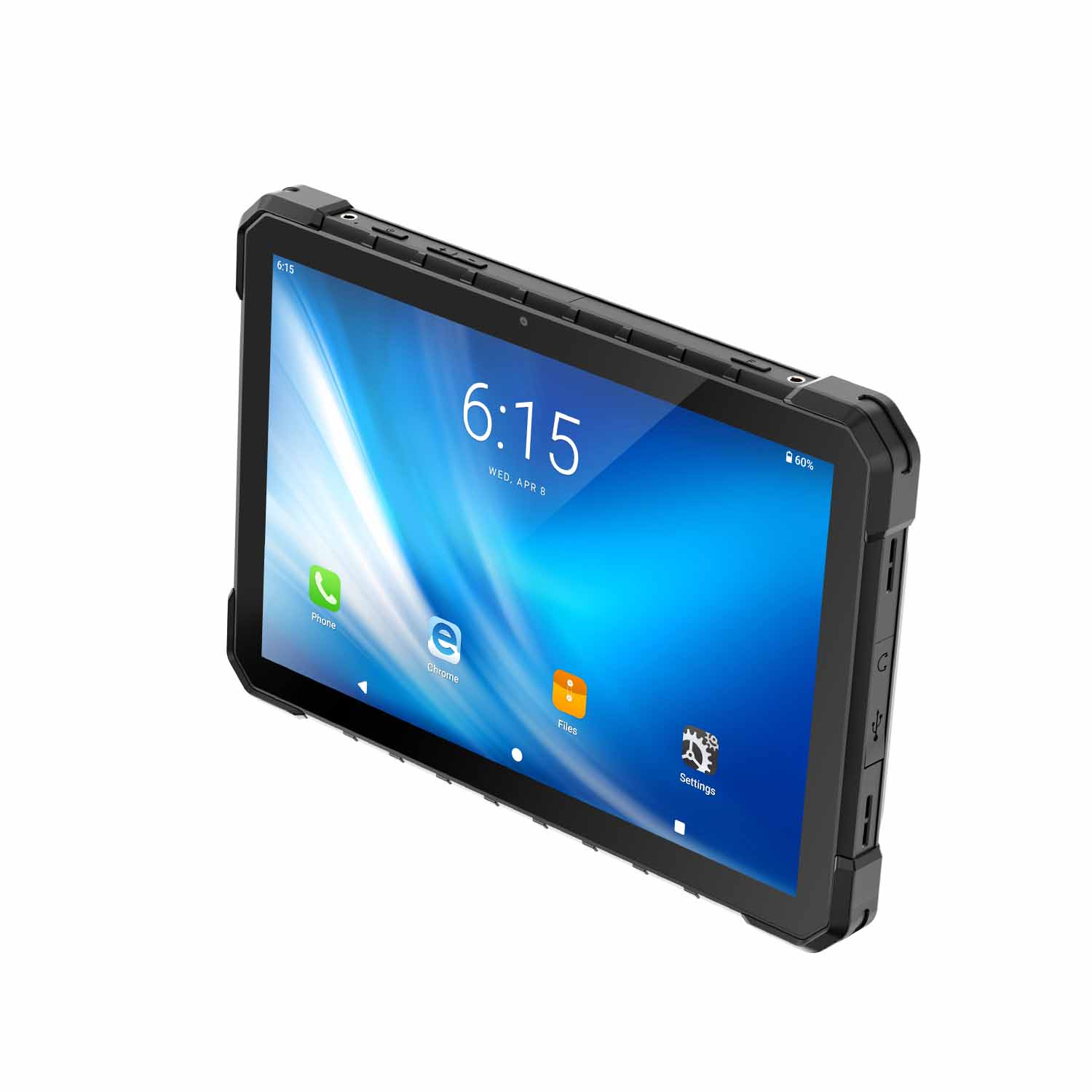

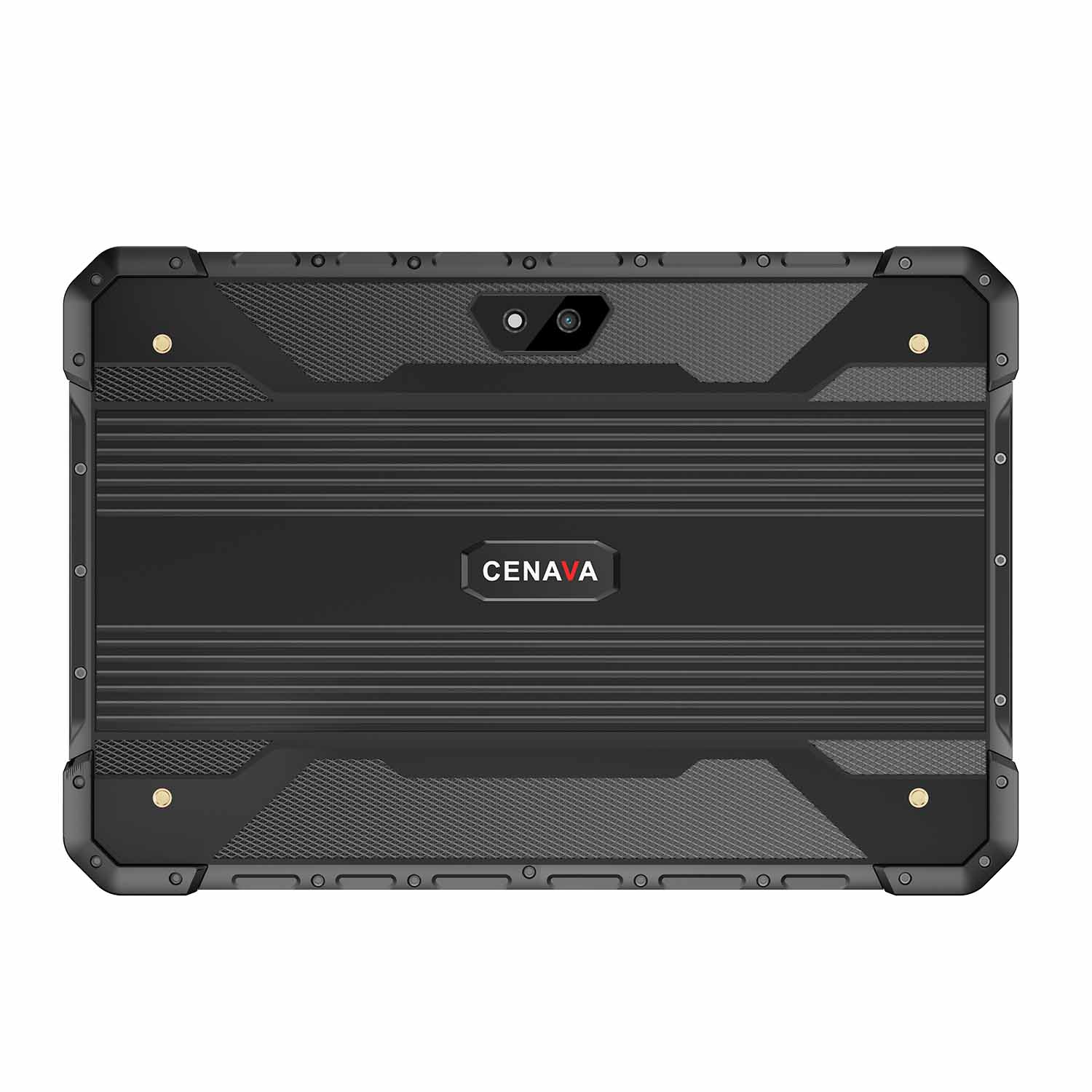

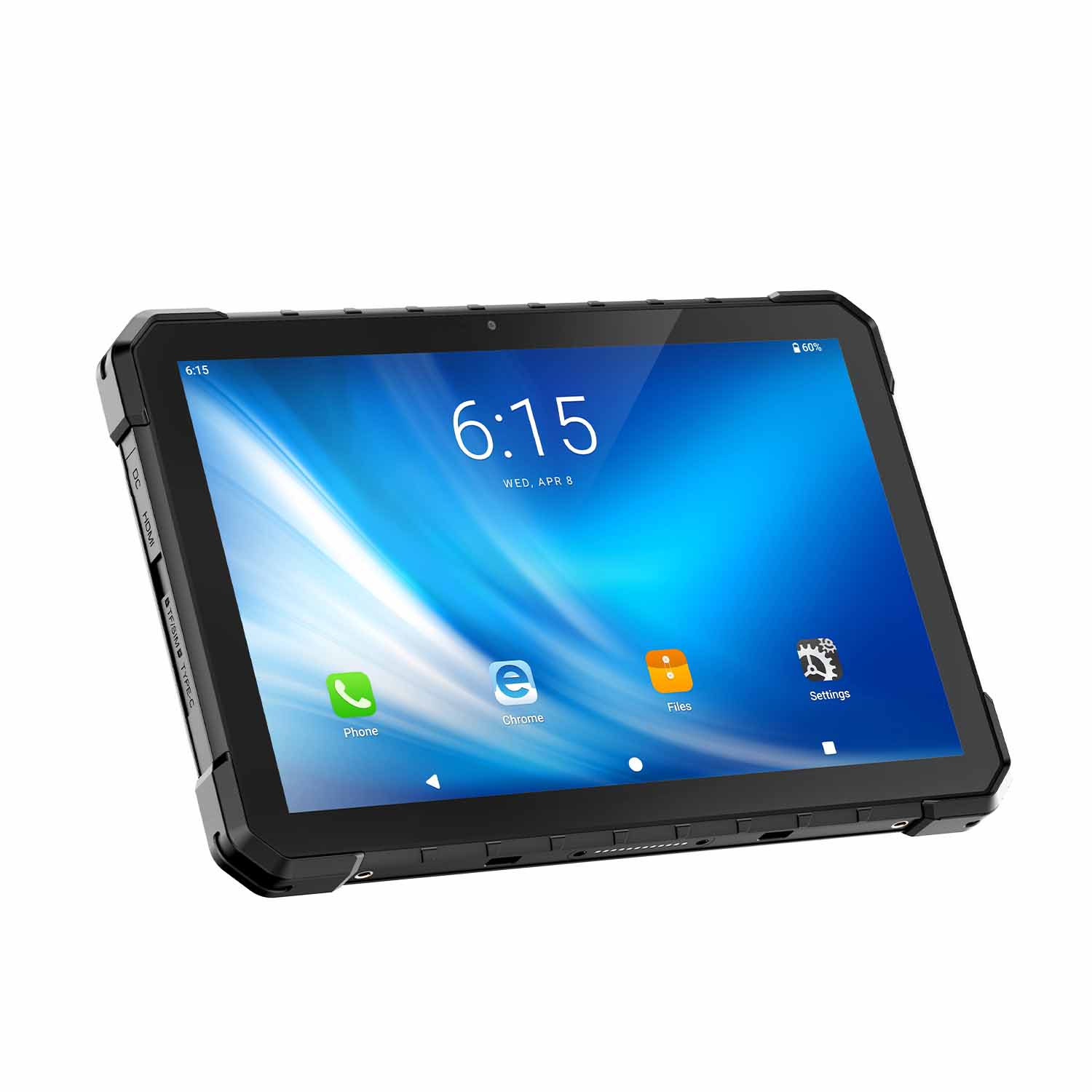

CENAVA A18ST MT6769 10.1 Inch Android 16 IP68 Rugged Tablet
CENAVA A18ST (Android 16) is a configurable 10.1-inch rugged tablet developed for warehouse data collection, mobile inspection, asset management, field service and industrial Android applications. The standard platform combines an MT6769 octa-core processor, a 700cd/m² touchscreen, a built-in 10000mAh battery, 4G communication, NFC and multi-constellation GNSS. Customers can select 4GB+64GB or 8GB+128GB configurations; the display ships at 1280×800 HD, with a 1920×1200 Full HD option.
Rugged Protection: IP68, MIL-STD-810H 1.22m drop, -20°C to 60°C (customizable -30°C to 60°C)
CPU: MediaTek MT6769 octa-core, 2×Cortex-A75 @2.0GHz + 6×Cortex-A55 @1.7GHz
OS: Android 16
Display: 10.1" IPS 1280×800 (customizable 1920×1200), 700cd/㎡ (customizable 1000cd/㎡), G+G 10-point glove touch, hardness ≥7H, wet-hand touch supported
RAM/ROM: 4GB+64GB (optional 8GB+128GB)
Battery: Built-in 10000mAh 3.8V, ≥10h endurance, Type-C PD 33W fast charging
I/O: Type-C (PD 33W, OTG), USB-A, Micro HDMI, 3.5mm jack, 12Pin POGO, Micro SIM, TF up to 256GB
Network: Dual-band WiFi 5 (customizable WiFi 6), Bluetooth 5.0, 4G LTE full-band; GPS/BeiDou/Galileo/GLONASS, optional single-BeiDou
Slim Design: 253×172×20mm, 859g; 8MP front + 16MP AF rear with true flash
Optional Modules: 2D scanner, fingerprint, ID card reader, UHF RFID (up to 15m); NFC standard
Octa-Core Power
Android 16 Smooth
MTK6769 Octa-Core 4G Standard Lightweight 859g
Powered by the MTK6769 octa-core processor (2×A75@2.0GHz + 6×A55@1.7GHz) with the Android 16 industrial OS, multitasking runs smoothly without lag. On Android 16, split-screen dispatching and data dashboards have room to breathe on the 10.1-inch panel. The 4GB+64GB base version handles routine MES terminals, while the 8GB+128GB version tackles video backhaul and cloud collaboration. 4G global bands included as standard keep you connected in the field and on the move. OTA upgrades deliver security patches. At just 859g bare, it stands out for lightweight design among 10.1-inch models, enabling fatigue-free long-term handheld use.

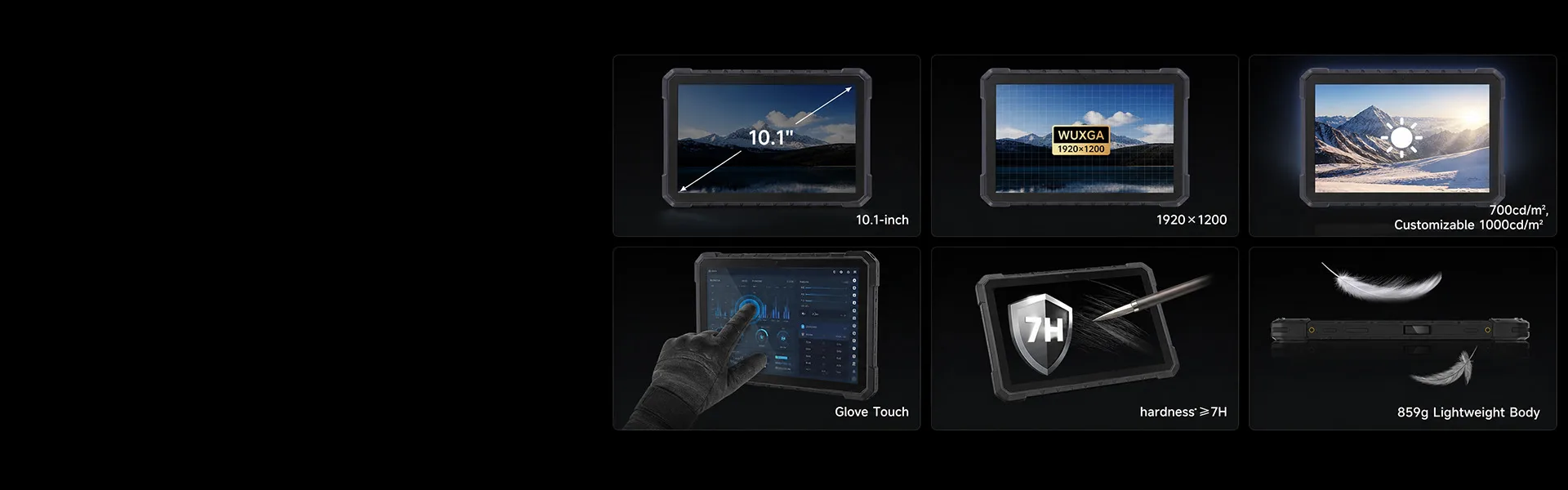

High-Res Bright Display
Outdoor Strong Visibility
10.1" IPS 700cd/m² Glove Touch Wet-Hand Customizable
The 10.1-inch IPS panel ships at 1280×800 with 700 cd/m² brightness as standard — clearly readable under direct sunlight — and a 1920×1200 Full HD panel is available for projects that need denser data screens. Rubber-glove touch is supported for precise operation, and wet-hand touch can be customized on demand. G+G construction with AF anti-fingerprint coating, hardness ≥7H, scratch-resistant for long-term use. A 1000 cd/m² ultra-bright panel is available for extreme-glare sites. The 10.1-inch display paired with the 859g lightweight body delivers both portability and screen real estate.
IP68 Triple-Proof
Built for Harsh Conditions
IP68 1.22m Drop -20°C to 60°C
IP68 dust-tight and waterproof, surviving 1.22m drops, with 3C, CE, MIL-STD-810H, ISO, ROHS, and salt-spray certifications. Operating range -20°C to 60°C, with optional -30°C low-temperature customization for extreme cold. The 859g lightweight chassis features reinforced corners and sealed gaskets against sand and dust, providing a stable, fatigue-free grip.
NFC Standard
Modules Freely Configurable
NFC Standard 2D/Fingerprint/ID Card/UHF Optional
NFC near-field communication is included as standard (13.56MHz, 14443A/14443B/15693 protocols)—no extra customization needed for access control swiping and tag reading. 2D barcode scanning, fingerprint recognition, ID card reading, and UHF RFID modules are freely selectable with single-unit orders and deep software-hardware customization. Warehouses pair 2D+UHF for rapid batch scanning; enforcement pairs ID card and fingerprint for identity verification; equipment inspection pairs fingerprint and 2D for traceability. The 10000mAh/3.8V non-removable battery delivers 5–6 hours of typical data-collection use (battery life ≥10h (Play 1080P HD video, 50% brightness and 50% sound)). If your shifts run longer, the MT8781-based A10ST variant is rated ≥10 hours with the same capacity.No RJ45 Ethernet by design—focused on wireless connectivity and modular expansion, ideal for lightweight scenarios.
Technical Specifications
 CPU MediaTek MT6769 octa-core (2×Cortex-A75 @2.0GHz + 6×Cortex-A55 @1.7GHz) |  System |  Storage 4GB+64GB (8GB+128GB optional) |  Display 10.1-inch IPS touch screen 1280*800 |
 NFC Optional Default back of the body for card reading, customizable to the front |  One/Two dimensional code Optional Able to identify dirty 1/2 dimensional codes |  Battery 3.8V 10000mAh built-in, 5–6h |  High frequency/ultra-high frequency module Optional Ultra thin integrated module |
 Navigation positioning GPS, Galileo, GLONASS |  ID card identification Optional |  Interface Type -A,Type -C HDMI,POGO PIN |  Weight
|
 Card slot Micro SIM ×1, TF up to 256GB |  Protection level Working temperature: -20 °C to 60°C Storage temperature:-30 °C to 70 °C Protection level: IP68 |  Camera Front: 8MP; Rear: 16MP with flash Rear camera 16MP with flash |  Sensor Gravity sensing, compass, gyroscope, light sensing, distance sensing |
The A18ST Android 16 Edition provides a newer Android environment for organizations developing or updating mobile enterprise applications.

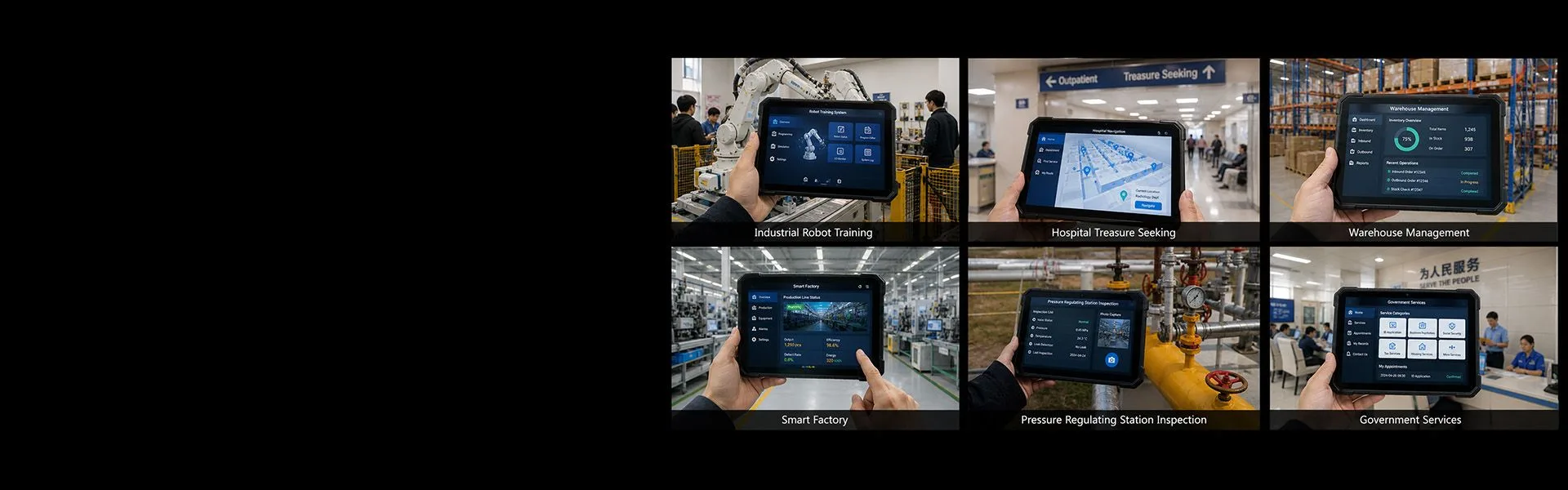

It can support applications used for:
* Warehouse management
* Production reporting
* Asset inspection
* Equipment maintenance
* Inventory control
* Field-service records
* Retail replenishment
* Logistics tracking
* Identity verification
* RFID data collection
| Type | Android rugged data-collection tablet |
| Tp touch screen | Anti-fingerprint (AF) coating,10-point touch G+G, hardness ≥7H, support wet hand touch screen, glove touch screen |
| Gravity sensor | Support |
| Compass | Support |
| Gyro | Support |
| Light sensor | Support |
| Distance sensor | Support |
| Fm Radio | Support |
| Connectivity | Wi-Fi 5 dual-band (Wi-Fi 6 optional), Bluetooth 5.0 BLE |
| TYPE-C | *1 Type-C USB2.0, PD33W 11V/3A fast charging, adapt OTG |
| Type -A | *1 Type-A USB2.0 |
| Earphone Jack | *1 3.5mm Standard Earpiece jack |
| TF Card | *1 Maximum support 256GB expansion |
| SIM Card | *1 Standard Micro SIM card slot |
| HDMI | *1 Micro HDMI |

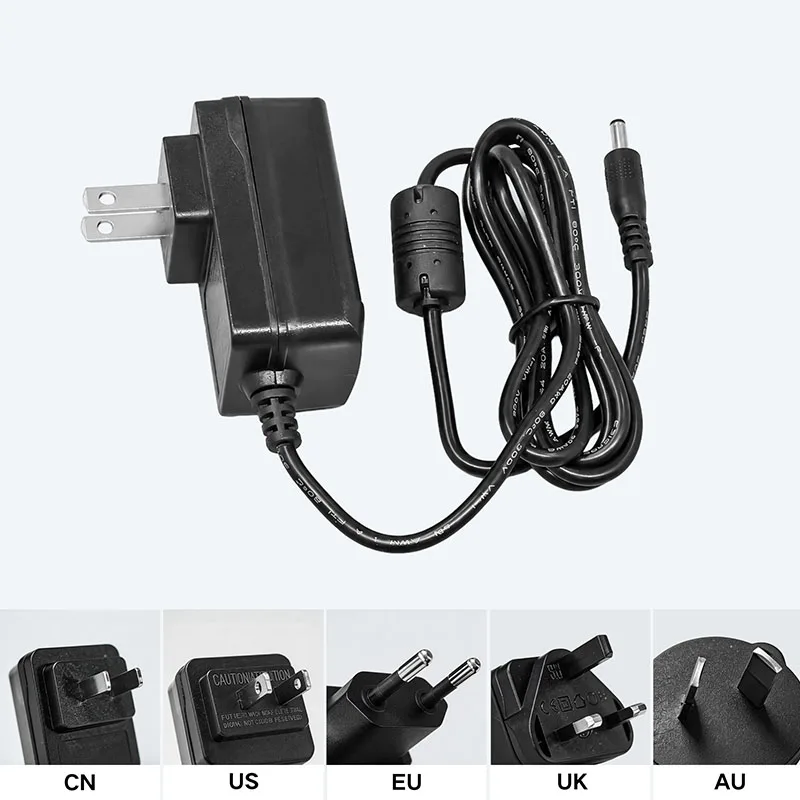

| DC jack | *1 5V-3A（DC plug: Outer diameter 3.5mm, Inner diameter 1.35mm） |
| POGO PIN | *1 12Pin USB+Charge |
| Drop height | Meets the requirements of MIL-STD-810H for the 1.22-meter drop test |
| Certificates | IP68 (IEC 60529), CE, RoHS, CCC; drop-tested to MIL-STD-810H (1.22 m); ISO 9001-certified factory; salt-spray tested |

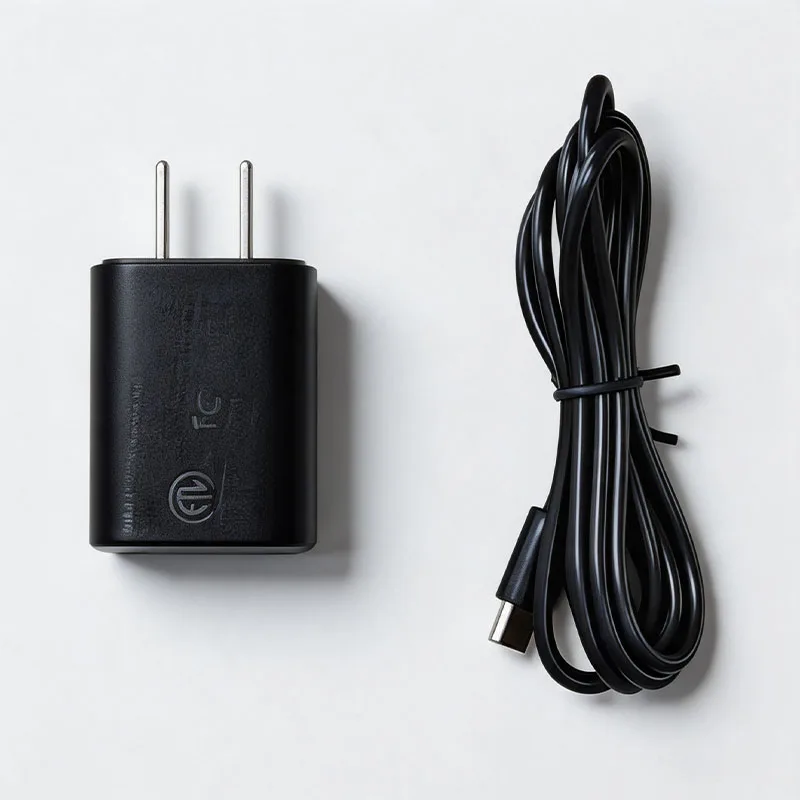

| Adaptor | Type-C 30W rapid power adapter (5V-3A DC adapter optional) |

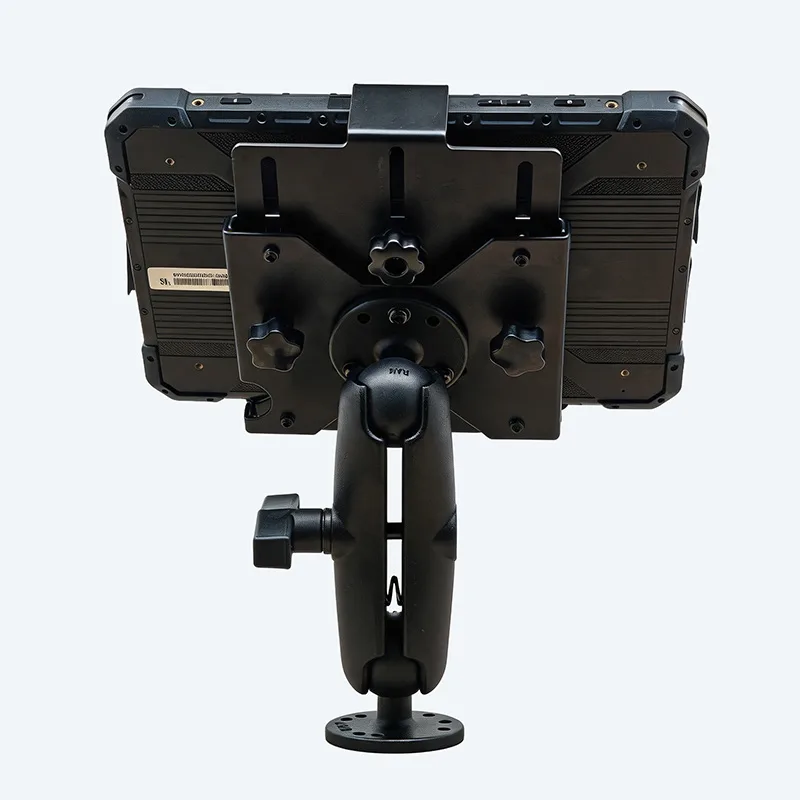

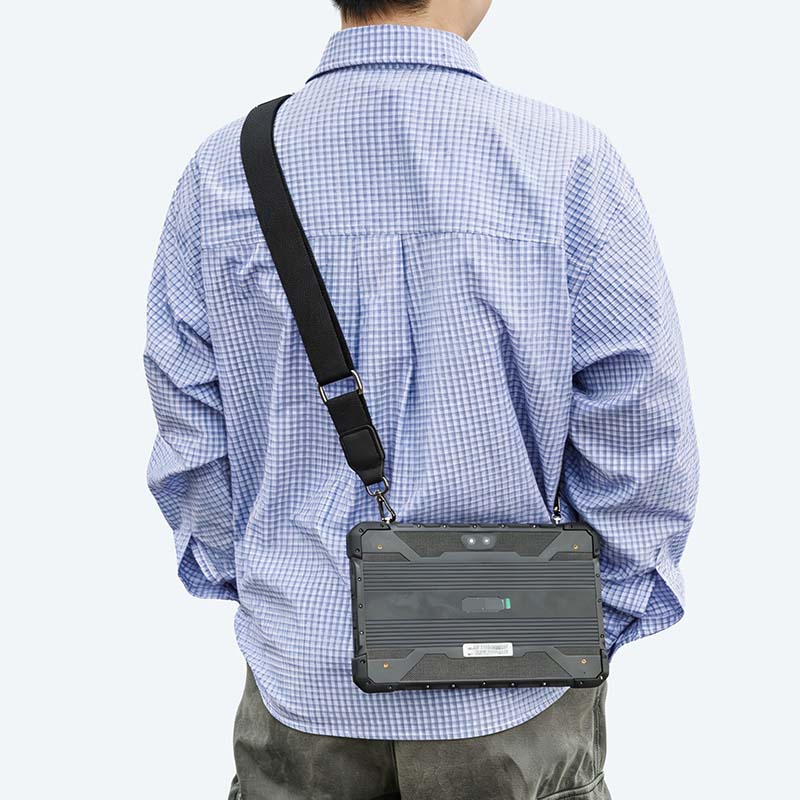

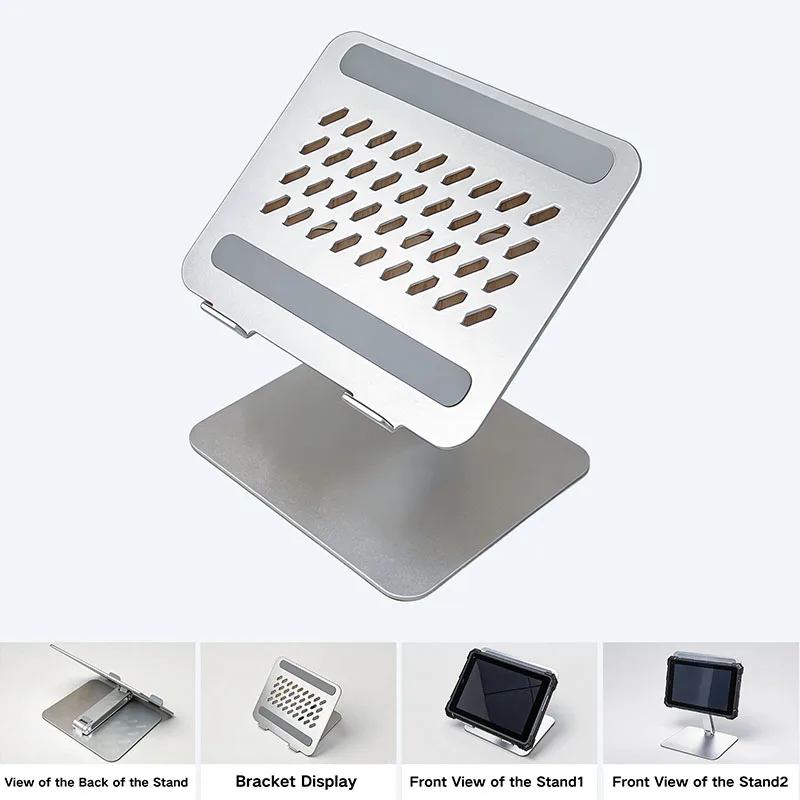

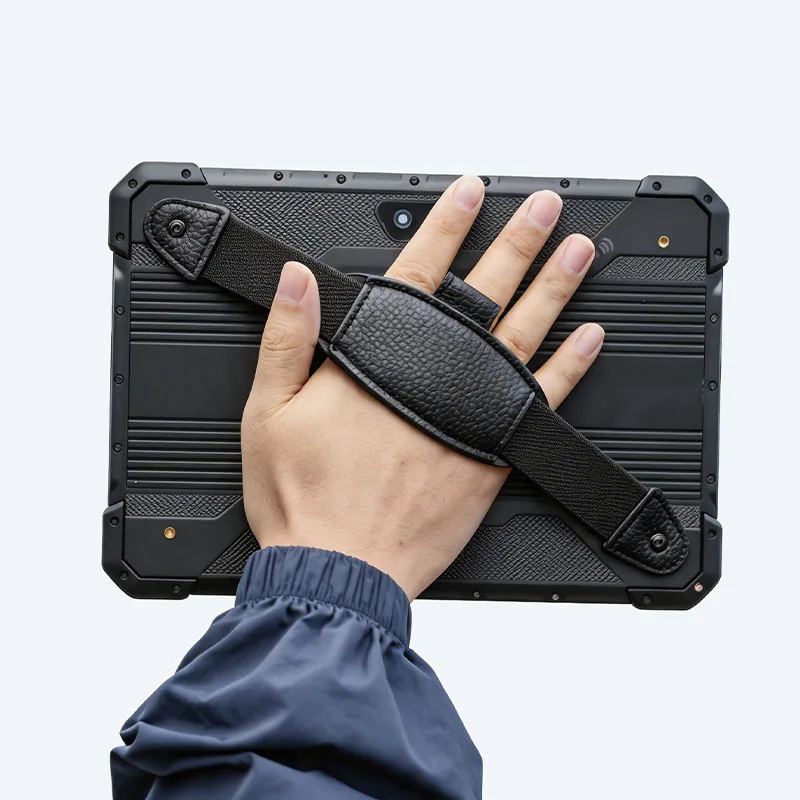

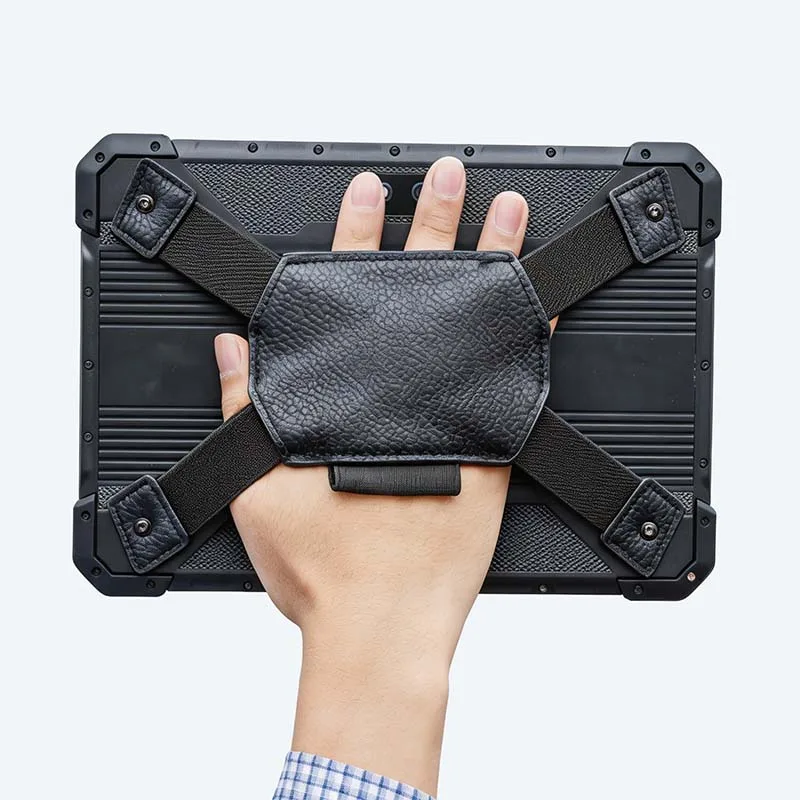

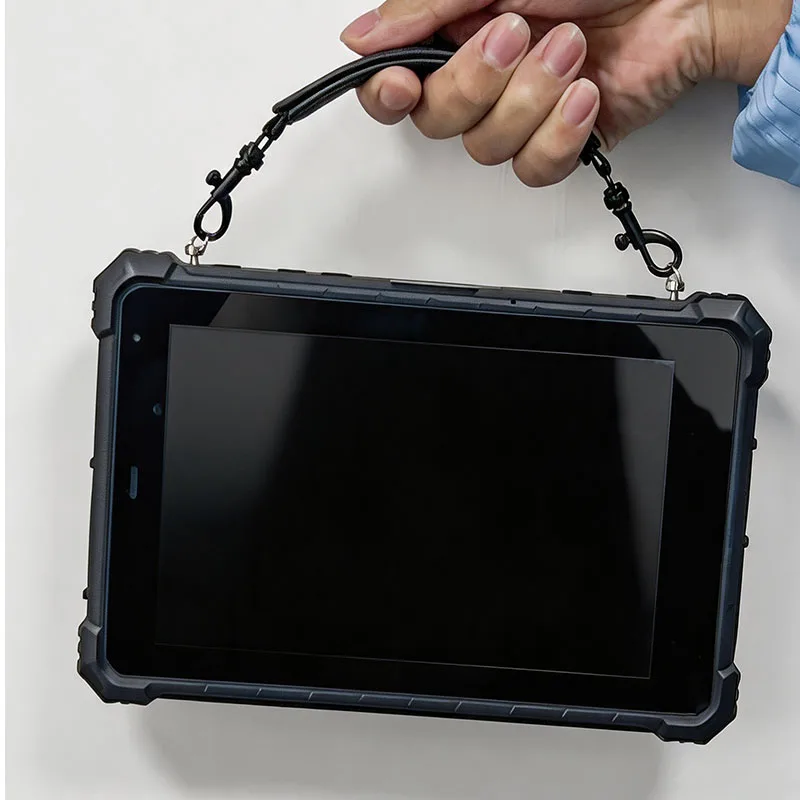

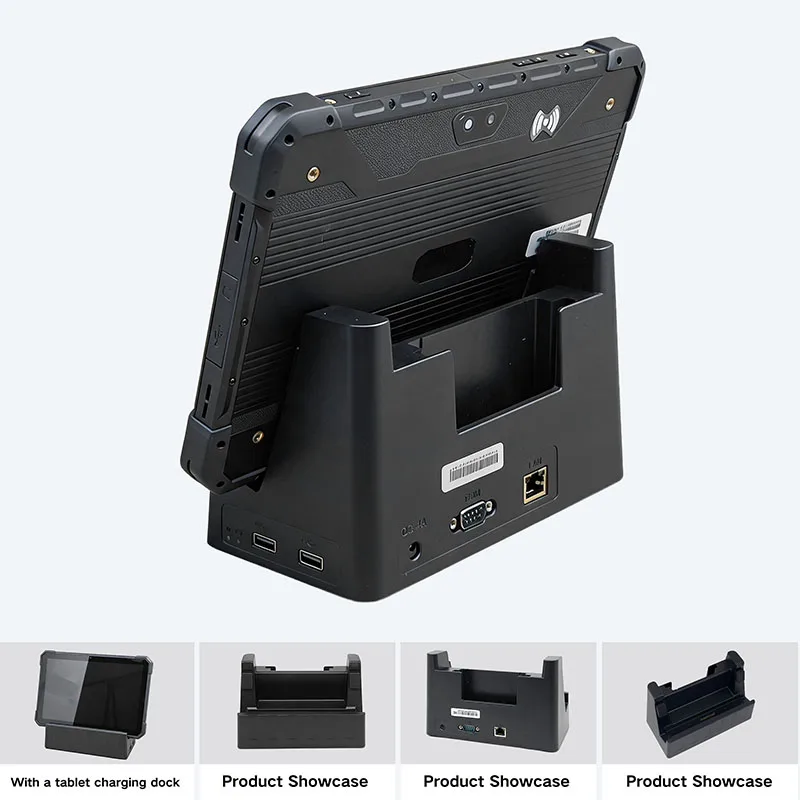

| Option accessories | Strap/charging base/stand |
Frequently Asked Questions About the A18ST Rugged Data Collection Tablet
1. How is this A18ST different from the existing Android 13 model?
This edition runs Android 16 and offers 4GB+64GB or 8GB+128GB configurations, Type-C fast charging, a standard 700cd/m² display, and optional Wi-Fi 6. The existing Android 13 model uses the MTK8781 processor and may be the better fit when raw processor performance or compatibility with an existing Android 13 deployment is the priority.
2. Is the Android 16 A18ST faster than the MTK8781 version?
Not necessarily. The Android 16 model uses an MT6769 processor with Cortex-A75 and Cortex-A55 cores, while the Android 13 version uses the higher-specification MTK8781 platform. Choose the Android 16 version for system version, configuration flexibility and project compatibility — not as a straightforward performance upgrade.
3. Is barcode scanning standard?
Barcode scanning is a configurable option, not standard. Customers can choose the N1 scanner for general barcode use, or the N670 scanner for higher-resolution sensing, cross-aiming and OCR support.
4. Is NFC included?
Yes, NFC is part of the main hardware configuration. The standard reading position is on the rear of the tablet and can be moved to the front for customized projects.
5. Does the Type-C port support fast charging?
Yes — the Type-C port supports USB OTG and PD fast charging (up to 33W, 11V/3A). The standard adapter is rated at 30W; a 33W charger is available on request.
6. Is the battery removable?
No. The 10000mAh battery is built into the tablet.
7. Can barcode, UHF RFID and fingerprint modules be installed together?
These are available as individual options, but combining them depends on enclosure space, antenna layout, power consumption and internal interface availability. We recommend confirming a module compatibility layout before sample production.
8. Is every customized configuration covered by the same IP68 report?
Not necessarily. Changing the scanner, UHF antenna, fingerprint module, NFC position or external interfaces can affect the enclosure and sealing. Confirm the applicable IP68 report matches your exact production configuration.
9. What accessories are available for the A18ST?
Listed optional accessories include a strap, charging base and stand. Contact us to confirm current availability and compatibility with your configuration.

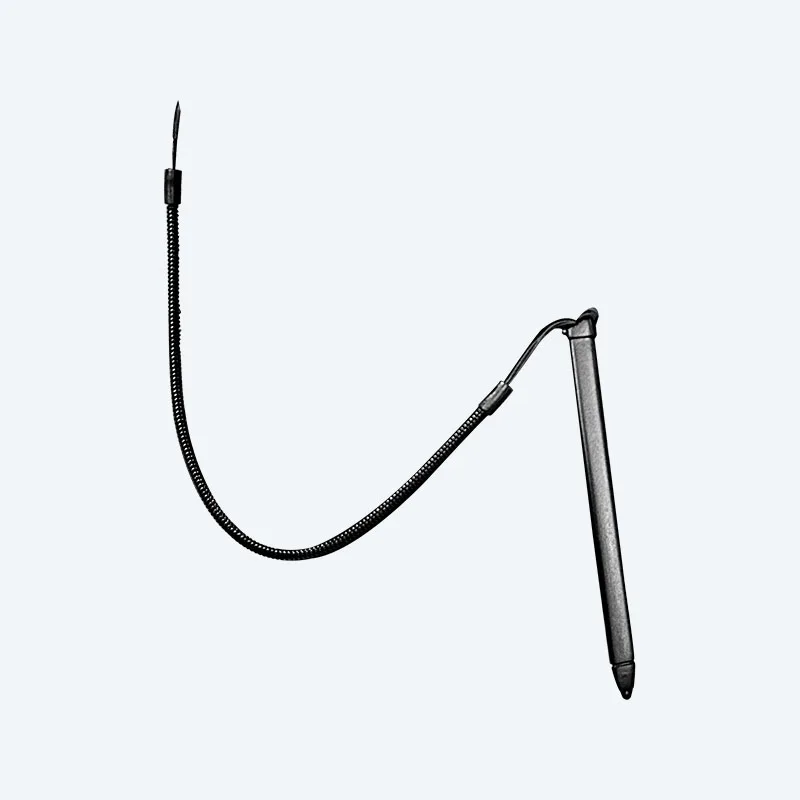

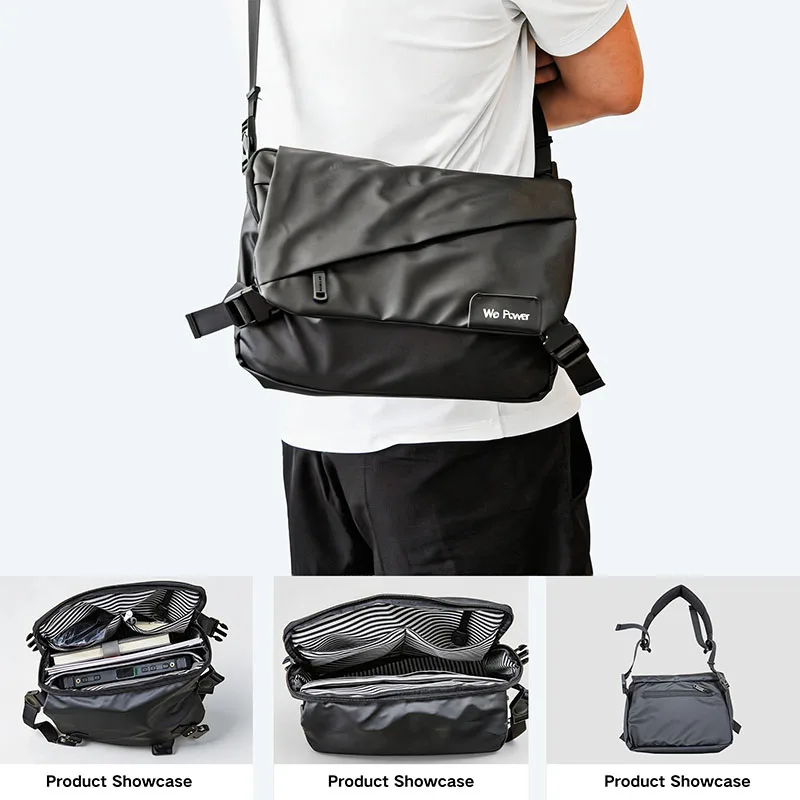

Accessories
