Rugged Computing Products
Rugged tablets, laptops, handhelds, and industrial PCs—built for demanding
environments and backed by 23 years of OEM/ODM expertise.

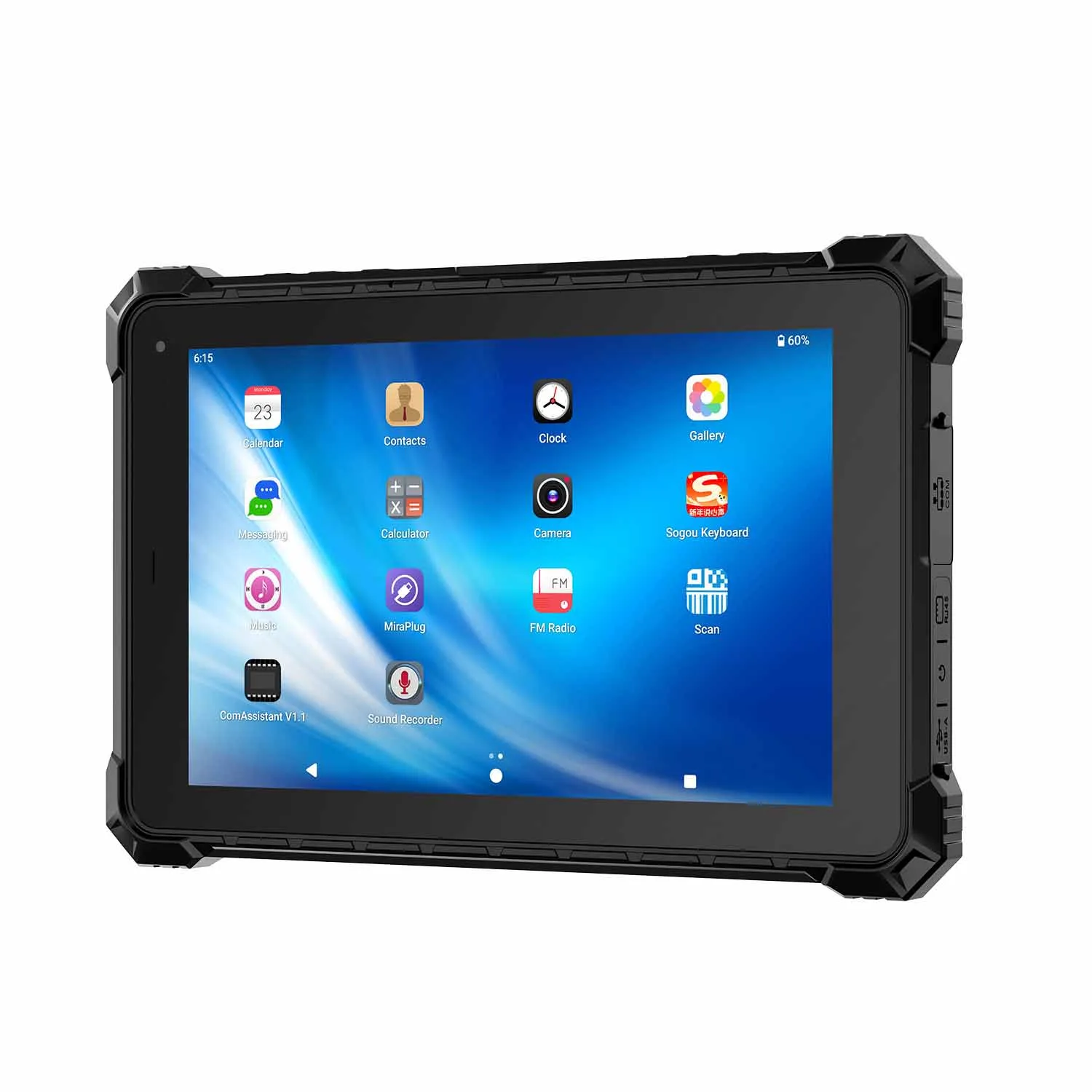

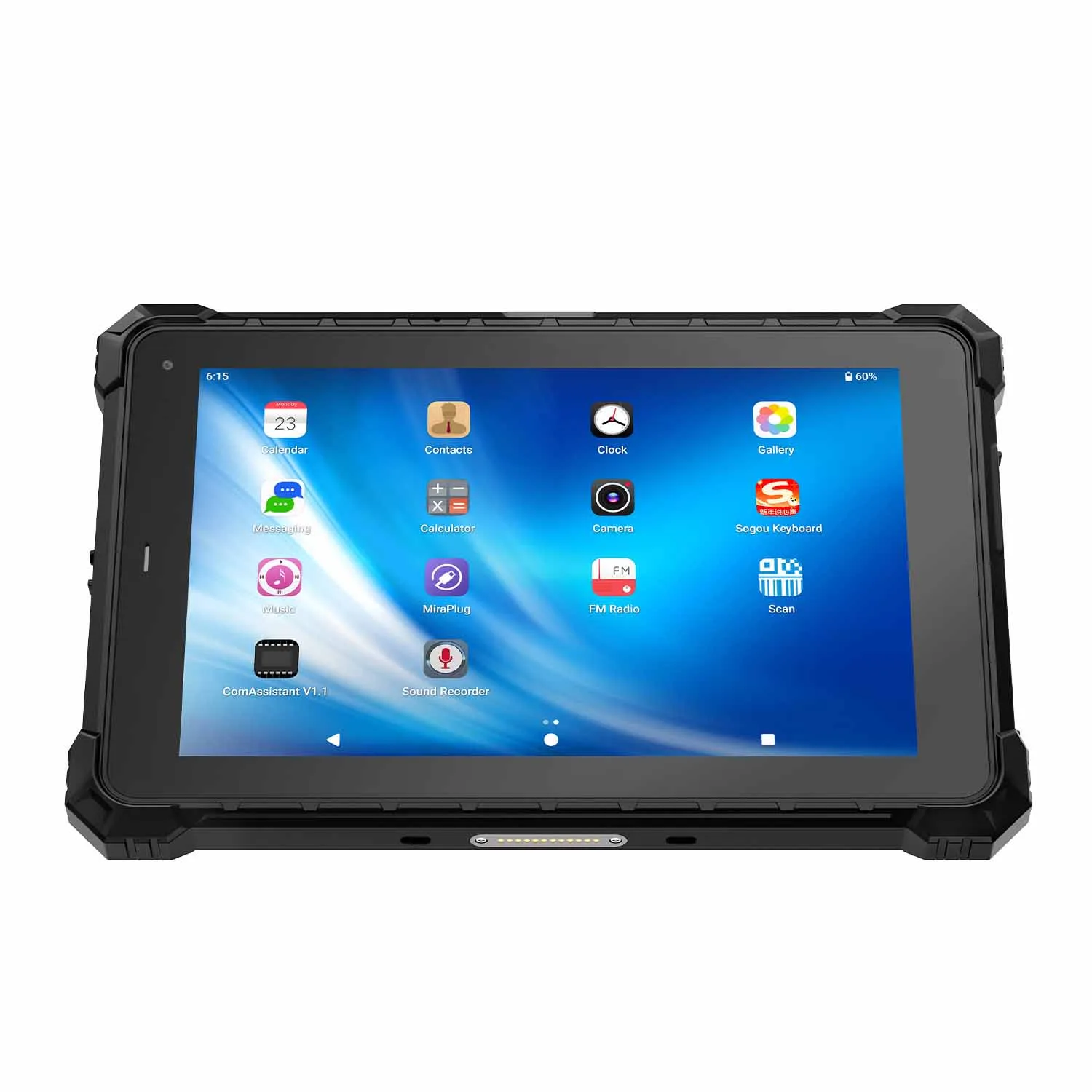

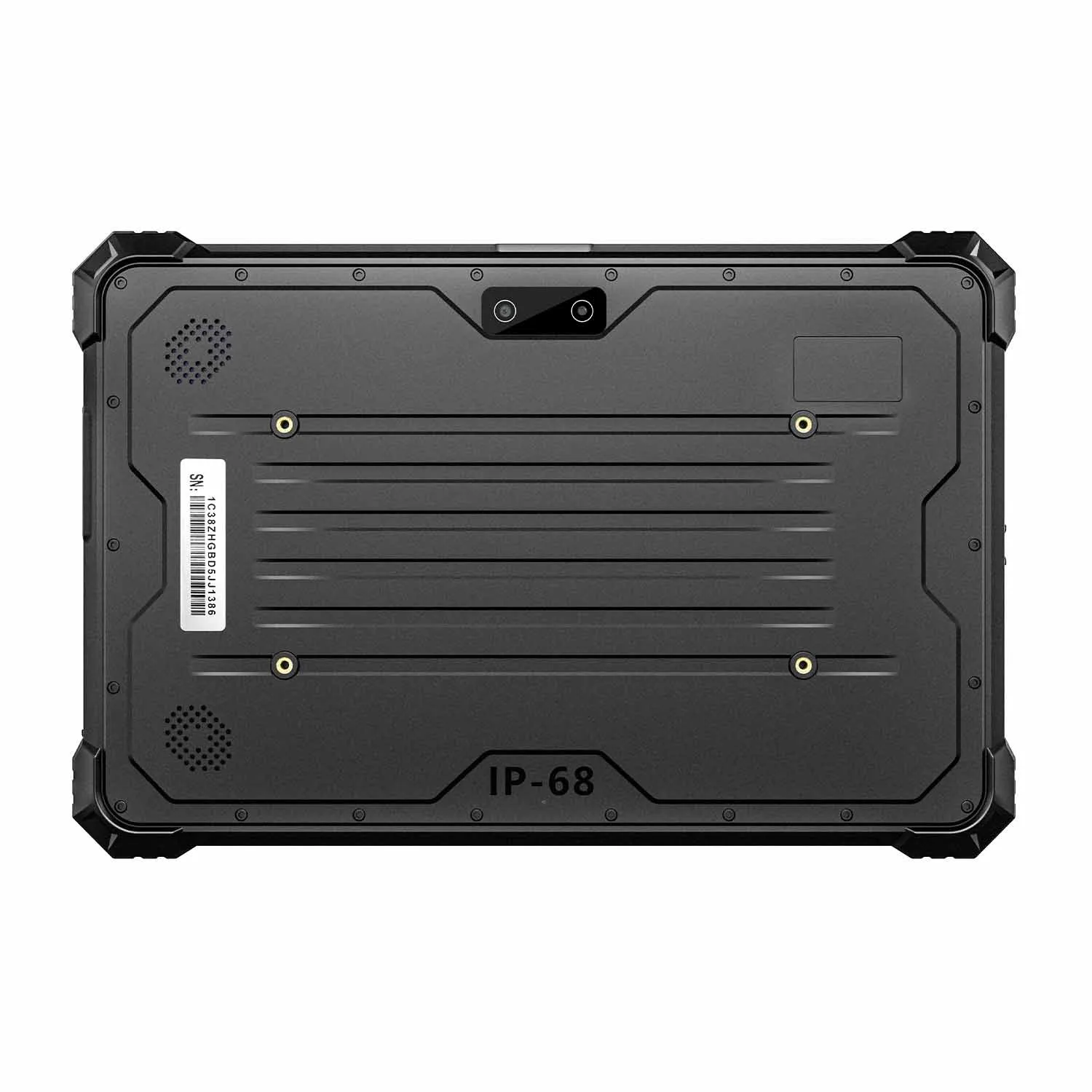

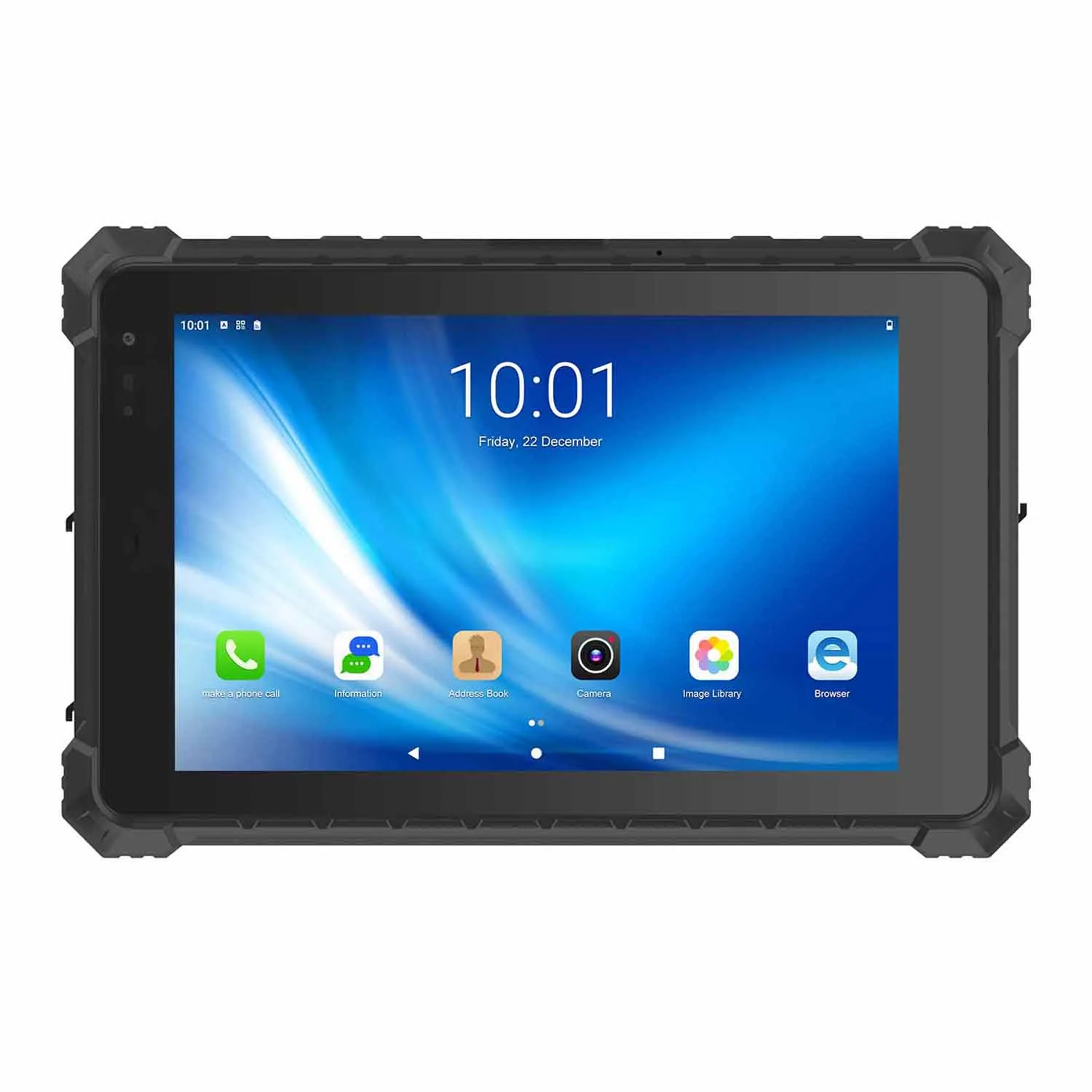

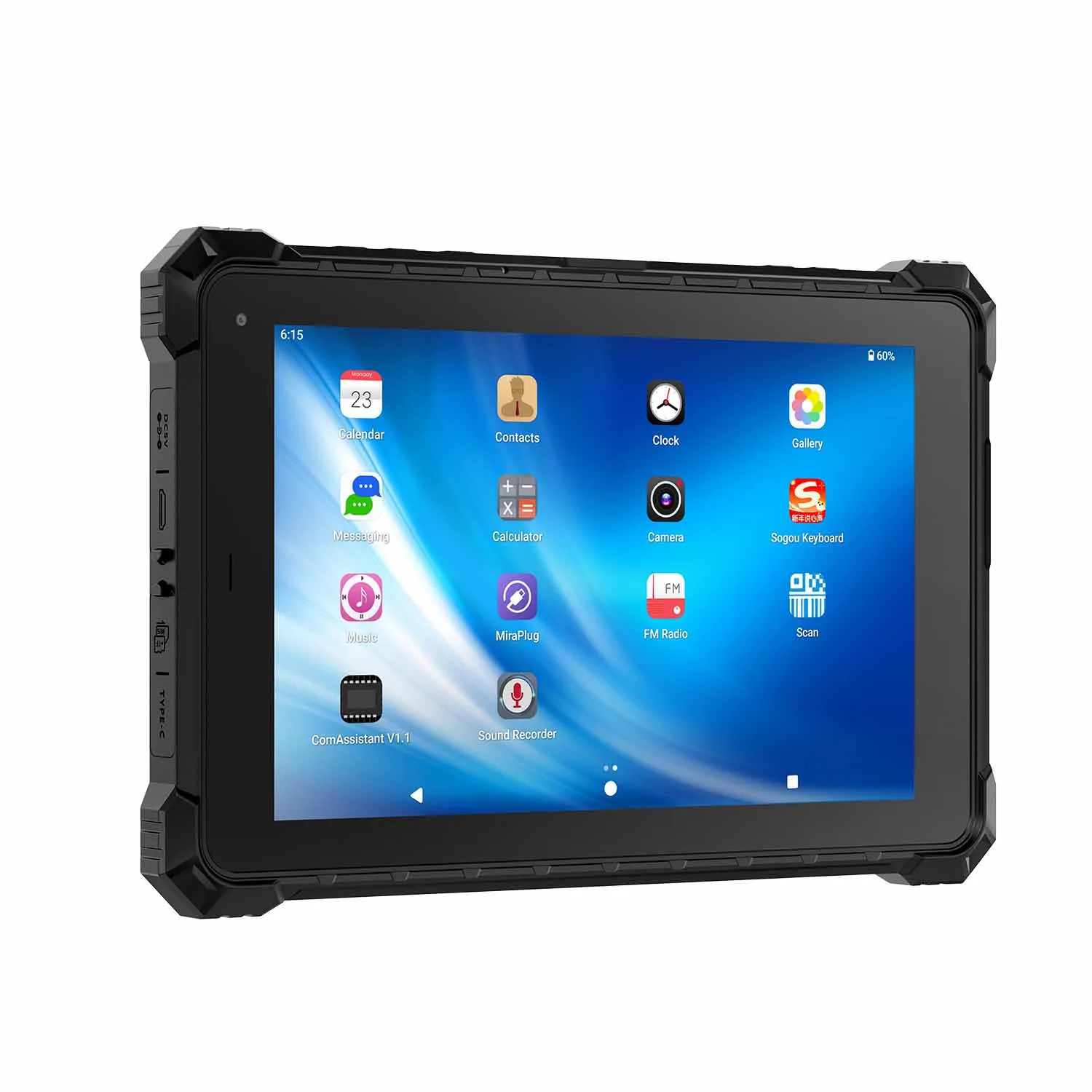

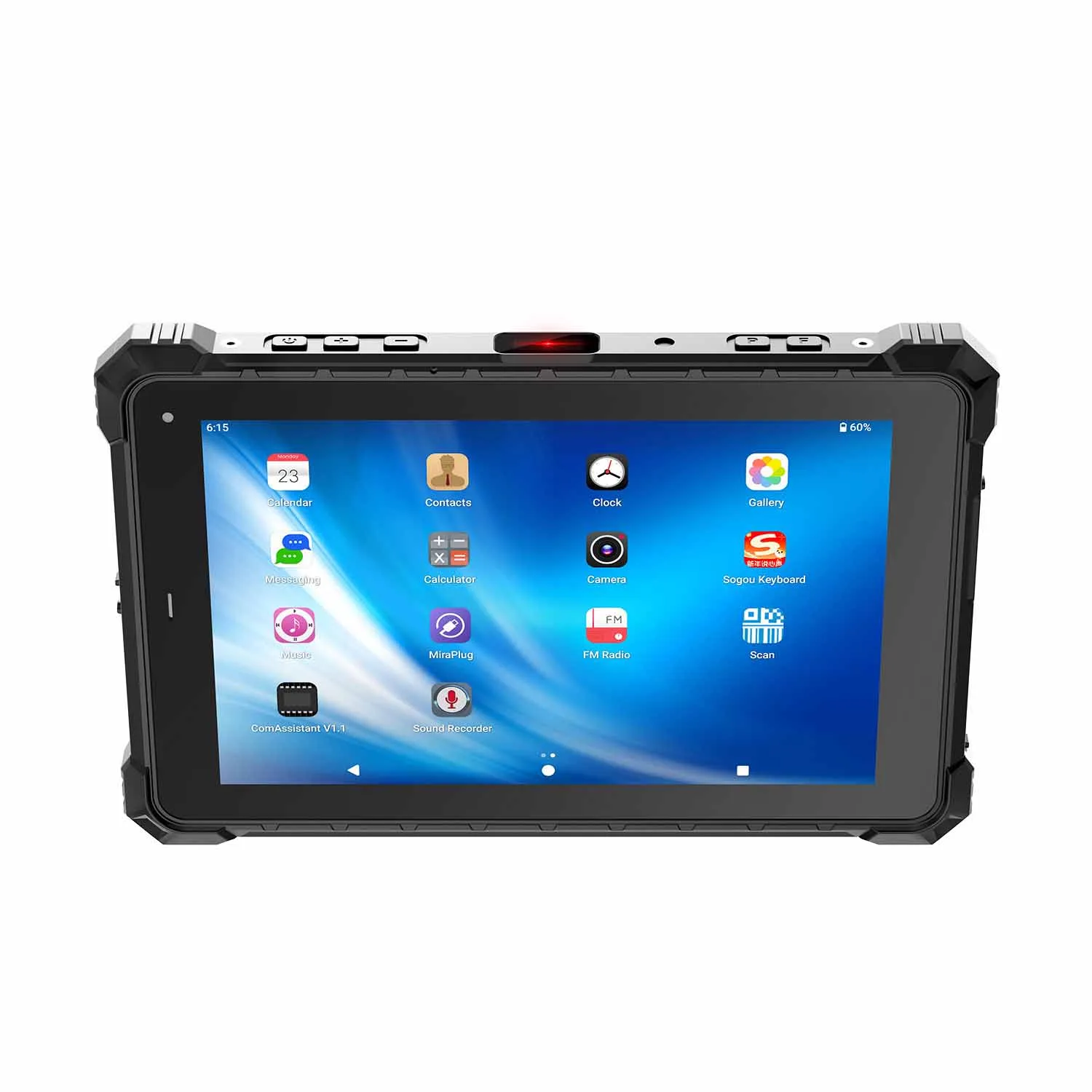

CENAVA A10R RK3568 10.1 Inch Android 11 IP68 Rugged Tablet

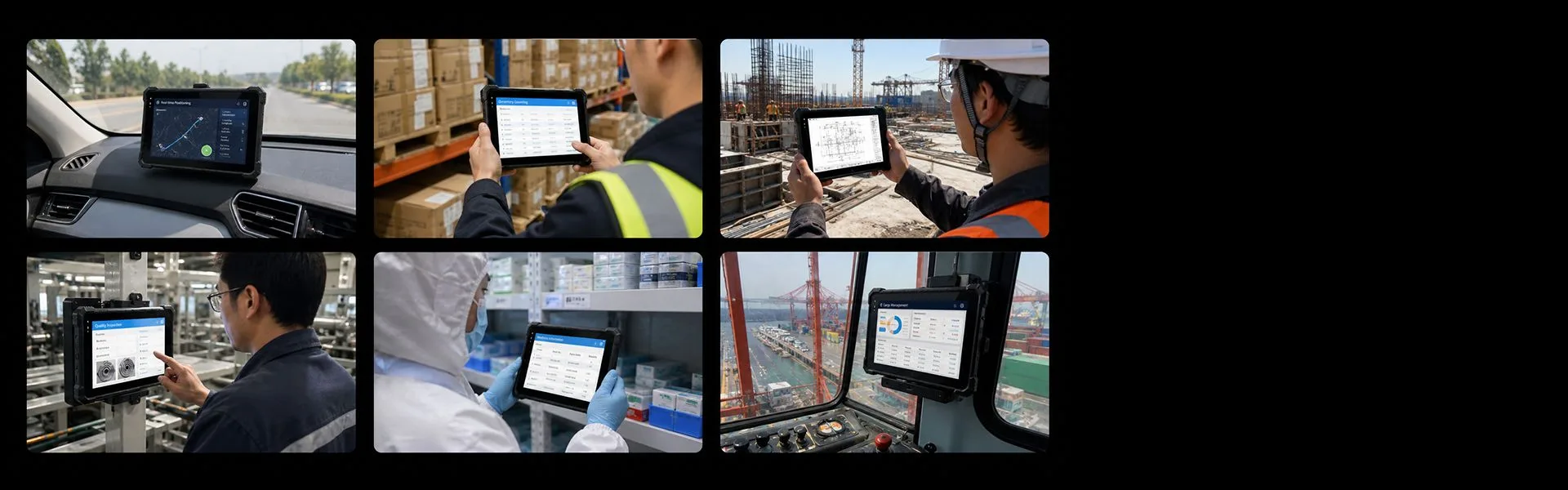

The CENAVA A10R is a 10.1-inch Android rugged tablet developed for industrial communication, equipment maintenance, mobile inspection, production data collection and fixed or vehicle-mounted terminal applications. It combines an RK3568 quad-core processor, 8GB RAM, 128GB internal storage and an M.2 PCIe SSD expansion interface with native RS232 and Ethernet connectivity.
Rugged Protection: IP68, MIL-STD-810H 1.22m drop, -20°C to 60°C (customizable -30°C to 60°C)
CPU: Rockchip RK3568 quad-core Cortex-A55 @2.0GHz, ARM Mali-G52 GPU
OS: Android 11 (optional Ubuntu 22.04)
Display: 10.1" IPS 1920×1200, 700cd/㎡ (customizable 1000cd/㎡), G+G 10-point glove touch, hardness ≥7H, AF coating (customizable wet-hand touch)
RAM/ROM: 8GB+128GB, onboard M.2 2280 SSD slot (up to 1TB)
Battery: 7.6V 5550mAh non-removable, ≥7h endurance (optional 10000mAh custom pack)
Integrated I/O: RJ45, DB9 RS232, Micro HDMI, Type-C (OTG), USB-A, 3.5mm jack, 12Pin POGO, Micro SIM, TF up to 2TB
Network: Dual-band WiFi 5, Bluetooth 5.0; optional 4G LTE / 5G; GPS/Galileo/GLONASS
Cameras: 5MP front + 8MP AF rear
Optional Modules: 2D scanner, fingerprint, ID card reader, UHF RFID, LF 125kHz, RTK cm-level positioning; NFC standard
QUAD-CORE POWER
ANDROID 11 SMOOTH
RK3568 Quad-Core 8GB+128GB Optional 4G/5G
Powered by the RK3568 quad-core processor (Cortex-A55, up to 2.0GHz) on Android 11, MES terminals, inspection apps, and dispatch consoles run without the stutter common on entry-level ARM boards. The 10.1-inch display provides ample workspace for multi-window dispatching and data visualization. Standard 8GB+128GB with a reserved M.2 2280 SSD slot for flexible storage expansion, easily handling video backhaul and cloud collaboration. Optional 4G global bands and 5G batch customization keep you connected in the field and on the move. Ubuntu and Debian images are available for projects that need a Linux software stack.
HARSH CONDITIONS NO FEAR
IP68 Optional Ex Version 1.22m Drop -20°C to 60°C

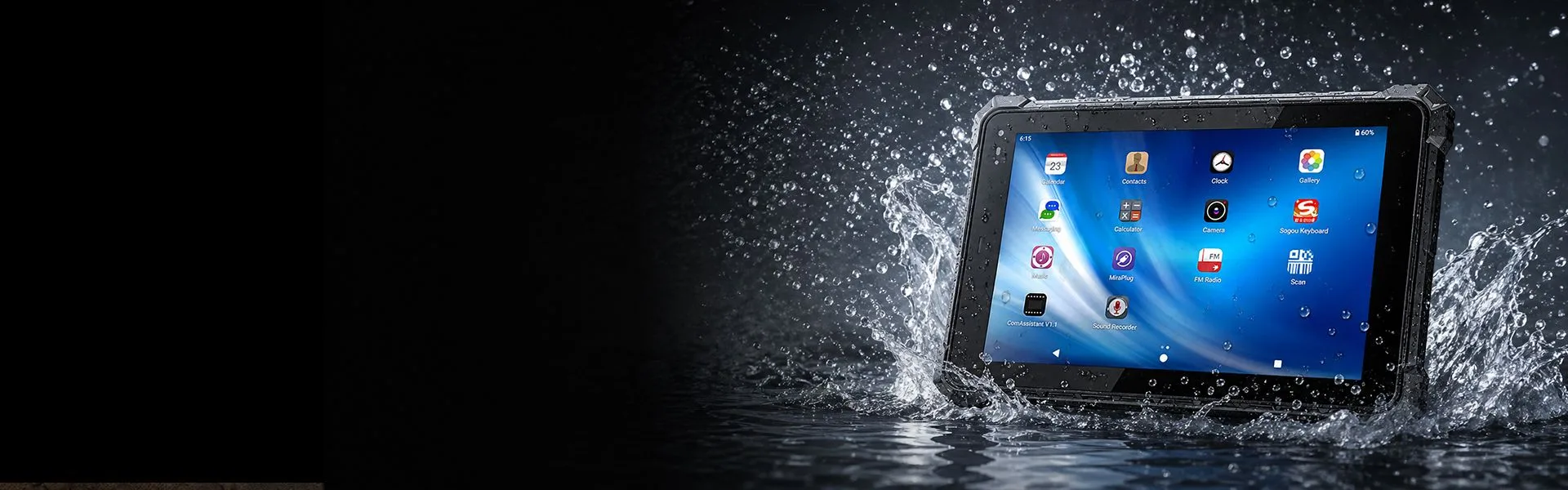

IP68 dust-tight and waterproof, surviving 1.22m drops. This standard A10R is not explosion-proof certified. For hazardous areas, order the A10R-EX variant: ATEX II 2GD and Ex ib I Mb with MA/KA for coal and mining — see the A10R-EX page for the certificate schedule. Operating range here is -20 °C to 60 °C, with a -30 °C low-temperature custom build for severe cold. The rugged industrial chassis with reinforced corners and sealed gaskets keeps out sand and dust, providing a stable, fatigue-free grip.
INDUSTRIAL FULL INTERFACE
Type-C+HDMI+RS232+RJ45 100M+POGO
Full industrial interface configuration: Type-C supports data transfer; USB-A connects flash drives and keyboards; Micro HDMI extends to large screens; RS232 serial port interfaces with industrial control equipment; RJ45 100M Ethernet connects directly to PLCs and switches; 12-pin POGO PIN dock enables charging and expansion; 3.5mm headphone jack supports voice intercom. A reserved M.2 2280 SSD slot allows flexible storage expansion. Ergonomic layout keeps ports clear in one-handed use, with dust plugs blocking dust and moisture. Paired with optional 2D scanning and fingerprint modules, it forms an integrated data collection and device control terminal.

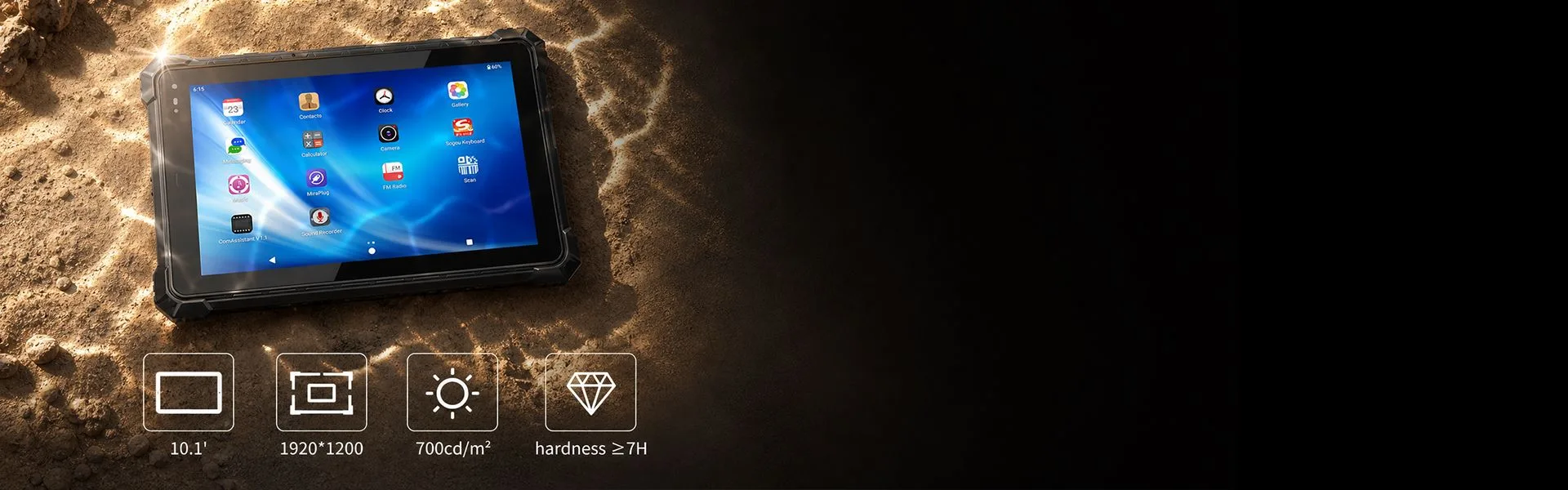

HIGH-RES BRIGHT DISPLAY
OUTDOOR STRONG VISIBILITY
10.1-inch IPS 700cd/m² Glove Touch Wet-Hand Customizable
The 10.1-inch IPS panel runs at 1920×1200 and 700 cd/m², readable under direct sunlight, with a 1000 cd/m² high-brightness option for strong-glare sites. The G+G touch layer (≥7H, AF coating) works with rubber gloves, and wet-hand touch is available as a factory customization. Because the A10R is often docked at a station or mounted in a vehicle, pair the display choice with the M.2 SSD and 12V DC input options when you configure the unit.
Technical Specifications
 CPU Rockchip RK3568, quad-core Cortex-A55 @2.0GHz, Mali-G52 |  System |  Storage 8GB+128GB, M.2 2280 SSD slot (up to 1TB), TF up to 2TB |  Display 10-inch IPS touch screen 1920*1200 resolution 700cd/㎡ |
 NFC Optional Default back of the body for card reading, customizable to the front |  One/Two dimensional code Optional Able to identify dirty 1/2 dimensional codes |  Battery 7.6V 5550mAh built-in, ≥7h (10000mAh custom pack) |  High frequency/ultra-high frequency module |
 Navigation positioning GPS, Galileo GLONASS |  ID card identification Optional |  Interface RJ45 (100M), DB9 RS232, Micro HDMI, Type-C (OTG), USB-A, 3.5mm, 12Pin POGO |  Weight |
 NFC Standard (13.56MHz, ISO 14443A/B, ISO 15693) |  Protection level Working temperature: -20 °C to 60°C Storage temperature:-30 °C to 70 °C |  Camera Front camera:5MP Rear camera:8MP |  Sensor Gravity sensing, compass, gyroscope, light sensing, distance sensing |
| Product Type | Android industrial rugged tablet |
| TP touch screen | Anti-fingerprint (AF) coating,10-point touch G+G, hardness ≥ 7H, support for medical rubber gloves touch screen (can be customised wet hand touch screen |
| WIFI | WIFI 802.11(a/b/g/n/ac) Frequency 2.4G+5.8G Dual-band WIFI 5 |
| Bluetooth | Bluetooth 5.0 class1 transmit distance:10m |
| M.2 SSD | *1 reserved for the motherboard,supports M.2 2280 PCIe SSDs up to 1TB |
| TYPE-C | *1 Type-C adapt OTG USB2.0 |
| Type -A | *1 Type-A USB2.0 |
| DB9 serial port | *1 RS232 |
| Earphone Jack | *1 3.5mmStandard headphone jack |
| TF Card | *1 Maximum support 2TB expansion |
| SIM Card | *1 Standard Micro SIM card slot |
| HDMI | *1 Micro HDMI |
| DC port | *1 12V-4A (DC plug outer diameter 3.5mm inner diameter 1.35mm) |
| POGO PIN | *1 12Pin USB+charger |
| RJ45 | *1 100M |
| Drop height | Meets the requirements of (GJB 150.18A-2009, GJB 150.1A-2009) and (MIL-STD-810H) for the 1.22-meter drop test |
| Certificates | IP68 (IEC 60529), CE, RoHS; drop-tested to GJB 150.18A-2009 and MIL-STD-810H (1.22 m); ISO 9001-certified factory; salt-spray tested |

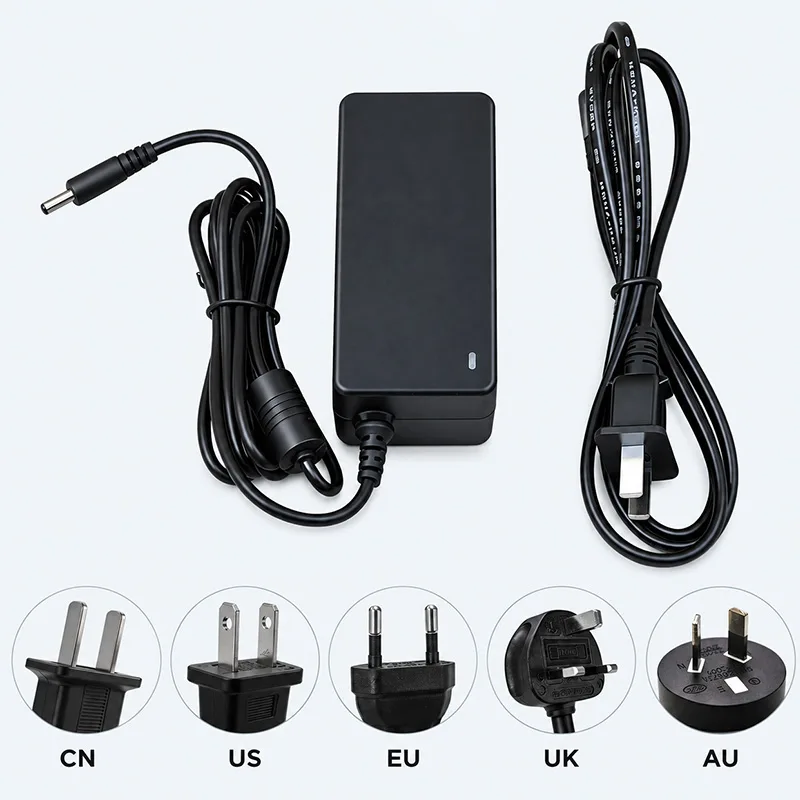

| Adapter | 12V-4A, DC interface adapter |
Frequently Asked Questions About A10R RK3568 Android Industrial Rugged Tablet
1. What's the difference between the A10R RK3568 and RK3588 versions?
The RK3568 is the cost-effective option for standard industrial communication and data-collection tasks, running Android 11 with Wi-Fi 5, USB 2.0 and 100Mbps Ethernet. The RK3588 version offers a faster processor and GPU, Wi-Fi 6, and more headroom for demanding Android applications.
2. Is the A10R RK3568 suitable for edge computing?
It can run local Android or Linux-based applications and store data via the M.2 SSD slot, making it suitable for lightweight edge tasks.
3. Does the standard tablet include 8GB RAM and 128GB storage?
Yes — 8GB RAM and 128GB internal storage are standard, and the M.2 2280 slot accepts up to 1TB.
4. What SSD capacities does the M.2 slot support?
Up to 1TB (M.2 2280 PCIe, FAT32 format). We recommend validating your chosen SSD against your OS and file-system requirements before bulk ordering.
5. Does the A10R RK3568 have a built-in RS232 port?
Yes, one DB9 RS232 port. Please confirm the required pin definition and baud rate for your connected equipment when ordering.
6. Is the Ethernet port Gigabit?
No — this model's RJ45 port runs at 100Mbps.
7. Are the USB ports USB 3.0?
No — one USB 2.0 Type-A port and one USB 2.0 Type-C port (with OTG support).
8. Can the A10R RK3568 run Ubuntu?
Ubuntu is available as a project-configurable option.
9. Can Android and Ubuntu be installed on the same unit?
Android and Ubuntu are offered as separate factory configurations rather than a validated dual-boot setup. Contact us if your project specifically requires dual-boot.
10. Is the 5,550mAh battery removable?
No, it's built in and not user-removable or hot-swappable.
11. Is a larger battery available?
Yes, a 10,000mAh custom pack is available on request — contact us to confirm the resulting thickness, weight and accessory compatibility for this configuration.
12. Does the standard product include 5G?
No, cellular connectivity is optional; available 4G/5G bands depend on the modem module, destination country and carrier.
13. Is NFC standard?
Yes, a 13.56MHz reader supporting ISO 14443A, ISO 14443B and ISO 15693, positioned on the back by default (front placement can be customized).
14. Which barcode scanner can be installed?
The N1 or N670 module. The N1 suits everyday barcode workflows; the N670 adds a higher-resolution sensor, cross-aiming and OCR support.
15. Does the tablet support UHF RFID?
Yes, optional UHF modules with typical read ranges of roughly 3–5 meters, depending on the tag, antenna and environment.
16. Does the tablet support high-precision RTK positioning?
Yes, as an optional module. Centimeter-level accuracy requires compatible correction data, a suitable antenna and clear satellite visibility.
17. What is the screen resolution?
1920×1200.
18. Is the A10R RK3568 IP68 rated?
Yes, IP68 is standard. Note that some accessory configurations (scanner, RFID module, etc.) may affect the tested rating — contact us to confirm for your specific build.
19. Is the tablet certified for use in explosive atmospheres?
No — the standard A10R RK3568 is not explosion-proof certified. Hazardous-location use requires a separately certified model with its own certificate number; contact our sales team for ATEX/IECEx options.

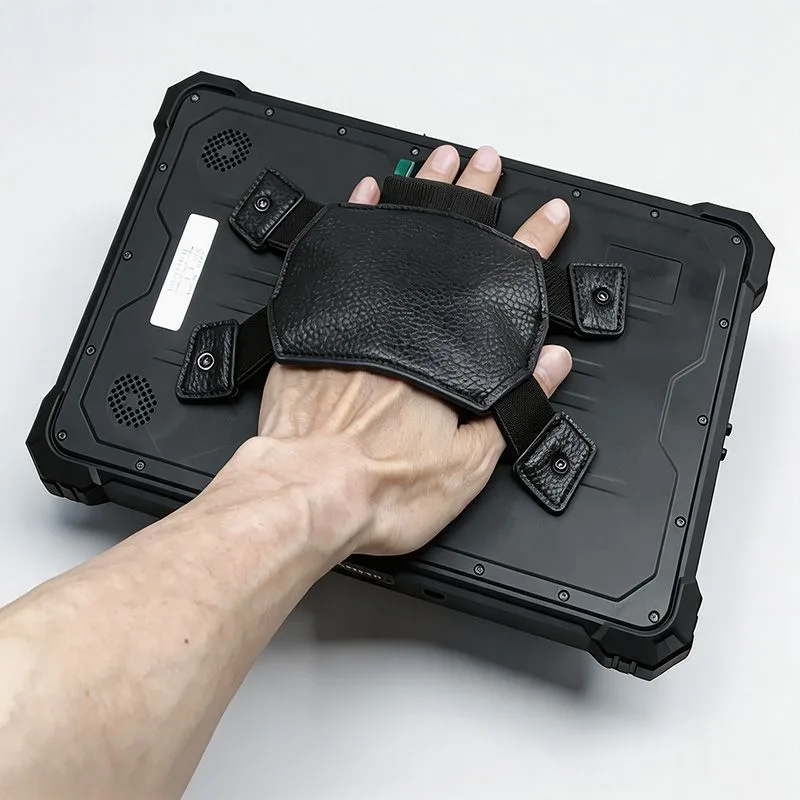

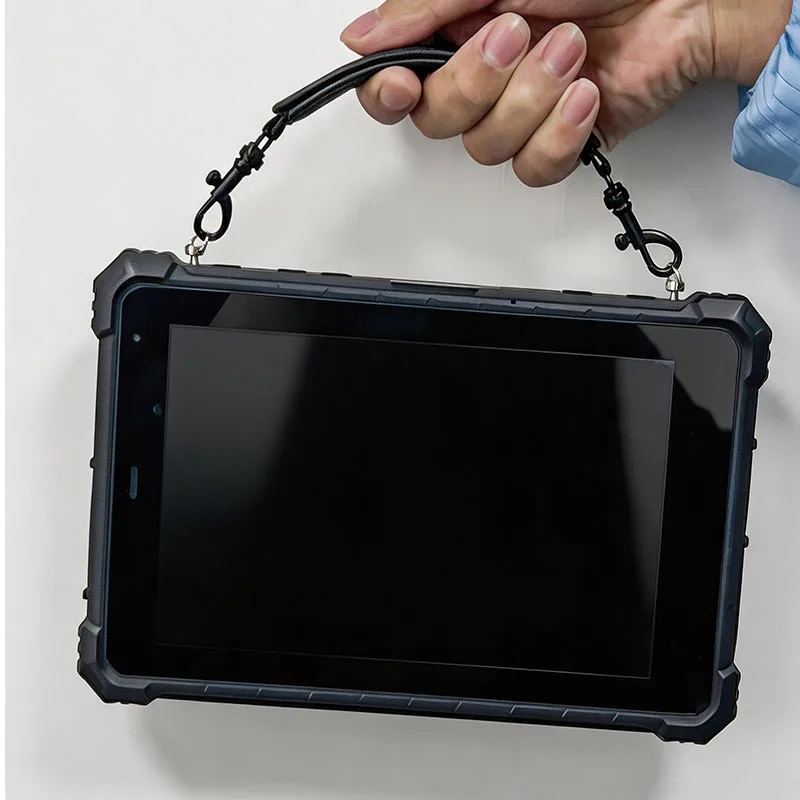

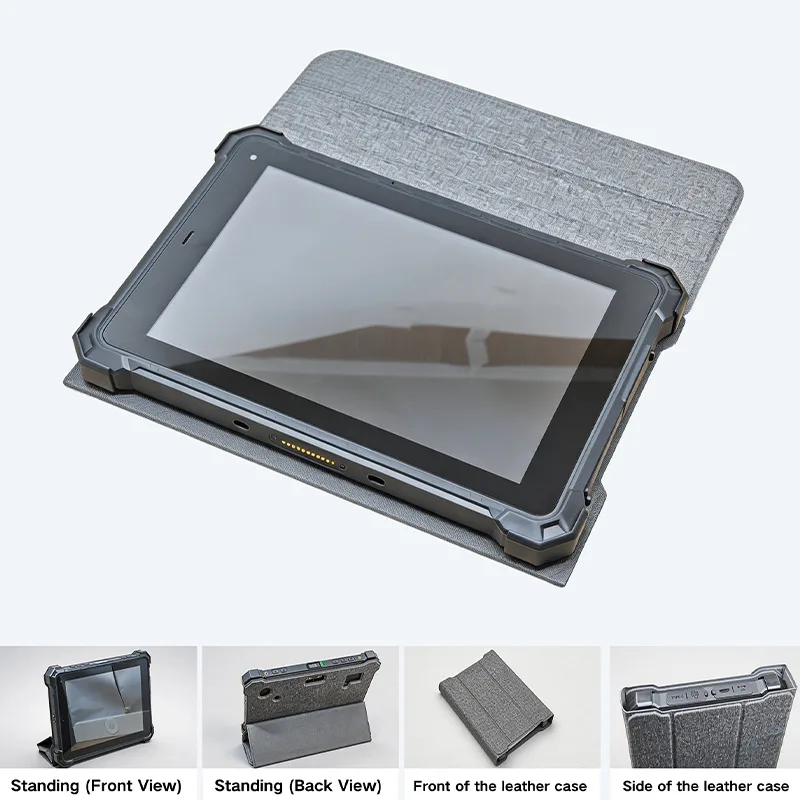

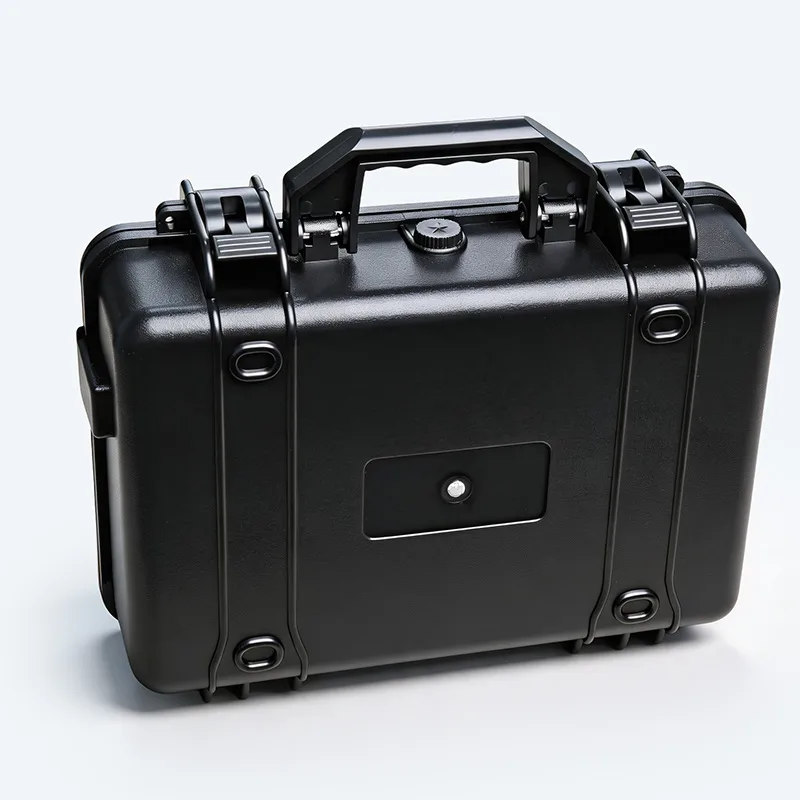

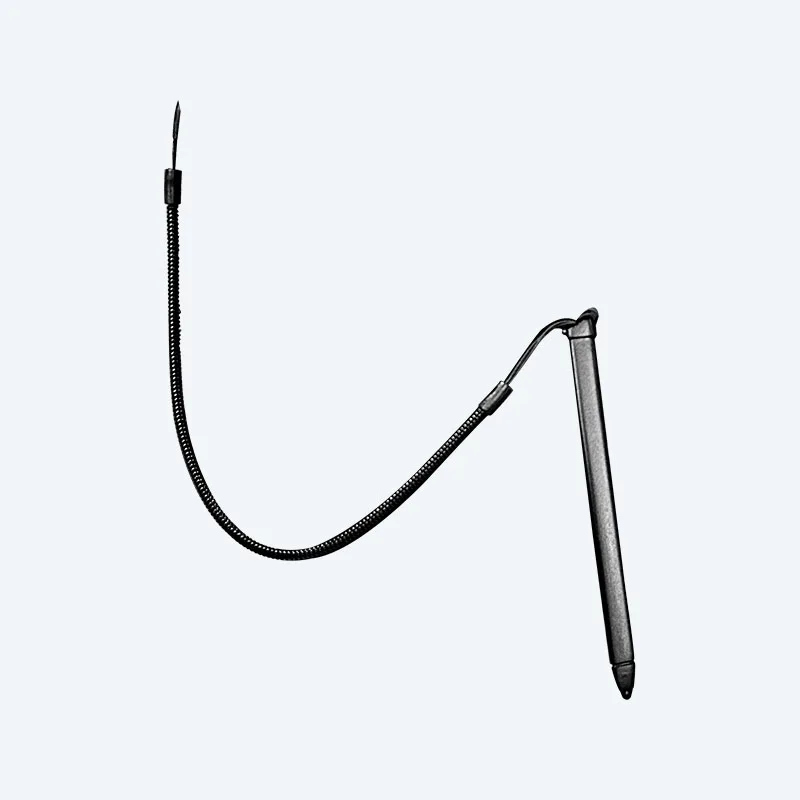

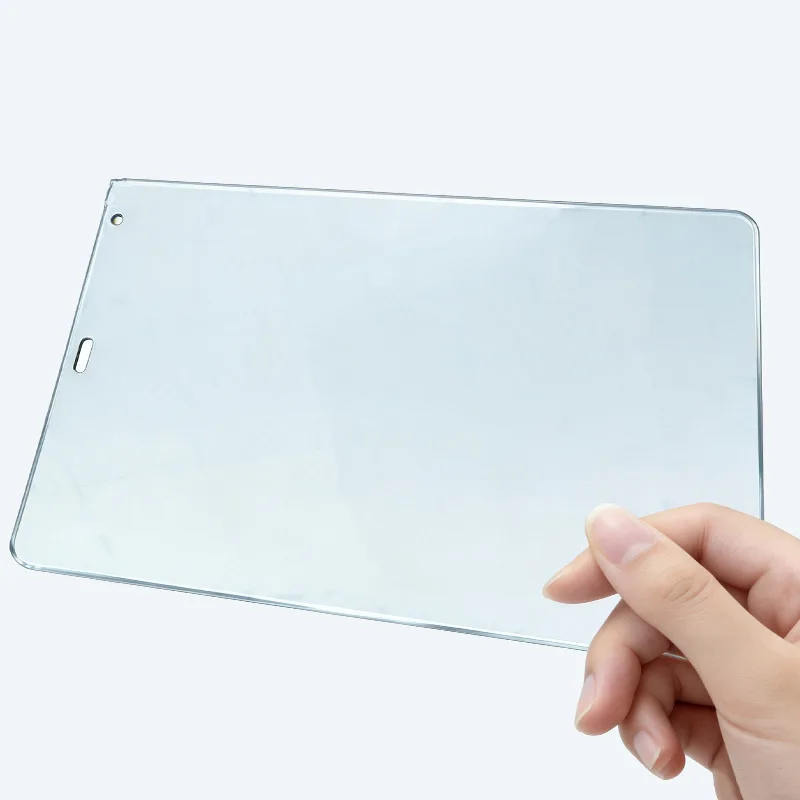

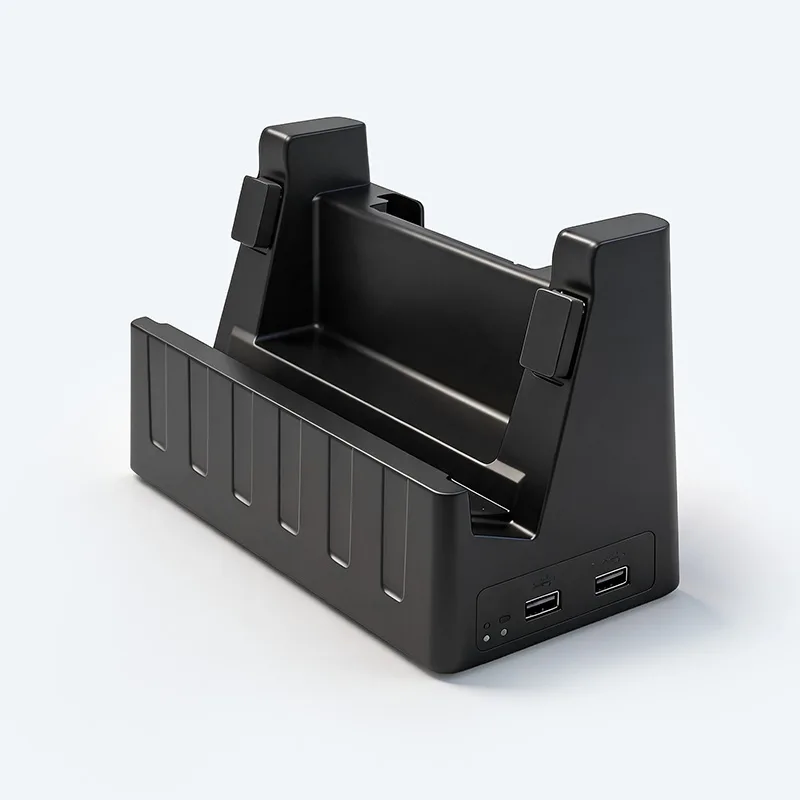

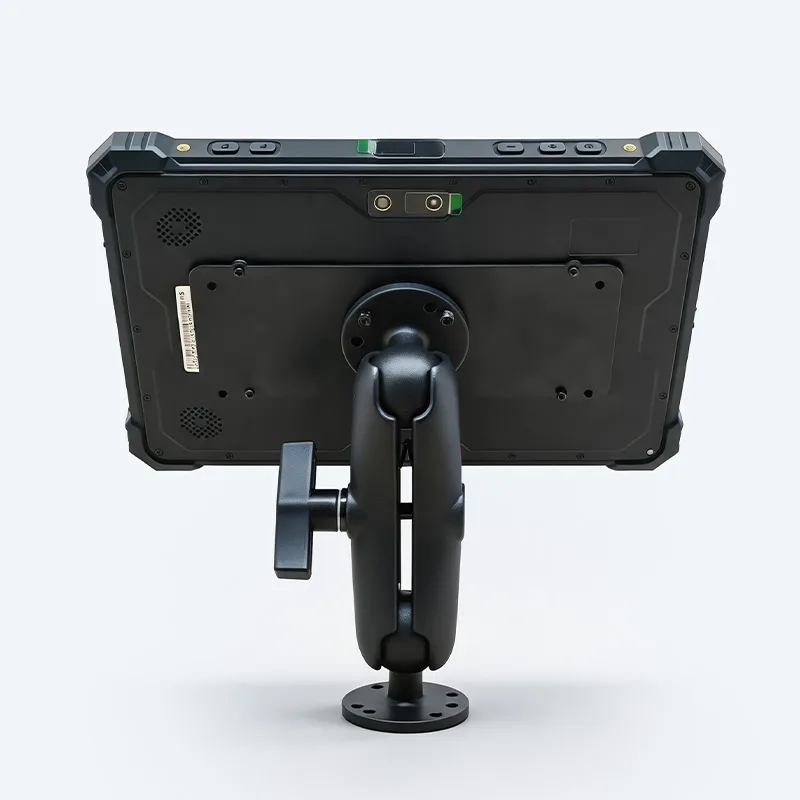

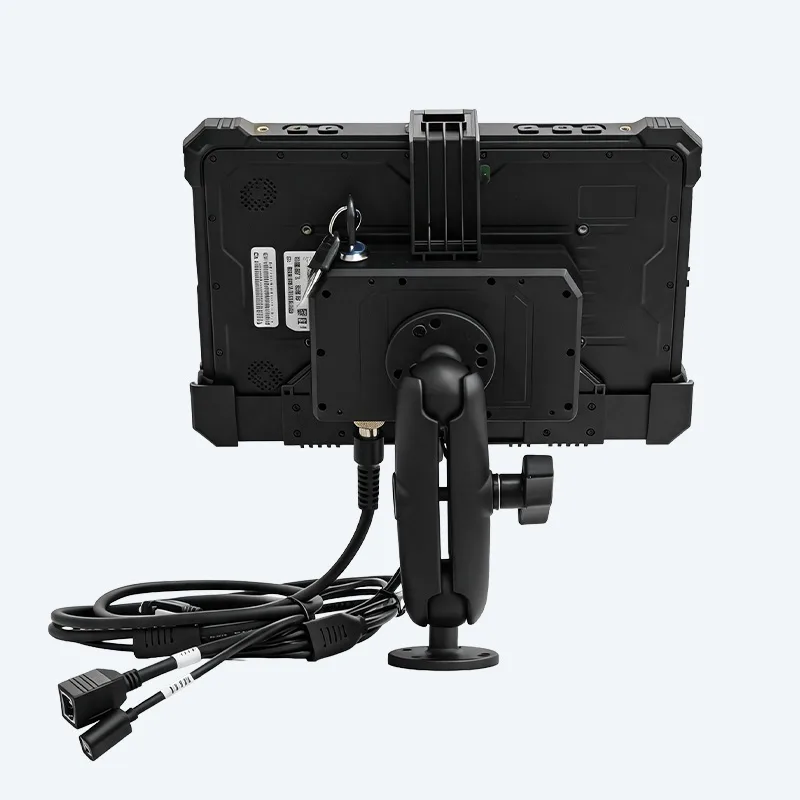

Accessories

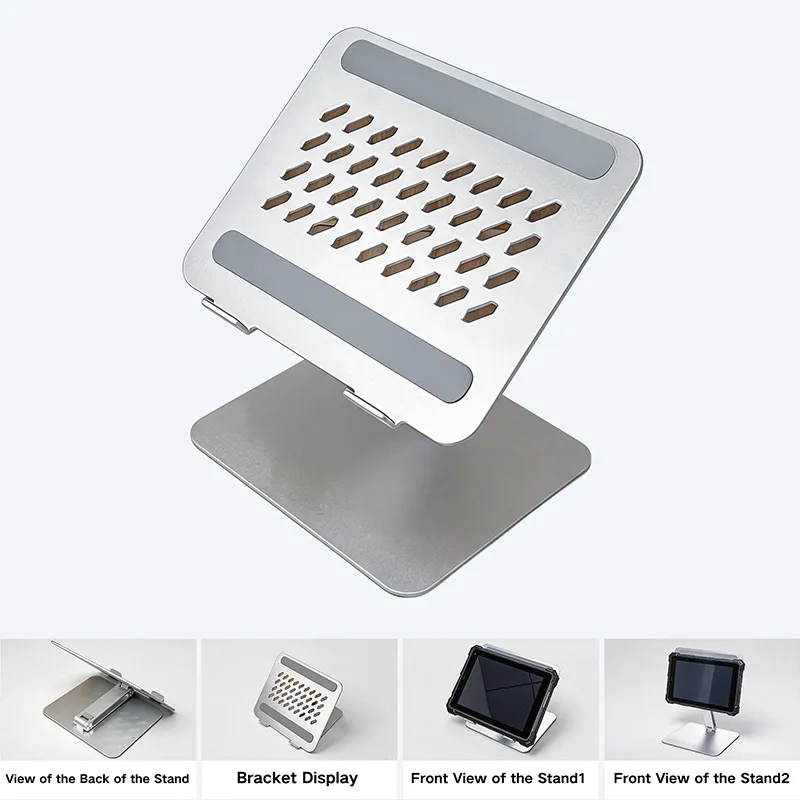

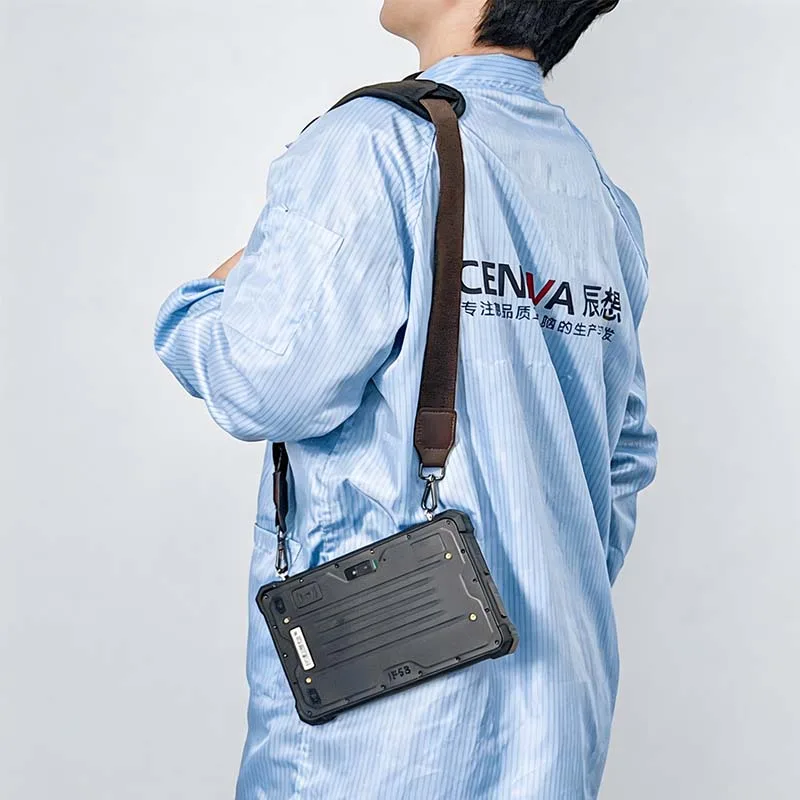

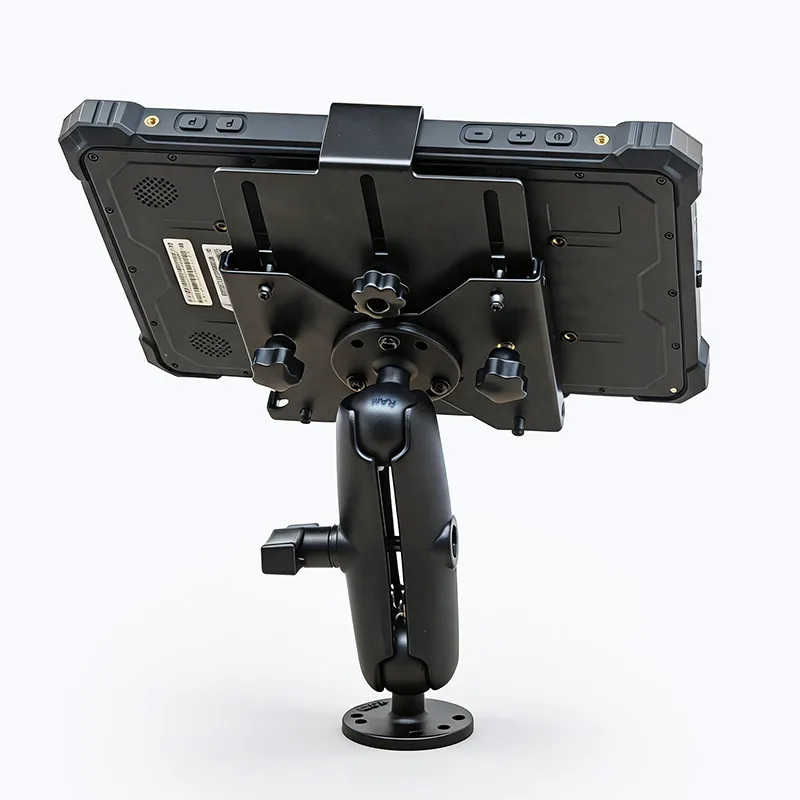

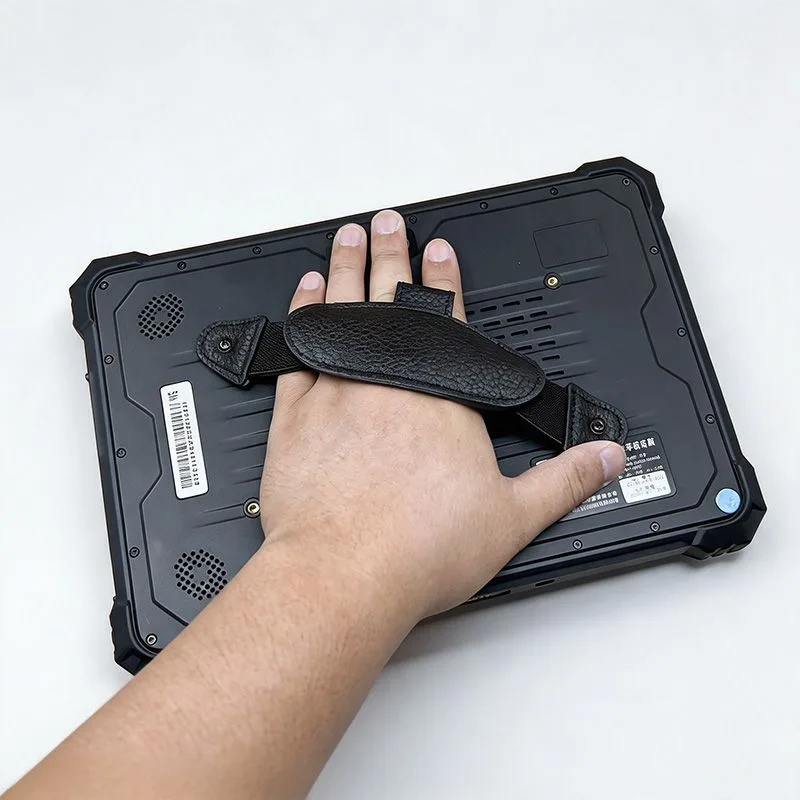

Standard and optional accessories for this model
