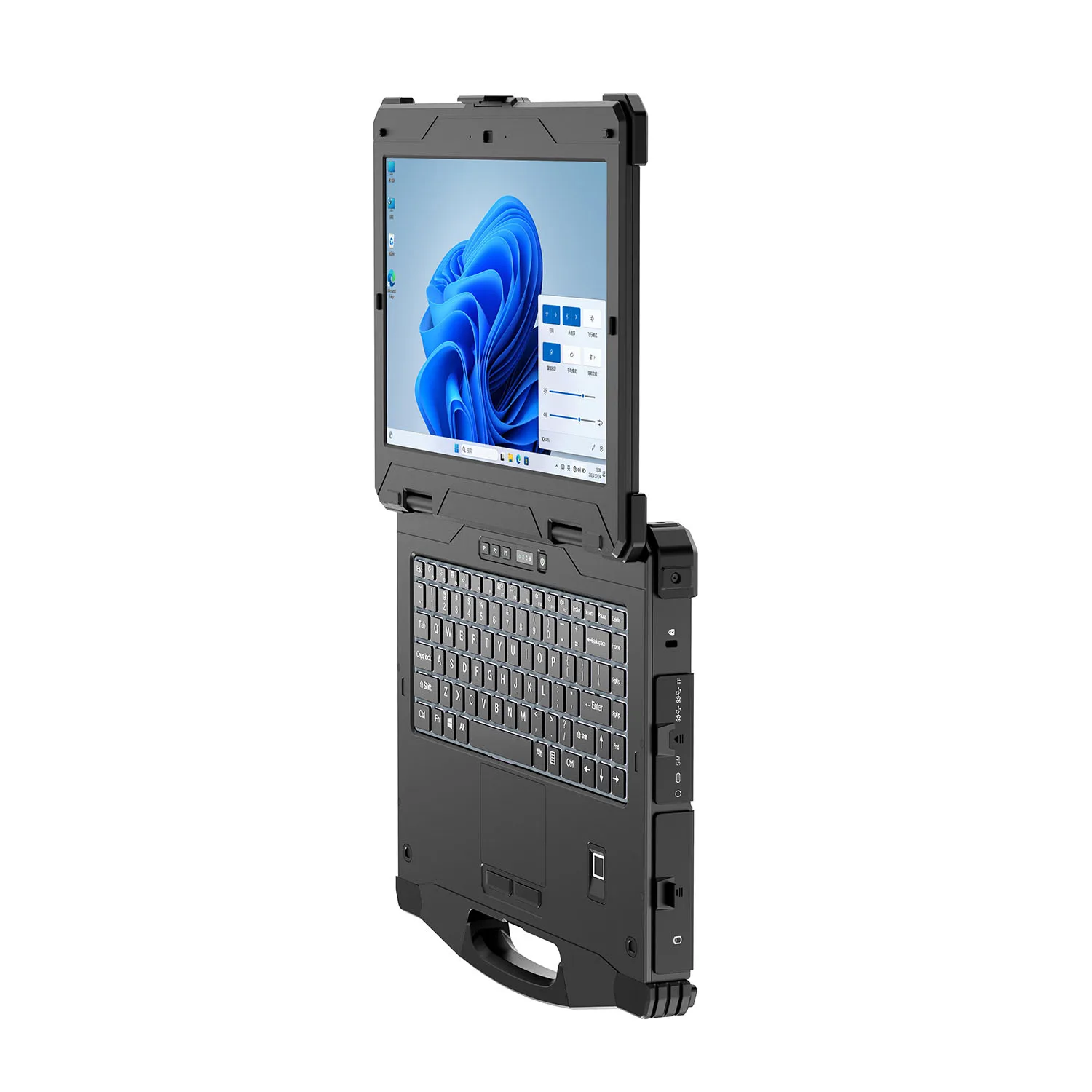

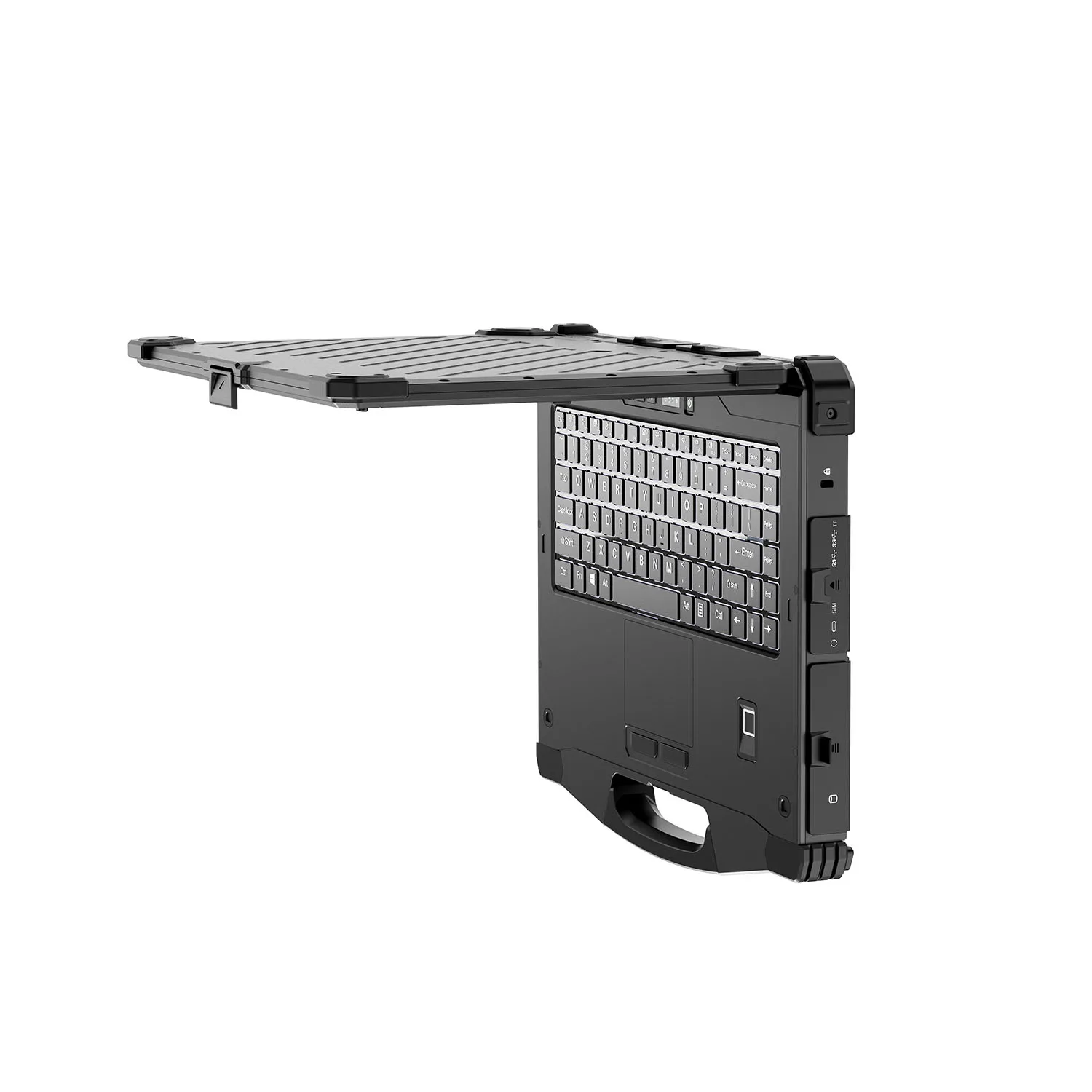

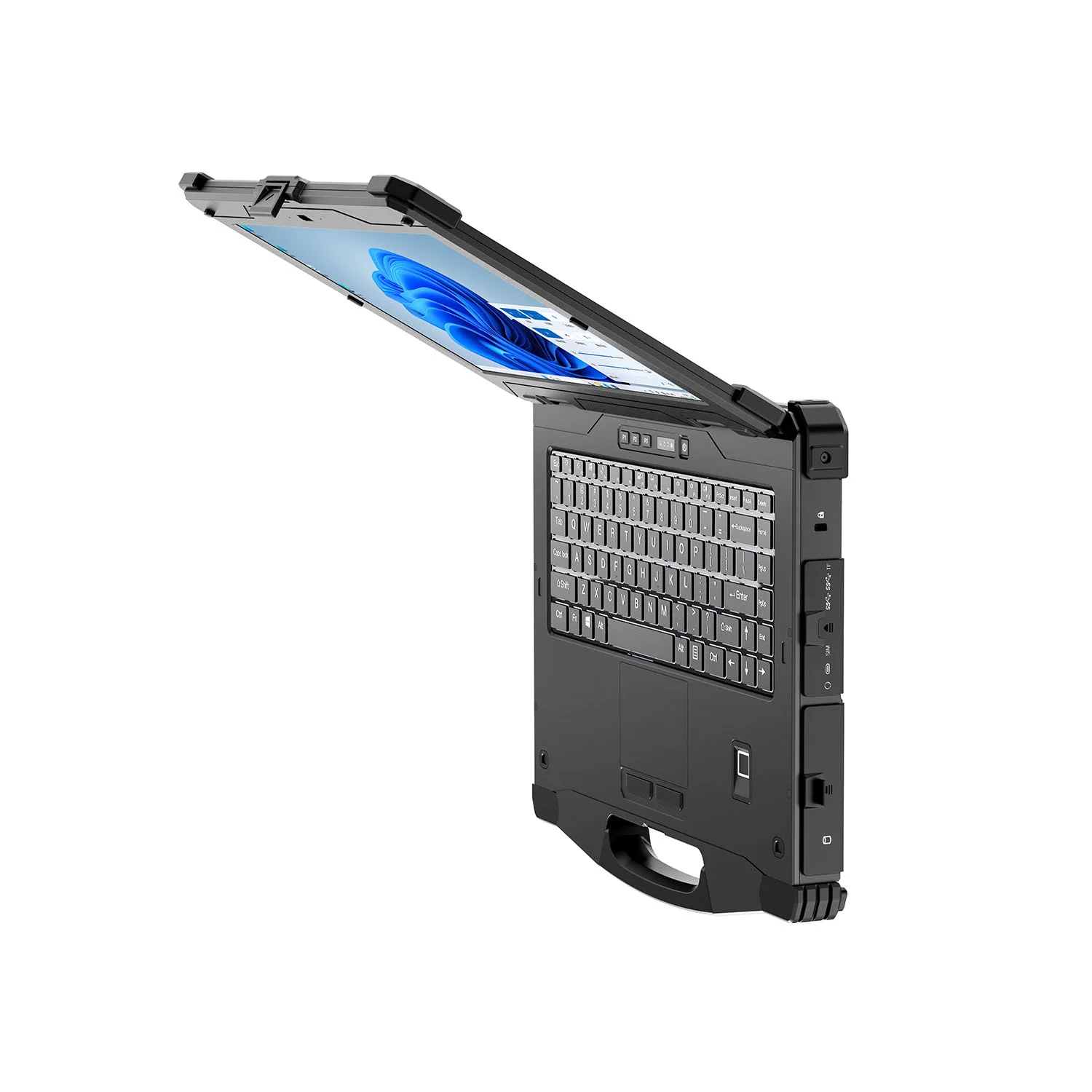

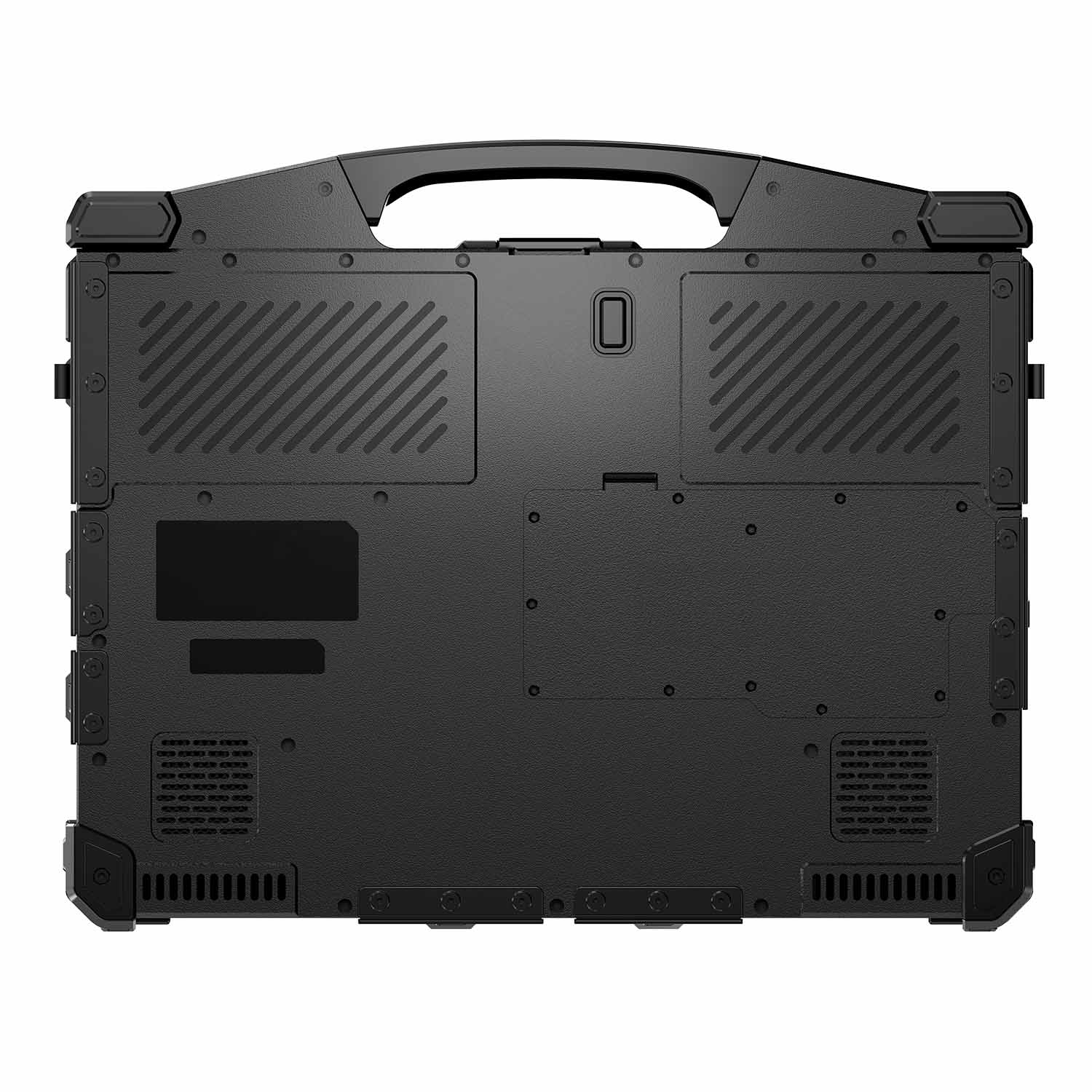

CENAVA W14US Core 3-304 14" Win11 IP65 Rugged Laptop
The CENAVA W14US is a 14-inch rugged laptop developed for field engineering, communications support, equipment maintenance, surveying and mobile command applications. Unlike a conventional business notebook, it combines a protected enclosure, backlit keyboard and industrial interfaces in a portable Windows platform.
CPU: Intel Core 3 304, 5 cores (1P@4.3GHz + 4LP-E@3.3GHz) (optional Core 5 320, 6 cores)
OS: Windows 11 Pro (optional Ubuntu 22.04.5)
RAM/ROM: 8/16GB + 128/256GB M.2 PCIe Gen4 SSD, up to 2TB
Display: 14" 1920×1080, 550cd/㎡ (bulk customizable 1000cd/㎡; optional USB touchscreen)
Battery: Dual smart batteries — 5100mAh + 2200mAh, hot-swap
Integrated I/O: USB-A 3.0×4, Type-C USB3.0 (data), Thunderbolt (10Gbps/DP/100W PD in), RJ45 2.5G×2, DB9 RS232 (optional 422/485), 3.5mm, TF (1TB), Micro-SIM
Network: WiFi 6, Bluetooth 5.2; optional 4G/5G; optional GNSS (bulk custom)
Protection: IP65, MIL-STD-810H, -20°C~60°C, TPM 2.0

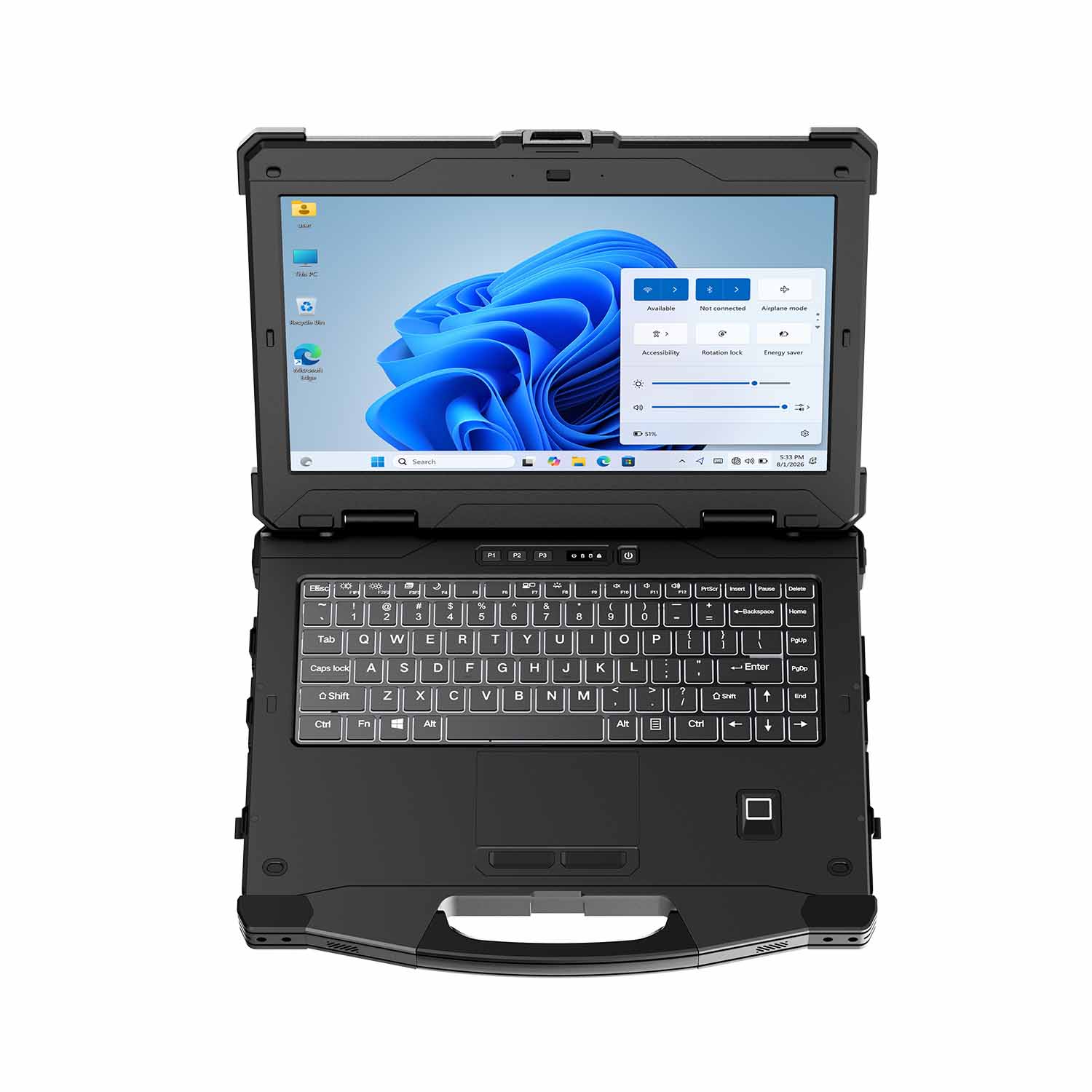

Keyboard: 86-key membrane backlit keyboard
Optional Modules: ID card reader (bulk), fingerprint capture (3 options)
The CENAVA W14US is a 14-inch rugged laptop developed for field engineering, communications support, equipment maintenance, surveying and mobile command applications. Unlike a conventional business notebook, it combines a protected enclosure, backlit keyboard and industrial interfaces in a portable Windows platform.
Technical Specifications
 CPU Intel Core 3 processor 304, 5 cores, up to 4.3GHz |  System Windows 11 Pro |  Storage 8/16GB + 128/256GB M.2 PCIe Gen4 SSD, up to 2TB |  Display 14-inch Full HD display, |
 NFC Reading and Writing Optional |  Fingerprint identification Optional |  Battery Primary 5,100mAh battery and optional 2,200mAh secondary battery |  Pilot lamp Power indicator light, 1 charging indicator light, 1 hard drive indicator light |
 Navigation positioning Optional GPS |  Key Power Button, P1, P2, P3 Programmable Function Keys |  Interface HDMI, Serial port interface type C, USB3.0, RJ45 interface USB2.0, Left docking station |  Size 358.5*293*41mm |
 Card slot Storage expansion up to 2TB |  Protection level working temperature: -20 °C to 60 °C storage temperature: -30 °C to 70 °C protection level: IP65 |  Camera Front 8MP Autofocus Camera with Privacy Shutter |  Speaker Dual speaker |
| Product formats | 14" Rugged Portable Terminal Laptop |
| Target Applications | Command & Control, Communication Support, Data Reconnaissance, Equipment Maintenance, Surveying & Mapping, and other industrial scenarios. |

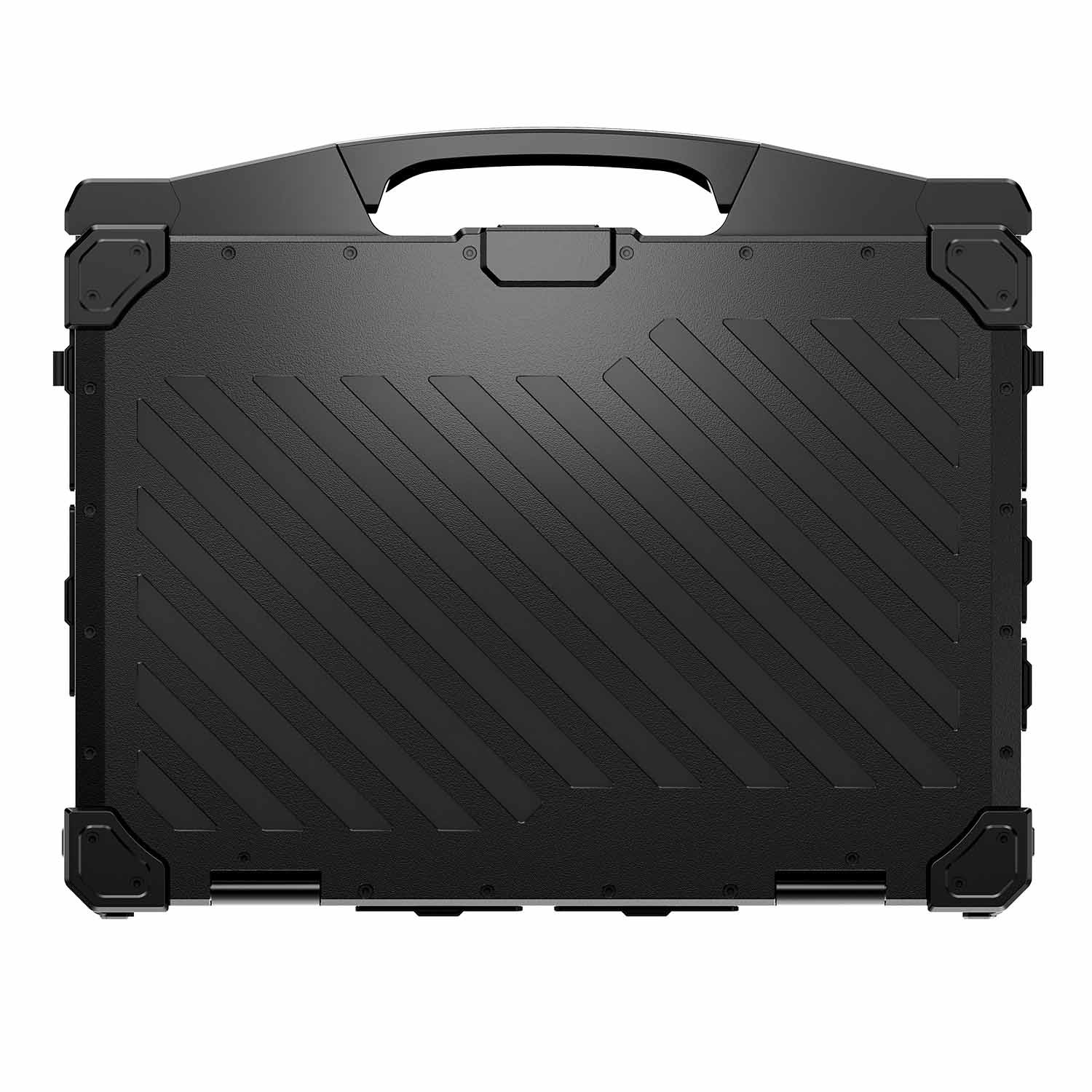

| Enclosure Material | Plastic + Metal Molded Enclosure, Protective Bumpers, Waterproof Sealing Gaskets |
| Audio | *2 Speakers: 2W / 4Ω *2 MIC |
| Battery | Dual Smart-Swappable Batteries: Primary 5100mAh 15.2V, Secondary 2200mAh 15.2V. Battery Life ≥6 Hours (TBD); Tested in simulated office environment at 50% brightness and 50% volume. |
| Touchpad | Support |
| Login fingerprint | *1 SPI Interface Fingerprint Sensor |
| Touchscreen(Custom) | Customisable USB TP |
| TPM | Built-in TPM Security Chip |
| WIFI | Built-in Wi-Fi 6 (802.11 b/g/n/ax) |
| Bluetooth | Bluetooth 5.2, Transmission Range: 10m |
| USB Type-A | *4 USB3.0 |
| USB Type-C | *1 USB 3.0 (Data Transfer) |
| Thunderbolt Port | *1 TBT |
| Audio Jack | *1 3.5mm Standard Audio Combo Jack |
| SIM Card | *1 Standard Micro SIM Slot |
| DC Power Jack | *1 DC Input, 19V-7.8A (Barrel Plug: OD 5.5mm / ID 2.5mm) |
| RJ45 Ethernet | *2 RJ45 LAN Ports, Auto-negotiating 2.5G/1G/100M/10Mbps |
| Serial Port (COM) | *1 DB9 Serial Port (RS232 Standard; RS422/RS485 Optional) |
| Expansion Features | SATA hard drive (or secondary battery – choose one) |
| Integrability | Highly Expandable. Supports Customer Module Integration, Custom Functional Interfaces, and Internal Reserved Multi-USB Headers |
| Drop height | Meets the requirements of MIL-STD-810H for the 1.22-meter drop test |
| Certifications | IP65 (Dust & Water Resistant), CE, MIL-STD-810H, ISO Quality Management System, RoHS |

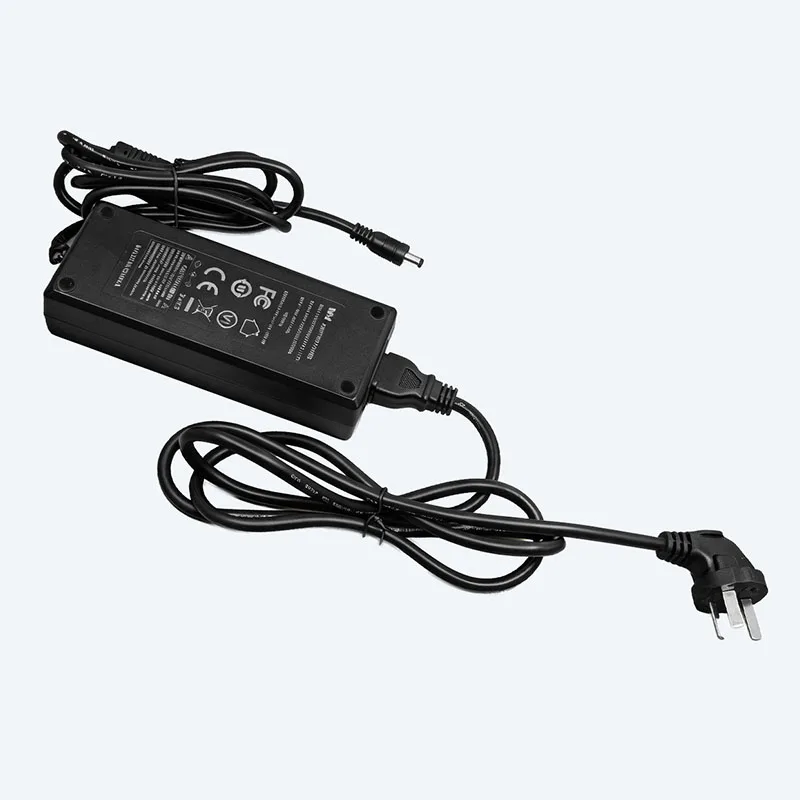

| Power Adapter | 19V-3.42A DC Power Adapter (Barrel Plug: OD 5.5mm / ID 2.5mm) |
| Optional Accessories | Carrying Bag, Stylus Pen |
| Packaging | Standard Product Carton Box; Custom Packaging Boxes Available |
Frequently Asked Questions About the W14US IP65 Rugged Laptop
1.What's the difference between the Core 3-304 and Core 5-320 versions?
The Core 3-304 has five cores and suits routine field reporting, equipment diagnostics and communications work. The Core 5-320 has six cores, including two performance cores, and is the better choice for heavier multitasking, larger mapping files and more demanding Windows software.
2. Does the W14US come with a touchscreen?
Not as standard — the base configuration has a non-touch 14-inch Full HD display. A USB-connected touchscreen is available as a project option; please confirm touchscreen and stylus compatibility at the time of order.
3. Is the 1,000-nit sunlight-readable display standard?
No, the standard panel is 550 nits. The 1,000-nit option is available for projects with frequent outdoor use and can be configured on request.
4. Can the battery be swapped without shutting the laptop down?
Yes — the dual smart-battery design allows one battery to keep the system running while the other is swapped. Please follow the swap procedure in the user manual to ensure the active battery is not removed first.
5. Can I use the secondary battery slot for a SATA drive instead?
No — the internal expansion bay holds either the secondary battery or a SATA drive, not both at the same time. Choose one at the time of order based on whether extended runtime or extra storage matters more for your use case.

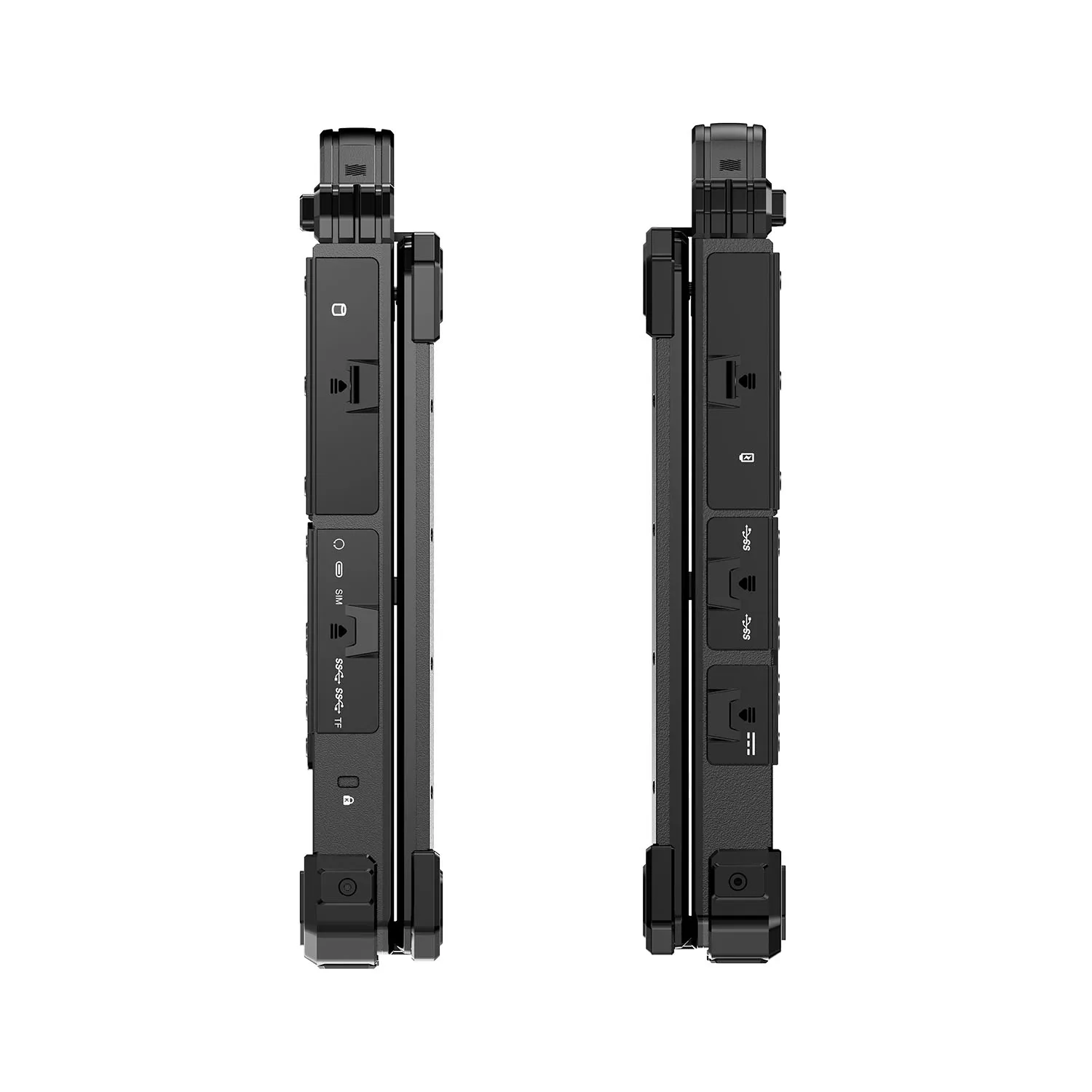

6. What ports does the W14US have?
Four USB-A 3.0 ports, one USB-C 3.0 port, one Thunderbolt port (10Gbps, DisplayPort output, 100W PD input), two 2.5GbE RJ45 ports, one DB9 RS232 serial port (RS422/485 optional), a 3.5mm audio jack, a TF card slot (up to 1TB) and a Micro-SIM slot.
7. Does the W14US support 5G?
Cellular connectivity is optional. Available 4G/5G bands depend on the modem module selected, destination country, carrier requirements and regional certification — contact our sales team to confirm coverage for your region.
8. Is GNSS positioning built in?
Not on the standard model. GPS, Galileo and GLONASS positioning (via a U-blox NEO-M8N module) are available as bulk-order customization options.Q9. What's the maximum storage capacity?
The main M.2 PCIe Gen4 SSD supports up to 2TB. Separately, the TF card slot supports up to 1TB of additional removable storage — these are two independent storage paths, not combined capacity.
9. Is the W14US waterproof and dustproof?
It's rated IP65, meaning protection against dust ingress and low-pressure water jets under defined test conditions — it is not designed for submersion. All port covers must be fully closed to maintain the rating.
10. What certifications does the W14US carry?
IP65, CE, MIL-STD-810H (1.22m drop test, per GJB 150.18A-2009 and GJB 150.1A-2009), ISO quality management system certification, and RoHS.
11. What accessories come with the W14US?
A carrying bag and a stylus pen are available as optional accessories.
