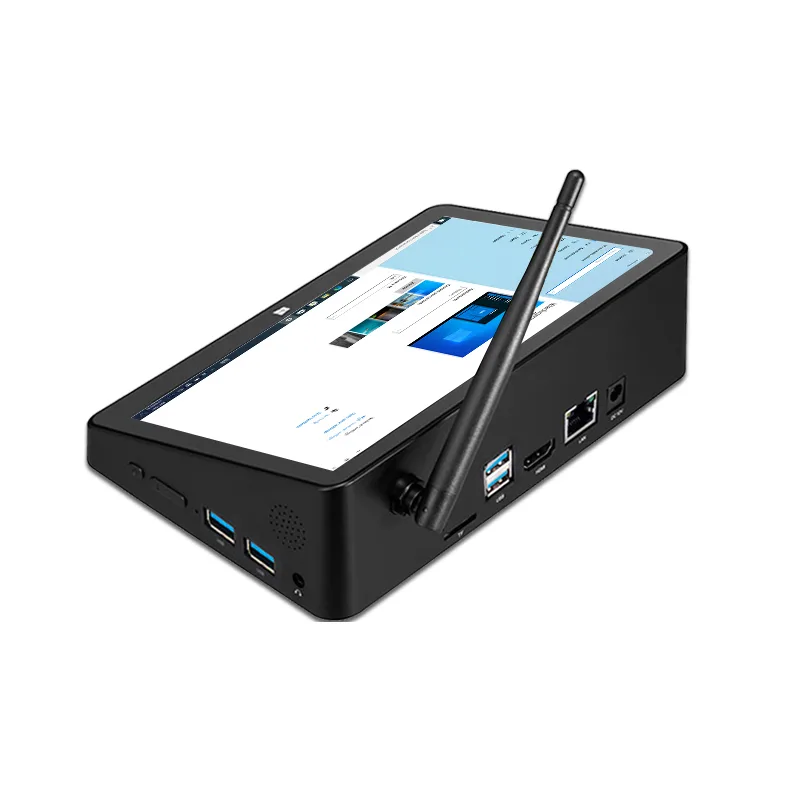

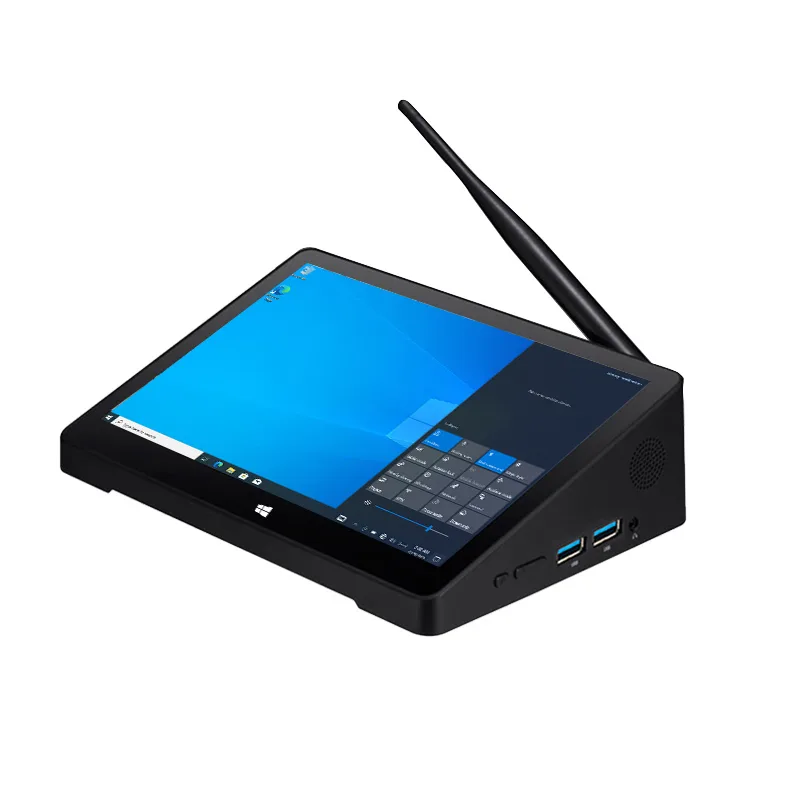

CENAVA H7 N4020 7" Win10 Compact Industrial PC | POE Fanless Touch Panel
7-inch compact industrial panel PC with Intel Celeron N4020 dual-core. 1280×800 IPS touchscreen. 4GB RAM + 64GB storage, expandable up to 128GB TF card. Fanless silent design. Gigabit Ethernet with POE support. 4×USB3.0, HDMI output, 3.5mm audio. Dual built-in speakers. WiFi 802.11a/b/g/n/ac + BT5.0. Compact 178×118×52mm chassis for space-limited installations.
CPU: Intel Celeron N4020 (2C/2T, 1.1GHz~2.8GHz, 6W TDP)
OS: Windows 10 (Home default, Pro/Enterprise optional)
Display: 7" 1280×800 IPS touchscreen
RAM+Storage: 4GB RAM + 64GB storage, up to 128GB TF card expansion
Network: Gigabit Ethernet + WiFi 802.11a/b/g/n/ac + BT5.0
I/O Ports: USB3.0×4, HDMI×1, 3.5mm audio×1, TF card slot×1
Power: 12V 2.4A DC (Ø5.5×2.5mm), POE supported
Audio: Dual built-in speakers, built-in microphone (-38dB sensitivity)
Design: Fanless passive cooling, compact 178×118×52mm

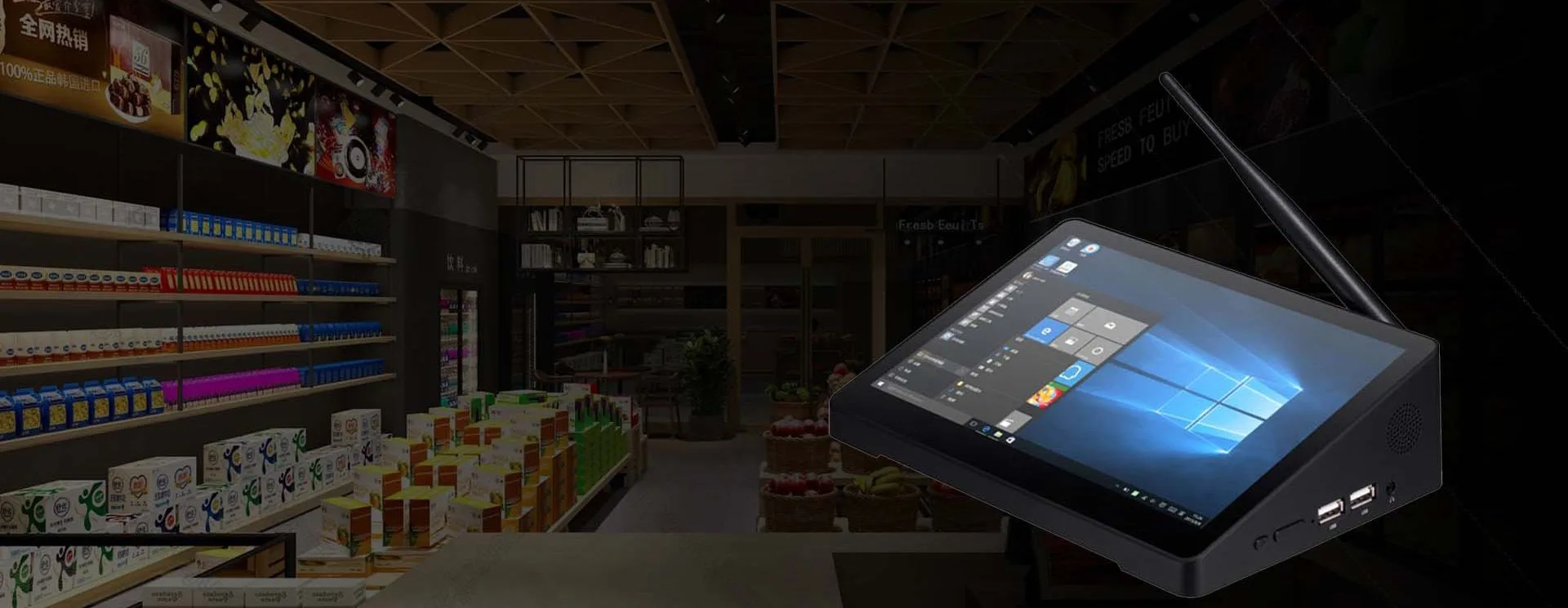

Applications: HMI, industrial control, digital signage, IoT gateway

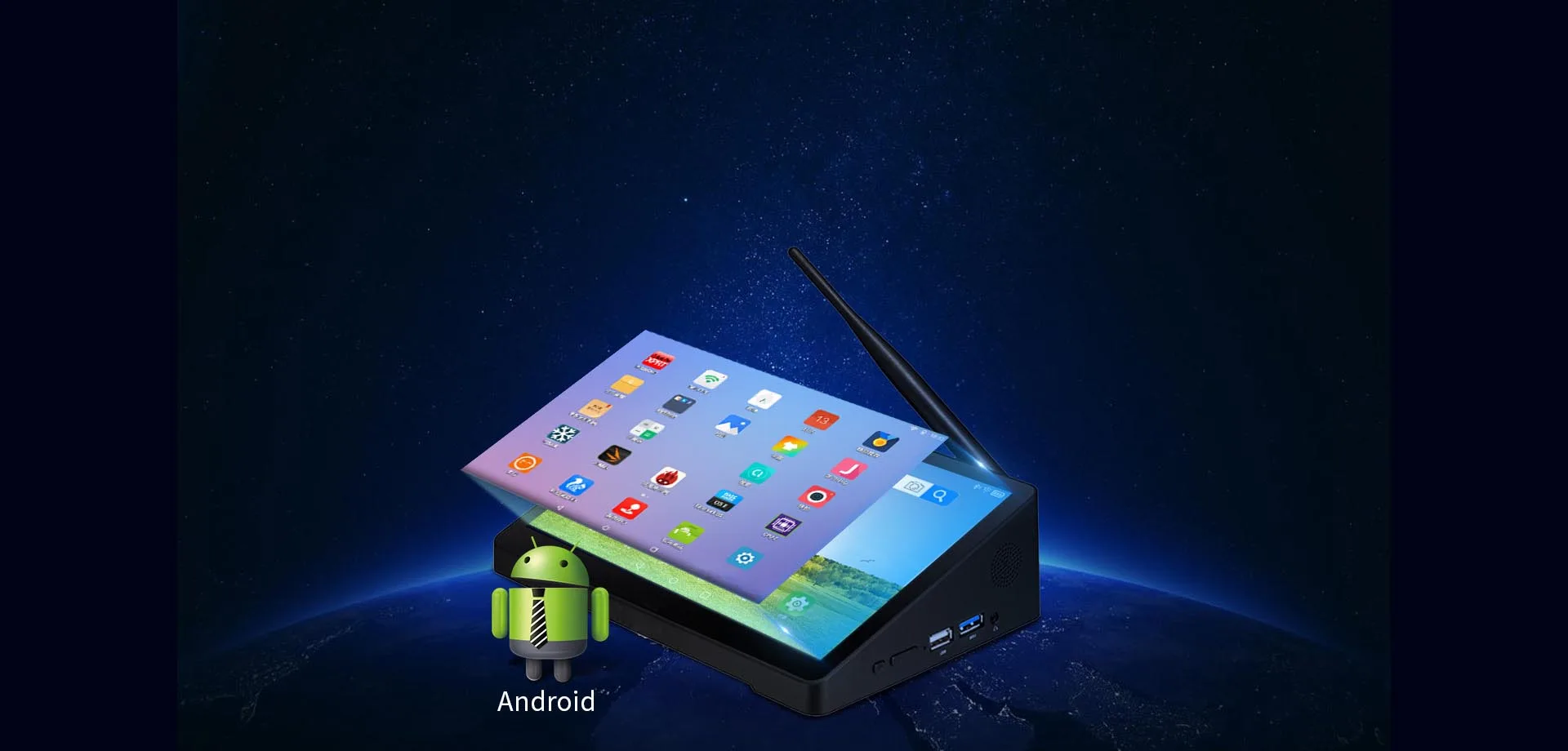

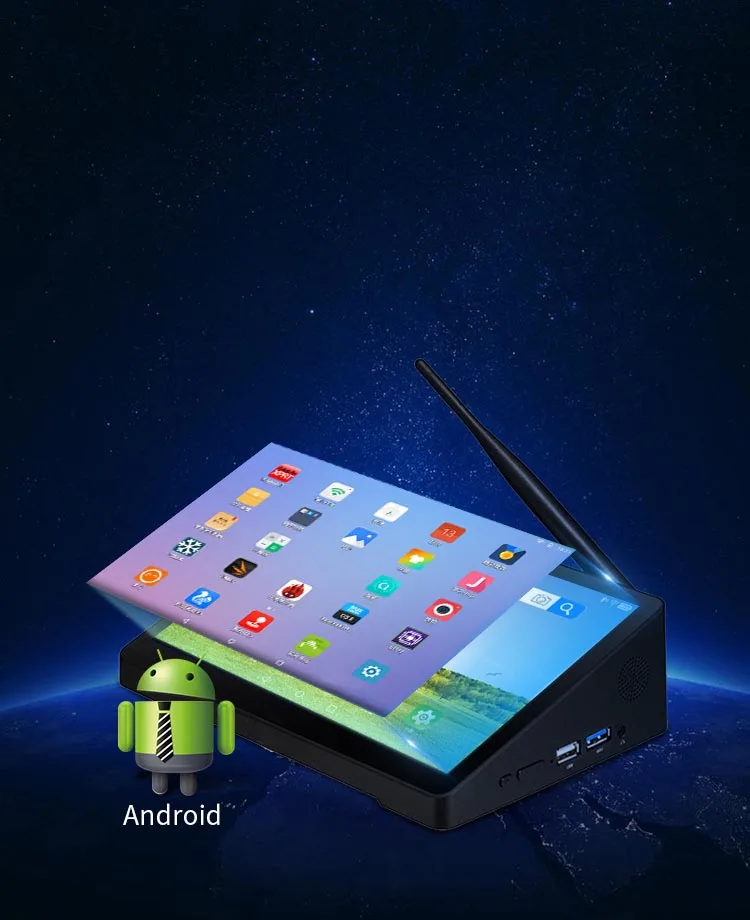

Windows system
Mainstream chip manufacturers and core technologies, deeply develop and customize multiple operating systems for education
Provide various solutions in fields such as healthcare, urban public transportation, and smart homes

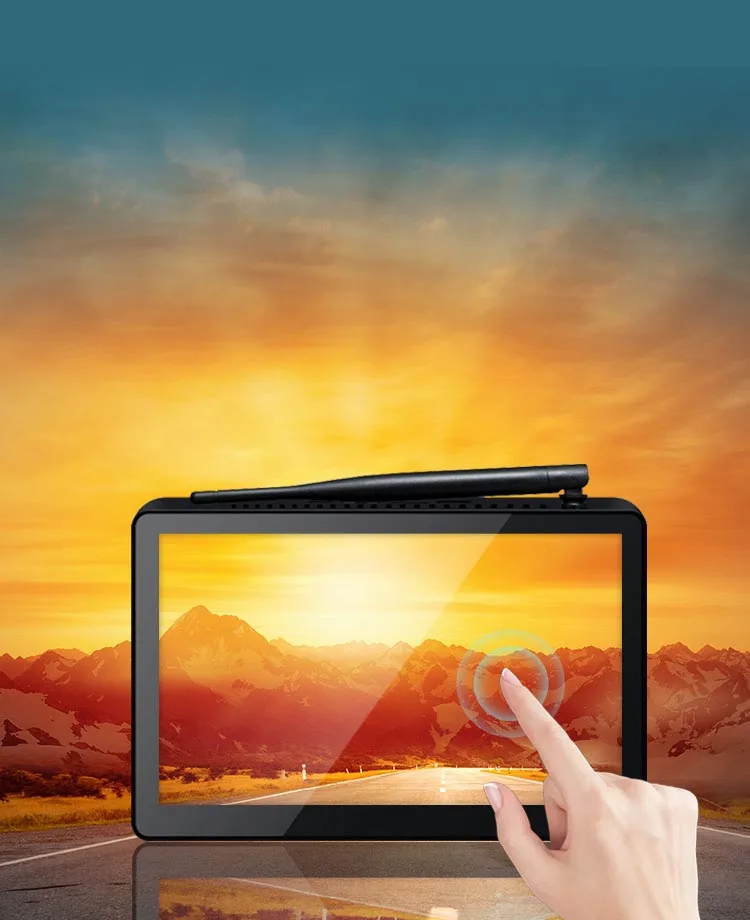

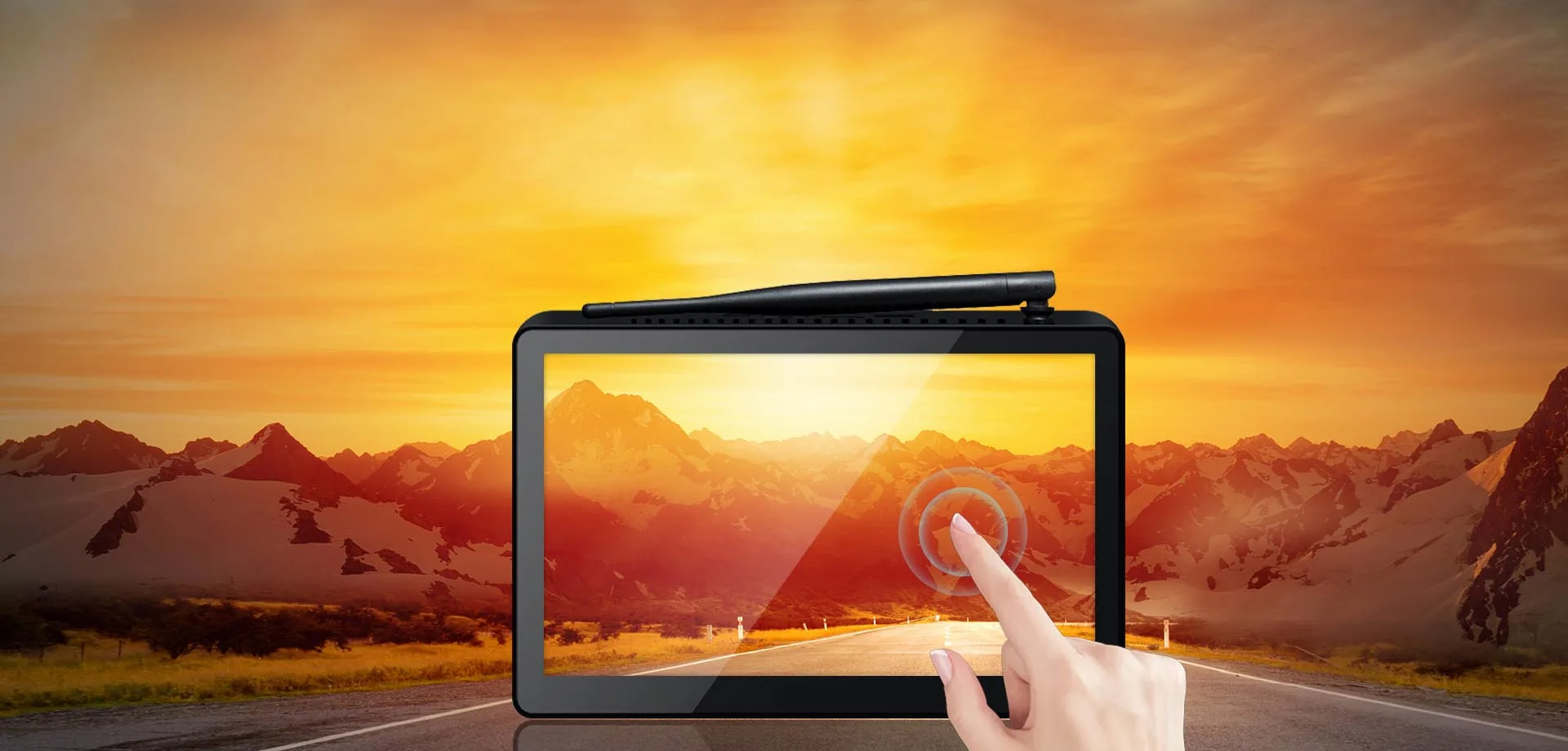

Full plane IPS high-definition screen
Reflecting true colors, making each pixel visible and supporting multi touch
Visible under strong light, without any dazzling problems, using a new manufacturing process that can be directly touched

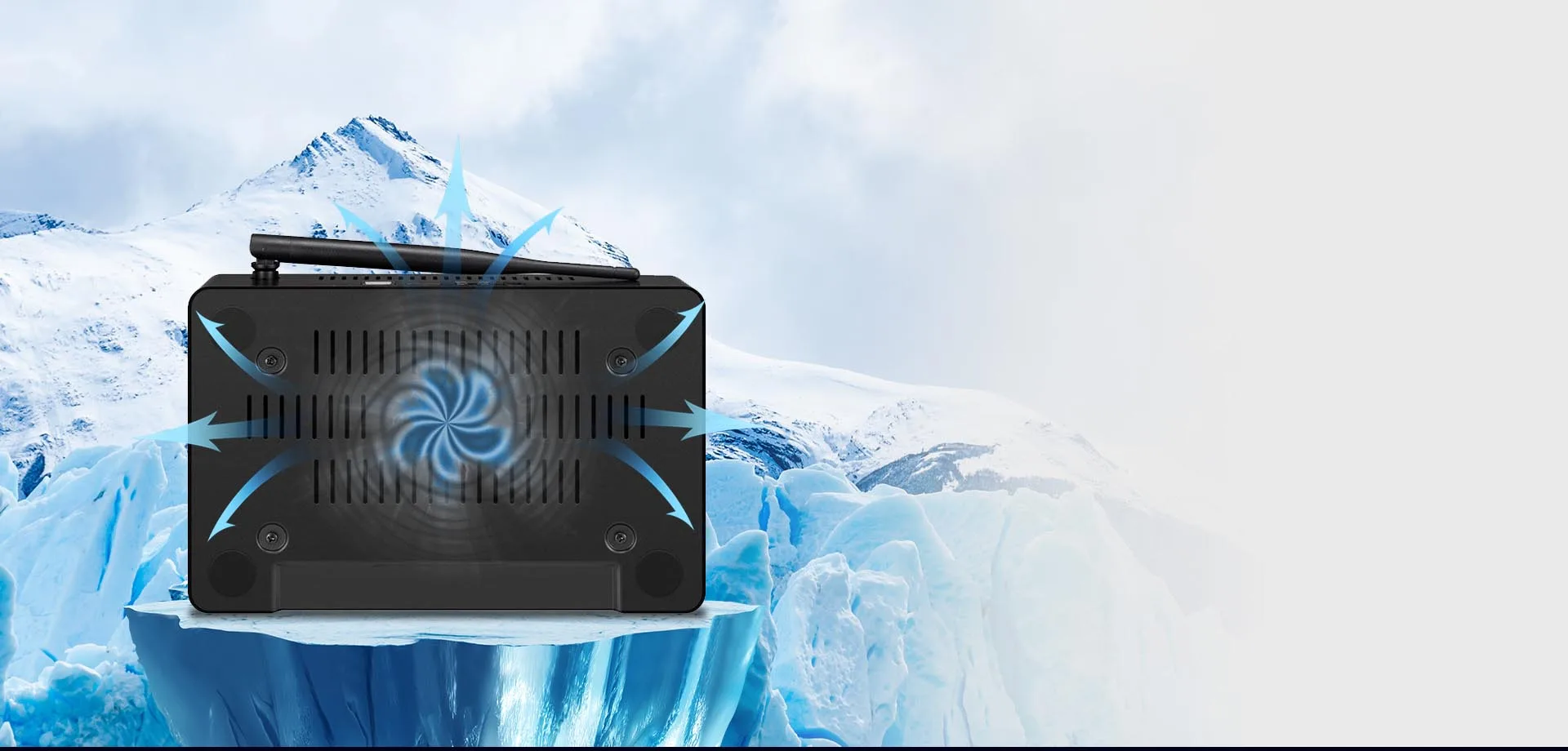

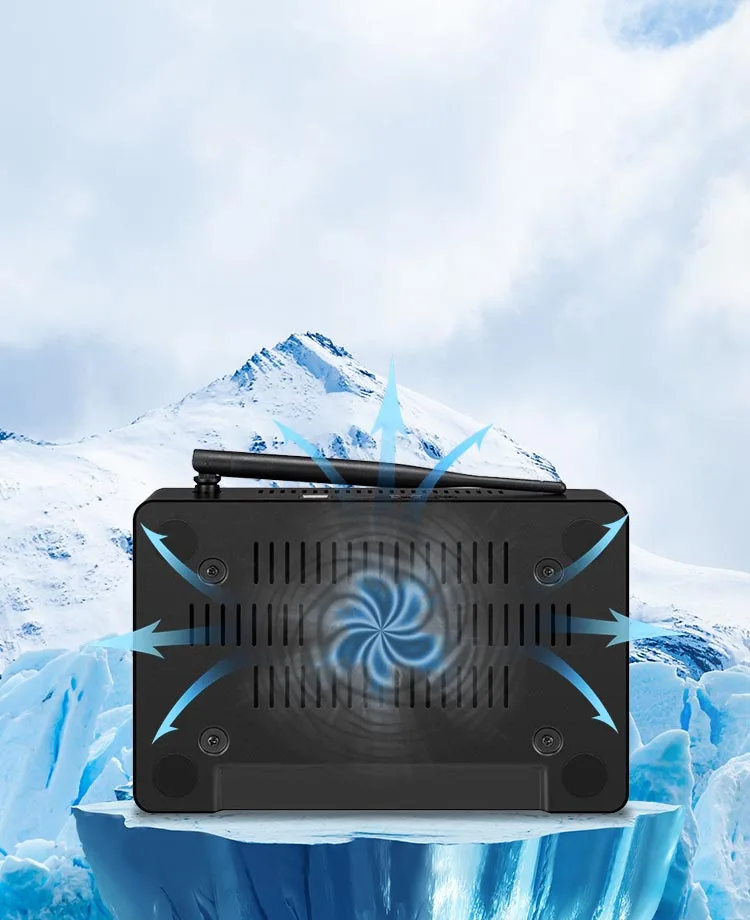

Metal body with porous heat dissipation
The new metal body is equipped with better heat conduction and dissipation effects
Porous design improves heat dissipation efficiency and ensures more stable multitasking operation
New high-performance processor
Adopting N4020 high-end processor, fast response and perfect multitasking operation
Full set high-performance industrial motherboard runs smoothly without stuttering
Low power consumption, low heat generation, and long service life

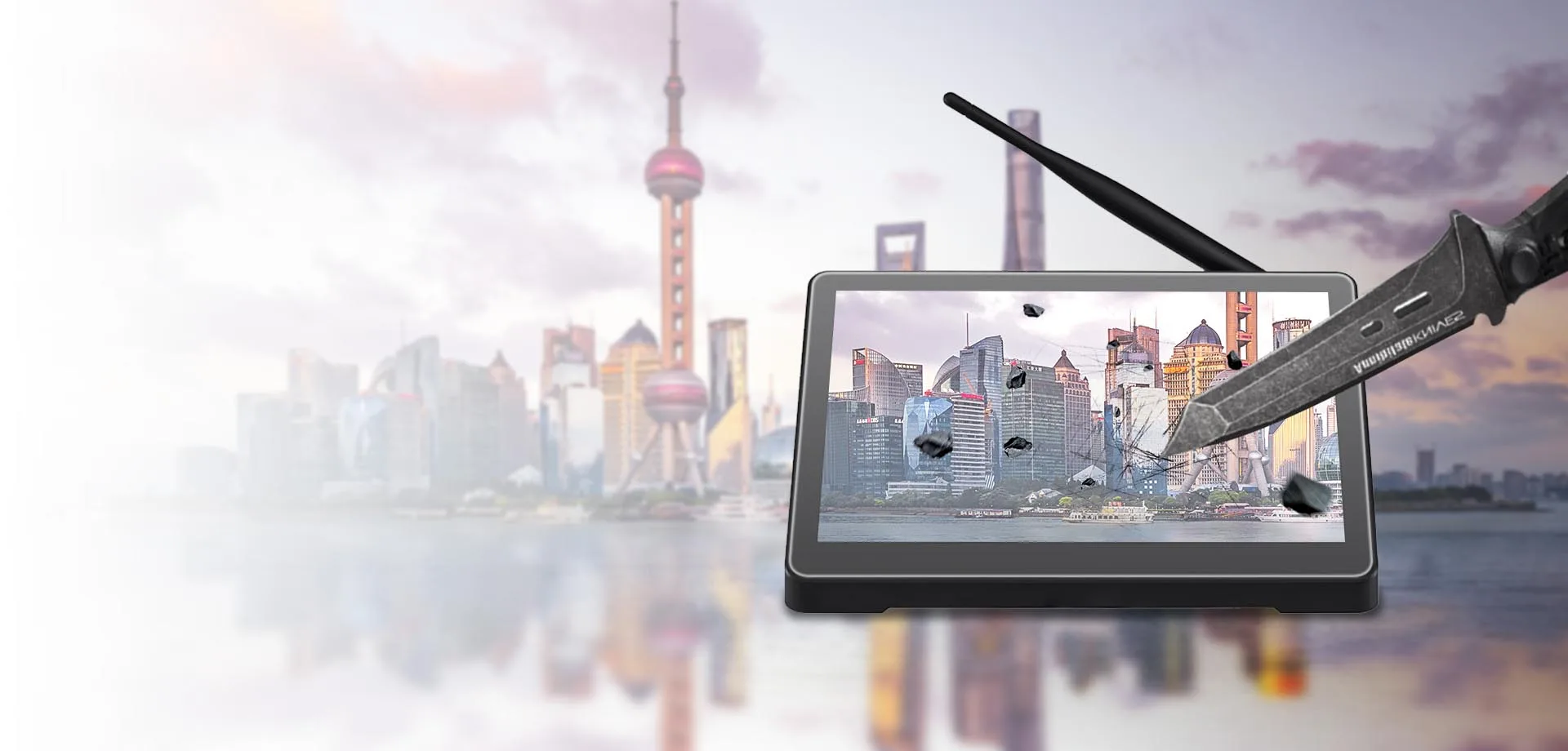

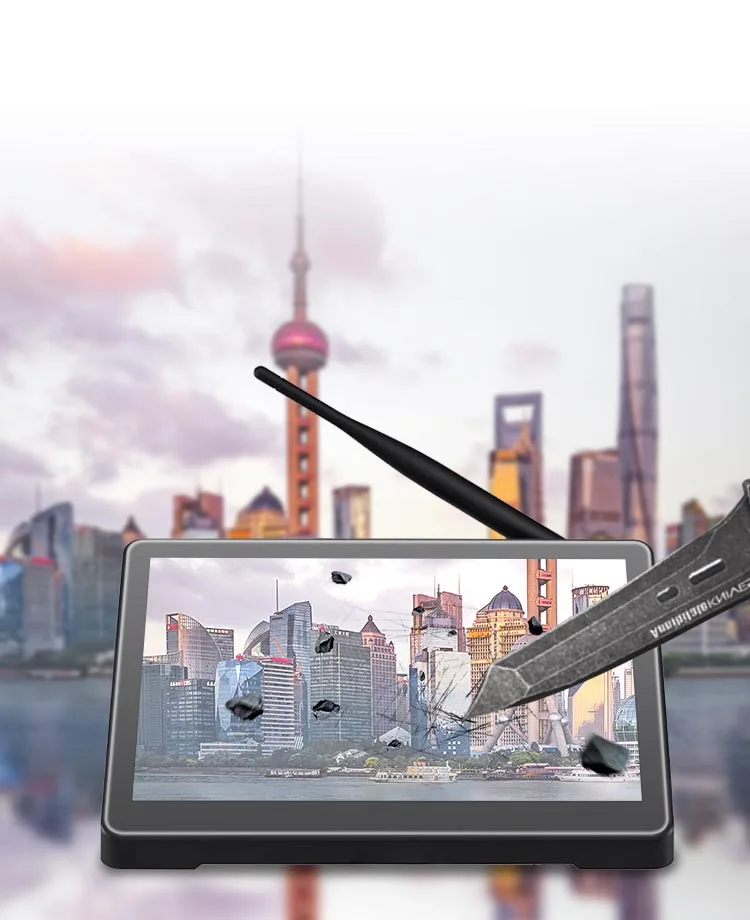

IPS scratch resistant touch screen
7-inch IPS scratch resistant screen, supporting multi touch
1280 * 800 high-definition display for more realistic details
New design scheme with multiple protections for greater durability

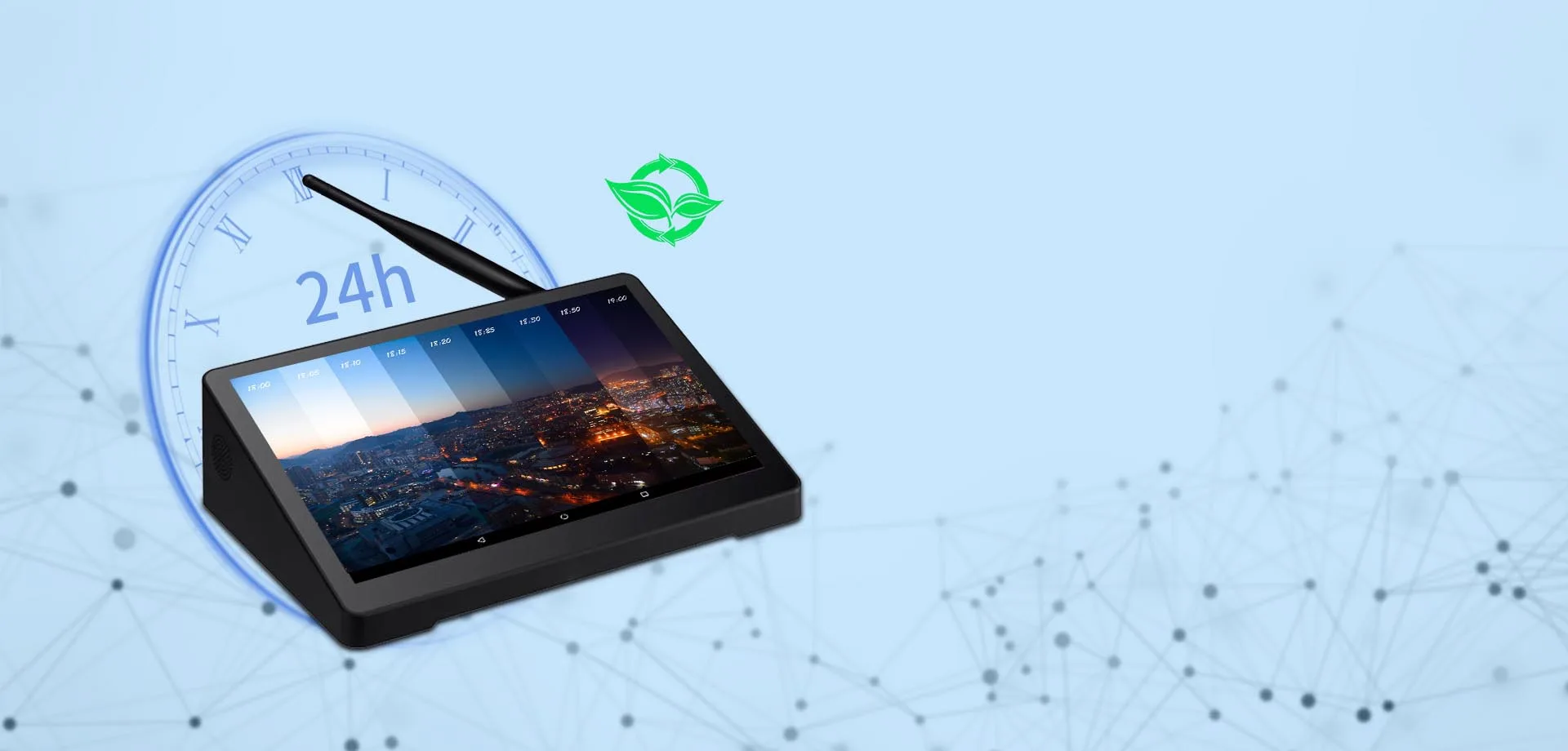

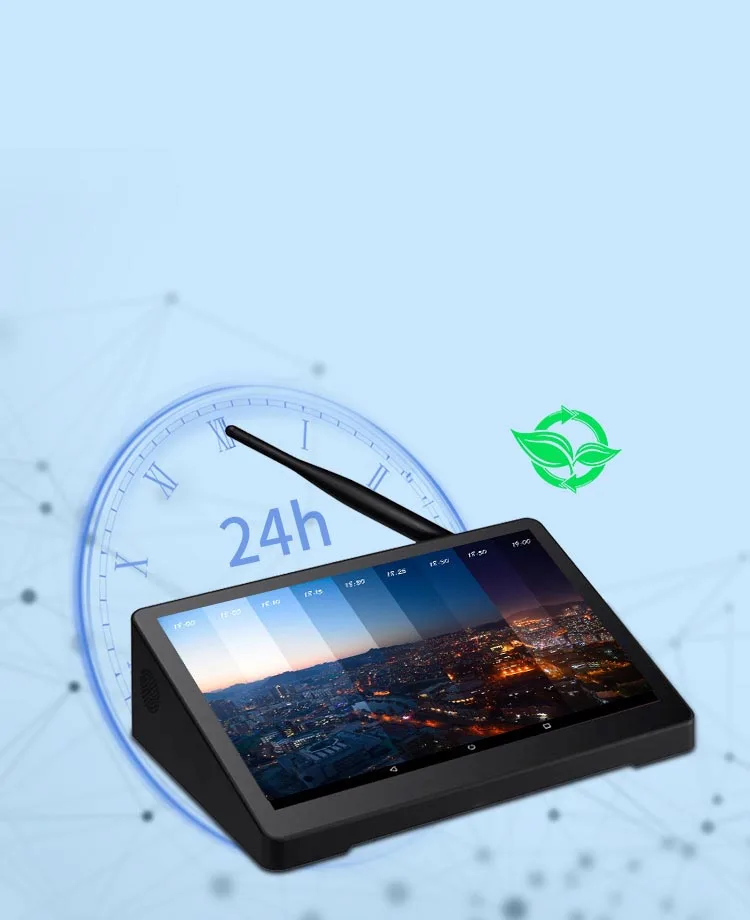

24-hour uninterrupted work
Adopting fanless, battery free, 12vDC power supply design for more energy saving
Capable of high intensity and long-term operation
Designed for continuous fixed-terminal applications under specified thermal and power conditions.
Technical Specifications
 CPU Intel Celeron N4020 2 cores 2 threads 1.1GHz~2.8GHz |  System Windows 10 |  Storage 4GB+64GB |  Display 7.0 inches (touch screen) 1280*800IPS |
 Speaker Dual speaker |  Media playback Support for music, videos, and images |  Battery Battery: None — Continuous External 12V DC Power Required |  Key Power button Volume up/down button |
 Card slot MicroSD Expansion up to 128GB |  Interface LAN, headphone jack USB,HDMI |  Weight 178*118*52mm 433g |  Status indicator Power Status Indicator |
H7 7 Inch Industrial Panel PC Details:
| Funtion | support a variety of PC software run | |
| Button | Power button Volume plus or minus button | |
| Speaker | Built-in speakerX2 | |
| Bluetooth | Support bluetooth version 5.0 | |
| WiFi Funtion | 802.11 a/b/g/n/ac | |
| POE | Support | |
| Interface | TF card slot X1 | |
| USB 3.0*4 | ||
| Ethernet interface X1 | ||
| Standard HDMI output interfaceX1 | ||
| 3.5mm Dual voice channel audio output interface X1 | ||
| 12V2.4A/5.5mmDC The power interface X1 | ||
| GPU Multimedia support (hardware decoding) | Music | MP3, WMA, WAV, OGG, FLAC, ALAC, APE, AAC, AC-3 |
| Picture | JPG,JPEG,BMP, GIF,PNG... | |
| Video | MEPG 1/2/4,H.263/H.264，RMVB，WMV/VC-1, MVC, AVS, MJPEG. | |

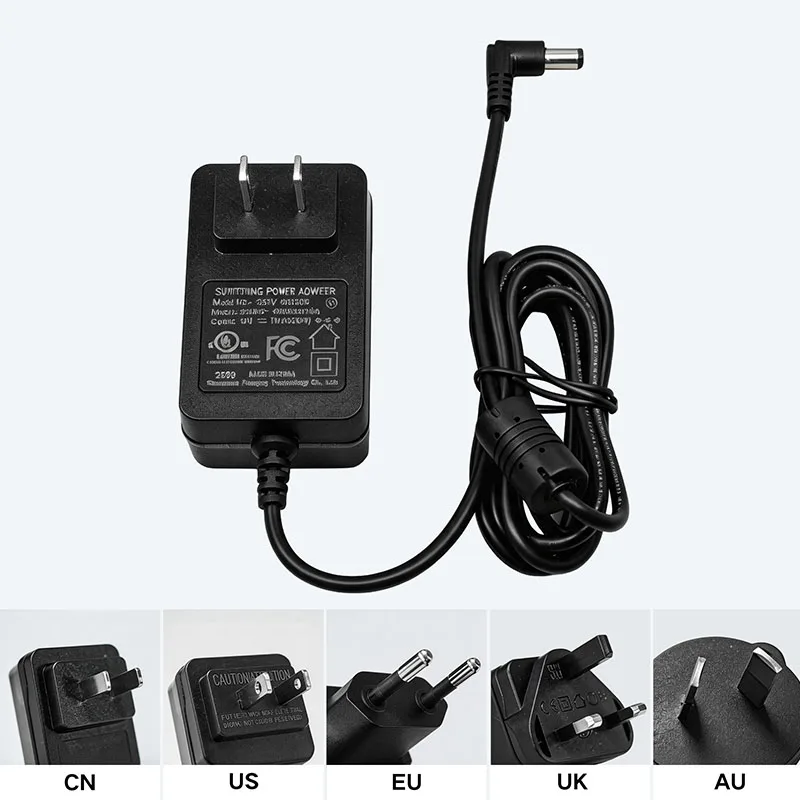

| Accessories | 12V 2.4A charger | |
Frequently Asked Questions About the H7 Industrial Panel PC
1. Is the H7 a Box PC or an industrial panel PC?
The H7 is more accurately classified as a 7-inch industrial panel PC because it combines a touchscreen, Windows computer hardware, storage, audio and external interfaces in one compact enclosure.
2. Which processor does the H7 use?
The H7 uses the Intel Celeron N4020, a dual-core, dual-thread processor with a 1.10GHz base frequency.
3. What type of 64GB storage is installed?
The page lists 64GB storage but does not identify whether it is eMMC or an SSD.
4. Does the H7 include a battery?
No. The H7 requires continuous external 12V DC power. An external UPS or controlled power supply is recommended when temporary operation or graceful shutdown during a power interruption is required.
5. Which interfaces are included?
The page references Ethernet, USB, HDMI and a headphone jack.
6. Is the H7 suitable for 24/7 operation?
The H7 is described as a fanless, battery-free fixed terminal. A continuous deployment should still be validated for ambient temperature, application load, display brightness, storage writes, USB load and power-supply quality.
