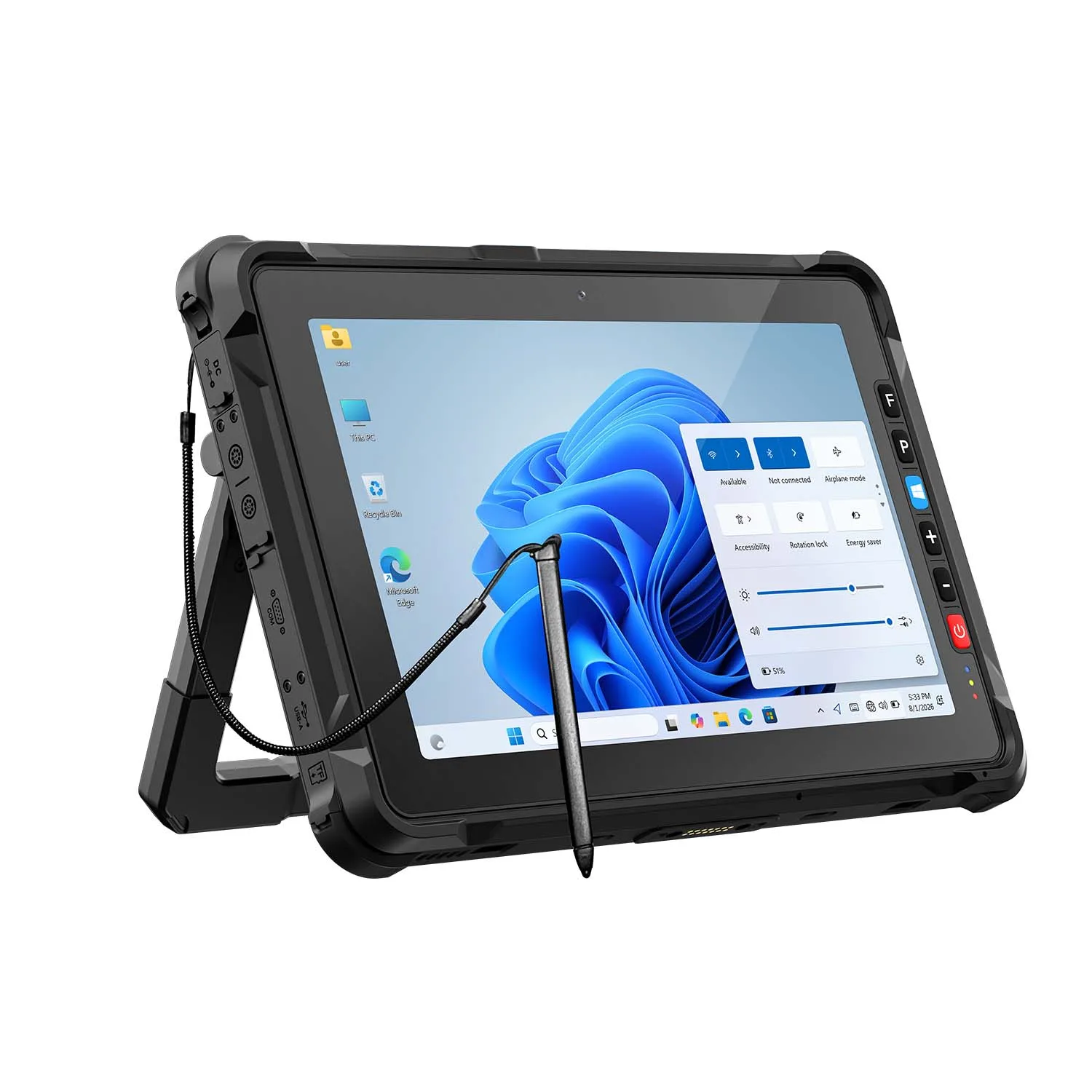

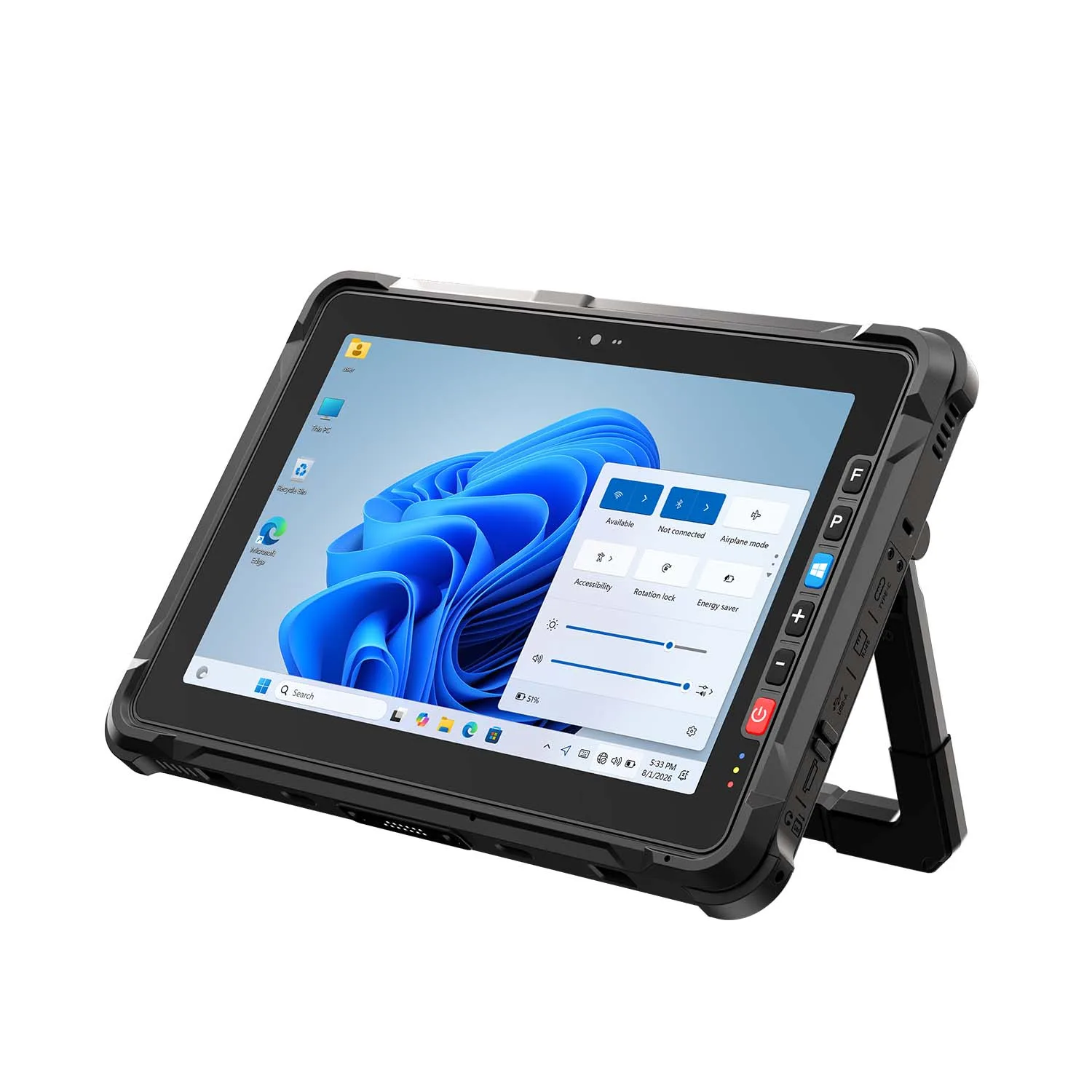

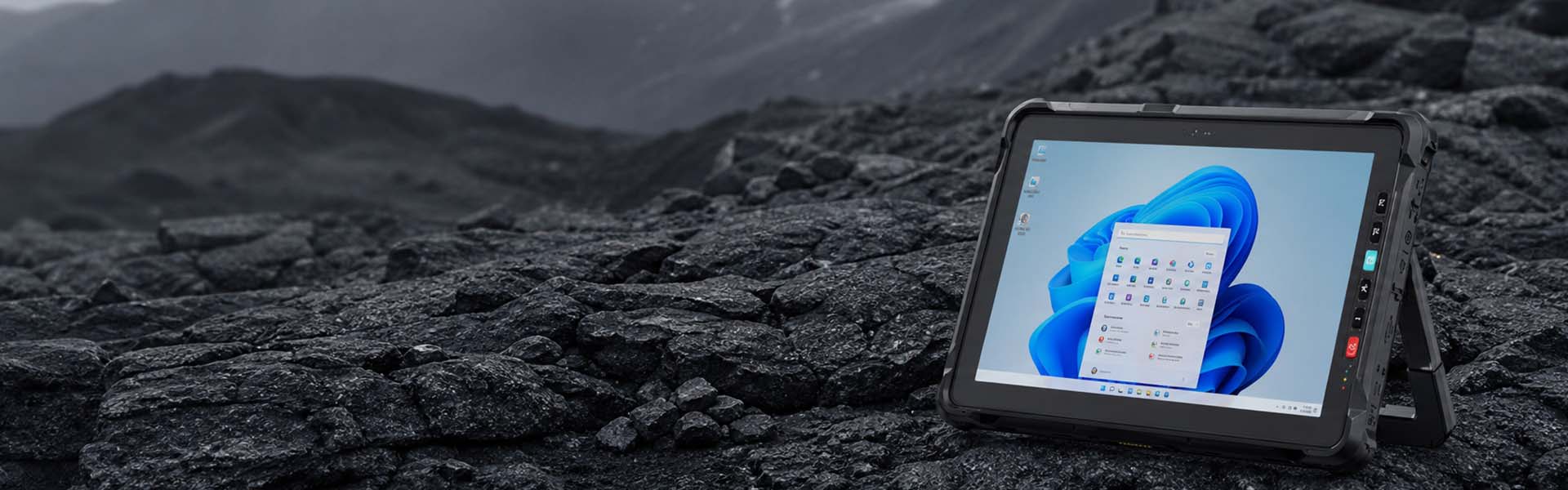

CENAVA W109NS N150 10.95 Inch Win11 IP67 Rugged Tablet GbE
CENAVA W109NS is a 10.95-inch Windows rugged tablet designed for equipment servicing, industrial maintenance, vehicle-based operations, inspection reporting and mobile workstation applications.It combines the Intel Processor N150 with Windows 11, a 700cd/m² Full HD touchscreen, removable M.2 2242 SSD storage and a removable 8300mAh battery.
CPU: Intel Processor N150, 4 cores 4 threads, 6MB cache, up to 3.60GHz
OS: Windows 11 (optional Windows 10)
RAM/ROM: 8GB+128GB / 16GB+256GB; M.2 SSD (2242) removable, up to 2TB
Display: 10.95" 1920×1200 , 700cd/㎡ , 10-point G+FF wet-hand & glove touch
Battery: 11.4V 8300mAh removable, ≥8h (1080P+50% brightness), hot-swap customizable
Integrated I/O: Gigabit RJ45, DB9 RS232, HDMI, Type-C USB3.0 (PD), USB-A 3.0 + USB-A 2.0, 3.5mm, TF (1TB), Micro-SIM, 14Pin POGO, 2 reserved aviation plugs (power + USB2.0)
Network: WiFi 6, Bluetooth 5.2; optional 4G LTE / 5G; GPS standard (optional Galileo/GLONASS)
Protection: IP67, MIL-STD-810H 1.22m drop, -20°C~60°C, TPM security chip, login fingerprint standard
Camera: Front 5MP fixed-focus, rear 8MP autofocus with flash
Optional Modules: 2D scanner (N4680/N1), NFC 13.56MHz, ID card reader, UHF RFID (2m/5m/15m), fingerprint capture (3 options)
Quad-Core Power
Win11 Smooth
N150 Quad-Core 8+128GB Optional 4G/5G
Powered by the Intel N150 quad-core 4-thread processor with 6M cache and up to 3.60GHz turbo, paired with Windows 11 for smooth multitasking without lag; Windows 10 optional. The 10.95-inch display provides ample space for multi-window dispatching and data visualization. Standard 8GB+128GB, optional 16GB+256GB, with removable M.2 SSD up to 2TB for video backhaul and cloud collaboration. Optional 4G/5G modules keep field inspections and vehicle operations online. Built-in TPM security chip, WiFi 6 and Bluetooth 5.2 ensure fast, reliable connectivity on industrial sites.

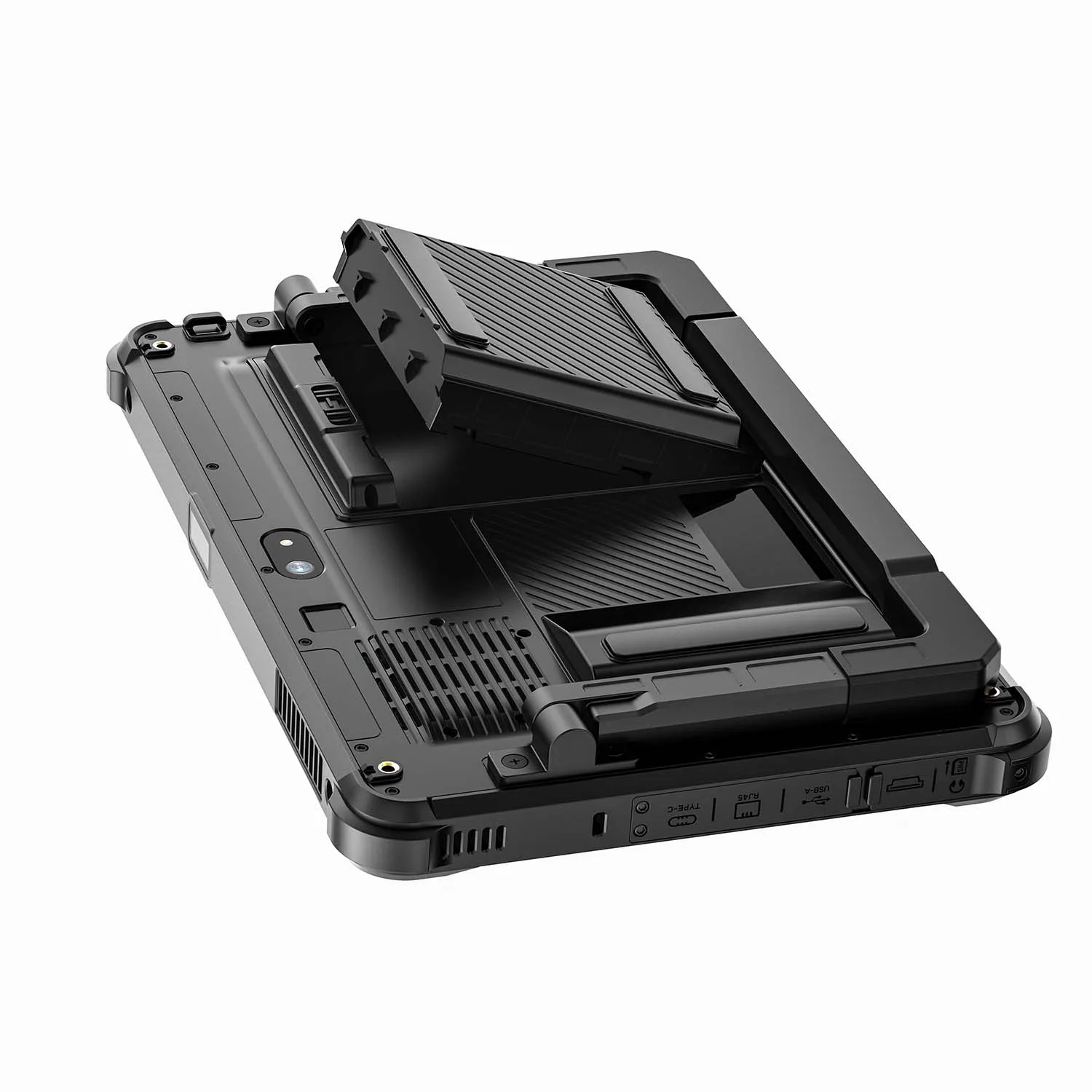

Swappable Large Battery
All-Day Endurance
11.4V/8300mAh Removable Battery ≥8h Runtime

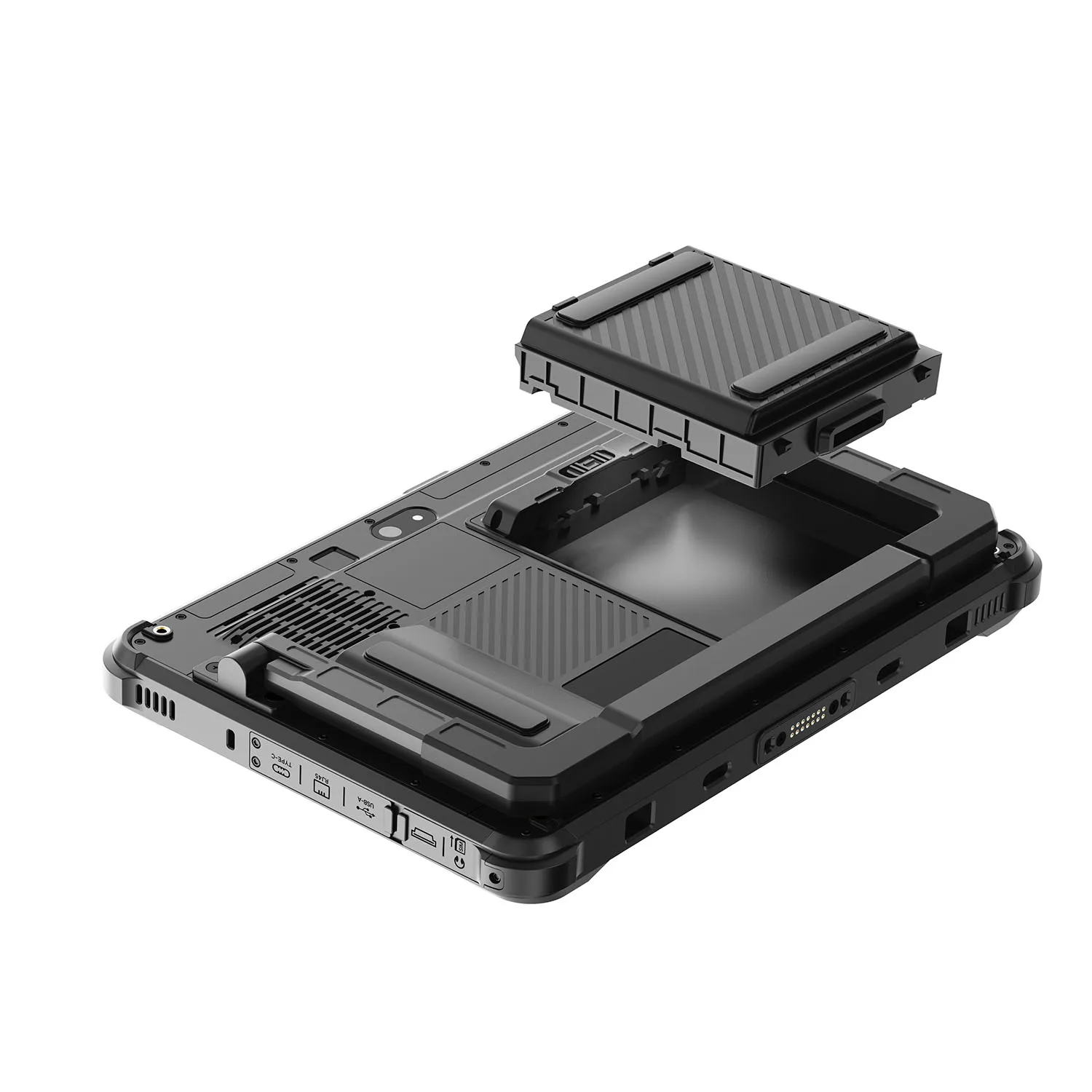

The 11.4V/8300mAh high-voltage lithium battery features a removable design for uninterrupted field work; swap in a spare for instant full power, with ≥8 hours of runtime for extended outdoor inspections, vehicle dispatching and warehouse inventory. Hot-swap customization is available. The 19V/3.42A DC charger quickly restores power. The sealed, reinforced battery compartment withstands repeated insertions without loosening and stays sealed in extreme cold or heat, dustproof and waterproof. Optional battery charging dock and vehicle charger keep mobile operations powered all day.
Industrial Full Interface
Plug and Play
Type-C+USB3.0+HDMI+RS232+Gigabit RJ45
Full industrial interfaces: gigabit RJ45 Ethernet connects directly to PLCs and switches; Type-C USB3.0 supports PD charging; USB3.0 and USB2.0 connect flash drives, keyboards and mice; HDMI extends to large screens; RS232 links industrial instruments; the 14-pin POGO PIN dock handles charging and expansion. Reserved aviation connectors ensure reliable connections in high-vibration environments, the 3.5mm jack supports voice intercom, and TF expansion reaches 1TB. Paired with optional 2D scanning, fingerprint, NFC, ID card and UHF modules, it forms an integrated data-collection and device-control terminal.
Triple-Proof
Harsh Conditions No Fear
IP67 1.22m Drop -20°C~60°C

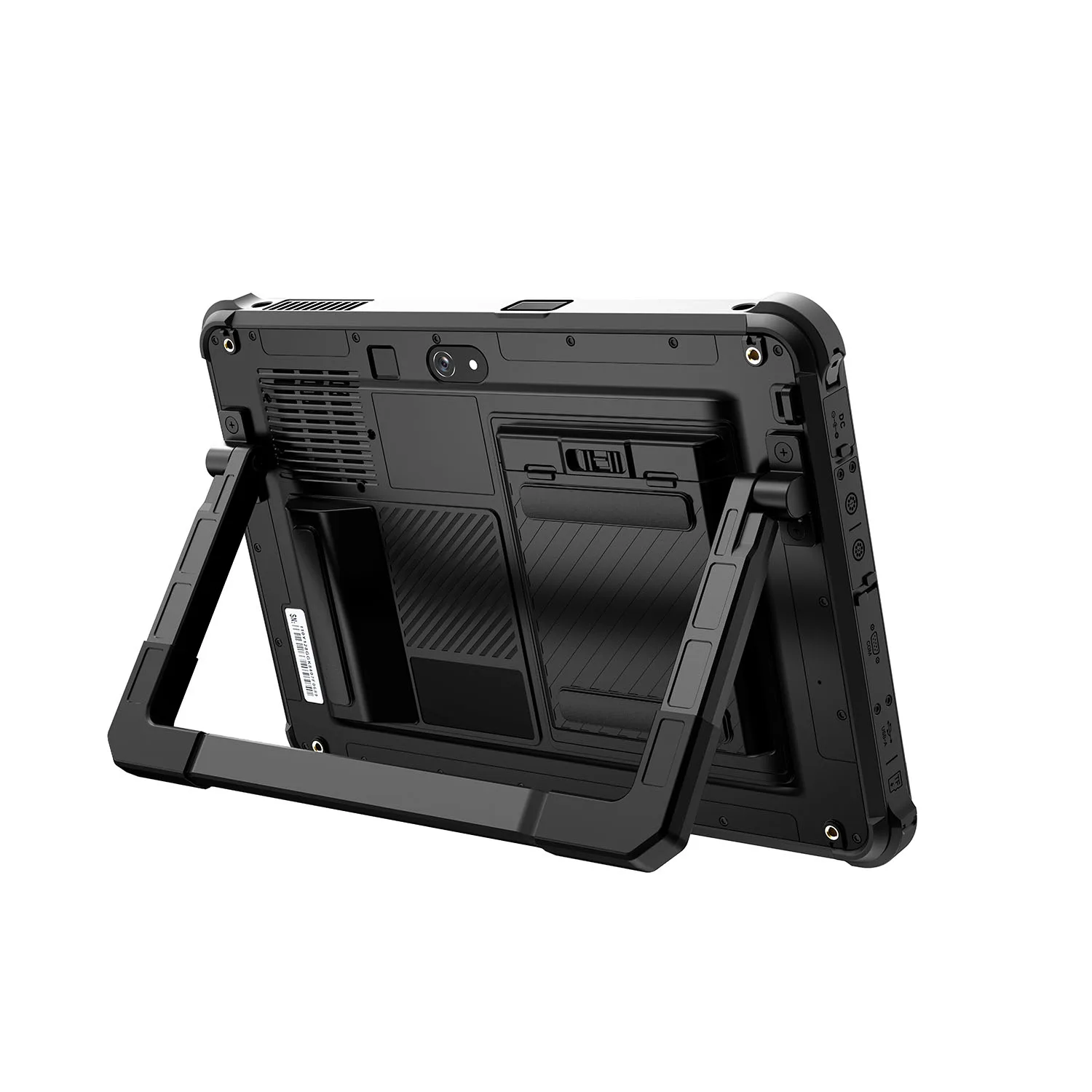

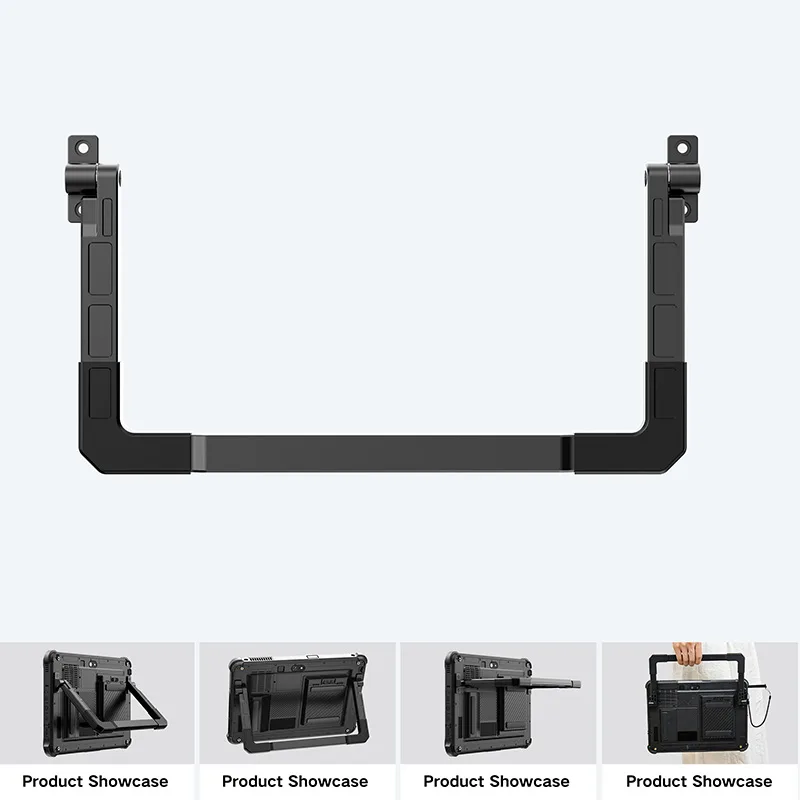

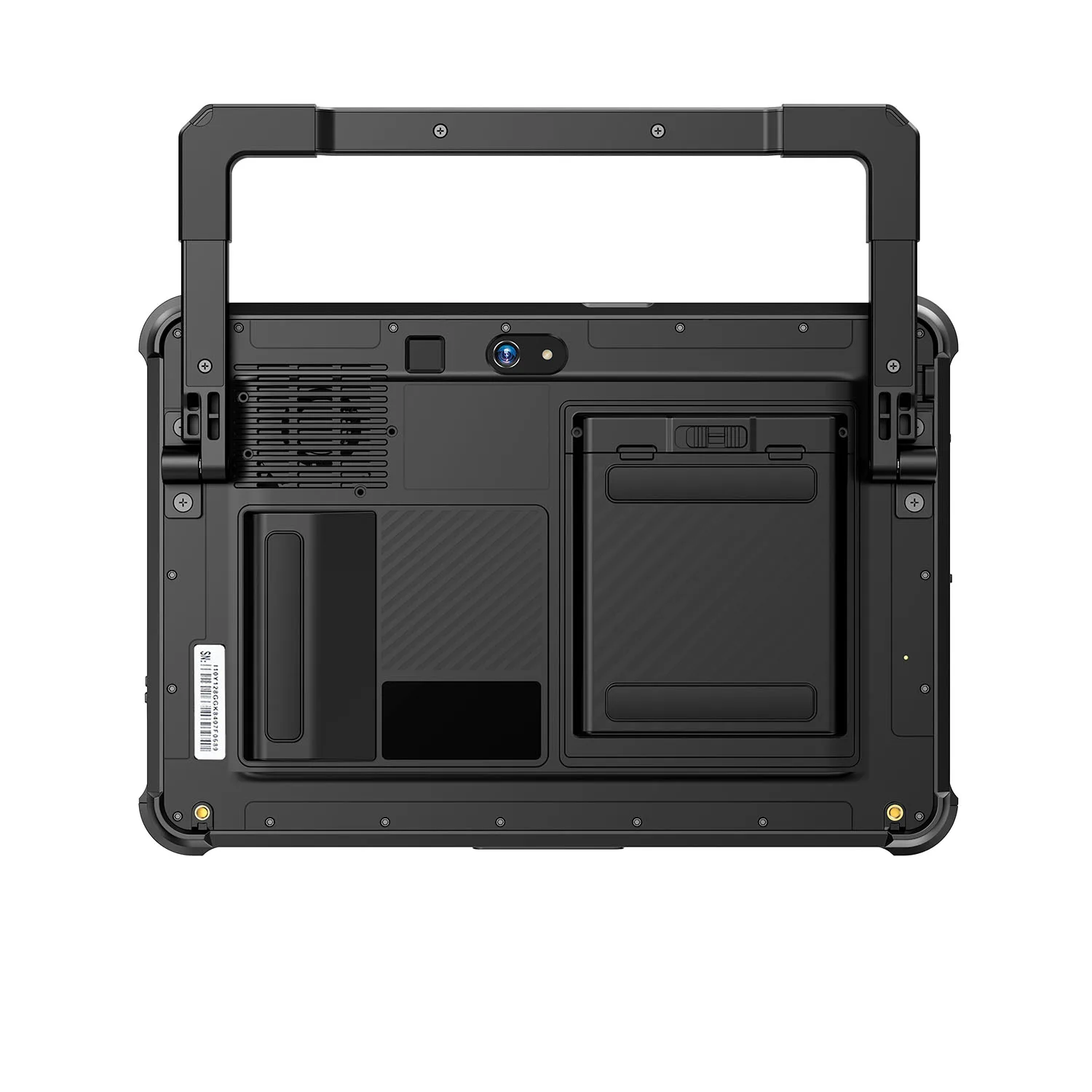

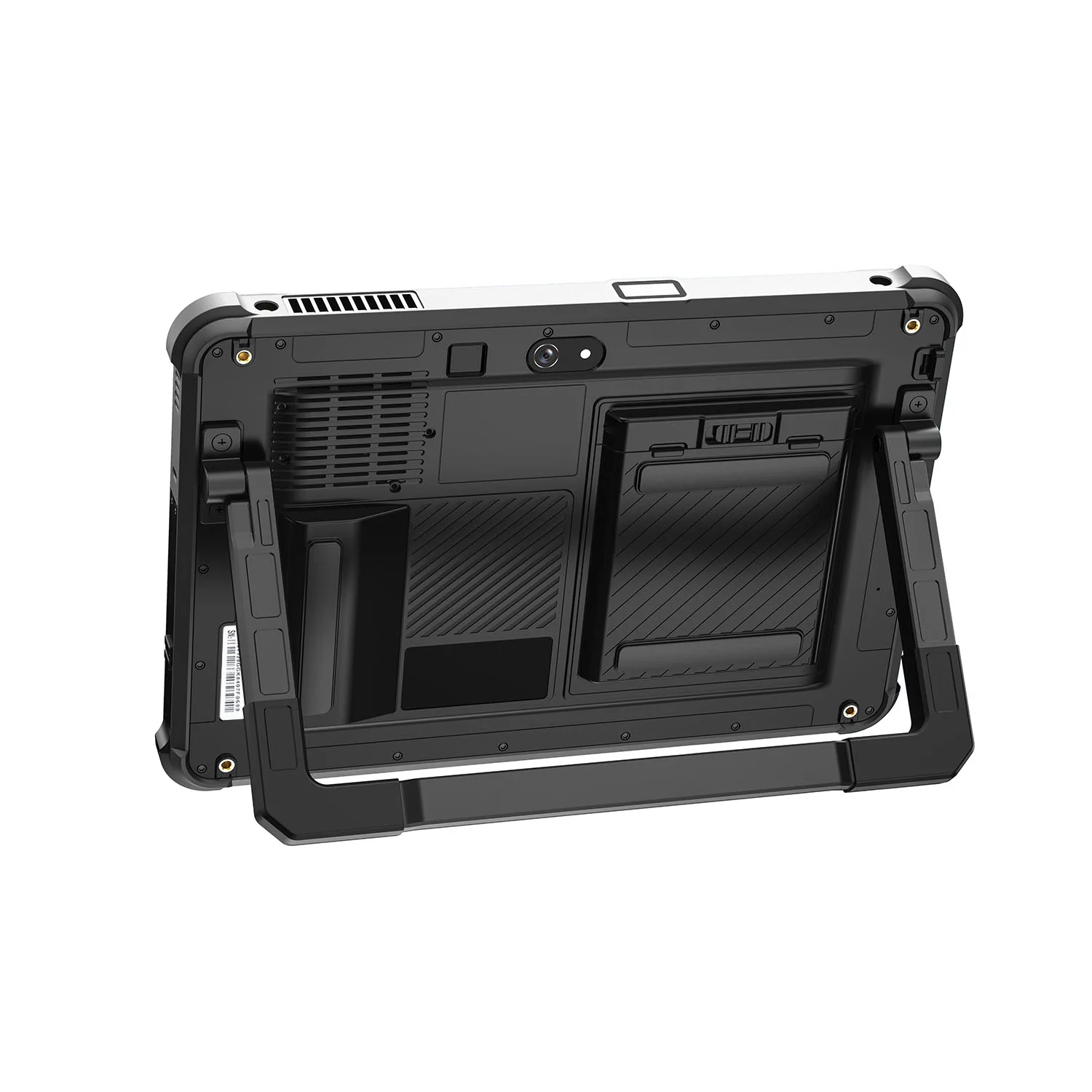

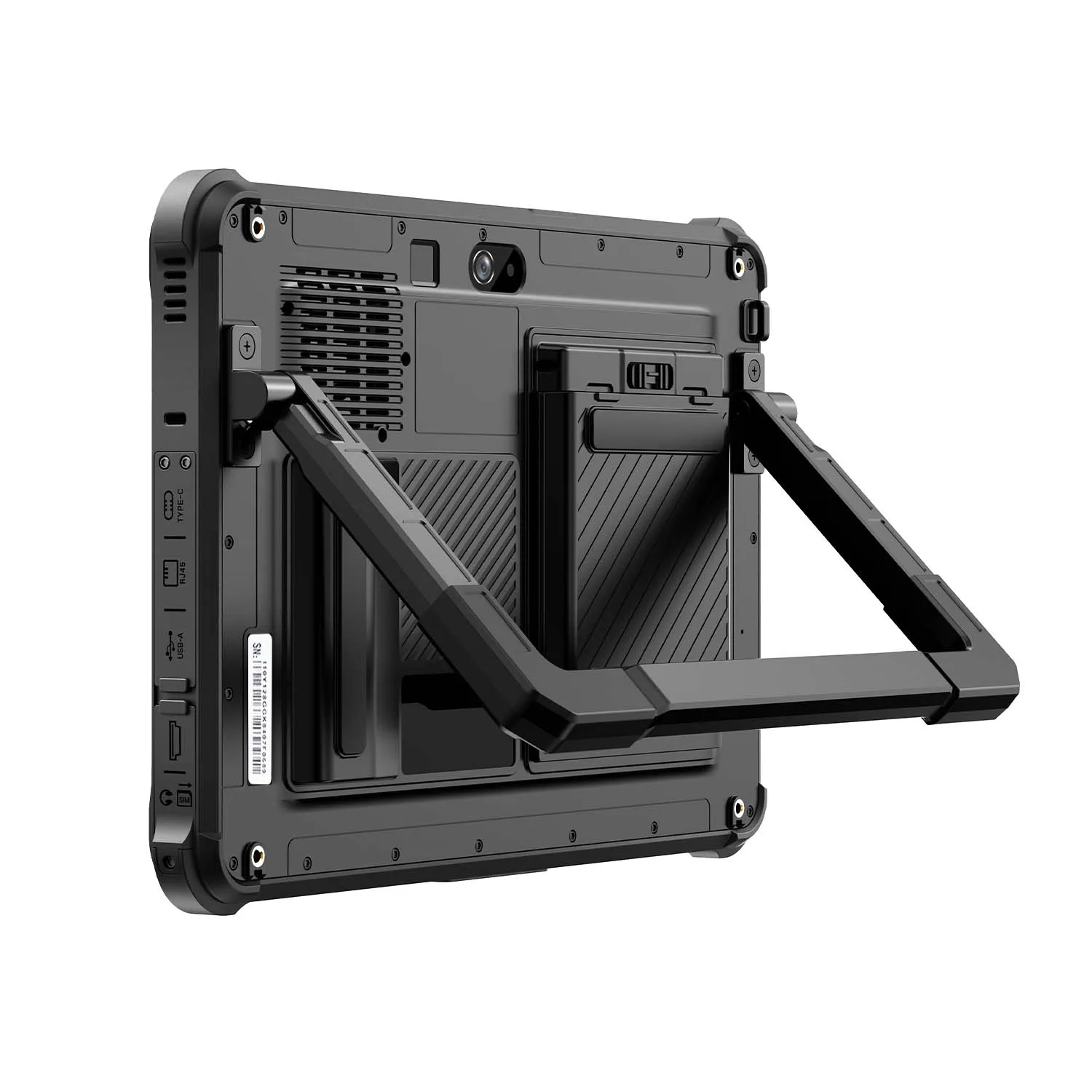

IP67 dust-tight and waterproof, MIL-STD-810H certified for 1.22m drops. The -20°C to 60°C wide temperature range ensures instant startup in extreme cold or heat. Reinforced corners cushion impacts, sealing rings keep out mud and sand, and salt-spray testing is passed. With the standard adjustable stand and stylus, it works reliably on site, built to last.
Technical Specifications
 CPU Intel Processor N150 Four cores, four threads Up to 3.60GHz |  System |  Storage 8GB RAM + 128GB M.2 SSD |  Display 10.95 inches 1920*1200 |
 Optional NFC 13.56MHz, supporting ISO/IEC 14443A, 14443B and 15693 |  Optional 1D/2D Barcode Scanner Support |  Battery Removable 11.4V 8300mAh |  Wall hole pitch / screw 258.5*177.5mm/ M4*4.5mm |
 Navigation positioning GPS,Galileo GLONASS |  2G/3G/4G Support |  Interface Gigabit Ethernet, RS232 |  Size/Weight 307.5*211.1*27.7mm/1800g |
 Card slot Up to 1TB |  Protection level working temperature: -20 °C to 60°C Storage temperature: -30 °C to 70 °C |  Camera Front camera:5MP Rear camera:8MP autofocus with flash |  Light-sensitive Support |
| Product Type | Windows field-service rugged tablet |
| TP touch screen | Anti-fingerprint (AF) coating,10-point touch G+FF, hardness ≥7H, Supports touch with wet hands and touch whilst wearing medical rubber gloves |
| TPM | Built-in TPM Security chip |
| Gravity sensor | Support |
| WIFI | Wi-Fi 6 (802.11 a/b/g/n/ac/ax), 2.4/5.8GHz dual-band |
| TYPE-C | *1 Type-C USB3.0 Support PD charging |
| Type -A | *1 Type-A USB3.0 |
| Type -A | *1 Type-A USB2.0 |
| DB9 | *1 RS232 serial port |
| Earphone Jack | 1 × 3.5mm standard headphone jack |
| TF Card | supports up to 1TB |
| SIM Card | *1 Standard Micro SIM card slot |
| HDMI | *1 HDMI |
| DC port | *1 19V-3.42A (DC plug OD 5.5mm ID 2.1mm) |
| RJ45 | *1 100/1000M |
| POGO PIN | *1 14Pin USB+charger |
| Locking holes | 1 × security lock slot |

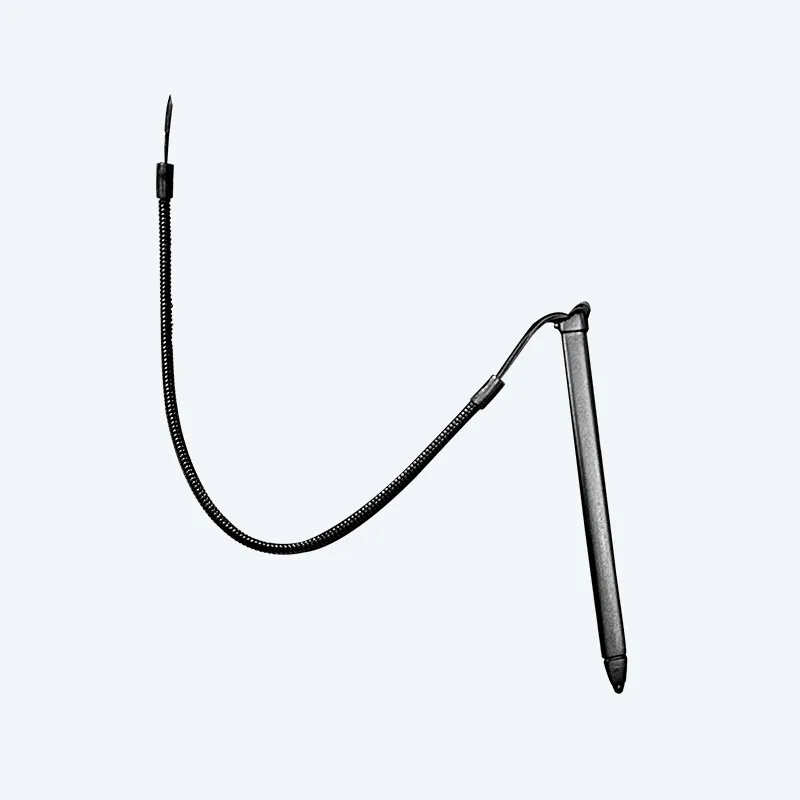

| Stylus | *1 stylus |
| Extensions | Reserve air-plug interface: 1*power input air-plug interface, 1*USB2.0 air-plug interface |
| Integratability | Expandable, can be integrated with customer modules, can be customized to the functional interface, the motherboard built-in to reserve a variety of signals (SATA interface, PCIE interface, 3-way USB2.0) |
| Drop height | Meets the requirements of MIL-STD-810H for the 1.22-meter drop test |
| Certificates | IP67, CE, energy saving certification, ISO quality certification system, ROHS, three-proof salt spray test |

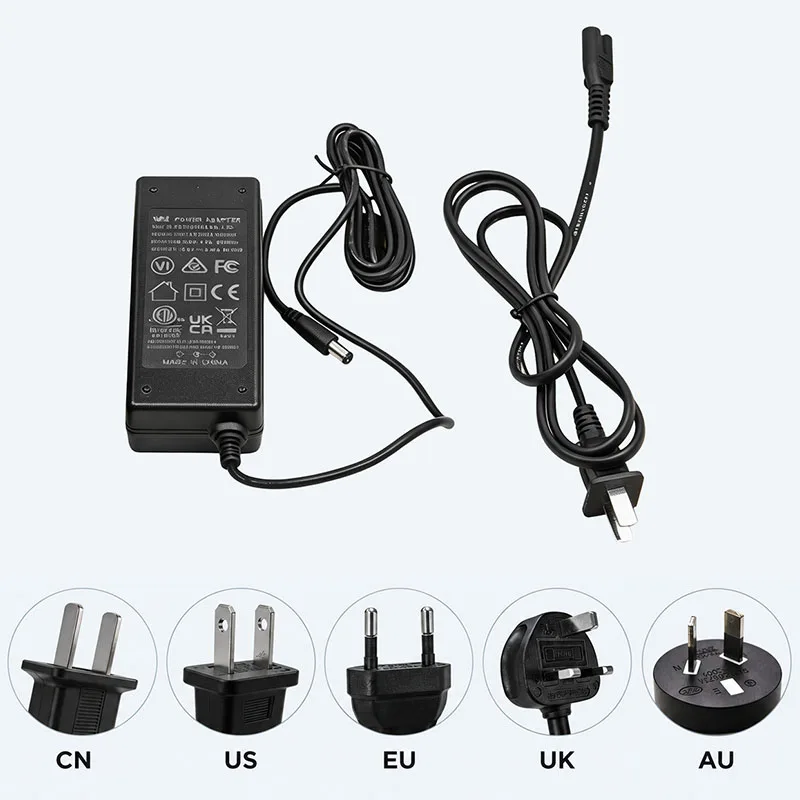

| Adapter | 19V-3.42A，DC interface adapter |

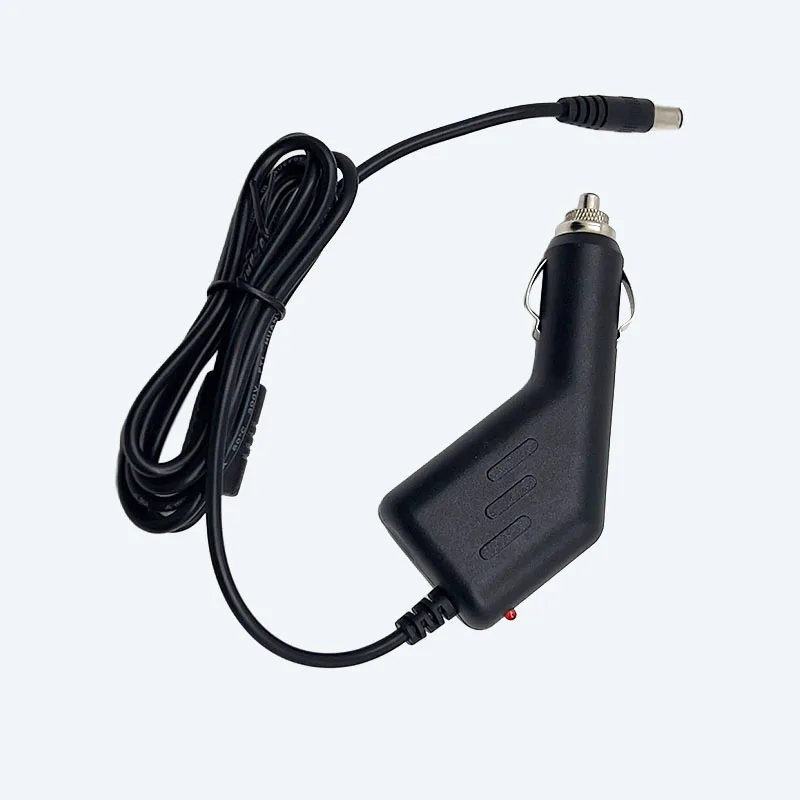

| Car charger(Optional) | 19V Car Charger - Input 9–36V, Output DC 19V 3A, 2.5×5.5mm DC connector |

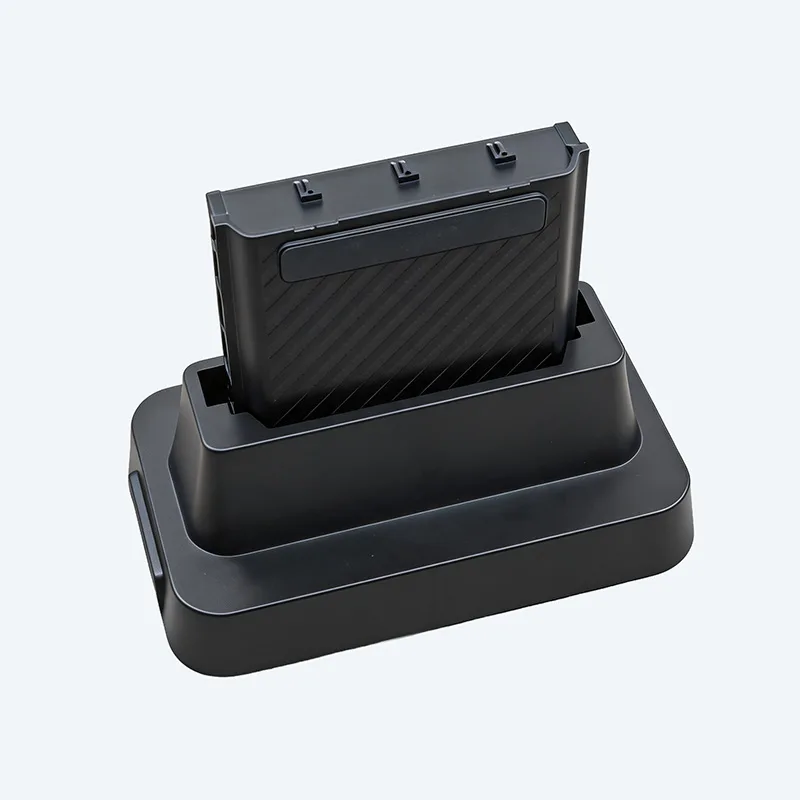

| Battery Charging Dock (optional) | 19V battery charging dock |
The W109NS runs Intel's N150 — four efficiency cores, 4 threads, up to 3.60GHz, on a 6W power budget with up to 16GB of memory. Within our own lineup it sits below the i5-1235U in the W109U: you give up roughly half the multi-thread performance and get a lower price and less heat in return. That trade-off works when the workload is single-purpose — inspection apps, work-order systems, browser-based enterprise platforms, serial-device communication, remote desktop sessions. It does not work for CAD viewers, local SQL databases, or three heavyweight applications at once; buyers with those workloads should be looking at the W109U instead, and we'll say so on the inquiry.
Frequently Asked Questions about W109NS IP67 Rugged Tablet
1. What is the W109NS best suited for?
A large-screen Windows field-service tablet built for equipment maintenance, inspection work, serial-device communication, network commissioning and mobile workstation use.
2. What memory/storage configurations are available?
8GB+128GB or 16GB+256GB (M.2 2242 SSD, removable, up to 2TB).
3. Can the SSD be replaced?
Yes, via the removable M.2 2242 slot.
4. Does the standard tablet include the 2.5K screen?
No, the standard display is 1920×1200; the 2560×1600 panel is available as a bulk-order customization.
5. Is the 700-nit screen sunlight-readable?
700 nits handles bright indoor light and overcast outdoor work. If the tablet will live in direct sunlight — yard trucks, outdoor inspection at midday — order the 1000-nit panel from the start; retrofitting a screen into an IP67-sealed unit isn't practical.
6. Is the battery removable?
Yes, the 8300mAh battery is user-removable, and an optional charging dock is available for spare-battery charging.
7. Does it include a fingerprint reader?
Yes, a login fingerprint reader is standard; higher-grade industrial/certified fingerprint modules are available separately.
8. Does the tablet include RS232?
Yes, one DB9 RS232 port. Before ordering, send us your equipment's pin definition and baud rate — RS232 wiring isn't fully standardized across instruments, and we'd rather confirm compatibility on paper than have you discover a mismatch on site.
9. Does it support RS485?
Not on the standard unit. Two ways to get it: an external RS232-to-RS485 converter, or a factory-configured 422/485 serial option on project orders. Tell us which protocol your equipment speaks and we'll quote the right one.
10. Does it have Gigabit Ethernet?
Yes, the built-in RJ45 port supports 100/1000Mbps.
11. Can the Type-C port charge the tablet?
Yes, it supports PD charging — confirm supported voltage profiles with us before using a third-party charger.
12. Is 4G/5G standard?
No, cellular is optional and depends on your destination country/carrier.
13. Does it support multi-constellation GNSS?
GPS is standard; Galileo and GLONASS support is available as an optional positioning configuration.
14. Can UHF RFID really read from 15 meters?
15m is the module's laboratory maximum with an ideal tag in open air. In the field, expect roughly half to two-thirds of that, less if the tag sits on metal or liquid. If read distance is the deciding factor for your project, mail us your tags and we'll send back a measured test video before you commit.
15. Is the W109NS IP67 or IP68?
IP67.
16. Is it MIL-STD-810H certified?
The unit is tested to MIL-STD-810H for the 1.22m drop. We don't claim certifications we haven't run — ask for the test report with your quote and judge it yourself.
17. Is it suitable for continuous one-handed use?
At around 1.8kg, it's better suited to two-handed, stand-mounted or vehicle-mounted use; a smaller rugged handheld is more comfortable for continuous one-handed scanning.
18. Is it explosion-proof?
The standard W109NS is not explosion-proof, and an IP67 seal does not make any device safe for hazardous locations — the two certifications test completely different things. For Zone 1 or mining atmospheres, ask about our Ex-certified models (Ex ib ⅡC T4 Gb / Ex ib I Mb) at inquiry stage.
19.What optional accessories are available?

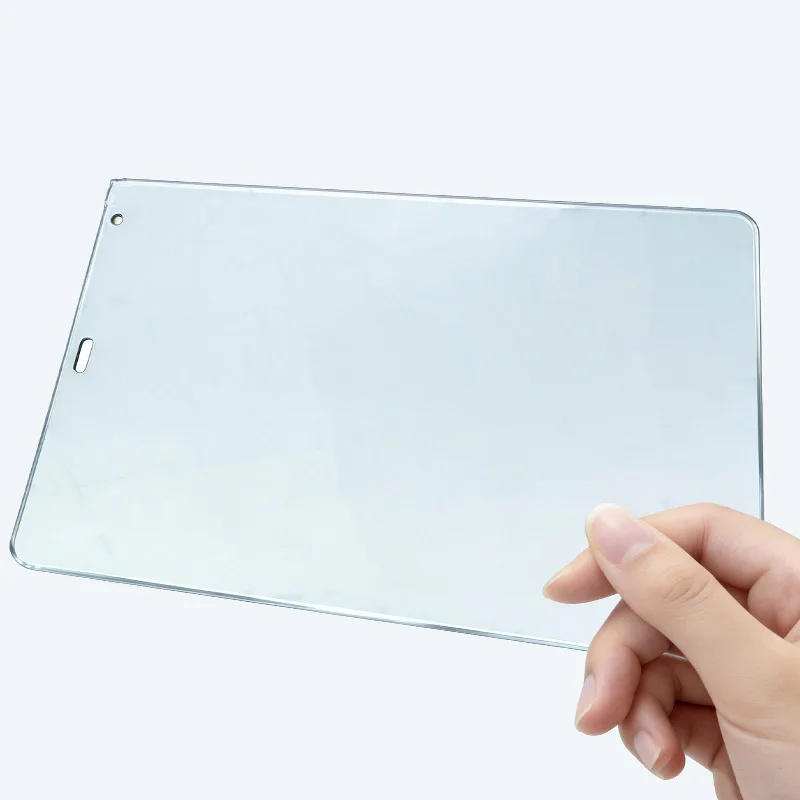

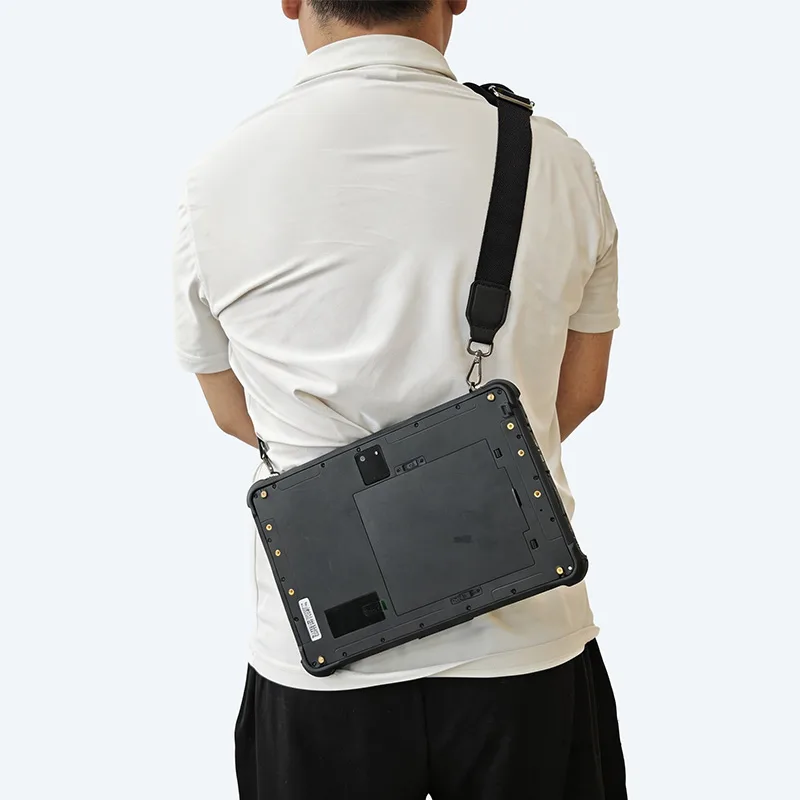

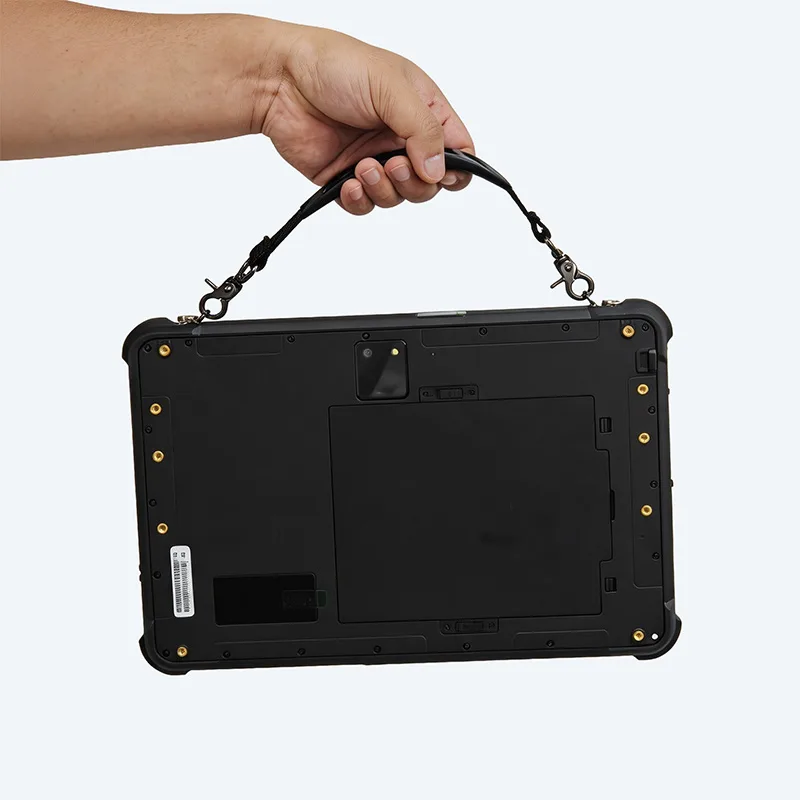

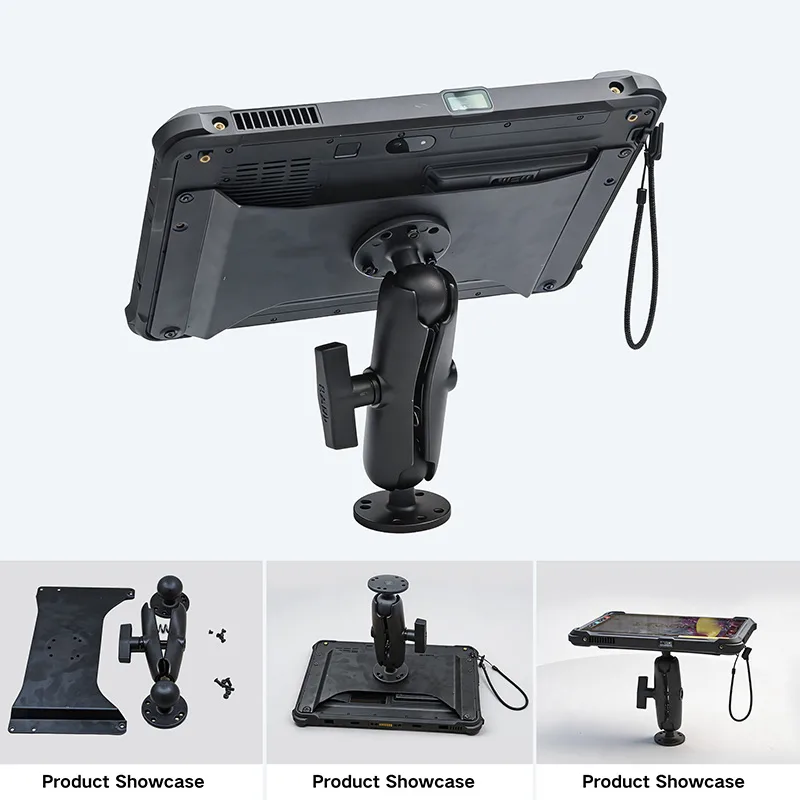

The two most-ordered accessories are the vehicle charger (9–36V input, 19V/3A output — it tolerates truck voltage spikes) and the spare-battery charging dock, which lets a two-shift fleet rotate batteries without plugging in the tablet itself. Hand straps, shoulder straps and tempered screen films are also stocked; vehicle mounts are quoted per install.
