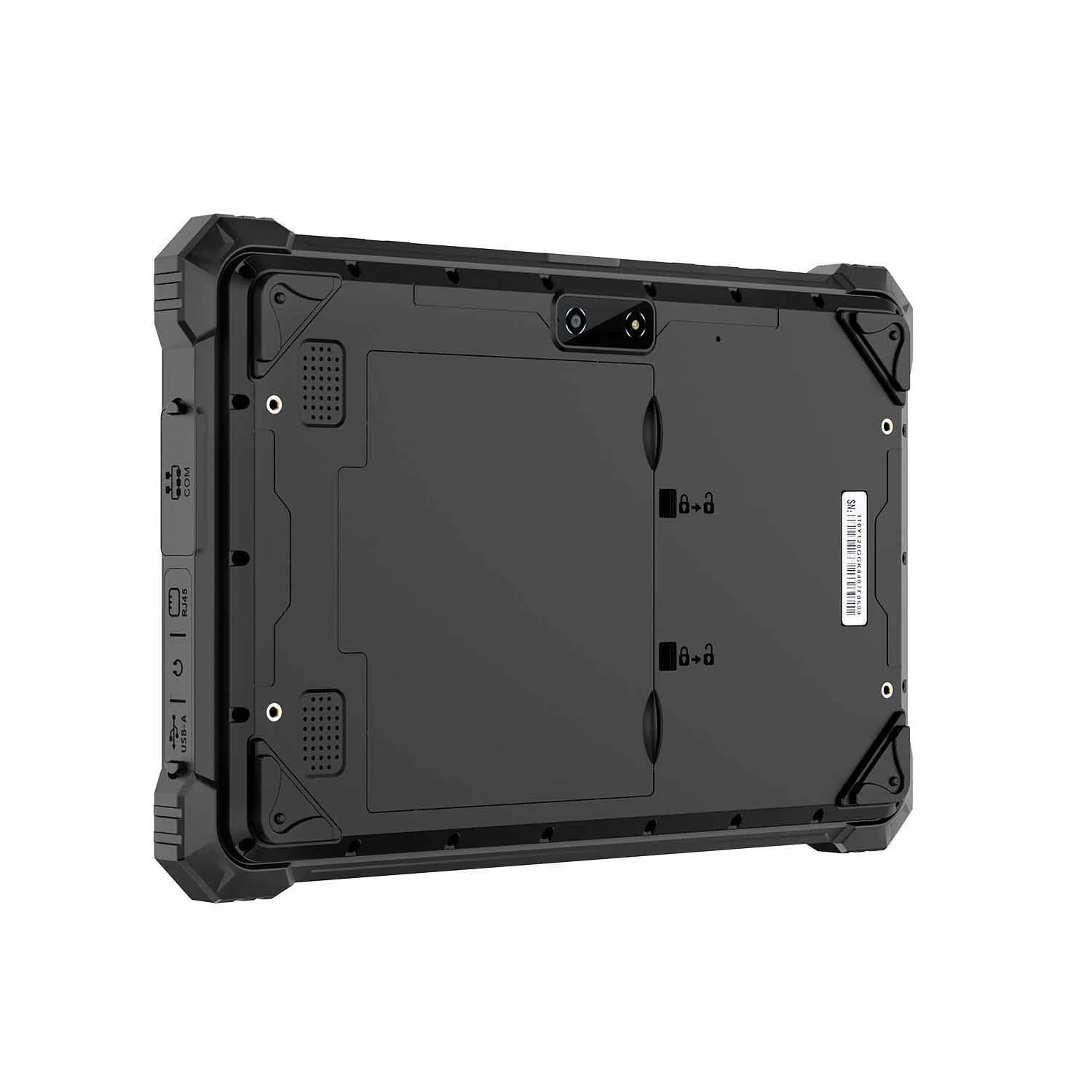

CENAVA A10STX MT8781 10.1 Inch Android 13 IP67 Rugged Tablet
CENAVA A10STX-MT8781 is a 10.1-inch Android rugged tablet developed for equipment maintenance, serial-device communication, production data collection, mobile inspection and extended field-service applications. MediaTek MT8781 octa-core platform with Android 13, 8GB+128GB standard memory.
Rugged Protection: IP67, MIL-STD-810H 1.22m drop, -20°C~60°C
CPU: MediaTek MT8781 octa-core, 2×Cortex-A76 @2.2GHz + 6×Cortex-A55 @2.0GHz
OS: Android 13

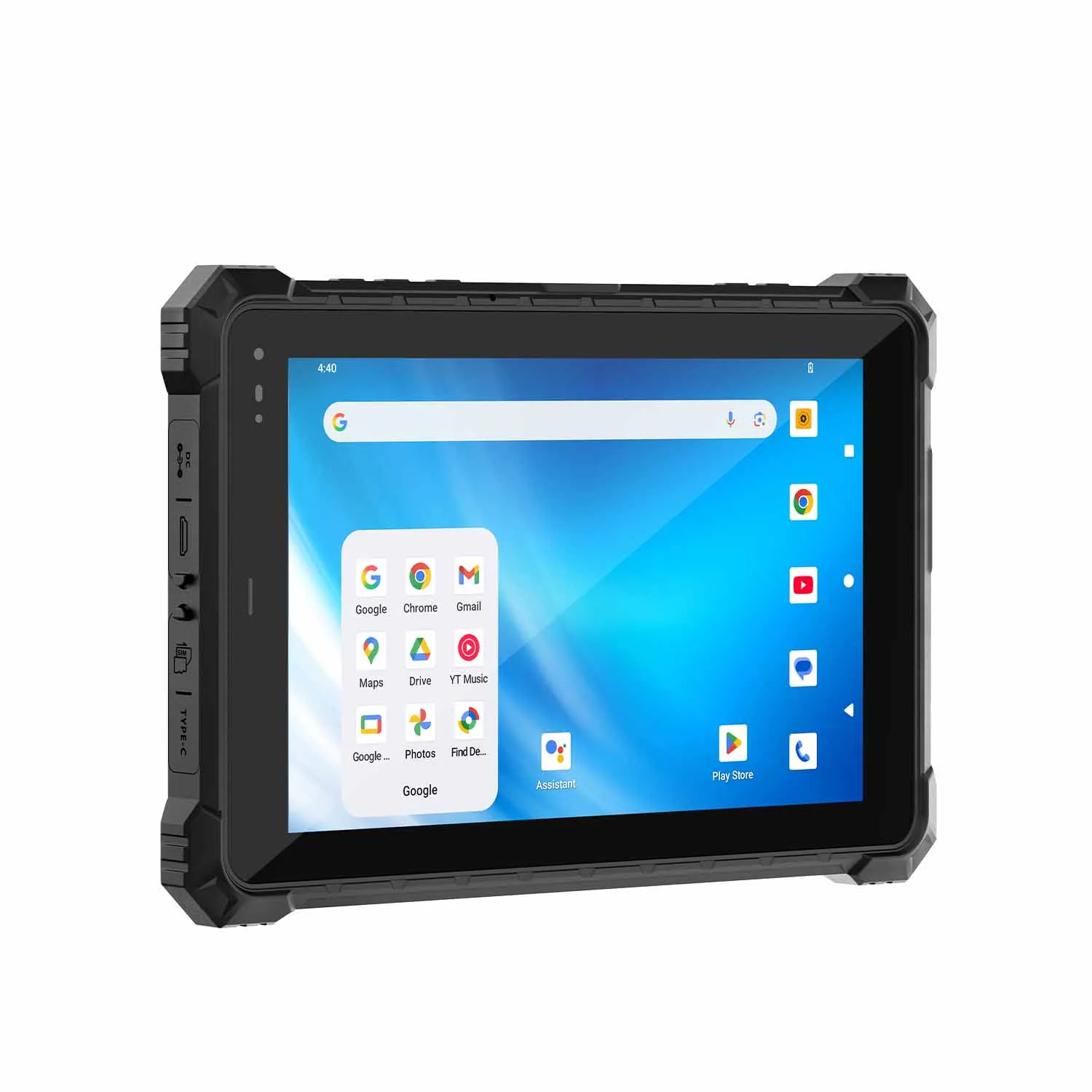

Display: 10.1" IPS 1920×1200 , 700cd/㎡ , G+G 10-point glove touch, hardness ≥7H, AF coating (customizable wet-hand touch)
RAM/ROM: 8GB+128GB (optional 12GB+256GB)

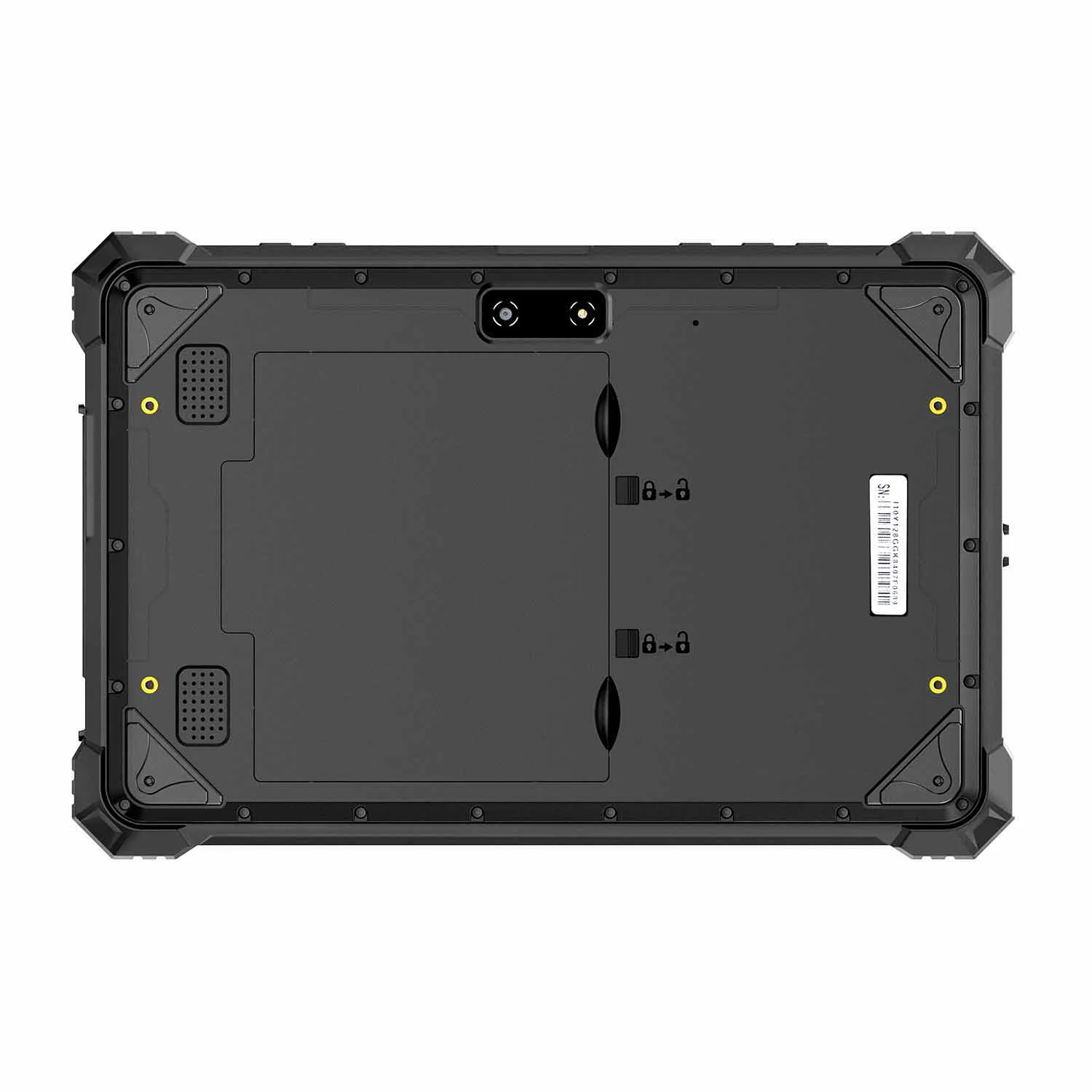

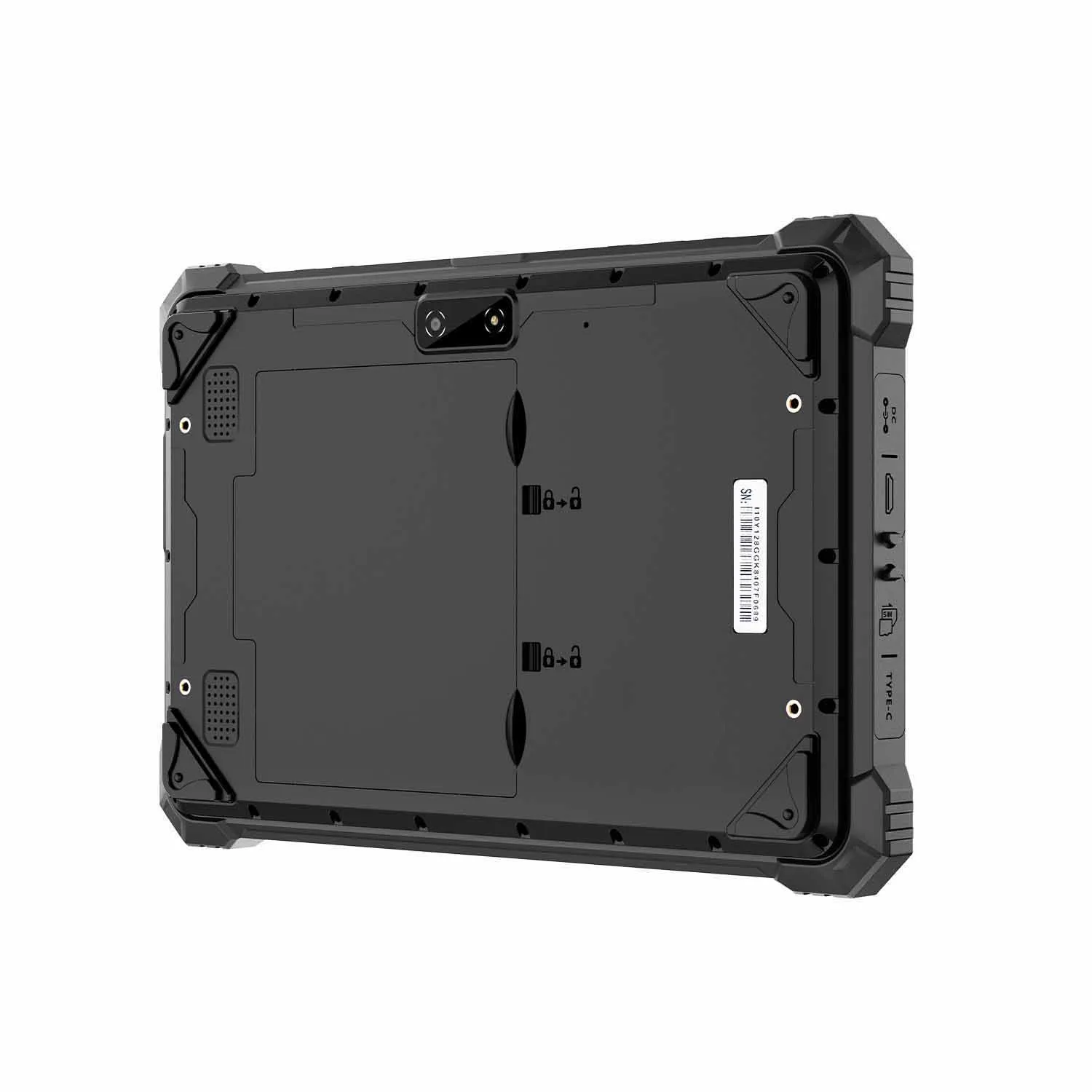

Battery: 15400mAh 3.8V removable — seconds-fast swap; optional battery charging dock
Integrated I/O: RJ45, RS232, Type-C (OTG), USB-A, 3.5mm jack, 12Pin POGO, Micro SIM, TF up to 256GB
Network: Dual-band WiFi 5, Bluetooth 5.2, 4G LTE full-band; GPS/BeiDou/Galileo/GLONASS, optional single-BeiDou
Cameras: 8MP front + 16MP AF rear
Optional Modules: 2D scanner, ID card reader, UHF RFID, LF 125kHz, RTK cm-level positioning; NFC standard
CENAVA A10STX-MT8781 is a 10.1-inch Android rugged tablet developed for equipment maintenance, serial-device communication, production data collection, mobile inspection and extended field-service applications. MediaTek MT8781 octa-core platform with Android 13, 8GB+128GB standard memory.
Technical Specifications
 CPU MediaTek MT8781 Octa-core 2× Cortex-A76 at up to 2.2GHz |  System |  Storage 8GB+128GB |  Display 10 inch IPS touch screen 1920*1200 resolution 700cd/㎡ |
 NFC Optional Default back of the body for card reading, customizable to the front |  One/Two dimensional code Optional Able to identify dirty 1/2 dimensional codes |  Battery Removable 3.8V 15400mAh |  High frequency/ultra-high frequency module Optional Ultra thin integrated module |
 Navigation positioning GPS, Galileo GLONASS |  ID card identification Optional |  Interface USB 2.0 Type-A, DB9, RJ45 100Mbps |  Weight 283.9*189.0*33.9mm/1267g |
 Physical Keys Power, volume up/down, P and F custom keys |  Protection level working temperature: -20 °C to 60°C Storage temperature: -30 °C to 70 °C Protection level: IP67 |  Camera Front camera:8MP Rear camera: 16MP autofocus rear |  Sensor Gravity sensing, compass, gyroscope, light sensing, distance sensing |
| Product Type | High-memory, removable-battery Android industrial tablet |
| Gravity sensor | Supported |
| Compass | Supported |
| Gyroscope | Supported |
| Light-sensitive | Supported |
| Proximity sensor | Supported |
| TYPE-C | *1 Type-C adapt OTG |
| Type -A | *1 Type-A USB2.0 |
| Earphone Jack | *1 3.5mmStandard headphone jack |
| TF Card | *1 Maximum support 256GB expansion |
| SIM Card | *1 Standard Micro SIM card slot |
| DC port | *1 5V/3A (DC plug outer diameter 3.5mm inner diameter 1.35mm) |
| POGO PIN | *1 12Pin USB+charger |
| DB9（serial port） | *1 RS232 |
| RJ45 jack | *1 100M |

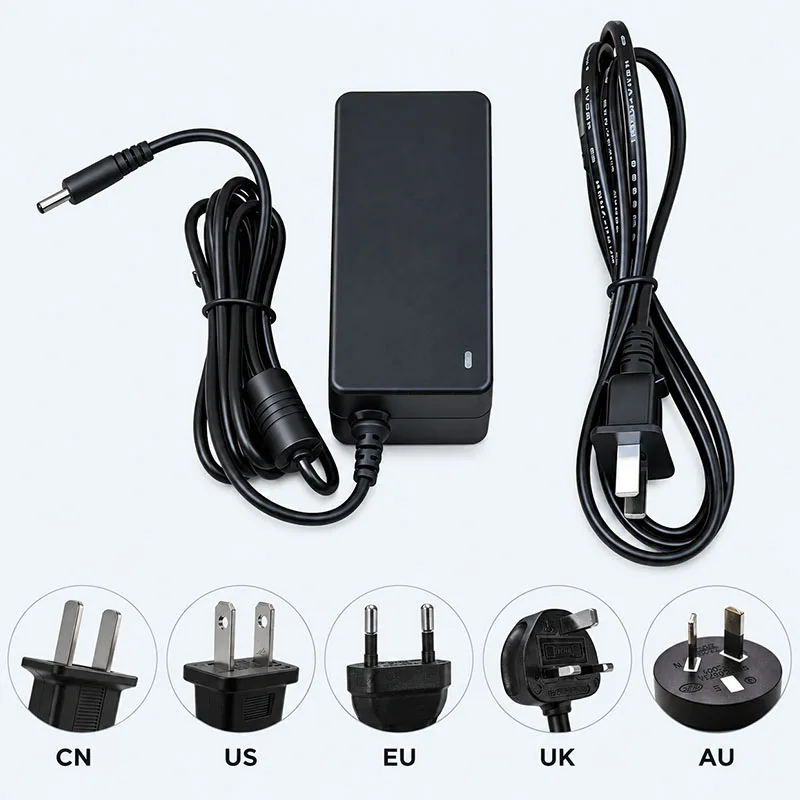

| Adapter | 5V/3A DC adapter |
The A10STX-MT8781 is the performance option in our removable-battery 10.1-inch range. The MT8781 platform (two Cortex-A76 at 2.2GHz, six Cortex-A55 at 2.0GHz, Mali-G57 graphics) with up to 12GB of RAM handles heavier industrial software — MES and WMS clients with large local datasets, inspection apps with camera documentation, browser-based systems with too many tabs open — while the removable 15,400mAh battery keeps it working past the end of a shift.
Ports are the full set: RS232 on DB9, 100M Ethernet, a 12-pin POGO connector, USB Type-C with OTG and USB Type-A, plus NFC as standard. Barcode scanning, UHF/LF RFID and RTK are factory options.
Standard MES or WMS applications
Equipment-maintenance software
Production data entry
Mobile inspection
Barcode applications
Work-order processing
Browser-based industrial systems
General field-service deployment
Frequently Asked Questions About A10STX MT8781 Removable-battery Industrial Tablet
1. What is the A10STX-MT8781 for?
The heavier end of field work: MES/WMS clients with large local datasets, inspection apps that shoot and store photos all day, browser-based systems under real multitasking. It's the X-series model with the most memory headroom — up to 12GB RAM — and the battery still swaps out at shift change.
2. What platform does it run on?
MediaTek MT8781: two Cortex-A76 cores at 2.2GHz, six Cortex-A55 at 2.0GHz, Mali-G57 MC2 graphics. 8GB+128GB is standard; 12GB RAM is a listed configuration. The listed OS is Android 13 — confirm the exact build for your order, since OS versions differ across the A10STX range.
3. Does the touchscreen support gloves?
Yes — medical rubber gloves are supported as standard.

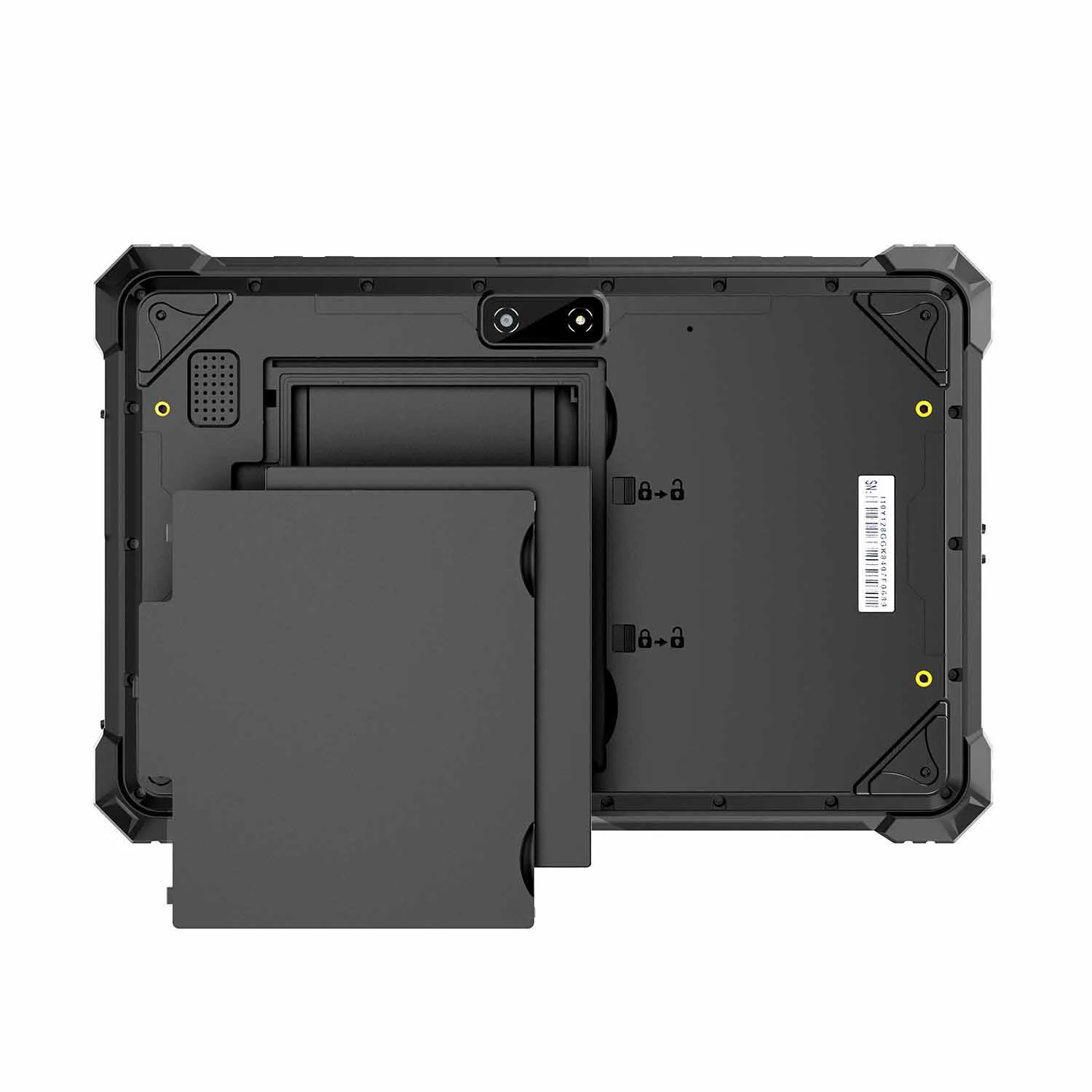

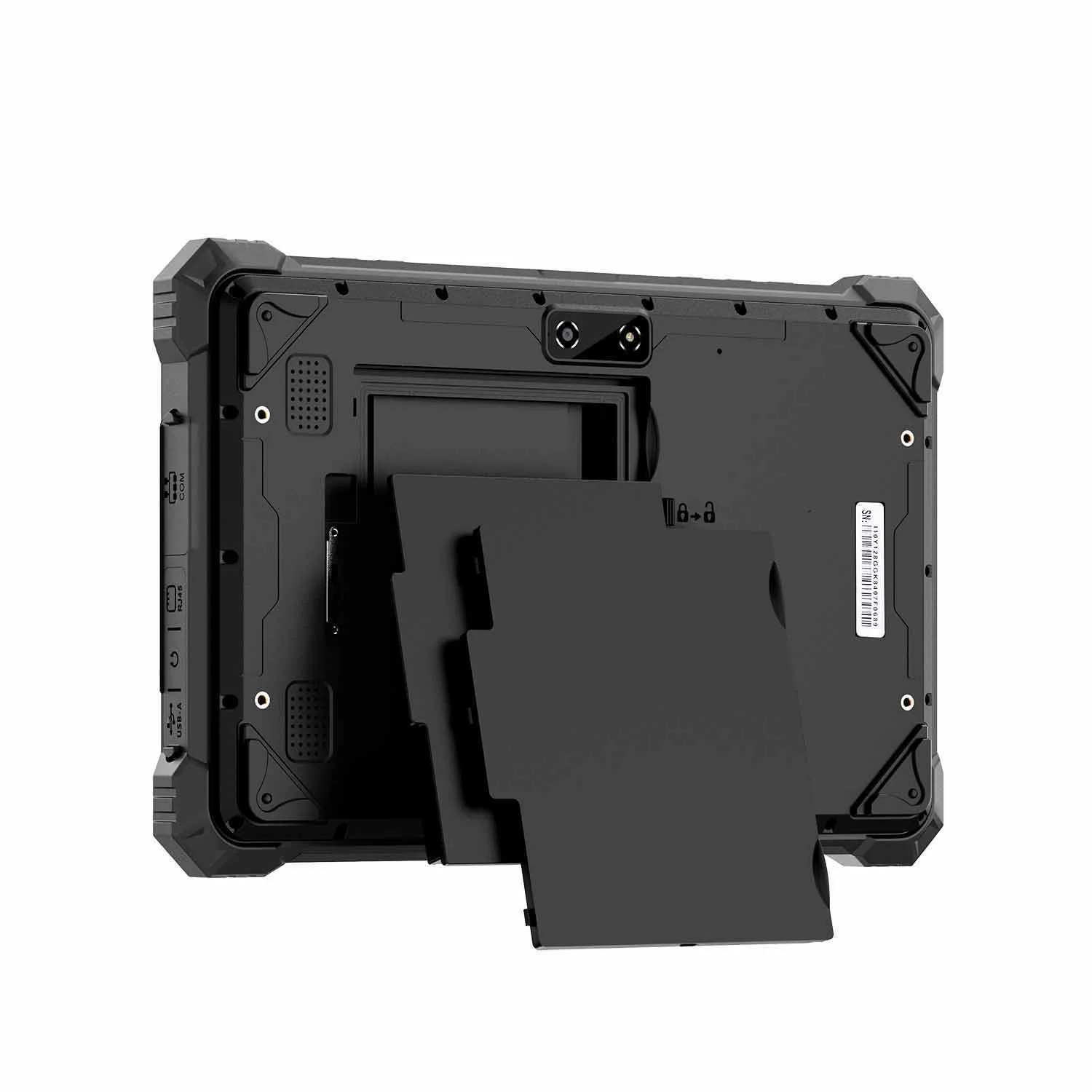

4. How does the battery system work?

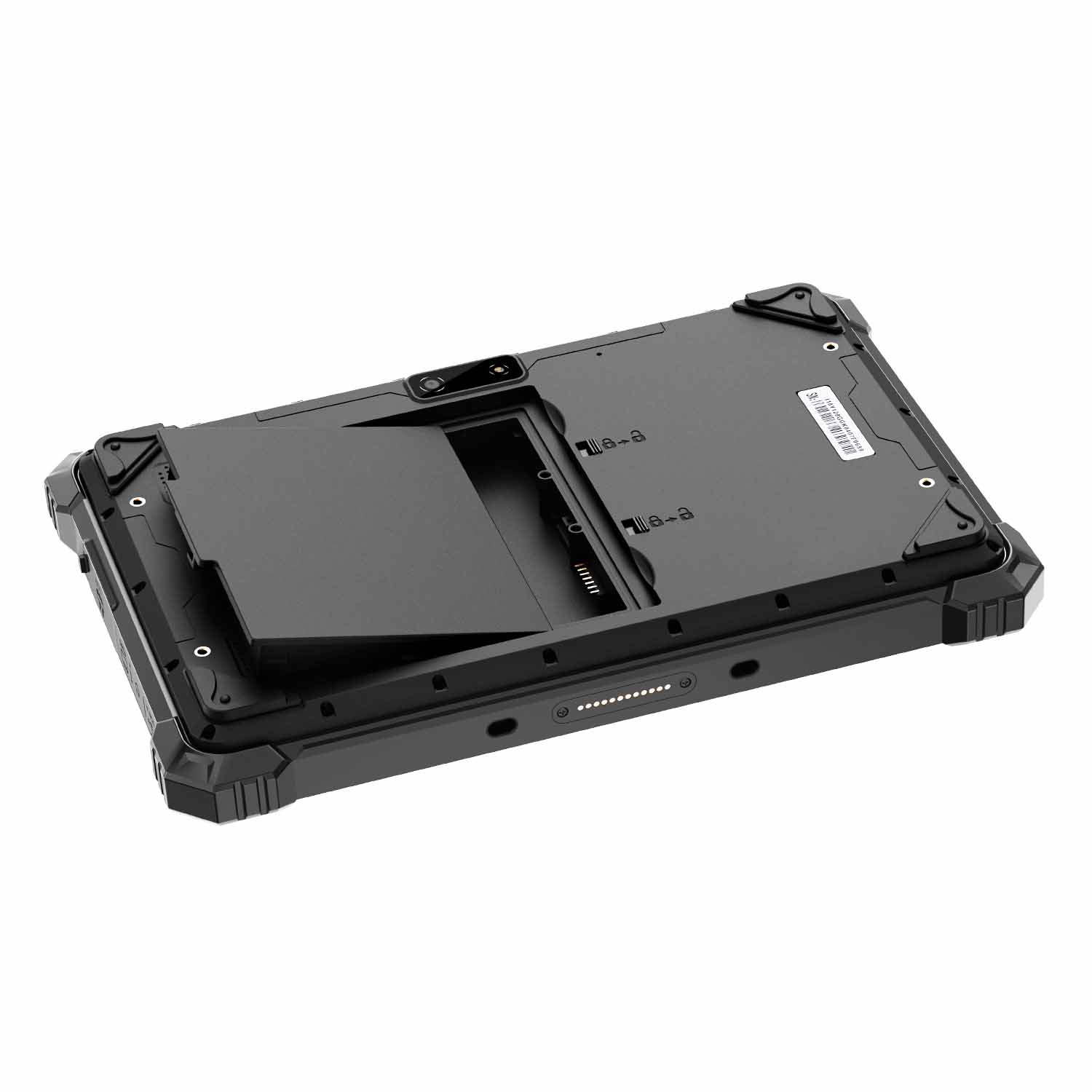

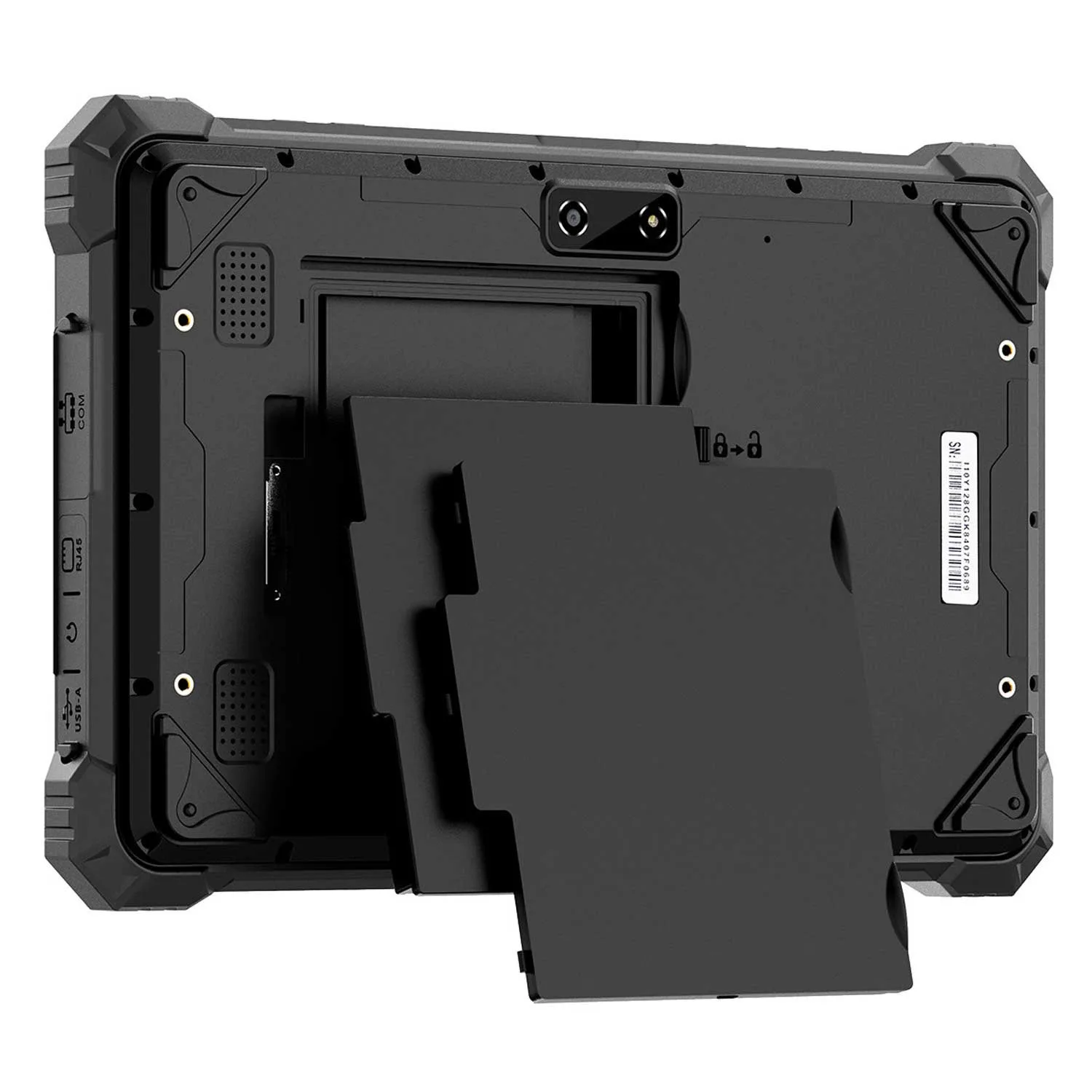

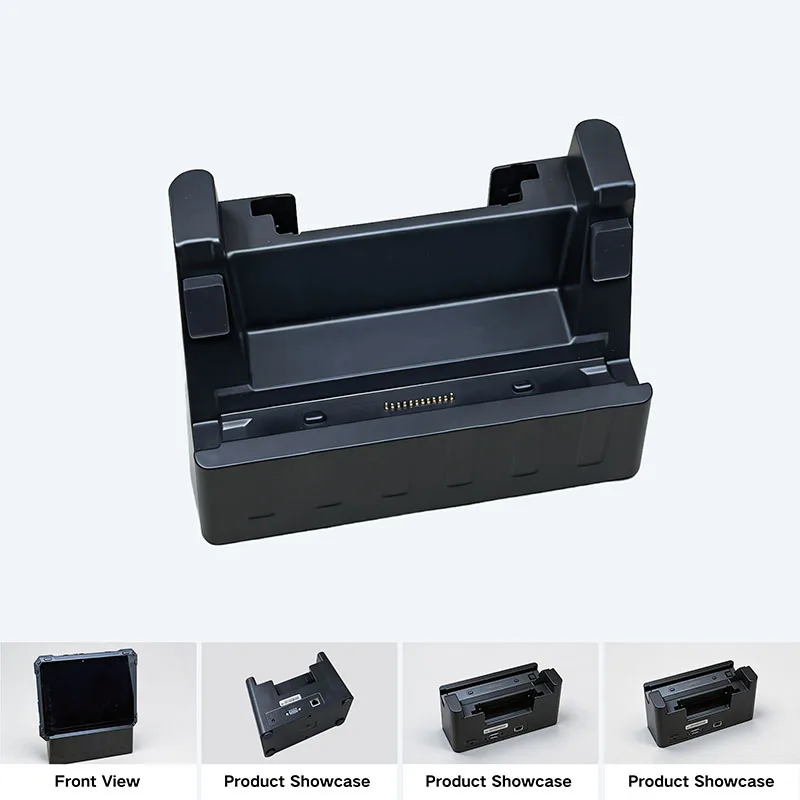

The 15,400mAh main battery is removable, and a charging dock for spares is available so packs charge while the tablet keeps working. That removability is also why this model is IP67 rather than IP68 — if water protection matters more than battery swaps, look at the sealed-battery A10ST models.
5. Which ports come standard?
RS232 on DB9, 100M RJ45 Ethernet (not Gigabit), USB 2.0 Type-C with OTG, USB 2.0 Type-A, 3.5mm audio, Micro SIM and TF up to 256GB. A 12-pin POGO connector handles docked USB and charging.
6. What modules can be added?
Per the comparison table: 1D/2D barcode scanning, ID-card reading, UHF and LF RFID, and RTK positioning. Not every combination fits at once — send your module list with the RFQ and we'll confirm the build.

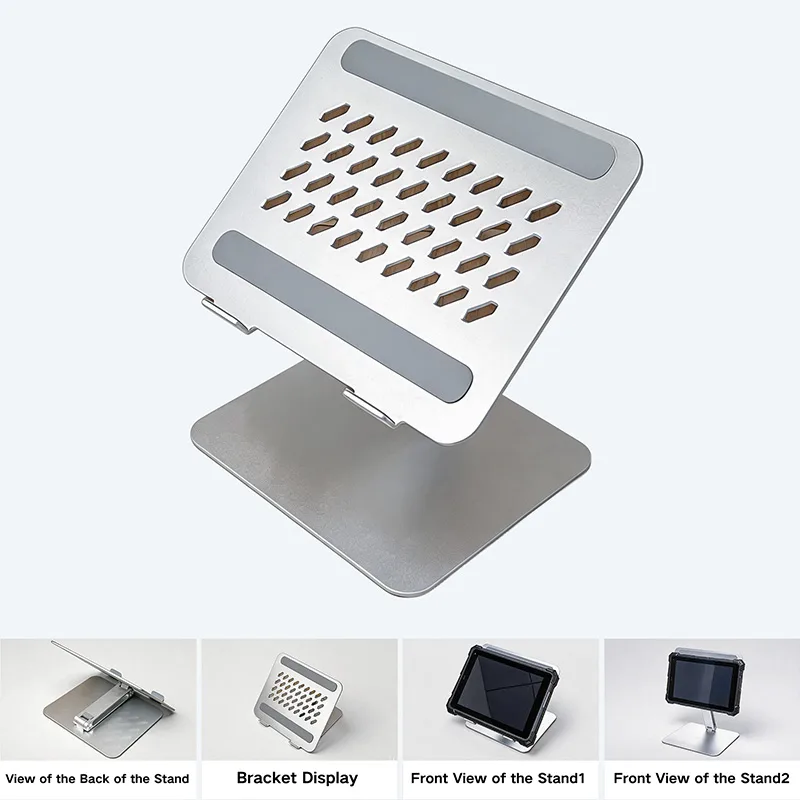

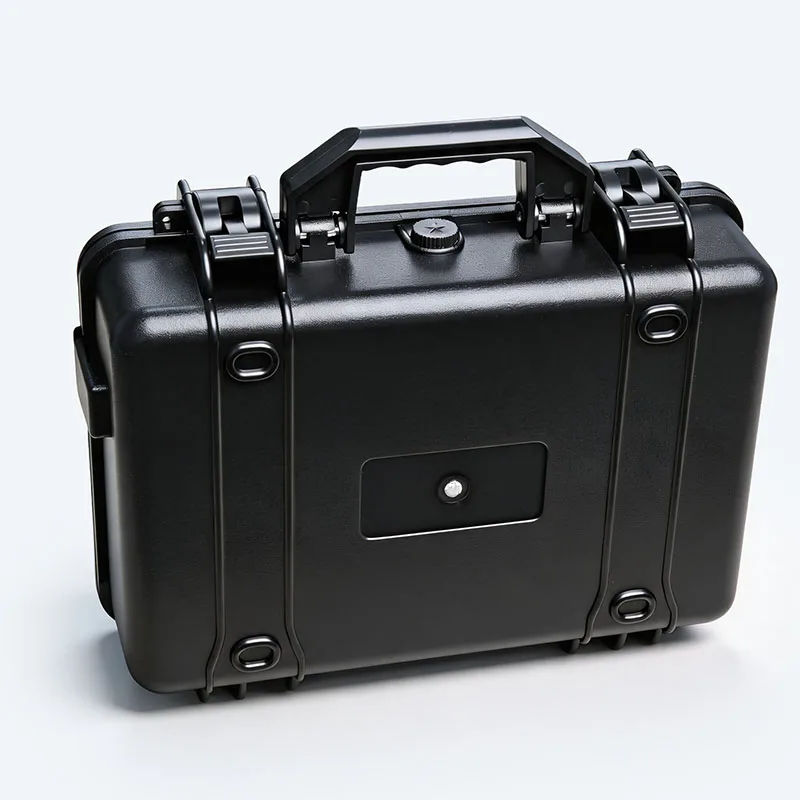

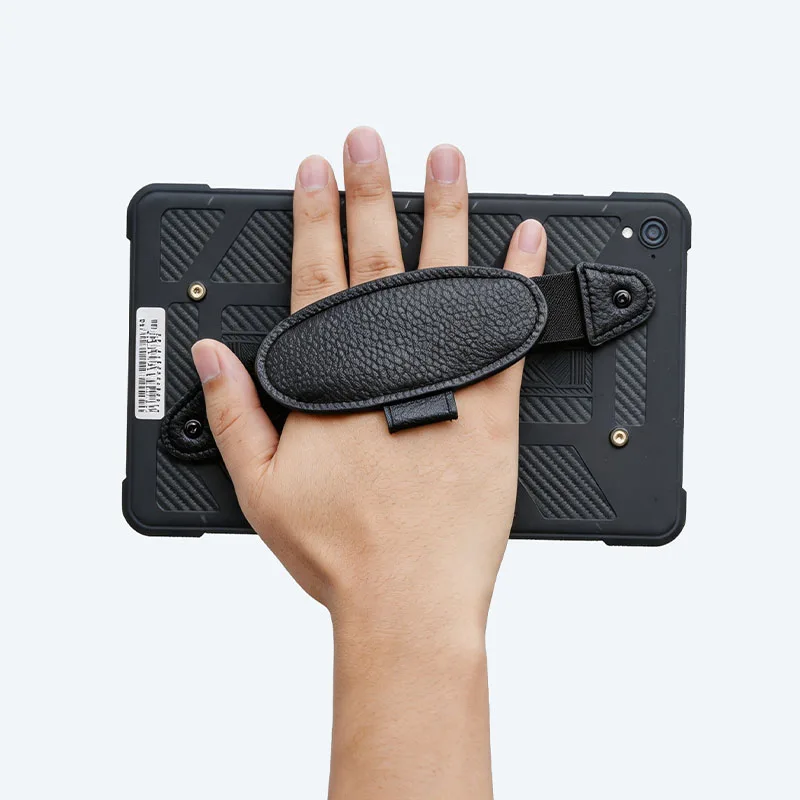

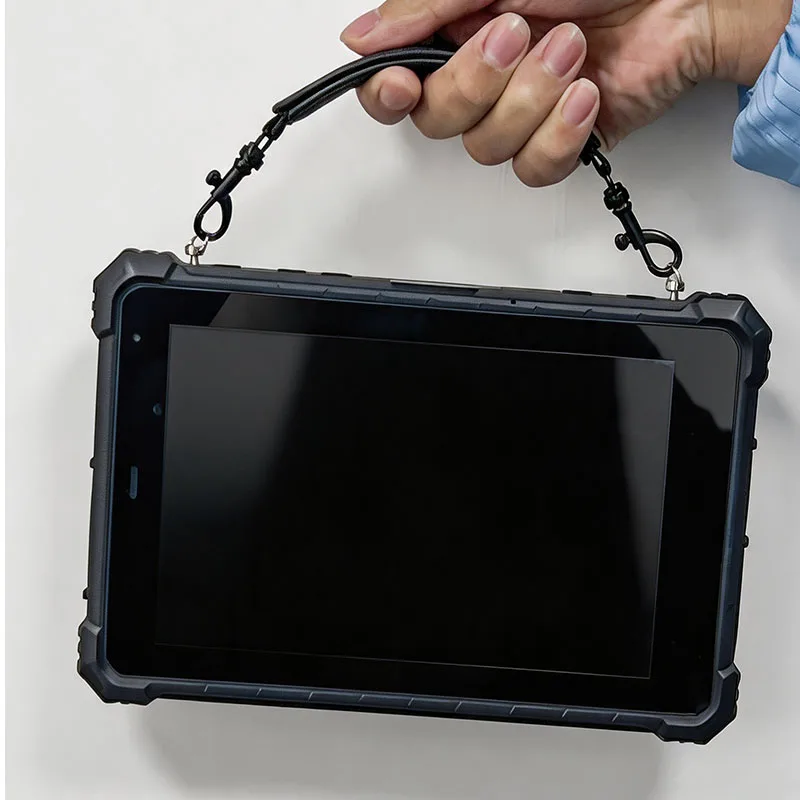

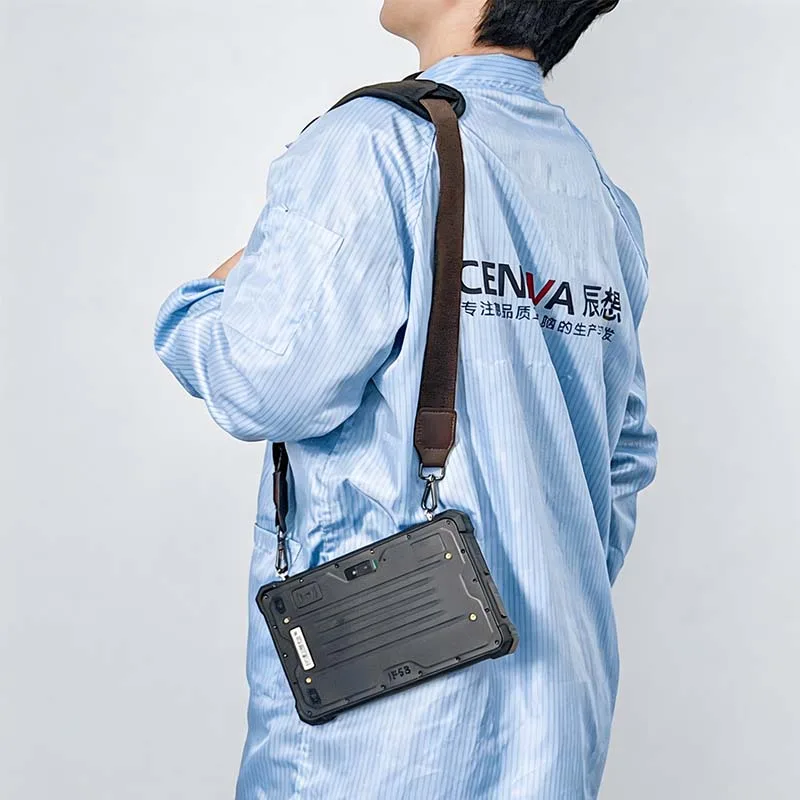

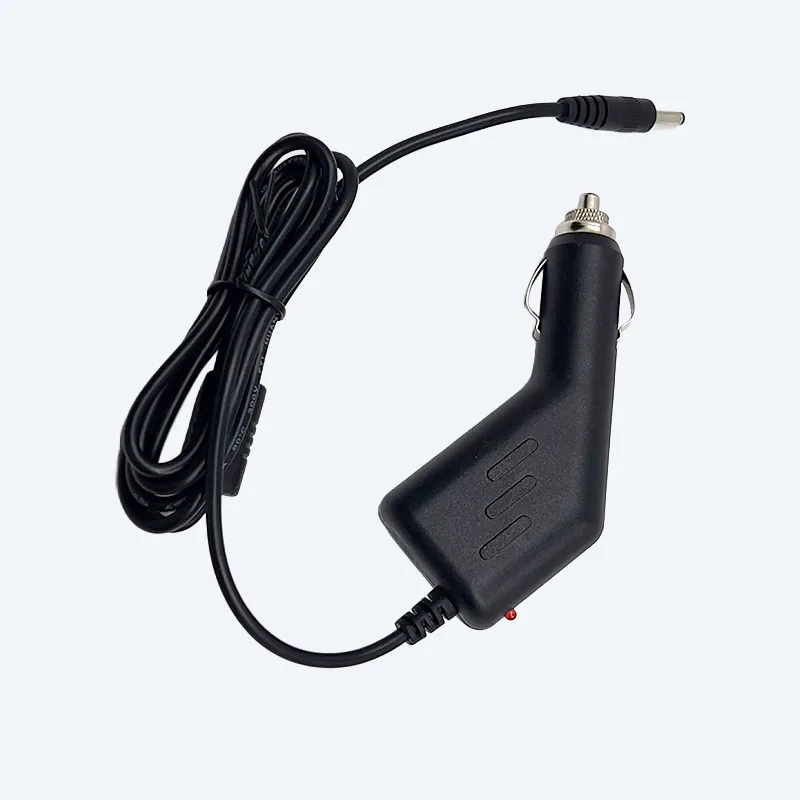

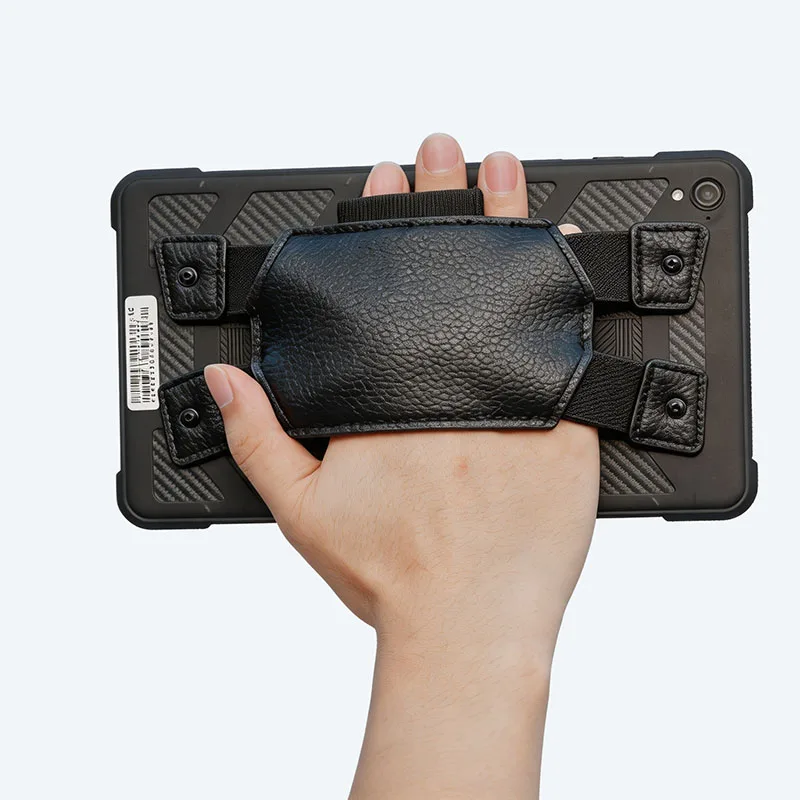

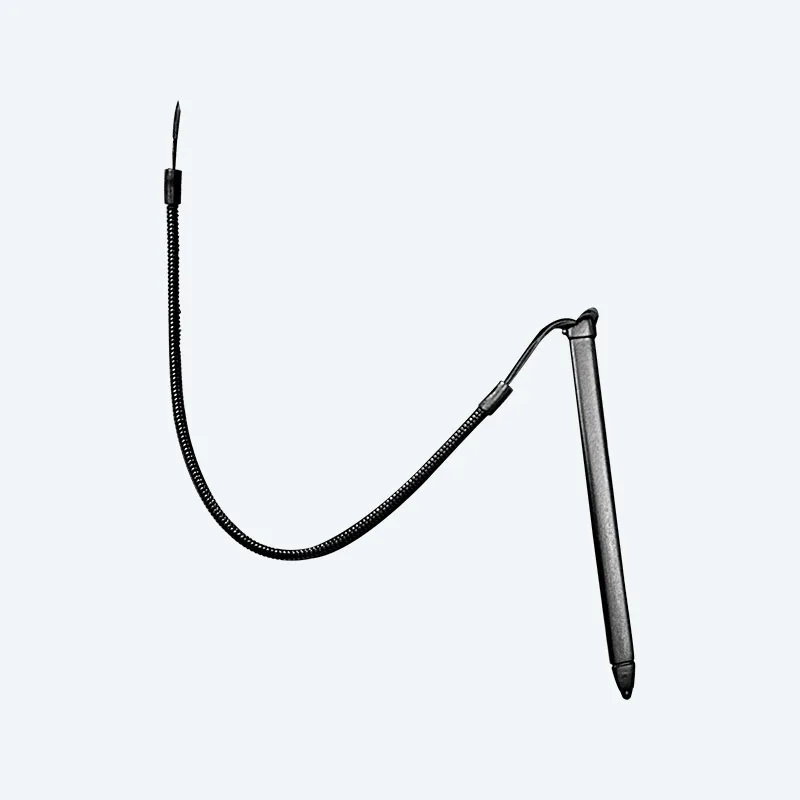

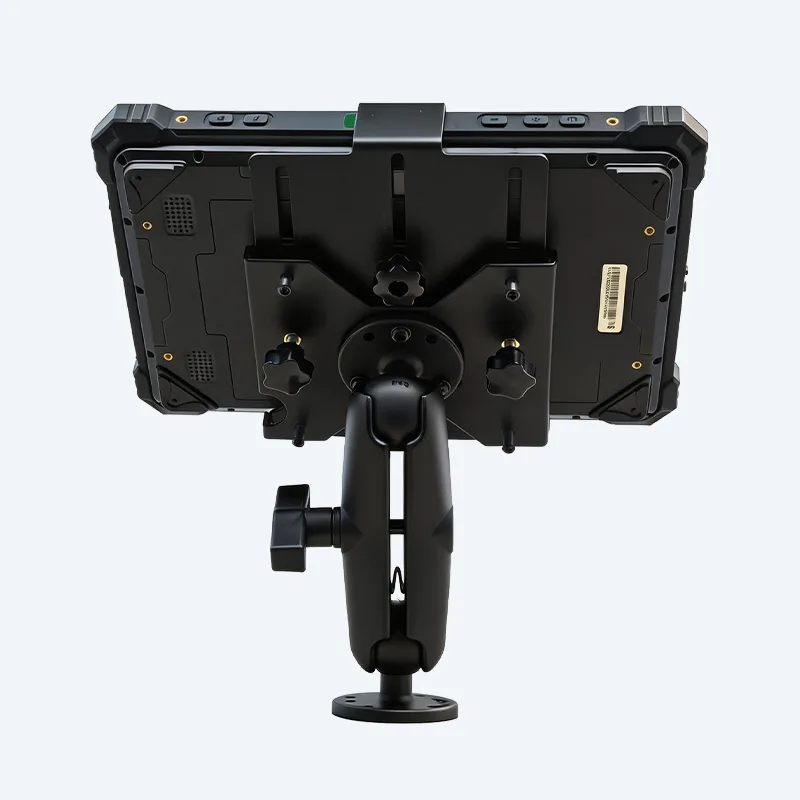

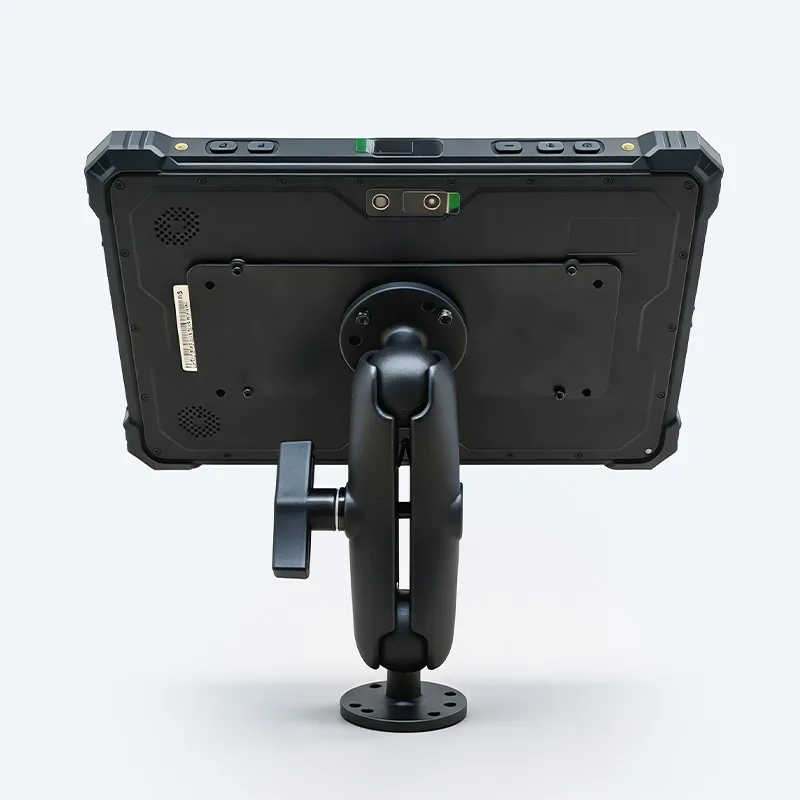

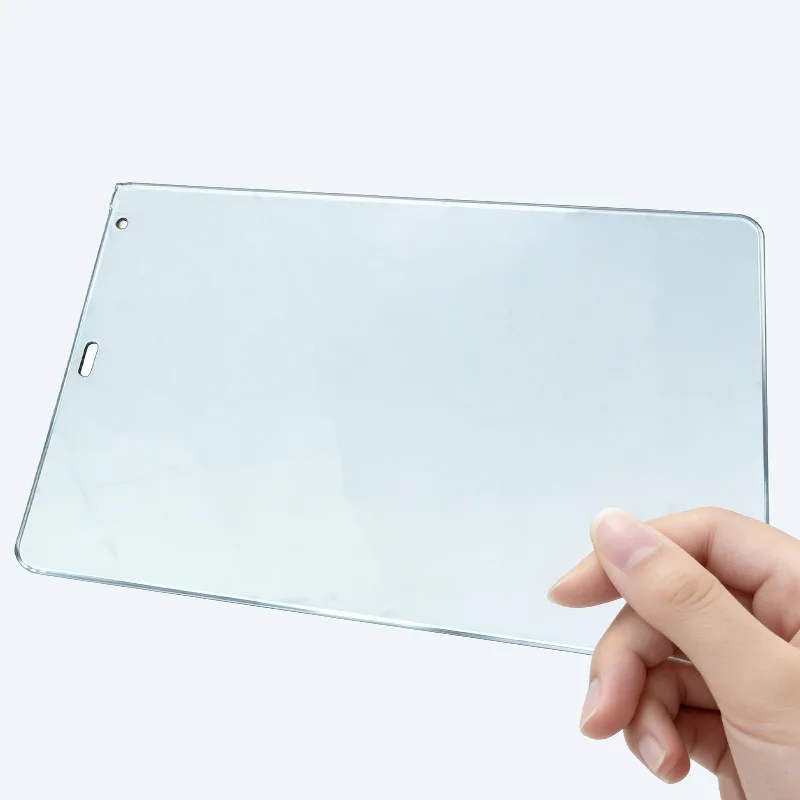

Accessories
