Rugged Computing Products
Rugged tablets, laptops, handhelds, and industrial PCs—built for demanding
environments and backed by 23 years of OEM/ODM expertise.

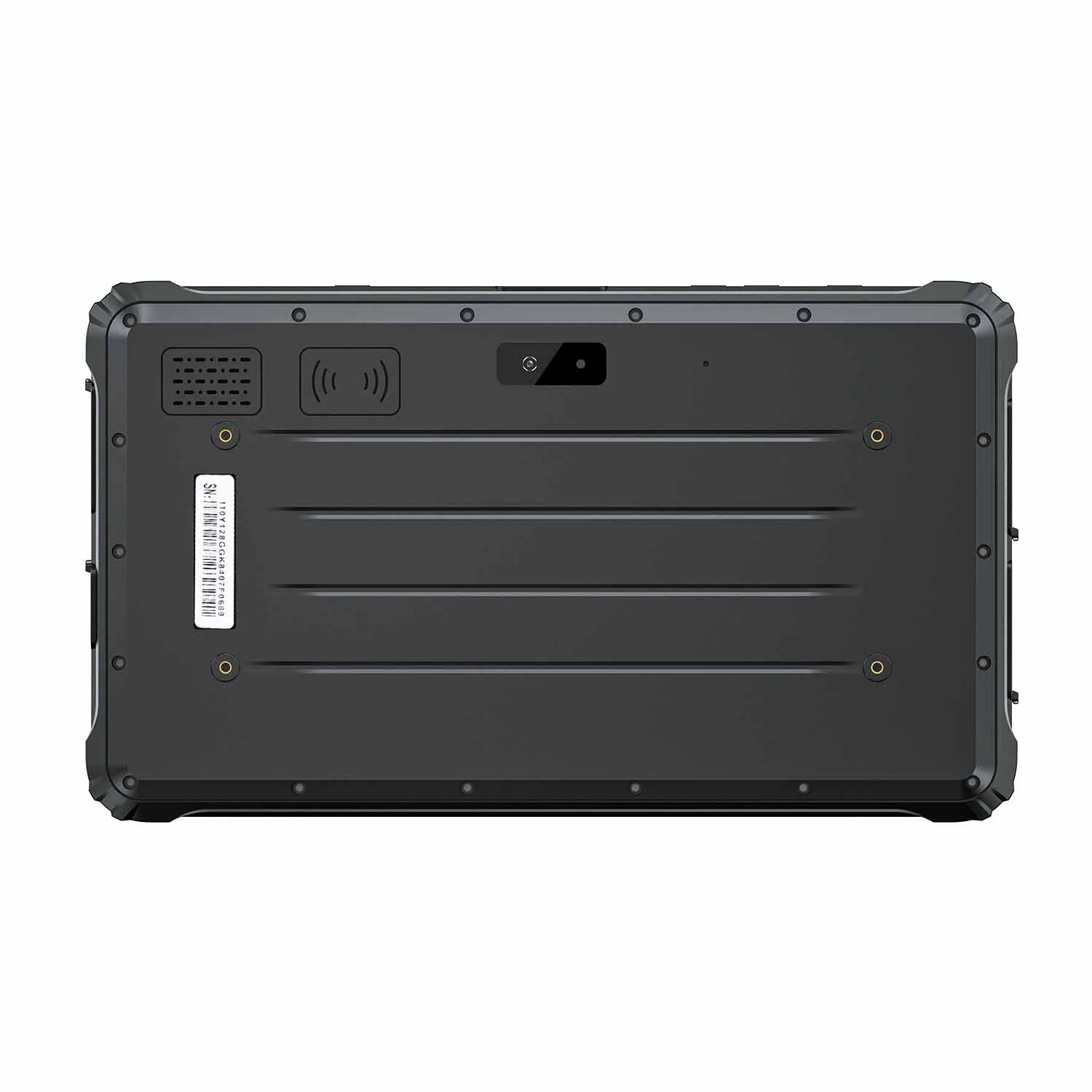

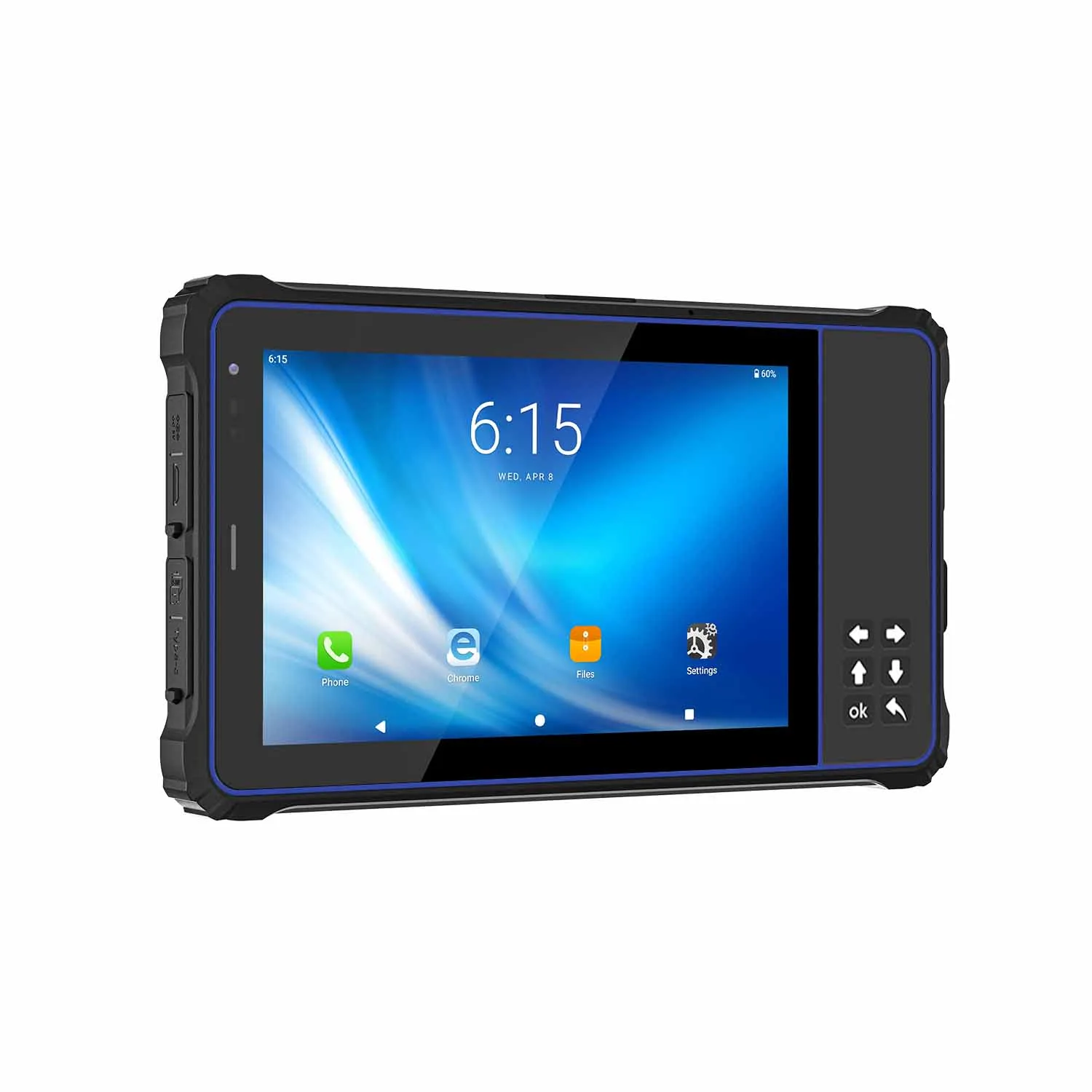

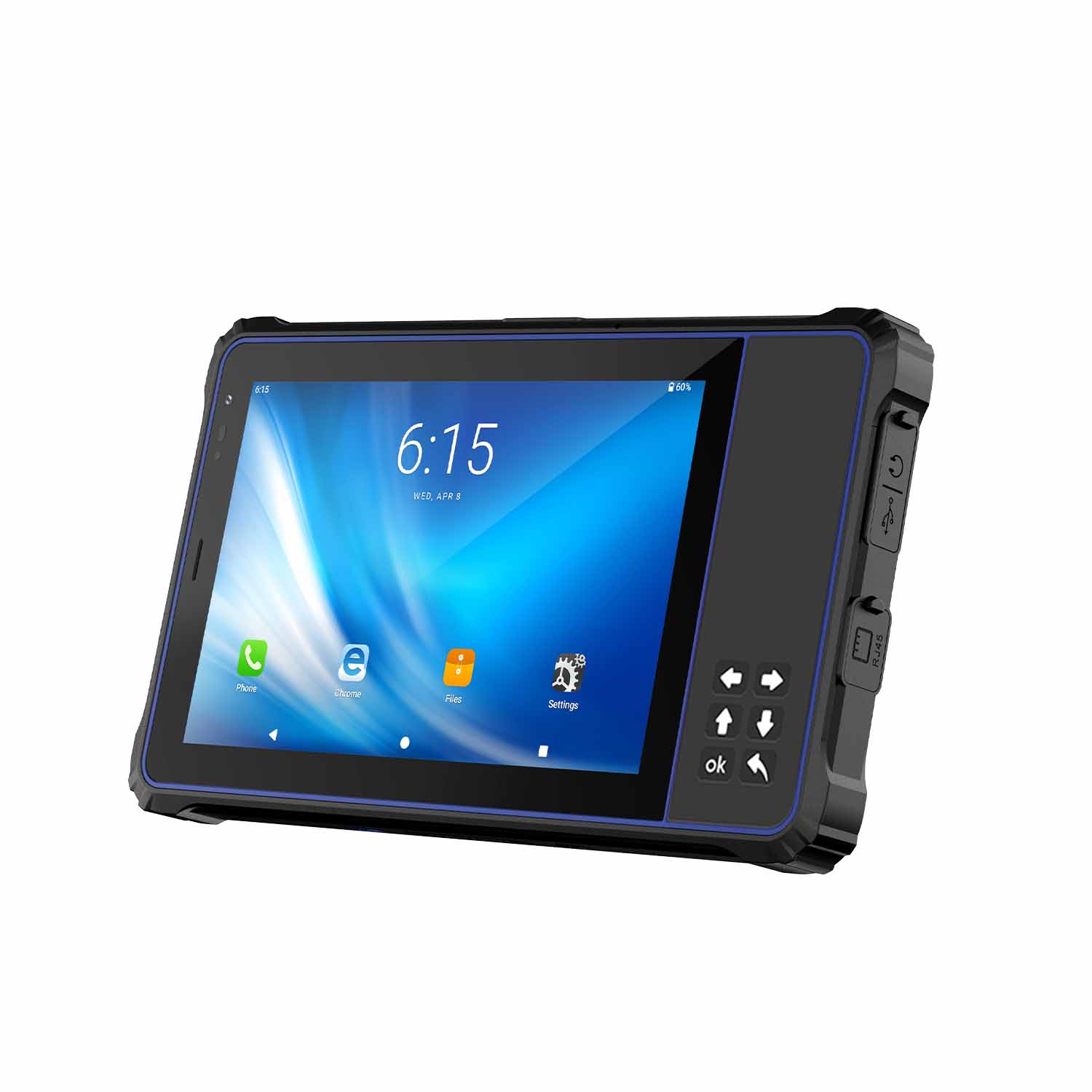

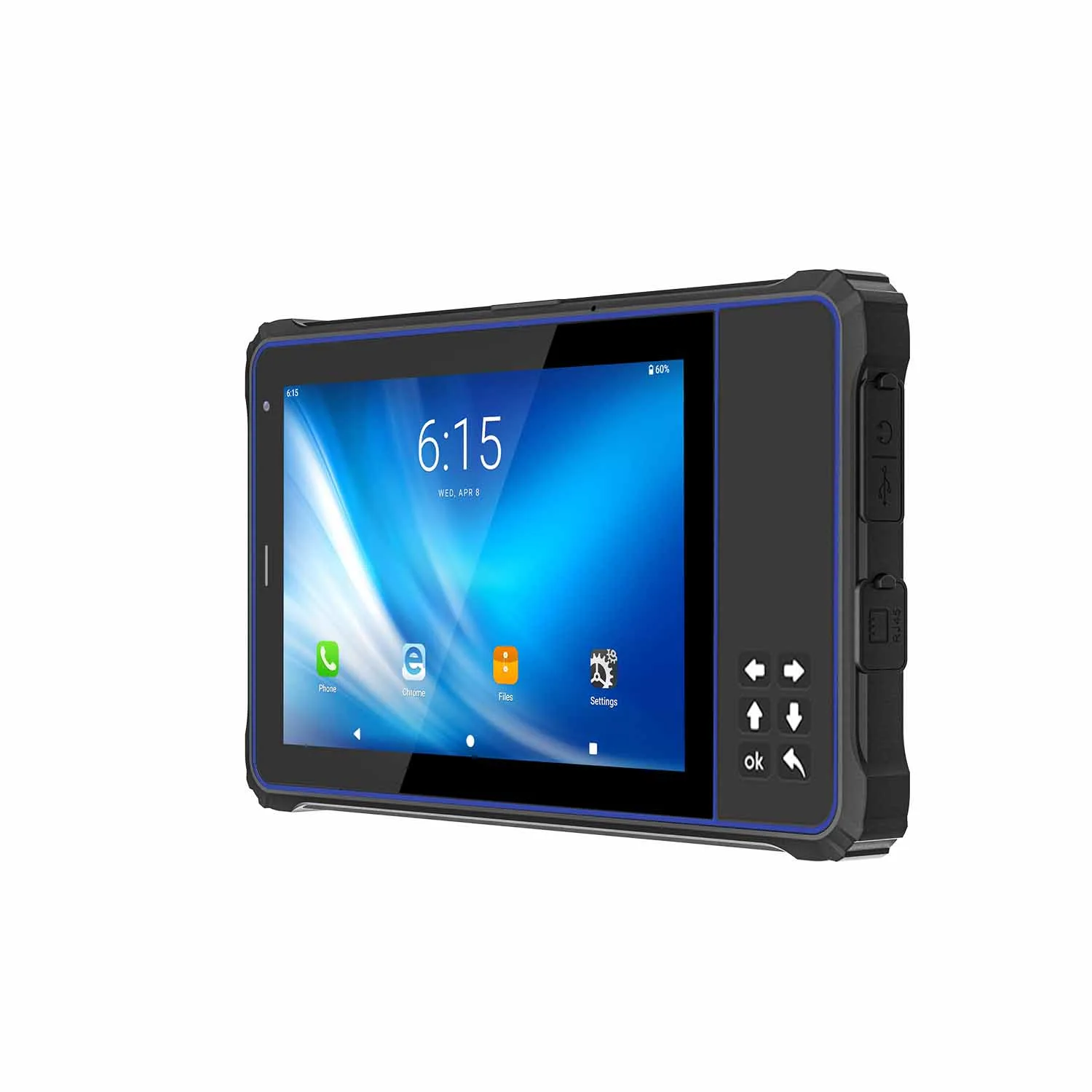

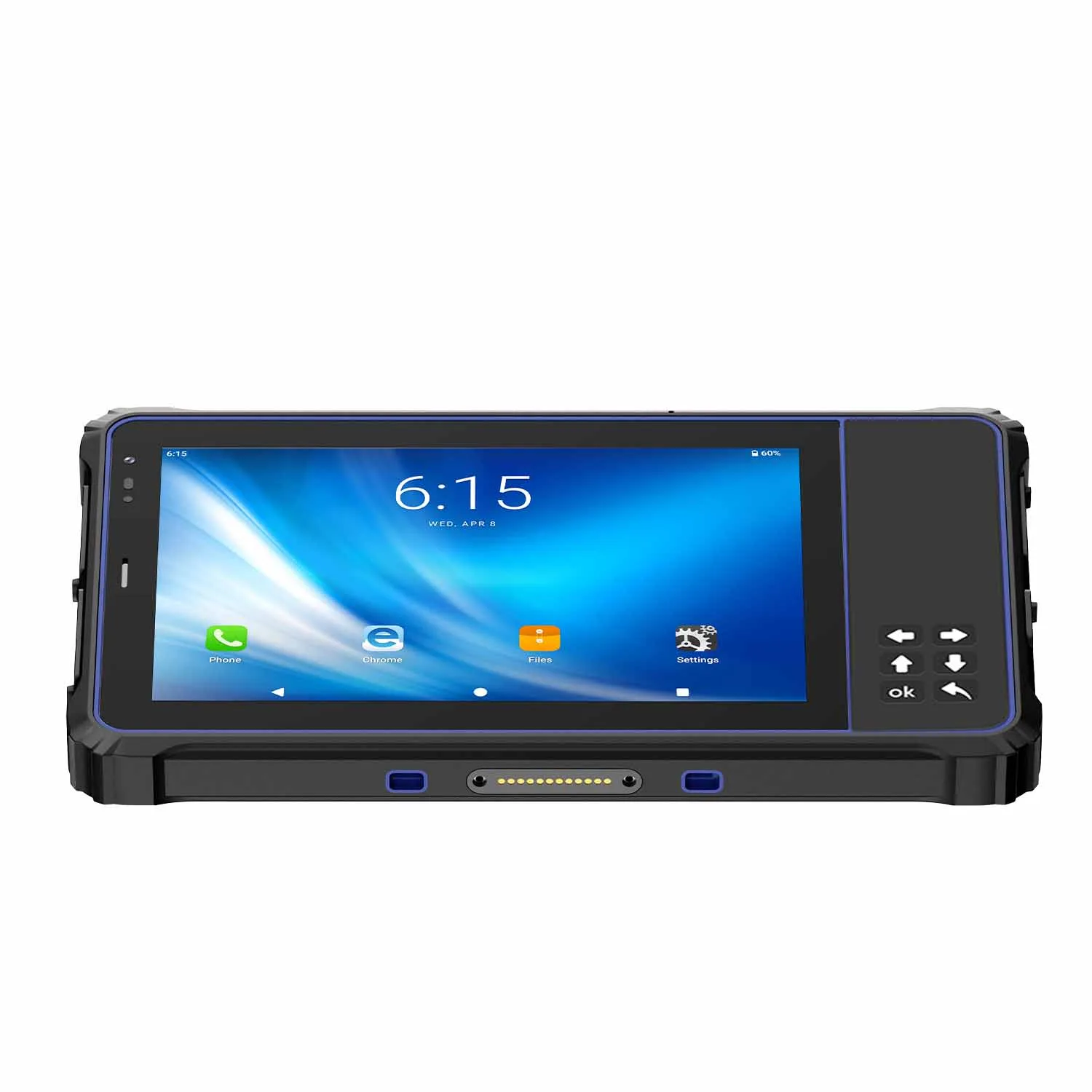

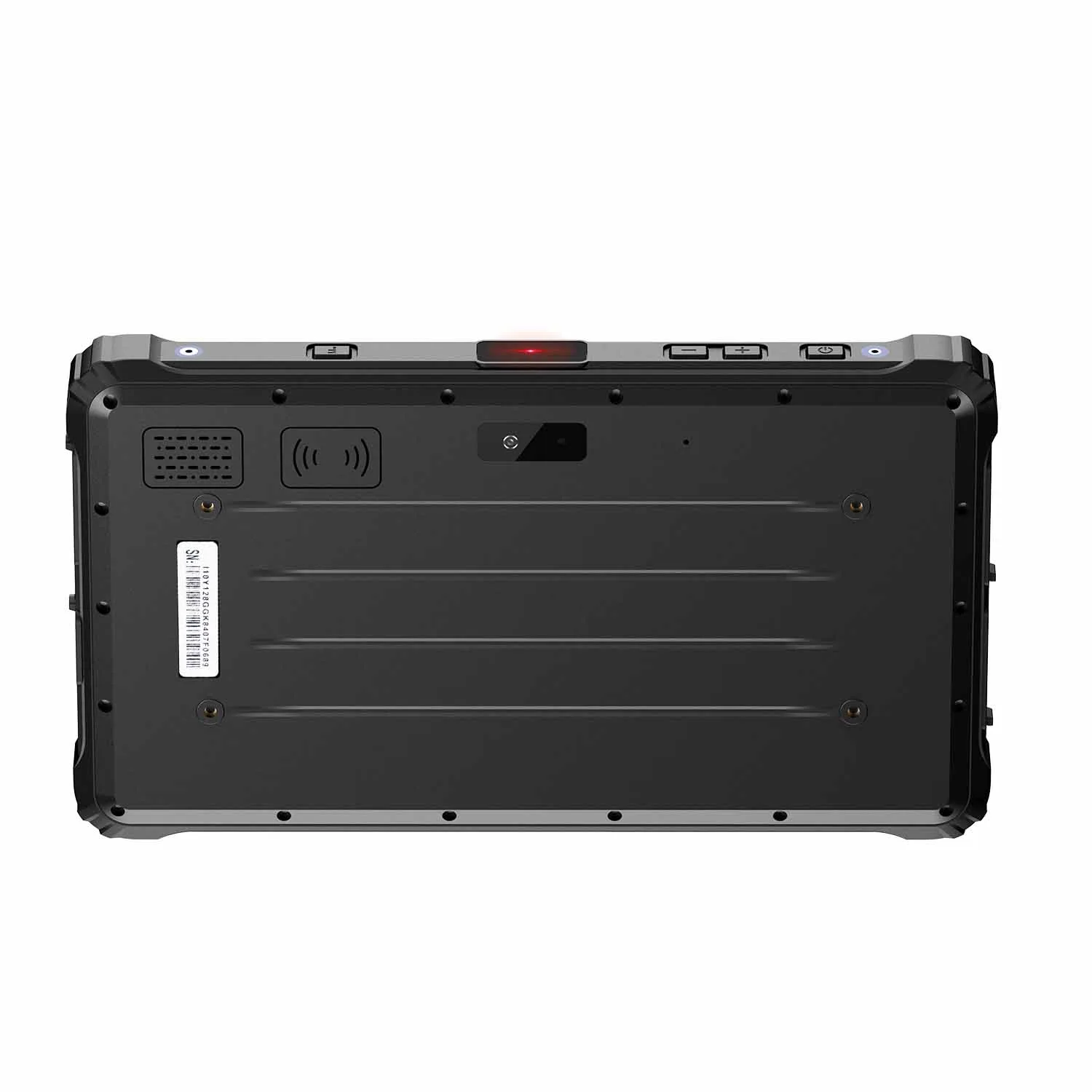

CENAVA A80PT MTK6769 8 Inch IP68 Android Rugged Tablet
The A80PT is an 8-inch IP68 rugged Android tablet built around front-customizable data capture: ID card reader, 1D/2D scanning, HF/LF/UHF RFID and fingerprint modules can be mounted where the operator actually needs them. A 10,000mAh battery delivers ≥10 hours per charge.
Operating System: Android 16
CPU: MTK6769,Octa core,2x Cortex-A75 (@2.0GHz) + 6x Cortex-A55 (@1.7GHz)
RAM/ROM: 4GB+64GB/ 8GB+128GB（optional ）
Resolution: IPS 1280*800 /1920*1200（optional ）
Screen Size: 8 inch
Weight: 749g
Connectivity: WIFI 802.11(a/b/g/n/ac) frequency 2.4G+5.8G dual-band WIFI Dual frequency WIFI5
Bluetooth: Bluetooth 5.2 (BLE) class1 transmit distance：10m
Positioning system: GPS, Beidou, Galileo, GLONASS，Optional Single-System BeiDou Positioning
Main battery: 10000mAh, 3.8v high-voltage lithium battery, non-removable, battery life ≥10h (1080P+50% brightness)
Front Customizable
NFC Fingerprint ID Card
Card Reader Area Customizable to Front 8" Portable
The A80PT's core differentiation: NFC card reader area customizable to the front of the device, paired with optional fingerprint recognition and ID card reading modules, enabling one-screen person-to-card verification, access control swiping, and identity authentication. The 8-inch body fits in one hand; with the front-integrated card reader, inspectors can quickly swipe cards without flipping the device, and law enforcement can complete person-to-card verification with the screen facing outward, cutting verification time per stop. 749g lightweight design, 22.5mm thickness, comfortable for extended handheld use. Optional modules include: standard industrial fingerprint/Public Security Bureau certified fingerprint/FBI certified fingerprint, second-generation ID card reader, UHF RFID, RTK high-precision positioning, and LF low-frequency. Single-unit orders accepted, configure on demand, with deep hardware and software adaptation.
Octa-Core Smooth
4G Global Standard
MTK6769 Octa-Core 4G Standard Android 16
Powered by the MTK6769 octa-core processor (2×A75@2.0GHz + 6×A55@1.7GHz) with Android 16 industrial OS, keeps MES terminals and data-collection apps responsive. 4G global bands included as standard—no extra customization needed, global connectivity out of the box. The 4GB+64GB base configuration handles routine MES terminals, while the 8GB+128GB high-end version tackles video backhaul and cloud collaboration. Supports OTA system upgrades, with memory configurations adjustable per project needs. The front NFC + fingerprint + ID card integration gives this 8-inch tablet data-collection capability that used to require a 10-inch terminal. Supports GPS, BeiDou, Galileo and GLONASS, with optional single-BeiDou positioning.
IP68 Triple-Proof
Lightweight Long Endurance
IP68 1.22m Drop 10000mAh ≥10H Runtime
IP68 dust-tight and waterproof, surviving 1.22m drops, with 3C/CE/MIL-STD-810H/salt spray test certifications. Operating temperature -20°C to +60°C, with -30°C low-temperature customization available. 10000mAh non-removable battery, 3.8V high-voltage lithium, ≥10 hours runtime. At 749g in an 8-inch chassis, over 380g lighter than 10-inch tablets for fatigue-free handheld inspections and mobile enforcement. Type-C PD 33W fast charging shortens turnaround between shifts.

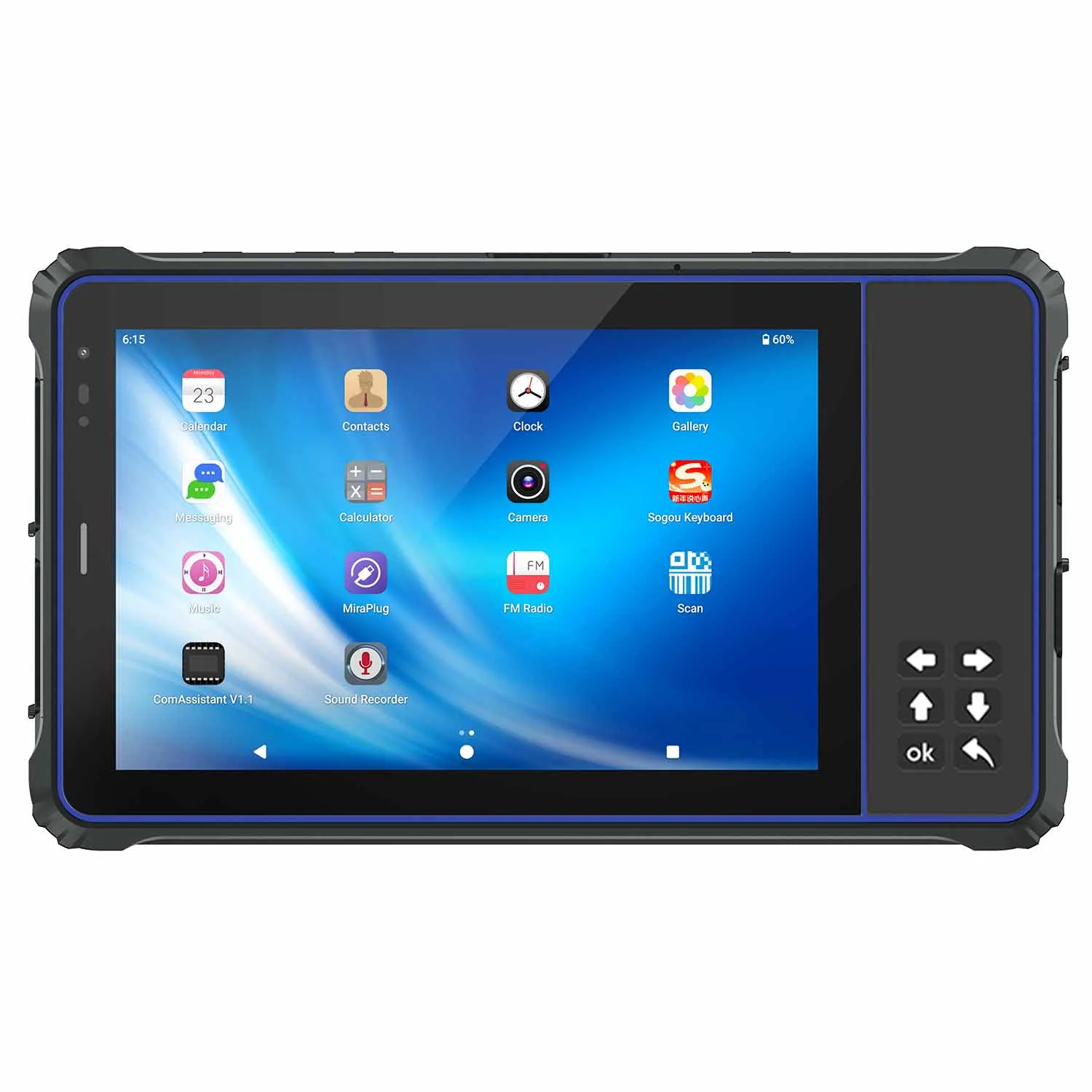

8" High-Res Display
Outdoor Clear Visibility
8" IPS 700cd/m² 1280×800/1920×1200 Optional
8-inch IPS panel, standard 1280×800 resolution, optional upgrade to 1920×1200 HD, with 700cd/m² brightness clearly readable under direct sunlight. Supports medical rubber-glove touch, with wet-hand touch customizable: accurate clicks with gloves or wet fingers. G+G construction with AF anti-fingerprint coating, hardness ≥7H. At 749g with an 8-inch display, it is built for one-handed use over full shifts — roughly 35% lighter than a 10-inch rugged tablet. With the front-integrated card reader, the screen serves as both operation interface and card reader interface, completing all interactions on one screen. Brightness customizable to 1000cd/m² for extreme glare.
Technical Specifications
 CPU MTK6769 8 core 2.0GHZ |  System |  Storage 4GB+64GB / 8GB+128GB (TF up to 256GB) |  Display 8-inch IPS touch screen 1280*800 |
 NFC Optional (rear standard; front-mounted on request) |  One/Two dimensional code Optional Able to identify dirty 1/2 dimensional codes |  Cell 3.8v High voltage lithium battery10000mAh |  High frequency/ultra-high frequency module Optional Ultra thin integrated module |
 Navigation positioning GPS, Galileo GLONASS |  ID card identification Optional 2nd-gen ID card reader |  Interface Type -A、Type -C HDMI、POGO PIN |  Weight 258x150*22.5mm/749g |
 Card slot Micro SIM ×1 + TF ×1 |  Protection level Working temperature: -20 °C to 60°C Storage temperature:-30 °C to 70 °C Protection level: IP68 |  Camera Front 5MP |  Sensor Gravity sensing, compass, gyroscope, light sensing, distance sensing |
A80PT Andriod Rugged Tablet Details:
| Customized | 4+64G FHD Highlight |
| Support Up to 8+128G HD Highlight | |
| screen brightness | 700cd/㎡, can be customized1000cd/㎡ |
| TP touch screen | Anti-fingerprint (AF) coating,5-point touch G+G, hardness ≥7H Support for medical rubber glove touch screen (customizable wet hand touch screen) |
| Gravity sensor | Support |
| Compass | Support |
| Gyro | Support |
| Light-sensitive | Support |
| distance sensing | Support |
| FM Radio | Support |
| WIFI | WIFI 802.11(a/b/g/n/ac) Frequency 2.4G+5.8G WIFI5 Customisable Wi-Fi 6 |
| Bluetooth | Bluetooth 5.2 (BLE), Class 1, range 10m |
| TYPE-C | *1 Type-C USB2.0, PD33W 11V/3A fast charging, adapt OTG |
| Type -A | *1 Type-A USB2.0 |
| Earphone Jack | *1 3.5mm standard headphone jack |
| TF Card | *1 Maximum support 256GB expansion |
| SIM Card | *1 Standard Micro SIM card slot |
| HDMI | *1 Micro HDMI |
| DC port | *1 5V-3A（DC plug: Outer diameter 3.5mm, Inner diameter 1.35mm） |
| POGO PIN | *1 12Pin USB+charger |

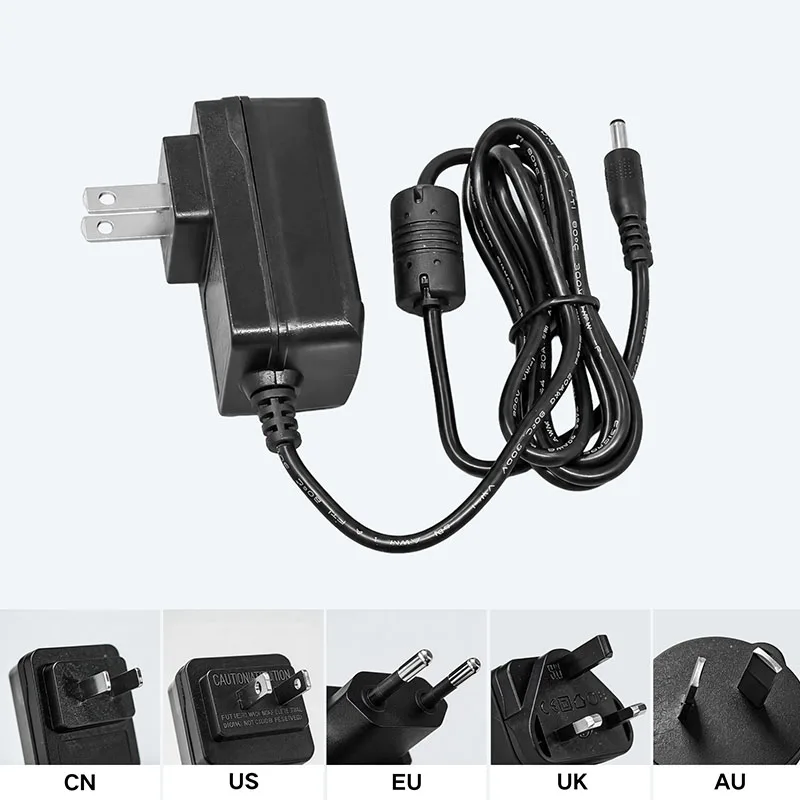

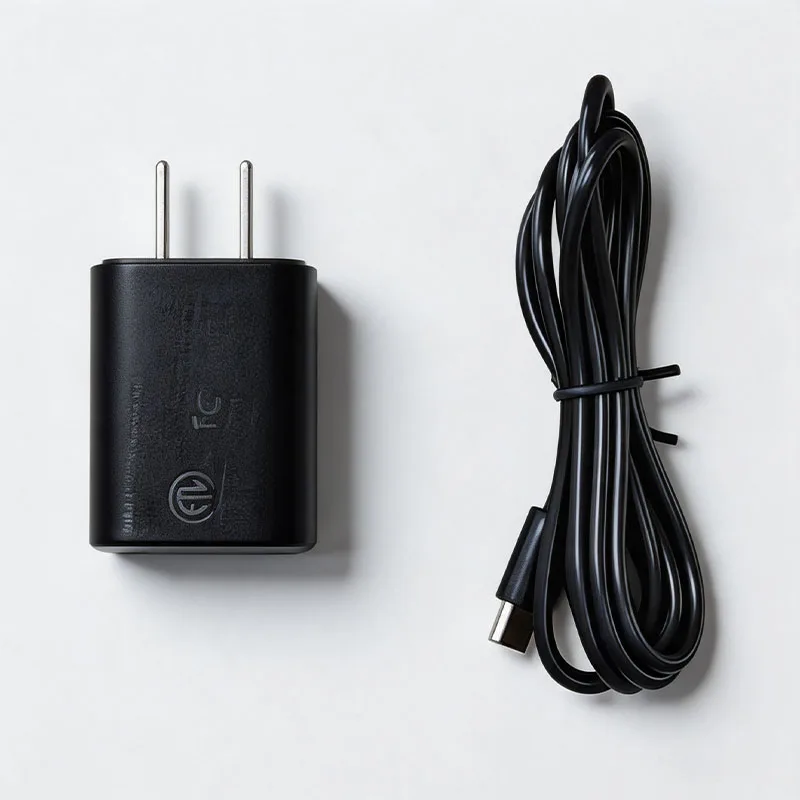

| Adapter | Type-C 30W Rapid Power Adapter/5V-3A,DC interface adapter（Optional) |
Frequently Asked Questions about A80PT Android Rugged Tablet
1: How much does the A80PT weigh, and can it be used one-handed?
A80PT weighs 749 g and measures 258×150×22.5 mm. That makes it roughly 35% lighter than a 10-inch rugged tablet, which is why it is the right choice when operators hold the device for a full shift — field inspection, delivery, ticketing, and mobile inventory.
2: What processor does the A80PT use?
The A80PT runs a MediaTek MTK6769 octa-core processor (2× Cortex-A75 @2.0GHz + 6× Cortex-A55 @1.7GHz), available with 4 GB + 64 GB or 8 GB + 128 GB, plus a TF card slot supporting up to 256 GB.
3: What is the IP rating of the A80PT?
The A80PT is rated IP68 to IEC 60529 — fully dust-tight and protected against continuous immersion. Operating temperature is Working temperature -20℃~60℃ （custom-30℃~60℃）and Storage temperature -30℃~70℃ （custom-40℃~70℃）
4: Is the A80PT drop-tested?
Meets the requirements of MIL-STD-810H for the 1.22-meter drop test
5: What is the screen resolution, and can it be upgraded?
The standard A80PT display is an 8-inch IPS panel at 1280 × 800, 700 cd/m², with glove touch and wet touch support. For volume orders, CENAVA can supply a 1920 × 1200 panel and a 1000 cd/m² sunlight-readable option.
6: Does the A80PT have a barcode scanner or RFID?
Both are optional modules. Available on request: 1D/2D barcode scanning (reads damaged and dirty codes), NFC (rear by default, front-mounted on request), HF / LF / UHF RFID, ID card reader, and fingerprint recognition. Specify which modules you need when requesting a quote.
7: How long does the battery last?
The A80PT carries a 10000mAh, 3.8v high voltage lithium battery, non-removable, battery life ≥10h (Play 1080P HD video, 50% brightness and 50% sound) Supports custom large battery (20000mAh/3.8V)
8: Which Android version does the A80PT run, and how long is it supported?
The A80PT ships with Android 16
9: What ports does the A80PT have? Does it support RS232 or Ethernet?
The A80PT includes USB Type-A, USB Type-C, HDMI, and POGO pin connectors, plus SIM and TF card slots. It includes a 100M RJ45 Ethernet port onboard, but no RS232 serial port. For native RS232, use the A10ST (RJ45 + RS232 built in), or ask about OEM port customization.
10: Should I choose the 8-inch A80PT or a 10-inch model?
Choose the 8-inch A80PT when the operator carries the device all day — at 749 g it is significantly lighter and easier to hold one-handed. Choose a 10-inch model (A10R, A10ST, A109T) when the operator needs screen area for WMS forms, drawings, or split-screen work, or needs native RS232/RJ45, a higher-resolution display as standard, or a newer Android release. Vehicle-mounted and workshop deployments almost always want 10 inch; walking, inspection, and delivery deployments almost always want 8 inch.

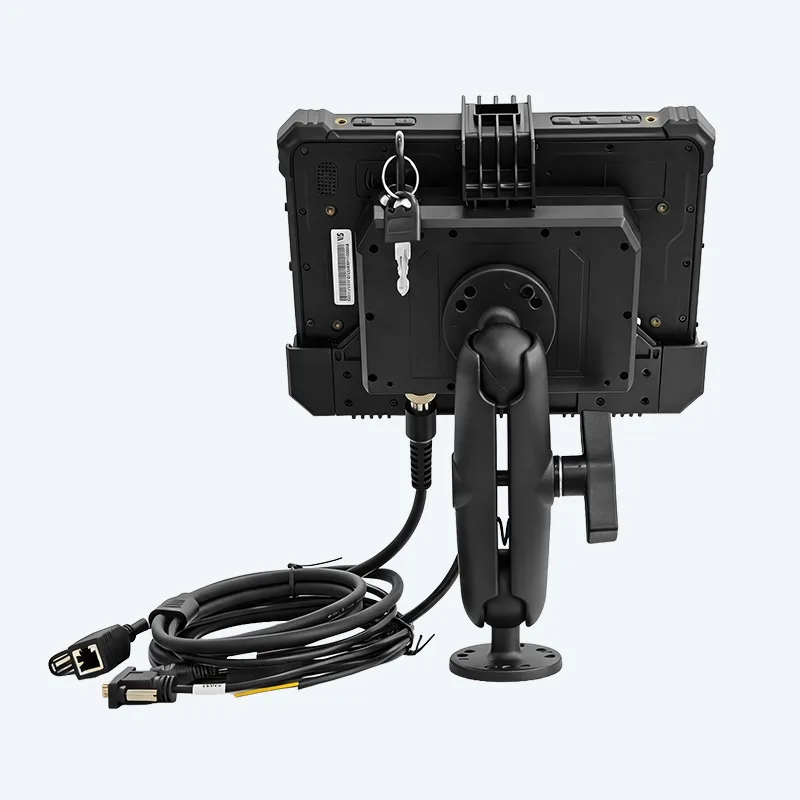

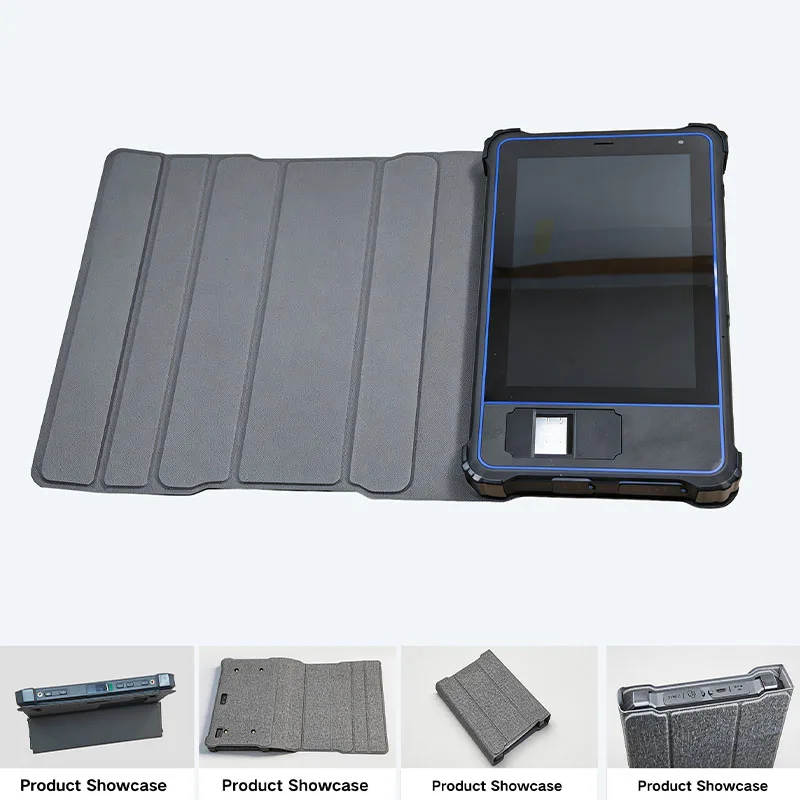

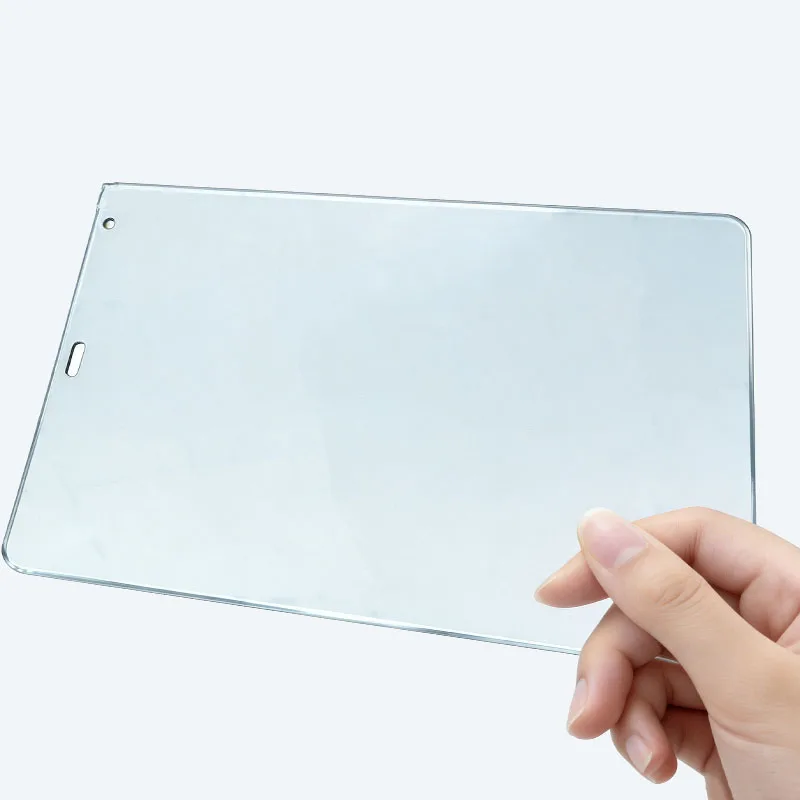

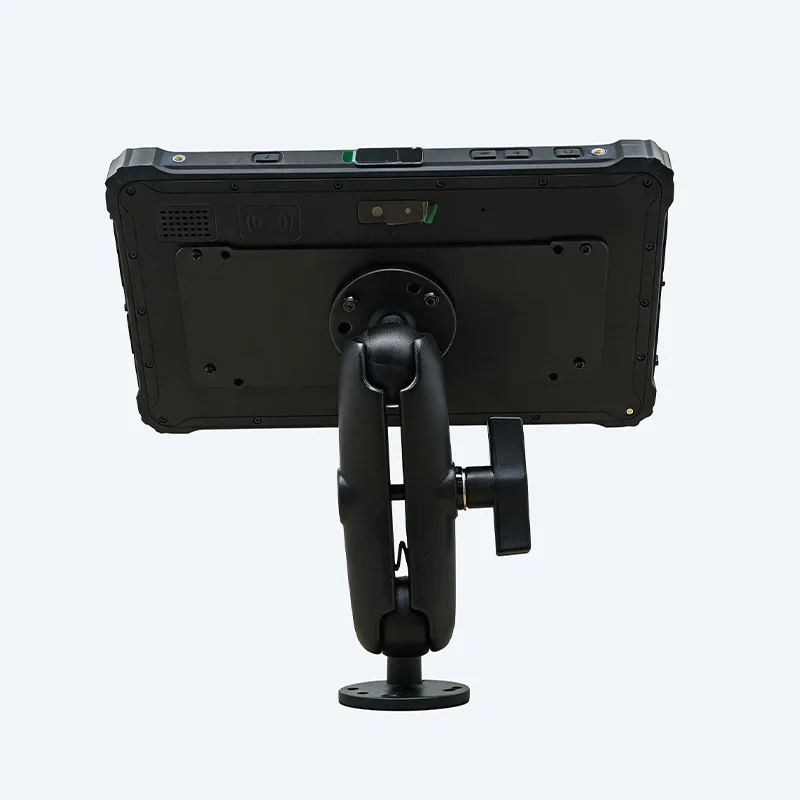

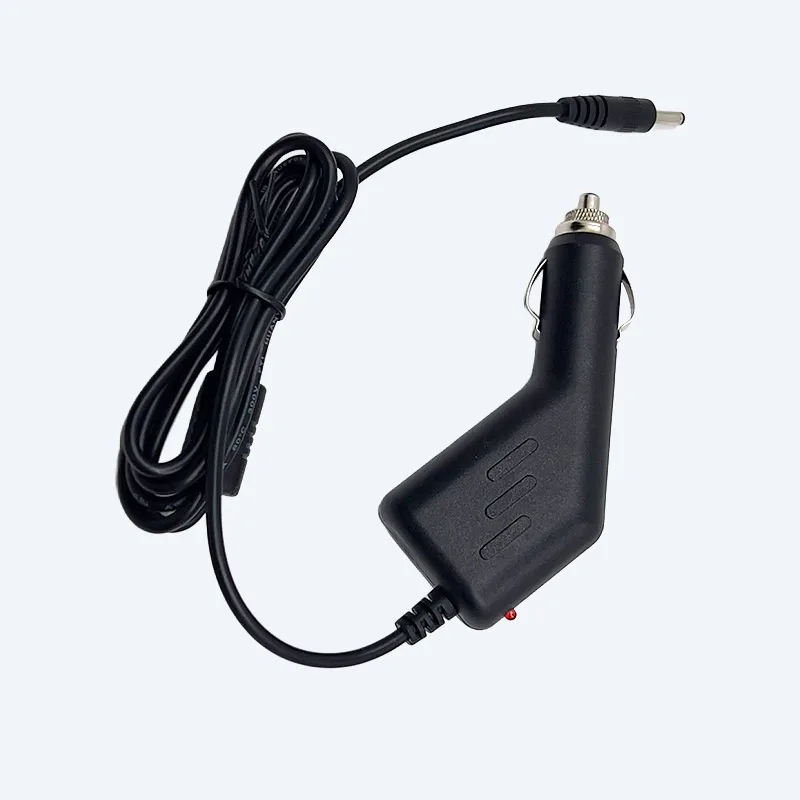

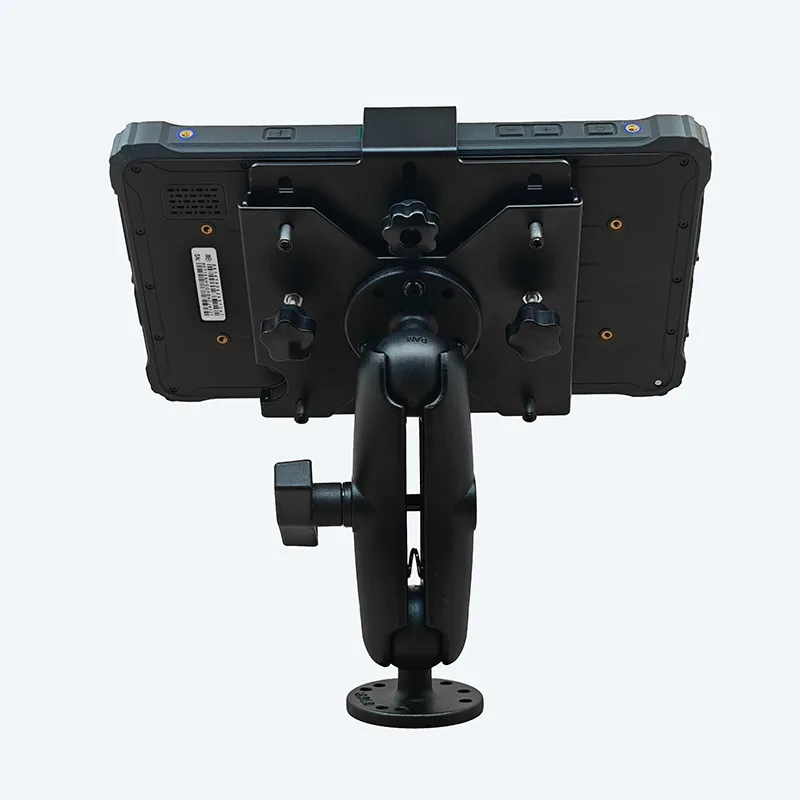

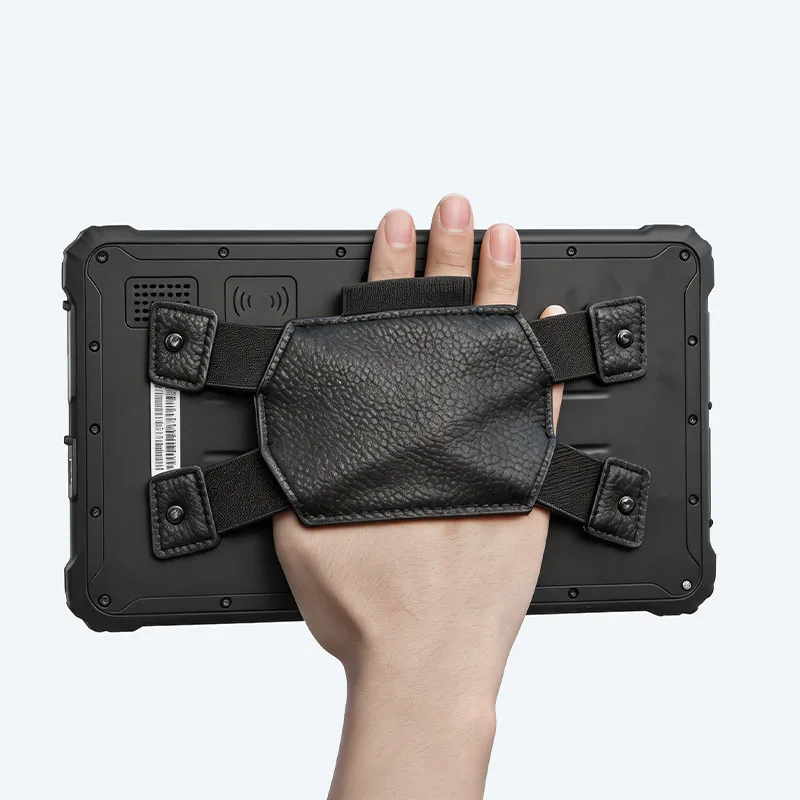

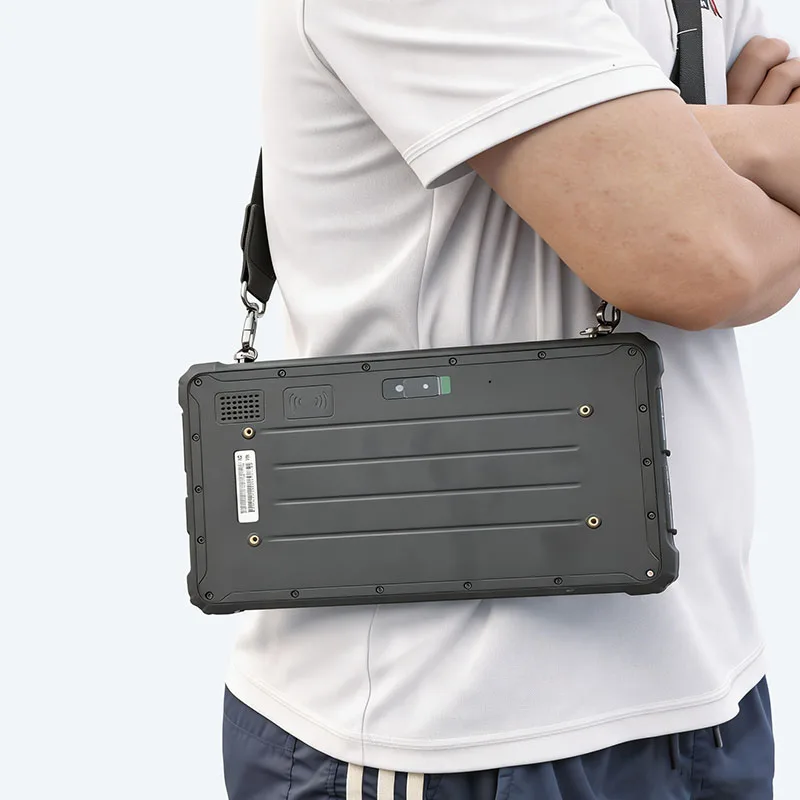

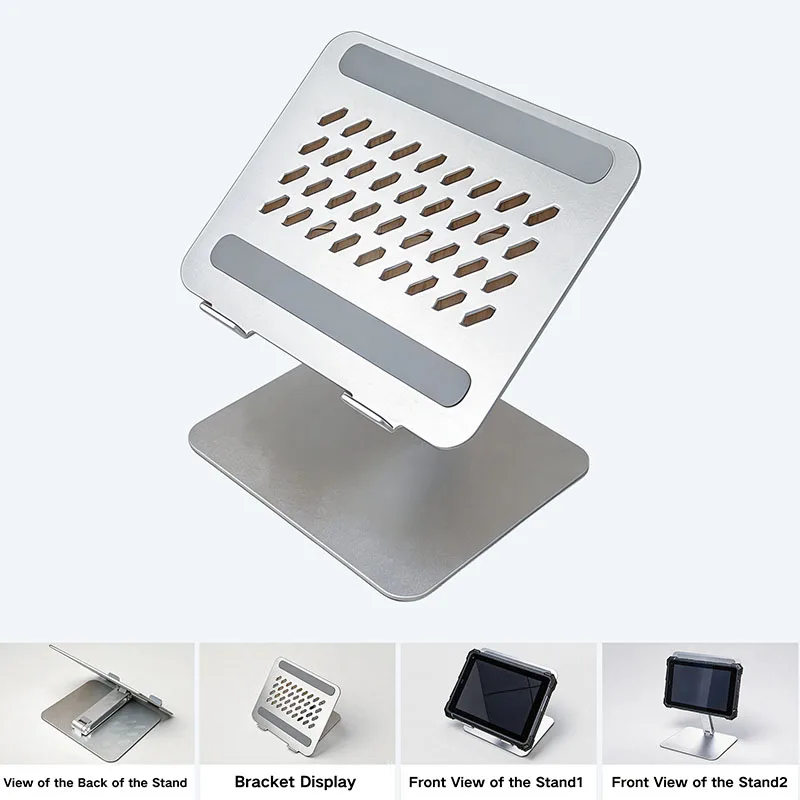

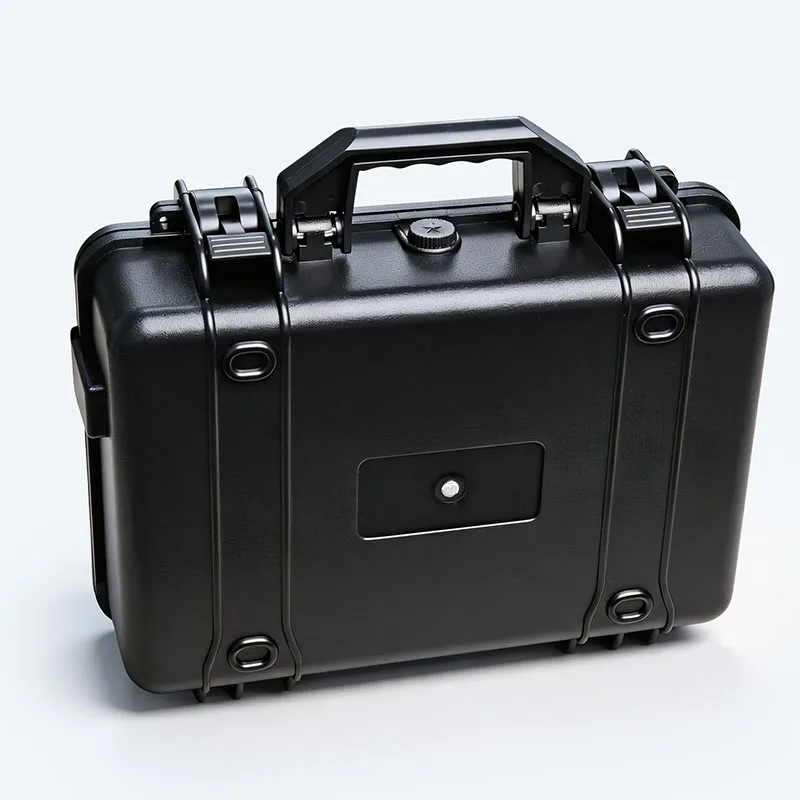

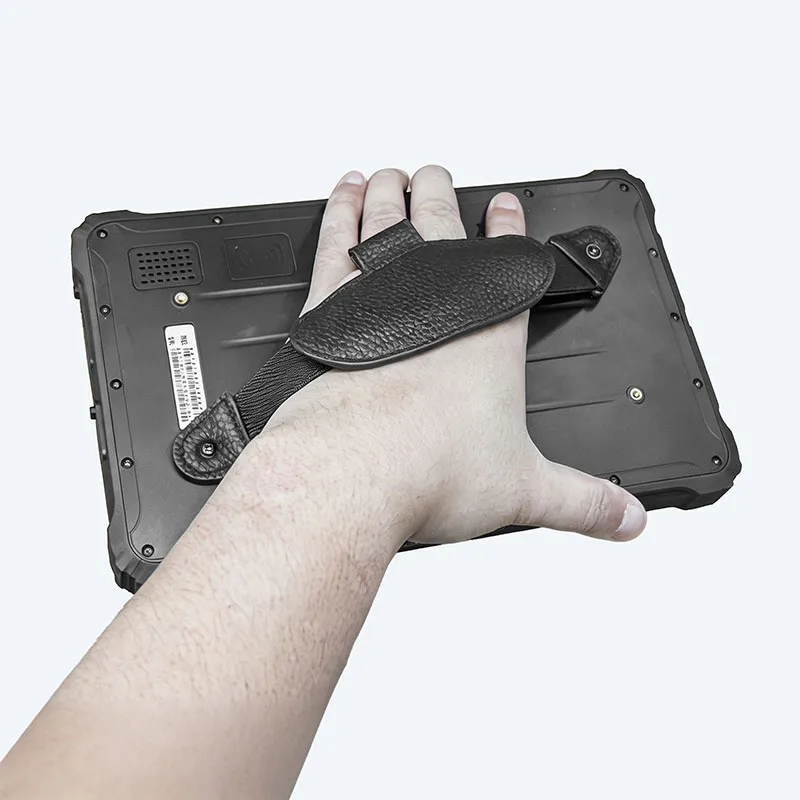

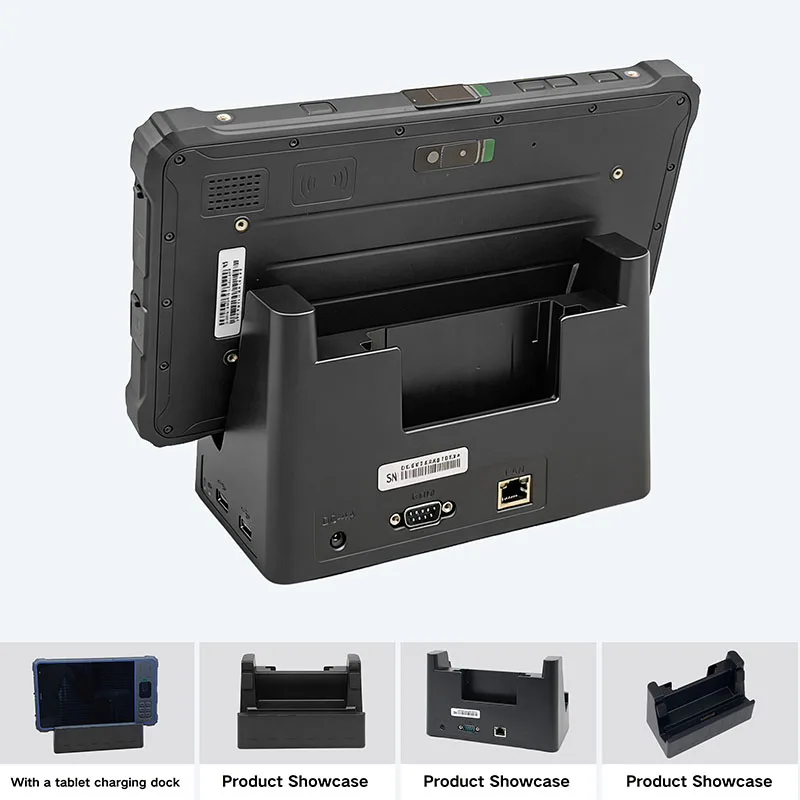

Accessories
