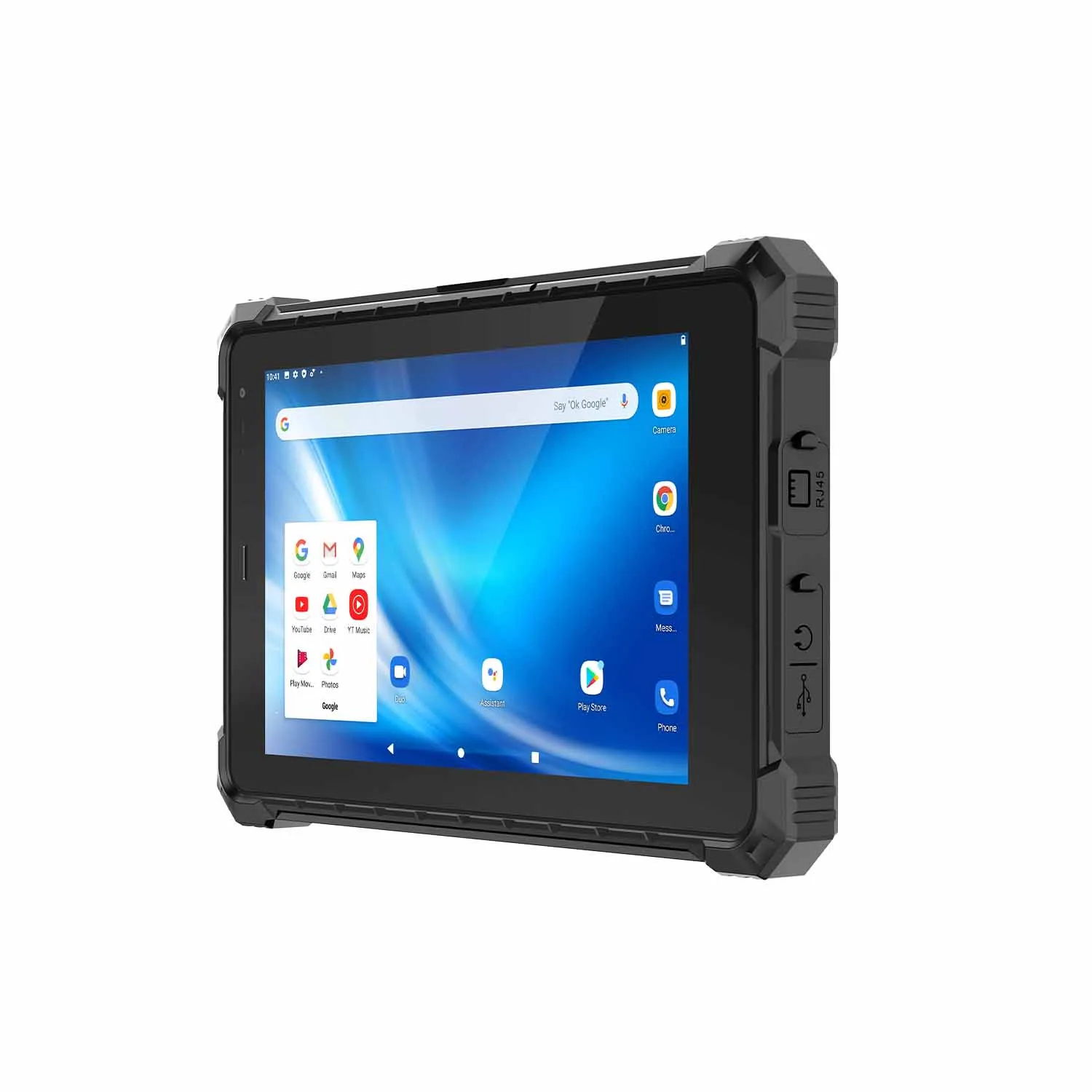

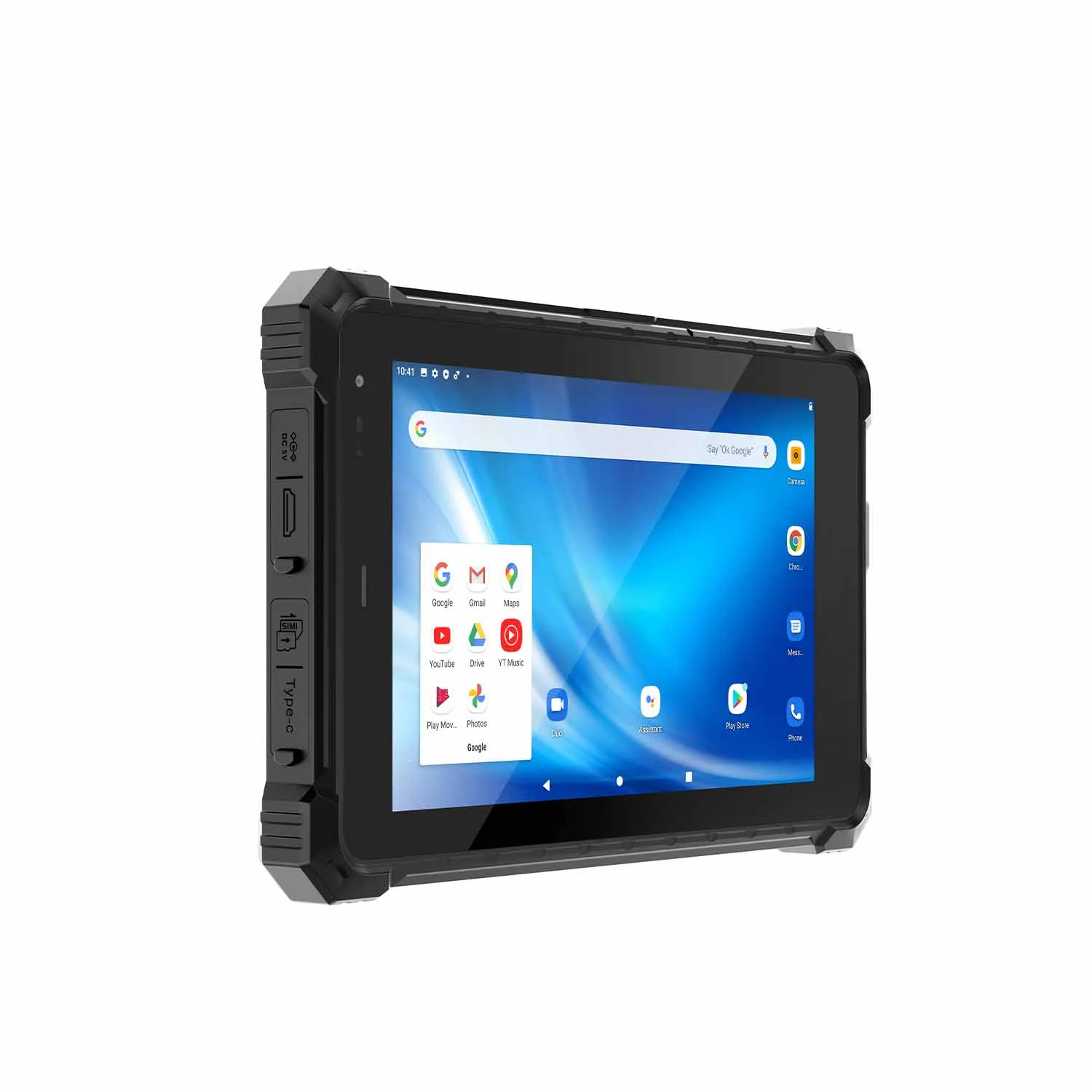

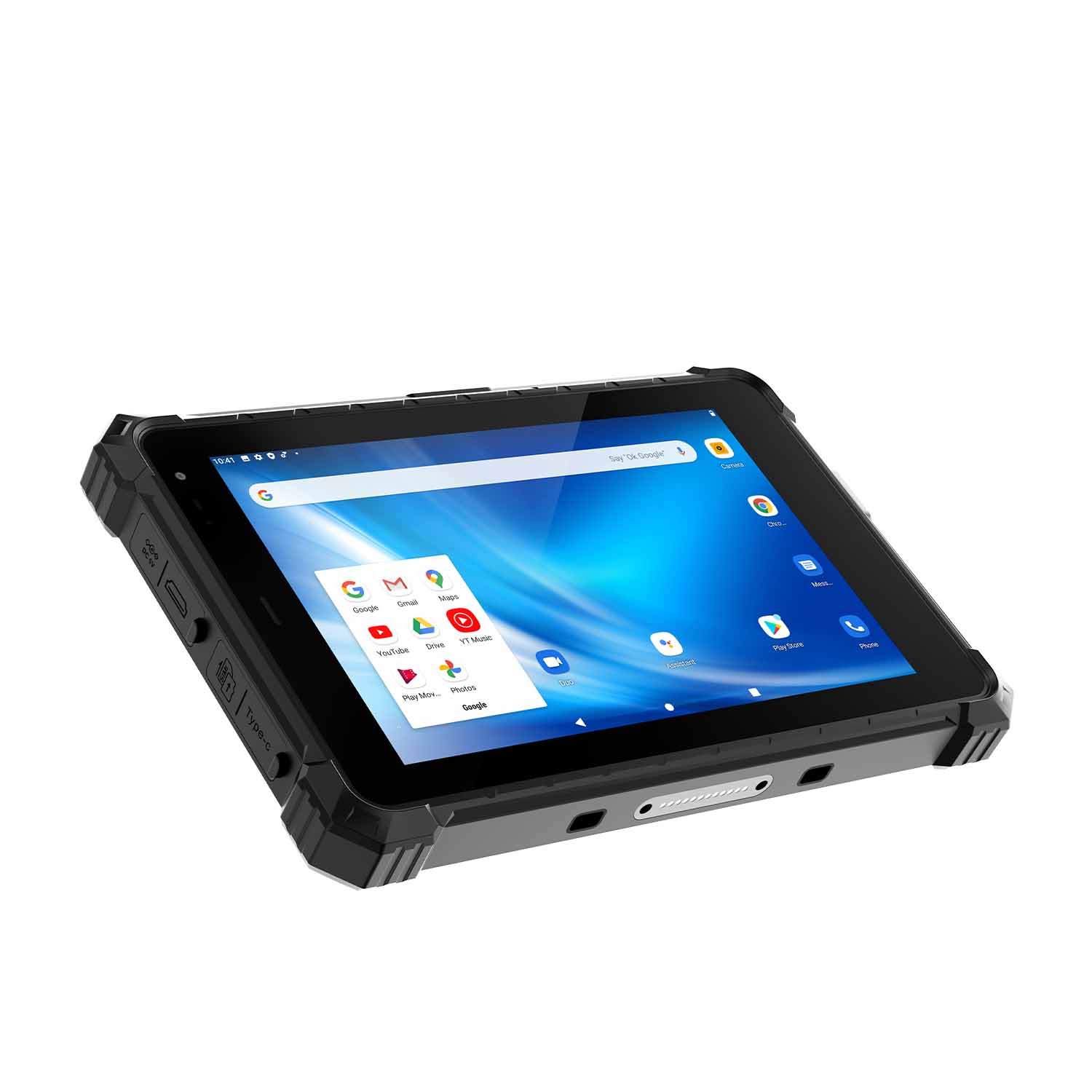

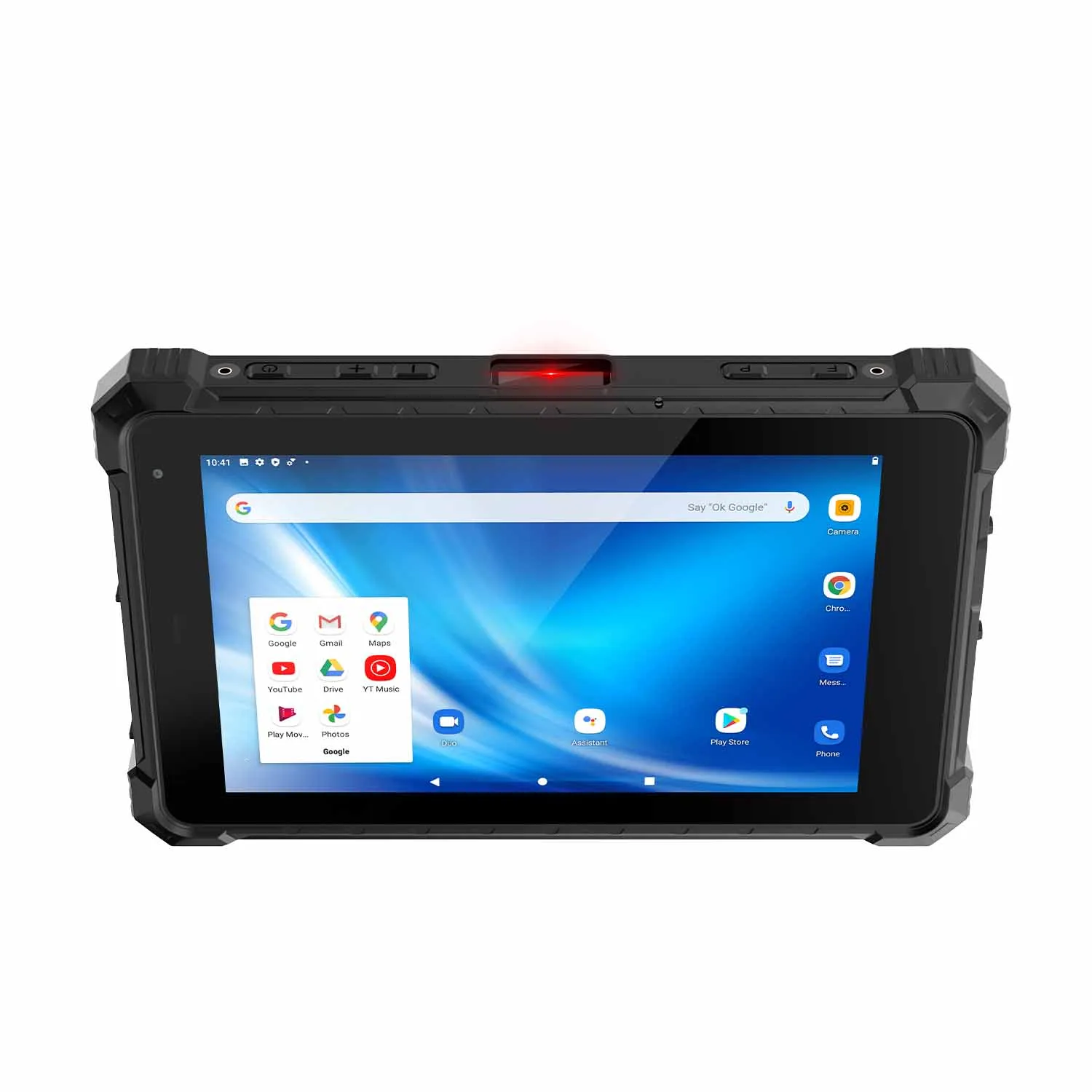

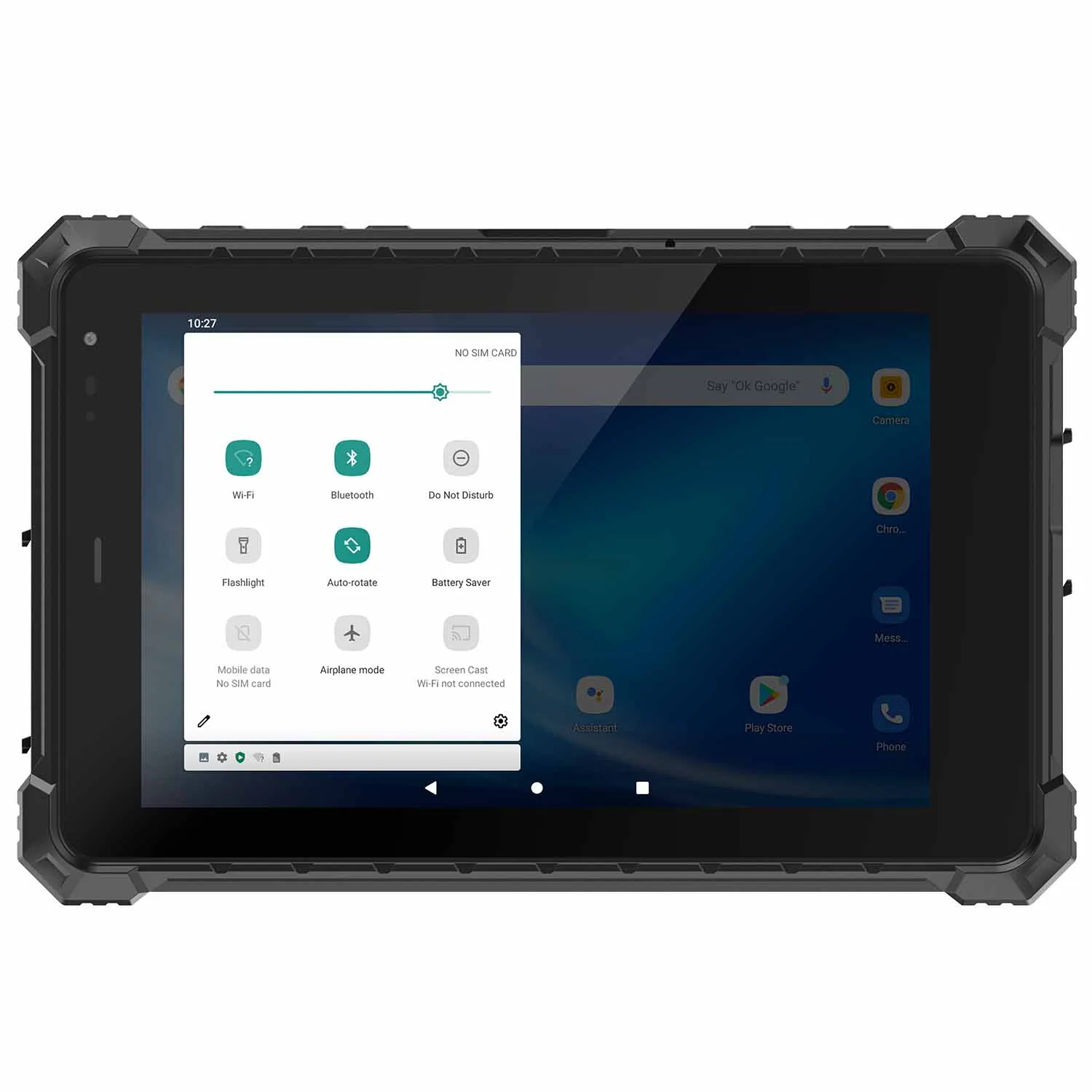

CENAVA A80ST-5G MT6877 8 Inch Android 12 IP68 Rugged Tablet
CENAVA A80ST-5G is a compact 8-inch Android rugged tablet designed for mobile inspection, field communication, asset management, warehouse supervision and industrial data collection.MediaTek MT6877 octa-core 5G platform with Android 12, 8GB RAM and 128GB internal storage. An 8GB+256GB configuration and an Android 15 project image are available for qualified deployments.
CPU: MediaTek MT6877 (Dimensity 900) octa-core, 2×Cortex-A78 @2.4GHz + 6×Cortex-A55 @2.0GHz, fanless passive cooling
OS: Android 12 (optional Android 15)
Display: 8" IPS 1920×1200 / 1280×800, 700cd/㎡ (customizable 1000cd/㎡), 10-point G+G glove touch, hardness ≥7H, optional wet-hand touch
RAM/ROM: 8GB+128GB (optional 8GB+256GB)
Integrated I/O: RJ45 (100M), Type-C (USB2.0, OTG), USB-A, 3.5mm jack, DC 5.3V-3A, 12Pin POGO, Micro SIM; optional Micro HDMI (customised)
Network: 5G, WiFi 6 dual-band, Bluetooth 5.2
Camera: Front 8MP fixed focus (customizable 16MP), rear 16MP auto focus with flash (customizable 48MP)
Battery: Built-in 10000mAh 3.8V, ≥10h endurance (optional custom 20000mAh pack)
Protection: IP68, MIL-STD-810H 1.22m drop, -20°C~60°C
Optional Modules: 2D scanner, fingerprint, ID card reader, UHF RFID, LF 125kHz, RTK cm-level positioning; NFC standard
Dimensity 900 Efficiency
Cool Through the Whole Day
MT6877 2.4GHz Octa-Core Android 12
The MediaTek Dimensity 900 octa-core balances muscle and mileage with two Cortex-A78 cores at 2.4GHz and six Cortex-A55 at 2.0GHz, running Android 12 (optional Android 15)—dispatch, navigation, scanning and imaging in parallel without stutter. Fanless passive cooling keeps the 8-inch body silent and dust-proof even through hours of 5G streaming. Standard 8GB+128GB, optional 8GB+256GB, plus TF expansion up to 1TB holds vast offline data and footage. A 16MP autofocus rear camera with flash (48MP customizable) and 8MP front (16MP customizable) keep handovers and remote consults sharp.
No Shade-Hunting Outdoors
Gloved Taps Stay True
8-inch IPS 700cd/m² HD Optional
Noon yards and backlit cabins make outdoor reading a real skill. The 8-inch IPS panel's 700cd/m² brightness overpowers ambient light, offered in 1280×800 or 1920×1200 to fit the job—waybill barcodes and e-signature sheets read at a glance, with 1000cd/m² ultra-bright customization for batches. G+G 10-point glove touch keeps handling gloves on while signing accurately; ≥7H hardness resists keys and grit; wet-hand touch is optional for rain and snow. One hand grips the 8-inch body while the other steadies cargo aboard—mobility, maximized.
Storm and Shake Proof
Bred for Mobile Duty
IP68 1.22m Drop -20°C~60°C

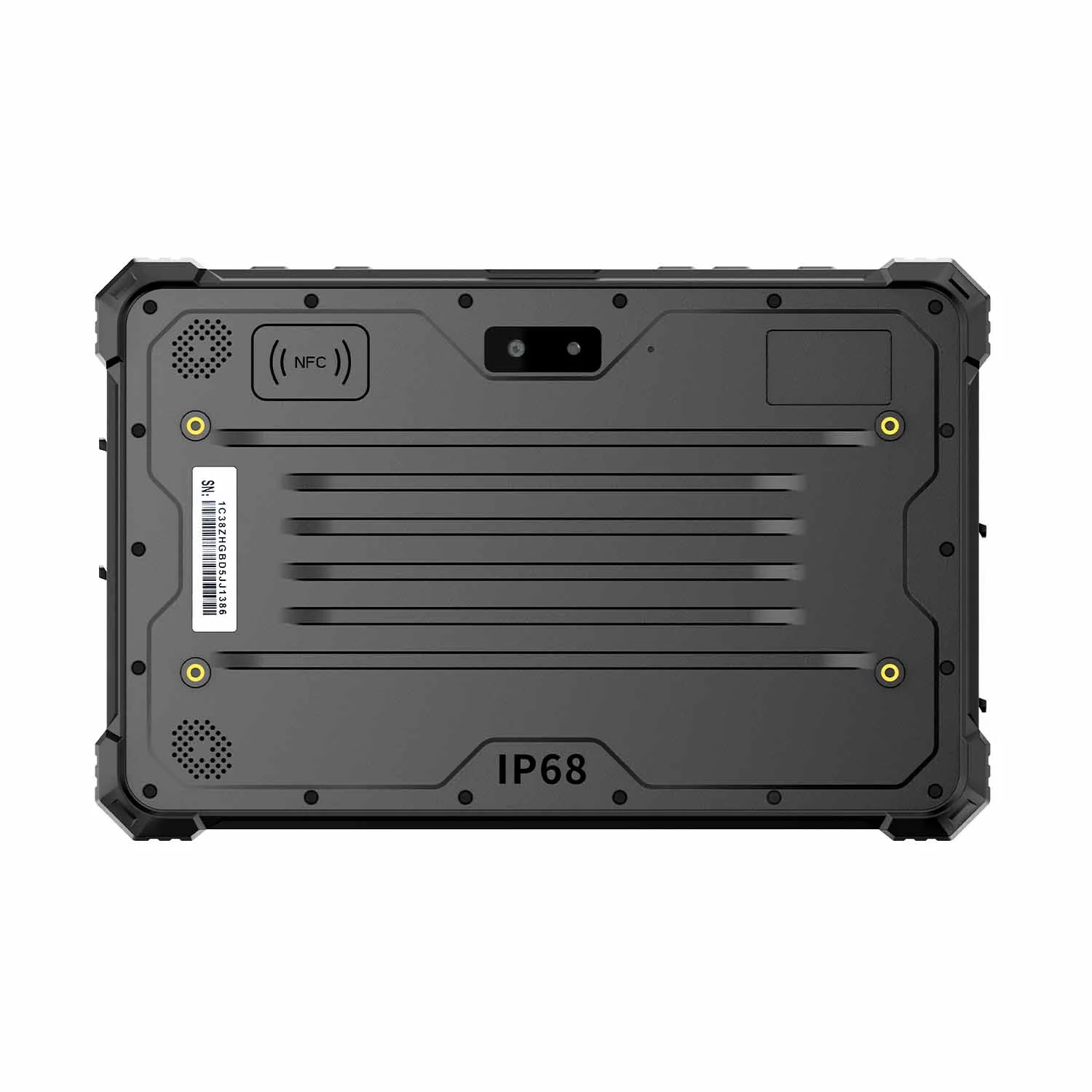

Mobile work is harsh because conditions change daily: a rainy yard today, a dusty warehouse tomorrow. The A80ST-5G answers with IP68 sealing and MIL-STD-810H 1.22m drop certification, operating from -20°C to 60°C across seasons. Its built-in 10000mAh 3.8V battery lasts ≥10 hours—a full day out without hunting outlets—and a 20000mAh custom pack covers longer shifts. The sealed, fanless chassis has no loose parts to rattle in vibrating cabs, staying steady through years of bumps: a specialist raised on mobile duty.
5G Keeps You Live
Connected Across the Park
5G Network WiFi 6 Dual-Band Bluetooth 5.2
Vast logistics parks and port yards outgrow any WiFi footprint, and the A80ST-5G closes the gap with cellular 5G: HD video calls, live positioning and cargo imagery stream to dispatch in real time—decisions no longer wait for the office. Dual-band WiFi 6 delivers high-speed access indoors, Bluetooth 5.2 steadies printers and peripherals, and a built-in RJ45 (100M) port switches fixed posts onto the wired control network. The Dimensity 900 balances network throughput against power draw, staying cool and connected through long mobile shifts—every minute in the system's sight.
Technical Specifications
 CPU MediaTek MT6877 Octa-core 2× Cortex-A78 at up to 2.4GHz |  System |  Storage 8GB + 128GB |  Display 8 inch IPS touch screen 1920*1200 Resolution 700cd/㎡ Supports wet touch screens and glove touch screens |
 NFC Optional Can be equipped with PSAM recognition |  One/Two dimensional code Optional Able to identify dirty 1/2 dimensional codes |  Battery Built-in 3.8V 10000mAh |  High frequency/ultra high frequency Optional |
 Navigation positioning GPS, GLONASS,Galileo |  Iris recognition/infrared Optional |  Interface USB 2.0 Type-C with OTG, USB 2.0 Type-A, RJ45 100Mbps |  Weight 232.2mm*151.3mm *24.5mm/775g |
 Physical Keys Power, volume up/down, P key and F key |  Protection level working temperature: -20 °C to 50 °C Storage temperature: -40 °C to 70 °C Protection level: IP68 |  Camera Front camera：8MP Rear camera：16MP（Auto focus, flash） |  Sensor Gravity sensing, compass, gyroscope, light sensing, distance sensing |
| Product Type | Slim IP68 5G Android data-collection tablet |
| Tp touch screen | Anti-fingerprint (AF) coating,10-point touch G+G, hardness ≥ 7H, support for medical rubber gloves touch screen (can be customised wet hand touch screen) |
| Gravity sensor | Support |
| compass | Support |
| Gyro | Support |
| Light sensor | Support |
| Distance sensor | Support |
| WIFI | WIFI 802.11(a/b/g/n/ac/ax) Frequency 2.4G+5.8G Dual frequency WIFI support WIFI 6 |
| Bluetooth | Bluetooth 5.2 (BLE) class1 transmit distance：10m |
| LF（custom function） | support 125kHz distance:1-3cm |
| Connection | support 2G/3G/4G/5G and HSPA Compatible |
| TYPE-C | *1 Type-C USB2.0 adapt OTG |
| Type -A | *1 Type-A USB2.0 |
| Earphone Jack | *1 3.5mm Standard Earpiece jack |
| SIM Card | *1 Standard Micro SIM card slot |
| DC jack | *1 5.3V/3A (Plug size: 3.5mm OD / 1.35mm ID) |
| RJ45 jack | *1 100M |
| POGO PIN | *1 12Pin USB+Charge |
| HDMI port (customised) | *1 micro HDMI |

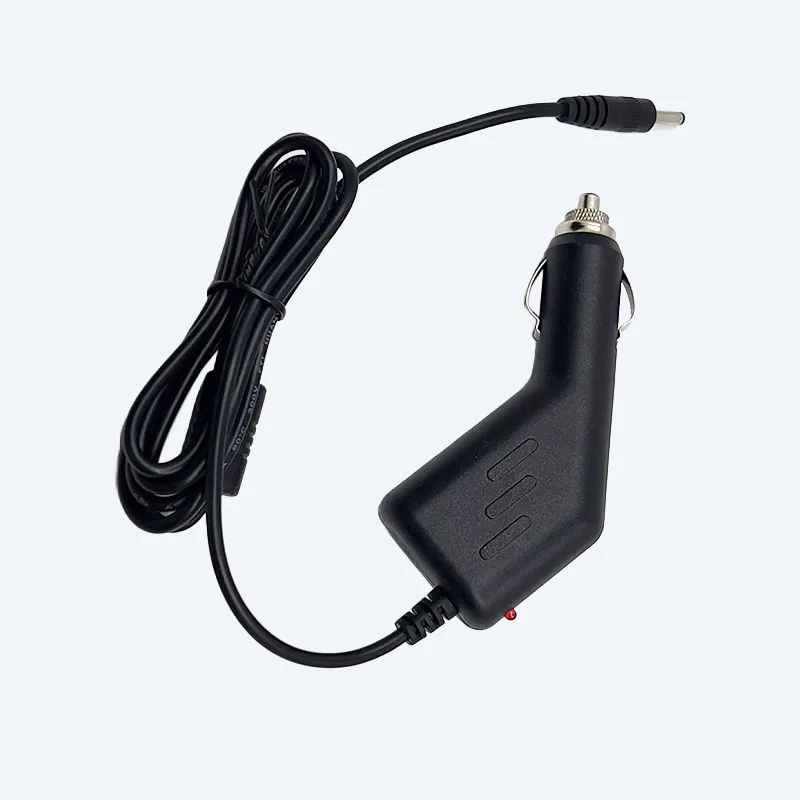

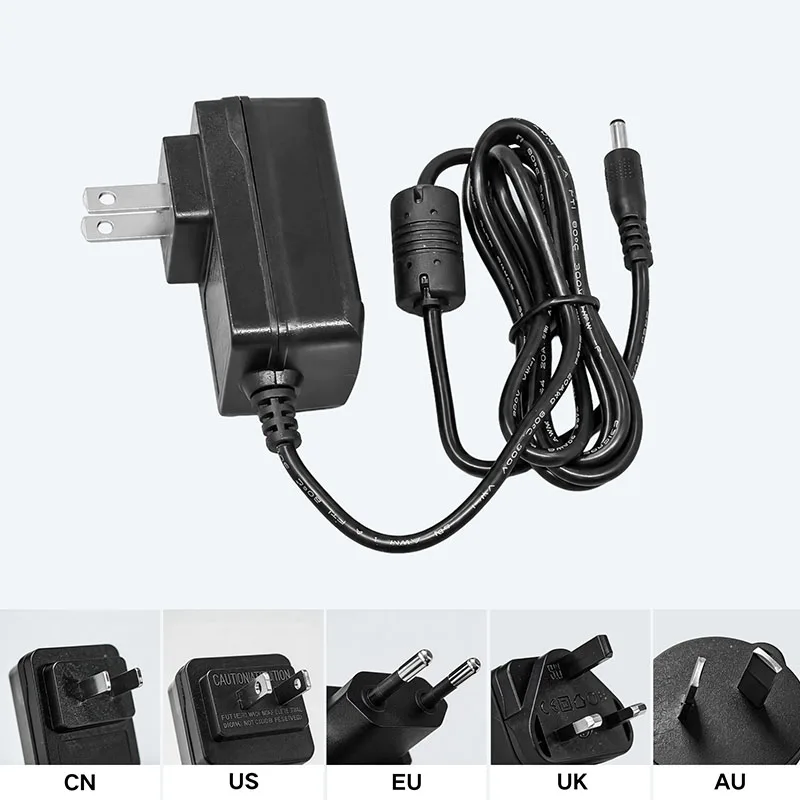

| Adaptor | 5.3V/3A，DC interface adapter |

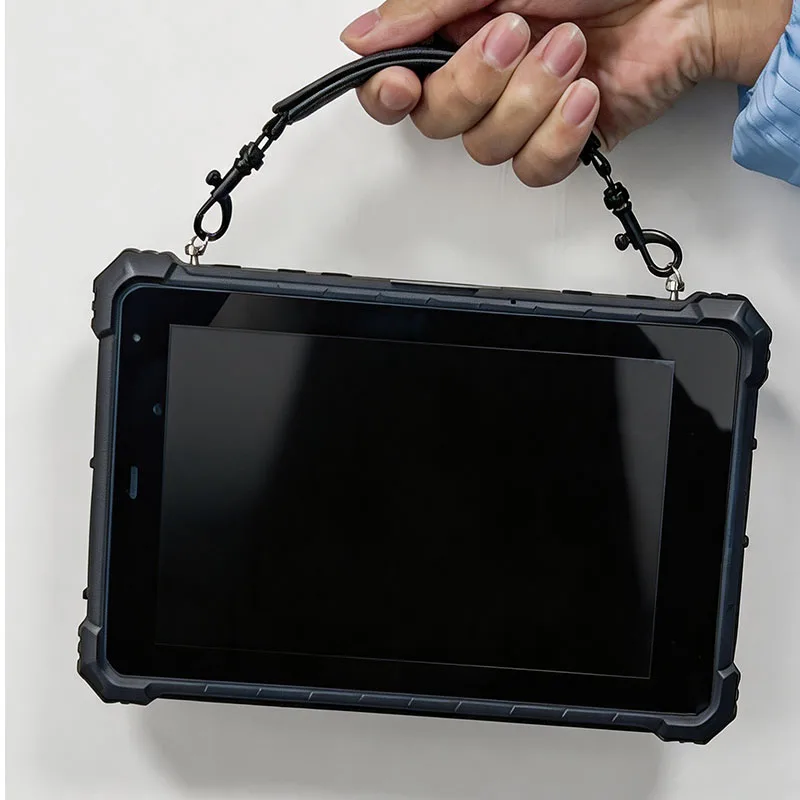

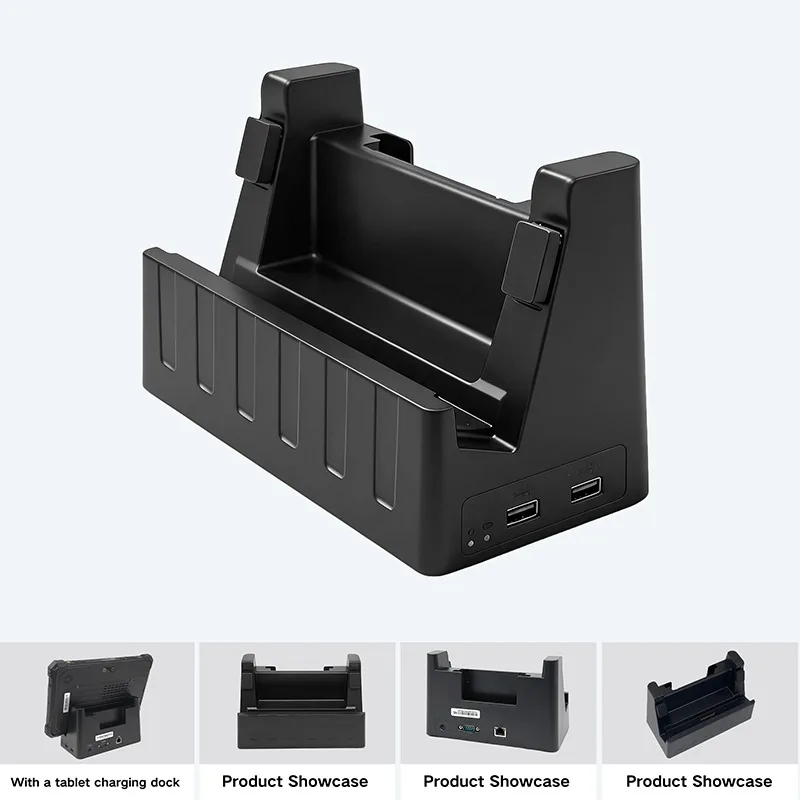

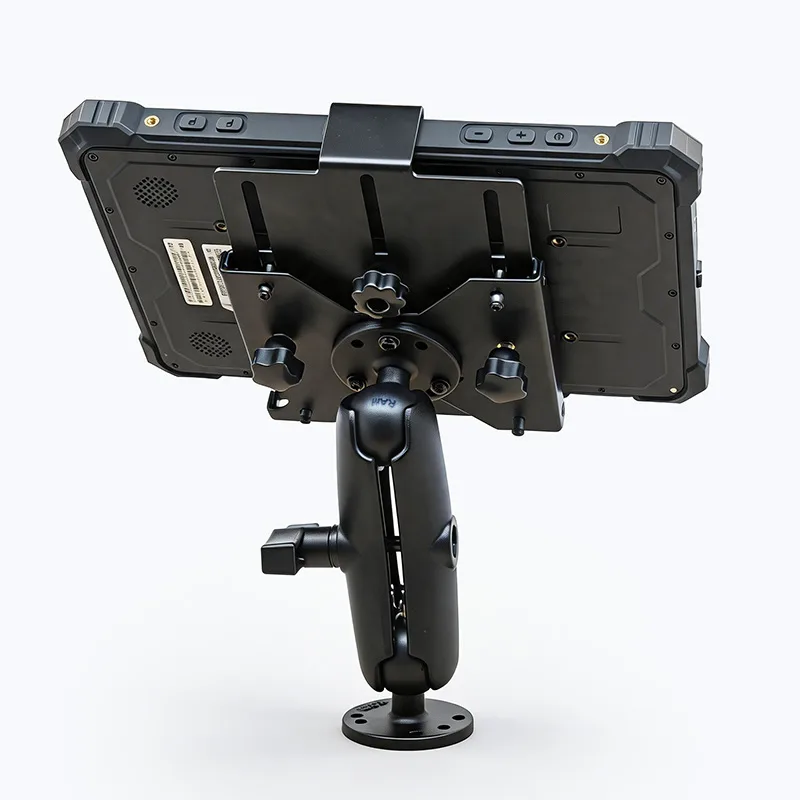

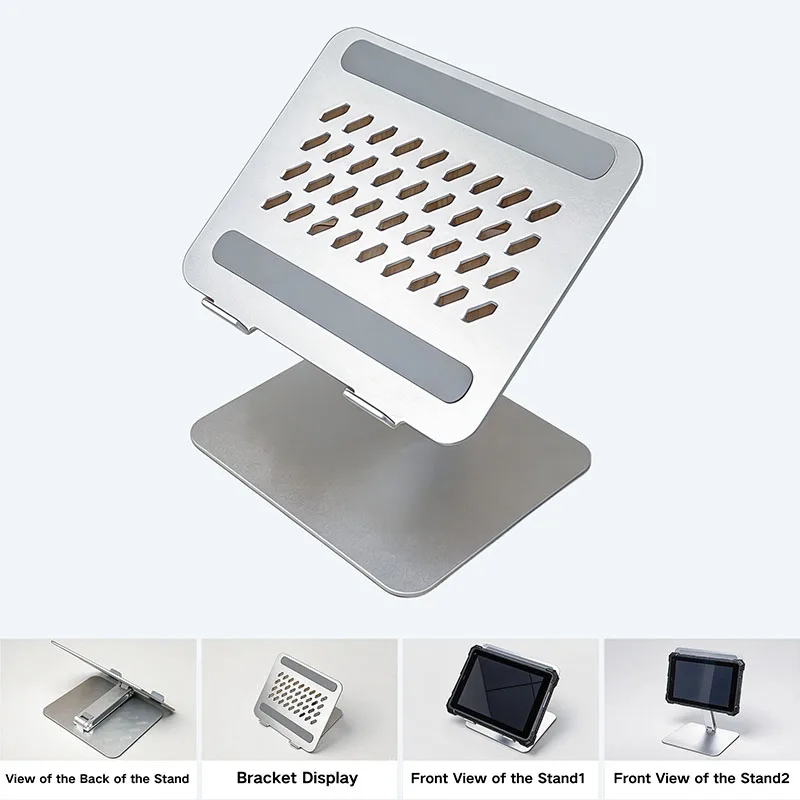

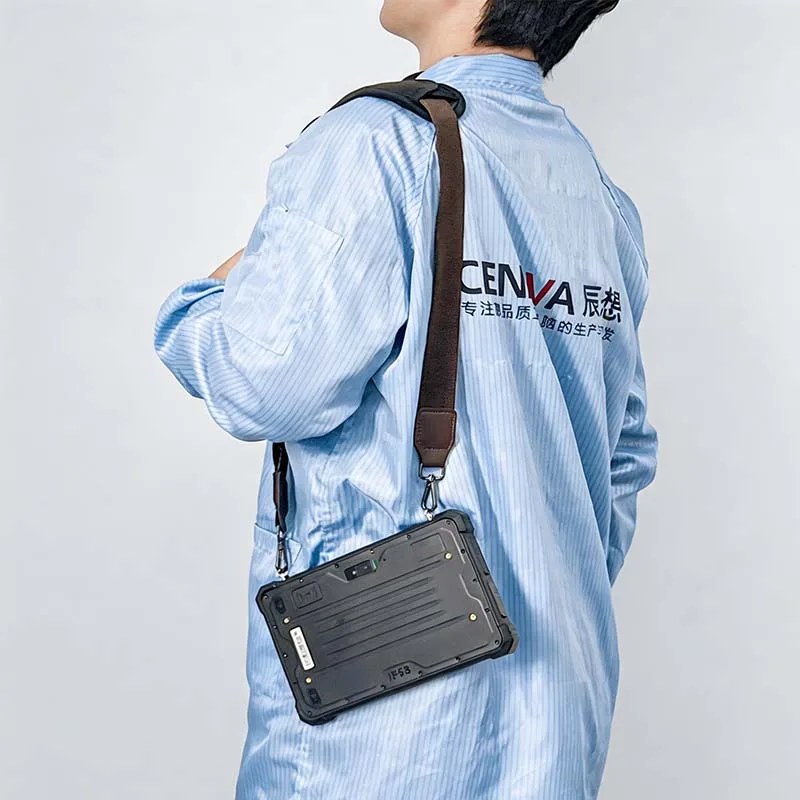

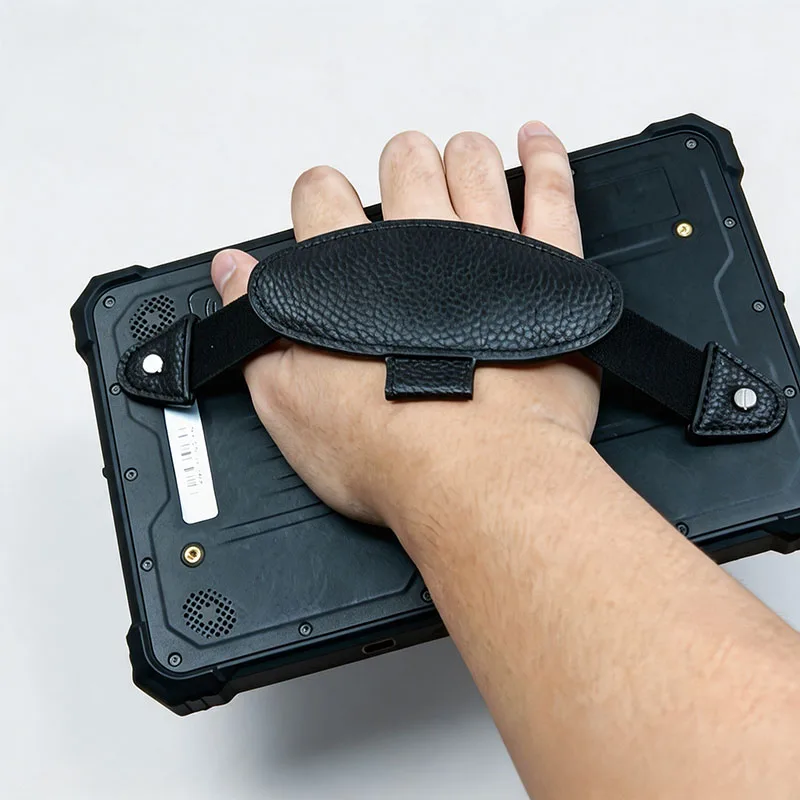

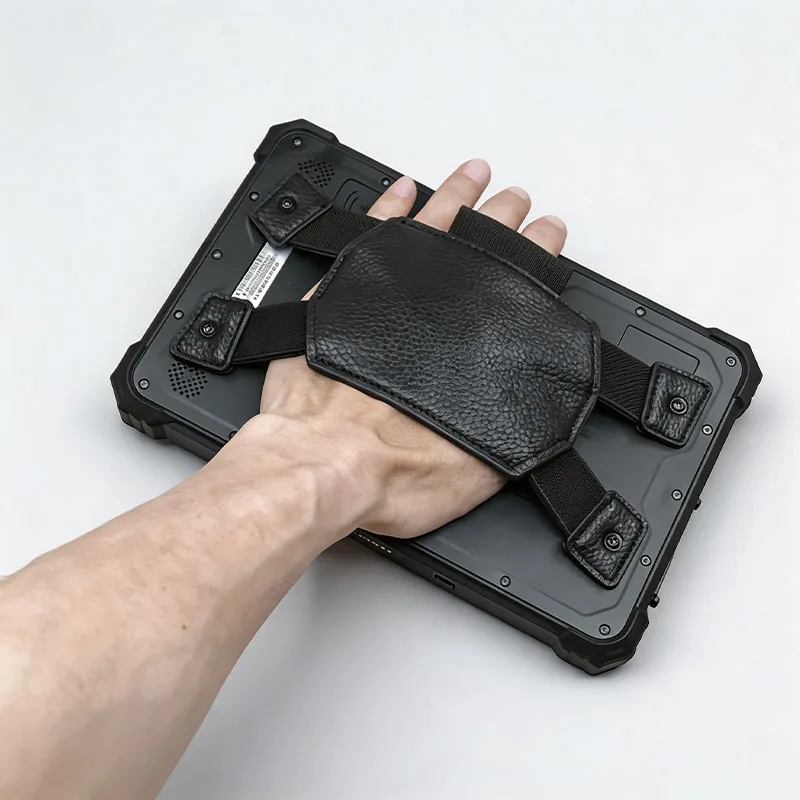

| Option accessories | Strap/charging base/stand |
The A80ST-5G packs our 5G platform into a hand-held size. The fanless MT6877 (Dimensity 900) runs Android 12 — Android 15 optional — and the point of 5G here isn't speed tests: it's streaming inspection video and sensor data back to the control room in real time, from sites where Wi-Fi doesn't reach. IP68 sealing, a glove-and-wet-hand touchscreen and a 10,000mAh battery come standard; 2D scanning, UHF/LF RFID and a 20,000mAh extended battery are factory options.
Typical deployments: utility and plant inspection with live video, logistics scanning, and field data collection where an 8-inch screen beats both a phone and a 10-inch brick.
Frequently Asked Questions About A80ST-MT6877 Android Rugged Tablet
1. What is the A80ST-5G for?
Field inspection with live video. The 5G modem streams inspection footage and sensor readings back to the control room in real time, and the 8-inch IP68 body goes places a 10-inch tablet won't — utility sites, plant floors, logistics yards. If you don't need 5G, the 4G A80ST models cost less.
2. What platform does it run on?
MediaTek's MT6877 — the Dimensity 900: two Cortex-A78 cores at 2.4GHz, six Cortex-A55 at 2.0GHz, with Wi-Fi 6 and Bluetooth 5.2. Android 12 is the standard load; Android 15 is a factory option.
3. Does the touchscreen work with gloves and wet hands?
Gloves, yes — medical rubber gloves are supported as standard. Wet-hand touch is available as a factory option, so mention it when ordering if your crews work in rain or washdown areas.
4. What are the battery options?
Standard is a built-in 10,000mAh pack. There's also a 20,000mAh extended-battery build — but know the trade: it grows the body to about 38.3mm thick. If you'd rather swap slim batteries mid-shift, look at the A80STX-5G instead: same 5G platform, removable 9,400mAh pack, rated IP67.
5. What data-capture options are available?
Optional 2D scan engine, UHF RFID (3m, 5m or 15m builds), and a 125kHz LF reader good for 1–3cm. NFC is standard, covering ISO 14443A/B and ISO 15693. One note for integrators: this model has Ethernet (100M RJ45) but no RS232 — if your equipment talks serial, that's a customization conversation.
6. Is it really IP68?
Yes, with the standard sealed battery. Extended-battery and module builds can change the enclosure, so ask for the test report covering your exact configuration.

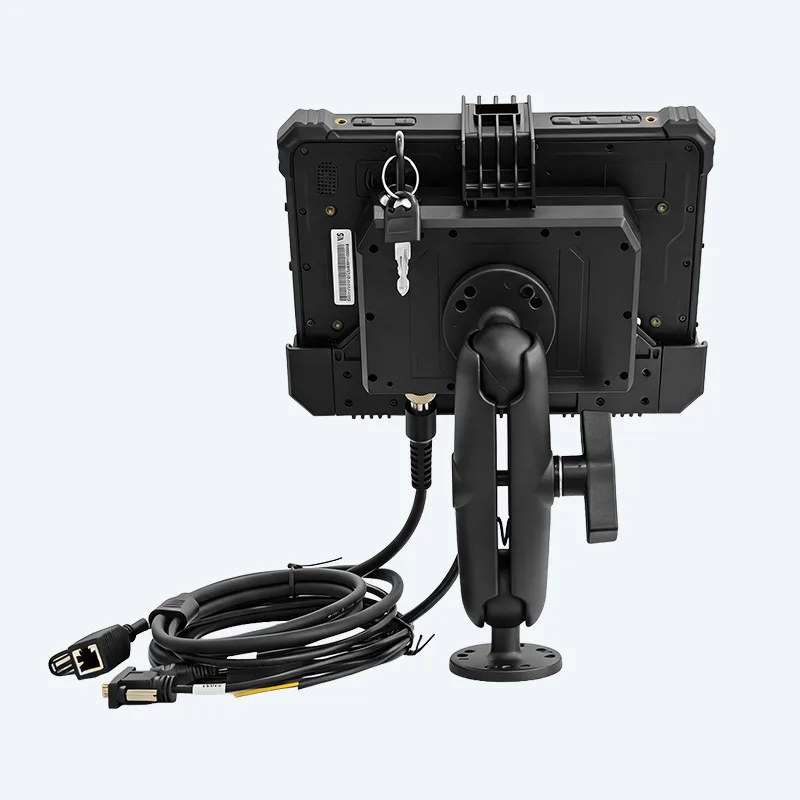

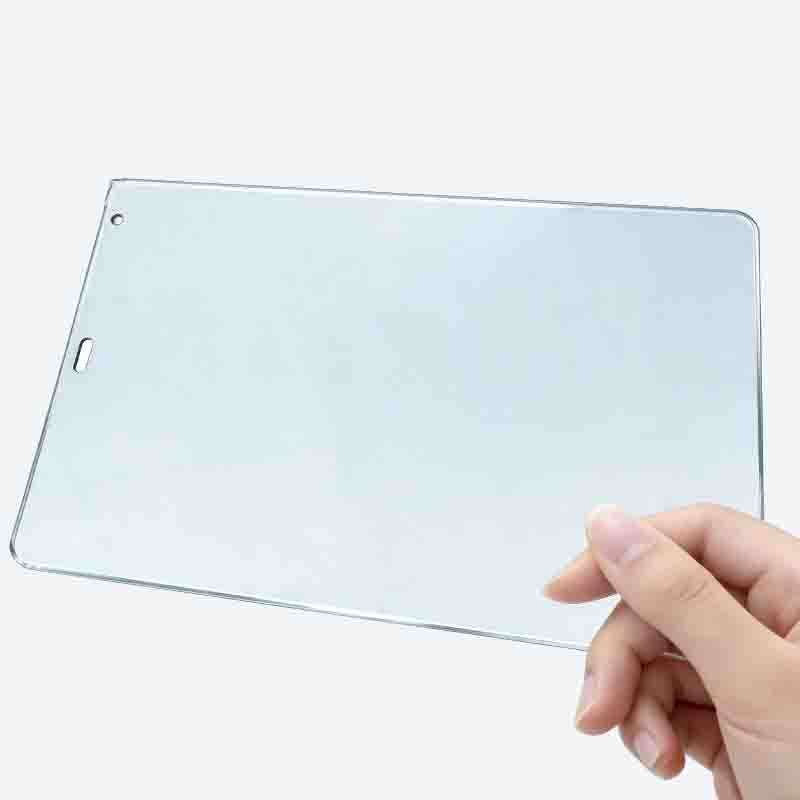

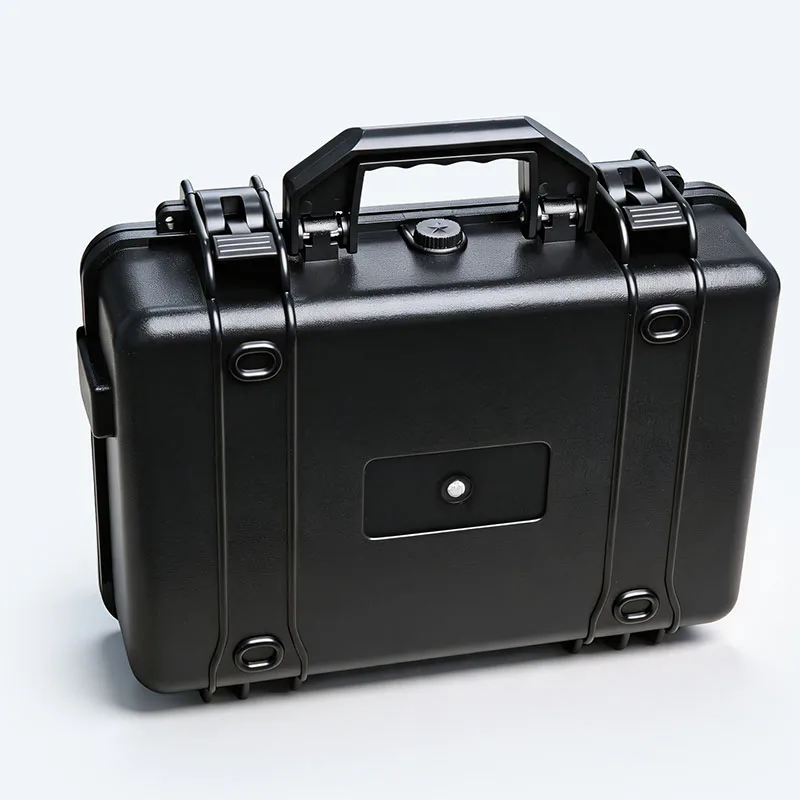

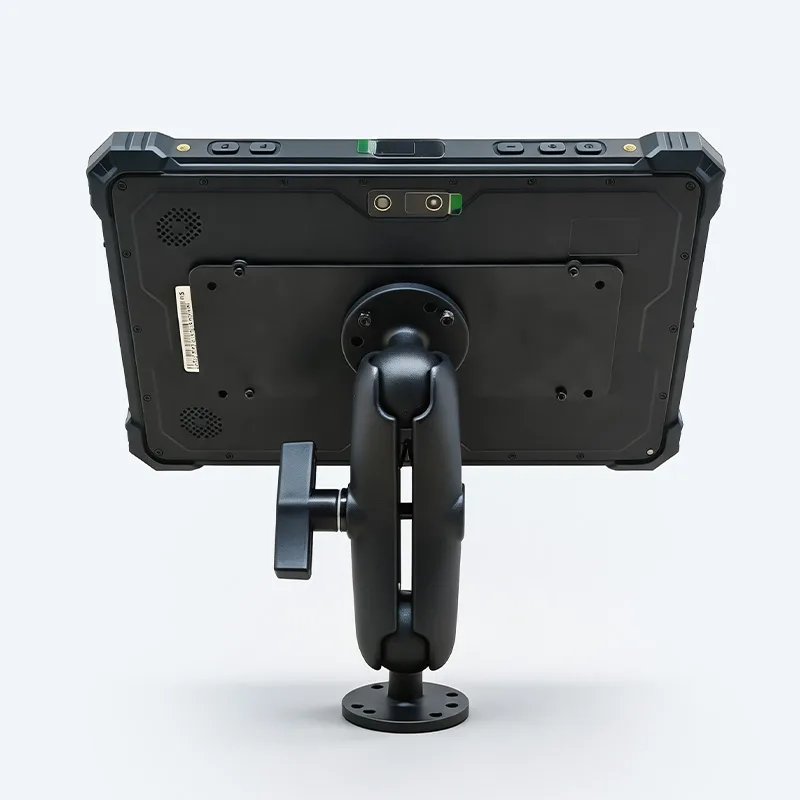

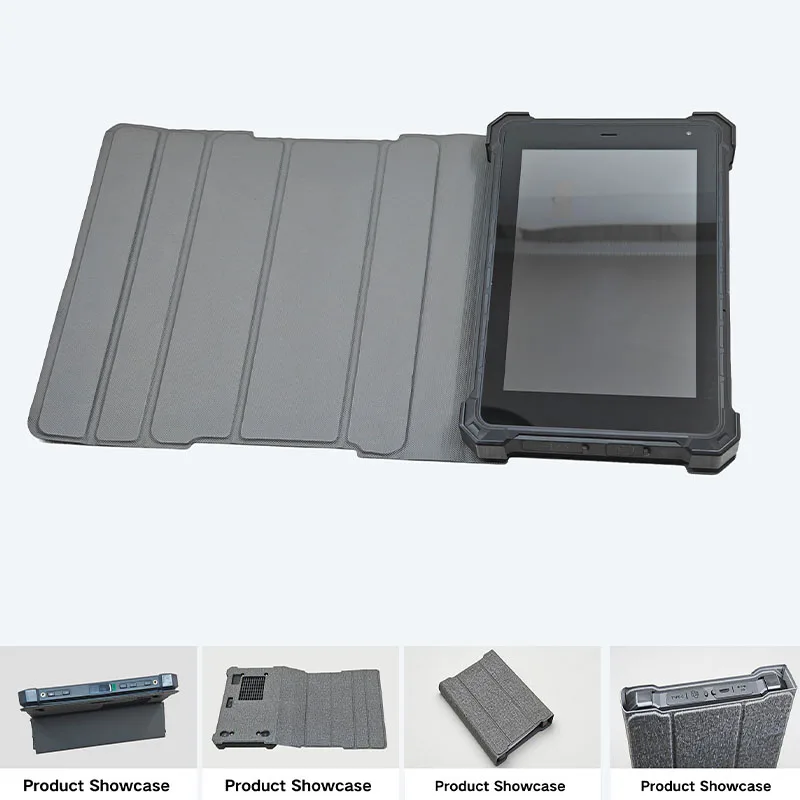

Accessories

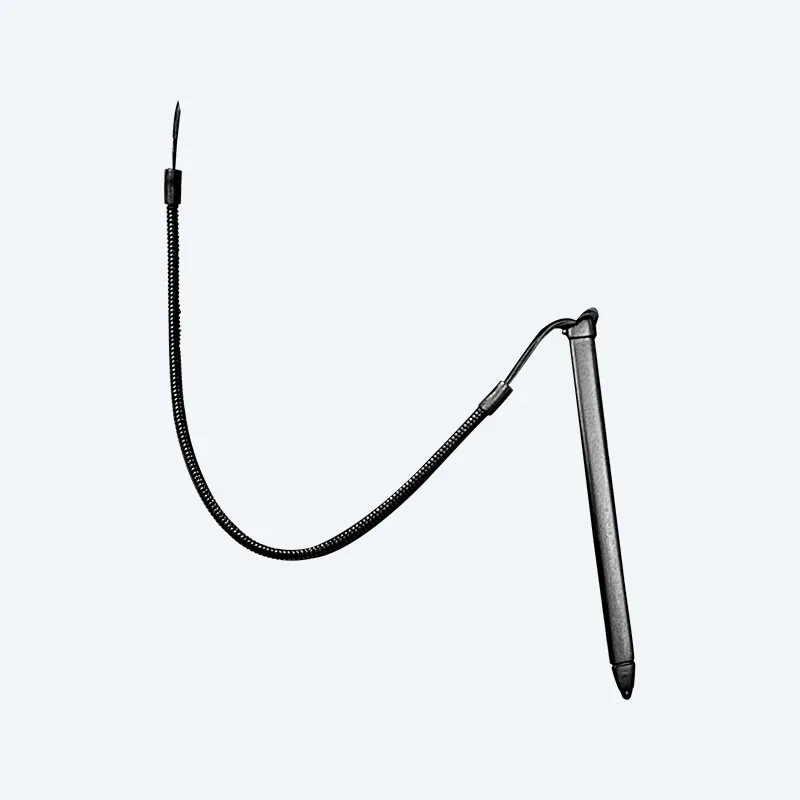

Standard and optional accessories for this model
