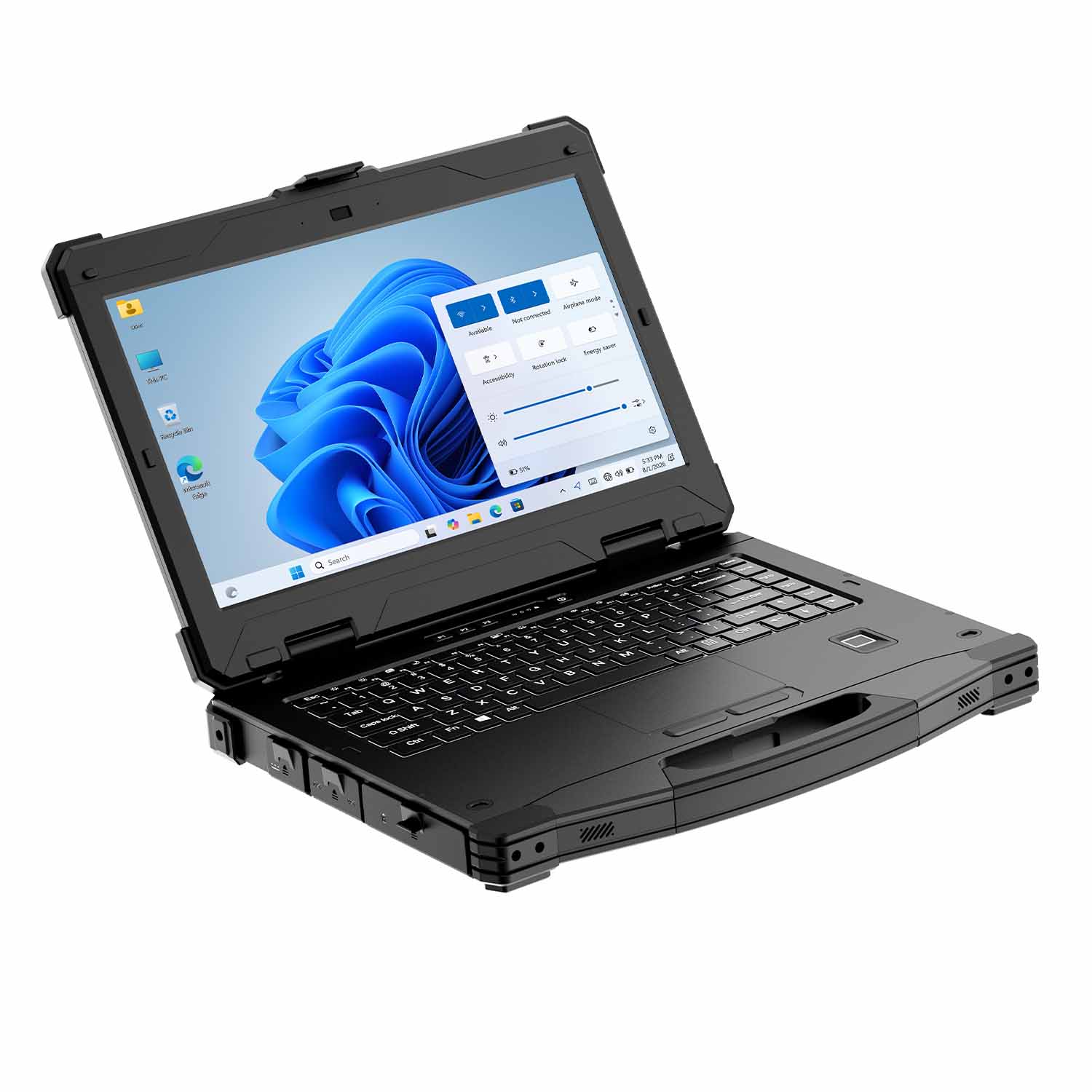

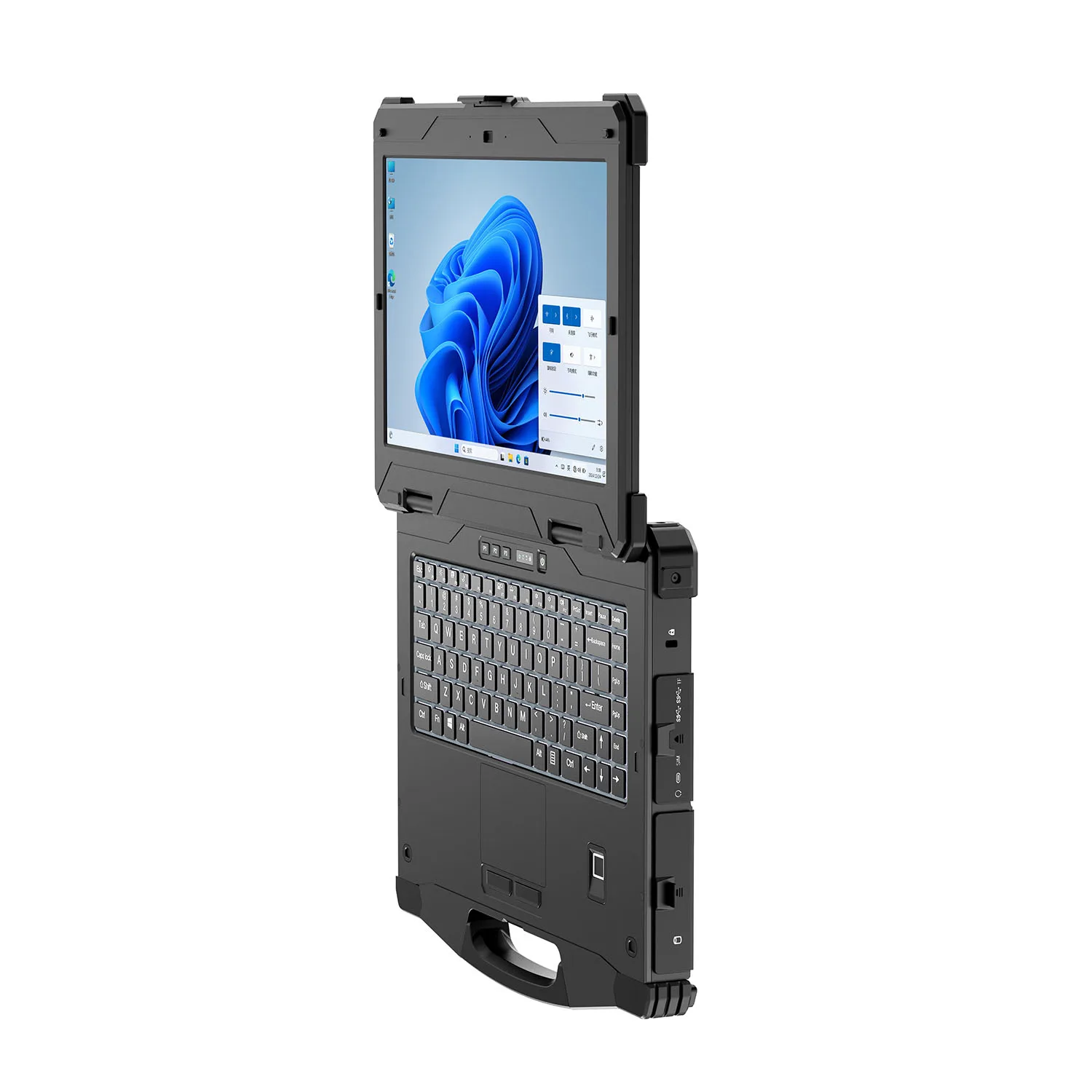

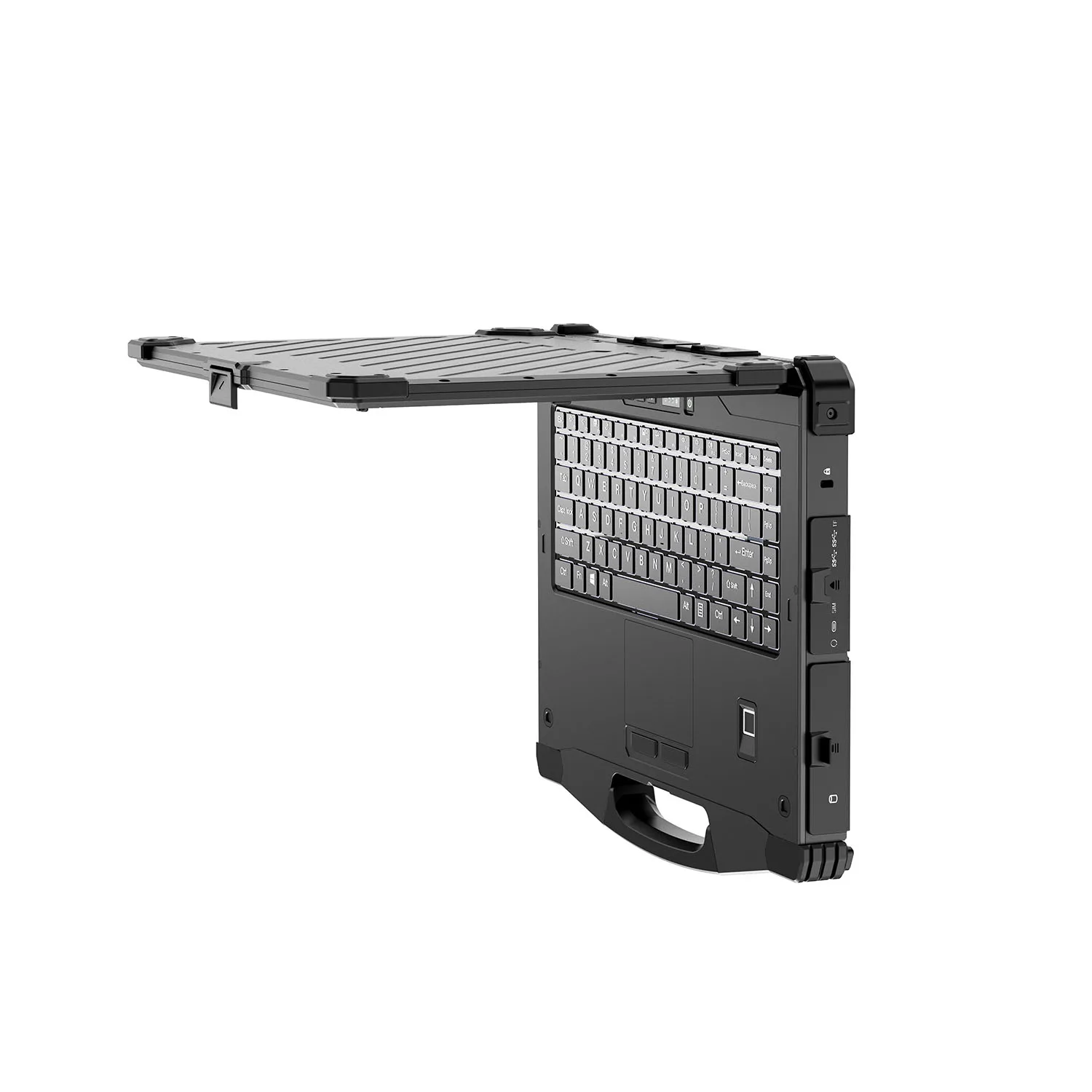

CENAVA W14UPRO Ultra5-125U 14" Win11 IP65 Rugged Laptop
CENAVA W14UPRO is a 14-inch rugged laptop for command and maintenance crews needing desktop power outdoors. The Core Ultra 5 125U (optional Ultra 7 155H, optional RTX4060 GPU) runs Windows 11 Pro with up to 96GB DDR5. Dual smart-swappable batteries (5100mAh + 2100mAh), dual 2.5G RJ45, RS232 and HDMI cover industrial networking. IP65, MIL-STD-810H, TPM, backlit keyboard; optional 4G/5G.
CPU: Intel Core Ultra 5 125U, 12 cores 14 threads, 1.3–4.3GHz (optional Ultra 7 155H 16C/22T; optional MXM RTX4060 8G GPU)
OS: Windows 11 Pro (optional Ubuntu 24.04)
RAM/ROM: 16GB DDR5 2×SO-DIMM up to 96GB + 256GB M.2 SSD, dual slots up to 4TB
Display: 14" 1920×1080, 550cd/㎡ (bulk customizable 1000cd/㎡, triple-display output; optional USB touchscreen)
Battery: Dual smart batteries — 5100mAh + 2100mAh, ≥5h, hot-swap
Integrated I/O: USB-A 3.0×5, Type-C 10Gbps (DP+100W PD in), HDMI 2.0b, RJ45 2.5G×2, DB9 RS232 (optional 422/485), 3.5mm, TF (1TB), Micro-SIM
Network: WiFi 6, Bluetooth 5.2; optional 4G/5G; optional GNSS (bulk custom)
Protection: IP65, MIL-STD-810H, -20°C~60°C, TPM 2.0
Keyboard: 86-key membrane backlit keyboard
Optional Modules: ID card reader (bulk), fingerprint capture (3 options)
12-Core Power
Win11 Smooth
Ultra 5-125U 16GB+256GB Optional 4G/5G
Powered by Intel Core Ultra 5-125U processor with 12 cores and 14 threads, 1.3GHz~4.3GHz, optional Ultra 7-155H, running Windows 11 Pro for smooth multitasking without lag. Standard 16GB DDR5 memory and 256GB M.2 SSD, dual-slot pluggable, memory expandable up to 96GB. The 14-inch 1920*1080 display with 550cd/㎡ brightness, customizable to 1000cd/㎡ high-brightness, provides ample workspace for multi-window dispatching and data visualization. Optional 4G/5G keeps you connected across field inspections and vehicle-mounted operations. Built-in TPM security chip and login fingerprint for enhanced data security.

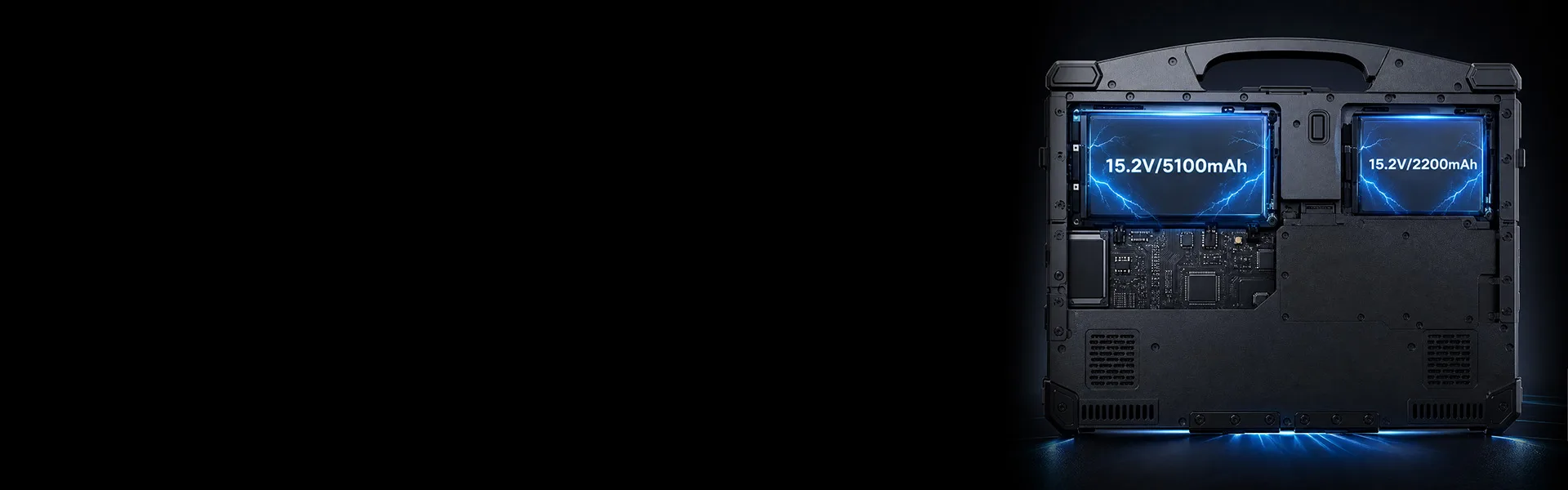

Swappable Large Battery
All-Day Endurance
Dual-Cell 15.2V/5100mAh+2200mAh Removable Long Runtime

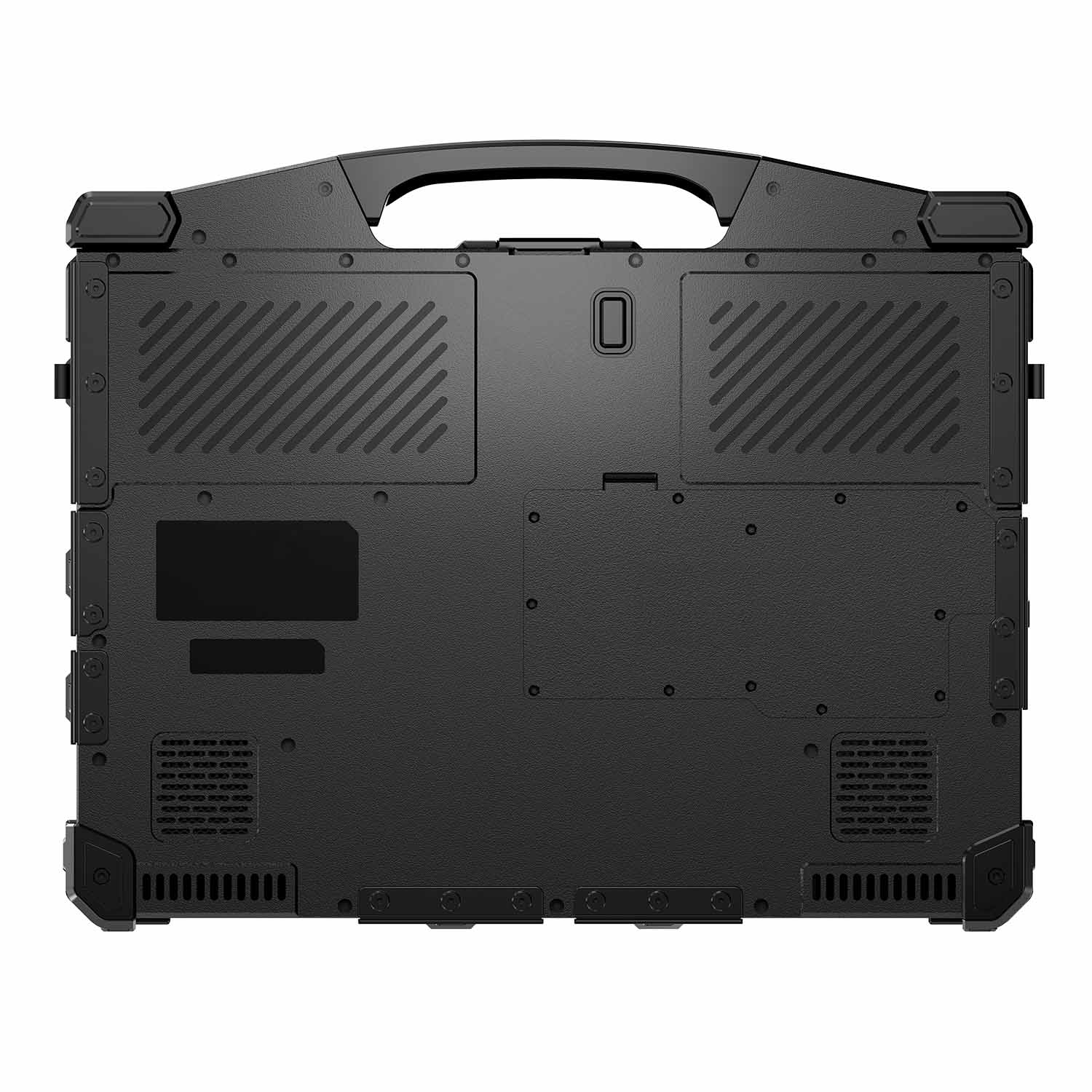

Dual smart detachable battery design: 15.2V/5100mAh main battery paired with 15.2V/2200mAh secondary battery, quick swap restores full power instantly without shutting down. Operating time ≥5 hours under simulated office conditions (50% brightness, 50% volume), meeting extended outdoor inspection, vehicle dispatching and warehouse inventory needs. 19V-7.8A DC charger for fast recharging. Reliable sealed battery compartment with IP65 protection, stable discharge within -20°C~60°C wide temperature range, ensuring all-weather operation.

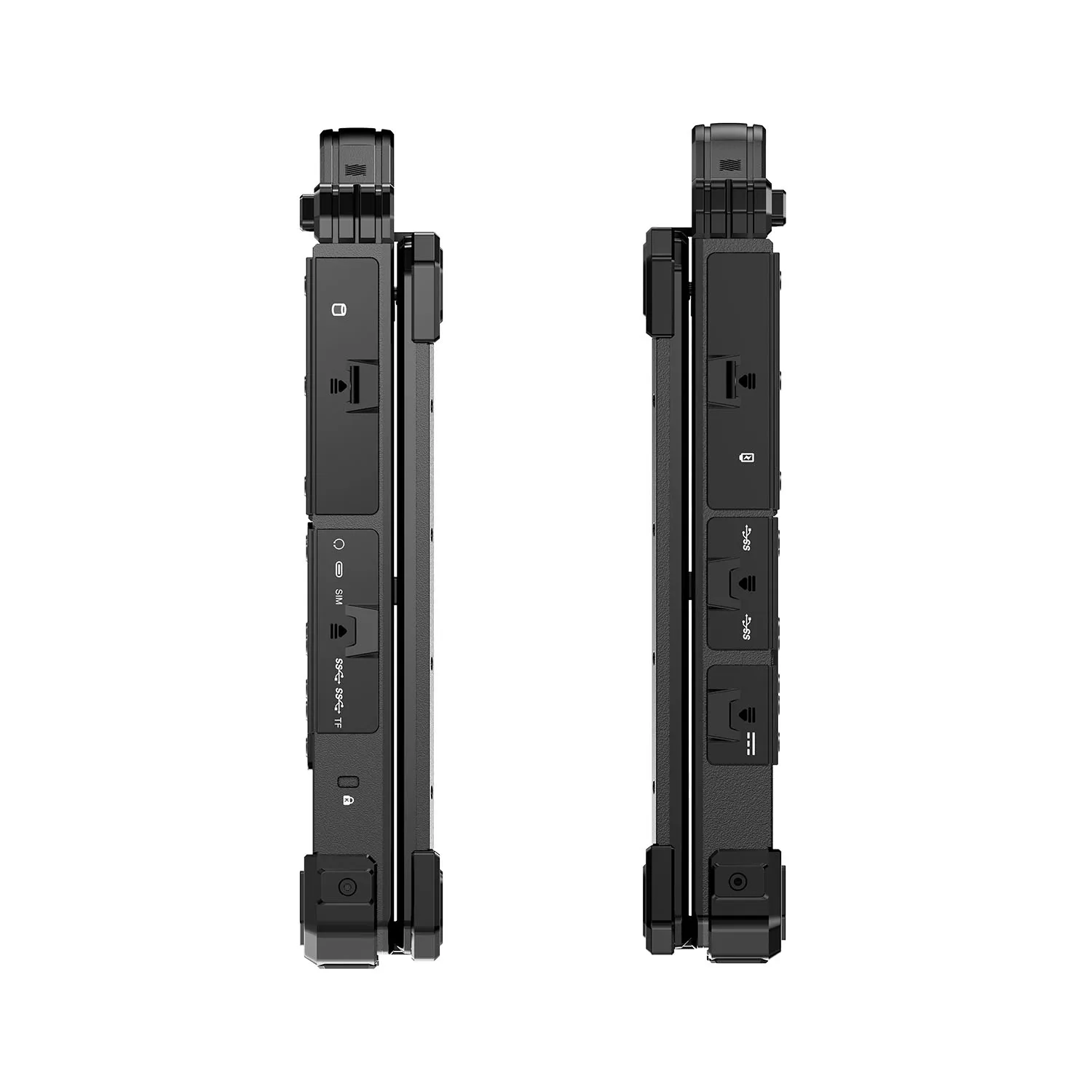

Industrial Full Interface
Plug and Play
Type-C+USB+HDMI+Dual 2.5G Ethernet+DB9 Full Interface
Full industrial interface configuration: 5x Type-A USB3.0 for flash drives, keyboards and mice; Type-C supports 10Gbps data transfer, DP video output and 100W fast-charging input; HDMI 2.0b for large-screen presentations; dual 2.5G adaptive RJ45 Ethernet ports for high-speed networking; DB9 serial port with optional 232/422/485 protocols for industrial devices; 3.5mm headphone jack for voice intercom; TF card slot expandable up to 1TB. Combined with customizable ID card module and fingerprint collection, forming an integrated data collection and device control terminal.
Rugged Triple-Proof
Harsh Conditions No Fear
IP65 1.2m Drop -20°C~60°C

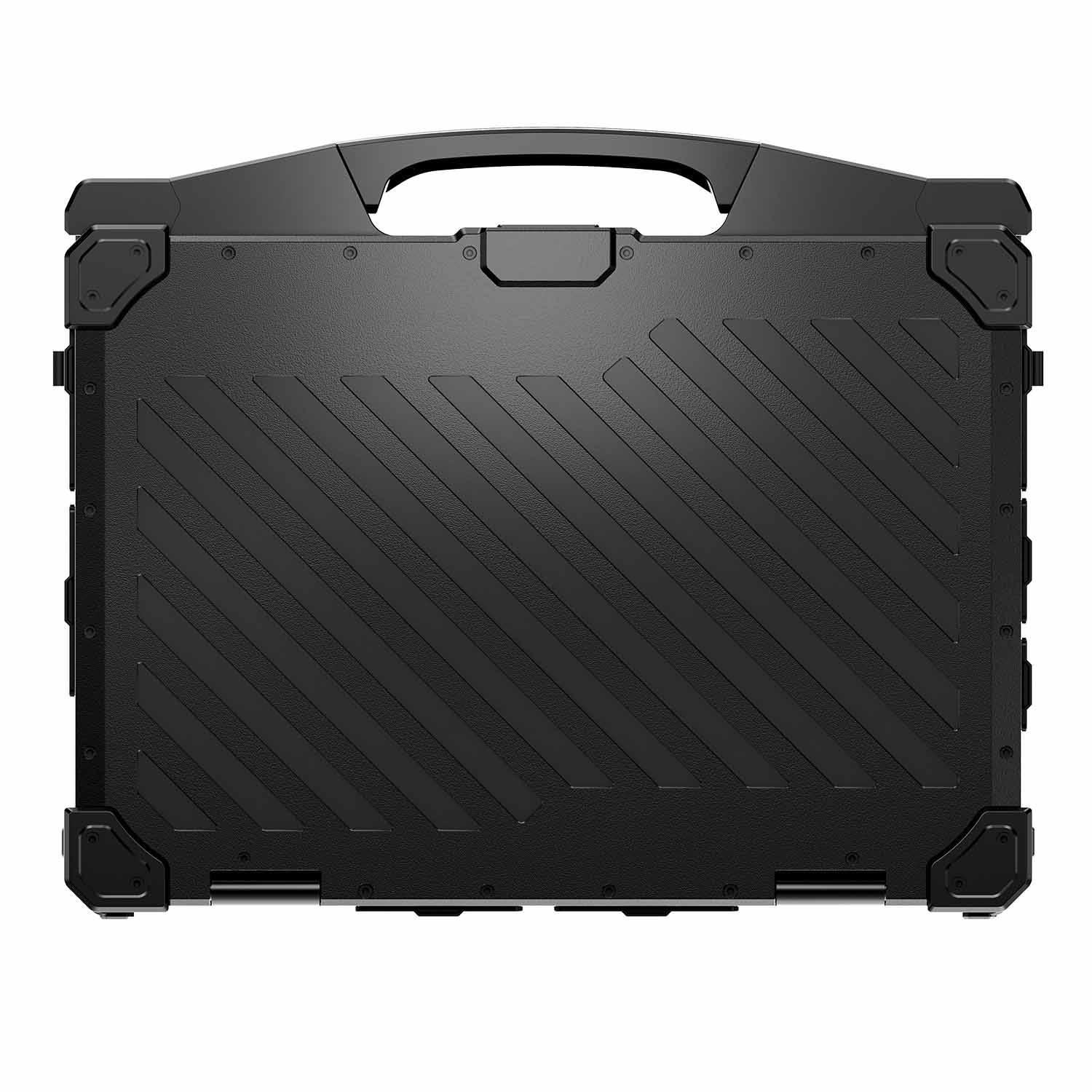

IP65 dust-tight and waterproof, MIL-STD-810H certified, surviving 120cm drops onto composite wood flooring and daily impacts. Operating temperature range of -20°C~60°C ensures reliable startup in freezing winters and scorching summers, with customizable -30°C low-temperature version for extreme cold and -30°C~70°C storage temperature. Measuring 358.5×293×41mm, the plastic and metal-mold chassis with protective corners and waterproof sealing strips provides cushioned reinforcement and a stable, fatigue-free grip for field operation with its 14-inch display.
Technical Specifications
 CPU Intel Core Ultra 5 125U |  System |  Storage 16GB DDR5, 2×SO-DIMM Slots, Max Capacity: 96GB 256GB M.2 SSD. 2×M.2 SSD Slots, Max Capacity: 4TB. Supports SATA / PCIe Gen 4 SSD |  Display 14" FHD LCD, 1920x1080 Resolution, 550 nits Brightness. Customizable 1000-nits Sunlight Readable Display; Tri-display configuration available. |
 NFC Optional Default back of the body for card reading, customizable to the front |  One/Two dimensional code Optional Able to identify dirty 1/2 dimensional codes |  Battery Dual Smart-Swappable Batteries: Primary 5100mAh 15.2V, Secondary 2100mAh 15.2V. Battery Life ≥5 Hours; |  High frequency/ultra-high frequency module Optional Ultra thin integrated module |
 Navigation positioning GPS, Galileo GLONASS |  ID card identification Optional |  Interface Type -A,Type -C HDMI,POGO PIN Network port, serial port |  Size 358.50mm*293mm*41mm |
 Drop height Meets the requirements of MIL-STD-810H for the 1.22-meter drop test |  Protection level working temperature: -20 °C to 60°C Storage temperature: -30 °C to 70 °C |  Camera Front: 8MP Autofocus Camera with Privacy Shutter |  Sensor Gravity sensing, compass, gyroscope, light sensing, distance sensing |
W14UPRO Ultra Rugged Laptop Details:
| Product | 14" Rugged Portable Terminal Laptop |
| Target Applications | Command & Control, Communication Support, Data Reconnaissance, Equipment Maintenance, Surveying & Mapping, and other industrial scenarios. |
| Enclosure Material | Plastic + Metal Molded Enclosure, Protective Bumpers, Waterproof Sealing Gaskets |
| Dimensions | 358.50mm x 293mm x 41mm |
| Color | Black |
| Display | 14" FHD LCD, 1920x1080 Resolution, 550 nits Brightness. Customizable 1000-nits Sunlight Readable Display; Tri-display configuration available. |
| Audio | *2 Speakers: 2W / 4Ω *2 MIC |
| Battery | Dual Smart-Swappable Batteries: Primary 5100mAh 15.2V, Secondary 2100mAh 15.2V. Battery Life ≥5 Hours |
| Camera | Front: 8MP Autofocus Camera with Privacy Shutter |
| Keys | Power Button P1, P2, P3 Programmable Function Keys |
| Keyboard | Built-in 86-Key Keyboard with Backlight |
| Touchpad | Support |
| Login fingerprint | *1 SPI Interface Fingerprint Sensor |
| Touchscreen(Custom) | Customisable USB TP |
| CPU | Intel Core Ultra 5 125U (12 Cores / 14 Threads, 1.3GHz - 4.3GHz) Optional: Intel Core Ultra 7 155H (16 Cores / 22 Threads, 1.4GHz - 4.8GHz) |
| GPU | Optional MXM RTX4060 8G |
| RAM | Standard: 16GB DDR5, 2×SO-DIMM Slots, Max Capacity: 96GB |
| ROM | Standard: 256GB M.2 SSD. 2×M.2 SSD Slots, Max Capacity: 4TB. Supports SATA / PCIe Gen 4 SSD |
| TPM | Built-in TPM Security Chip |
| Operating System | Windows 11 Pro, Optional：Ubuntu 25.04, Kylin OS |
| WIFI | Wi-Fi 6: 802.11a/b/g/n/ac/ax, dual-band 2.4GHz and 5GHz |
| Bluetooth | Bluetooth 5.2, Transmission Range: 10m |
| USB Type-A | *5 USB3.0 |
| USB Type-C | *1 USB 3.0(10Gbps, Supports DP Alt Mode & 100W PD Fast Charging Input) |
| Audio Jack | *1 3.5mm Standard Audio Combo Jack |
| TF Card | *1 Supports up to 1TB Expansion |
| SIM Card | *1 Standard Micro SIM Slot |
| HDMI Port | *1 HDMI 2.0b Output (Shared/Multiplexed with MXM Graphics) |
| DC Power Jack | *1 DC Input, 19V-7.8A (Barrel Plug: OD 5.5mm / ID 2.5mm) |
| RJ45 Ethernet | *2 RJ45 LAN Ports, Auto-negotiating 2.5G/1G/100M/10Mbps |
| Serial Port (COM) | *1 DB9 Serial Port (RS232 Standard; RS422/RS485 Optional) |

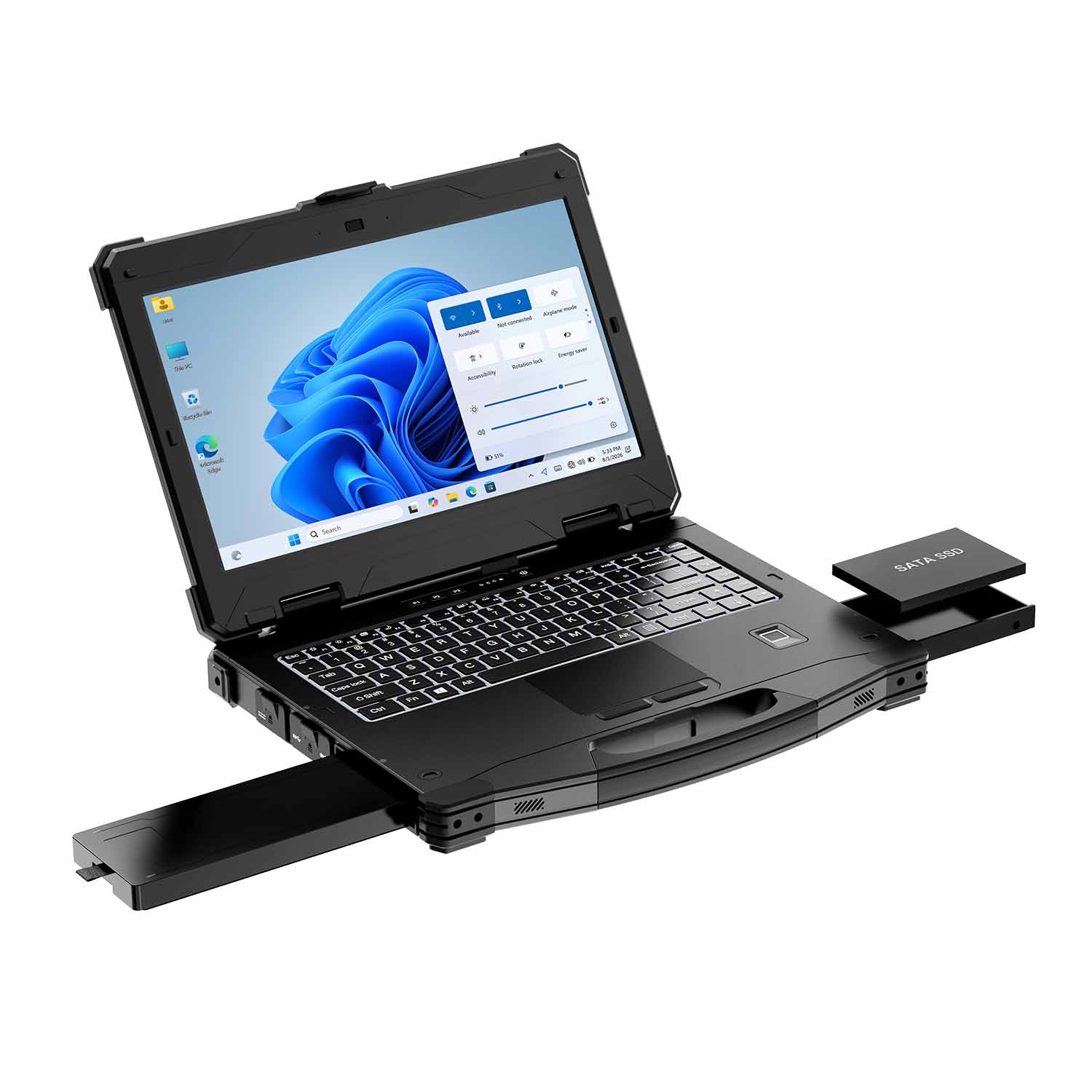

| Expansion Features | SATA hard drive (or secondary battery – choose one) |
| Integrability | Highly Expandable. Supports Customer Module Integration, Custom Functional Interfaces, and Internal Reserved Multi-USB Headers |
| Certifications | IP65 (Dust & Water Resistant), CCC, CE, MIL-STD-810H, ISO Quality Management System, RoHS |

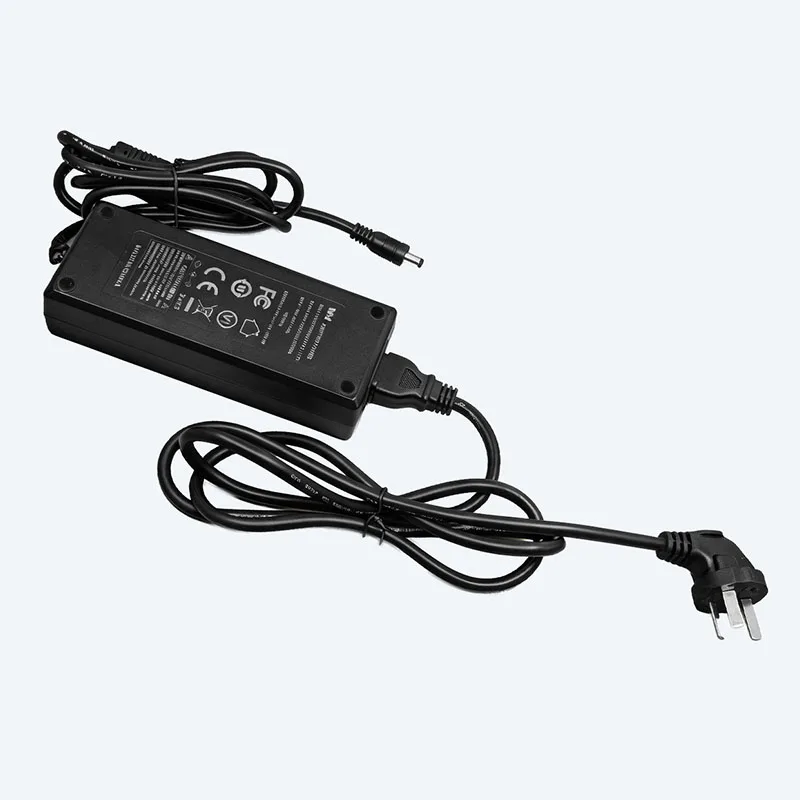

| Power Adapter | 19V-7.8A DC Power Adapter (Barrel Plug: OD 5.5mm / ID 2.5mm) |
| Optional Accessories | Carrying Bag, Stylus Pen |
| Packaging | Standard Product Carton Box; Custom Packaging Boxes Available |
Frequently Asked Questions About the W14UPRO Rugged Laptop
1. What types of applications is the W14UPRO designed for?
The W14UPRO is designed for field command, equipment maintenance, surveying, industrial software, mobile workstations, communication support and edge-computing projects. Software performance depends on the selected processor, memory, storage, graphics and thermal configuration.
2. What practical functions can use the built-in NPU?
The Intel Core Ultra platform includes an NPU for compatible AI-assisted workloads such as image classification, OCR, background effects, speech processing and selected local inference applications. Actual acceleration depends on the software framework, model, driver and operating-system configuration.
3. Can the W14UPRO connect to three displays?
A tri-display configuration is available. A typical setup may use the internal display, HDMI output and USB-C DisplayPort output. The exact number of simultaneous displays, maximum resolution and available ports depend on whether integrated graphics or the optional discrete GPU is selected.
4. How much memory and storage can be installed?
The W14UPRO includes two DDR5 SO-DIMM slots and two M.2 storage slots. The page lists support for up to 96GB RAM and up to 4TB of storage. Customers should confirm the validated memory modules, SSD size, SATA or NVMe interface and whether both storage slots support PCIe Gen 4.
5. Does the W14UPRO support 4G, 5G and GNSS?
Optional cellular and GNSS modules are available for project configurations. Customers should confirm the modem model, 4G or 5G frequency bands, SA/NSA support, SIM format, destination carrier compatibility, antenna configuration and supported GNSS constellations before ordering.
6. Can barcode, NFC, fingerprint and ID card modules be integrated?
Project-specific data-capture and identity modules may be integrated, including barcode scanning, NFC, industrial fingerprint readers and certified fingerprint or ID card modules. Module location, software drivers, SDK availability, operating-system compatibility and effects on IP65 protection should be confirmed during project evaluation.
7. What should buyers confirm before ordering the W14UPRO?
Buyers should confirm the processor, GPU, RAM, SSD, screen brightness, touchscreen requirement, battery arrangement, operating system, cellular bands, GNSS, industrial interfaces, certification reports and required accessories.
