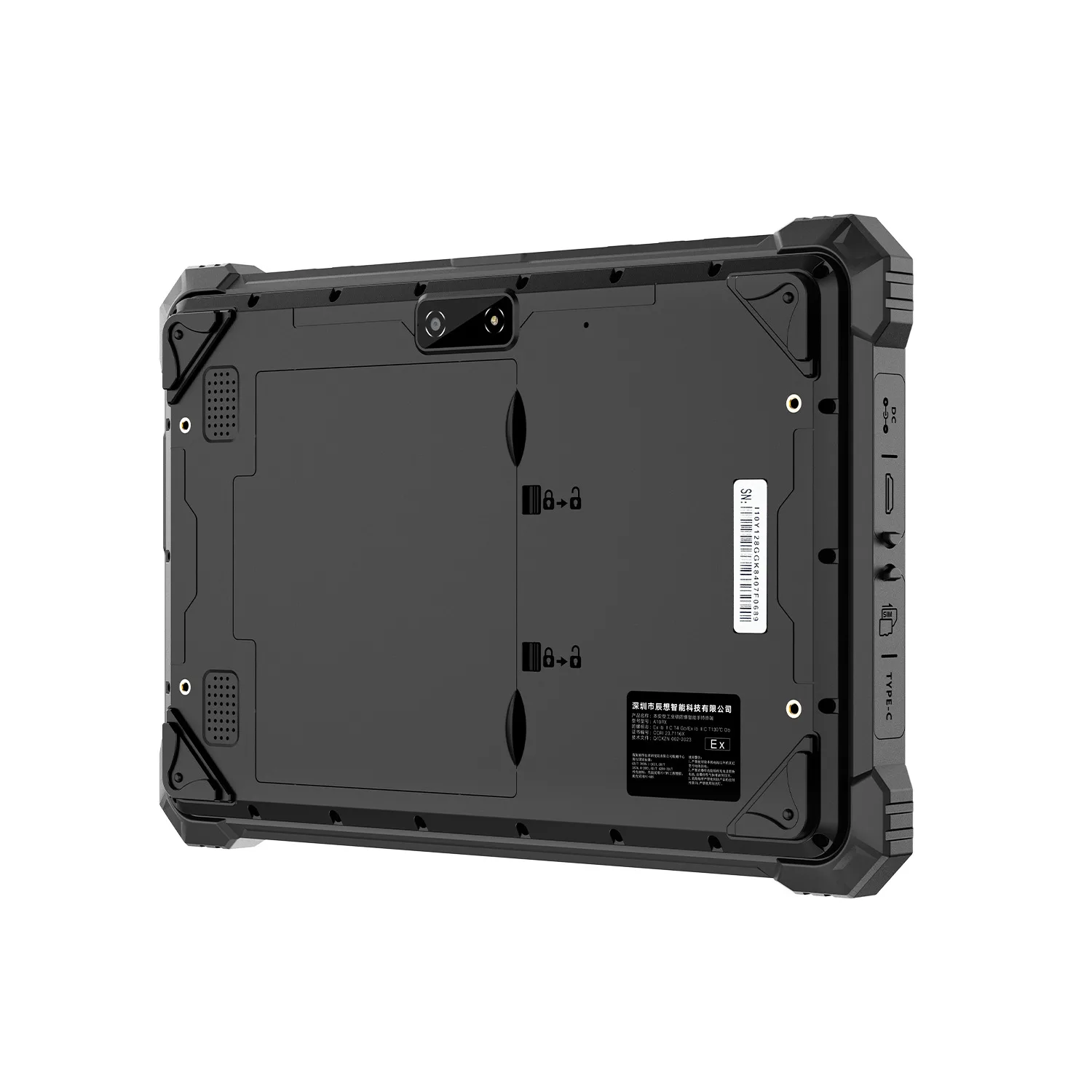

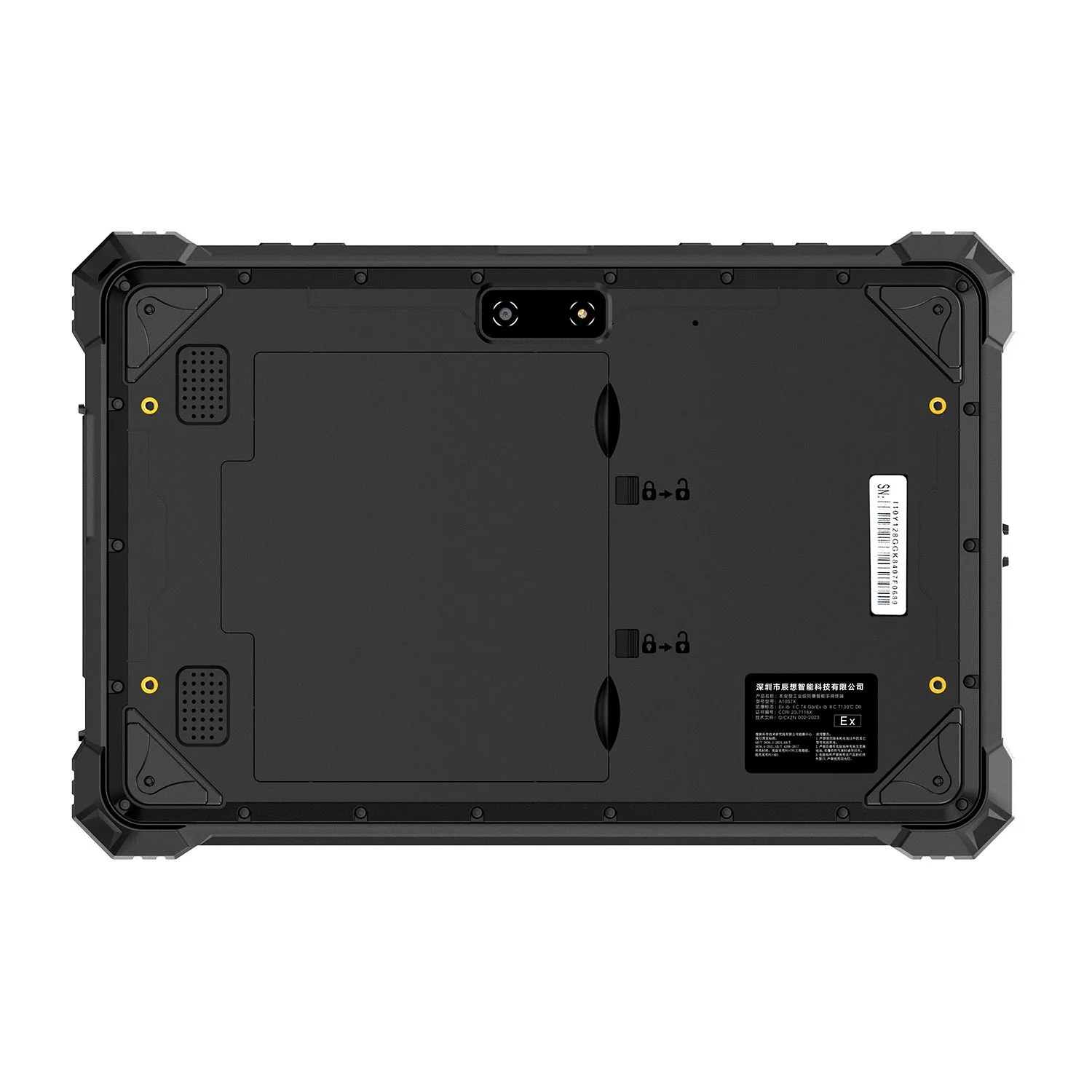

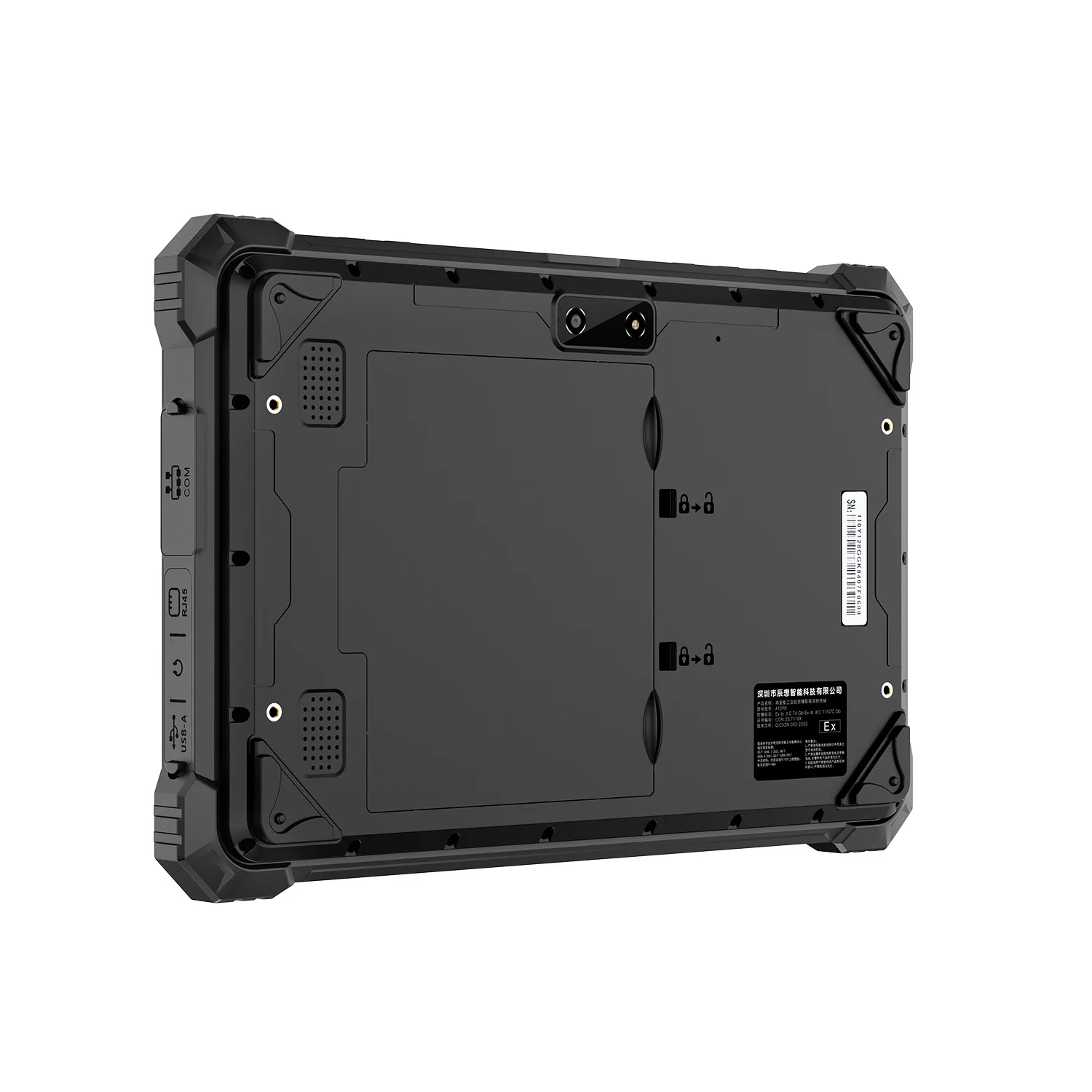

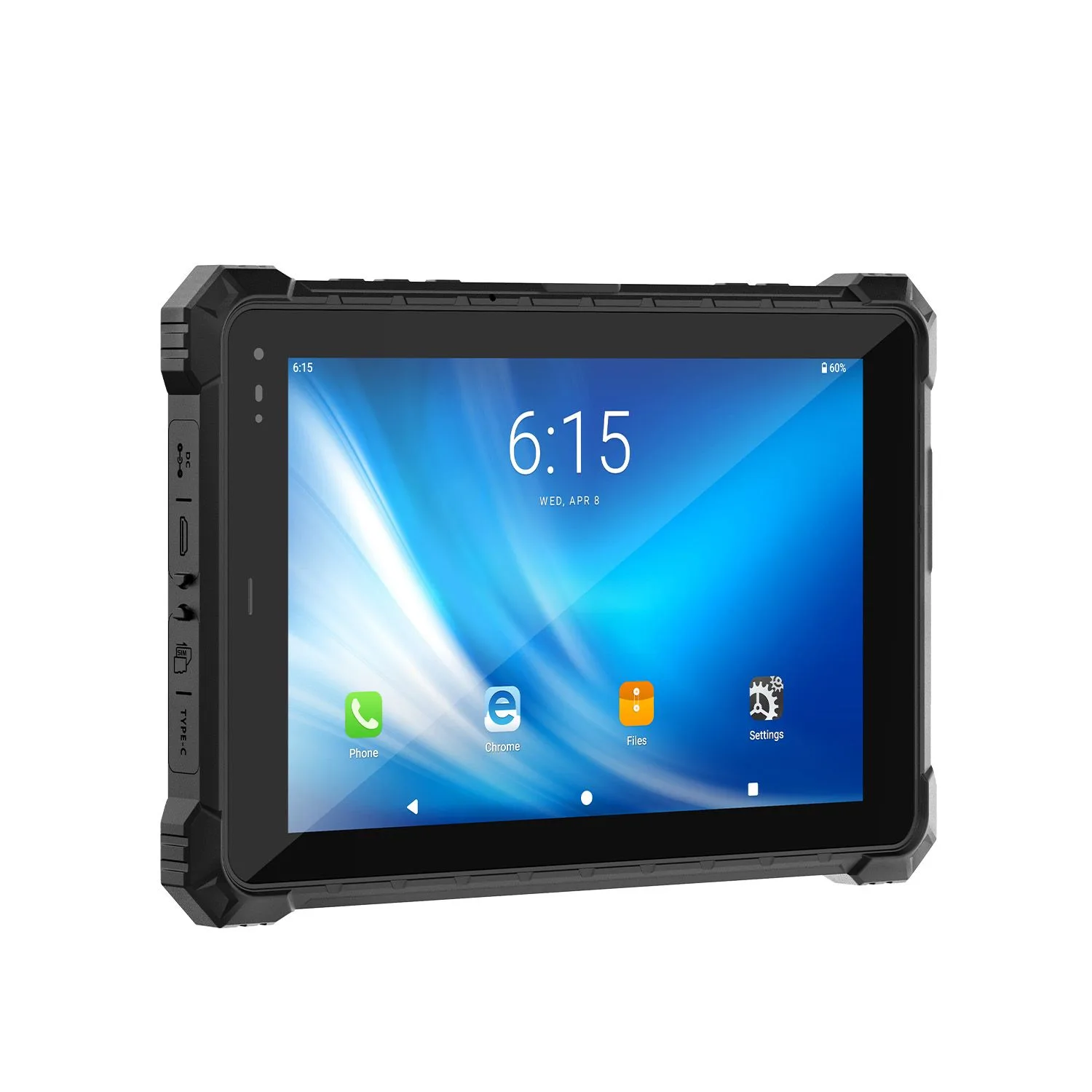

CENAVA A10RX RK3588 10.1 Inch Android 12 IP67 Rugged Tablet
CENAVA A10RX is a 10.1-inch IP67 rugged tablet built for long shifts in logistics and field service. Its 7700mAh removable battery swaps in seconds, with an optional charging dock. The RK3588 octa-core runs Android 12 (optional Ubuntu) with M.2 SSD expansion up to 4TB. Integrated gigabit RJ45, RS232, Micro HDMI and USB 3.0. MIL-STD-810H drop rated, glove-touch display; optional 4G/5G, 2D and more.
Rugged Protection: IP67, MIL-STD-810H 1.22m drop, -20°C~60°C
CPU: Rockchip RK3588 octa-core, 4×Cortex-A76 @2.4GHz + 4×Cortex-A55 @1.8GHz, ARM Mali-G610 MC4 GPU
OS: Android 12 (optional Ubuntu 24.04)
Display: 10.1" IPS 1920×1200, 700cd/㎡ (customizable 1000cd/㎡), G+G 10-point glove touch, hardness ≥7H, AF coating (customizable wet-hand touch)
RAM/ROM: 8GB+128GB (optional 16GB+256GB), onboard M.2 2280 SSD slot (up to 4TB)

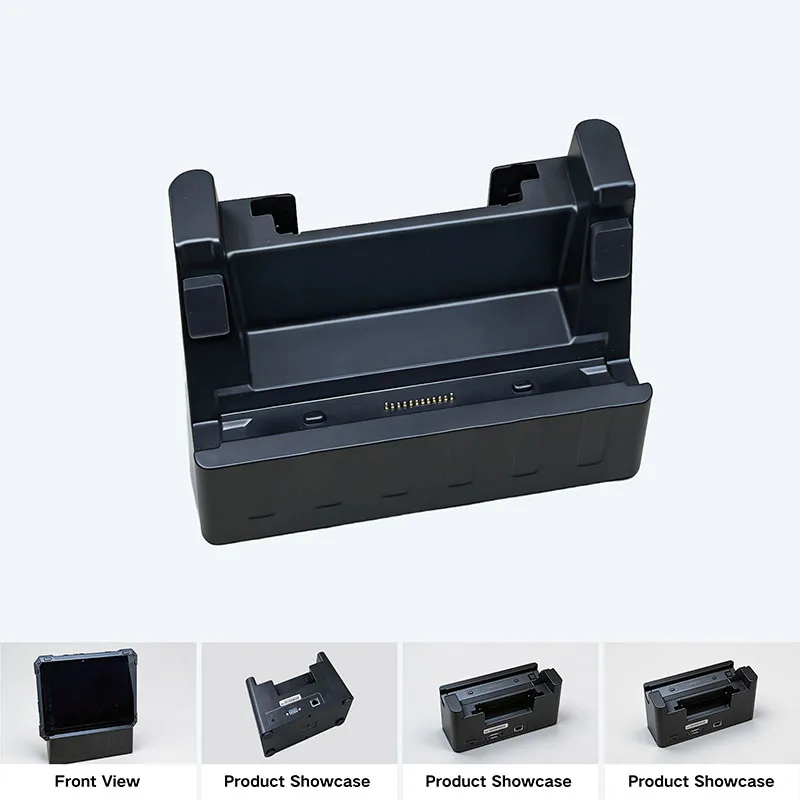

Battery: 7.6V 7700mAh removable — seconds-fast swap; optional battery charging dock
Integrated I/O: Gigabit RJ45, DB9 RS232, Micro HDMI, Type-C USB3.0, Type-A USB3.0, 3.5mm jack, 12Pin POGO, Micro SIM, TF up to 2TB
Network: WiFi 6, Bluetooth 5.0; optional 4G LTE / 5G; GPS/BeiDou/Galileo/GLONASS, optional single-BeiDou
Cameras: 13MP front + 13MP AF rear (customizable 48MP)
Optional Modules: 2D scanner (N1 / N670 with OCR), 4G / 5G cellular; NFC standard

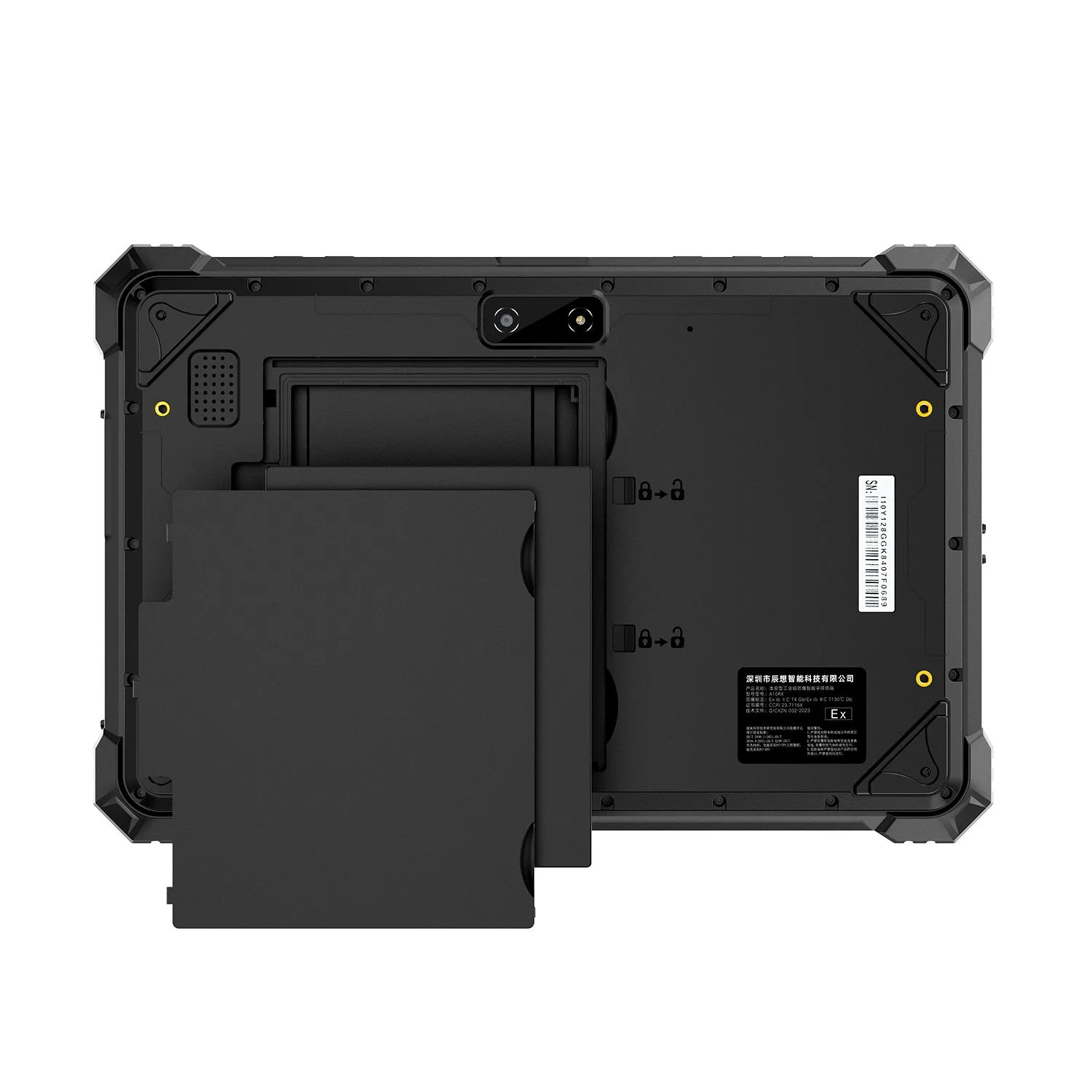

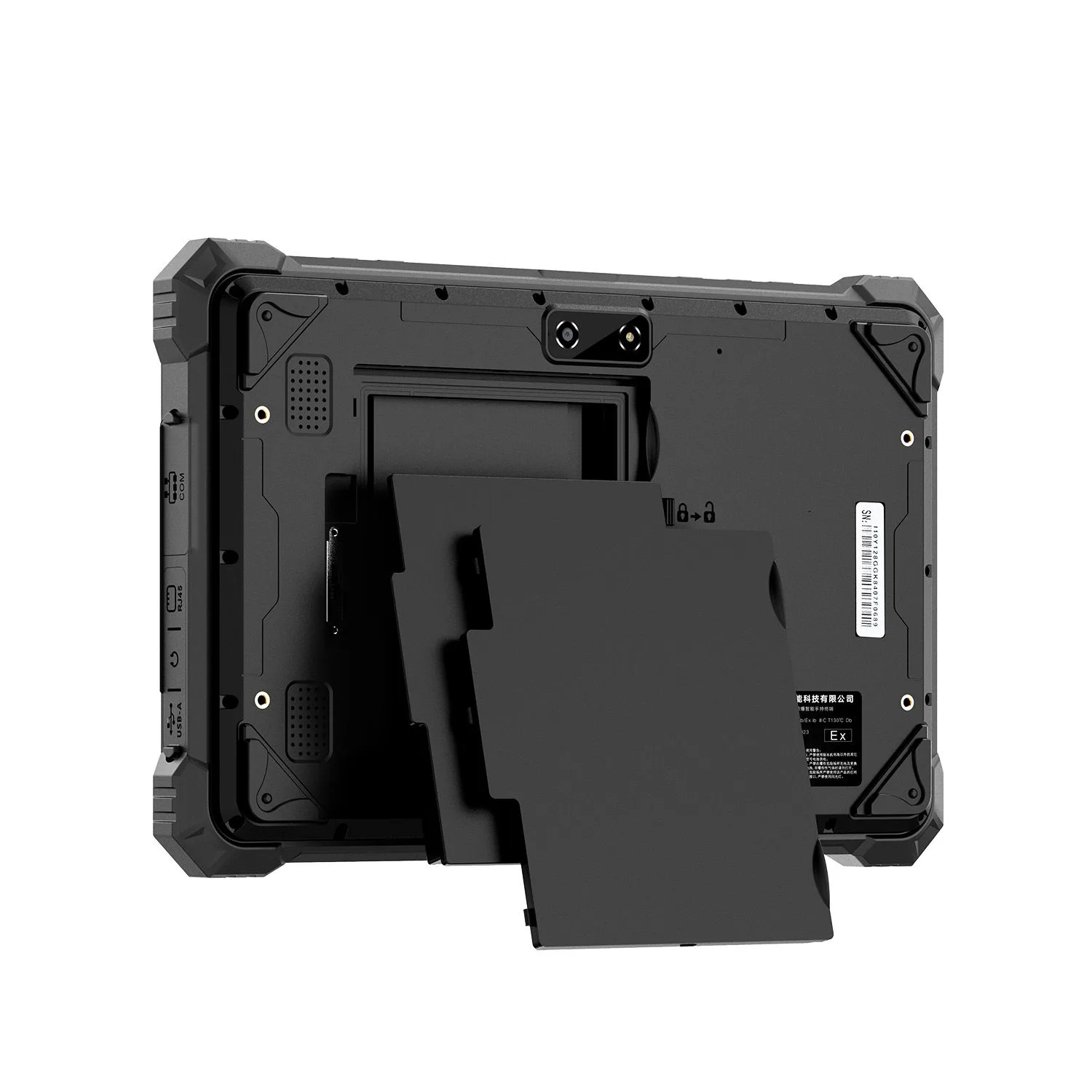

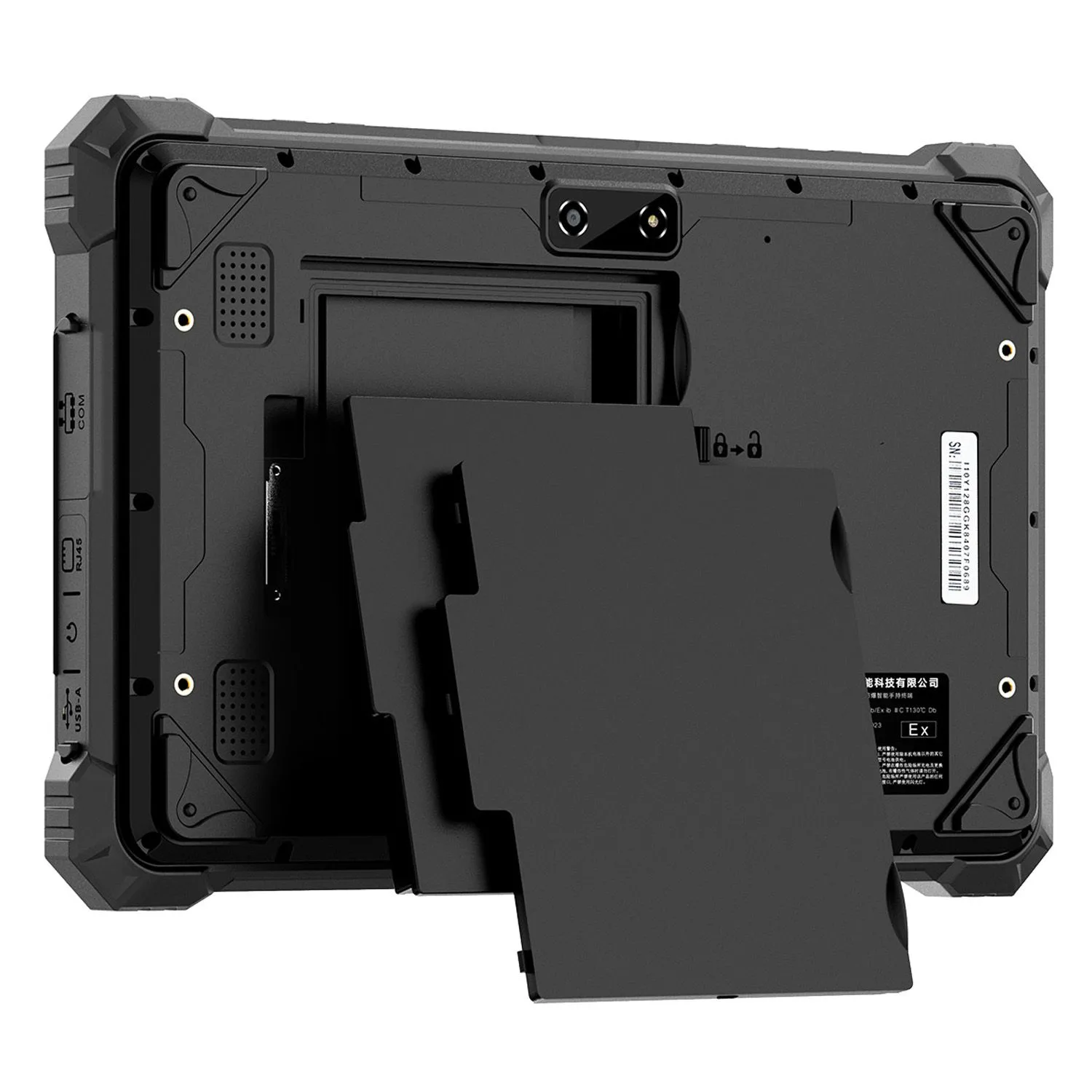

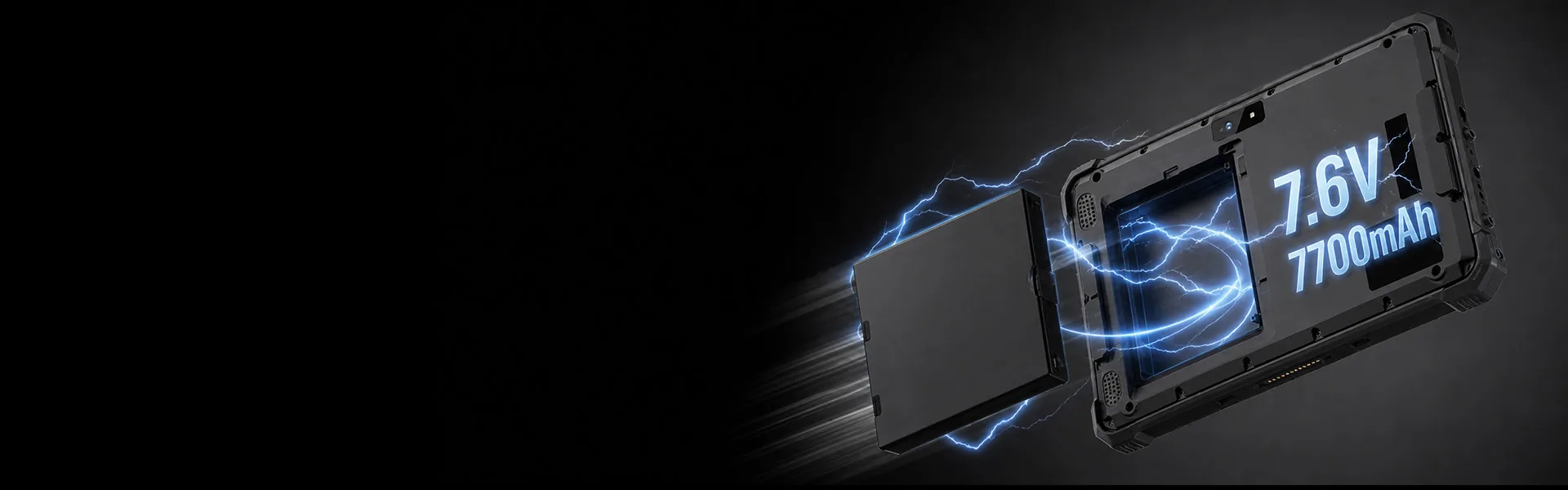

Swappable Large Battery
All-Day Endurance
7.6V/7700mAh Swappable Battery Long Runtime
7.6V/7700mAh high-capacity high-voltage lithium battery with a swappable design keeps field work running without shutdown—swap in a spare battery for instant full power. Long endurance supports all-day outdoor inspections, vehicle dispatching, and warehouse inventory. The dual-latch battery bay with sealing gasket stays reliable in heat and cold, resisting dust and water. Operating range -20°C to 60°C; an optional battery charging dock keeps batteries rotating for continuous field operation.

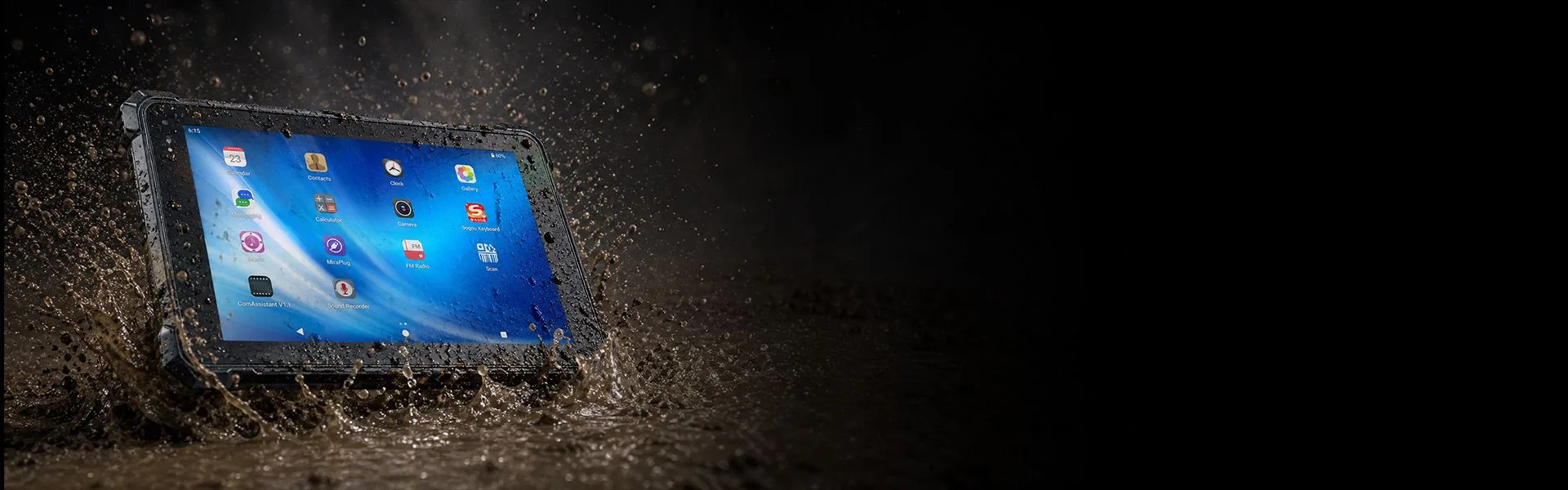

Triple-Proof + Explosion-Proof
Harsh Conditions No Fear
IP67 Optional Ex Version 1.22m Drop -20°C~60°C
IP67 dust-tight and waterproof, surviving 1.22m drops. Optional Ex Class II petrochemical explosion-proof version for compliant use in petrochemical plants and oil-gas pipelines. Operating range -20°C to 60°C ensures reliable startup in extreme weather. The rugged industrial chassis with reinforced corners and sealed gaskets keeps out sand and dust, providing a stable, fatigue-free grip. The sealed swappable battery bay balances protection with easy maintenance for long-term reliability in harsh conditions.

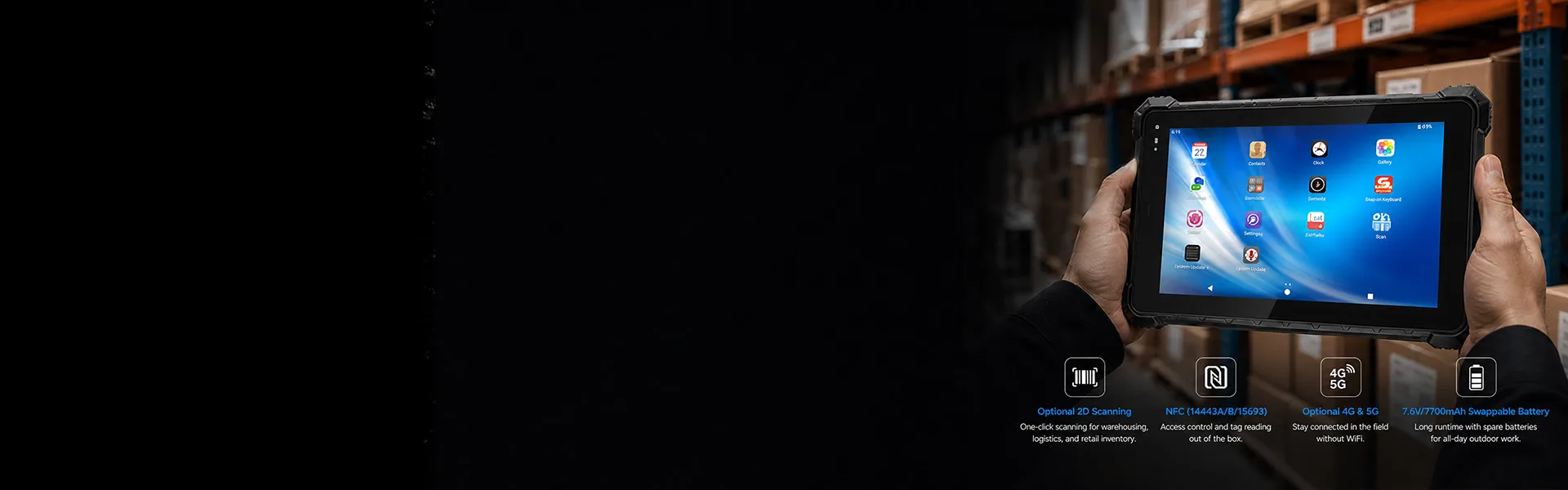

Modules On Demand
Single Unit Orders Accepted
2D Optional NFC Standard 4G/5G Customizable
An optional 2D barcode scanning module can be added with single-unit orders and deep software-hardware customization, enabling one-click scanning for warehousing, logistics, and retail inventory. NFC is included as standard (14443A/14443B/15693 protocols) for access control and tag reading out of the box. Optional 4G cellular and 5G batch customization keep you connected in the field without WiFi. The standard 7.6V/7700mAh swappable battery delivers long runtime, with spare batteries covering all-day outdoor work. One device precisely matches your workflow—pay only for the functions you need.
Octa-Core Power
Android 12 Smooth
RK3588 Octa-Core 8GB/16GB Options Optional 4G/5G
Powered by the RK3588 octa-core processor with the Android 12 industrial OS, multitasking runs smoothly without lag. The 10.1-inch display provides ample workspace for multi-window dispatching and data visualization. Standard 8GB+128GB with M.2 SSD slot reserved, optional 16GB+256GB high-end version tackles video backhaul and cloud collaboration. Optional 4G/5G cellular keeps you connected across field inspections and vehicle-mounted operations. Optional multi-OS support includes Ubuntu and Debian, flexibly adapting to diverse industry software ecosystems.
Technical Specifications
 CPU Rockchip RK3588 octa-core processor |  System |  Storage 8+128GB |  Display 10-inch IPS touch screen 1920*1200 resolution 700cd/㎡ |
 NFC Optional Default back of the body for card reading, customizable to the front |  One/Two dimensional code Optional Able to identify dirty 1/2 dimensional codes |  Battery Removable 7700mAh battery |  High frequency/ultra-high frequency module |
 Navigation positioning GPS, Galileo GLONASS |  ID card identification Optional |  Interface DB9 RS232 interface, Gigabit RJ45 Ethernet, USB 3.0 Type-A and Type-C, Micro HDMI output |  Weight |
 Card slot SIM / TF （256G） |  Protection level Working temperature: -20 °C to 60°C Storage temperature:-30 °C to 70 °C |  Camera Front camera:13MP Rear camera:13MP |  Sensor Gravity sensing, compass, gyroscope, light sensing, distance sensing |
The A10RX is intended for applications that require local computing and direct equipment communication, not only barcode scanning or form entry.Its processor, SSD expansion and industrial interfaces make it suitable for use as a portable edge terminal between field equipment and a central business system.
| Size weight | 283.9*189.0*24.1mm/1138g |
| Tp touch screen | Anti-fingerprint (AF) coating,10-point touch G+G, hardness ≥ 7H, support for medical rubber gloves touch screen (can be customised wet hand touch screen) |
| Speaker, microphone | *2 speaker 1.2W/8Ω *1,MIC |
| WIFI | WIFI 802.11(a/b/g/n/ac/ax) frequency WIFI6 |
| M.2 SSD | *1 reserved for the motherboard, supports M.2 2280 SSD PCIE protocol FAT32 format (maximum 1TB) |
| TYPE-C | *1 Type-C USB3.0 (supports data transmission) |
| Type -A | *1 Type-A USB3.0 |
| DB9 | *1 RS232 |
| Earphone Jack | *1 3.5mm standard headphone jack |
| TF Card | *1 supports up to 2TB expansion |
| SIM Card | *1 standard Micro SIM card slot |
| HDMI | *1 Micro HDMI |
| DC | *1 12V-4A (DC plug outer diameter 3.5mm, inner diameter 1.35mm) |
| RJ45 | *1 100/1000M |
| POGO PIN | *1 12Pin USB+ charging |
| Drop height | Meets the requirements of MIL-STD-810H for the 1.22-meter drop test |
| Certificates | IP68, CE, US military standard-810H certification, energy-saving certification, ISO quality certification system, ROHS, three-proof salt spray test |
Frequently Asked Questions About A10RX Industrial Edge Computing Tablet
1. What is the main difference between the A10RX and the A10R?
The A10RX is positioned as an industrial edge-computing and equipment-integration tablet, built around native RS232, Gigabit Ethernet, M.2 SSD expansion, a removable 7700mAh battery, and optional Android or Linux-based operating systems. The A10R is a more general-purpose mobile Android data-collection tablet focused on barcode, RFID and field workflows. Tell us your use case (equipment integration vs. general data collection) and we can confirm the right fit.
2. Is the A10RX rated IP68?
No — the A10RX rating is IP67.
3. Does the A10RX have built-in RS232 and Ethernet?
Yes. It includes one DB9 RS232 port and one 100/1000Mbps RJ45 Gigabit Ethernet port — this is one of the A10RX's main differentiators versus a standard rugged tablet.
3. Can the A10RX run Ubuntu?
Ubuntu 24.04.2 is available as a project-specific option. Because driver support (touch, Wi-Fi, Bluetooth, modem, camera, NFC and any scanning modules) can vary by Linux build, please confirm compatibility with us for your exact hardware configuration before finalizing a Ubuntu-based order.
4. Does the Type-C port support charging or video output?
The Type-C port is specified as USB 3.0 for data transmission. Please don't assume charging (Power Delivery) or video output (DisplayPort) over this port unless we've confirmed it for your specific unit.
5. Can barcode, NFC, UHF and fingerprint modules all be installed together?
These are available as individual options, but combining them depends on enclosure space, antenna placement, available internal interfaces and software support. We recommend confirming a module layout with us before sample production.

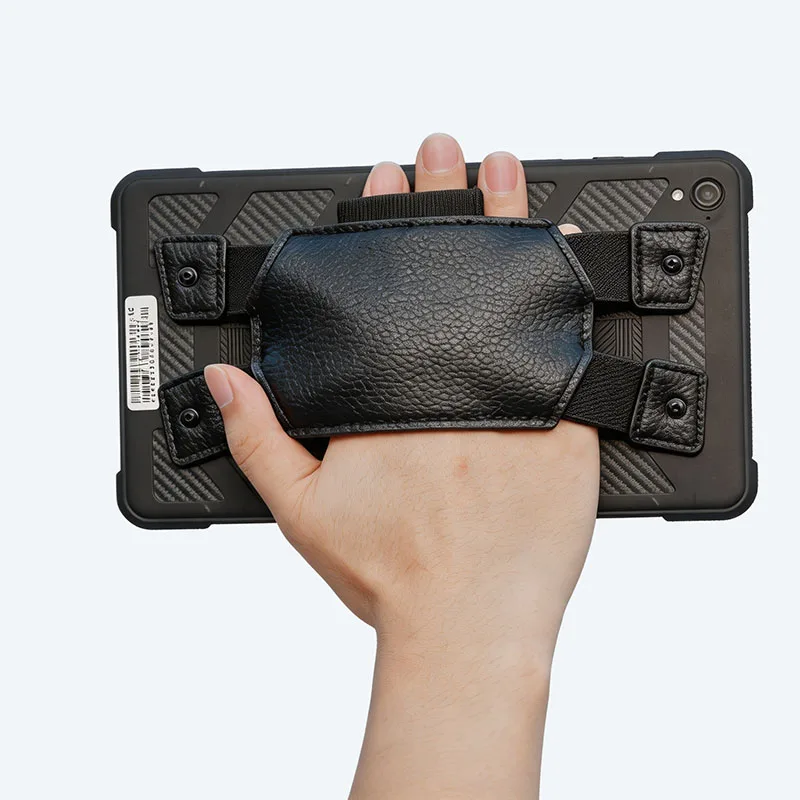

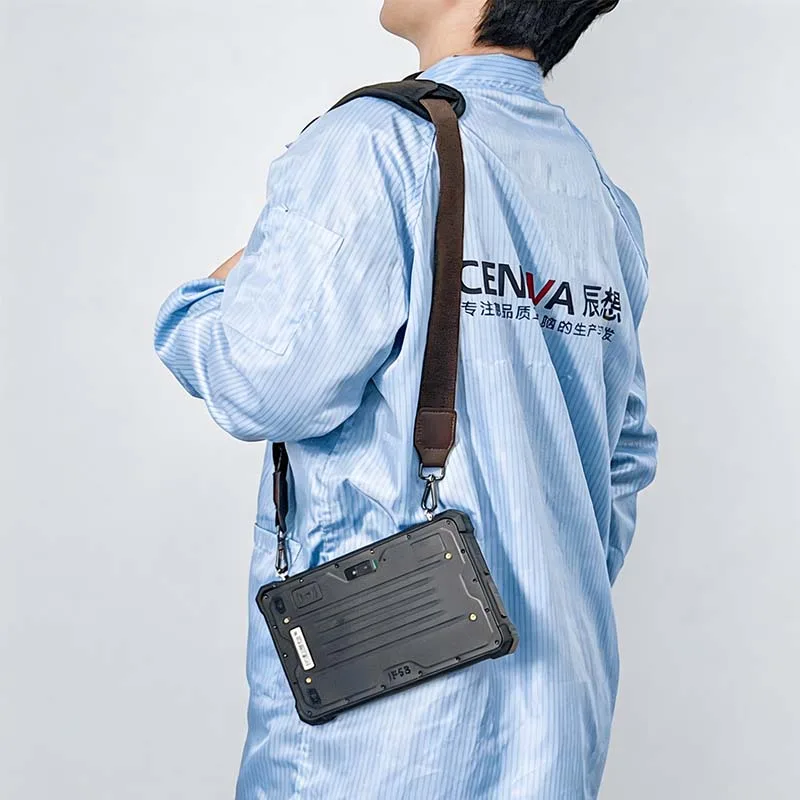

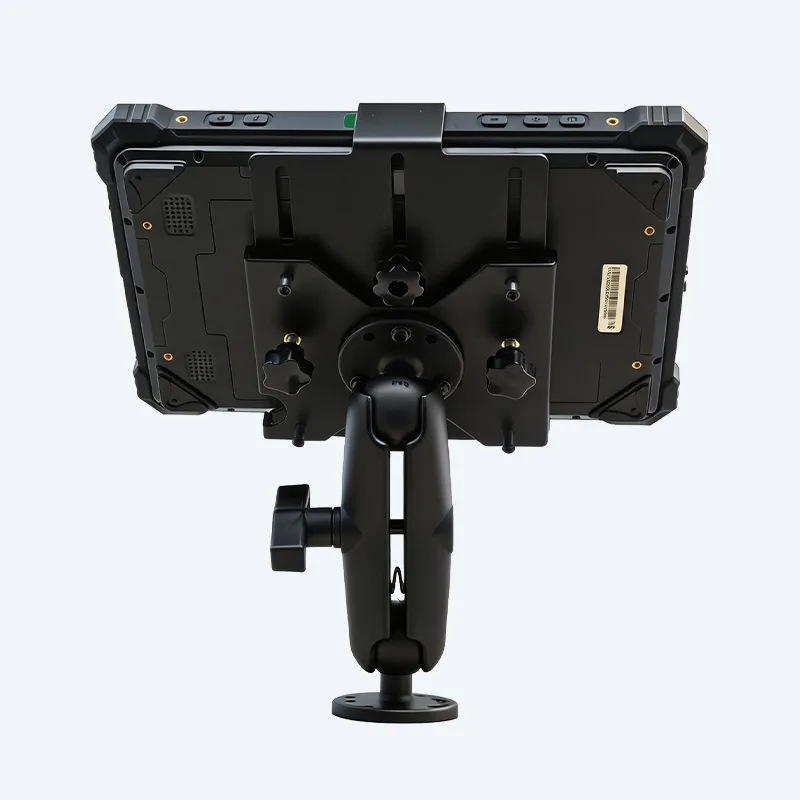

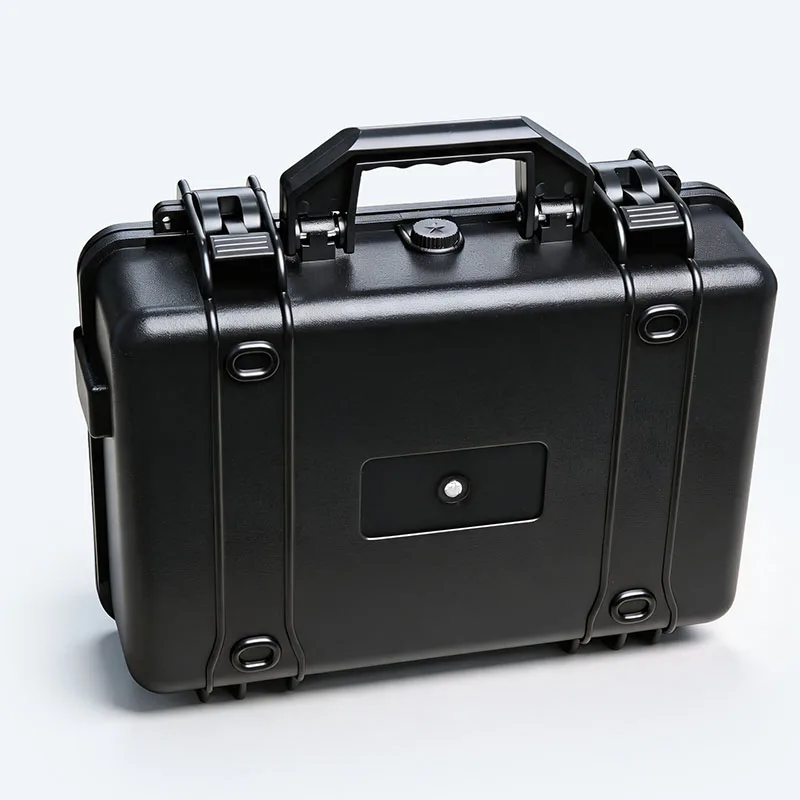

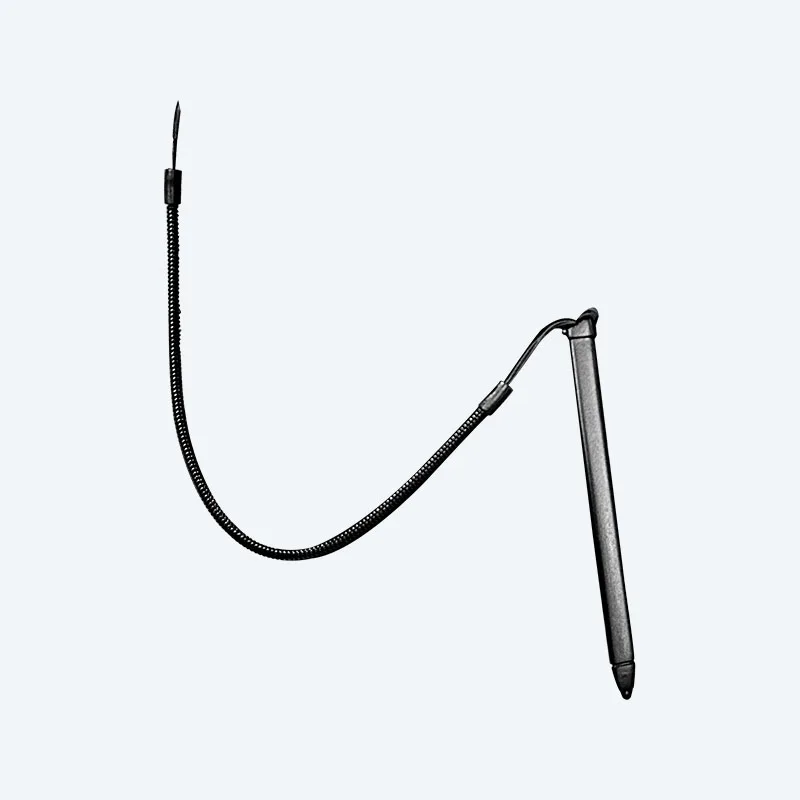

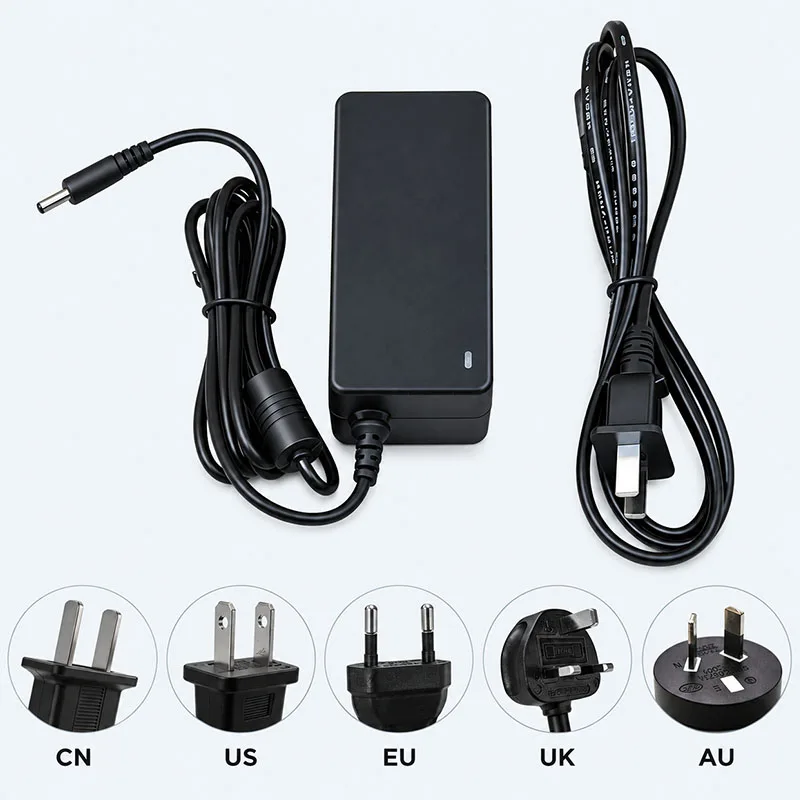

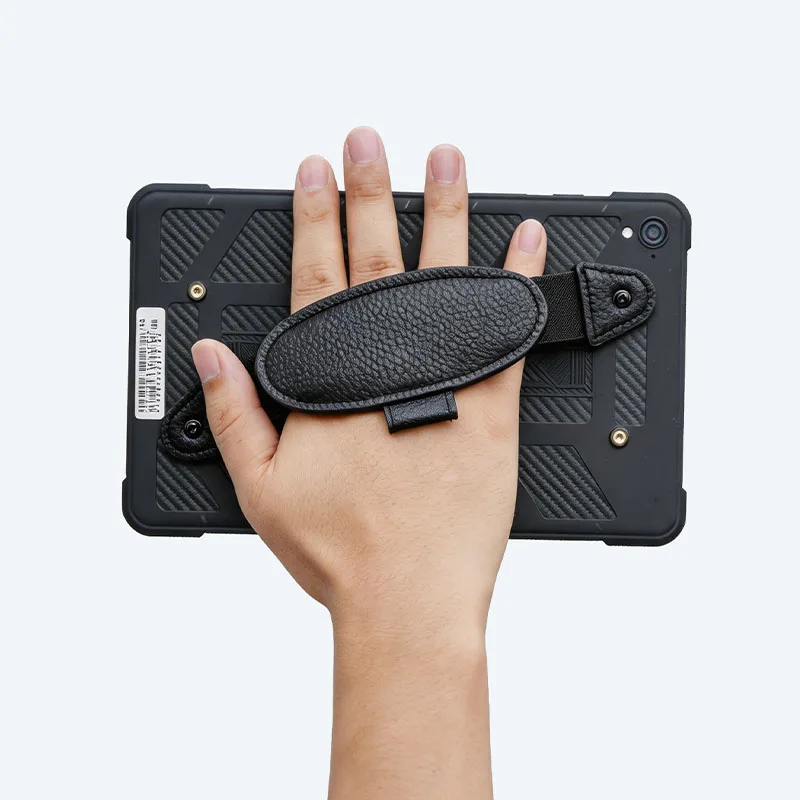

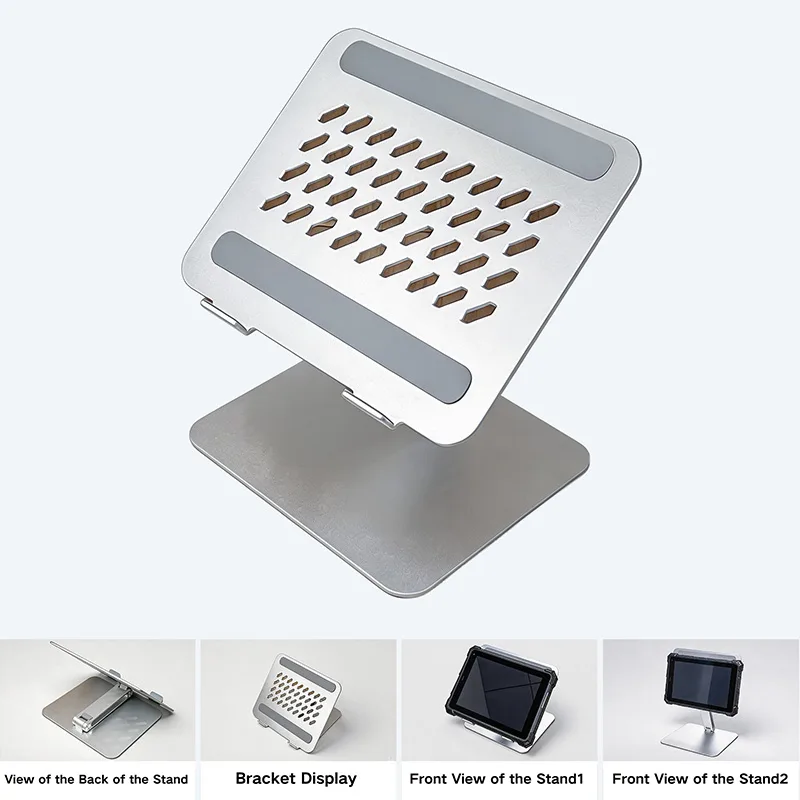

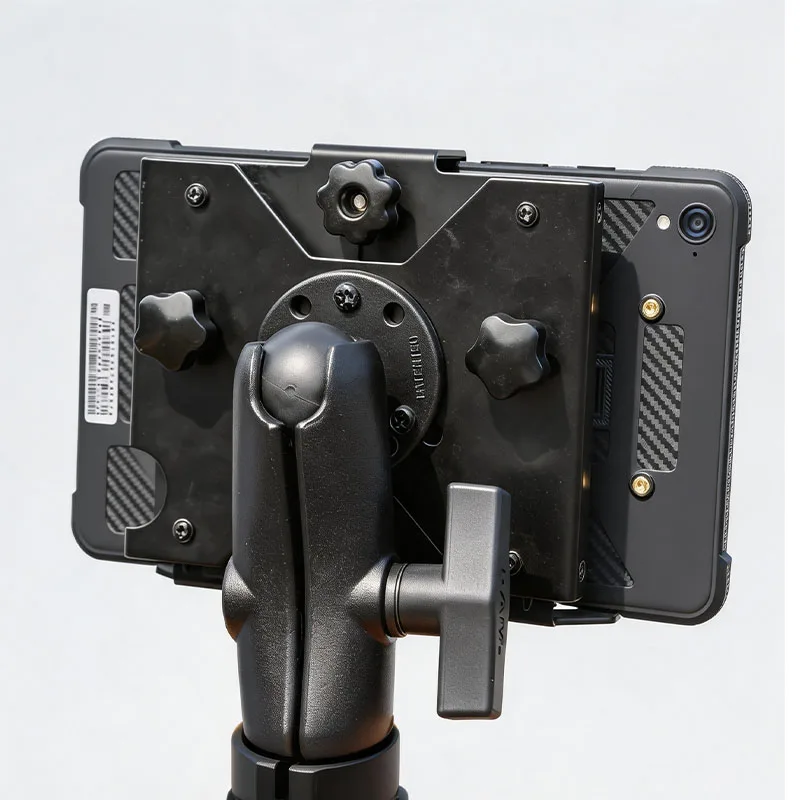

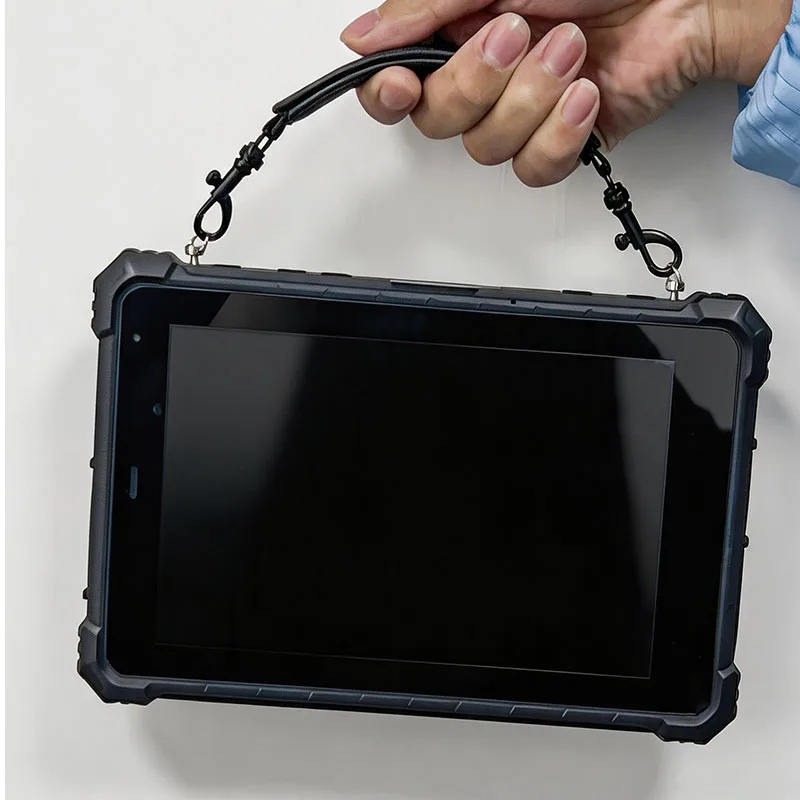

Accessories
