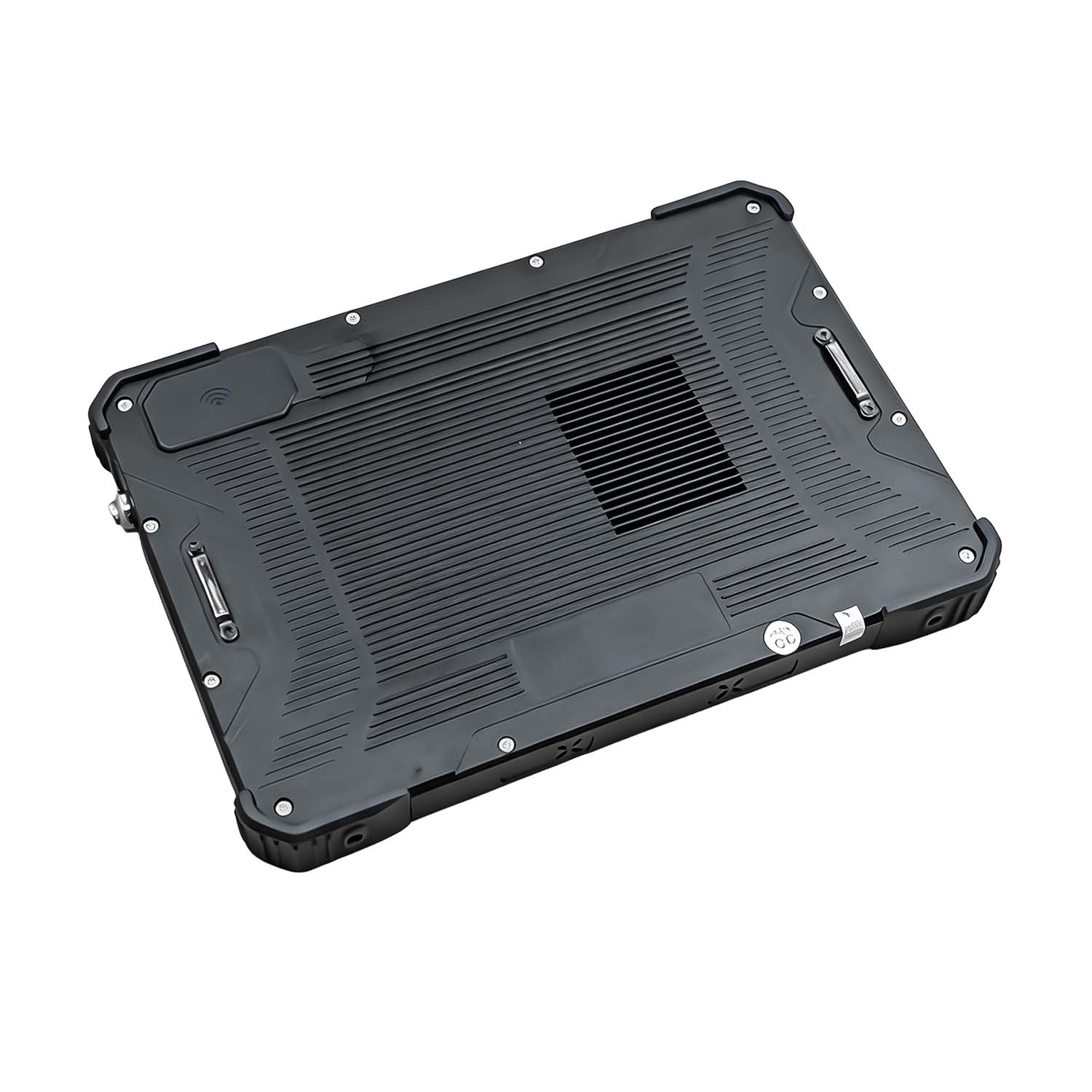

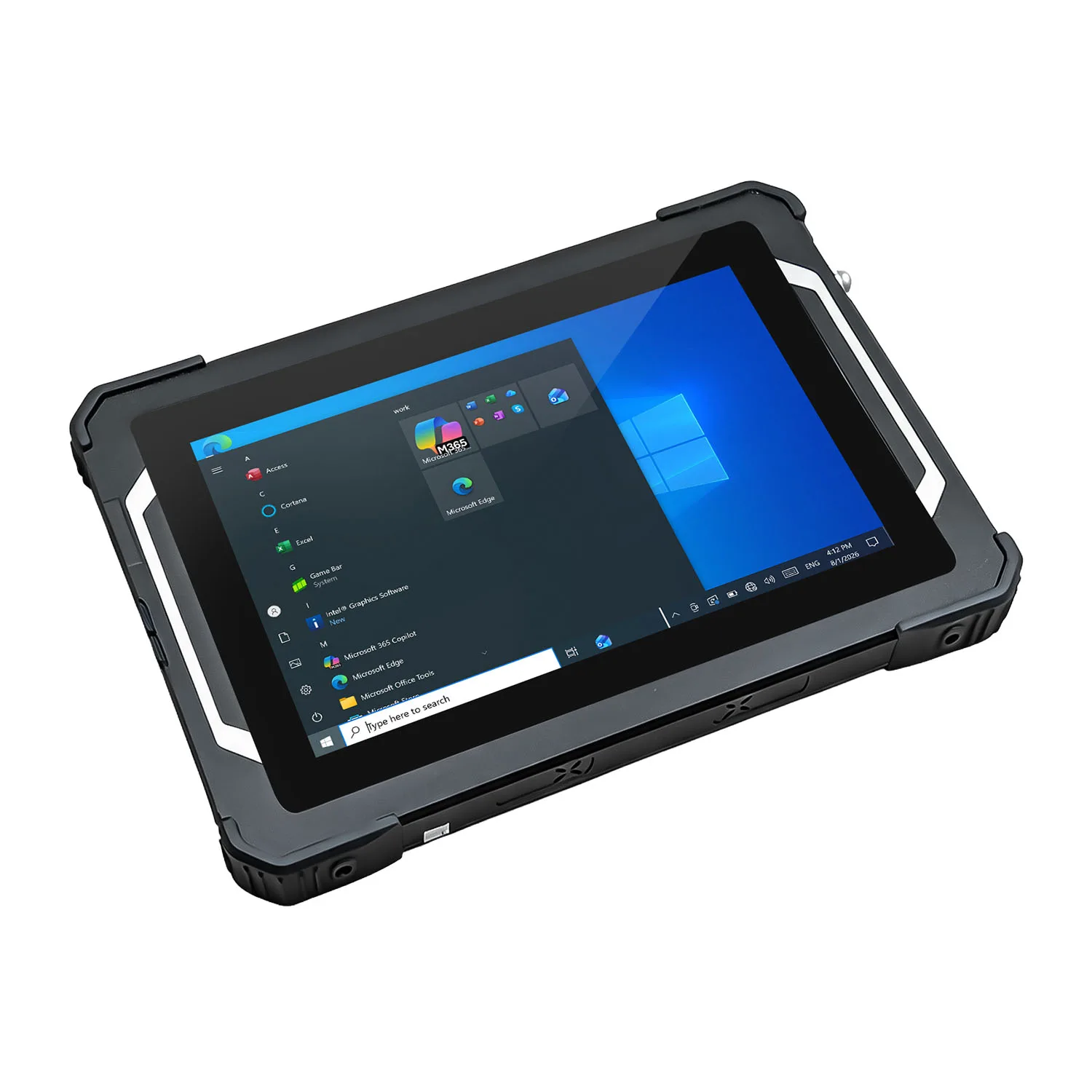

CENAVA CXE80C N2930 8 Inch Win10 IP65 Rugged Tablet
The CENAVA CXE80C is a compact 8-inch industrial rugged tablet designed for legacy Windows applications, equipment servicing, fixed industrial systems and project-specific hardware integration. It combines an Intel Celeron N2930 quad-core processor, 4GB DDR3L memory, 64GB mSATA SSD and a 1280×800 touchscreen in an aluminum-magnesium alloy enclosure.
CPU: Intel Celeron N2930 quad-core, up to 2.16GHz, 2MB cache, fanless
OS: Windows 10 (optional Windows 7/8, Linux CentOS/Ubuntu)
Display: 8" fully-laminated 1280×800, 500 nit (1000 nit high-brightness optional) , 10-point capacitive touch (optional anti-glare / glove touch)
RAM/ROM: 4GB DDR3L + 64GB mSATA SSD (optional 8GB RAM; 128/256/512GB/1TB SSD)
Integrated I/O: Gigabit RJ45, USB 3.0, USB 2.0, HDMI, 3.5mm audio, SIM slot, DC 19V input
Network: Dual-band WiFi (802.11 b/g/n), Bluetooth 4.0; optional built-in 4G LTE full-netcom (PCIe); optional BeiDou + GPS positioning
Battery: Built-in 6000mAh, ≥3h work / 120h standby (optional 8000mAh, ≥6h work / 240h standby)
Protection: IP65, MIL-STD-810G, 1.0m drop (powered on), -20°C to 50°C operating, aluminum-magnesium alloy shell with silicone corners
Camera: Optional rear USB 5MP/13MP camera (no front camera)
Customization & Optional Modules: multi-LAN, multi-serial, aviation plugs, built-in function modules; optional 1D/2D scanner, fingerprint encryption module, gyroscope
The CENAVA CXE80C is a compact 8-inch industrial rugged tablet designed for legacy Windows applications, equipment servicing, fixed industrial systems and project-specific hardware integration. It combines an Intel Celeron N2930 quad-core processor, 4GB DDR3L memory, 64GB mSATA SSD and a 1280×800 touchscreen in an aluminum-magnesium alloy enclosure.
Technical Specifications
 CPU Intel Celeron N2930, 4C4T, up to 2.16GHz, fanless |  System |  Storage 4GB DDR3L + 64GB mSATA (8GB; 128/256/512GB/1TB optional) |  Display 8 inch 1280*800 resolution |
 Optional NFC 13.56MHz, supporting ISO/IEC 14443A, 14443B and 15693 |  Optional 1D/2D Barcode Scanner Support |  Battery Built-in 6000mAh, ≥3h work / 120h standby (8000mAh option: ≥6h / 240h) |  Wall hole pitch / screw 154x71.5mm/ M3*4.5mm |
 Navigation positioning Optional BeiDou + GPS |  2G/3G/4G Optional 4G LTE (PCIe module) |  Interface Gigabit RJ45, USB 3.0, USB 2.0, HDMI, 3.5mm, SIM, DC 19V |  Size/Weight 230*160*20mm/1100g |
 Speakers Dual integrated speakers |  Protection level working temperature: -20 °C to 50°C Storage temperature: -30 °C to 70 °C |  Camera No front camera; optional rear USB camera (5MP/13MP) |  Light-sensitive Support |
| Product Type | 8 inch Windows industrial Rugged Tablet |
| Material | Aluminum-magnesium alloy metal shell, silicone protective corner, waterproof rubber strip |
| Battery（optional） | Working time ≥ 3 hours, standby time: 120 hours (5 days); 6000mAh |
| WIFI | Built-in WIFI 802.11 b/g/n 2.4G |
| Bluetooth | Bluetooth 4.0 |
| USB Interface | USB3.0*1 USB2.0*1 |
| Earphone Jack | *1 |
| SIM Card | *1 |
| HDMI | *1 |
| DC Interface | *DC input ×1 (19V/3.5A) |
| RJ45（Gigabit） | *1 |
| Power supply | 19V ⎓ 3.5A (5.5mm plug) |
| Certification | IP65 (IEC 60529), CCC, CE, RoHS; drop-tested to MIL-STD-810G (1.0 m, powered on); ISO 9001-certified factory; salt-spray tested |
| Drop height | 100cm Laminate Flooring |
The CXE80C is intended for organizations that still rely on established industrial software, USB peripherals or equipment drivers developed for earlier Windows environments.
Typical projects may include:
Replacement of an existing N2930 industrial tablet
Continued operation of Windows 7 equipment software
Legacy Windows 10 applications
USB instrument control
Fixed industrial monitoring
Equipment maintenance
Network commissioning
Vehicle-mounted control
Customized Linux terminals
Existing OEM hardware platforms
Frequently Asked Questions About CXE80C Industrial Rugged Tablet
1. What type of customer should choose the CXE80C?
The CXE80C suits organizations that need to keep running existing Windows applications, USB equipment or a validated N2930 system image — for example, replacing an aging N2930 tablet without redeveloping the software around it.
2. Is the N2930 a quad-core processor?
Yes, four cores and four threads, up to 2.16GHz burst frequency.
3. Is the CXE80C suitable for a new, internet-connected project?
It can be used in new deployments, but for internet-connected systems we recommend also considering OS support lifecycle and cybersecurity needs — a newer Windows 11 or Linux platform may be a better fit for greenfield projects.
4. Can the CXE80C run Linux?
Yes, Ubuntu or CentOS are available as project configurations — we'll help confirm driver support for touch, Wi-Fi, 4G, GNSS and any optional modules before production.
5. What is the standard memory and storage configuration?
4GB DDR3L RAM with a 64GB mSATA SSD. 8GB RAM and SSD capacities up to 1TB are available as options.
6. Is 64GB enough storage for Windows?
It works well for a tightly controlled image running one dedicated application.
7. Does the CXE80C have Gigabit Ethernet?
Yes, one Gigabit RJ45 port is included.
8. Does it include 4G?
No, a PCIe-based 4G module is optional — let us know your target region/carrier so we can confirm the right modem and bands.
9. Is a barcode scanner included?
No, a 1D/2D scanner is available as an option — let us know your barcode formats and required reading distance so we can recommend the right module.
10. Does the standard product include a camera?
No standard camera. An optional rear USB camera (5MP or 13MP) can be added; there is no front camera option.
11. Is the battery removable?
The standard and optional (8000mAh) batteries are both built in rather than user-removable or hot-swappable.
12. Is the CXE80C IP67 or IP68 rated?
No, it's rated IP65.
13. Is the CXE80C MIL-STD-810H certified?
It's rated to MIL-STD-810G rather than 810H — contact us for the specific test methods covered if you need that detail for procurement documentation.
14. Does it support 9–24V wide-voltage input?
No — the standard power input is 19V/3.5A via the included adapter.

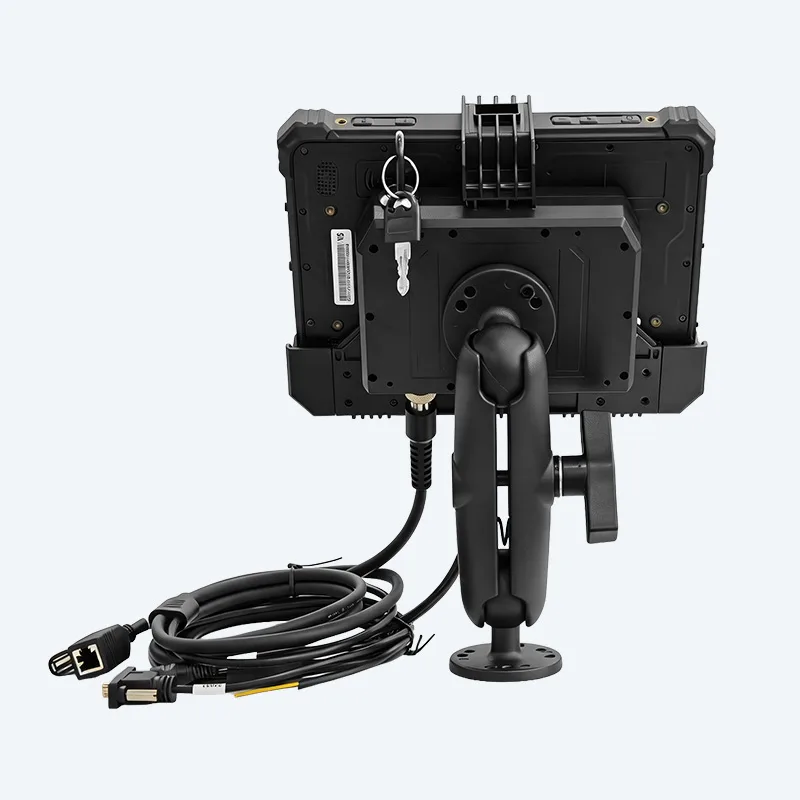

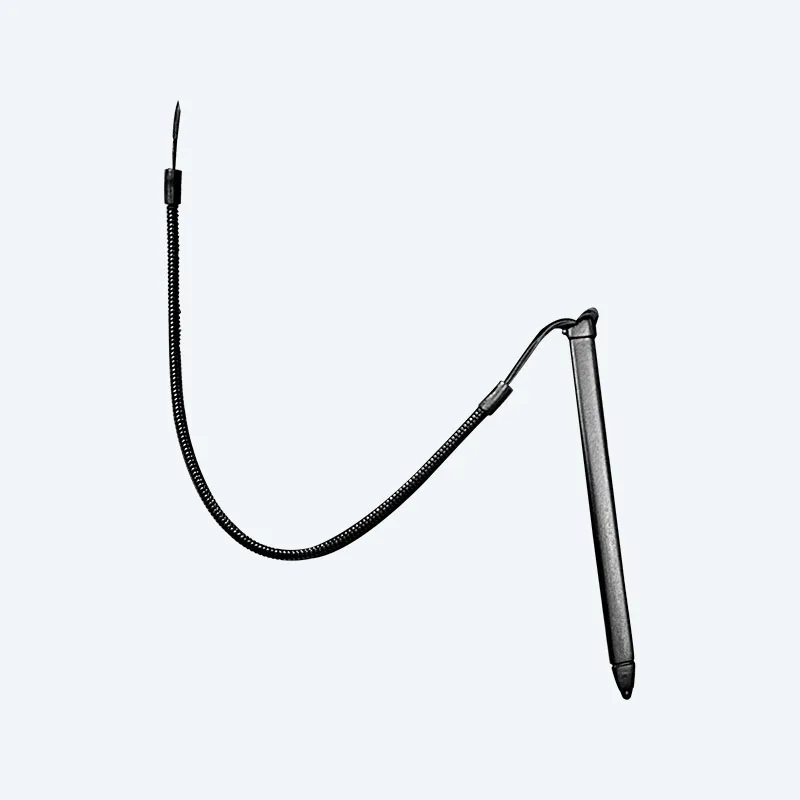

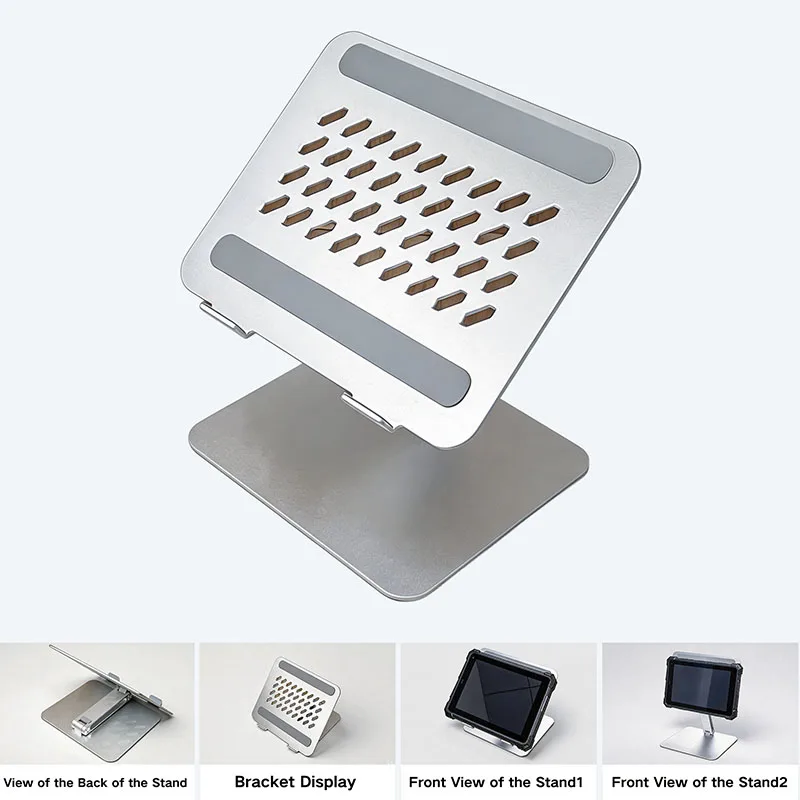

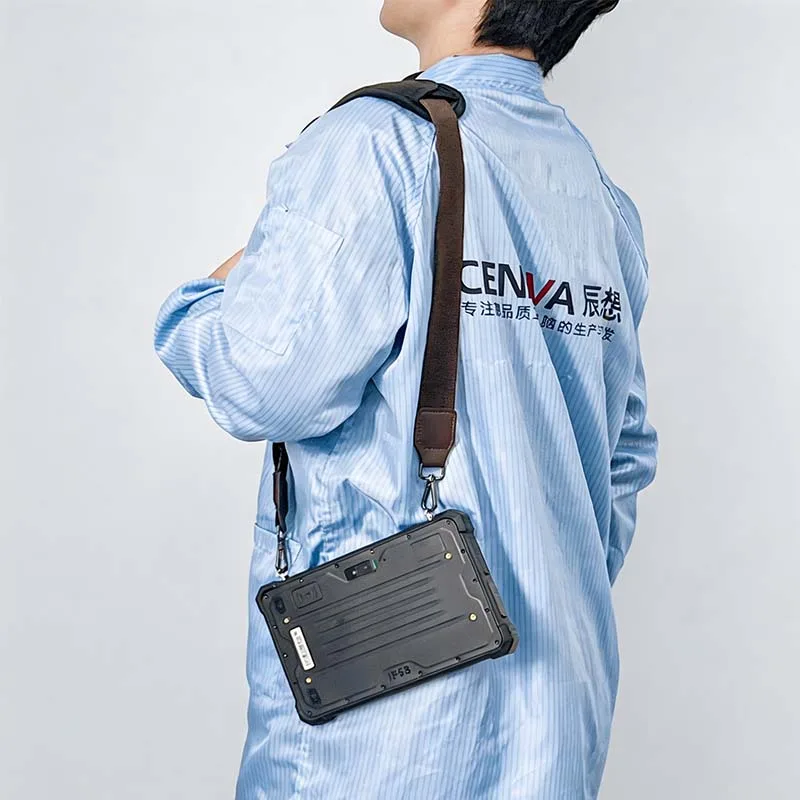

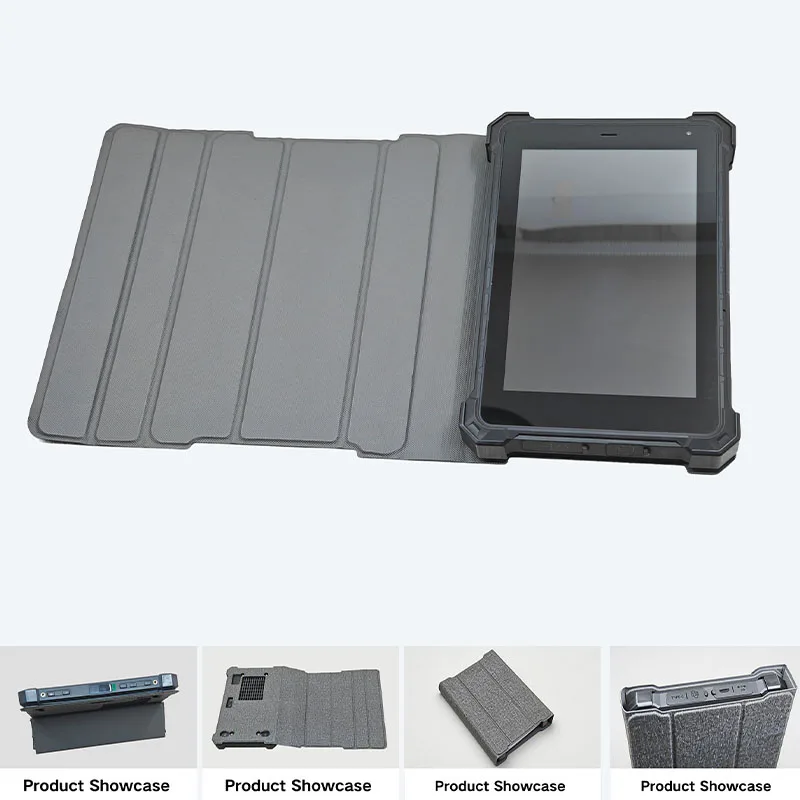

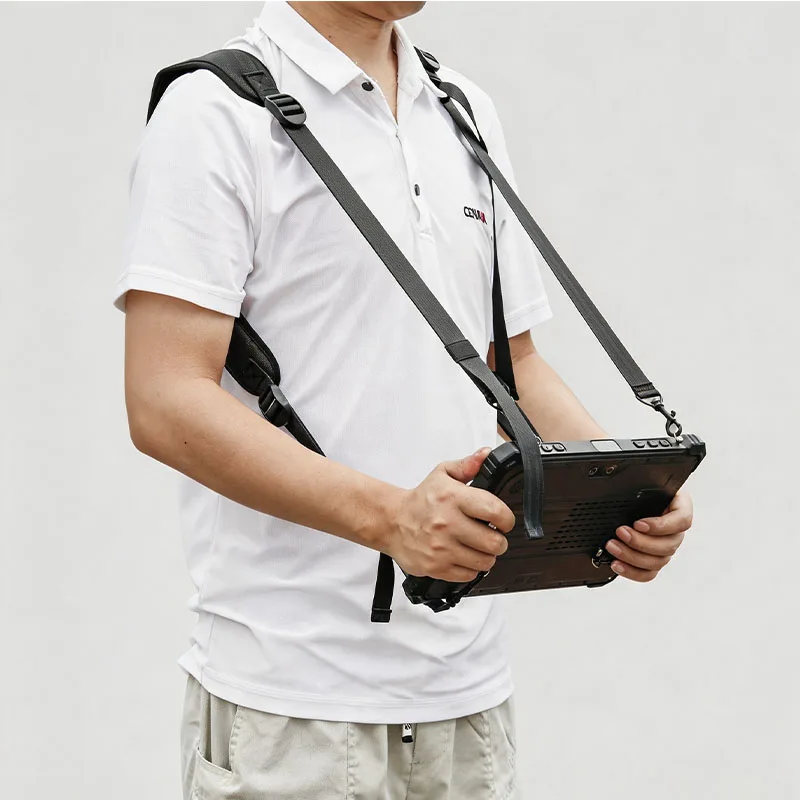

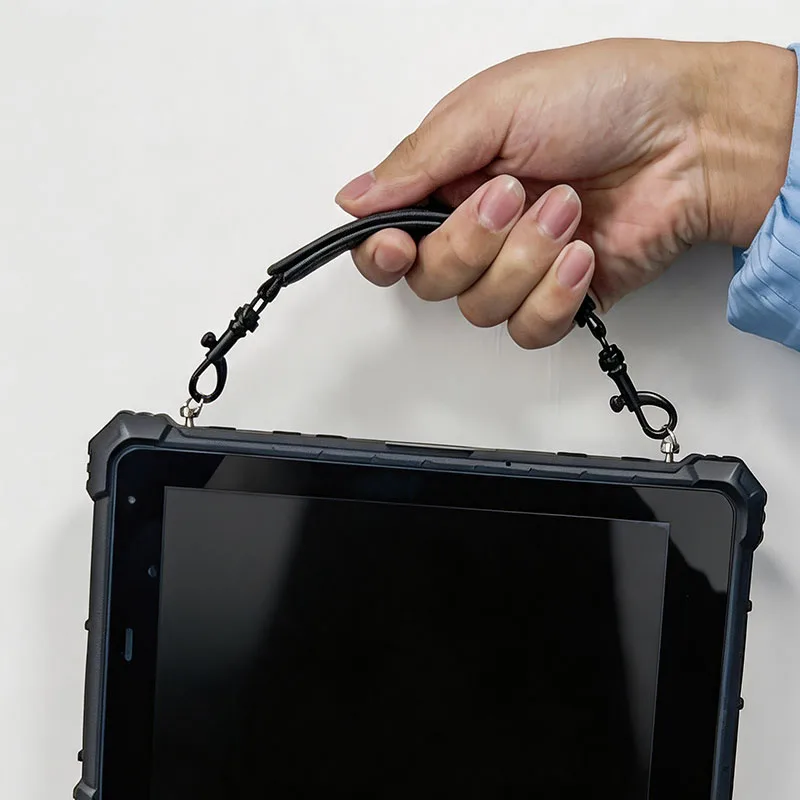

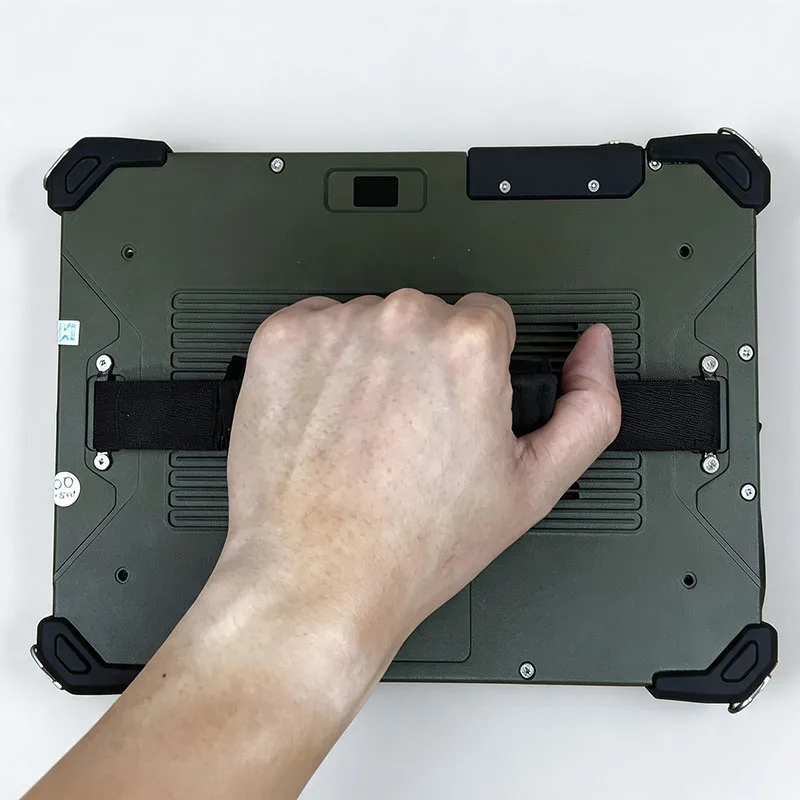

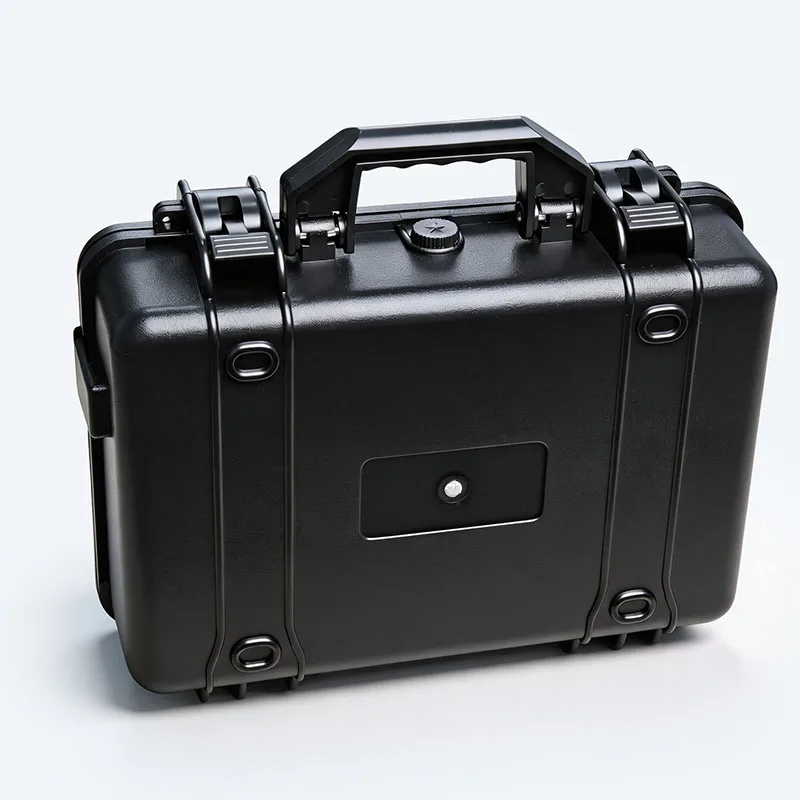

Accessories
