Rugged Computing Products
Rugged tablets, laptops, handhelds, and industrial PCs—built for demanding
environments and backed by 23 years of OEM/ODM expertise.

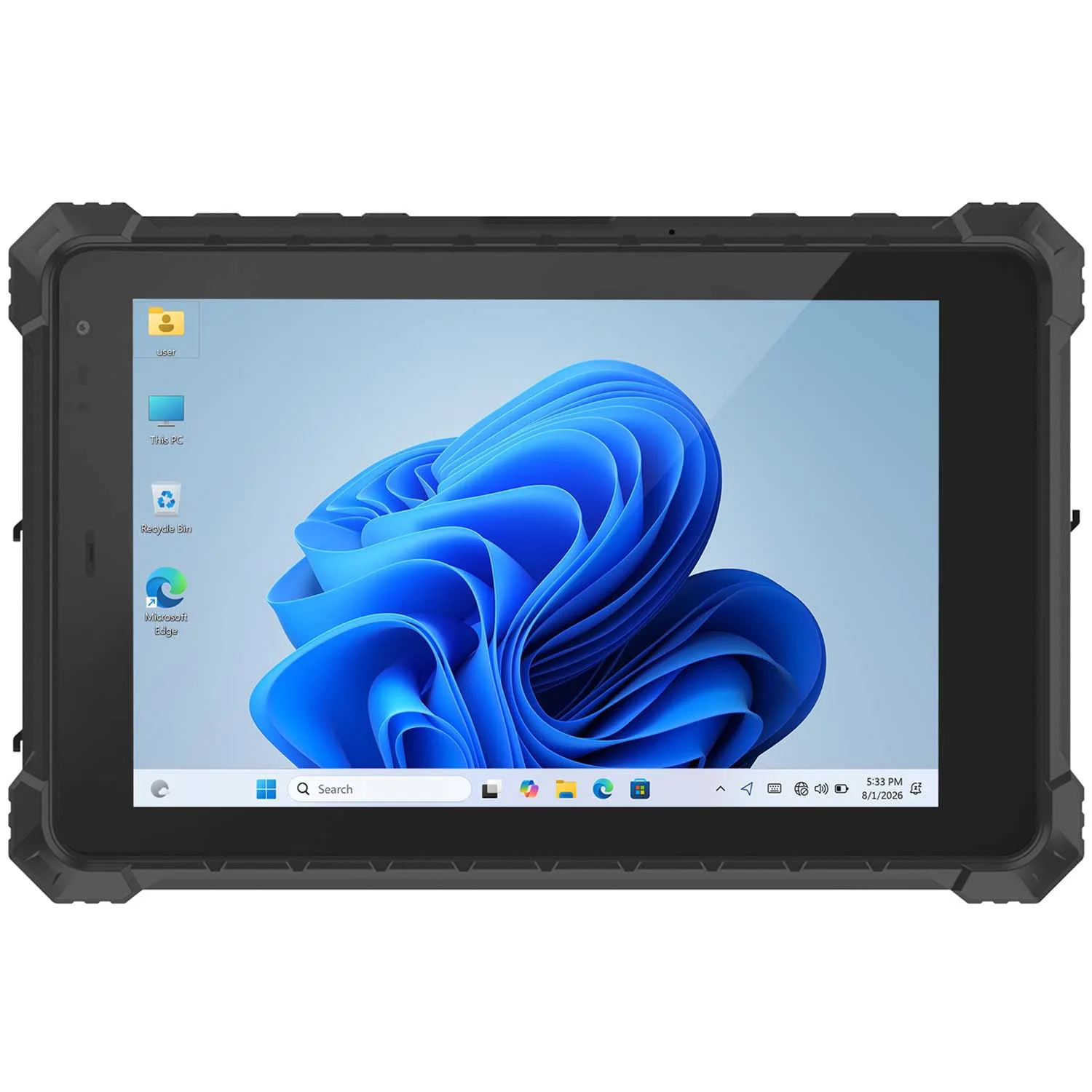

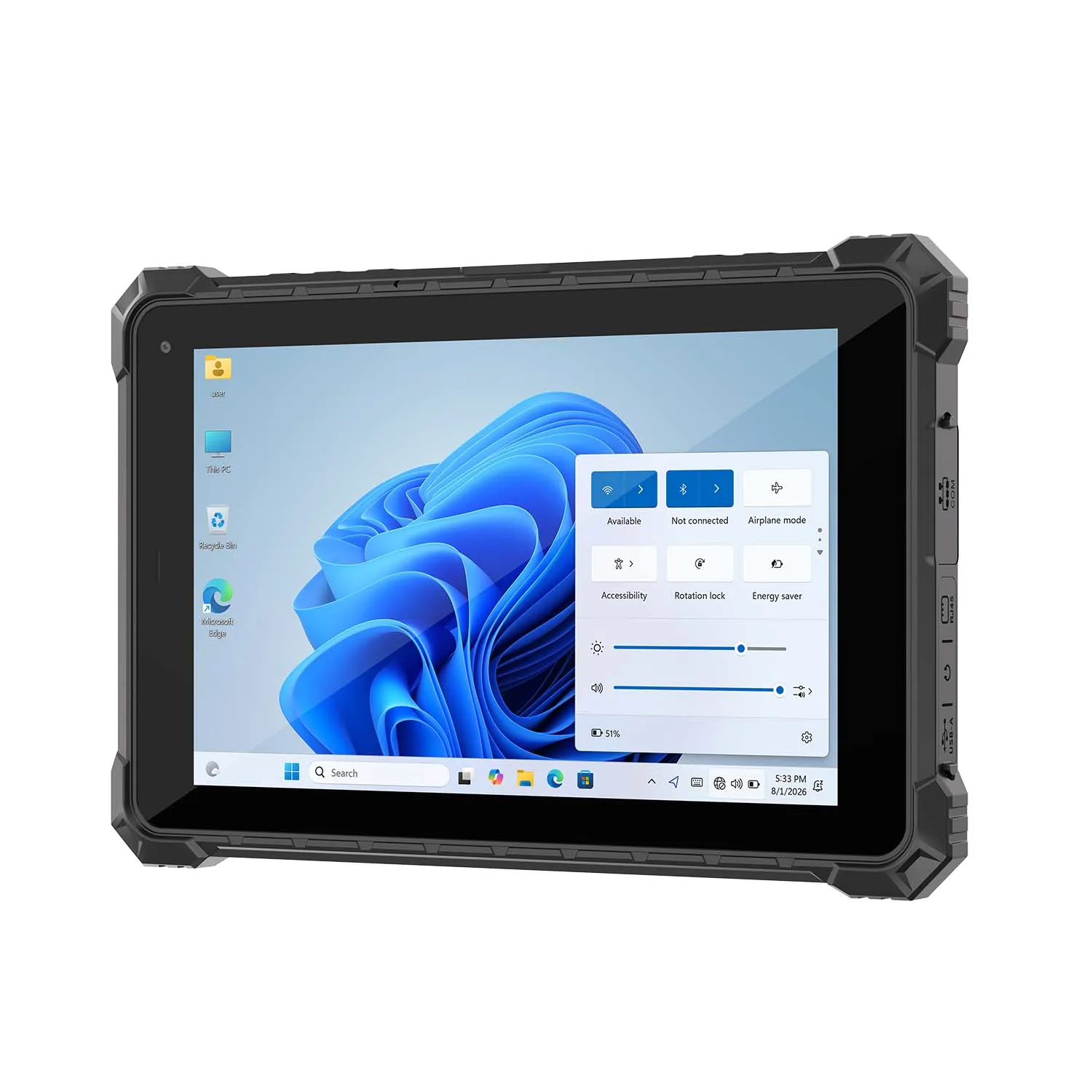

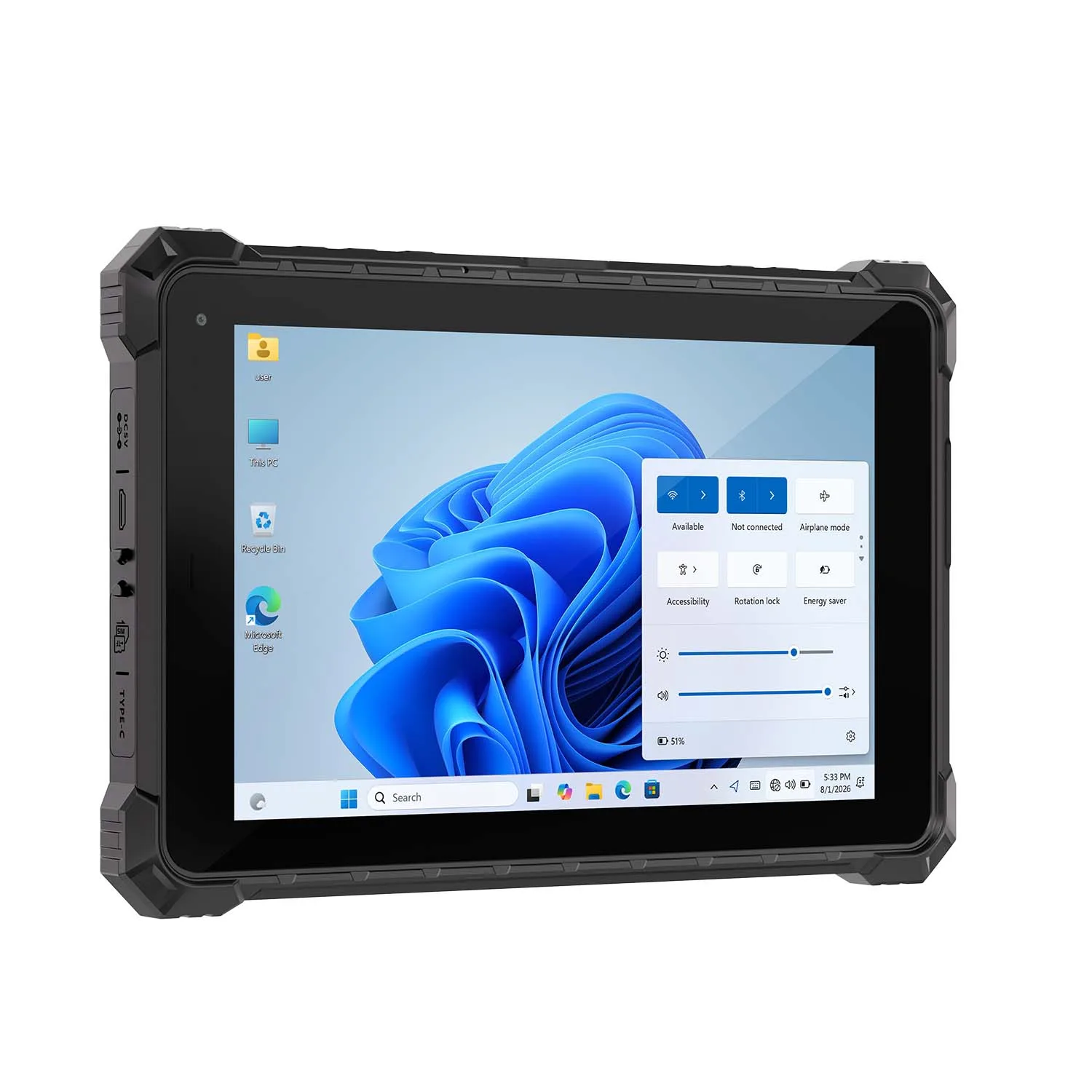

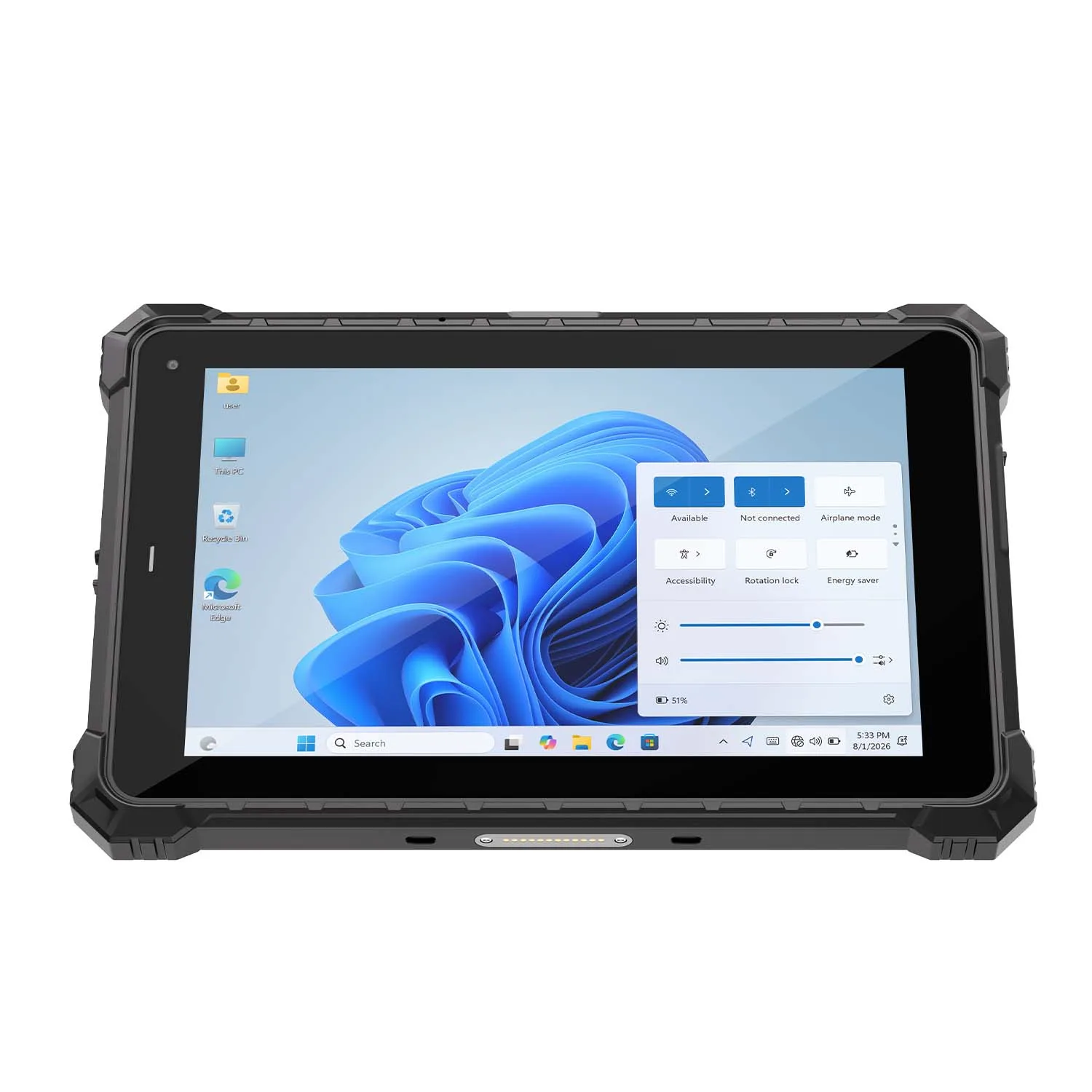

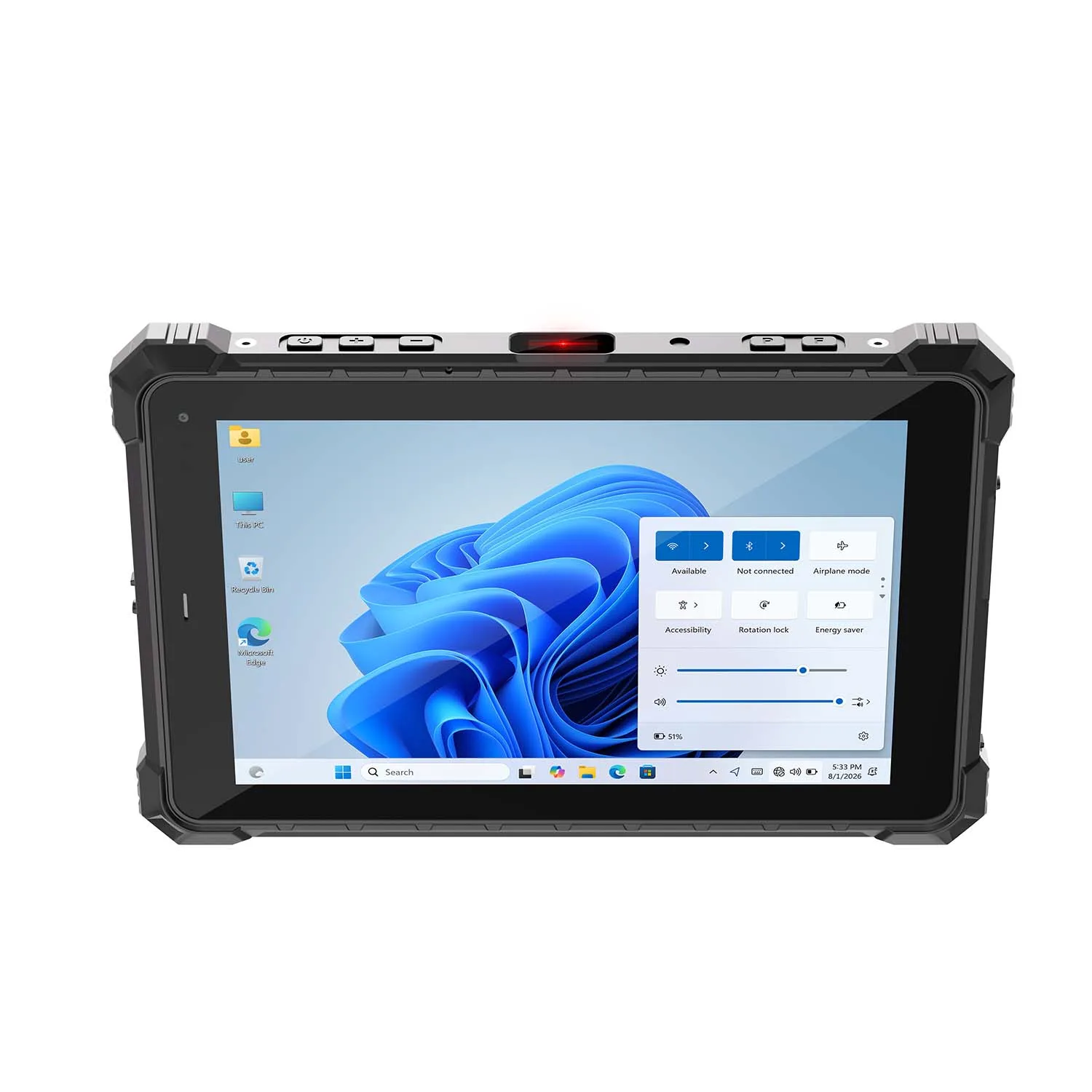

CENAVA W10Y i5-10210Y 10.1 Inch Win11 IP68 Rugged Tablet Full I/O
CENAVA W10Y pairs an Intel Core i5-10210Y with full wired connectivity in a 10.1-inch rugged body for MES terminals and production management. Gigabit RJ45, RS232 and Micro HDMI link machines and dashboards directly, while WiFi 6E handles wireless backhaul. Windows 11 runs fanless behind a glove-touch FHD display. IP68, MIL-STD-810H rated; built-in 5550mAh battery with optional 10000mAh pack, 4G/5G, 2D, RTK and more.
CPU: Intel Core i5-10210Y quad-core 8-thread, 1.0–4.0GHz, UHD Graphics, fanless passive cooling
OS: Windows 11 (optional Windows 10, Ubuntu 20.04.6/22.04.5, Debian 12)
Display: 10.1" 1920×1200, 700cd/㎡, 10-point G+G glove touch, hardness ≥7H (wet-hand touch customizable)
RAM/ROM: 8GB+128GB M.2 SSD
Integrated I/O: Gigabit RJ45 (100/1000M), DB9 RS232, Micro HDMI, Type-C USB3.0, USB-A 3.0, 3.5mm jack, TF up to 256GB, Micro SIM, DC 12V, 12Pin POGO
Network: WiFi 6E, Bluetooth 5.3; optional 4G LTE / 5G (custom function); GPS/BeiDou/Galileo/GLONASS, optional single-BeiDou positioning
Battery: Built-in 5550mAh 7.6V non-removable, ≥5h endurance (custom 10000mAh large battery)
Protection: IP68, MIL-STD-810H 1.22m drop, -20°C~60°C (custom -30°C~60°C), TPM security chip
Camera: Front 5MP fixed-focus + rear 12MP autofocus
Optional Modules: 2D scanner (N1/N670), ID card reader, UHF RFID, NFC, LF 125kHz, fingerprint, RTK cm-level positioning
Quad-Core Power
Win11 Smooth
i5-10210Y Quad-Core 8GB+128GB Optional 4G/5G
Powered by the Intel Core i5-10210Y quad-core 8-thread processor (1.0-4.0GHz) with Windows 11, multitasking runs smoothly without lag; Windows 10, Ubuntu and Debian optional. The 10.1-inch display provides ample space for multi-window dispatching and data visualization. Standard 8GB+128GB with removable M.2 SSD handles video backhaul and cloud collaboration. Optional 4G/5G modules keep field inspections and vehicle operations online. Built-in TPM security chip, WiFi 6E and Bluetooth 5.3, plus GPS, BeiDou, Galileo and GLONASS positioning.

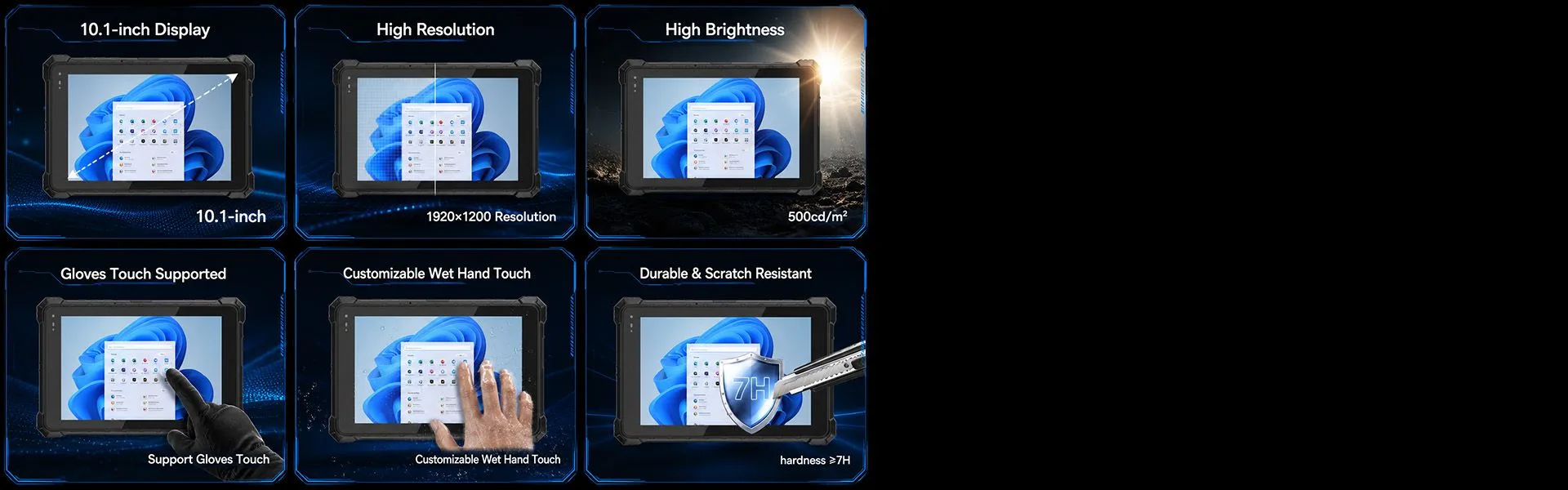

High-Res Bright Display
Outdoor Strong Visibility
10.1-inch IPS 1920*1200 700cd/m²
The 10.1-inch IPS panel delivers crisp 1920*1200 resolution, with 700cd/m² brightness remaining clearly readable under direct sunlight. Medical rubber glove touch is supported for accurate operation on industrial sites, and wet-hand touch is available as a custom option for rainy conditions. The G+G structure with AF anti-fingerprint coating and ≥7H hardness resists scratches for long-term use. Responsive 10-point touch works smoothly with gloves or a stylus, keeping outdoor inspections and warehouse scanning clear and stable in any environment.
Triple-Proof
Harsh Conditions No Fear
IP68 1.22m Drop -20°C~60°C

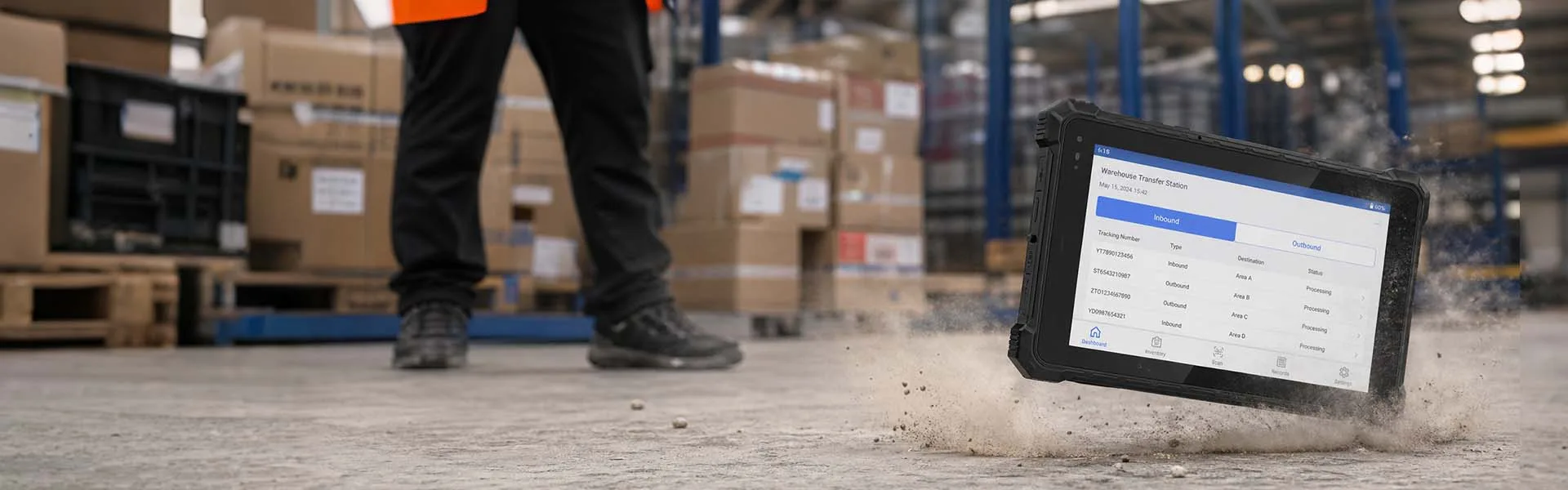

IP68 dust-tight and waterproof, MIL-STD-810H certified for 1.22m drops. The -20°C to 60°C wide temperature range ensures instant startup in harsh weather, with -30°C low-temperature customization for extreme cold. Reinforced corners cushion impacts, sealing rings keep out mud and sand, and salt-spray testing is passed. Built rugged for reliable on-site work.
Industrial Full Interface
Plug and Play
Type-C+USB3.0+RS232+Micro HDMI+Gigabit RJ45
Full industrial interfaces: gigabit RJ45 Ethernet connects directly to PLCs and switches; Type-C USB3.0 enables high-speed transfer; USB-A connects flash drives, keyboards and mice; Micro HDMI extends to large screens; RS232 links legacy instruments and sensors; the 12-pin POGO PIN dock handles charging and expansion; the 3.5mm jack supports voice intercom. The compact layout stays unobstructed in one-handed use. Paired with optional 2D scanning, fingerprint, NFC, ID card and UHF modules, it forms an integrated data-collection and device-control terminal.
Technical Specifications
 CPU Intel(R) Core(TM) i5-10210Y Quad Core |  System |  Storage 8+128GB |  Display 10-inch IPS touch screen 1920*1200 |
 NFC Optional Default back of the body for card reading, customizable to the front |  1D/2D barcode scanner Optional Designed to read damaged or poorly printed 1D and 2D barcodes. |  Battery 7.6V 5550mAh high voltage lithium battery |  High frequency/ultra-high frequency module Optional Ultra thin integrated module |
 Navigation positioning GPS,Galileo GLONASS |  ID card identification Optional |  Interface Type -A,Type -C HDMI,POGO PIN |  Weight
|
 Card slot SIM / TF （256G） |  Protection level Working temperature: -20 °C to 60°C Storage temperature:-30 °C to 70 °C Protection level: IP68 |  Camera Front camera:5MP Rear camera:12MP（Auto focus, flash） |  Sensor Gravity sensing, compass, gyroscope, light sensing, distance sensing |
W10Y Windows Rugged Tablet Details:
| Size | 283.9*189.0*24.1mm |
| TP touch screen | Anti-fingerprint (AF) coating,10-point touch G+G, hardness ≥7H, support for medical rubber gloves touch screen (Wet-hand touch is available as a customized option.) |
| TPM | Built-in TPM Security chip |
| Gravity sensor | YES |
| TYPE-C | *1 Type-C USB3.0 |
| Type -A | *1 Type-A USB3.0 |
| DB9 | *1 RS232 |
| Earphone Jack | *1 3.5mm audio jack |
| TF Card | supports up to 256GB |
| SIM Card | *1 Standard Micro SIM card slot |
| Micro HDMI | *1 Micro HDMI |
| DC port | *1 12V-4A (DC plug outer diameter 3.5mm inner diameter 1.35mm) |

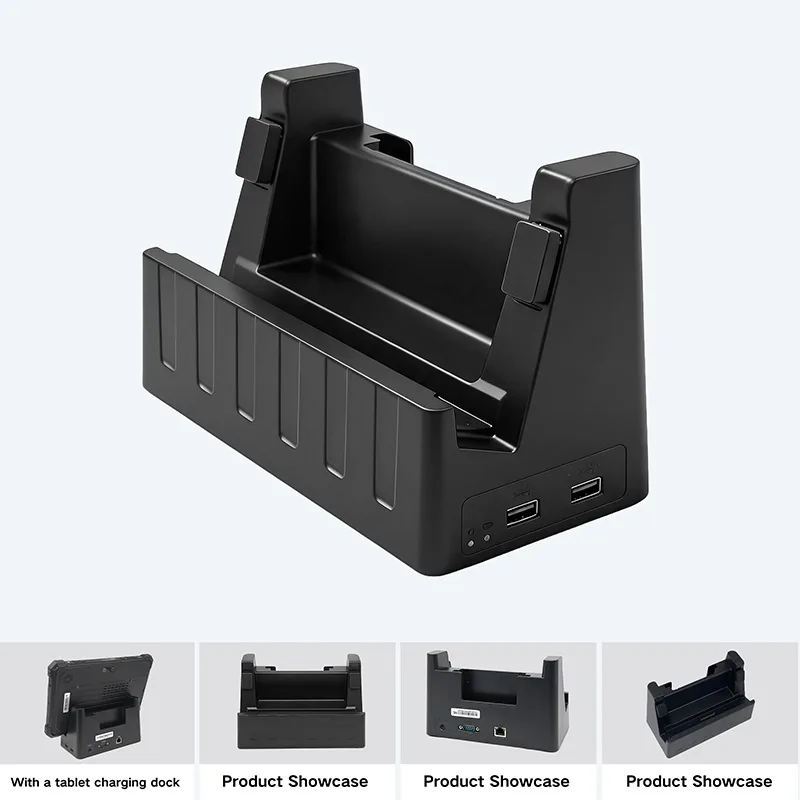

| POGO PIN | *1 12-pin POGO connector for USB communication and charging |
| RJ45 | *1 100/1000M |
| Drop height | Tested to MIL-STD-810H and GJB 150.1A/150.18A-2009, 1.22m transit drop |
| Humidity | 95% non-condensing |
| Certificates | Product compliance: CCC, CE, RoHS Environmental protection: IP68 Ruggedness testing: MIL-STD-810H + GJB 150.1A/150.18A-2009 (1.22m drop) / Salt-spray tested (configuration-dependent) Additional testing: salt-spray testing, subject to configuration Quality management: ISO-certified manufacturing system |

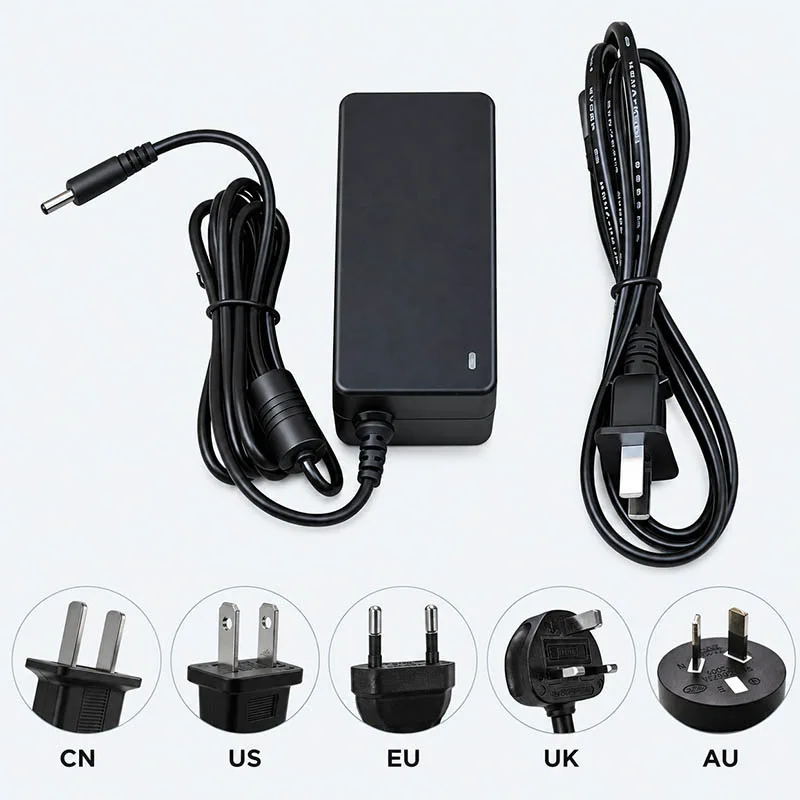

| Adapter | 12V/4A DC adapter |
Frequently Asked Questions About the W10Y Windows Rugged Tablet
1. What types of Windows applications can the W10Y run?
The W10Y runs a Core i5-10210Y or i7-10510Y — a fanless Y-series chip, not a U-series. Field-inspection apps, warehouse clients, browser-based ERP and office documents all run comfortably, and the i7 handles a couple of heavyweight applications at once. What it won't do is CAD viewers or a local SQL database under load; for those, the W30U Pro with Core Ultra is the right step up, and we'll say so on the inquiry.
2. Does the W10Y support Windows 11 security features?
Yes — the built-in TPM enables BitLocker and Windows credential protection on Windows 11 Pro editions. For fleet deployments, tell us your imaging requirements before production: we can ship units with Secure Boot enabled and your corporate image pre-loaded, which saves your IT team the re-imaging pass.
3. Can the W10Y connect directly to industrial equipment?
Yes — that's what the RS232 port is for. It talks directly to PLCs, scales, barcode printers and legacy instruments; for RS485/422 equipment we offer a factory-configured serial option on project orders. Two things to send us before ordering: your equipment's pin definition and its voltage level — RS232 wiring isn't fully standardized, and we'd rather confirm on paper than on your factory floor.
4. Can barcode, RFID and fingerprint modules be installed together?
Some combinations fit together, some don't — the enclosure, antennas and internal bays are finite, and UHF RFID in particular competes for space with cellular modules. Send us the modules you need and the quantity, and we'll confirm the workable combination in writing before sample production rather than after.

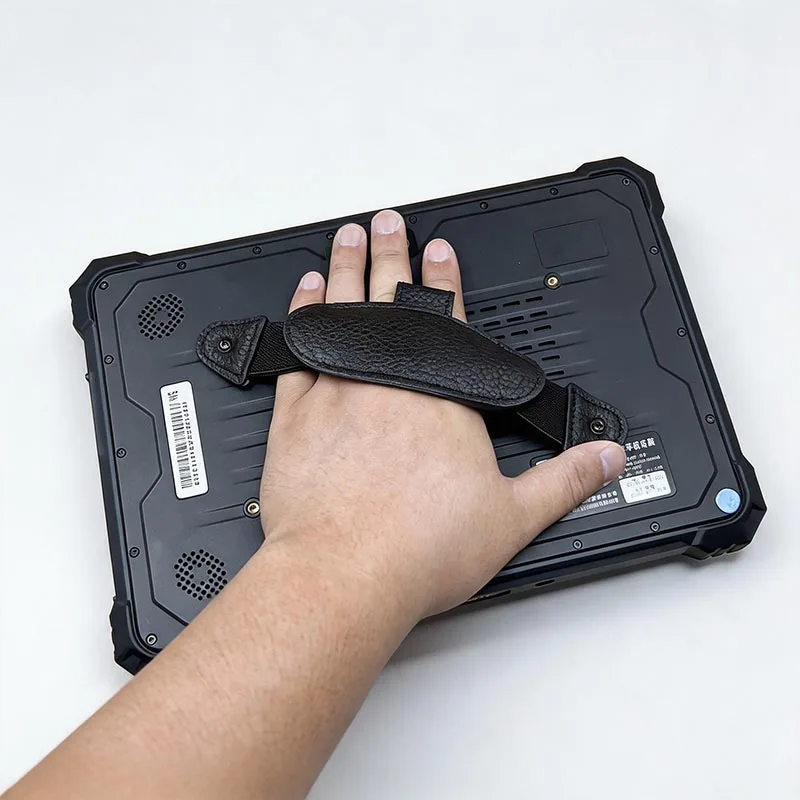

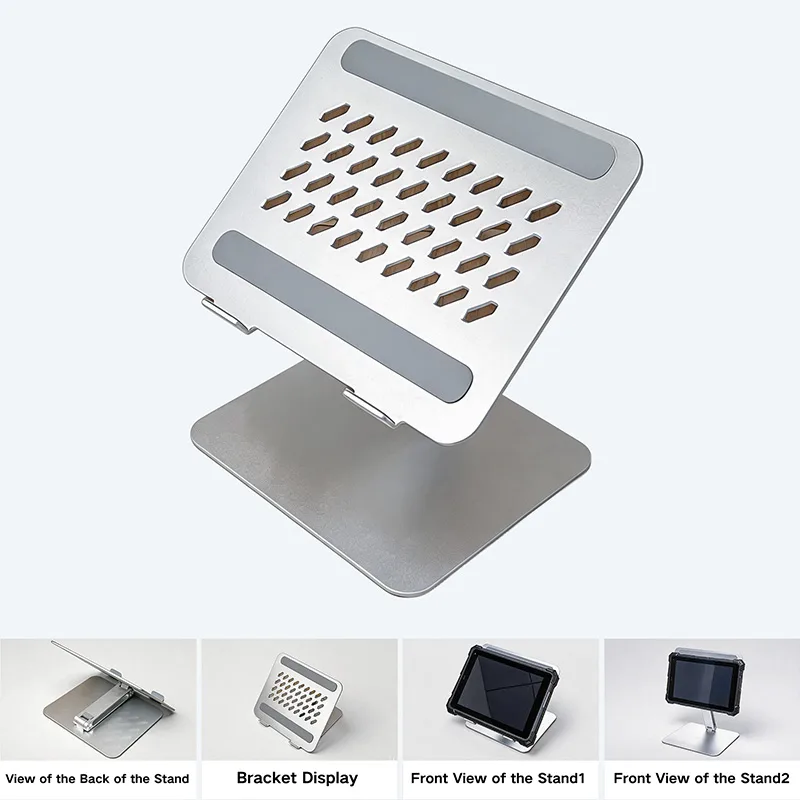

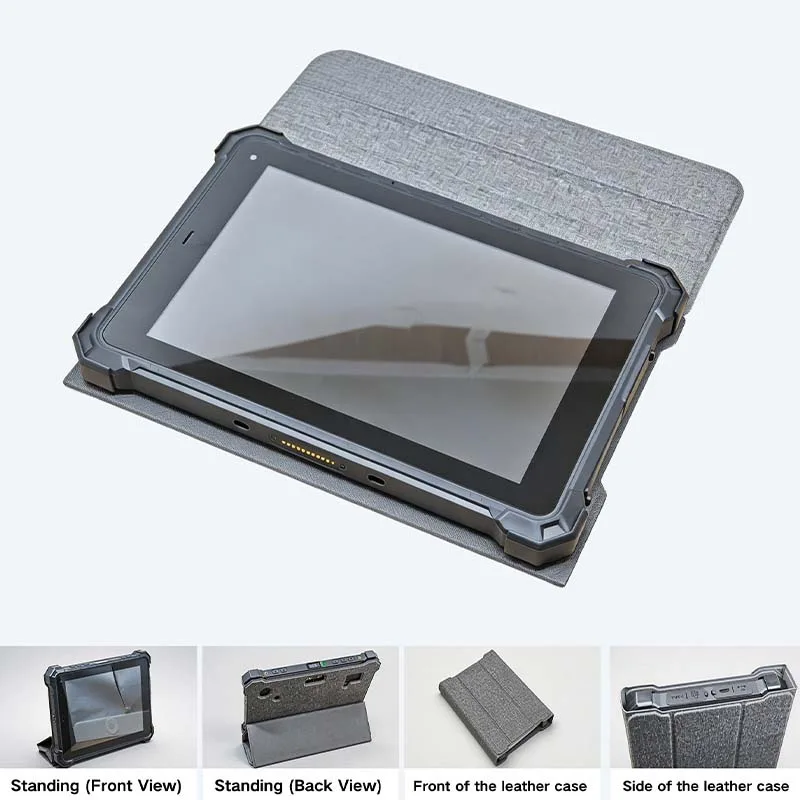

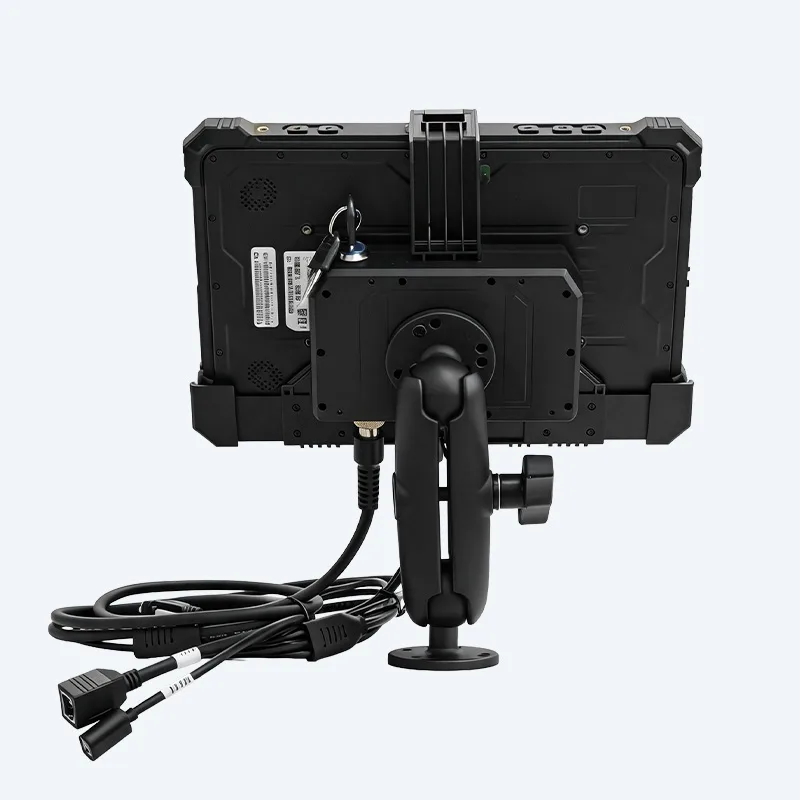

Accessories
