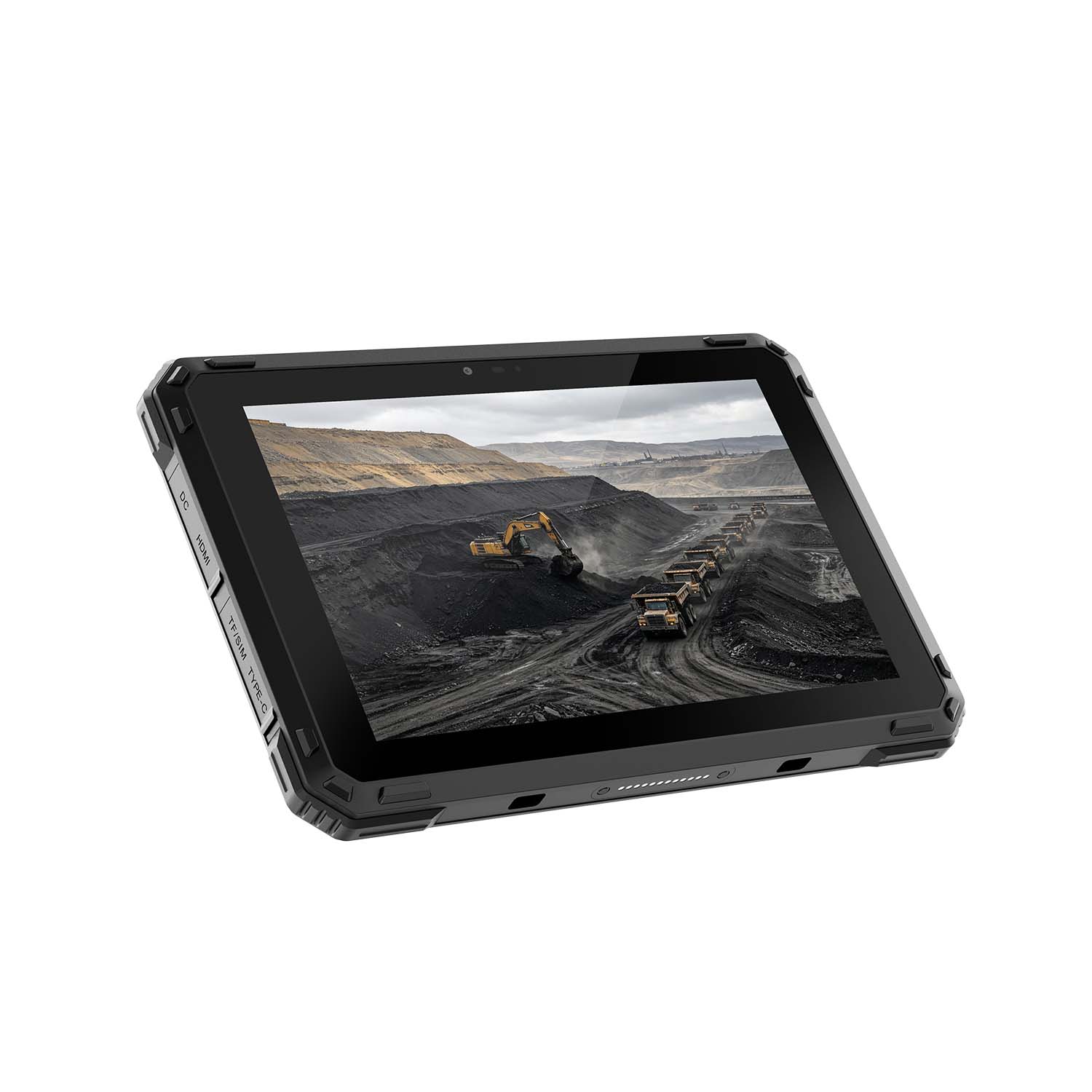

A88ST-EX MT6769 Hazardous Area 8-Inch Explosion-Proof Android Tablet

Walking Petrochemical Inspection Rounds

An appropriately certified gas configuration support a sequence such as opening a route list, identifying an asset by NFC or barcode, completing a short checklist and moving to the next point. The compact footprint reduces carrying bulk compared with a 10.1-inch tablet, while site suitability remains certificate-dependent.

Repeated Barcode Capture in Classified Facilities

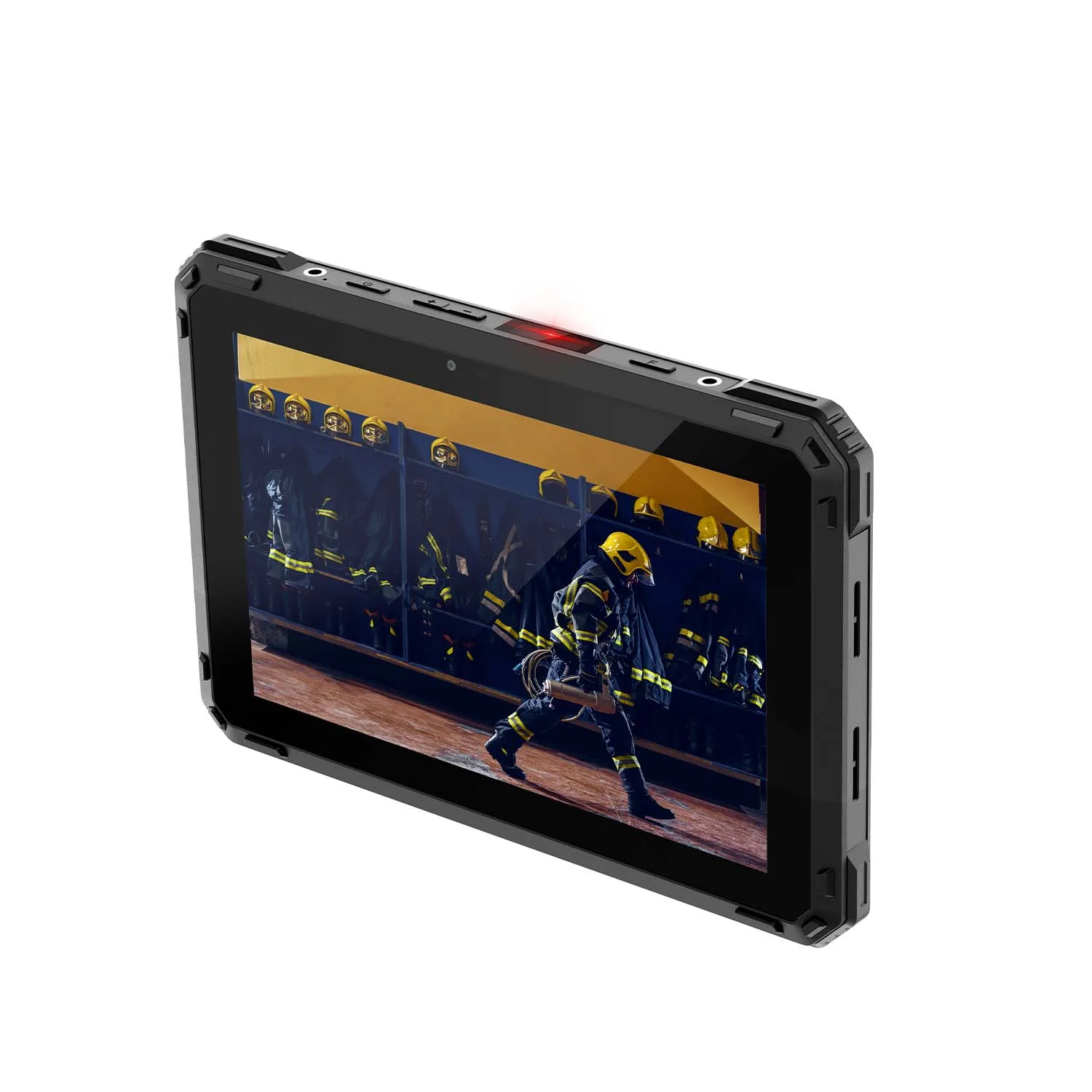

The dedicated F scan key and approved optional 2D engine support frequent equipment-label or inventory scans. Evaluate button reach, scan angle, damaged-code performance and glove use on a sample rather than relying only on scanner specifications.

Combustible-Dust Equipment Records

The applicable ATEX dust configuration support inspection and asset records in qualified Zone 21/22 projects. The IIIC group, T95°C marking, ambient range, enclosure and selected data-capture modules must match the site assessment.

Personnel or Credential Checks

Project-specific fingerprint or ID-card hardware may support controlled identity workflows. Confirm the credential standard, jurisdiction, privacy requirements, SDK and certified configuration before offering the feature.

UHF and LF Asset Identification

UHF can support longer-range tag reading, while LF 125kHz addresses different credential or tag types. Frequency, power, antenna, tags, reading distance and regional rules must be defined separately.

Location-Aware Field Work

GPS, Galileo and GLONASS can support map and route applications.

Frequently Asked Questions about A88ST-EX IP68 Explosion-Proof Tablet

1. What work is the A88ST-EX designed for?

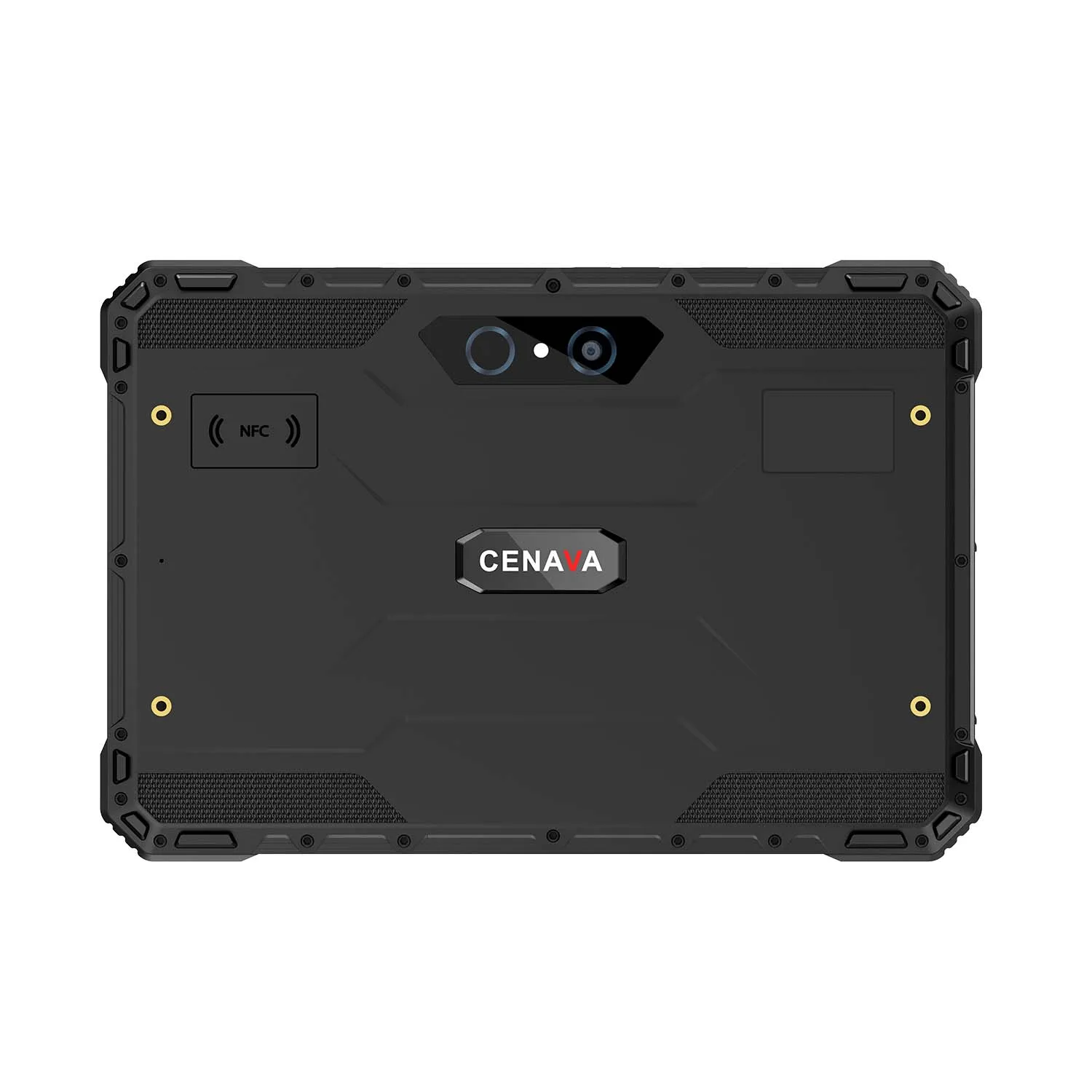

A88ST-EX is designed for walking inspection routes, short Android forms and repeated asset-identification tasks. Its defining features are the 8-inch format, 15mm body and 694.9g weight, standard NFC and a dedicated key for an optional 2D scanner.

2. Which explosion-protection configurations are for A88ST-EX?

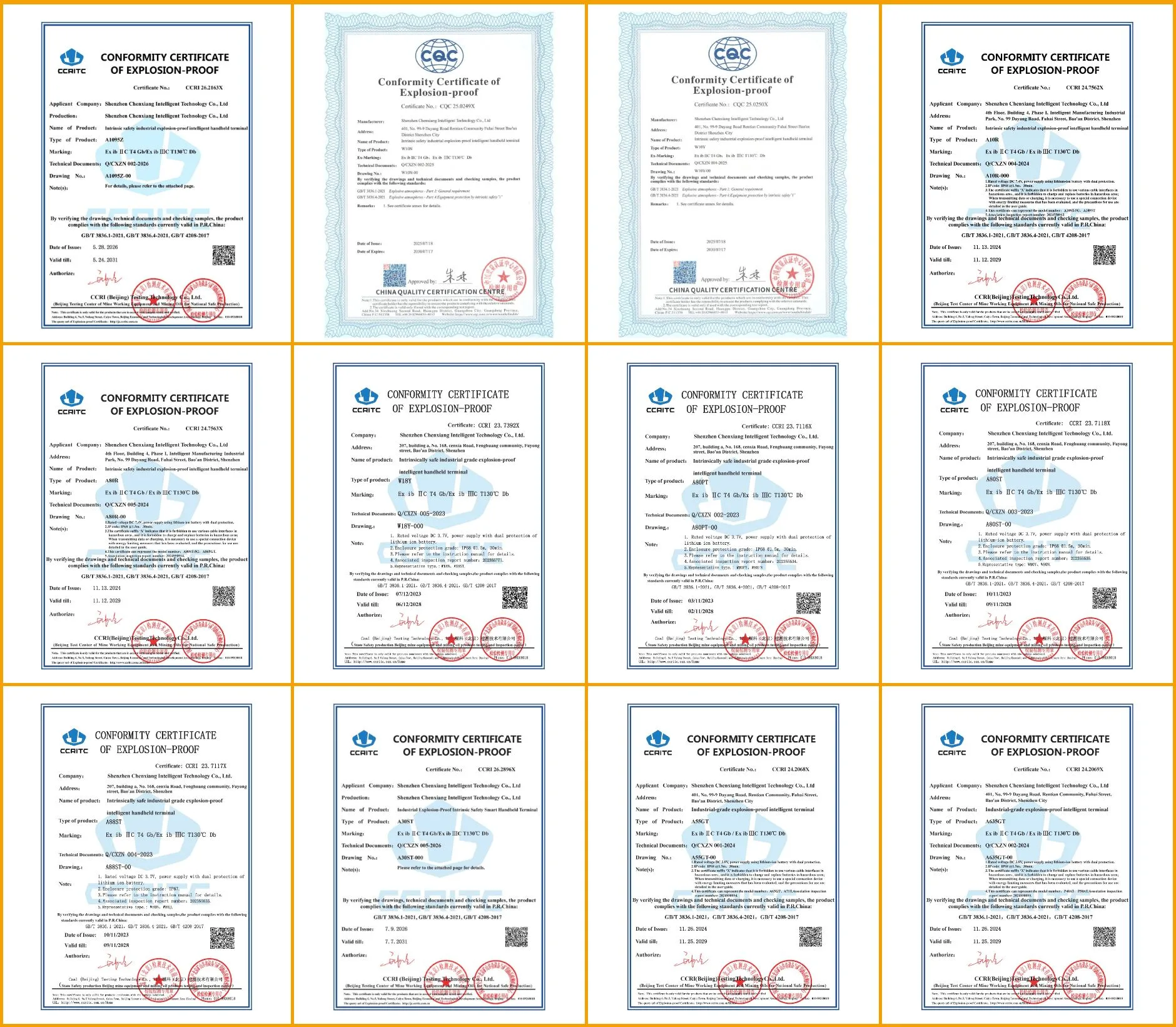

Ex ib IIC T4 Gb petrochemical configuration and an ATEX II 2GD configuration marked Ex ib IIC T5 Gb for gas and Ex ib IIIC T95°C Db for dust.

3. Does every A88ST-EX carry both petrochemical and ATEX approvals?

Do not assume so. The markings may belong to different configuration packages. Processor board, Android image, display, battery, radios and optional identification modules must appear in or be permitted by the applicable certificate documents.

4. Can A88ST-EX be used in Zone 21 combustible-dust areas?

Db configuration is generally associated with Zone 21/22 projects. Confirm the IIIC group, T95°C maximum surface temperature, enclosure, ambient range and selected scanner/RFID hardware.

5. Is A88ST-EX suitable for Zone 0, Zone 20 or mining?

No Zone 0, Zone 20 or mining claim should be made from the supplied Gb/Db and ATEX Group II markings.

6. Is IP68 the same as ATEX or explosion-proof approval?

No. IP68 addresses dust and water ingress under stated test conditions. ATEX and Ex markings address ignition risk in explosive atmospheres. An IP68 tablet without the matching Ex certificate is not a hazardous-area device.

7. Is the A88ST-EX guaranteed to be comfortable for continuous one-hand use?

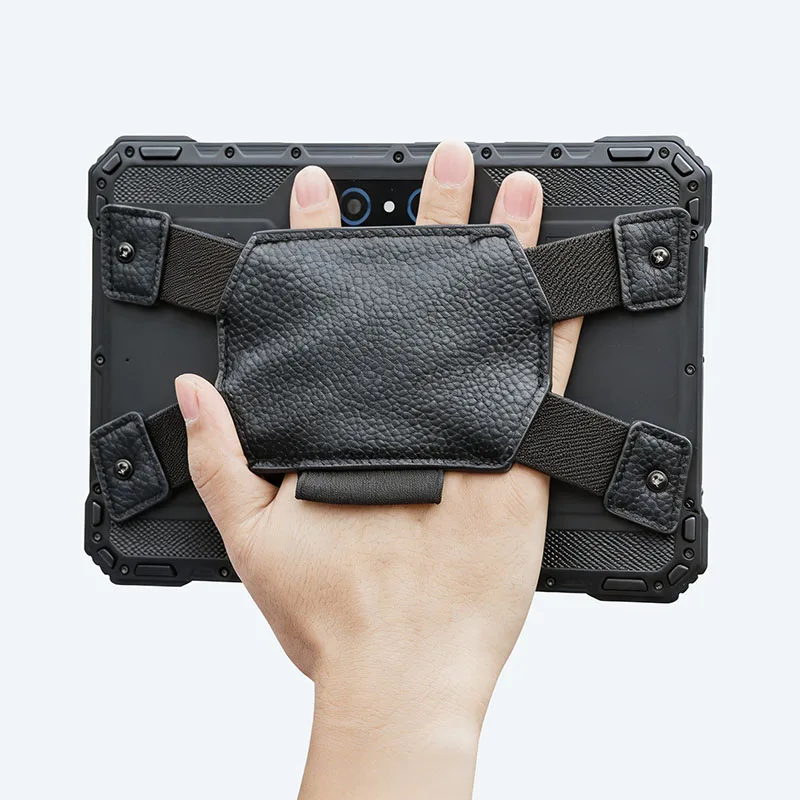

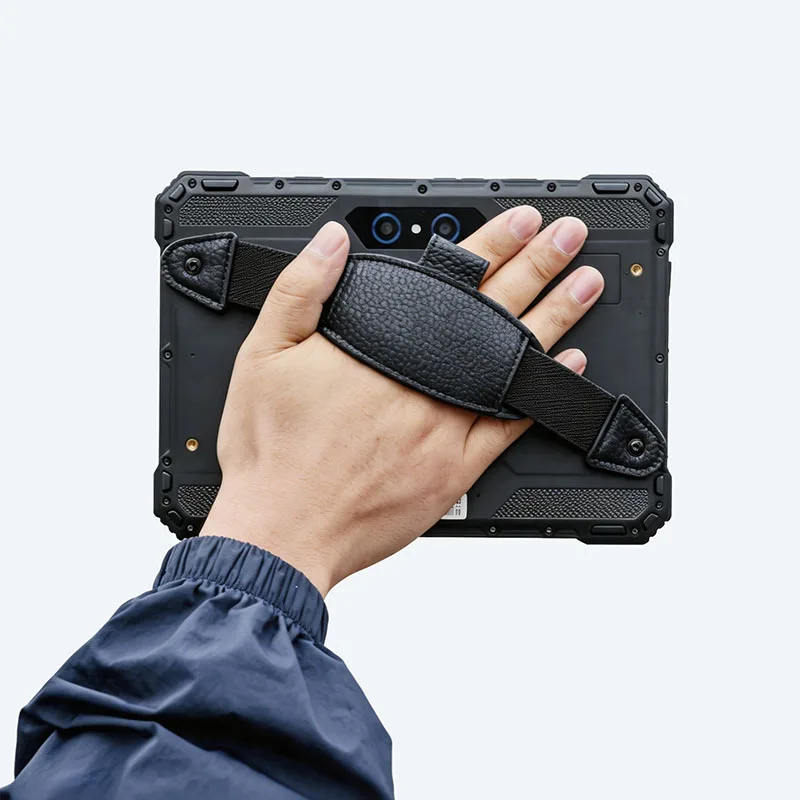

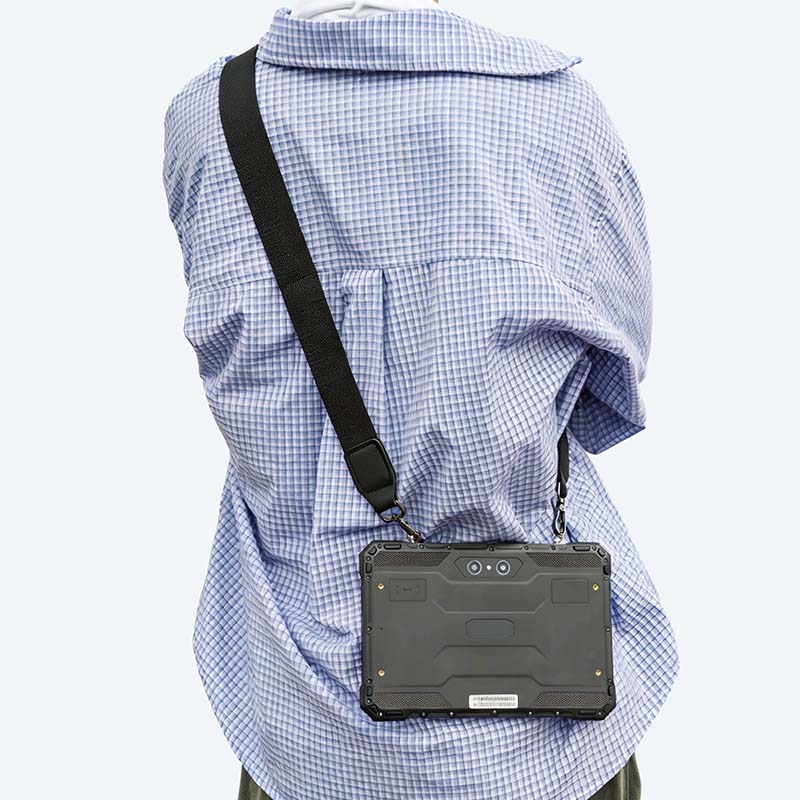

No universal ergonomic guarantee should be made. The compact dimensions help, but glove thickness, hand size, strap, module position and task duration affect control.

8. What processor does A88ST-EX use?

MediaTek MT6769 with two Cortex-A75 cores at 2.0GHz and six Cortex-A55 cores at 1.7GHz.

9. Which wireless and positioning functions are listed?

Wi-Fi 5, Bluetooth 5.0, 4G LTE and GPS/Galileo/GLONASS.
