Rugged Computing Products
Rugged tablets, laptops, handhelds, and industrial PCs—built for demanding
environments and backed by 23 years of OEM/ODM expertise.

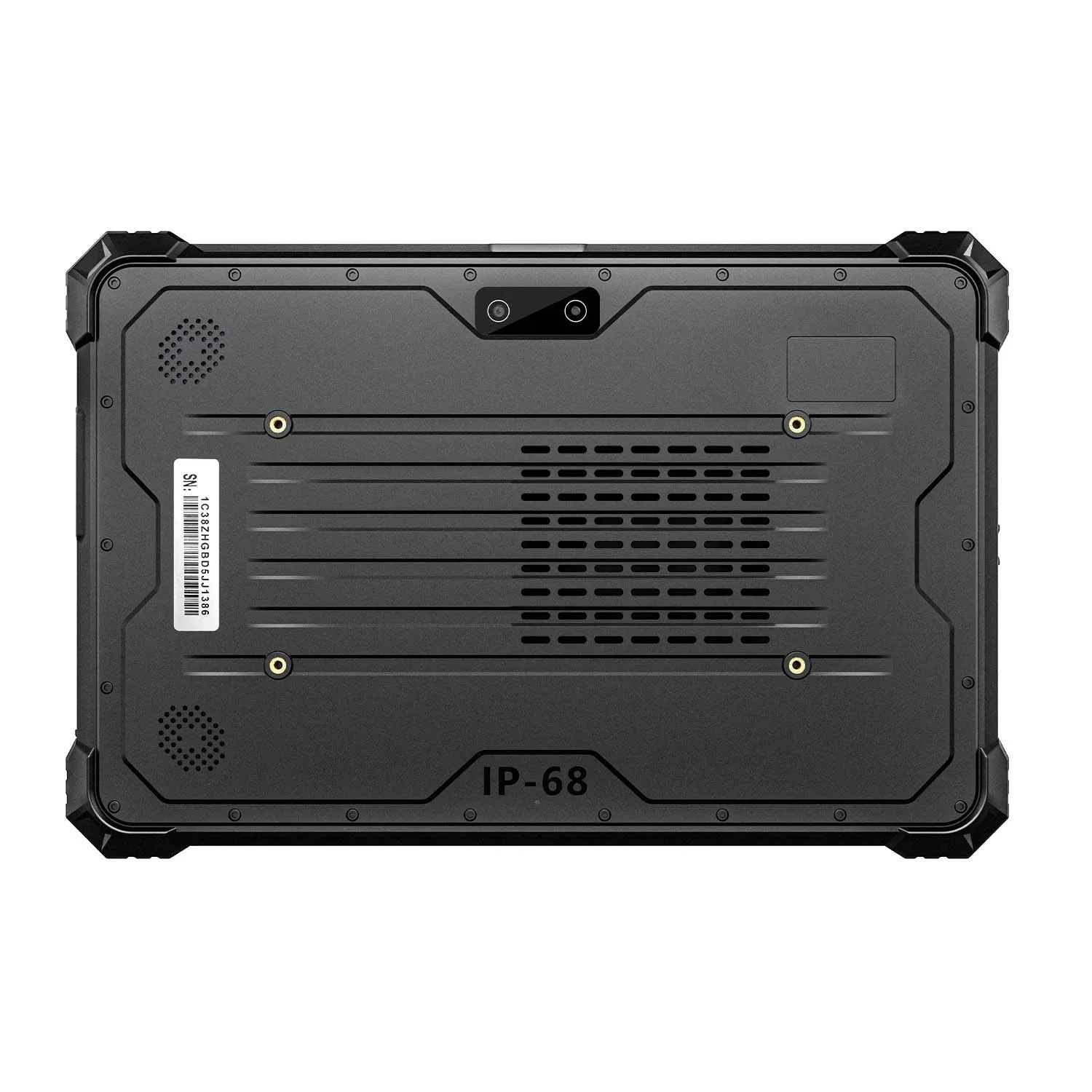

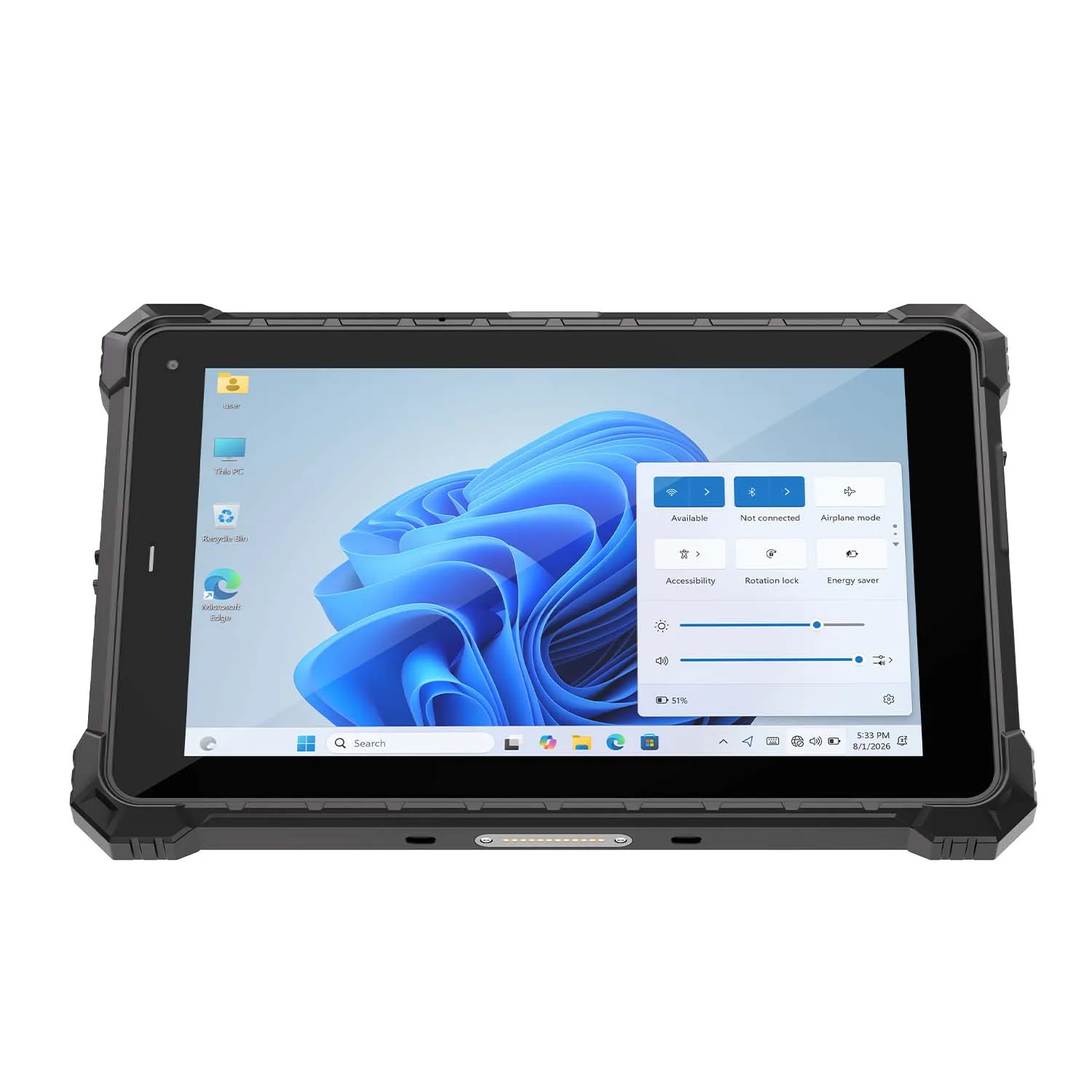

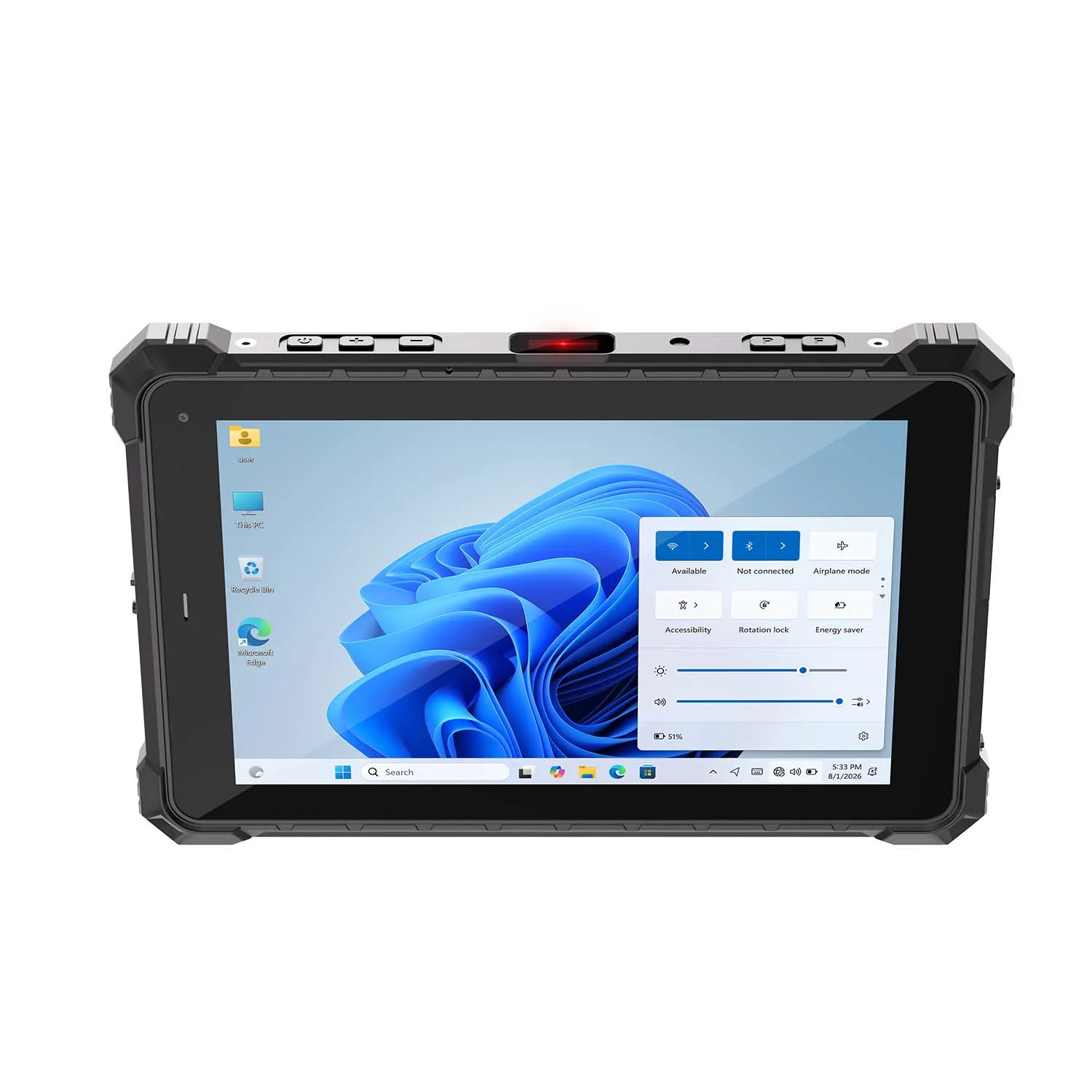

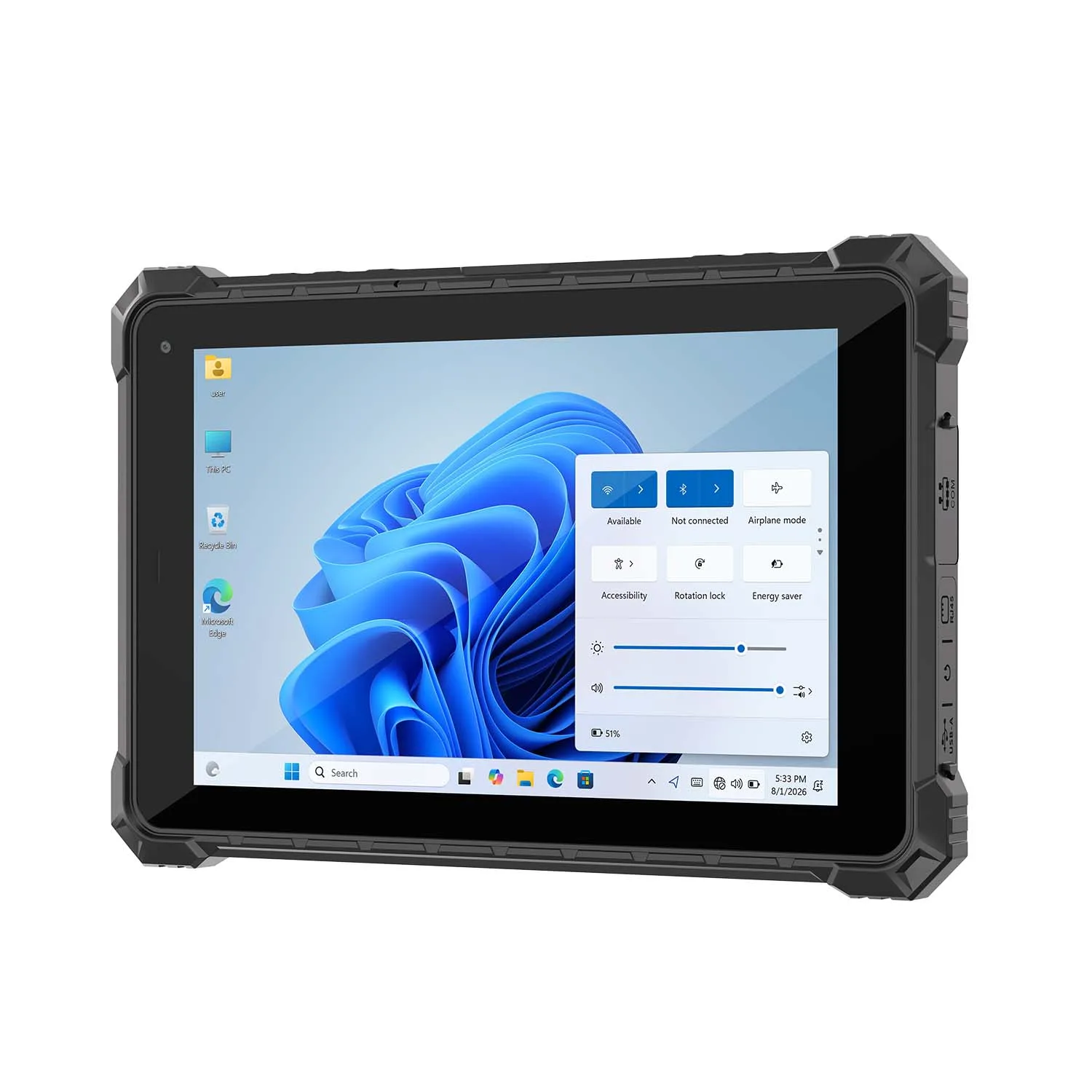

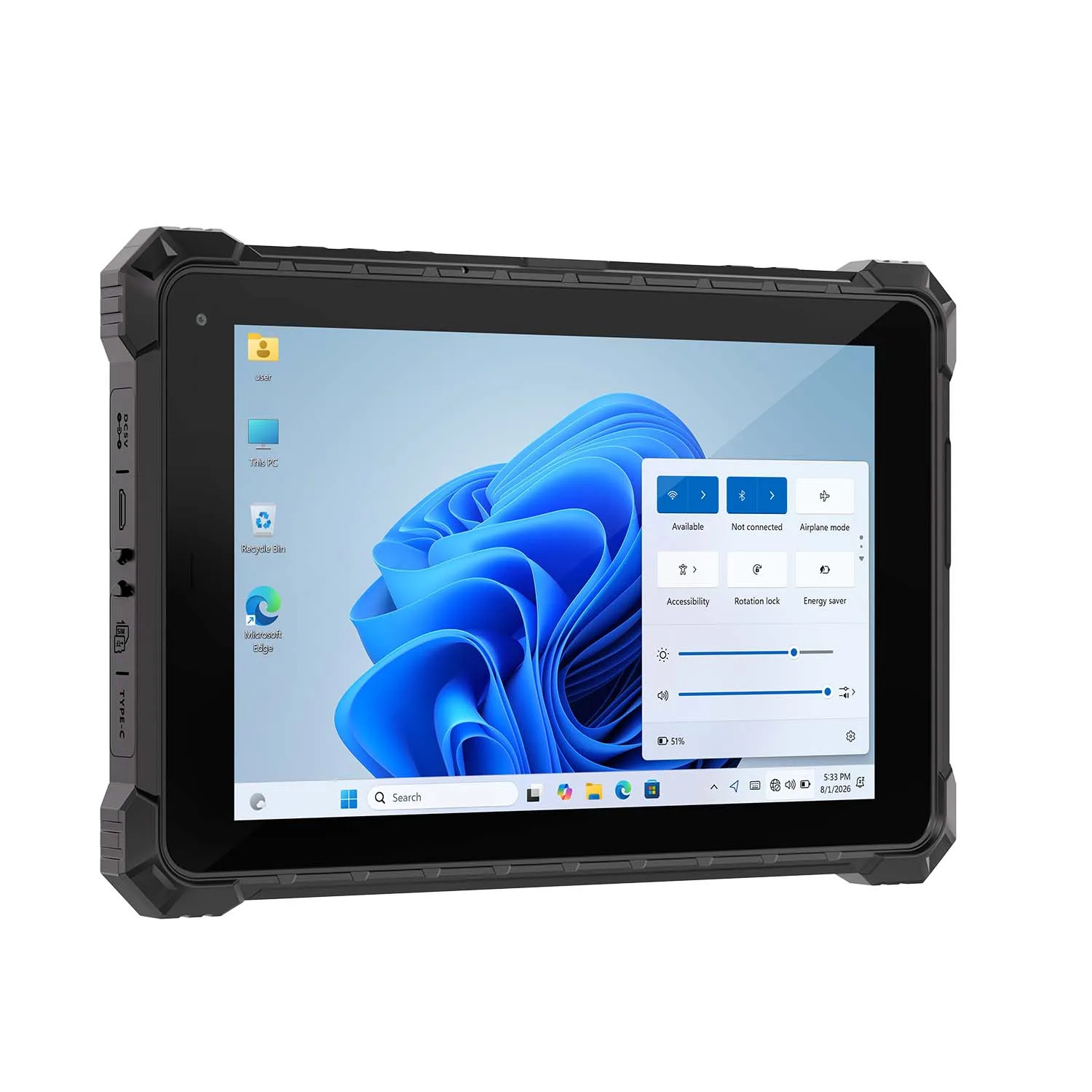

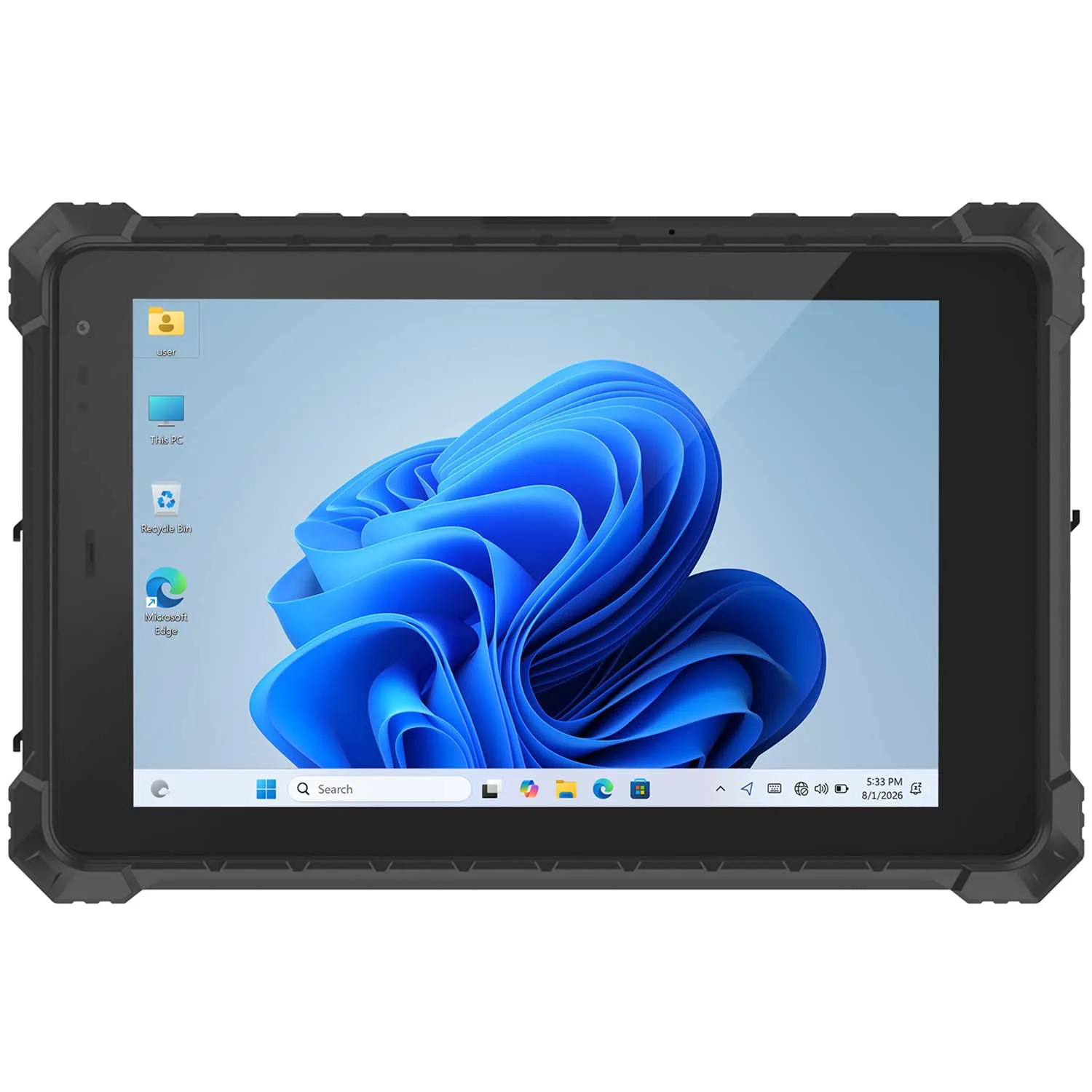

CENAVA W10Y i7-10510Y 10.1 Inch Win11 IP68 Rugged Tablet Full I/O
CENAVA W10Y i7-10510Y brings fanless quad-core performance to a 10.1-inch rugged tablet for engineering diagnostics and heavy multitasking. Turbo up to 4.5GHz with 16GB RAM keeps CAD viewers and analysis tools fluid on site. Gigabit RJ45, RS232 and Micro HDMI integrate with test equipment directly. Windows 11 runs fanless behind a glove-touch FHD display. IP68, MIL-STD-810H rated; built-in 5550mAh, optional 10000mAh, 4G/5G, 2D, RTK.
CPU: Intel Core i7-10510Y quad-core 8-thread, 1.2–4.5GHz, UHD Graphics, fanless passive cooling
OS: Windows 11 (optional Windows 10, Ubuntu 20.04.6/22.04.5, Debian 12)
Display: 10.1" 1920×1200, 700cd/㎡, 10-point G+G glove touch, hardness ≥7H (wet-hand touch customizable)
RAM/ROM: 16GB+256GB M.2 SSD
Integrated I/O: Gigabit RJ45 (100/1000M), DB9 RS232, Micro HDMI, Type-C USB3.0, USB-A 3.0, 3.5mm jack, TF up to 256GB, Micro SIM, DC 12V, 12Pin POGO
Network: WiFi 6E, Bluetooth 5.3; optional 4G LTE / 5G (custom function); GPS/BeiDou/Galileo/GLONASS, optional single-BeiDou positioning
Battery: Built-in 5550mAh 7.6V non-removable, ≥5h endurance (custom 10000mAh large battery)
Protection: IP68, MIL-STD-810H 1.22m drop, -20°C to 60°C (custom -30°C to 60°C), TPM security chip
Camera: Front 5MP fixed-focus + rear 12MP autofocus
Optional Modules: 2D scanner (N1/N670), ID card reader, UHF RFID, NFC, LF 125kHz, fingerprint, RTK cm-level positioning
Flagship i7 Power
Heavy Multitasking Ready
i7-10510Y Quad-Core 16GB+256GB Turbo 4.5GHz
Diagnostic software, CAD viewers and data analysis often run side by side on site, and low-power chips stall under that load. The Intel Core i7-10510Y quad-core 8-thread processor boosts up to 4.5GHz, backed by 16GB RAM and a 256GB M.2 SSD for smooth edge computing at the machine. Fanless Windows 11 runs quietly, with Windows 10, Ubuntu and Debian optional. A TPM security chip protects data, while WiFi 6E and Bluetooth 5.3 keep links fast.
Gigabit & Serial Ready
Direct Device Connection
Gigabit RJ45 + DB9 RS232 + Micro HDMI + 12Pin POGO

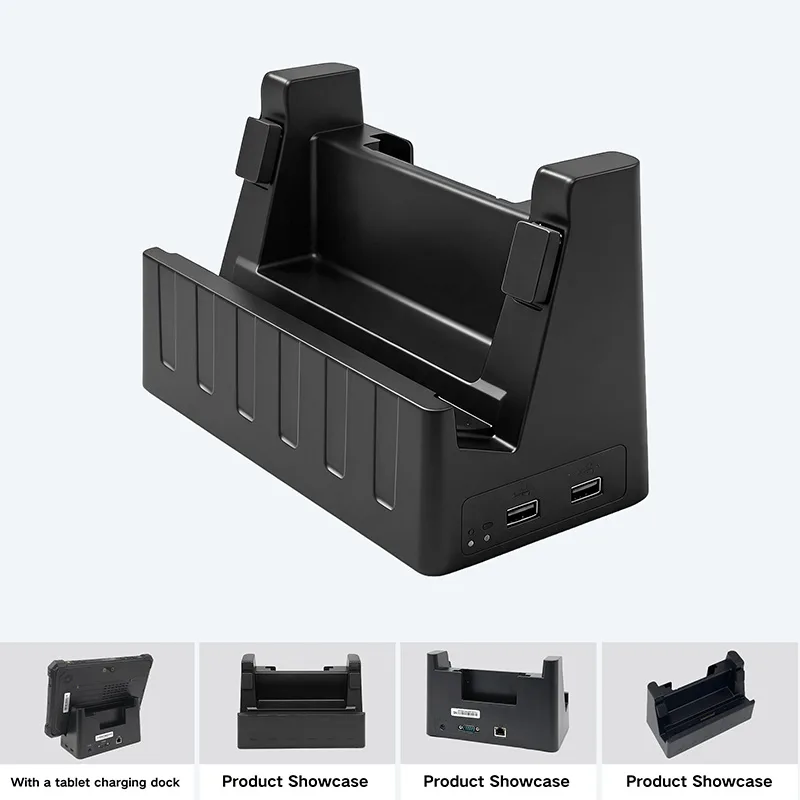

Gigabit RJ45 plugs straight into shop-floor switches and PLCs; the DB9 RS232 port talks to legacy instruments and sensors without adapters. Micro HDMI projects drawings onto a big screen, while Type-C and USB-A 3.0 move data fast. A 3.5mm jack supports voice calls, and the 12-pin POGO dock handles charging and expansion. Optional modules — 2D scanner, ID card reader, UHF RFID, fingerprint and RTK centimeter positioning — cover collection, control and location in one unit.
Bright Touch Display
Accurate With Gloves
10.1-inch 1920×1200 700cd/㎡ 10-Point G+G
Checking parameters under noon sun is painful when the screen washes out. This 10.1-inch panel pushes 700cd/㎡ with crisp 1920×1200 resolution, staying readable in glare. 10-point G+G touch works with gloves, ≥7H hardness resists scratches, and wet-hand touch is customizable for rainy shifts. The fanless body runs silently through day-long patrols, keeping taps, zooms and annotations smooth while engineering drawings stay sharp down to the finest details. Outdoor teams notice the difference immediately on site.
Built-In Endurance
Optional Big Battery
Built-In 5550mAh ≥5h Runtime Custom 10000mAh
The built-in 5550mAh battery lasts over five hours on routine patrols; longer shifts can order the custom 10000mAh version and leave the charger behind. DC 12V input recharges quickly, and the unit works from -20°C to 60°C, with a -30°C to 60°C custom version for severe cold. IP68 sealing and MIL-STD-810H 1.22m drop certification shrug off rain, dust and knocks, so field work stays worry-free all day.
Technical Specifications
 CPU Intel Core i7-10510Y, quad-core 8-thread, 1.2–4.5GHz, fanless |  System |  Storage 8+128GB |  Display 10-inch IPS touch screen 1920*1200 700cd/㎡ Supports wet touch screens and glove touch screens |
 NFC Optional Default back of the body for card reading, customizable to the front |  Optional 1D/2D Barcode Scanner Optional Able to identify dirty 1/2 dimensional codes |  Battery 3.8v High voltage lithium battery5550mAh |  High frequency/ultra-high frequency module Optional Ultra thin integrated module |
 Navigation positioning GPS, Galileo,BeiDou, GLONASS |  ID card identification Optional |  Interface Type-A, Type-C HDMI、POGO PIN |  Weight |
 Card slot Micro SIM ×1, TF up to 256GB |  Protection level Working temperature: -20 °C to 60°C Storage temperature:-30 °C to 70 °C |  Camera Front camera: 5MP Rear camera:12MP |  Sensor Gravity sensing, compass, gyroscope, light sensing, distance sensing |
W10Y 10.1" Win11 Rugged Tablet Details:
| Size weight | 283.9*189.0*24.1mm/1214g |
| Wall hole pitch / screw | 154x71.5mm/ M3*4.5mm |
| TP touch screen | Anti-fingerprint (AF) coating,10-point touch G+G, hardness ≥7H, support for medical rubber gloves touch screen (can be customised wet hand touch screen) |
| TPM | Built-in TPM Security chip |
| Gravity sensor | YES |
| Positioning system | GPS, BeiDou, Galileo,GLONASS |
| TYPE-C | *1 Type-C USB3.0 |
| Type -A | *1 Type-A USB3.0 |
| DB9 | *1 RS232 |
| Earphone Jack | *1 3.5mm standard headphone jack |
| TF Card | *1 Maximum support 256GB expansion |
| SIM Card | *1 Standard Micro SIM card slot |
| MINI HDMI | *1 Micro HDMI |
| DC port | *1 12V-4A (DC plug outer diameter 3.5mm inner diameter 1.35mm) |
| POGO PIN | *1 12Pin USB+charger |
| RJ45 | *1 100/1000M |
| Certificates | IP68 (IEC 60529), CE, RoHS; drop-tested to MIL-STD-810H (1.22 m); ISO 9001-certified factory; salt-spray tested |

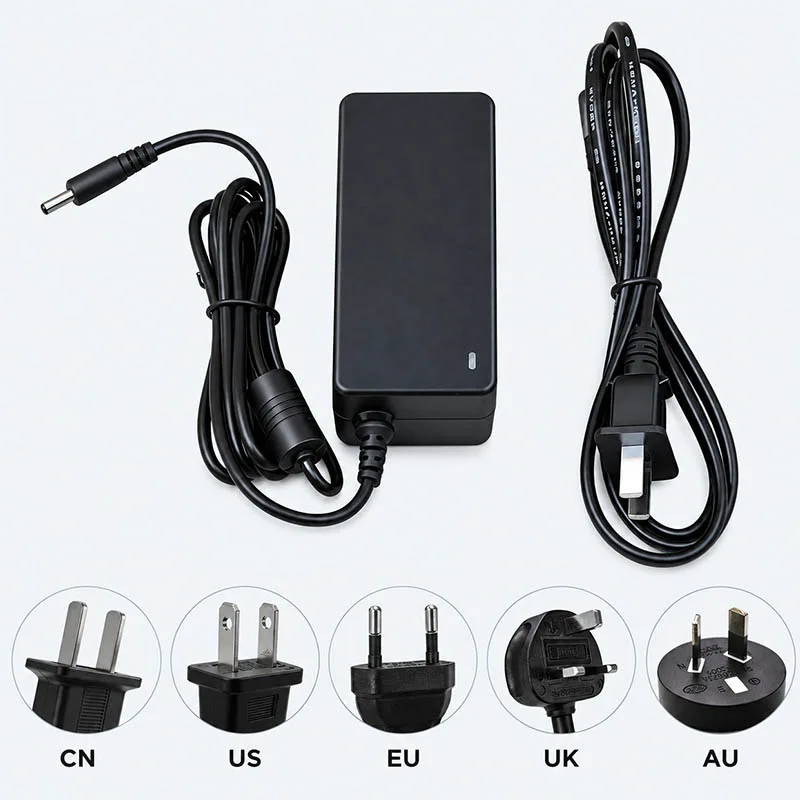

| Adapter | 12V-4A, DC interface adapter |
Frequently Asked Questions About the W10Y Windows Rugged Tablet
1. Which processor and operating system does the W10Y use?
The W10Y is powered by the Intel Core i7-10510Y: four cores, eight threads, 1.2GHz base and up to 4.5GHz turbo, in a 7W fanless envelope. Windows 11 is standard; Windows 10, Ubuntu (20.04/22.04) and Debian 12 are available for project orders. (An i5-10210Y variant is sold separately — see the W10Y i5 page if your budget or thermal targets differ.)
2. Does the W10Y use a fanless cooling system?
Yes. The W10Y uses a fanless passive-cooling design to reduce noise and eliminate the need for an air intake. It is intended for compatible Windows industrial, field-service, database-client and business applications. Actual sustained performance depends on the software workload, memory configuration and operating temperature.
3. Is the W10Y waterproof, dustproof and drop-resistant?
The W10Y carries an IP68 rating and is drop-tested to 1.22 m under MIL-STD-810H procedures. Its stated standard operating-temperature range is -20°C to 60°C. Customers should request the applicable certification documents and detailed test conditions for the selected configuration.
4. Can the display be used outdoors and while wearing gloves?
Yes. The W10Y has a 10.1-inch 1920×1200 IPS touchscreen with 700-nit standard brightness. An optional 1000-nit sunlight-readable display is listed for outdoor projects. The capacitive touchscreen supports medical rubber-glove operation, and wet-hand touch can be customized.
5. How long does the W10Y battery last?
The standard W10Y is listed with a built-in 7.6V 5550mAh battery and at least five hours of 1080p video playback at 50% brightness. An optional 7.6V 10000mAh battery is available for projects requiring longer runtime. Actual battery life depends on screen brightness, Windows power settings, wireless connectivity and connected data-capture modules.
6. Does the W10Y support Wi-Fi, Bluetooth, mobile networks and GNSS?
Yes. The W10Y supports Wi-Fi 6E (2.4/5/6GHz), Bluetooth 5.3 and positioning through GPS, BeiDou, Galileo and GLONASS. Optional 4G LTE connectivity is available, but customers should confirm the required frequency bands and carrier compatibility for the destination country before ordering.
7. Which industrial interfaces are available?
The W10Y can provide USB Type-C, USB Type-A, DB9 RS232, Micro HDMI, Gigabit RJ45 Ethernet, a 3.5mm audio jack, Micro SIM, TF card expansion, a DC charging port and a 12-pin POGO connector.
8. Can barcode, NFC, RFID and fingerprint modules be integrated?
Yes. Optional modules include 1D/2D barcode scanning, NFC, LF RFID, UHF RFID, fingerprint recognition and ID card reading. RTK high-precision positioning is also listed as a project customization option. The compatible module combination should be confirmed before sample production.
9. Is an explosion-proof version of the W10Y available?
An explosion-proof variant is available on project order. Ex marking, certificate number, and permitted accessories are defined by the certificate — see the Explosion-Proof Tablets series or request the certified configuration before specifying Zone 1/21 use.
10. Can CENAVA customize the W10Y for OEM and industrial projects?
Yes. CENAVA can customize the operating system, RAM, M.2 SSD, display brightness, battery capacity, cellular connectivity, positioning system, barcode scanner, RFID reader, fingerprint module, industrial interfaces, housing color, logo and mounting accessories. Customers should provide the required software, interfaces, application environment, certification needs and estimated order quantity for configuration evaluation.

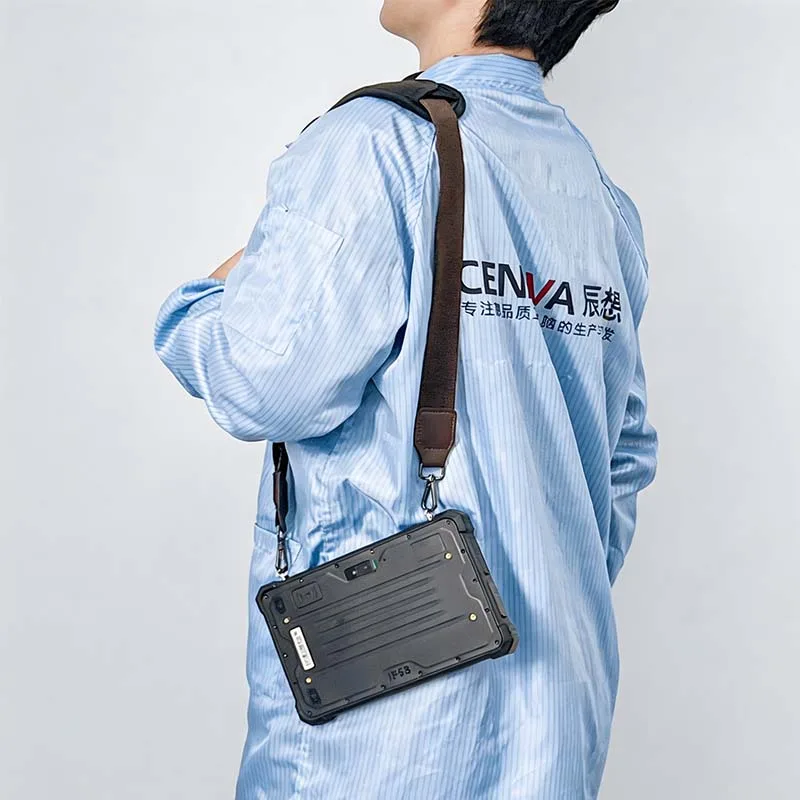

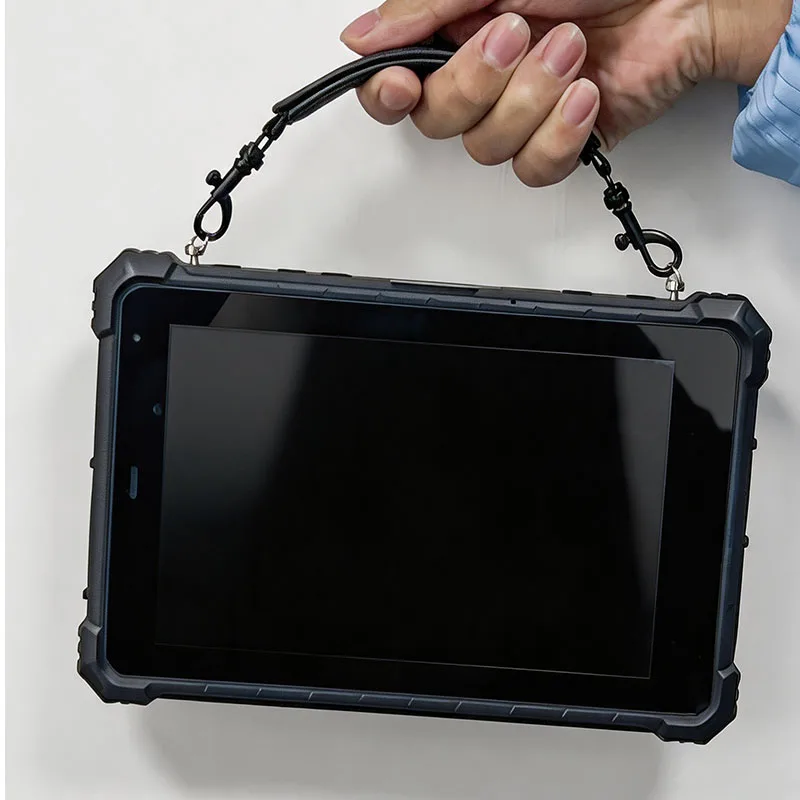

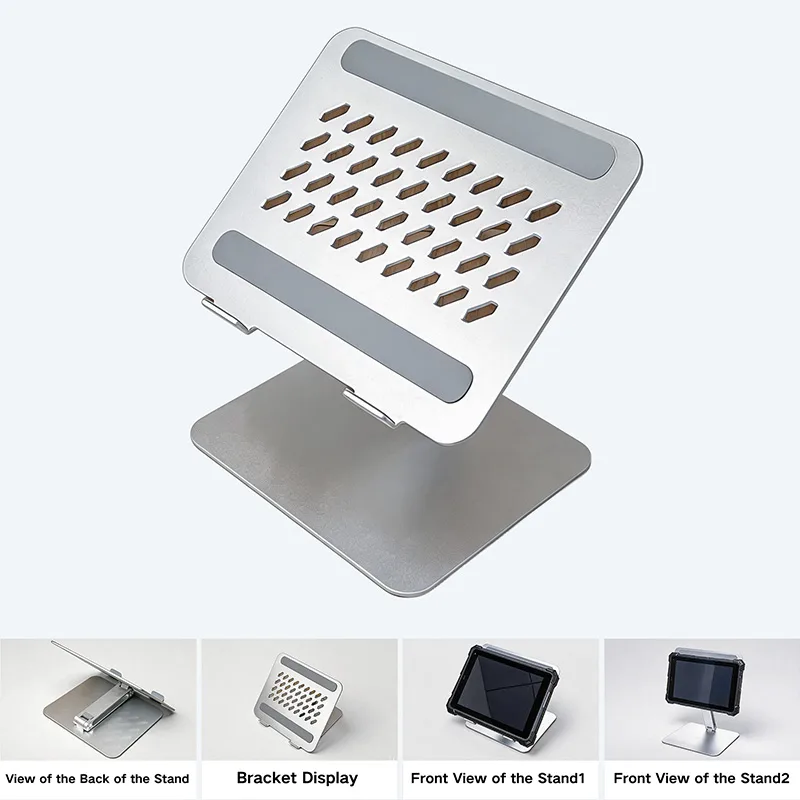

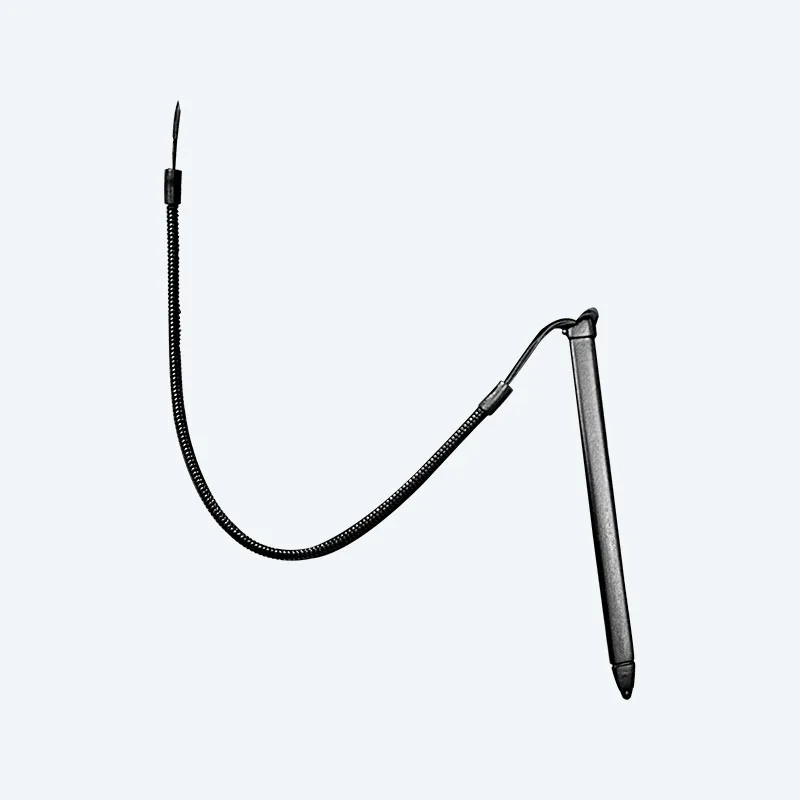

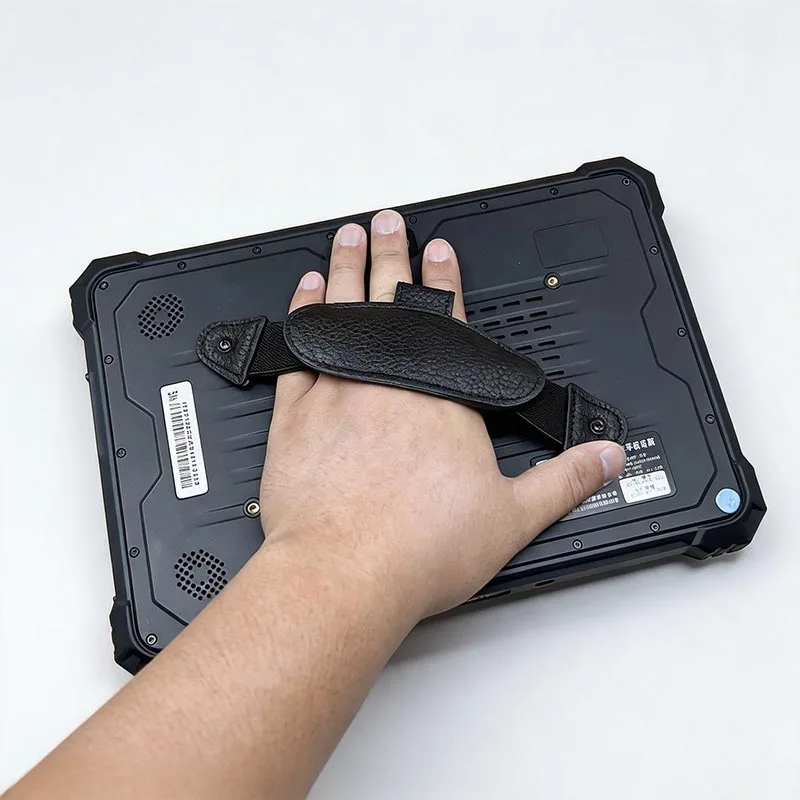

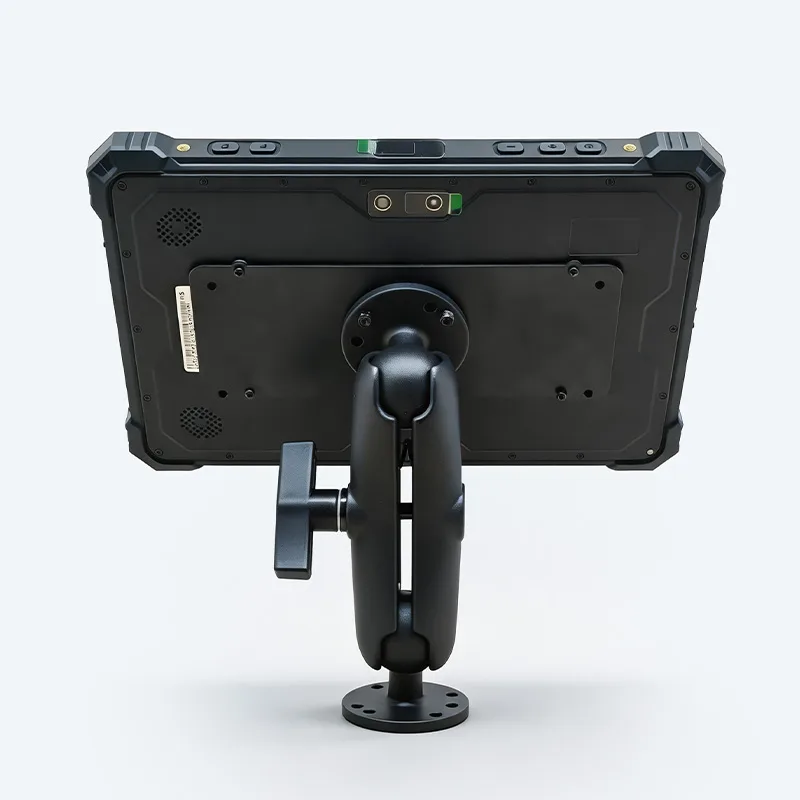

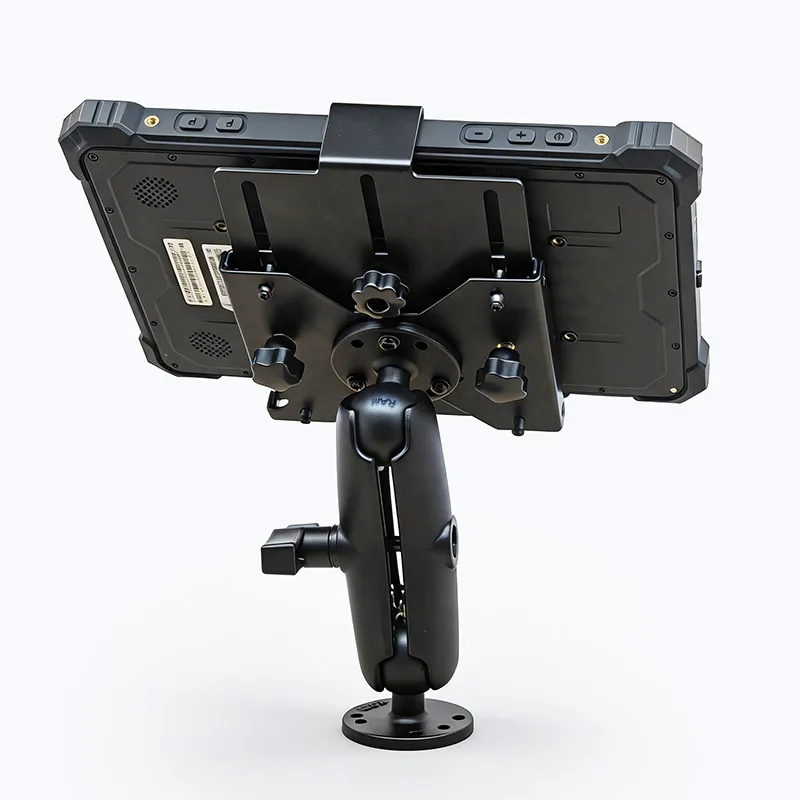

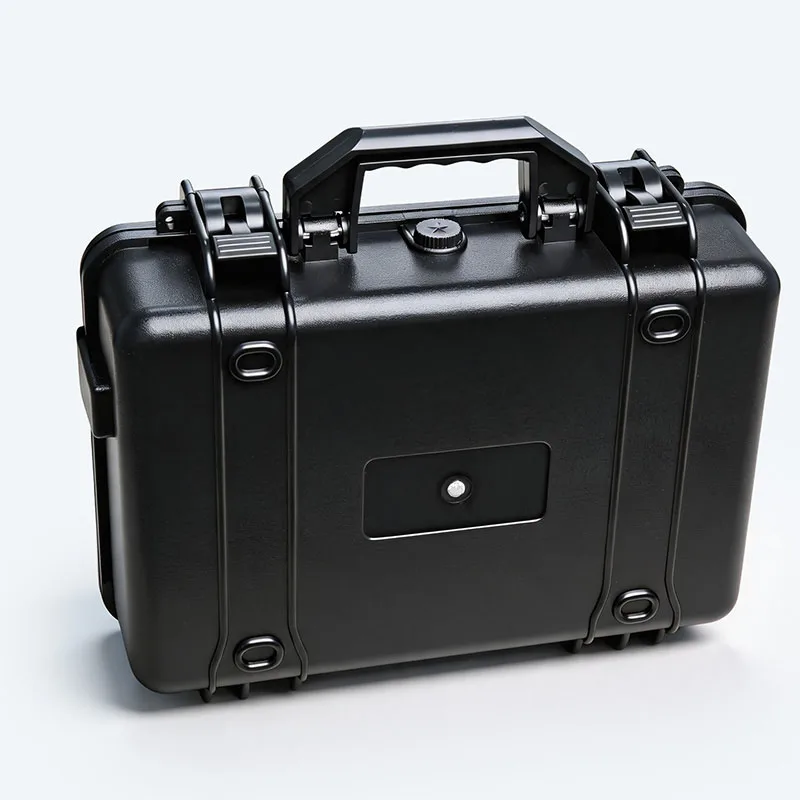

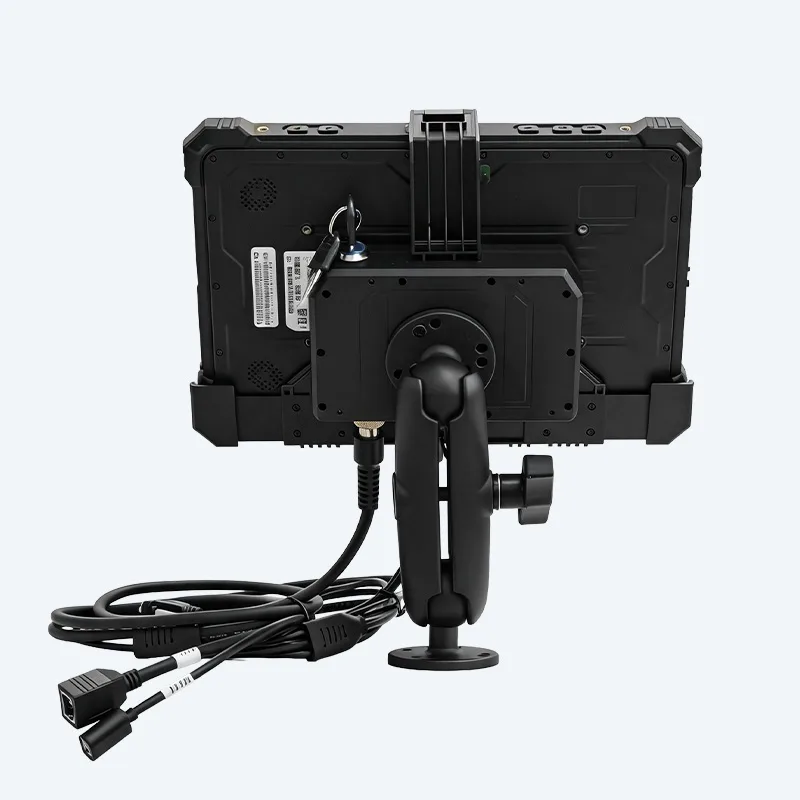

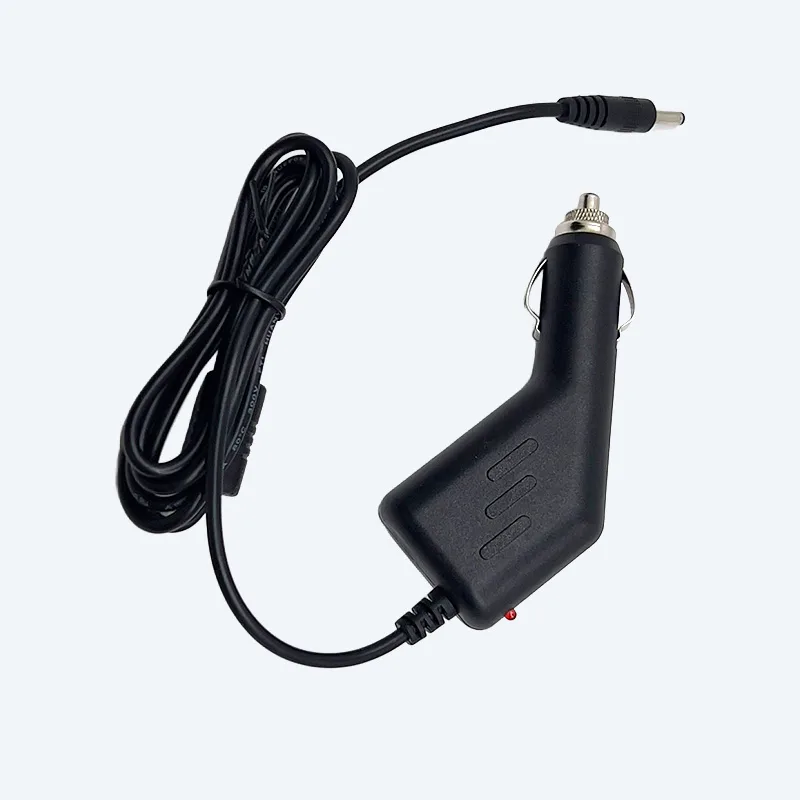

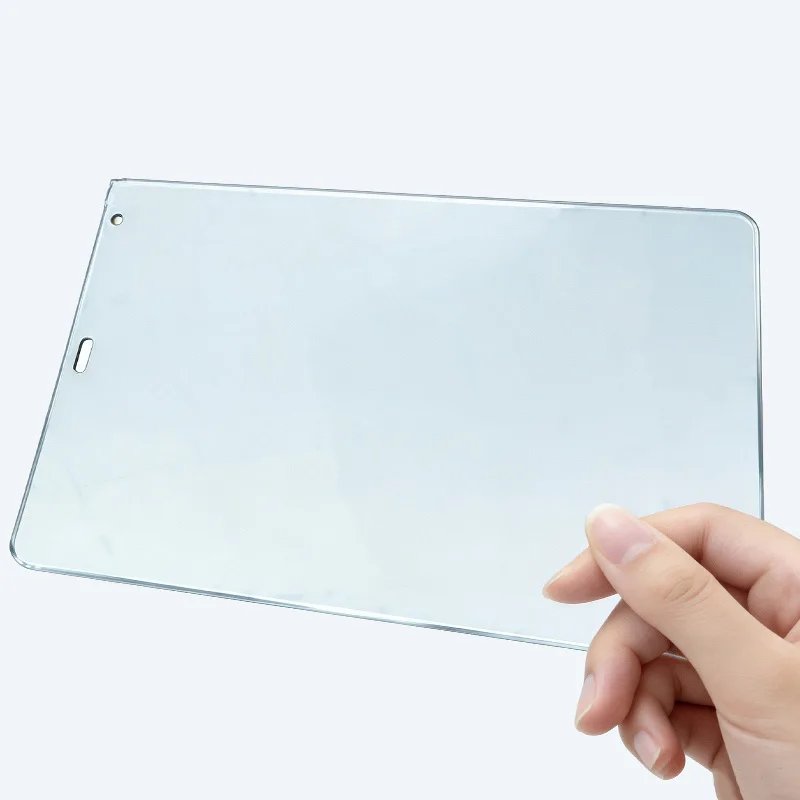

Accessories
