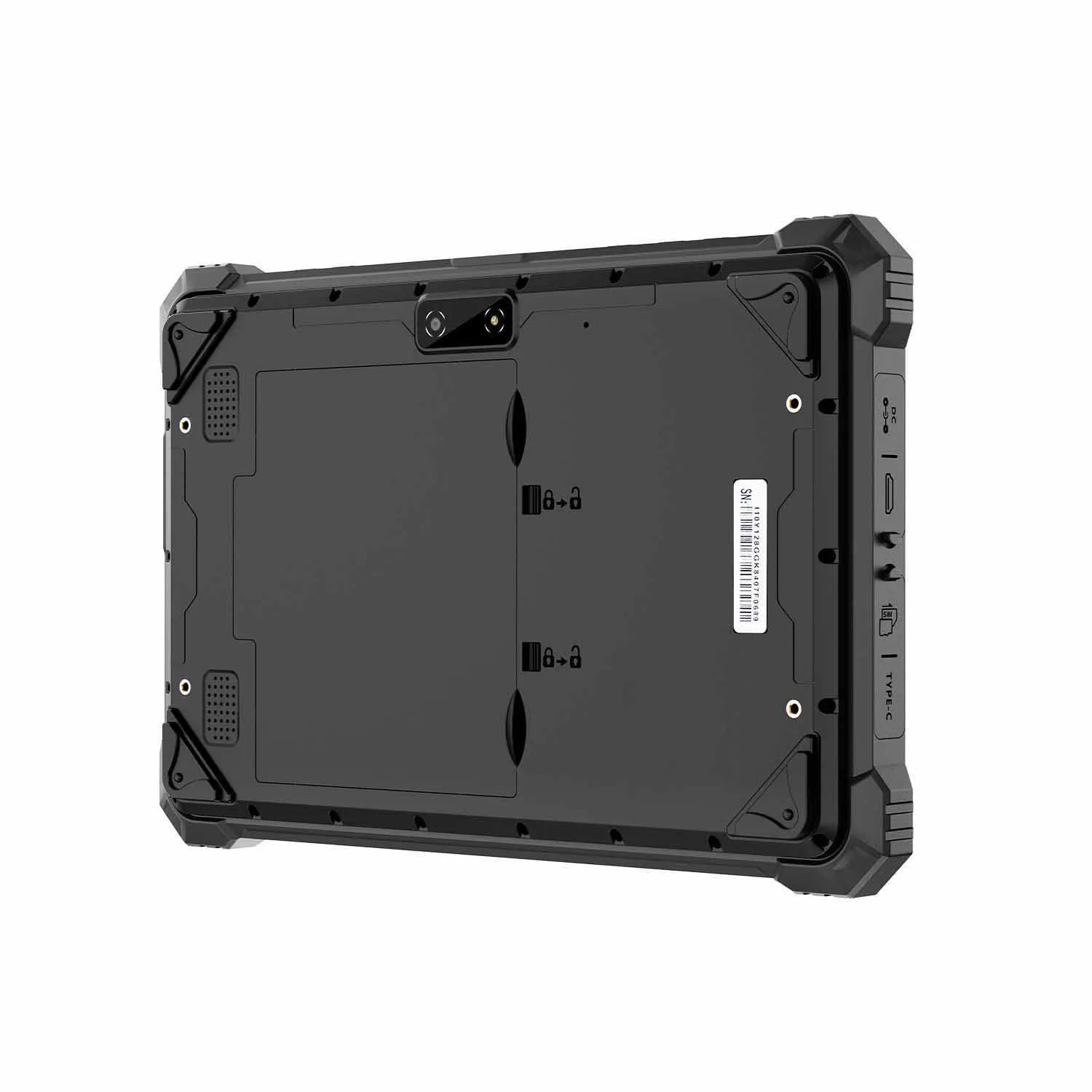

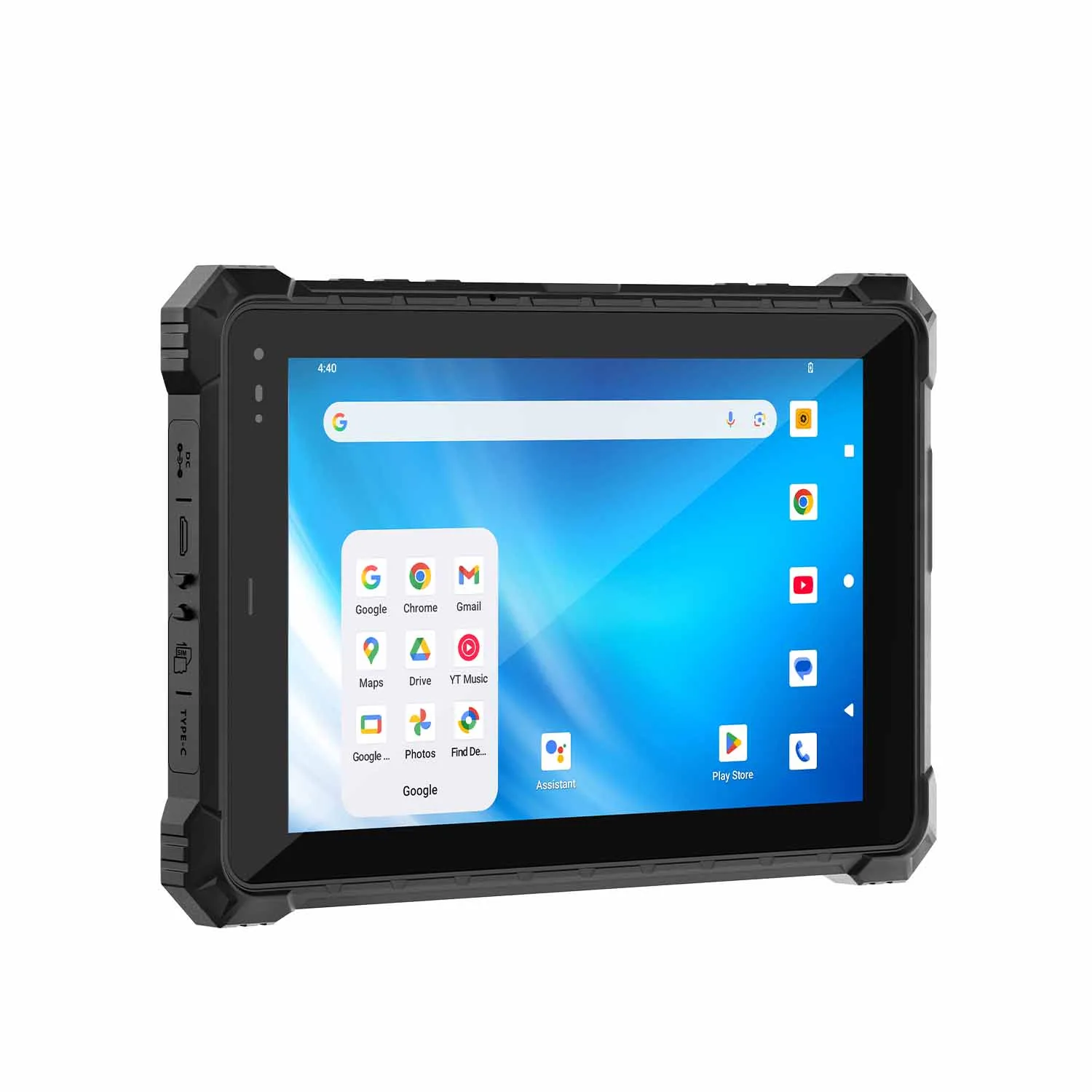

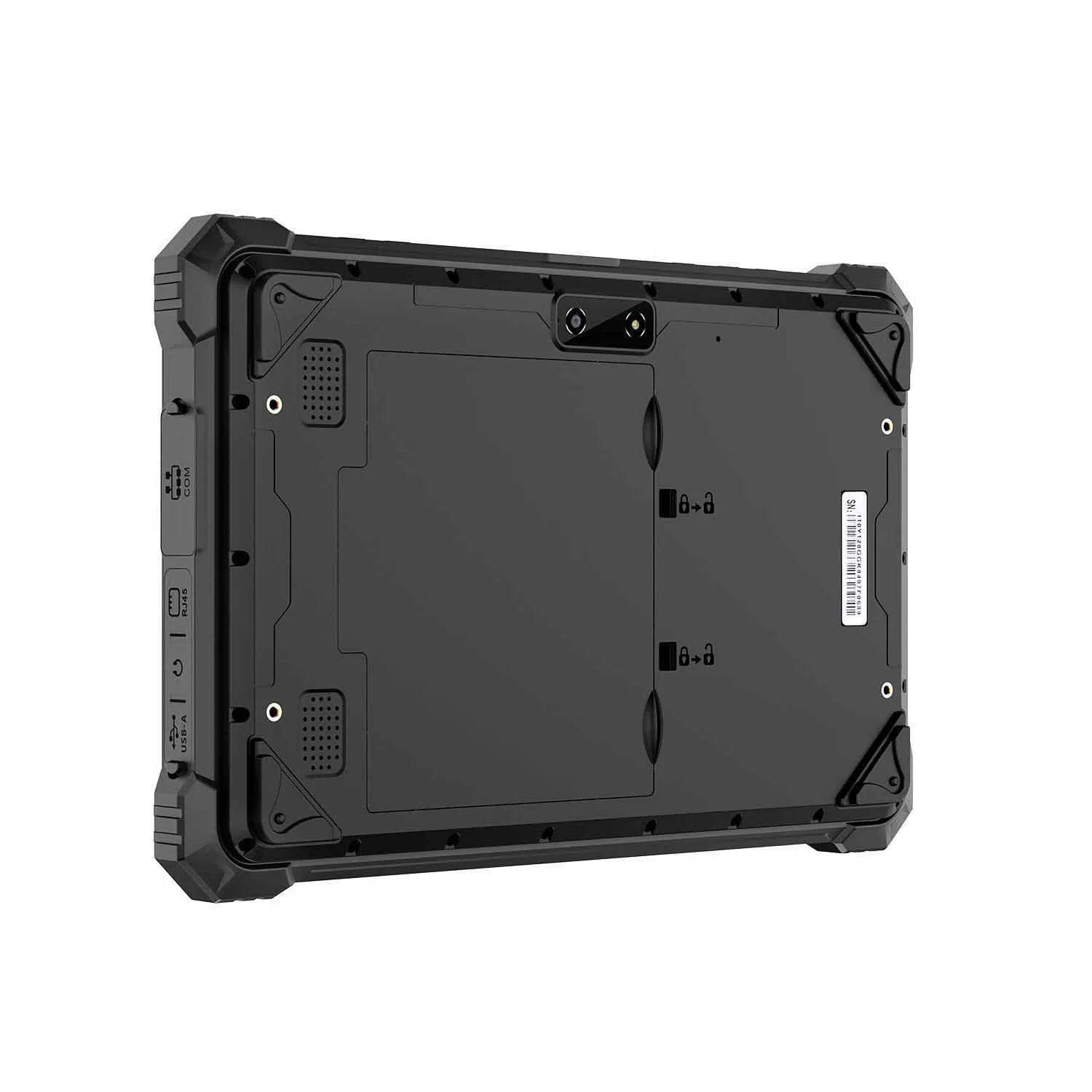

CENAVA A10STX-5G MT6877 10.1 inch 5G Rugged Android Tablet
The CENAVA A10STX-5G is built for field teams that need to collect, verify and transmit data without returning to a workstation. It combines an MT6877 octa-core platform, 5G connectivity, Wi-Fi 6 and a 10.1-inch 1920 × 1200 display with a removable 15,400mAh battery. RS232, 100M Ethernet, USB-A, USB-C and a 12-pin POGO interface support integration with existing equipment.

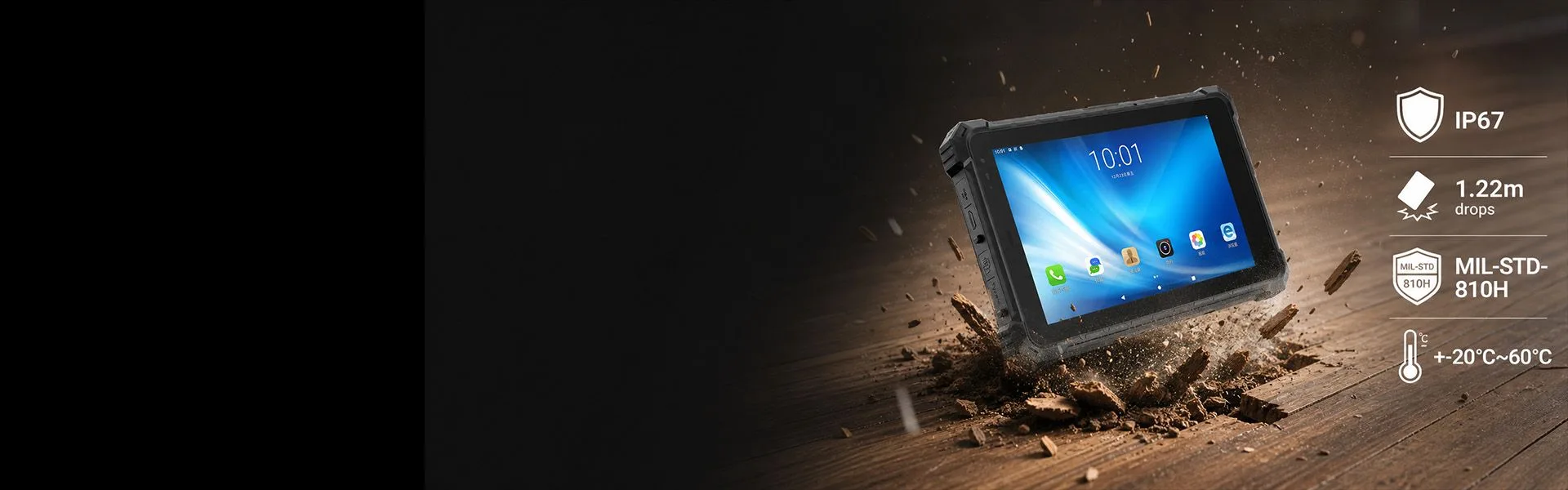

Rugged Protection: IP67, MIL-STD-810H 1.22m drop, -20°C~60°C
CPU: MediaTek MT6877 octa-core, 2×Cortex-A78 @2.4GHz + 6×Cortex-A55 @2.0GHz
OS: Android 12 (optional Android 15)
Display: 10.1" IPS 1920×1200 (optional 1280×800), 700cd/㎡ (customizable 1000cd/㎡), G+G 10-point glove touch, Corning Gorilla Glass 3, hardness 7H
RAM/ROM: 8GB+128GB (optional 8GB+256GB)
Battery: 15400mAh 3.8V removable — seconds-fast swap; optional battery charging dock
Integrated I/O: RJ45, DB9 RS232, Micro HDMI (optional), Type-C (OTG), USB-A, 3.5mm jack, 12Pin POGO, Micro SIM, TF up to 256GB
Network: Global 5G SA/NSA + 4G full-band, dual-band WiFi 6, Bluetooth 5.2; GPS/Galileo/GLONASS
Cameras: 8MP front + 16MP AF rear with flash (customizable 48MP)
Optional Modules: 2D scanner, ID card reader, UHF RFID, LF 125kHz, RTK cm-level positioning; NFC standard
5G Fast Backhaul
The Road Is Your Desk
Global 5G SA/NSA WiFi 6 4G Compatible
Vehicle-mounted terminals fear tunnels and dead zones most. The A10STX-5G supports global 5G SA/NSA with backward-compatible full-band 4G, so one model travels across regions and cross-border projects; HD video backhaul, vehicle tracks and dispatch commands reach the control center in real time without buffering. Dual-band WiFi 6 delivers high-speed, low-latency links inside depots, while Bluetooth 5.2 anchors in-cab peripherals. GPS/BeiDou/Galileo/GLONASS multi-constellation positioning pins every vehicle precisely, with an optional single-BeiDou version—every dot on the dispatch map is trustworthy.

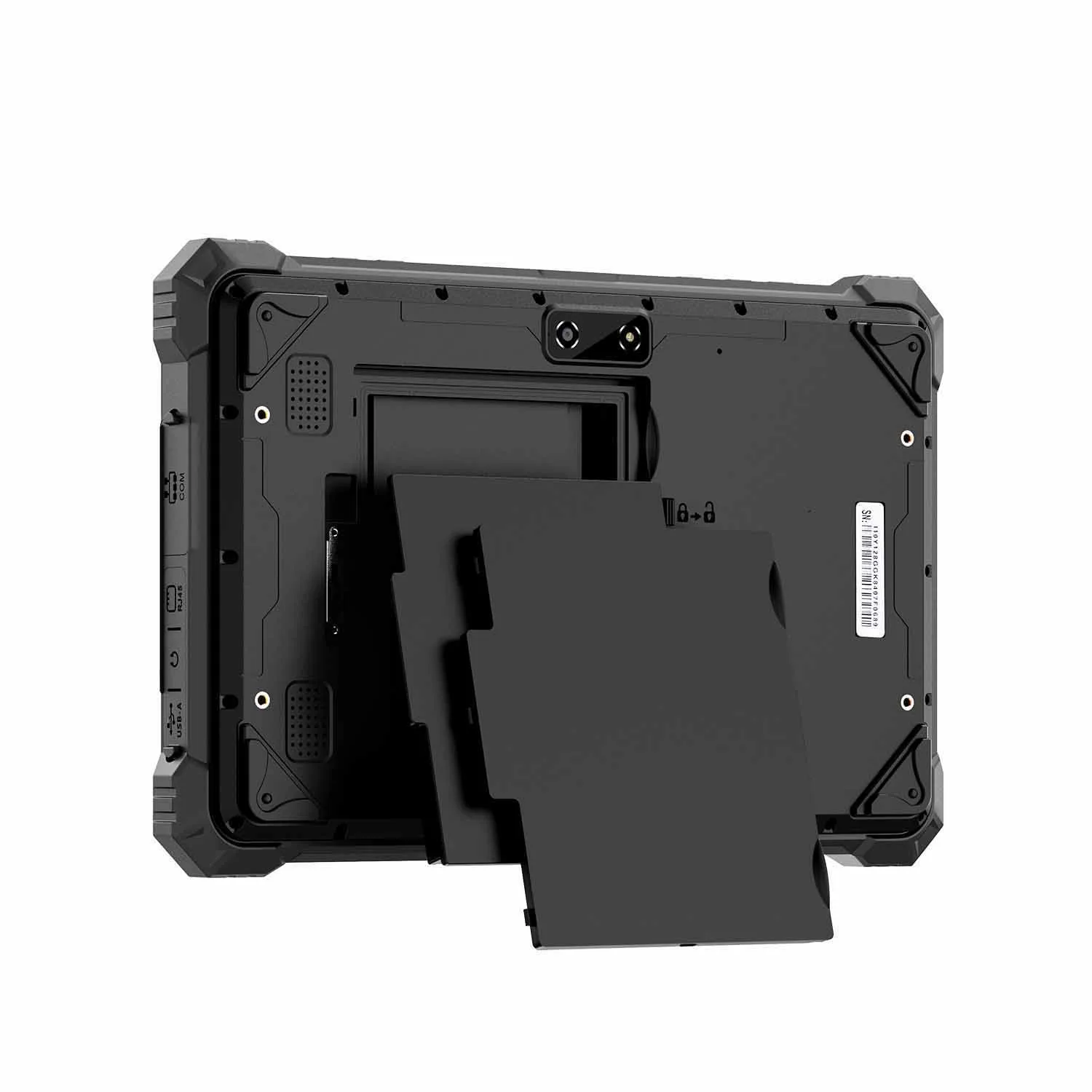

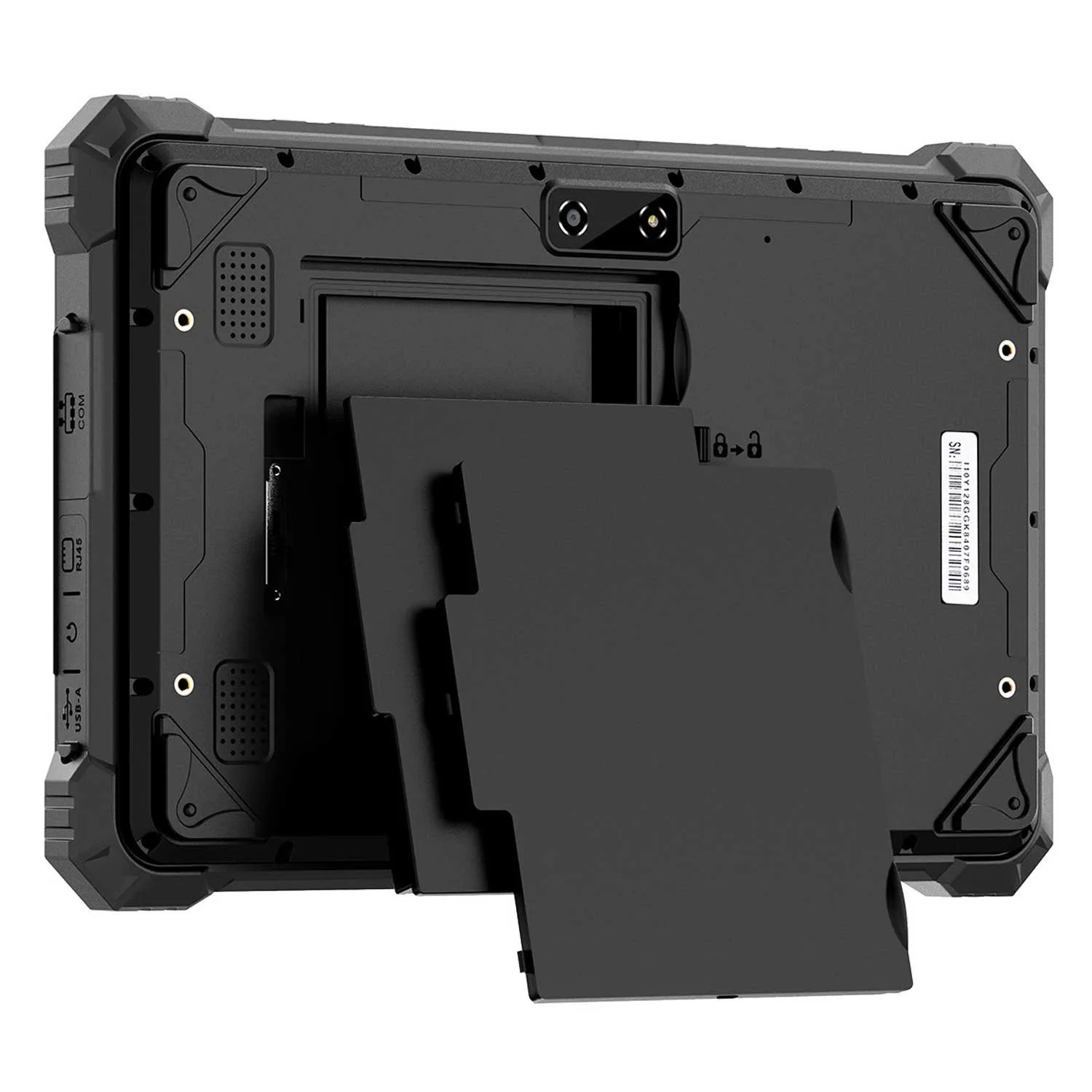

Swap Without Going Offline
Inspection Never Pauses

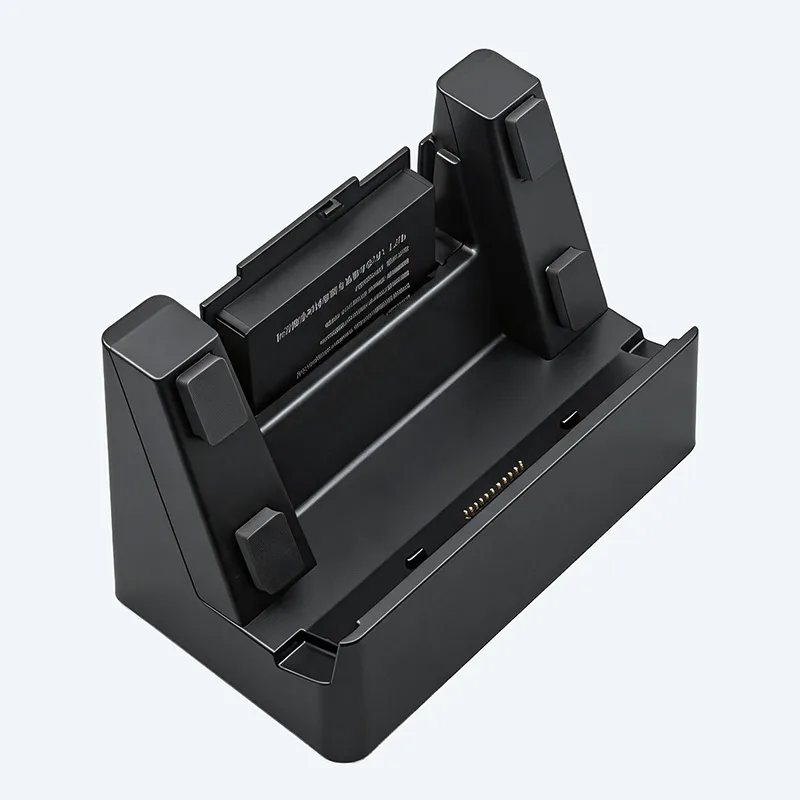

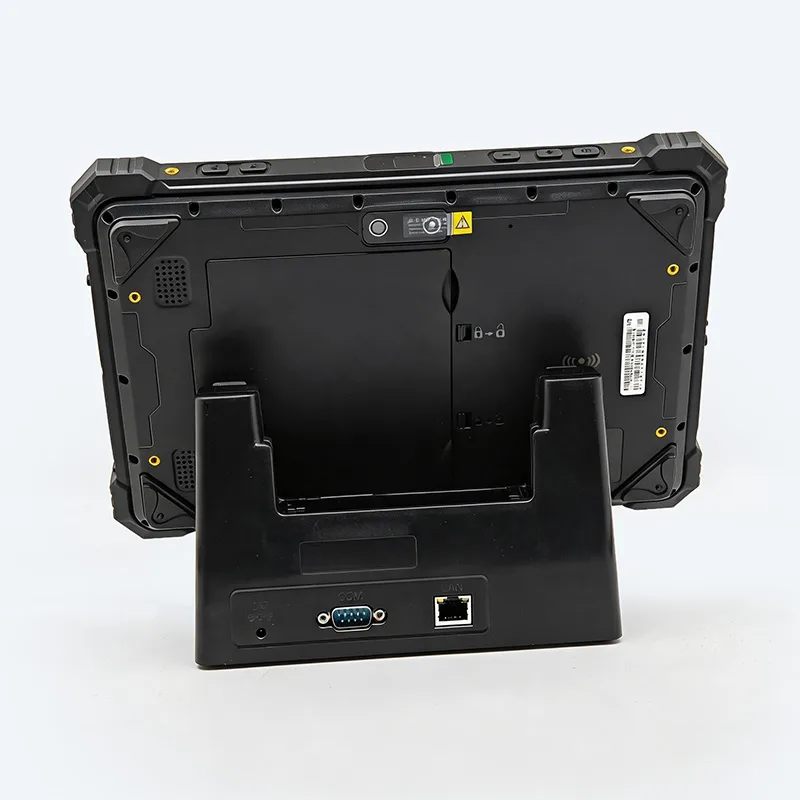

15400mAh Removable Optional Charging Dock

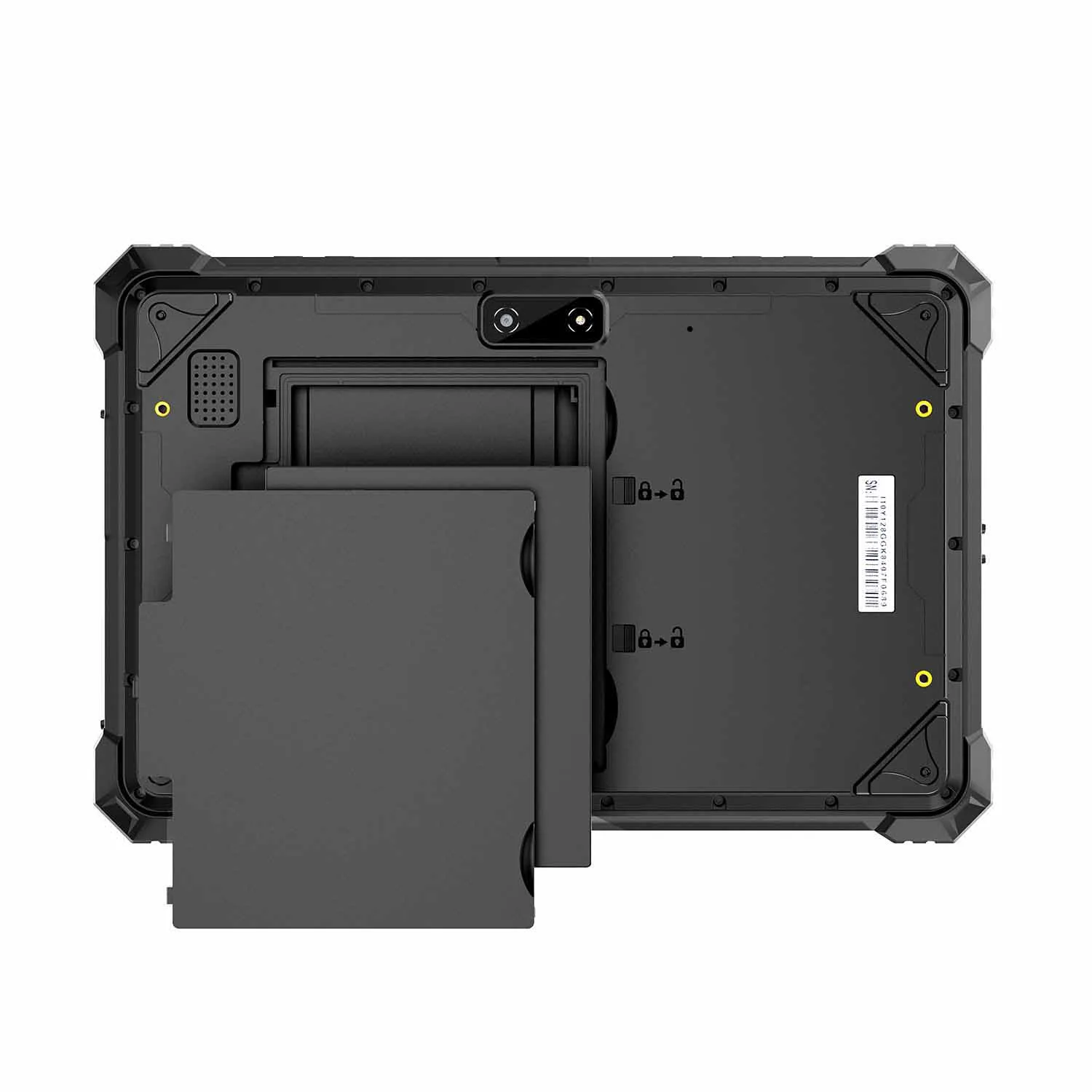

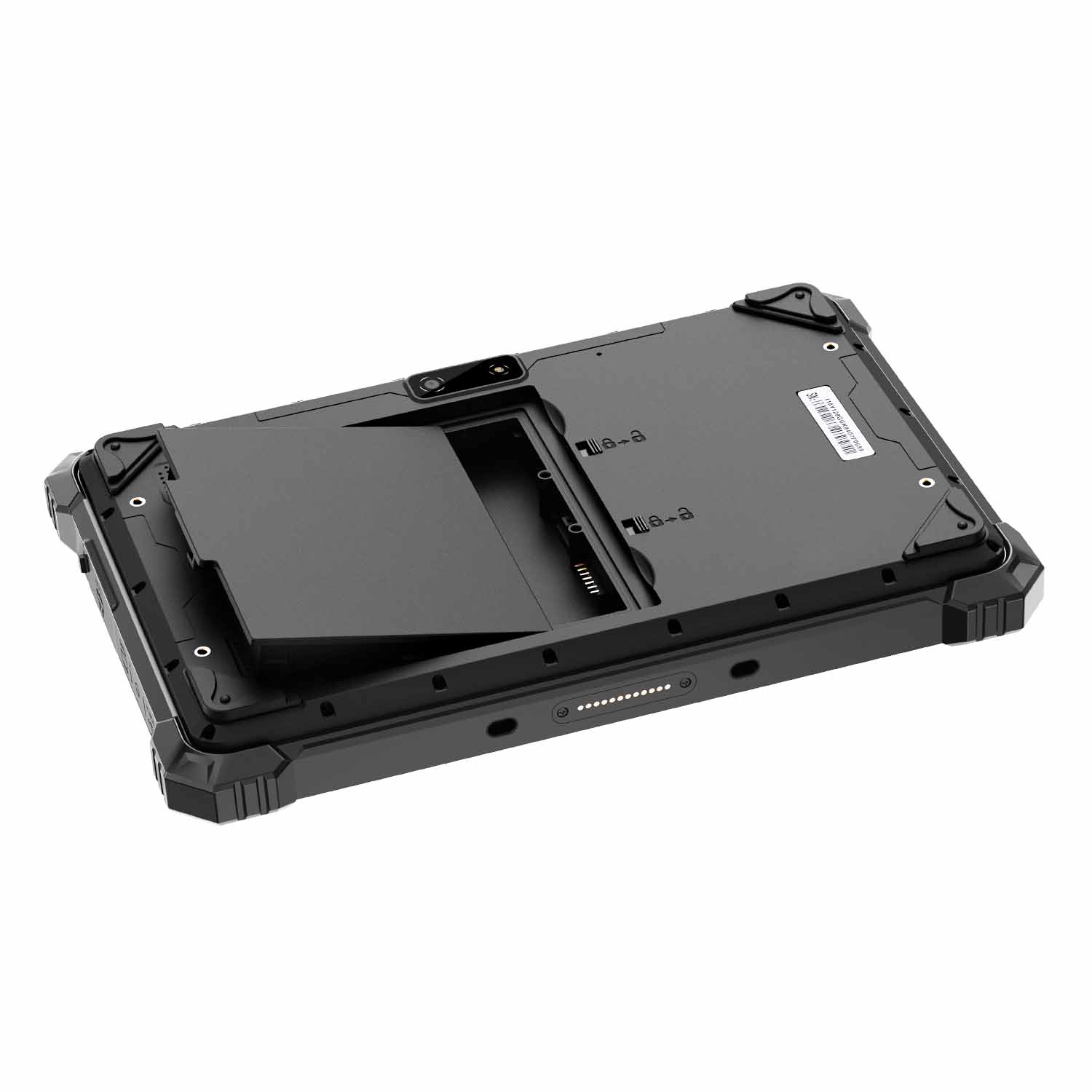

The gap between trips is your swap window: the 15400mAh 3.8V removable battery changes in seconds, so the terminal never clocks out with the vehicle. Rotating spares maximize device utilization, and the optional charging dock keeps every pack topped up in the dispatch room before night shifts. Generous capacity sustains power-hungry always-on video streaming and positioning. The sealed battery bay passes IP67 scrutiny, its latch stays firm on bumpy roads, and -20°C to 60°C operation covers year-round climates.
Flagship Silicon Aboard
Three Apps at Once
MT6877 2.4GHz Octa-Core From 8GB+128GB
Led by two Cortex-A78 cores at 2.4GHz with six Cortex-A55 cores at 2.0GHz, the MT6877 octa-core runs Android 12 (optional Android 15), juggling navigation, video monitoring and dispatch intercom concurrently without stutter. Standard 8GB+128GB storage, expandable to 8GB+256GB, holds offline maps and footage. Corning Gorilla Glass 3 protects the 10.1-inch 1920×1200 panel, readable at noon thanks to 700cd/m² brightness. An 8MP front camera handles video calls; the 16MP autofocus rear with flash—customizable to 48MP—captures crisp incident evidence.
Functions On Demand
One Vehicle One Setup
2D/UHF/RTK/ID Card Freely Selectable
Fleets differ—configurations should too. Freely combine a 2D scanner, UHF RFID, ID card reader, LF 125kHz and RTK centimeter-level positioning, with single-unit orders accepted: city delivery fleets scan waybills with 2D, hazardous-goods carriers verify driver credentials by ID card, and engineering vehicles log work zones with RTK precision. Standard NFC simplifies driver check-in. Built-in RJ45 and DB9 RS232, plus optional Micro HDMI, connect diagnostics and dispatch displays back at the depot—data capture and task execution close the loop on one terminal.
Technical Specifications
 CPU MT6877 octa-core, 2 × Cortex-A78 up to 2.4GHz + 6 × Cortex-A55 up to 2.0GHz |  System |  Storage 8GB RAM + 128GB storage |  Display 10 inch IPS touch screen 1920*1200（Mass customization 1280*800） 700cd/㎡ |
 NFC Optional Default back of the body for card reading, customizable to the front |  One/Two dimensional code Optional Able to identify dirty 1/2 dimensional codes |  Battery Removable 15,400mAh, 3.8V |  High frequency/ultra-high frequency module Optional Ultra thin integrated module |
 Navigation positioning GPS, Galileo GLONASS |  ID card identification Optional |  Interface USB-C 2.0, USB-A 2.0, RS232, 100M RJ45, 12-pin POGO |  Weight 283.9*189.0*33.9mm/1267g |
 Cellular 2G/3G/4G/5G SA and NSA |  Protection level working temperature: -20 °C to 60°C Storage temperature: -30 °C to 70 °C Protection level: IP67 |  Camera Front camera:8MP Rear camera: 16MP autofocus rear |  Sensor Gravity sensing, compass, gyroscope, light sensing, distance sensing |
| Type | 10.1 inch 5G Rugged Android Tablet |
| Gravity sensor | Supported |
| Compass | Supported |
| Gyroscope | Supported |
| Light sensor | Supported |
| Distance sensor | Supported |
| Bluetooth | Bluetooth 5.2 (BLE), Class 1, ~10m range |
| USB Type-C | 1× USB 2.0, supports OTG and charging |
| Type -A | 1× USB 2.0 |
| Earphone Jack | *1 3.5mm Standard Earpiece jack |
| TF Card | *1 Maximum support 256GB expansion |
| SIM Card | *1 Standard Micro SIM card slot |
| DC jack | *1 5.3V/3A (Plug size: 3.5mm OD / 1.35mm ID) |
| RJ45 jack | *1 100M |
| POGO PIN | *1 12Pin USB+Charge |
| DB9（serial port） | *1 RS232 |
| HDMI port (customised) | *1 micro HDMI |
| Drop height | Tested to MIL-STD-810H (1.22m drop) |
| Certificates | IP67,3C，CE，US military standard-810H certification, energy saving certification, ISO quality certification system, ROHS, three-proof salt spray test |

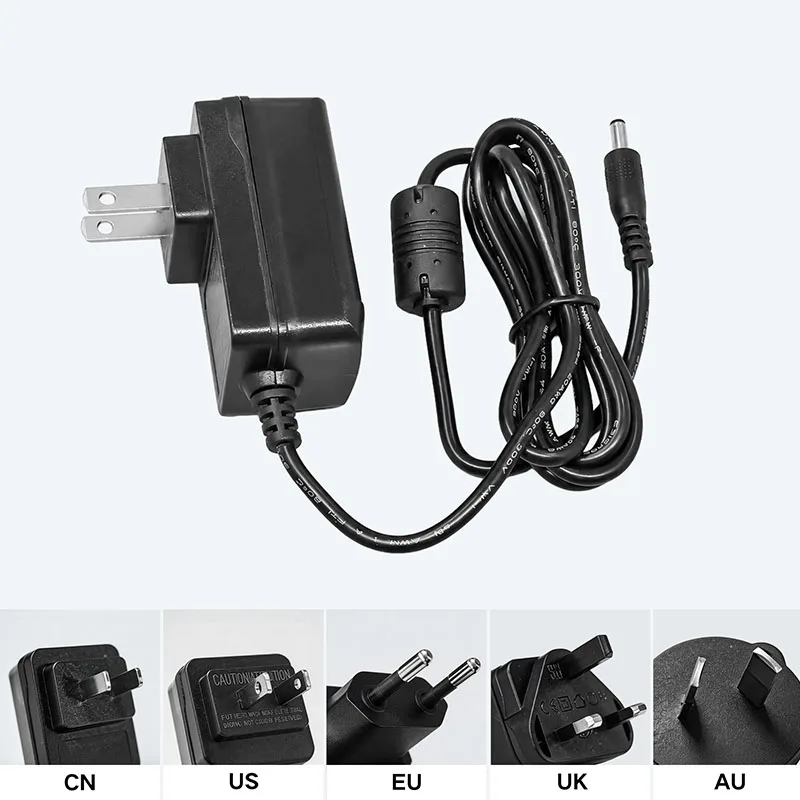

| Adaptor | 5.3V/3A DC adapter |
| Option accessories | Strap/charging base/stand |
The A10STX-5G is the field-battery variant of our 10.1-inch 5G tablet. It runs the same MT6877 platform as the A10ST-5G — 5G, Wi-Fi 6, Bluetooth 5.2, NFC, multi-constellation GNSS — but swaps the sealed 10,000mAh pack for a removable 15,400mAh one. The trade is explicit: you give up IP68 for IP67, and you gain mid-shift battery swaps. Barcode scanning, UHF/LF RFID, ID-card reading and centimetre-level RTK are factory options.
At roughly 1,267g and 33.9mm thick, this is not a slim device. It earns its keep mounted, docked or strapped: warehouse receiving with scanning and UHF, utility inspection with RTK, vehicle dispatch over RS232 or Ethernet, healthcare and lab work that needs glove touch. Plan for a mount or harness when you order — we make them, and they're in the accessories list below.
The A10STX-5G is particularly relevant where several functions must be combined in one field device:
Warehouse receiving, inventory and traceability
Utility inspection and outdoor asset management
Vehicle-mounted dispatch and mobile work orders
GIS data collection and RTK-assisted positioning
Equipment maintenance using RS232 or Ethernet
UHF RFID asset identification
Healthcare or laboratory workflows requiring glove touch
Customized OEM and software-integrated projects
Frequently Asked Questions about A10STX-5G Rugged Android Tablet
1. What is the A10STX-5G designed for?
Field teams that collect and transmit data away from a desk: warehouse and inventory work, utility inspection, vehicle-mounted dispatch, GIS/RTK collection and equipment maintenance. The removable battery is what separates it from our sealed-battery models — it's built for shifts that outlast a single charge.
2. How is it different from the A10ST-5G?
Same MT6877 5G platform, same 10.1-inch size, same port set. Two differences: this model's 15,400mAh battery is removable (the A10ST-5G's 10,000mAh is sealed in), and the rating here is IP67 instead of IP68. Pick this one for battery swaps; pick the A10ST-5G for maximum water protection.
3. What platform does it run on?
MediaTek MT6877 — two Cortex-A78 cores at up to 2.4GHz, six Cortex-A55 at 2.0GHz — with 8GB RAM and 128GB storage as standard; 8GB+256GB is optional. Android 12 ships by default, with Android 15 as a factory option.
4. What display options are available?
The standard panel is 1920×1200 IPS at 700 nits, covered by Corning Gorilla Glass 3 (7H). A 1,000-nit high-brightness version is available for outdoor sites, and 1280×800 can be tooled for volume orders. As always with brightness: if readability is critical, test a sample in your actual sunlight.
5. Is the battery really removable, and what's the protection rating?
Yes — 15,400mAh, user-swappable, with an optional multi-battery charging dock. The rating is IP67: dust-tight and fine with rain and brief immersion. If your site requires IP68, that means a sealed battery — see the A10ST-5G.
6. Which ports come standard?
RS232 on DB9, 100M RJ45 Ethernet (not Gigabit), USB 2.0 Type-C with OTG and charging, USB 2.0 Type-A, 3.5mm audio, Micro SIM and a TF slot up to 256GB. Micro HDMI is a factory option, not standard.
7. What cameras are included?
An 8MP front camera and a 16MP autofocus rear camera with flash — enough for barcode-adjacent documentation and site photos. If you need scanning at production speed, that's the optional 2D engine's job, not the camera's.
8. Which accessories are available?

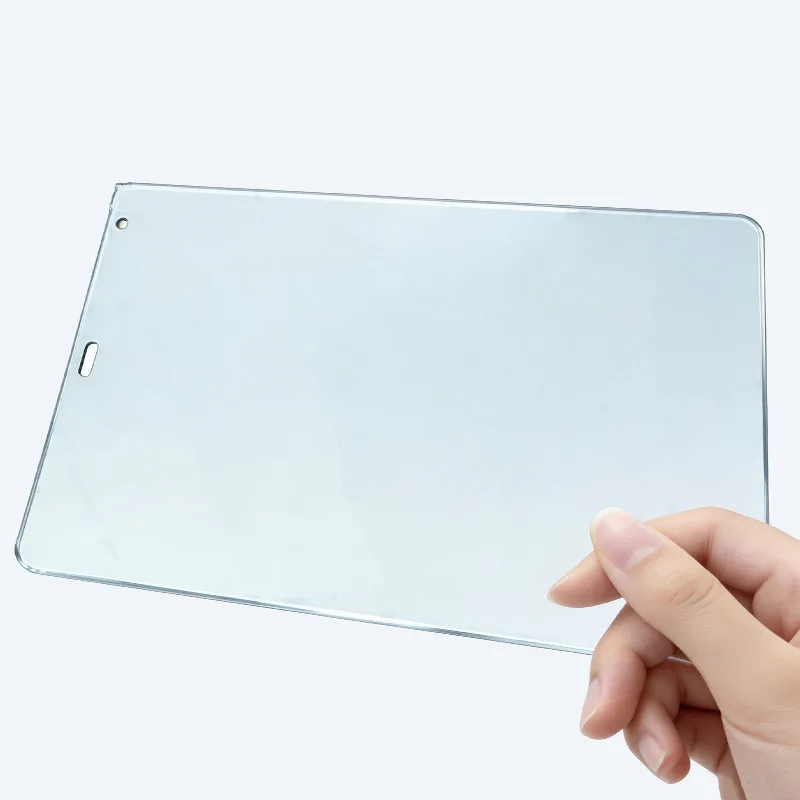

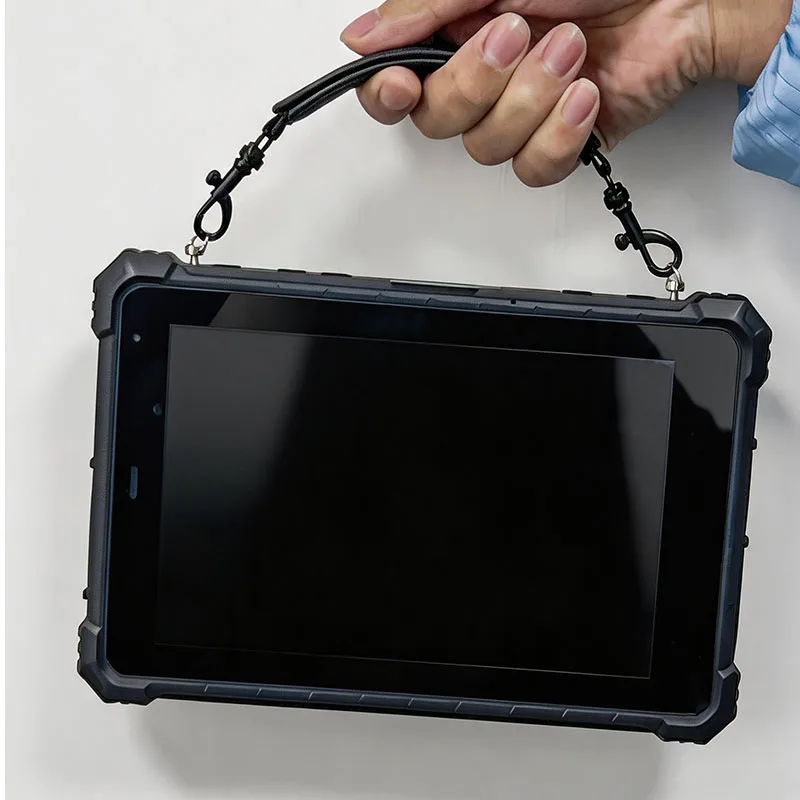

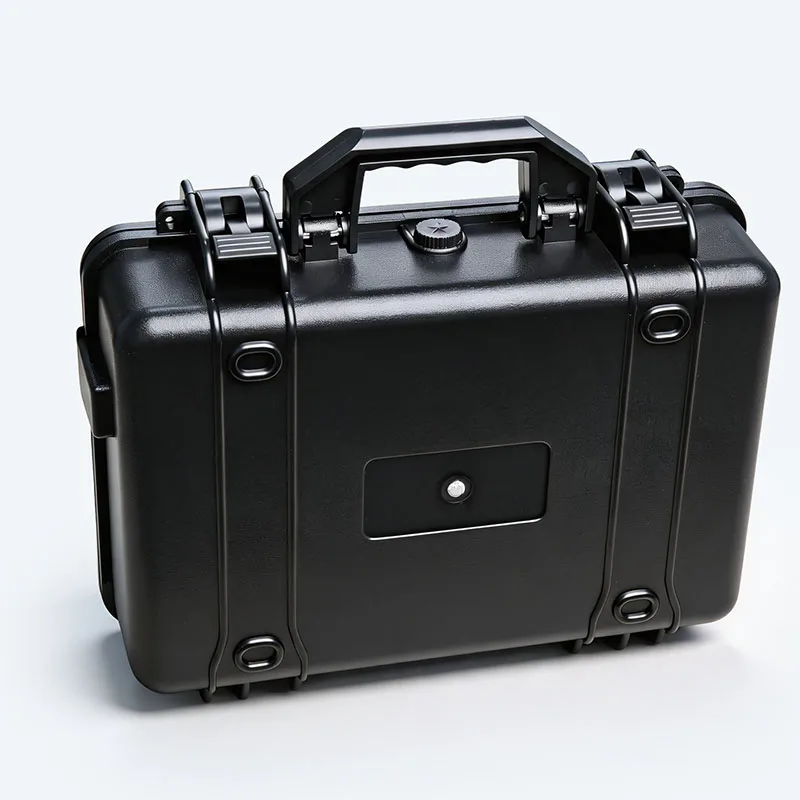

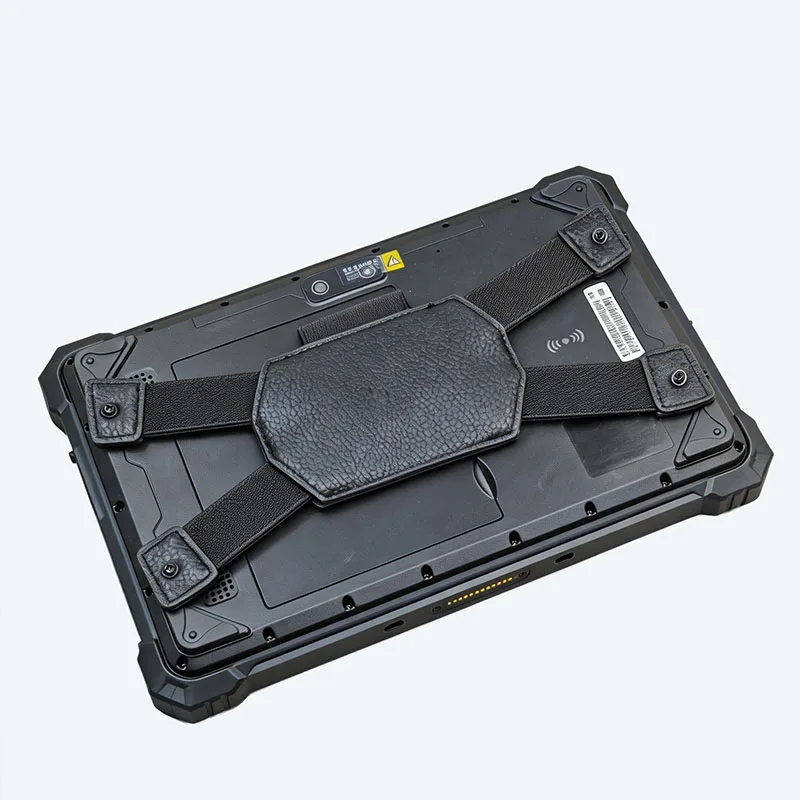

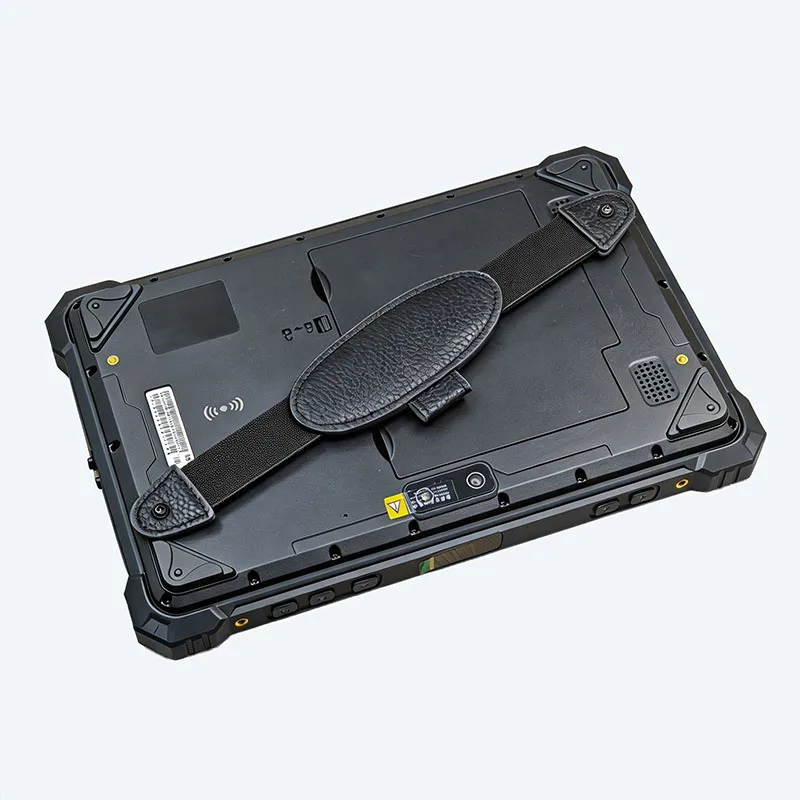

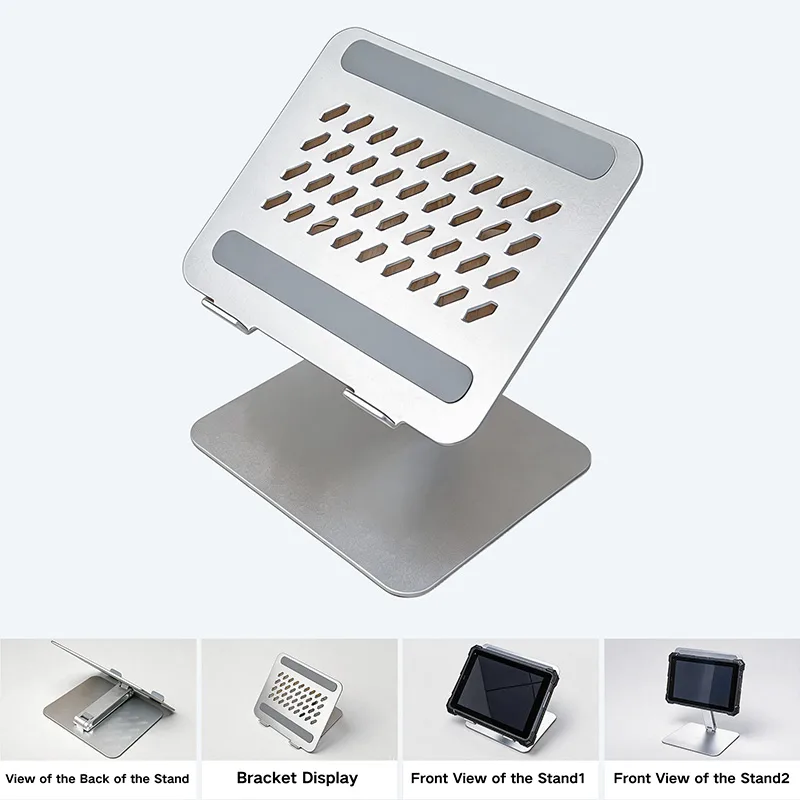

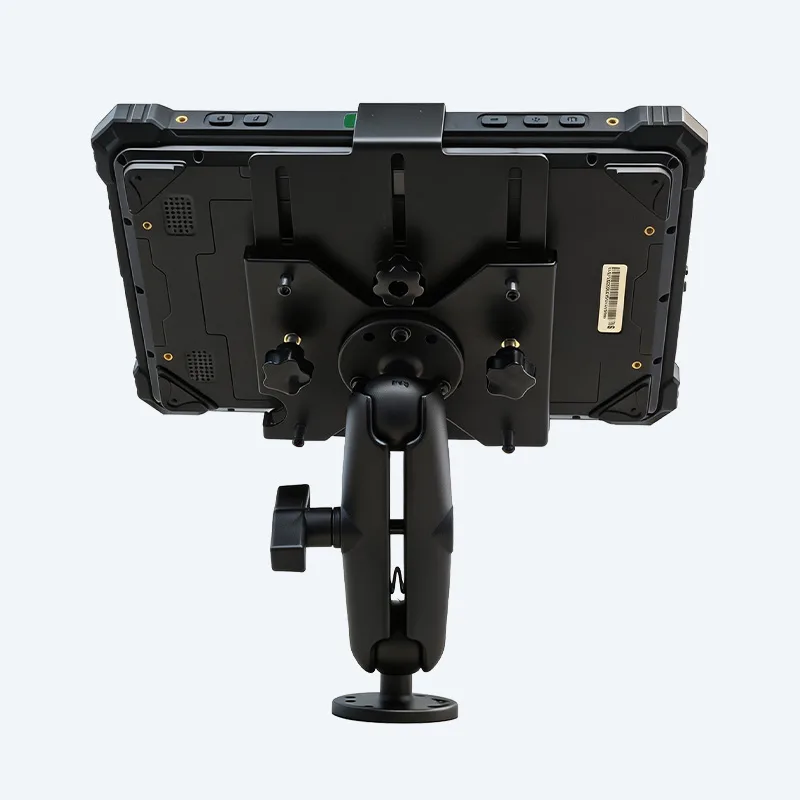

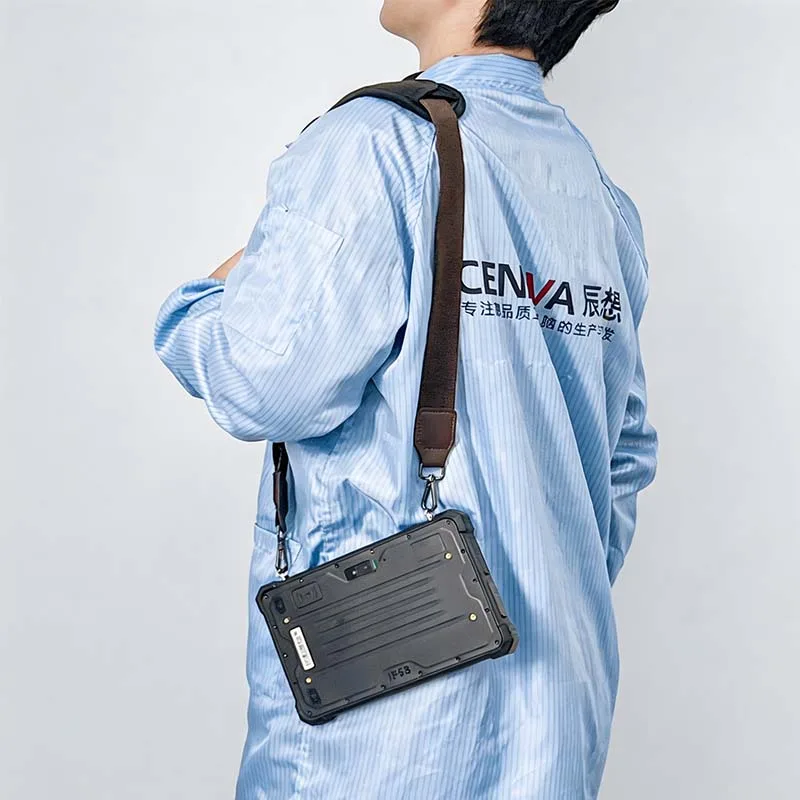

Two-point strap as standard; optional four-point harness, tempered-glass screen protector, stand, charging base, multi-battery charging dock and portable waterproof case. Vehicle and fixed mounting are quoted per project.
