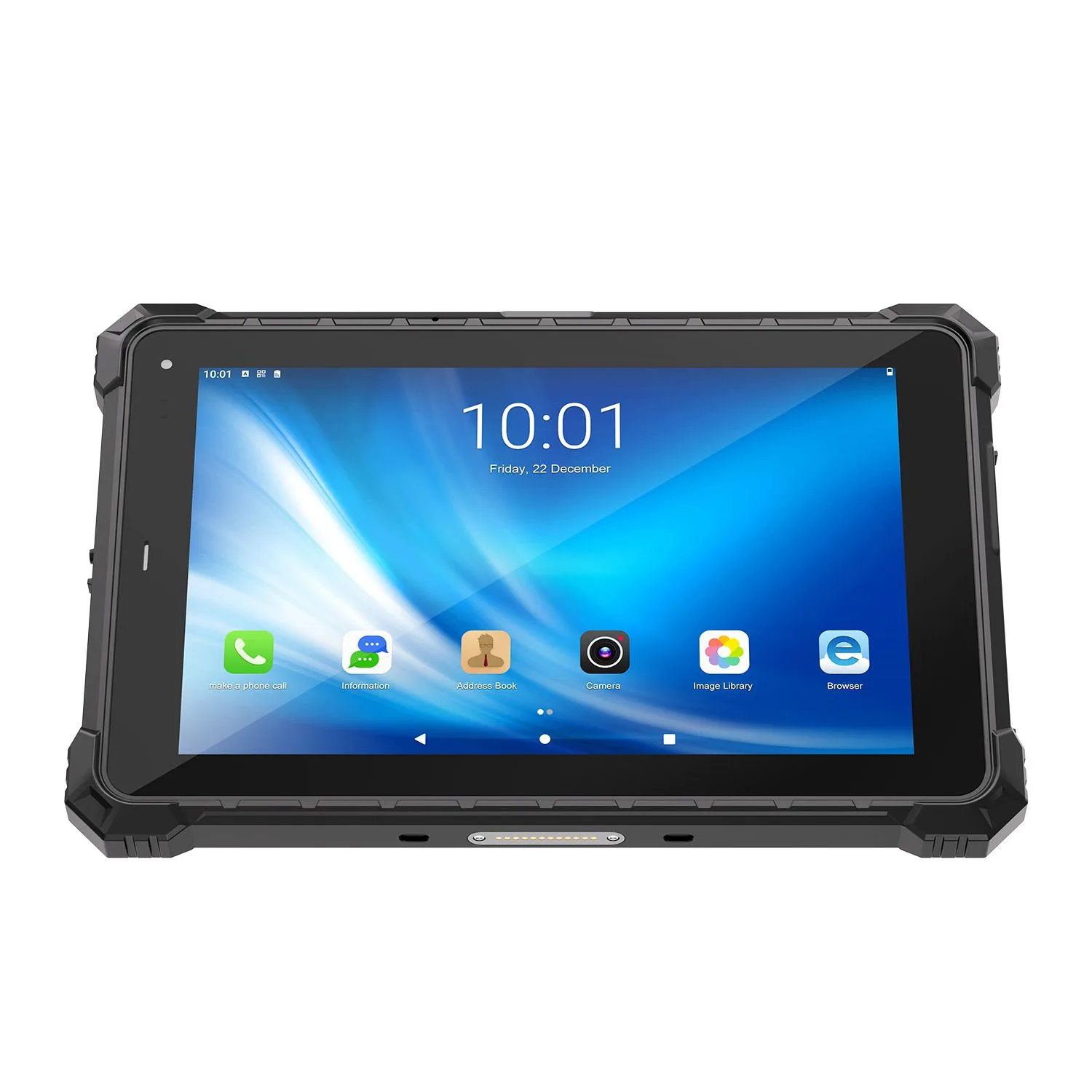

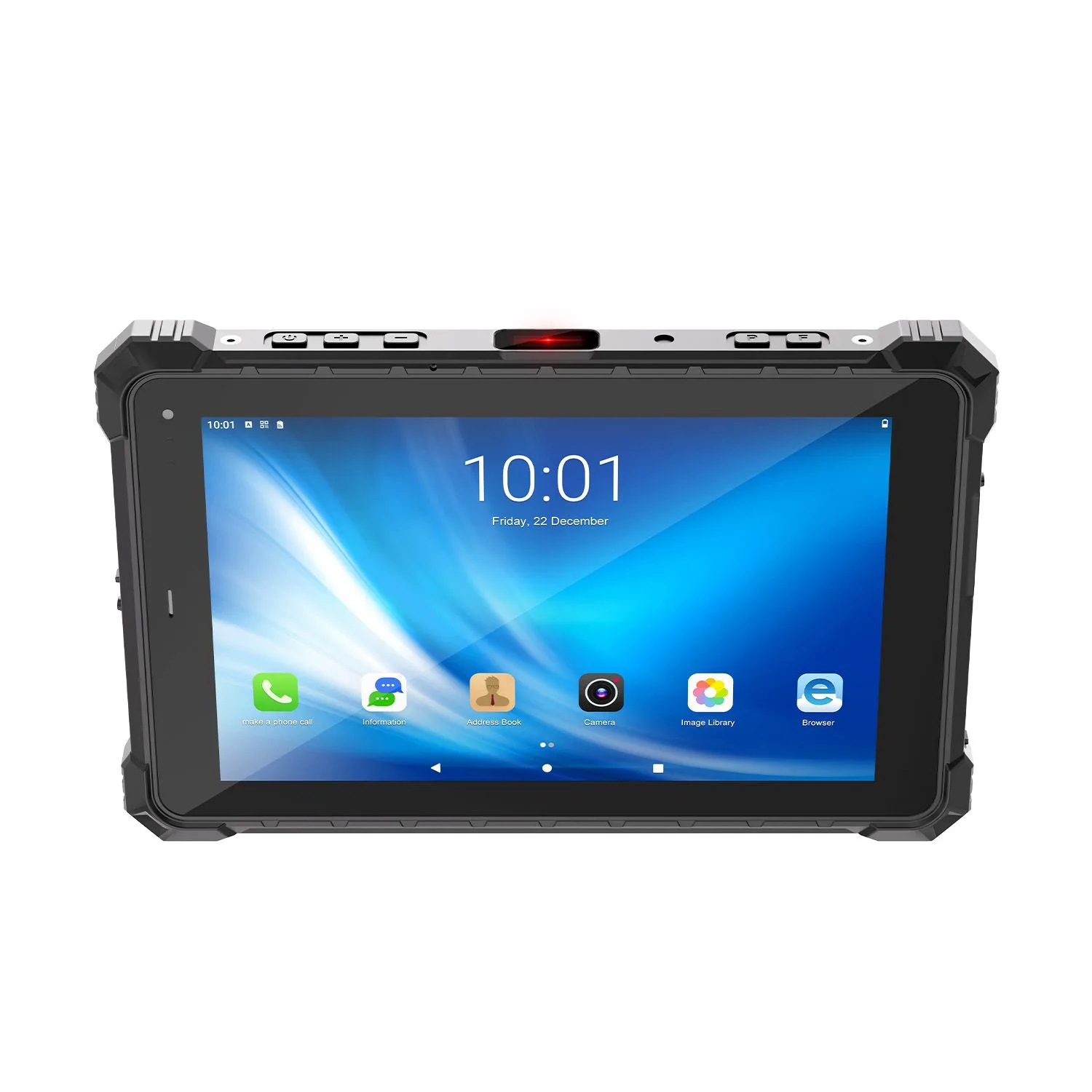

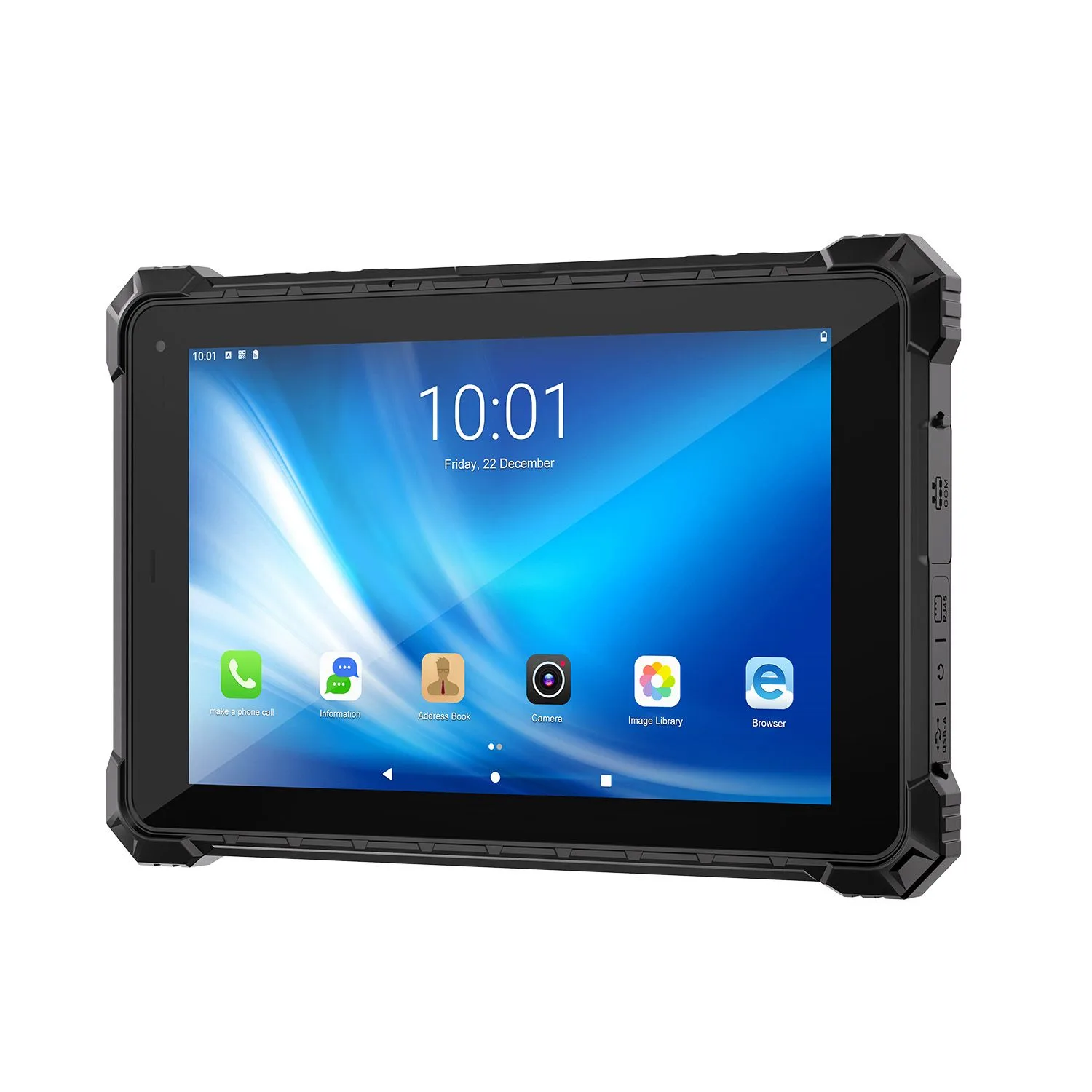

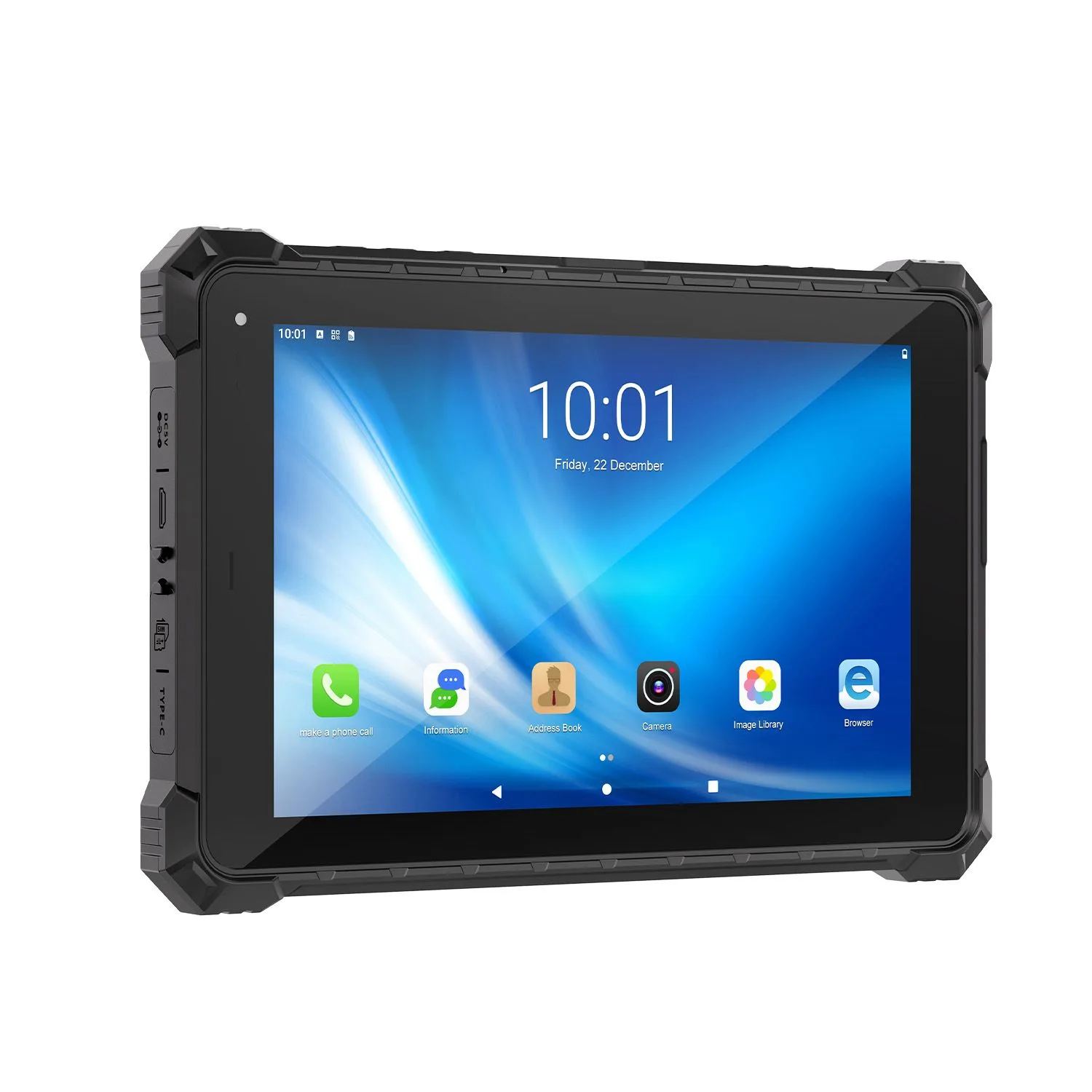

CENAVA A10ST MT8781 10.1 Inch Android 13 IP68 Rugged Tablet
CENAVA A10ST MT8781 pairs Android 13 with up to 12GB+256GB memory, running MES, WMS and inspection apps smoothly. Integrated RJ45 and RS232 connect directly to control networks and industrial peripherals. IP68 and MIL-STD-810H rated; 10000mAh battery lasts a full shift, optional 20000mAh pack. Glove-touch display; NFC standard, optional intercom hand mic, RTK, 2D and more.
Rugged Protection: IP68, MIL-STD-810H 1.22m drop, -20°C to 60°C (customizable -30°C to 60°C)
CPU: MediaTek MT8781 octa-core, 2×Cortex-A76 @2.2GHz + 6×Cortex-A55 @2.0GHz
OS: Android 13
Display: 10.1" IPS 1920×1200 (optional 1280×800), 700cd/㎡ (customizable 1000cd/㎡), G+G 10-point glove touch, hardness ≥7H, AF coating (customizable wet-hand touch)
RAM/ROM: 8GB+128GB (optional 12GB+256GB)
Battery: 10000mAh 3.8V non-removable, ≥10h endurance (optional 20000mAh custom pack)
Integrated I/O: RJ45, RS232, Type-C (OTG), USB-A, 3.5mm jack, 12Pin POGO, Micro SIM, TF up to 256GB
Network: Dual-band WiFi 5, Bluetooth 5.2, 4G LTE full-band; GPS/BeiDou/Galileo/GLONASS, optional single-BeiDou
Cameras: 8MP front + 16MP AF rear
Optional Modules: Intercom hand mic, RTK cm-level positioning, 2D scanner, fingerprint, ID card reader, UHF RFID (up to 15m), LF 125kHz; NFC standard
Octa-Core Power Android 13 Smooth
MTK8781 Octa-Core 8GB/12GB Options 4G Global

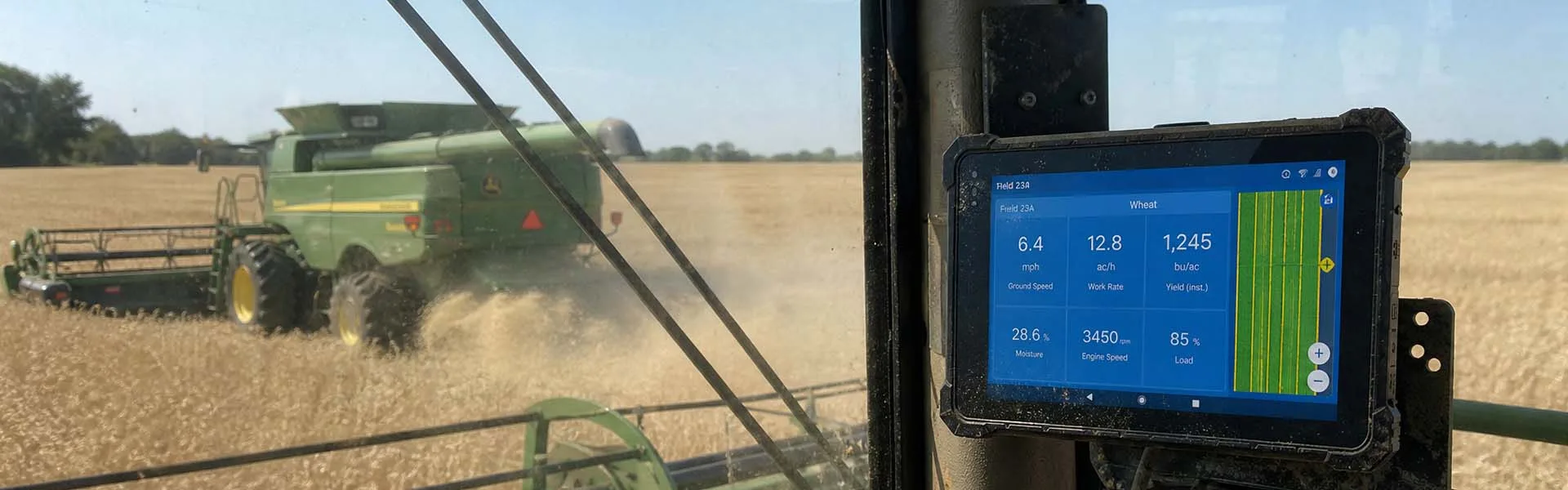

Powered by the MTK8781 octa-core processor (2×A76@2.2GHz + 6×A55@2.0GHz) with the Android 13 industrial OS, multitasking runs smoothly without lag. The 10.1-inch display provides ample workspace for multi-window dispatching and data visualization. The 8GB+128GB standard version handles routine MES terminals, while the 12GB+256GB high-end version tackles video backhaul and cloud collaboration. 4G global band coverage keeps you connected across field inspections and vehicle-mounted operations. OTA upgrades deliver security patches, and memory configurations adjust per project needs.

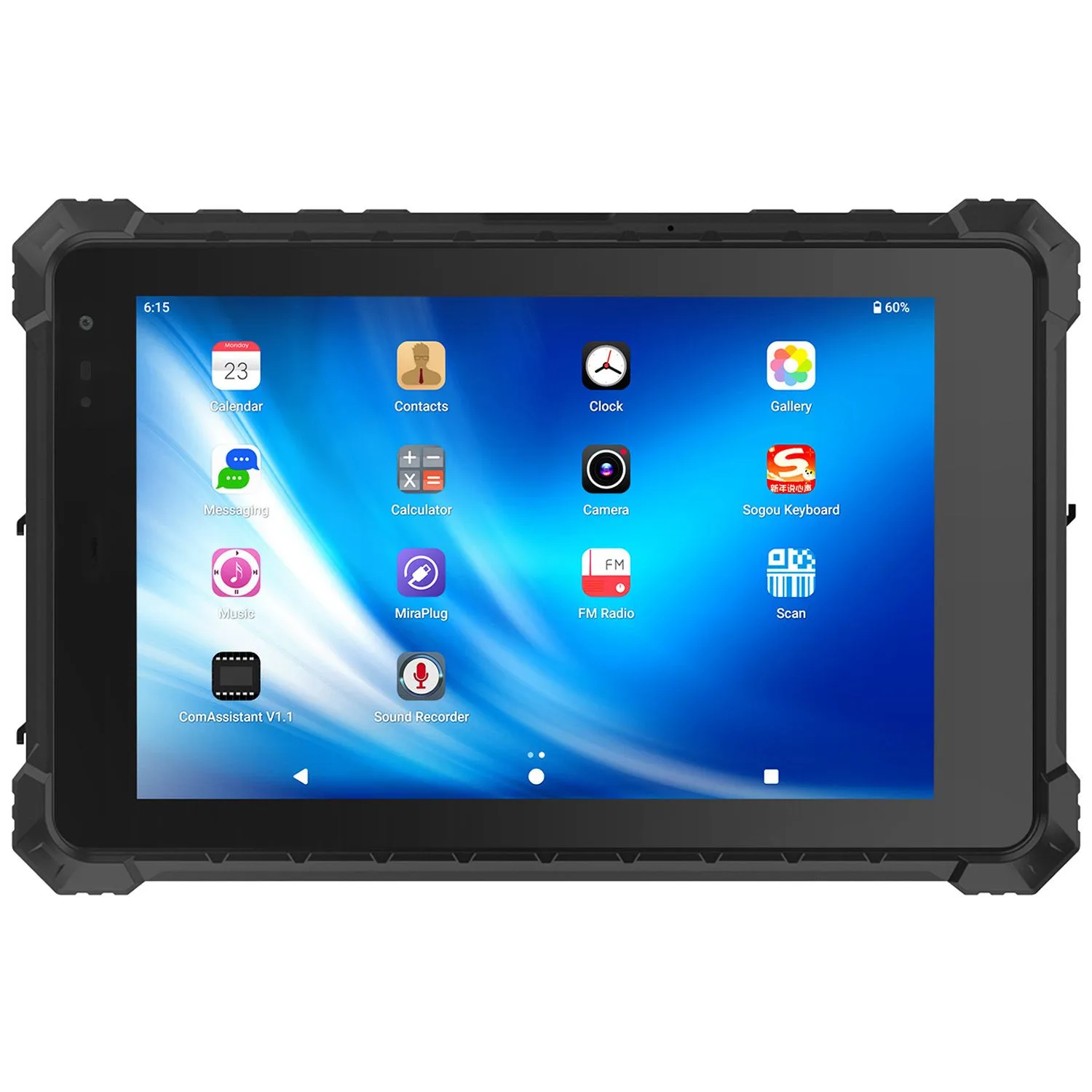

High-Res Bright Display
Outdoor Strong Visibility
10.1-inch IPS 700cd/m² Glove Touch Wet-Hand Customizable

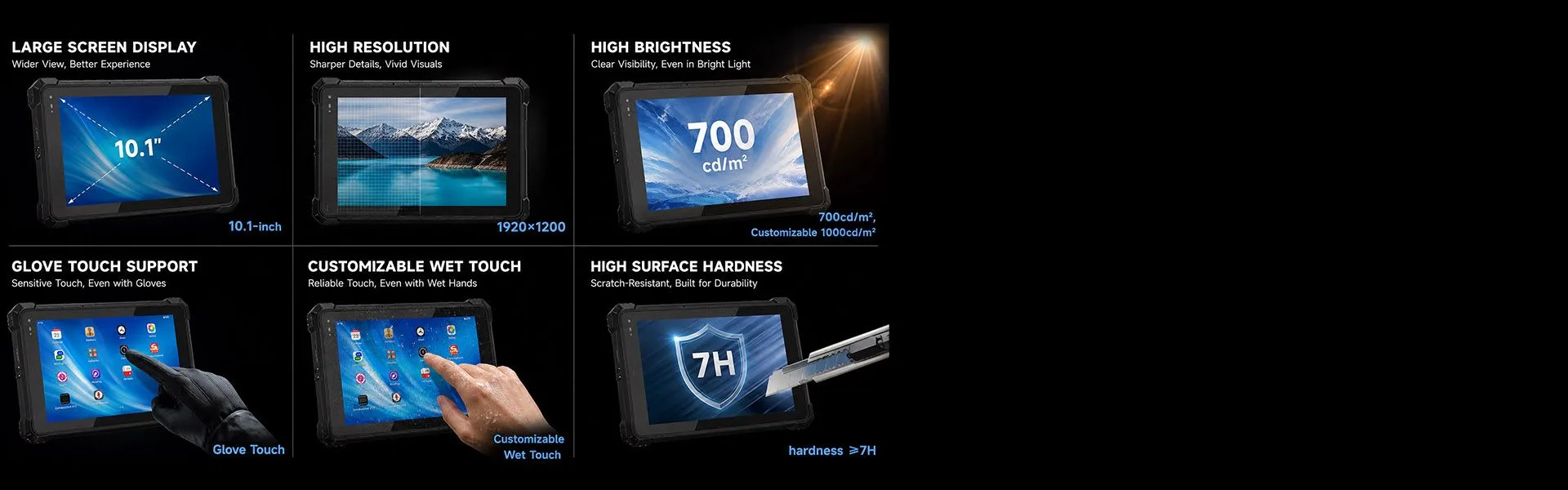

The 10.1-inch IPS panel delivers crisp 1920×1200 resolution, with 700cd/m² brightness remaining clearly readable under direct sunlight. Rubber-glove touch is supported for precise operation, and wet-hand touch can be customized on demand for rainy-day work. G+G construction with AF anti-fingerprint coating, hardness ≥7H, scratch-resistant for long-term use. Brightness customizable to 1000cd/m² ultra-bright for extreme glare, with standard-resolution versions flexibly selectable to fit different environments and budgets.
Triple-Proof + Explosion-Proof
Built for Harsh Conditions
IP68 Optional Ex Version 1.22m Drop -20°C to 60°C

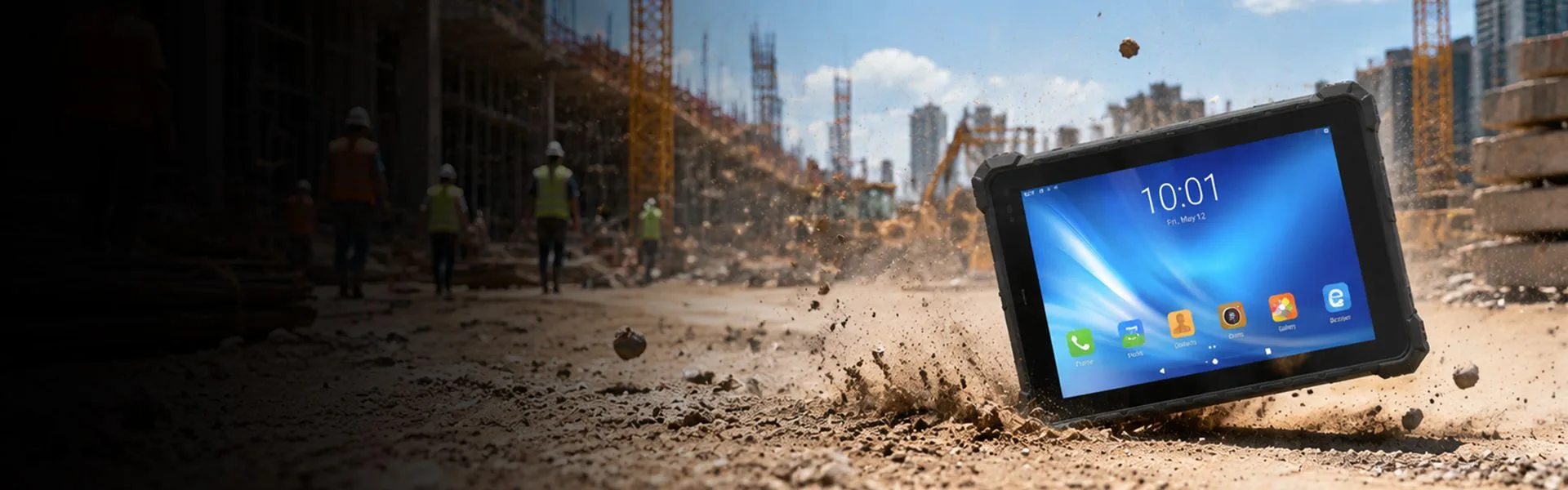

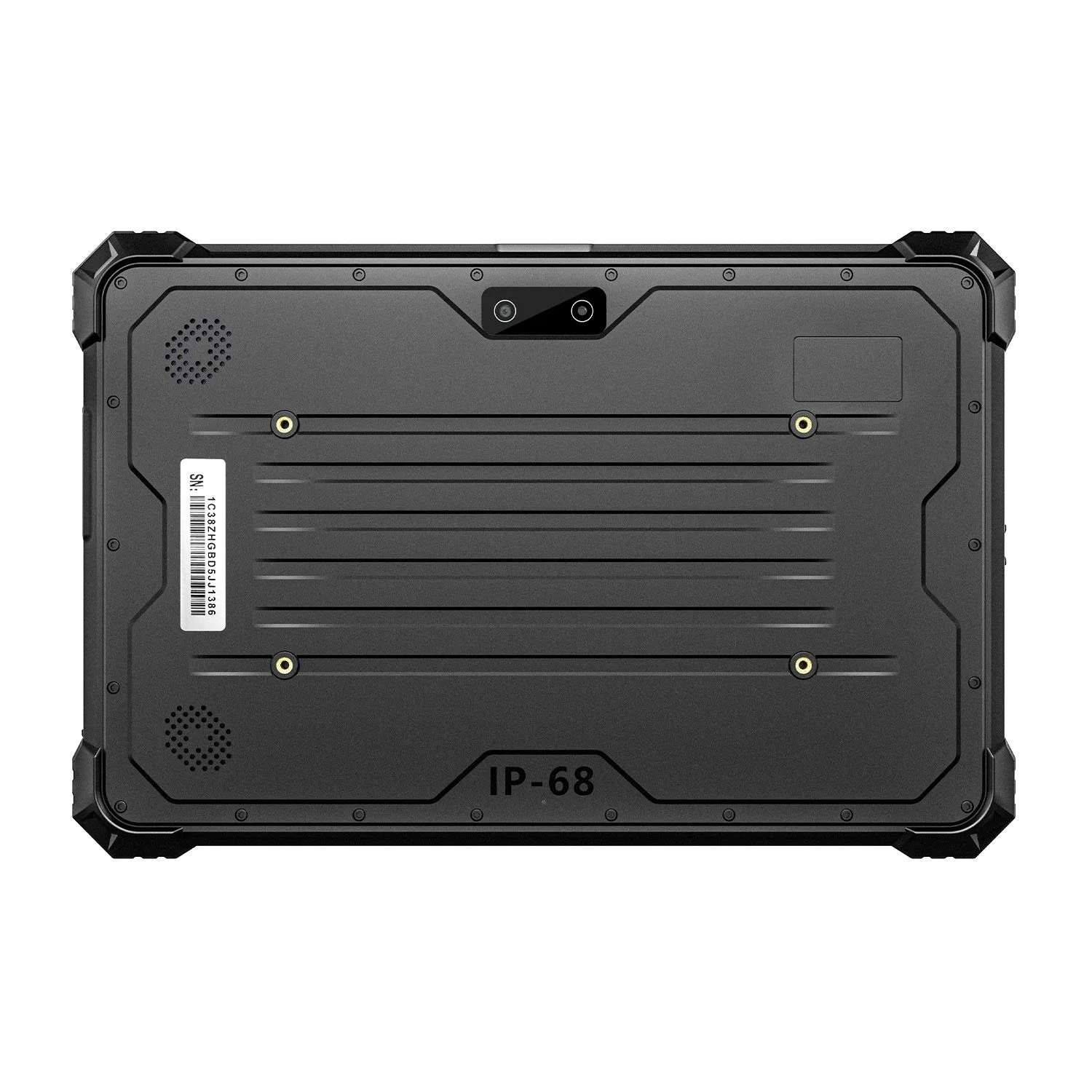

IP68 dust-tight and waterproof, surviving 1.22m drops. For hazardous areas, order the certified A10ST-EX variant instead: ATEX II 2GD (Ex ib IIC T4 Gb / Ex ib IIIC T95°C Db) with IECEx and CCRI certificates — see the A10ST-EX page for certificate numbers. Operating range here is -20 °C to 60 °C, with a -30 °C low-temperature custom build for severe cold. The rugged industrial chassis with reinforced corners and sealed gaskets keeps out sand and dust, providing a stable, fatigue-free grip.
Industrial Full Interface
Plug and Play
Type-C+USB-A+RS232+POGO 100M Ethernet
Full industrial interface configuration: Type-C supports OTG and data transfer; USB-A connects flash drives and keyboards; RS232 serial port interfaces with industrial control equipment; RJ45 100M Ethernet connects directly to PLCs and switches; 12-pin POGO PIN dock enables charging and expansion; 3.5mm headphone jack supports voice intercom. Ergonomic layout keeps ports clear in one-handed use without cable tangling on the desktop. Dust plugs block dust and moisture. Paired with optional 2D scanning, ID card, fingerprint, and UHF modules, it forms an integrated data collection and device control terminal.
Technical Specifications
 CPU MTK8781 Octa Core 2.2GHZ |  System |  Storage 8+128GB |  Display 10 inch IPS touch screen 1920×1200 (1280×800 available on volume orders) 700cd/㎡ |
 NFC Optional Default back of the body for card reading, customizable to the front |  One/Two dimensional code Optional Able to identify dirty 1/2 dimensional codes |  Battery 3.8v High voltage lithium battery10000mAh |  High frequency/ultra-high frequency module Optional Ultra thin integrated module |
 Navigation positioning GPS, BeiDou, Galileo, GLONASS |  ID card identification Optional |  Interface Type-C, Type-A, POGO PIN |  Weight 283.9*189.5*24.1mm/1130g |
 Card slot Micro SIM ×1, TF up to 256GB |  Protection level working temperature: -20 °C to 60°C Storage temperature: -30 °C to 70 °C Protection level: IP68 |  Camera Front camera:8MP Rear camera:16MP |  Sensor Gravity sensing, compass, gyroscope, light sensing, distance sensing |
A10ST 10 Inch Rugged Tablet Details:
| Configure | FHD Highlight 8+128G/12+256G |
| TP touch screen | Anti-fingerprint (AF) coating,10-point touch G+G, hardness ≥ 7H, support for medical rubber gloves touch screen (can be customised wet hand touch screen) |
| Gravity sensor | YES |
| Compass | YES |
| Gyro | YES |
| Light-sensitive | YES |
| Distance Sensing | YES |
| WIFI | Wi-Fi 5 (802.11a/b/g/n/ac), dual-band 2.4/5GHz |
| Bluetooth | Bluetooth 5.2 (BLE) class1 transmit distance:10m |
| LF（custom function） | support 125kHz distance:1-3cm |
| TYPE-C | *1 Type-C adapt OTG |
| Type -A | *1 Type-A USB2.0 |
| Earphone Jack | *1 3.5mm standard headphone jack |
| TF Card | *1 Maximum support 256GB expansion |
| SIM Card | *1 Standard Micro SIM card slot |
| DC port | *1 5V/3A (DC plug outer diameter 3.5mm inner diameter 1.35mm) |
| POGO PIN | *1 12Pin USB+charger |
| RJ45 | *1 |
| RS232（serial port） | *1 |
| Drop height | Meets the requirements of MIL-STD-810H for the 1.22-meter drop test |
| Certificates | IP68 (IEC 60529), CE, RoHS, CCC; drop-tested to MIL-STD-810H (1.22 m); ISO 9001-certified factory; salt-spray tested |
| CE-NB | YES |
| MIL-STD-810G | YES |
| CCC | YES |
| Adapter | 5V/3A,DC interface adapter |
Frequently Asked Questions about A10ST IP68 Rugged Tablet
1. What version of Android does the A10ST actually run?
The A10ST runs Android 13, powered by an MTK8781 octa-core processor.
2. How long does the battery last, and is it replaceable?
The standard battery is a 10000mAh, 3.8V lithium battery, rated for at least 10 hours of use. It is non-removable/sealed. For extended runtime, CENAVA also offers a custom 20000mAh battery option (bare unit ~1258g, complete set ~1853g).
3. Does the A10ST support UHF RFID reading, and at what range?
Yes, UHF is an optional custom module operating at 840–960MHz, available in three configurations: ≤3m, ≤5m, or ≤15m read distance, depending on the antenna/module selected.
4. Does the A10ST support 5G, and which cellular/network standards are included?
The A10ST supports 4G LTE (not 5G) with broad band coverage:
GSM (B2/B3/B5/B8), WCDMA (B1/B2/B5/B8), TD-SCDMA, CDMA2000, LTE-FDD (B1/B2/B3/B4/B5/B7/B8/B20/B28A) and LTE-TDD (B38/B39/B40/B41). Wi-Fi is 802.11a/b/g/n/ac (Wi-Fi 5), dual-band 2.4GHz+5.8GHz, and Bluetooth is 5.2 (BLE), Class 1, with a 10m range. (If you need 5G, the W109U model in the same series offers it as an option.)
5. Can the fingerprint module meet law-enforcement or government certification requirements?
The fingerprint module is offered in three tiers: (1) standard industrial fingerprint, (2) Ministry of Public Security certified, and (3) FBI-certified fingerprint recognition — selectable based on your project's compliance requirements.
6. Does the A10ST support RTK high-precision positioning?
Yes, as a custom option. Positioning accuracy varies by mode:
Standalone GPS (RMS): ~1.5m horizontal / 2.5m vertical
DGPS (RMS): ~0.4m horizontal / 0.8m vertical
RTK (RMS): ~1cm+1ppm horizontal / 1.5cm+1ppm vertical
Base positioning also includes GPS, BeiDou, Galileo, and GLONASS.
7. What mounting and carrying accessories are available for the A10ST?

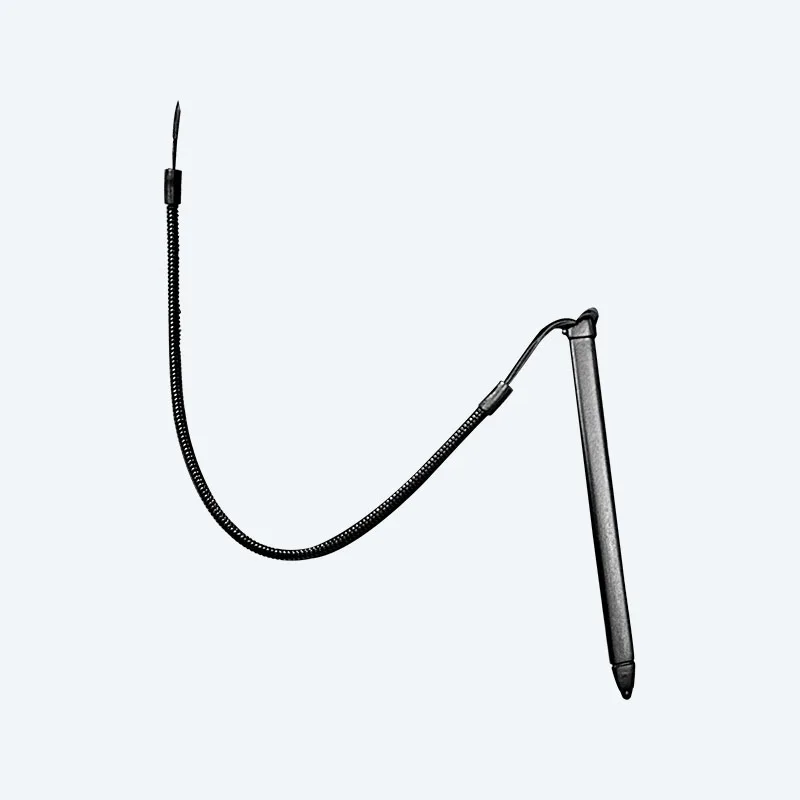

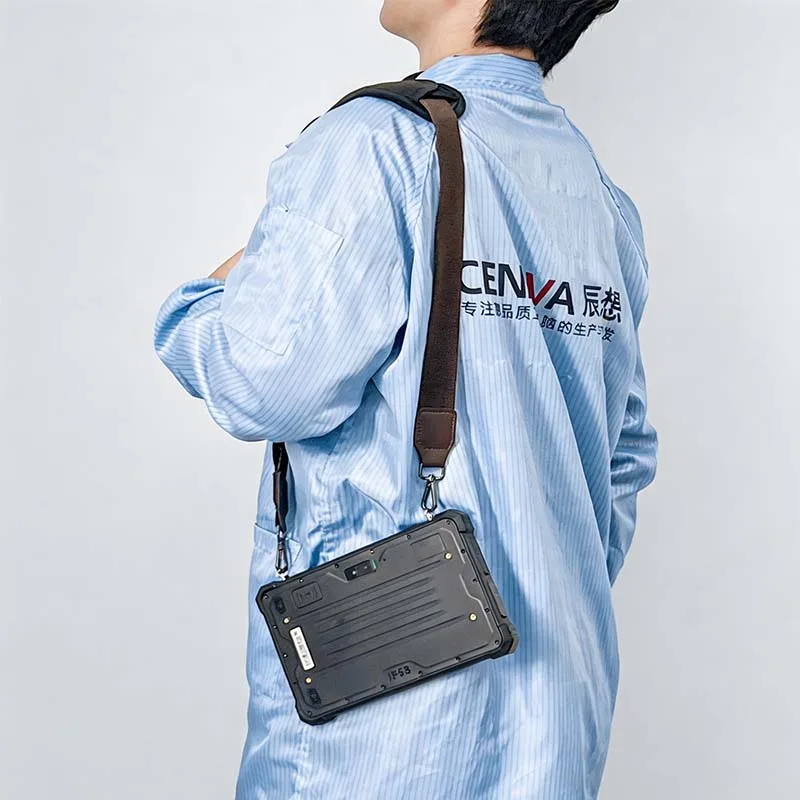

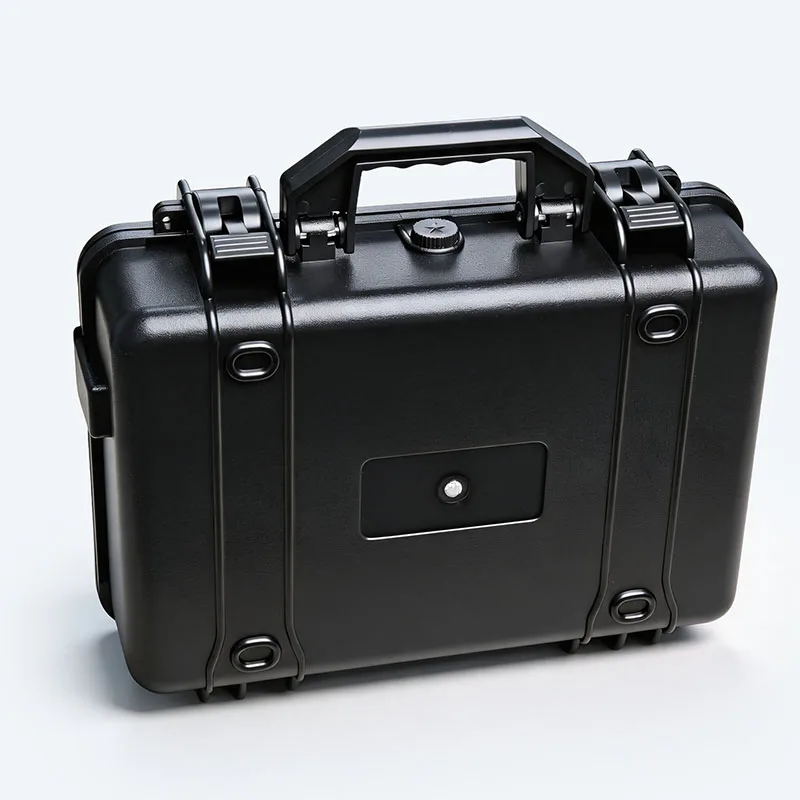

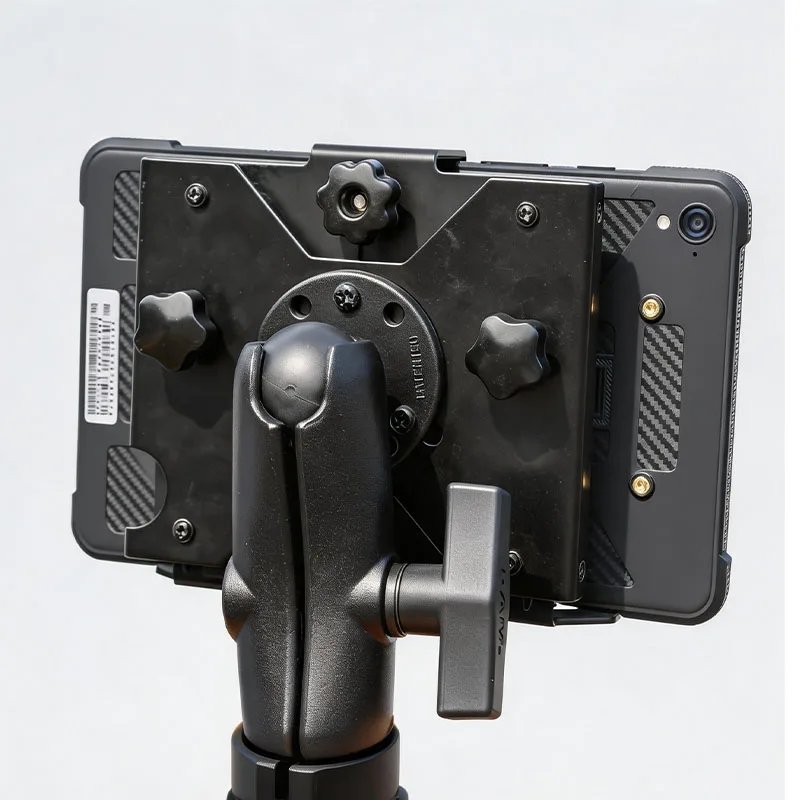

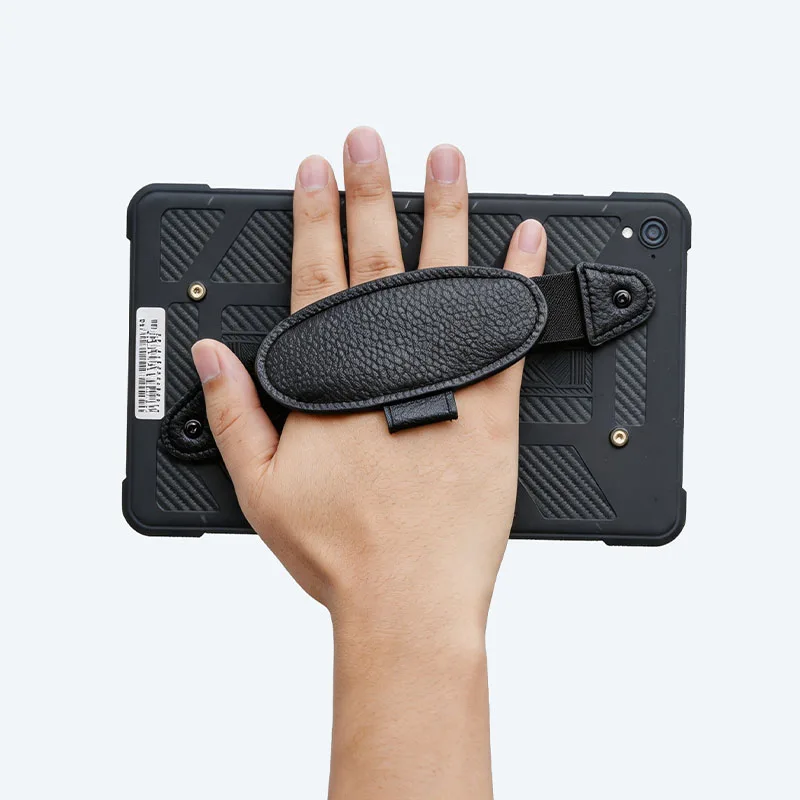

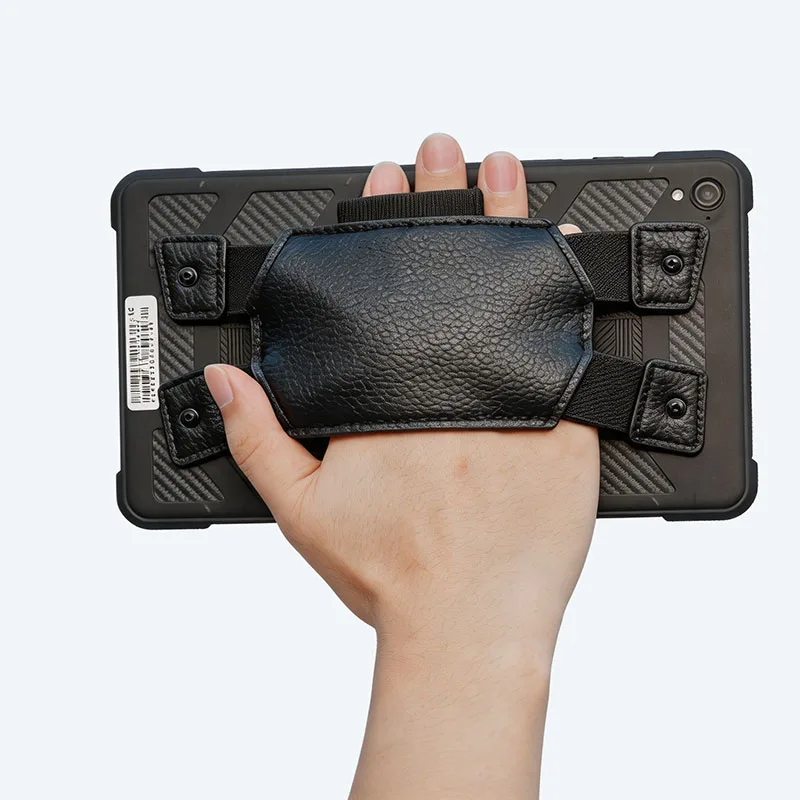

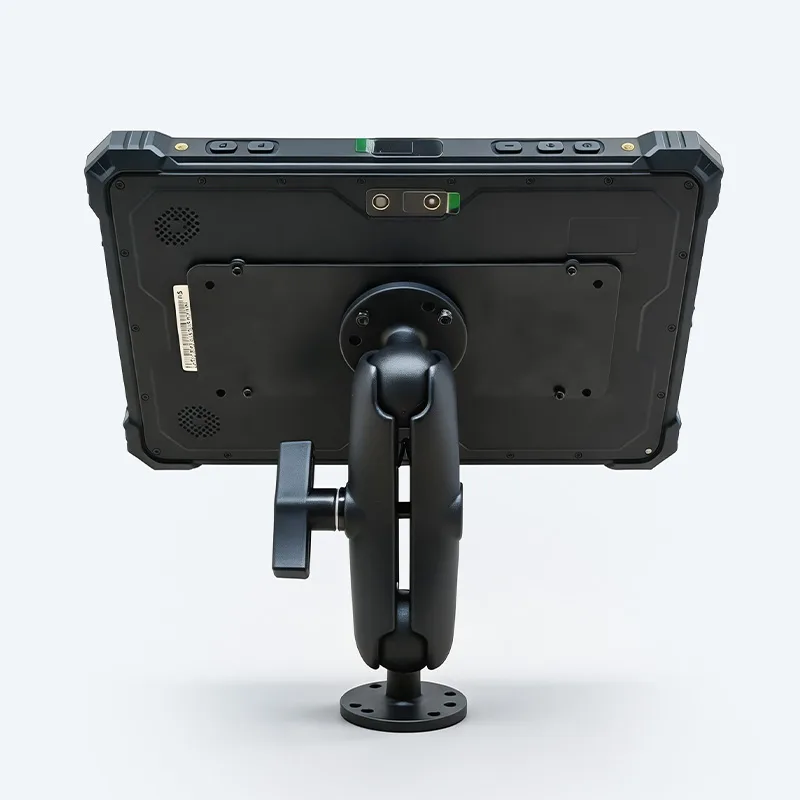

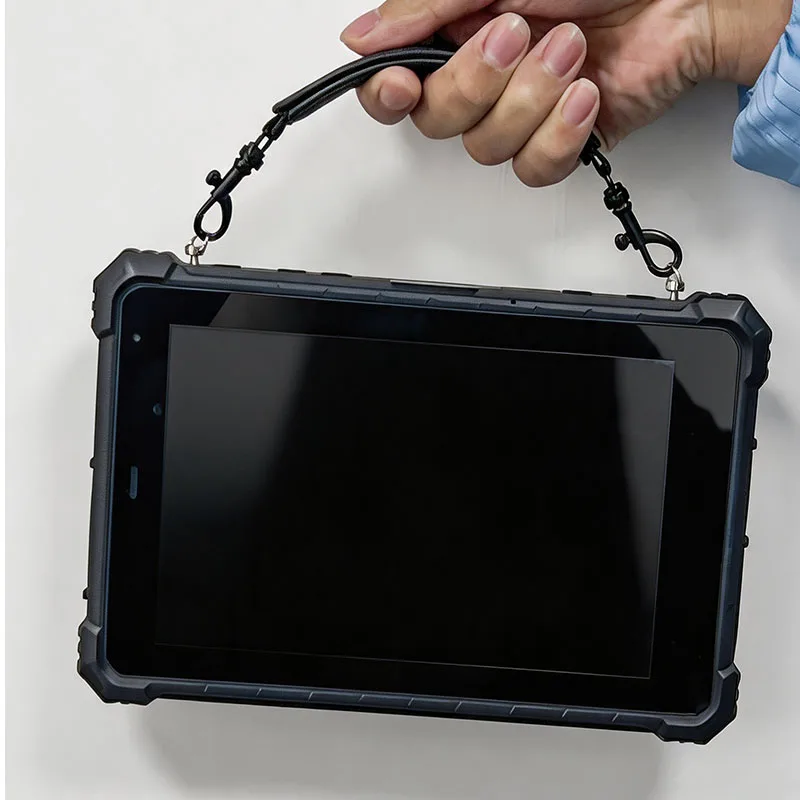

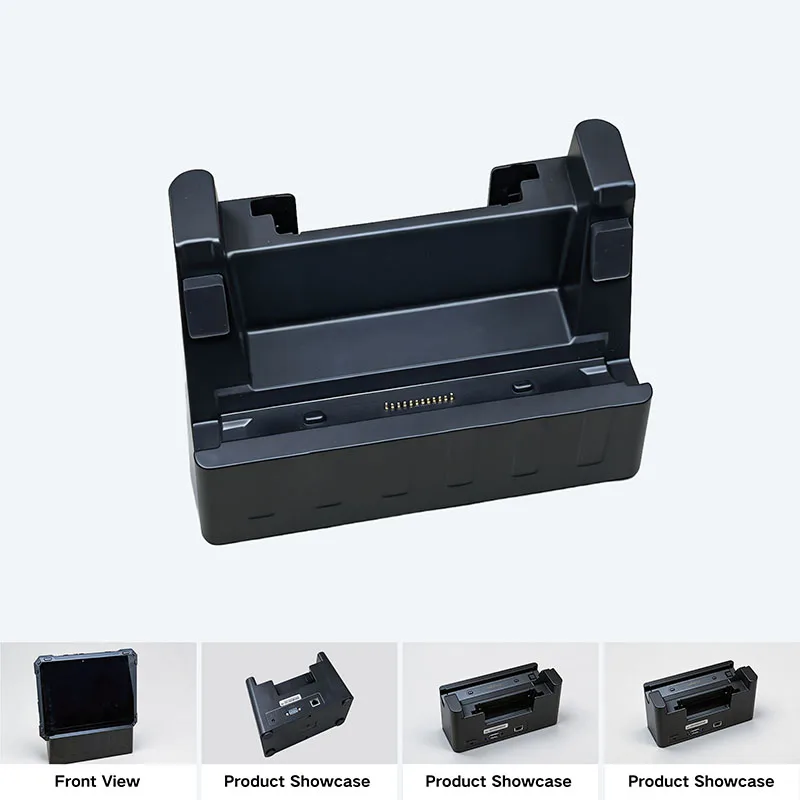

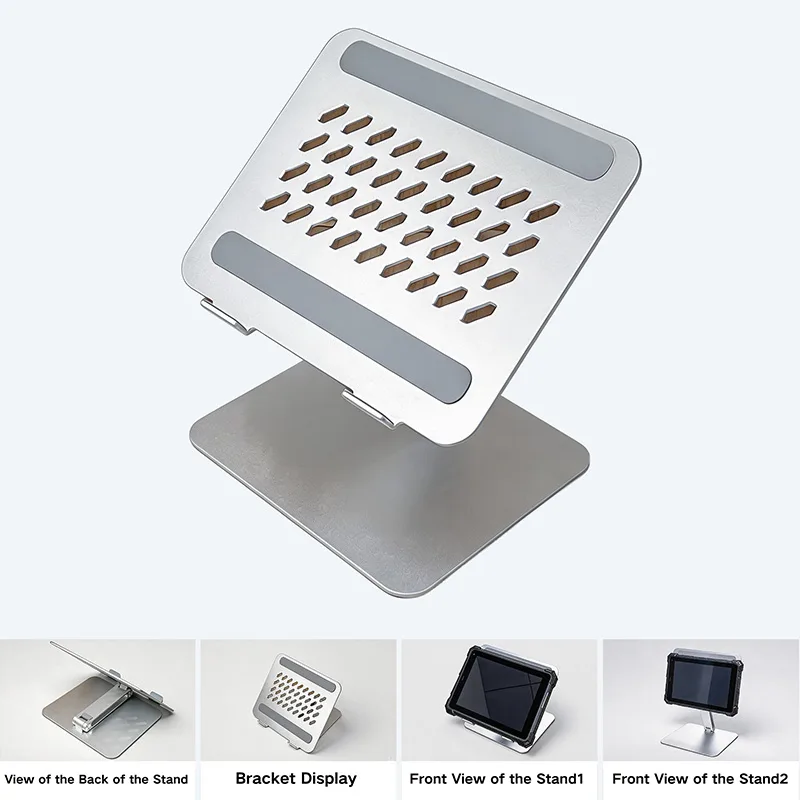

Available accessories include: Back Clamp Bracket, Wall Mount Bracket, Car Mount Bracket, Shoulder Strap, Thickened Handle Strap, Four-Point Straps, Carrying Strap, Carrying Waterproof Case, Charging Base, Car Charger, Capacitive Touch Screen Pen, Sweeping Dock, and Folding Stand.
8. Can CENAVA customize the A10ST for a specific project, and what's the MOQ?
As an OEM/ODM manufacturer with 18 years of experience, CENAVA supports customization of the A10ST's NFC position (front/back), fingerprint tier, scanner module (N1/N670), UHF read range, battery capacity (up to 20000mAh), camera resolution, housing color, and RAM/storage (8+128GB or 12+256GB).
