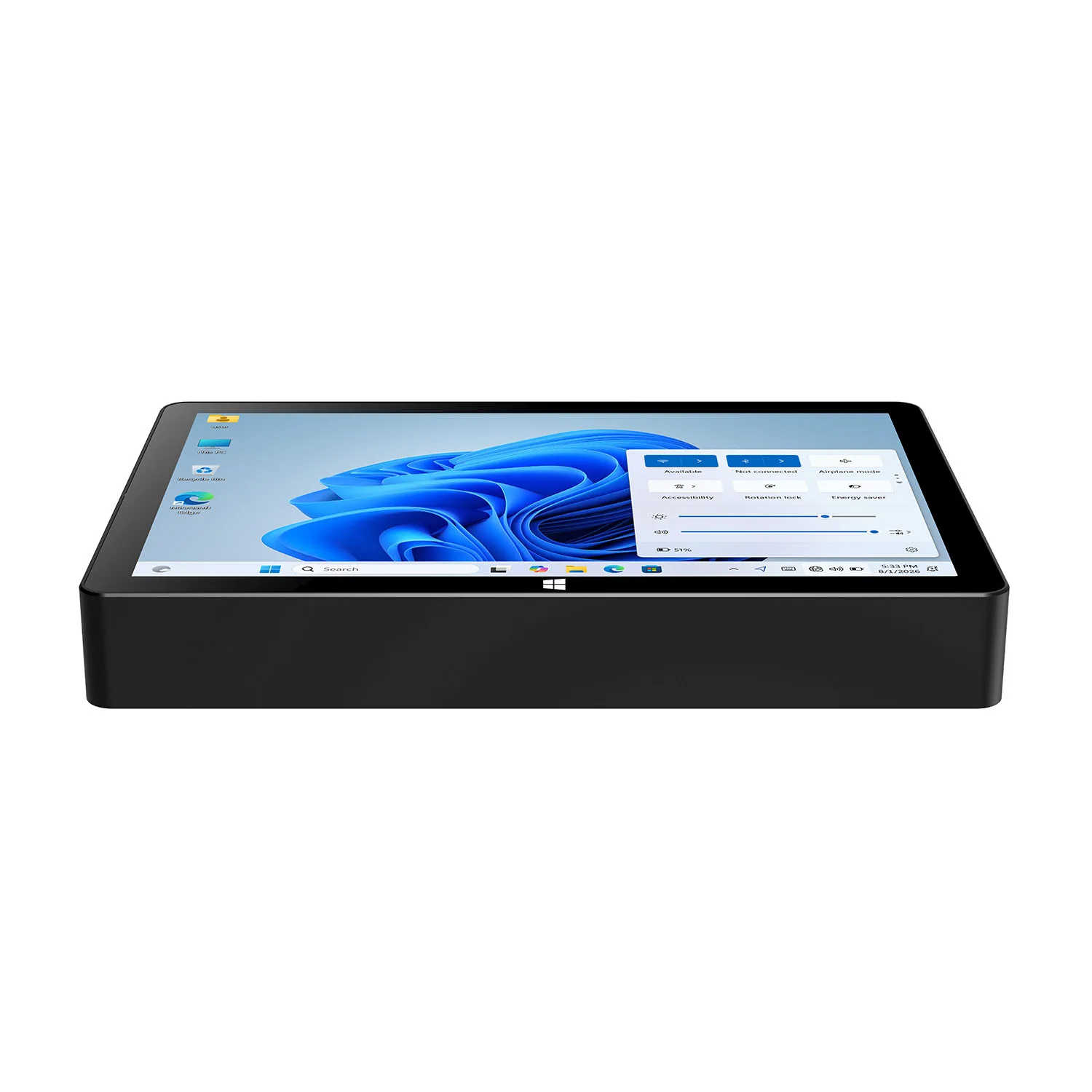

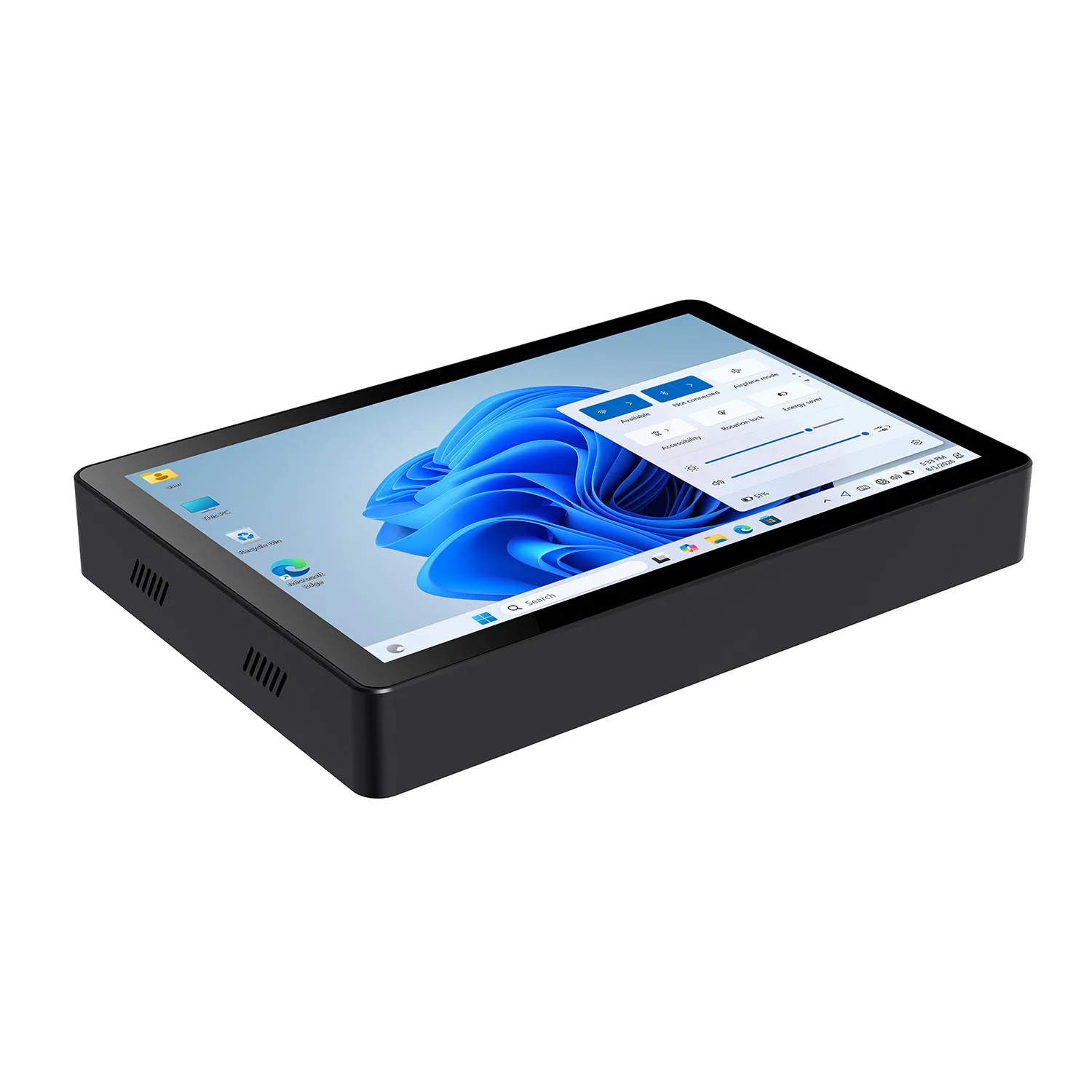

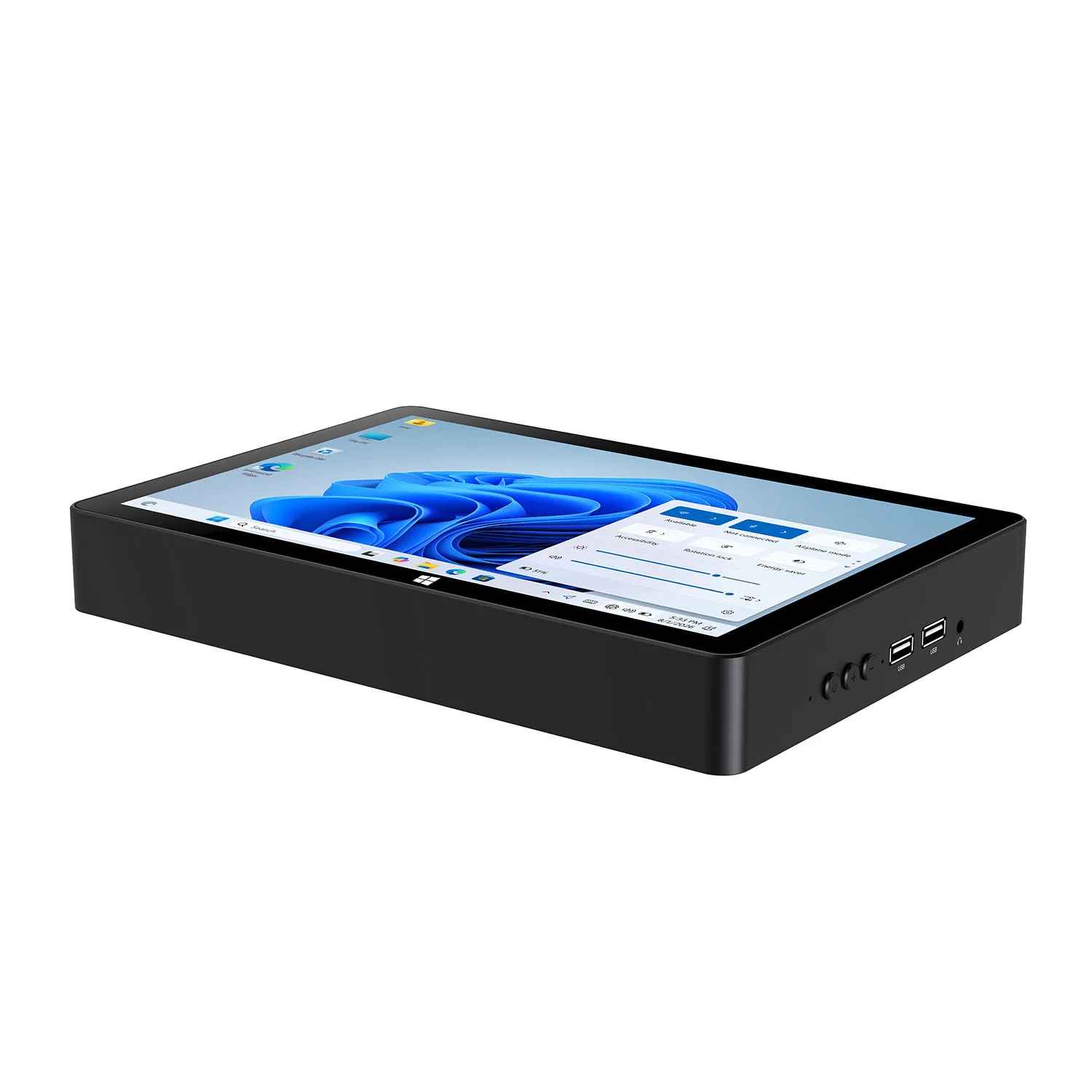

CENAVA H10F N100 10.1" Win11 Industrial Panel PC Touch Computer
10.1-inch industrial all-in-one panel PC with Intel Alder Lake N100 quad-core. 1920×1200 IPS 10-point touch display. 8GB/16GB DDR4 RAM and 128GB/256GB/512GB/1TB M.2 2280 SSD, all hot-swappable. Built-in fan cooling for reliable 24/7 operation. Gigabit RJ45 with optional POE (IEEE802.3at, 25.5W). 4×USB3.0, HDMI Type-A, DB9 RS232. WiFi6 + BT5.2. Optional 4G module and 2D barcode scanner. VESA 100×100mm wall mount.
CPU: Intel Alder Lake N100 (4C/4T, 0.8GHz~3.4GHz, 6W TDP)
OS: Windows 11 (Windows 10 optional)
Display: 10.1" 1920×1200 IPS, 10-point capacitive touch, G+G
RAM+Storage: 8GB/16GB DDR4 (replaceable) + 128GB/256GB/512GB/1TB M.2 2280 SSD (replaceable)
Network: Gigabit RJ45 + WiFi6 (AX101) + BT5.2 + optional 4G LTE

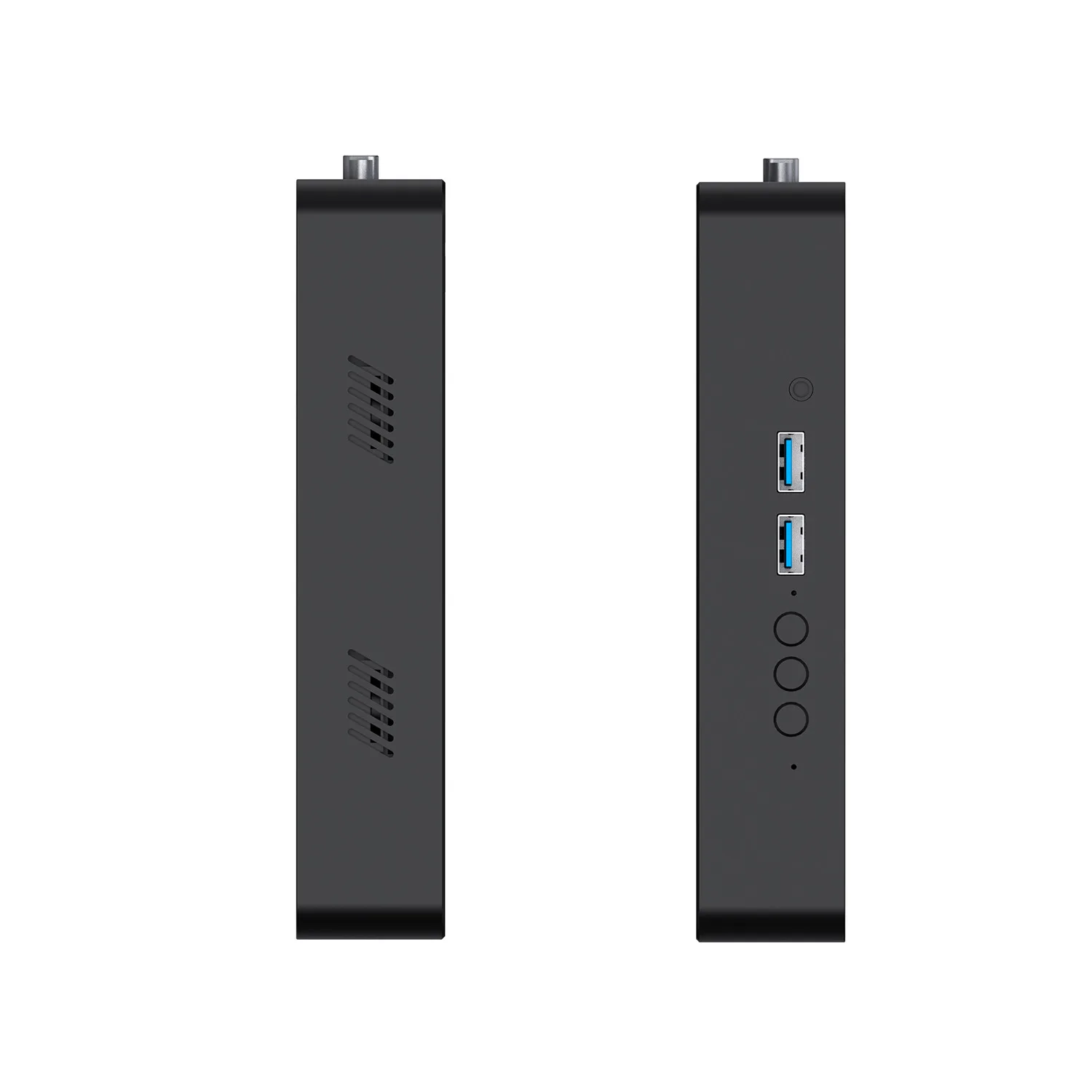

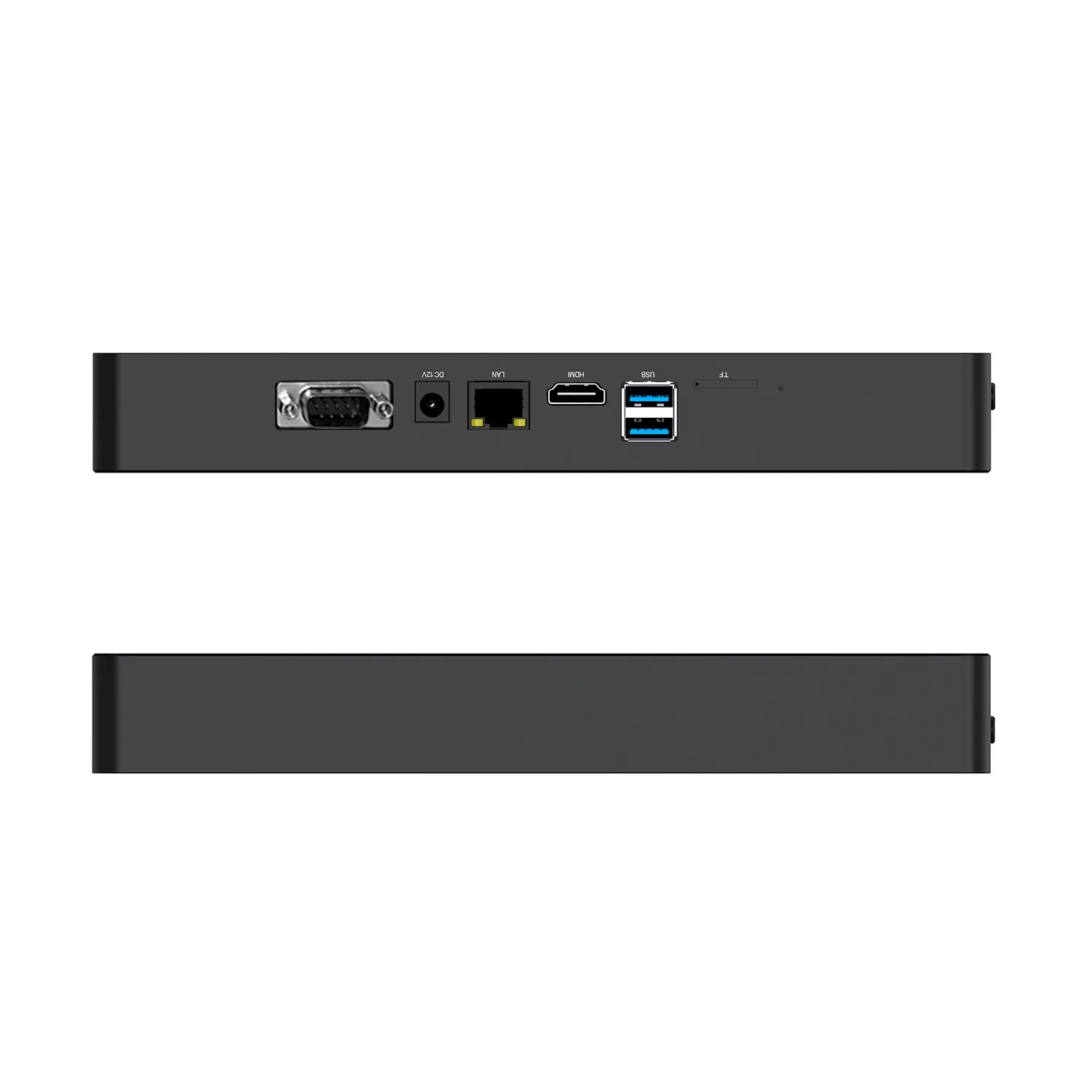

I/O Ports: USB3.0×4, HDMI Type-A×1, DB9 RS232×1, 3.5mm audio, TF&SIM 2in1 slot
Power: 12V 2.4A DC (Ø5.5×2.5mm), optional POE+ (25.5W)
Design: Built-in fan active cooling, reliable operation, metal + plastic chassis

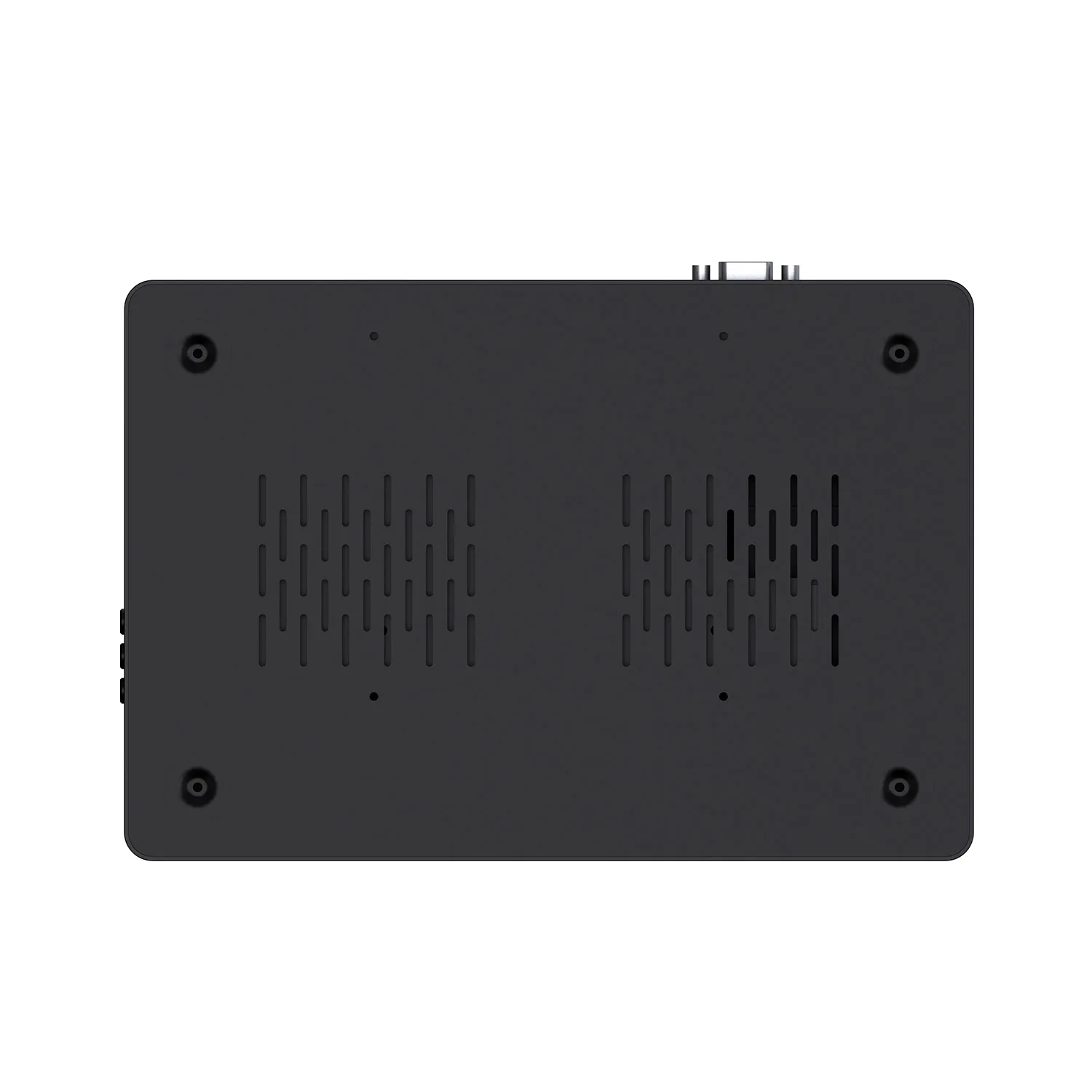

Mounting: VESA 100×100mm wall mount, M3×4mm screws
Optional: 4G LTE module, 2D barcode scanner, POE+ power
High-performance chip
Windows operating system Intel Alder lake N100 4 core 4 threads
Smooth and seamless multitasking without lag
High-capacity memory
Large capacity: 8GB memory，128GB M.2 SSD,
Reserved SSD interface for customer expansion

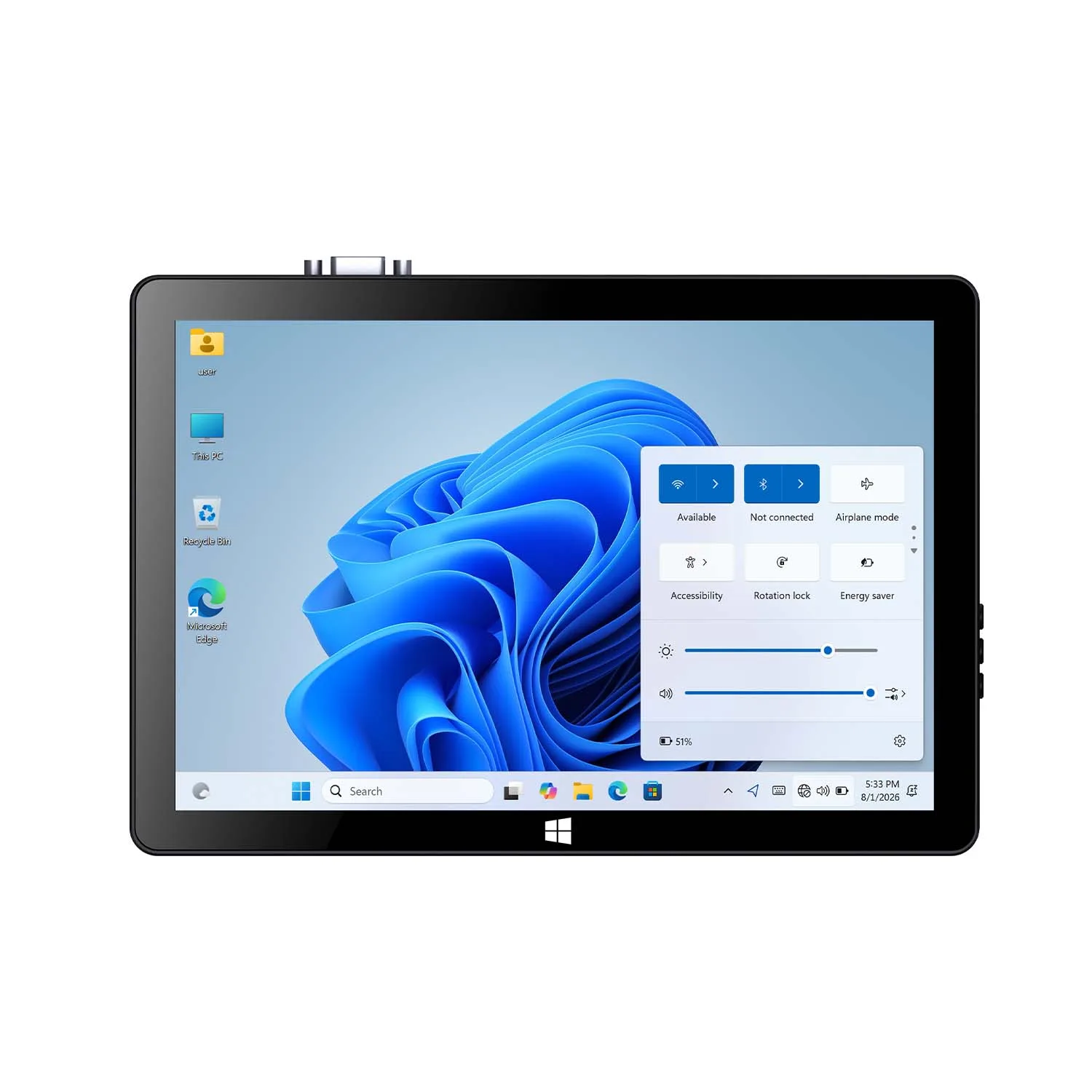

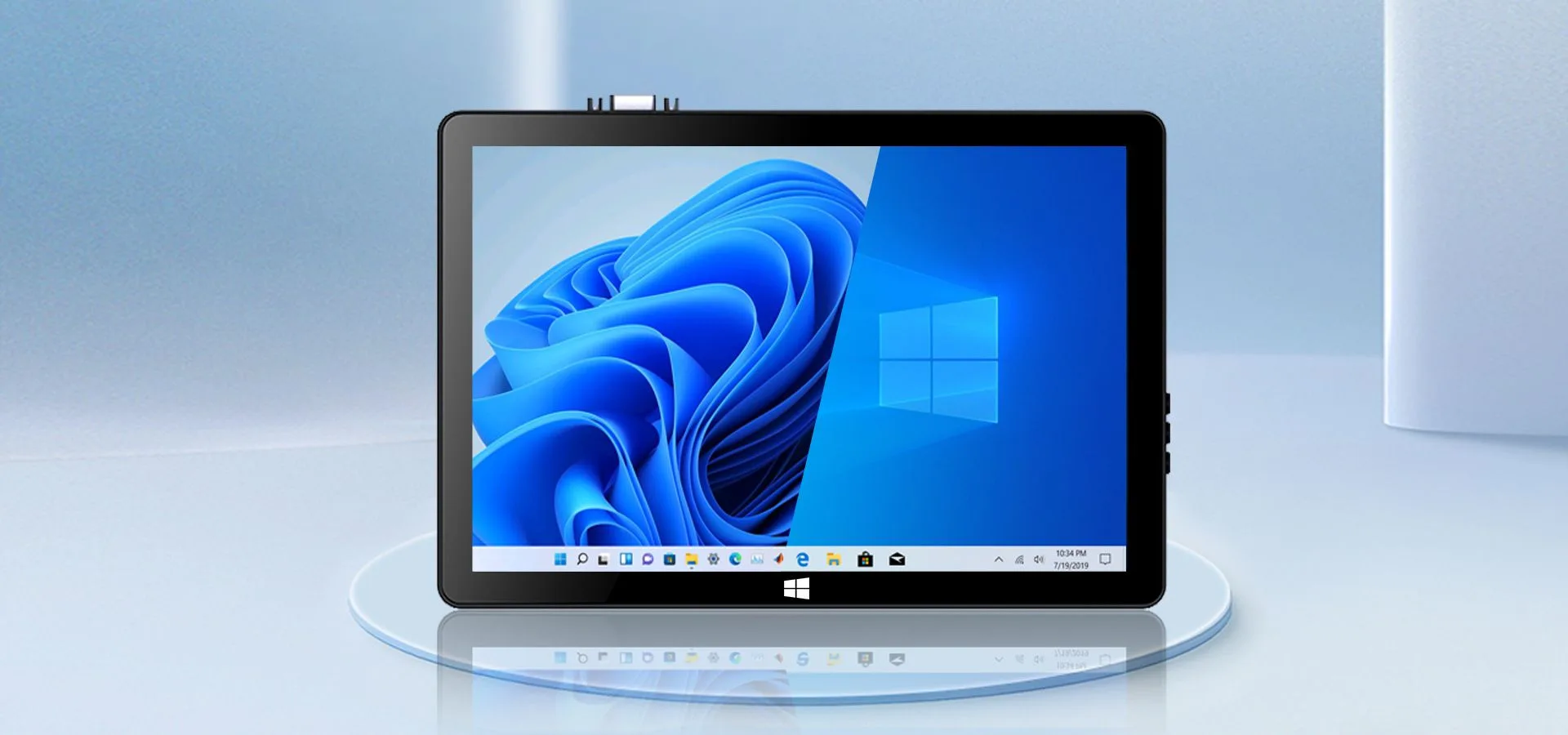

10.1-inch HD screen
10.1-inch 10-point touch, scratch-resistant and durable,
supports multi-touch, operable with wet hands

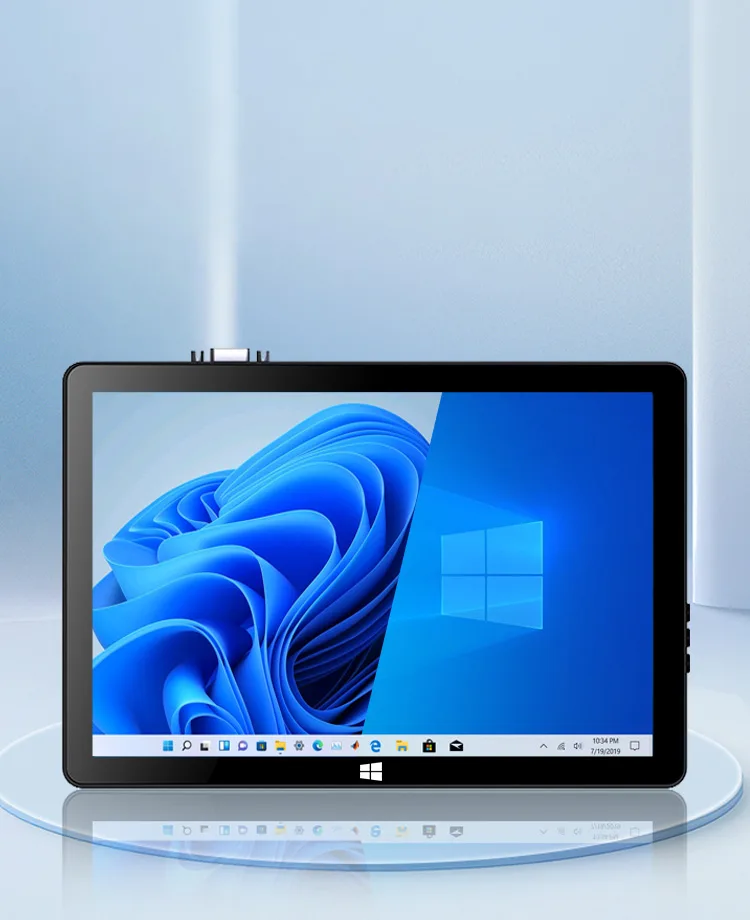

Multiple systems optional
Windows 11
Energy-saving operation, removable battery
When powered off, it can last 7 hours
without consuming power
5000mAh
Technical Specifications
 CPU Intel Processor N100, 4 Cores / 4 Threads |  System Windows 11 |  Storage 8GB DDR4 RAM + 128GB M.2 SSD |  Display 10.1 inch 10-Point Projected Capacitive Touchscreen 1920*1200 IPS Reinforced Capacitive Touchscreen |
 Speaker Dual speaker Noise reduction microphone |  Media playback Support for music, videos, and images |  Battery 7.4V5000mAh |  Key Power button Volume up/down button |
 Card slot TF 128GB |  Interface Gigabit Ethernet,Headphone jack USB3.0*4,HDMI,DB9 RS232 Serial Port |  Weight 990g |  Status indicator Charging indicator light |
H10 FAll-in-One Industrial Panel PCs Details:
| Funtion | Optional 4G module, supports WiFi6, memory/SSD can be plugged and replaced, 4 Ω 3W dual speakers with loud sound |
| Audio output interface | Dual speaker 4 Ω 2.5W |
| Microphone recording | Built-in mic, sensitivity -38db |
| gravity sensor | Three axis rotation |
| USB | 4 × USB Type-A 3.2 Gen 1 Ports |
| RJ45 | *1 Optional IEEE 802.3af/at PoE input |
| TF&SIM 2in1 card slot | *1 |
| Audio output and microphone input | *1 |
| HDMI output interface | *1 HDMI TYPE-A |
| RS232 | *1 DDB9 RS232 Serial Port, pin definition available upon request. |
| 2D | custom made 2D scan |
| WIFI+BT 2in1 module | Intel Wi-Fi 6 AX101, dual-band 2.4GHz/5GHz, 1×1, up to 600Mbps, with Bluetooth 5.2. |

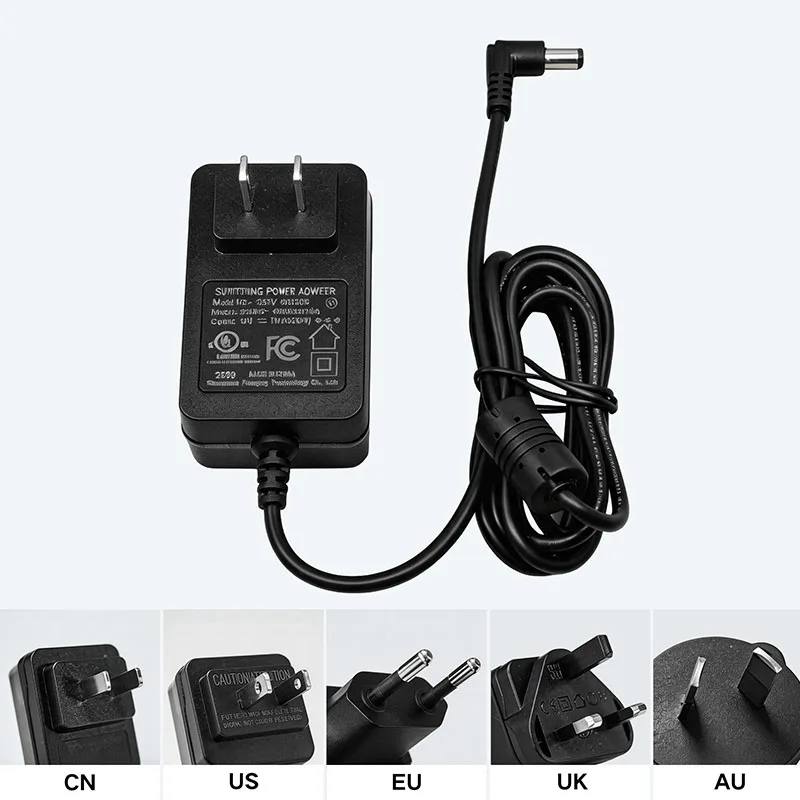

| charger | 12V/2.4A, 28.8W |
| Material | Metal and Reinforced Polymer Enclosure |
| Wall hanging installation | Wall hanging hole position 100x100mm，M3*4mm |
| Product Size | 243*166*32mm |
Frequently Asked Questions About the H10F Industrial Panel PC
1. Which processor does the current H10F use?
The current H10F uses the Intel Processor N100 with four cores, four threads and a maximum frequency of up to 3.40GHz.
2. Is the H10F a Box PC or a panel PC?
The H10F is more accurately classified as an industrial panel PC because it combines a 10.1-inch touchscreen, computer hardware, audio, battery and industrial interfaces in one enclosure.
3. Does the H10F support Windows 11?
Yes. The current H10F is listed with Windows 11.
4. Is the storage eMMC or an M.2 SSD?
128GB M.2 SSD.
5. Which 2D barcode scanner is available?
The H10F lists an optional integrated 2D scanner, but the scan-engine manufacturer and model are not currently provided.
6. Does the Ethernet port support PoE?
Optional IEEE 802.3af/at PoE input is listed. Buyers should confirm the actual PoE standard, power class, input voltage, isolation, Ethernet speed and whether PoE can charge the internal battery.
7. Can the H10F be wall mounted?
The page lists a 100×100mm wall-mounting pattern.
