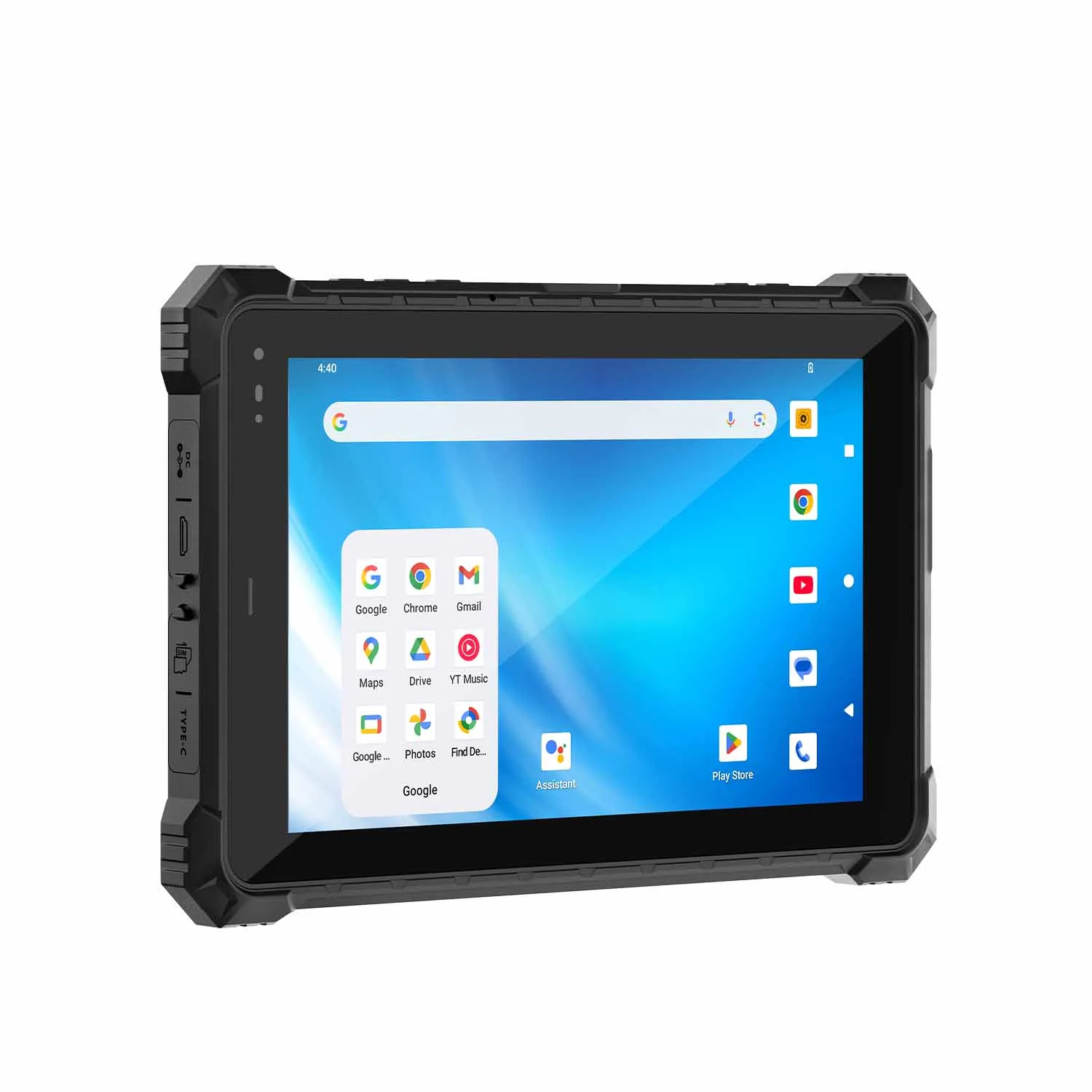

CENAVA A10STX MT6769 10.1 Inch Android 16 IP67 Rugged Tablet
CENAVA A10STX-MT6769 is a 10.1-inch Android rugged tablet designed for industrial maintenance, serial-device communication, mobile inspection, warehouse operations and extended field deployment. MediaTek MT6769 octa-core processor with Android 16, up to 8GB RAM and 128GB internal storage.
Rugged Protection: IP67, MIL-STD-810H 1.22m drop, -20°C~60°C
CPU: MediaTek MT6769 octa-core, 2×Cortex-A75 @2.0GHz + 6×Cortex-A55 @1.7GHz
OS: Android 16

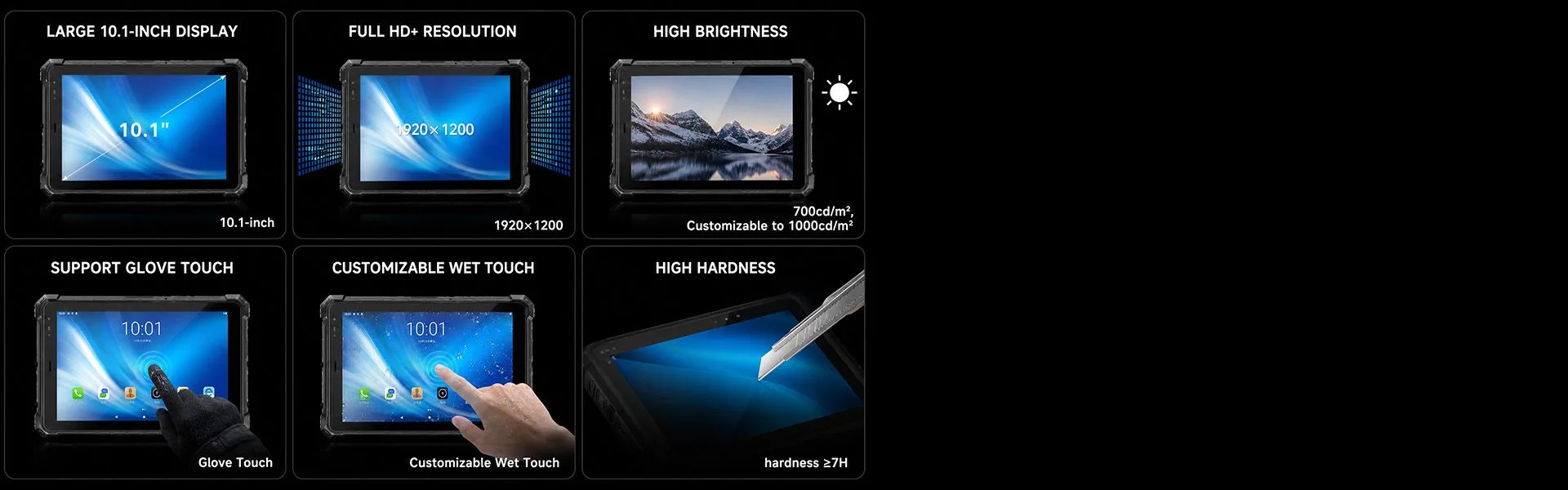

Display: 10.1" IPS 1280×800 (optional 1920×1200), 700cd/㎡ (customizable 1000cd/㎡), G+G 10-point glove touch, hardness ≥7H, AF coating
RAM/ROM: 4GB+64GB (optional 8GB+128GB)
Battery: 15400mAh 3.8V removable — seconds-fast swap; optional battery charging dock
Integrated I/O: RJ45, RS232, Micro HDMI, Type-C (PD 33W, OTG), USB-A, 3.5mm jack, 12Pin POGO, Micro SIM, TF up to 256GB
Network: Dual-band WiFi 5 (customizable WiFi 6), Bluetooth 5.0, 4G LTE full-band; GPS/BeiDou/Galileo/GLONASS, optional single-BeiDou
Cameras: 8MP front + 16MP AF rear with true flash
Optional Modules: 2D scanner, ID card reader, UHF RFID, LF 125kHz, RTK cm-level positioning; NFC standard

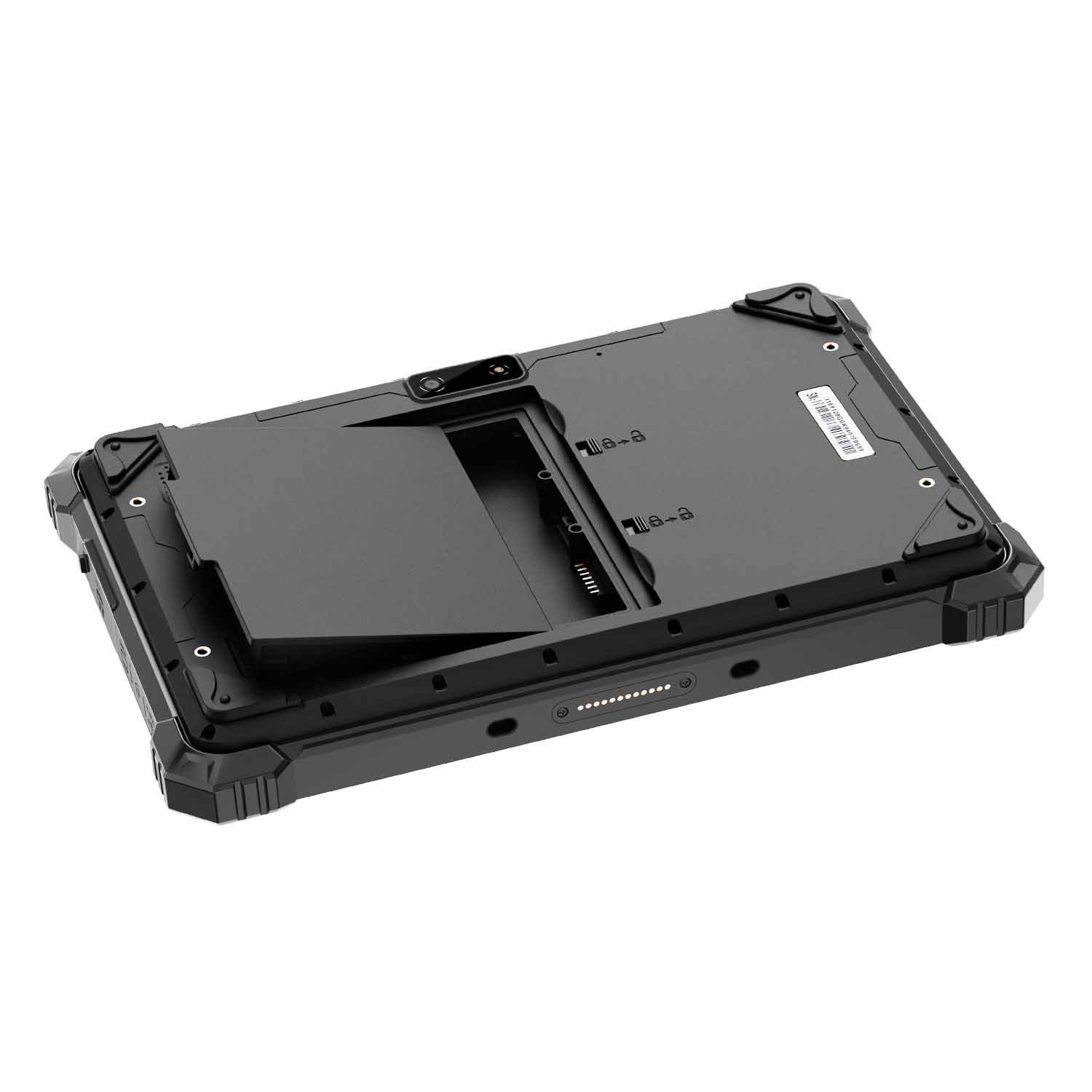

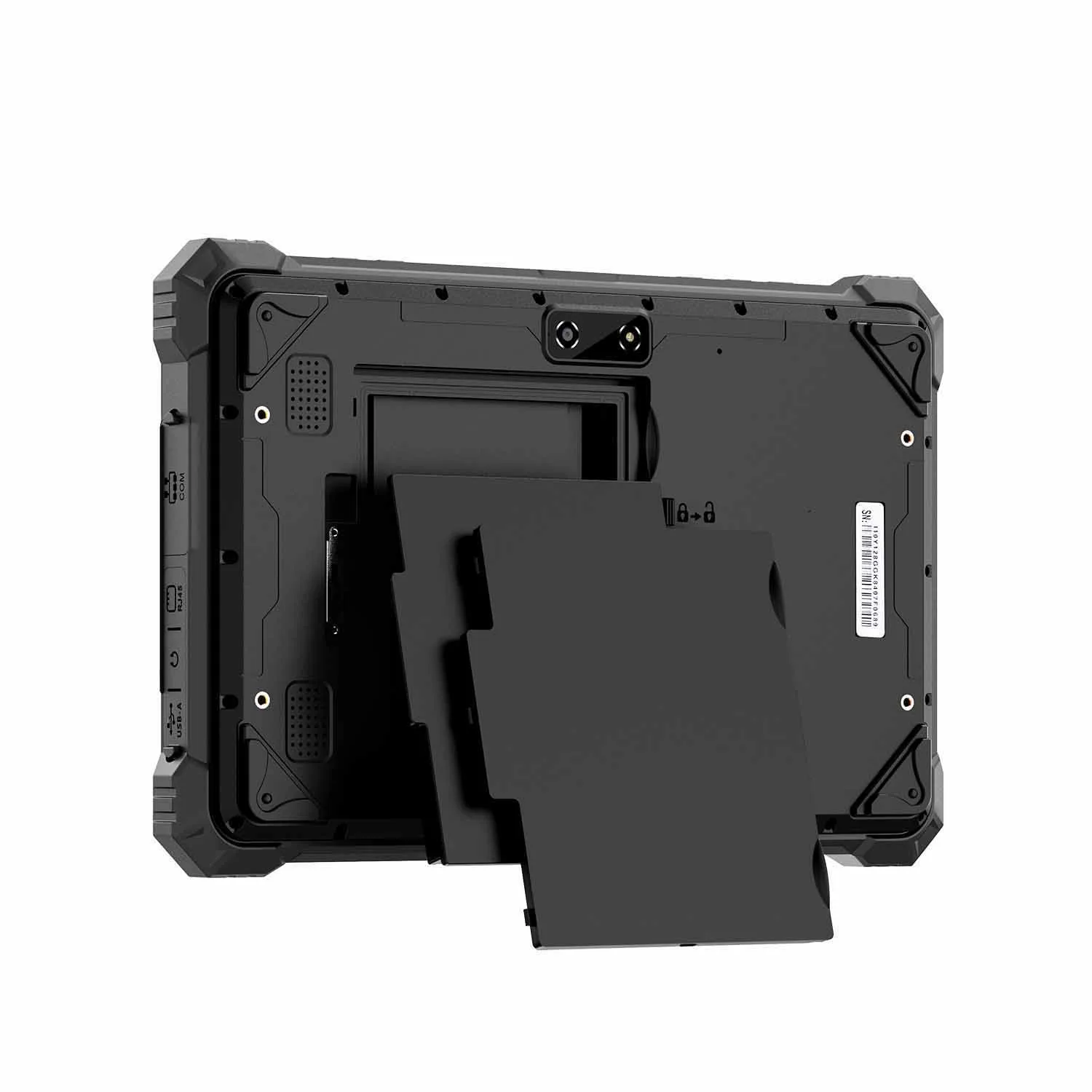

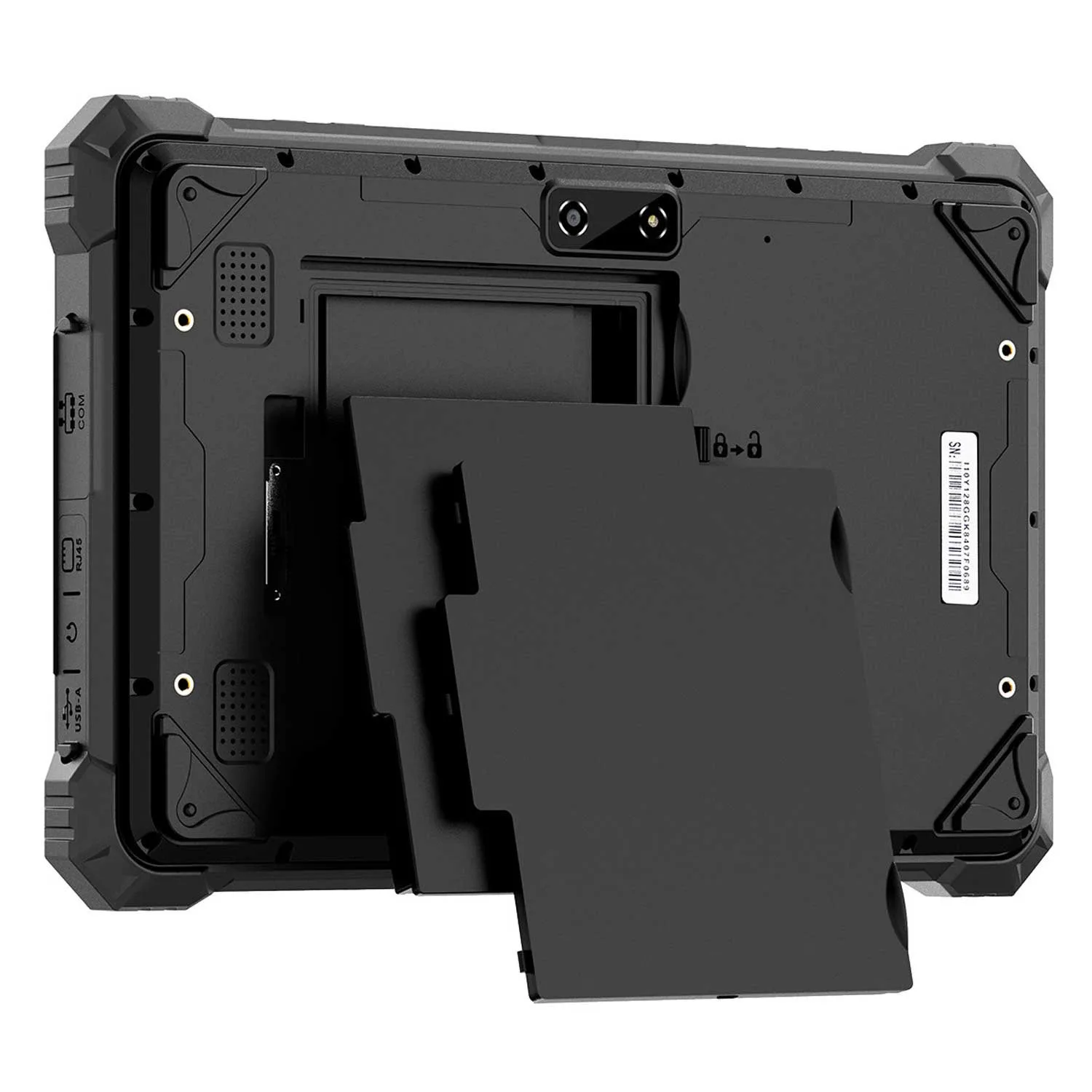

Swappable Large Battery
All-Day Endurance

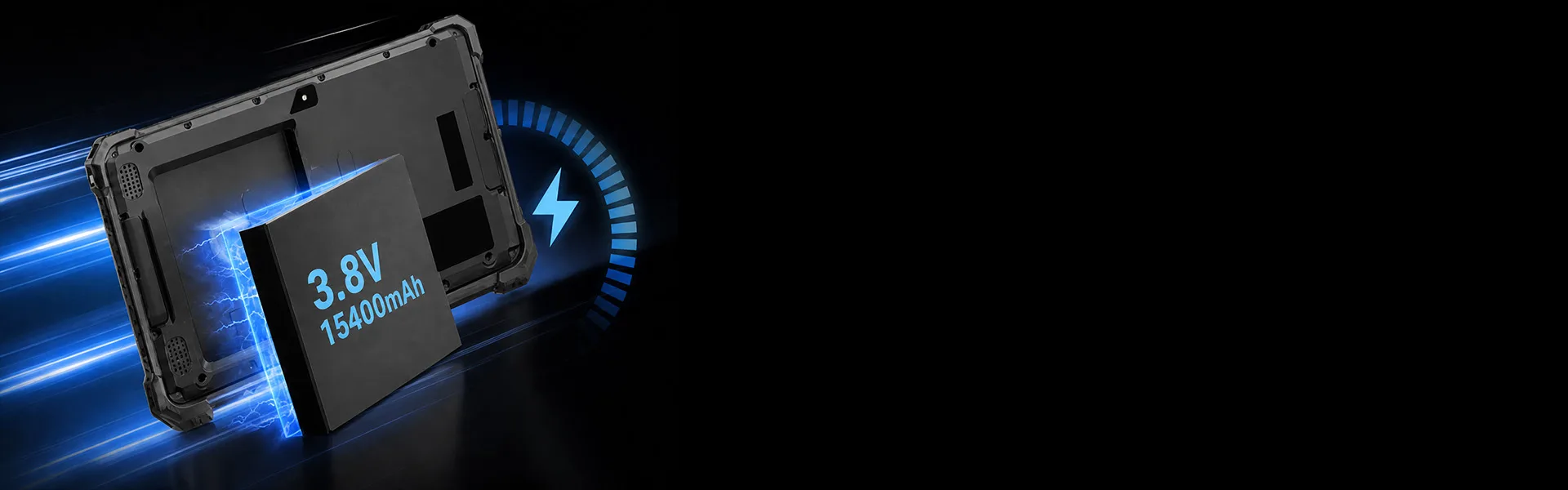

3.8V/15400mAh Swappable Battery Long Runtime

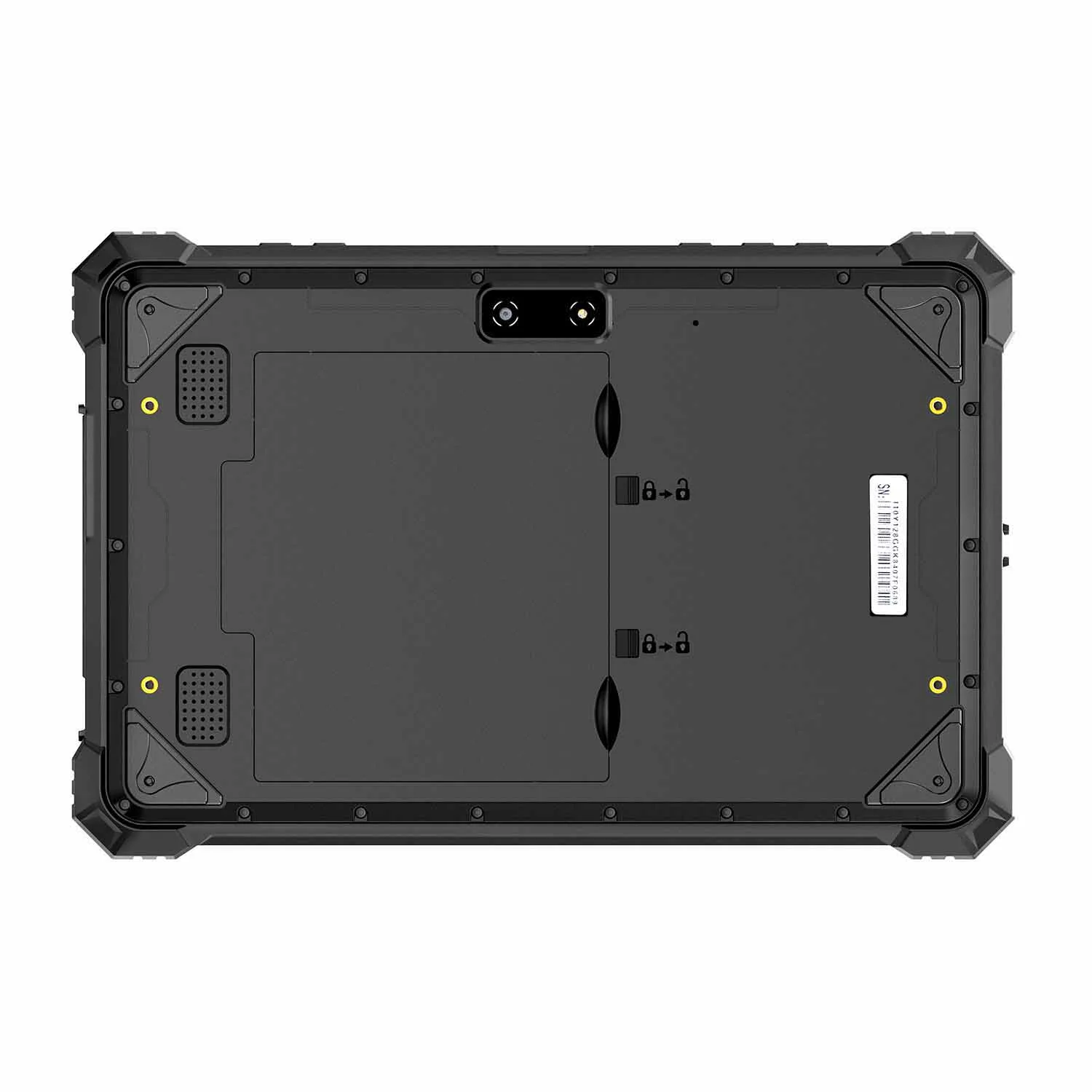

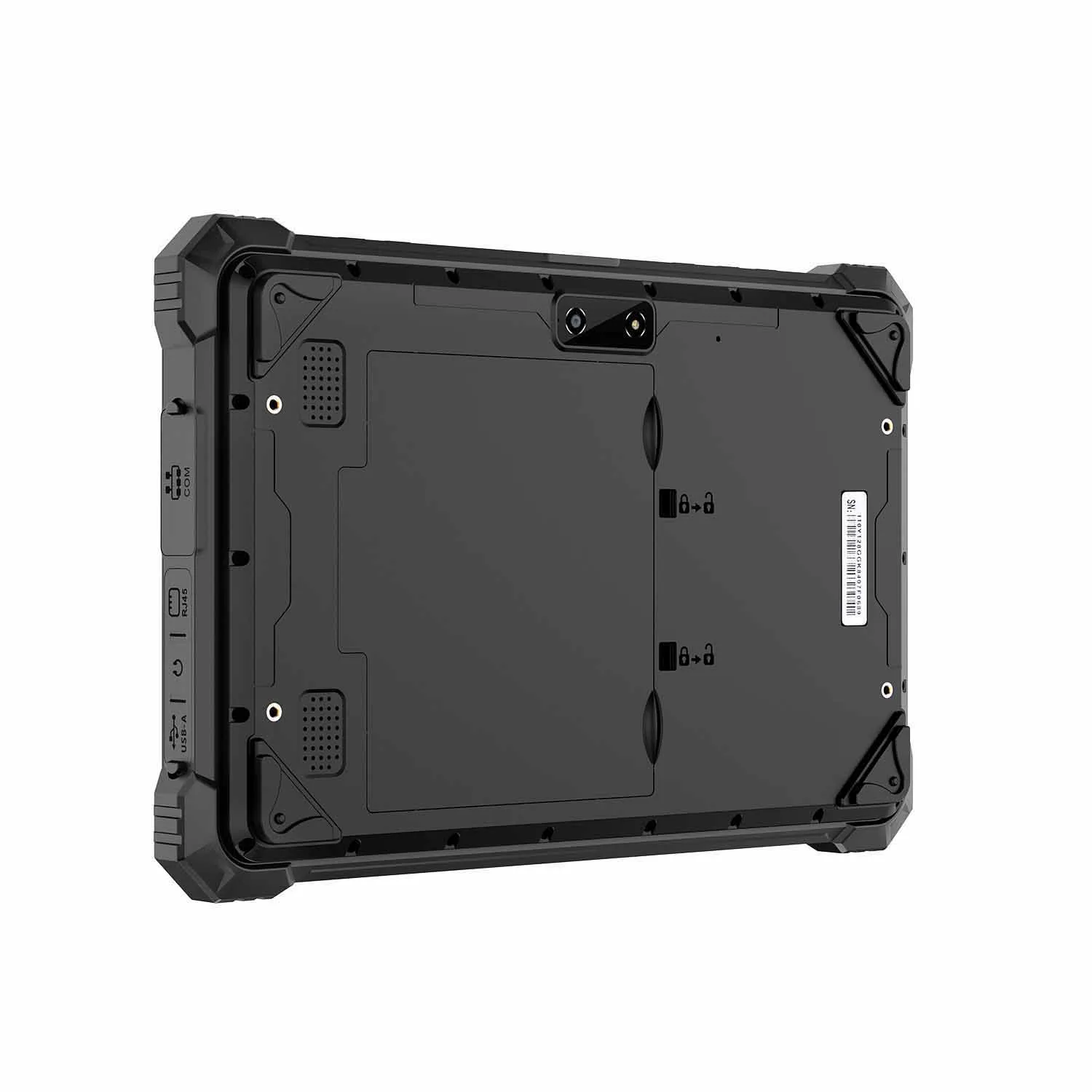

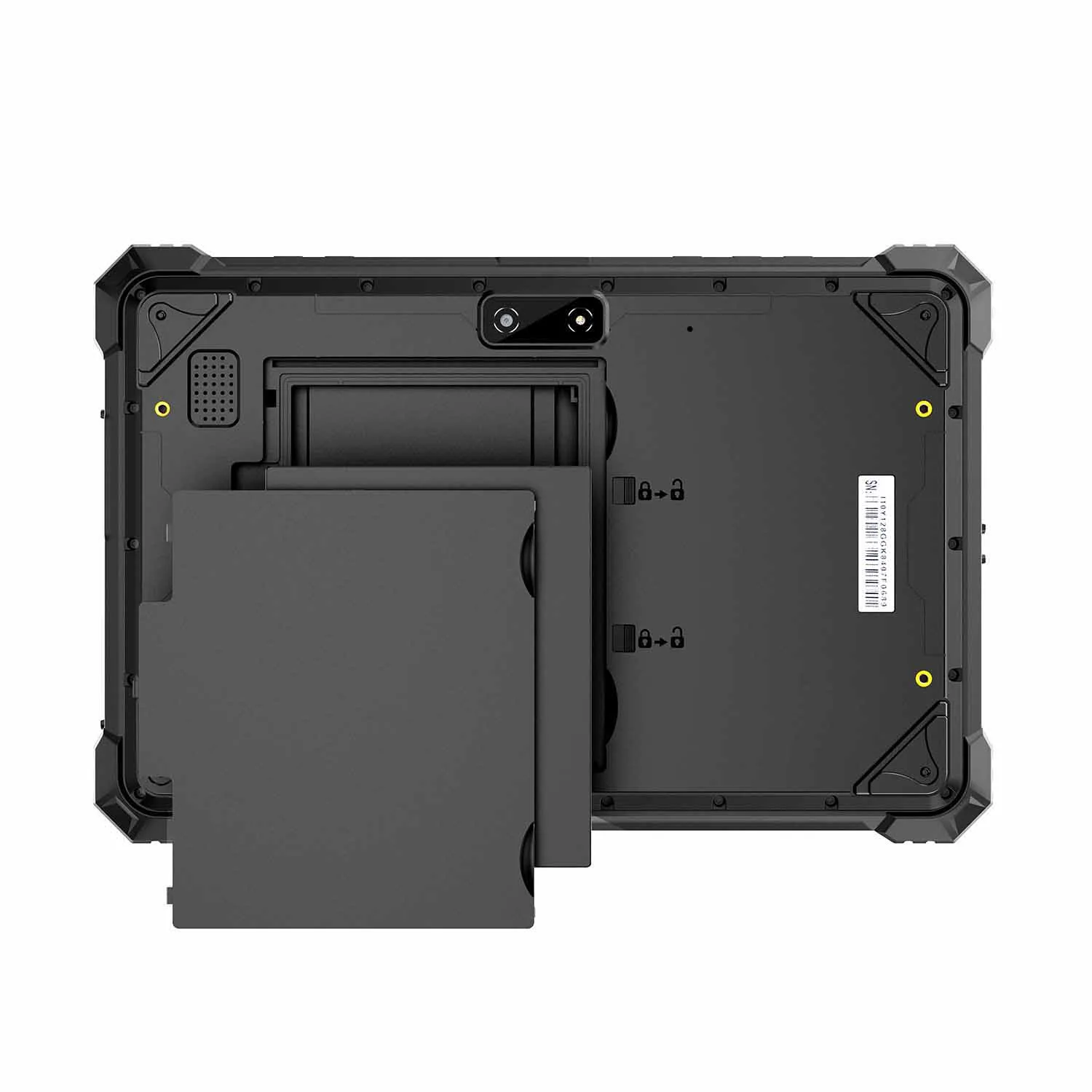

3.8V/15400mAh high-capacity high-voltage lithium battery with a swappable design keeps field work running without shutdown—swap in a spare battery for instant full power. Long endurance supports all-day outdoor inspections, vehicle dispatching, and warehouse inventory. The dual-latch battery bay with sealing gasket stays reliable in heat and cold, resisting dust and water. Operating range -20°C to 60°C; an optional battery charging dock keeps batteries rotating for continuous field operation.
Octa-Core Power
Android 16 Smooth
MTK6769 Octa-Core 4GB/8GB Options 4G Global
Powered by the MTK6769 octa-core processor with the Android 16 industrial OS, multitasking runs smoothly without lag. The 10.1-inch display provides ample workspace for multi-window dispatching and data visualization. The 4GB+64GB base version handles routine MES terminals, while the 8GB+128GB version tackles video backhaul and cloud collaboration. 4G global band coverage keeps you connected across field inspections and vehicle-mounted operations. OTA upgrades deliver security patches, and memory configurations adjust per project needs.
Triple-Proof
Harsh Conditions No Fear
IP67 1.2m Drop -20°C~60°C
IP67 dust-tight and waterproof, surviving 1.2m drops. Operating range -20°C to 60°C ensures reliable startup in extreme weather. The rugged industrial chassis with reinforced corners and sealed gaskets keeps out sand and dust, providing a stable, fatigue-free grip. The sealed swappable battery bay balances protection with easy maintenance for long-term reliability in harsh conditions.
Modules On Demand
Single Unit Orders Accepted
2D/ID Card/UHF/RTK Optional
2D barcode scanning, ID card reading, UHF RFID, and RTK high-precision positioning modules are freely selectable, with single-unit orders accepted and deep software-hardware customization. Warehouses pair 2D+UHF for rapid batch scanning; enforcement pairs ID card reading for identity verification; surveying and inspection use RTK for centimeter-level positioning. The standard 3.8V/15400mAh swappable battery delivers long runtime, with spare batteries covering all-day outdoor work. One device precisely matches your workflow—pay only for the functions you need.
Technical Specifications
 CPU MediaTek MT6769 Octa-core 2× Cortex-A75 at up to 2.0GHz |  System |  Storage 4GB+64GB with 1280×800 display |  Display 10 inch IPS touch screen 1280*800 resolution 700cd/㎡ |
 NFC Optional Default back of the body for card reading, customizable to the front |  One/Two dimensional code Optional Able to identify dirty 1/2 dimensional codes |  Battery Removable 3.8V 15400mAh |  High frequency/ultra-high frequency module Optional Ultra thin integrated module |
 Navigation positioning GPS, Galileo GLONASS |  ID card identification Optional |  Interface USB 2.0 Type-A, DB9, RJ45 100Mbps, Micro HDMI |  Weight 283.9*189.0*33.9mm/1267g |
 Physical Keys Power, volume up/down, P and F custom keys |  Protection level working temperature: -20 °C to 60°C Storage temperature: -30 °C to 70 °C Protection level: IP67 |  Camera Front camera:8MP Rear camera: 16MP autofocus rear |  Sensor Gravity sensing, compass, gyroscope, light sensing, distance sensing |
| Product Type | Removable-battery, full-I/O Android industrial tablet |
| Tp touch screen | Anti-fingerprint (AF) coating, 10-point touch, G+G, hardness ≥7H; supports medical rubber gloves; wet-hand touch available on request |
| Gravity sensor | Supported |
| Compass | Supported |
| Gyroscope | Supported |
| Light sensor | Supported |
| Distance sensor | Supported |
| Fm Radio | Supported |
| Operation system | Android 16 |
| WIFI | 802.11 a/b/g/n/ac (Wi-Fi 5), dual-band 2.4GHz + 5.8GHz; Wi-Fi 6 available on request |

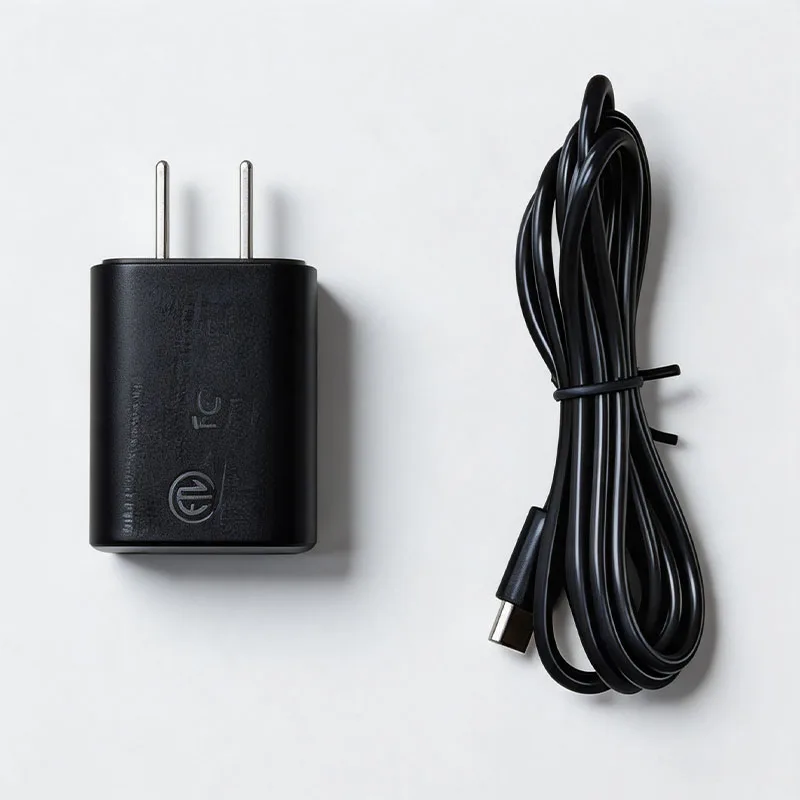

| TYPE-C | 1× Type-C, USB 2.0, supports OTG; PD 33W (11V/3A) fast charging |
| Type -A | *1 Type-A USB2.0 |
| Earphone Jack | *1 3.5mm Standard Earpiece jack |
| TF Card | *1 Maximum support 256GB expansion |
| SIM Card | *1 Standard Micro SIM card slot |
| HDMI | 1× Micro HDMI |

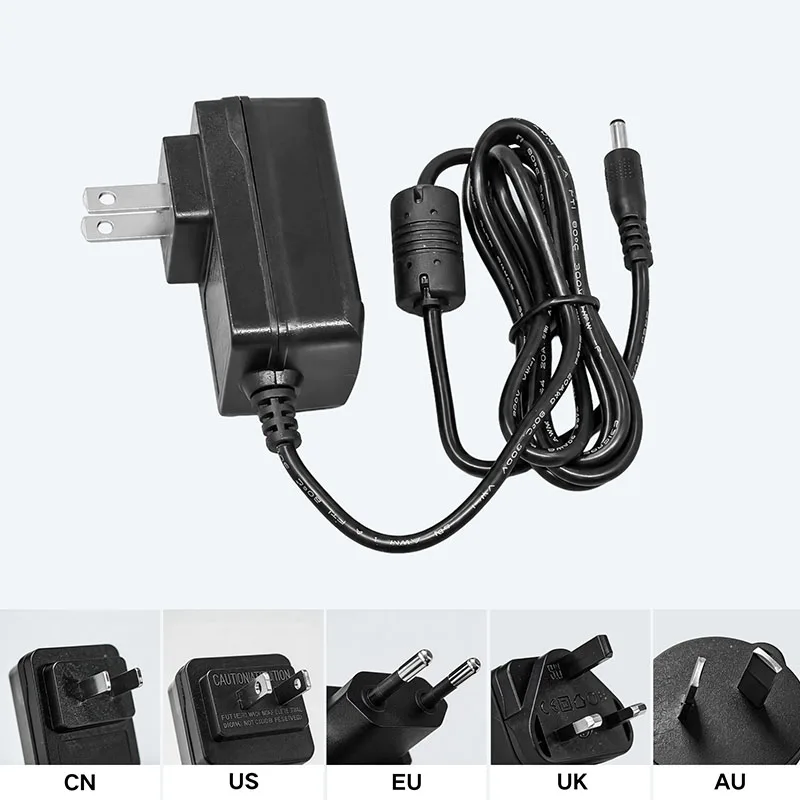

| DC jack | 1× 5V/3A (plug: 3.5mm OD / 1.35mm ID) |
| POGO PIN | 1× 12-pin (USB + charging) |
| DB9（serial port） | 1× DB9, RS232 |
| RJ45 jack | 1× RJ45, 100M |

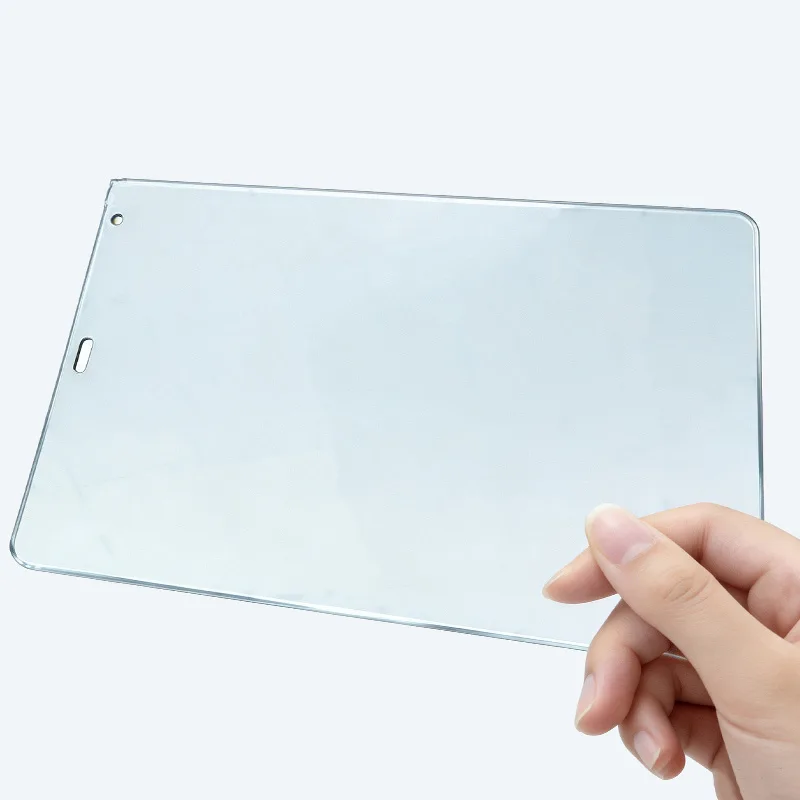

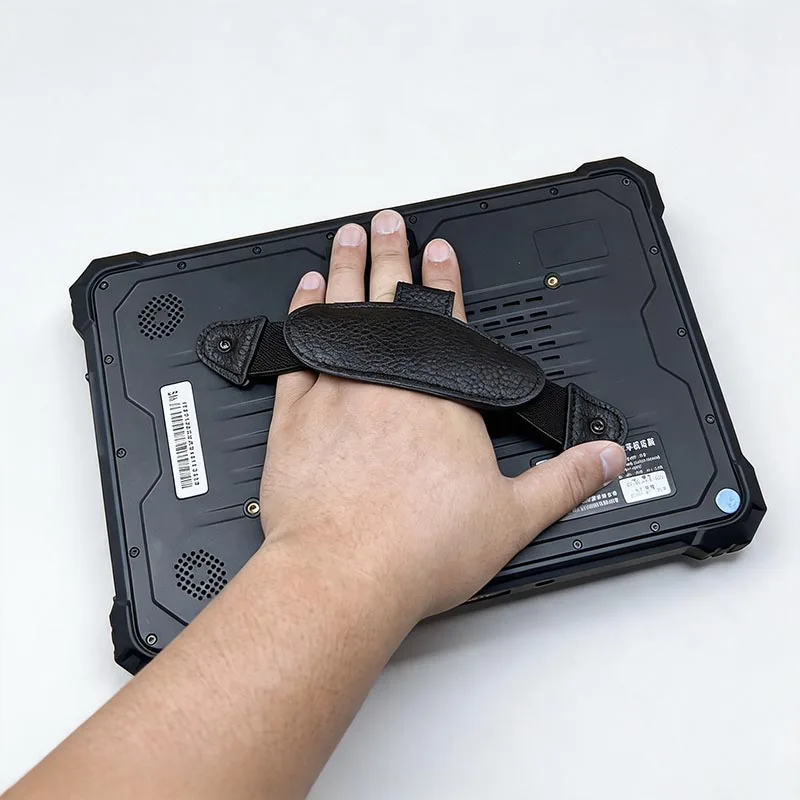

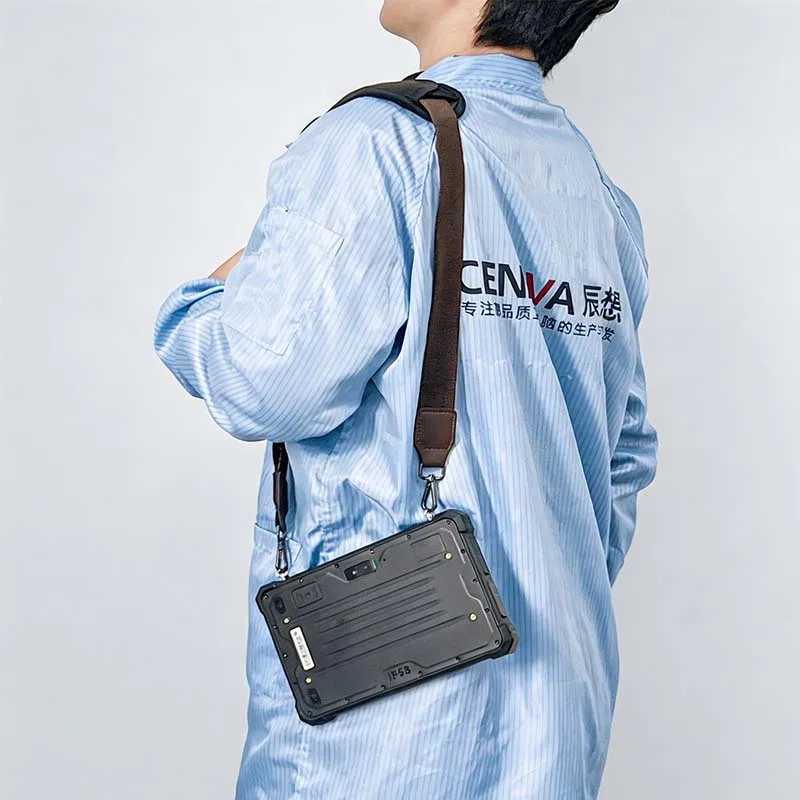

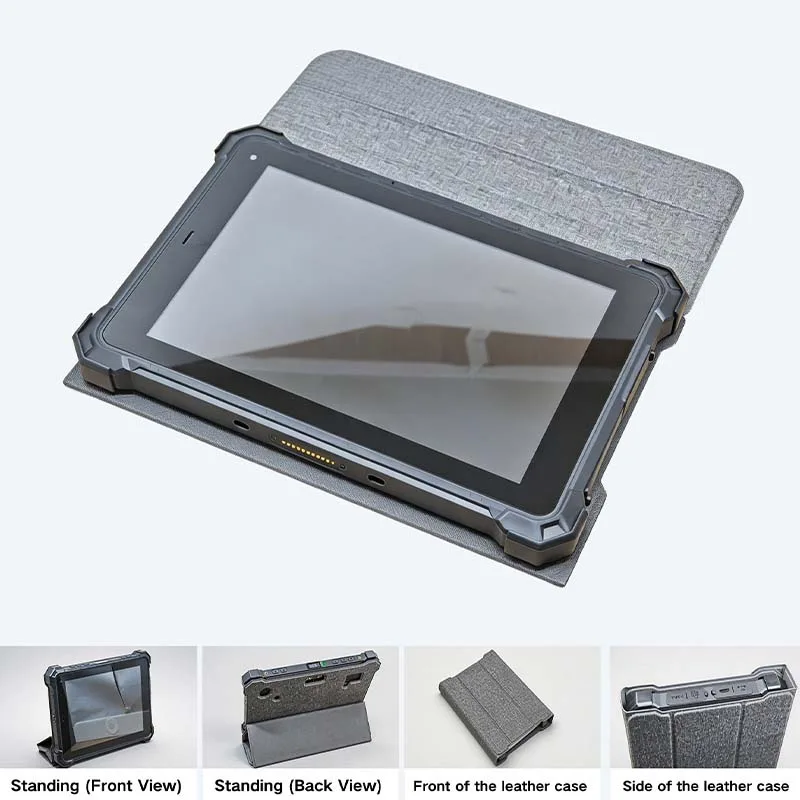

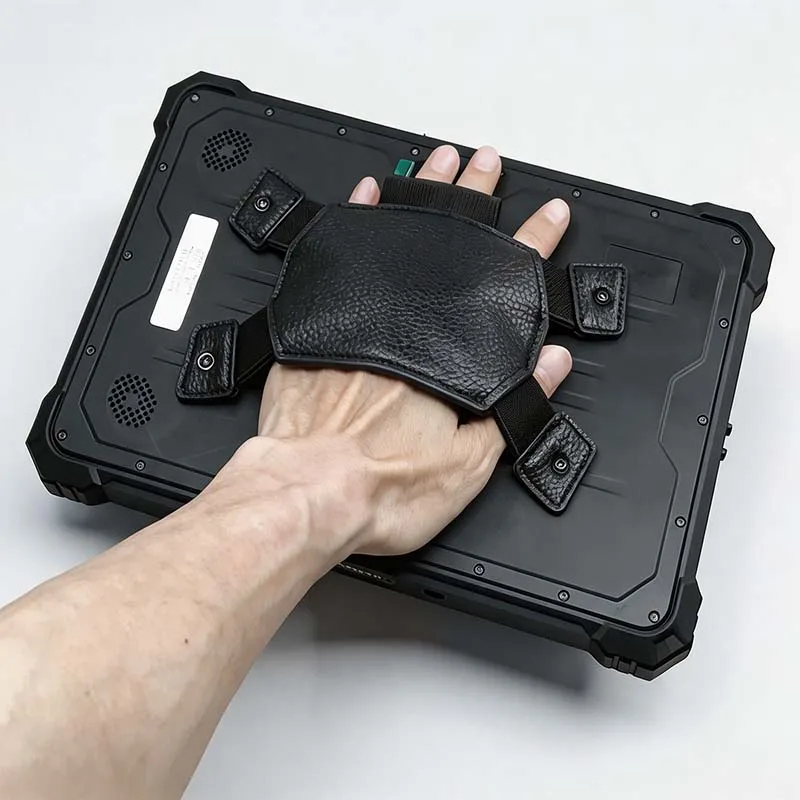

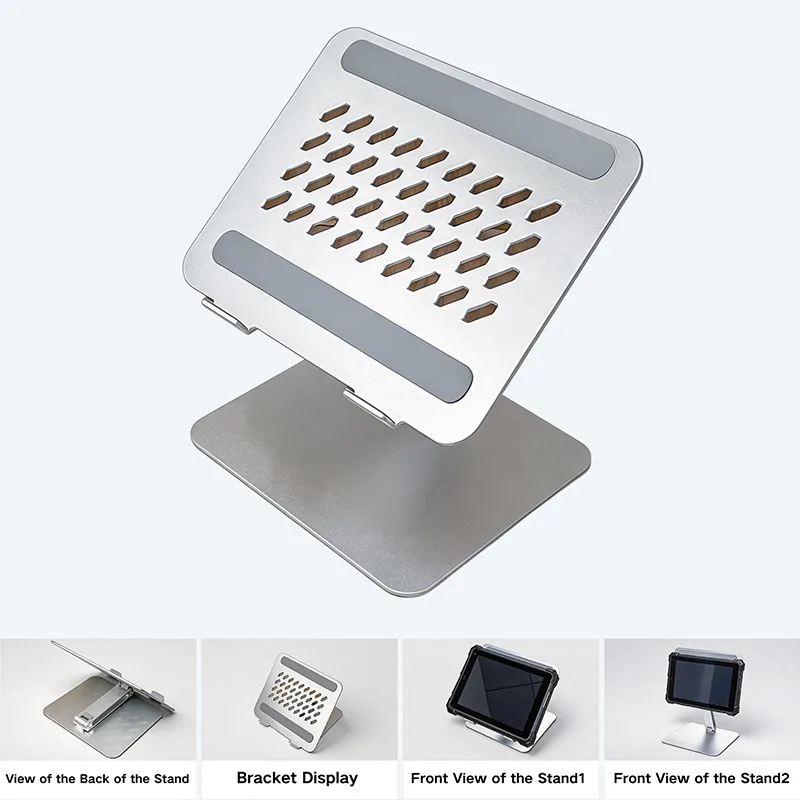

| Option accessories | Two-point strap, four-point strap, tempered-glass screen protector, charging base, stand, portable waterproof case |
The MT6769 pairs two Cortex-A75 cores (up to 2.0GHz) with six Cortex-A55 cores for background tasks. It comfortably runs the software this class of tablet actually sees — warehouse management clients, scan and RFID middleware, work-order and inspection apps, browser-based business systems. It's not built for CAD or video workloads; that's what our MT8781 models are for.
This platform is suitable for workloads such as:
Industrial Android applications
Equipment-service software
Warehouse-management applications
Barcode and RFID middleware
Work-order processing
Mobile inspection
Enterprise browser applications
Local databases
Camera documentation
Navigation applications
Remote technical support
Background synchronization
Frequently Asked Questions About A10STX-MT6769 Android Industrial Tablet
1. What is the A10STX-MT6769 for?
Long shifts away from chargers: equipment maintenance, field inspection, serial communication with installed machinery. The removable battery is the point — swap it at shift change instead of parking the tablet at a dock.
2. How is it different from the A10ST-MT6769?
Same MT6769 platform, same Android 16, same port set. This model gives you a removable 15,400mAh battery at IP67; the A10ST-MT6769 seals in a 10,000mAh pack and reaches IP68. Choose by which matters more on your site: battery swaps or water protection.
3. Which Android version does it ship with?
Android 16 is the listed build. As with any long-lifecycle platform, confirm the exact firmware and security-patch level for your order before production.
4. Is the display readable outdoors?
A 1,000-nit panel is available as a customization. But no brightness figure guarantees readability — reflection and viewing angle matter just as much. If outdoor use is critical, test a sample at your site before committing.

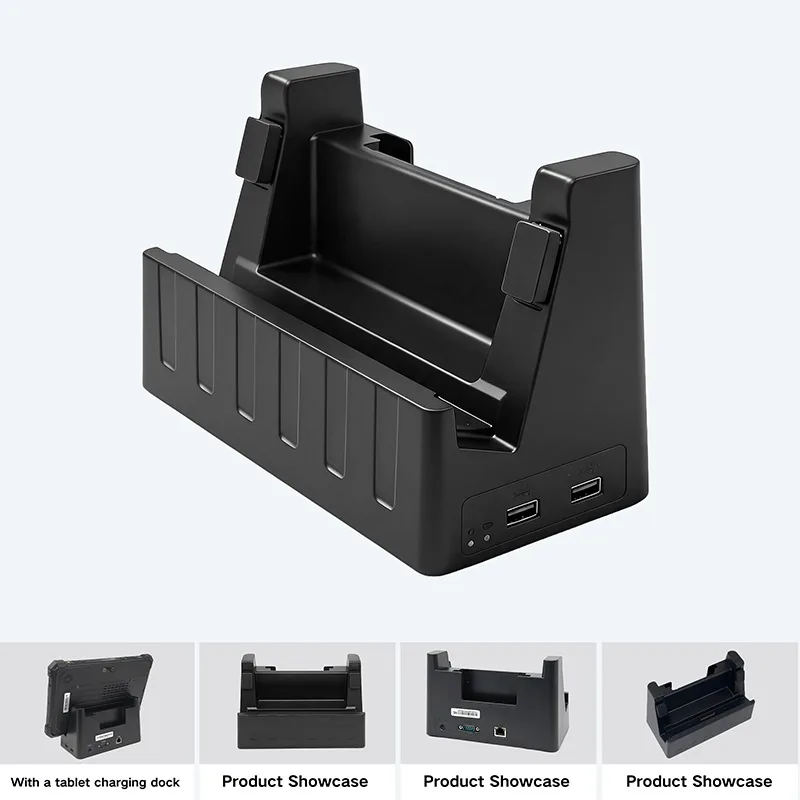

5. How does battery charging work?
The 15,400mAh main battery swaps out, and a multi-battery charging dock is available so spares charge while the tablet works. The tablet itself also fast-charges over Type-C at PD 33W. Battery life is rated at 8+ hours under 1080P playback at 50% brightness and volume — real-world runtime depends on your workload.
6. Which ports come standard?
RS232 on DB9, 100M RJ45 Ethernet (not Gigabit), USB 2.0 Type-C with OTG and PD charging, USB 2.0 Type-A, 3.5mm audio, Micro HDMI, Micro SIM and TF up to 256GB.
7. What data-capture modules can be added?
Optional N1 or N670 1D/2D scan engines and a 125kHz LF RFID reader (1–3cm). For UHF, ID-card or RTK options on this model, ask before ordering — availability differs between the A10STX variants.

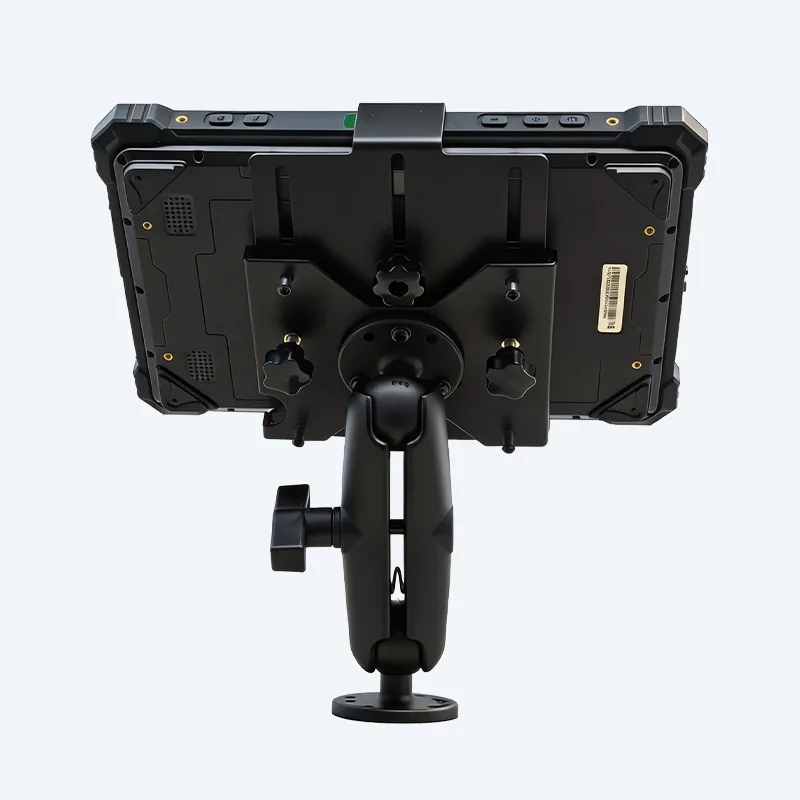

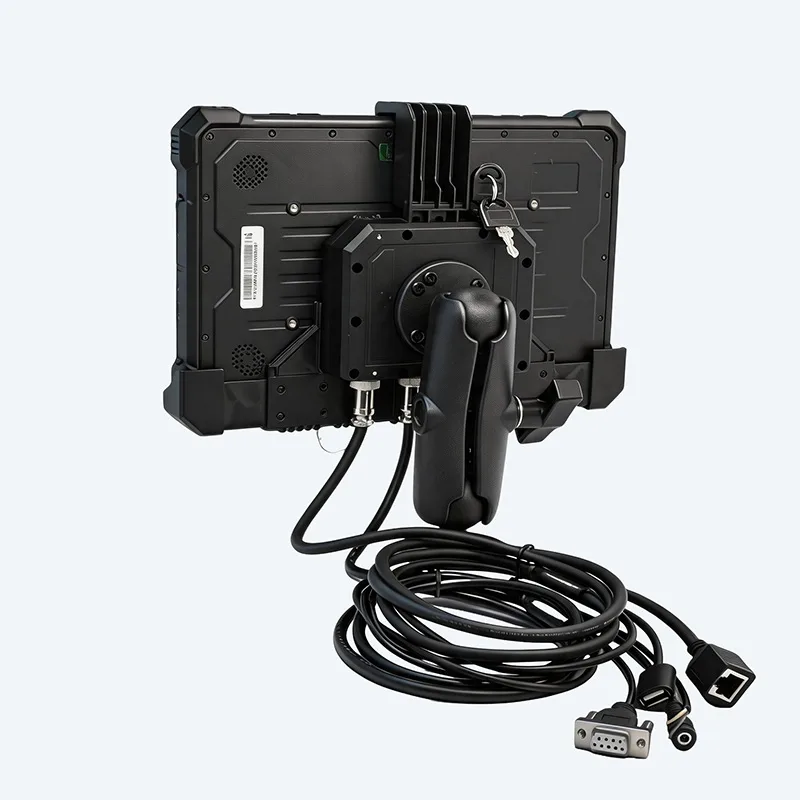

Accessories
