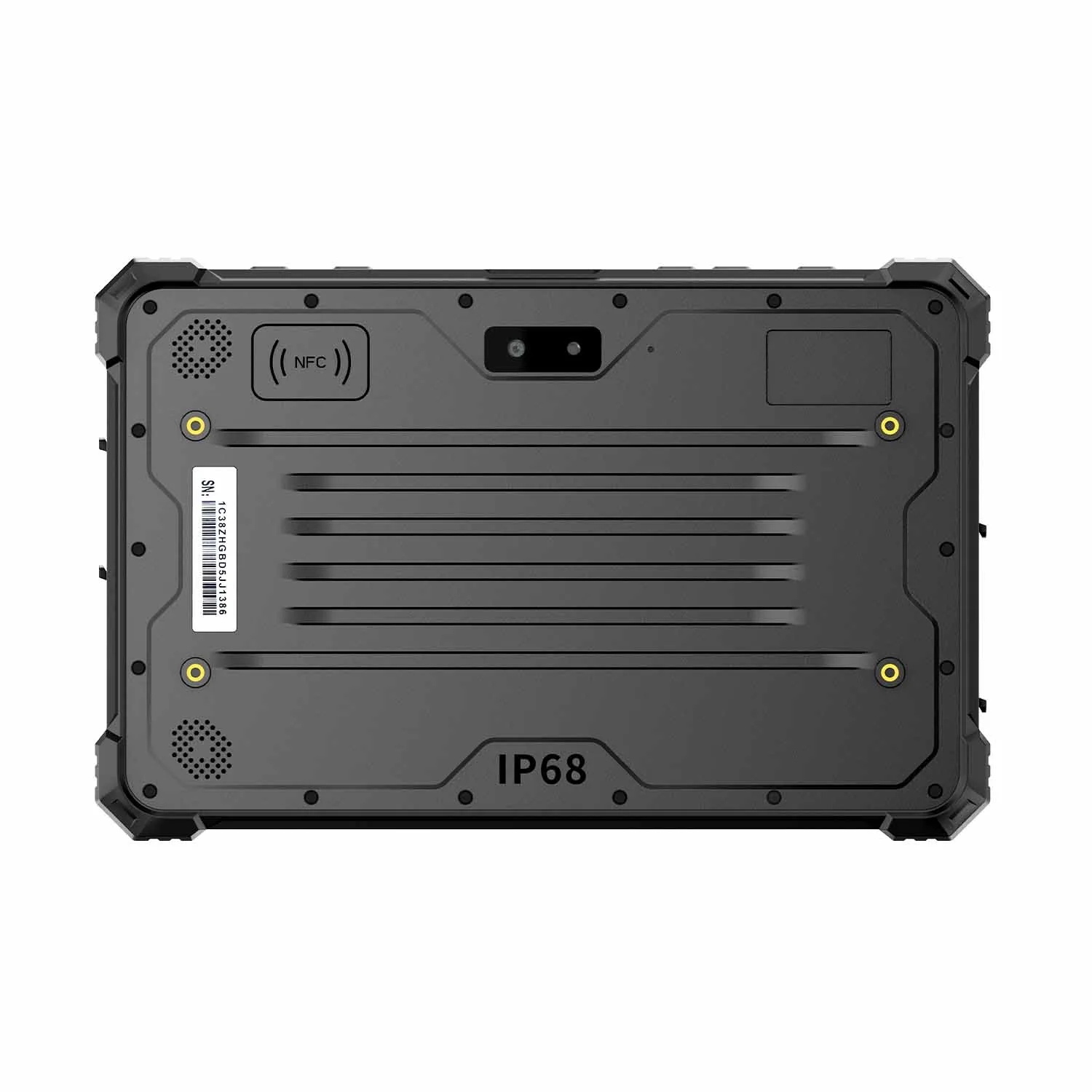

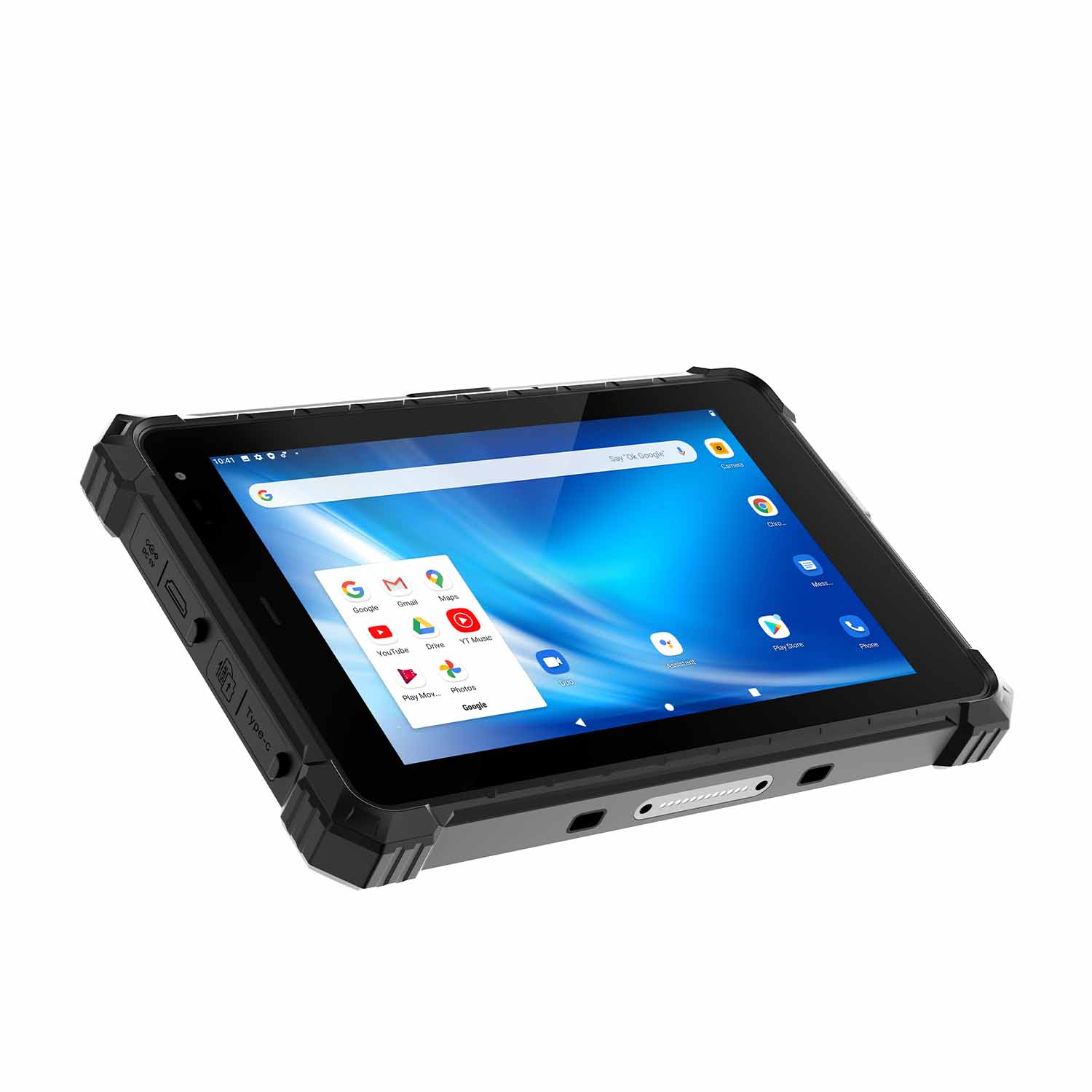

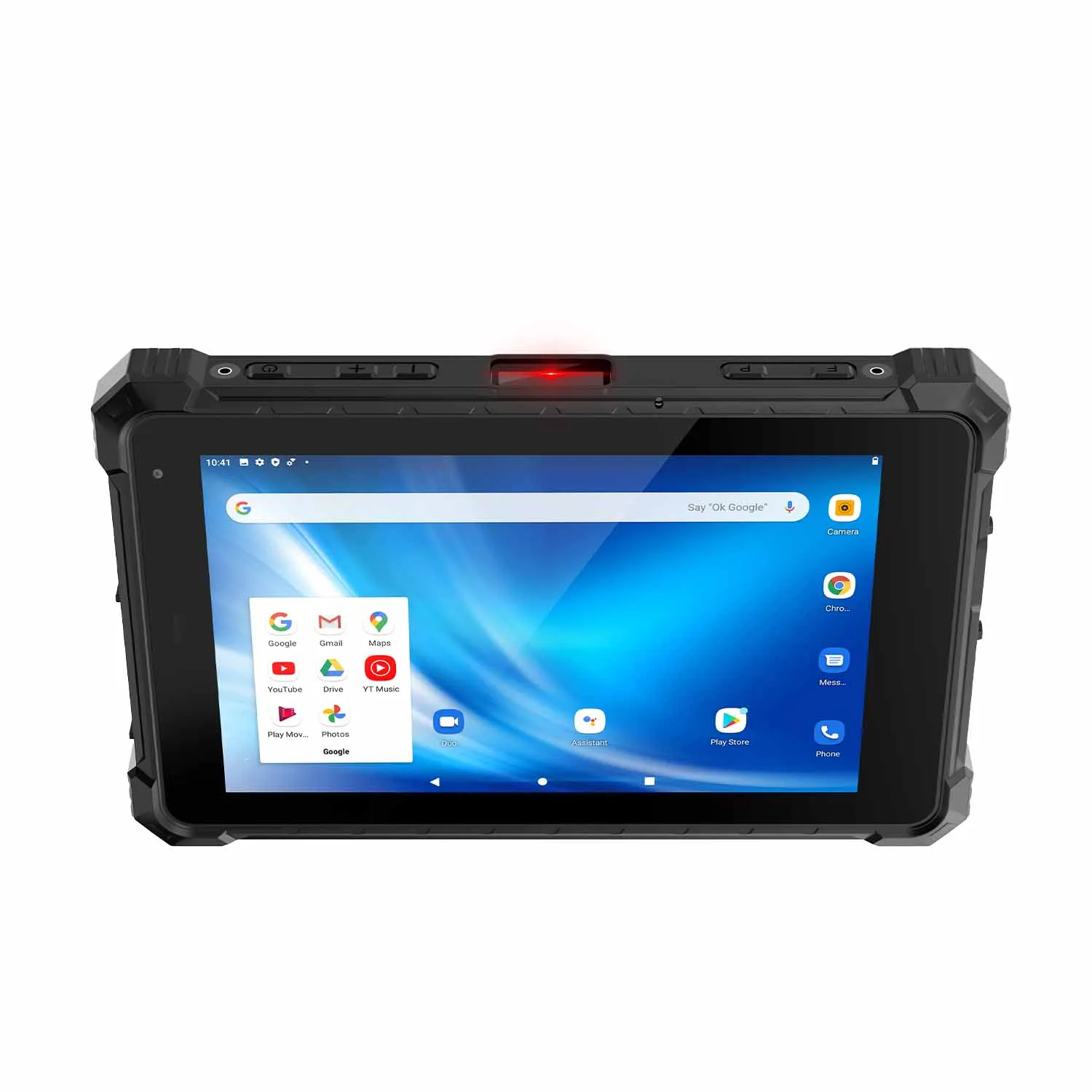

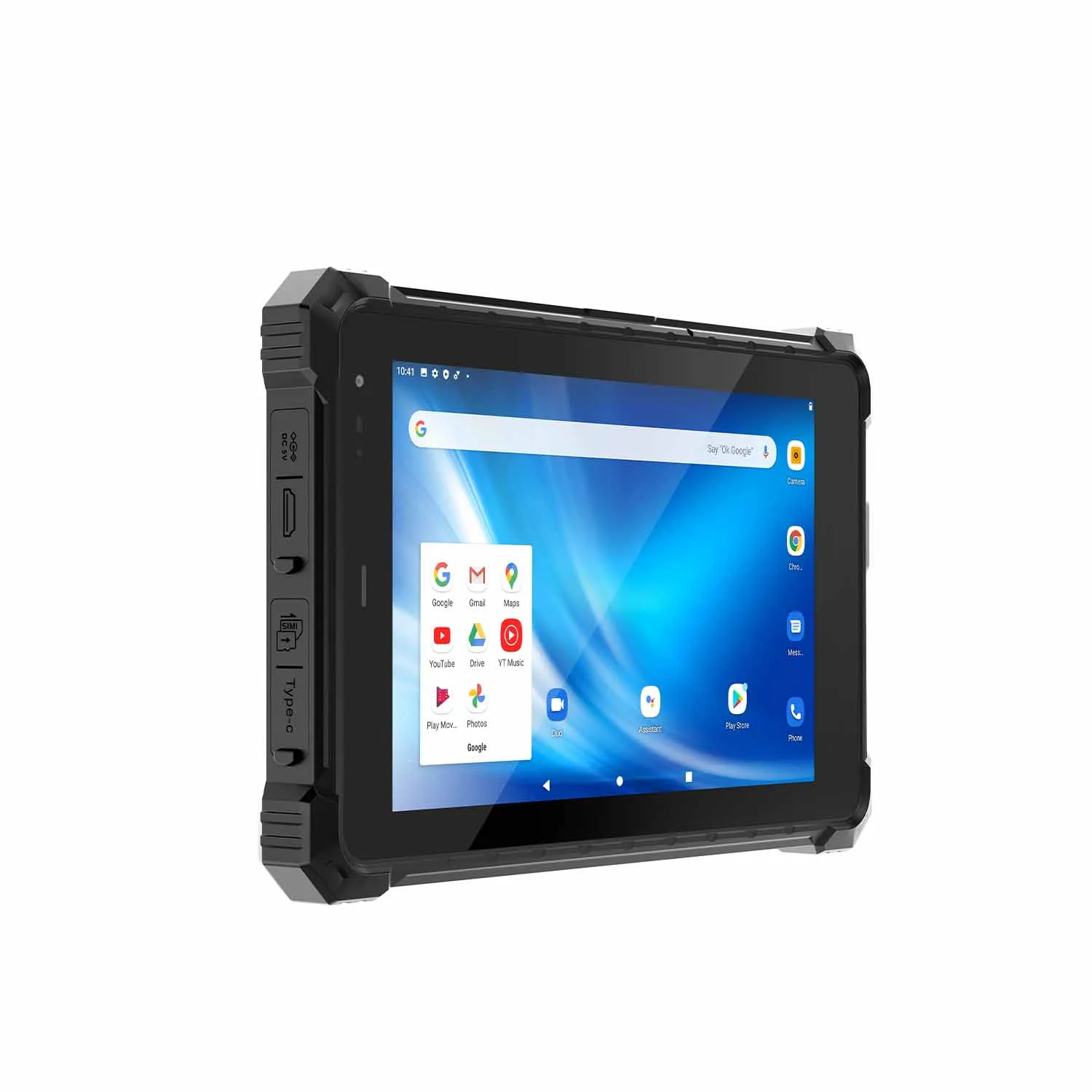

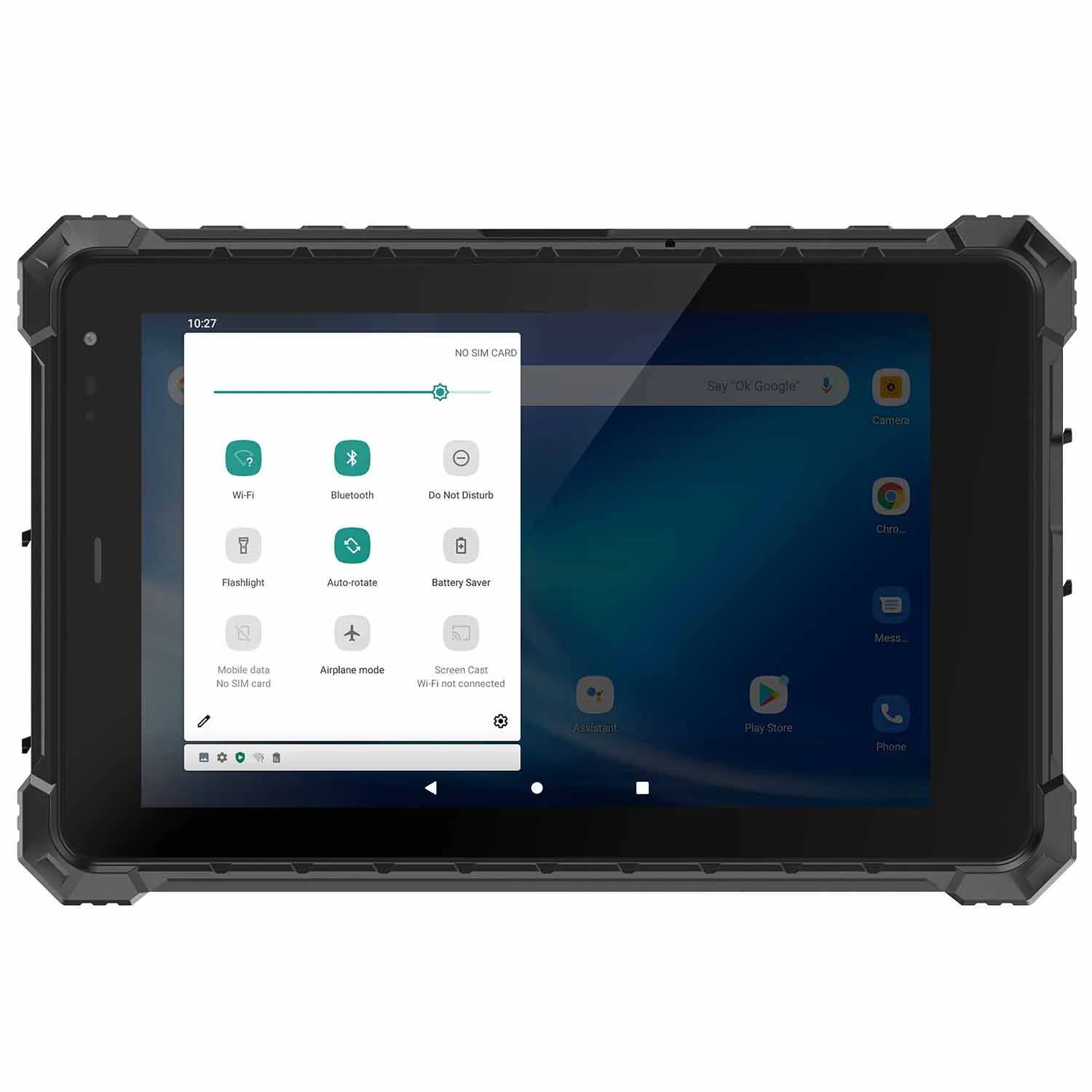

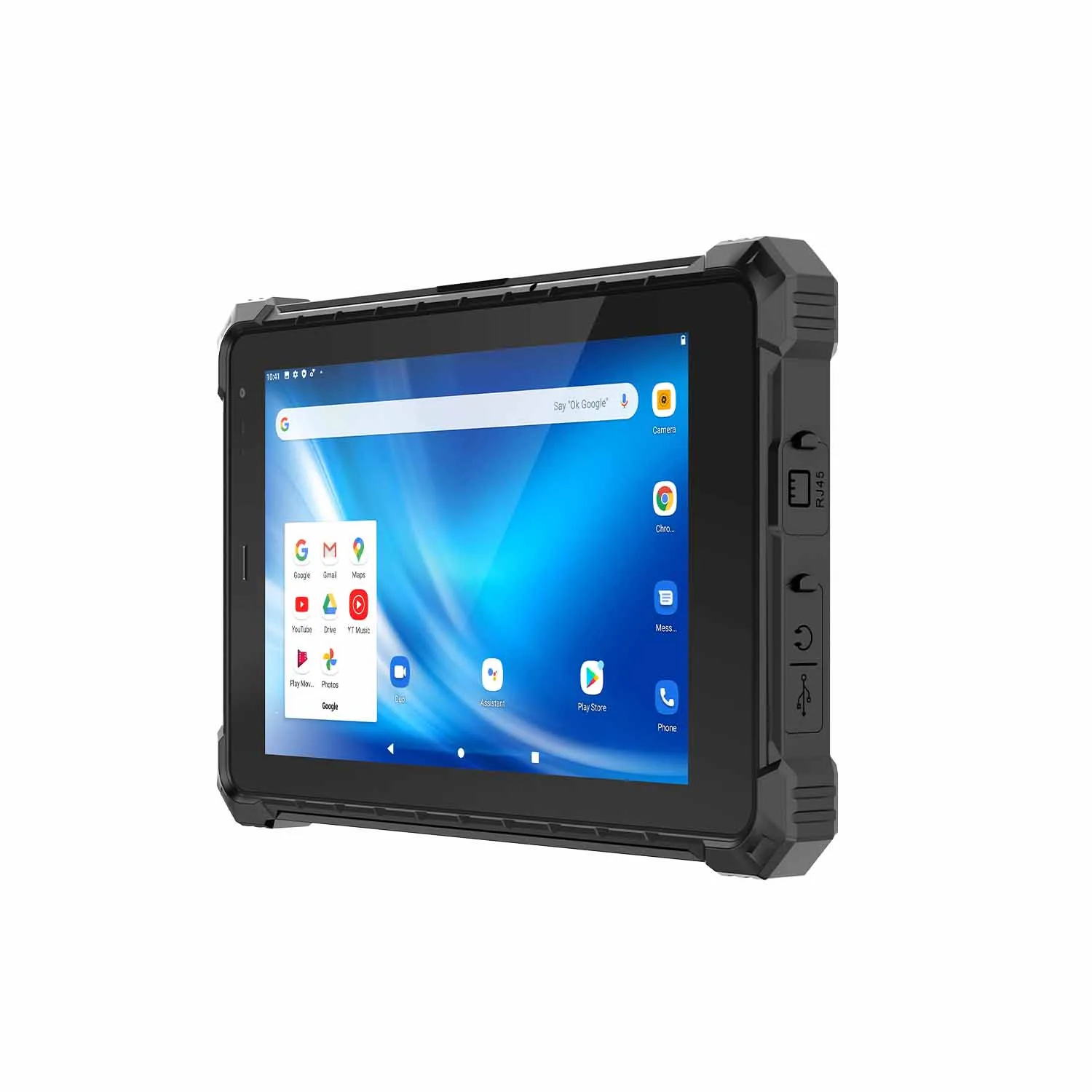

CENAVA A80ST MT8781 8 Inch Android 13 IP68 Rugged Tablet
The CENAVA A80ST-MT8781 is a compact 8-inch Android rugged tablet designed for mobile inspection, warehouse supervision, asset management, field service and industrial data collection.MediaTek MT8781 octa-core platform with Android 13, 8GB+128GB standard memory.
CPU: MediaTek MT8781 octa-core, 2×Cortex-A76 @2.2GHz + 6×Cortex-A55 @2.0GHz, fanless passive cooling
OS: Android 13
Display: 8" IPS 1920×1200 (optional 1280×800), 700cd/㎡ (customizable 1000cd/㎡), 10-point G+G glove touch, hardness ≥7H, optional wet-hand touch
RAM/ROM: 8GB+128GB / 12GB+256GB
Integrated I/O: RJ45, Type-C (USB2.0, OTG), USB-A, 3.5mm jack, DC 5V-3A, 12Pin POGO, Micro SIM, TF card (max 256GB)
Network: Dual-band WiFi 5, Bluetooth 5.2, 4G LTE
Camera: Front 8MP fixed focus (customizable 16MP), rear 16MP auto focus with flash
Battery: Built-in 10000mAh 3.8V, ≥10h endurance (optional custom 20000mAh pack)
Protection: IP68, MIL-STD-810H 1.22m drop, -20°C~60°C (custom -30°C~60°C)
Optional Modules: 2D scanner, fingerprint, ID card reader, UHF RFID, LF 125kHz, RTK cm-level positioning; NFC standard
Flagship Power in Your Palm
Dashboards Glide
MT8781 Octa-Core Up to 12GB+256GB
Flagship computing in an 8-inch frame: the MT8781 octa-core drives Android 13 with two Cortex-A76 cores at 2.2GHz, so inspection apps, equipment ledgers and industrial dashboards swap fluidly. Standard 8GB+128GB scales to 12GB+256GB, carrying thousands of inspection photos and offline process files. Fanless passive cooling stays silent and dust-free, holding steady output under load. An 8MP front camera (16MP customizable) joins video calls, while the 16MP autofocus rear with flash captures nameplates and defect close-ups—documented inspections, pictures and text, in a compact flagship.
Every Digit on the Gauge
Kind in Glare and Gloom
8-inch 1920×1200 700cd/m² Glove Touch
Inspectors glance at the screen hundreds of times a day—display quality directly shapes speed and error rates. The 8-inch IPS panel runs 1920×1200 standard, rendering pressure readings, trend curves and alarm lists in fine detail; 700cd/m² brightness adapts between boiler-room glare and dim pipe galleries, with a 1280×800 version or 1000cd/m² custom brightness optional. G+G 10-point glove touch pinches curves through gloves, ≥7H hardness shrugs off knocks inside tool bags, and wet-hand touch is optional for rainy rounds. Small screen, zero compromise on density or legibility.
Plug Into the Plant's Nerves
Data Straight to Systems
RJ45 + Type-C + USB-A + POGO Complete
Inspection data only counts once it lands in the system. RJ45 Ethernet syncs checklists to the plant intranet the moment you dock; Type-C (USB2.0, OTG) and USB-A host instruments and flash drives; the 3.5mm jack plays back machine-noise recordings for comparison; DC 5V-3A powers always-on posts beside control cabinets; the 12-pin POGO dock handles charging and expansion; Micro SIM and TF up to 256GB round out connectivity and storage. In SCADA and PLC integration scenarios, the tablet becomes a mobile extension of the control network, and an optional fingerprint module locks permissions to individuals.
No Consumer Tablet Compares
Industrial Bone and Sinew
IP68 MIL-STD Drop -20°C~60°C

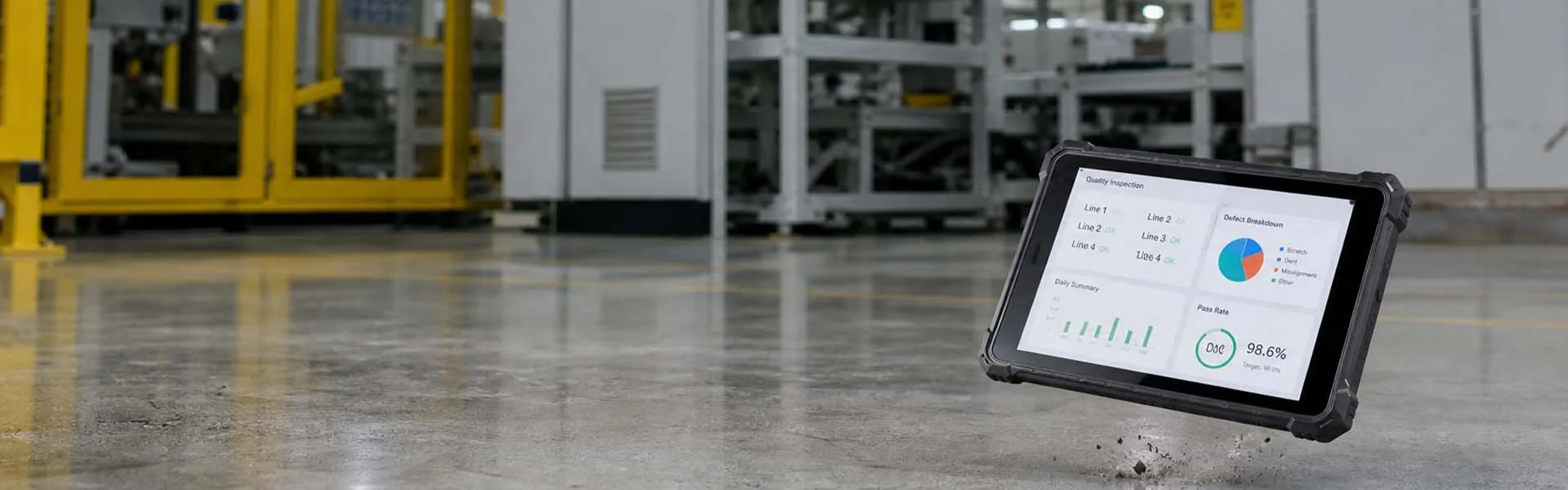

A consumer slate reveals itself in three months on a factory floor. The A80ST MT8781 is forged to industrial standards: IP68 sealing laughs off washdown splashes; MIL-STD-810H certification survives 1.22m drops from ladders and benches; a -20°C to 60°C range crosses boiler rooms and cold stores daily, with a -30°C custom version available. Cushioned framing and sealing gaskets endure vibration and salt spray, keeping looks and performance stable amid oil mist and metal dust—industrial sinew honoring a three-to-five-year service promise.
Technical Specifications
 CPU MediaTek MT8781 Octa-core 2× Cortex-A76 at up to 2.2GHz |  System |  Storage 8GB + 128GB |  Display 8 inch IPS touch screen 1920*1200 Resolution 700cd/㎡ Supports wet touch screens and glove touch screens |
 NFC Optional Can be equipped with PSAM recognition |  One/Two dimensional code Optional Able to identify dirty 1/2 dimensional codes |  Battery Built-in 3.8V 10000mAh |  High frequency/ultra high frequency Optional |
 Navigation positioning GPS, GLONASS,Galileo |  Iris recognition/infrared Optional |  Interface USB 2.0 Type-C with OTG, USB 2.0 Type-A, RJ45 100Mbps |  Weight 232.2mm*151.3mm *24.5mm/752g |
 Physical Keys Power, volume up/down, P key and F key |  Protection level working temperature: -20 °C to 50 °C Storage temperature: -40 °C to 70 °C Protection level: IP68 |  Camera Front camera：8MP Rear camera：16MP（Auto focus, flash） |  Sensor Gravity sensing, compass, gyroscope, light sensing, distance sensing |
| Product Type | Compact high-memory Android rugged tablet |
| TP touch screen | Anti-fingerprint (AF) coating,10-point touch G+G, hardness ≥ 7H, support for medical rubber gloves touch screen (can be customised wet hand touch screen) |
| Gravity sensor | Support |
| Compass | Support |
| Gyro | Support |
| Light sensor | Support |
| Proximity sensor | Support |
| USB Type-C | 1× Type-C, USB 2.0, supports OTG |
| Type -A | 1× Type-A, USB 2.0 |
| Earphone Jack | 1× 3.5mm standard jack |
| TF Card | 1× slot, up to 256GB |
| SIM Card | 1× Micro SIM slot |
| DC port | 1× 5V/3A (plug: 3.5mm OD / 1.35mm ID) |
| OEM Services | Logo, housing color, Android software adaptation |

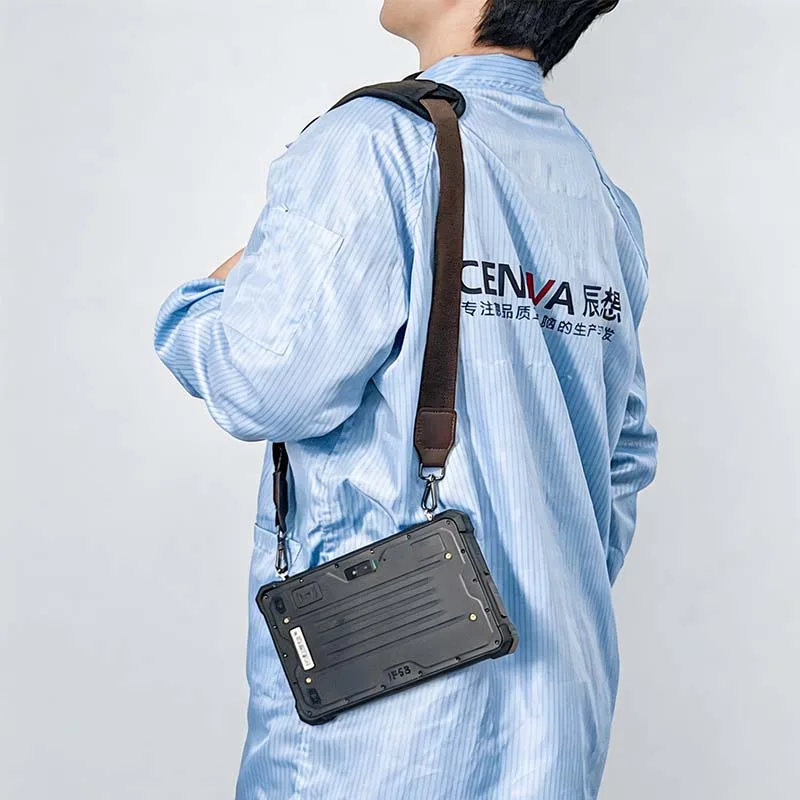

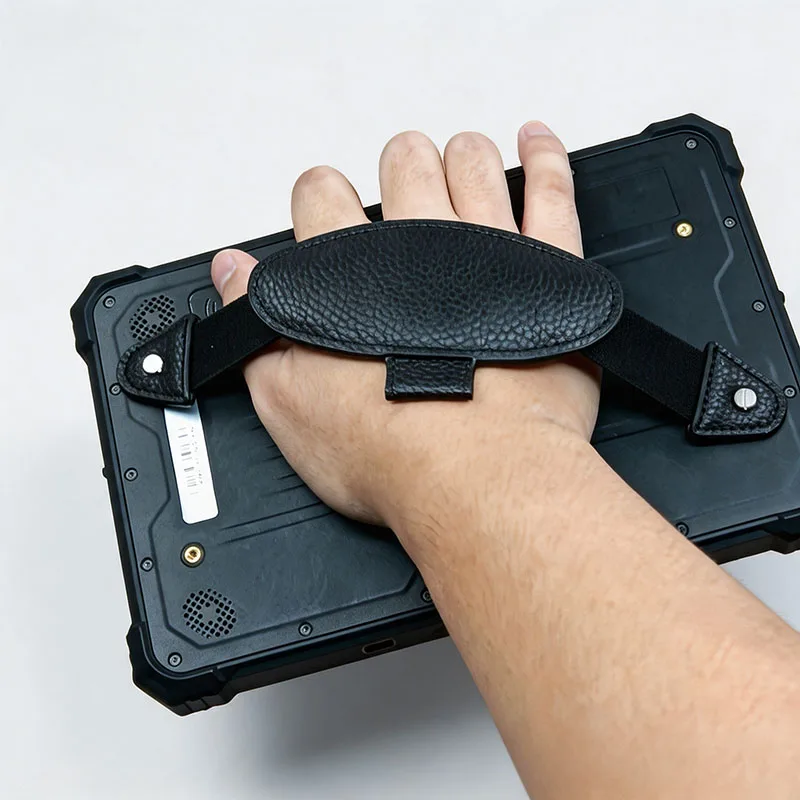

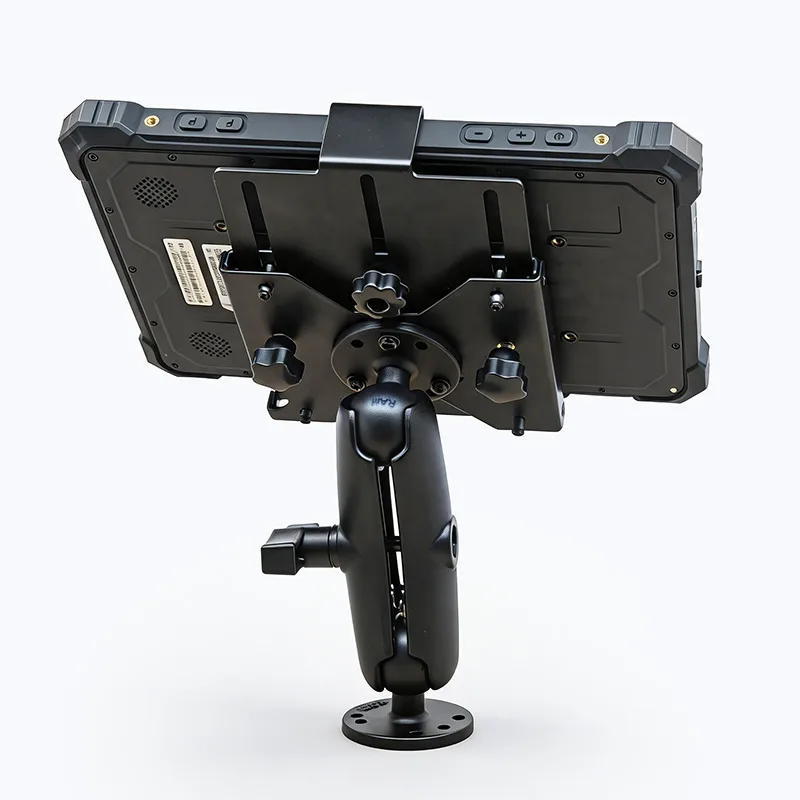

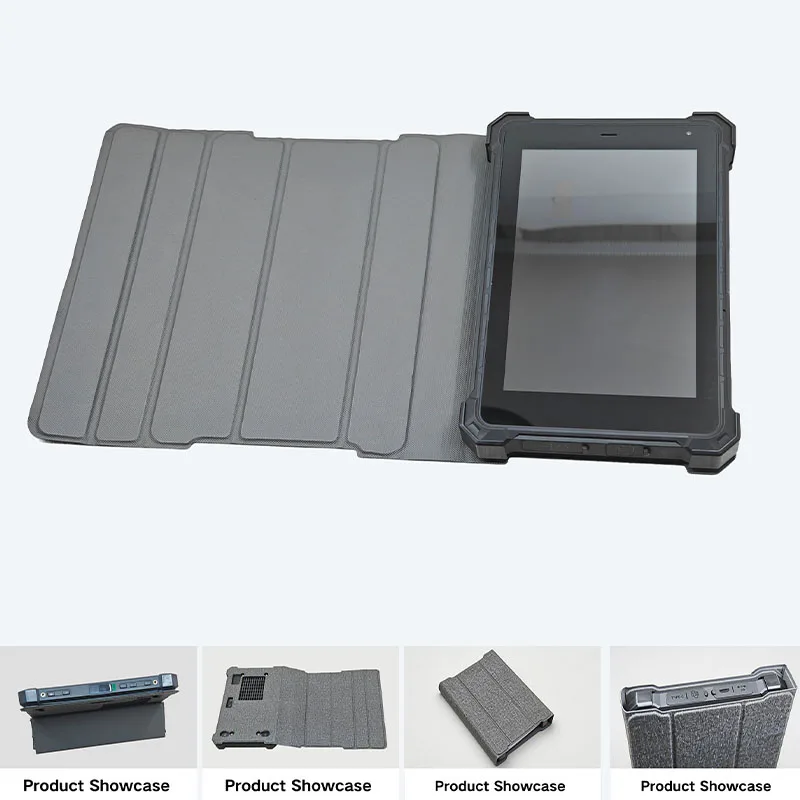

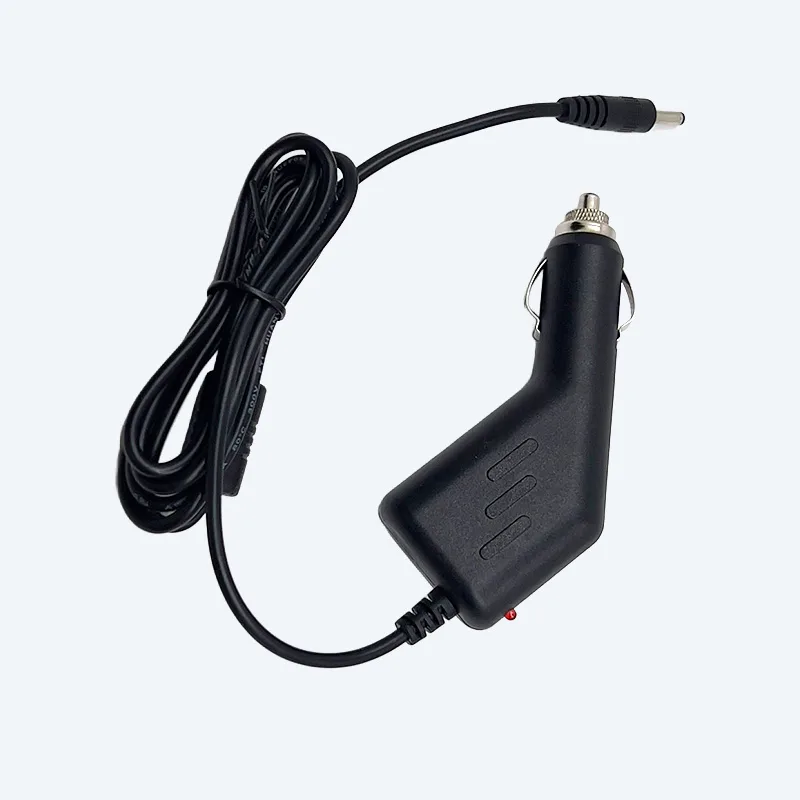

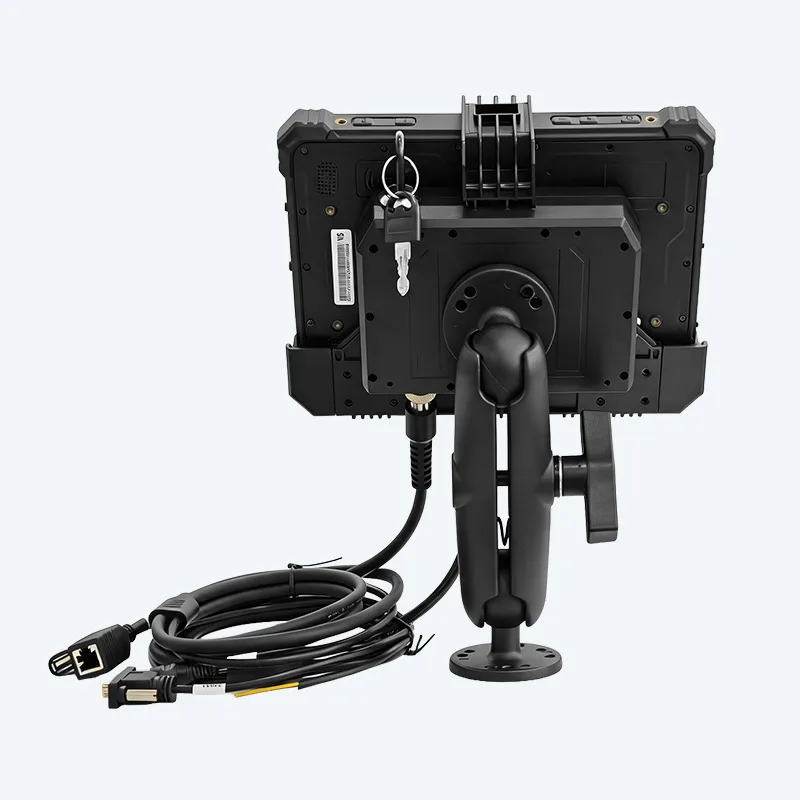

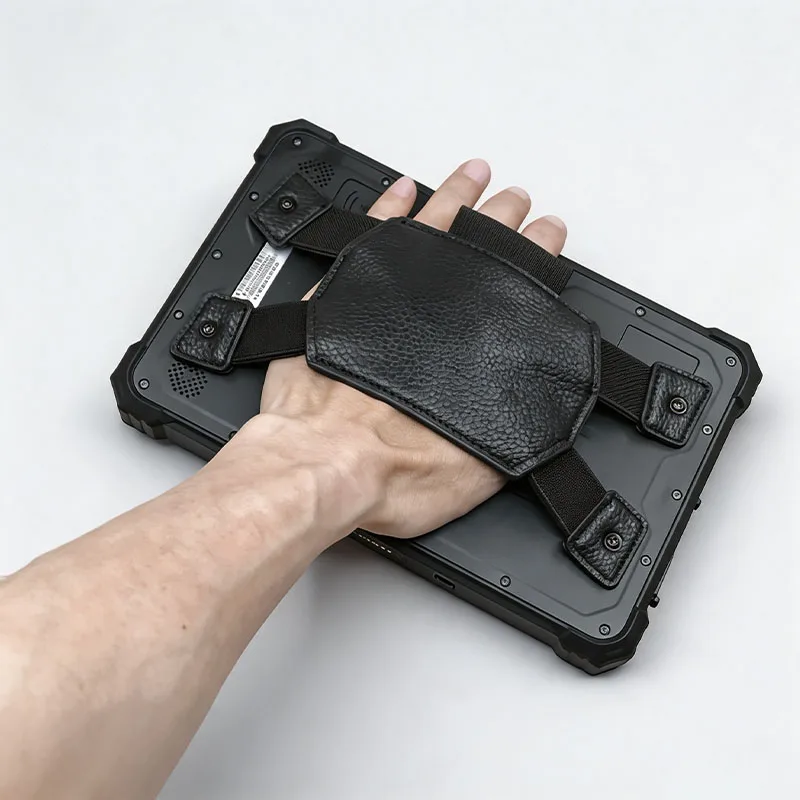

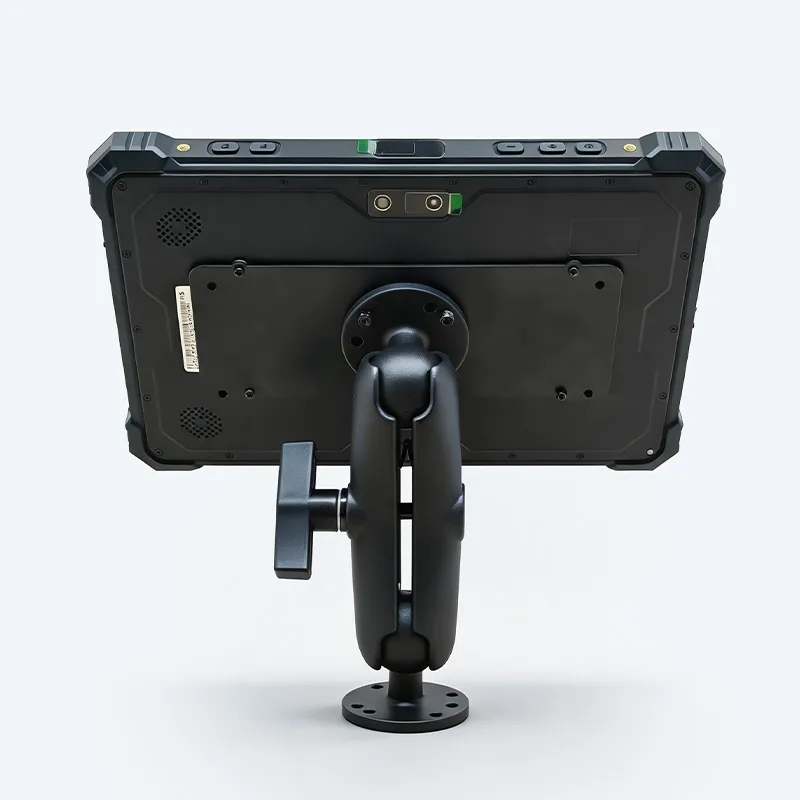

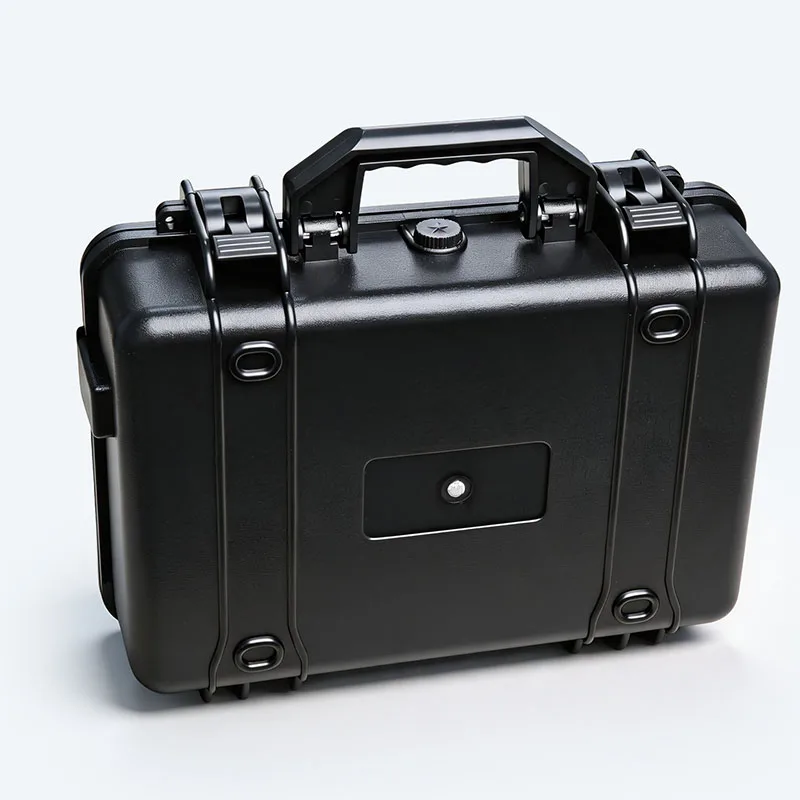

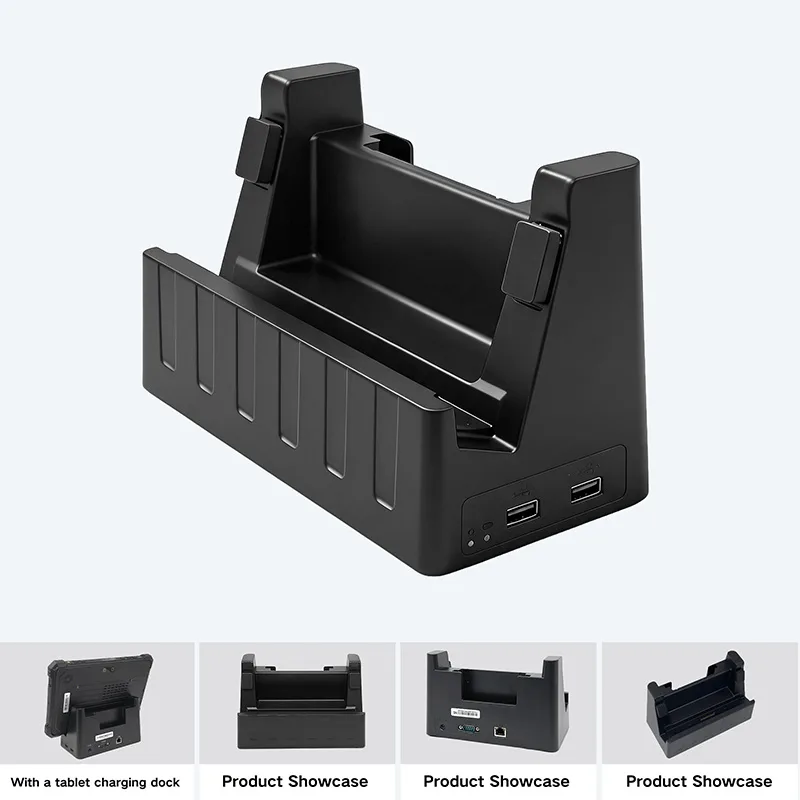

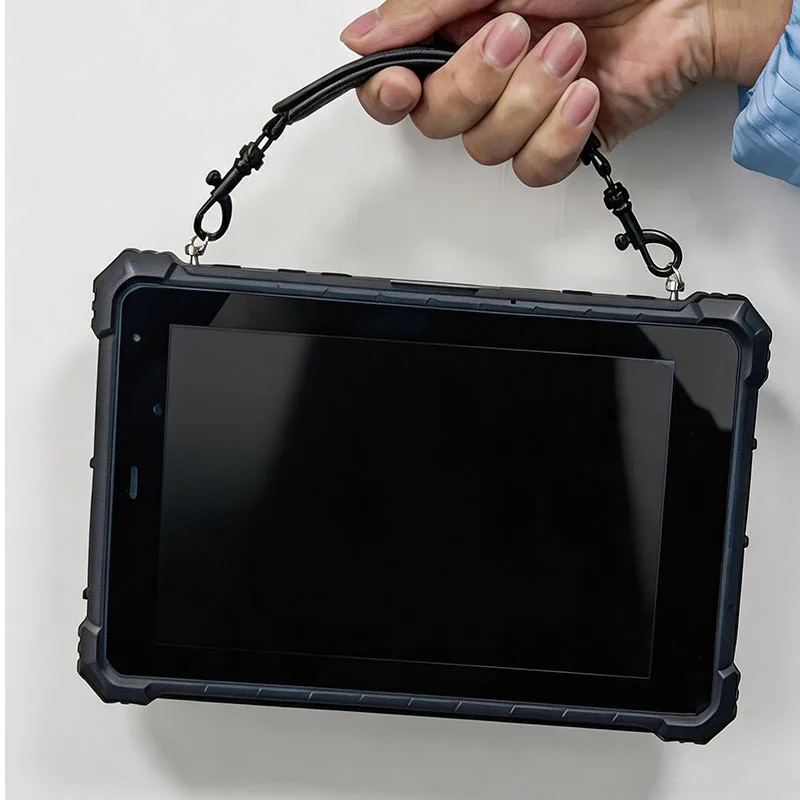

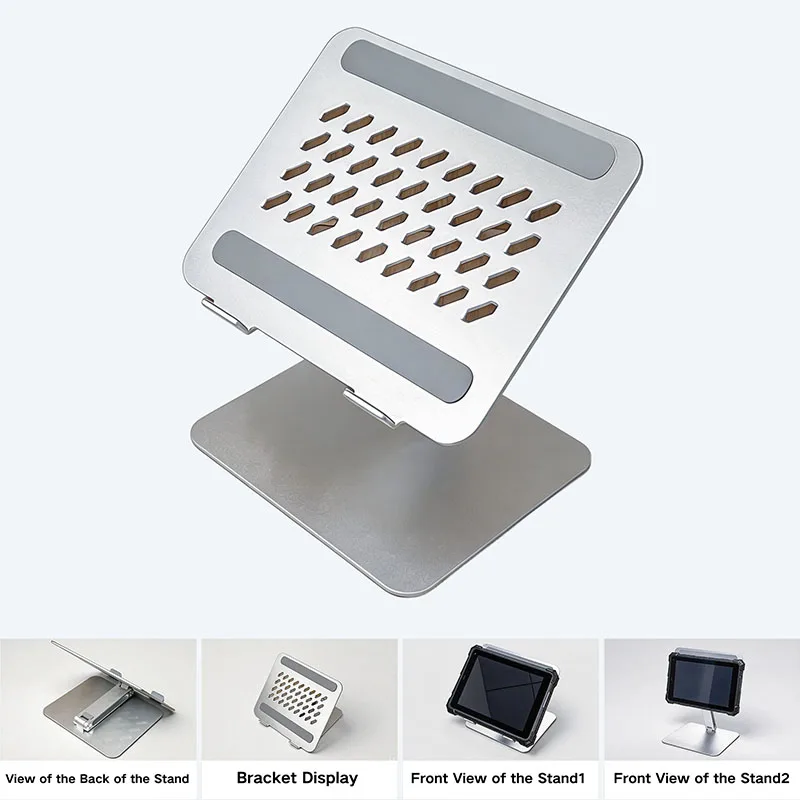

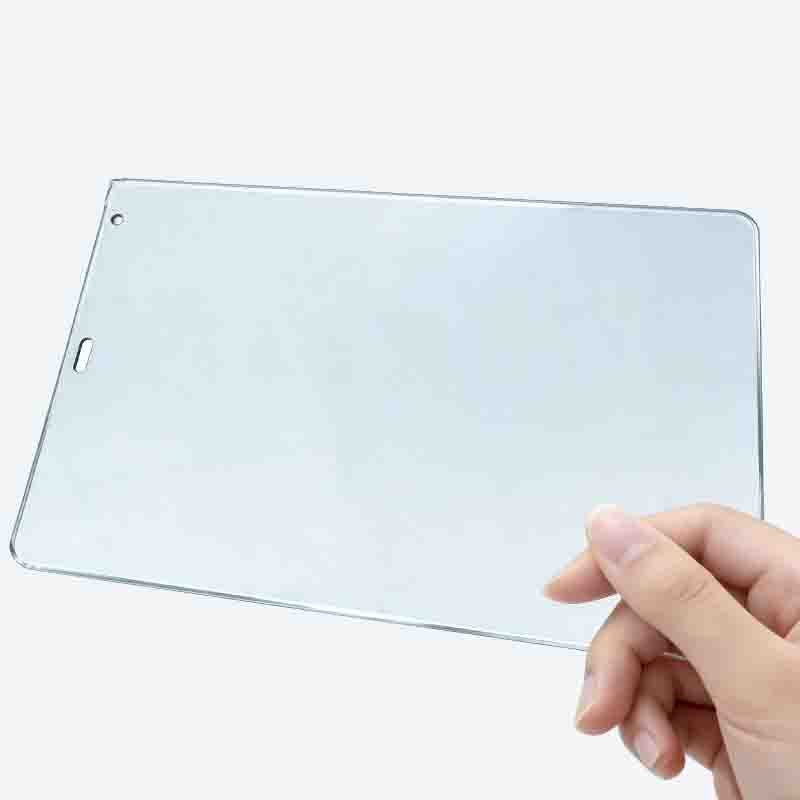

| Optional Accessories | Four-point strap, backplate, clip bracket, vehicle mount, screen protector, charging base, aluminum desktop stand, waterproof case, protective case |

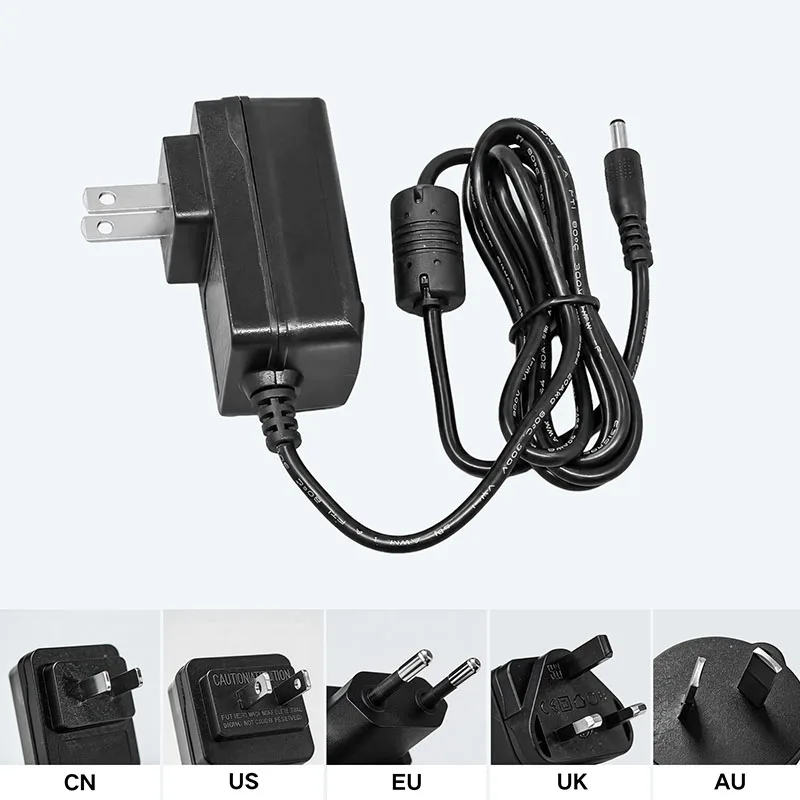

| Adapter | 5V/3A DC adapter |
The A80ST-MT8781 is the compact performance model: MediaTek's MT8781 (two Cortex-A76 at 2.2GHz, six Cortex-A55 at 2.0GHz) and Android 13 in an 8-inch IP68 body. It suits inspection routes, warehouse scanning and asset work where a 10-inch tablet is too much to carry one-handed. The 1920×1200 display works with medical gloves, and the 10,000mAh battery covers a shift.
Options run deep on this model: two grades of 2D scan engine (N1 or N670), UHF and LF RFID, fingerprint readers in three certification tiers, and nine mounting and carry accessories. Branding, housing color and Android adaptation are standard OEM services.
Frequently Asked Questions About A80ST-MT8781 Android Rugged Tablet
1. What is the A80ST-MT8781 for?
Compact performance: inspection routes, warehouse scanning and asset management where a 10-inch tablet is too heavy to carry one-handed all day. The MT8781 with Android 13 has the headroom for demanding WMS and inspection apps; the IP68 body and 10,000mAh battery cover the rest of the shift.
2. What platform and storage does it use?
MediaTek MT8781 — two Cortex-A76 at 2.2GHz, six Cortex-A55 at 2.0GHz — running Android 13. The platform supports both UFS 2.1 and eMMC 5.1 storage; which one your units get isn't confirmed in the spec, so if storage speed matters to your application, ask and we'll state it in the quotation.
3. What is the display like?
1920×1200 as standard, with medical rubber-glove touch supported out of the box. Wet-hand touch is a factory option — mention it when ordering if your crews work in rain or washdown areas.
4. How does charging work?
Through the dedicated DC input or the POGO charging contacts — the Type-C port is USB 2.0 data and OTG, with no listed PD charging. The 10,000mAh battery is sealed in, which is part of how the unit keeps its IP68 rating. Need swappable batteries instead? That's the A80STX line.
5. Which barcode engine should I choose — N1 or N670?
Neither is standard; both are options. The N1 covers mainstream 1D/2D codes. The N670 adds a higher-resolution sensor, cross-laser aiming and OCR-A/OCR-B support — worth it if you read dense, damaged or small codes, or need OCR. Tell us your symbologies and typical scan distance and we'll recommend one.
6. What about RFID and fingerprint options?
UHF RFID comes in 3m, 5m and 15m read-range builds (real range depends on tag, antenna and environment), plus an optional 125kHz LF reader good for 1–3cm. Fingerprint readers come in three tiers — industrial, public-security certified, and FBI certified. One compliance note: only units built with the actual FBI-certified sensor may carry that claim, so specify the tier explicitly on your order.
7. Does it have RS232 or Ethernet?
Ethernet yes — one 100M RJ45 port. RS232 no: there's no external serial connector, and the reserved internal UART is not the same thing. If serial is a hard requirement, tell us at the quoting stage. The unit is IP68 as standard; module builds can change the enclosure, so ask for the test report covering your exact configuration.
