Rugged Computing Products
Rugged tablets, laptops, handhelds, and industrial PCs—built for demanding
environments and backed by 23 years of OEM/ODM expertise.

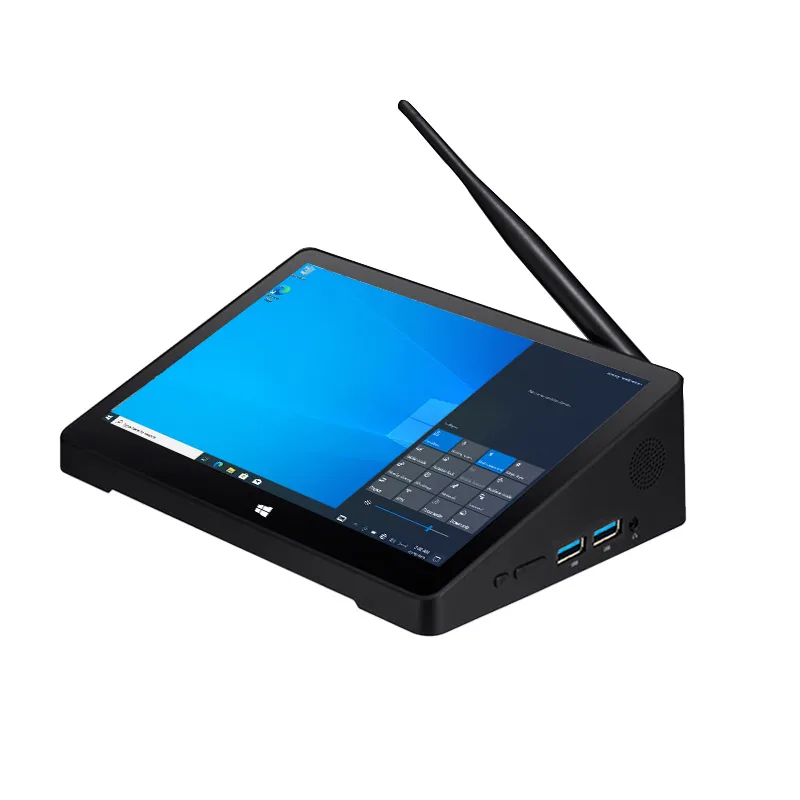

CENAVA H7S N3350 7 Inch Win10 Entry Industrial PC | POE Fanless Touch Panel
7-inch compact industrial panel PC with Intel Celeron N4020 dual-core. 1280×800 IPS touchscreen. 4GB RAM + 64GB storage, expandable up to 128GB TF card. Fanless silent design. Gigabit Ethernet with POE support. 4×USB3.0, HDMI output, 3.5mm audio. Dual built-in speakers. WiFi 802.11a/b/g/n/ac + BT5.0. Compact 178×118×52mm chassis for space-limited installations.
CPU: Intel Celeron N3350 (2C/2T, 1.1GHz~2.4GHz, 6W TDP)
OS: Windows 10 (Home default, Pro/Enterprise optional)
Display: 7" 1280×800 IPS touchscreen
RAM+Storage: 2GB RAM + 64GB storage, up to 128GB TF card expansion
Network: Gigabit Ethernet + WiFi 802.11a/b/g/n/ac + Bluetooth

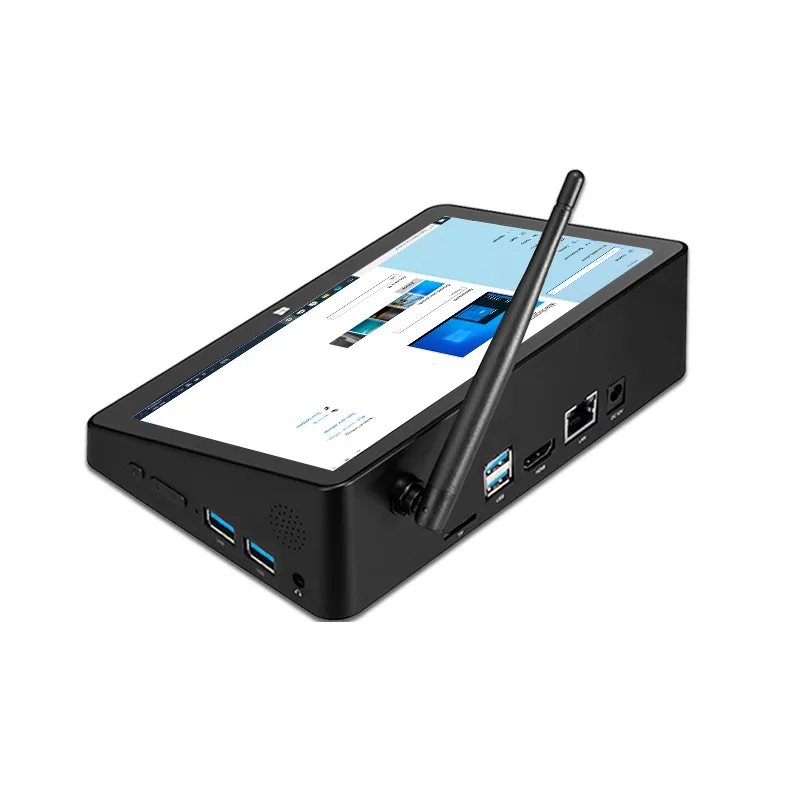

I/O Ports: USB3.0×4, HDMI×1, 3.5mm audio×1, TF card slot×1
Power: 12V 2.4A DC, POE supported
Audio: Dual built-in speakers, built-in microphone
Design: Fanless passive cooling, compact 178×118×52mm
Applications: Basic HMI, simple industrial control, cost-sensitive projects
7-inch compact industrial panel PC with Intel Celeron N4020 dual-core. 1280×800 IPS touchscreen. 4GB RAM + 64GB storage, expandable up to 128GB TF card. Fanless silent design. Gigabit Ethernet with POE support. 4×USB3.0, HDMI output, 3.5mm audio. Dual built-in speakers. WiFi 802.11a/b/g/n/ac + BT5.0. Compact 178×118×52mm chassis for space-limited installations.
Technical Specifications
 CPU Intel Celeron N3350 |  System Windows 10 Home |  Storage 2GB+64GB |  Display 7.0 inches (touch screen) 1280*800 IPS |
 Speaker Dual speaker |  Media playback Support for music, videos, and images |  Battery Battery: None — Continuous External 12V DC Power Required |  Key Power and volume buttons |
 Card slot MicroSD Expansion up to 128GB |  Interface LAN, headphone jack USB,HDMI |  Dimensions/Weight 178*118*52mm 433g |  Status indicator Power Status Indicator |
| Product Type | Compact Windows industrial panel PC | |
| Button | Power button Volume plus or minus button | |
| Speaker | Built-in speakerX2 | |
| Bluetooth | Support bluetooth version 5.0 | |
| WiFi Funtion | IEEE 802.11a/b/g/n/ac | |
| POE | Supported according to project configuration | |
| Interface | TF card slot X1 | |
| 4 × USB 3.0 | ||
| Ethernet interface X1 | ||
| 1 × standard HDMI output | ||
| 1 × 3.5mm stereo audio output | ||
| 12V/2.4A charger | ||
| GPU Multimedia support (hardware decoding) | Music | MP3, WMA, WAV, OGG, FLAC, ALAC, APE, AAC, AC-3 |
| Picture | JPG,JPEG,BMP, GIF,PNG... | |
| Video | MEPG 1/2/4,H.263/H.264，RMVB，WMV/VC-1, MVC, AVS, MJPEG. | |

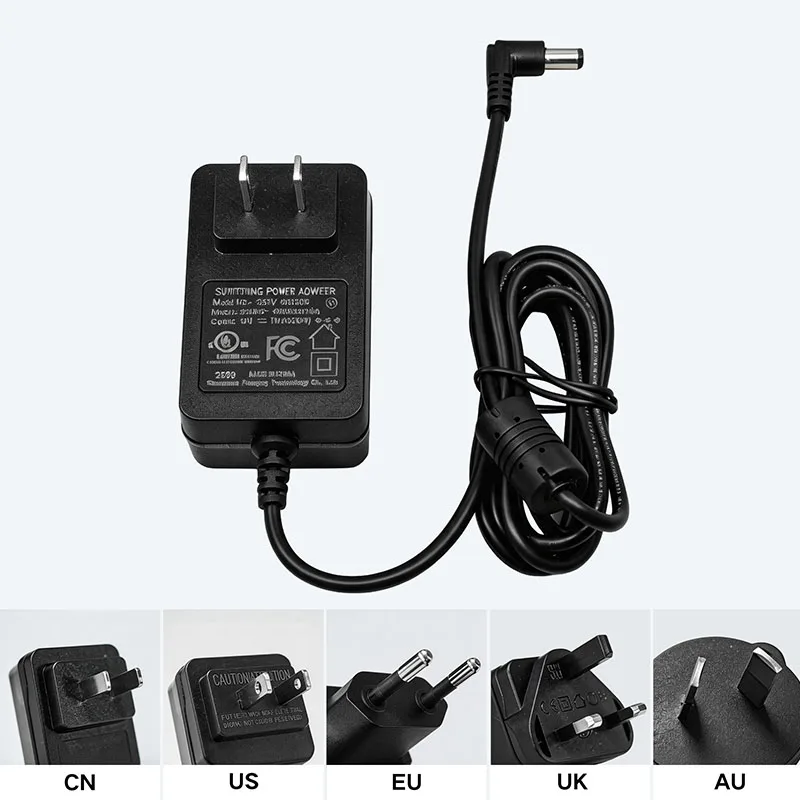

| Accessories | 12V 2.4A charger | |

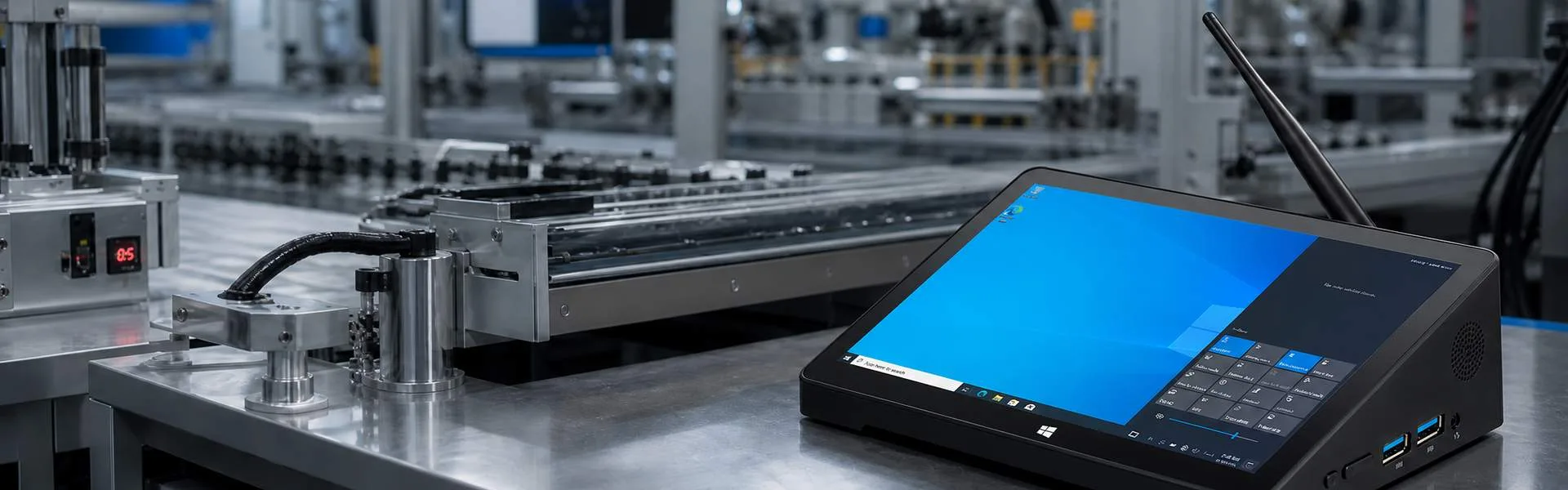

The H7S is developed for projects that require a small Windows display and computer in one enclosure. Its 7-inch format is easier to integrate into equipment, counters and compact operator stations than a conventional desktop PC and separate monitor.
It can be considered for:
Equipment-status displays
Basic machine interfaces
Room-control systems
Information terminals
Data-entry stations
Instrument-control applications
Simple production dashboards
Access-management interfaces
Compact self-service systems
OEM equipment integration
Frequently Asked Questions About the H7S Industrial Panel PC
1. What is the H7S designed for?
The H7S combines a 7-inch touchscreen and a Windows computer in one compact enclosure (178×118×52mm), designed for equipment-status displays, basic machine interfaces, room-control systems, data-entry stations and OEM equipment integration.
2. What are the core specs — processor, memory and storage?
The H7S uses an Intel Celeron N3350 (2 cores / 2 threads, up to 2.4GHz, 6W TDP) with Intel HD Graphics 500, paired with 2GB RAM and 64GB onboard storage, expandable via TF card.
3. How is the H7S different from the CENAVA H7?
The H7S uses the Intel N3350 processor with 2GB RAM, while the H7 uses a newer N4020 platform with 4GB RAM. The H7 suits projects needing more memory or newer processor performance; the H7S is the cost-optimized option for lighter workloads.
4. Is the H7S the same as the Android H7A?
No. The H7S is a Windows/Intel product; the H7A runs Android/Linux on an RK3288 ARM processor. They use different applications and drivers and are not interchangeable.
5. Can storage be expanded?
Yes, via the TF card slot, suitable for documents, media and exported records rather than as primary system storage.
6. Does it have four USB 3.0 ports?
Yes, four USB 3.0 ports are included.
7. Does the H7S support PoE?
PoE is supported as a project-configurable option.
8. Does the H7S have a battery?
No main operating battery — it requires continuous external 12V DC power. A small onboard button-cell battery (for the real-time clock/BIOS settings) is not a substitute for main power.
9. Can it connect to an external monitor?
Yes, via a standard HDMI output.
