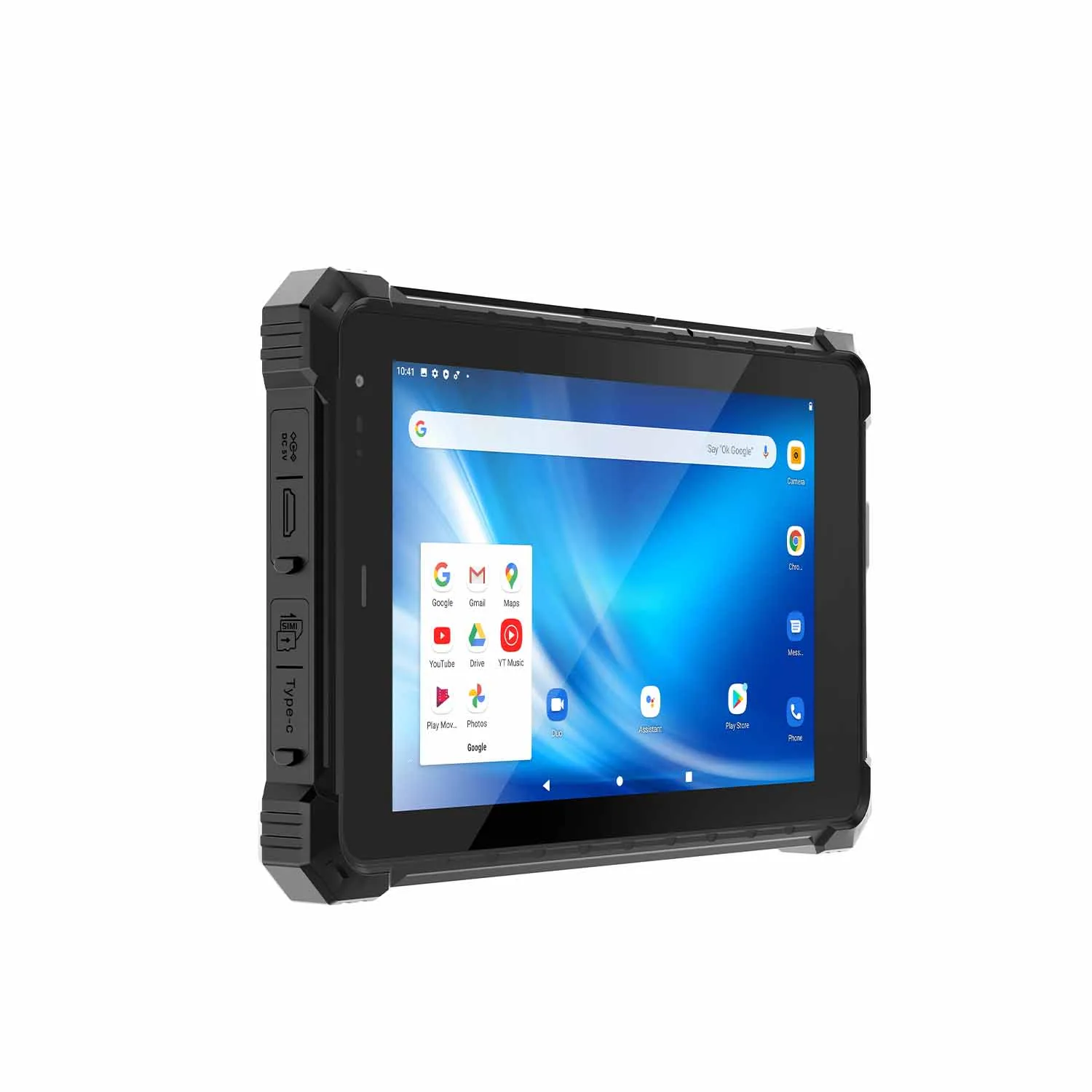

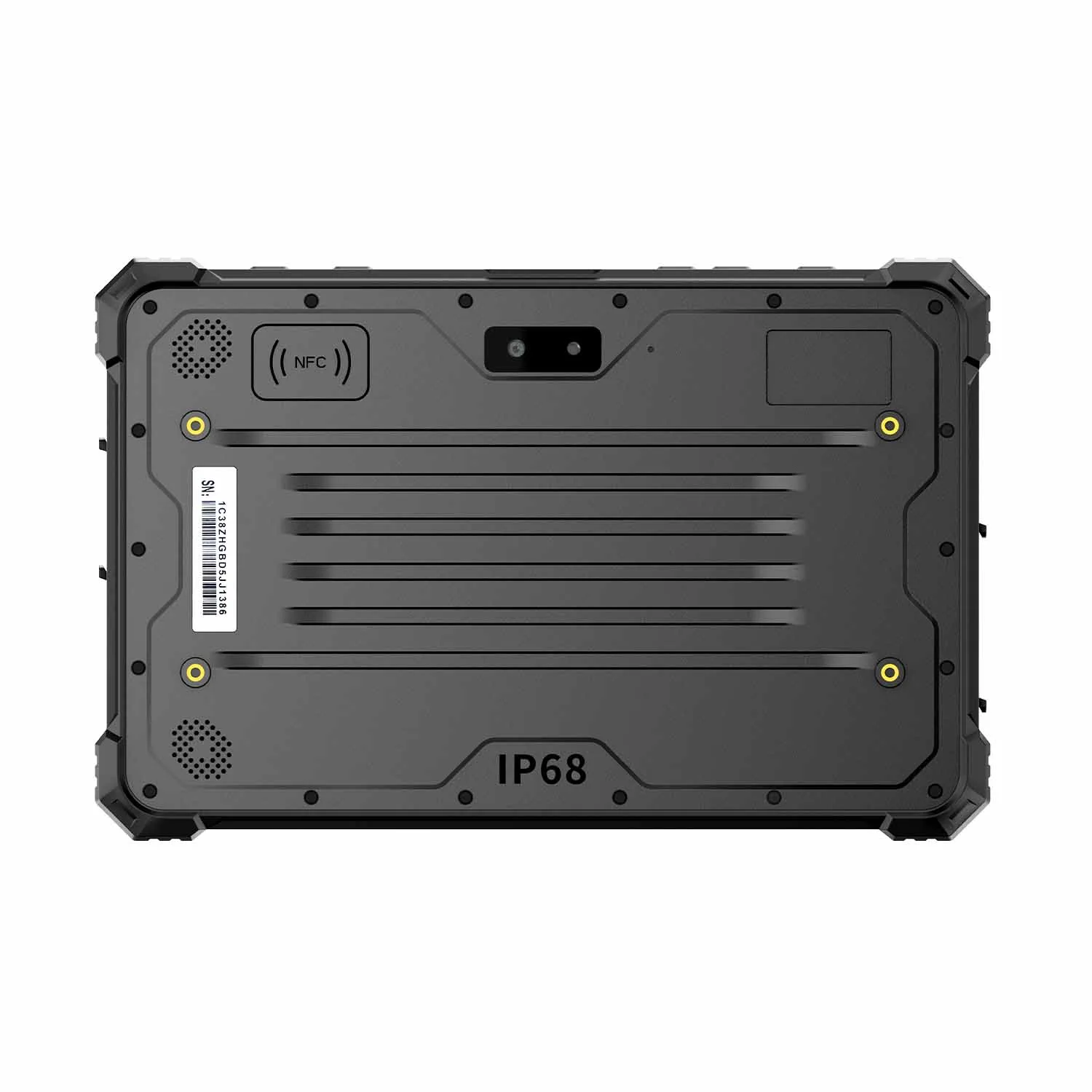

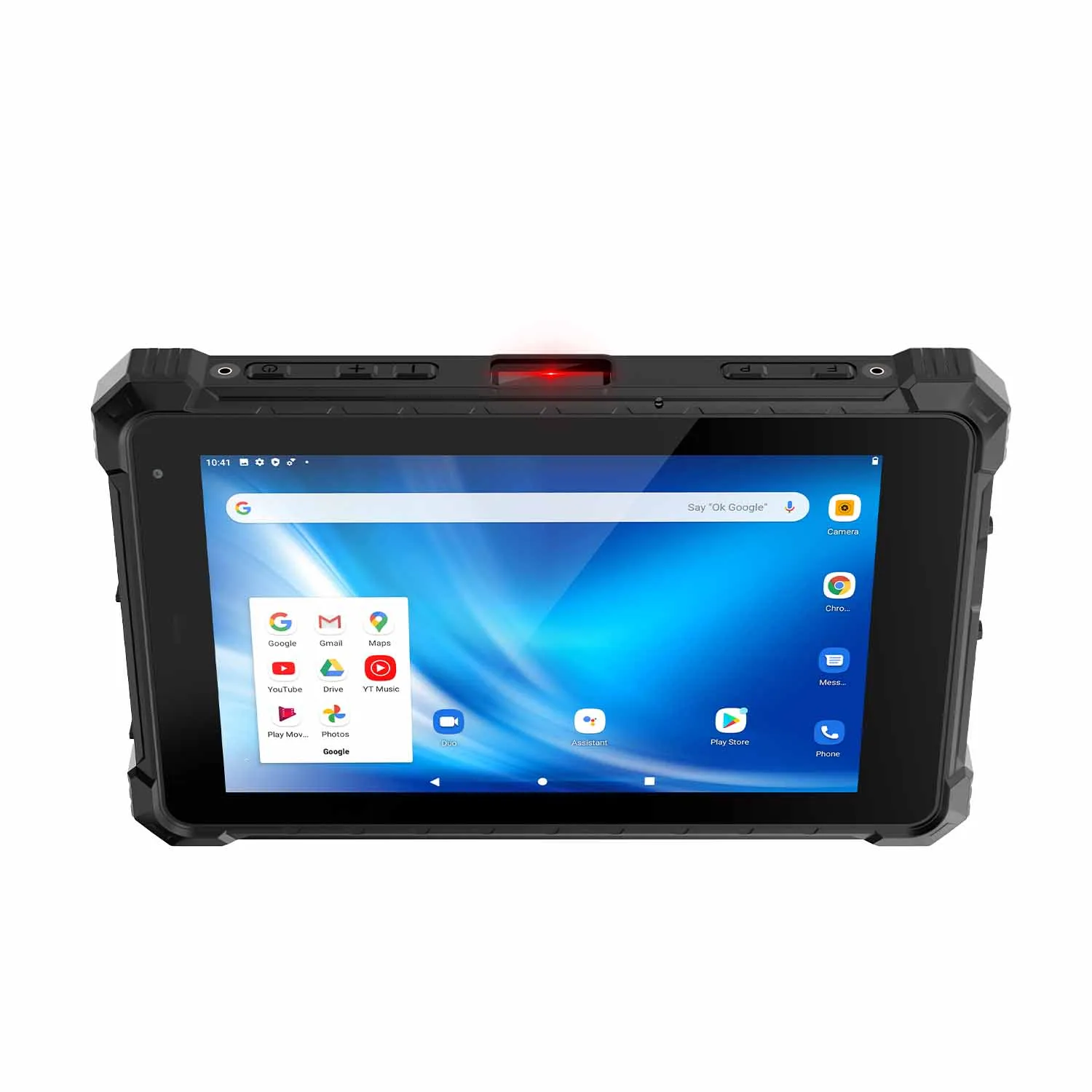

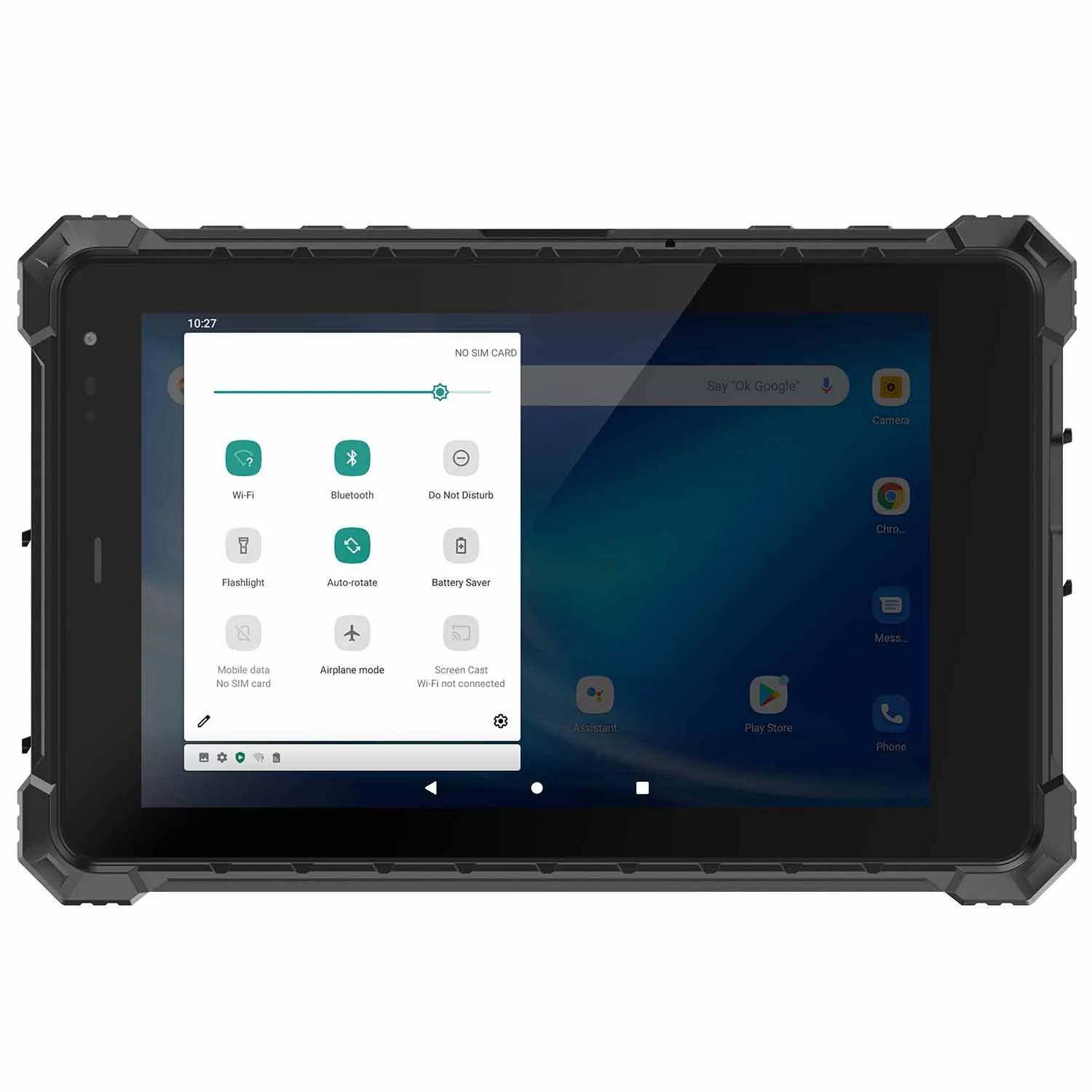

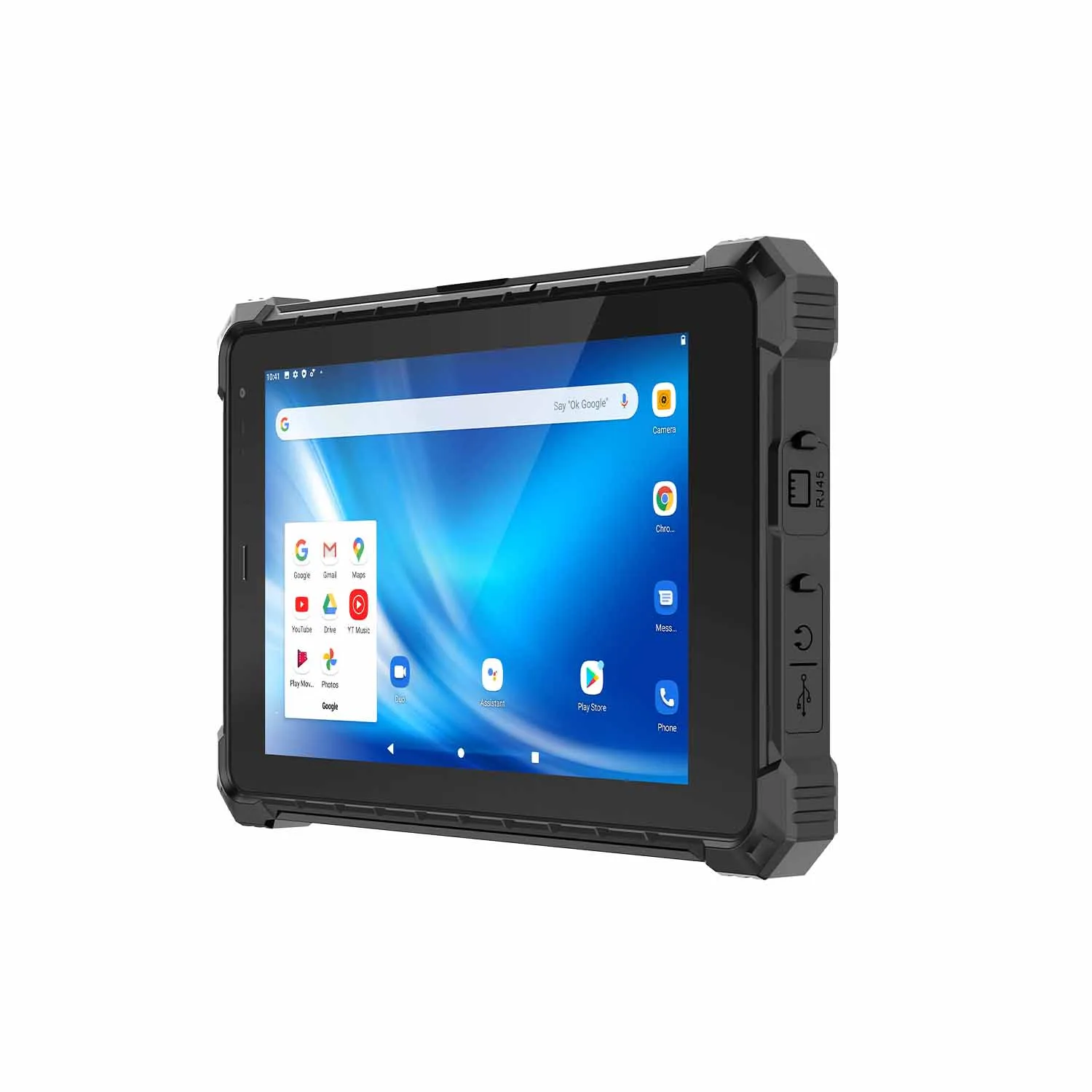

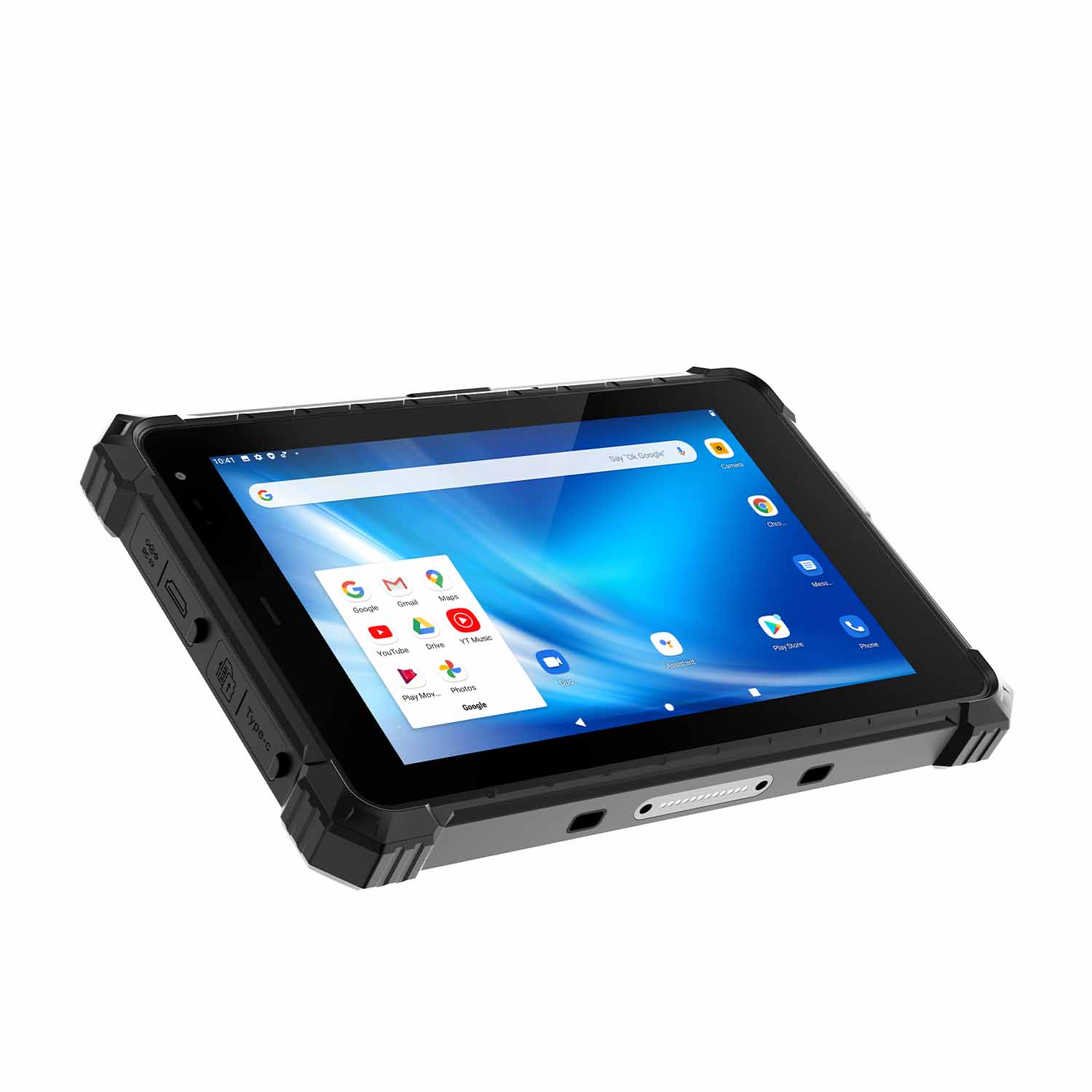

CENAVA A80ST MT6771 8 Inch Android 10 IP68 Rugged Tablet
CENAVA A80ST MT6771 is a cost-effective 8-inch rugged tablet for warehousing, logistics and fleet deployment. The fanless MT6771 octa-core runs proven Android 10, stable and easy to maintain across large rollouts. Integrated RJ45, Micro HDMI and Type-C connect plant networks directly. IP68, glove-touch display, 10000mAh battery; optional 20000mAh, 2D, UHF and more.
CPU: MediaTek MT6771 octa-core, 4×Cortex-A73 @2.0GHz + 4×Cortex-A53 @2.0GHz, fanless passive cooling
OS: Android 10
Display: 8" IPS 1280×800 (optional 1920×1200), 700cd/㎡ (customizable 1000cd/㎡), 10-point G+G glove touch, hardness ≥7H, optional wet-hand touch
RAM/ROM: 4GB+64GB / 8GB+128GB
Integrated I/O: RJ45, Micro HDMI, Type-C (USB2.0, OTG), USB-A, 3.5mm jack, DC 5V-3A, 12Pin POGO, Micro SIM, TF card (max 256GB)
Network: Dual-band WiFi 5, Bluetooth 4.2, 4G LTE
Camera: Front 8MP fixed focus (customizable 16MP), rear 16MP auto focus with flash
Battery: Built-in 10000mAh 3.8V, ≥10h endurance (optional custom 20000mAh pack)
Protection: IP68, MIL-STD-810H 1.22m drop, -20°C~60°C (custom -30°C~60°C)
Optional Modules: 2D scanner, fingerprint, ID card reader, UHF RFID, LF 125kHz, RTK cm-level positioning; NFC standard
Just Enough Performance
Budget Spent Where It Counts
MT6771 Octa-Core 4GB+64GB or 8GB+128GB
Warehouse terminals don't need surplus horsepower—they need the right amount. The MT6771 octa-core (4×Cortex-A73 @2.0GHz + 4×Cortex-A53 @2.0GHz) runs the mature Android 10, keeping WMS, inventory and barcode apps fluid. Two configurations—4GB+64GB and 8GB+128GB—let you match each post's workload instead of paying for unused compute. Dual-band WiFi 5 covers the warehouse, Bluetooth 4.2 pairs portable printers, and full-band 4G LTE keeps outdoor yards online. Mature drivers make batch imaging fast, so budgets and timelines both stay under control.
Golden Size for One Hand
Everything Clear at a Glance
8-inch IPS 700cd/m² 10-Point Touch
Eight inches is the sweet spot for handheld work: one steady grip, thumb reaching most of the panel. It ships at 1280×800 with a 1920×1200 option, rendering bin labels and pick lists crisply; 700cd/m² brightness stays readable between rack shadows and dock glare, with 1000cd/m² ultra-bright batch customization. G+G 10-point glove touch suits all work gloves, ≥7H hardness resists scratches, and wet-hand touch is optional for cold-chain condensation. An 8MP fixed-focus front camera (16MP customizable) and 16MP autofocus rear with flash nail location codes in one shot.
Roll Out by the Hundreds
Every Unit Endures
IP68 1.22m Drop -20°C~60°C Wide Temp
Batch rollouts do math on the total: one frequent repair is annoying; a hundred is a disaster. The A80ST MT6771 is built to IP68 sealing and MIL-STD-810H 1.22m drop standards, operating from -20°C to 60°C with a -30°C custom version for deep cold storage. Fanless passive cooling means no moving parts—dust cannot clog what doesn't suck air—removing a whole failure category. Seals survive salt-spray and thermal cycling, so grip feel and ingress protection stay intact after years, keeping maintenance costs predictable at scale.
Small Body, Full Ports
Dock to Charge, Grab to Work
RJ45 + HDMI + Type-C + POGO + DC

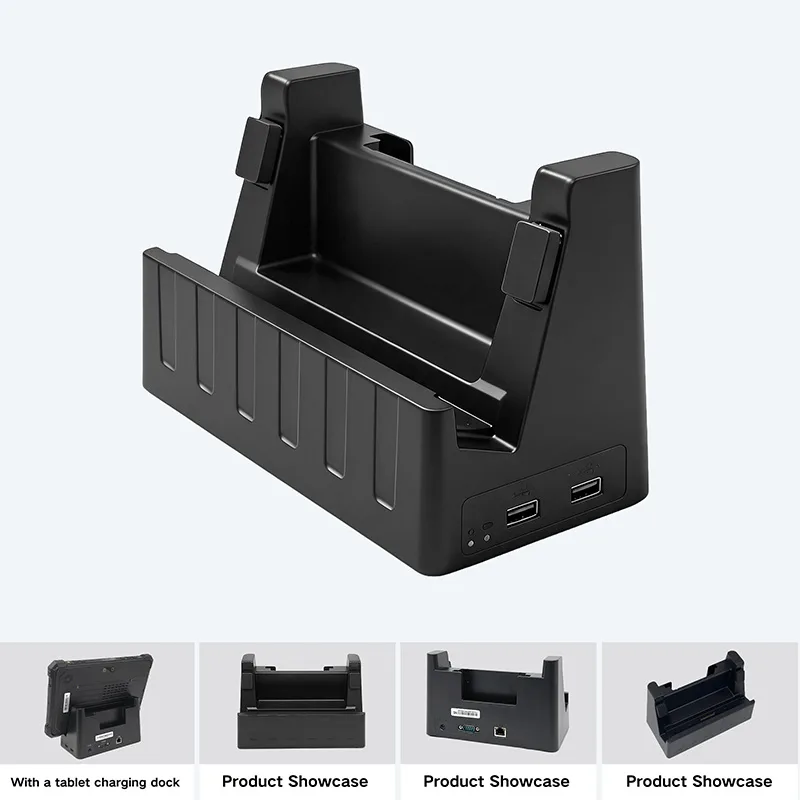

Don't let dongles become standard issue on the line. The A80ST carries RJ45 Ethernet straight to station switches, Micro HDMI to mirror dashboards on workshop screens, Type-C (USB2.0, OTG) for scanners, USB-A for flash drives, a 3.5mm jack for voice prompts, and a DC 5V-3A input for always-on fixed posts. The 12-pin POGO PIN dock charges on the shelf and releases for stocktaking; Micro SIM and TF up to 256GB expand freely. Add a 2D scanner or UHF RFID module and one terminal covers receiving, put-away and counting end to end.
Technical Specifications
 CPU MTK6771 Octa Core 2.0GHZ |  System |  Storage 4+64GB / support up to 8+128GB |  Display 8-inch IPS touch screen 1280*800 （Mass customization 1920*1200） |
 NFC Optional Default back of the body for card reading, customizable to the front |  One/Two dimensional code Optional Able to identify dirty 1/2 dimensional codes |  Cell 3.8v High voltage lithium battery10000mAh |  High frequency/ultra-high frequency module Optional Ultra thin integrated module |
 Navigation positioning GPS, Beidou, Galileo GLONASS |  ID card identification Optional |  Interface Type -A,Type -C HDMI,POGO PIN |  Weight 232.2*151.3*24.5mm/753g |
 Card slot SIM / TF （256G） |  Protection level Working temperature: -20 °C to 60°C Storage temperature:-30 °C to 70 °C |  Camera Front camera:5MP（Customizable in bulk 13MP） Rear camera:13MP（Auto focus, flash） |  Sensor Gravity sensing, compass, gyroscope, light sensing, distance sensing |
A80ST 8 Inch IP68 Rugged Tablet Details:
| Size weight | 232.2*151.3*24.5mm/753g |
| Color | Black Color can be customized |
| TP touch screen | Anti-fingerprint (AF) coating,10-point touch G+G, hardness ≥ 7H, support for medical rubber gloves touch screen (can be customised wet hand touch screen) |
| Gravity sensor | YES |
| Compass | YES |
| Gyro | YES |
| Light-sensitive | YES |
| distance sensing | YES |
| Fm Radio | YES |
| Operation System | Android 10.0 |
| WIFI | WIFI 802.11(a/b/g/n/ac) frequency 2.4G+5.8G dual-band WIFI Dual frequency WIFI |
| TYPE-C | *1 Type-C USB2.0 adapt OTG |
| Type -A | *1 Type-A USB2.0 |
| Earphone Jack | *1 3.5mmStandard headphone jack |
| TF Card | *1 Maximum support 256GB expansion |
| SIM Card | *1 Standard Micro SIM card slot |
| HDMI | *1 Micro HDMI |
| DC port | *1 5V/3A (DC plug outer diameter 3.5mm inner diameter 1.35mm) |
| POGO PIN | *1 12Pin USB+charger |
| RJ45 | *1 |
| Drop height | Meets the requirements of MIL-STD-810H for the 1.22-meter drop test |
| Certificates | IP68,CE, US military standard-810H certification, energy saving certification, ISO quality certification system, ROHS, three-proof salt spray test |

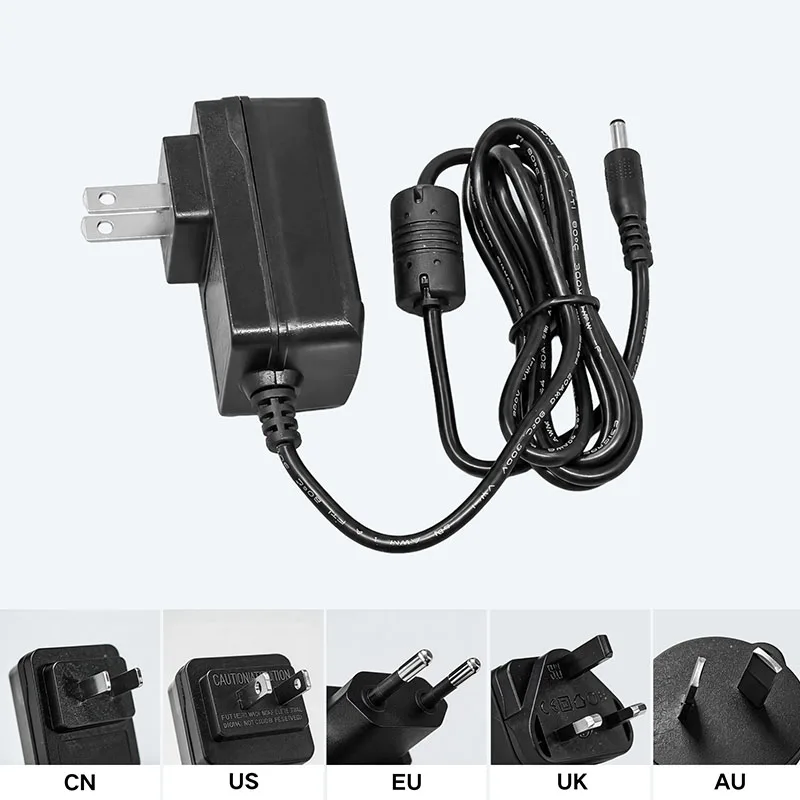

| Adapter | 5V/3A，DC interface adapter |
Frequently Asked Questions about A80ST MT6771 Rugged Tablet
1: Is the A80ST an 8-inch or a 10-inch tablet?
The A80ST is an 8-inch rugged tablet. It has an 8-inch IPS display and measures 227 × 142.4 × 22.5 mm, weighing 753 g. If you need a 10-inch device, see the A10ST or A109T.
2: How is the A80ST different from the A88ST and A80PT?
All three are 8-inch IP68 Android rugged tablets. The A80ST has the narrowest body at 142.4 mm, which makes it the easiest of the three to grip securely with one hand. Choose the A88ST if weight and camera quality matter most (610 g, 8 MP/16 MP). Choose the A80PT if you need a brighter 700 cd/m² display.
3: What is the IP rating of the A80ST?
The A80ST is rated IP68 to IEC 60529 — fully dust-tight and protected against continuous immersion. Operating temperature is −20 °C to +60 °C, storage −30 °C to +70 °C, at 5–95% RH non-condensing.
4: Is the A80ST drop-tested?
Meets the requirements of MIL-STD-810H for the 1.22-meter drop test
5: What processor and memory does the A80ST use?
The A80ST runs a MediaTek MTK6771 octa-core processor at 2.0 GHz, available in 4 GB + 64 GB (standard) or 8 GB + 128 GB (high) configurations, plus a microSD slot up to 256 GB.
6: What is the screen brightness? Can it be used in direct sunlight?
The standard A80ST display is an 8-inch IPS panel at 1280 × 800, 450 cd/m², with glove touch and wet touch support. At 450 cd/m² it is intended for indoor and shaded outdoor work. For direct sunlight, specify the 1000 cd/m² sunlight-readable option; a 1920 × 1200 panel is also available on customized orders.
7: Does the A80ST support 4G LTE?
Yes. The A80ST includes 4G LTE with a SIM slot, plus GPS, BeiDou, Galileo and GLONASS positioning — so it works as a standalone connected field terminal without tethering to a phone.
8: What data capture modules are available?
All are optional: 1D/2D barcode scanning (reads damaged and dirty codes), NFC, HF / LF / UHF RFID, ID card reader, passport reader, and fingerprint recognition. Multiple modules can be fitted in a single build. Specify which you need when requesting a quote.
9: How long does the battery last?
The A80ST carries a 10000mAh, 3.8v high voltage lithium battery, non-removable, battery life ≥10h.
10: Can the A80ST be customized? What is the MOQ?
Yes. CENAVA is a Rugged Tablet manufacturer with in-house R&D and its own molds, so the A80ST can be customized with different modules, ports, branding, and a locked-down OS image. Single-unit engineering samples are available.

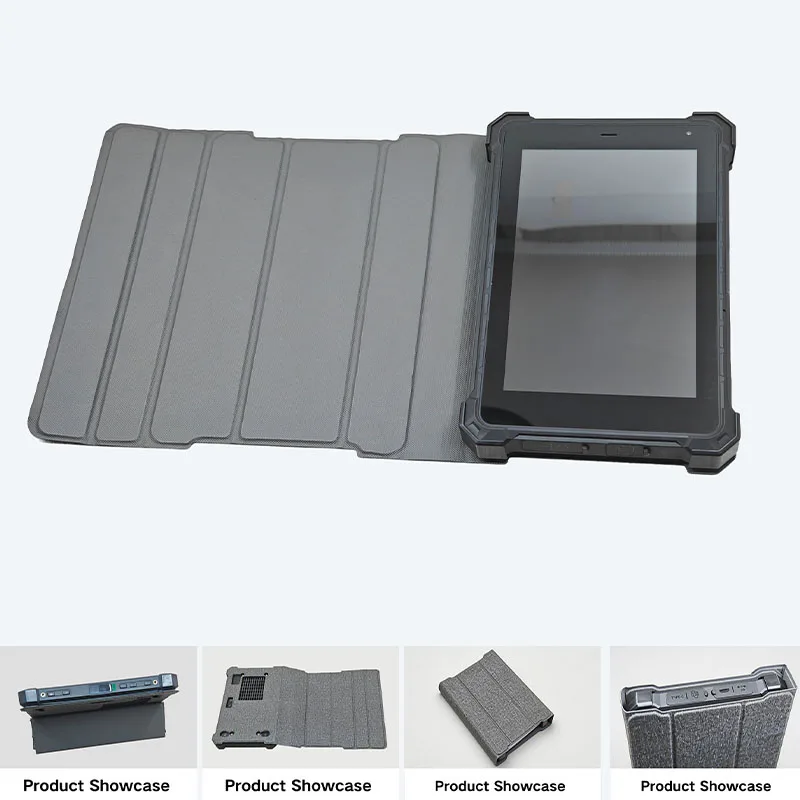

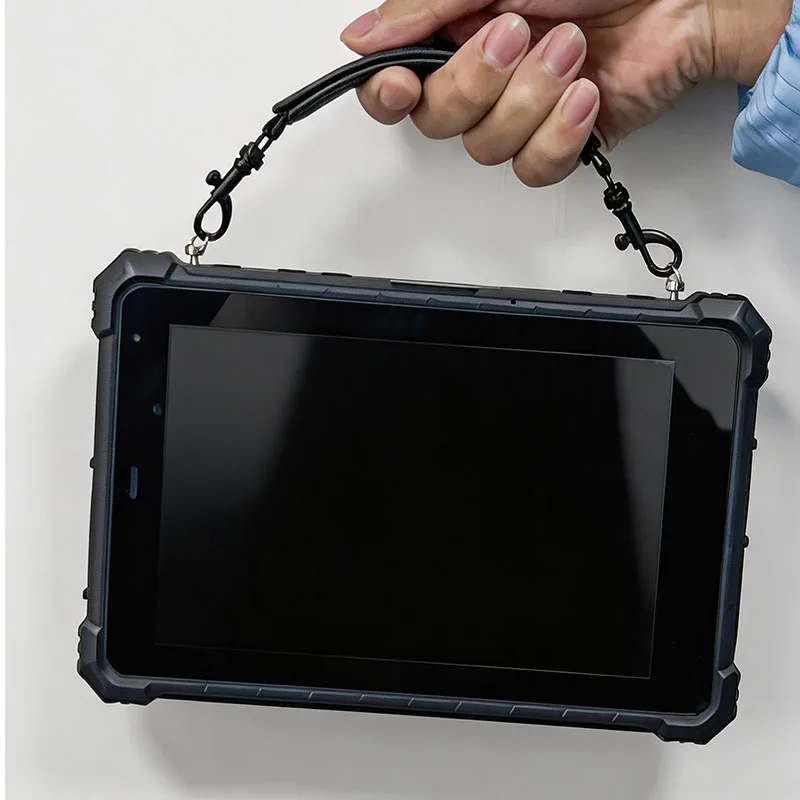

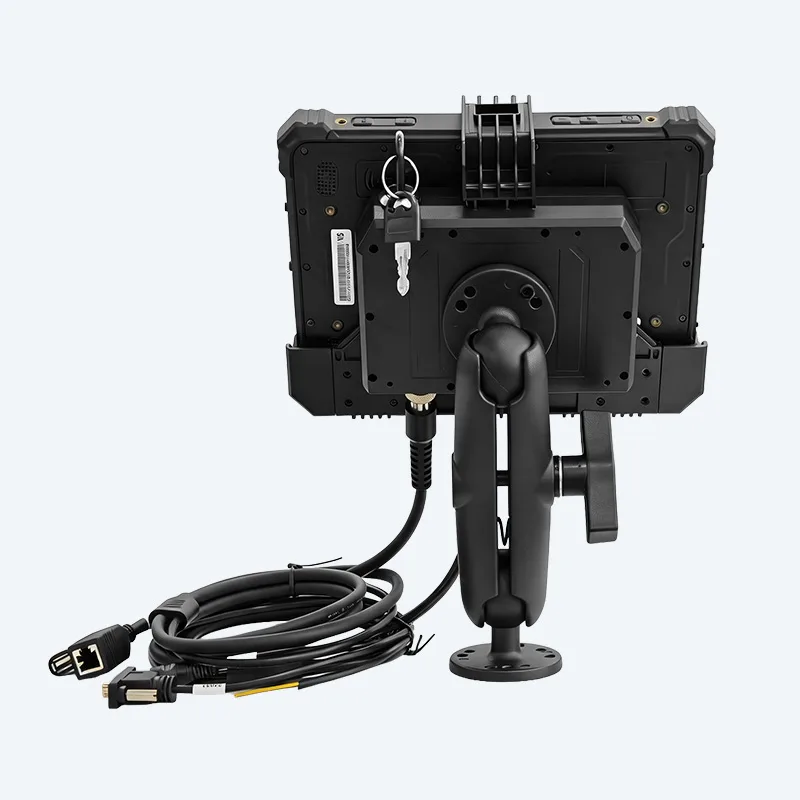

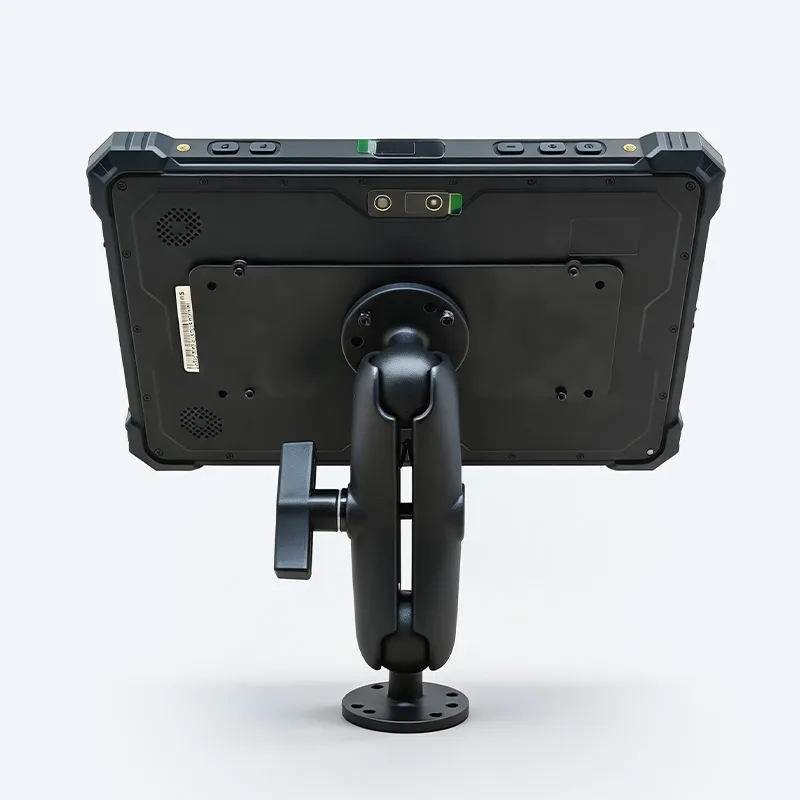

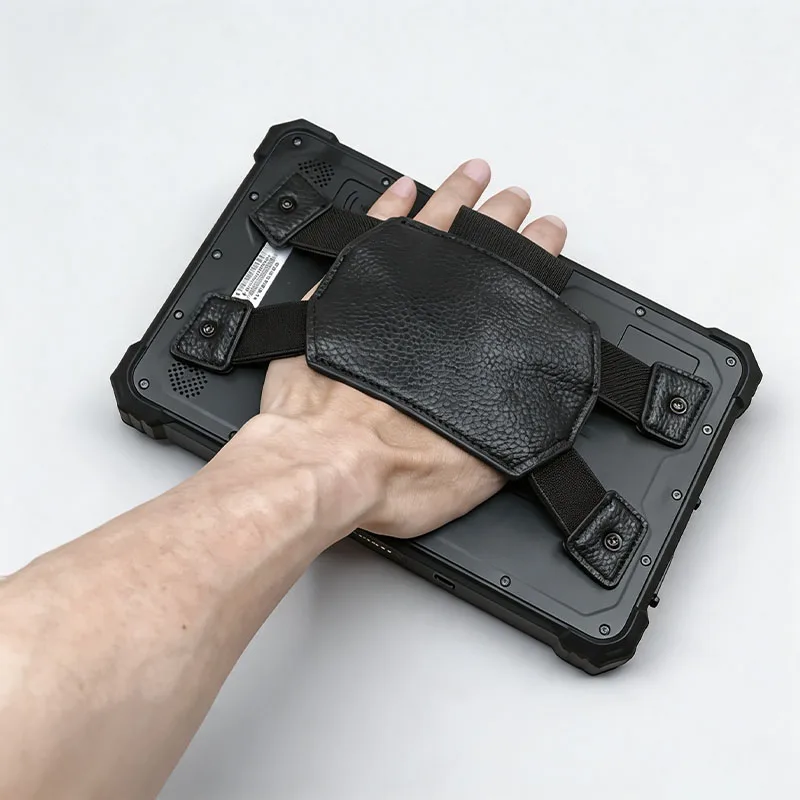

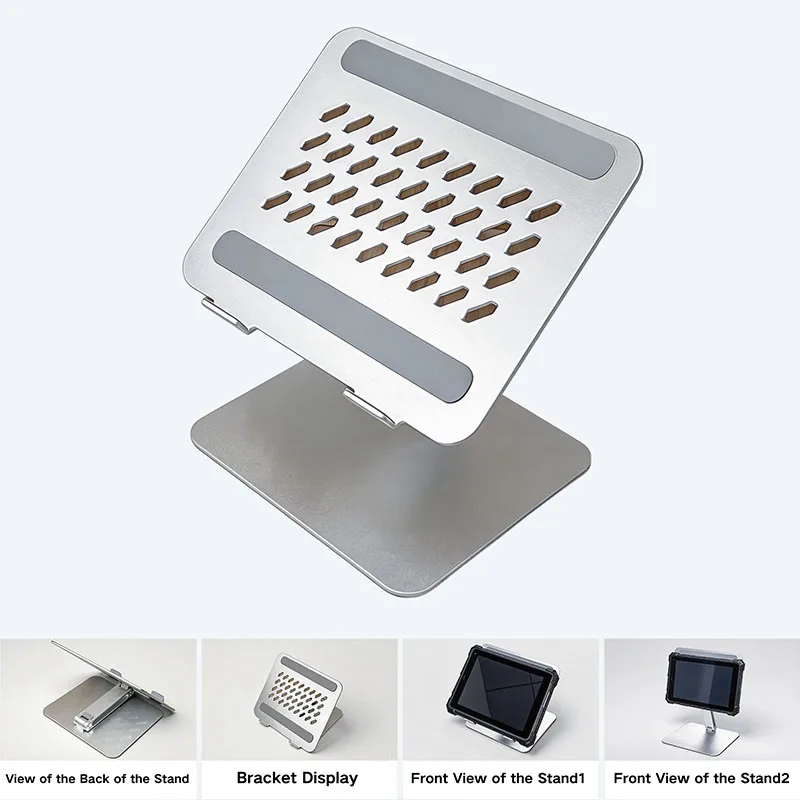

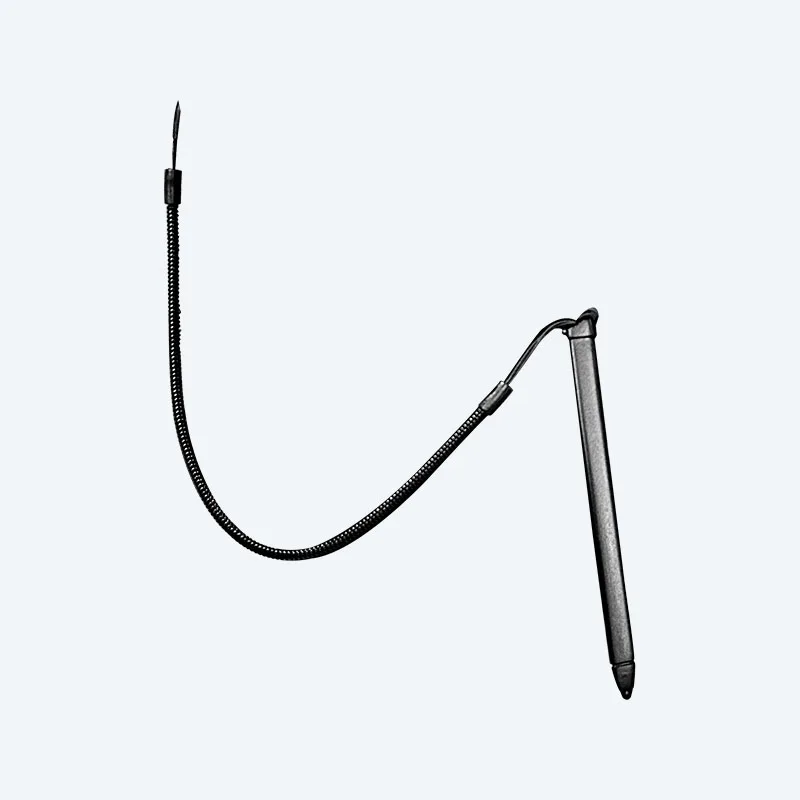

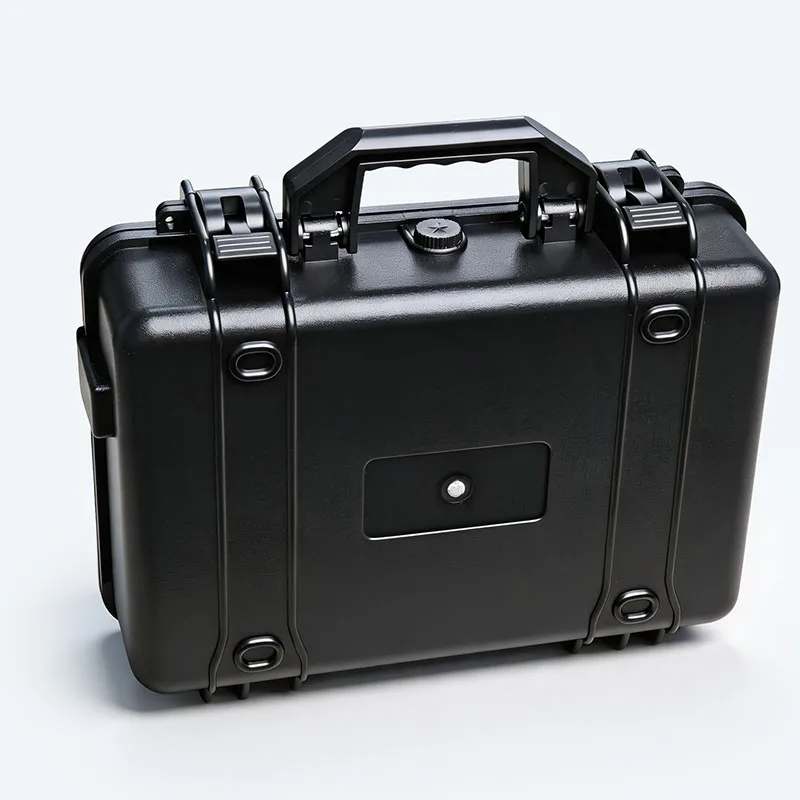

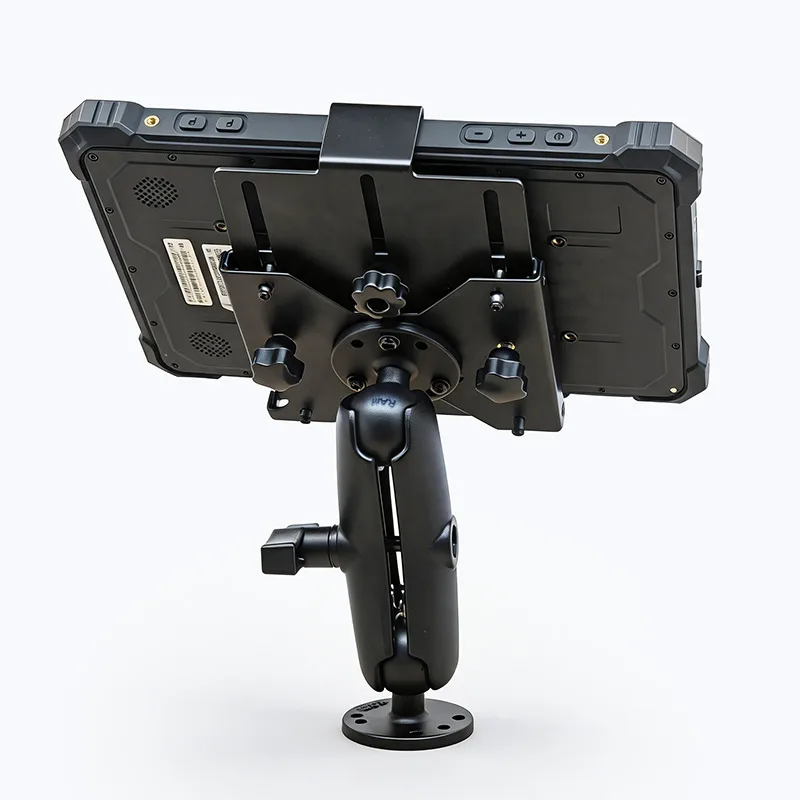

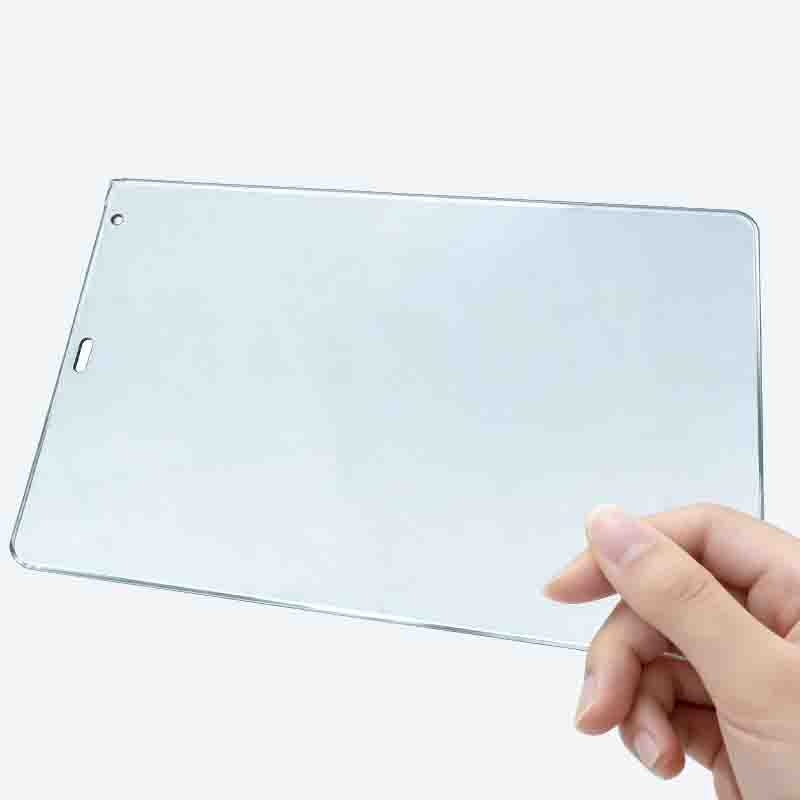

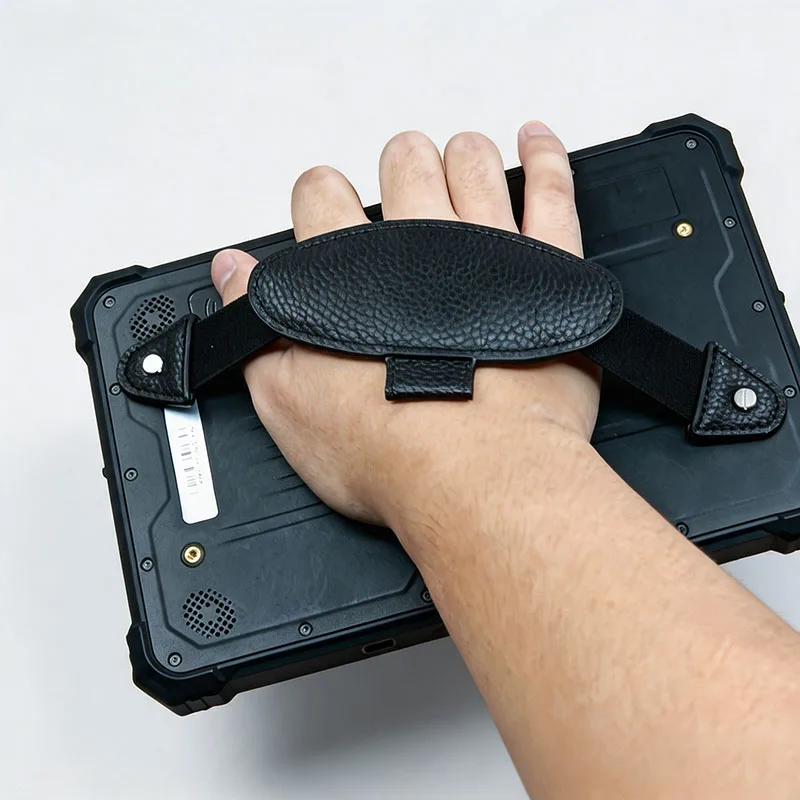

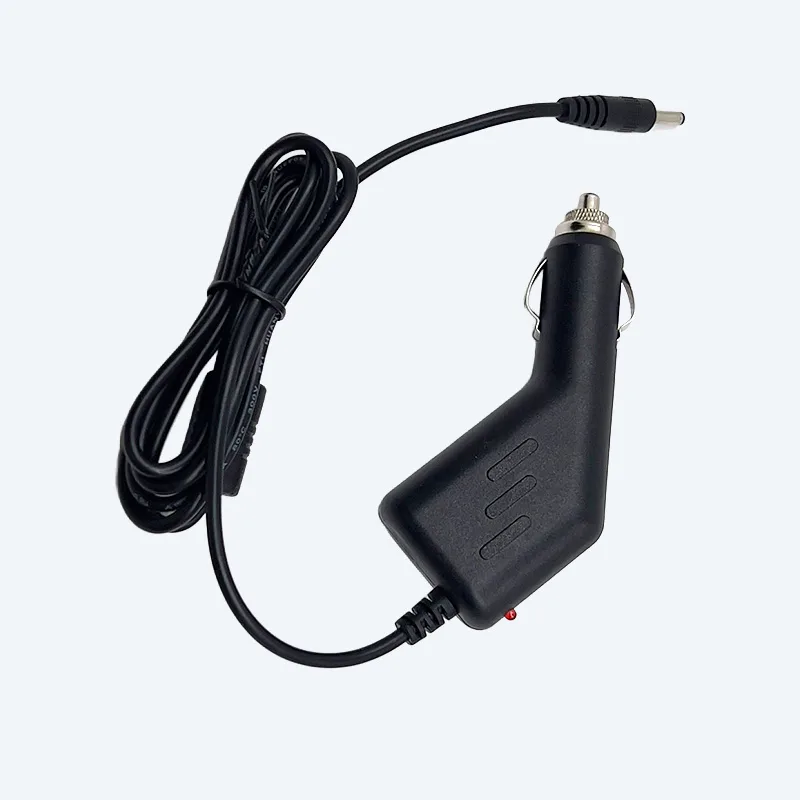

Accessories
