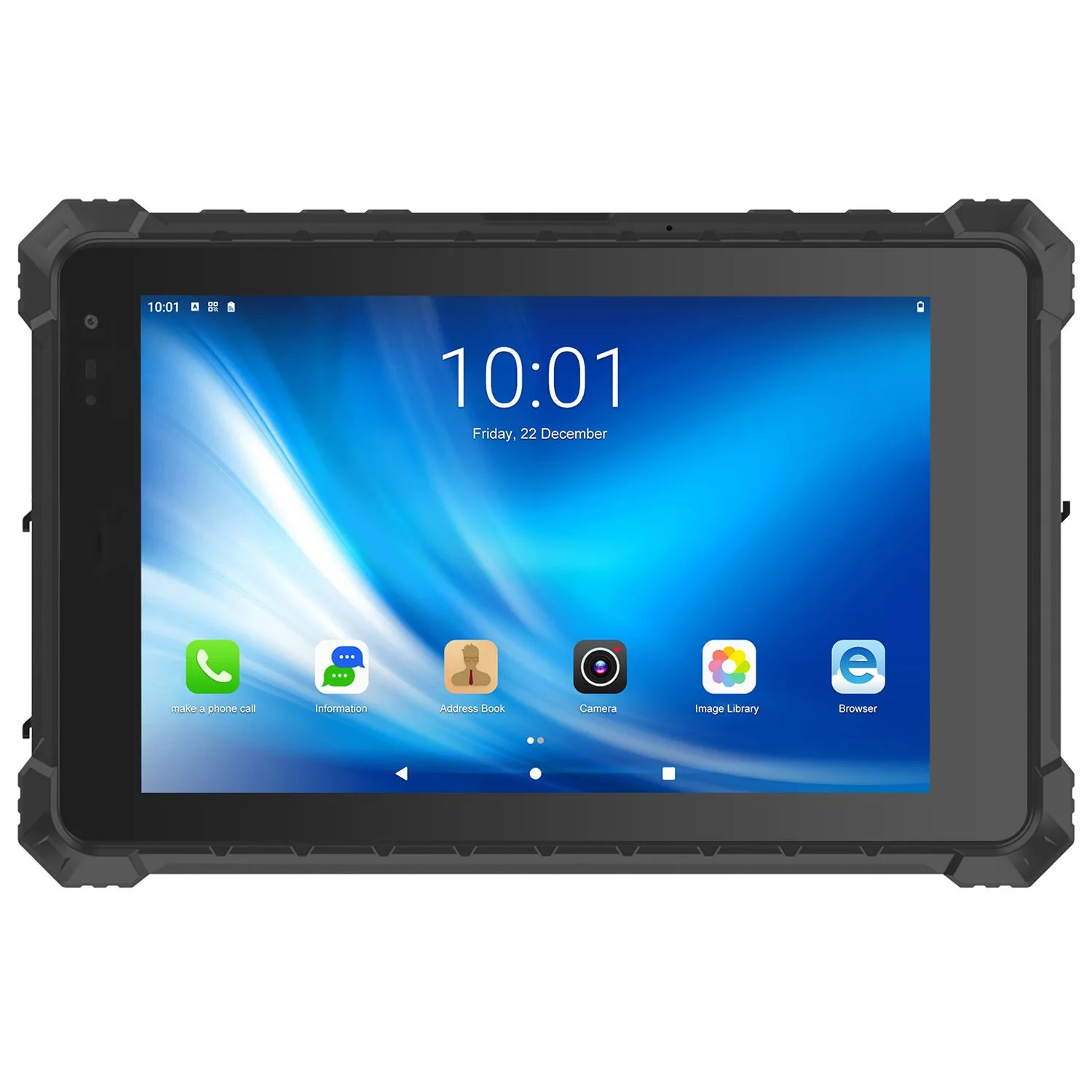

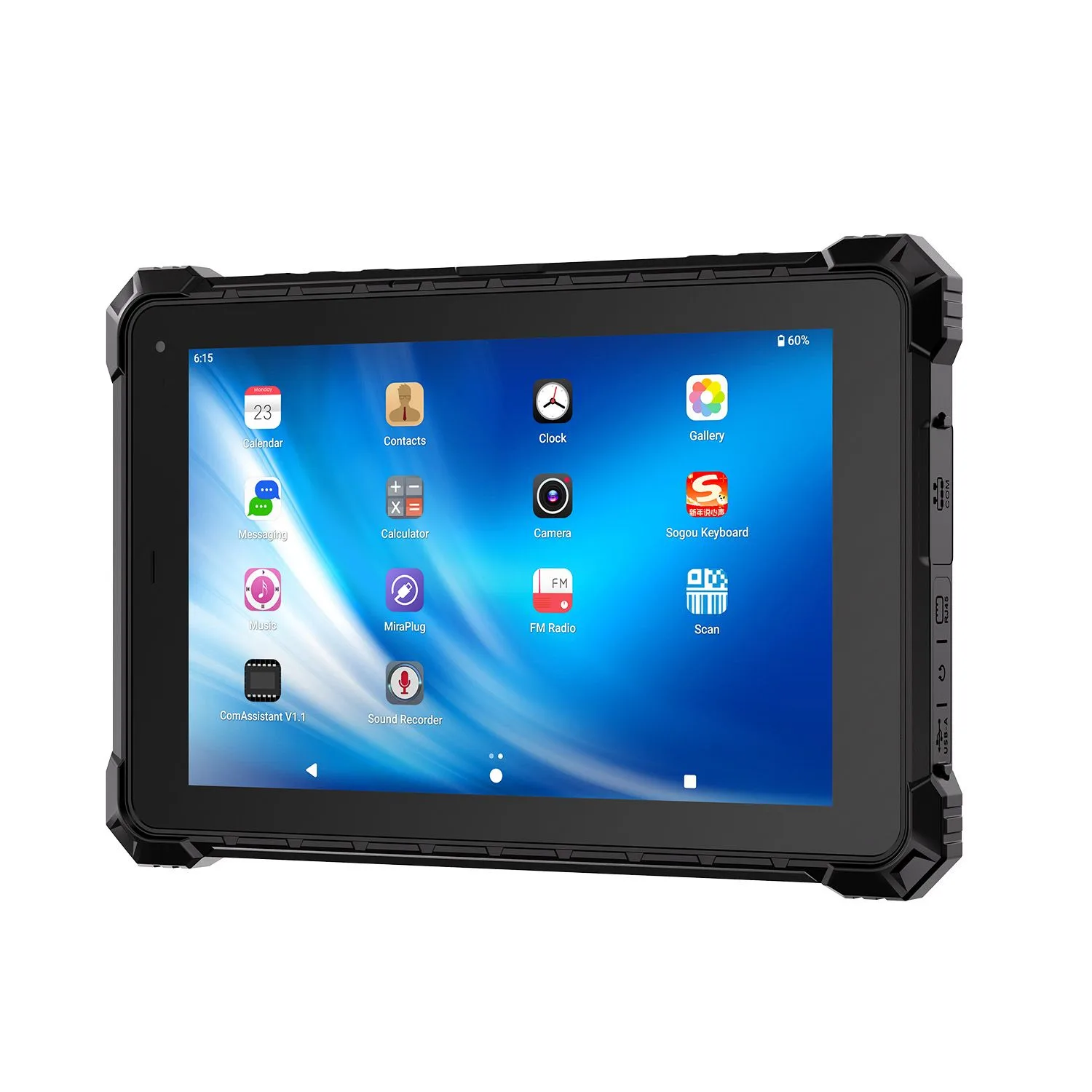

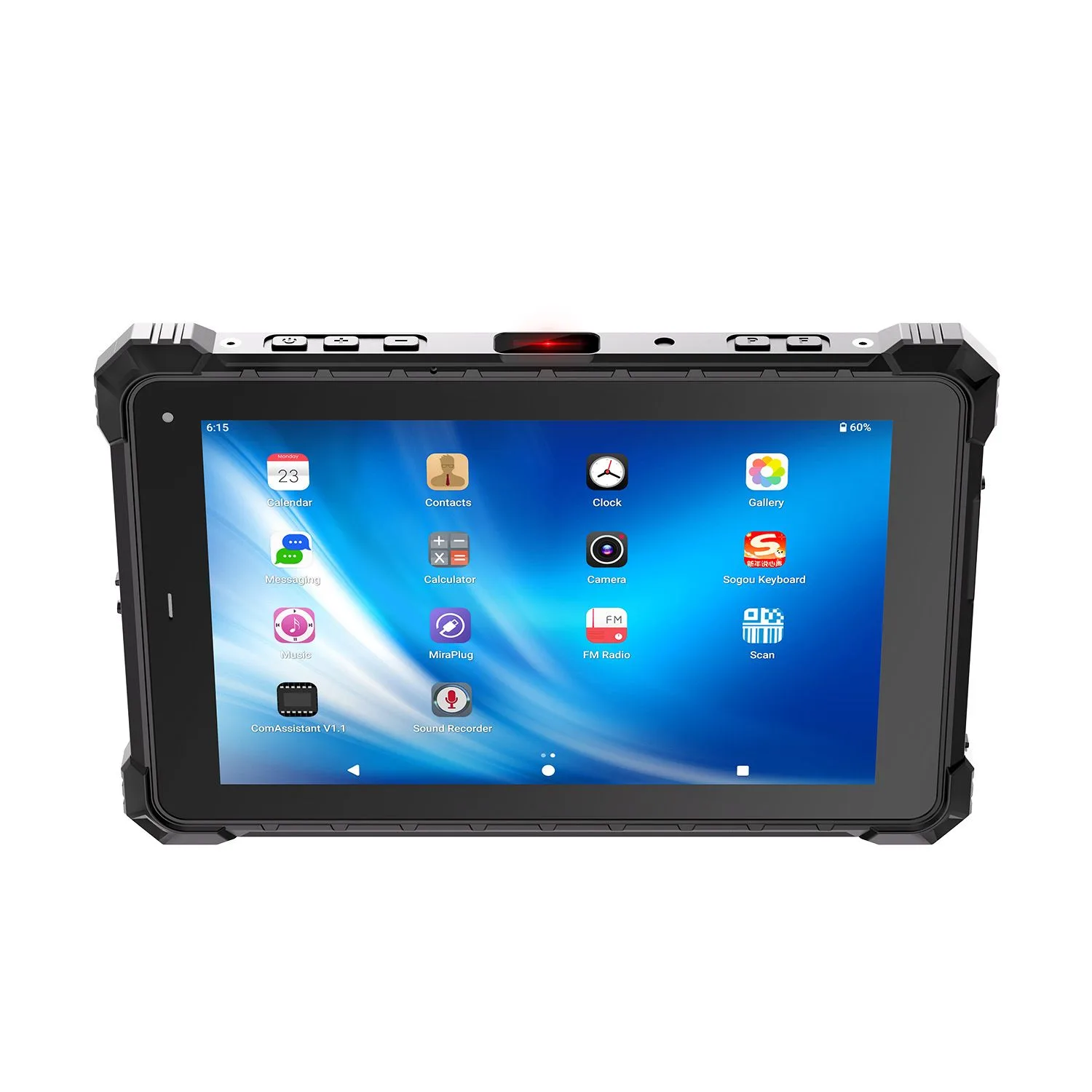

CENAVA A10R RK3588 10.1 Inch Android 12 IP68 Rugged Tablet
CENAVA A10R RK3588 is a 10.1-inch IP68 rugged tablet built for smart manufacturing and edge computing. The RK3588 octa-core runs Android 12 (optional Ubuntu) with M.2 SSD expansion, driving video analytics and multi-task MES apps smoothly. Integrated gigabit RJ45, RS232, Micro HDMI and USB 3.0. MIL-STD-810H drop rated; 5550mAh battery, glove-touch display, optional 4G/5G, 2D, RTK and more.
Rugged Protection: IP68, MIL-STD-810H 1.22m drop, -20°C~60°C (customizable -30°C~60°C)
CPU: Rockchip RK3588 octa-core, 4×Cortex-A76 @2.4GHz + 4×Cortex-A55 @1.8GHz, ARM Mali-G610 MC4 GPU
OS: Android 12 (optional Ubuntu 24.04)
Display: 10.1" IPS 1920×1200, 700cd/㎡ (customizable 1000cd/㎡), G+G 10-point glove touch, hardness ≥7H, AF coating (customizable wet-hand touch)
RAM/ROM: 8GB+128GB , onboard M.2 2280 SSD slot (up to 4TB)
Battery: 7.6V 5550mAh non-removable, ≥7h endurance (optional 10000mAh custom pack)
Integrated I/O: Gigabit RJ45, DB9 RS232, Micro HDMI, Type-C USB3.0, Type-A USB3.0, 3.5mm jack, 12Pin POGO, Micro SIM, TF up to 2TB
Network: WiFi 6, Bluetooth 5.0; optional 4G LTE / 5G; GPS/Galileo/GLONASS
Cameras: 13MP front + 13MP AF rear (batch customizable 48MP)
Optional Modules: 2D scanner, fingerprint, ID card reader, UHF RFID, LF 125kHz, RTK cm-level positioning; NFC standard
OCTA-CORE POWER
ANDROID 12 SMOOTH
RK3588 Octa-Core 8GB/16GB Options Optional 4G/5G
Powered by the RK3588 octa-core processor (4×A76@2.4GHz + 4×A55@1.8GHz) with the Android 12 industrial OS,
multitasking runs smoothly without lag. The 10.1-inch display provides ample workspace for multi-window dispatching
and data visualization. Standard 8GB+128GB with a reserved M.2 2280 SSD slot, optional 16GB+256GB high-end version,
easily handling video backhaul and cloud collaboration. Optional 4G global bands, 5G batch customization, and WiFi6
high-speed wireless keep you connected anywhere. Optional multi-OS support includes Ubuntu and Debian, flexibly
adapting to diverse industry software ecosystems.
HARSH CONDITIONS NO FEAR
IP68 Optional Ex Version 1.22m Drop -20°C~60°C
IP68 dust-tight and waterproof, surviving 1.22m drops. Optional Ex Class II petrochemical explosion-proof version for compliant use in petrochemical plants and oil-gas pipelines. Operating range -20°C to 60°C ensures reliable startup in extreme weather, with optional -30°C low-temperature customization for extreme cold. Certification upgrades available: KA Class I mining safety and MA Class I coal safety versions for underground mining access. The rugged industrial chassis with reinforced corners and sealed gaskets keeps out sand and dust, providing a stable, fatigue-free grip.

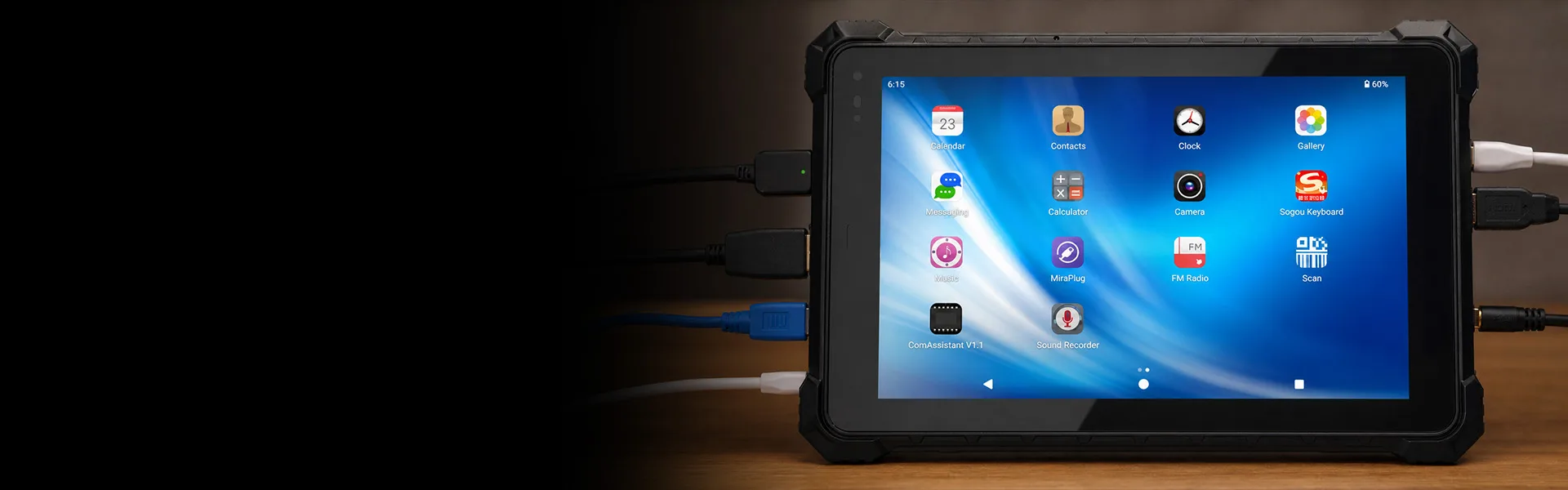

INDUSTRIAL FULL INTERFACE
Type-C+HDMI+RS232+RJ45 Gigabit+POGO
Full industrial interface configuration: Type-C USB3.0 high-speed data transfer; USB-A connects flash drives and keyboards; Micro HDMI extends to large screens; RS232 serial port interfaces with industrial control equipment; RJ45 Gigabit Ethernet connects directly to PLCs and switches; 12-pin POGO PIN dock enables charging and expansion; 3.5mm headphone jack supports voice intercom. A reserved M.2 2280 SSD slot supports up to 4TB expansion. Ergonomic layout keeps ports clear in one-handed use, with dust plugs blocking dust and moisture. Paired with optional 2D scanning and fingerprint modules, it forms an integrated data collection and device control terminal.
HIGH-RES BRIGHT DISPLAY
OUTDOOR STRONG VISIBILITY
10.1-inch IPS 700cd/m² Glove Touch Wet-Hand Customizable
The 10.1-inch IPS panel delivers crisp 1920×1200 resolution, with 700cd/m² brightness remaining clearly readable under direct sunlight. Rubber-glove touch is supported for precise operation, and wet-hand touch can be customized on demand for rainy-day work. G+G construction with AF anti-fingerprint coating, hardness ≥7H, scratch-resistant for long-term use. Brightness customizable to 1000cd/m² ultra-bright for extreme glare, with standard-resolution versions flexibly selectable to fit different environments and budgets.
Technical Specifications
 CPU RK3588 Octa Core 64-bit |  System |  Storage 8+128GB |  Display 10-inch IPS touch screen 1920*1200 700cd/㎡（customization 1000cd/㎡） |
 NFC Optional Default back of the body for card reading, customizable to the front |  One/Two dimensional code Optional Able to identify dirty 1/2 dimensional codes |  Battery 7.6V 5550mAh non-removable |  High frequency/ultra-high frequency module Optional Ultra thin integrated module |
 Navigation positioning GPS, Galileo GLONASS |  ID card identification Optional |  Interface Type -A、Type -C HDMI、POGO PIN |  Weight |
 Card slot SIM / TF （256G） |  Protection level Working temperature: -20 °C to 60°C Storage temperature:-30 °C to 70 °C |  Camera Front camera:13MP Rear camera:13MP |  Sensor Gravity sensing, compass, gyroscope, light sensing, distance sensing |
A10R RK3588 Android Rugged Tablet Details:
| Color | Black Color Customizable |
| Tp touch screen | Anti-fingerprint (AF) coating,10-point touch G+G, hardness ≥ 7H, support for medical rubber gloves touch screen (can be customised wet hand touch screen) |
| Buttons | Power button*1 Volume keys*2, Vol+, Vol- Customized keys*2, P key, F key |
| Gyroscope | YES |
| Gravity sensor | YES |
| WIFI | WIFI 802.11(a/b/g/n/ac/ax) frequency WIFI6 |
| BLE | Bluetooth 5.0 transmission distance: 10m |
| Positioning system | GPS, Galileo, GLONASS |
| LF（custom function） | Support 125kHz distance：1-3cm |
| TYPE-C | *1 Type-C USB3.0 (supports data transmission) |
| Type -A | *1 Type-A USB3.0 |
| DB9 | *1 RS232 |
| Earphone Jack | *1 3.5mm standard headphone jack |
| TF Card | *1 supports up to 2TB expansion |
| SIM Card | *1 standard Micro SIM card slot |
| HDMI | *1 Micro HDMI |
| DC | *1 12V-4A (DC plug outer diameter 3.5mm, inner diameter 1.35mm) |
| RJ45 | *1 100/1000M |
| POGO PIN | *1 12Pin USB+ charging |
| Drop height | Meets the requirements of (GJB 150.18A-2009, GJB 150.1A-2009) and (MIL-STD-810H) for the 1.22-meter drop test |
| Certificates | IP68, CE, US military standard-810H certification, energy-saving certification, ISO quality certification system, ROHS, three-proof salt spray test |

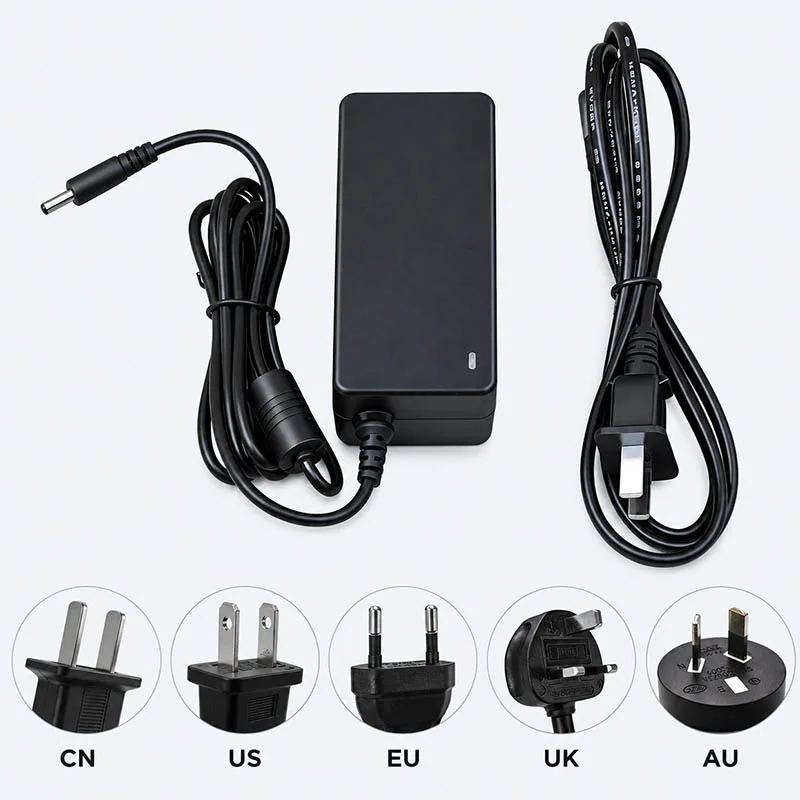

| Adaptor | 5V/3A DC interface adapter |

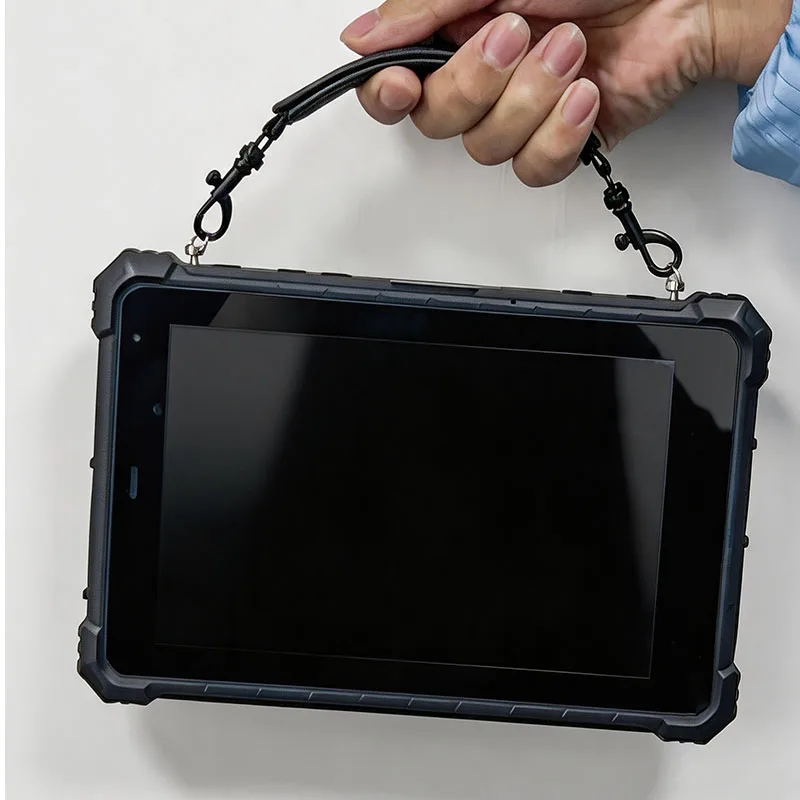

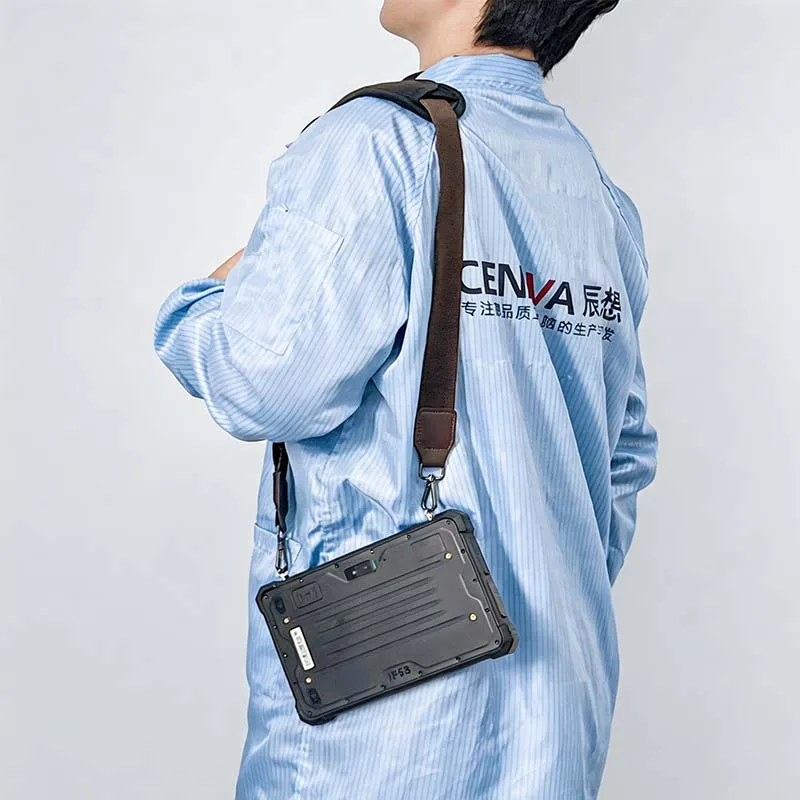

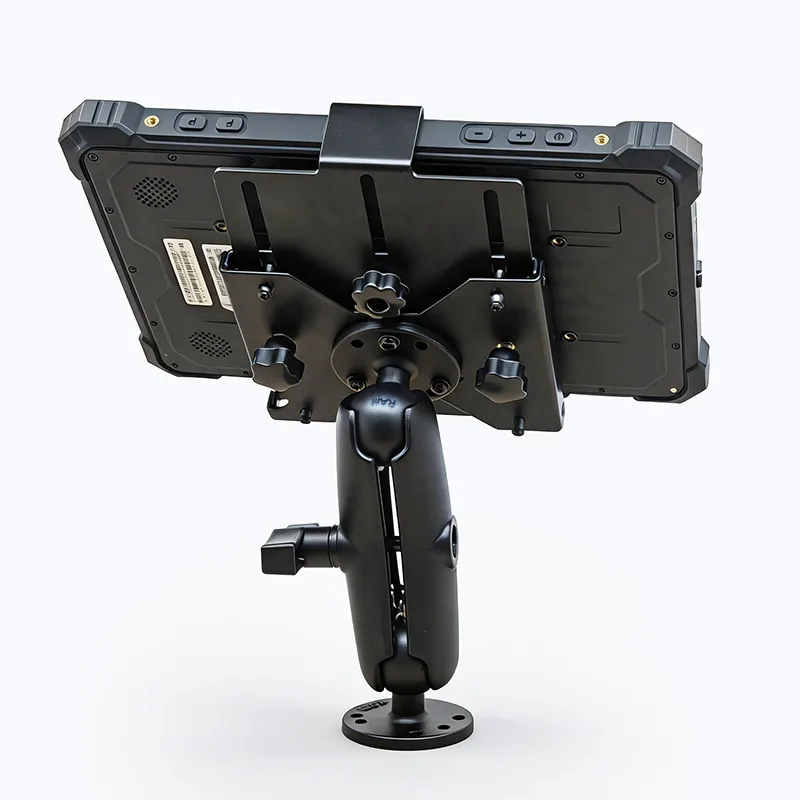

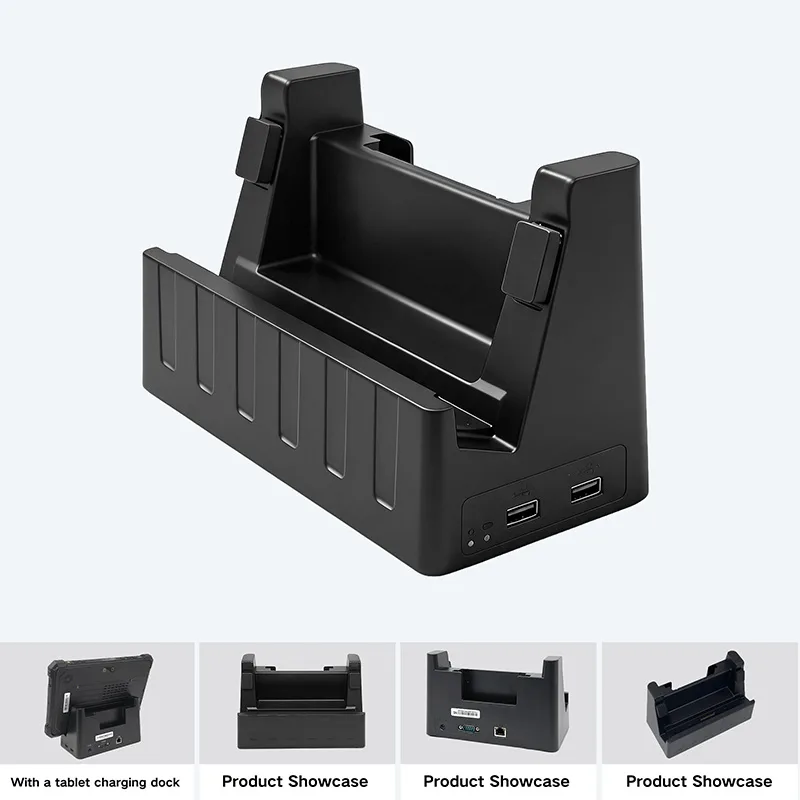

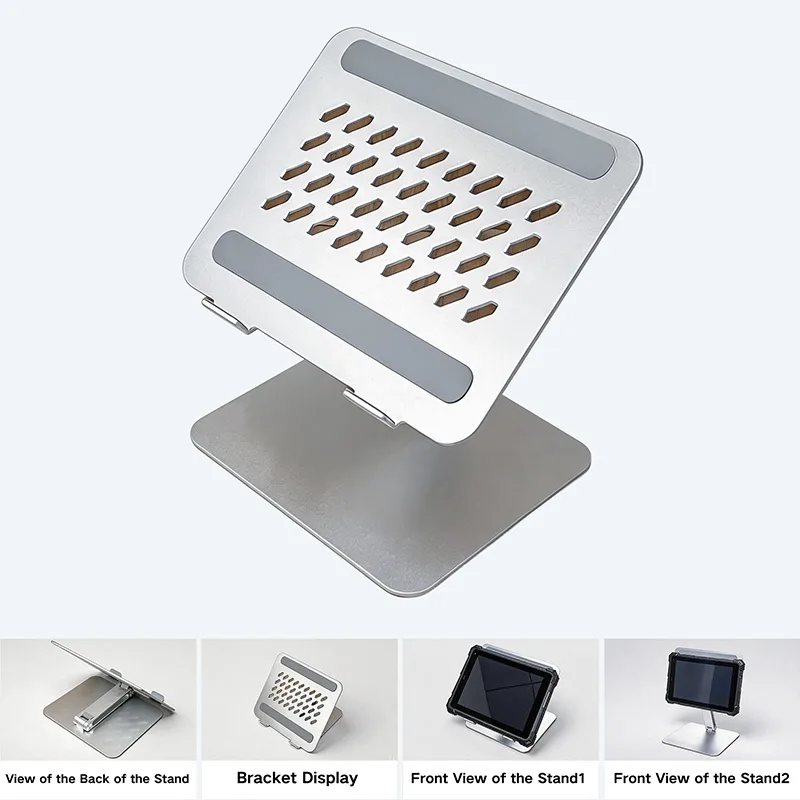

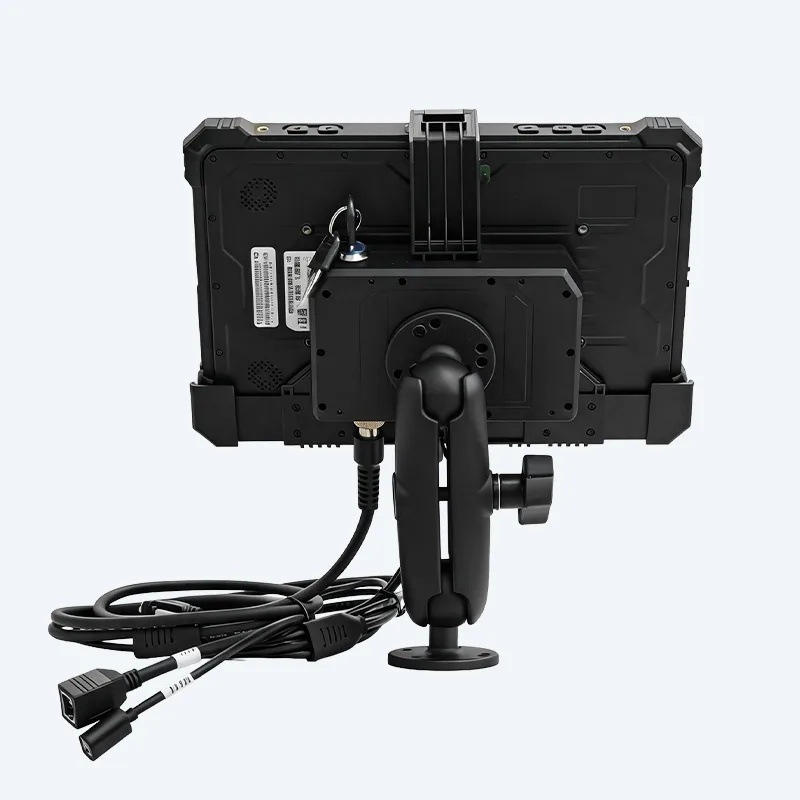

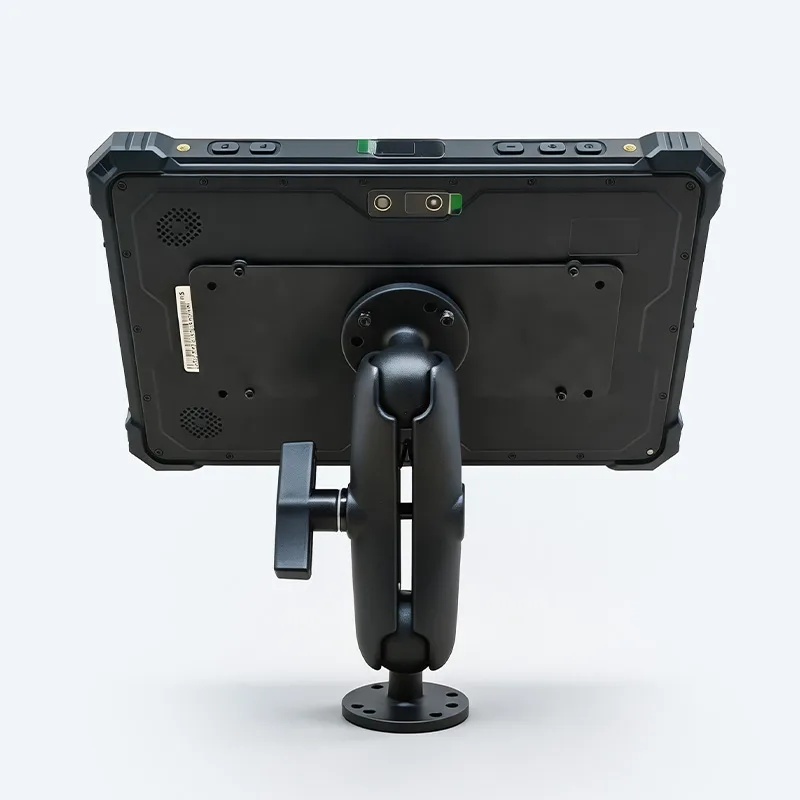

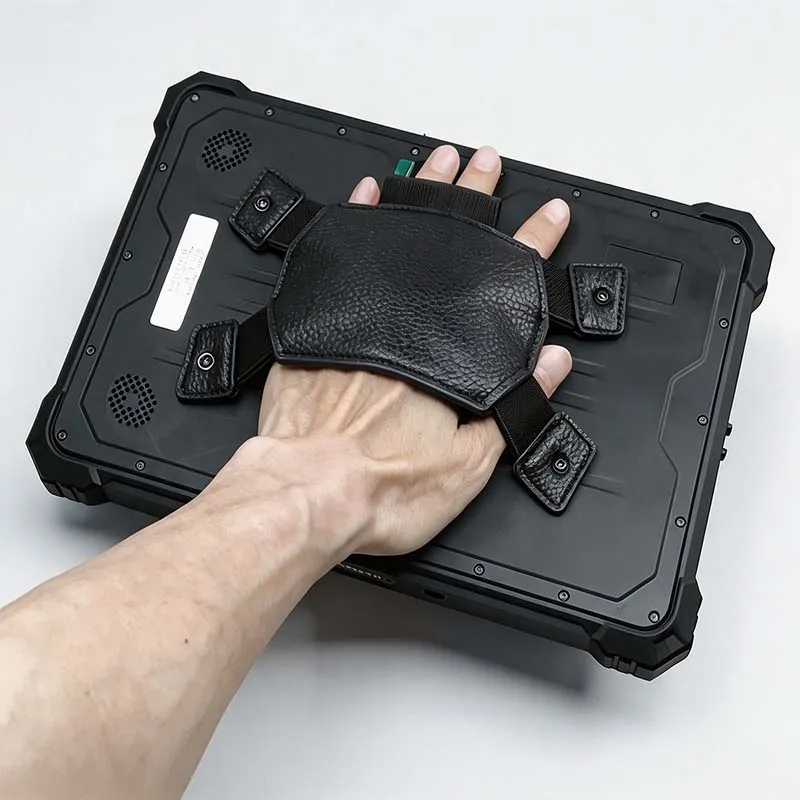

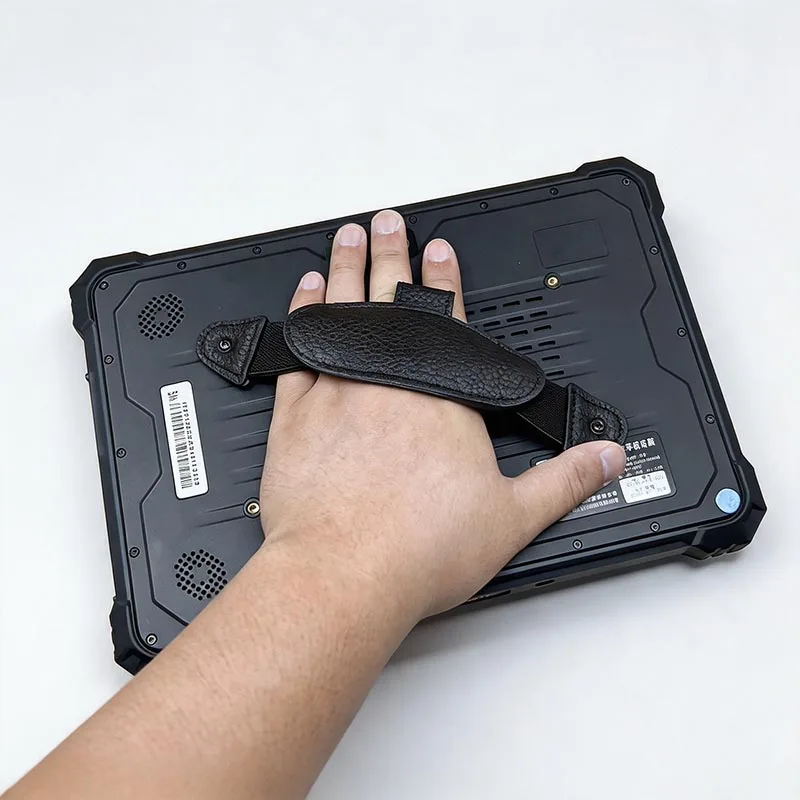

| Option accessories | Strap/charging base/stand |
The standard A10R RK3568 is not certified for hazardous areas. For hazardous-location deployment, see the separately certified A10R-EX model and verify the certificate scope before ordering.
Frequently Asked Questions about A10R Android Rugged Tablet
1: What processor does the CENAVA A10R use?
The A10R runs a Rockchip RK3588 octa-core 64-bit processor with a maximum clock speed of 2.4 GHz. It ships with 8GB RAM + 128 GB storage.
2: What is the IP rating of the A10R? Is it waterproof?
The A10R is rated IP68 to IEC 60529 — fully dust-tight and protected against continuous immersion. It operates from −20 °C to +60 °C and can be stored from −30 °C to +70 °C, at 5–95% relative humidity (non-condensing).
3: Is the A10R drop-tested? What is the drop height?
Meets the requirements of (MIL-STD-810H) for the 1.22-meter drop test
4: Can the A10R screen be used with gloves or in the rain?
Yes. The A10R's 10-inch 1920×1200 IPS display supports both glove touch and wet touch, so it stays usable with work gloves on and in rain or wash-down conditions. Standard brightness is 700 cd/m², with a 1000 cd/m² sunlight-readable option available for outdoor use.
5: Does the A10R have a barcode scanner?
A 1D/2D barcode scanning module is optional on the A10R and can read damaged or dirty codes. Also available as options: NFC (rear by default, front-mounted on request), HF / LF / UHF RFID, ID card reader, and fingerprint recognition. Specify the modules you need when you request a quote.
6: How long does the A10R battery last, and can it be replaced?
The A10R carries 7.6V 5550mAh high-voltage lithium battery, non-removable, battery life ≥7h (Play 1080P HD video, 50% brightness and 50% sound) Supports custom large battery (10000mAh/7.6V,Overall thickness: Approximately 27.04mm)
7: Which Android version does the A10R run, and how long will it get security updates?
The A10R ships with Android 12.
8: What ports does the A10R have?
The A10R includes USB Type-A, USB Type-C, HDMI, and POGO pin connectors, plus SIM and TF card slots (up to 256 GB).
9: Can I customize the A10R? What is the MOQ and lead time?
Yes. CENAVA is a Shenzhen manufacturer with in-house R&D and its own molds, so the A10R can be customized with different modules, ports, branding, and a locked-down OS image. Single-unit engineering samples are available.
