Rugged Computing Products
Rugged tablets, laptops, handhelds, and industrial PCs—built for demanding
environments and backed by 23 years of OEM/ODM expertise.

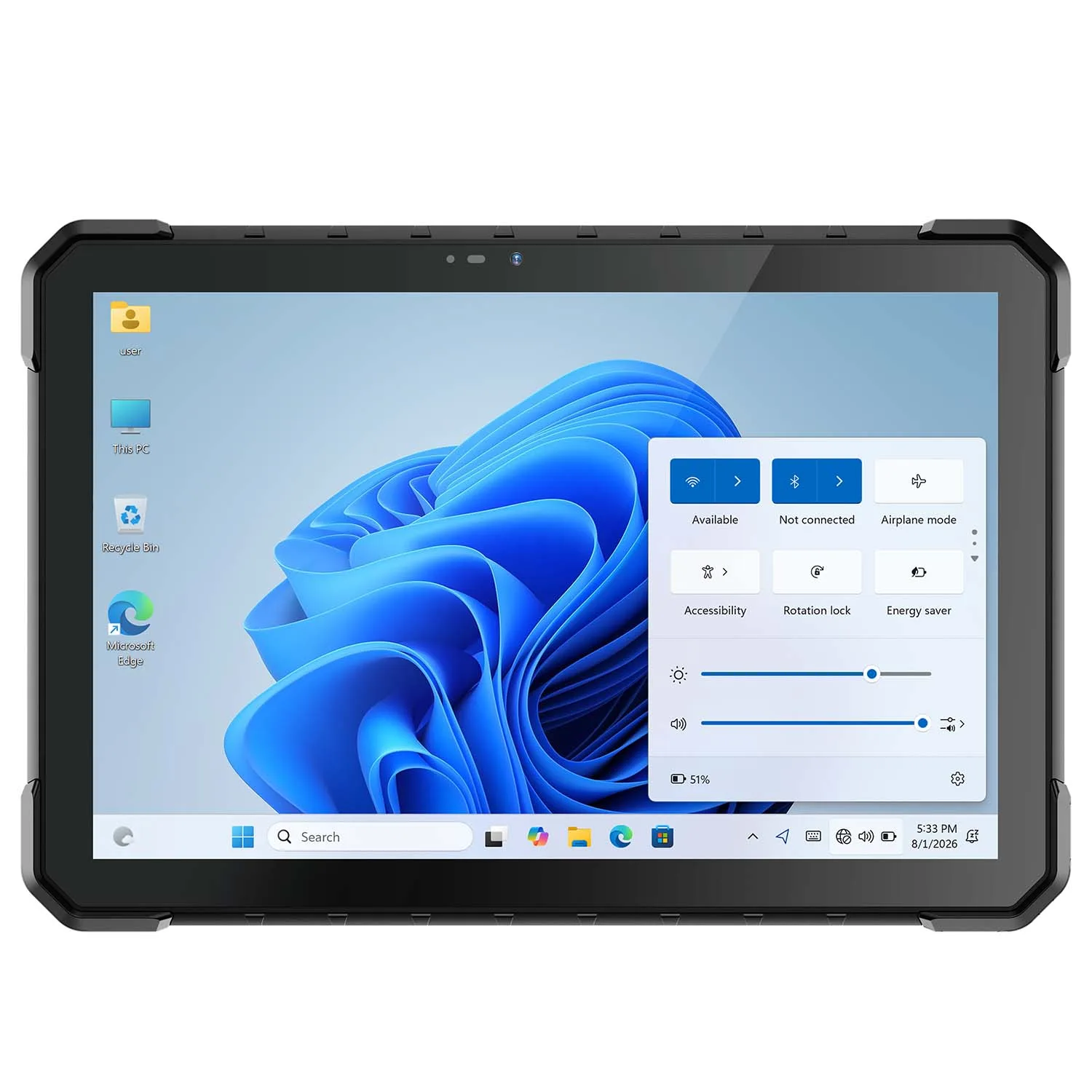

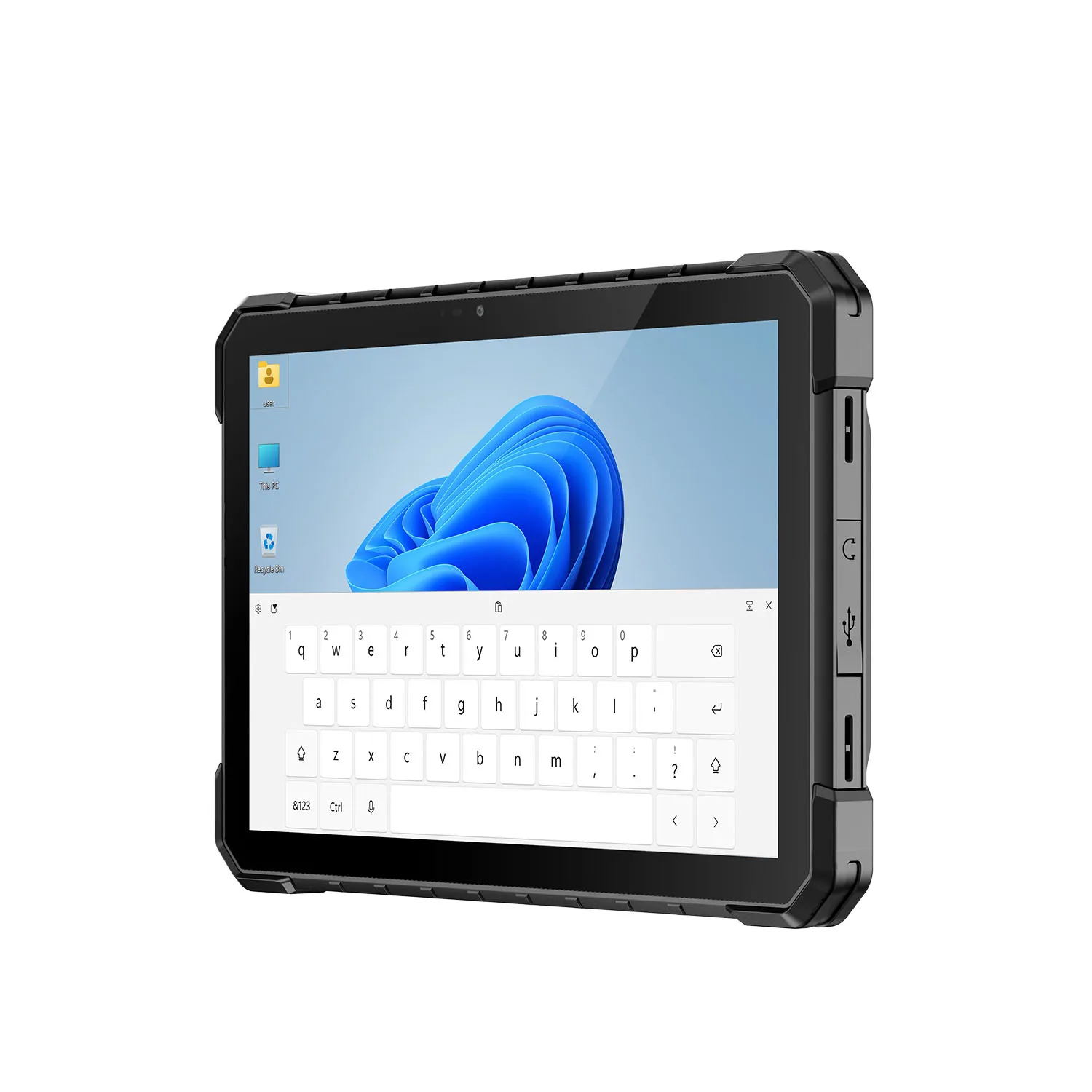

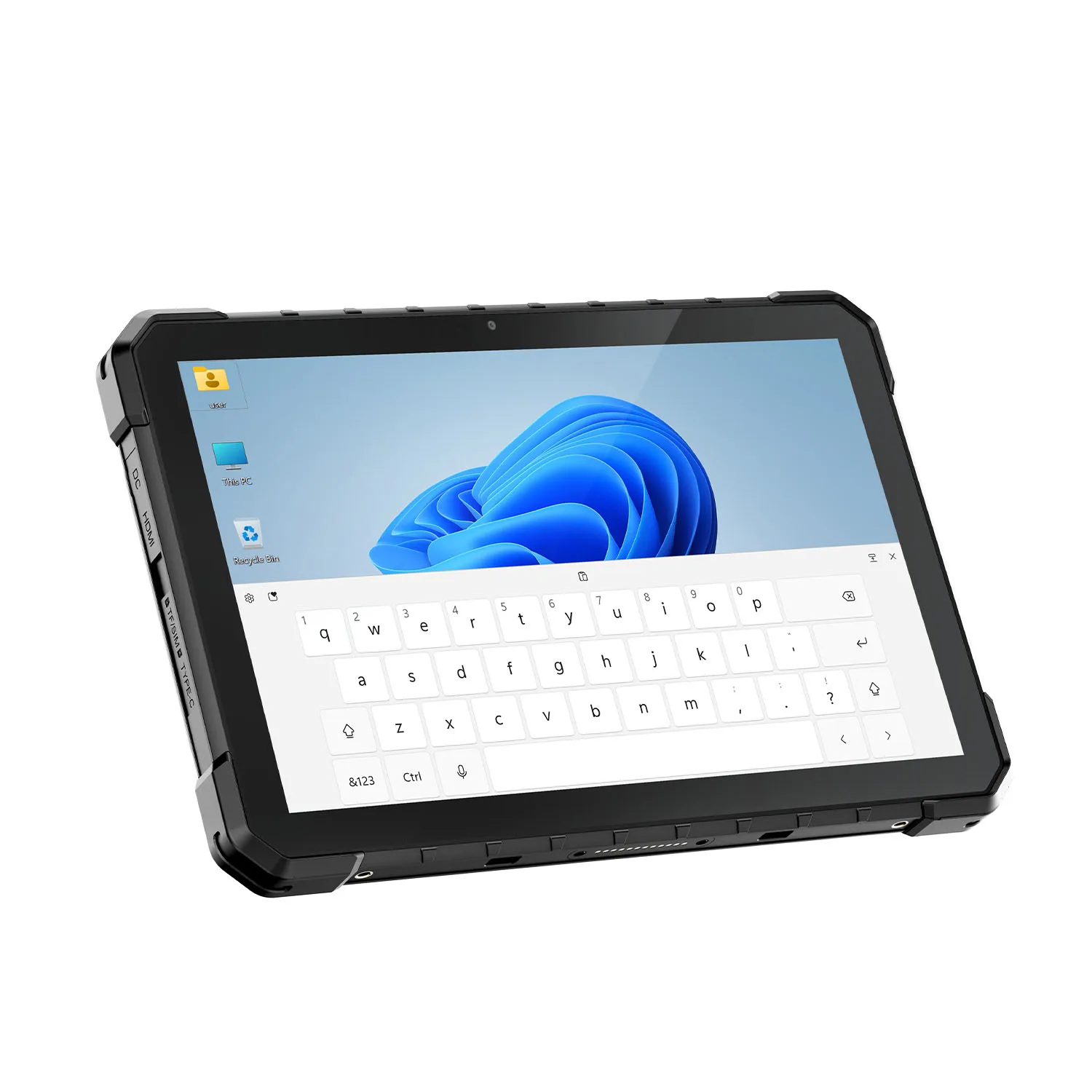

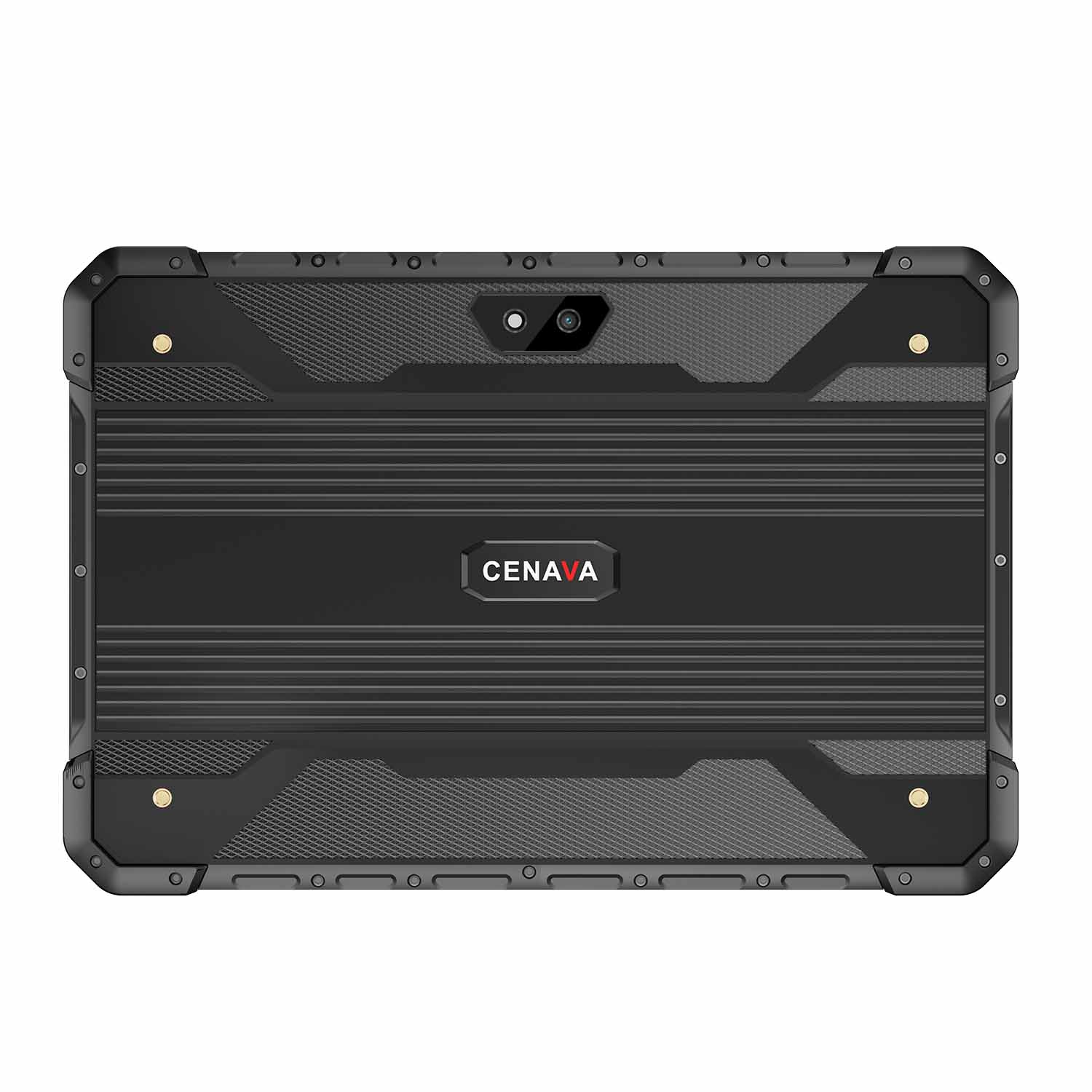

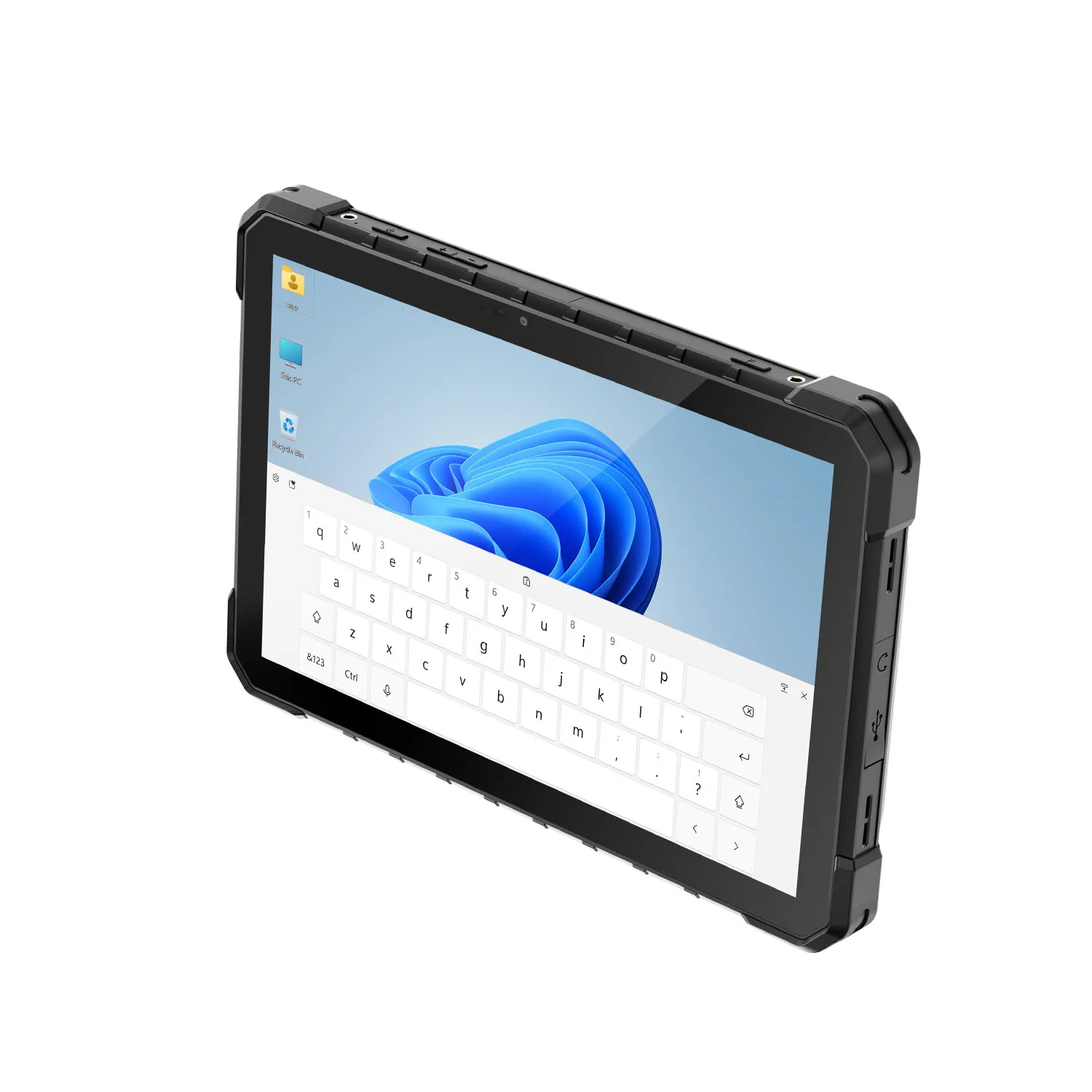

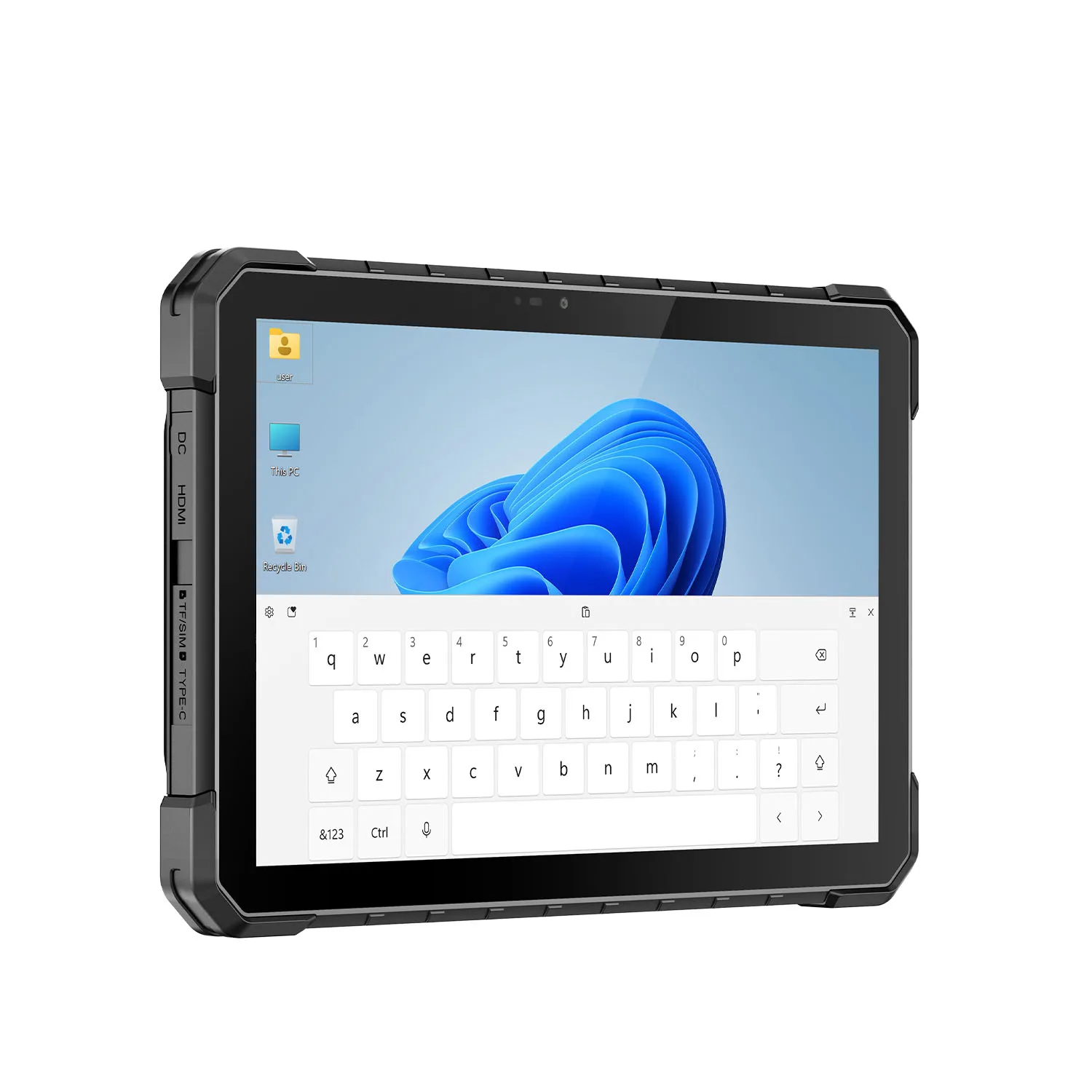

CENAVA W18Y i7-10510Y 10.1 Inch IP68 Industrial Tablet
CENAVA W18Y is a slim 10.1-inch Windows rugged tablet designed for mobile inspection, field service, equipment documentation, asset verification and space-limited industrial installations.Its 1920×1200 IPS display runs at 700 cd/m² in a 253 × 172 × 20mm enclosure. At 1053g,the W18Y is thinner and easier to carry than many Full-I/O Windows rugged tablets.
CPU: Intel Core i7-10510Y quad-core 8-thread, 1.2–4.5GHz, fanless passive cooling
OS: Windows 11 (optional Windows 10, Ubuntu 20.04.6/22.04.5, Debian 12)
Display: 10.1" 1920×1200, 700cd/㎡, 10-point G+G, hardness ≥7H, glove & wet-hand touch standard
RAM/ROM: 16GB+256GB M.2 SSD
Slim Body: 253.0×172.0×20.0mm, 1053g bare metal
Ports: Type-C USB3.0, USB-A 3.0, Micro HDMI, 3.5mm jack, TF up to 256GB, Micro SIM, DC 12V, 12Pin POGO
Network: WiFi 6E, Bluetooth 5.3; optional 4G LTE / 5G (custom function); GPS/BeiDou/Galileo/GLONASS
Battery: Built-in 5550mAh 7.6V non-removable, ≥5h endurance
Protection: IP68, MIL-STD-810H 1.22m drop, -20°C to 60°C (custom -30°C to 60°C), TPM security chip
Optional Modules: 2D scanner, ID card reader, UHF RFID, NFC
High-Spec i7 Core
Effortless Office Work
i7-10510Y Quad-Core 16GB+256GB Fanless
Mobile professionals deserve real power. The Intel Core i7-10510Y quad-core 8-thread CPU boosts to 4.5GHz, paired with 16GB RAM and a 256GB M.2 SSD, keeping large spreadsheets, slides and video calls fluid at once. The fanless design stays library-quiet in meeting rooms. Windows 11 is standard with Windows 10, Ubuntu and Debian optional; WiFi 6E and Bluetooth 5.3 run at full speed, while GPS, BeiDou, Galileo and GLONASS deliver precise positioning. For field teams that would rather not carry a laptop, this is the one-hand alternative.
Slim Bright Display
Clear On The Go
10.1-inch 1920×1200 700cd/㎡ Glove & Wet-Hand Touch
At just 20mm thin and about 1053g, this tablet still takes the screen seriously: a 10.1-inch 1920×1200 panel at 700cd/㎡ stays readable on bright sites and by car windows. Glove and wet-hand touch come standard — no need to bare your hands for accurate taps. The G+G structure with ≥7H hardness survives sharing a bag with tools. 10-point touch zooms smoothly through meetings, on-site annotations and client demos. It travels light everywhere without feeling fragile.
Slim Yet Rugged
Fearless Travel
IP68 MIL-STD-810H 1.22m Drop -20°C to 60°C
A slim body that is still tough: IP68 sealing shrugs off coffee spills, site rain and dust; MIL-STD-810H certification means surviving 1.22m drops and getting straight back to work. It operates from -20°C to 60°C, starting instantly in winter fields or summer vehicles, with a -30°C custom version available. An onboard TPM chip encrypts business data for safer mobile office work — a presentable yet durable Windows tablet for travel.
Practical Slim I/O
Expansion Intact
Type-C + USB-A 3.0 + Micro HDMI + POGO PIN
Slim does not mean cut-down: Type-C USB3.0 and USB-A 3.0 connect flash drives, keyboards and mice; Micro HDMI drives projectors for presentations; TF expansion reaches 256GB; the Micro SIM slot takes optional 4G/5G modules to stay online off-grid. A 12-pin POGO dock turns it into a desktop terminal, and the 3.5mm jack handles voice calls. Optional 2D scanning, ID card, UHF and NFC modules cover client visits, asset checks and sign-ins.
Technical Specifications
 CPU Intel Core i7-10510Y, 4C8T, 1.2–4.5GHz, fanless |  System |  Storage 16GB + 256GB M.2 SSD |  Display 10-inch IPS touch screen 1920*1200 700cd/㎡ |
 NFC Optional Default back of the body for card reading, customizable to the front |  One/Two dimensional code Optional Able to identify dirty 1/2 dimensional codes |  Battery 7.6V 5550mAh built-in, ≥5h (1080p, 50% brightness) |  High frequency/ultra-high frequency module Optional Ultra thin integrated module |
 Navigation positioning GPS, BeiDou, Galileo, GLONASS |  ID card identification Optional |  InterfaceType-C USB3.0, USB-A 3.0, Micro HDMI, 3.5mm, TF, Micro SIM, DC 12V, 12Pin POGO |  Weight 253.0*172.0*20.0mm |
 Wi-Fi Dual-band Wi-Fi 6-class; Wi-Fi 6E pending 6GHz confirmation |  Protection level Working temperature: -20 °C to 60°C Storage temperature:-30 °C to 70 °C Protection level: IP68 |  Camera Front: 5MP fixed-focus; |  Sensor Gravity sensing, compass, gyroscope, light sensing, distance sensing |
| Product Type | Slim Windows rugged field tablet |
| TP touch screen | Anti-fingerprint (AF) coating,10-point touch G+G, hardness ≥7H, support wet hand touch screen, glove touch screen |
| WIFI | Wi-Fi 6 (802.11a/b/g/n/ac/ax), dual-band 2.4/5GHz |
| TYPE-C | *1 Type-C USB3.0 |
| Type -A | *1 Type-A USB3.0 |
| Earphone Jack | *1 3.5mm standard headphone jack |
| TF Card | *1 Maximum support 256GB expansion |
| SIM Card | *1 Standard Micro SIM card slot |
| HDMI | *1 Micro HDMI |
| DC port | *1 12V-4A (DC plug outer diameter 3.5mm inner diameter 1.35mm) |
| POGO PIN | *1 12Pin USB+charger |
| Drop height | Meets the requirements of GJB 150.18A-2009 and MIL-STD-810H for the 1.22-meter drop test |
| Certificates | IP68 (IEC 60529), CE, RoHS; drop-tested to MIL-STD-810H (1.22 m); ISO 9001-certified factory; salt-spray tested |

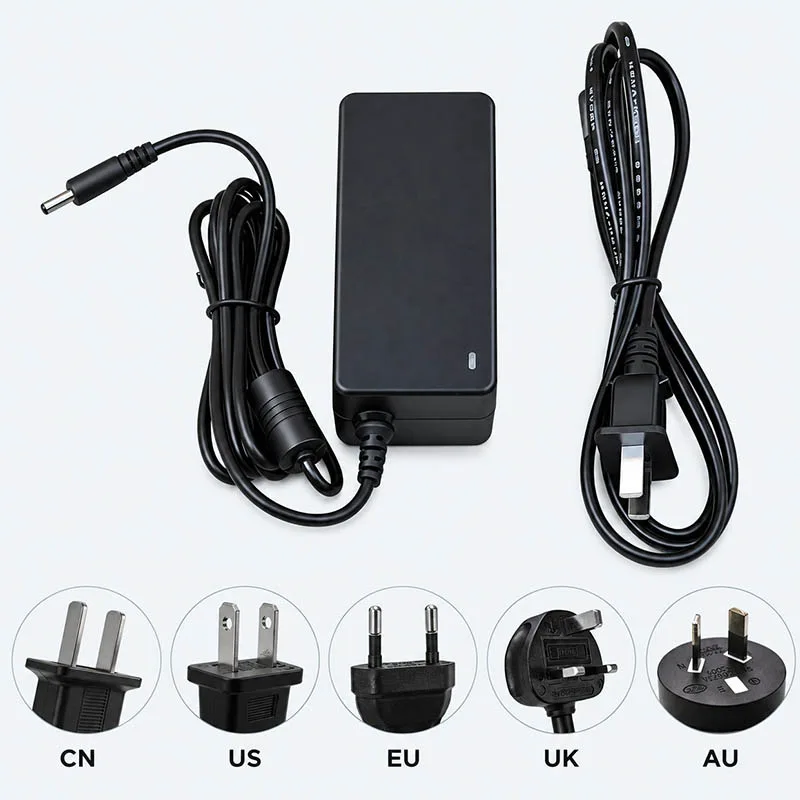

| Adapter | 12V-4A DC interface adapter |
The W18Y is a slim Windows tablet for mobile inspection and field service, optimized for mobility. It does not include the native RJ45 Ethernet or DB9 RS232 interfaces provided by the larger W10Y Full-I/O platform.

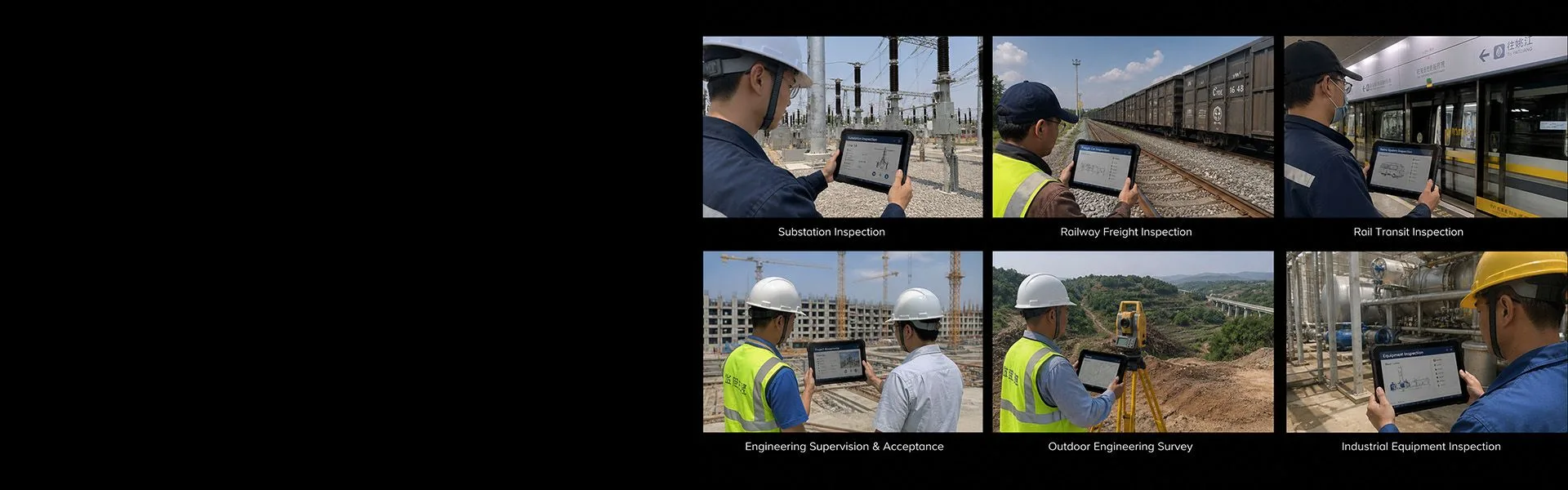

Field inspection
Equipment documentation
Maintenance reporting
Mobile work orders
Asset verification
Remote technical support
Warehouse supervision
Utility inspection
Construction-site reporting
Vehicle-mounted applications
Mobile Windows database access
Portable presentation and monitoring
Frequently Asked Questions About W18Y IP68 Industrial Tablet
1. What is the W18Y designed for?
A slim Windows rugged tablet for mobile inspection, field reporting, asset verification and general field-service work — prioritizing portability over native Ethernet/serial interfaces.
2. Which processor configurations are available?
Intel Core i5-10210Y and Intel Core i7-10510Y. Contact us to confirm current lead times and pricing for each.
3. Is the Core i7 version suitable for CAD work?
It can handle CAD viewers and light drawing review; for large assemblies, 3D modeling or simulation, we'd recommend testing on a sample unit or considering a newer Core i5/i7/Ultra platform.
4. Does the W18Y run Windows 11?
Yes, standard on the Core i7 configuration.
5. Can it run Linux?
Ubuntu, Debian are available as project options; we'll help validate drivers for touch, wireless, camera and optional modules before production.
6. What is the screen resolution and brightness?
1920×1200 at 700cd/㎡.
7. Does the touchscreen work with gloves and wet hands?
Yes, both are supported — we recommend testing with your specific gloves and conditions.
8. Is the battery removable?
No, the 5550mAh battery is built in.
9. How long does the battery last?
Rated ≥5 hours during 1080p video playback at 50% brightness/volume; actual runtime depends on workload, wireless use and optional modules.
10. Does the W18Y include RJ45 Ethernet?
No native Ethernet port — a USB adapter or custom dock can be arranged if needed. The W10Y offers native Gigabit Ethernet if that's a requirement.
11. Does it have RS232?
No external RS232 port; the reserved internal UART isn't equivalent to a finished RS232 port.
12. How does the W18Y compare to the W10Y?
The W18Y is thinner and lighter; the W10Y adds native Gigabit Ethernet and DB9 RS232 for direct equipment integration.
13. Does Type-C charge the tablet?
Charging is via the 12V/4A DC input or compatible Pogo dock; Type-C PD charging is not confirmed for this model.
14. Does Type-C support video output?
No, external video goes through Micro HDMI.
15. Is 4G/5G standard?
No, cellular is optional and depends on destination region/carrier.
16. Does it support barcode scanning?
Yes, via an optional 1D/2D scanner module.
17. Does it support NFC?
Yes, optional, supporting ISO 14443A, 14443B and ISO 15693.
18. Does it support UHF RFID?
Yes, optional, with typical read ranges of roughly 3–5 meters depending on tag, antenna and environment.
19. Does it support RTK?
No, RTK/centimeter-level positioning isn't part of this model.
20. Does the rear camera have a flash?
Yes, the 12MP autofocus rear camera includes a flash.
21. Is the W18Y IP68?
Yes. IP68
22. Is it MIL-STD-810H certified?
1.22m test under specified GJB and MIL-STD-810H methods.

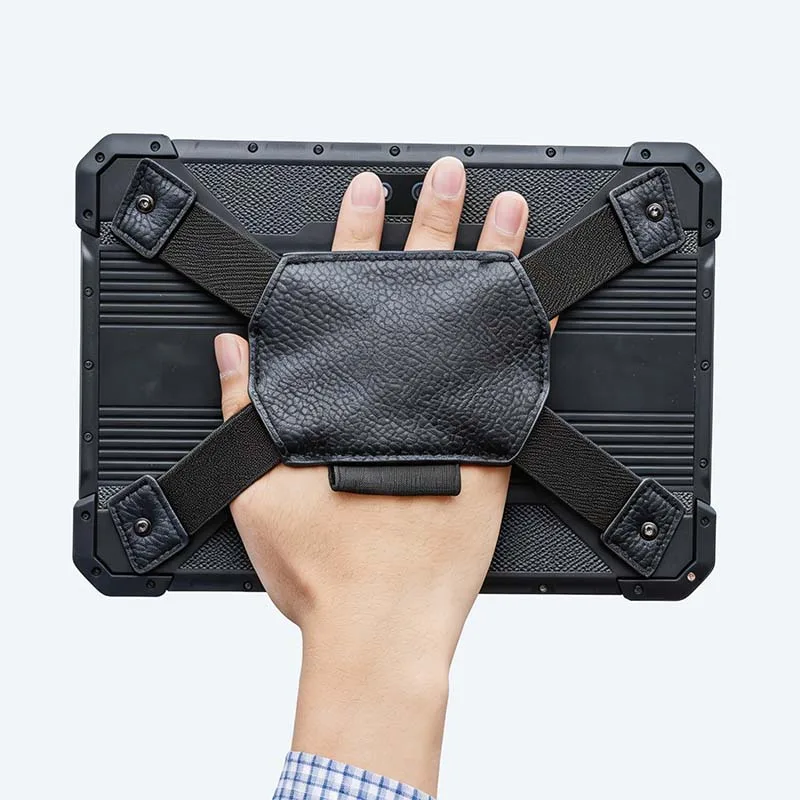

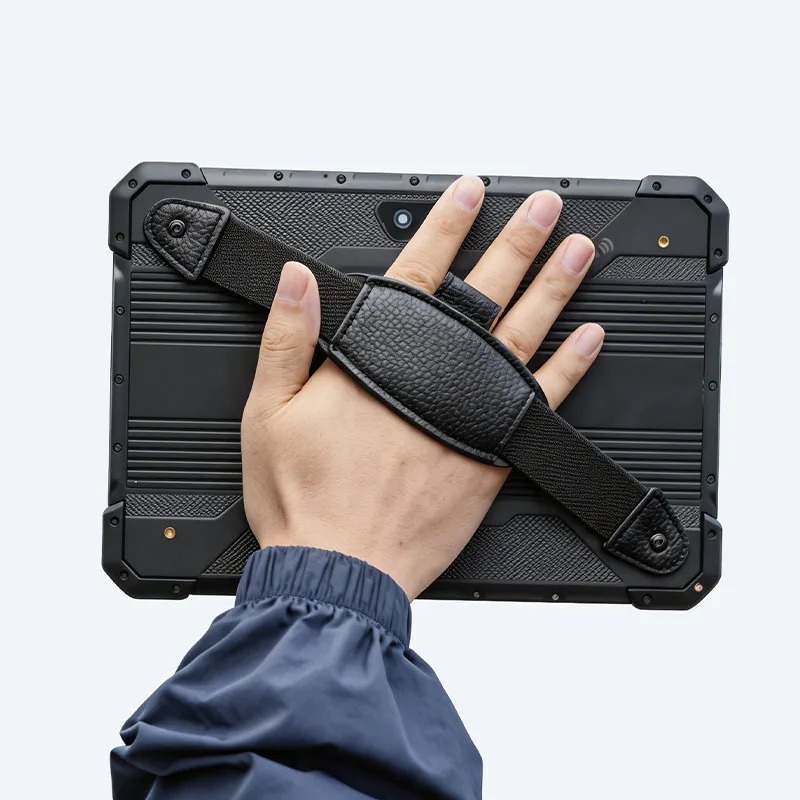

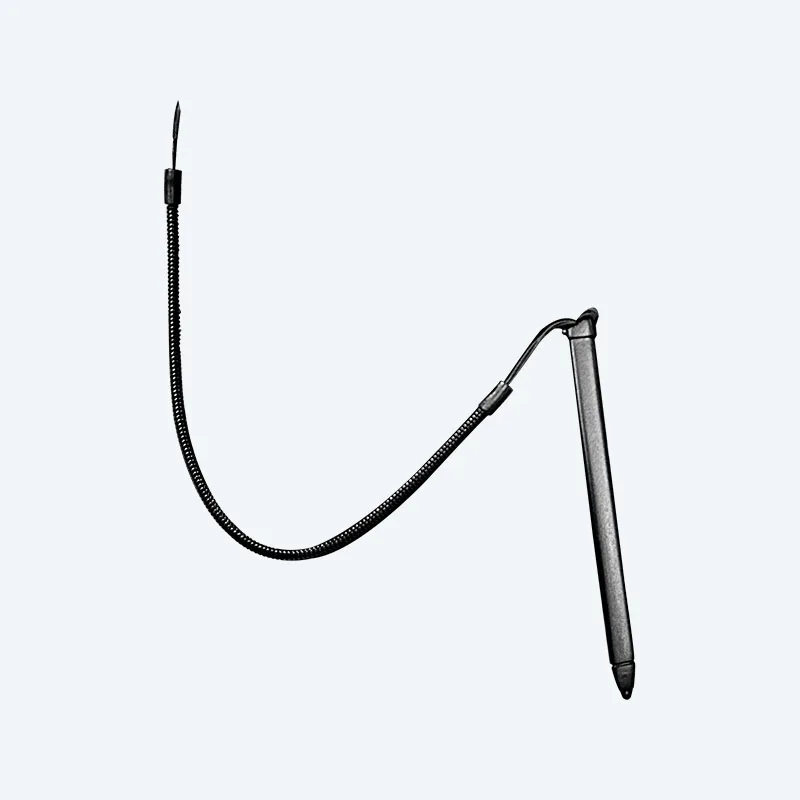

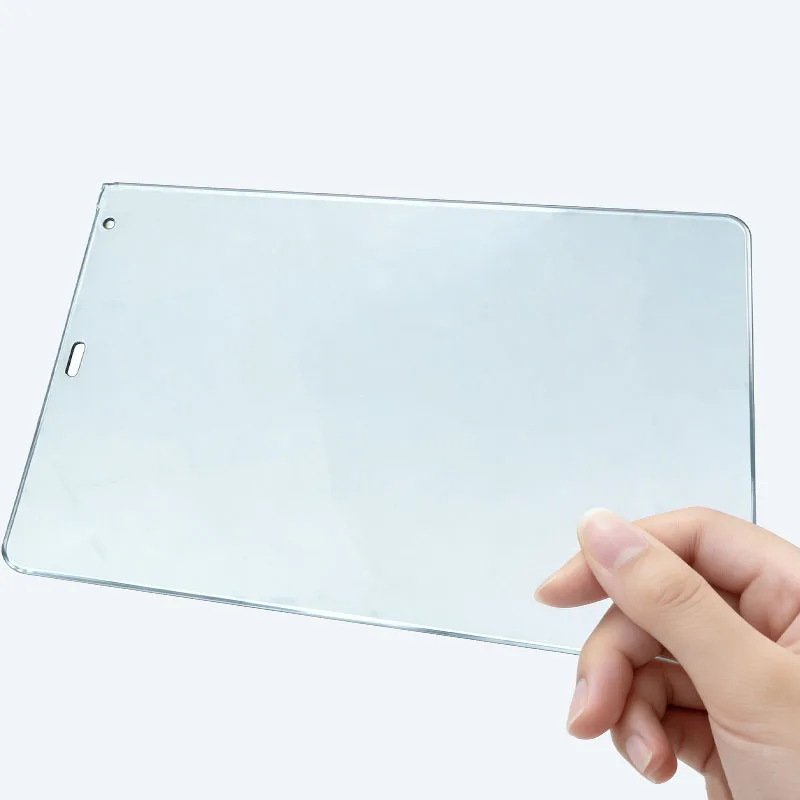

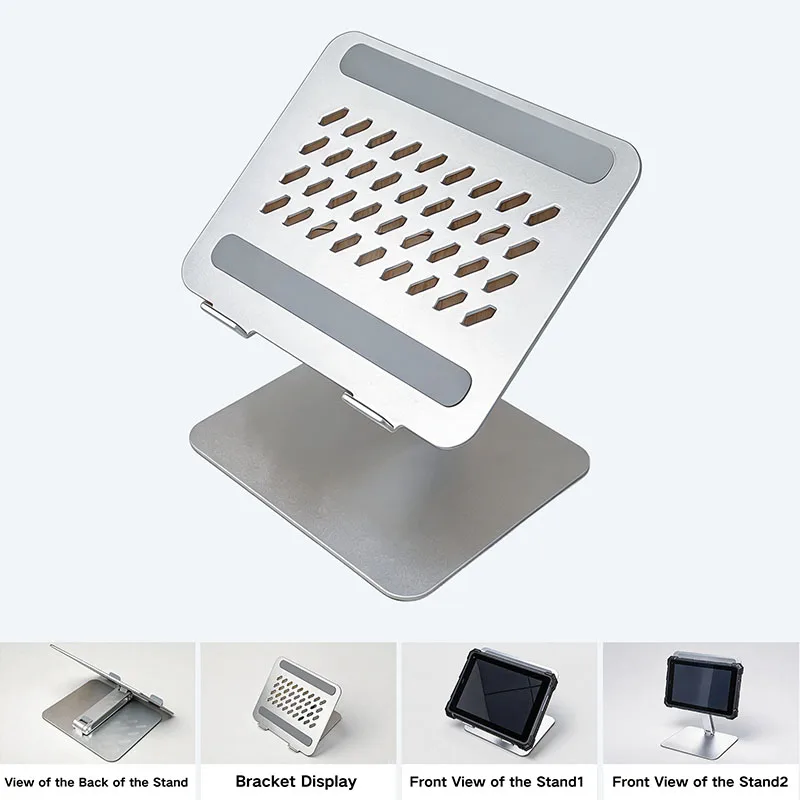

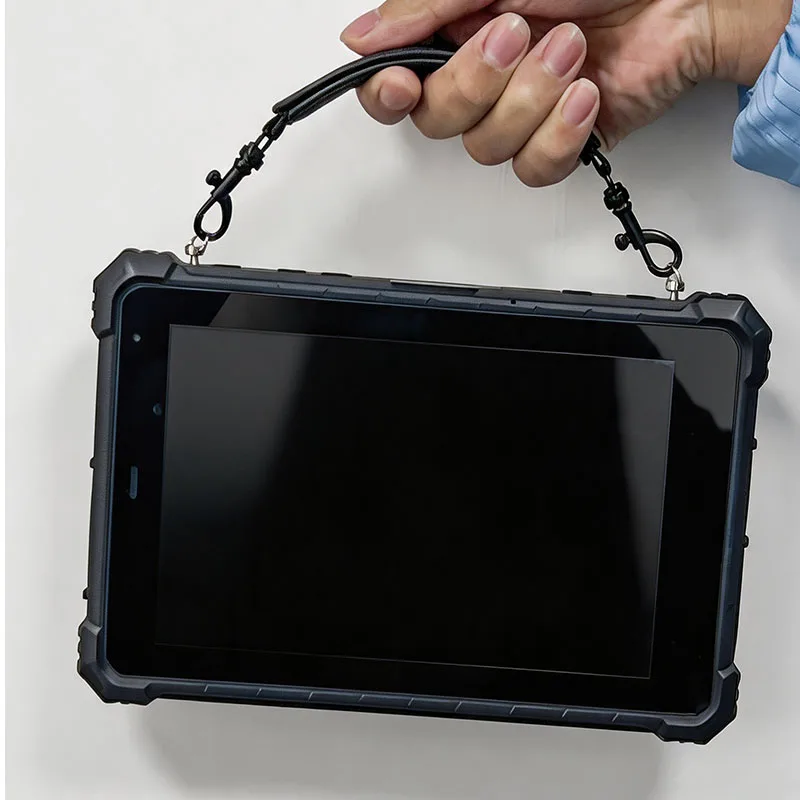

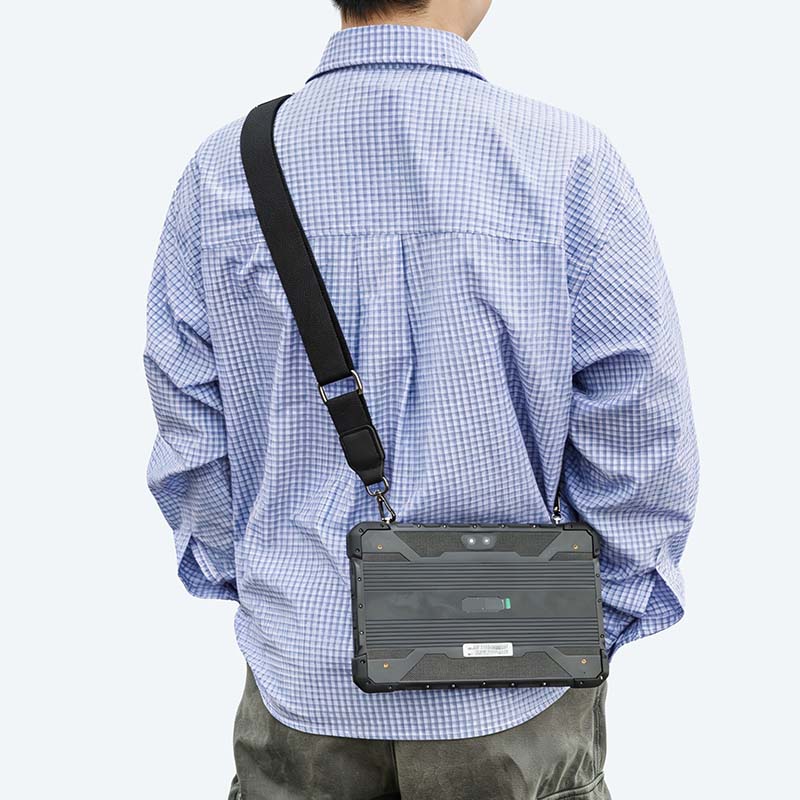

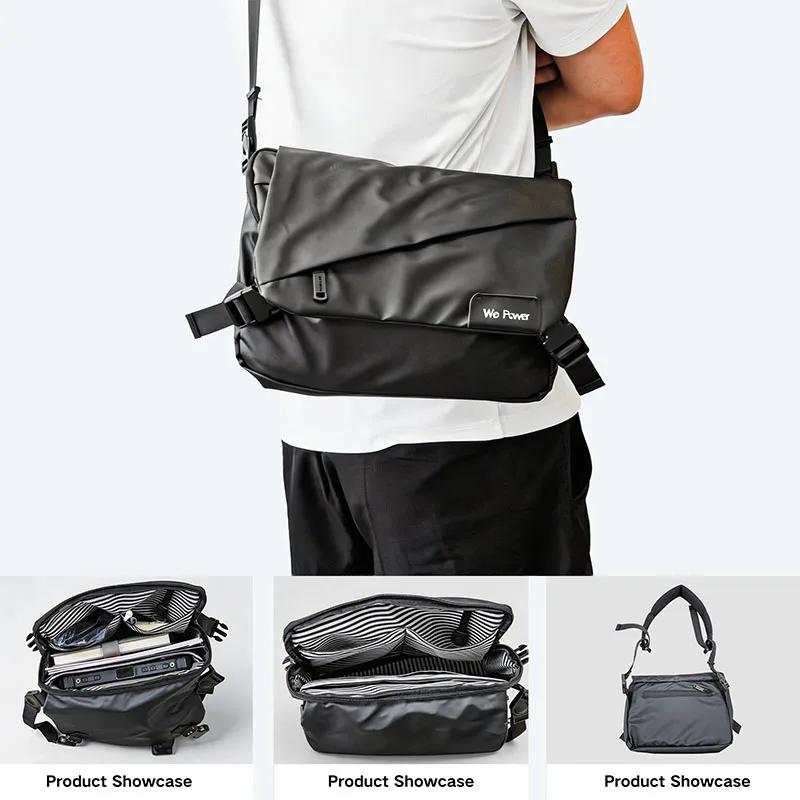

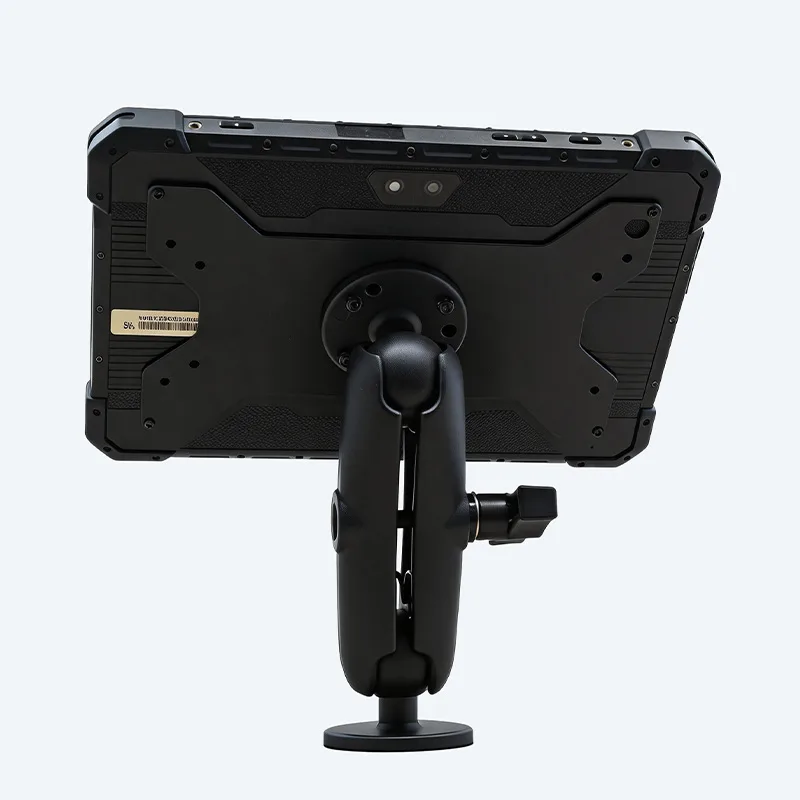

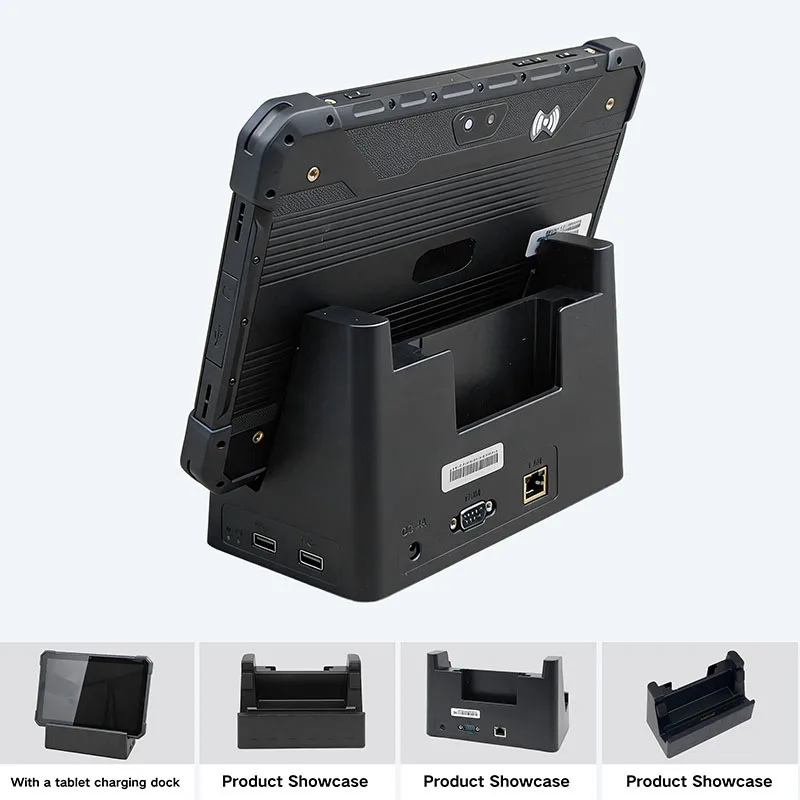

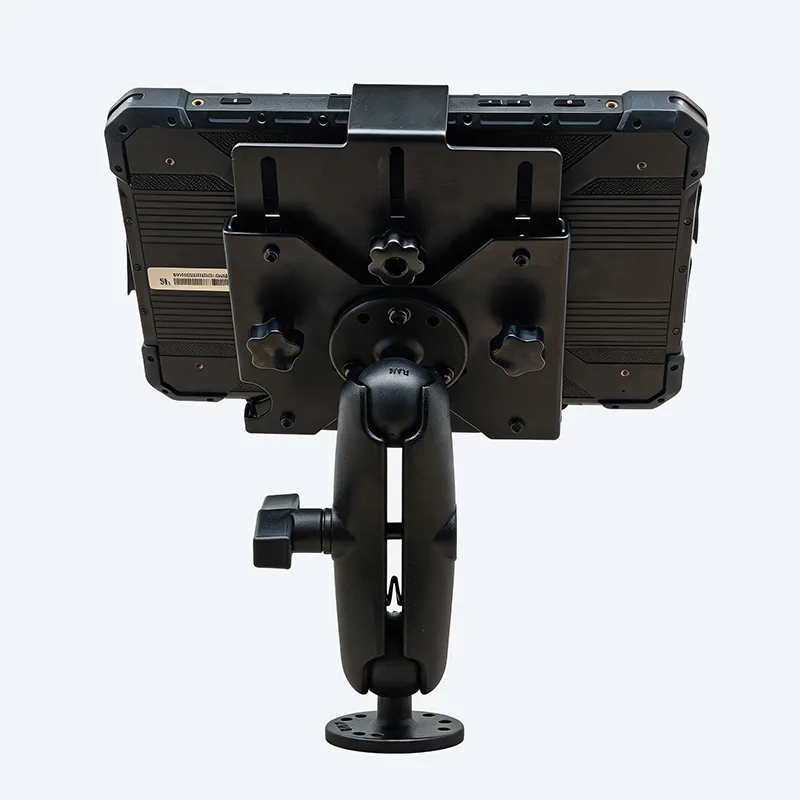

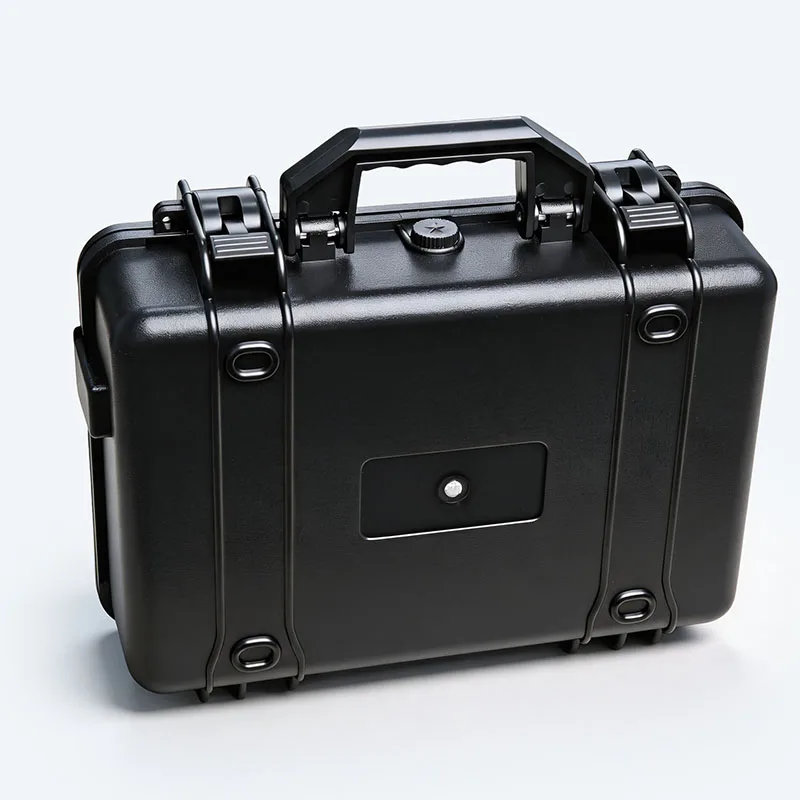

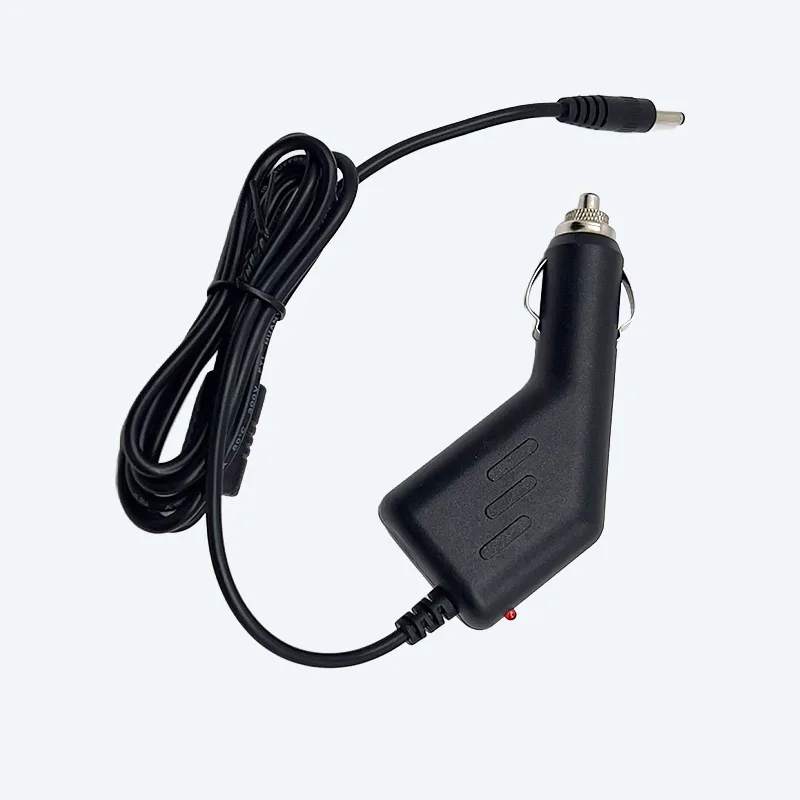

Accessories
