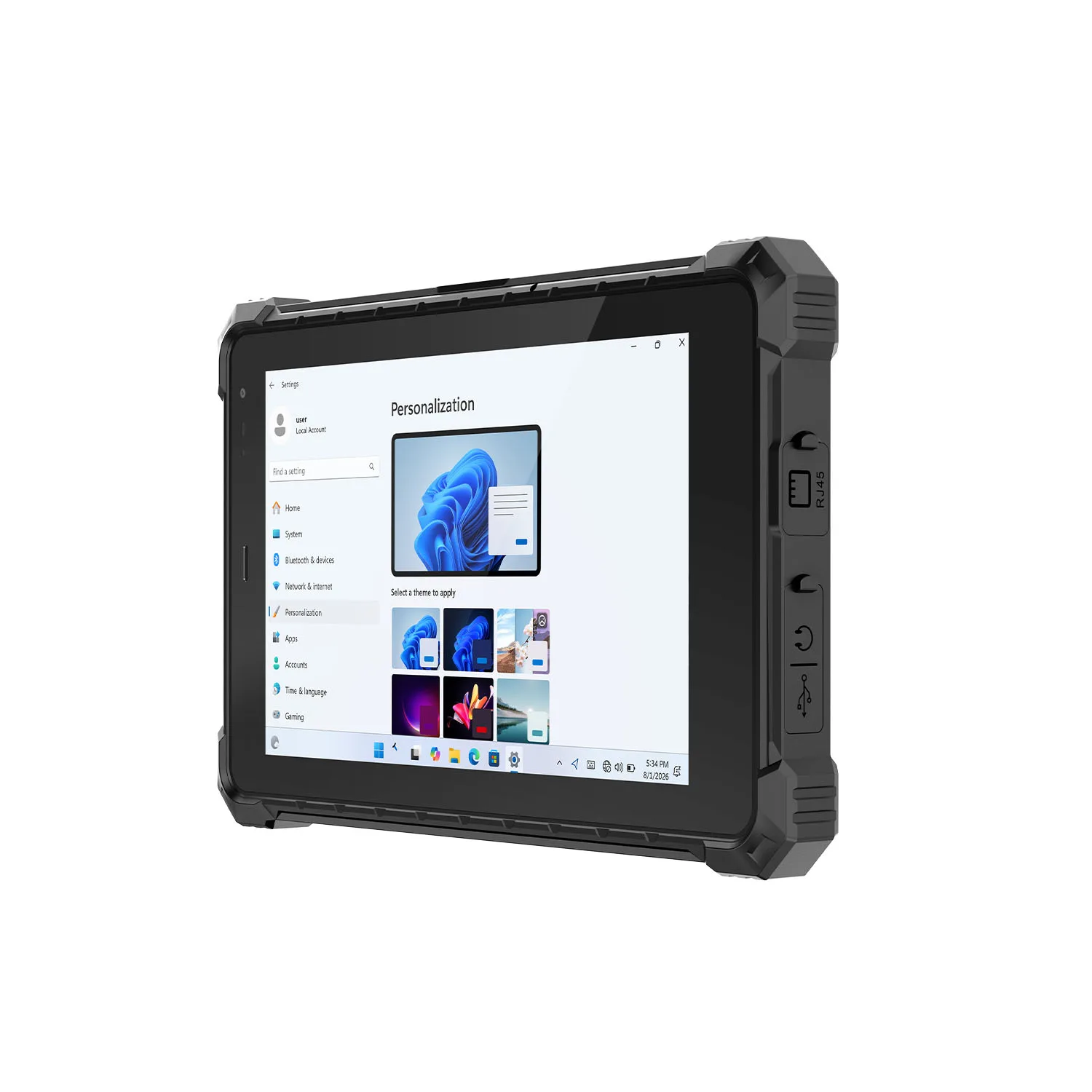

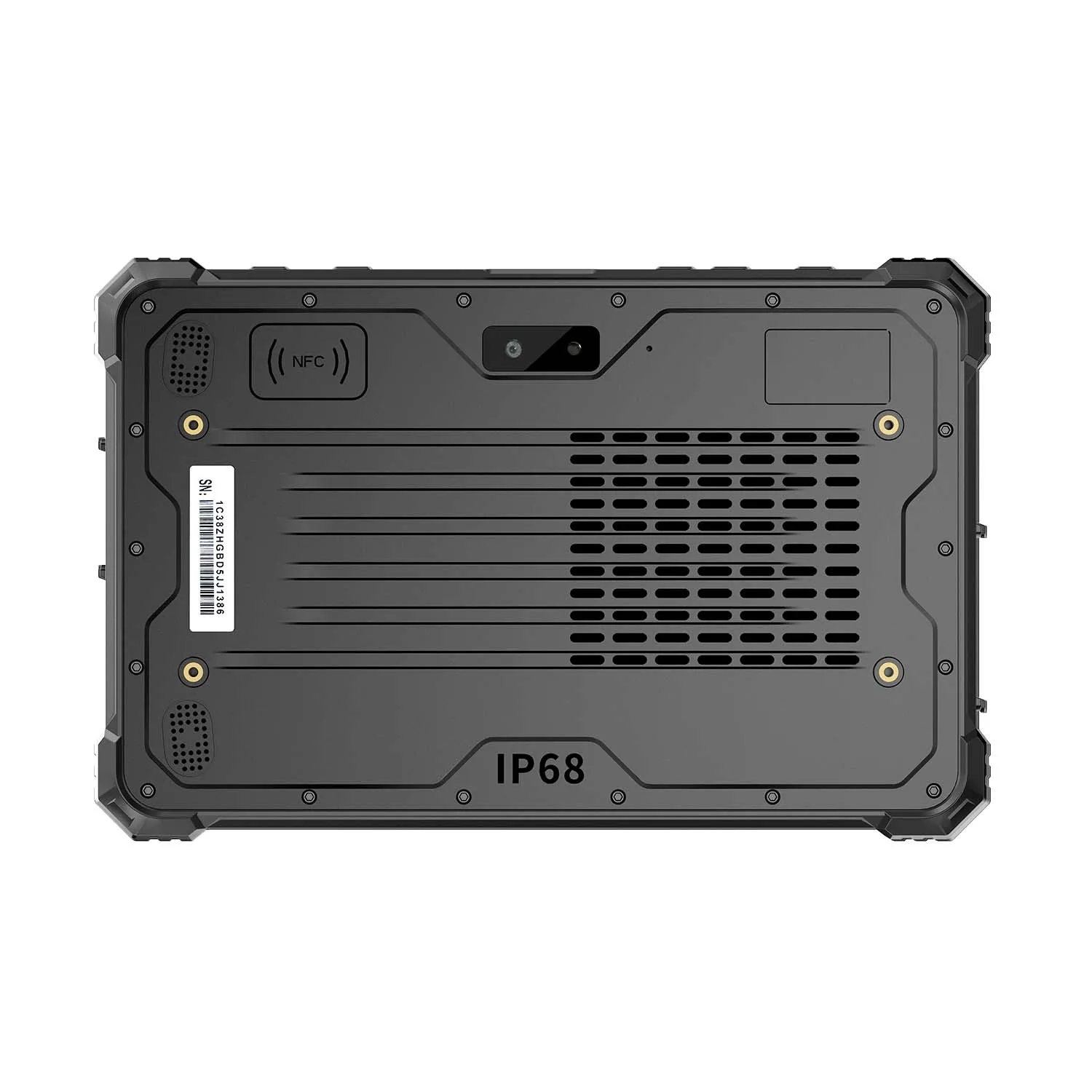

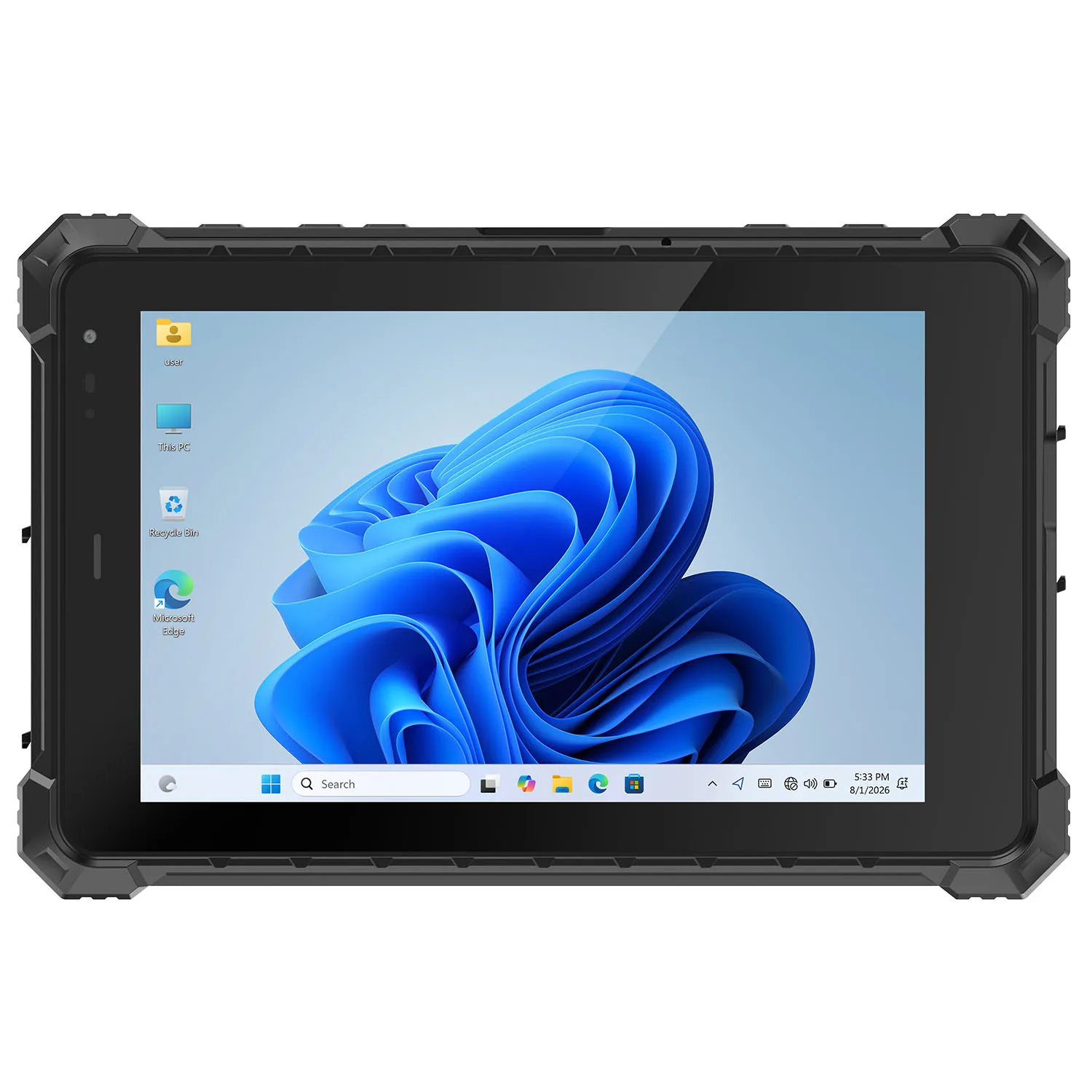

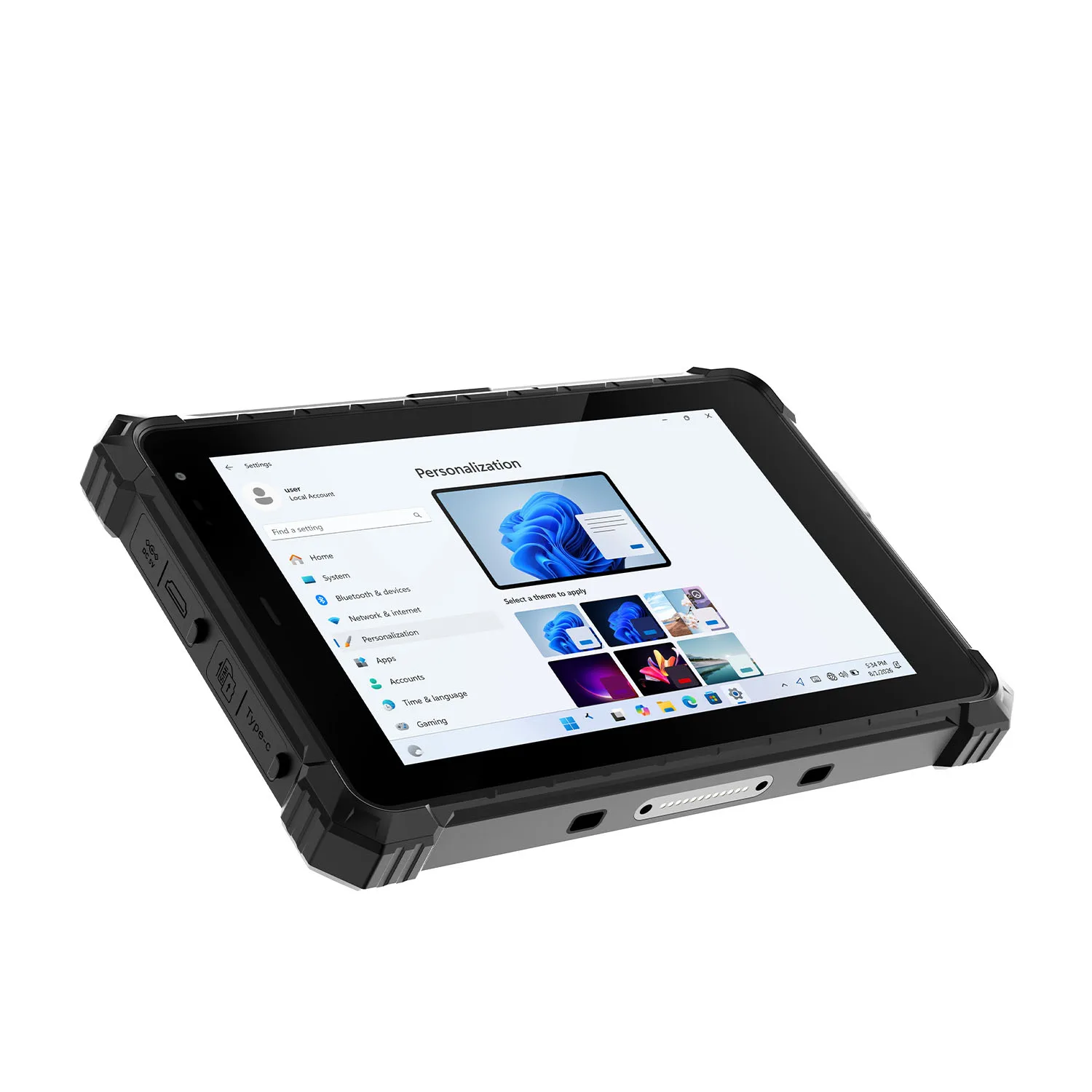

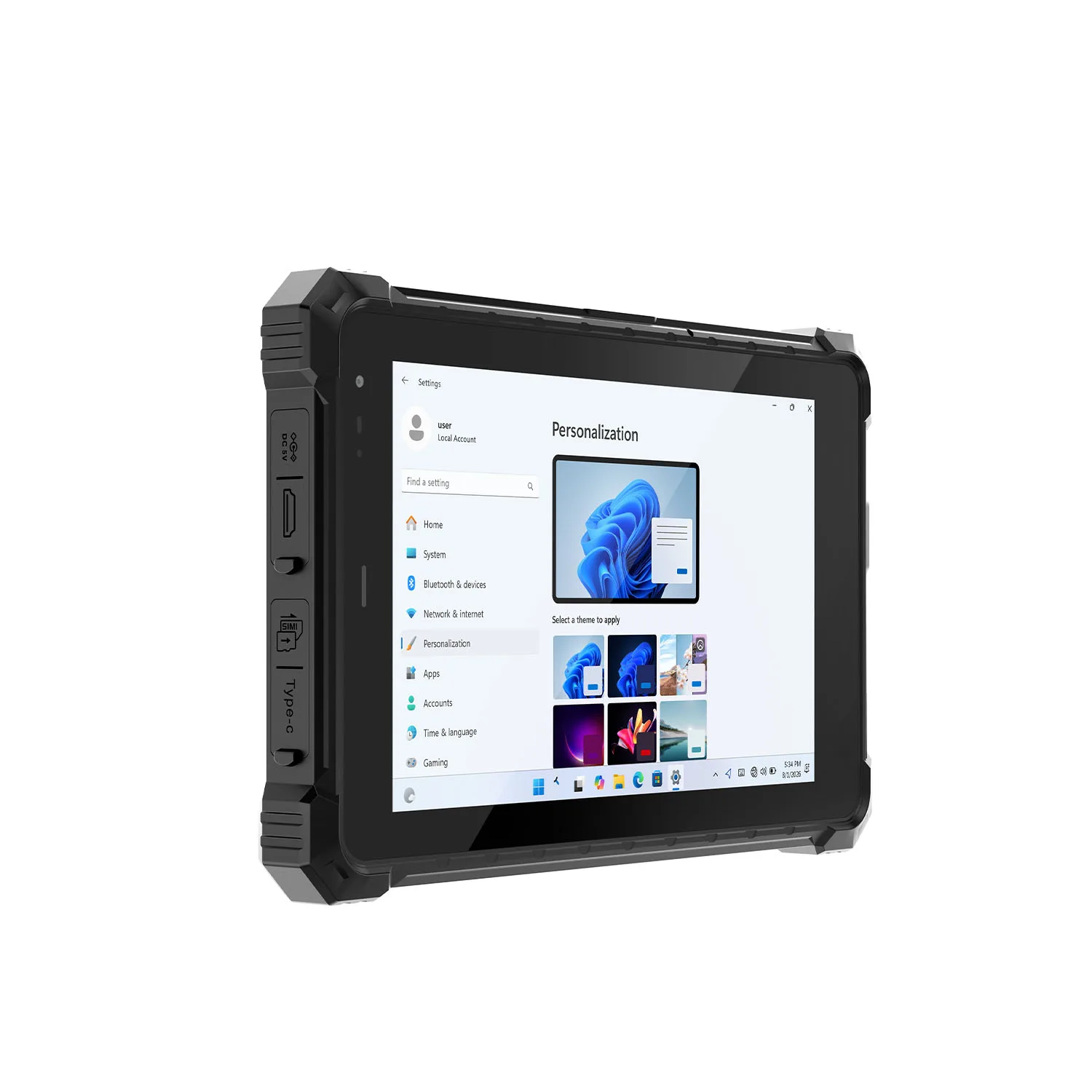

CENAVA W80Y i7-10510Y 8 Inch Win11 IP68 Rugged Gigabit
CENAVA W80Y is a compact 8-inch Windows rugged tablet designed for field diagnostics, equipment maintenance, industrial network commissioning, mobile inspection and space-limited vehicle or equipment installations. It combines an Intel Core i7-10510Y quad-core processor, 16GB memory and a 256GB M.2 SSD with a 1920×1200 high-brightness touchscreen.
CPU: Intel Core i7-10510Y quad-core 8-thread, 1.2–4.5GHz, UHD Graphics, fanless passive cooling
OS: Windows 11 (optional Windows 10, Ubuntu 20.04.6/22.04.5, Debian 12)
Display: 8" 1920×1200, 700cd/㎡, 10-point G+G glove touch, hardness ≥7H (wet-hand touch customizable)
RAM/ROM: 16GB+256GB M.2 SSD
Integrated I/O: Gigabit RJ45 (100/1000M), Micro HDMI, Type-C USB3.0, USB-A 3.0, 3.5mm jack, TF up to 256GB, Micro SIM, DC 12V, 12Pin POGO
Network: WiFi 6E, Bluetooth 5.3; optional 4G LTE / 5G (custom function); GPS/Galileo/GLONASS
Battery: Built-in 5550mAh 7.6V non-removable, ≥5h (1080p, 50% brightness); 10000mAh option available
Protection: IP68, MIL-STD-810H 1.22m drop, -20°C to 60°C (custom -30°C to 60°C), TPM security chip
Camera: Front 5MP fixed-focus + rear 12MP autofocus

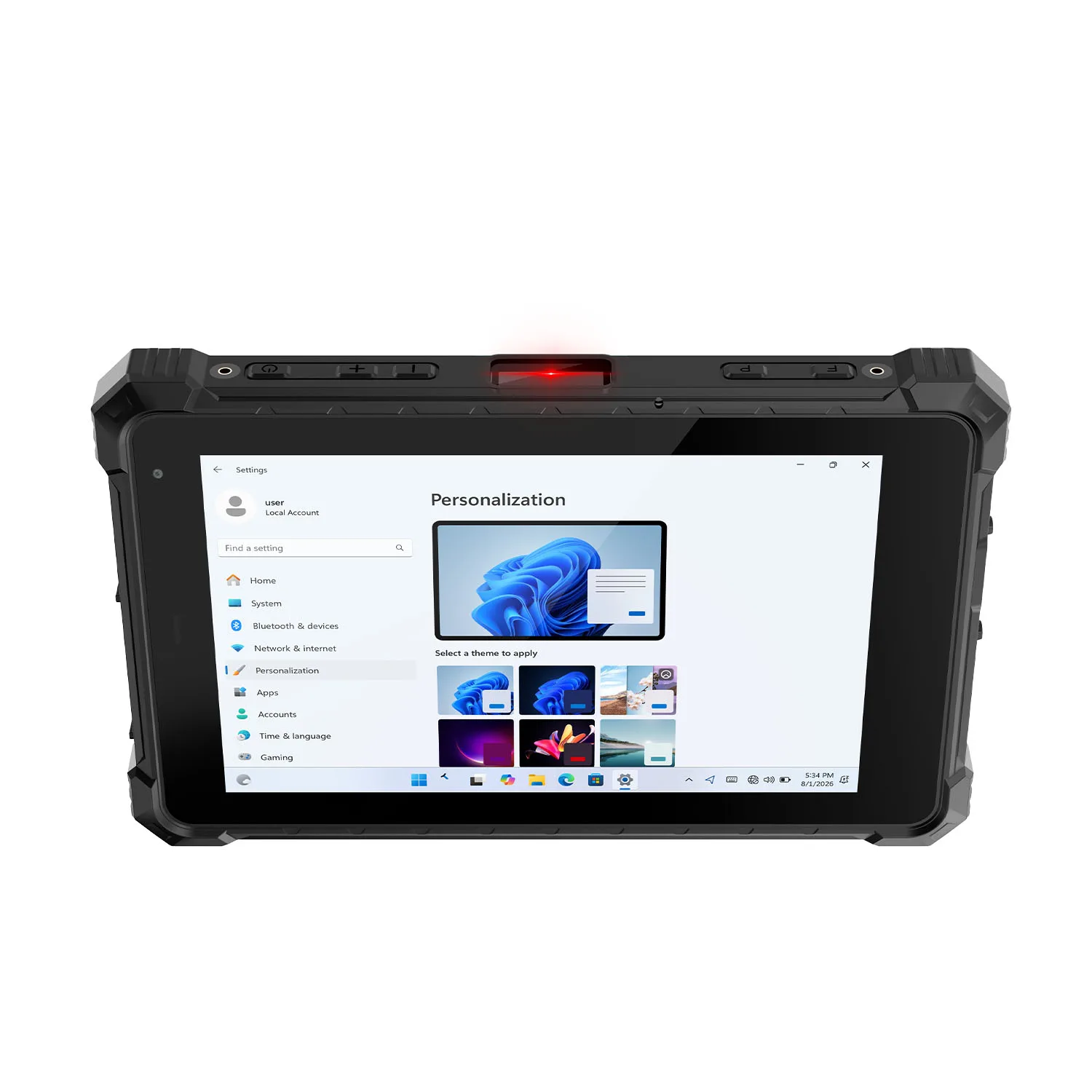

Optional Modules: 2D scanner (N1/N670), ID card reader, UHF RFID, NFC, LF 125kHz, fingerprint, RTK cm-level positioning
Small Body, Hard Core

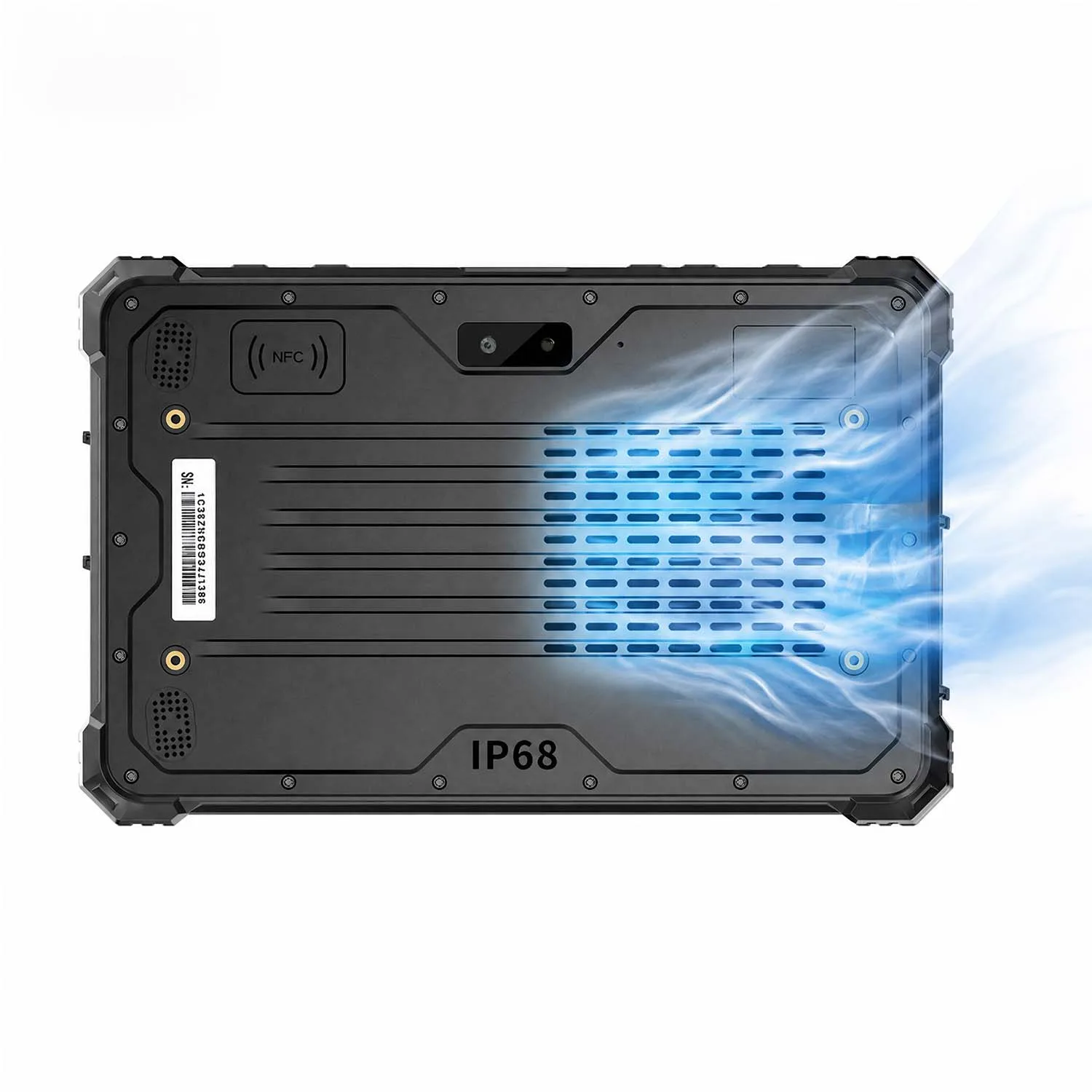

Full Protection
IP68 MIL-STD-810H Drop -20°C to 60°C Custom Wide Temp

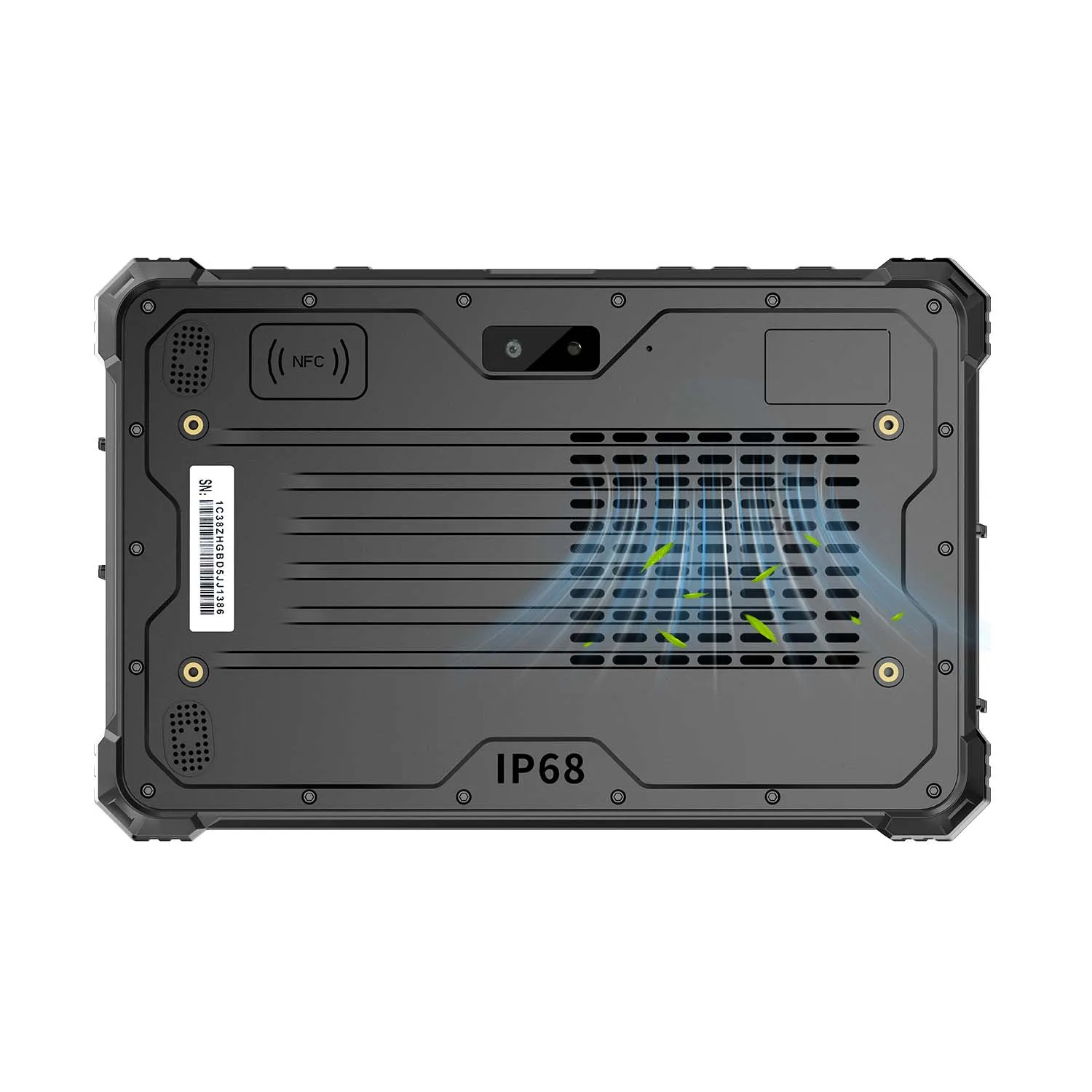

Many small tablets cut corners on protection — the W80Y does not. IP68 sealing blocks water and dust; MIL-STD-810H certification covers 1.22m drops beside the production line. It operates from -20°C to 60°C, with a -30°C custom version for cold storage and hot workshops. An onboard TPM chip encrypts industrial data. Reinforced corners, mud-proof sealing rings and salt-spray testing keep it reliable next to oily machines for years of service.
Small Screen, High Detail
Sharp And Bright
8-inch 1920×1200 700cd/㎡ 10-Point Touch
Fitting 1920×1200 into 8 inches gives higher pixel density than many 10-inch panels — dense SCADA curves and buttons stay razor sharp. The 700cd/㎡ panel remains visible under workshop glare and daylight; 10-point G+G touch works with gloves, ≥7H hardness resists scratches, and wet-hand touch is customizable. Fine detail stays easy on the eyes during close-up parameter tuning, while one hand holds and the other taps through line-side tasks.
i7 Pocket Powerhouse
Heavy Loads, Fast
i7-10510Y Quad-Core 16GB+256GB Turbo 4.5GHz
An 8-inch body housing a Core i7-10510Y quad-core 8-thread CPU with 4.5GHz turbo, 16GB RAM and a 256GB M.2 SSD — a rare high spec at this size. Machine vision inspection, SCADA clients and multitasking run right beside the equipment, no round trip to the office. The fanless design stays silent and dust-free; Windows 11 is standard with Windows 10, Ubuntu and Debian optional. An optional RTK module adds centimeter-level positioning for survey-grade field work.
Full Palm I/O
Direct Line Connection
Gigabit RJ45 + Micro HDMI + USB3.0 + POGO PIN

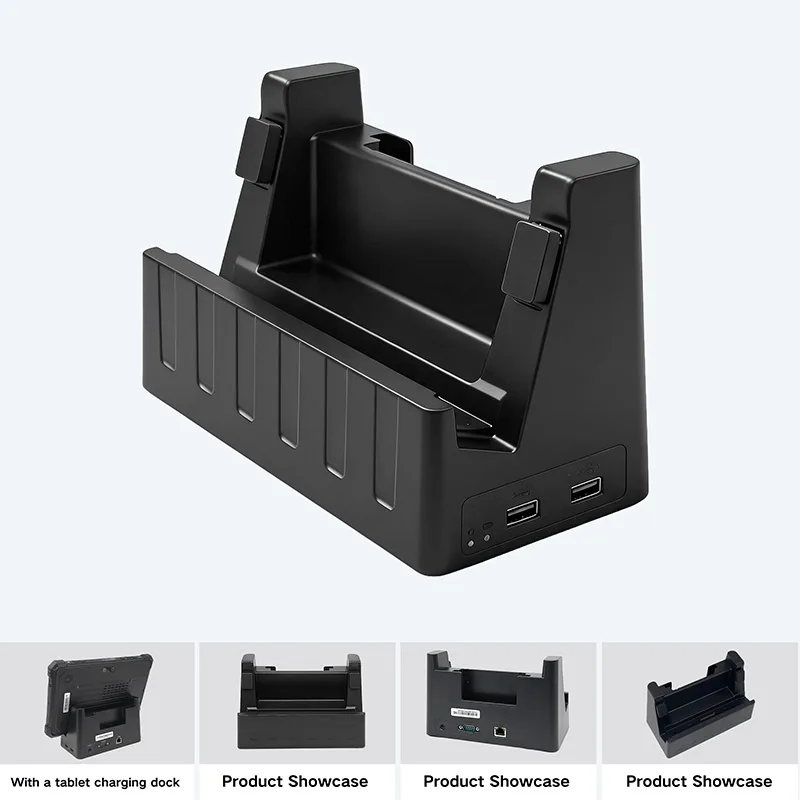

Gigabit RJ45 joins the production network for fast PLC and IPC communication; Micro HDMI projects inspection feeds to big screens; Type-C and USB-A 3.0 connect cameras, flash drives and peripherals; the 3.5mm jack supports voice coordination; the 12-pin POGO dock converts it into a fixed station. Mobile or mounted, the 8-inch body keeps every port. Optional 4G/5G, 2D scanning, UHF, fingerprint and single-BeiDou modules expand on demand.
Technical Specifications
 CPU Intel Core i7-10510Y, 4C8T, 1.2–4.5GHz, fanless |  System |  Storage 16GB + 256GB M.2 SSD |  Display 8 inches 1920*1200 |
 Optional NFC 13.56MHz, supporting ISO/IEC 14443A, 14443B and 15693 |  Optional 1D/2D Barcode Scanner Support |  Battery 7.6V 5550mAh built-in, ≥5h (1080p, 50% brightness); 10000mAh option (38.3mm body) |  Wall hole pitch / screw 180x64mm/ M3*4.5mm |
 Navigation positioning GPS/Galileo/GLONASS (optional single-BeiDou, optional RTK) |  2G/3G/4G Optional 4G LTE / 5G |  Interface Gigabit RJ45, Micro HDMI, Type-C USB3.0, USB-A 3.0, 3.5mm, TF, Micro SIM, DC 12V, 12Pin POGO |  Size/Weight 232.2*151.3*24.5mm/894g |
 Card slot Micro SIM + TF up to 256GB |  Protection level working temperature: -20 °C to 60°C Storage temperature: -30 °C to 70 °C |  Camera Front: 5MP fixed-focus; |  Light-sensitive Support |
| Product Type | Compact Windows rugged field tablet |
| TP touch screen | Anti-fingerprint (AF) coating,10-point touch G+G, hardness ≥ 7H, support for medical rubber gloves touch screen (can be customised wet hand touch screen) |
| TPM | Built-in TPM Security chip |
| Gravity sensor | YES |
| WIFI | WIFI6E 802.11(a/b/g/n/ac/ax) frequency 2.4G+5.8G dual-band WIFI Dual frequency WIFI |
| Bluetooth | Bluetooth 5.3 transmit distance：10m |
| NFC High frequency (custom function) | 13.56MHz, supports ISO 14443A/14443B/15693 protocols |
| TYPE-C | *1 Type-C USB3.0 |
| Type -A | *1 Type-A USB3.0 |
| Earphone Jack | *1 3.5mm standard headphone jack |
| TF Card | *1 Maximum support 256GB expansion |
| SIM Card | *1 Standard Micro SIM card slot |
| HDMI | *1 Micro HDMI |
| DC port | *1 12V-4A (DC plug outer diameter 3.5mm inner diameter 1.35mm) |
| POGO PIN | *1 12Pin USB+charger |
| RJ45 | *1 100/1000M |
| Drop height | Meets the requirements of (GJB 150.18A-2009, GJB 150.1A-2009) and (MIL-STD-810H) for the 1.22-meter drop test |
| Certification | IP68 (IEC 60529), CE, RoHS; drop-tested to GJB 150.18A-2009 and MIL-STD-810H (1.22 m); ISO 9001-certified factory; salt-spray tested |

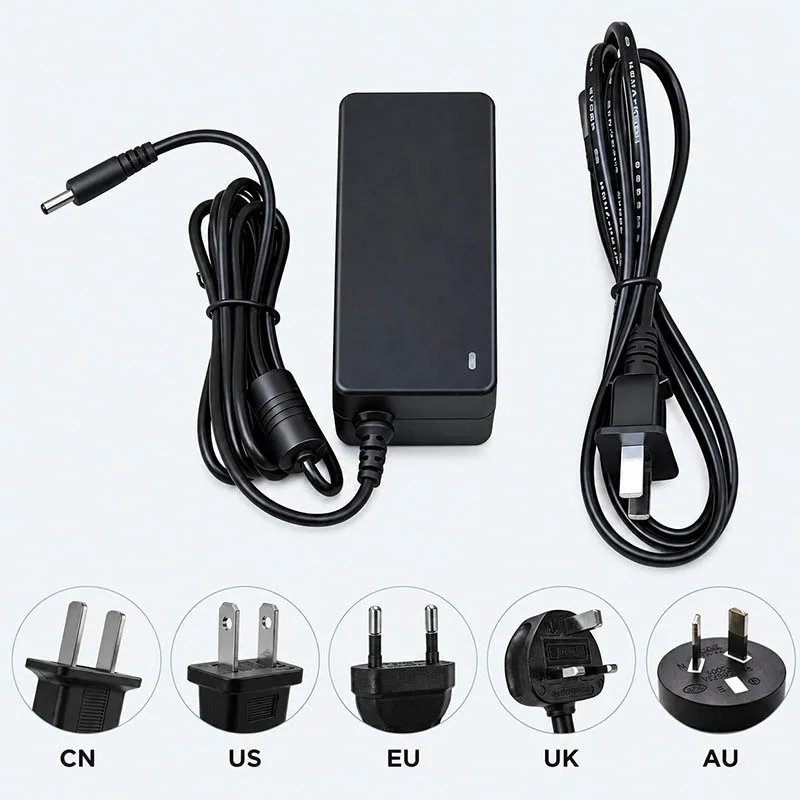

| Adapter | 12V-4A, DC interface adapter |
Frequently Asked Questions About W80Y Core i7 Windows Rugged Field Tablet
1. What is the W80Y designed for?
Compact Windows field diagnostics, network commissioning, industrial inspection, equipment maintenance and vehicle-mounted use — more Windows application capability than an entry-level N-series tablet, in a smaller footprint than the W10Y or W109NS.
2. What processor does the W80Y use?
Intel Core i7-10510Y — 4 cores, 8 threads, up to 4.50GHz turbo. It's a well-established, low-power processor rather than a current-generation Intel platform.
3. How is the W80Y different from the W10Y?
The W80Y has an 8-inch screen in a smaller enclosure; the W10Y has a 10.1-inch display and includes a built-in DB9 RS232 port.
4. Does the W80Y have a built-in RS232 port?
No external RS232 connector — the motherboard reserves a UART signal, which isn't the same as a finished RS232 port. Contact us if your project needs dedicated serial connectivity.
5. Does the W80Y have Gigabit Ethernet?
Yes, the built-in RJ45 port supports 100/1000Mbps.
6. What is the standard memory and storage configuration?
16GB RAM with a 256GB M.2 SSD.
7. Can the SSD be replaced?
The unit uses an M.2 SSD; contact us to confirm service access and approved replacement drives for your specific unit.
8. Does the W80Y run Windows 11?
Yes, Windows 11 ships as standard.
9. Can the W80Y run Linux?
Ubuntu, Debian are available as project configurations — we'll help validate the required drivers before production.
10. Does the touchscreen support glove use?
Yes, medical rubber-glove touch is standard; wet-hand touch is available as a customization.
11. Is the 700-nit screen sunlight-readable?
It offers good visibility in bright environments; for regular direct-sunlight use we recommend field-testing or asking about higher-brightness options.
12. Is the battery removable?
No, the 5550mAh battery is built in.
13. How long does the battery last?
Rated at ≥5 hours during 1080p video playback at 50% brightness/volume; actual runtime depends on your workload, networking and any optional modules.
14. Is a larger battery available?
Yes, a 10,000mAh option is available, which increases enclosure thickness to about 38.3mm — contact us to confirm final weight and runtime for your use case.
15. Does the Type-C port charge the tablet?
Type-C is USB 3.0 data only on this model; use the 12V/4A DC input for charging.
16. Does the Type-C port support video output?
No, external video is provided through the Micro HDMI port.
17. Is 4G/5G standard?
No, cellular is optional and depends on your destination region/carrier.
18. Does the standard tablet include a barcode scanner?
No, N1 and N670 scanner modules are available as options.
19. Does the W80Y support NFC?
Yes, as an optional module supporting ISO 14443A, 14443B and ISO 15693.
20. Can it read UHF RFID tags?
Yes, optional UHF modules with typical ranges of roughly 3–5 meters, depending on tag, antenna and environment.
21. Does it support RTK positioning?
Yes, as an optional module — centimeter-level accuracy requires compatible correction data and antenna setup.
22. Is the W80Y IP68 rated?
Yes, IP68 as standard.
23. Is it MIL-STD-810H certified?
Rated to withstand a 1.22m drop per MIL-STD-810H/GJB 150 test methods.
24. Is the W80Y suitable for new long-term projects?
It fits well where its size, interfaces and software compatibility match your needs; since the processor isn't a current Intel generation, we recommend confirming long-term board/BIOS support with us for multi-year deployments.
25. Is the W80Y explosion-proof?
No — hazardous-location use requires a separately certified model; contact our team for ATEX/IECEx options.

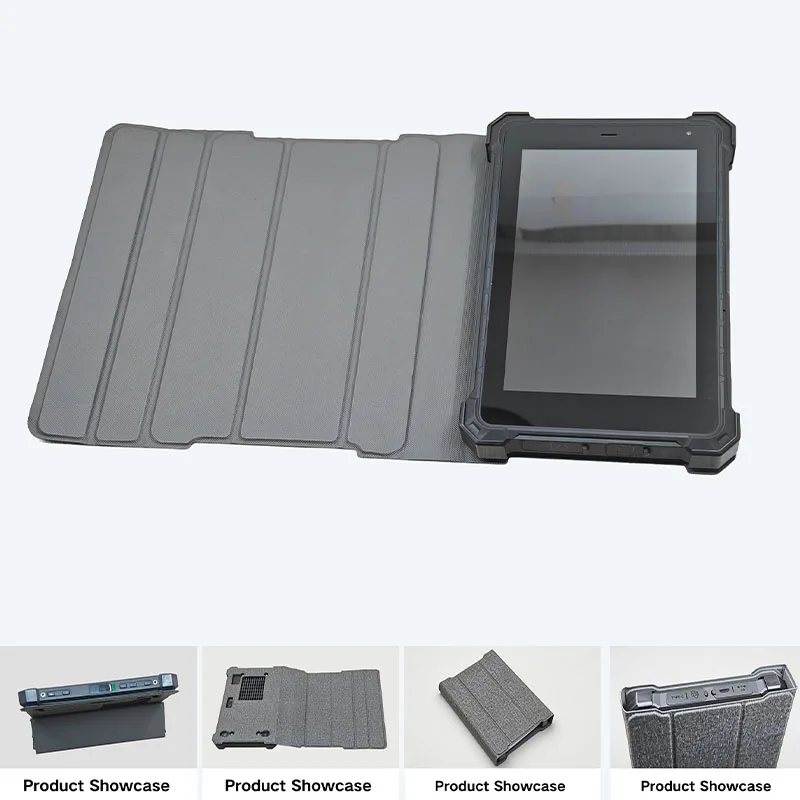

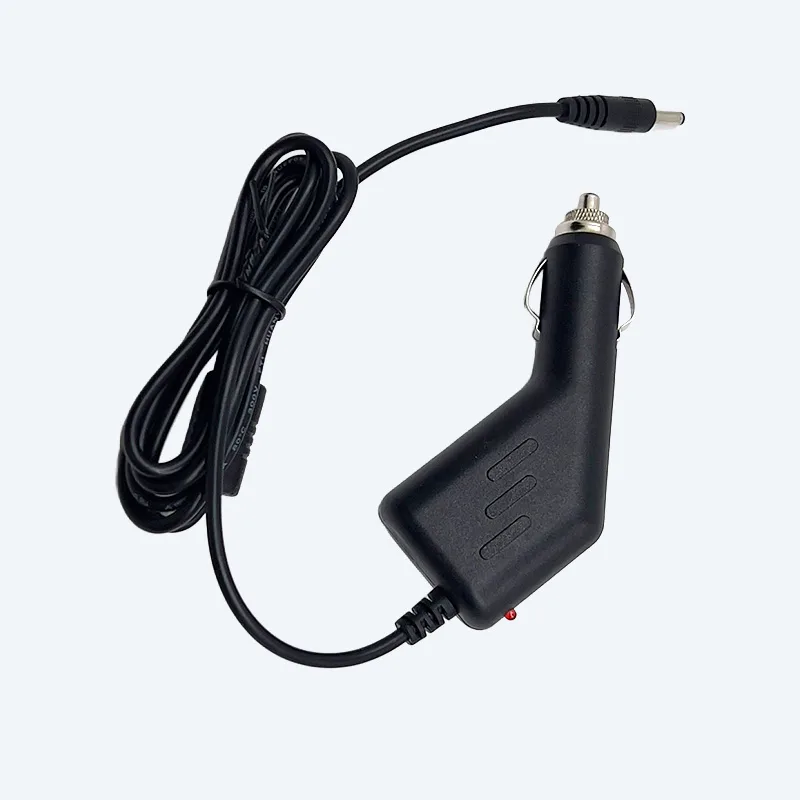

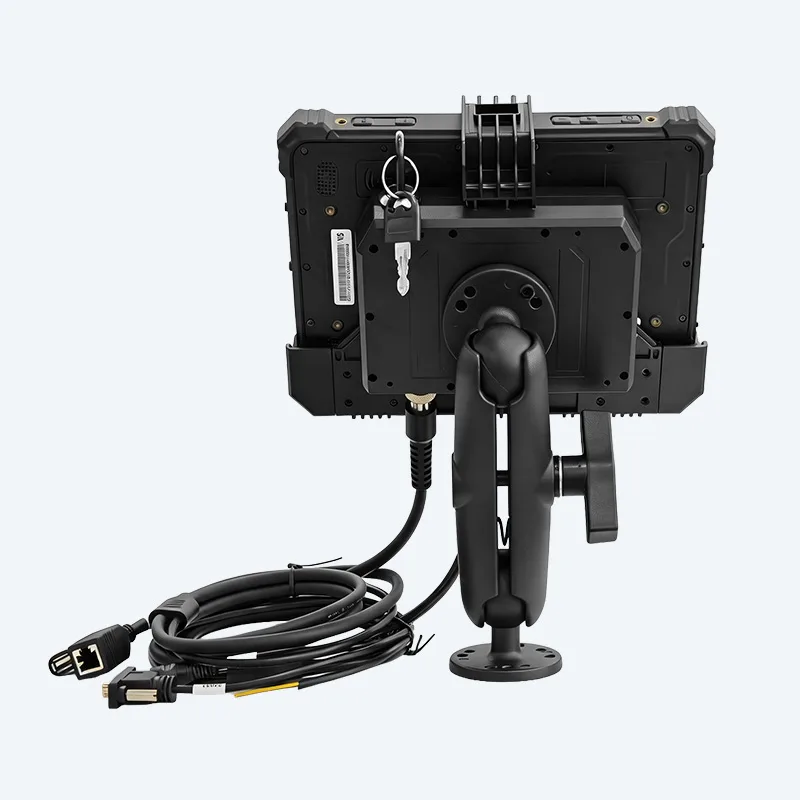

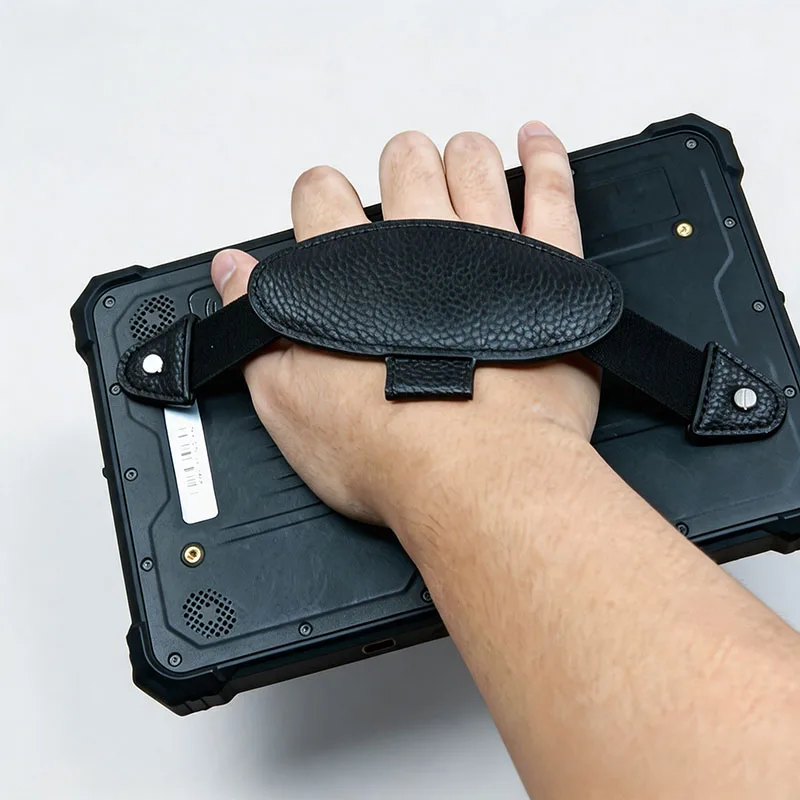

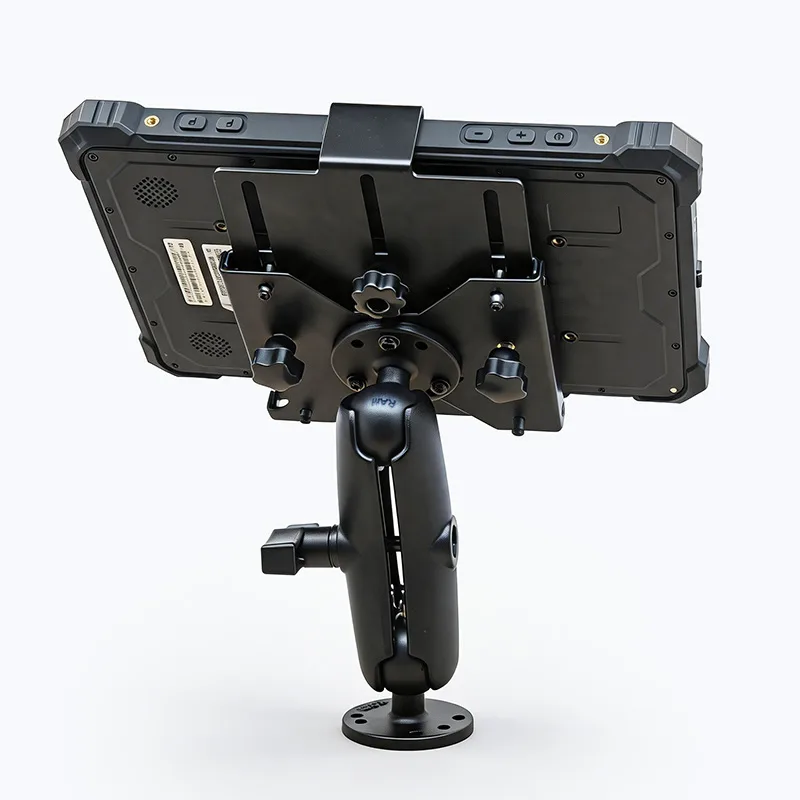

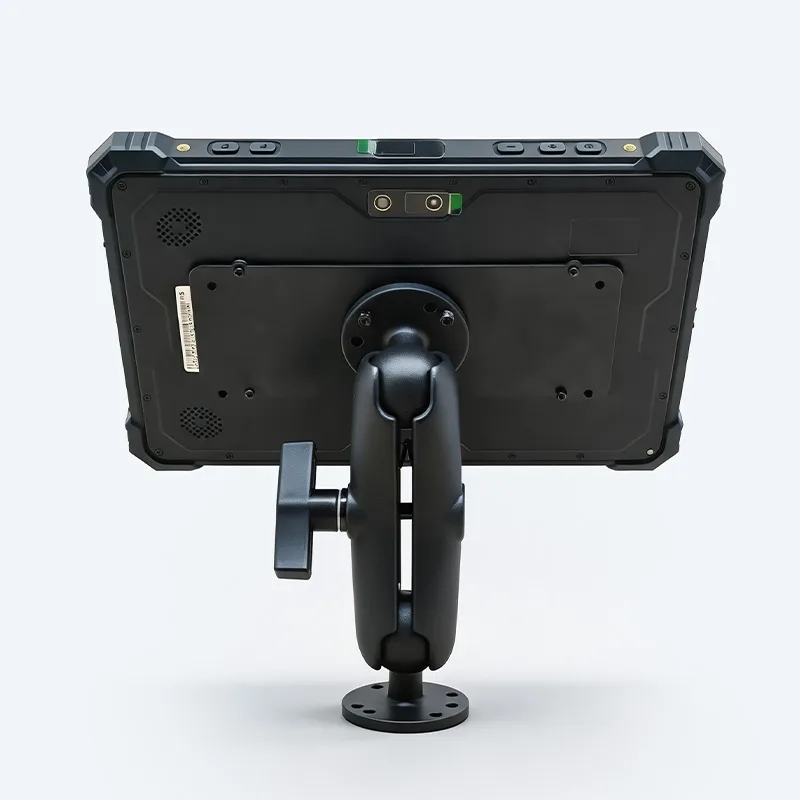

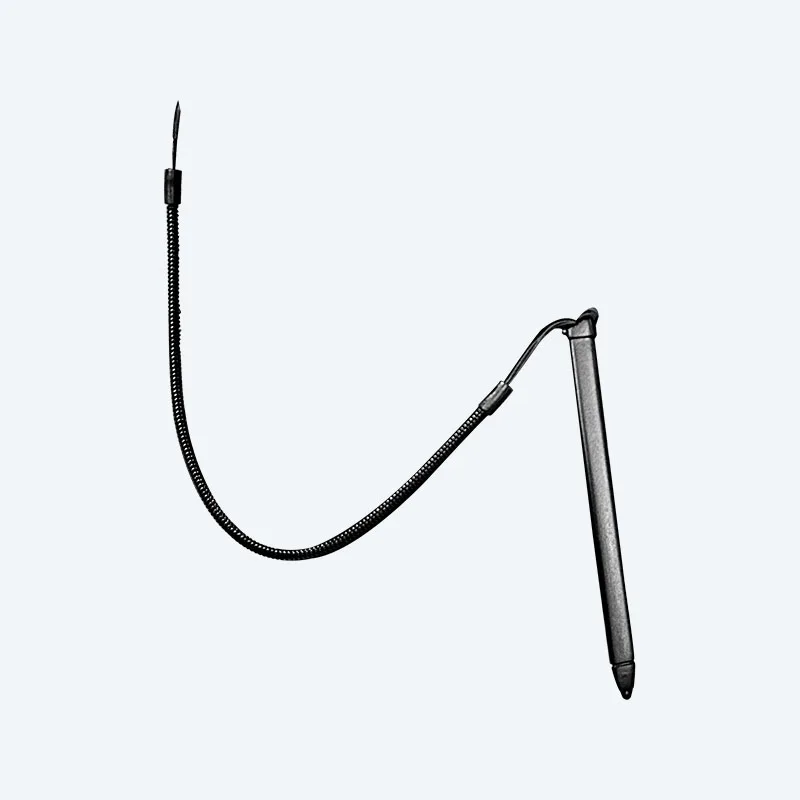

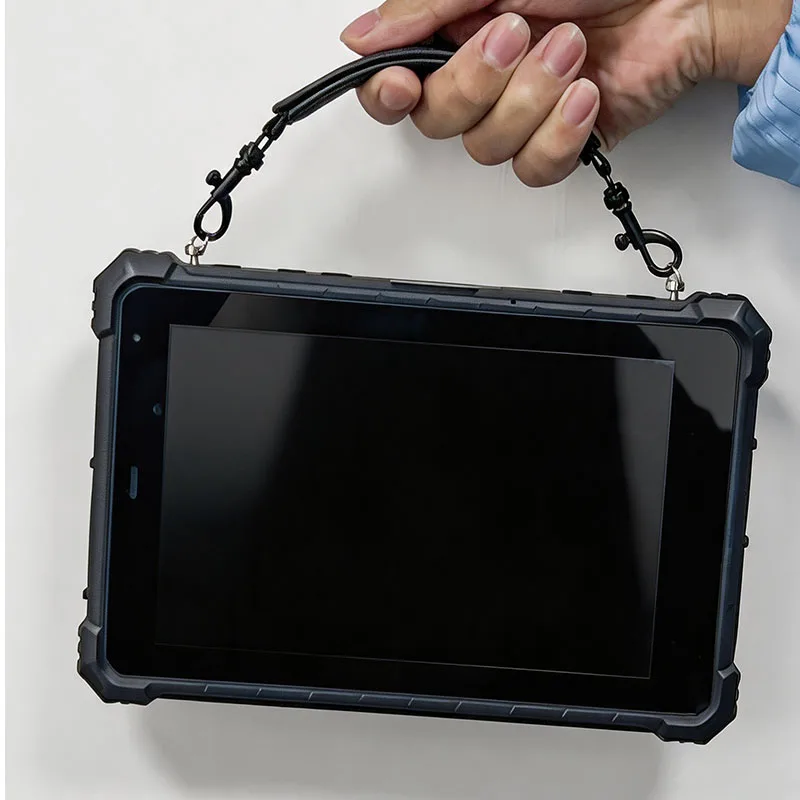

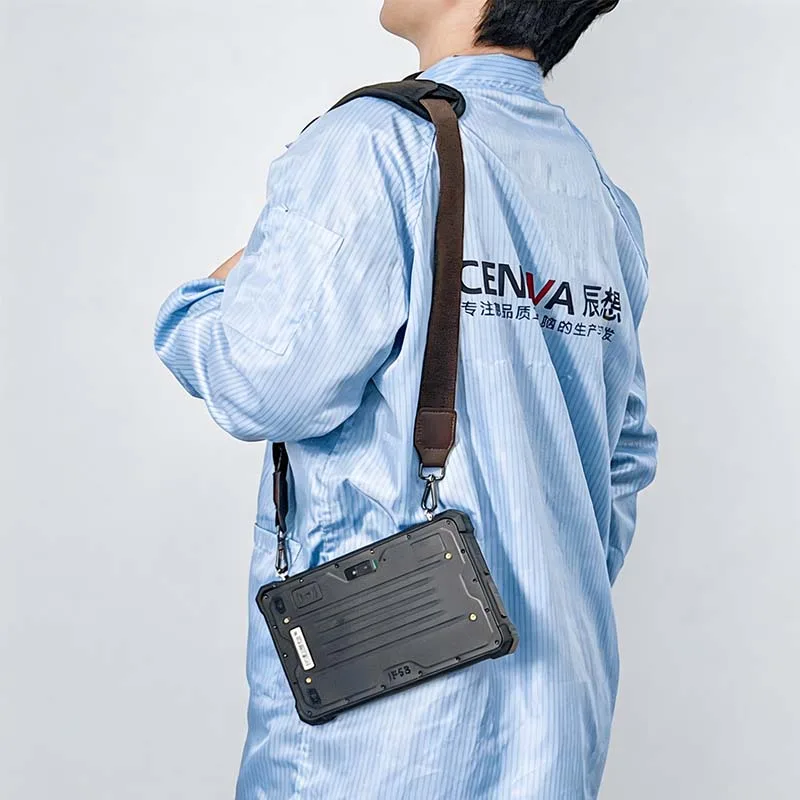

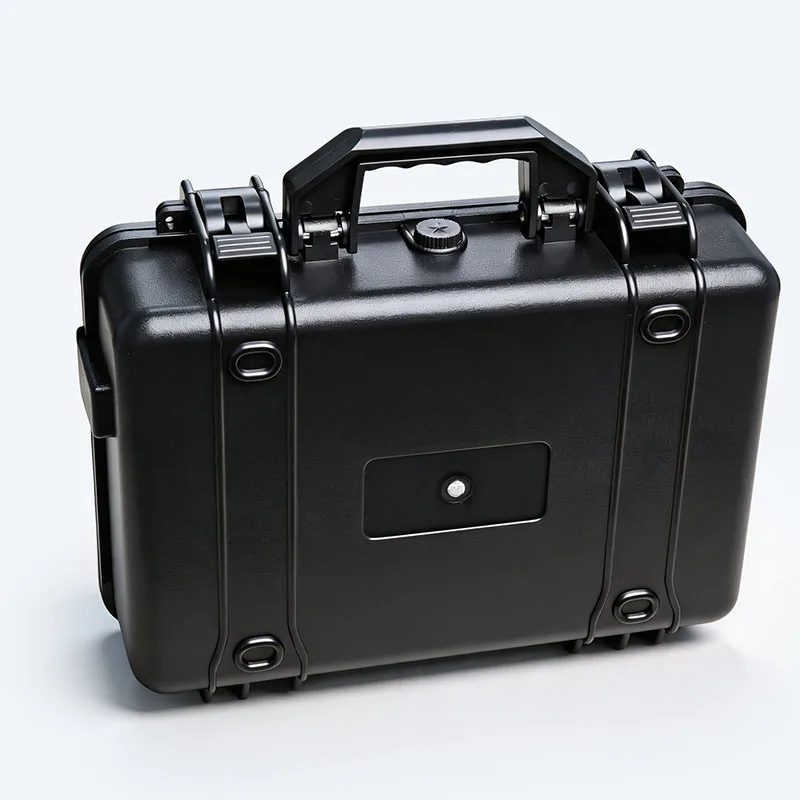

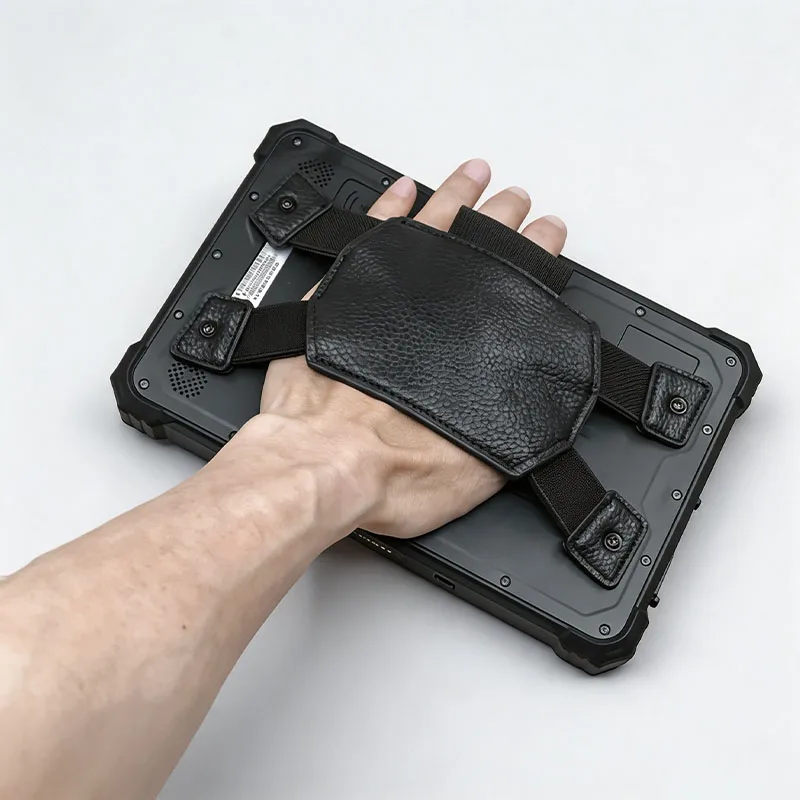

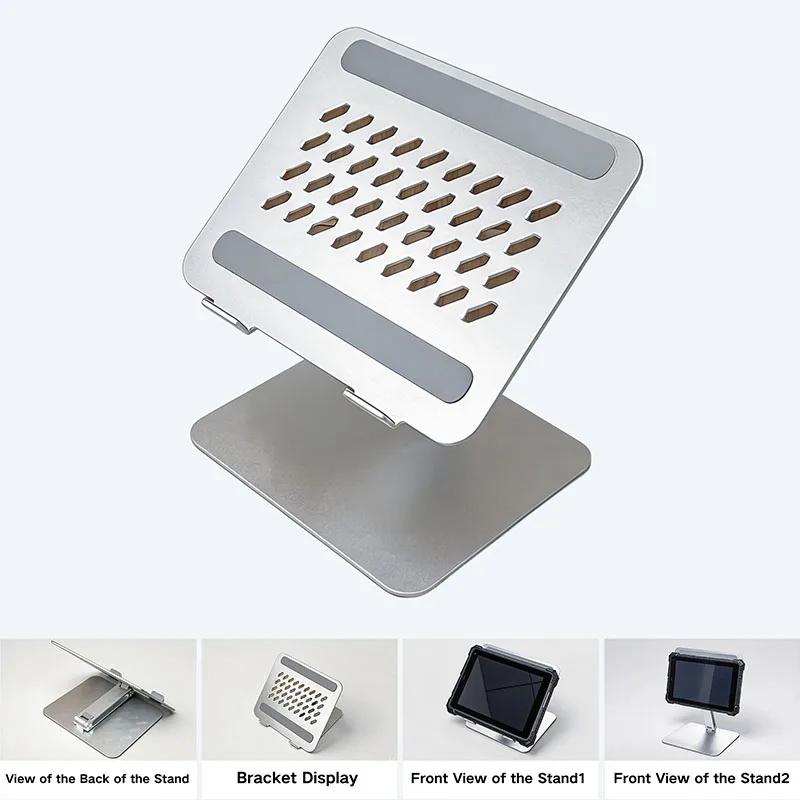

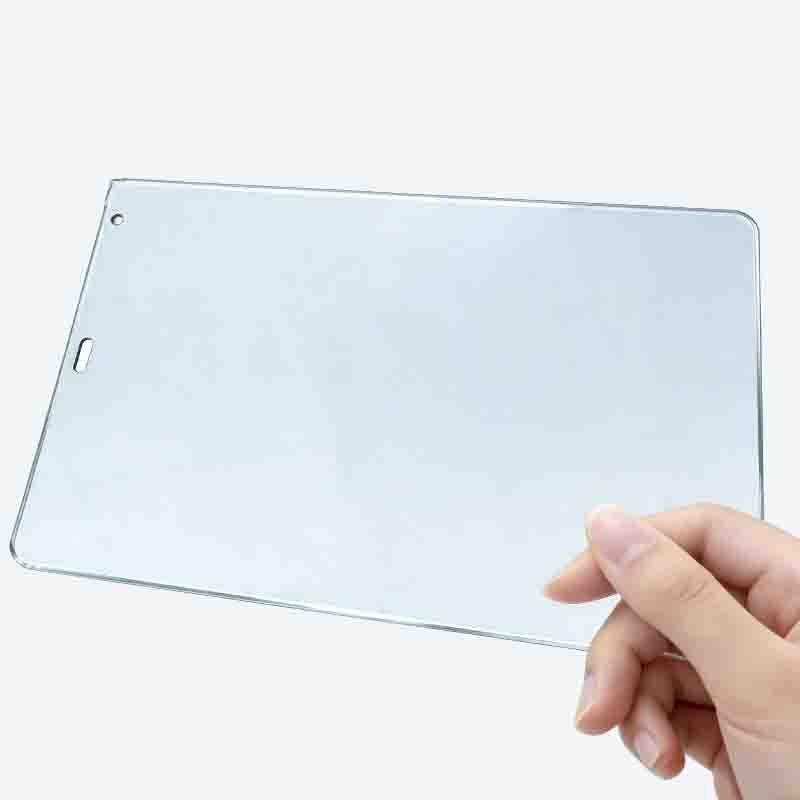

Accessories
