Rugged Computing Products
Rugged tablets, laptops, handhelds, and industrial PCs—built for demanding
environments and backed by 23 years of OEM/ODM expertise.

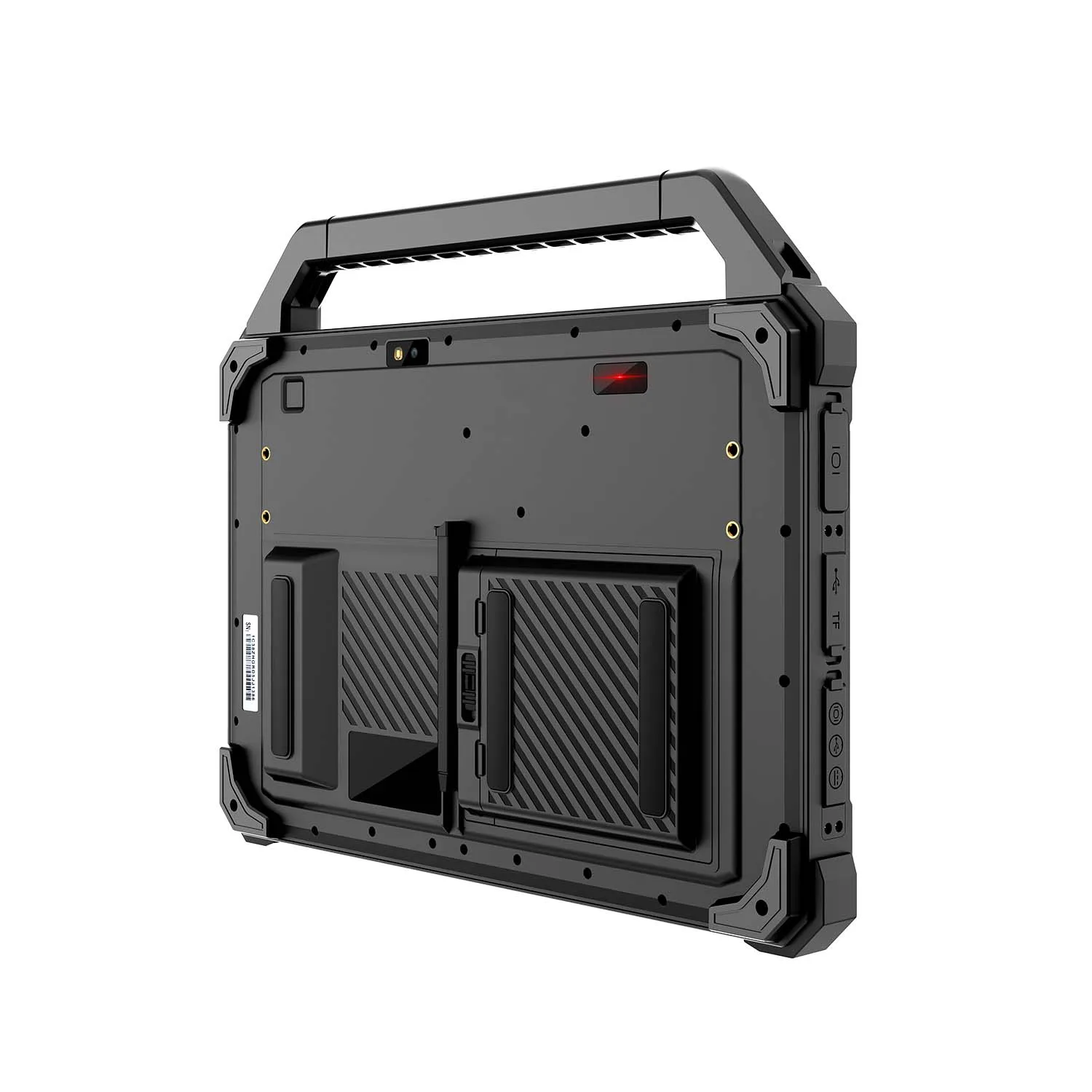

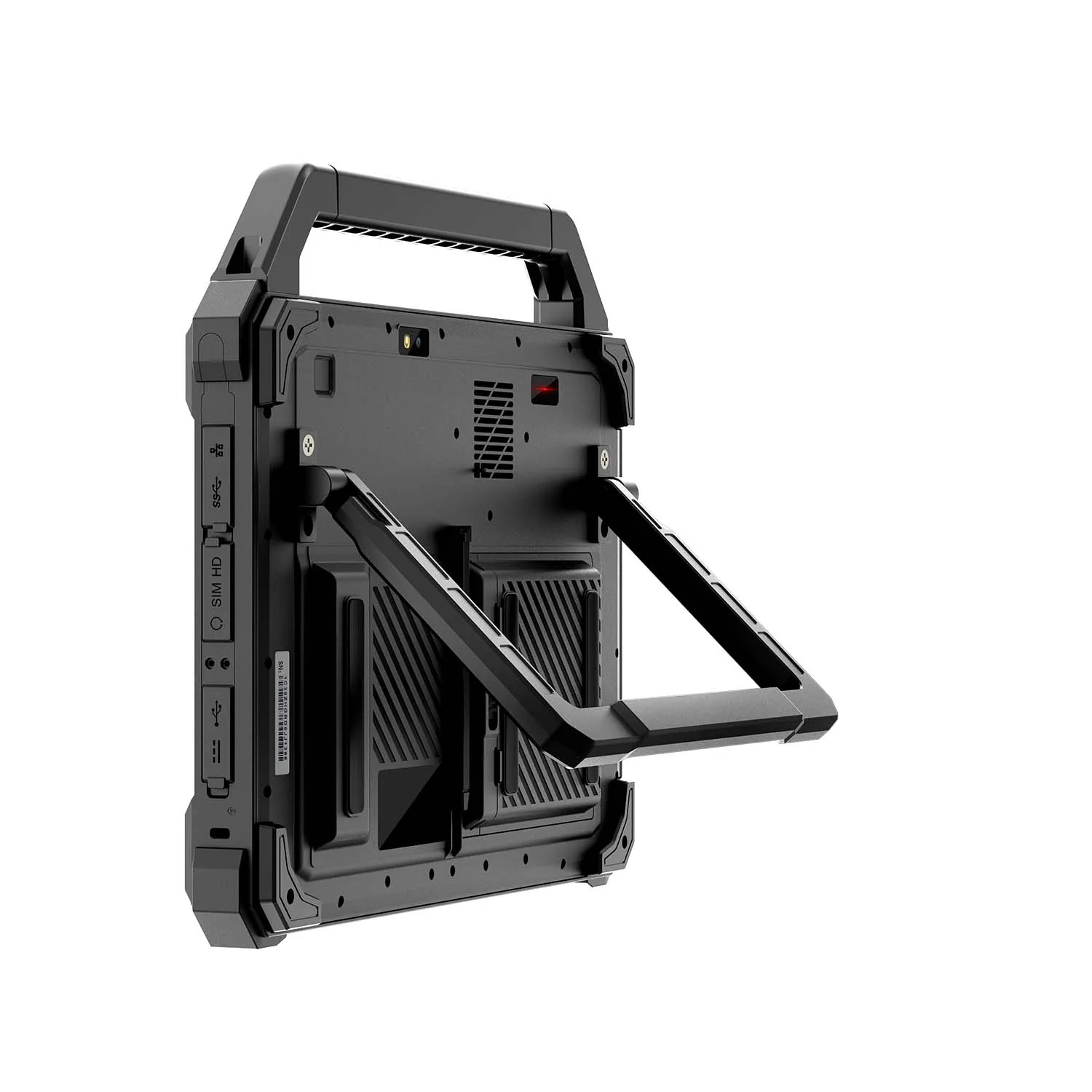

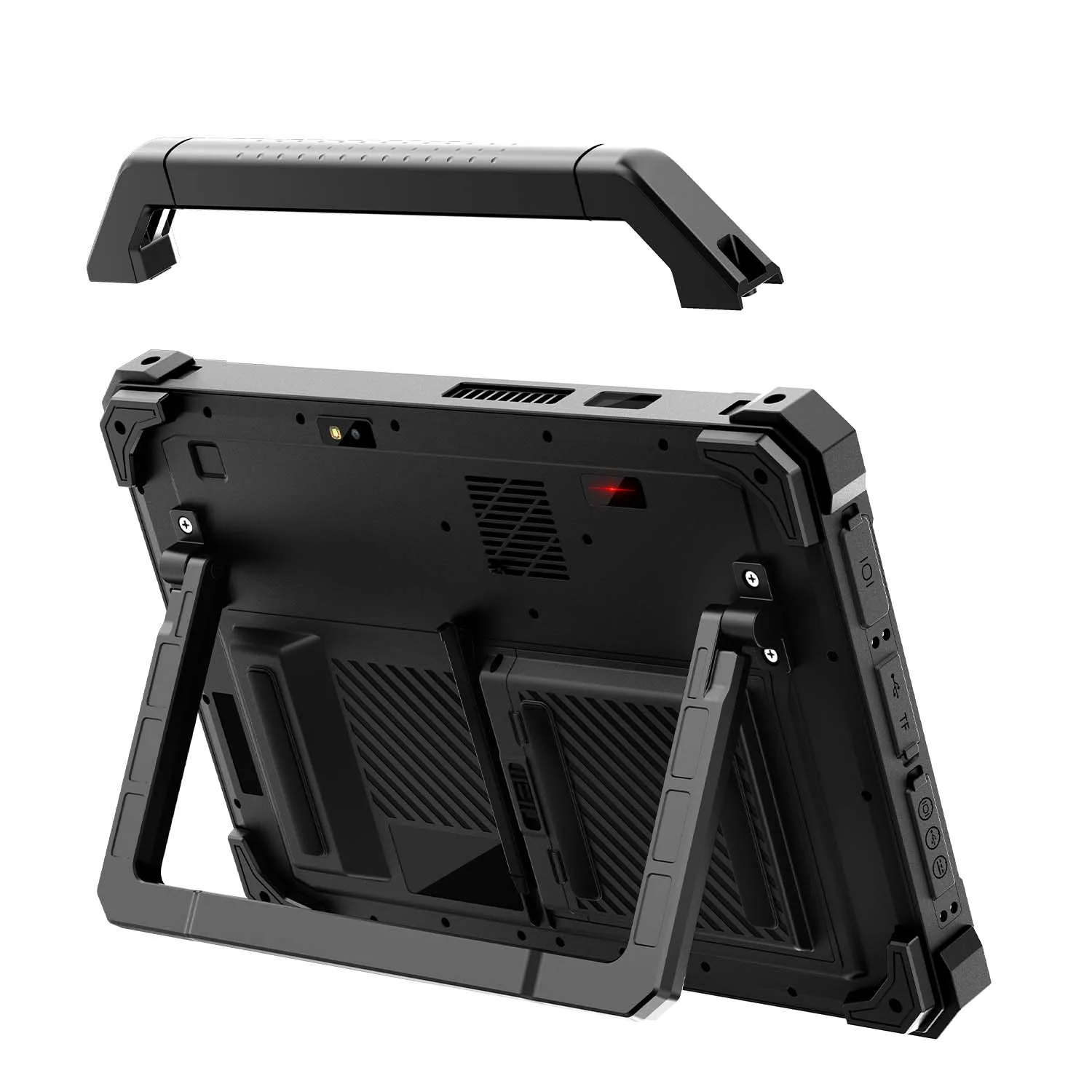

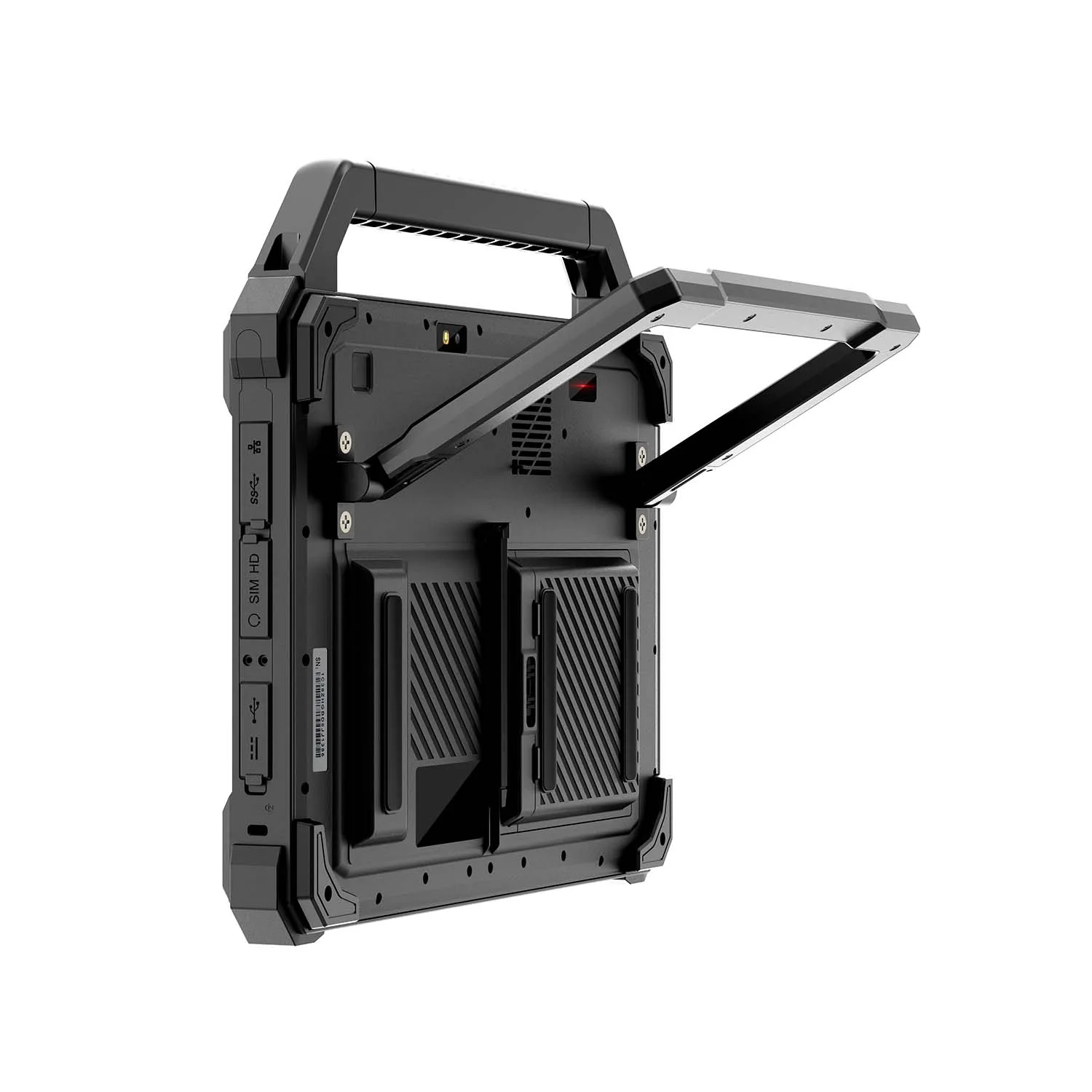

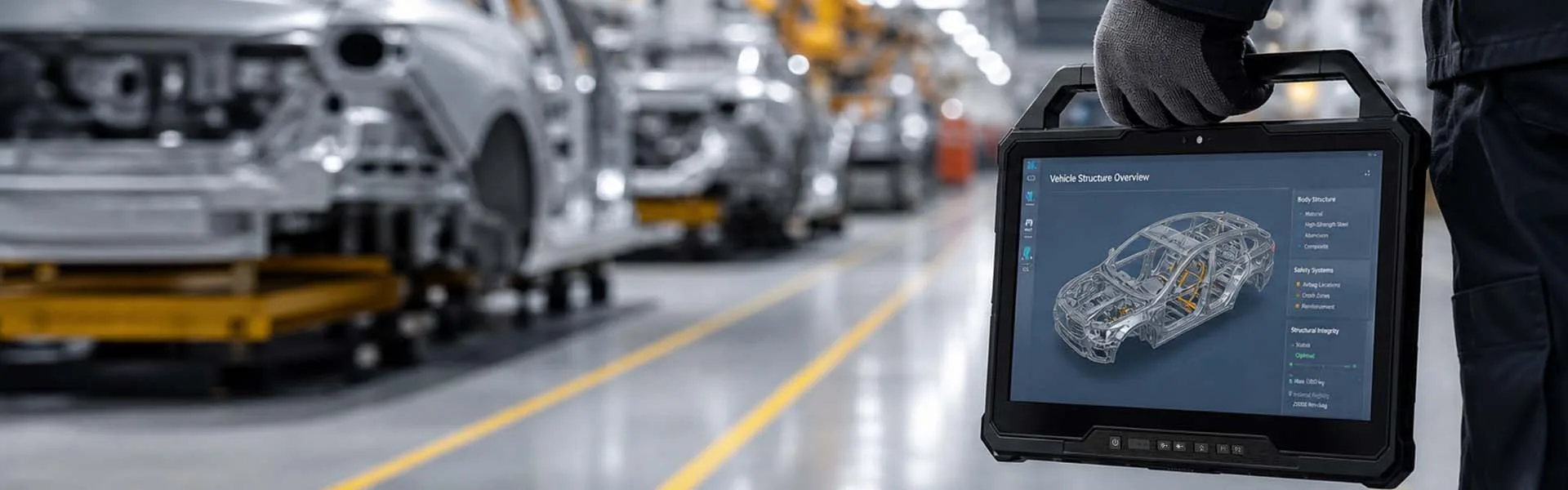

CENAVA W30U i5-1235U 13.3 Inch Win11 IP65 Rugged Tablet
CENAVA W30U i5-1235U is a 13.3-inch Windows rugged tablet for SCADA monitoring and CAD viewing in the field. If your crew only fills forms and scans barcodes, the 10.1-inch W10N does the job for less — the W30U earns its premium when the screen has to show a full drawing. The 10-core i5-1235U runs Windows 11 with DDR5 memory, while dual removable batteries (8300mAh + 300mAh) with hot-swap enable zero-downtime shifts. Gigabit RJ45, RS232, HDMI and three reserved aviation plugs connect field systems. IP65, MIL-STD-810H, TPM; optional 4G/5G, 2D, UHF.
CPU: Intel Core i5-1235U, 10 cores 12 threads, 1.3–4.4GHz, Iris Xe
OS: Windows 11 (optional Windows 10, Ubuntu 22.04)
RAM/ROM: 16GB DDR5 + 256GB M.2 SSD (2242) pluggable, up to 48GB / 2TB
Display: 13.3" 1920×1080 (bulk customizable 4K), 400cd/㎡ (optional 1000cd/㎡), 10-point G+FF wet-hand & glove touch
Battery: Dual removable batteries — 8300mAh main + 300mAh backup, 11.4V, ≥6h, hot-swap
Integrated I/O: Gigabit RJ45, DB9 RS232 (optional 422/485), HDMI, Type-C USB3.0, USB-A 3.0 + USB-A 2.0×2, 3.5mm, TF (256GB), Nano-SIM, 14Pin POGO, 3 reserved aviation plugs
Network: WiFi 6E, Bluetooth 5.3; optional 4G/5G; GPS/BeiDou/Galileo/GLONASS, optional single-BeiDou
Protection: IP65, MIL-STD-810H 1.22m drop, -20°C to 60°C , TPM, login fingerprint standard
Camera: Front 8MP fixed-focus, rear 12MP AF with flash (customizable 16MP)
Optional Modules: 2D scanner (SE4107), NFC 13.56MHz, ID card reader, UHF RFID (2m/5m), fingerprint capture (3 options)
Deca-Core Power
Win11 Smooth
i5-1235U 16GB+256GB Optional 4G/5G
Powered by Intel Core i5-1235U processor with 10 cores and 12 threads, 1.3GHz~4.4GHz, optional i7-1255U, running Windows 11 for Windows-based field applications and multitasking workloads. Standard 16GB DDR5 memory and 256GB M.2 SSD, pluggable design supporting up to 48GB memory and 2TB SSD. The 13.3-inch 1920*1080 display with 400cd/㎡ brightness, customizable to 1000cd/㎡ high-brightness and 4K resolution, features 10-point touch supporting wet-hand and glove operation. Supports GPS, BeiDou, Galileo and GLONASS positioning, with optional 4G/5G for continuous connectivity in field inspections.

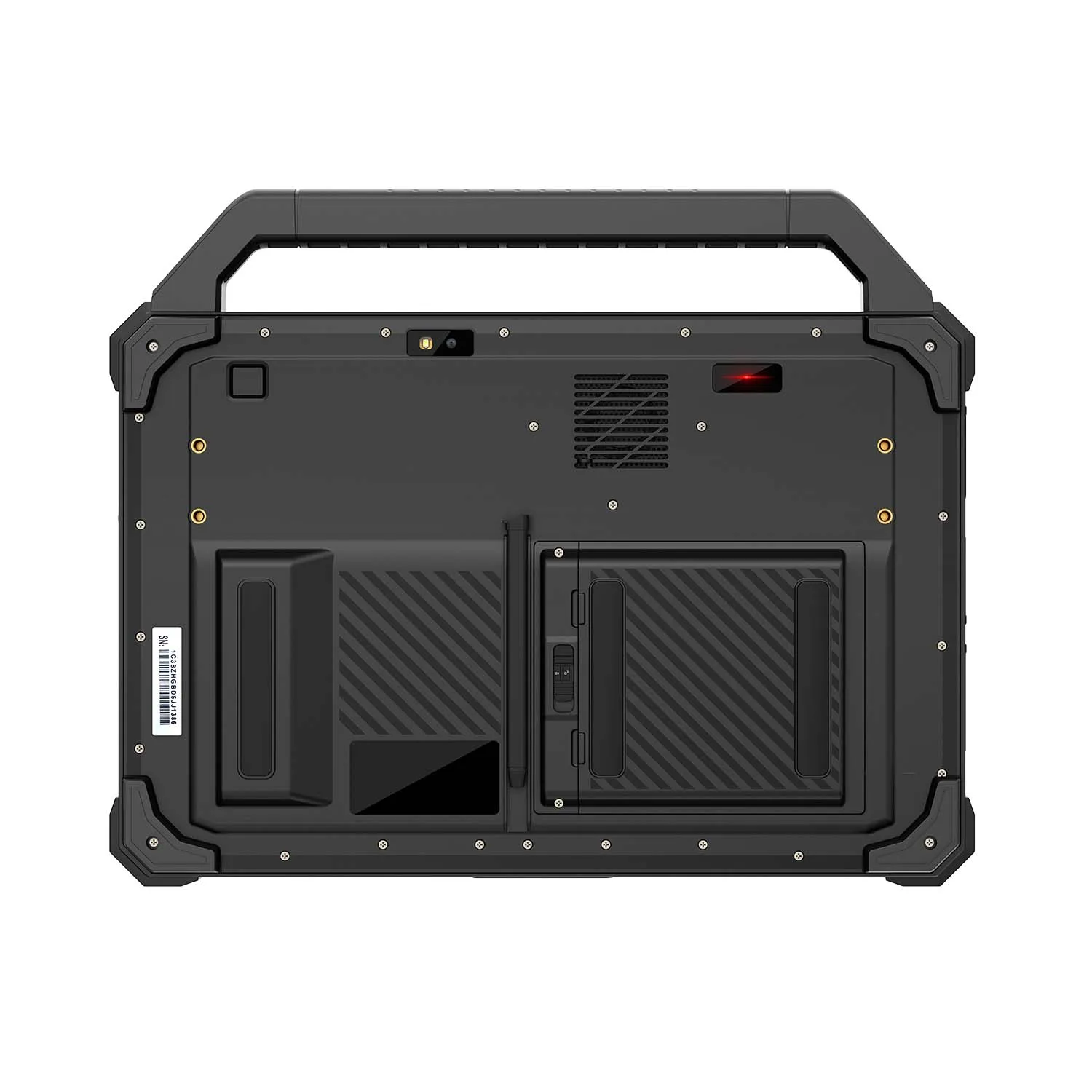

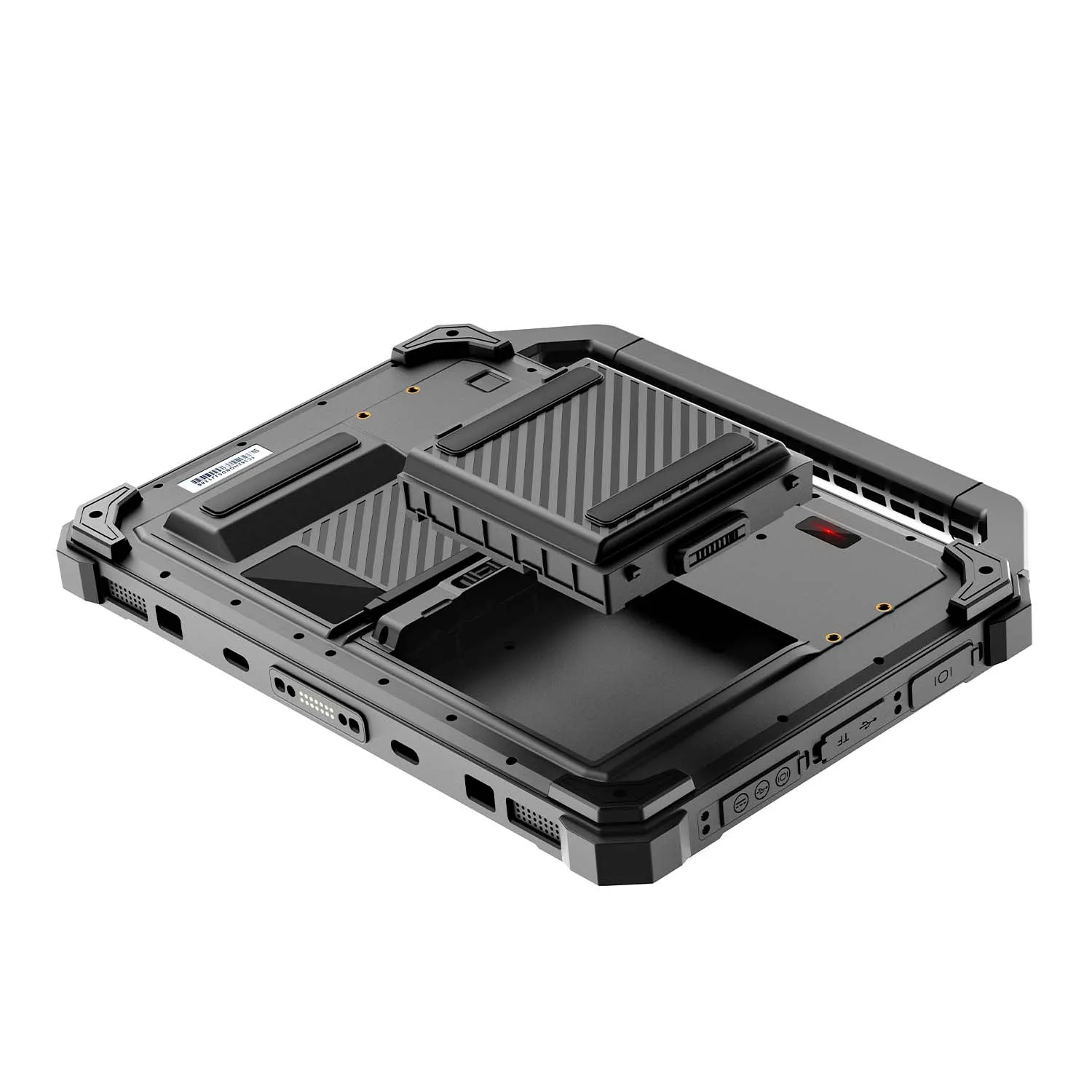

Swappable Large Battery
Hot-Swappable Battery for Extended Shifts
Dual-Cell 11.4V/8300mAh Removable Hot-Swap + 300mAh ≥6h Runtime
Removable main battery with internal backup battery design: 11.4V/8300mAh high-voltage main battery, removable and hot-swappable, allowing replacement without shutdown for uninterrupted field operation; the 11.4V/300mAh non-removable secondary battery bridges ≥10 minutes during swaps. The main battery delivers ≥6 hours of runtime; swap in a charged spare and the operator keeps working — enough for extended outdoor inspections and full-day warehouse inventory. Optional battery charging dock for centralized recharging, optional 19V vehicle charger for in-vehicle power, stable discharge within -20°C to 60°C wide temperature range for all-weather operation.

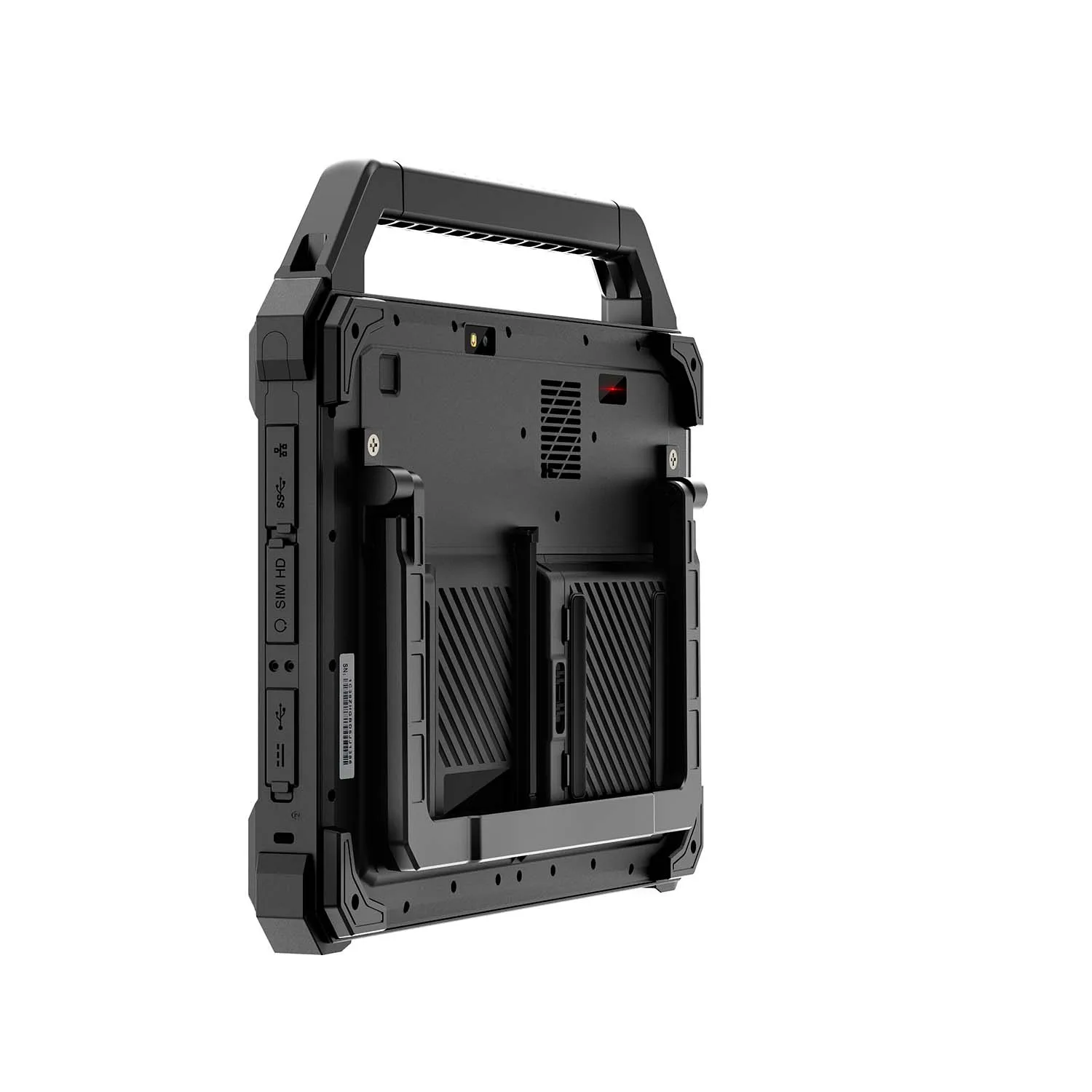

Industrial Full Interface
Plug and Play
Type-C+USB+HDMI+POGO+Aviation Full Interface
Full industrial interface configuration: Type-C and USB-A 3.0 for high-speed transfer, dual USB2.0 for keyboards and mice, HDMI for large-screen presentations, gigabit RJ45 Ethernet for stable networking, DB9 serial port with optional 232/422/485 protocols for industrial devices, and 3.5mm headphone jack for voice intercom. 14-pin POGO PIN connects charging and expansion docks; reserved power, USB2.0 and COM aviation connectors ensure reliable connections in high-vibration environments. Optional 2D scanner, NFC, ID card, UHF and fingerprint collection modules, forming an integrated data collection and device control terminal.
IP65 Environmental Protection
Harsh Conditions No Fear
IP65 1.22m Drop -20°C to 60°C
IP65-rated for dust-tight protection and resistance to water jets, MIL-STD-810H certified, surviving 1.22m drops and daily impacts. Operating temperature range of -20°C to 60°C ensures reliable startup in freezing winters and scorching summers, with customizable -30°C version for extreme cold. Silicone protective corners cushion impacts, waterproof sealing strips block mud and sand, and the detachable handle keeps the 2098g body stable on the move.
Technical Specifications
 CPU Intel Core Alder Lake i5-1235U |  System |  Storage 16GB DDR5 + 256GB M.2 2242 (up to 48GB / 2TB) |  Display 13.3 inches 1920*1080 |
 Optional NFC Optional (13.56MHz) |  Optional 1D/2D Barcode Scanner Optional (Zebra SE4107) |  Battery Main:Removable 11.4V 8300mAh battery |  Wall hole pitch / screw 154x71.5mm/ M3*4.5mm |
 Navigation positioning GPS, BeiDou, Galileo, GLONASS (single-BeiDou optional) |  2G/3G/4G Optional 4G/5G |  Interface Gigabit RJ45, DB9 RS232 (422/485 optional), HDMI, Type-C USB3.0, USB-A 3.0 + 2×USB-A 2.0, 3.5mm, TF, Nano-SIM, 14Pin POGO, 3× aviation plugs |  Size/Weight 345×233×35.2mm / 2098g |
 Memory and Storage Expansion DDR5 to 48GB; M.2 2242 SSD to 2TB |  Protection level working temperature: -20 °C to 60°C Storage temperature: -30 °C to 70 °C |  Camera Front: 8MP fixed-focus; Rear: 12MP AF with flash (16MP optional) |  Light-sensitive Support |
Built for Engineers Who Read Drawings and Dashboards in the Field
| Product Type | 13.3-inch Windows rugged tablet |
| Typical Applications | Command and control, communication support, data reconnaissance, equipment maintenance, exploration mapping and other industrial occasions |
| Main battery | 11.4V 8300mAh high-voltage lithium battery, removable, supports hot-swapping,battery life ≥6h (1080P+50% brightness) |
| Sub battery | 11.4V 300mAh high-voltage lithium battery, non-removable, battery life ≥10MIN (1080P+50% brightness) |
| Key | On/off key, brightness +/-, menu key, P1, P2 (scanning key) Customized function keys |
| TPM | Built-in TPM security chip |
| Gravity Sensor | Support |
| WIFI | Built-in WIFI 802.11 b/g/n/ax , Wifi6E |
| Bluetooth | Bluetooth 5.3 Transmission distance: 10m |
| Positioning system | GPS, Galileo, GLONASS |
| Login fingerprint (standard) | SPI interface |
| Type -C | *1 USB 3.0 |
| USB-A | *1 USB3.0 |
| USB-A | *2 USB2.0 |
| Earphone Jack | *1 3.5mm standard headphone jack |
| TF Card | *1 supports up to 256GB expansion |
| SIM Card | *1 Nano-SIM card slot |
| HDMI | *1 HDMI |
| DC connector | *1 19V-3.42A (DC plug OD 5.5mm ID 2.1mm) |
| RJ45 network port | *1 100/1000M |
| DB9 connector | *1 RS232 serial port (optional 232/422/485 protocol) |
| POGO PIN connector | *1 14Pin USB+Charging |
| Expansion function | Reserve Air-Plug Interface: 1*Power Input Air-Plug Interface, 1*USB2.0 Air-Plug Interface, 1*COM Air-Plug Interface |
| Integratability | Expandable, Integration of Customer Modules, Customizable Function Interfaces |
| Drop height | Meets the requirements of (GJB 150.18A-2009, GJB 150.1A-2009) and (MIL-STD-810H) for the 1.22-meter drop test |

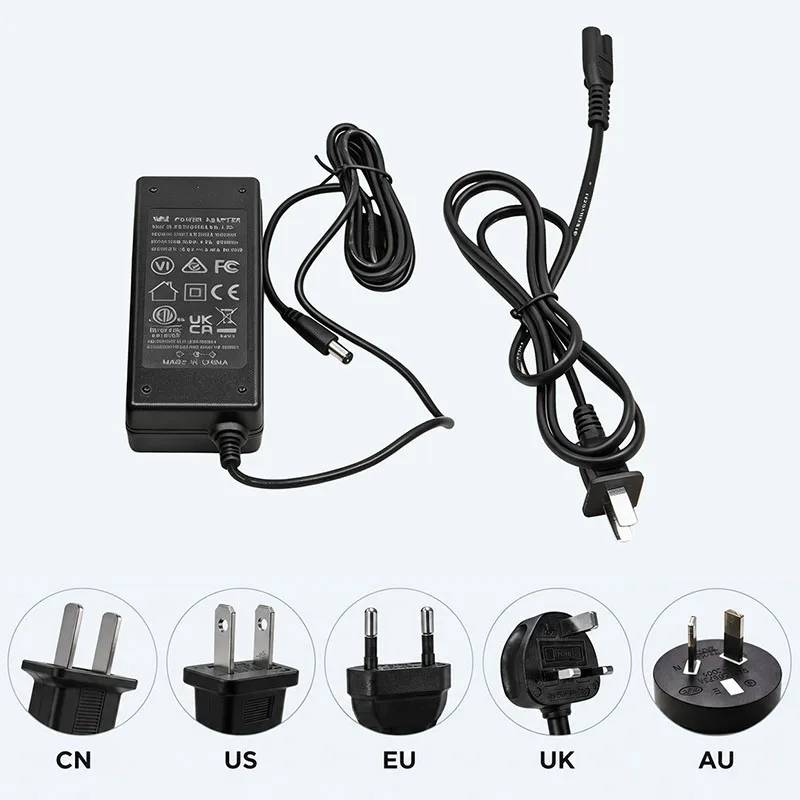

| Power Adapter | 19V-3.42A, DC power adapter |

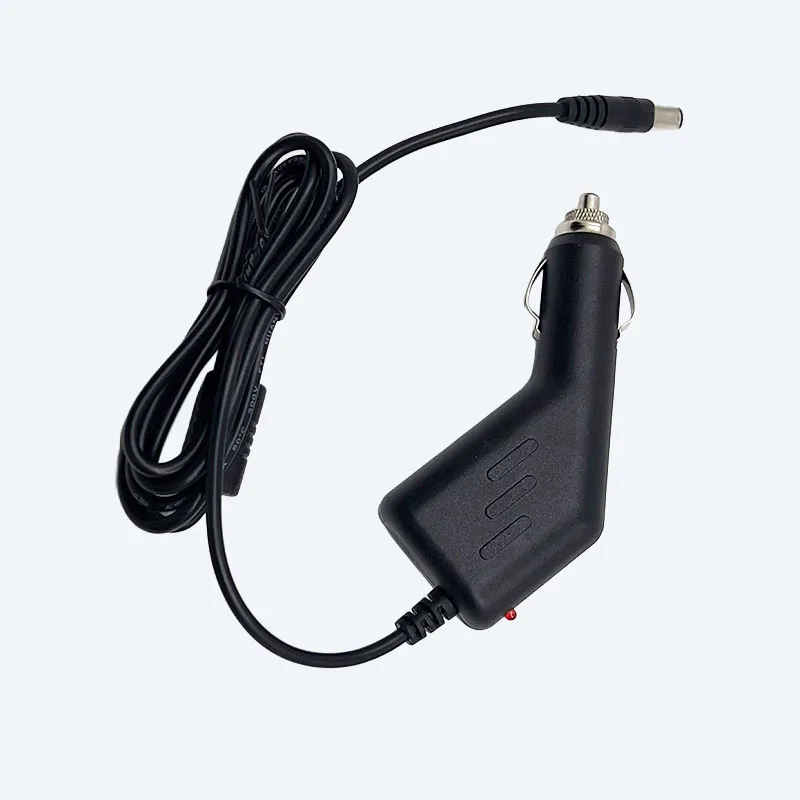

| Car charger(Optional) | 19V Car Charger - Input 9–36V, Output DC 19V 3A, 2.5×5.5mm DC connector |

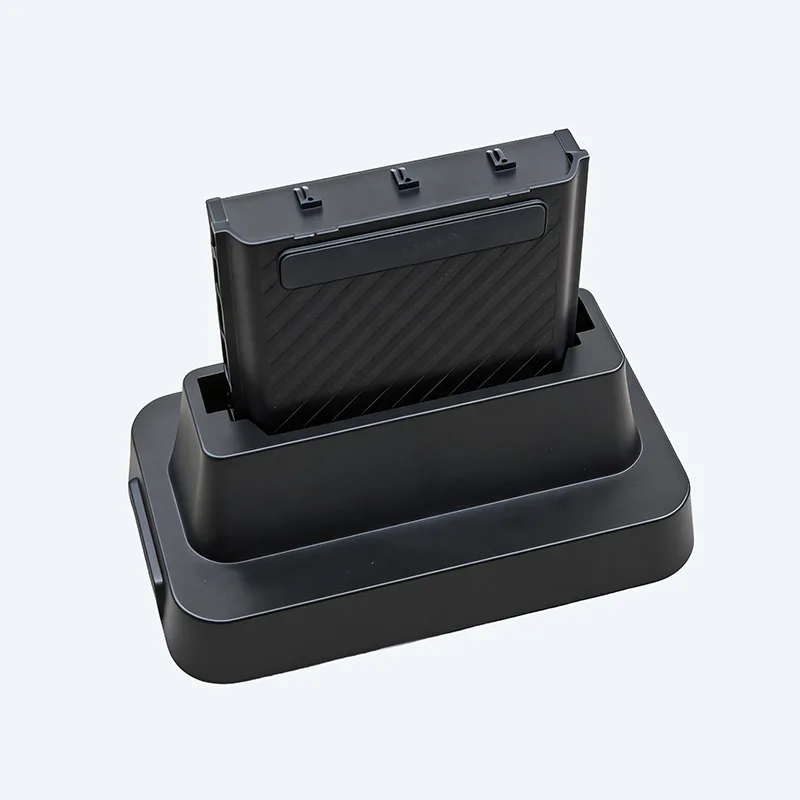

| Battery Charging Dock (optional) | 19V battery charging dock |
The W30U's 13.3-inch FHD display shows a full SCADA overview or an A3 drawing without constant pinch-zooming — that is the main reason crews step up from a 10-inch tablet. The DB9 RS232 port (optional 422/485) talks to legacy PLCs, RTUs and relay test sets that consumer tablets abandoned years ago, and the three reserved aviation plugs let your integrator wire in custom peripherals without opening the enclosure. When a shift runs long, the dual-battery hot-swap changes the main pack in seconds — the 300 mAh backup keeps the session alive, so nobody loses an unfinished inspection form.
The W30U i5 version is intended for organizations that need desktop-class Windows software in a portable industrial terminal.
It is suitable for applications such as:
Factory Equipment Maintenance
Run approved Windows diagnostic software, connect to controllers through RS232/RS485 or Ethernet, view equipment records and upload maintenance results from the production floor.
Utility and Field Inspection
Use GNSS positioning, optional 4G/5G and the high-brightness display to locate assets, record inspection results, capture images and synchronize field reports.
Warehouse and Asset Verification
Configure the tablet with a 2D scanner, NFC or UHF RFID for inventory checking, equipment identification and asset-status updates. Module combinations must be confirmed before ordering.
Vehicle Service and Mobile Workshops
Connect approved diagnostic equipment through Ethernet, USB or serial interfaces and use the optional vehicle charger for mobile maintenance deployments.
Frequently Asked Questions about W30U 13.3 Inch Windows Rugged Tablet
1. What is the W30U i5 rugged tablet designed for?
The W30U i5 is designed for field service, industrial maintenance, equipment diagnostics, factory operations, vehicle work and other applications that require Windows software together with industrial interfaces.
2. How is the W30U different from a consumer Windows tablet?
The W30U provides features that are uncommon on consumer tablets, including RS232, RJ45 Ethernet, a removable battery, an internal backup battery, wet-hand touch, glove operation and configurable barcode, NFC, RFID and fingerprint modules.
3. Can the W30U battery be replaced without shutting down Windows?
The tablet includes an internal 300mAh backup battery designed to provide temporary power while the main 8300mAh battery is replaced.
4. Can the screen be used outdoors?
The standard screen is rated at 400cd/m². A customized 1000cd/m² high-brightness display is available for projects requiring improved outdoor visibility.
5. Does the tablet support RS485?
The standard interface is listed as RS232. RS422 or RS485 can be configured for qualified projects.
6. Can barcode scanning, NFC and UHF be installed together?
Several data-capture modules are available, but not every module combination will fit every mechanical configuration.
7. Why does a top-mounted scanner affect GPS or 5G?
The top-mounted scanner occupies the same antenna bay as the cellular/GPS option — with the scanner fitted, the build must choose between GPS and 4G/5G. Tell us your priority and we will lay out the modules accordingly.
8. Which operating systems can be installed?
Windows 11 is the standard system. Windows 10 and Ubuntu 22.04.5 are listed as optional.
9. Does the hot-swap battery really swap without shutdown?
Yes. The 300 mAh backup battery bridges the swap — remove the main 8,300 mAh pack, insert a charged one, and your session, apps and network connection stay up 10 min.

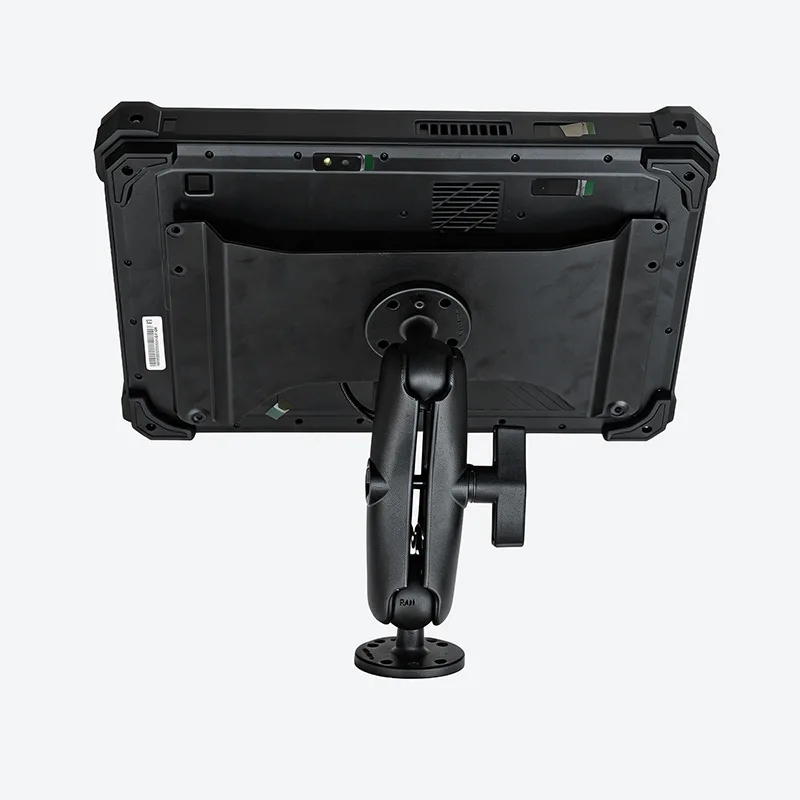

10. Can the W30U be mounted in a vehicle or forklift?
The 14-pin POGO connector on the unit is designed for docking. Vehicle docks and mounting brackets are available — tell us your vehicle model and whether you need power pass-through, and we will confirm the right dock.
11. What is the difference between the W30U and the W30U Pro?
The Pro steps up to a Core Ultra 7 155U with an integrated NPU for on-device AI workloads — edge inference, image-assisted inspection and similar tasks. If your workflow is SCADA, CAD and data collection, the standard W30U's i5-1235U is the better value; if your software roadmap includes local AI, buy the Pro.
12. Which should I choose: 400 or 1000 cd/m² display?
Indoor plant floors and vehicles: 400 is fine. Outdoor work in direct sunlight — utilities, construction, open-pit sites: take the 1000. This is the single most common post-purchase regret we hear about; decide based on where the tablet will actually be used, not the datasheet.
13. Is the W30U suitable for hazardous (explosive) atmospheres?
No. The W30U is a rugged tablet, not an explosion-proof one — IP65 and MIL-STD-810H do not qualify a device for classified hazardous areas. If your site has a Zone or Class/Division rating, see our explosion-proof tablet range.

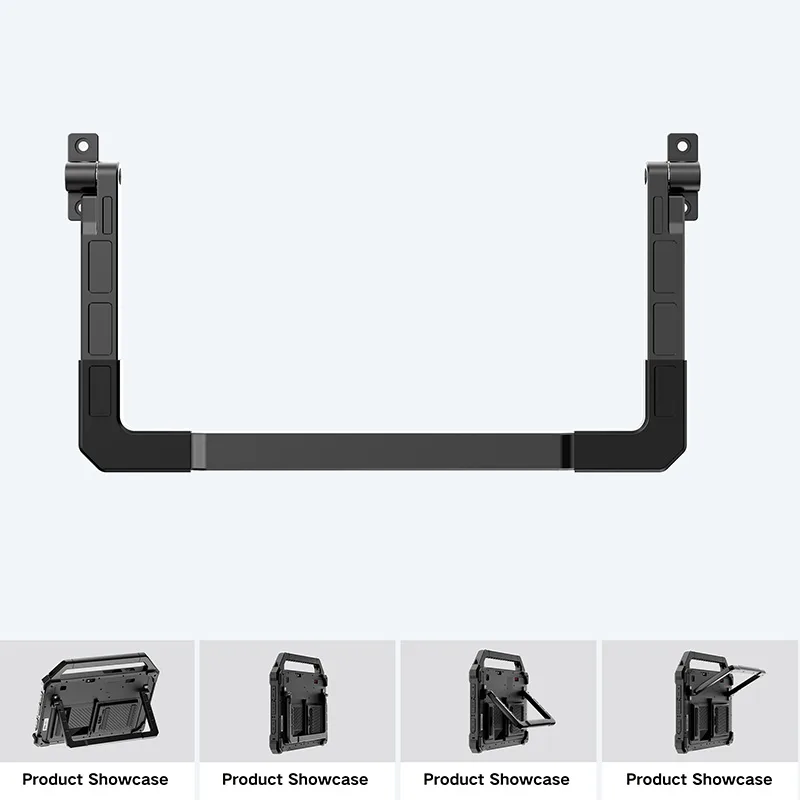

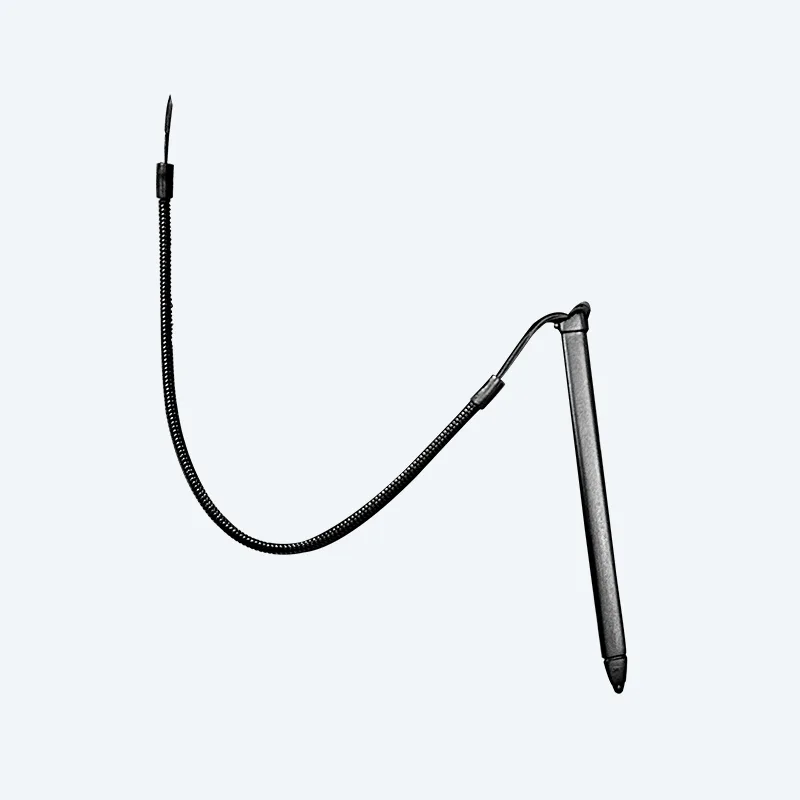

Accessories
