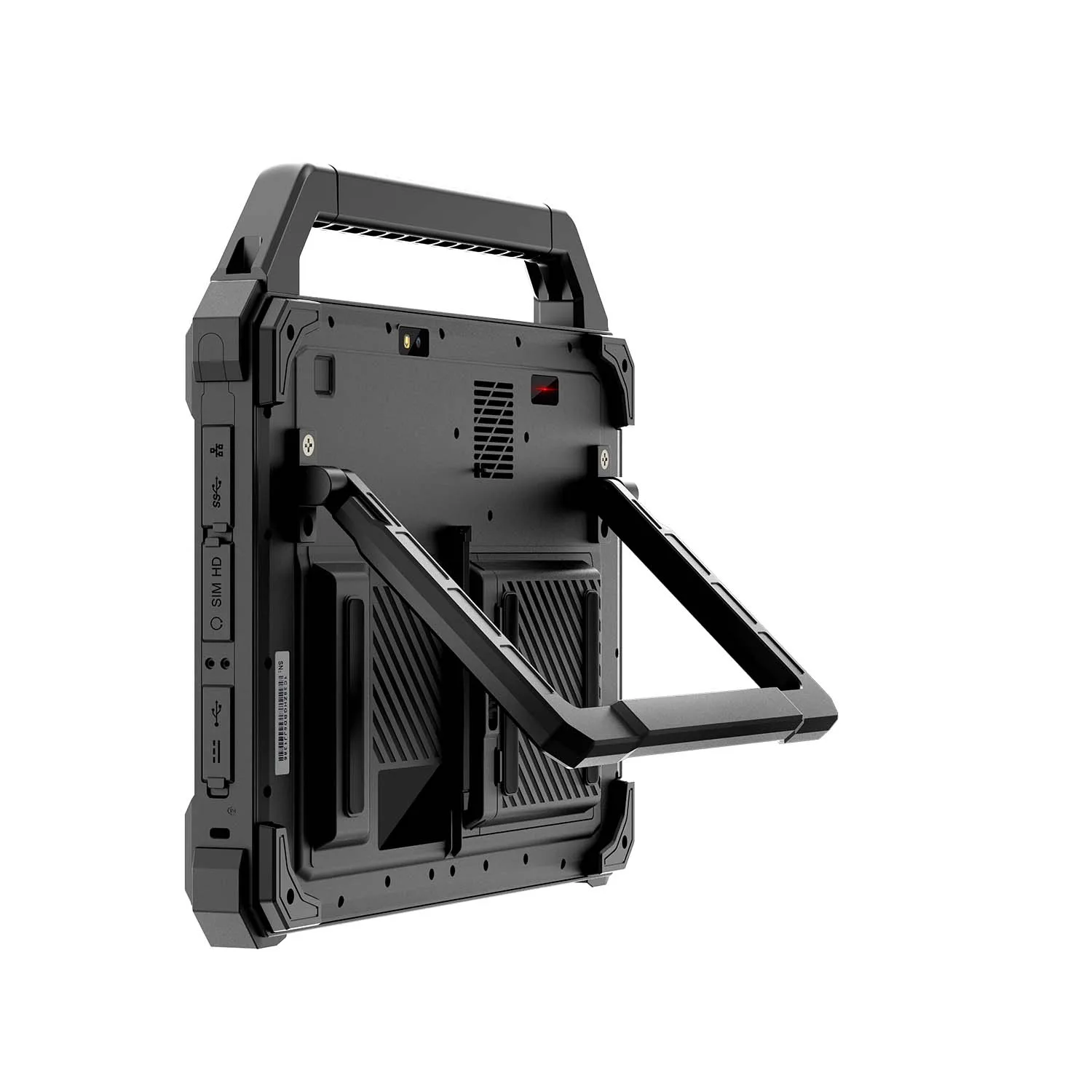

CENAVA W30NS N150 13.3 Inch Win11 IP65 Rugged Tablet

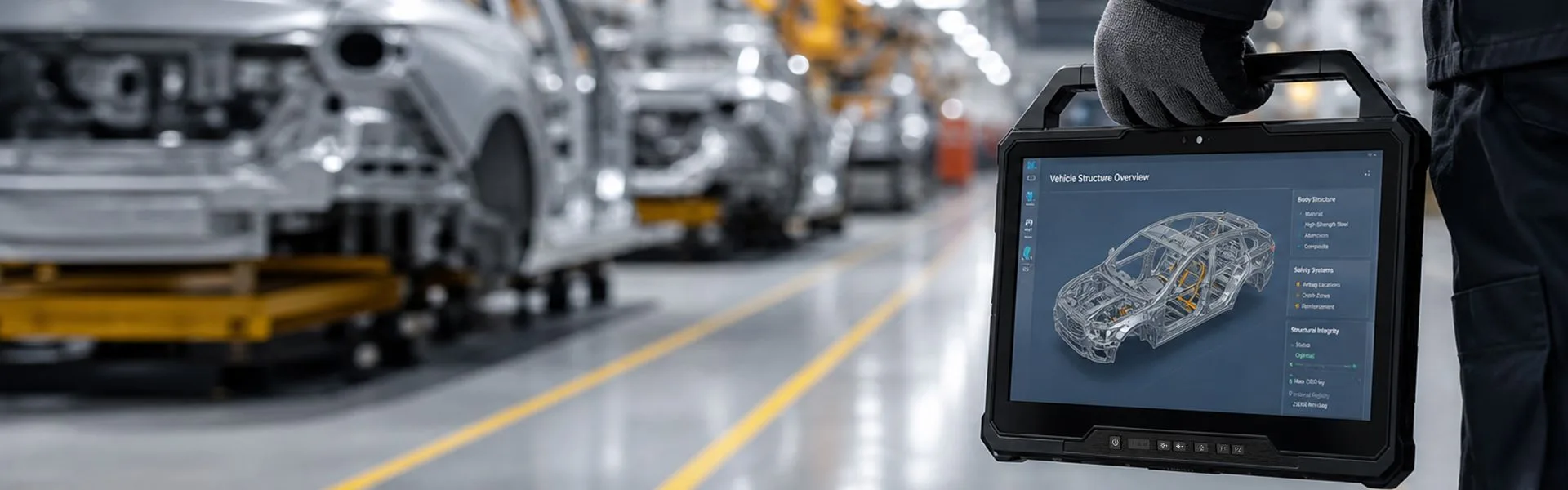

The CENAVA W30NS is a 13.3-inch Windows rugged tablet designed for industrial maintenance, equipment communication, production data entry, vehicle-mounted operation and large-screen field-service applications. It combines the Intel Processor N150 with Windows 11, up to 16GB memory, a removable M.2 2242 SSD and a removable 8300mAh battery. The large 1920×1080 display provides more working space than conventional 10-inch industrial tablets.
CPU: Intel Processor N150, 4 cores 4 threads, 6MB cache, up to 3.60GHz
OS: Windows 11 Pro (optional Windows 10)
RAM/ROM: 8GB+128GB / 16GB+256GB; M.2 SSD (2242) removable, up to 2TB
Display: 13.3" 1920×1080 (bulk customizable 4K 3840×2160), 400cd/㎡ (optional 1000cd/㎡), 10-point G+FF wet-hand & glove touch

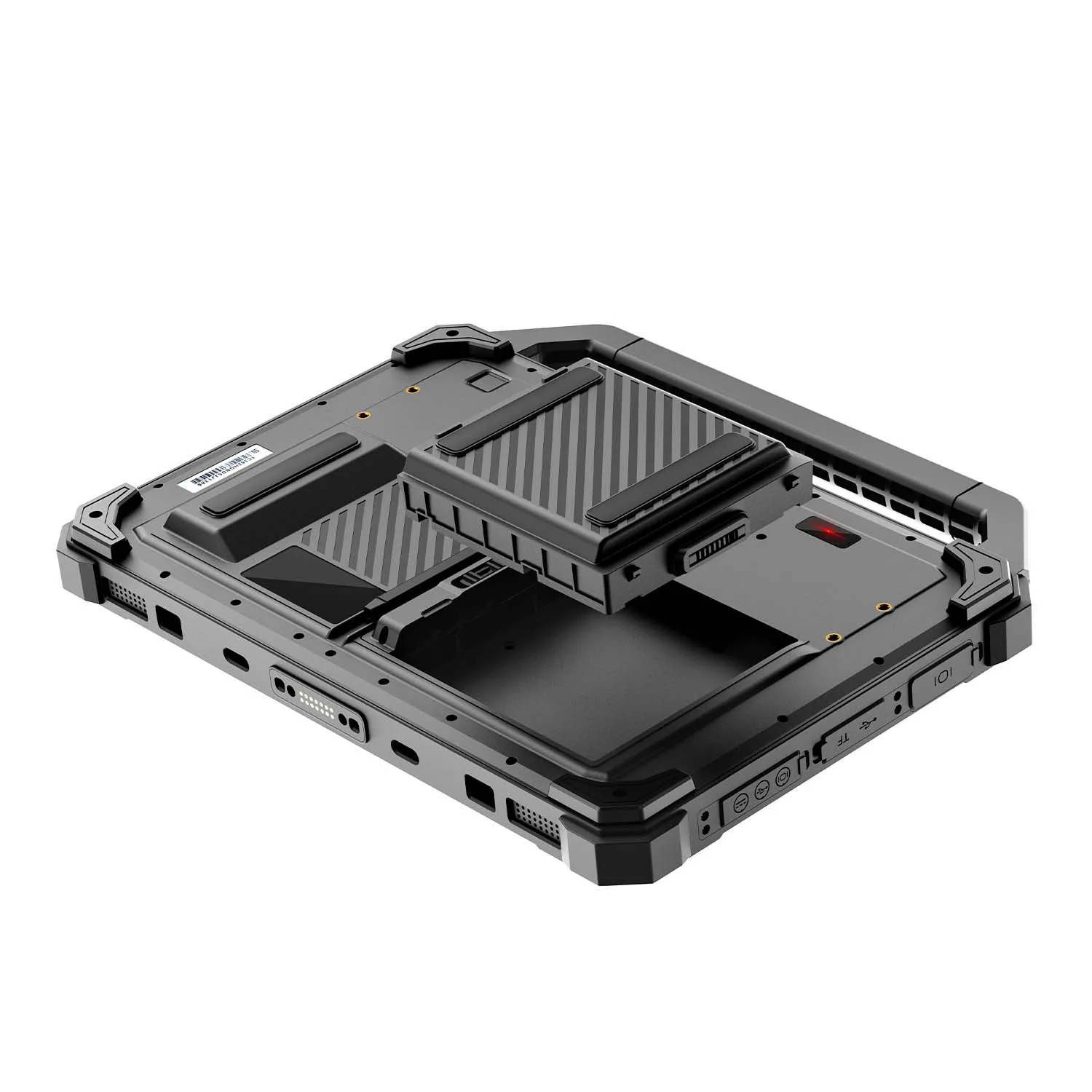

Battery: Dual smart batteries — removable 8300mAh main + 300mAh backup, 11.4V, ≥6h (1080p, 50% brightness), hot-swap
Integrated I/O: Gigabit RJ45, DB9 RS232 (optional 422/485), HDMI, Type-C USB3.0 (PD), USB-A 3.0 + USB-A 2.0×2, 3.5mm, TF (1TB), Nano-SIM, 14Pin POGO, 3 reserved aviation plugs
Network: WiFi 6, Bluetooth 5.2; optional 4G LTE / 5G (bulk); GPS (optional BeiDou/Galileo/GLONASS)
Protection: IP65, MIL-STD-810H 1.22m drop, -20°C~60°C, TPM security chip
Camera: Front 5MP fixed-focus, rear 8MP autofocus with flash
Optional Modules: 2D scanner (SE4107), NFC 13.56MHz, ID card reader, UHF RFID (2m/5m), industrial fingerprint (3 options); SPI login fingerprint standard
The CENAVA W30NS is a 13.3-inch Windows rugged tablet designed for industrial maintenance, equipment communication, production data entry, vehicle-mounted operation and large-screen field-service applications. It combines the Intel Processor N150 with Windows 11, up to 16GB memory, a removable M.2 2242 SSD and a removable 8300mAh battery. The large 1920×1080 display provides more working space than conventional 10-inch industrial tablets.
Technical Specifications
 CPU Intel Processor N150, 4C4T, up to 3.6GHz, 6MB cache |  System |  Storage 8GB+128GB / 16GB+256GB; removable M.2 2242 SSD up to 2TB |  Display 13.3 inches 1920*1080 |
 Optional NFC 13.56MHz, supporting ISO/IEC 14443A, 14443B and 15693 |  Physical Keys Power, Volume ±, custom keys |  Battery Removable 8300mAh main + 300mAh backup, hot-swap, 11.4V, ≥6h |  Wall hole pitch / screw 154x71.5mm/ M3*4.5mm |
 Navigation positioning GPS standard; BeiDou/Galileo/GLONASS optional |  2G/3G/4G Optional 4G LTE / 5G (bulk orders) |  Interface Gigabit RJ45, DB9 RS232 (422/485 optional), HDMI, Type-C USB3.0 (PD), USB-A 3.0 + 2×USB-A 2.0, 3.5mm, TF (1TB), Nano-SIM, 14Pin POGO, 3× aviation plugs |  Size/Weight 345*233*35.2mm/2100g |
 TPM Built-in TPM security chip |  Protection level working temperature: -20 °C to 60°C Storage temperature: -30 °C to 70 °C |  Camera Front: 5MP fixed-focus; Rear: 8MP AF with flash |  Light-sensitive Support |
| Product Type | Large-screen Windows industrial rugged tablet |
| Touch Screen | 10-point touch G+FF, hardness ≥ 7H, Supports touch with wet hands and touch whilst wearing medical rubber gloves |
| Gravity Sensor | Support |
| Bluetooth | Bluetooth 5.2 transmit distance:10m |
| Type -C | *1 Type-C USB3.0, supports PD charging |
| USB-A | *1 USB3.0 |
| USB-A | *2 USB2.0 |
| Earphone Jack | *1 3.5mm standard headphone jack |
| TF Card | *1 Maximum support 1TB expansion |
| SIM Card | *1 Nano-SIM card slot |
| HDMI | *1 HDMI |
| DC connector | *1 19V-3.42A (DC plug OD 5.5mm ID 2.1mm) |
| RJ45 network port | *1 100/1000M |
| DB9 connector | *1 RS232 serial port (optional 232/422/485 protocol) |
| POGO PIN connector | *1 14Pin USB+Charging |
| Expansion function | Reserve Air-Plug Interface: 1*Power Input Air-Plug Interface, 1*USB2.0 Air-Plug Interface, 1*COM Air-Plug Interface |
| Drop height | Meets the requirements of MIL-STD-810H for the 1.22-meter drop test |
| Certifications | IP65 (IEC 60529), CE, RoHS; drop-tested to MIL-STD-810H and GJB 150 methods (1.22 m); ISO 9001-certified factory |
| Power Adapter | 19V-3.42A, DC power adapter |
| Car charger(Optional) | 19V Car Charger - Input 9–36V, Output DC 19V 3A, 2.5×5.5mm DC connector |

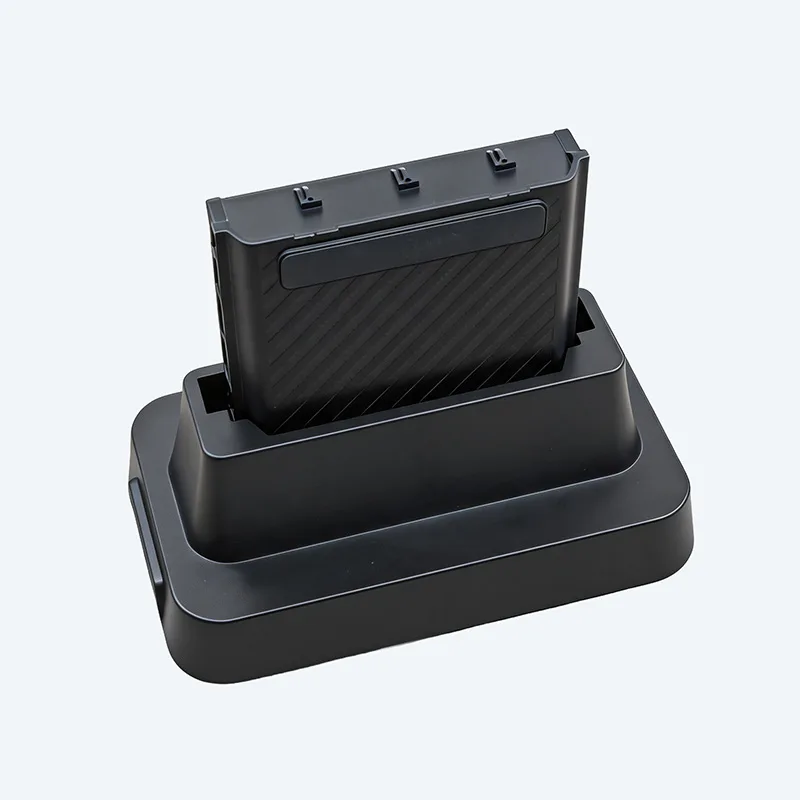

| Battery Charging Dock (optional) | 19V battery charging dock |
Frequently Asked Questions About W30NS IP65 Rugged Tablet
1. What is the W30NS designed for?
A large-screen Windows industrial tablet for equipment maintenance, production data entry, serial communication, network commissioning and vehicle/equipment-side operation.
2. What processor does it use?
Intel Processor N150 — 4 cores, 4 threads, up to 3.60GHz, 6MB cache.
3. How is it different from the W30U / W30U Pro?
The W30U uses a Core i5/i7 processor for more demanding workloads. The W30U Pro uses Core Ultra processors with higher memory support. The W30NS uses the lower-power N150 and focuses on cost-controlled field deployment.
4. What memory/storage configurations are available?
8GB+128GB or 16GB+256GB (removable M.2 2242 SSD, up to 2TB).
5. Can the SSD be replaced?
Yes, via the removable M.2 2242 slot — contact us to confirm the protocol/key type before ordering replacement drives.
6. Is the screen sunlight-readable?
The standard 400cd/㎡ panel is best for indoor/shaded use; for regular outdoor use, choose the optional 1000cd/㎡ high-brightness display.
7. Is the 8300mAh battery removable?
Yes, the main battery is user-removable.
8. Does it include a fingerprint reader?
A fingerprint reader is optional — three tiers are available, from an SPI login sensor to industrial certified modules.
9. Does it include RS232?
Yes, one DB9 port, with RS422/RS485 available as project options.
10. Does it have Gigabit Ethernet?
Yes, one 100/1000Mbps RJ45 port.
11. Can the Type-C port charge the tablet?
Yes, PD charging is supported — confirm approved charging profiles with us before using a third-party charger.
12. Does Type-C support video output?
No, external display output goes through the HDMI port.
13. How many USB-A ports does it have?
One USB 3.0 Type-A and two USB 2.0 Type-A ports.
14. Is Wi-Fi 6 standard?
Yes (2.4GHz + 5GHz). This is Wi-Fi 6, not 6E — 6GHz support isn't included.
15. Is 4G/5G standard?
No, cellular is optional and depends on your destination region/carrier.
16. Does the standard model support Galileo/GLONASS?
GPS is standard; multi-constellation support (Galileo, GLONASS) is available as an optional configuration.
17. Which barcode scanner is available?
The optional Zebra SE4107 engine, supporting a broad range of 1D/2D/postal/OCR formats.
18. Can a top-mounted scanner be combined with GPS and 5G?
Please contact us to confirm the supported module combination for your configuration — the top-mount scanner position may require choosing between GPS and 4G/5G depending on the build.
19. Is the W30NS IP65 or IP68?
IP65.
20. Is it MIL-STD-810H certified?
Rated to withstand a 1.22m drop per MIL-STD-810H/GJB 150 methods.
21. Is it suitable for continuous one-handed use?
At around 2.1kg, it's better suited to two-handed use, a stand, vehicle mount, or equipment-side workstation setup.
22. Is it explosion-proof?
No — hazardous-location use requires a separately certified model; contact us for ATEX/IECEx options.
23.What optional accessories are available?
A car charger (9–36V input, 19V/3A output) and a battery charging dock.
