MIL-STD-810H vs IP68 Standard: What Rugged Device Buyers Should Know

Quick Comparison Table

When sourcing rugged industrial tablets, handheld terminals and field-grade hardware, you will regularly encounter two well-known specifications: IP68 and MIL-STD-810H.

Many buyers treat them as equivalent protection ratings. In reality, they assess different aspects of device durability. IP68 focuses on protection against dust and water ingress, while MIL-STD-810H covers a broader range of mechanical and environmental stresses.

What Is the IP68 Standard?

IP68 follows the IEC international ingress‑protection standard.

● First digit 6: Highest dust‑proof level; no dust can enter the enclosure.

● Second digit 8: Protection against continuous static fresh‑water immersion. The common test condition is 1.5‑meter depth for 30 minutes.

Strength：Excellent sealing against dust and still water.

Limitations：IP68 does not cover drop, vibration, temperature swing or humidity resistance. An IP68‑certified device can still fail after a fall or sustained in‑vehicle vibration.

Practical note: IP68 validates static immersion performance. It does not guarantee reliability under vibrating splash, high‑pressure jets or rapid hot‑cold alternation.

What Is MIL‑STD‑810H Military Standard?

MIL‑STD‑810H is a US Department of Defense environmental‑engineering test specification. It is not merely a waterproof or dustproof certificate. It is a suite of simulation tests replicating harsh field conditions.

Key test items include:

● Drop & shock: Multi-angle repeated drops, commonly around 1.2–1.5 m onto hard surfaces, depending on the applicable test method

● Vibration: Long‑term vibration simulation for transport and vehicle‑mounted use

● Temperature cycle: Alternating extreme high‑low temperature to verify stable operation

● Humidity & altitude: High‑humidity operation, low‑pressure high‑altitude simulation

● Rain & splash: Blowing heavy‑rain simulation, different from static‑water immersion in IP68

Strength：Reproduces real‑world mechanical and environmental hazards.

Limitations: MIL-STD-810H does not define a universal dust-tight enclosure rating. Dust performance depends on the specific test methods and procedures selected. It does not replace an IP rating when specific ingress protection is required.

Why Industrial & Explosion-Proof Scenarios Often Require Both Standards

IP68 and MIL-STD-810H address different risks.

● Only IP68: The unit may resist dust and water ingress, but IP68 alone does not demonstrate resistance to drops, vibration or temperature changes.

● Only MIL-STD-810H: The device may withstand selected environmental stresses, but this does not automatically mean it has IP68-level dust protection or a specified water-immersion rating.

Mining sites, open-air construction, field surveys and outdoor industrial environments can expose devices to dust, splashing water, accidental drops, continuous vibration and temperature changes at the same time.

For these demanding locations, rugged hardware may benefit from both an appropriate IP rating and relevant MIL-STD-810H testing.

For explosion-risk environments, however, these two standards do not replace explosion-proof requirements. Separate explosion-protection certifications must be verified for the intended hazardous area.

Practical Buying Guidance for Rugged Hardware

● Clarify the difference: IP68 = dust and water ingress protection; MIL-STD-810H = selected environmental and mechanical durability testing. They complement rather than substitute each other.

● Check actual test scope: For  MIL-STD-810H , confirm which test methods and procedures have been performed. Do not rely solely on marketing labels.

● Match to your working conditions: Prioritize the IP rating if dust and water are the main risks. Give more weight to relevant MIL-STD-810H testing when drops, vibration and temperature fluctuations are frequent.

Real-world Reference

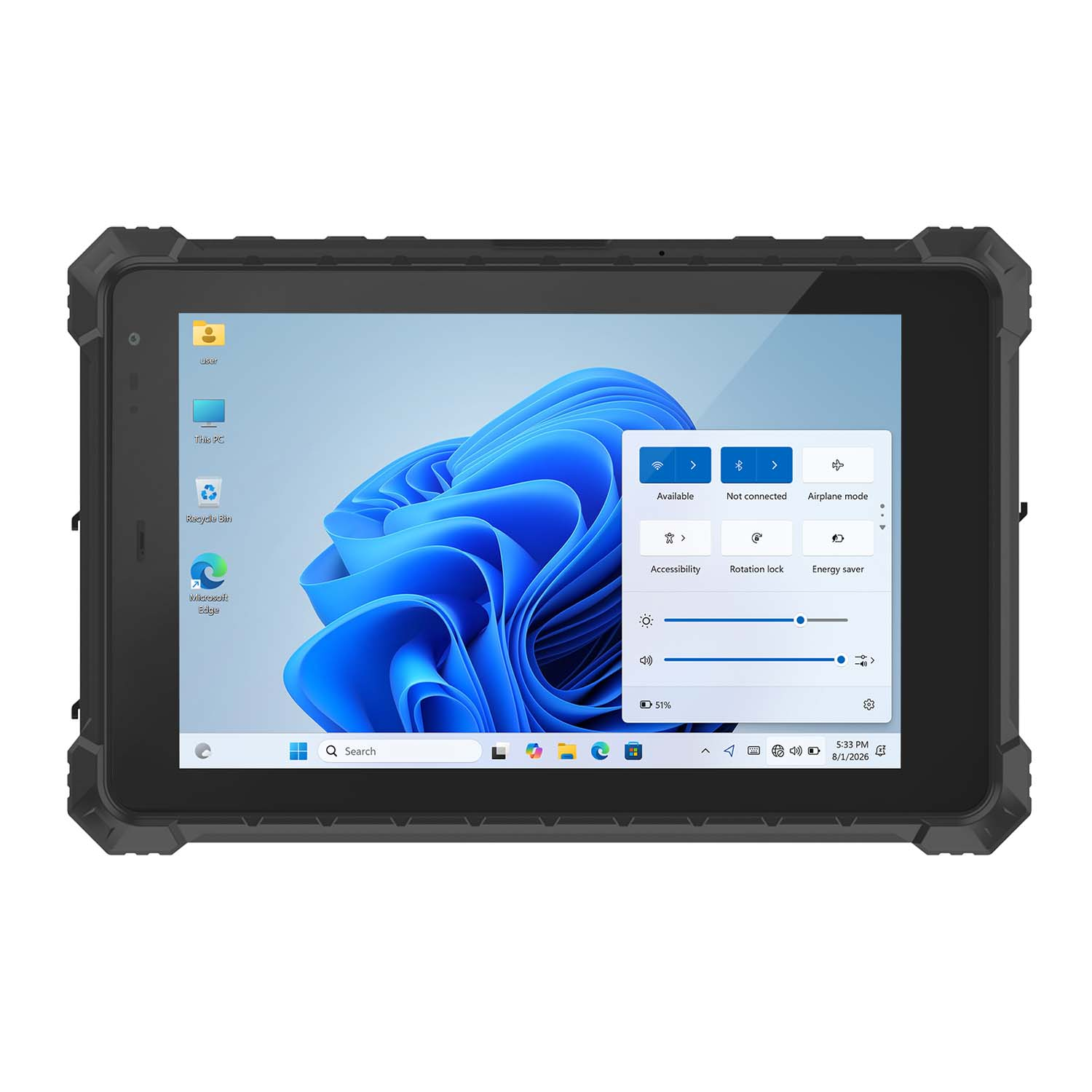

As a rugged-terminal manufacturer, CENAVA offers industrial tablets and industrial handheld terminals with IP65–IP68 protection ratings for demanding industrial and field applications. Selected models, such as the W10Y Windows rugged tablet, A10R Android rugged tablet, A18ST rugged tablet and A80ST rugged tablet, are tested to MIL-STD-810H, including 1.22 m drop testing, depending on product specifications.

These rugged devices can be configured with multiple functional modules, including barcode scanning, GNSS positioning and wide-temperature hardware, to meet different project requirements.

Conclusion

IP68 and MIL‑STD‑810H measure device reliability from different dimensions. For industrial and field‑use scenarios, the optimal solution is to select hardware certified to both standards, balancing sealing performance and overall mechanical robustness.

If you require rugged terminals for industrial or hazardous environments with IP68 rating and relevant MIL‑STD‑810H test compliance, please contact us with details of your operating environment and application requirements to receive tailored product solutions and quotations.
