Rugged Android Tablet with GPS: Reliable Outdoor Navigation & Industrial Solutions from CENAVA

A rugged Android tablet with GPS is an IP67/IP68-rated, MIL-STD-810H-tested mobile device that runs Android and includes built-in multi-satellite positioning (GPS, BeiDou, GLONASS, Galileo) for reliable navigation and field data collection in harsh outdoor and industrial environments. CENAVA manufactures several models — including the A10ST and A109T — purpose-built for logistics, construction, field service, and emergency response teams.

A delivery driver in Chengdu missed his 2 PM drop-off because his consumer tablet lost GPS lock in the urban canyon between two high-rises. The customer cancelled the order. The driver had to backtrack 8 kilometers to re-establish signal and re-scan the package. A rugged Android tablet with multi-GNSS — GPS plus BeiDou plus GLONASS plus Galileo — would have held lock on three satellites even when GPS alone dropped out.

Unlike consumer-grade tablets, rugged tablets are designed to withstand drops, dust, water, and extreme temperatures. Here is how CENAVA's A10ST and A109T handle the positioning and durability problem differently — and where each fits.

A rugged Android GPS tablet is a consumer slate that has been rebuilt: sealed housing, shock-mounted internals, multi-satellite receiver, and a battery large enough to outlast a shift. The difference is not the OS — it is whether the device still works after a drop, a downpour, or a −20°C cold start.

Key Features of Rugged Android Tablets with GPS

Durability & Ruggedness – Reinforced materials resist dust, water, shocks, and vibration, typically certified to IP68 and MIL-STD-810H.

Accurate GPS Navigation – Multi-satellite support (GPS, GLONASS, BeiDou, Galileo) delivers reliable accuracy in both urban canyons and remote terrain; RTK modules push accuracy down to the centimeter level for surveying-grade work.

Long Battery Life – Large-capacity batteries (up to 20,000mAh on the A109T) support 16–18 hours of continuous use without a mid-shift recharge.

Advanced Connectivity – 4G LTE, dual-band Wi-Fi 5, and Bluetooth 5.2 keep data synced in real time.

Outdoor-Readable Display – High-brightness screens (700–1000cd/㎡) with glove-touch and wet-hand support stay usable in direct sunlight and rain.

Extended Accessories – Portable stands, hand straps, vehicle mounts, wall-mount brackets, and charging docks add flexibility in the field.

---

CENAVA Rugged Android GPS Tablet Models

CENAVA currently ships two core Android-based rugged tablets with built-in GNSS positioning, plus a Windows-based rugged tablet for teams that need full desktop software compatibility alongside GPS.

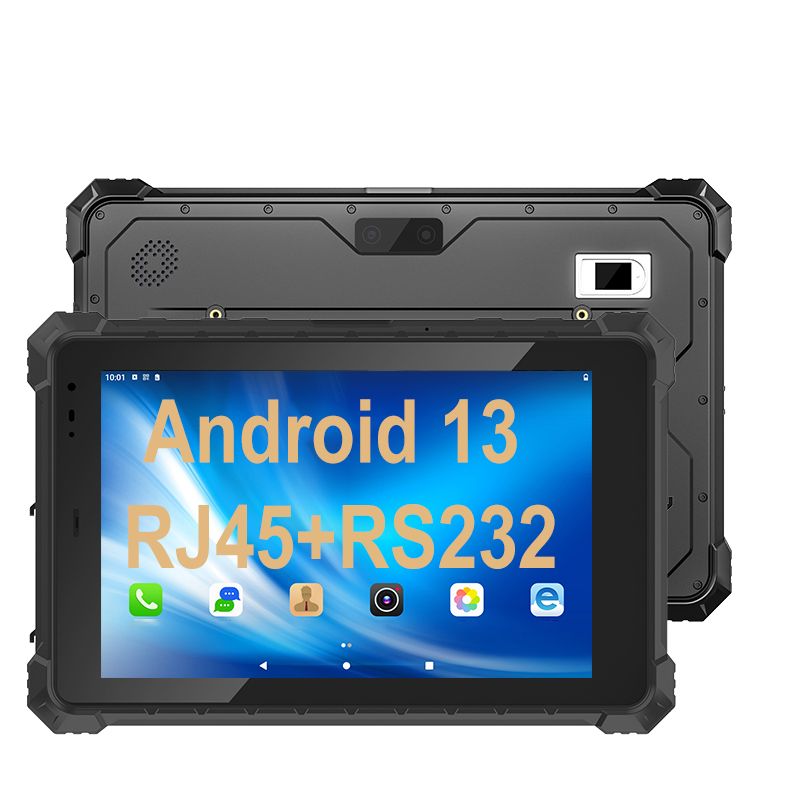

A10ST – 10.1" Android 13 IP68 Rugged Tablet

The A10ST is CENAVA's most configurable rugged tablet, built for teams that need optional biometric and RFID modules alongside GPS.

OS: Android 13

CPU: MediaTek MT8781 octa-core (2× Cortex-A76 @2.2GHz + 6× Cortex-A55 @2.0GHz)

RAM/ROM: 8GB+128GB (12GB+256GB optional)

Display: 10.1" IPS, 1920×1200, 700cd/㎡ (1000cd/㎡ optional), 10-point glove/wet-hand touch

Battery: 3.8V / 10,000mAh (38Wh), sealed. In mixed use — GPS logging, 4G sync, 50% brightness, occasional barcode scan — this runs 8–10 hours. The 20,000mAh custom build doubles that but adds ~180g. Both are sealed; neither is field-swappable. Plan for dock charging between shifts.

Positioning: GPS, BeiDou, Galileo, GLONASS — optional RTK module (standalone RMS accuracy ~1.5m horizontal; RTK mode down to 1cm + 1ppm horizontal)

Connectivity: 4G LTE (broad multi-band), Wi-Fi 5 dual-band, Bluetooth 5.2 BLE

Protection: IP68, MIL-STD-810H (1.22m drop), -20°C to 60°C operating

Ports: USB Type-A, Type-C, HDMI, POGO Pin, RJ45, RS232

Optional modules: NFC, 1D/2D barcode scanning (standard N1 or high-end N670 with OCR), UHF RFID (3m/5m/15m range), LF (125kHz), fingerprint (industrial, Ministry of Public Security-certified, or FBI-certified tiers), ID/passport card reader

Weight: ~1130g bare unit

A109T – 10.95" Android 14 Ultra-Thin Rugged Tablet

The A109T is CENAVA's newest, lightest rugged tablet — built for teams that prioritize all-day battery life and the latest Android build.

OS: Android 14

CPU: MediaTek MT6789V octa-core (verify: this may be MT8781 or MT6833 in production SKUs; confirm exact SoC with sales for your region)

RAM/ROM: 8GB+128GB

Display: 10.95", 700cd/㎡ (1000cd/㎡ optional)

Battery: 3.8V / 20,000mAh (76Wh), sealed. At 1080p video playback, 50% brightness, this runs 16–18 hours. In real field use — GPS tracking + 4G upload + screen-on for data entry — expect 12–14 hours. Still enough for a 10-hour shift with margin.

Positioning: GPS, BeiDou, Galileo, GLONASS

Connectivity: 4G LTE (GSM/WCDMA/LTE-FDD/LTE-TDD multi-band), NFC, 1D/2D scan support

Protection: IP68, -20°C to 60°C operating

Ports: Type-C, POGO Pin

Weight: 1080g (263.9×175.5×13.9mm) — the thinnest tablet in CENAVA's rugged lineup

---

Comparison Table: A10ST vs A109T vs W109U

Full technical specification sheets are available on each product page; contact CENAVA sales for configuration-specific quotes.

---

Applications of Rugged Android Tablets with GPS

A 10-hour delivery route with 40 stops. The driver needs GPS navigation, proof-of-delivery photo upload, and signature capture at each stop. The A109T's 20,000mAh battery survives the route without a midday charge. The 1,080g weight is manageable in a shoulder strap for the 15 minutes per stop the driver is out of the van. The IP68 seal means a rain shower does not end the shift.

A surveyor setting out a foundation line needs centimeter accuracy. The A10ST's optional RTK module — 1cm + 1ppm horizontal in RTK mode — replaces a dedicated GNSS rover for layout work under $5,000 total hardware cost. The RJ45 port connects directly to a total station for data transfer without a USB adapter. The MIL-STD-810H rating means the tablet survives the inevitable drop from the tripod.

At a checkpoint, an officer needs to scan an ID card, check a fingerprint against a database, and log the vehicle plate. The A10ST's optional ID card reader + FBI-certified fingerprint sensor + 1D/2D barcode module handle all three in one device. The −20°C cold-start rating matters at 6 AM in winter.

The recurring theme in deployment feedback: battery life and the −20 °C cold-start are what end the mid-shift downtime teams had accepted as normal.

CENAVA manufactures rugged tablets in Shenzhen with in-house control over hardware and software. The practical advantage: when you need a custom OS image preloaded, or a driver patch for your MES client, the engineering team that built the board can build the image. The practical limitation: service coverage is factory-direct, not through a global depot network. If you need next-day replacement in 40 countries, look at Getac or Panasonic. If you need a specific configuration at a specific price with direct engineering access, CENAVA fits.

Frequently Asked Questions

Do these tablets support 5G?

The standard A10ST and A109T ship with 4G LTE. For 5G on Android, CENAVA offers the A10ST-5G (MediaTek MT6877, Sub-6GHz) in the same 10.1-inch chassis. Confirm band compatibility with your carrier before ordering — 5G private networks and public bands differ by region.

What accessories are available?

Vehicle mount, charging dock, hand strap, shoulder strap, waterproof case, and a folding stand that doubles as a carrying handle. The stand is included; vehicle mounts and docks are ordered separately. If you need a RAM mount for an open-cab excavator, specify the cab model — not all drill patterns match.

Why does the A10ST weigh 50g more than the A109T despite having a smaller battery?

The A10ST's modular frame accommodates the RFID/barcode/fingerprint expansion bay and the additional ports (RJ45, RS232, USB-A). The A109T is a sealed monoblock with fewer ports and no expansion bay. The 50g difference is the cost of modularity.

---

Conclusion

• If your job changes daily — today barcode scanning, tomorrow fingerprint enrollment, next week RTK surveying — the A10ST's modular bay justifies the extra 50g and the shorter battery life.

• If your job is the same every day — 40 delivery stops, GPS tracking, photo upload, signature — the A109T's 20,000mAh battery and lighter weight are the better fit.

• If your software only runs on Windows, the W109U is the only option in this lineup.

Request a sample unit with your specific module configuration. Test it in your actual environment — not a demo room — for three days. If the GPS drops lock where you work, or the battery dies before your shift ends, send it back. A rugged tablet is only rugged if it survives your specific abuse.
