Rugged Tablet for Tower Crane Dispatching: A Reliable Backbone for Construction Sites

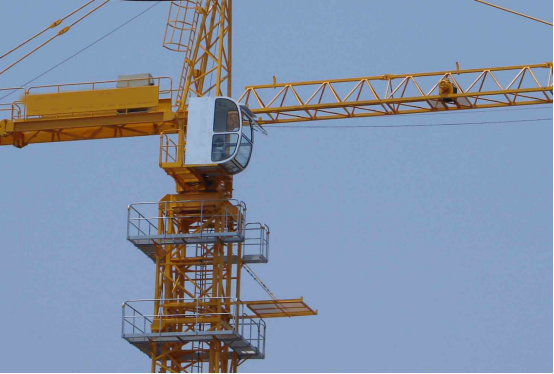

Tower cranes are the "throat equipment" of a construction site — when the dispatching tablet fails from heat, dust, vibration, or electromagnetic interference, lifting positioning, real-time data upload, and dispatch communication all break down with it. The CENAVA A10ST-5G is built specifically to remove that failure point, combining IP68/MIL-STD-810H durability, full-band 5G connectivity, and identity/asset-tracking modules purpose-built for crane dispatch workflows.

---

Why Conventional Devices Fail on Construction Sites

Tower crane environments combine extreme temperatures, dust, vibration, and strong electromagnetic interference — conditions that consumer-grade and basic industrial tablets aren't built to survive. When these devices fail, the consequences cascade: disrupted precision lifting positioning, delayed real-time data uploads, and broken dispatch communication, which in turn raise maintenance costs, slow digital transformation, and ultimately hit project timelines and cost.

Failure Point in Ordinary Devices	A10ST-5G's Approach
Limited dust/water sealing lets fine dust and splashes cause failures	It is IP68-rated and tested to MIL-STD-810H — the test report is available on request
Narrow temperature tolerance fails in summer heat or winter cold	-20°C to 60°C standard range (customizable to -30°C to 60°C)
Touchscreens unusable with work gloves	Glove-touch support for jobsite conditions
Weak signal in crane cabins or underground levels disrupts dispatch commands	Full-band 5G (Sub-6GHz) with signal algorithms optimized for reinforced-concrete, high-EMI environments
No identity/asset verification, enabling unauthorized operation or asset loss	Optional ID card, fingerprint, and LF/UHF RFID modules

---

Built to Withstand the Jobsite

Durability: MIL-STD-810H compliant for shock, vibration, and drop resistance; IP68-rated to seal out dust, rain, and water ingress.

Temperature range: -20°C to 60°C standard, customizable to -30°C to 60°C, for stable year-round operation without downtime.

Usability: Glove-touch support so operators don't lose dexterity or expose hands to the cold to use the device.

---

Intelligent Dispatching and Connectivity

Processor: MediaTek MT6877 (Dimensity 900-class) — octa-core, 2× Cortex-A78 @ 2.4 GHz + 6× Cortex-A55 @ 2.0 GHz, Mali-G68 MC4 GPU, 1.8 TFLOPS NPU — enough headroom to run load, slewing angle, lifting height and multi-crane coordination data in parallel without dropping the dispatch UI.

Dispatch efficiency: By generating conflict-free dispatch plans and reducing crane idle time and scheduling competition, this architecture is designed to improve single-crane operating efficiency by over 30% — a design target based on the device's processing capability rather than a specific published case study; ask CENAVA for project-specific benchmarks.

Connectivity: Full-band 5G (Sub-6GHz) with signal reception tuned for reinforced-concrete structures and high electromagnetic interference, maintaining low-latency data transmission even in weak-signal crane cabins or underground levels.

Communication: Optional integrated PTT (push-to-talk) module for direct voice communication between crane operators and dispatch, removing the need for a separate walkie-talkie.

The real value of 5G here isn't peak speed — it's maintaining a reliable low-latency link in the specific weak-signal conditions (crane cabins, underground levels, rebar-dense structures) where dispatch commands most often get delayed or dropped.

---

Modular Expansion for Full-Site Management

Identity verification: Optional ID card recognition and fingerprint authentication modules require operators to verify identity and certification before operating a crane, reducing the risk of unauthorized operation.

Asset tracking: Optional LF/UHF RFID modules enable real-time tracking of crane components (hooks, wire ropes) and materials (rebar, cement), reducing loss, misuse, or misallocation.

System integration: Personnel verification, asset tracking, and dispatch data sync over 5G to the project management platform, giving managers a combined view of crane status, operator authorization, and asset usage.

---

A Note on Model Naming

This article and its linked product page reference the A10ST-5G configuration, which adds 5G connectivity and a higher-performance processor/NPU on top of the standard A10ST rugged tablet line. If you're comparing this article's specs (octa-core with dedicated NPU, full-band 5G) against a different A10ST listing, confirm with CENAVA directly which exact configuration and part number matches — CENAVA offers multiple A10ST hardware variants, and specs can differ by configuration.





Frequently Asked Questions

What certifications does the A10ST-5G rugged tablet hold?
It is IP68-rated and MIL-STD-810H certified for shock, vibration, and drop resistance,the test report is available on request.

What temperature range can the A10ST-5G operate in?
Its standard range is -20°C to 60°C, customizable to -30°C to 60°C for extreme climates.

Does the A10ST-5G work in weak-signal areas like crane cabins?
Yes — it supports full-band 5G (Sub-6GHz) with signal reception optimized for reinforced-concrete structures and high electromagnetic interference common on construction sites.

Can the tablet prevent unauthorized crane operation?
Yes — with optional ID card recognition and fingerprint authentication modules, operators must verify identity and certification before the crane can be operated.

Can the tablet track crane components and construction materials?
Yes — optional LF/UHF RFID modules enable real-time tracking of components like hooks and wire ropes, and materials like rebar and cement.

Does the tablet replace a walkie-talkie for crane operators?
It can — an optional integrated PTT (push-to-talk) module enables direct voice communication with dispatch and other operators without a separate radio.

---

Partnering with CENAVA

CENAVA's A10ST-5G rugged tablet combines industrial-grade protection, high-performance computing, and 5G connectivity to support safer operations and smarter dispatch on modern construction sites.
