OBD Diagnostics with a Rugged Tablet CAN Bus Module

A rugged tablet with a CAN Bus module reads a vehicle's OBD (On-Board Diagnostics) data — fault codes, sensor readings, and system status — directly through the car's diagnostic interface, giving technicians accurate, real-time fault data without manual disassembly or guesswork. CENAVA's W10Y adds an optional CAN Bus module to its IP68-rated Windows tablet, letting auto repair shops run OBD diagnostics on a single device built to survive oil, dust, and vibration.

---

What Is OBD Testing?

OBD (On-Board Diagnostics) testing reads and analyzes fault codes (DTCs), sensor data, and system status through a vehicle's OBD interface to monitor the engine, emission control system, and other key components. The OBD system automatically detects abnormal conditions — engine faults, fuel system problems, oxygen sensor failures — and alerts the driver through the malfunction indicator light ("check engine light"), generating fault codes for technicians to diagnose and repair.

Why OBD Testing Matters

Early fault detection — catching problems before they become serious (and expensive) damage

Emissions compliance — many countries require OBD testing to verify vehicles meet environmental regulations

Faster, more accurate repairs — technicians locate problems from fault codes instead of unnecessary disassembly and trial-and-error

Performance data — fuel consumption and engine performance data help optimize vehicle operation and fuel economy

---

What Does a CAN Bus Module Add to OBD Diagnostics?

CAN Bus (Controller Area Network Bus) is the core communication interface connecting a vehicle's ECUs (electronic control units), letting them share data efficiently and reliably. In OBD detection specifically, a CAN Bus module:

Collects and transmits vehicle data quickly, improving diagnostic speed and accuracy

Reduces wiring complexity compared to older point-to-point diagnostic connections

Supports remote diagnosis, letting technicians monitor vehicle status and perform preventive maintenance

Has become standard in modern OBD systems due to its broad vehicle compatibility

---

CENAVA W10Y — Rugged Tablet with Optional CAN Bus Module

The W10Y is CENAVA's Windows-based rugged tablet, offered with an optional CAN Bus module purpose-built for OBD diagnostics in the auto repair environment.

One-Click OBD Detection

Accurate OBD data helps technicians pinpoint the current state of a vehicle and verify a repair actually resolved the fault — reducing unnecessary part replacement and guesswork. The W10Y adds OBD data collection through an optional CAN Bus module that supports the standard CAN communication protocol and can be further customized as a serial port or aviation-plug interface based on a shop's specific diagnostic equipment — covering both traditional fuel-vehicle fault diagnosis and battery management system (BMS) checks on EVs.

Built for the Auto Repair Environment

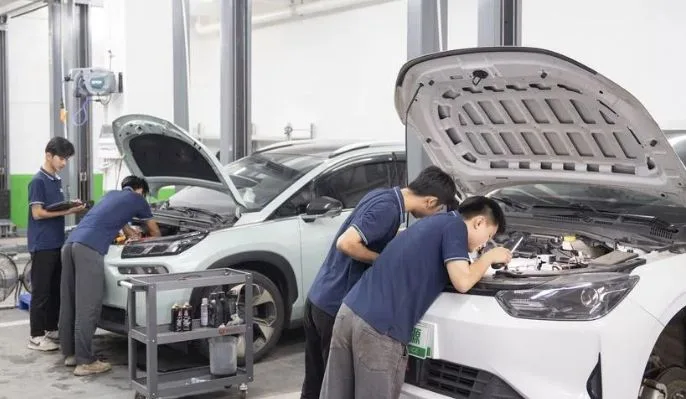

Auto repair shops are full of oil, dust, vibration, high temperatures, and electromagnetic interference — conditions that cause consumer electronics to fail through circuit corrosion, loosened connections, and internal damage. The W10Y's specifications are built for this environment:

CPU: Intel Core i5-10210Y (fanless, low-power, sealed-enclosure friendly)

RAM/ROM: 8GB+128GB / 16GB+256GB

Display: 10" IPS, 1920×1200, 700cd/㎡, wet-touch and glove-touch support

Battery: 3.8V high-voltage 10,000mAh lithium

Protection: IP68 — waterproof, dustproof, drop- and corrosion-resistant; -20°C to 60°C operating range

Certifications: 3C, CE, ROHS, FCC, and ISO management system certification

Positioning: GPS, BeiDou, Galileo, GLONASS

Camera: Front 5MP, rear 13MP with autofocus and flash — useful for photo-documenting vehicle damage or part conditions alongside a diagnostic record

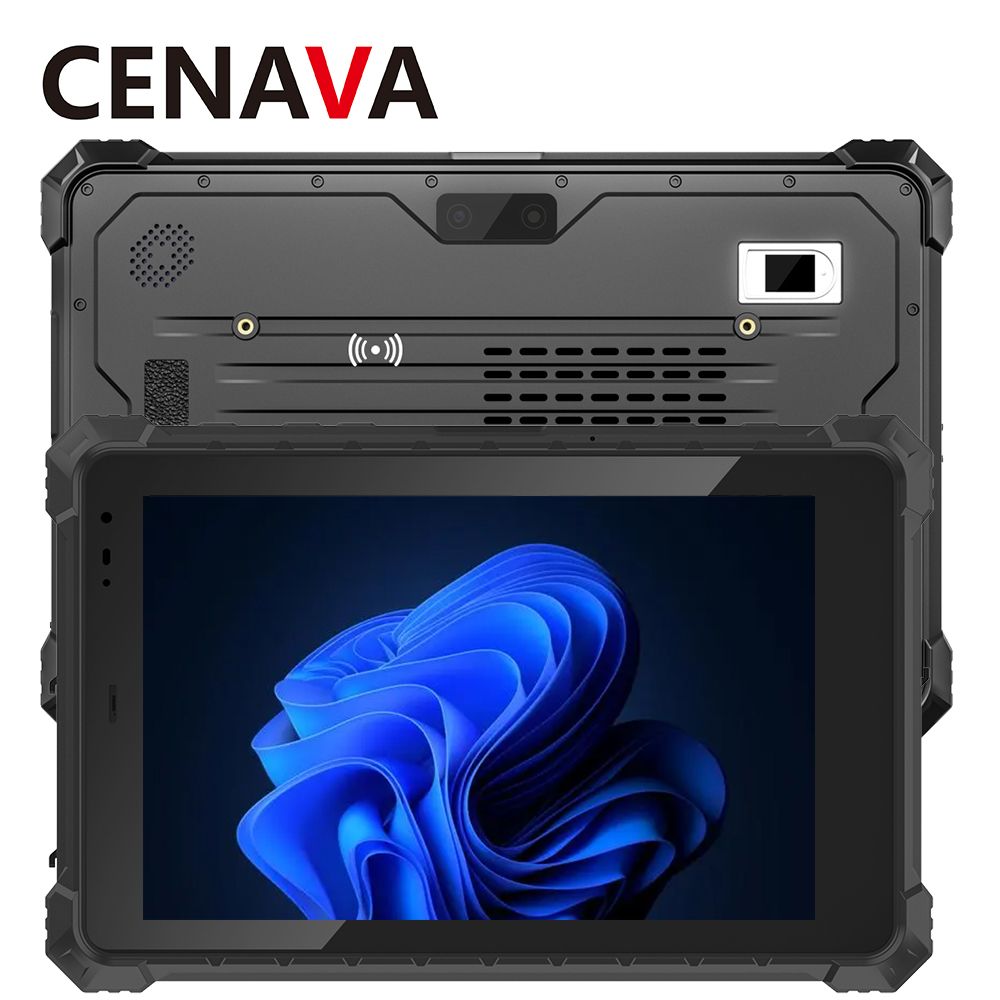

W10Y Rugged Tablet



---

W10Y vs W109U: Which Fits Your Shop?

Exact CAN Bus/serial/aviation-plug interface options are configured per project — confirm your vehicle diagnostic equipment's connector and protocol requirements with CENAVA's team before ordering.

---

Why Choose CENAVA for Automotive Diagnostic Tablets?

CENAVA is a professional rugged tablet manufacturer with 18 years of R&D experience and 700+ enterprise clients worldwide, building devices that survive the oil, dust, and vibration of the auto repair bay rather than requiring a separate rugged case bolted onto a consumer tablet. The W10Y's IP68 sealing, 3C/CE/ROHS/FCC/ISO certification, and configurable CAN Bus module bring OBD diagnostics, EV battery management checks, and general shop documentation onto a single durable device.





Frequently Asked Questions

1. What is OBD testing used for?
OBD testing reads fault codes, sensor data, and system status directly from a vehicle's diagnostic interface, letting technicians identify engine, emissions, and component faults quickly instead of relying on manual inspection alone.

2. Does the W10Y come with a CAN Bus module by default?
The CAN Bus module is an optional configuration on the W10Y rather than a standard fitting, and it can be further customized to a serial port or aviation-plug interface based on your specific diagnostic equipment — confirm this configuration when requesting a quote.

3. Can the W10Y diagnose electric vehicles as well as traditional fuel vehicles?
Yes — the W10Y's CAN Bus module supports both traditional fuel-vehicle fault diagnosis and battery management system (BMS) checks on EVs.

4. What certifications does the W10Y carry?
The W10Y holds 3C, CE, ROHS, FCC certification, and ISO management system certification, in addition to its IP68 water/dust/drop/corrosion protection rating.

5. How rugged is the W10Y in a typical auto repair bay?
The W10Y is IP68-rated and operates from -20°C to 60°C, built to resist the oil, dust, vibration, and temperature swings common in auto repair environments.

6. Should I choose the W10Y or the W109U for my shop?
Choose the W10Y for OBD diagnostics on standard shop software with all-day sealed-battery use; choose the W109U if your shop runs heavier diagnostic or fleet-management software that needs more CPU performance than the W10Y's fanless Y-series chip provides.

7. Can CENAVA customize the interface type for our existing diagnostic equipment?
Yes — CENAVA can configure the W10Y's CAN Bus module as a standard CAN protocol connection, a serial port, or an aviation-plug interface depending on your shop's existing diagnostic equipment; contact CENAVA sales with your connector and protocol requirements.

---

Conclusion

OBD diagnostics rely on accurate, real-time vehicle data — and a CAN Bus module is what makes that data collection fast and reliable. CENAVA's W10Y brings that capability into an IP68-rated, certified rugged tablet built specifically to survive the auto repair bay, with the flexibility to configure the exact interface (CAN, serial, or aviation-plug) your shop's equipment requires.
